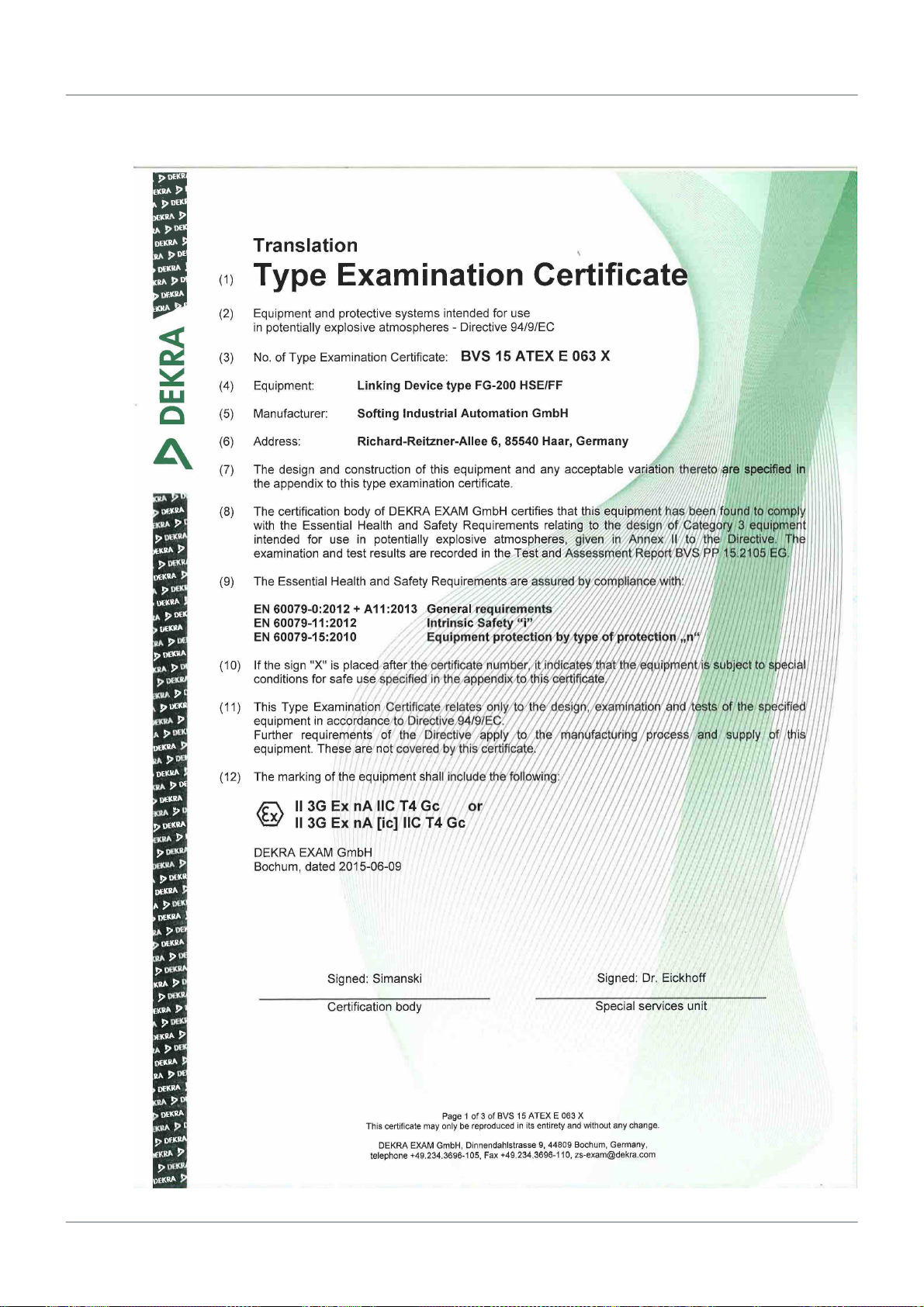

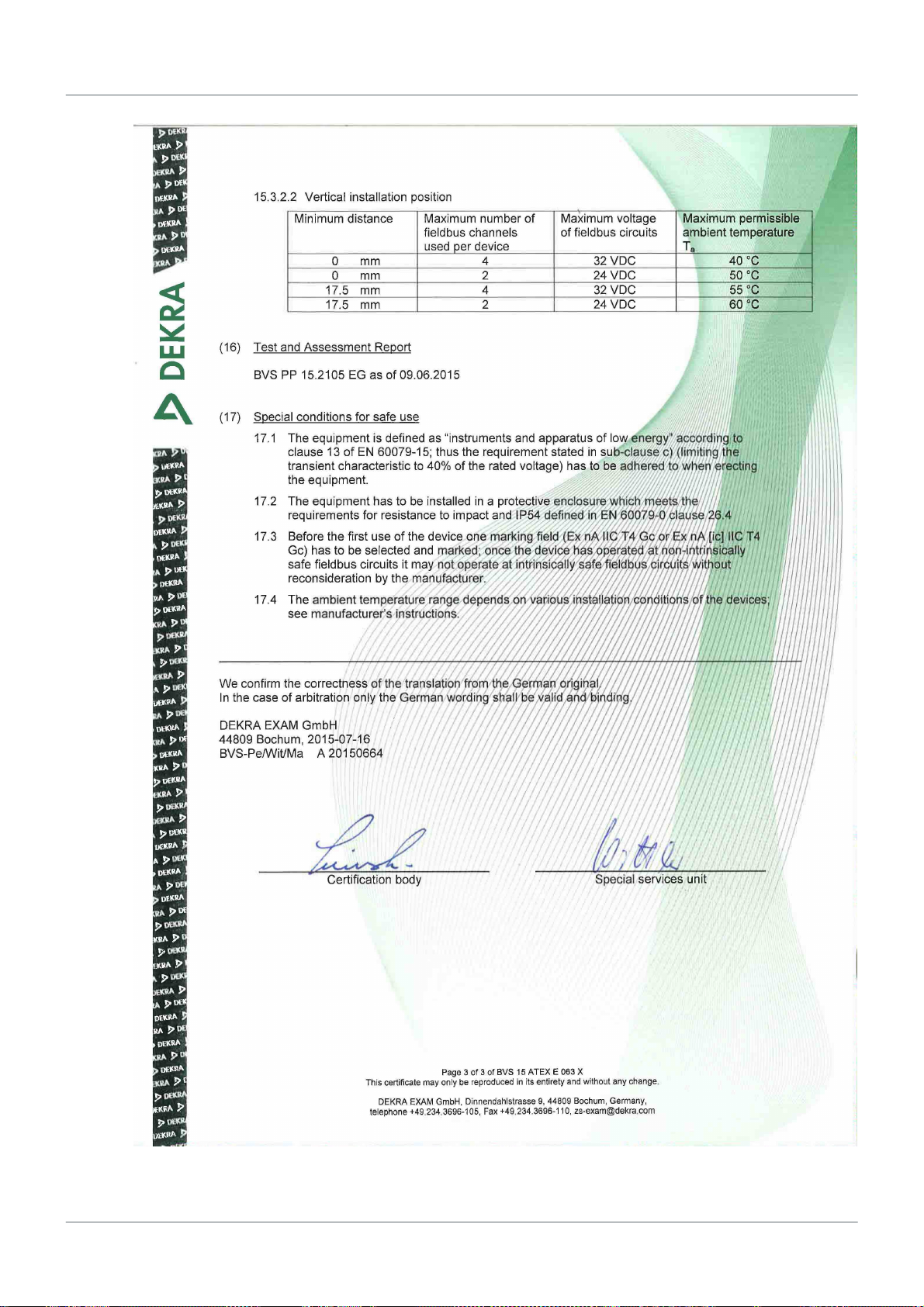

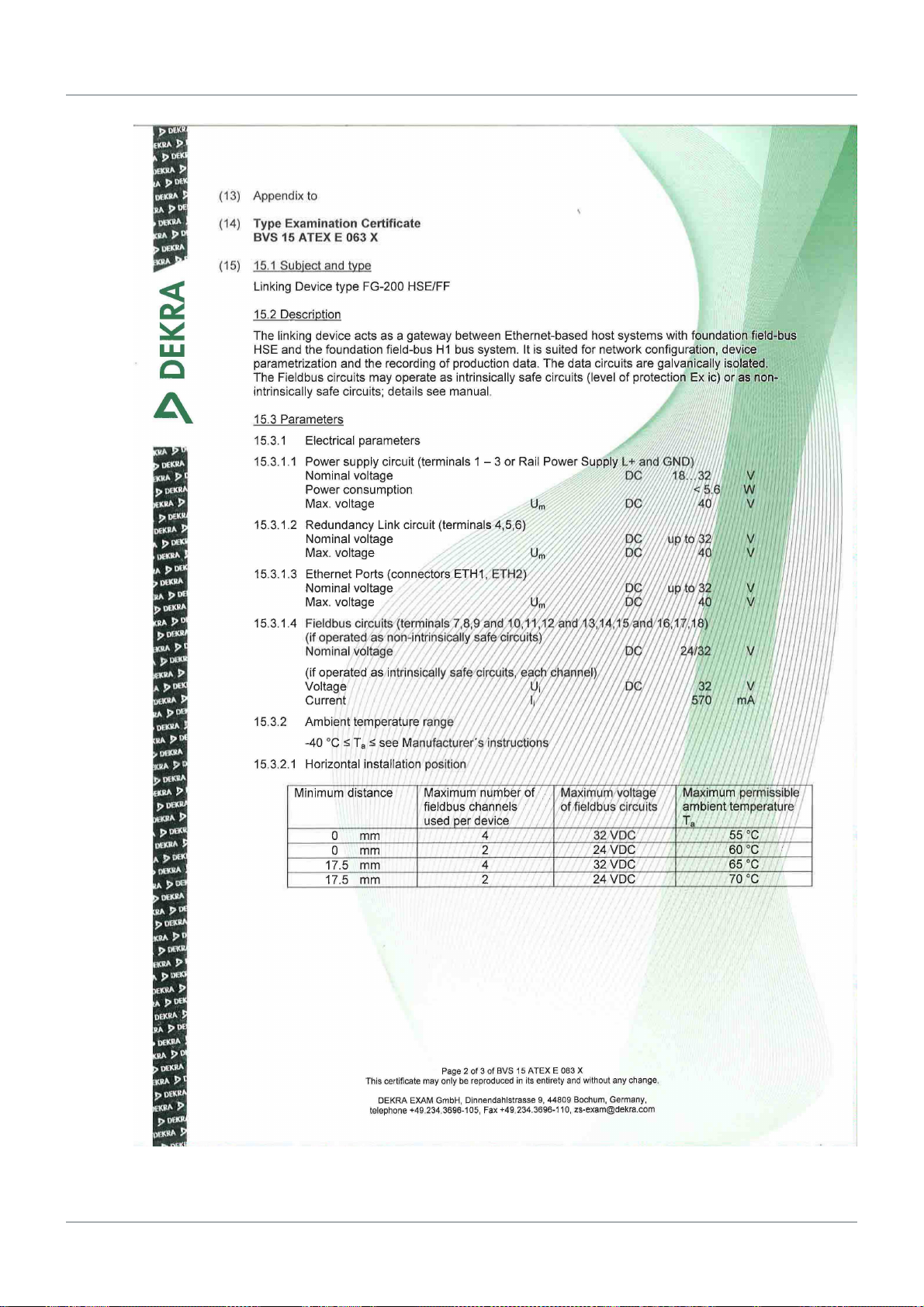

ATEX Type Examination Certificate

UL Certificate of Compliance

Declarations of conformity

...................................................................................... 67

...................................................................................... 70

...................................................................................... 71

This page is intentionally left blank.

Chapter 1 - Introduction

Note

The FG-200 is available in two variants. They have identical technical specifications. Their only differentiating characteristic is their mount direction that is mirrored, i.e. rotated by 180°.

CAUTION

During operation, the device's surface will be heated up. Avoid direct contact. When servicing, turn off the power supply and wait until surface has cooled down.

Note

Do not open the housing of the FG-200. It does not contain any parts that need to be maintained or repaired. In the event of a fault or defect, remove the device and return it to the vendor. Opening the device will void the warranty!

Introduction

1.1 About FG-200 HSE/FF Modbus

The FG-200 HSE/FF Modbus allows integrating FOUNDATION fieldbus (FF) technology into legacy plants and Modbus control systems. It includes a Windows-based FOUNDATION Fieldbus configuration tool and can be used for implementing state-of-the-art information services.

1.2 System requirements

When using the Softing Communication Configuration tool comConf

PC with operating system Windows 7 or Windows 8.1 (both 32 bit or 64 bit supported)

Supported browsers

Microsoft Internet Explorer version 8.0 or higher Mozilla Firefox version version 35 or higher

1.3 Scope of delivery

The FG-200 HSE/FF Modbus comprises the following parts:

FG-200 HSE/FF Modbus device CD-ROM including, drivers, firmware, tools and manuals Quick Startup Guide

1.4 Safety precautions

1.5 Intended use

Softing's FG-200 HSE/FF Modbus is used to integrate up to four FF H1 links into control systems supporting Modbus. The device can be used as a redundant link. It provides fast access to process data, while making use of FOUNDATION Fieldbus advantages such as reduced cabling, central field device parametrization, comprehensive diagnostics or intrinsically safe device segments. It is compatible with the R. STAHL busCarrier Series 9419 and Power Supply 9412 products for easy commissioning.

FG-200 HSE/FF Modbus - User Manual

Document version

Modifications compared to previous version

1.00 - initial version

none

1.01

Installation in hazardous locations :

Introduction restructured and subsections implemented. Preliminary information restrictions in hazardous locations

deleted. Certificate for cULus added .

New section with certificate copy of UL certificate UL

Certificate of Compliance .

1.02

New Corporate Identity implemented.

1.20

References to FF-CONF replaced with comConf. Instructions to Modbus mapping and related chapters removed.

Keys, buttons, menu items, commands and other elements involving user interaction are set in bold font and menu sequences are separated by an arrow

Open Start Control Panel Programs

Buttons from the user interface are enclosed in brackets and set to bold typeface

Press [Start] to start the application

Coding samples, file extracts and screen output is set in Courier font type

MaxDlsapAddressSupported=23

Filenames and directories are written in italic

Device description files are located in C:

\<Application name>\delivery\software \Device Description files

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Note

This symbol is used to call attention to notable information that should be followed during installation, use, or servicing of this device.

Hint

This symbol is used when providing you with helpful user hints.

1.6 Document history

1.7 Typographic conventions

The following conventions are used throughout Softing customer documentation:

Chapter 2 - Hardware installation

WARNING

Use only according to operating conditions from instructions!

Use the FG-200 in accordance with its designated use only! Otherwise, the manufacturer’s liability and warranty will expire. The device is only to be used according to the operating conditions described in these instructions.

WARNING

Do not connect or disconnect energized conductors!

Be aware that energized conductors are not to be connected or disconnected! This can lead to danger of life if potentially explosive atmosphere is present there at that time!

Hardware installation

2.1 Installation in hazardous locations

The FG-200 HSE/FF Modbus can be used in hazardous locations and is certified according to ATEX, IEC and North America Approval cULus.

2.1.1 General requirements

Following general requirements must be observed while installing FG-200 on hazardous locations:

The details of this document must be observed along with the conditions for use and the applicable details stated on the marking and type labels of each.

Any selection and operation of the device must be done as per the technical rules. Adequate precautions must be taken to prevent unintended actuation or impairment of the device. Connectors must not be connected or disconnected when area is known to be hazardous. This can be

life threatening in a potentially explosive atmosphere. Open or not securely closed sockets shall not be energized in the Ex-atmosphere!

Ensure the installed equipment comply with the types of protection applicable to the corresponding zones.

All connected electrical equipment must be suitable for the respective intended use. The operator must ensure protection against lightning in compliance with the locally applicable

regulations. Electrostatic aspects must be considered when mounting the bus-modules. Electrostatic charges have

to be prevented. In explosion group IIC and Zone 2 no protected plastic surfaces > 20 cm2 are allowed; in IIB or dust-Ex,

100 cm2 may be reached. The hazard of any objects falling onto the bus-module must be prevented.

FG-200 HSE/FF Modbus - User Manual

Pair 1

Pair 2

Pair 3

Fieldbus Voltage

Ui = 14 Volt DC

Ui = 17.5 Volt DC

Ui = 32 Volt DC

Fieldbus Current

li = 570 mA

li = 319 mA

li = 100 mA

CAUTION

Make sure that the sum of power supply voltage and fieldbus supply voltage does not exceed 60 VDC!

The FG-200 does not meet the requirements of impact protection and IP54 (according to IEC 60529). It must be installed in a protective enclosure which meets the requirements for resistance to impact and IP as stated in section 26.4 of IEC/EN 60079-0. This enclosure must be fully mounted and intact. If the enclosure is damaged, the operation is not permitted.

The FG-200 is defined as instruments and apparatus of low energy according to clause 23 of IEC/EN 60079-15; thus the requirement stated in sub-clause C, limiting the transient characteristic to 40% above the rated voltage, has to be adhered to when erecting the equipment.

When removing the packaging ensure that no dirt can enter the enclosure or the plugs. If any vibration during the operation may cause parts of the plugs to loosen, then the plugs have to be

provided with a light firm varnish used for securing screws. An extraction force of 0.5 Nm has to be achieved at an equivalent thread.

To circuits of Zone 2 only such equipment may be connected that is suitable for operation in this zone and has been certified accordingly.

Components may only be replaced by original spare parts which are also approved for the use in Exatmospheres. Spare parts are ordered as complete units giving the material number stated on the device (marking, type label).

Only such auxiliary components may be used in potentially explosive atmospheres which meet all requirements of European and national directives and legislation.

The environmental conditions specified in the manual have to be followed strictly. The FG-200 is not to be used in systems where cathodic systems for corrosion protection are in place.

Although special precautions may allow the use in such systems (additional earthing bridges), the manufacturer has to be consulted in each case.

The operator has to provide measures for protection against lightning. According to the local conditions and in compliance with the environmental rules, the operator is

responsible to visually inspect the system and to remove dust settlements in a regularly interval (every 6 months).

The company installing the device has to ensure that the transient characteristic is limited to 40% above the service voltage.

Additional precautions have to be taken, if the presence of hydrosulfide, ethylene oxide and/or carbon monoxide is to be expected: those substances are of a vary low ignition energy.

Icing is not permitted.

Pair of values for fieldbus voltage and current for Intrinsic Safety Fieldbus (ic):

Chapter 2 - Hardware installation

Explosion hazard

Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.

Observe relevant national regulations, standards and directives

This manual does not supersede the relevant national regulations, standards and directives. These must be observed and have to be applied according to the national conditions!

2.1.2 Hazardous Location - European and International Approval (ATEX, IECEx)

The equipment was assessed as based on the following standards and editions: a) IEC 60079-0:2011 Ed. 6, modified Cor. 2012 + Cor. 2013 / EN 60079-0:2012 + A11:2013 b) IEC 60079-11:2011 Ed. 6 + Corr. 2012 / EN 60079-11:2012 c) IEC 60079-15:2010 Ed. 4 / EN 60079-15:2010 If indicated on the device label or by technical documentation, the FG-200 is suitable for use in gas-Ex

atmospheres of Zone 2 in the explosion groups IIA, IIB and IIC in temperature class T4, if accommodated in a tested enclosure.

IECEx marking for explosion protection: Ex nA [ic] IIC T4 Gc.

ATEX marking for explosion protection: II 3G nA [ic] IIC T4 Gc. The Ex protection method [ic] corresponds only to the FF-H1 fieldbus interfaces. The FG-200 HSE/FF Modbus complies with the applicable standards and regulations and meets the

requirements of Directive 94/9/EC. The requirements for erecting the device as part of the system in potentially explosive atmospheres (e.g. IEC / EN 60079-14) must be strictly adhered.

Certificates

ATEX The EC type examination number for ATEX is:

BVS 15 ATEX E 063 X

A copy of the certificate is available in section ATEX Type Examination Certificate .

IECEx The type examination number for IECEx is: IECEx BVS 15.0055X

The certificate can be downloaded from http://iecex.iec.ch

2.1.3 Hazardous Location - North American Approval (cULus)

If indicated on the device label, the FG-200 is suitable for use in Class 1, Division 2, Groups A, B, C and D hazardous or non-hazardous locations.

The device must be installed in a protective enclosure which meets the requirements for resistance to impact and IP54 according to IEC 60529.

Marking for explosion protection: Class I Div.2 Groups A,B,C,D.

Certificate

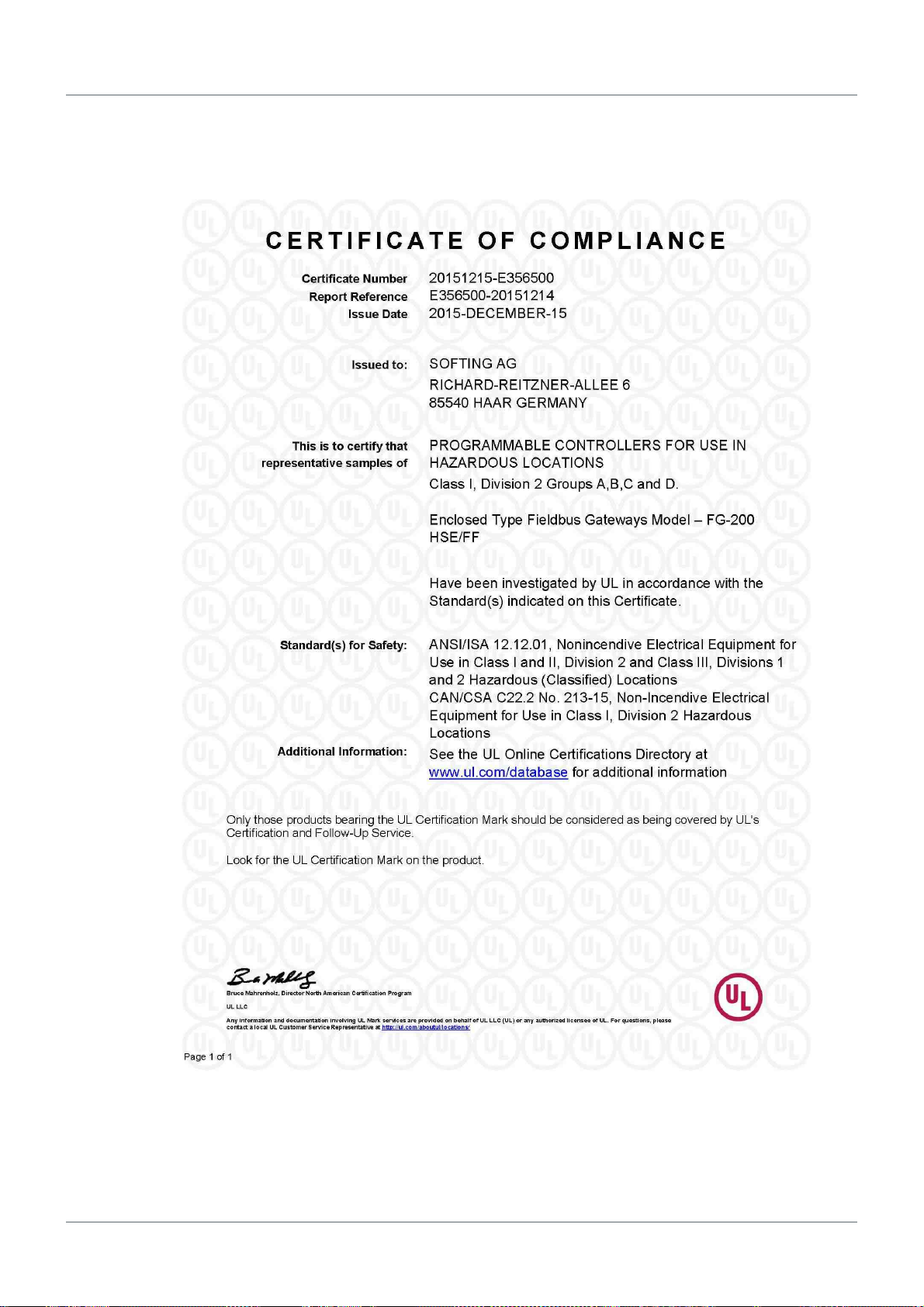

cULus The cULus Certificate of Compliance number is:

20151215-E356500

A copy of the certificate is available in section UL Certificate of Compliance .

FG-200 HSE/FF Modbus - User Manual

Note

Make sure the FG-200 is mounted in a manner that the power supply disconnecting device or interrupt facility can always be reached easily.

Note

Depending on the installation position, the maximum ambient operating temperature may differ. Refer to Technical Data for detailed information.

Installation and inspection

Installation and inspection tasks are to be carried out by qualified personnel only, i.e. personnel qualified according to TRBS 1203 or similar! The definition of terms can be found in IEC 60079-17.

Note

Do not put stress on the system by bending or torsion.

2.2 Mounting and dismounting

Mounting

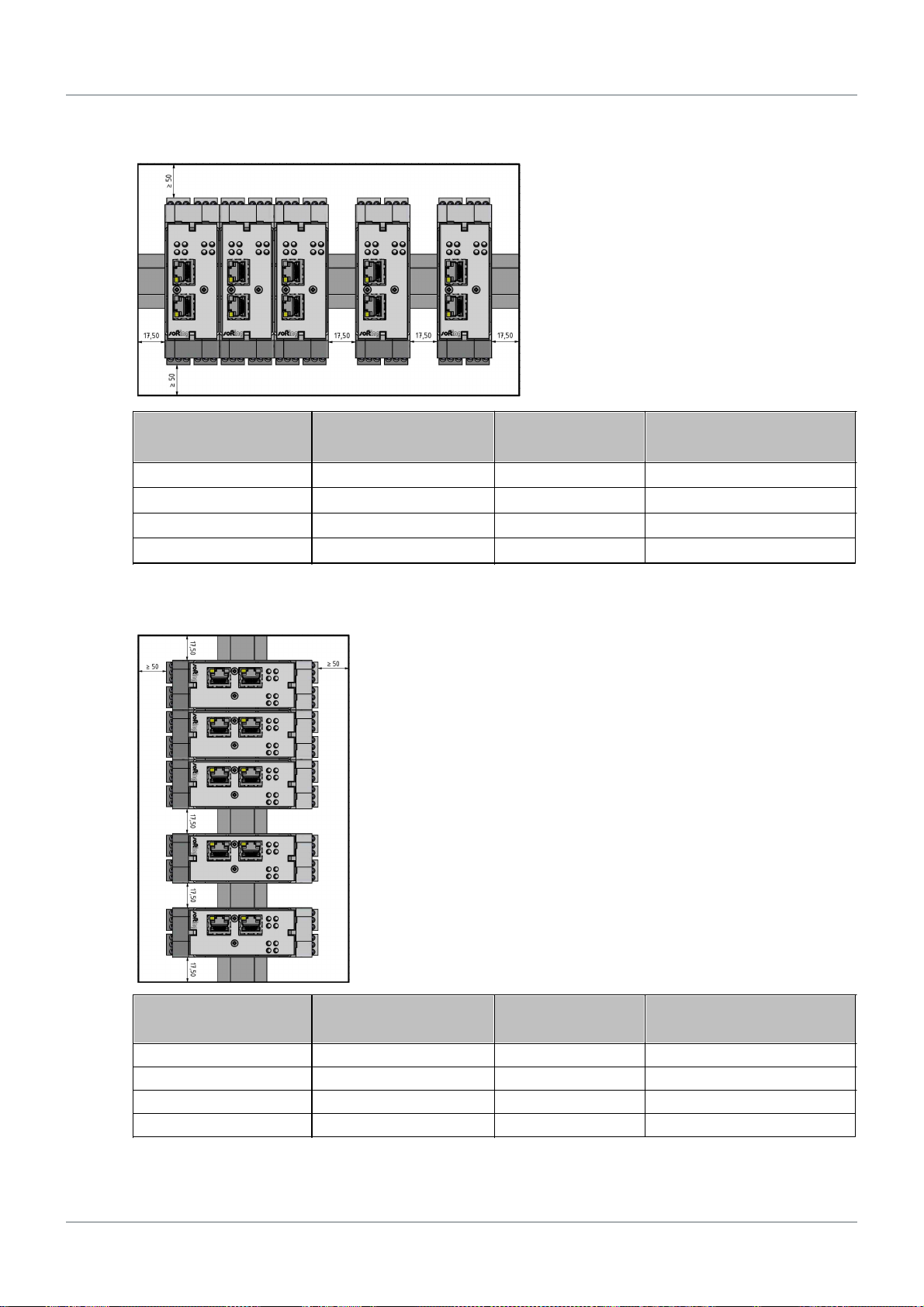

1. For mounting the FG-200 on a DIN rail (35 mm), attach the two upper notches to the rail.

2. Press the device down towards the rail until it locks into place.

Dismounting

To dismount the FG-200 from the DIN rail, slide a screw driver horizontally underneath the housing into the locking bar, slide the bar downwards – without tilting the screw driver - and fold the device upwards.

2.3 Connection diagram

Note

If ambient temperatures exceed 55 °C at the place of installation, it may occur that the temperatures of connecting cables strongly rise if those cables have been put in place in an unfavorable condition. In such cases, either perform measurements to confirm that the service temperature of the cables is not exceeded (i.e. 80 °C), or use such variants that withstand temperatures of minimum 90 °C.

Signal

Description

GND

Ground

Functional earth

L+

Positive supply voltage

CAUTION

The Functional Earth (FE) connection of the device has to be connected at low inductance with the Protective Earth (PE) of the system.

The following connection diagram gives an overview about the different plugs and interfaces:

Chapter 2 - Hardware installation

2.4 Connecting the power supply

1. Connect the FG-200 to a 24 V DC power supply.

2. Use different or redundant power supplies for redundant FG-200s.

3. Turn on the power supply. The boot process takes approx. 50 seconds. For indication of proper

operation of a FG-200 acting in non-redundant mode or as primary device in redundant mode refer to

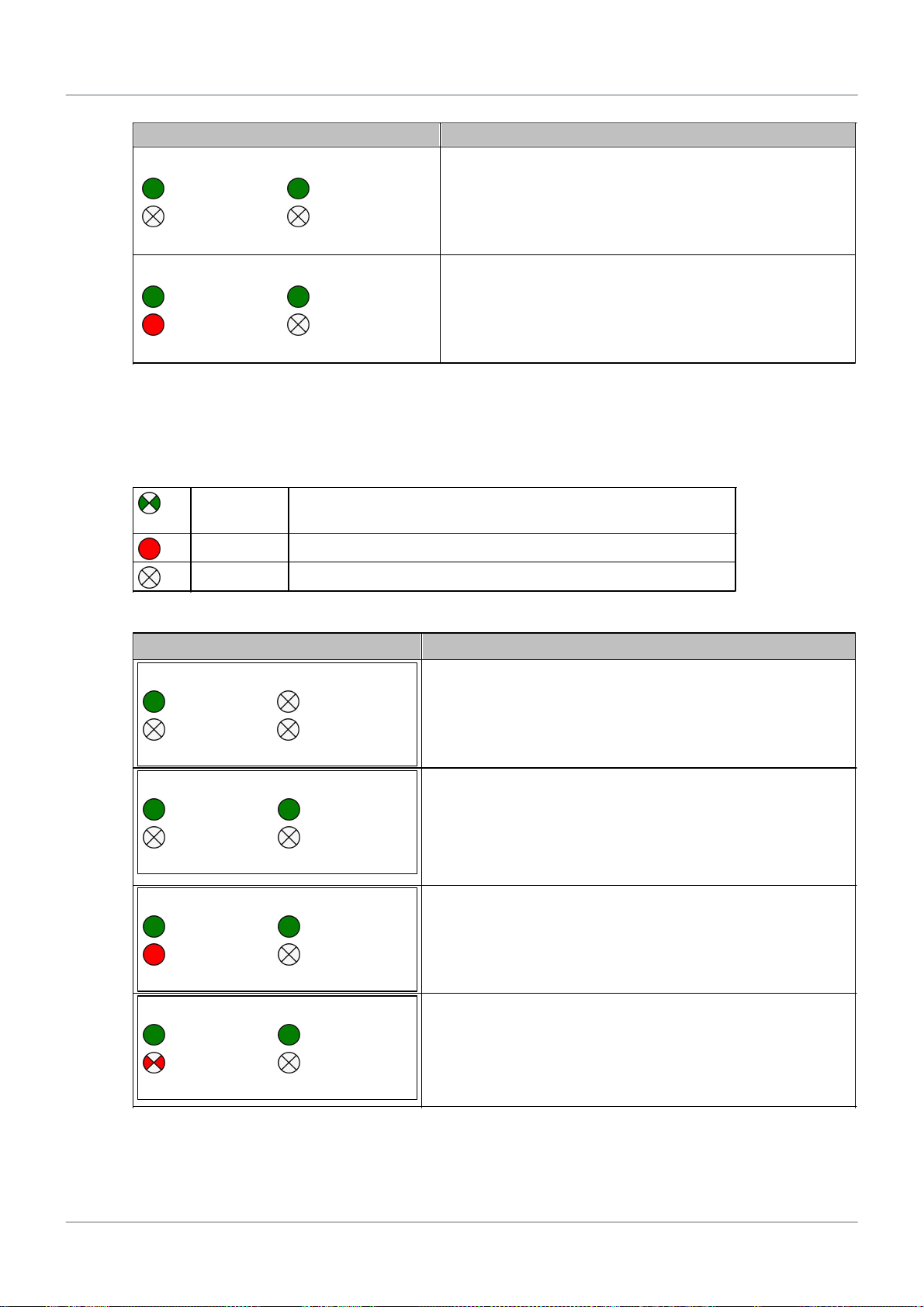

Status indicators - LEDs .

The supply voltage (18 VDC .... 32 VDC) is connected by a 3-pole terminal block. The power supply is

connected to the plug connector via flexible wires with a cross section of 0.75 to 1.5 mm². The ground connection wire must have a cross section of 1.5 mm².

FG-200 HSE/FF Modbus - User Manual

Note

As indicated in the connection diagram, the power can be applied alternatively by a special DIN rail connector (Rail Power Supply). For further information contact Softing Industrial Automation.

Note

The FG-200 is able to communicate with the HSE (High Speed Ethernet protocol of Fieldbus Foundation) and Modbus TCP over the same Ethernet port.

Pin No.

Signal

Connector symbol

6RX+

5TXS

GND

Note

If you are working with two FG-200 in redundant mode, the serial connection cannot be used, refer to Use two FG-200s as a redundant set .

2.5 Connecting to the network

Connect the FG-200 to the network using the upper network connection.

Refer also to Use two FG-200s as a redundant set .

2.6 Modbus serial connection

When connecting the FG-200 via serial connection use the connector from your delivery with the following pin assignment:

2.7 Using two FG-200

Note

The interface is not galvanically isolated. Thus make sure that there is no potential difference between the two connected devices.

Signal

Description

6RXReceives data from redundant device

5TXTransmits data to redundant device

GND

Ground

Note

The receive (RX) and transmit (TX) signals must be cross-linked.

Do not power up FG-200s while the serial link is missing

If the two FG-200s forming a redundant set are powered while the serial link is missing, both devices will behave like independent, non-redundant Primary Devices. If they operated in redundant mode before and therefore have identical configuration information, both will use the same H1 node addresses, which will cause problems on the H1 links. The ERR (error) LED will blink. In this case, remove the power, install the serial link and apply the power again.

First powered device operates as primary device

When using a redundant set of two FG-200s, the device which is powered first will operate as primary device. If both devices are powered at the same time, the one with the lower IP address will operate as primary device.

Before removing the power supply from primary device make sure the secondary device is operational

In a redundant set of FG-200s, removing the power supply, the Ethernet cable or the redundancy link interface cable from the primary device causes a redundancy change-over. Before doing so, make sure that the secondary device is operational (and not still booting due to a prior change-over). Otherwise the system breaks down or the configuration information might get lost. Therefore wait at least one minute between such checks.

When using two FG-200s as a redundant set, the redundancy link interfaces (RDL) of both FG-200s (primary and secondary) must be connected by a cable, thus forming a redundancy link. If the redundancy link is not installed during start-up (power-on), the FG-200 will operate in non-redundant mode.

The maximum cable length is 0.5 m according to EMC requirements. The pin assignment is as follows:

Chapter 2 - Hardware installation

FG-200 HSE/FF Modbus - User Manual

CH1

Signal

Description

7+Fieldbus +

8SFieldbus shield

9-Fieldbus -

CH2

Signal

Description

10+Fieldbus +

11SFieldbus shield

12-Fieldbus -

CH3

Signal

Description

13+Fieldbus +

14SFieldbus shield

15-Fieldbus -

CH4

Signal

Description

16+Fieldbus +

17SFieldbus shield

18-Fieldbus -

Note

The fieldbus shield is not connected directly to functional earth. For EMC reasons, it is only connected via a capacitor. If a direct connection to functional earth or protective earth is required, you need to implement this separately.

2.8 Connecting FF-H1 interfaces

Connect the H1 links to the terminal blocks of the H1 interfaces. Since the FG-200 does not provide power to the H1 links, a power supply, a power conditioner and a bus termination is required for each H1 link. When using a redundant set of two FG-200s, make sure to connect each H1 link to the same channel (FF 1 .. FF 4) on both FG-200s.

The FG-200 provides four Foundation Fieldbus H1 interfaces. These interfaces are named CH1 to CH4 and are used to connect an FF-H1 bus to the FG-200.

FF H1 bus line channel 1

FF H1 bus line channel 2

FF H1 bus line channel 3

FF H1 bus line channel 4

2.9 Powering up the device

Hint

Refer to Use FG-200 as a redundant set and to Redundancy mode for more information on the redundancy concept.

Turn on the power supply. The boot process takes a few seconds. For indication of proper operation of a FG-200 refer to Status indicators - LEDs.

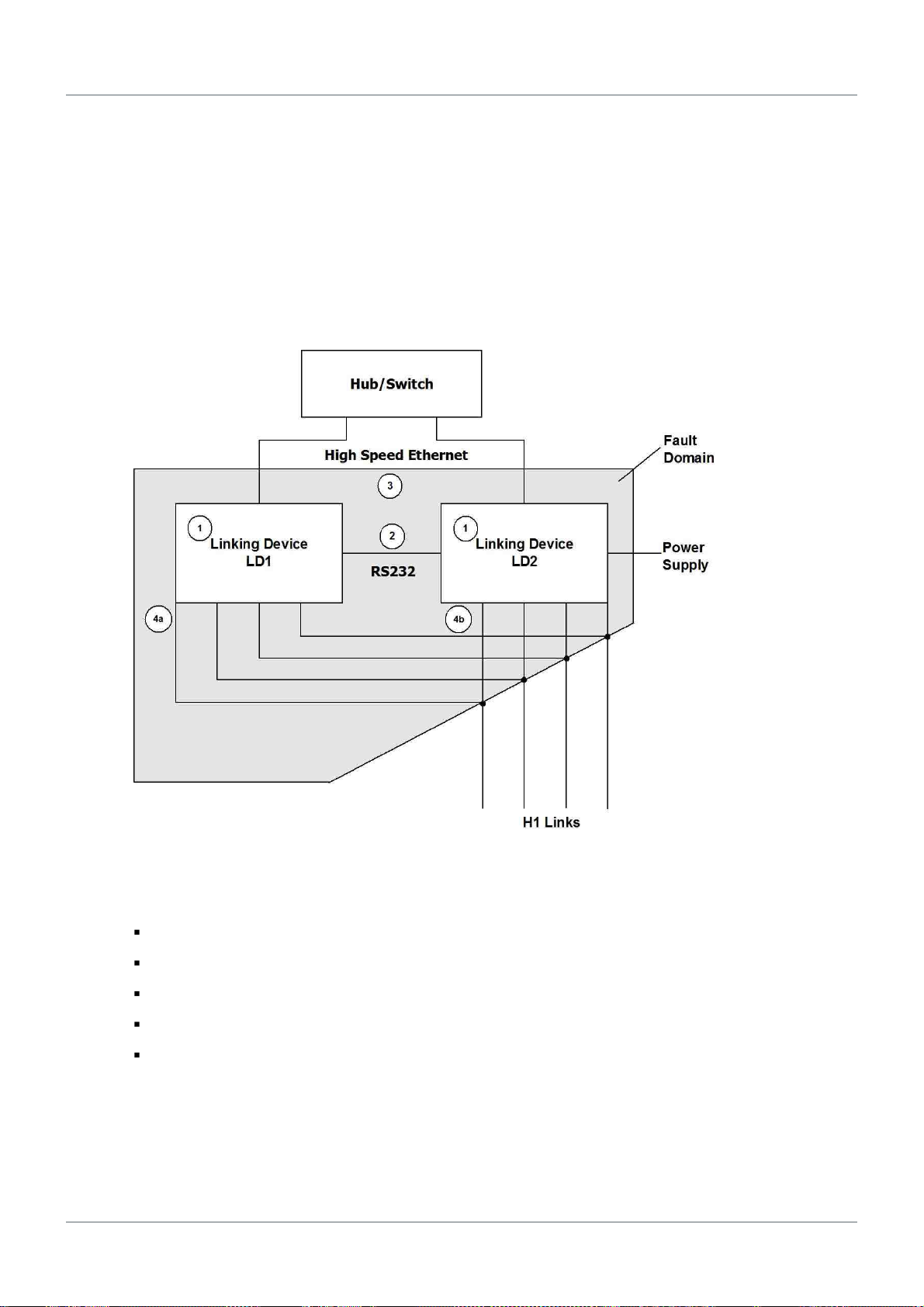

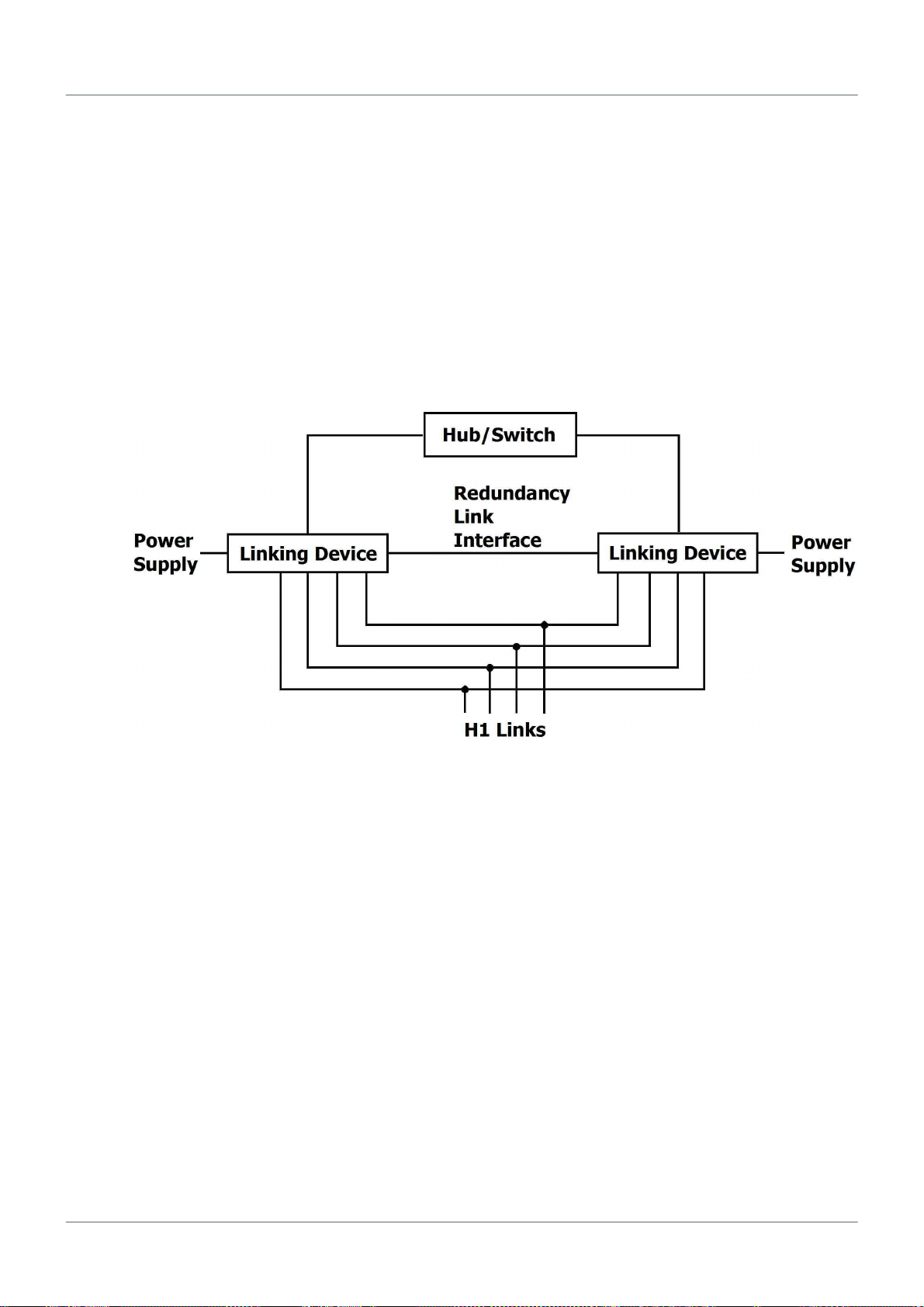

2.10 Adding a second FG-200 to form a redundant set of FG-200

To form a redundant set of FG-200, add a second device to an already commissioned FG-200 that is operating in the role "Primary, no backup" by following these steps:

Chapter 2 - Hardware installation

1. Set the IP configuration (IP address and subnet mask) of the second FG-200 in a way that it is in the

same IP subnet as the primary device (refer to Settings - Internet Protocol ).

2. Connect the H1 links to the terminal blocks of the H1 interfaces. Make sure to connect each H1 link to

the same channel (FF 1 .. FF 4) on both FG-200s.

3. Connect the second FG-200 to the Ethernet switch or hub.

4. Connect both serial ports by means of a redundancy link interface cable.

5. Connect the second FG-200 to a 24 V DC power supply. Use different or redundant power supplies for

redundant FG-200s.

6. After turning on the power supply the boot process takes approx. 50 seconds.

7. The second FG-200 will take over the configuration data from the primary device and will start

operation in the role "secondary". For indication of proper operation as a secondary device refer to

Status indicators - LEDs .

15 54

FG-200 HSE/FF Modbus - User Manual

Note

Before connecting the FG-200 to your LAN network, make sure that its IP address is not used by another network station.

To assign a new IP address to your PC, you must have administrator rights.

Commissioning the FG-200 HSE/FF Modbus

3.1 Installing comConf

New installation

1. Insert your Software and Documentation for Fieldbus Gateways CD into your CD drive.

If Autorun is enabled on your system, the startup page is opened.

2. Select your language and Installation of the FG-200 Gateway Software.

3. If Autorun is disabled, open an Explorer window, select your CD drive and double-click the file start.exe

located.

4. Follow the instructions from the installation wizard.

3.2 Configuring IP address and Modbus parameters

The FG-200 is delivered with the pre-configured IP address 192.168.0.10. Connect the FG-200 to the PC either directly or via an Ethernet switch.

1. Open a browser (e.g. Internet Explorer or Firefox).

2. Enter the URL address 192.168.0.10 and press Enter.

3. Login with the following data:

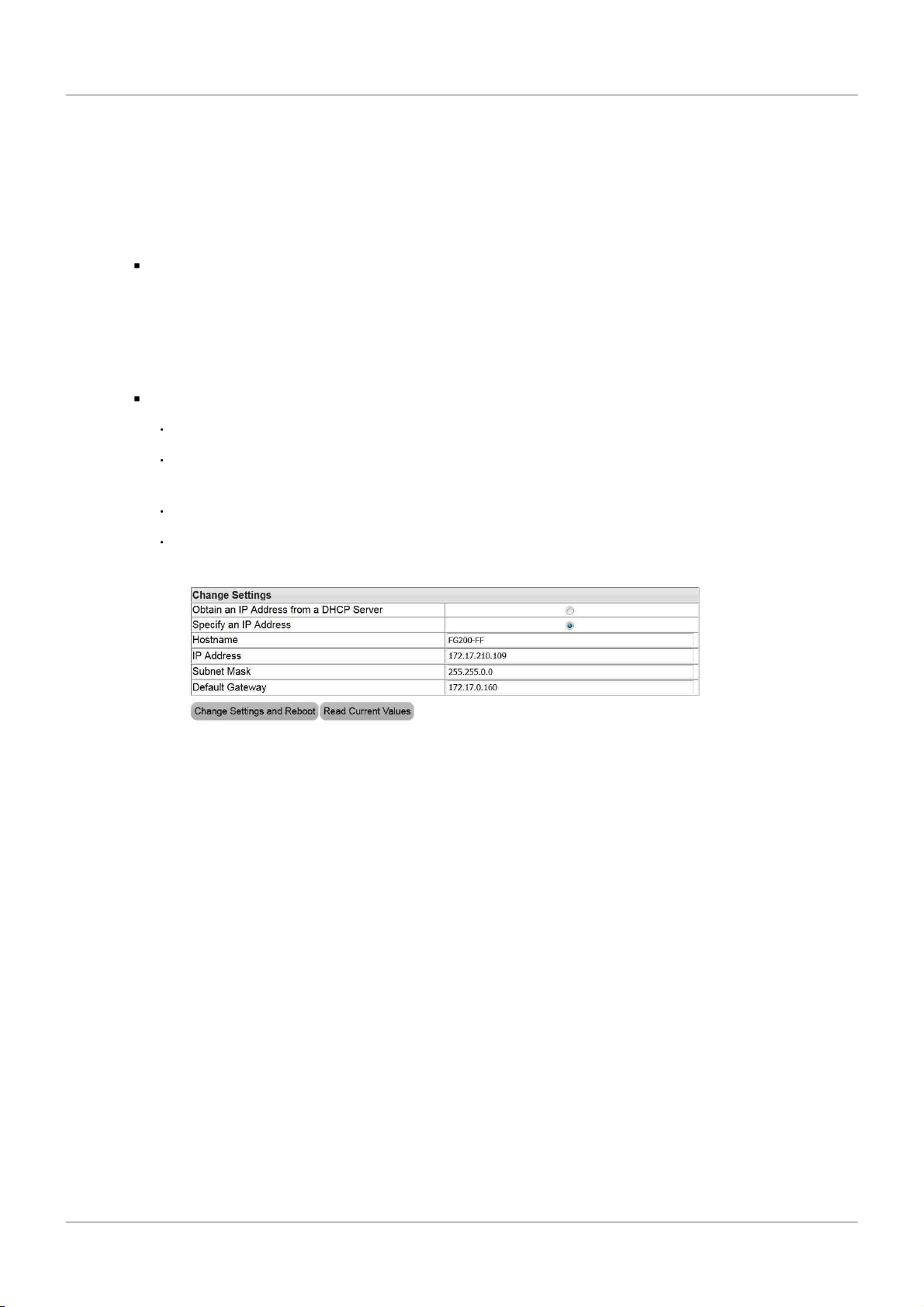

4. Select Configuration Settings Internet Protocol.

5. Change IP Address and Subnet Mask.

6. Click [Change Settings and Reebot]

7. The FG-200 performs a reboot.

Chapter 4 - Working with the FG-200 HSE/FF Modbus

Important Note

If the FG-200 acts as a visitor host, no comConf project must be downloaded into the FG-200 and the field devices.

Working with the FG-200 HSE/FF Modbus

4.1 FG-200 acts as a Modbus / FF-H1 Gateway

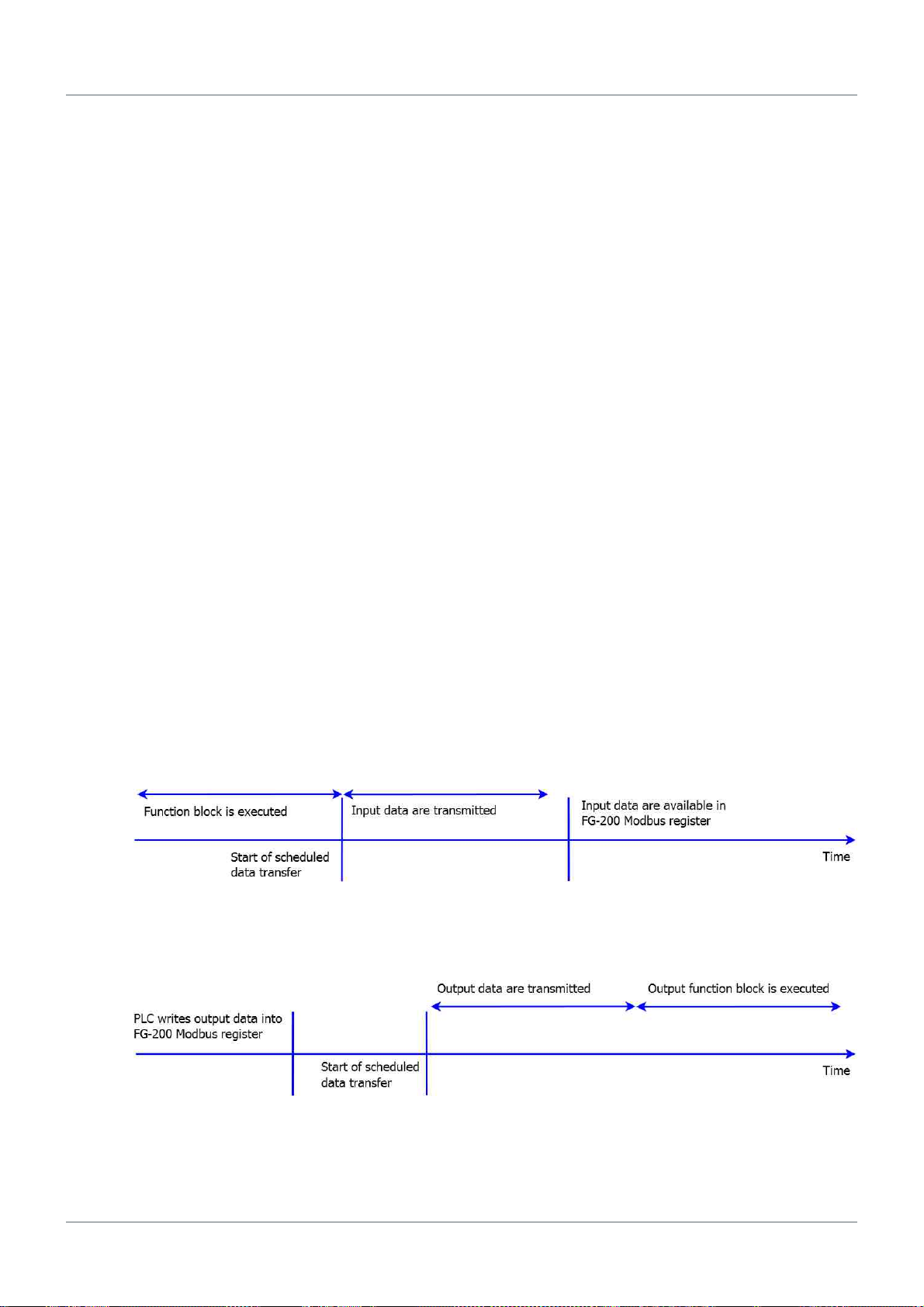

Main purpose: PLC with Modbus interface accesses IO parameters of FF-H1 field devices FG-200 supports access to IO parameters of FF-H1 field devices via client/server connections (CLT/SRV

connections) and via publisher/subscriber links (PUB/SUB links). When accessing device IO parameters it is not possible to mix CLT/SRV connections and PUB/SUB links.

For the selection of the communication mode see below.

4.1.1 FG-200 acts as link active scheduler

If FG-200 acts as a link active scheduler , no other FF host system is connected to the H1 segment. For accessing field device parameters CLT/SRV connections as well as PUB/SUB links can be used. PUB/

SUB links are the standard way for accessing IO parameters in FF installations. If you want to use PUB/SUB links, you have to configure them using the configuration tool comConf. For more information see the

Configuration Communication Tool User Guide.

As there is no other FF host system you have to download the function block schedule into the field devices. You can generate the function block schedule and download it to the field devices by means of comConf.

Before you go online with the comConf update your general settings in the FG-200's web interface. Go to Configuration Settings General Settings:

If you have changed your settings click [Change Settings] to apply the new values. For more configuration details, see the Configuration Communication Tool User Guide.

4.1.2 FG-200 acts as visitor host

In this case the FG-200 is connected to an H1 segment that is controlled by another FF host system. The links between the FF field devices and the FF host system are working. The FG-200 is not allowed to disturb the operation by reconfiguring working communication paths.

The FG-200 is just allowed to use CLT/SRV connections for reading contained parameters and function block output parameters. The parameters to be read have to be configured in the Softing Configuration Communication Tool (comConf). See the comConf User Guide for more details.

FG-200 HSE/FF Modbus - User Manual

Parameter settings

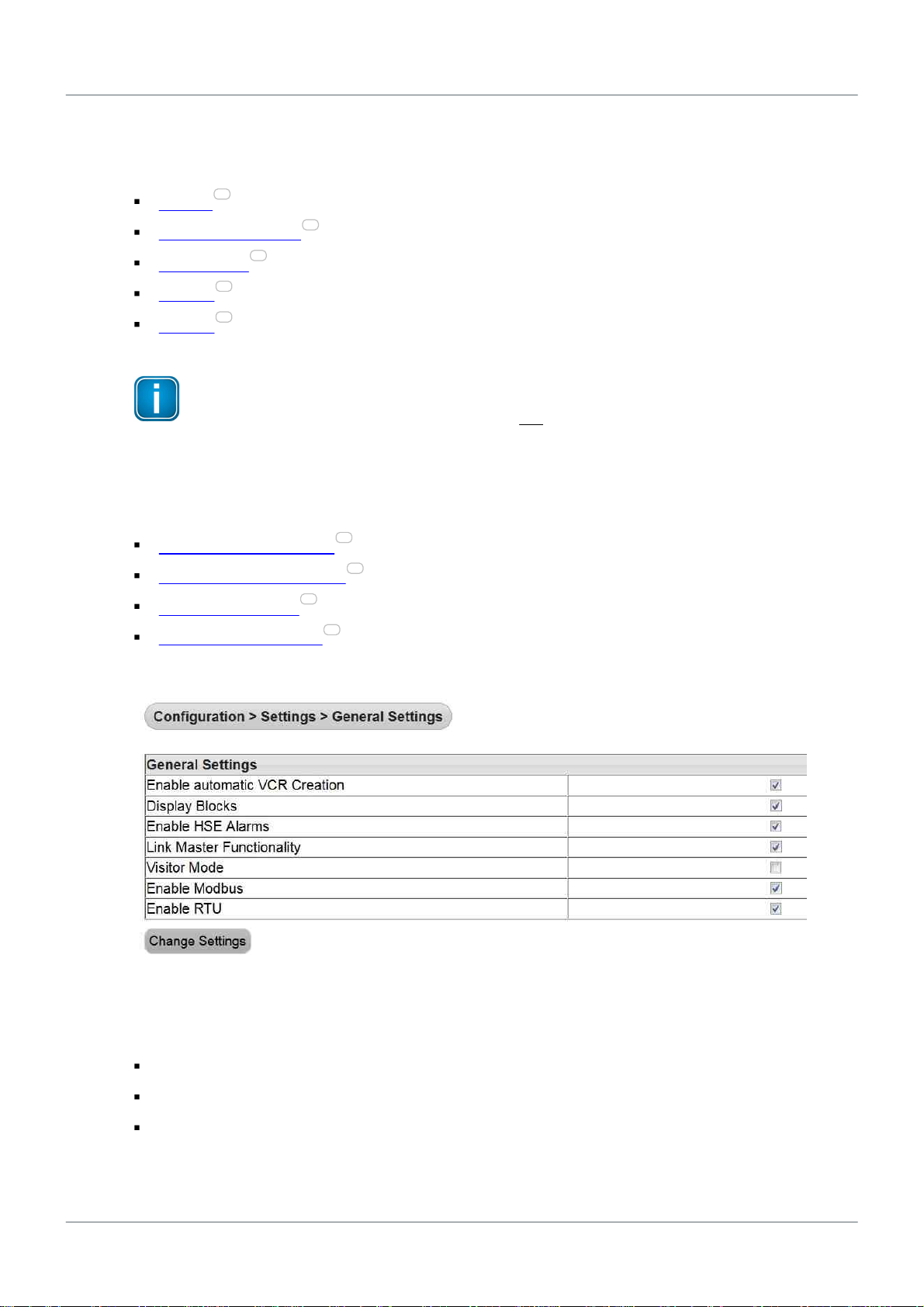

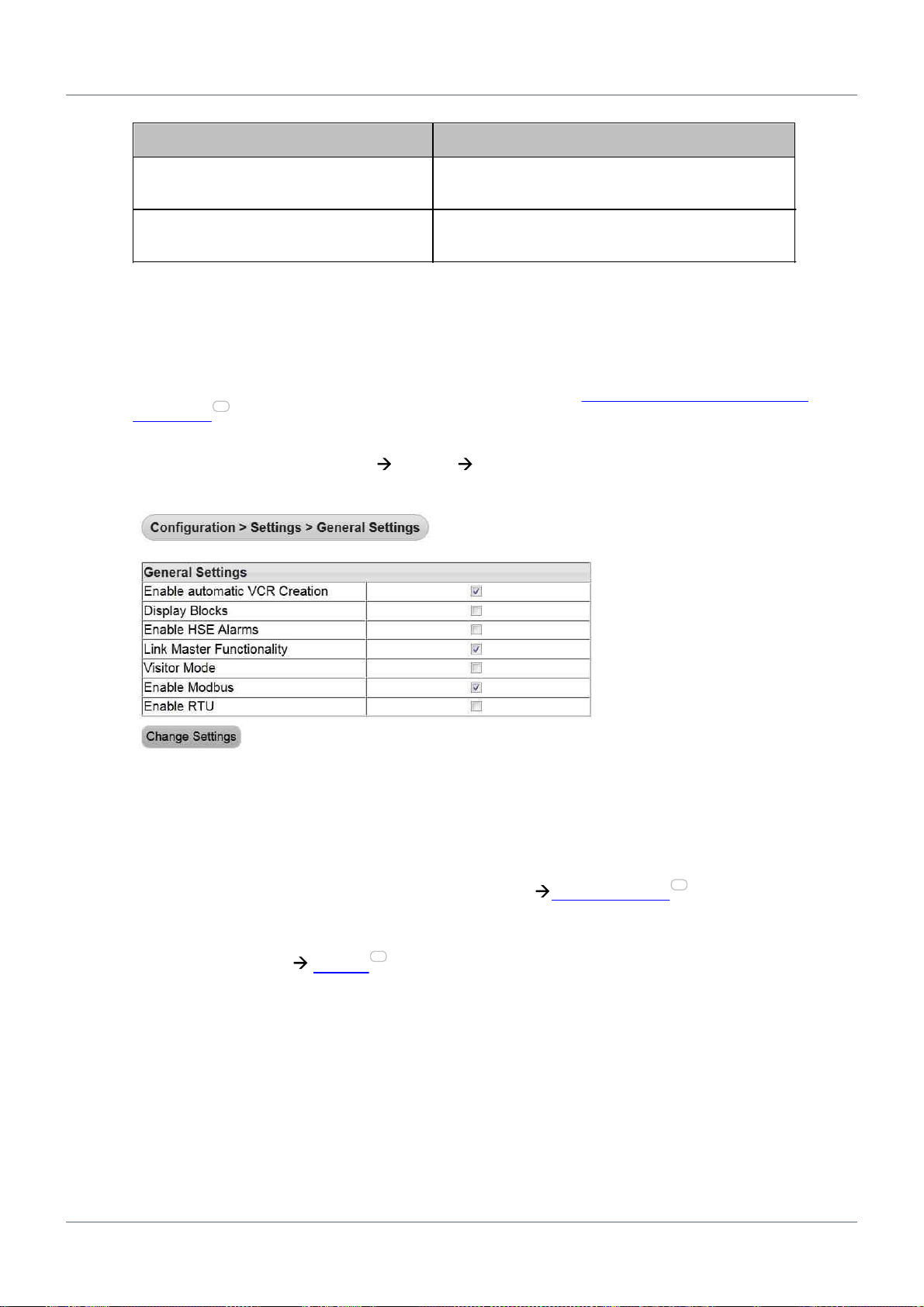

Make sure Enable automatic VCR Creation is activated.

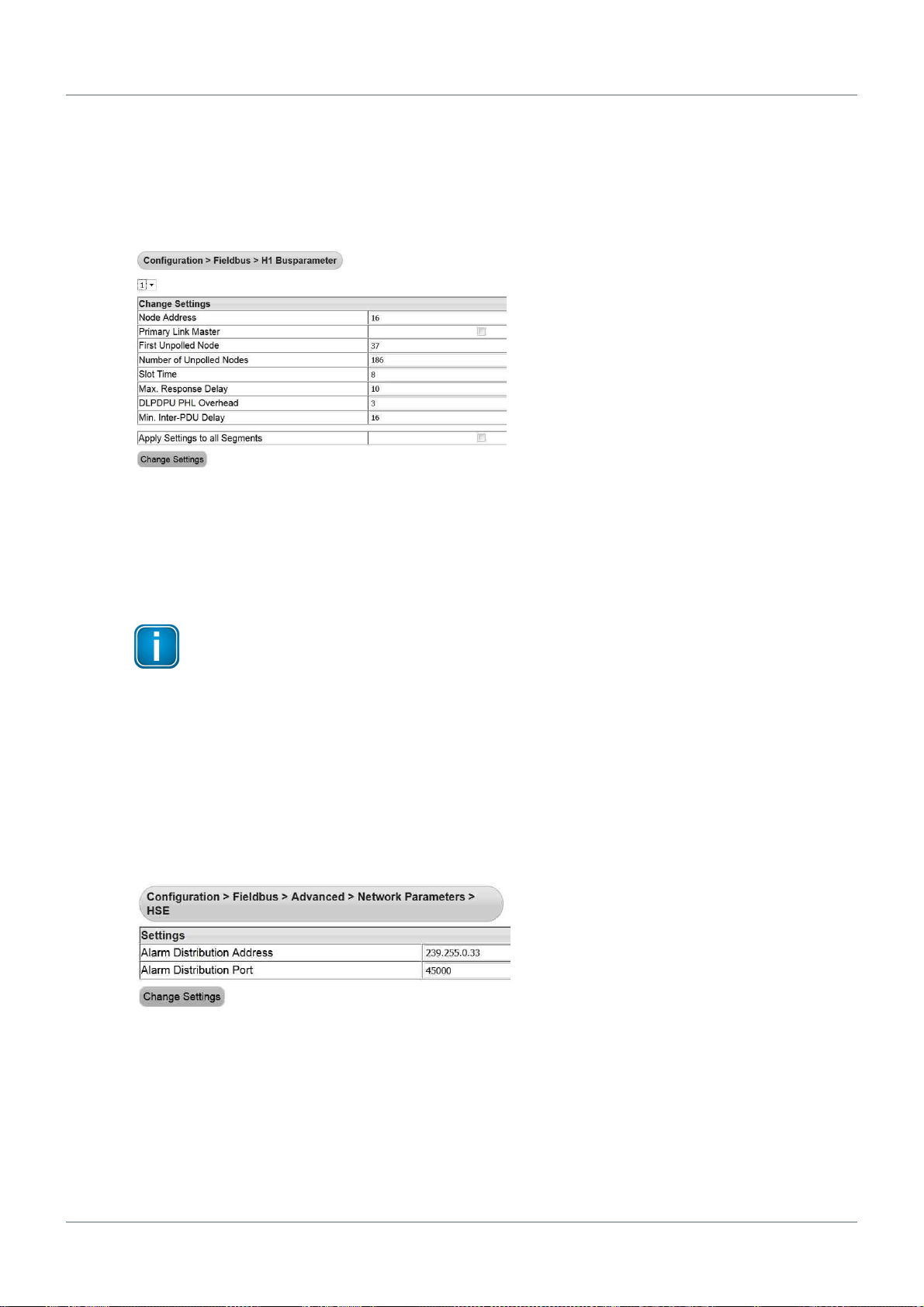

Activate or deactivate Link Master Functionality depending on the following presumptions:

For this scenario we recommend configuring the Node Address within the range from 252 to 255 for

the FG-200. If you want prevent the FG-200 to take an active role in the H1 segments, deactivate Link

Master Functionality. Usually this is not required if the H1 bus parameters used in the control system

are not too slow.

If Link Master Functionality is activated make sure that all activated H1 links of the FG-200 are

connected to H1 segments with an active host system interface. Otherwise the FG-200 would wait for

a 6 minute period for activity on the H1 segments and would then disable the segments without

activity i.e. the segments without an active host interface.

4.1.3 Configuring the Modbus mapping table

The FG-200 supports the mapping of a set of function block parameters to Modbus registers. The set of available parameters depends on the type of communication (PUB/SUB links or CLT/SRV connections) used for transferring IO data.

The FG-200 selects PUB/SUB links or CLT/SRV connections depending on the downloaded comConf project.

Perform mapping on the web server application

Prerequisite: You have downloaded the comConf project.

1. Open the web browser and login.

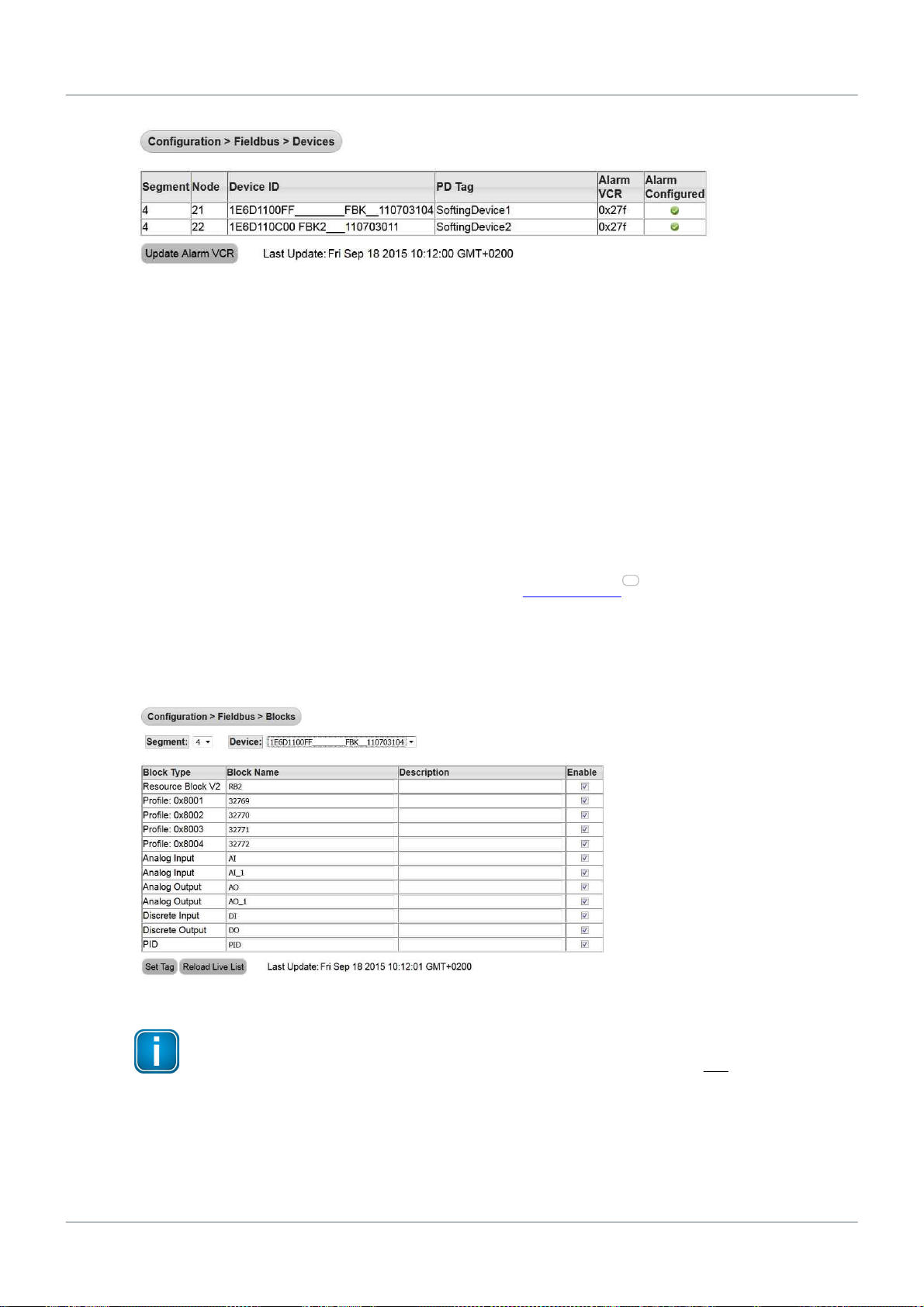

2. Go to Configuration Fieldbus Blocks and click [Reload Live List].

3. Select Configuration Fieldbus Devices.

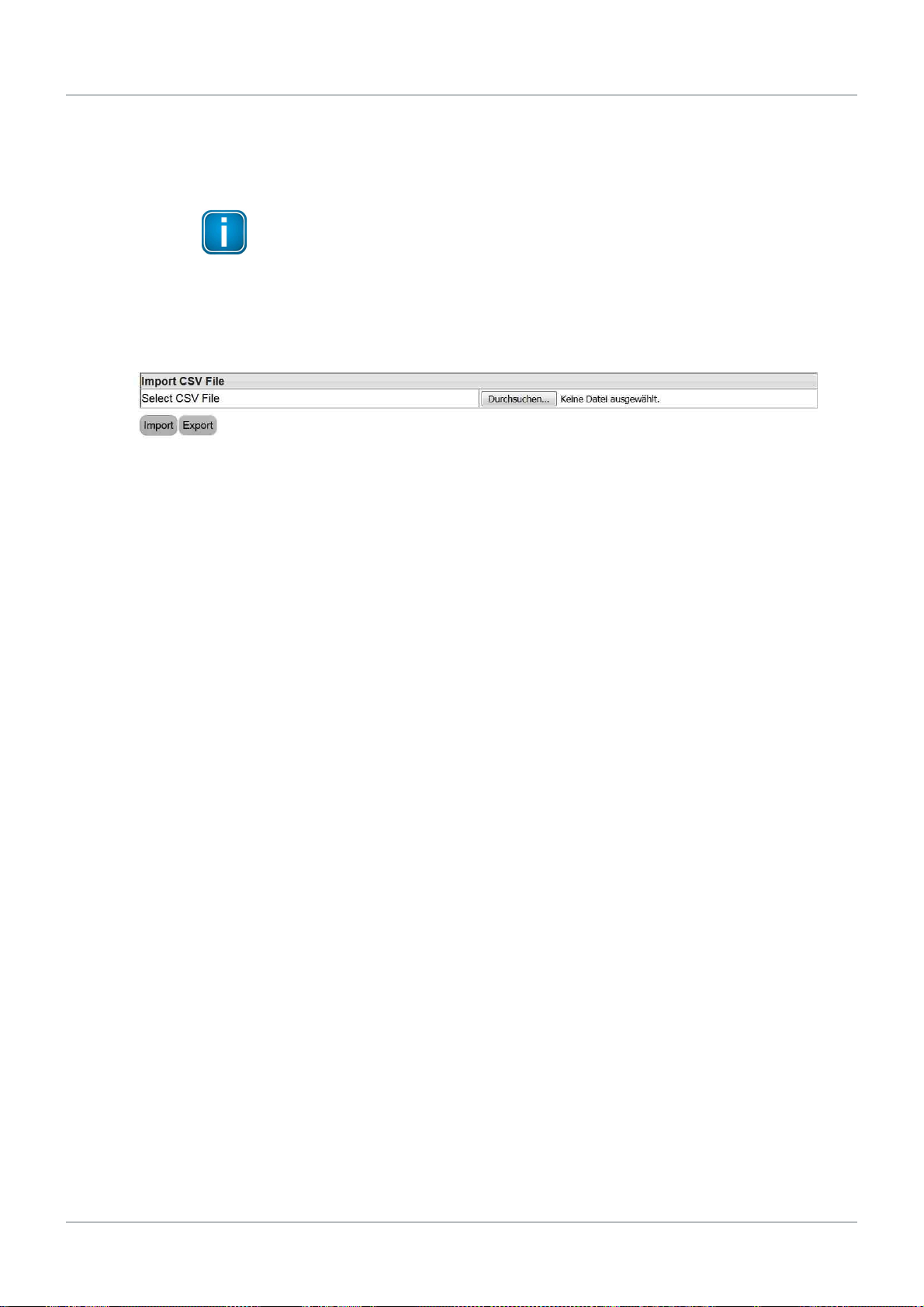

4. Load the .csv file with the Modbus mapping. Select Configuration Modbus Mapping Import/Export.

Click [Import] and load the file generated by comConf.

Mapped values are now accessible in the configured Modbus registers and can be accessed by a Modbus control.

4.1.4 Modbus statistics counter

Modbus Holding Register (addresses base 0)

Modbus Holding Register (addresses base 1)

Meaning

9000

9001

Redundancy Role: 0: Primary 1: Secondary

9001

9002

Number of received Modbus TCP requests

9002

9003

Number of sent Modbus TCP responses

9003

9004

Number of received Modbus TCP requests with encoding errors

9004

9005

Number of received Modbus RTU requests

9005

9006

Number of sent Modbus RTU responses

9006

9007

Number of received Modbus RTU requets with encoding or CRC errors

9007

9008

Number of current open Modbus TCP sessions

9008

9009

Total number of Modbus TCP sessions

9009

9010

Timestamp for starting Modbus TCP statistic collection

9010

9011

Time stamp for starting Modbus TCP statistic collections

Note

Statistic values from Modbus registers 9001 – 9010 are identical to information available on web pages Diagnostics Advanced Modbus Statistics TCP and Diagnostics Advanced Modbus Statistics Serial.

Statistic counter values can be reset via web pages.

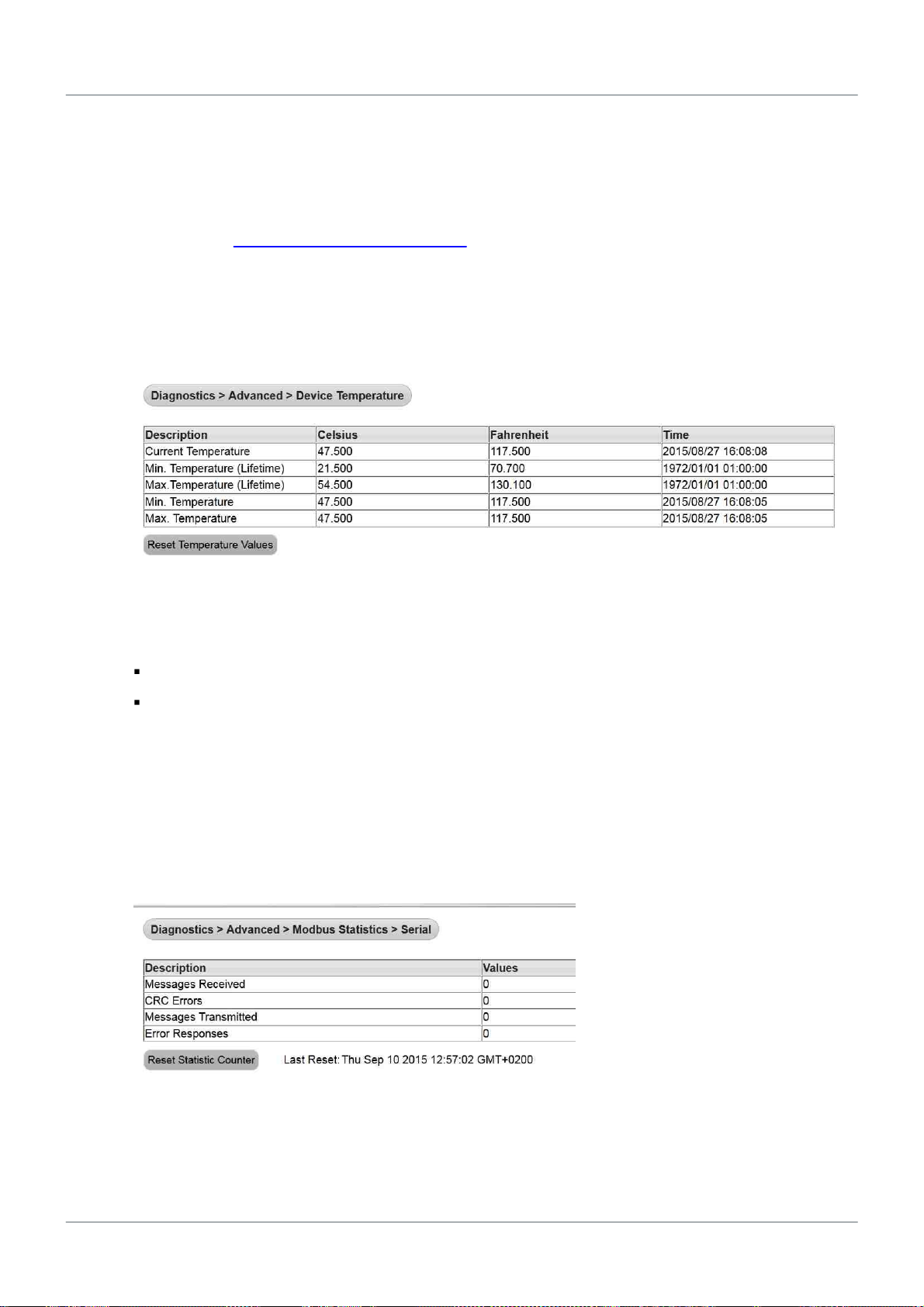

You can get additional statistic information concerning the Modbus communication state by reading the Modbus registers:

Chapter 4 - Working with the FG-200 HSE/FF Modbus

FG-200 HSE/FF Modbus - User Manual

4.2 FG-200 acts as a FF-HSE/ FF-H1 gateway

4.2.1 FG-200 acts as an H1 interface used by Emerson AMS System

Emerson provides its AMS Device Manager for calibration, diagnostics and device configuration for various fieldbus technologies. Using the FG-200 enables AMS Device Manager to access FF-H1 devices. As a precondition it is necessary to enable FF-HSE interface in the AMS Device Manager and integrate the FF device descriptions of the FG-200 (CFH-File) and the H1 Devices that have to be accessed.

In order to use the FG-200 the following general settings have to be done via the webserver interface:

Make sure Enable automatic VCR Creation is activated. Otherwise no access to H1 device parameters would be necessary.

Additional settings depend on the user scenario:

Offline access (Standalone network FG-200 and H1 devices)

In this scenario the FG-200 would be the primary host device and Link Master Functionality is activated. In addition we recommend disabling the Visitor Mode and setting Node Address to 16 or 17. Make sure all required H1 Links are activated i.e. a Link ID >= 0x1000 is assigned for those links.

Access in field (H1 devices are used as part of a control system)

For this scenario we recommend configuring the Node Address within the range from 252 to 255 for the FG-200. If you want prevent the FG-200 to take an active role in the H1 segments, deactivate Link Master Functionality. Usually this is not required if the H1 bus parameters used in the control system are not too slow.

If Link Master Functionality is activated make sure that all activated H1 links of the FG-200 are connected to H1 segments with an active host system interface. Otherwise the FG-200 would wait for a 6 minute period for activity on the H1 segments and would then disable the segments without activity i.e. the segments without an active host interface.

Chapter 4 - Working with the FG-200 HSE/FF Modbus

H1 Device Alarms

AMS Device Manager supports monitoring a subset of H1 device alarms. To make use of this functionality you need to enable this feature in the AMS Device Manager and to configure the FG-200 and the attached H1 devices accordingly. Note that within AMS Device Manager alarms are designated as "Alerts". Activate this setting with Enable HSE Alarms in the General Settings web page of the FG-200.

We recommend activating Visitor Mode in the General settings web page. Thus you disable the alarm configuration of H1 devices. This would prevent an impact on an existing device configuration but could lead to situations where it is not possible to receive alarms from some H1 devices. To display which devices are affected go to Configuration Fieldbus Device and search in column "Alarm configured" for the respective device.

AMS Device Manager is supporting standard Fieldbus Foundation alarm messaging using the UDP protocol, but it has an preconfigured UDP multicast address (239.255.0.33) and UDP port (45000) for the reception of the alarm messages. This is used as default in the FG-200 but could be altered if a future AMS Device Manager version would expect a different multicast address or UDP port by changing the settings in the following web page.

FG-200 HSE/FF Modbus - User Manual

Note

If you erase the FG-200 configuration, the password is reset to its default value.

Using the internal webserver interface

After an IP connection between PC and FG-200 has been set up as described in Configure IP address and

Modbus parameters , you may access the FG-200 from your PC by means of a web browser that

supports JavaScript (e.g. Microsoft Internet Explorer). The internal web server of the FG-200 offers the possibilities to configure the device (such as IP address

settings or Modbus mapping), to get diagnostic information on the fieldbus or Modbus as well as to monitor process values of the connected field devices.

5.1 Login to webserver

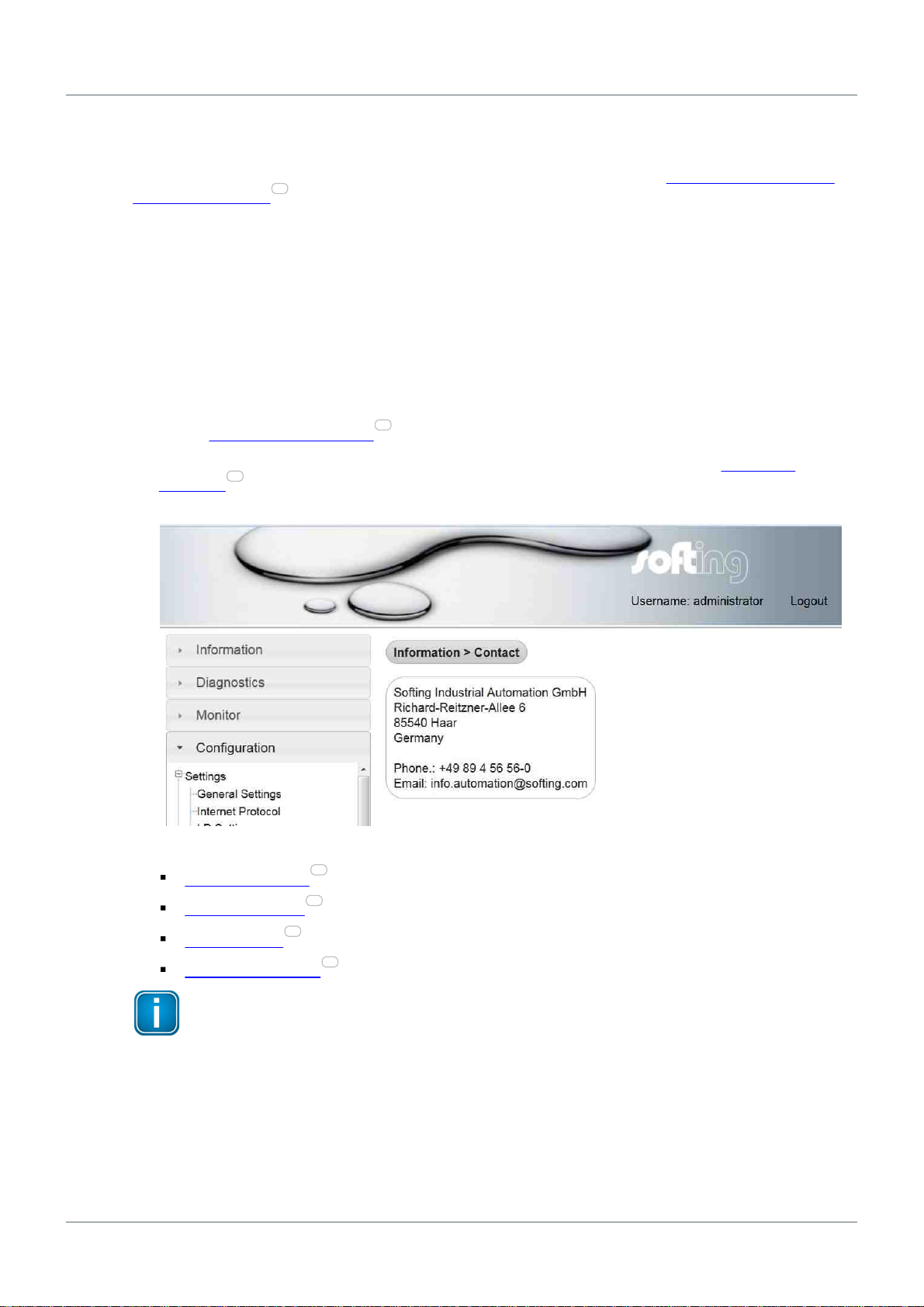

1. Start your web browser with the URL http://192.168.0.10. You are prompted to log in with username

and password.

2. Enter administrator in the field Username. Enter fgadmin in the Password field (default setting - refer

also to Settings - User Accounts ).

3. Your specified start page is opened - in our example the Information page (refer to Homepage

submenu) . Depending on the web browser you are using the information presentation may vary

slightly:

The menu bar on the left side offers three main menus and several submenus:

Information menu Diagnostics menu Monitor menu Configuration menu

5.2 Information menu

Menu item

Functionality

Contact

shows you Softing's contact information in case

you require general information about the product or you need technical support or you like to provide feedback about the product.

Softing Industrial Automation GmbH

Richard-Reitzner-Allee 6 85540 Haar / Germany Tel: + 49 89 4 56 56-0 Fax: + 49 89 4 56 56-488 Internet: http://industrial.softing.com Email: info.automation@softing.com Support: support.automation@softing.com

Version

gives you detailed information about the device/system, the base module (mother board) and the H1 module (daughter bard) with the four H1 channels.

Both modules as well as the entire device are identified by hardware version numbers and serial numbers. The firmware version and the system id, a manufacturer-specific identifier for the system, are also indicated.

Manual

provides access to information on how to use the web server. Click [Device Manual] to open the FG-200 HSE/FF Modbus User Manual.

Notices

informs you about the open Source Declaration and the open source software packages used in conjunction with FG-200 HSE/FF Modbus.

Open Source Declaration:

The FG-200 HSE/FF Modbus uses the following open source software packages:

- eCosPro V3.1.41

- jQuery V1.7.2

The license declarations and links to source codes for these components are available on the following webpage:

http://opensource.softing.com/IA/FG-200FF/V1/

The Information menu offers the following menu items:

Chapter 5 - Using the internal webserver interface

5.3 Diagnostics menu

Click Diagnostics to open the following menus:

System

Internet Protocol

Fieldbus

Advanced

FG-200 HSE/FF Modbus - User Manual

5.3.1 System

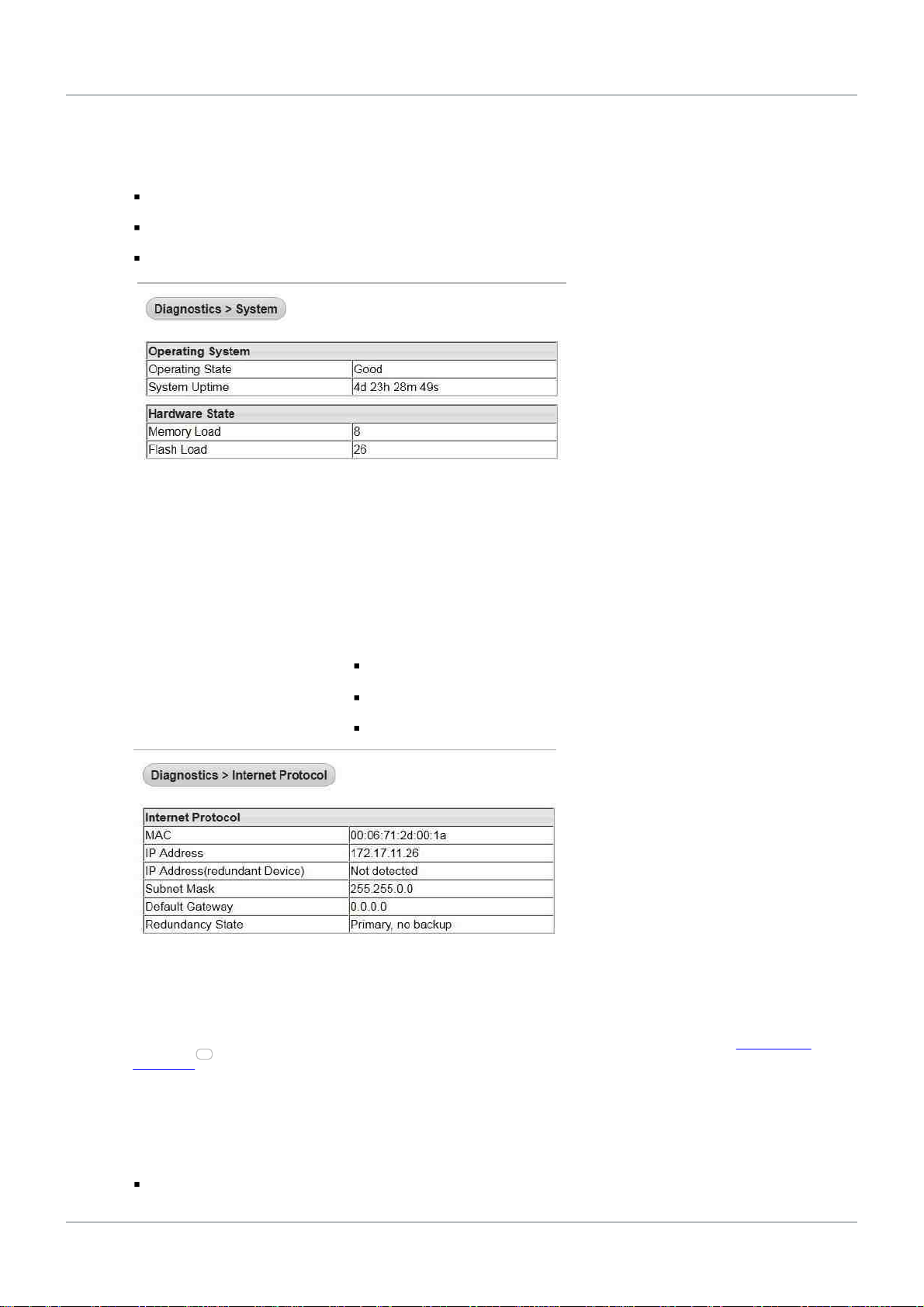

Click System to display system information about the operating system and the hardware status:

Operating State: operational, good, ...

System Uptime: Time elapsed since the FG-200 has been booted.

Memory load: Percentage of memory used.

5.3.2 Internet Protocol

Click Internet Protocol to display detailed information about the addresses used:

MAC Address: number that acts like a name for the network adapter IP Address: IP address of the FG-200 IP Address (redundant device): IP address of the redundant FG-200. Empty if the FG-200 operates in non-redundant mode. Subnet Mask: IP subnet mask Default Gateway: Address of the IP gateway to other subnets Redundancy State: Current role in a redundant set of FG-200; the following values are possible

5.3.3 Fieldbus

Primary, no backup Primary Secondary

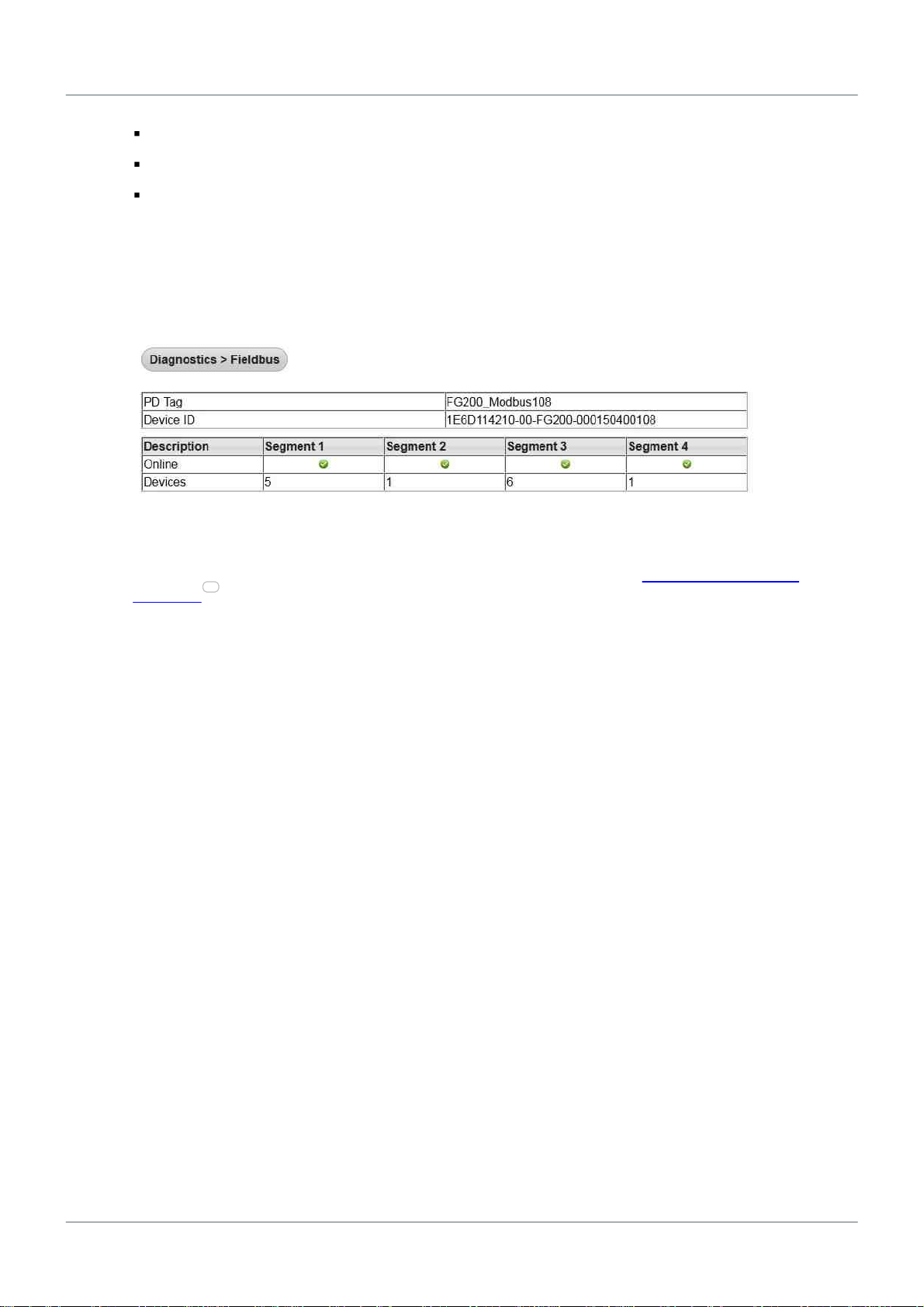

Fieldbus segment diagnostics are provided to give you a quick view of what is attached to the FG-200. It shows how many segments are active. Two tables are displayed: The first table shows the information about the FG-200, the PD Tag as well as the Device ID. The PD Tag can be modified in the LD Settings

submenu page. The second table shows which segment (H1 Link) of the FG-200 is occupied and how

many FF-H1 devices are connected to each segment. Additionally, for each available FF-H1 device the tag name is shown. This table provides a simple live list of the FF-H1 network. To update this list click the Fieldbus menu again.

System and Segment status in detail:

PD Tag (Physical Device Tag): a unique, configurable and system-dependent name for the device.

Chapter 5 - Using the internal webserver interface

Device ID is set to a unique value for each individual device by the device manufacturer.

Online: indicates whether a device is online or not.

Devices: shows number of devices online (including the FG-200).

For each FG-200 up to four H1 Links (segments) are available. And under each H1 Link up to 16 H1 devices are possible.

The following example shows that in segment 1 the FG-200 plus four field devices are online and in segment 3 the FG-200 plus five field devices are online. In the segments 2 and 4 only the FG-200 is online.

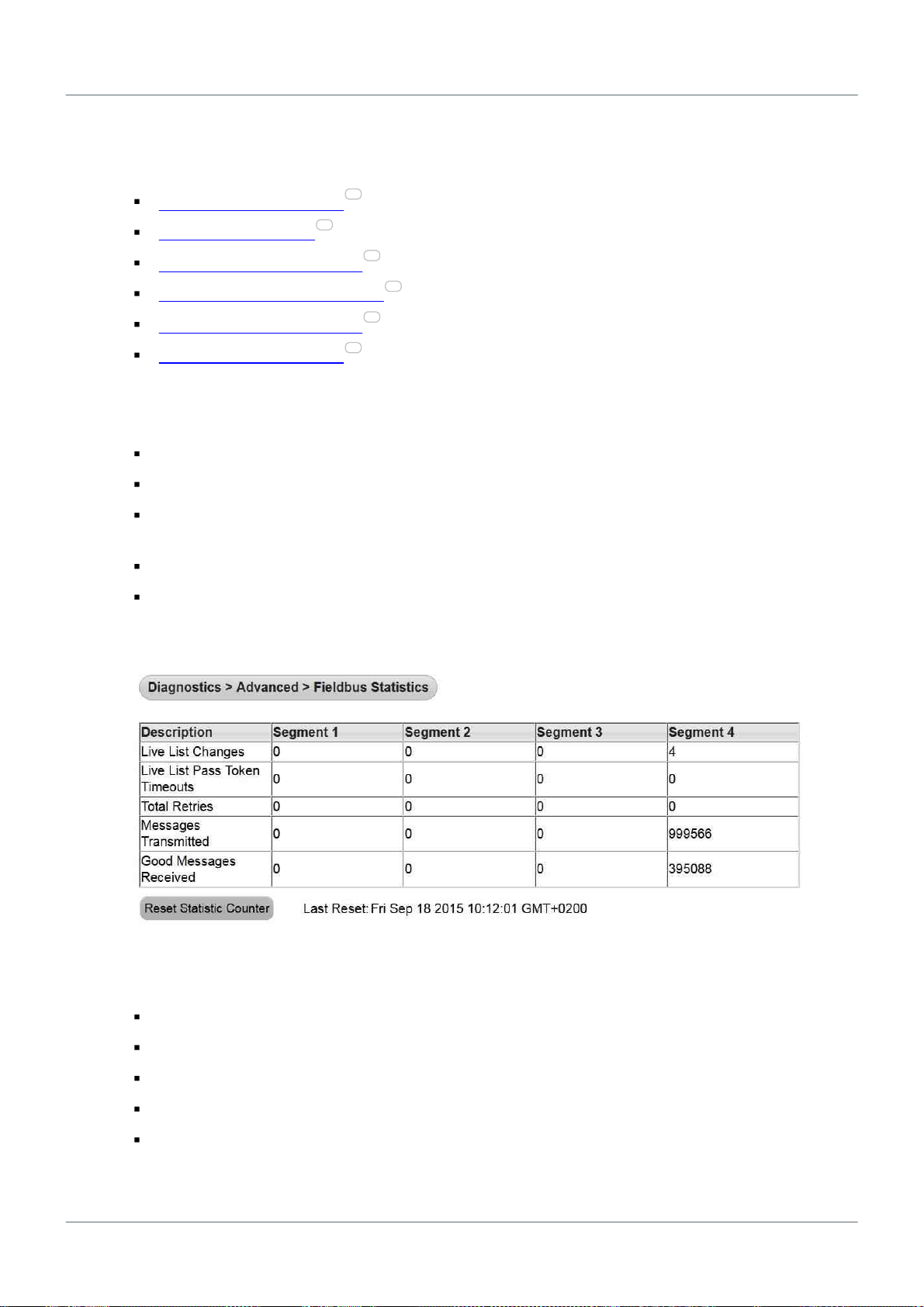

5.3.4 Advanced

The Advanced submenu contains additional statistics information. Refer to Diagnostics - Advanced

submenus in the Appendix for a detailed description of the different web pages.

FG-200 HSE/FF Modbus - User Manual

Hint

The initial value in column "StatusDescription" is shown offline until a value has been received after the first call-up of this point page.

If a device to which this point page value has been assigned is not online, the text "Unknown Device" in column "Device" is displayed and in "StatusDescription" appears "Offline" for this specific point.

In this case check whether the H1 devices configuration has been changed. Perform a Reload Live List as described in Blocks submenu .

5.4 Monitor menu

The Monitor menu offers the following menu items:

Point Pages submenu and

Point Data submenu

5.4.1 Point Pages submenu

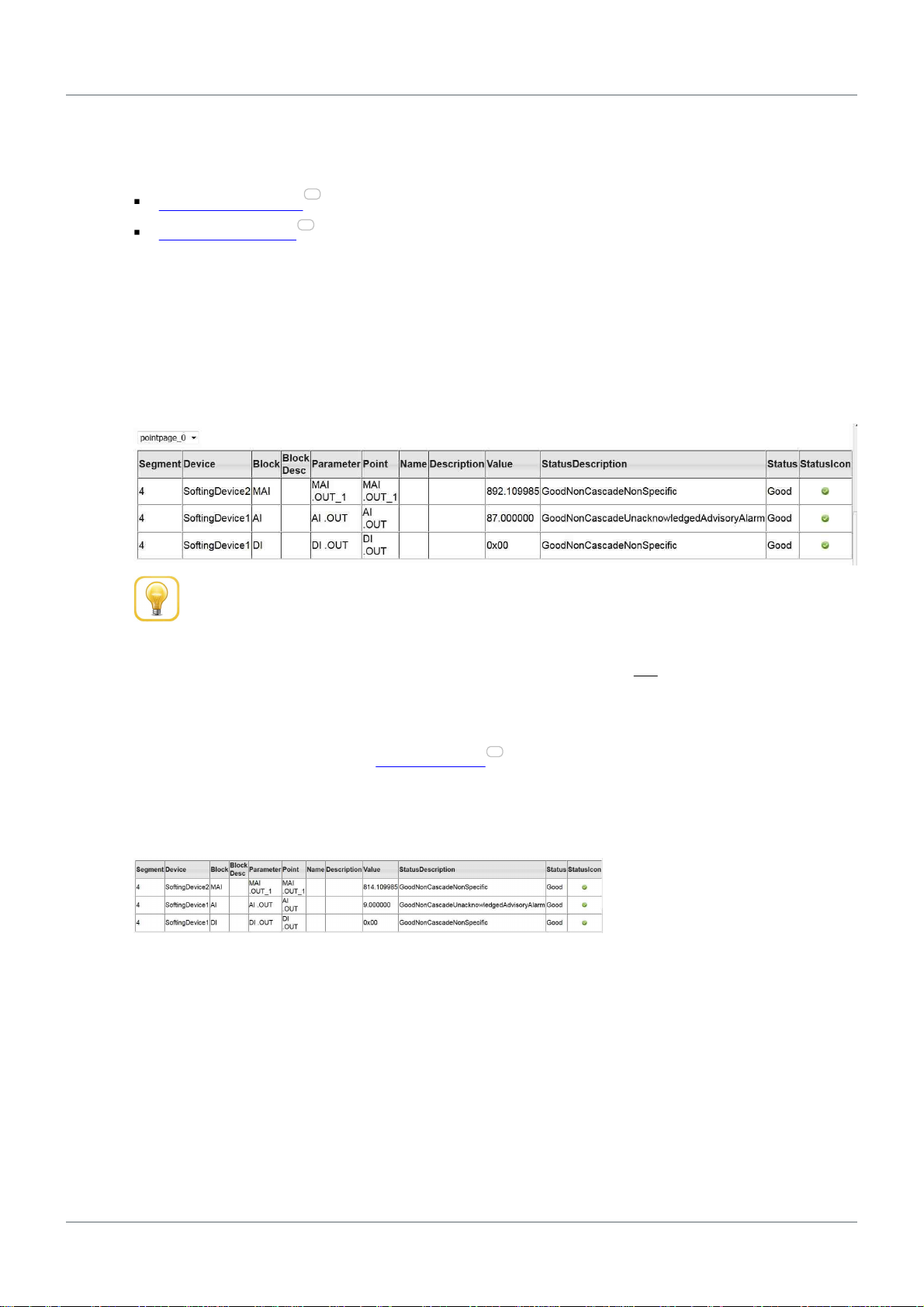

Point Pages displays the output of FF function blocks (value and status) on one or more web pages. Multiple pages can be configured to fit the application and to keep track of the different parts of the plant.

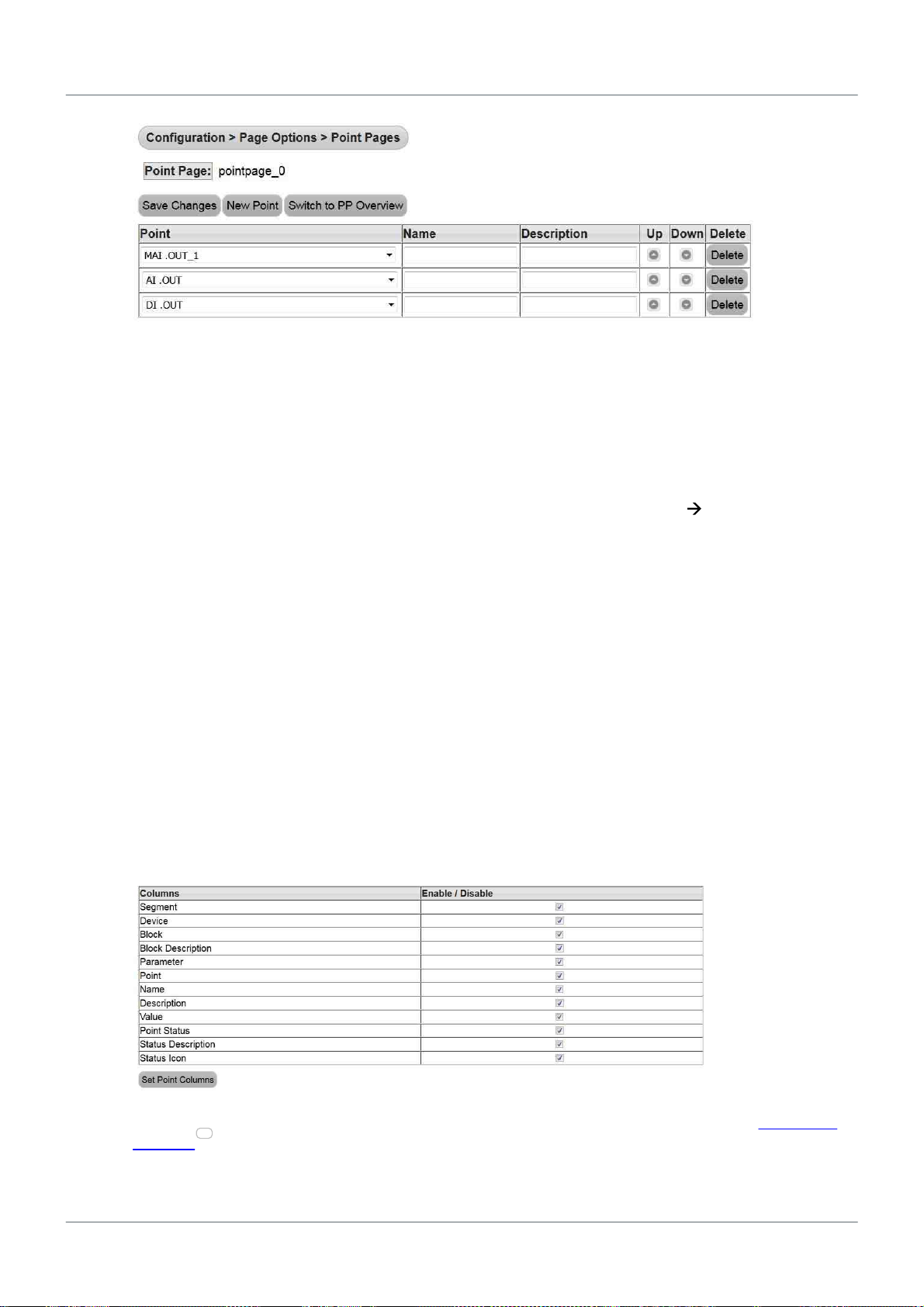

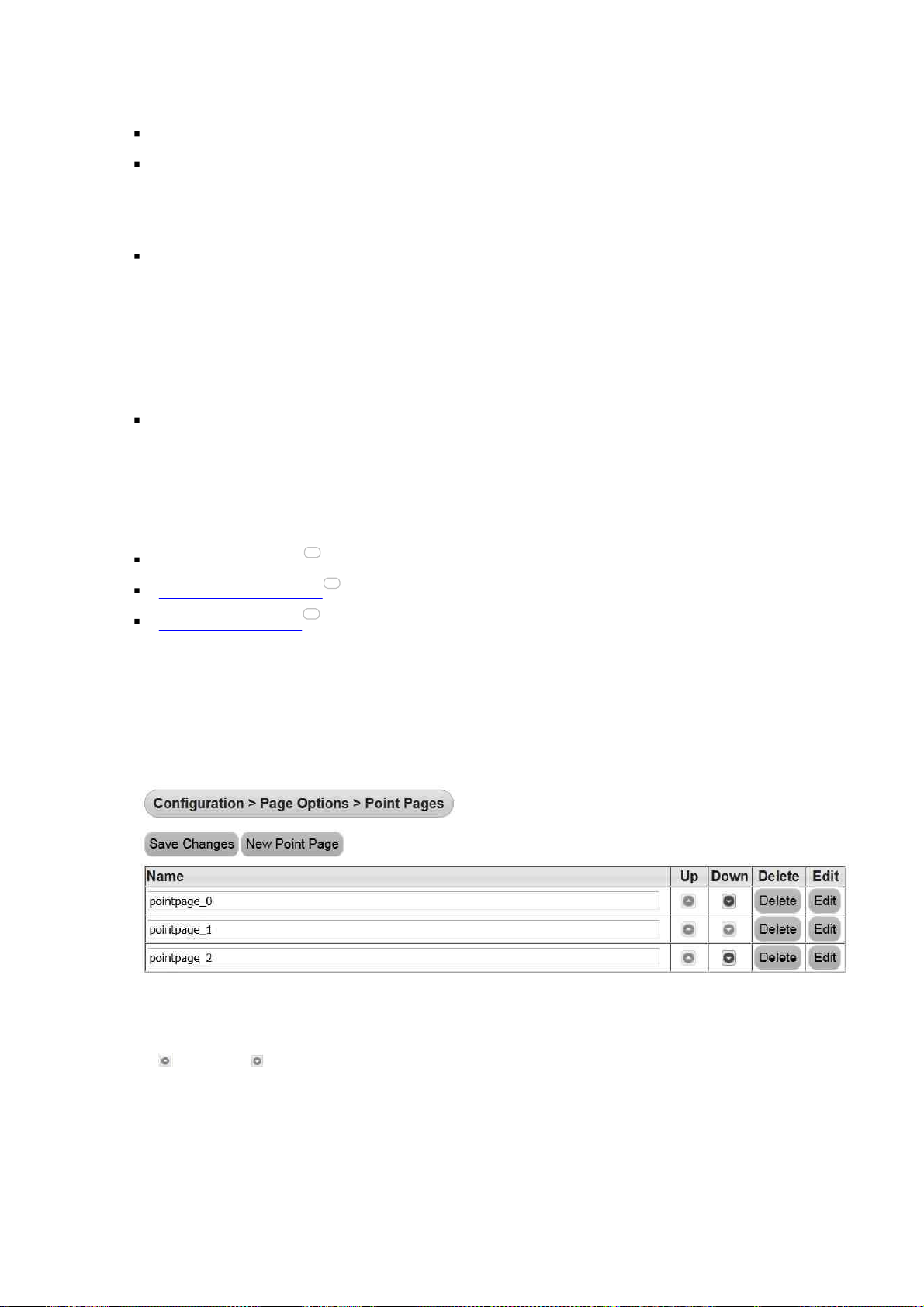

Click Point Pages to select the desired part of data. It may be displayed in one or more rows or sites.

5.4.2 Point Data submenu

Click Point Data to display all data items from all point pages.

5.5 Configuration menu

Note

Settings performed on the web interface are not automatically transferred from the primary to the secondary FG-200. The secondary FG-200 must also be configured separately.

The Configuration menu offers the following menu items:

Settings

System Maintenance

Page Options

Fieldbus

Modbus

5.5.1 Settings

The Settings menu offers the following submenus:

General Settings submenu

Internet Protocol submenu

LD Settings submenu

User Accounts submenu

Chapter 5 - Using the internal webserver interface

5.5.1.1

General Settings submenu

Enable automatic VCR Creation

If this feature is activated, the FG-200 establishes the VCR connection by itself. Examples:

Softing Communication Configuration Tool ComConf: activate

Emerson AMS™ Software: activate

NI-FBUS Configuration Tool: deactivate

FG-200 HSE/FF Modbus - User Manual

Note

The feature Enable automatic VCR Creation has to be activated when the tool comConf is to be used for the Foundation fieldbus configuration.

Hint

The use of the point pages creates a lot of traffic of the FF-H1 network. If you do not use this Monitor feature then you can save more H1 bandwidth and faster reaction time over Modbus.

Note

If you are using Modbus TCP, activate the option Enable Modbus only. If you are using Modbus RTU, activate both options Enable Modbus and Enable RTU.

Display Blocks

This feature enables or disables the point page functionality.

Enable HSE Alarms

The FG-200 is able to use the already configured alarm VCRs in the FF-H1 devices or can established new ones. Or it will configure the FF-H1 devices accordingly. The behavior depends whether the Visitor Mode is enabled or not.

Link Master Functionality

In case of visitor mode it can make sense to disable the Link Master functionality. If no Link Master is available on a segment connected to an activated H1 Link of the FG-200, a timeout will occur after 6 minutes to indicate this. The FG-200 will not be visible in the HSE live list during this period. To avoid this assure that a Link Master is present for all activated H1 Links or deactivate H1 Links of the FG-200.

Visitor Mode

When the FG-200 is in visitor mode it can be connected to a running FF-H1 network with the FF-Host system without affecting the established communication.

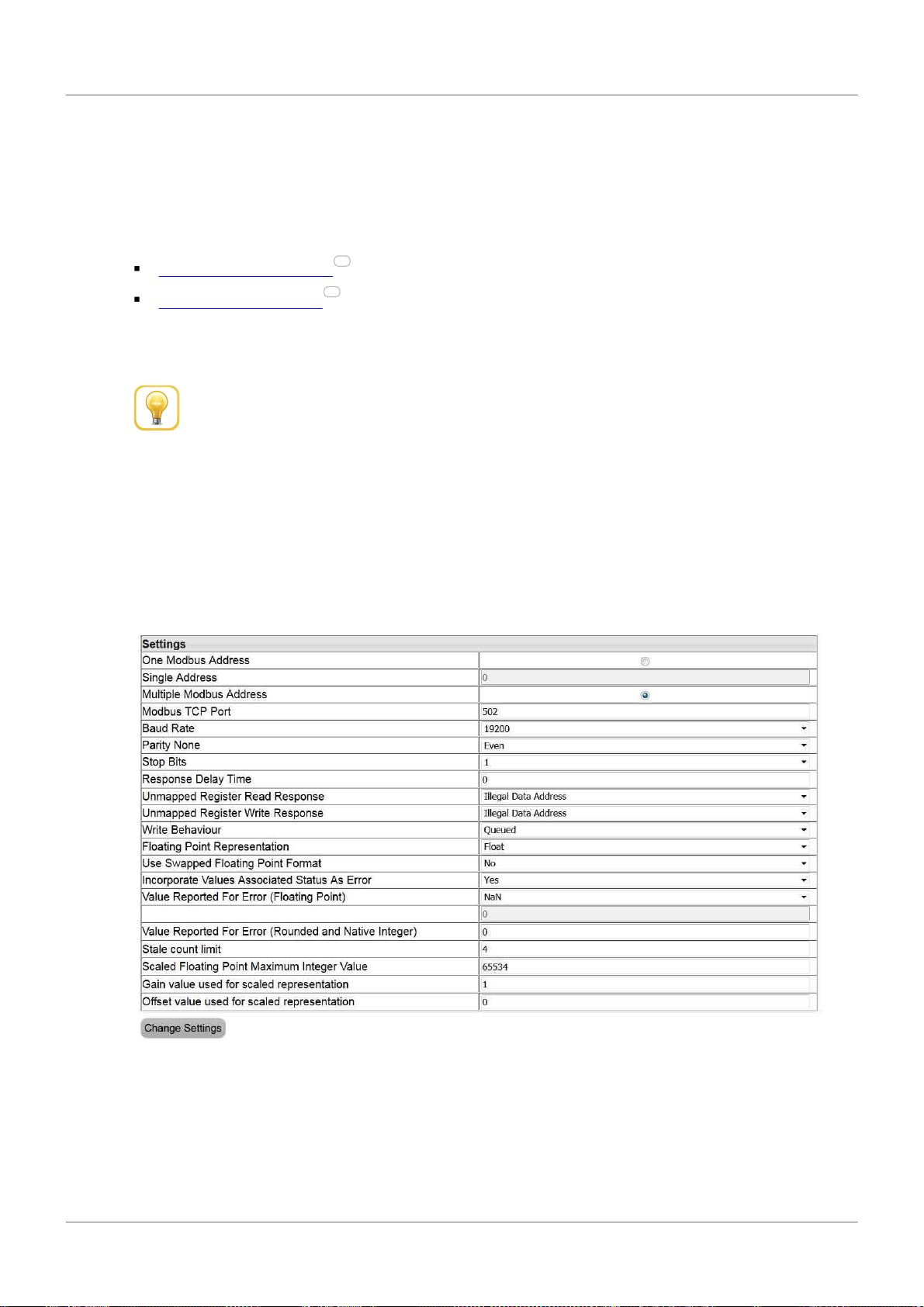

Enable Modbus

This button enables or disables Modbus TCP.

Enable RTU (Modbus RTU)

Modbus RTU runs over the same serial interface (RS232) which is necessary to establish an application with HSE device redundancy. To use redundancy together with Modbus TCP the feature "Modbus RTU" has to be disabled.

The button [Change Settings] allows you to update the settings. To see the updated values click General Settings again.

Chapter 5 - Using the internal webserver interface

5.5.1.2

Internet Protocol submenu

The FG-200 is delivered in a default configuration. To change the default internet protocol settings to assigned values of the chosen subnet in which the installation is running, select Configuration, then Internet Protocol.

A table enabling you to change settings appears. You can click

Obtain an IP address from a DHCP server to obtain a random address chosen from the DHCP server.

To find out the IP address of the FG-200 you can use the function Network Livelist in the comConf

tool. The tool is available on your delivery CD-ROM or can be downloaded from the Softing download

area.

Specify an IP Address to activate the fields in the table below:

Host name: configurable name for the host IP Address: must be compatible with the subnet you choose for the PC setting, must be present in

any case. Subnet mask: default with 255.255.0.0, no change needed, must be present in any case. Default Gateway: It is not necessary to configure a Default Gateway if the host and FG-200 share

the same network.

[Change Settings and Reboot]

When you click this button, the web site shuts down and the system reboots. The input values are checked for consistency. In case of problems the following error may be displayed: Failure: Wrong IP Settings.

The FG-200 reboots after a few seconds and the new values are accepted. If you change the IP address of the FG-200, the IP connection between PC and FG-200 are lost. You have to

use the new IP address to re-establish web access to the FG-200. If all parameters are correct, the new values are accepted and displayed.

[Read Current Values] If you changed some of the parameters and you are not sure of your changes, click the button [Read

Current Values]. Input fields which are already filled are shown again.

FG-200 HSE/FF Modbus - User Manual

Role

Password

Administrator

administrator

fgadmin

Service or maintenance engineer

maintenance

keepitgoing User or operator

operator

runit

Executive

executive

showme

5.5.1.3

5.5.1.4

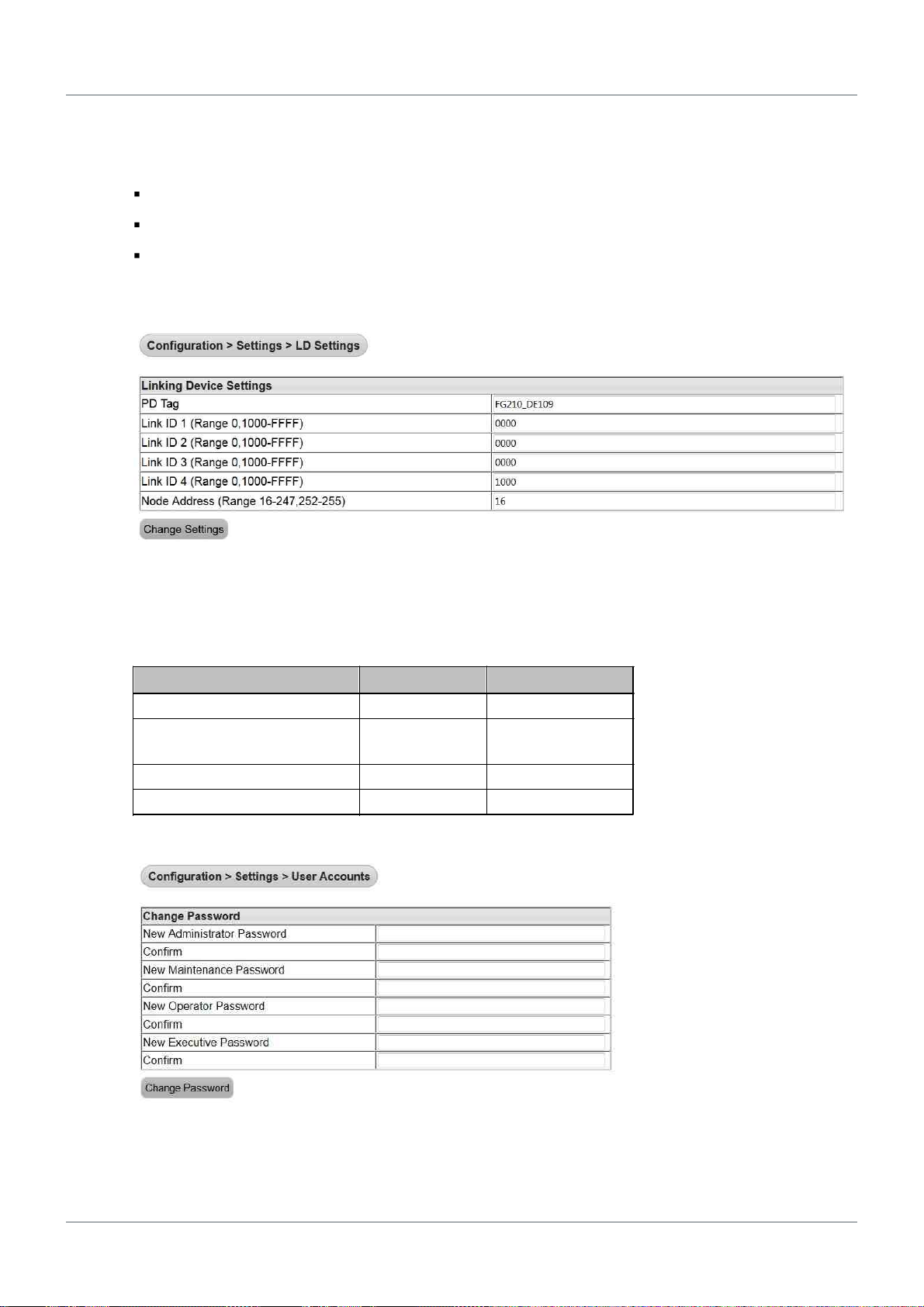

LD Settings submenu

The LD Settings submenu allows to change

the PD-Tag of the FG-200

the Link ID as well as

the Node Address of the H1 links. Each FG-200 uses a default PD tag that includes the serial number. The default PD Tag is also used if the

configuration is erased via the web server interface or during firmware download.

User Accounts submenu

This menu allows you to change and confirm account passwords depending on the role. Due to the tasks a user executes in this web site there are several graduations for admission control. The following standard logins and passwords are available.

These passwords can be configured with administrator rights in the following window:

Enter the password into the corresponding field(s), confirm your entry and click [Change Password] to confirm the modified password(s).

The following tasks can be executed by the specified role:

Task

Administrator

Maintenance

Operator

Executive

Configure network settings

Set passwords

Set time settings and home page options

Restart applications

Monitor process values

Monitor diagnostic values

Note

Be careful when changing the administrator password. If you lose your changed administrator password, you cannot perform any configuration or set up task.

Do not activate the check box Erase Configuration unless you want to set up the complete plant configuration using the comConf tool. When activating, the PD tag is set to an empty string and all passwords are reset to standard passwords (refer to Login to webserver for more information).

5.5.2 System Maintenance

The System Maintenace menu offers the following submenus:

Restart submenu

Firmware submenu

Configuration Backup submenu

Time submenu

Chapter 5 - Using the internal webserver interface

5.5.2.1

5.5.2.2

Restart submenu

Allows you to restart the system:

Click [Restart Now] to restart the system.

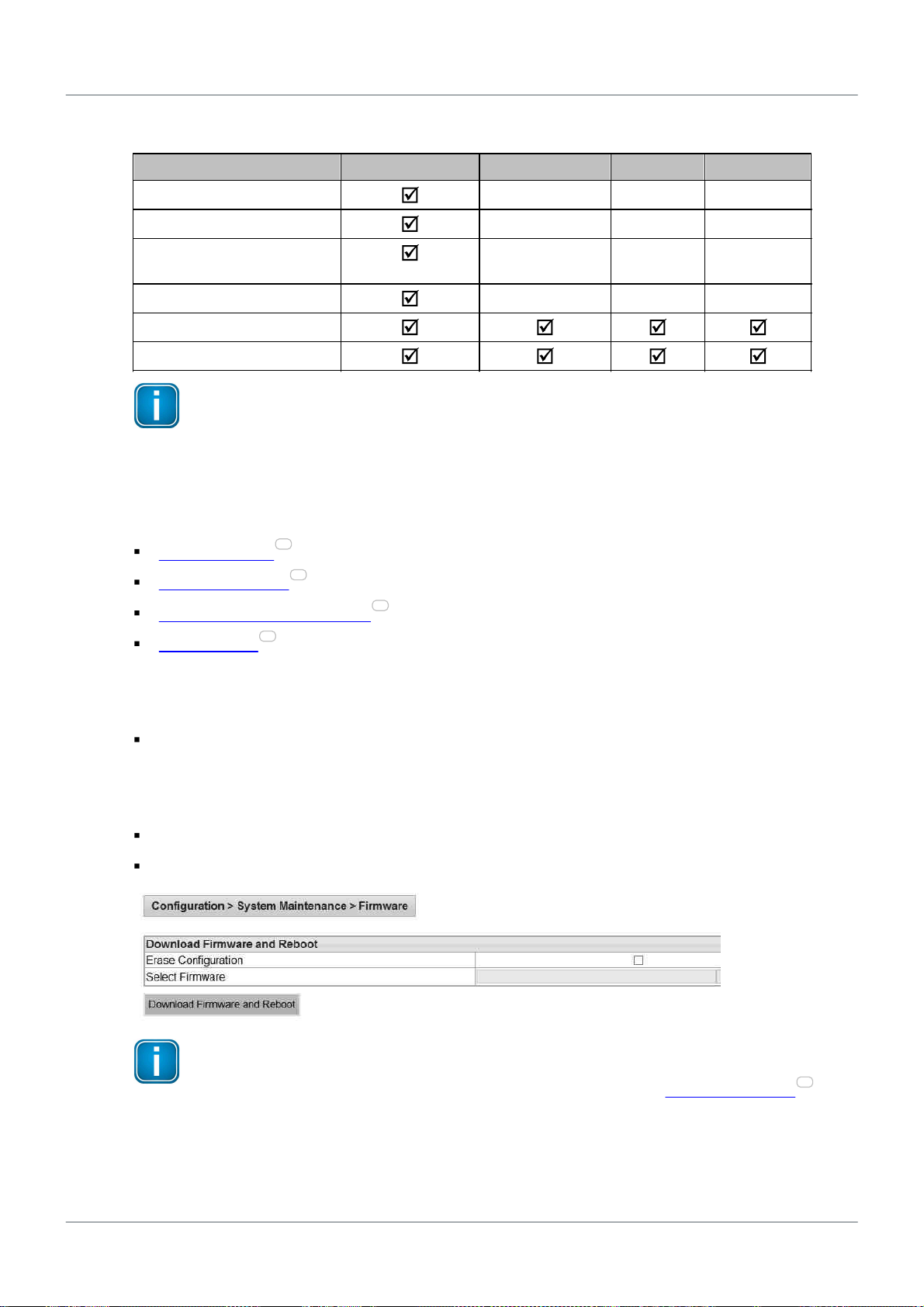

Firmware submenu

Allows you to

erase an existing firmware configuration and to

select new firmware file(s):

1. Click [Browse] right beside the Select Firmware field and browse to your firmware file. Confirm with

[Open].

FG-200 HSE/FF Modbus - User Manual

Note

Do not access the web server of the FG-200 before the "Success" message is displayed in the browser window. If you do so, you will have to clear the cache of your web browser after the boot process has finished, and then re-establish a connection to the web server of the FG-200.

2. Then click [Download Firmware and Reboot] to download the firmware file and to reboot the system.

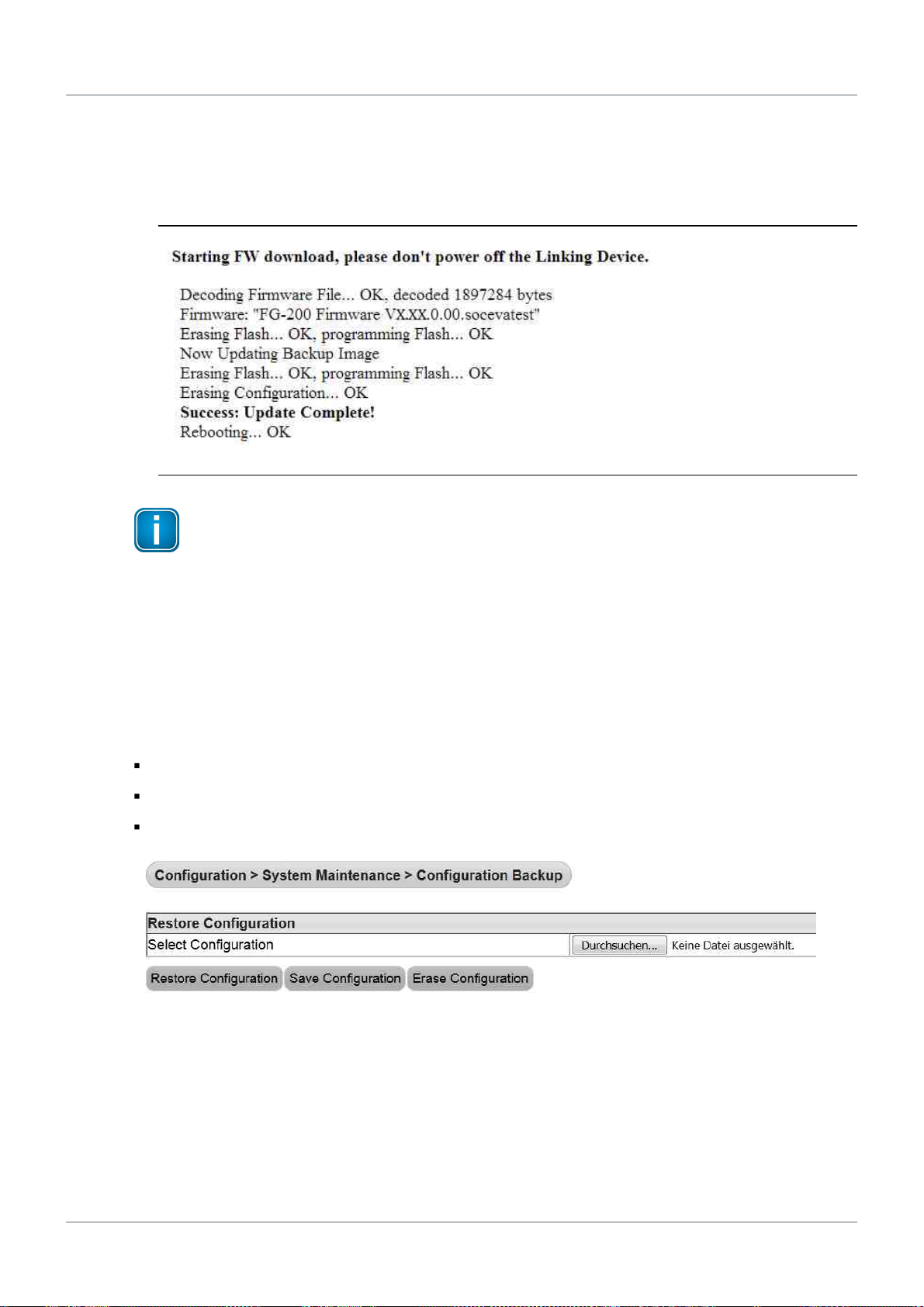

The system performs a firmware file check. The download is started. Messages indicate the current

download status. A complete download is indicated as successful and the FG-200 reboots:

5.5.2.3

The end of the boot process is indicated by a continuously lit RUN LED for a FG-200 acting in non-

redundant mode or for a primary device in redundant mode. For a secondary device it is indicated by a

flashing (1 Hz) RUN LED.

Configuration Backup submenu

Allows you to

restore a selected system configuration,

save a selected configuration or to

erase the current configuration:

Restore Configuration

To restore a previously saved configuration click [Browse], select the desired configuration file and confirm with [Open].

Chapter 5 - Using the internal webserver interface

Important Note When clicking [Erase Configuration] the configuration is immediately deleted.

Note

If an SNTP server is configured, you cannot modify date and time due to automatic time synchronization.

Save Configuration

1. To save your current configuration, click [Save Configuration]. An additional window is opened asking

you to save the file.

2. Click Save file and confirm with [OK]. The configuration file is saved to your standard download

directory.

Erase Configuration

To erase an existing configuration and to reset the FG-200 back to factory default settings click [Erase Configuration]. This action causes

the deletion of the current configuration (whereby the IP configuration is not changed),

passwords to be deleted and to be reset to their default value.

5.5.2.4

Time submenu

Allows you to

synchronize date and time between PC and device(s) or

set a specific date and time for your device:

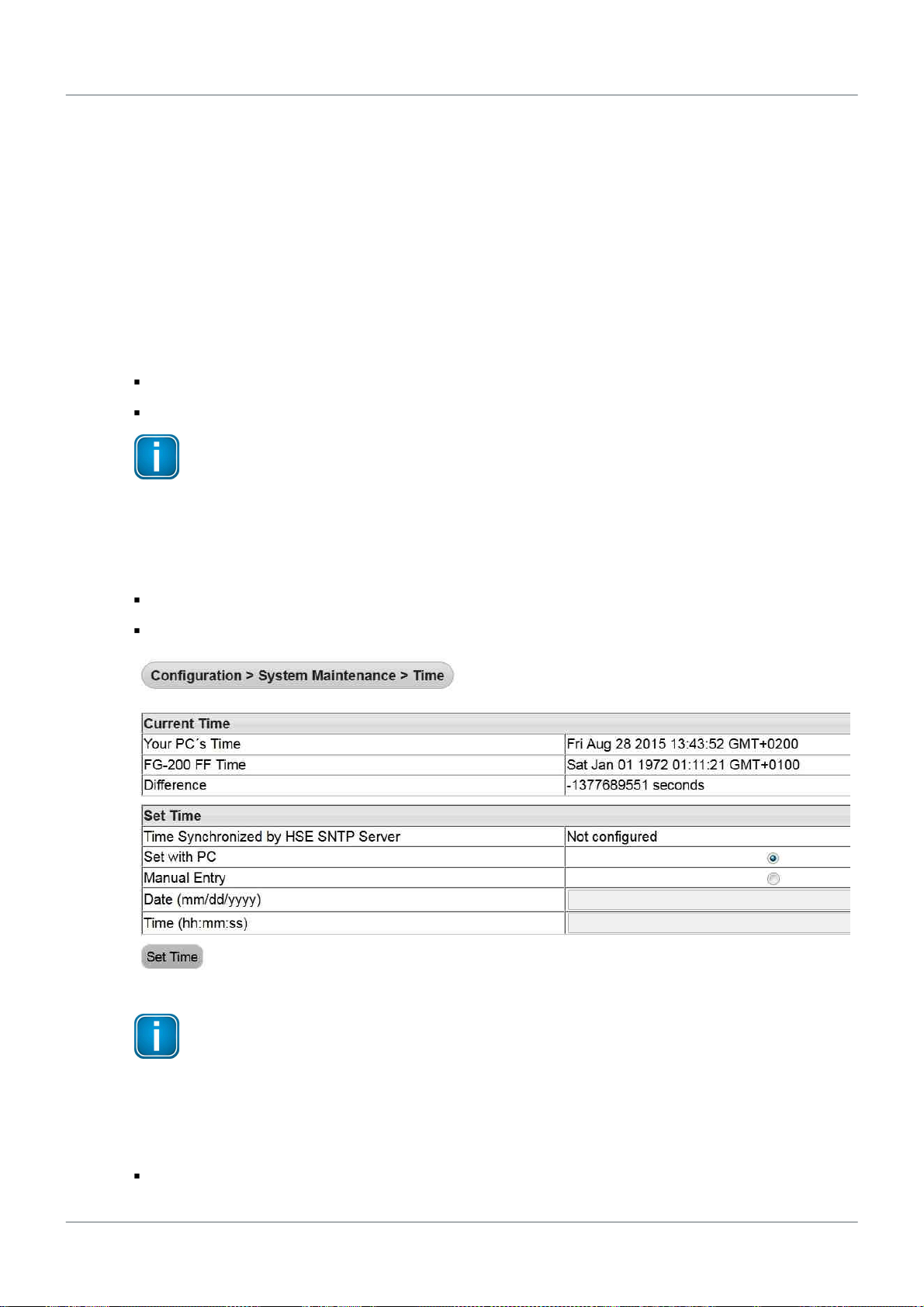

Current Time displays

current time on your PC,

FG-200 HSE/FF Modbus - User Manual

time on the Softing FG-200 and

difference between the current PC time and the time on the FG-200.

Set Time allows you to

synchronize the current PC time and the time of the FG-200. Activate Set with PC and then click [Set

Time]. The synchronized time will appear in the table.

If the FG-200 is connected to a network and if you want to use this feature, you can select a

timeserver at your facility or one near you geographically to ensure accurate time adjustments. The

device will function properly with this feature disabled but data time stamps are less accurate and time

updates must be entered for each FG-200

set the time manually. To do so, activate Manual Entry, then click into the corresponding field Date

and Time and enter the desired values. Confirm your changes by clicking [Set Time]. Your entries are

then activated.

5.5.3 Page Options

The Page Options menu offers the following submenus:

Point Pages submenu

Point Columns submenu

Home Page submenu

5.5.3.1

Point Pages submenu

Point Pages provide a means to view the Output of a Function Block and its status on one or more web pages. It allows to create pages to select information of your whole plant. Multiple pages can be configured to fit the application.

Click Point Pages to display the current list of Point Pages.

[Save Changes] saves your changes. [New Point Page] inserts a new point page line (ascending number, maximum of 20 pages). Up and Down sort the selected page int the order you desire (up or downwards). [Delete] deletes the selected page.

[Edit] allows to edit the selected point page content. A new windows is opened:

Chapter 5 - Using the internal webserver interface

You can insert a new point with [New Point], edit the selected point, sort the list and delete the point.

Columns and their meaning

Point lists the Blocks with OUTPUT parameters (e.g. AI, DI, PID,

AO.BKCAL_OUT, AO.BKCAL_OUT). To open the list of configured points click on the arrow right beside the point. Depending on the selection for usage of cyclic communication (in Configuration General Settings) the list will contain only those parameters that are configured to be published cyclically. Maximum number of new points is 20.

5.5.3.2

Name contains the parameter name. You can enter any name such as a plant or

system tag name for an I/O parameter. Maximum length is 32 characters.

Description contains the user description of the parameter name. [Save Changes] saves your changes. To display the new or modified values click [Switch to

PP Overview].

[Switch to PP Overview] switches back to the main point pages overview window.

Point Columns submenu

The point columns submenu opens a table allowing you to enable or disable various point columns. Thus you are able to build the specific point page format you need.

Activate the desired column to make it appear in the point page:

Any deselected point column is disabled and does not appear in the point page (refer also to Point Pages

submenu in the Monitor menu).

FG-200 HSE/FF Modbus - User Manual

5.5.3.3

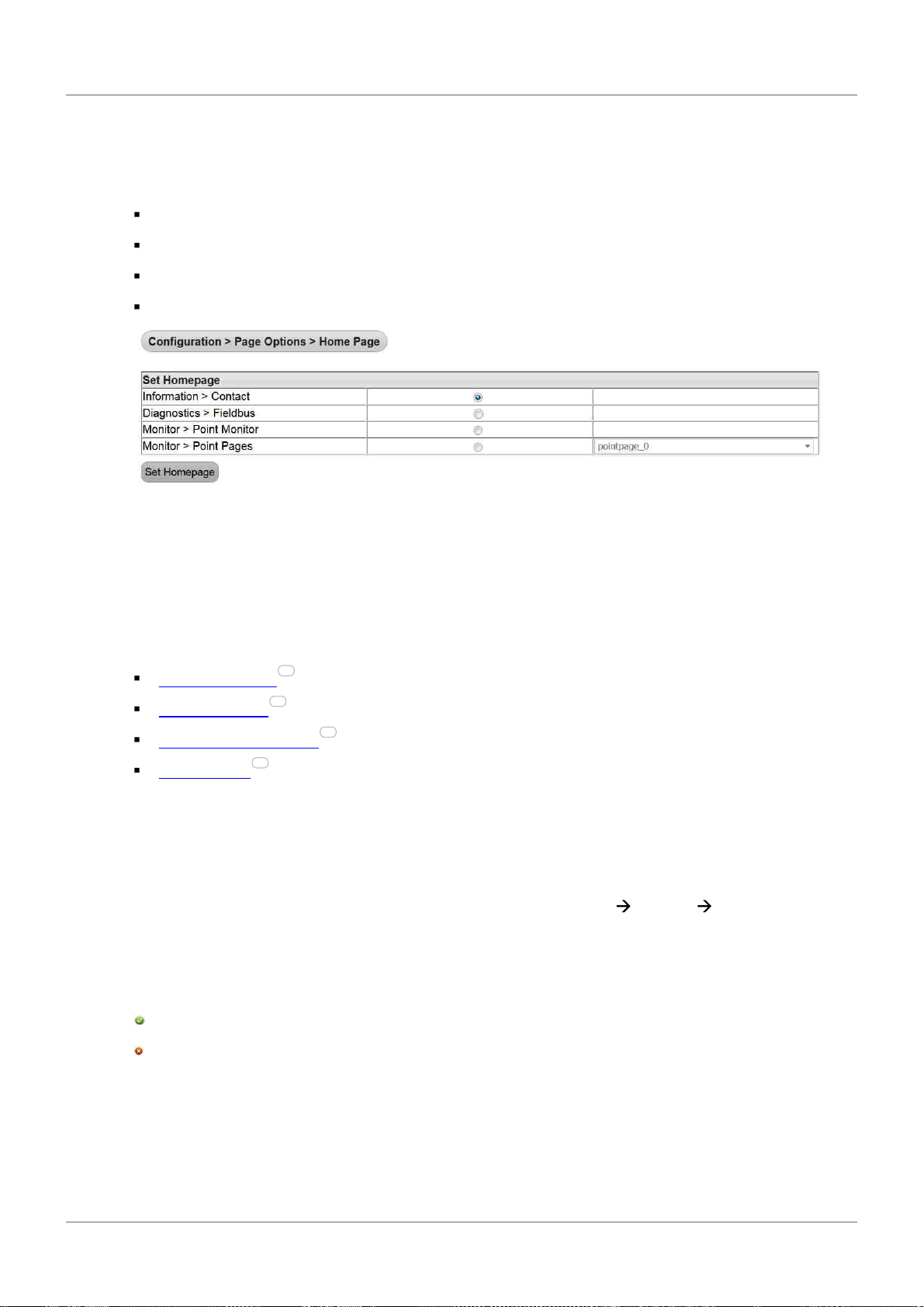

Homepage submenu

The homepage submenu opens a table allowing you to set the start page of the FG-200 HSE/FF Modbus web interface to one of the following four pages:

Information - Contact

Diagnostics - Fieldbus

Monitor - Point Monitor

Monitor - Point Pages

Select the desired homepage and confirm your selection with [Set Homepage]. The next time you log in into your web interface it is opened with the new start page.

If you select Monitor > Point Pages you need to select the specific point page you want to be opened from a list.

5.5.4 Fieldbus

The Fieldbus menu offers the following submenus:

Devices submenu

Blocks submenu

H1 Parameter submenu

HSE submenu

5.5.4.1

Devices submenu

The devices submenu opens a table displaying the devices that are connected to the FG-200. The table shows which segment from the FG-200 is connected to how many devices. The devices are displayed with their H1 Node Address, their Device ID and their PD Tag.

Precondition: You have activated Enable HSE Alarms in Configuration Settings General Settings. Additionally there is information about the alarm VCR (VCR address) and the status of the alarm (alarm

sending in the H1 device and transferring the alarm from the FG-200 to HSE). The column Alarm VCR displays the configured H1 endpoint address used for the reception of the alarms.

indicates that alarm sending is configured. indicates that no alarm could be configured or - in Visitor mode only - a different endpoint

is configured already to the device which must not be overwritten.

Chapter 5 - Using the internal webserver interface

Note

If you are working with the configuration tool comConf we recommend not to modify tags.

The fields Node and PD Tag are display fields and cannot be modified. Click [Update Alarm VCR] to update the list, e.g. after a configuration download. Thus, modified node

addresses, PD tags or the communication configuration list will reflect the current H1 segment configuration status. Alternatively you can restart the FG-200 to update settings.

5.5.4.2

Blocks submenu

The Block submenu displays the block information of all FF-H1 field devices that are connected to the FG-

200. Two filters allow for selecting

Segment the list of configured segments. Device list of devices connected.

The table shows the corresponding Block Type, Block Name, Description and whether it is enabled or not. Enabled block types are displayed in the point page in the Monitor menu . By default only those blocks

are enabled that have a block name. For vendor-specific blocks the profile number is displayed instead of the name.

When naming blocks (up to 32 ASCII-characters) we recommend assigning self-explanatory names that contain information about the location or type (e.g. analog output, digital input).

[Set Tag] changes the block tag in the device according to the modifications performed.

[Reload Live List] updates information on the blocks and reloads the live list in the comConf with updated information, e.g. after a configuration download. Thus, modified block tags will reflect the current configuration status. Alternatively you can restart the FG-200 to update information on the blocks.

FG-200 HSE/FF Modbus - User Manual

Note

The default settings "Address = 239.255.0.33" and "Port = 45000" are required for interoperability with Emerson AMS tool.

Changing these parameters would disable the display of alarm conditions in AMS alert monitoring.

5.5.4.3

5.5.4.4

H1 Busparameter submenu

The H1 Busparameter submenu allows to define parameters for the chosen segment (H1 Link). Click [Change Settings] to apply your modifications and download it to the FG-200. If the selected H1 segment is active, the settings would also be downloaded to a secondary FG-200 if the FG-200 is acting as primary in a redundant set.

HSE submenu

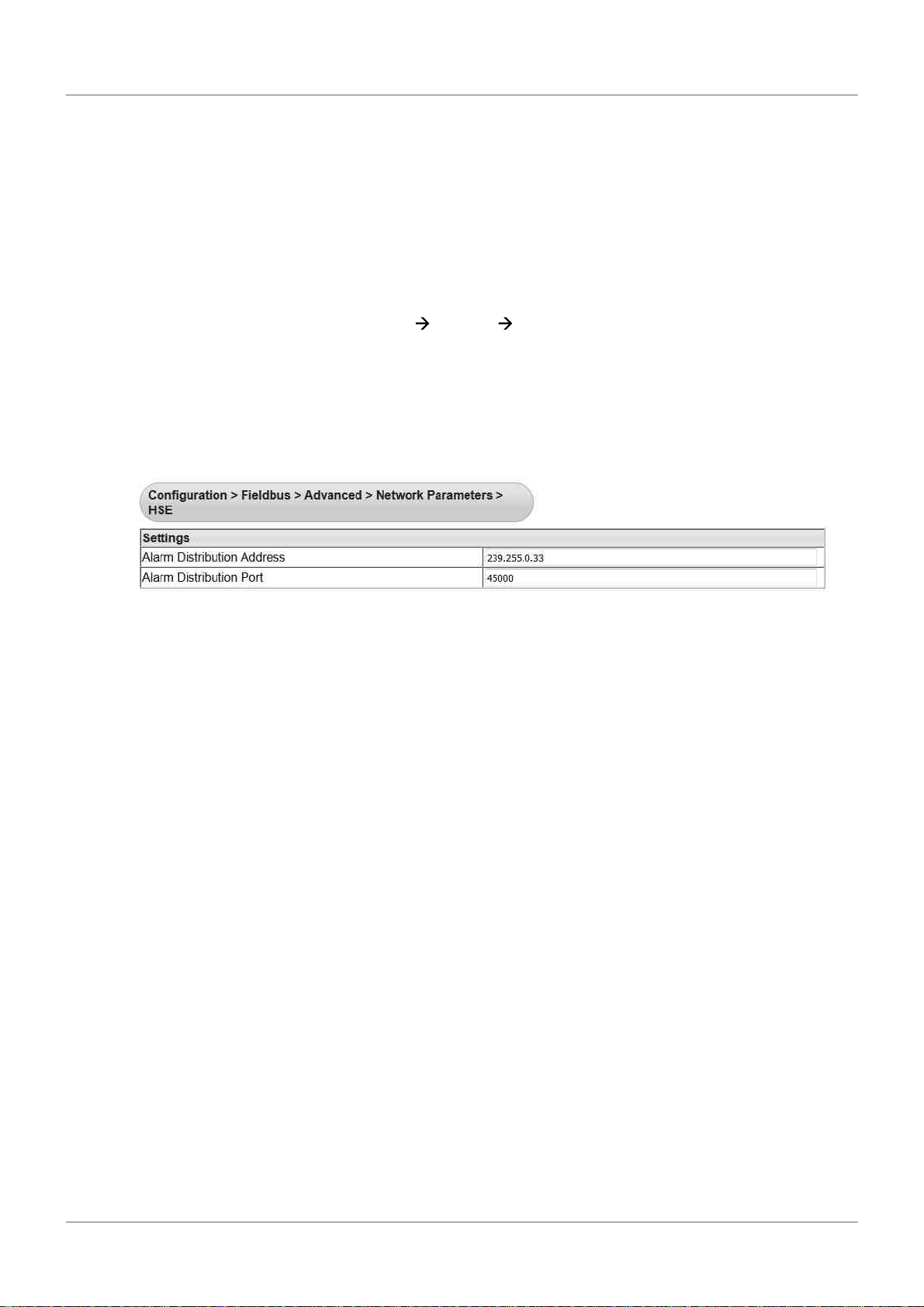

The HSE submenu allows to specify the Alarm Distribution Address and the Alarm Distribution Port. These parameters are the Multicast Address and the UDP Port that are used by the FG-200 to forward alarms from H1 devices.

If a different HSE host tool should be used, the parameter could be adapted to the values required by that tool.

Click [Change Settings] to apply your modifications.

5.5.5 Modbus

Hint

Before you modify settings make sure that the Modbus function is enabled and all parameters are set to a valid value. Therefore consult the manual of your particular Modbus client and adjust the Modbus configuration accordingly.

The FG-200 allows traditional control systems access to H1 fieldbus devices as well as over the serial port RS485 and using TCP/IP. These control systems normally include support for the Modbus communication protocol.

The Modbus menu offers the following submenus:

Communication submenu

Import/Export submenu

Chapter 5 - Using the internal webserver interface

5.5.5.1

Communication submenu

The Communication submenu allows to configure the Modbus Communication settings.

Most of the settings are self-explanatory and are related to configuring the serial port to match the settings used by the Modbus Master.

If you are using Modbus TCP/IP over the Ethernet, then the communication settings (baud rate, parity, stop bits) can be ignored.

Click [Change Settings] to apply your modifications.

FG-200 HSE/FF Modbus - User Manual

Note

The Modbus mapping table cannot be specified by the user any longer. Current you import a Modbus mapping created by the Softing ComConf.

5.5.5.2

Import/Export submenu

In this submenu you can import a Modbus mapping created by comConf.

[Export] Saves the imported Modbus Mapping table. [Import] Imports an existing Modbus Mapping table in csv format.

Chapter 6 - Redundancy mode

Redundancy mode

Redundancy mode is possible in all environments/use cases where the FG-200 acts as link active scheduler.

Redundancy mode is not possible when FG-200 acts as a visitor host or when the serial RS232 interface of the FG-200 is used for Modbus communication.

6.1 Redundancy concept

FOUNDATION fieldbus is a distributed control architecture that provides increased availability compared to centralized control architectures.

To improve the availability of the FG-200 HSE/FF Modbus, it is possible to combine two FG-200s which then form a redundant Linking Device:

Figure 1: System Topology A redundant Linking Device (also called "a redundant set of devices") consists of two physical Linking

Devices that are connected to the same HSE subnet and to the same H1 links. The redundant set of devices behaves like one logical Linking Device. By duplicating the physical Linking Device, it is possible to tolerate one fault in one of the two devices.

In a redundant set of devices one Linking Device acts as primary device and performs actively all communication functions, including the Link Active Scheduler (LAS) function on the H1 links. In a redundant set it is the primary device that has to be addressed by Hosts and configuration tools.

The second Linking Device, named secondary device, acts as backup device. It receives automatically the same configuration as the primary device, but uses different node addresses on the H1 links and a different IP address on HSE.

The secondary device is able to take over the function of the primary device if the primary device fails. In that case the Linking Device is reduced to a non-redundant system that is not able to tolerate any further failure. Therefore it is necessary to replace the defective device as soon as possible to recover redundancy.

The secondary device acts as Backup Link Master on each H1 link attempting to take over the LAS role if required. Additional Link Master Devices may be configured to act as Backup Link Master on the H1 links.

FG-200 HSE/FF Modbus - User Manual

The two devices forming a redundant set communicate via a redundancy link interface and via Ethernet. The serial line is used to establish a redundant set of devices, to exchange signs of life, and to control redundancy switch-over, while the Ethernet is used to transfer configuration information from the primary device to the secondary device. Therefore an operational serial communication path and an operational Ethernet path between both devices are required for proper operation.

The two physical Linking Devices forming a redundant set of devices are determined by the serial link between them. Without that serial link, both devices operate like independent, non-redundant Primary Devices.

6.2 Fault domain

Figure 2: Fault Domain The shaded area in the figure above shows the fault domain. Faults within the fault domain can be

detected and covered by the redundancy features. Those are:

permanent faults within the Linking Device - (1)

transient faults within a Linking Device that lead to loss of functions - (1)

a loss of the serial connection between the two Linking Devices - (2)

a failure in the Ethernet communication between the two Linking Devices - (3)

a loss of an H1 connection between the primary device and the entire H1 link; this may be caused by

disconnecting an H1 cable from the primary device - (4a) if LD1 acts as primary device; (4b) if LD2 acts

as primary device). Detecting a loss of an H1 connection between the primary device and the entire H1 link requires that at

least two H1 devices have been connected to that H1 channel of the Linking Device and have appeared in the H1 Live List before the loss of the connection occurs.

Chapter 6 - Redundancy mode

Fault

Measure of repair

Permanent fault within the FG-200

Replacement of the detective FG-200.

Transient fault within the FG-200

Restart of the FG-200 (performed automatically).

Loss of the serial connection between the two FG-200s

Re-establishment of the serial connection.

Only one of the listed faults may be present at a time. Another fault cannot be tolerated until the redundant set has been repaired and a fully operational secondary device is available.

The following fault conditions cannot be detected and covered:

A loss of an H1 connection between the primary device and a subset of devices on an H1 link

A loss of an H1 connection between the secondary device and the entire H1 link or a subset of devices

on an H1 link. The conditions for a switch-over from the primary device to the secondary device are listed below.

Transfer from primary device to secondary device

The primary device transfers its role to the secondary device

if Host system or configuration tool request to transfer the role or the primary device detects a failure of its own Ethernet port or the primary device detects a failure on at least one H1 interface or the primary device detects a loss of the connection to all devices on an H1 link.

This requires that at least two devices have been connected to that H1 channel of the Linking Device and have appeared in the H1 Live List before the loss of the connection occurs.

The secondary device accepts the transfer

if its H1 interfaces are operational and faultless and its Ethernet port is operational and it has a valid configuration.

Take over of primary role

The secondary device takes over the primary role

if the serial connection to the primary device is lost and it acts as Link Active Scheduler on all configured H1 links and its Ethernet port is operational.

Restoring redundancy

Only one of the listed faults may be present at a time. Another fault cannot be tolerated until the redundant set has been repaired and a fully operational secondary device is available.

The required measures for repairing the redundant set of devices depend on the present fault. For an overview refer to Table 15.

FG-200 HSE/FF Modbus - User Manual

Fault

Measure of repair

Loss of the Ethernet connection between the two FG-200s.

Re-establishment of the Ethernet connection.

Loss of an H1 connection between the Primary Devices and the entire H1 link

Re-establishment of the H1 connection.

Table 1: Measures for repairing a redundant set of devices

6.3 Configuration of a redundant pair of FG-200

Webserver interface

Make sure that both FG-200s have a different IP address. Refer to Configure IP address and Modbus

parameters for a detailed description.

To realize a redundant pair of FG-200s a serial link between both devices is necessary. Deactivate Enable RTU. To do so, go to Configuration Settings General Settings in the webserver interface and

deselect the option Enable RTU.

After modifying the configuration settings click [Change Settings] to apply the new settings and to reboot the FG-200. Make sure to apply these configuration settings on both FG-200s.

Detect primary and secondary FG-200

To detect primary and secondary FG-200 go to Diagnostics Internet Protocol . In the respective entry in line Redundancy State you will see Primary, no backup for the primary device and Secondary for the secondary device.

Then go to Diagnostics Fieldbus and note down the Device ID for the respective FG-200.

comConf

1. To configure a redundant FG-200 with the comConf select the FG-200 within the project manager or

topology and open the Properties View.

2. Enter the IP address in the corresponding fields of the secondary FG-200.

3. Save the values with Ctrl+S.

4. From the Build menu select the command Build All (or press Alt+F8).

Chapter 6 - Redundancy mode

5. Generate Code for the current segment.

6. Select Download Download Project.

Synchronize Modbus mapping tables of primary and secondary device

1. Import the mapping tables generated with comConf in both the primary and secondary FG-200.

FG-200 HSE/FF Modbus - User Manual

Symbol

Color

Lighting

none

off

red

permanent

green

permanent

red

flashing

green

flashing

green

flashing slowly (0.5 Hz)

green

flashing quickly (5 Hz)

permanent green

24V DC power supply is ok

off

no power supply

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Start–up phase (approximately 7 seconds)

During this phase redundancy role is determined.

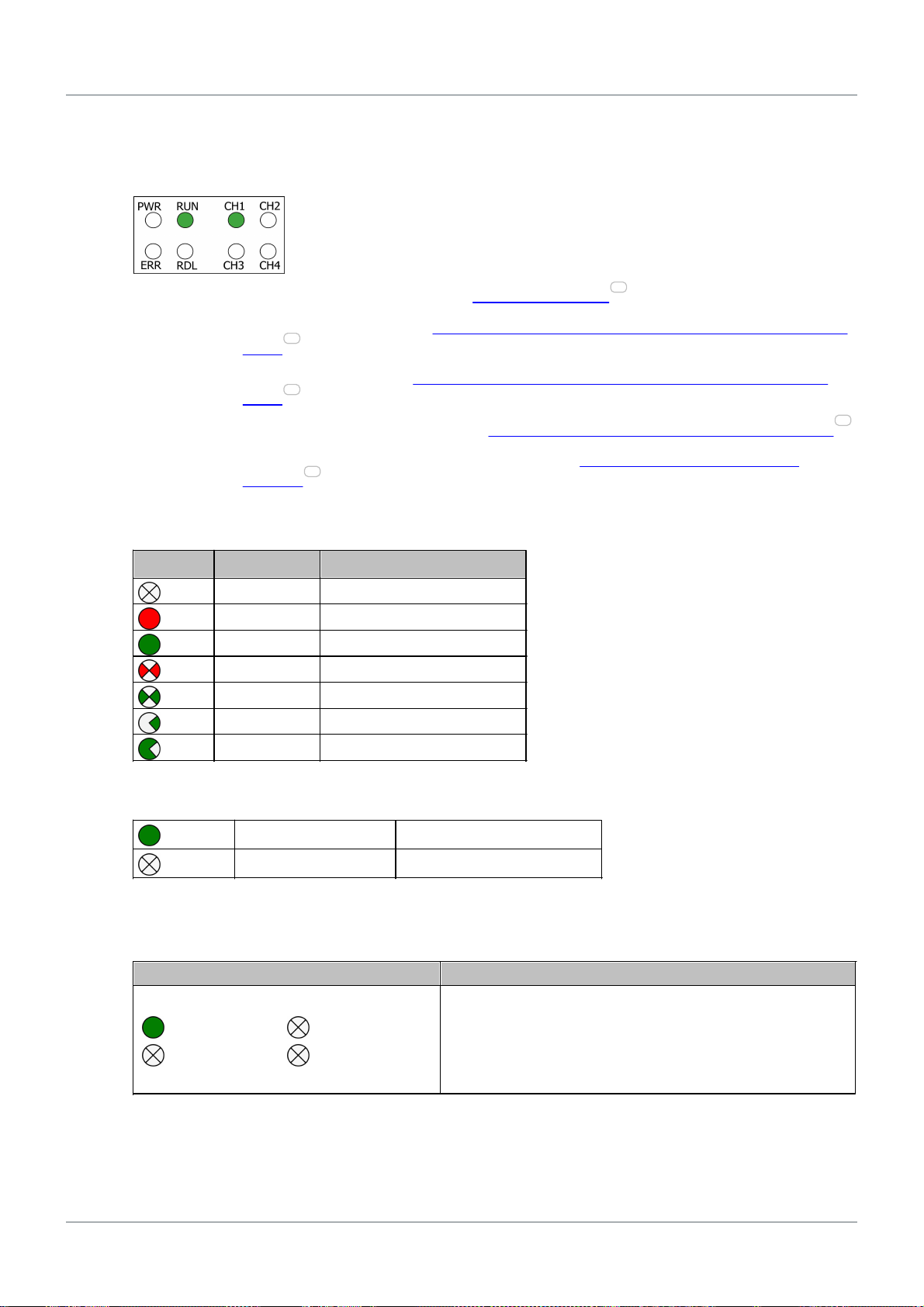

Status indicators - LEDs

The FG-200 is equipped with eight LEDs on its front side:

PWR stands for power supply - refer to PWR - power supply RUN stands for running - refer to Device LED statuses (PWR, RUN, ERR and RDL) in stand-alone

ERR stands for error- refer to Device LED statuses (PWR, RUN, ERR and RDL) in stand-alone

mode

RDL stands for redundancy link - refer to RUN / ERR / RDL - LED statuses in redundant mode CH1 to CH4 stands for H1 channel 1 to H1 channel 4 - refer to Status indications of the four H1

channels

The LEDs may be on permanently or flash in different colors and frequencies. We use the following symbols:

7.1 PWR - power supply

7.2 Device LED statuses (PWR, RUN, ERR and RDL) in stand-alone mode

The following table shows possible LED combinations in stand-alone mode:

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Non redundant device, ready.

The device is operational; it is not part of a redundant set.

PWR

RUN

green

red

ERR

RDL

Permanent hardware fault detection during startup.

A fatal error has been detected.

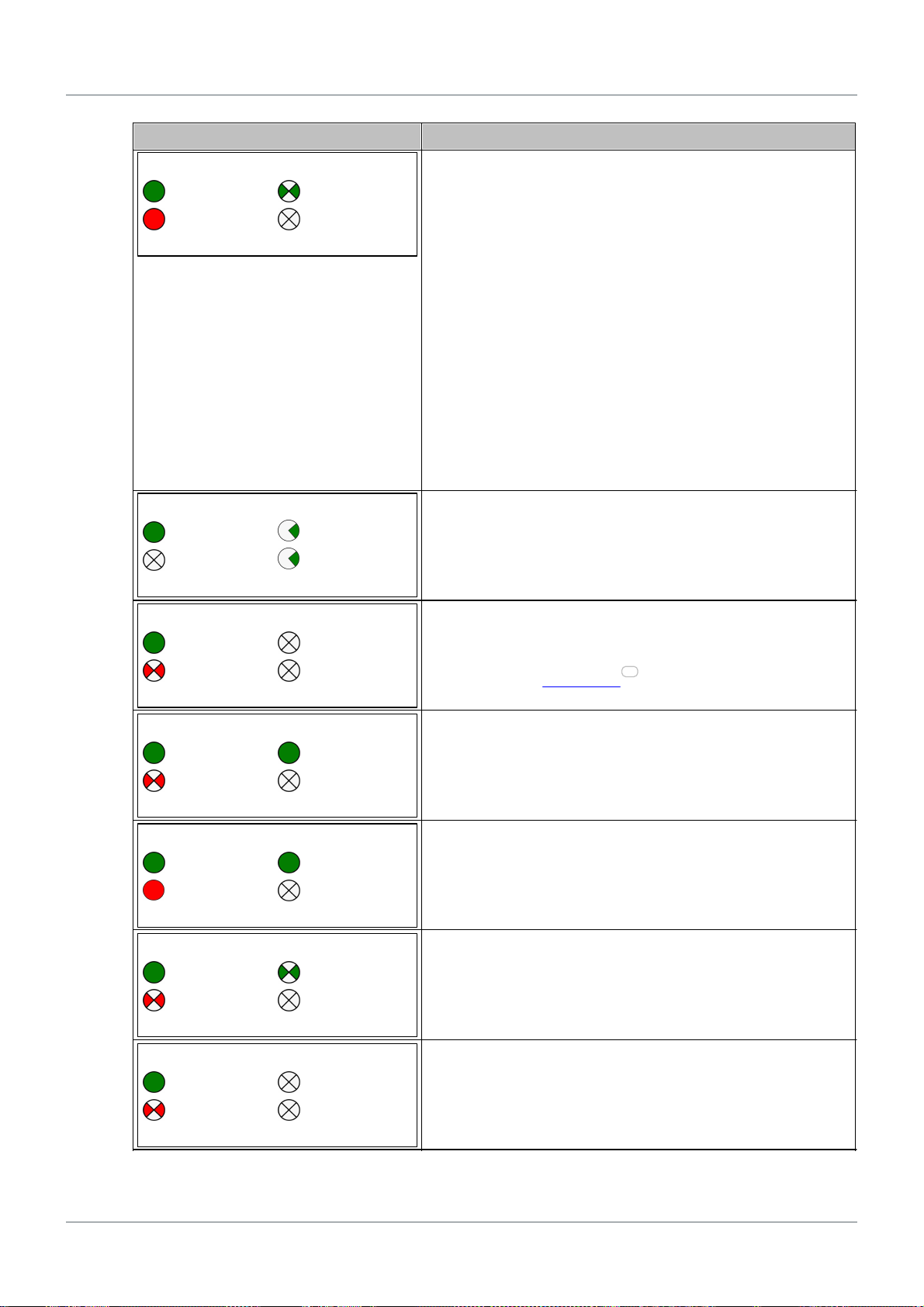

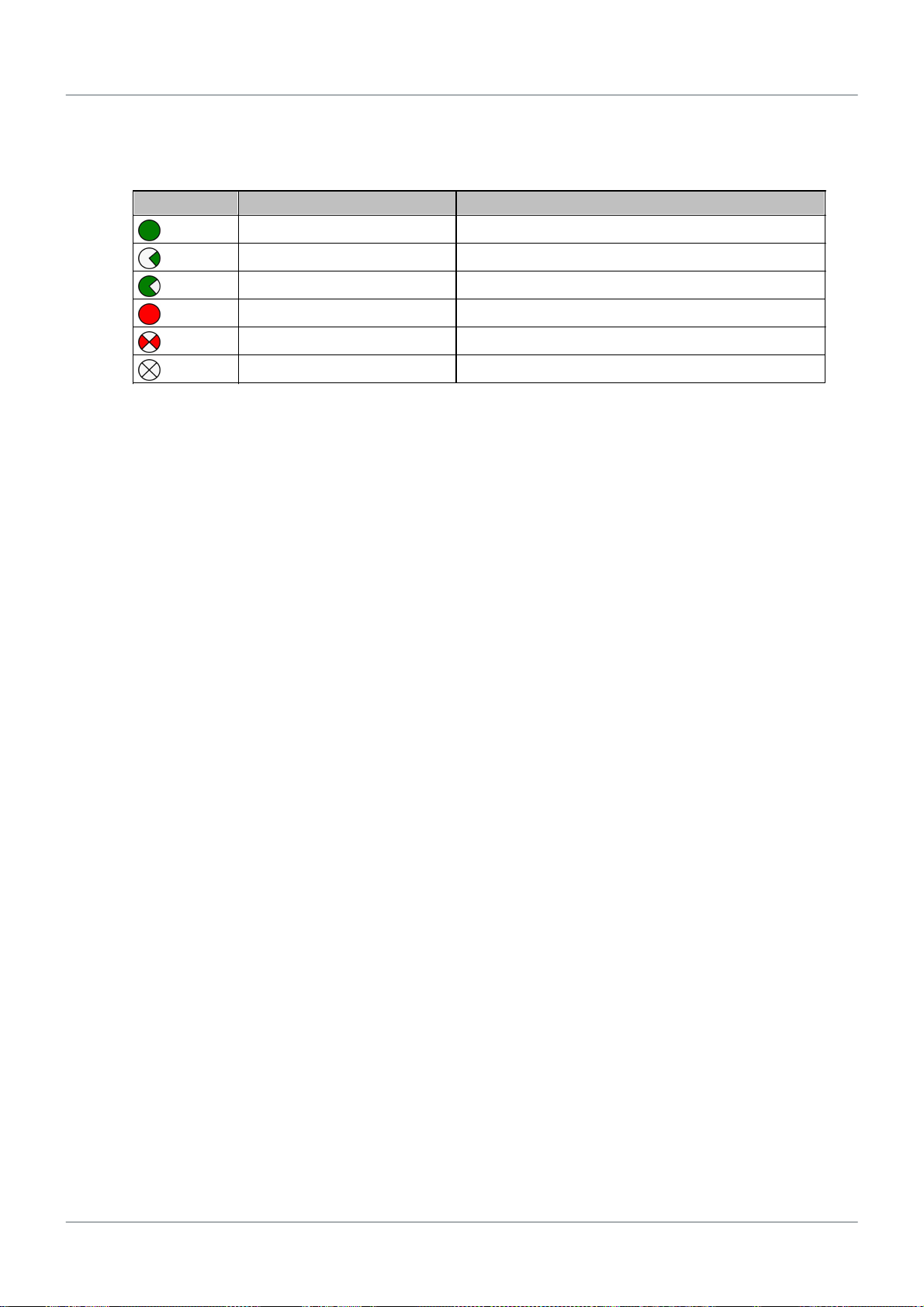

7.3 RUN / ERR / RDL - LED statuses in redundant mode

flashing green

redundancy link communication is ok (triggered by redundancy link packets)

red

link communication interrupted or aborted (broken down)

off

no link communication at all

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Start–up phase (approx. 7 seconds) During this phase redundancy role is determined.

PWR

RUN

green

ERR

RDL

Non redundant device, ready. The device is operational; it is not part of a redundant set. Primary Device is redundant set. The device is operational, acting as Primary Device in a

redundant set. The secondary device is ready

PWR

RUN

green

red

ERR

RDL

Permanent hardware fault detection during startup. A fatal error has been detected. Possible failure could be a

missing Ethernet connection.

PWR

RUN

green

red

ERR

RDL

Primary device or non-redundant device, hardware failure. The device is acting as non-redundant device, but a minor

hardware failure has been detected during start-up. In the case of a Primary Device on a redundant set, the

secondary device is not ready

The redundancy link LED is used to indicate if traffic via the serial line is performed. It will flash green if a valid message is received. It will switch to red if serial communication is lost and it will be off if no serial response has been received after startup.

Chapter 7 - Status indicators - LEDs

FG-200 HSE/FF Modbus - User Manual

LEDs

Meaning

PWR

RUN

green

red

ERR

RDL

Primary device or non-redundant device, failure. The device is acting as non-redundant device, but a failure has

been detected. or Secondary device, not ready. The device is acting as secondary device in a redundant set,

but it is not ready to take over the primary role due to e.g. not synchronized configuration information or a non-operational redundancy link.

or Primary Device or non-redundant device, failure. The device is acting as Primary Device in a redundant set or as

non-redundant device, but a failure has been detected. In the case of a Primary Device in a redundant set or as non

redundant set, the secondary device is not ready.

PWR

RUN

green

ERR

RDL

Secondary device, operational. The device is operational as secondary device in a redundant

set. The configuration information has been successfully transferred from the Primary Device and the redundancy link is operational.

PWR

RUN

green

red

ERR

RDL

Secondary device, hardware failure. The device is acting as secondary device in a redundant set,

but a hardware failure has been detected. Details are available on the web page Diagnostics of the device.

PWR

RUN

green

red

ERR

RDL

Primary with H1 error state

PWR

RUN

green

red

ERR

RDL

Primary not ready

PWR

RUN

green

red

ERR

RDL

Secondary with H1 error

PWR

RUN

green

red

ERR

RDL

Primary, configuration error

7.4 Status indications of the four H1 channels

Symbol

Color / frequency

Meaning

green

Visitor address

flashing slowly (0.5 Hz)

not in LAS role

flashing quickly (5 Hz)

LAS role

red

no carrier or H1 link is disconnected

flashing red

no token received

off

H1 link unused

The following table shows the channel LEDs and their meaning for all four channels (CH1 - CH4):

Chapter 7 - Status indicators - LEDs

FG-200 HSE/FF Modbus - User Manual

Appendix

8.1 FOUNDATION Fieldbus basics

8.1.1 Link active scheduler

The link active scheduler (LAS) is a deterministic, centralized bus scheduler that controls the communication in the H1 segment. It is responsible to maintain the live list.

8.1.2 Visitor host

A visitor host is a secondary on-process host typically used for asset management and device maintenance. The visitor host uses CLT/SRV connections only. It usually should be assigned to node addresses in the range from 252 to 255.

8.1.3 Live list

The Live list is a list of all currently active devices.

8.1.4 Publisher/subscriber links (PUB/SUB links)

Publisher/subscriber links is used for cyclic transfer of process values (input data and output data). The process value is send by a publisher. Multiple subscribers linked to the publisher are able to receive the process value.

The LAS coordinates the cyclic data transfer on base of a synchronized system time. The cyclic data transfer is synchronized with the execution of the function blocks in the field devices. The schedules for cyclic data transfer as well as for the execution of the function blocks are generated by the comConf tool.

Input data

In case of input data the input function block executed and immediately after the function block execution the new data are transmitted over the line.

Output data

In case of output data the output function block is executed immediately after the transmission of the output data.

Output function blocks detect the absence of fresh PLC output data. If the PLC does not provide fresh output data then output function blocks will switch into a fault state mode. As the PLC write accesses to the FG-200 Modbus registers are not synchronized with the cyclic data transfer in the H1 segment it is necessary that the PLC writes "oversample" the H1 macrocycle. If, for example, the macrocycle time in the H1 link is one second then it is assumed that the PLC writes fresh output data every 500 milliseconds.

8.1.5 Client/server connections (CTL/SRV connections)

Client/server connections are used for acyclic transfer between FG-200 and field devices. Acyclic data transfer is performed in the gaps between cyclic data transfer.

For client/server connections the client (FG-200) establishes and server (H1 field device) is established. Once the connection is established the FG-200 can send read and write requests to the field device. After processing the request the field device sends a read or write response to the FG-200.

In case of client/server communication the FG-200 build internal read lists with all parameters configured in the Modbus mapping table or in the point pages. The FG-200 executes this read lists periodically. The time for executing the read lists depends on various factors. As a rule of thumb you can assume that a read request and the corresponding read response will take about 100 millisecond. Thus, if you have, for example, 25 parameters in your Modbus mapping and/or in your point pages each Modbus register and point page parameter will be updated every two and a half second.

Chapter 8 - Appendix

The main time consuming factors in read request handling are the low baud rate in an H1 segment (31.25 kbit/sec) and the processing time of the read request in the H1 field device. The processing time within the FG-200 is negligible.

The FG-200 supports four H1 segments. If, enhancing the example above, 25 parameters are configured in each segment the update time of the 4 * 25 parameters will still be two and a half second.

Please consider that the execution of the FG-200 read lists is not synchronized with the periodic execution of the function blocks. Assuming the function blocks are executed one time per second and the execution of the read list takes two and a half seconds then you will get only each second or third value produced by the function block.

8.1.6 Macrocycle

Macrocycle is the period of the function block schedule and the cyclic data transfer schedule. Typical macrocycle times are 500 milliseconds, one second, two seconds and four seconds.

8.1.7 Input/output parameters (I/O parameters)

Input and output parameters are used for accessing process values (input data and output data). They are structured parameters composed of a status and a value.

IO parameters are typically transmitted via publisher/subscriber links. If no publisher/subscriber links are configured IO parameter can be read and written via client/server connection.

8.1.8 Contained parameters

Contained parameters are used for data that are not process values. Contained parameters contain status information and configuration data.

Contained parameters are read or written via client/server connections. It is not possible to transmit contained parameters via publisher/subscriber links.

FG-200 HSE/FF Modbus - User Manual

Fault detection

Device fails completely or software watchdog expires or hardware watchdog expires or exception occurs or failure in H1 interface detected.

Fault treatment

Primary role actively transferred to or taken by redundant system

Effect

Redundancy switch-over. System degrades to non–redundant system.

Repair measure

Transient fault: Automatic reboot Permanent fault: replace device Secondary service will reboot and receive configuration data from primary device.

Fault detection

Bad link status of Ethernet port detected. Detection time less than 500 ms.

Fault treatment

Primary role actively transferred to redundant device.

Effect

Redundancy switch-over. System degrades to non-redundant system.

Repair measure

Repair or reconnect Ethernet cable. Secondary device will reboot and receive configuration data from primary device.

Fault detection

Empty live list detected on one H1 port or primary device while secondary device still has non-empty live list. Due to the H1 protocol it may take some seconds. Until the live list becomes empty. Detection occurs only if in primary device and secondary device the number of active H1 devices in the live list has exceeded the threshold of one.

Fault treatment

Primary role actively transferred to redundant device, so that access to H1 is possible again.

Effect

Redundancy switch-over. No redundancy concerning the affected H1 link.

Repair measure

Repair or reconnect H1 cable.

8.2 Redundancy

8.2.1 Redundancy behavior

The following table provides detailed information on the redundancy behavior. This may be useful to get a correct understanding of what fault conditions can be covered and how the system recovers from those fault conditions.

In any case, the fully redundant state is obtained again when the secondary device indicates "operational" (RUN-LED flashing) and its H1 live lists are complete. In highly populated, tightly configured H1 links it may take several minutes to acquire the live lists. Before the live lists are completed, redundancy switching is possible but client server connections can only be established to H1 devices which are in the live list.

Any further error that occurs before the fully redundant state is reached may cause the system to fail.

8.2.1.1

8.2.1.2

8.2.1.3

Primary device fails due to permanent or transient hardware or software fault (1)

Ethernet cable broken between primary device and Ethernet hub/switch (2)

H1 cable broken between primary device and H1 network (3)

Chapter 8 - Appendix

Fault detection

Device fails completely or software watchdog expires or hardware watchdog expires or exception occurs or failure in H1 interface detected.

Fault treatment

Secondary device assumes and indicates non-operational state.

Effect

System degrades to non-redundant system.

Repair measure

Transient fault: Automatic reboot Permanent fault: replace device Secondary device will reboot and receive configuration data from primary device.

Fault detection

Bad link status of Ethernet port detected. Detection time less than 500 ms.

Fault treatment

Secondary device assumes and indicates non-operational state.

Effect

System degrades to non-redundant system.

Repair measure

Repair or reconnect Ethernet cable. Secondary device will reboot and receive configuration data from primary device.

Fault detection

No fault detection in secondary device. Empty live list has to be detected by any HSE client (e. g. asset monitor).

Fault treatment

None.

Effect

No redundancy concerning the affected H1 link.

Repair measure

Repair or reconnect H1 cable.

Fault detection

Time-out on TCP connection. Detection time less than 2 sec during activity and less than 7 sec during idle times.

Fault treatment

Secondary device assumes and indicates non operational state1).

Effect

System degrades to non-redundant system. Secondary device clears configuration.

Repair measure

Repair Ethernet connection. Secondary device may reboot in some cases depending on prior state and will

receive configuration data from primary device.

Fault detection

Loss of serial communication. Detection time less than 800 ms.

Fault treatment

Secondary device assumes and indicates non operational state.

Effect

System degrades to non-redundant system.

Repair measure

Repair or reconnect redundancy link. Secondary device will reboot and receive configuration data from primary device.

8.2.1.4

8.2.1.5

8.2.1.6

Secondary device fails due to permanent or transient hardware or software fault (4)

Ethernet cable broken between secondary device and Ethernet hub/switch (5)

H1 cable broken between secondary device and H1 network (6)

8.2.1.7

8.2.1.8

TCP connection lost between primary device and secondary device (7)

If the secondary device reboots cyclically in this state, set the TCP acknowledge timeout (object 22223) to a smaller value.

Redundancy link broken or removed between primary device and secondary device (8)

FG-200 HSE/FF Modbus - User Manual

Primary device

Secondary device

R-LED

H1-LED

Web-Info

R-LED

H1-LEDs

Web-Info

0Onfast on configured links

Off on unconfigured links.

Ok Primary

Flashing

Slow on configured links

Off on not configured links

Ok Secondary

1Onfast on configured links

Off on not configured links

Failure no serial communicati on

Primary, no backup

off

(no connection to web server)

2Onfast on configured links

Off on non configured links

Failure TCP link to redundant device is lost

Primary, no backup

Flashing

Slow on configured links

Off on non configured links

(no connection to web server)

3Onfast on configured links

Off on not configured links

Ok Primary

Flashing

fast on missing links

Slow on configured links

Off on not configured links

Ok Secondary

4Onfast on configured links

Off on not configured links

Failure no serial communicati on

Primary, no backup

off

(no connection to web server)

5Onfast on configured links

Off on not configured links

Failure TCP link to redundant device is lost

Primary, no backup

Flashing

Slow on configured links

Off on not configured links

(no connection to web server)

6Onfast on configured links

Off on not configured links

Ok Primary

Flashing

fast on missing links

Slow on configured links

Ok Secondary

8.2.1.9

State indication associated

The following table shows the state indications associated with the fault states described above. The numbers in the first column refer to the previous table. Line 0 describes the faultless state. "primary device" and "secondary device" denote the role after redundancy switching.

Chapter 8 - Appendix

Primary device

Secondary device

R-LED

H1-LED

Web-Info

R-LED

H1-LEDs

Web-Info

Off on not configured links

7Onfast on configured links

Off on not configured links

Failure TCP link to redundant device is lost

Primary, no backup

(if connection to web server possible)

off

Failure TCP link to redundant device is lost

Primary, no backup

(if connection to web server possible)

8Onfast on configured links

Off on not configured links

Failure no serial communicati on

Primary, no backup

off

Slow on configured links

Off on not configured links

Failure no serial communication

Primary, no backup

8.2.2 Duration of redundancy switch-over

Switch-over duration PUB/SUB links

During redundancy switch-over, the activity on H1 links is interrupted. From the perspective of a single H1 device, PUB/SUB links are interrupted for a period of time that is composed of the following times:

fault detection time t fd

redundancy switching time t rs

macro cycle duration t mc The time of inactivity due to redundancy switch-over for a single process value is therefore:

time of inactivity =t fd + t rs + t mc

compared to t mc during regular operation. The fault detection time is:

t fd =800 ms if the primary device fails.

t fd =1500 ms if the Ethernet connection on the primary device is removed. The redundancy switching time is:

t rs =500 ms.

The macrocycle duration depends on the configuration and is usually in the range of 500 ms to 2 seconds.

Switch-over duration for CLT/SRV connections

In case of CLT/SRV connections the switch will take about one minute.

FG-200 HSE/FF Modbus - User Manual

If contained parameters such as BLOCK_ERR or channel are accessed, it will take about one minute until

the registers in the secondary FG-200 show the current parameter values.

8.2.3 Replace a defective FG-200 in a redundant set

For replacing a defective FG-200 in a redundant set of FG-200s, perform the following steps:

1. Identify the defective FG-200. Refer to Status indicators - LEDs .

2. Remove the power terminal block from the FG-200.

3. Remove the redundancy link interface cable and the Ethernet cable.

4. If not indicated on the cable, make a note to which channel each H1 link is connected. Then remove

the H1 terminal blocks.

5. Make sure that the new FG-200 has the same IP configuration (IP address and subnet mask) as the

replaced defective device. See Internet Protocol submenu for more information.

6. Replace the defective FG-200.

7. Plug in the H1 terminal blocks. Make sure to use the same allocation as before.

8. Connect the Ethernet cable and the redundancy link interface cable.

9. Make sure that the redundancy link interface cable is connected before plugging in the power terminal

block.

If the replaced FG-200 is powered while the serial link is missing, it will behave like an independent,

non-redundant primary device. If in this case the FG-200 has a valid (possibly unknown) configuration,

it might use H1 node addresses which are already in use on the H1 links. This will disturb or interrupt

communication and application processing on the H1 links.

10. Plug in the power terminal block. The boot process and the download of the configuration information

take about 1 minute. For indication of proper operation as a secondary device refer to Status

indicators - LEDs .

8.3 Diagnostics - Advanced submenus

Click Advanced to open the following submenus:

Fieldbus Statistics submenu

HSE Statistics submenu

FPGA Error Statistics submenu

FPGA Register Contents submenu

Device Temperature submenu

Modbus Statistics submenu

8.3.1 Fieldbus Statistics submenu

This table shows you information about all four segments concerning

Live List Changes - number of total live list changes

Live List Pass Token Timeouts - number of pass token timeouts; under good conditions it should be "0"

Total Retries - number of total retries for acyclic H1 requests. This could be an indication of noise on

the H! segment or a H1 device problem.

Chapter 8 - Appendix

Messages Transmitted - number of messages transmitted by the FG-200.

Good Messages Received - number of messages received from FG-200. The button [Reset Statistic Counter] allows you to reset all segment values to zero and to restart counting.

To see the new results, click Fieldbus Statistics again.

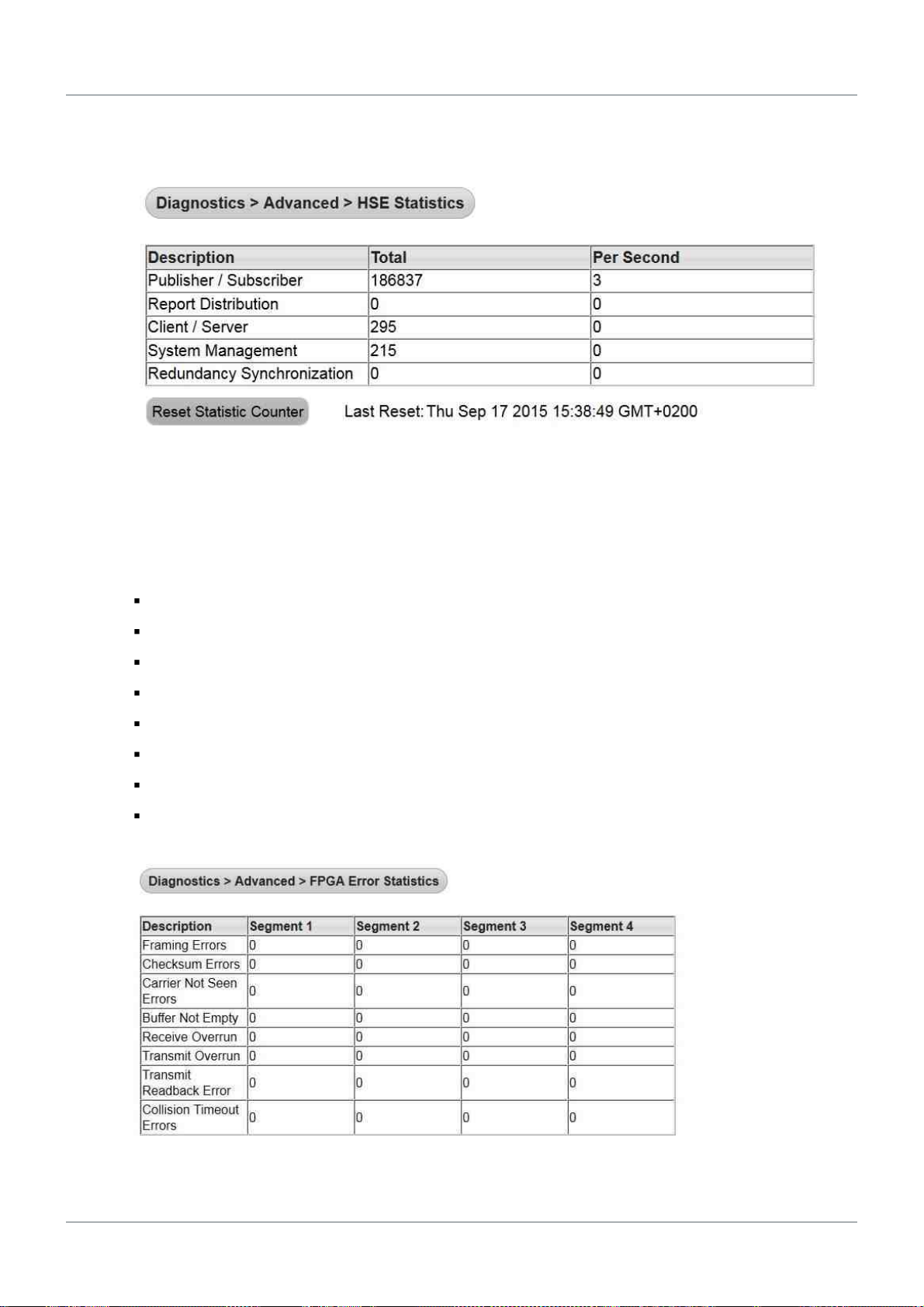

8.3.2 HSE Statistics submenu

This table shows you the total number and number per second of HSE frames grouped into:

Publisher / Subscriber

Report Distribution

Client / Server

System Management

Redundancy Synchronization (This functionality is not supported by AssetMonitor Linking Devices.)

FG-200 HSE/FF Modbus - User Manual

The button [Reset Statistic Counter] allows you to reset all segment values to zero and to restart counting. To see the new results, click [Fieldbus Statistics] again.

8.3.3 FPGA Error Statistics submenu

This table shows the values of the framing error counters per channel and checksum errors in received packets. High counter values may indicate a bad signal quality in the H1 channel and/or a device that is not operating properly.

In addition, the following information is displayed:

Framing Errors (i.e. incomplete frames, might be an indication of noise on the H1 segment)

Checksum Errors (might be an indication of noise on the H1 segment)

Carrier Not Seen Errors

Buffer Not Empty (might indicate that the H1 network is not connected or not powered)

Receive Overrun

Transmit Overrun

Transmit Readback Error

Collision Timeout Errors (might indicate that the H1 network is not connected or not powered).

8.3.4 FPGA Register Contents submenu

The content of the FPGA register contains data which is only relevant if you contact Softing's customer support for error analysis and troubleshooting.

If requested by Softing's support, take a screen shot and send your problem description together with the screen shot to support.automation@softing.com.

8.3.5 Device Temperature submenu

This table shows you information about current temperature values in degrees Celsius and Fahrenheit. The button [Reset Temperature Values] allows you to reset all values to zero and to restart measuring. To

see the new results, click [Device Temperature] again.

Chapter 8 - Appendix

8.3.6 Modbus Statistics submenu

The Modbus communications statistics provide information on the data and packets received and transmitted by the Modbus slave interface. Select

[Serial] if you want to monitor the Modbus RTU link or

[TCP] if you are monitoring the Modbus TCP/IP communications.

Serial

The menu item Serial shows statistical data of a Modbus connected on a serial interface. First messages and CRC errors from received data are listed. Then messages and error responses from the transmitted data are listed.

The values specified apply to the time since the program has been started or the latest [Reset Statistic Counter].

The button [Reset Statistic Counter] allows you to reset all values to zero and to restart counting. To see the new results, click [Serial] again.

FG-200 HSE/FF Modbus - User Manual

No error

0x0000

Out Of Service

0x0001

Power up

0x0002

Device needs maintenance

0x0004

Readback check failed

0x0008

Lost nv data

0x0010

Lost static data

0x0020

Memory failure

0x0040

Output failure

0x0080

Input failure

0x0100

Dev needs maint soon

0x0200

Dev fault state set

0x0400

Local override

0x0800

Simulate active

0x1000

Link config err

0x2000

Block config err

0x4000

Other

0x8000

TCP

The menu item TCP shows statistical data of a Modbus connected using TCP. First received and transmitted messages are listed. Then the error responses are counted. Finally open and accepted connections are listed.

The button [Reset Counts] allows you to reset all values to zero and to restart counting. To see the new results, click [TCP] again.

8.4 Coding of bit fields

Parameter BLOCK_ERR

Chapter 8 - Appendix

Parameter MODE_BLK:

Out Of Service 0x01 Initialization Manual 0x02 Local Override 0x04 Manual 0x08 Auto 0x10 Cascade 0x20 Remote-Cascade 0x40 Remote-Output 0x80

Modbus Register 16 Bit register contains target mode in High Byte, actual mode in low byte. Example: Modbus value 0x1001 means: target mode = Auto, actual mode = Out Of Service

Field Diagnostics (Parameter FD_FAIL, FD_OFFSPEC, FD_CHECK, FD_MAINT)

The bit fields are vendor specific and not specified by FIELDBUS Foundation except the least significant bit (LSB). The LSB indicates the check function to be active. The check function is typically mapped to the FD_CHECK parameter but may also be mapped to any of the other FD_xxx parameters.

The value for LSB is 0x80000000, the value for the most significant bit (MSB) is 0x00000001

8.5 Modbus exception responses

ExceptionCode = 02

The FG-200 will send an exception response with [ExceptionCode = 02] if [start address] or [start address + quantity of registers] is not OK.

ExceptionCode = 04

The FG-200 will send an exception response with [ExceptionCode = 04] if one of the requested registers does not contain valid data. Please note that after power-on the FG-200 responds with [ExceptionCode = 04] until all requested data are read from the connected H1 field devices.

FG-200 HSE/FF Modbus - User Manual

8.6 Assign a second (local) IP address under Windows 8.1

1. Open the Desktop

2. Press the Windows start key and select Control Panel.

3. Select Network and Internet.

4. Open Network and Sharing Center.

5. Click Connections.

6. In the Connection Status window click Properties.

7. In the item connection list select Internet Protocol Version 4 (TCP/IPv4).

8. Click Properties. In the General dialog, the regular (first) IP address, the subnet mask and the standard

gateway are shown.

9. Click Advanced to add a second IP address. Then click [Add] in the IP Addresses dialog.

10. Enter the IP address and the subnet mask.

11. Click [Add].

12. Then confirm all open dialogs with [OK].

Chapter 9 - Technical data

Power supply

18 VDC...32 VDC; SELV/PELV supply mandatory Typical input current is 200 mA; maximum is 1 A (considering the rush-in

current at switch-on).

FF-H1

Four FF-H1 channels, compliant with type 114 of the FF physical layer profile. The Fieldbus voltage range is from 9 VDC...32 VDC. Preferred value is 24 VDC.

Ethernet

IEEE 802.3 100BASE-TX/10BASE-T

Minimum ambient operating temperature

-40 °C Storage temperature

-40 °C...+85 °C

Relative humidity

10 %...95 % (non-condensing)

Altitude

Must not exceed 2,000 m

Location

Indoor use only; no direct sunlight

Coating

Conformal Coating based on ANSI/ISA-S71.04 G3

Safety standard

IEC/EN/UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements

IEC/EN/UL 61010-2-201 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-201: Particular requirements for control equipment (both with CB scheme).

Ingress protection

IP20

Minimum distance

Provide a minimum distance of 50 mm to the air inlet and air outlet to ensure natural convection.

Rotated installation position

The maximum permissible ambient temperature values also apply to a 180° rotated installation position.

Technical data

9.1 Specifications

9.2 Installation positions

The FG-200 can be mounted horizontally and vertically. Depending on the installation position, different ambient operating temperatures (Ta) are allowed.

FG-200 HSE/FF Modbus - User Manual

Maximum number of fieldbus channels used

Maximum fieldbus voltage

Minimum distance

Maximum permissible ambient temperature T

32 VDC

0 mm

55 °C

24 VDC

0 mm

60 °C

32 VDC

17.5 mm

65 °C

24 VDC

17.5 mm

70 °C

Maximum number of fieldbus channels used

Maximum fieldbus voltage

Minimum distance

Maximum permissible ambient temperature T

32 VDC

0 mm

40 °C

24 VDC

0 mm

50 °C

32 VDC

17.5 mm

55 °C

24 VDC

17.5 mm

60 °C

Horizontal installation position

Vertical installation position

Chapter 10 - ATEX Type Examination Certificate

ATEX Type Examination Certificate

FG-200 HSE/FF Modbus - User Manual

Chapter 10 - ATEX Type Examination Certificate

FG-200 HSE/FF Modbus - User Manual

UL Certificate of Compliance

Chapter 12 - Declarations of conformity

Note

To fulfill the EMC requirements, the other components of your installation (DC adapter, Industrial Ethernet devices, etc.) also have to meet the EMC requirements. A shielded cable must be used. In addition, the cable shield must be grounded properly.

CAUTION

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures!

A Declaration of Conformity in compliance with the above standards has been made and can be requested from Softing Industrial Automation.

ROHS

This product is ROHS compliant.

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

VCCI

This Class A product conforms to the regulations of Voluntary Control Council for Interference (VCCI) by Information Technology Equipment.

WEEE

Electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Packaging material and worn components shall be disposed of according to the regulations applicable in the country of installation.

Declarations of conformity

This device is compliant with EC directive 2014/30/EG, "Electromagnetic Compatibility" (EMC directive) and meets the following requirements:

EN 55011 Industrial, scientific and medical (ISM) devices - radio disturbance -

limits and methods of measurement

EN 55032 Electromagnetic compatibility of multimedia equipment (MME) and interference

emission

EN 61000-6-4 Electromagnetic compatibility (EMC); Part 6-4: generic standard –

emission for industrial environments

EN 61000-6-2 Electromagnetic compatibility (EMC); Part 6-2: generic standard -

immunity for industrial environments

Softing Industrial Automation GmbH

Richard-Reitzner-Allee 6 85540 Haar / Germany http://industrial.softing.com

Tel: + 49 89 45 656-0 Fax: + 49 89 45 656-488 info.automation@softing.com

Softing FG-200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

1.1 About FG-200 HSE/FF Modbus

1.2 System requirements

1.3 Scope of delivery

1.4 Safety precautions

1.5 Intended use

1.6 Document history

1.7 Typographic conventions

Hardware installation

2.1 Installation in hazardous locations

2.1.1 General requirements

2.1.2 Hazardous Location - European and International Approval (ATEX, IECEx)

2.1.3 Hazardous Location - North American Approval (cULus)

2.2 Mounting and dismounting

2.3 Connection diagram

2.4 Connecting the power supply

2.5 Connecting to the network

2.6 Modbus serial connection

2.7 Using two FG-200

2.8 Connecting FF-H1 interfaces

2.9 Powering up the device

2.10 Adding a second FG-200 to form a redundant set of FG-200

Commissioning the FG-200 HSE/FF Modbus

3.1 Installing comConf

3.2 Configuring IP address and Modbus parameters

Working with the FG-200 HSE/FF Modbus

4.1 FG-200 acts as a Modbus / FF-H1 Gateway

4.1.1 FG-200 acts as link active scheduler

4.1.2 FG-200 acts as visitor host

4.1.3 Configuring the Modbus mapping table

4.1.4 Modbus statistics counter

4.2 FG-200 acts as a FF-HSE/ FF-H1 gateway

4.2.1 FG-200 acts as an H1 interface used by Emerson AMS System

Using the internal webserver interface

5.1 Login to webserver

5.2 Information menu

5.3 Diagnostics menu

5.3.1 System

5.3.2 Internet Protocol

5.3.3 Fieldbus

5.3.4 Advanced

5.4 Monitor menu

5.4.1 Point Pages submenu

5.4.2 Point Data submenu

5.5 Configuration menu

5.5.1 Settings

General Settings submenu

Internet Protocol submenu

LD Settings submenu

User Accounts submenu

5.5.2 System Maintenance

Restart submenu

Firmware submenu

Configuration Backup submenu

Time submenu

5.5.3 Page Options

Point Pages submenu

Point Columns submenu

Homepage submenu

5.5.4 Fieldbus

Devices submenu

Blocks submenu

H1 Busparameter submenu

HSE submenu

5.5.5 Modbus

Communication submenu

Import/Export submenu

Redundancy mode

6.1 Redundancy concept

6.2 Fault domain

6.3 Configuration of a redundant pair of FG-200

Status indicators - LEDs

7.1 PWR - power supply

7.2 Device LED statuses (PWR, RUN, ERR and RDL) in stand-alone mode

7.3 RUN / ERR / RDL - LED statuses in redundant mode

7.4 Status indications of the four H1 channels
