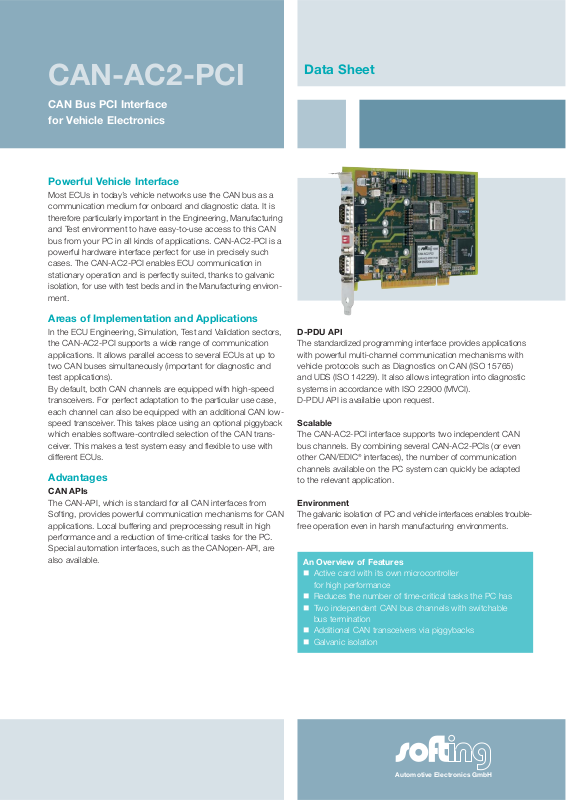

Data Sheet
Powerful Vehicle Interface
Most ECUs in today’s vehicle networks use the CAN bus as a
communication medium for onboard and diagnostic data. It is
therefore particularly important in the Engineering, Manufacturing
and Test environment to have easy-to-use access to this CAN
bus from your PC in all kinds of applications. CAN-AC2-PCI is a
powerful hardware interface perfect for use in precisely such
cases. The CAN-AC2-PCI enables ECU communication in
stationary operation and is perfectly suited, thanks to galvanic
isolation, for use with test beds and in the Manufacturing environment.
Areas of Implementation and Applications
In the ECU Engineering, Simulation, Test and Validation sectors,
the CAN-AC2-PCI supports a wide range of communication
applications. It allows parallel access to several ECUs at up to
two CAN buses simultaneously (important for diagnostic and
test applications).
By default, both CAN channels are equipped with high-speed
transceivers. For perfect adaptation to the particular use case,
each channel can also be equipped with an additional CAN lowspeed transceiver. This takes place using an optional piggyback
which enables software-controlled selection of the CAN transceiver. This makes a test system easy and flexible to use with
different ECUs.
Advantages
CAN APIs
The CAN-API, which is standard for all CAN interfaces from
Softing, provides powerful communication mechanisms for CAN
applications. Local buffering and preprocessing result in high
performance and a reduction of time-critical tasks for the PC.
Special automation interfaces, such as the CANopen-API, are
also available.
D-PDU API
The standardized programming interface provides applications
with powerful multi-channel communication mechanisms with
vehicle protocols such as Diagnostics on CAN (ISO 15765)
and UDS (ISO 14229). It also allows integration into diagnostic
systems in accordance with ISO 22900 (MVCI).
D-PDU API is available upon request.
Scalable
The CAN-AC2-PCI interface supports two independent CAN
bus channels. By combining several CAN-AC2-PCIs (or even
other CAN/EDIC
®
interfaces), the number of communication
channels available on the PC system can quickly be adapted
to the relevant application.
Environment
The galvanic isolation of PC and vehicle interfaces enables troublefree operation even in harsh manufacturing environments.
CAN-AC2-PCI
CAN Bus PCI Interface
for Vehicle Electronics
An Overview of Features
Active card with its own microcontroller
for high performance
Reduces the number of time-critical tasks the PC has
Two independent CAN bus channels with switchable
bus termination
Additional CAN transceivers via piggybacks
Galvanic isolation
Automotive Electronics GmbH
Data Sheet
CAN Bus PCI Interface
for Vehicle Electronics
Subject to changes © Softing Automotive Electronics GmbH, D_AE_04E_1011 / V1.03
Non-binding character of the information and reservation of the right of modification: the features described in
this product information do not represent any pledged features in a legal sense. The information contained
herein may be out-of-date, incorrect or incomplete. All details are thus subject to change and non-binding.
Technical Data
Format Short PCI card, 100x160mm
Power supply 5V (via PC)
Current consumption Typ. 410 mA
Microcontroller Infineon C165
Program/data memory 256 kB RAM for operating software (via download)
PC interface PCI V2.1, 4kB DPRAM (16-bit)
Vehicle interfaces 2 D-Sub 9-pin, CAN bus signals galvanically isolated from the PC interface
CAN 2 CAN channels in acc. with ISO 11898 and CAN 2.0B with 11-/29-bit identifier
Slot per channel for optional piggyback with additional CAN bus transceiver
(switchable via software)
CAN controller SJA1000
Temperature range Operation: 0 ... +55 °C, Storage: -20 ... +70 °C
EMC conformity
Noise emission: EN 55022 Class B
Interference immunity: EN 61000-6-2 (Industrial sector)
FCC part 15 subpart B Class B (Industrial sector)
Delivery Scope
CAN-AC2-PCI hardware
CD with CAN-API software, manual as PDF file
and X-Analyser Appetizer
System Requirements
Operating system Windows™ 7, Vista, XP
4 kB free addressable storage in the upper memory area
and one free interrupt
Software (optional)
Diagnostic Tool Set (DTS)
D-PDU API software in acc. with ISO 22900-2 (upon request)
Softing North America, Inc.
29 Water Street, Suite 301
Newburyport, MA 01950
USA
Tel.: +1 978 499 9650
Fax: +1 978 499 9654
info.usa@softing.com
www.softing.us
Softing Automotive Electronics GmbH
Richard-Reitzner-Allee 6
85540 Haar, Germany
Tel.: +49 89 4 56 56-420
Fax: +49 89 4 56 56-499
info.automotive@softing.com
www.softing.com
Order Numbers / Options
CCAANN--AACC22--PPCCII NN
PCI-Bus interface for 2 x CAN Highspeed
CCAANN--AACC22--PPCCII--LLSS
Piggyback for CAN low-speed with transceiver TJA1053
(or compatible)
One piggyback is required per CAN channel
CCAANN--AACC22--PPCCII--SSII
oonn rreeqquueesstt
Piggyback for CAN low-speed SingleWire with transceiver
AU5790 (or compatible)
One piggyback is required per CAN channel
