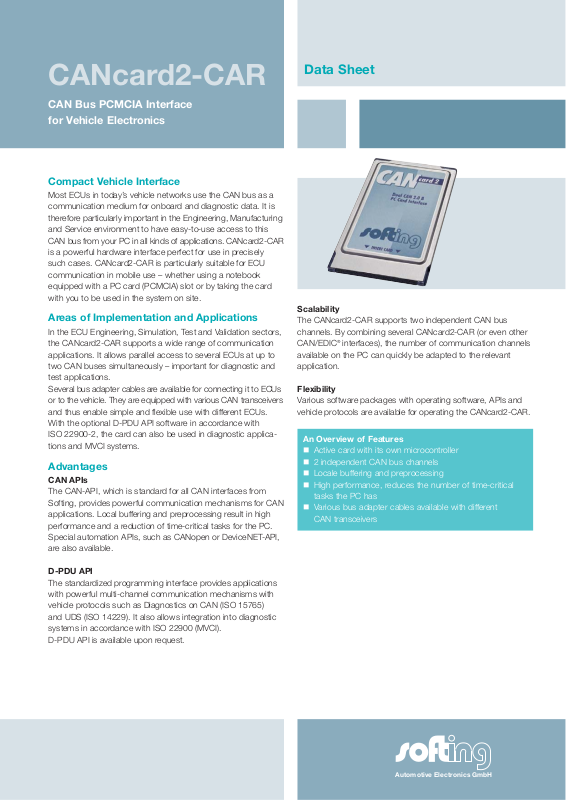

Page 1
Data Sheet
Compact Vehicle Interface
Most ECUs in today’s vehicle networks use the CAN bus as a
communication medium for onboard and diagnostic data. It is
therefore particularly important in the Engineering, Manufacturing
and Service environment to have easy-to-use access to this
CAN bus from your PC in all kinds of applications. CANcard2-CAR
is a powerful hardware interface perfect for use in precisely
such cases. CANcard2-CAR is particularly suitable for ECU
communication in mobile use – whether using a notebook
equipped with a PC card (PCMCIA) slot or by taking the card
with you to be used in the system on site.
Areas of Implementation and Applications
In the ECU Engineering, Simulation, Test and Validation sectors,
the CANcard2-CAR supports a wide range of communication
applications. It allows parallel access to several ECUs at up to
two CAN buses simultaneously – important for diagnostic and
test applications.
Several bus adapter cables are available for connecting it to ECUs
or to the vehicle. They are equipped with various CAN transceivers
and thus enable simple and flexible use with different ECUs.
With the optional D-PDU API software in accordance with
ISO 22900-2, the card can also be used in diagnostic applications and MVCI systems.
Advantages
CAN APIs
The CAN-API, which is standard for all CAN interfaces from
Softing, provides powerful communication mechanisms for CAN
applications. Local buffering and preprocessing result in high
performance and a reduction of time-critical tasks for the PC.
Special automation APIs, such as CANopen or DeviceNET-API,
are also available.
D-PDU API
The standardized programming interface provides applications
with powerful multi-channel communication mechanisms with
vehicle protocols such as Diagnostics on CAN (ISO 15765)
and UDS (ISO 14229). It also allows integration into diagnostic
systems in accordance with ISO 22900 (MVCI).
D-PDU API is available upon request.
Scalability
The CANcard2-CAR supports two independent CAN bus
channels. By combining several CANcard2-CAR (or even other
CAN/EDIC
®
interfaces), the number of communication channels
available on the PC can quickly be adapted to the relevant
application.
Flexibility
Various software packages with operating software, APIs and
vehicle protocols are available for operating the CANcard2-CAR.
CANcard2-CAR
CAN Bus PCMCIA Interface
for Vehicle Electronics
An Overview of Features
Active card with its own microcontroller
2 independent CAN bus channels
Locale buffering and preprocessing
High performance, reduces the number of time-critical
tasks the PC has
Various bus adapter cables available with different
CAN transceivers
Automotive Electronics GmbH
Page 2
Data Sheet
CAN Bus PCMCIA Interface
for Vehicle Electronics
Subject to changes © Softing Automotive Electronics GmbH, D_AE_06D_1011 / V1.02
Non-binding character of the information and reservation of the right of modification: the features described in
this product information do not represent any pledged features in a legal sense. The information contained
herein may be out-of-date, incorrect or incomplete. All details are thus subject to change and non-binding.
Delivery Scope
CANcard2-CAR hardware
CAN-API software, manual as PDF file and
X-Analyser Appetizer on CD
System Requirements
Operating system Windows™ 7, Vista, XP
4 kB free addressable storage in the upper memory area
and one free interrupt
Software (optional)
Diagnostic Tool Set (DTS)
D-PDU API software in acc. with ISO 22900-2 (upon request)
Order Numbers / Options
CCAANNccaarrdd22--CCAARR
PC-Card interface for 2x CAN 2.0B
PPCCccaarrdd22--PPFFXX
Assembly kit and strain relief for the PC card interface connector,
increases mechanical stability.
CCAANNccaarrdd22//DDHHSSCC
bbuuss aaddaapptteerr ccaabbllee ((ddoouubbllee hhiigghh--ssppeeeedd ccaabbllee))
2 CAN channels: CAN high-speed, in acc. with ISO 11898
2 D-SUB 9 connectors, in acc. with CiA standard,
without galvanic isolation
CCAANNccaarrdd22//HHLLSSCC
bbuuss aaddaapptteerr ccaabbllee ((hhiigghh--ssppeeeedd//llooww--ssppeeeedd ccaabbllee))
1 CAN channel: CAN high-speed, in acc. with ISO 11898
1 CAN channel: CAN low-speed (transceiver TJA1053)
2 D-SUB 9 connectors, in acc. with CiA standard,
without galvanic isolation
CCAANNccaarrdd22//DDLLSSCC
bbuuss aaddaapptteerr ccaabbllee ((ddoouubbllee llooww--ssppeeeedd ccaabbllee))
2 CAN channels: CAN low-speed (transceiver TJA1053)
2 D-SUB 9 connectors, in acc. with CiA standard,
without galvanic isolation
Technical Data
Format PC Card Type II (PCMCIA)
Power supply 5 V (via PC)
Current consumption Typ. 300 mA
Microcontroller Infineon C165
Program/data memory 256 kB RAM for operating software (via download)
PC interface PCMCIA V2.1, 4kB DPRAM (16-bit)
Vehicle interfaces 2 x CAN (transceivers depend on bus adapter cable)
CAN controller SJA1000
Temperature range Operation: 0 ... +55 °C, Storage: -20 ... +70 °C
EMV Konformität Noise emission: EN 55022, EN 55011 Class A and EN 61000-6-4 (industrial sector)
Interference immunity: EN 61000-6-2 (industrial sector)
FCC part 15 subpart B limit A (industrial sector)
