DEMO9RS08KA2
Demonstration Board
for Freescale
MC9RS08KA2
(8-Pin DIP)
User’s Manual
Revision 1.0
Copyright © 2006 SofTec Microsystems®
DC01088
We want your feedback!
SofTec Microsystems is always on the look-out for new ways to improve its Products and
Services. For this reason feedback, comments, suggestions or criticisms, however small,
are always welcome.
Our policy at SofTec Microsystems is to comply with all applicable worldwide safety and
EMC/EMI regulations. Our products are certified to comply to the European New
Approach Directives and the CE mark is applied on all our products.
SofTec Microsystems
E-mail (general information): info@softecmicro.com
E-mail (marketing department): marketing@softecmicro.com
E-mail (technical support): support@softecmicro.com
Web: http://www.softecmicro.com
Important
SofTec Microsystems reserves the right to make improvements to this product, its documentation and software routines,
without notice. Information in this manual is intended to be accurate and reliable. However, SofTec Microsystems assumes no
responsibility for its use; nor for any infringements of rights of third parties which may result from its use.
SOFTEC MICROSYSTEMS WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE
OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY
THEREOF.
Trademarks
SofTec Microsystems is a registered trademark of SofTec Microsystems, Spa.
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation.
PC is a registered trademark of International Business Machines Corporation.
Other products and company names listed are trademarks or trade names of their respective companies.
This product as shipped from the factory has been verified to meet with requirements
FCC as a CLASS A product.
This product is designed and intended for use as a development platform for hardware or
software in an educational or professional laboratory.
In a domestic environment, this product may cause radio interference in which case the
user may be required to take adequate prevention measures.
Attaching additional wiring to this product or modifying the product operation from the
factory default as shipped may effect its performance and cause interference with other
apparatus in the immediate vicinity. If such interference is detected, suitable mitigating
measures should be taken.
Contents
1 Introduction 5
1.1 Overview 5
1.2 Package Contents 5
1.3 Supported Devices 5
1.4 Recommended Reading 5
2 Hardware Features 7
2.1 Demonstration Board Features 7
3 Software Setup 9
3.1 Overview 9
3.2 Host System Requirements 9
3.3 Installing CodeWarrior Development Studio 9
3.4 Installing SofTec Microsystems Additional Components 10
4 Hardware Setup 11
4.1 First Connection 11
5 Operating Modes 15
5.1 Overview 15
5.2 Standalone Mode 15
5.3 Host Mode 16
DEMO9RS08KA2 User's Manual
6 Application Tutorial 17
6.1 Overview 17
6.2 Step-by-Step Tutorial 17
7 Internal Oscillator Trimming 19
8 Jumper and Connector Settings 21
8.1 Jumpers 21
8.2 Connectors 22
9 Troubleshooting 23
9.1 USB Driver Problems 23
9.2 Communication Problems between the PC and the Demo Board 23
9.3 “LED0” LED Always Turned On 23
Page 3
DEMO9RS08KA2 User's Manual
1 Introduction
1.1 Overview
The DEMO9RS08KA2 Demonstration board has been designed for the evaluation,
demonstration and debugging of the Freescale MC9RS08KA2 microcontroller.
The DEMO9RS08KA2 can be used as a standalone application, or via its built-in USB-to-BDM
interface.
1.2 Package Contents
The DEMO9RS08KA2 package includes the following items:
The DEMO9RS08KA2 evaluation board;
Two MC9RS08KA2 samples;
A USB cable;
The SofTec Microsystems “System Software” CD-ROM;
The CodeWarrior Development Studio CD-ROM;
A Quick Start Guide sheet;
This user’s manual.
1.3 Supported Devices
The DEMO9RS08KA2 Demonstration Board supports the following devices:
MC9RS08KA2 family;
And any future pin-to-pin compatible device.
1.4 Recommended Reading
Freescale RS08 microcontroller-specific datasheets and application notes;
DEMO9RS08KA2 Schematic.
Page 5
DEMO9RS08KA2 User's Manual
2 Hardware Features
2.1 Demonstration Board Features
The DEMO9RS08KA2 board features:
1. A MC9RS08KA2 microcontroller (in 8-pin DIP package, already programmed with a
demo application—in addition, you can also use any other pin-to-pin-compatible device);
2. A header connector with all of the microcontroller signals;
3. A power supply section containing:
A 9-12 V DC Power Supply Input Connector;
Power input selection jumpers to select the input voltage input source:
o 9-12 V DC input connector;
o USB connector.
4. A built-in “USB TO BDM INTERFACE” section which allows the host PC to
communicate with the microcontroller through a standard USB interface.
5. An input/output area containing:
A Reset push-button;
One additional push-button;
Three user LEDs;
An NTC-based temperature sensor;
A series of jumpers to connect/disconnect the above controls to/from the
microcontroller.
6. A prototype area.
Page 7
Hardware Features
4
1 2
5 6
3
The DEMO9RS08KA2 Demonstration Board
Page 8
DEMO9RS08KA2 User's Manual
3 Software Setup
3.1 Overview
Note: before connecting the Demonstration Board to the PC, it is
recommended that you install all of the required software first (see
i
The Demonstration Board requires that both CodeWarrior Development Studio and SofTec
Microsystems Additional Components be installed in the host PC.
below), so that the appropriate USB driver will be automatically found by
Windows when you connect the Demonstration Board.
Note: CodeWarrior Development Studio must be installed first.
i
3.2 Host System Requirements
The Demonstration Board is controlled by CodeWarrior Development Studio. The following
hardware and software are required to run the CodeWarrior user interface together with the
Demonstration Board:
A 200-MHz (or higher) PC compatible system running Windows 98, Windows 2000 or
Windows XP;
128 MB of available system RAM plus 1 GB of available hard disk space;
A USB port;
CD-ROM drive for installation.
3.3 Installing CodeWarrior Development Studio
To install the CodeWarrior Development Studio, insert the CodeWarrior CD-ROM into your
computer’s CD-ROM drive. A startup window will automatically appear. Follow the on-screen
instructions.
Page 9
Software Setup
3.4 Installing SofTec Microsystems Additional
Components
The SofTec Microsystems Additional Components install all of the other required components
to your hard drive. These components include:
The Demonstration Board’s USB driver;
The software plug-in for CodeWarrior;
Examples;
Demonstration Board’s user’s manual;
Demonstration Board’s schematic;
Additional documentation.
To install the SofTec Microsystems Additional Components, insert the SofTec Microsystems
“System Software” CD-ROM into your computer’s CD-ROM drive. A startup window will
automatically appear. Choose “Install Instrument Software” from the main menu. A list of
available software will appear. Click on the “Additional Components” option. Follow the onscreen instructions.
Note: to install the Additional Components on Windows 2000 or Windows
XP, you must log in as Administrator.
i
Page 10
DEMO9RS08KA2 User's Manual
4 Hardware Setup
4.1 First Connection
The Demonstration Board is connected to a host PC through a USB port. Connection steps
are listed below in the recommended flow order:
1. Install all the required system software as described in the previous section.
2. Make sure the “POWER SEL” jumper is in the “USB” position.
3. Make sure the “VDD” jumper is in the “ENABLE” position.
4. Insert one end of the USB cable into a free USB port of the PC.
5. Insert the other end of the USB cable into the USB connector on the Demonstration
Board. The “POWER” LED will turn on.
6. The first time the Demonstration Board is connected to the PC, Windows recognizes the
instrument and starts the “Found New Hardware Wizard” procedure, asking you to
specify the driver to use for the instrument. On Windows XP (SP2) the following dialog
box will appear.
Select the “No, not this time” option and click the “Next >” button.

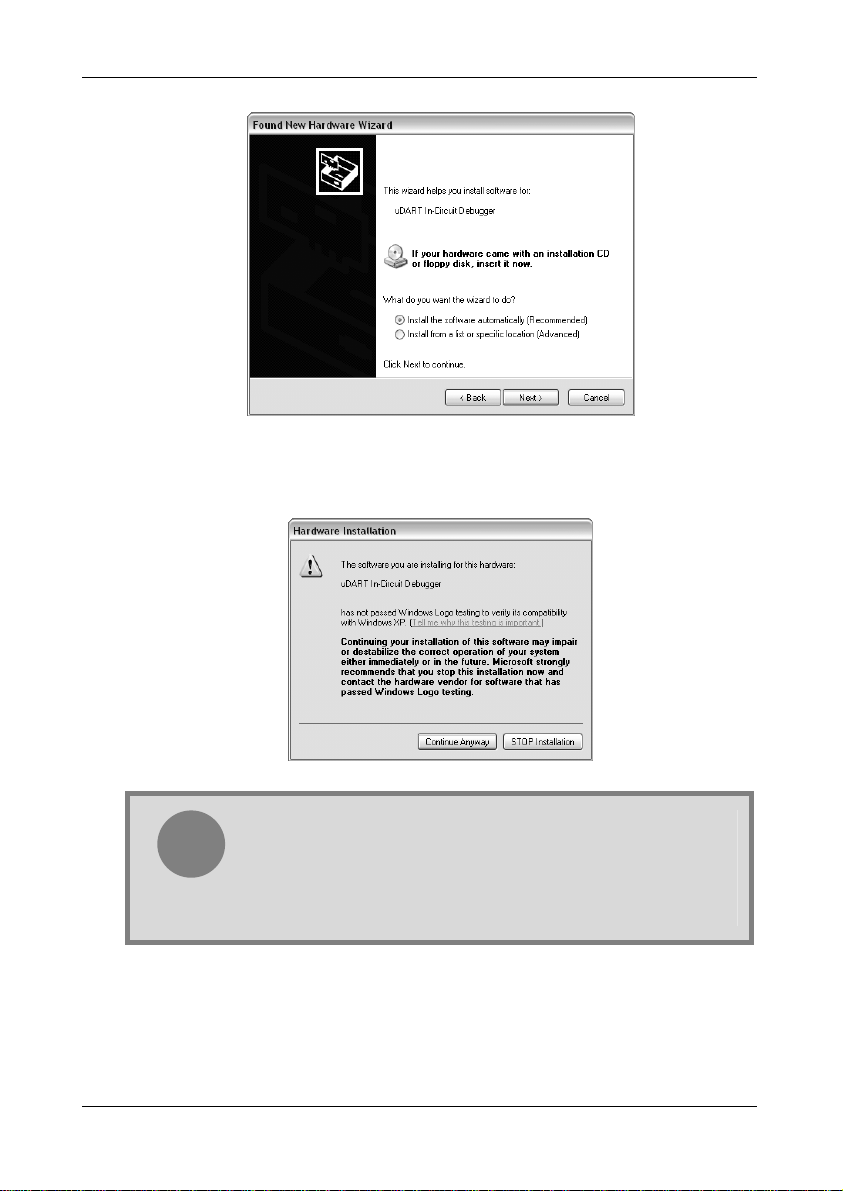

7. The following dialog box will appear.
Page 11
Hardware Setup
Click the “Next >” button.
8. Depending on your Windows settings, the following warning may appear.
Note: this warning is related to the fact that the USB driver used by
the Demonstration Board is not digitally signed by Microsoft, and
i
Click the “Continue Anyway” button.
9. Windows will install the driver files to your system. At the end of the installation, the
following dialog box will appear.
Page 12
Windows considers it to be potentially malfunctioning or dangerous
for the system. However, you can safely ignore the warning, since
every kind of compatibility/security test has been carried out by
SofTec Microsystems.
DEMO9RS08KA2 User's Manual
Click the “Finish” button to exit from the “Found New Hardware Wizard” procedure.
10. The Demonstration Board’s USB driver is now installed on your system.
Page 13
DEMO9RS08KA2 User's Manual
5 Operating Modes
5.1 Overview
The Demonstration Board can work in two modes: “standalone” mode and “host” mode.
5.2 Standalone Mode
In standalone mode, no PC connection is required. The microcontroller is factory programmed
with a sample application.
To run the built-in example:
Ensure that the “POWER SEL” jumper selects the “UNREG” position.
Ensure that the “VDD” jumper selects the “ENABLE” position.
Ensure that all of the “I/O ENABLE” jumpers are inserted.
Power on the Demonstration Board through the 12 V DC plug-in power supply.
The green “POWER” LED on the board should turn on.
Depending on the temperature sensed by the NTC network, the “LED0”, “LED1” and
“LED2” LEDs will turn on as illustrated below.
Sensed Temperature LEDs
< 10°C
between 10°C and 20°C
between 20°C and 30°C
> 30°C
Press the “SW0” push-button. The “LED0”, “LED1” and “LED2” LEDs will blink.
LED2
LED1
LED0
LED2
LED1
LED0
LED2
LED1
LED0
LED2
LED1
LED0
Page 15
Operating Modes
5.3 Host Mode
In host mode the program execution is controlled by the host PC through the “USB” connector.
You can use the PC to debug the application by, for example, executing the program step by
step and watching how the microcontroller registers vary, using the provided CodeWarrior
Development Studio.
Note: all MCUs in the RS08 family contain a single-wire background
debug interface which supports in-circuit programming of on-chip non-
i
To work in host mode (using the built-in USB to BDM interface):
Make sure that the two “ENABLE” jumpers in the “USB TO BDM INTERFACE” section
are inserted;
Make sure that the “POWER SEL” jumper is in the “USB” position;
Make sure that the “VDD” jumper selects the “ENABLE” position;
Connect the host PC to the board through the provided USB cable.
volatile memory. This system does not interfere with normal application
resources. It does not use any user memory or locations in the memory
map. The Background Debug Module (also known as Background Debug
Controller, BDC) uses a single-wire communication interface (via the
BKGD line) to allow non-intrusive access to target system memory and
registers.
Please note that the BKGD line is shared with the PTA3 line and the
RESET line is shared with the PTA2 line. The user program, therefore,
must not use the PTA3 line when working in host mode.
Page 16
DEMO9RS08KA2 User's Manual
6 Application Tutorial
6.1 Overview
This section will provide a step-by-step guide on how to launch your first project and get
started with the CodeWarrior user interface.
6.2 Step-by-Step Tutorial
The sample application is the same as the one described in the “Standalone Mode” section
above, with the exception that the “LED0” LED is not used (since this line is shared with the
BKGD line needed for BDM communication).
1. Set up the board so that it works in host mode (see “Host Mode” above).
2. Ensure that the Demonstration Board is connected to the PC (via the USB cable) and
that the board is powered on.
3. Start CodeWarrior by selecting it in the Windows Start menu.
4. From the CodeWarrior main menu, choose “File > Open” and choose the “\Program
Files\Freescale\CW08 V5.1\(CodeWarrior Examples)\RS08\Evaluation Board
Examples\DEMO9RS08KA2\Asm\Demo\Demo.mcp”.
5. Click “Open”. The Project Window will open.
6. The code of this example is contained in the “main.asm” file. Double click on it to open.
7. From the main menu, choose “Project > Debug”. This will compile the source code,
generate an executable file and download it to the demo board.
8. A new debugger environment will open. From the main menu, choose “Run >
Start/Continue”. The program will be executed in real-time.
9. From the main menu, choose “Run > Halt”. The program execution will stop. The next
instruction to be executed is highlighted in the Source window.
10. From the main menu, choose “Run > Single Step”. The instruction highlighted in the
Source window will be executed, and the program execution will be stopped immediately
after.
11. From the main menu, choose “Run > Start/Continue”. The application will restart from
where it was previously stopped.
Congratulations! You have successfully completed this tutorial! You can continue to
experiment with the CodeWarrior user interface and discover by yourself its potentialities. For
an in-depth guide of all of the user interface features, select “Help > CodeWarrior Help” from
CodeWarrior Development Studio’s main menu.
Page 17
DEMO9RS08KA2 User's Manual
7 Internal Oscillator Trimming
The MC9RS08KA2 microcontroller features an internal reference clock (32 KHz) which,
through an FLL circuitry, can be used to generate the microcontroller system clock. The
internal reference clock can be calibrated (trimmed) with precision. To do so, open the
Communication Settings dialog box.
To open the Communication Settings dialog box, enter a CodeWarrior debugging session and
select “MCU Configuration” from the “SofTec-RS08” menu. The following dialog box will
appear.
The MC9RS08KA2 microcontroller’s ICSTRM register and the FTRIM bit in the ICSSC register
will be then programmed with a specific value which will result in the DCO output frequency
specified.
Page 19
DEMO9RS08KA2 User's Manual
8 Jumper and Connector Settings
8.1 Jumpers
Name Reference Description/Pinout
J101
J202
J203
PTA1
PTA2
PTA3
PTA4
PTA5
NTC PTA0
SW0
RESET
LED0
LED1
LED2
1
2
3
1
2
3
I/O ENABLE
Installed: The indicated microcontroller line is
Not Installed: The indicated microcontroller line is not
POWER SELECTION
1-2 (“USB”): The power supply is taken from the USB
2-3 (“UNREG”): The power supply is taken from the power
VDD SELECTION
1-2 (“ENABLE”): Connects the 3.3V line to the
2-3 (“DISABLE”): No voltage supplied to the microcontroller
J302
BKGD
RESET
USB TO BDM ENABLE
All installed: The USB to BDM interface is enabled
Not Installed: The USB to BDM interface is disabled
connected to the indicated user I/O
function (default)
connected to the indicated user I/O function
connector (default)
supply connector (J201)
microcontroller’s VDD pin and to the
user I/O area (default)
and user I/O area
(default)
Page 21
Jumper and Connector Settings
8.2 Connectors
Name Reference Description/Pinout
J102
J103
PTA2
PTA3
VDD
GND
12
3
5
PTA0
PTA1
PTA4
PTA5
4
6
8-Pin Header Male Connector
Replicates all of the microcontroller signals
BDM Connector (Not Populated)
1. BKGD
2. GND
3. N.C.
4. RESET/VPP
5. N.C.
6. VDD
J201
J301
2
9-12 V DC Power Supply Input Connector
1
1. 9-12 V DC
2. Ground
USB Connector
1. 5 V DC USB Bus Power Supply Line
2. USB D-
3. USB D+
4. GND
Page 22
DEMO9RS08KA2 User's Manual
9 Troubleshooting
9.1 USB Driver Problems
If you connected the Demonstration Board to the PC before installing the SofTec
Microsystems Additional Components, the Demonstration Board’s USB driver may not have
been correctly installed on your system. Unplugging and replugging the USB cable is of no
use, since Windows has marked the device as “disabled”. As a consequence, the PC cannot
communicate with the Demonstration Board.
To restore the USB driver (provided the SofTec Microsystems Additional Components have
been installed), perform the following steps under Windows XP:
1. Connect the Demonstration Board to the PC.
2. Open the Control Panel (Start > Settings > Control Panel).
3. Open the “System” options.
4. Select the “Hardware” tab.
5. Click the “Device Manager” button.
6. The “uDART In-Circuit Debugger” device will be shown with an exclamation mark next
to it. Double click on this device.
7. In the “General” tab, click the “Reinstall Driver” button. Follow the on-screen
instructions.
9.2 Communication Problems between the PC and the
Demo Board
1. Make sure that the “BKGD” and “RESET” jumpers in the “USB TO BDM INTERFACE”
section are inserted.
2. Make sure that the microcontroller is powered (The “VDD” jumper in the “POWER”
section must select the “ENABLE” position).
3. Make sure that the “POWER SEL” jumper selects the appropriate power source
(typically “USB” when the board is connected to the PC).
4. Make sure that the microcontroller is correctly inserted in its socket.
9.3 “LED0” LED Always Turned On
The “LED0” LED shares the BKGD line (used for the BDM communication). If you want to use
this line as a generic user I/O you must enable this feature in your application software and
remove the “BKGD” jumper in the “USB TO BDM INTERFACE” section of the board. Doing so,
Page 23
DEMO9RS08KA2 User's Manual
however, will make BDM communication between the host PC and the microcontroller
impossible.
Page 24
Loading...
