socomec Netys RT, NRT2-U5000, NRT2-U7000, NRT2-U9000, NRT2-U11000 Installation And Operating Manual

5000-7000-9000-11000 VA

安装及操作手册

CN

Installations- und bedienungsanleitung

DE

Manual de instalación y uso

ES

Manuel d’installation et d’utilisation

FR

Installation and operating manual

GB

Manuale di installazione e uso

IT

Прирачник за инсталација и употреба

MK

Installatie– en bedieningshandleiding

NL

Dokumentacja Techniczno-Ruchowa

PL

Manual de instalação e funcionamento

PT

Руководство по установке и эксплуатации

RU

Navodila za priključitev in uporabo

SI

2

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

This SOCOMEC UPS appliance is guaranteed against manufacturing and material defects for a period of 12 months from the
date of purchase (local warranty conditions are applicable in addition to the general conditions). This warranty certificate should
NOT be e-mailed, but kept by the customer along with proof of purchase, for use in the event of a claim being made for repairs or
replacement under warranty.

The warranty period commences on the date the new product was purchased by the end user at an authorised showroom (reference
details are shown on the receipt).

Return-to-base warranty is provided: components and labour for repairs supplied free of charge, any products to be replaced must
be returned to SOCOMEC UPS or authorised service centres, at the customer’s own risk and expense.

The warranty is recognized within national territory. If the UPS is exported out of national territory, the warranty shall be limited to the
cover of the parts used to repair the fault.

To claim service under the warranty please observe the following:

• The product must be returned in the original packing. Any damage caused during shipping in packaging other than the original

will not be covered by the warranty;

• The product must be accompanied by proof of purchase such as an invoice or receipt indicating the date of purchase and

product ID information (model, serial numer). The sender must also attach the reference number issued to authorise the return
of the product, together with a detailed description of the defect. If any of this information is missing the warranty will be invalid.
The authorisation number is issued by service centres over the telephone on receiving information on the malfunction in question;

• If it is not possible to provide proof of purchase the serial number and date of manufacture will be used to calculate the probable

expiry date of the warranty; this could result in a reduction of the original warranty period.

The warranty on the product does not cover damage caused by carelessness (improper use: wrong input power, explosions,
excessive humidity, temperature, poor ventilation, etc.), tampering or any unauthorised repair work.

During the warranty period, SOCOMEC UPS reserves the right to decide whether the product should be repaired, or whether to
replace defective parts with new parts, or used parts that are equivalent to new parts in terms of functionality and performance.

In the case of batteries, warranty is valid only if the battery has been recharged regularly in accordance with the manufacturer’s
instructions. On purchasing the product it is advisable to check that the next recharge date indicated on the packaging has not expired.

Battery

• Batteries are treated as consumable parts and warranty only covers manufacturing defects.

• Batteries must be stored in compliance with Supplier recommendations.

• Warranty is valid only if the battery has been recharged regularly in accordance with the manufacturer’s instructions. On purchasing
the product it is advisable to check that the next recharge date indicated on the packaging has not expired.

Optionals

A 12-month return-to-base warranty is provided on optionals.

Software products

Software products are guaranteed for 90 days. The software is guaranteed to work as indicated in the manual accompanying
the product. Hardware media or accessories (e.g. diskettes, cables, etc.) used with appliances are guaranteed free of material or
manufacturing defects under normal conditions of use for a period of 12 months from the date of purchase.

SOCOMEC UPS will not be responsible for damages (including loss of income, interruption of business activity, loss of information
or other financial losses, of any nature) arising from the use of the product.

These conditions are subject to Italian law. Disputes shall come under the jurisdiction of Court of Vicenza.

WARRANTY CERTIFICATE AND CONDITIONS

SOCOMEC UPS retains the full and exclusive ownership rights over this document. Only a personal right to utilize the document
for the application indicated by SOCOMEC UPS is granted to the recipient of such document. All reproduction, modification, disse­mination of this document whether in part or whole and by any manner are expressly prohibited except upon Socomec’s express
prior written consent.

This document is not a specification. SOCOMEC UPS reserves the right to make any changes to data without prior notice.

3

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

TABLE OF CONTENTS

ENGLISH

1. SAFETY STANDARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2

DESCRIPTION OF THE SYMBOLS USED ON THE LABELS APPLIED TO THE UNIT

. 5

2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1 ENVIRONMENTAL REQUIREMENTS FOR INSTALLATION . . . . . . . . . . . . . . . . . . 6

2.2 ELECTRICAL REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 VERTICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4 HORIZONTAL INSTALLATION ON RACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. REAR VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.1 CONNECTION TERMINAL STRIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.2 CONNECTION OF UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5. CONNECTION OF BATTERY EXTENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.1 SAFETY WARNINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2 CONNECTION OF BATTERY EXTENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6. CONNECTION OF BY-PASS AND SINGLE UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6.1 INSTALLATION OF BY-PASS AND SINGLE UPS . . . . . . . . . . . . . . . . . . . . . . . . 18

6.2 CONNECTION OF BY-PASS TO SINGLE UPS . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.1 VERTICAL INSTALLATION OF BY-PASS AND UPS IN PARALLEL . . . . . . . . . . . 23

7.2 RACK INSTALLATION OF BY-PASS AND UPS IN PARALLEL . . . . . . . . . . . . . . 24

7.3 CONNECTION OF BY-PASS AND UPS IN PARALLEL . . . . . . . . . . . . . . . . . . . . 25

7.4 CONNECTION OF BY-PASS TO UPS IN PARALLEL . . . . . . . . . . . . . . . . . . . . . 27

8. MIMIC PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

9. OPERATING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

9.1 SWITCHING THE NETYS RT ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

9.2 SWITCHING THE NETYS RT OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

9.3 BASIC SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

9.4 OPERATION IN BY-PASS MODE FOR MAINTENANCE PURPOSES - SINGLE UPS

. 31

9.5 OPERATION IN BY-PASS MODE - UPS IN PARALLEL FOR MAINTENANCE

PURPOSES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10. COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.1 COMMUNICATION SOLUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.2 RS232 INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.3 INTEGRATED WEB/SNMP CARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.4 USE OF WARNING RELAY INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

11. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

11.1 MINOR TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12. TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

1. SAFETY STANDARDS

1.1 IMPORTANT

This manual should be kept carefully in a safe place near the UPS, so that it can be consulted by the operator at any time for any
information that may be needed regarding correct use of the unit. Read the manual carefully before connecting the unit to the a.c.
mains supply and to the downstream appliances. Before the UPS NETYS RT is put into commission, the user must be perfectly
familiar with its operation, with the position of all the controls and with the technical and functional characteristics of the unit, so as
to ensure there will be no risk to any persons or to the appliance itself.

• The electrical installation must be entrusted EXCLUSIVELY to a skilled engineer, following the instructions provided

exactly.

• Before being started up, the unit must be equipotentially bonded, in accordance with current safety regulations. The earth

wire of the UPS must then be connected to an efficient earth system.

• If the earth connection is not made, the appliances connected to the UPS will not be equipotentially bonded. In this situation,

the manufacturer declines all liability for any damage or accidents that could derive from failure to observe the requirements.

• Should a power outage occur (UPS in stand-alone mode), do not disconnect the power cord from the mains, as this will

break the earth connection to bonded appliances.

• All subsequent maintenance operations must be entrusted only to authorized service engineers. The UPS generates high

internal voltages that could be hazardous for a maintenance operative not in possession of the appropriate skills and training for
this type of work.

• If a hazard situation should arise at any moment when the UPS is in use, isolate the unit from the power supply (by operating

a switch at the upstream PDU if possible) and switch the appliance off completely by running the shutdown procedure.

• The UPS houses a source of electrical energy, namely its batteries. The output of the UPS may be under power even

when the appliance is not connected to the a.c. mains supply.

• Never force, break or attempt to open the batteries. These batteries are sealed, maintenance-free components contai-

ning substances that are harmful to health and a source of environmental pollution. If liquid can be seen leaking from the
battery, or a white powdery residue is noticeable, do not switch the UPS on.

• Avoid exposing the UPS to contact with water or any liquids generally. Do not allow foreign objects to come into contact

with the materials.

• If the appliance is to be scrapped, it must be entrusted exclusively to a specialist waste disposal company. These companies

will split up and dispose of the various components in accordance with statutory regulations in the country of purchase.

• Use the UPS in accordance with the technical specifications indicated in this manual (chapter 11).

• Avoid connecting the output neutral to earth. The UPS does not alter the function of mains neutral in any way; if neutral needs to

be modifed downstream of the UPS, an isolation transformer must be used.

• To meet the operating requirements for the Emergency Switch Device (ESD), a specific RJ11 input with remote ESD/EPO function

is available.

• In the event that the equipment has no automatic backfeed protection contactor device, make certain that:

- the user/installer attaches warning labels to all mains isolating switches located remotely from the area where the UPS is sited, in

order to inform service personnel that the circuit is connected to a UPS.

- an external isolating device is installed, as indicated in figure 1-1.

• The product you have selected, given the specified conditions of use, capacity and performance limits, is designed exclusively for

commercial and industrial service. The use of the product in “critical applications” could require compliance with statutory regula­tions and standards, or with specific local bylaws, or adaptation to SOCOMEC UPS recommendations. For this type of use, in any
event, it is advisable to contact SOCOMEC UPS beforehand for confirmation regarding the capacity of products to meet required
levels of safety, performance and reliability. The expression “critical applications” covers, in particular, life support systems, medical
applications, commercial transport, nuclear facilities or any other systems where failure of the product might on occasion cause
serious damage to persons or property.

WARNING!
This is a product for commercial and industrial application in the second environment – installation restrictions or
additional measures may be needed to prevent disturbances.

5

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

1. SAFETY STANDARDS

1.2

DESCRIPTION OF THE SYMBOLS USED ON THE LABELS APPLIED TO THE UNIT

All the precautions and the warnings on the labels and plates on the inside and outside of the equipment should be respected.

DANGER! HIGH VOLTAGE (BLACK/YELLOW)

GROUND TERMINAL

READ THE USER MANUAL BEFORE USING THE UNIT

6

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

2. INSTALLATION

2.1 ENVIRONMENTAL REQUIREMENTS FOR INSTALLATION

Consult the following check list when installing the UPS:

• NETYS RT units are designed for use in enclosed environments.

•

Position the UPS on a flat and stable surface in a properly ventilated room, well away from heat sources and avoiding direct exposure to sunlight.

• Ambient temperature should be maintained between 0 °C and 40 °C, and relative humidity below 90% (without condensation);
the optimum temperature in terms of maximizing battery life is 15-20 °C.

• Check that the UPS will not be installed in a dust-laden environment.

•

Be certain that a clearance of at least 20 cm is left on all sides of the unit to ensure adequate ventilation and provide access to the rear panel.

• Take care not to stand the UPS or any other heavy object on cables.

• Check that the operating voltage and frequency settings are correct for the mains power supply at the installation site. Details for
the UPS will be found on the data plate affixed to the rear panel.

• When making the RS232 serial connection, use only the cables and accessories supplied or specified by the manufacturer.

• When the UPS is first used, it is advisable to leave the battery on charge for a minimum of 8 hours.

PRECAUTIONS IN THE EVENT OF DAMAGE

DO NOT OVERTURN THE BATTERIES.

Packing materials that have been broken, punctured or torn in such a way as to reveal the contents must be kept
separate in a secure area, and inspected by skilled staff. Any packing considered unsuitable for shipment of the
contents must be set aside immediately and kept secure, and the sender or recipient contacted.

2.2 ELECTRICAL REQUIREMENTS

The installation and the system must comply with pertinent national statutory regulations.

The fixed power distribution unit must include protection and isolation for the utility supply and the back-up supply. In the event that
a residual current device is installed on the UPS input line (optional), this must be located upstream of the power distribution unit.

The following table indicates the sizing of input protection devices that will ensure correct installation.

WARNING!

Use type B two-pole selective (S) RCDs Any leakage currents at the loads will be added to that of the UPS, so
that current peaks can occur during transients (loss and restoration of mains supply), although these will be of
very short duration. Where loads generate high leakage current, make certain the rating of the RCD is suitably
matched. In any event, always conduct a preliminary test for current leakage to earth. When connecting the UPS
to the mains and the load, it is highly recommended that protective devices are installed. The protective devices
must use approved components that meet safety standards.

Electrical requirements

UPS Thermal-magnetic switch

oninput

Recommended selective

RCDon input

Minimum cable section

5 kVA 40 C 0,1 A type B 6 mm

2

7 kVA 40 C 0,1 A type B 8 mm

2

9 kVA 63 D 0,1 A type B 10 mm

2

11 kVA 63 D 0,1 A type B 10 mm

2

Always refer to local wiring regulations for correct cable sizes and protective device ratings depending on instal­lation environment.

7

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

2. INSTALLATION

=

=

2.3 VERTICAL INSTALLATION

2.3.1 UPS Installation

4

4

2

1

3

031 DRWNETRT-XX

115 DRWNETRT-XX

059 DRWNETRT-XX

102 DRWNETRT-XX

103 DRWNETRT-XX

8

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

=

=

2.3.2 UPS installation with multiple battery

extensions

2. INSTALLATION

4

2

3

069 DRWNETRT-XX

033 DRWNETRT-XX

059 DRWNETRT-XX

068 DRWNETRT-XX

065 DRWNETRT-XX

1

9

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

2. INSTALLATION

2.4 HORIZONTAL INSTALLATION ON RACK

2.4.1 Rotation of mimic pannel

122 DRWNETRT-XX

121 DRWNETRT-XX

124 DRWNETRT-XX

123 DRWNETRT-XX

127 DRWNETRT-XX 126 DRWNETRT-XX 125 DRWNETRT-XX

1

2

3

10

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

2. INSTALLATION

2.4.2 Fitting rack brackets

128 DRWNETRT-XX

129 DRWNETRT-XX

11

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

2. INSTALLATION

2.4.3 Rotation of battery extension panel

067 DRWNETRT-XX

064 DRWNETRT-XX

045 DRWNETRT-XX

1

2

3

12

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

MAX 100 kg

MAX 100 kg

MAX 100 kg

MAX 100 kg

3

3

1

2

4

060 DRWNETRT-XX

066 DRWNETRT-XX

061 DRWNETRT-XX

2.4.4 Fixing to rack

1. Adapt the length of the tracks to fit the rack.

2. Secure the wing nuts.

3. Fix the track to the rack.

4. Slot in the UPS and tighten the screws.

2. INSTALLATION

13

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

3. REAR VIEW

Legend

A EPO (Emergency Power Off)

B Fan

C Battery extension socket

D Output terminals

E Input terminals

F Input switch

G RJ45 LAN ethernet connector

H Parallel D connector

I RS232 serial connector (JBUS protocol)

L Slot for optional communication cards

C

C

B

B

B

D

E

D

E

G

F

B

H H

F

L L

I I

A

A

G

9 kVA

11 kVA

5 kVA
7 kVA

If requested, the UPS can also be switched off utilizing a remote external EPO contact. The
command is acknowledged when the contact is made and held for 3 seconds (default), as
in figure 3-1.

The external contact MUST be dedicated and voltage-free, so as not to cause
permanent damage to the UPS.

123456

3-1

070 DRWNETRT-XX

179 DRWNETRT-XX

BATTERY CABLE UNDER LOAD

DO NOT DISCONNECT

CAUTION:

RS232

PARALLEL

EXTERNAL BATTERY CONNECTOR

INPUT 230Vac 50/60Hz

LN

OUTPUT 230Vac 50/60Hz

LN

EPO

INPUT

BREAKER

230Vac 63A

COM. SLOT

MINI COM. SLOT

SW

100

Network

10

178 DRWNETRT-XX

COM. SLOT

EPO

PARAL LEL

RS232

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

230Vac 40A

230Vac

50/60Hz

230Vac

50/60Hz

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

Network

ON

1

10 100

2

14

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

4. CONNECTIONS

Connection to the mains power supply and to the load(s) must be made using cables of suitable cross section, in accordance with
current standards.

If not already provided, install a PDU panel allowing isolation of the mains supply upstream of the UPS. The panel must be equipped
with an automatic switch rated high enough to handle the current draw on full load, and with a residual current device.

4.1 CONNECTION TERMINAL STRIPS

IN 230 V~ IN 230 V~

OUT 230 V~

OUT 230 V~

9 kVA

11 kVA

5 kVA
7 kVA

178 DRWNETRT-XX

COM. SLOT

EPO

PARALLEL

RS232

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

230Vac 40A

230Vac

50/60Hz

230Vac

50/60Hz

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

Network

ON

1

10 100

2

179 DRWNETRT-XX

BATTERY CABLE UNDER LOAD

DO NOT DISCONNECT

CAUTION:

RS232

PARAL LEL

EXTERNAL BATTERY CONNECTOR

INPUT 230Vac 50/60Hz

LN

OUTPUT 230Vac 50/60Hz

LN

EPO

INPUT

BREAKER

230Vac 63A

COM. SLOT

MINI COM. SLOT

SW

100

Network

10

15

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

4. CONNECTION

Mains

UPS

Output

Ø

(mm2)

UPS

Ø

(mm2)

≥ 6 5 kVA ≥ 6

≥ 8 7 kVA ≥ 8
≥ 10 9 kVA ≥ 10
≥ 10 11 kVA ≥ 10

4.2 CONNECTION OF UPS

4.2-1

4.2-3

4.2-2

4.2-4

118 DRWNETRT-XX097 DRWNETRT-XX

108 DRWNETRT-XX

Refer to local regulations for correct cable rating.

16

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

5.1 SAFETY WARNINGS

• Before connecting the battery extension, check that it is fully compatible with the model of UPS in use.

• The use of battery extensions not supplied by the manufacturer is inadvisable.

WARNING!
There is a risk of explosion if battery modules are replaced with others of incorrect type.

• Depleted batteries are considered as toxic waste. When battery replacement becomes necessary, release all depleted batteries
only to certified and licensed waste disposal companies. In accordance with local bylaws, it is absolutely forbidden to dispose of
batteries together with other industrial waste or household refuse.

WARNING!
It is extremely dangerous to touch any part of the battery storage unit.

5.2 CONNECTION OF BATTERY EXTENSION

WARNING!
Before commencing any operation, make certain that:

• the voltages of the UPS battery and of the battery extension are the same,

• 5 kVA: 192 VDC (NRT-B7000)

• 7 kVA: 192 VDC (NRT-B7000)

• 9 kVA: 240 VDC (NRT-B11000)

• 11 kVA: 240 VDC (NRT-B11000)

• the UPS has been shut down completely and all isolation breakers are OFF;

• breakers upstream of the UPS are OFF.

When connecting the UPS to the battery extension, use only the cable provided with the equipment.

Any wiring error that results in the polarity of the battery being inverted can cause permanent damage to the
equipment.

• Set the switch on the back of the battery extension module to the OFF position.

• Connect the battery extension module to the UPS.

• To display the correct autonomy value the number of connected EBM has to be set via mimic panel.

• Set the correct charging current value according to the number of connected EBM via mimic panel.

• Set the switch on the back of the battery extension module to the ON position.

Refer to page 29 for instructions on setting the correct charger settings and number of EBM via mimic panel.

WARNING!
Failure to set the correct EBM number via the mimic panel will result in incorrect display of the autonomy value.

5. CONNECTION OF BATTERY EXTENSION

17

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

5. CONNECTION OF BATTERY EXTENSION

Connection of
multiple batteries

ON-OFF
switch

ON-OFF
switch

5 kVA
7 kVA

9 kVA

11 kVA

COM. SLOT

EPO

PARALLEL

RS232

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

230Vac 40A

230Vac

50/60Hz

230Vac

50/60Hz

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

Network

ON

1

10 100

2

SW

Network

ON

1

10 100

2

180 DRWNETRT-XX

BATTERY CABLE UNDER LOAD

DO NOT DISCONNECT

CAUTION:

RS232

PARALLEL

EXTERNAL BATTERY CONNECTOR

INPUT 230Vac 50/60Hz

LN

OUTPUT 230Vac 50/60Hz

LN

EPO

INPUT

BREAKER

230Vac 63A

COM. SLOT

MINI COM. SLOT

SW

100

Network

10

BATTERY CABLE UNDER LOAD.

DO NOT DISCONNECT

CAUTION:

DO NOT TOUCH UNINSULATED

RISK OF ELCTRIC SHOCK.

DANGER:

BATTERY TERMINAL.

SUPPLY CIRCUIT IS GROUNDED.

RISK OF ELCTRIC SHOCK.BATTERY

CAUTION:

BEFORE WORKING ON BATTERIES.

REFER TO INSTRUCTION MANUAL

BATTERY CONNECTOR BATTERY CONNECTOR

300Vdc 50A

BREAKER

181 DRWNETRT-XX

COM. SLOT

EPO

PARALLEL

RS232

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

230Vac 40A

230Vac

50/60Hz

230Vac

50/60Hz

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

Network

ON

1

10 100

2

SW

Network

ON

1

10 100

2

182 DRWNETRT-XX

18

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

6.1 INSTALLATION OF BY-PASS AND SINGLE UPS

6. CONNECTION OF BY-PASS AND SINGLE UPS

6.1.1 Fixing the BY-PASS to the UPS

072 DRWNETRT-XX

TO UPS PARALLEL PORT

50/60Hz

200-240Vac

AC OUTPUT

LN

AC INPUT

LN

50/60Hz

200-240Vac

TO UPS OUTPUTLNTO UPS INPUT

LN

COM. SLOT

EPO

PARALLEL

RS232

MINI COM. SLOT

OUTPUT

N

L

L

INPUT

N

INPUT
BREAKER
230Vac
40A

230Vac

50/60Hz

230Vac

50/60Hz

BATTERY

CABLE UNDER LOAD.

DO NOT DISCONNECT

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

TO CONNECT WITH WI RES:LOOSEN SCREWS MARKED BY

183 DRWNETRT-XX

Manual bypass is for 5/7/9/11 kVA models only.

19

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

6.2 CONNECTION OF BY-PASS TO SINGLE UPS

6.2.1 Fixing the BY-PASS to the UPS

6. CONNECTION OF BY-PASS AND SINGLE UPS

6.2.2 Signal connections between BY-PASS and UPS

N

L

L

N

Ensure parallel cable with DB9 connectors
is installed between bypass switch and UPS.

WARNING!
Failure to install this cable will result in incorrect operation of the bypass function and
damage to the UPS or connected equipment.

UPS OUTPUT

UPS

UPS

BYPASS

BYPASS

POWER
SUPPLY

LOAD

BYPASS

BYPASS

INPUT

230 Vac 50/60 Hz

UPS INPUT

40 300 55

55

55

073 DRWNETRT-XX

117 DRWNETRT-XX

092 DRWNETRT-XX

20

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

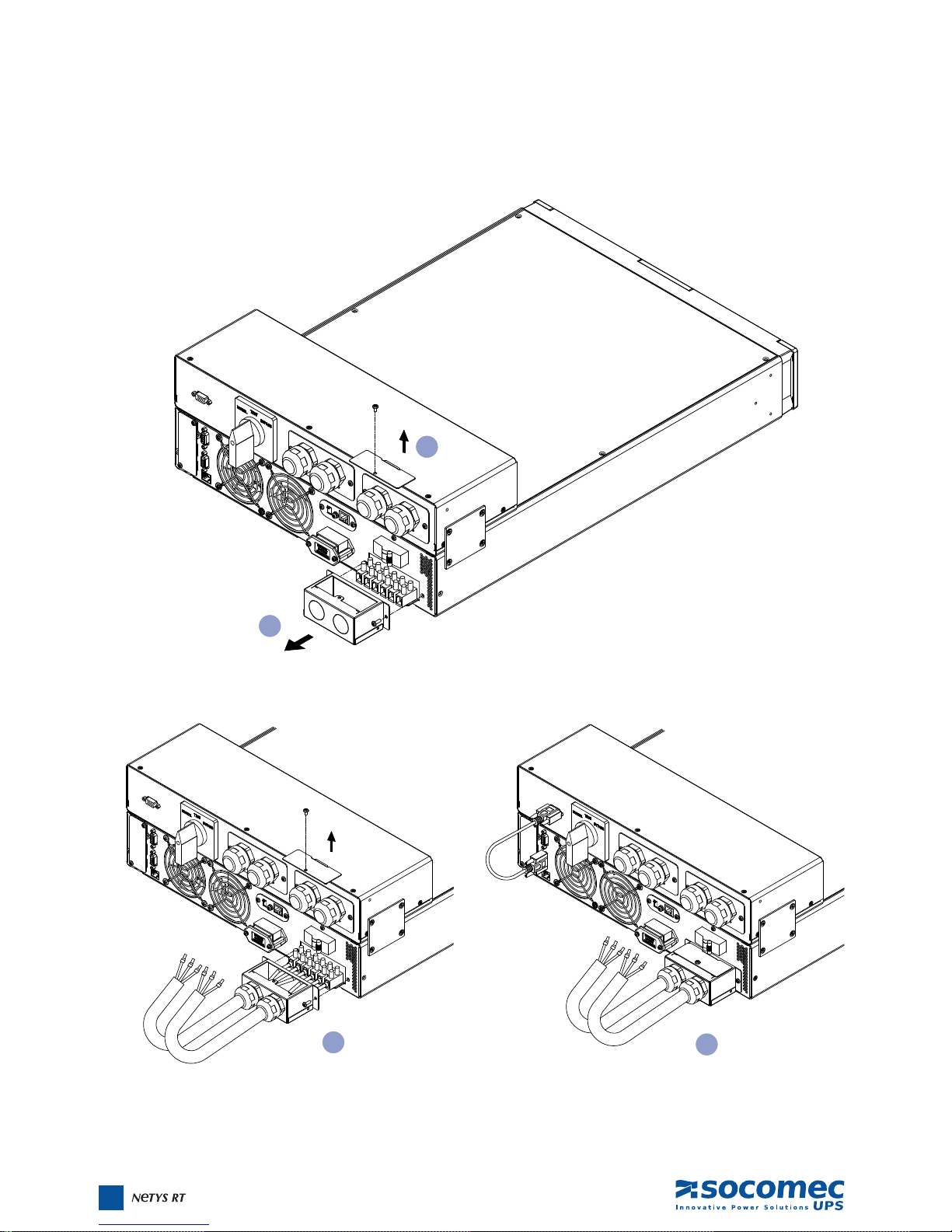

6.2.3 Connection of cables to the UPS terminal strips

6. CONNECTION OF BY-PASS AND SINGLE UPS

3

4

1

2

074 DRWNETRT-XX

076 DRWNETRT-XX

075 DRWNETRT-XX

21

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

6.2.4 Connection of cables to the BY-PASS terminal strips

6. CONNECTION OF BY-PASS AND SINGLE UPS

UPS input

UPS output

3

1

2

077 DRWNETRT-XX

079 DRWNETRT-XX

078 DRWNETRT-XX

22

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

6.2.5 Connection of cables to the BY-PASS input and output terminal strips

6. CONNECTION OF BY-PASS AND SINGLE UPS

UPS input

UPS output

UPS input

UPS output

1

2

080 DRWNETRT-XX

081 DRWNETRT-XX

23

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL

7.1 VERTICAL INSTALLATION OF BY-PASS AND UPS IN PARALLEL

7.1.1 Assembly of BY-PASS and UPS for vertical installation

7.1.2 Fixing BY-PASS to UPS for vertical installation

120 DRWNETRT-XX

132 DRWNETRT-XX

Manual bypass is for 5/7/9/11 kVA models only.

24

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

7.2 RACK INSTALLATION OF BY-PASS AND UPS IN PARALLEL

7.2.1 Fixing brackets for rack installation

7.2.2 Fitting BY-PASS to rack

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL

133 DRWNETRT-XX

109 DRWNETRT-XX

25

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

7.3 CONNECTION OF BY-PASS AND UPS IN PARALLEL

7.3.1 Connection of BY-PASS to 2 UPSs

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL

input UPS 2

output UPS 2

input UPS 1

output UPS 1

7.3.1-1

7.3.1-3

7.3.1-2

7.3.1-4

083 DRWNETRT-XX086 DRWNETRT-XX

087 DRWNETRT-XX088 DRWNETRT-XX

26

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL

7.3.2 Connection of BY-PASS to line and load

LOAD

LINE

7.3.2-1

7.3.2-3

7.3.2-2

082 DRWNETRT-XX

084 DRWNETRT-XX089 DRWNETRT-XX

27

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

7.4 CONNECTION OF BY-PASS TO UPS IN PARALLEL

7. CONNECTION OF BY-PASS AND UPS IN PARALLEL

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO

PA EL

RS232

MINI COM. SLOT

OUTPUT

N

L

L

I

INPUT

BREAKER

230Vac

40A

230Vac

50/60Hz

230

CABLE UNDER LO

DO NOT DISCON

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO

PA EL

RS232

MINI COM. SLOT

OUTPUT

N

L

L

INP

INPUT

BREAKER

230Vac

40A

230Vac

50/60Hz

230Vac

CABLE UNDER LO

DO NOT DISCONN

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

AC INPUT 230Vac 50/60 Hz

N

LN

UPS OUTPUT

LINE BREAKER

230Vac 63A

UPS1 BREAKER

230Vac 63A

INPUT OUTPUT

UPS2 BREAKER

230Vac 63A

INPUT OUTPUT

BYPASS BREAKER

230Vac 63A

TO UP S1

PARALLEL P LLEL

LN

LN

TO UPS1

230Vac

50/60Hz

TO UPS1 OUTPUT

LN

TO UPS2

230Vac

50/60Hz

TO UPS1 INPUT

TO UPS2 OUTPUT

AC INPUT 230Vac 50/60 Hz

184 DRWNETRT-XX

WARNING!
NETYS RT models can only work with a maximum of 2 units in parallel.

28

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

The mimic panel on the front of the UPS provides all essential information on the operating status of the appliance.

8. MIMIC PANEL

Legend

A Display.

B Red symbol lit.

Fault.
C 2 colour LEDs:

• Green - Normal.

• Red - Overload.

D Green LED lit.
Normal operation (inverter in-line).

E Power-on, Enter and Buzzer override button.

F Scroll button - UP

G Scroll button - DOWN

H Off button

I Green LED:

• Lit - Mains healthy

• Blink - Mains low but not loss.

L 3 colour LEDs:

• Green - Stand-alone mode (battery power)

• Yellow - Battery low.

• Red - Battery needs replacing.

M Yellow LED:

• Lit - Operation in by-pass mode

(Bypass voltage healthy).

• Blink - Operation in by-pa ss mode

(Bypass voltage Out of range)

110 DRWNETRT-XX

H G F E

A

M

I

L

D

B

C

29

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

9. OPERATING MODES

9.1 SWITCHING THE NETYS RT ON

9.2 SWITCHING THE NETYS RT OFF

9.1-1

171 DRWNETRT-XX

9.1-3

175 DRWNETRT-XX

3 sec

9.2-1

174 DRWNETRT-XX

short

3 sec

9.2-2

177 DRWNETRT-XX

short

9.1-4

171 DRWNETRT-XX

3 sec

9.1-2

172 DRWNETRT-XX

short

30

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

9. OPERATING MODES

9.3 BASIC SETTINGS

4 sec

9.3-1

143 DRWNETRT-XX

100 DRWNETRT-XX

9.3-3

• Digit password 1234 using the

scroll buttons.

• Press ENTER to confi rm.

144 DRWNETRT-XX

9.3-2

LEVEL 1 LEVEL 2 LEVEL 3

BASIS SETTING CHANGE PASSWORD PASSWORD: 0000

LANGUAGE ENGLISH

FRENCH

GERMAN

ITALIAN

SPANISH

PORTUGAL

START SETTING BATTERY START ENABLE

DISABLE

AUTO RESTART ENABLE

DISABLE

CHARGER

SETTING

CHARGER CURRENT

(4)

CURRENT: 0.7 A

CURRENT: 1.4 A

(1)

CURRENT: 1.5 A

CURRENT: 3.0 A

(1)

CURRENT: 3.0 A

CURRENT: 6.0 A

(1)

CURRENT: 4.0 A

CURRENT: 8.0 A

(1)

BATTERY SETTING BATT LOW ALARM 20%

SHUTDOWN

VOLTAGE

SD VOLT: 168VDC

DISCHARGE TEST NO TEST

30 DAYS

60 DAYS

90 DAYS

BATT CABINET NUM

(4)

NUM: 1x16PCS

(2)

NUM: 1x20PCS

(3)

OUTPUT SETTING OUTPUT VOLTAGE 230 V

220 V

208 V

240 V

FREQ. CONVERTER DISABLE

50 HZ

60 HZ

ECO MODE DISABLE

ENABLE

(1)

UPS with powerfull battery charger.

(2)

Netys RT 5-7 kVA.

(3)

Netys RT 9-11 kVA.

(4)

Suggested charging current: 1.5 A (1-2 EBM), 3 A (3-4 EBM), 4 A (more than 4 EBM - max 8 EBM).

31

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

9. OPERATING MODES

9.4 OPERATION IN BY-PASS MODE FOR MAINTENANCE PURPOSES ­SINGLE UPS

UPS
ON-OFF switch

BY-PASS selector
NORMAL - TEST - BYPASS

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO

PAR

RS232

MINI COM. SLOT

OUTPUT

N

L

L

INPUT

N

PUT

AKER

50/60Hz

230Vac

50/60Hz

CABLE UNDER LO

DO NOT DISCONN

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

TO CONNECT WITH WIRES:LOOSEN SCREWS MARKED BY

TO UPS PARALLEL PORT

Vac

L

AC INPUT

LN

50/60Hz

200-240Vac

TO UPS OUTPUT

LN

TO

L

NORMAL

BYPASS

TEST

185 DRWNETRT-XX

Manual bypass is for 5/7/9/11 kVA models only.

32

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

9.4.2 Restoring normal operation of UPS

9. OPERATING MODES

9.4.1 Activation of by-pass mode for UPS maintenance purposes

NORMAL

BYPASS

TEST

NORMAL

BYPASS

TEST

• Switch-off also the Battery Cabinet.

• Carry out maintenance on the
UPS in safety.

• UPS is by-passed but still

switched on

• Wait 2 seconds before switching
to "BYPASS"

• Wait 2 seconds before switching
to "NORMAL"

OFF

NORMAL

BYPASS

TEST

NORMAL

BYPASS

TEST

• Wait for the UPS to synchronize
and detect the external by-pass.

• UPS is operational.

005 DRWNETRT-XX105 DRWNETRT-XX101 DRWNETRT-XX

091 DRWNETRT-XX

100 DRWNETRT-XX090 DRWNETRT-XX

119 DRWNETRT-XX

NORMAL

BYPASS

TEST

9.4.1-1

9.4.1-4

9.4.2-4

9.4.1-2

9.4.2-2

9.4.2-5

9.4.1-3

9.4.1-6

9.4.2-3

9.4.2-6

short

short

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

230Vac 40A

230Vac

50/60Hz

230Vac

50/60Hz

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

Network

ON

1

10 100

2

TO CONNECT WITH WIRES:L OOSEN SCREWS MARKED BY

ON

188 DRWNETRT-XX

9.4.2-1

SMART SLOT

OUTPUT

N

L

L

INPUT

N

INPUT

BREAKER

CABLE UNDER LOAD.

DO NOT DISCONNECT BATTERY

T

ERNAL BATTERY CONNECTOR

A

UTION:

W

Network

O

N

10 100

2

O CONNECT WITH WIRES:LOO SEN SCREWS MARKED BY

OFF

187 DRWNETRT-XX

9.4.1-5

33

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

9.5 OPERATION IN BY-PASS MODE - UPS IN PARALLEL FOR
MAINTENANCE PURPOSES

9. OPERATING MODES

A

BYPASS

switch

C

UPS1

switch

D

UPS2

switch

B

UPS output line

breaker

Output UPS1+UPS2 OFF ON ON ON

Output UPS1 (UPS2 off for maintenance) OFF ON OFF ON

Output UPS2 (UPS1 off for maintenance) OFF OFF ON ON

BY-PASS Output ON OFF OFF ON

Notes:

1. The function of the UPS output line breaker is to protect the output from overloads.

2. Disconnect all cables from the UPS when carrying out maintenance work.

3. To guard against operator error, wire in a detection signal for the BY-PASS switch.

4. BY-PASS output: turn off UPS1 and UPS2 by pressing the OFF buttons

B

C

D

A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO

PA EL

RS232

MINI COM. SLOT

OUTPUT

N

L

L

I

INPUT

BREAKER

230Vac

40A

230Vac

50/60Hz

230

CABLE UNDER LO

DO NOT DISCON

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

+

CAUTION:

CONNECTOR

BATTERY

BREAKER 300VDC 50A

COM. SLOT

EPO

PA EL

RS232

MINI COM. SLOT

OUTPUT

N

L

L

INP

INPUT

BREAKER

230Vac

40A

230Vac

50/60Hz

230Vac

CABLE UNDER LO

DO NOT DISCONN

EXTERNAL BATTERY CONNECTOR

CAUTION:

SW

100

Network

10

NLN

UPS1 BREAKER

230Vac 63A

INPUT OUTPUT

UPS2 BREAKER

230Vac 63A

INPUT OUTPUT

BYPASS BREAKER

230Vac 63A

TO UP S1

PARALLEL P LLEL

LN

LN

TO UPS1

230Vac

50/60Hz

TO UPS1 OUTPUT

LN

TO UPS2

230Vac

50/60Hz

TO UPS1 INPUT

TO UPS2 OUTPUT

AC INPUT 230Vac 50/60 Hz

UPS OUTPUT

LINE BREAKER

230Vac 63A

AC INPUT 230Vac 50/60 Hz

186 DRWNETRT-XX

Manual bypass is for 5/7/9/11 kVA models only.

34

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

10. COMMUNICATION

Communication software and accessories are available for monitoring the status of the UPS, with the end in view of optimizing
normal operation and ensuring that shutdown at the end of backup time is managed correctly. Applications allow recording of all
power outages and any depletion of battery power so as to enable the activation of an automatic procedure for closing programs
in ordered sequence and shutting down the system.

NETYS RT no-break systems are equipped with RS232 serial communication interface, and slots for NetVision cards.

10.1 COMMUNICATION SOLUTIONS

• UniVision local management software (RS232interface) with local shutdown functions for Windows™ and Linux systems,

downloadable free of charge from the Socomec website www.socomec.com/univision (CD included with certain models).

• Uni Vision Pro network management software (RS232interface) with local/remote shutdown functions on major operating

systems, using Java Shutdown Client.

• Web/SNMP manager (Web/SNMP slot card) allowing control via LAN using TCP/IP protocol, and remote shutdown manage-

ment.

• BMS (JBUS protocol), allows the UPS to interface with a Building Management system.

10.2 RS232 INTERFACE

This interface is required to run the UniVision local management software and UniVision Pro network management software. Use
the cable provided.

10.3 INTEGRATED WEB/SNMP CARD

With this card installed, the UPS can be connected directly to a LAN (RJ45 ethernet) and controlled remotely from a WEB browser
using TCP/IP protocol. Reference should be made to the dedicated literature for a full description of the functionalities.

10.4 USE OF WARNING RELAY INTERFACE

This is an optional card (slot-mounted) that will manage 6 indication circuits with isolated contacts carrying information on the status
of the UPS. The maximum voltage that can be applied to the contacts is 24 VDC, and the maximum current 500 mA.

Relay contacts can be set individually for NO (default) or NC operation, and programmed selectively for customized monitoring of
the UPS.

If requested, the UPS can also be switched off utilizing a remote external shutdown contact. The command is acknowledged when the
contact is made and held for 3 seconds (default), whereas the external contact must be made between the common and input pins.

The external contact MUST be dedicated and voltage-free, so as not to cause permanent damage to the UPS.

The shutdown input can be configured alternatively as a battery test input.

35

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

10.4.1 Internal circuit

10.4.2 Standard confi guration

R1

R2

R3

R4

R5

Common

GND-R

Input

+5V

CPU Pin

R6

GND-R
Common
R1
R2
R3
R4
R5
R6
Input
Tx
Rx
GND-C

SW1
SW2

GND-R

R1 General alarm

R2 No mains

R3 Battery low

R4 On by-pass

R5 Overload

R6 Overtemperature

10.4.1-1

10.4.1-3

10.4.1-2

SW1 SW2 relay contact

OFF OFF NO

ON OFF NC

GND-R: Relay ground contact

Common: 12~24 V DC

R1 General alarm

R2 No mains

R3 Battery low

R4 On by-pass

R5 Overload

R6 Overtemperature

Input: Remote shutdown or battery test

10. COMMUNICATION

058 DRWNETRT-XX

063 DRWNETRT-XX

36

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

• Configuration.

Press <Enter> to display the main menu of the relay card.

1. Press ‘1’ to configure the alarms relative to contacts R1~R6
(Customize Output Relay).

This menu can be used to assign a customized alarm indica-

tion to contacts R1~R6.

Having completed the configuration, shift SW2 to the ON

position to activate the settings. The default settings can be
restored by setting SW2 to OFF.

2. Press ‘2’ to configure the input signal.

The input signal can be used either to shut down the UPS or to

test the batteries. The delay preceding shutdown of the UPS
can be set up to 9999 seconds maximum.

3. Press ‘3’ to configure NO or NC operation of each relay.

Shift SW2 to the ON position to activate the settings.

If SW2 is returned to the OFF position, SW1 can be used to

check the NO or NC position of all the relays.

4. Press ‘0’ to end the configuration session. The system will
prompt you to save the new settings.

Press ‘Y’ to save, ‘N’ to cancel.

UPS Relay Card

Firmware Version: Relay Card V1.4
[1] . Customize Output Relay
[2] . Confi gure Input Signal
[3] . Customize Normal Open or Normal Close
[0] . Quit

Please Enter Your Choice >

Confi gure Input Signal

[1] . Act as Shutdown or Test: Shutdown
[2] . Input Signal Confi rm 3 Seconds
[3] . Delay Before Shutdown 30 Seconds
[0] . Back to Previous Menu

Please Enter Your Choice >

Customize Output Relay

Relay Selected Event
[1] . Relay 1: Summary Alarm
[2] . Relay 2: Power Fail
[3] . Relay 3: Battery Low
[4] . Relay 4: On by-pass
[5] . Relay 5: Overload
[6] . Relay 6: Overtemperature
[0] . Back to Previous Menu

Please Enter Your Choice >

Customize Output Relay

Relay Selected Event
[1] . Relay 1: Normal Close
[2] . Relay 2: Normal Open
[3] . Relay 3: Normal Close
[4] . Relay 4: Normal Open
[5] . Relay 5: Normal Close
[6] . Relay 6: Normal Open
[0] . Back to Previous Menu

Please Enter Your Choice >

10.4.3 Customized confi guration for relay and/or input contacts

Connect Tx to pin 2, Rx to pin 3 and GND-C to pin 5 of the computer’s RS232 port.

In Windows, start the Hyper-Terminal application and proceed to open the specified COM port.

Set the following properties: Baud rate: 2400, Data Bits: 8, Parity: None, Stop Bit: 1, Flow Control: None.

10. COMMUNICATION

37

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

11. MAINTENANCE

Problem Possible cause Solution

"UPS not powered up
(no alarm, no LEDs alight)”

The ON/TEST button has not been pressed. Press the ON/TEST button to switch the UPS on.

Shutdown due to flat battery and no mains power.

Wait for mains power to be restored

Thermal-magnetic switch on the rear panel
has been tripped.

Reduce the load connected to the UPS, then reset
the thermal-magnetic switch.

Faulty UPS Contact SOCOMEC UPS After Sales Service if the

solutions indicated above do not solve the problem.

UPS does not guar­antee the expected
backup time.

UPS internal batteries not completely charged.

Recharge the batteries for a minimum of 8 hours.

UPS in overload. Disconnect non-essential loads.

Depleted batteries. The batteries will degrade quickly if used fequently,

or in high operating temperatures. Should the batter­ies have reached the end of their life cycle, contact
SOCOMEC UPS After Sales Service. Batteries must
be replaced even if the "Replace battery" LED is not lit.

Battery charge fault or other causes. Contact SOCOMEC UPS After Sales Service

"Replace battery" LED lit.

Batteries flat. Charge the batteries for a minimum of 8 hours. If the

problem persists, contact SOCOMEC UPS After Sales
Service to have for battery replacement.

Faulty communication
between PC and UPS.

Wrong transmission speed. Change the transmission speed and test again.

RS232 connection incorrect. See "Communication" section of this manual.

Reconnect the UPS to the COM1/COM2 port of the PC.

USB connection incorrect. Reconnect the UPS to the USB port of the PC.

UPS functions in
"Battery Mode" even
though a.c. mains is
connected and healthy.

Mains voltage not registering at UPS input. Check the input voltage connection.

Thermal-magnetic switch on the rear panel
has been tripped.

Reduce the load connected to the UPS, then reset
the thermal-magnetic switch.

Input voltage too high, too low or distorted. Have the mains voltage checked by a qualified electri-

cian.

Overtemperature.

Air intake fans and fan cowl may be obstructed.

Select a well ventilated area in which to position the
UPS, allowing suitable dissipation of heat.

Ambient temperature is higher than 40 °C (104 °F).

Position the UPS in a cooler area.

"Fault" LED lit and alarm
signal generated.

UPS faulty. Contact SOCOMEC UPS After Sales Service.

"Overload" LED lit, with
continuous alarm signal.

Overload. Disconnect non-essential loads.

WARNING!
The UPS generates HAZARDOUS INTERNAL VOLTAGES. All maintenance operations should be carried out by
AUTHORIZED SERVICE ENGINEERS ONLY.

• The unit will operate to its maximum capability if kept powered up round the clock (24/7); this ensures that the batteries will always
be properly charged.

• If the appliance is to remain idle for any length of time, wait until the batteries are fully charged (connection to mains power supply
for 8 hours continuous) before shutting the UPS down.

• Recharge the batteries for a duration of 24 hours at least every 4 weeks during the time the unit remains idle.

11.1 MINOR TROUBLESHOOTING

WARNING!
If problems should persist or reoccur frequently after following the procedures indicated in this section, contact
the SOCOMEC UPS After Sales Service, providing a full description of the current difficulty

38

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

12. TECHNICAL SPECIFICATIONS

Models NRT2-U5000 NRT2-U7000 NRT2-U9000 NRT2-U11000

UPS power 5000 VA

4500 W

7000 VA

5400 W

9000 VA

7200 W

11000 VA

9000 W

Input 230 V (1 ph) ± 20% (up to -50% at 50% nominal load)

Input socket Terminals

Output Single-phase 230 V nominal ±2% (selectable: 200/208/220/240 V); 50/60 Hz

Output sockets Terminals

Technology On-line double conversion (VFI-SS-111)

Online efficiency Up to 92%

Batteries

Type Maintenance-free sealed lead - life expectancy 3-5 years

Typical backup

(1)

8 minutes 6 minutes 8 minutes 6 minutes

Communication

Connection interface RJ 45 and RS 232 ports and slots for communication cards

Ethernet WEB/SNMP interface (Optional)

Environment

Dimensions (W x D x H) 440 x 670,5 x 88,7 mm

17,3” x 26,4” x 2U

440 x 623 x 130,6 mm

17,3” x 24,5” x 3U

Degree of protection IP20

Weight 15 kg 15.5 kg 19.5 kg 20 kg

Reference standards EN 62040-1, EN 62040-2

(2)

(1)

With battery module included and back-up time at 75 % of the nominal power

(2)

With output cables shorter than 10 m.

39

ENGLISH

5-11 kVA - Ref.: IOMNETRTXX01-GB 05

12. TECHNICAL SPECIFICATIONS

Models Description

Input Output

NRT2-U5000 RT UPS 5kVA 230Vac

200/208/220/230/240V~,50/60Hz

29.7/28.5/27.0/25.8/24.7A

200/208/220/230/240V~,50/60Hz

25.0/24.0/22.7/21.7/20.8A

NRT2-U5000C

UPS 5kVA 230 Vac (coating)

200/208/220/230/240V~,50/60Hz

29.7/28.5/27.0/25.8/24.7A

200/208/220/230/240V~,50/60Hz

25.0/24.0/22.7/21.7/20.8A

NRT2-U7000 RT UPS 7kVA 230Vac

200/208/220/230/240V~,50/60Hz

34.7/33.4/31.6/30.2/29.0A

200/208/220/230/240V~,50/60Hz

35.0/33.7/31.8/30.4/29.2A

NRT2-U7000C

UPS 7kVA 230 Vac (coating)

200/208/220/230/240V~,50/60Hz

34.7/33.4/31.6/30.2/29.0A

200/208/220/230/240V~,50/60Hz

35.0/33.7/31.8/30.4/29.2A

NRT2-U9000 RT UPS 9kVA 230Vac

200/208/220/230/240V~,50/60Hz

46.0/44.2/41.8/40.0/38.3A

200/208/220/230/240V~,50/60Hz

45.0/43.3/40.9/39.1/37.5A

NRT2-U9000C

UPS 9kVA 230 Vac (coating)

200/208/220/230/240V~,50/60Hz

46.0/44.2/41.8/40.0/38.3A

200/208/220/230/240V~,50/60Hz

45.0/43.3/40.9/39.1/37.5A

NRT2-U11000 RT UPS 11kVA 230Vac

200/208/220/230/240V~,50/60Hz

56.1/53.9/51.0/48.7/46.7A

200/208/220/230/240V~,50/60Hz

55.0/52.9/50.0/47.8/45.8A

NRT2-U11000C

UPS 11kVA 230 Vac (coating)

200/208/220/230/240V~,50/60Hz

56.1/53.9/51.0/48.7/46.7A

200/208/220/230/240V~,50/60Hz

55.0/52.9/50.0/47.8/45.8A

NRT2-U7000CLA

RT UPS 7kVA 230Vac
with 8A charger

200/208/220/230/240V~,50/60Hz

39.2/37.7/35.7/34.1/32.7A

200/208/220/230/240V~,50/60Hz

35.0/33.7/31.8/30.4/29.2A

NRT2-U7000CLAC

RT UPS 7kVA 230Vac
with 8A charger (coating)

200/208/220/230/240V~,50/60Hz

39.2/37.7/35.7/34.1/32.7A

200/208/220/230/240V~,50/60Hz

35.0/33.7/31.8/30.4/29.2A

NRT2-U11000CLA

RT UPS 11kVA 230Vac
with 8A charger

200/208/220/230/240V~,50/60Hz

61.7/59.3/56.1/53.6/51.4A

200/208/220/230/240V~,50/60Hz

55.0/52.9/50.0/47.8/45.8A

NRT2-U11000CLAC

RT UPS 11kVA 230Vac
with 8A charger (coating)

200/208/220/230/240V~,50/60Hz

61.7/59.3/56.1/53.6/51.4A

200/208/220/230/240V~,50/60Hz

55.0/52.9/50.0/47.8/45.8A

VALID FOR FRANCE VALID FOR ITALY

ISO 9001

FM 28237

ISO14001

EMS 553476

www.socomec.com

YOUR DISTRIBUTOR

To help protect the environment, this document has been printed on PEFC paper (Programme for the Endorsement of Forest Certification)

Non contractual document. © 2012, Socomec SA. All rights reserved.

HEAD OFFICE

SOCOMEC GROUP

S.A. SOCOMEC capital 11 149 200 € - R.C.S. Strasbourg B 548 500 149
B.P. 60010 - 1, rue de Westhouse - F-67235 Benfeld Cedex

SOCOMEC UPS Strasbourg

11, route de Strasbourg - B.P. 10050 - F-67235 Huttenheim Cedex- FRANCE
Tel. [phone] - Fax [phone]
[e-mail]

SOCOMEC UPS Isola Vicentina

Via Sila, 1/3 - I - 36033 Isola Vicentina (VI) - ITALY
Tel. [phone] - Fax [phone]
[e-mail]

SALES, MARKETING AND SERVICE MANAGEMENT

SOCOMEC UPS Paris

95, rue Pierre Grange
F-94132 Fontenay-sous-Bois Cedex - FRANCE
Tel. [phone] - Fax [phone]
[e-mail]

Socomec UPS worldwide

IN WESTERN EUROPE

BELGIUM

Schaatsstraat, 30 rue du Patinage
B - 1190 Bruxelles
Tel. [phone]
[e-mail]

FRANCE

95, rue Pierre Grange
F - 94132 Fontenay-sous-Bois Cedex
Tel. [phone]
[e-mail]

GERMANY

Heppenheimer Straße 57
D - 68309 Mannheim
Tel. [phone]
[e-mail]

ITALY

Via Leone Tolstoi, 73 - Zivido
20098 San Giuliano Milanese (MI)
Tel. [phone]
[e-mail]

PORTUGAL

Núcleo Empresarial de Mafra II
Av. Dr. Francisco Sá Carneiro, Fracção N
2640-486 Mafra
Tel. [phone]
[e-mail]

SPAIN

C/Nord, 22 Pol. Ind. Buvisa
E - 08329 Teià (Barcelona)
Tel. [phone]
[e-mail]

THE NETHERLANDS

Duwboot 13
NL - 3991 CD Houten
Tel. [phone]
[e-mail]

UNITED KINGDOM

Units 7A-9A Lakeside Business Park
Broadway Lane - South Cerney
Cirencester - GL7 5XL
Tel. [phone]
[e-mail]

OTHER COUNTRIES

Tel. [phone]
[e-mail]

IN EASTERN EUROPE,
MIDDLE EAST, AFRICA

UNITED ARAB EMIRATES

LIU-E17 DAFZA
371355 Dubai airport free zone
Dubai (United Arab Emirates)
Tel.: [phone]
[e-mail]

POLAND

ul. Mickiewicza 63
01-625 Warszawa
Tel. [phone]
[e-mail]

ROMANIA

Heliade Intre Vii Street no.8, 2 District
023383 Bucharest
Tel. [phone] ( 89, 81, 82)
[e-mail]

RUSSIA

4th Street 8 Marta, 6A, 405
125167 - Moscow
Tel. [phone]
[e-mail]

SLOVENIA

Savlje 89
SI - 1000 Ljubljana
Tel. [phone]
[e-mail]

TURKEY

Masuklar Yokusu No:57/2
34357 Besiktas
Istanbul
Tel. [phone]
[e-mail]

OTHER COUNTRIES

Tel. [phone]
[e-mail]

IN ASIA PACIFIC

AUSTRALIA

Unit 3, 2 Eden Park Drive (Rydecorp)
Macquarie Park NSW 2113
Tel. [phone]
[e-mail]

CHINA

Universal Business Park
B33, Floor 3, 10 Jiuxianqiao Lu,
Chaoyang, Beijing 100016 P.R., China
Tel. [phone]
[e-mail]

INDIA

B1, IInd Floor, Thiru-Vi-Ka-Industrial Estate
Guindy
Chennai – 600 032
Tel. [phone]
[e-mail]

MALAYSIA

31 Jalan SS 25/41- Mayang Industrial Park
47301 Petaling Jaya.- Selangor, Malaysia
Tel. [phone]
[e-mail]

SINGAPORE

31 Ubi Road 1 #01-00 (Lobby B)
Aztech Building
Singapore 408694
Tel. [phone]
[e-mail]

THAILAND

No.9 Soi Vibhavadirangsit 42
Vibhavadirangsit Rd, Ladyao
Chatujak Bangkok 10900
Tel. [phone]
[e-mail]

VIETNAM

539/23 Luy Ban Bich St.,
Phu Thanh Ward, Tan Phu Dist
Ho Chi Minh City
Tel. [phone]
[e-mail]

ASIA PACIFIC HEAD OFFICE

Tel. [phone]
[e-mail]

IN AMERICA

LATIN AMERICAN COUNTRIES

Tel. [phone]
[e-mail]

*IOMNETRTXX01-GB 05*

IOMNETRTXX01-GB 05 09.2012
