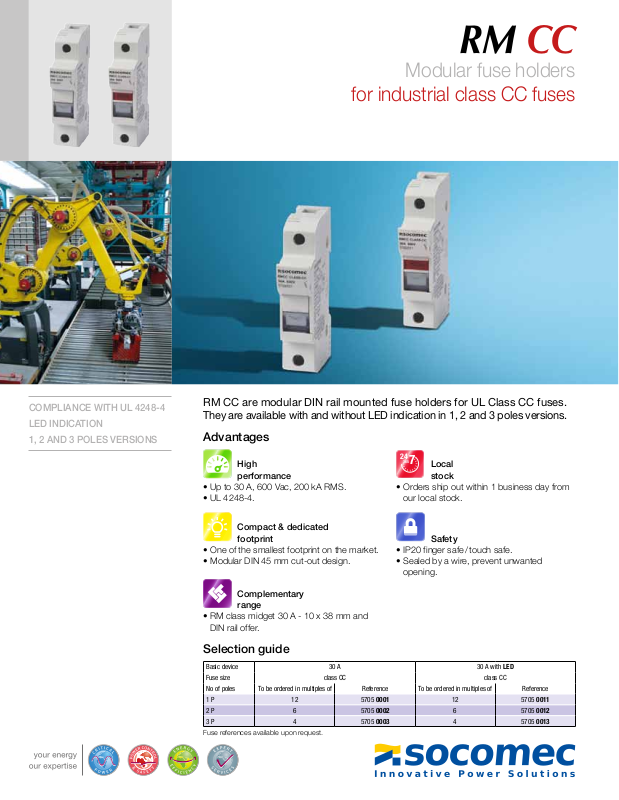

RM CC
Modular fuse holders
for industrial class CC fuses
COMPLIANCE WITH UL 4248-4
LED INDICATION
1, 2 AND 3 POLES VERSIONS
RM CC are modular DIN rail mounted fuse holders for UL Class CC fuses.
They are available with and without LED indication in 1, 2 and 3 poles versions.
Advantages
24
365
7
High
performance
• Up to 30 A, 600 Vac, 200 kA RMS.
• UL 4248-4.
Compact & dedicated
footprint
• One of the smallest footprint on the market.
• Modular DIN 45 mm cut-out design.
Complementary
range
• RM class midget 30 A - 10 x 38 mm and
DIN rail offer.
• Orders ship out within 1 business day from
• IP20 finger safe / touch safe.
• Sealed by a wire, prevent unwanted
Local
stock
our local stock.
Safety
opening.
Selection guide
Basic device 30 A 30 A with LED
Fuse size class CC class CC
No of poles To be ordered in multiples of Reference To be ordered in multiples of Reference
1 P
2 P
3 P
Fuse references available upon request.
12 5705 0001 12 5705 0011
6 5705 0002 6 5705 0012
4 5705 0003 4 5705 0013
RM CC
Modular fuse holders for Industrial class CC fuses
Characteristics according to UL 4248-4
Rated operational current (A)
Fuse size class CC
Rated operating voltage (V) 600
Dielectric strength (V) 2200
LED working voltage
Rated power dissipation (W / P) 3
Protection degree IP20
Class CC fuse protected short-circuit withstand
Prospective short-circuit current (kA rms.) 200
Connection
1 wire
2 wires
Wire strip (mm / in) 10 / 0.39
Maximum tightening torque 2.5 Nm / 22 lb.in
Fixing
Mechanical characteristics
Weight of 1 P (kg / lb) 0.057 / 0.126
Weight of 2 P (kg / lb) 0.114 / 0.251
Weight of 3 P (kg / lb) 0.170 / 0.375
(1) For fuse holders with LED indicator.
(1)
Minimum Cu cable cross-section solid / stranded 0.75 mm
Maximum Cu cable cross-section solid / stranded 16 mm
Minimum Cu cable cross-section solid / stranded 0.75 mm² / 18 AWG
Maximum Cu cable cross-section solid 10 mm² / 8 AWG
Maximum Cu cable cross-section stranded 6 mm² / 10 AWG
30 A
120 … 600 VAC
2
/ 18 AWG
2
/ 8 AWG
DIN rail 35 mm
DIN 46277 / 1-3 (EN50022)
Dimensions of the RM CC, 30 A (mm / in)
2.05
52.5
0.69
17.5
1.38
35
2.28
58
1.57
40
The solution for
• Distribution boards
• Motor and control circuits
• Transformer protection
• Measuring devices and multimeter
protection
1.77
0.79
45
1.57
40
0.24
6
20
2.95
74.8
3.07
78
RM 067 A
