DIRIS A40/A41
RS485 – JBUS/MODBUS
®
Operating instructions
F GB D I NL E P
2
3
PRELIMINARY OPERATIONS _______________________________________________ 4
GENERAL INFORMATION ______________________________________________ 4
INSTALLATION ____________________________________________________________ 5
CONNECTION ________________________________________________________ 5
PROGRAMMING ___________________________________________________________ 6
COMMUNICATION ADDRESS __________________________________________ 7 COMMUNICATION SPEED _____________________________________________ 7 COMMUNICATION PARITY _____________________________________________ 8 COMMUNICATION STOP BIT ___________________________________________ 8
COMMUNICATION _________________________________________________________ 9
THE STANDARD COMMUNICATIONS FRAME ____________________________ 9
A : NEW COMMUNICATION TABLE FROM 01/2009 __________________________ 10
1 > TABLE C550 Hex : Main measurements allocated from current transformer
and voltage transformer values
__________________________________________ 10
2 > TABLE C650 Hex : Energy monitoring _____________________________________ 11 3 > TABLE C750 Hex : Additional measurements allocated from current transformer
and voltage transformer values
__________________________________________ 11
4 > TABLE C850 Hex : Main measurements not allocated from current transformer
and voltage transformer values
__________________________________________ 12
5 > TABLE C900Hex : Temperature measurements _______________________________ 13 6 > TABLE C950Hex : Harmonics ___________________________________________ 13
7> TABLEE000Hex: Primaryconguration ___________________________________ 19 8> TABLEE110Hex: Ethernetconguration __________________________________ 20
9> TABLEE200Hex:Ethernetconguration ___________________________________ 21
B : OLD COMMUNICATION TABLE BEFORE 01/2009 ________________________ 22
LIST OF PARAMETERS TO BE DISPLAYED _____________________________ 22
Table of values with allocated current and voltage winf-ding ratios on 2 words __________22 Address available with the Monitoring or Control/Command option ____________________24 Instant value display _____________________________________________________________ 24 Table of values without allocated current and voltage winding ratios on 1 word _________25 Alarm event log __________________________________________________________________ 28 Table of current and voltage harmonics _____________________________________________45 Option recognition table __________________________________________________________ 48
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED ___________ 49 RESET TO ZERO: ENERGY METERS AND MAX. VALUES _________________ 60 SAVED COMMAND ___________________________________________________ 61 PULSE METERS VALUES _____________________________________________ 61 DATE AND HOUR SETTINGS __________________________________________ 62 LAST 10 ALARMS EVENT LOG ________________________________________ 62 LAST 10 VOLTAGE DIPS EVENT LOG / SAG _____________________________ 84 LAST 10 VOLTAGE SURGE EVENT LOG / SWELL ________________________ 84 MINIMUM AND MAXIMUM INSTANTANEOUS VALUES ___________________ 89 LAST 10 VOLTAGE CUT-OFFS EVENT LOG / SAG _______________________ 93 MEAN POWER EVENT LOG ___________________________________________ 95 MEAN VOLTAGE EVENT LOG __________________________________________ 95 MEAN FREQUENCY EVENT LOG ______________________________________ 95
TECHNICAL CHARACTERISTICS __________________________________________ 96 GLOSSARY OF ABBREVIATIONS __________________________________________ 96
Contents
GB
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
4
5
PRELIMINARY OPERATIONS
Functions
The optional IP Communication module must be connected to the DIRIS A40/A41 (réf. : 4825 0201, 4825 0202, 4825 1201, 4825 1202, 4825 U201, 4825 0207, 4825 0211, 4825 0213, 4825 0214). It pro­vides an RS485 serial link (2 or 3 wires) with JBUS/ MODBUS® protocol for the use of DIRIS A40/A41 from a PC or PLC.
General points
Forastandard conguration,anRS485 linkisusedto
connect up to 31 DIRIS or COUNTIS Ci with a PC or a PLC over a distance of 1200 metres, using JBUS/ MODBUS© protocol.
DIRIS 109 E F
DIRIS 110 E F
Recommendations:
You should use a shielded twisted pair (LIYCY type). In a disturbed environment or large network (in terms of length) we recommend the use of a shielded twisted pair (type LIYCY-CY). A repeater (1 channel) or an arrestor (4 channels) should be used if you intend to exceed the distance (1200 m) and/or maximum number (31) of DIRIS. Please contact us for more information.
NB :
A 120 ohm resistance (found on the additional module)
must be xed at both ends of the link.
Other solutions are available (modem, optical bre, etc.).
Please contact us.
GENERAL INFORMATION
CONNECTION
Themoduleisttedonto thebackoftheDIRIS A40/A41 in one of the 4 positions provided.
DIRIS 342 A
1
NO
1
DIRIS 347 A
3
DIRIS 343 A
2
Fix the module in one of the four positions.
4
Follow indications when connecting the terminal. Switch on voltage supply.
INSTALLATION
For personnel and product safety please read the contents of these operating instructions carefully before connecting. Check the following points as soon as you receive the DIRIS A40/A41 package:
•thepackingisin goodcondition,
•the producthasnotbeen damagedduringtransit,
•the productreference numberconforms toyour
order,
•thepackage containstheproductand theopera ting
instructions.
The DIRIS A40/A41 must be switched off
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
6
7
PROGRAMMING
PROGRAMMING
Previous menu
Following menu
p.81
p.81
p.82
p.82

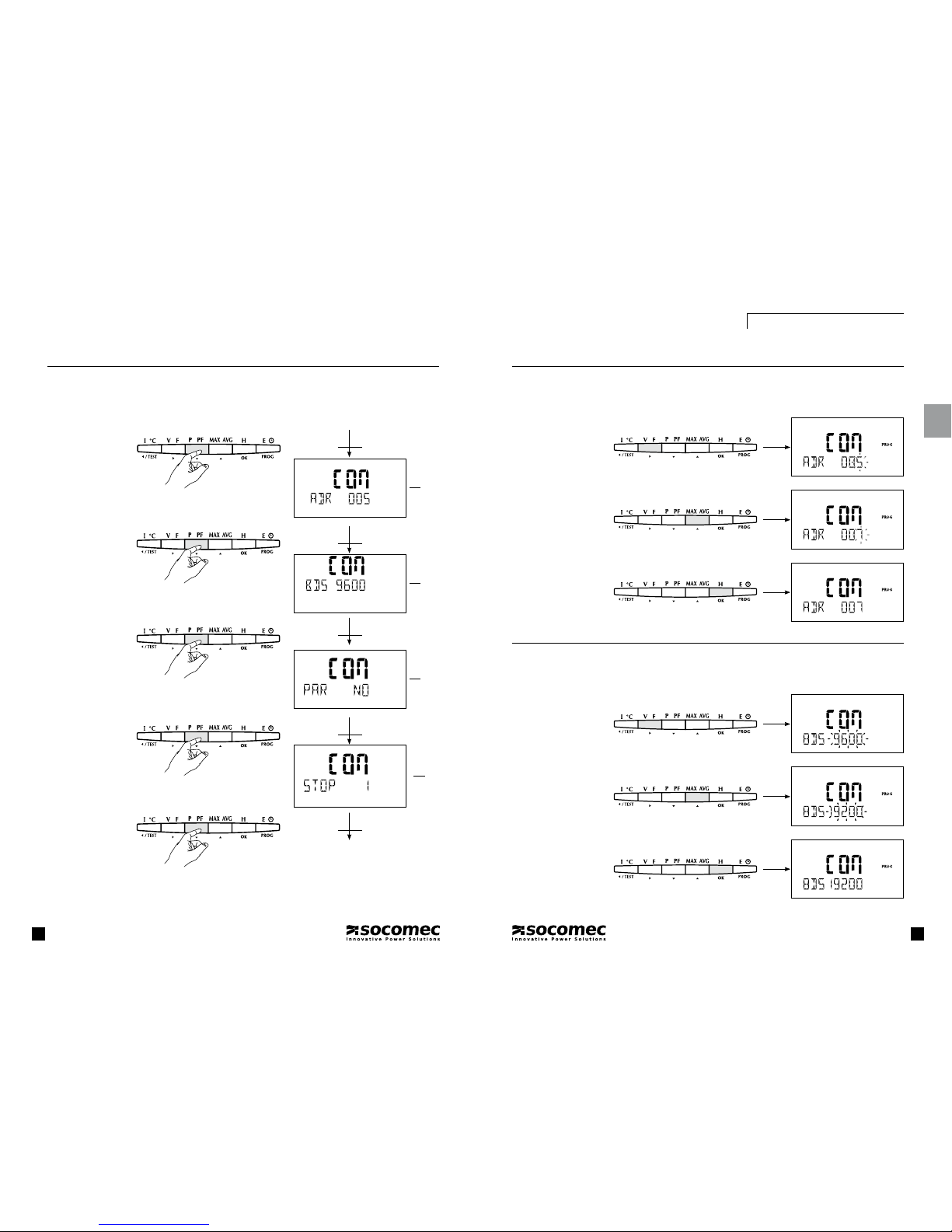

COMMUNICATION ADDRESS
>
Example : COM ADR = 7
x 3
x 2
x 1
conrm
COMMUNICATION SPEED
>
Example : BDS = 19 200 bauds
x 1
x 1
x 1
conrm
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
8
9
PROGRAMMING COMMUNICATION
COMMUNICATION PARITY
>
Example : PAR = Even
x 1
x 1 (Odd)
x 2 (Even)
x 3 (No)
COMMUNICATION STOP BIT
>
Example : STOP = 2
x 1
x 1
conrm
The JBUS/MODBUS® used by the DIRIS A40/A41 involves a dialogue using a master-slave hierarchical structure. There are two possible dialogues:
•the mastercommunicateswith aslave(DIRIS) and
waits for its reply
•themaster communicateswithalltheslaves(DIRIS)
without waiting for their reply.
The mode of communication is the RTU (Remote Terminal Unit) using hexadecimal characters of at least 8 bits.
According to the JBUS/MODBUS
®
protocol, transmis­sion time must be less than 3 silences, i.e. the emission time of 3 characters so that the message is processed by the DIRIS. To correctly use information, the following functions are important:
3 : to read n words (maximum 128). 6 : to write one word. 8 : to diagnose exchanges between the master and the
slave via meters 1, 3, 4, 5 and 6.
16 : to write n words (maximum 128).
NB:
When selecting slave address 0, a message is sent to all the instruments present on the network (only for functions 6 and 16).
Comment :
The response time (time out question/answer) is 250 ms maximum
THE STANDARD COMMUNICATIONS FRAME
Slave address Function code Address Data CRC 16
The standard communications frame consists of:
x 1 (2 bits)
x 2 (1 bits)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
10
11
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
These new tables are available for all new Socomec products on sale from January 2009. The aim is to have common tables for common values, irrespective of the Socomec product. We recommend that you use these new tables whe­never possible for developing your applications.
A : NEW COMMUNICATION TABLE FROM 01/2009
2 > TABLE C650 Hex : Energy monitoring
Decimal Hex. No. of Description Unit JBUS function
address address words available
50768 C650 2 hour meter 1/100 h 3 50770 C652 2 Reserved for manufacturer - 3 50772 C654 2 Reserved for manufacturer - 3 50774 C656 2 Reserved for manufacturer - 3 50776 C658 2 Reserved for manufacturer - 3 50778 C65A 2 Reserved for manufacturer - 3 50770 C652 2 active energy + kWh 3 50772 C654 2 reactive energy + kvarh 3 50774 C656 2 apparent apparente kVAh 3 50776 C658 2 active energy - kWh 3 50778 C65A 2 active energy + kWh 3 50780 C65C 2 No. Compteurs d’Impulsions - 3 50782 C65E 2 pulse meter 1 - 3 50784 C660 2 pulse meter 2 - 3 50786 C662 2 pulse meter 3 - 3 50788 C664 2 pulse meter 4 - 3 50790 C666 2 pulse meter 5 - 3 50792 C668 2 pulse meter 6 - 3 50794 C66A 2 Reserved for manufacturer - 3 50796 C66C 2 Reserved for manufacturer - 3 50798 C66E 2 Reserved for manufacturer - 3 50800 C670 2 Reserved for manufacturer - 3 50802 C672 2 S Predicted active power kW/100 3 50804 C674 2 S Predicted reactive power kvar/100 3 50806 C676 2 S Predicted apparent power kVA/100 3 50808 C678 2 Ea+ between 2 tops 0,1 Ws 3 50810 C67A 2 Ea- between 2 tops 0,1 Ws 3 50812 C67C 2 Er+ between 2 tops 0,1 vars 3 50814 C67E 2 Er- between 2 tops 0,1 vars 3 50816 C680 2 Reserved for manufacturer - 3 50816 C680 1 Reserved for manufacturer - 3 50817 C681 1 Reserved for manufacturer - 3
3 > TABLE C750 Hex : Additional measurements allocated from CT values (current transformer) and VT (voltage transformer) values
Decimal Hex. No. of Description Unit JBUS function
address address words available
51024 C750 2 avg U12 V/100 3 51026 C752 2 avg U23 V/100 3 51028 C754 2 avg U31 V/100 3 51030 C756 2 avg V1 V/100 3 51032 C758 2 avg V2 V/100 3 51034 C75A 2 avg V3 V/100 3 51036 C75C 2 avg F Hz/100 3 51038 C75E 2 avg I1 mA 3 51040 C760 2 avg I2 mA 3 51042 C762 2 avg I3 mA 3 51044 C764 2 avg In mA 3 51046 C766 2 avg Σ active power + kW/100 3 51048 C768 2 avg Σ active power - kW/100 3 51050 C76A 2 avg Σ reactive power + kvar/100 3 51052 C76C 2 avg Σ reactive power - kvar/100 3 51054 C76E 2 avg Σ apparent power kVA/100 3 51056 C770 2 max/avg U12 V/100 3
COMMUNICATION
1 > TABLE C550 Hex : Main measurements allocated from CT (current transformer) and VT (voltage transformer) values
Decimal Hex. No. of Description Unit JBUS function
address address words available
50512 C550 2 hour meter 1/100 h 3 50514 C552 2 phase to phase voltage U12 V/100 3 50516 C554 2 phase to phase voltage U23 V/100 3 50518 C556 2 phase to phase voltage U31 V/100 3 50520 C558 2 phase to neutral voltage phase 1 V/100 3 50522 C55A 2 phase to neutral voltage phase 2 V/100 3 50524 C55C 2 phase to neutral voltage phase 3 V/100 3 50526 C55E 2 frequency Hz/100 3 50528 C560 2 phase current 1 mA 3 50530 C562 2 phase current 2 mA 3 50532 C564 2 phase current 3 mA 3 50534 C566 2 neutral current mA 3 50536 C568 2 Σ active power +/- kW/100 3 50538 C56A 2 Σ reactive power +/- kvar/100 3 50540 C56C 2 Σ apparent power kVA/100 3 50542 C56E 2
Σ
power factor -: leading and + : lagging 0,001 3 50544 C570 2 active power phase 1 +/- kW/100 3 50546 C572 2 active power phase 2 +/- kW/100 3 50548 C574 2 active power phase 3 +/- kW/100 3 50550 C576 2 reactive power phase 1 +/- kvar/100 3 50552 C578 2 reactive power phase 2 +/- kvar/100 3 50554 C57A 2 reactive power phase 3 +/- kvar/100 3 50556 C57C 2 apparent power phase 1 kVA/100 3 50558 C57E 2 apparent power phase 2 kVA/100 3 50560 C580 2 apparent power phase 3 kVA/100 3 50562 C582 2 power factor phase 1 -: leading and + : lagging 0,001 3 50564 C584 2 power factor phase 2 -: leading and + : lagging 0,001 3 50566 C586 2 power factor phase 3 -: leading and + : lagging 0,001 3 50568 C588 2 Reserved for manufacturer - 3 50570 C58A 2 Reserved for manufacturer - 3 50572 C58C 2 Reserved for manufacturer - 3
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
12
13
Decimal Hex. No. of Description Unit JBUS function
address address words available
51058 C772 2 max/avg U23 V/100 3 51060 C774 2 max/avg U31 V/100 3 51062 C776 2 max/avg V1 V/100 3 51064 C778 2 max/avg V2 V/100 3 51066 C77A 2 max/avg V3 V/100 3 51068 C77C 2 max/avg F Hz/100 3 51070 C77E 2 max/avg I1 mA 3 51072 C780 2 max/avg I2 mA 3 51074 C782 2 max/avg I3 mA 3 51076 C784 2 max/avg In mA 3 51078 C786 2 max/avg Σ active power + kW/100 3 51080 C788 2 max/avg Σ active power - kW/100 3 51082 C78A 2 max/avg Σ reactive power + kvar/100 3 51084 C78C 2 max/avg Σ reactive power - kvar/100 3 51086 C78E 2 max/avg Σ apparent power kVA/100 3 51088 C790 1 Reserved for manufacturer - 3 51089 C791 1 Reserved for manufacturer - 3 51090 C792 1 Reserved for manufacturer - 3 51091 C793 1 Reserved for manufacturer - 3 51092 C794 1 Reserved for manufacturer - 3 51093 C795 1 Reserved for manufacturer - 3
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
3 > TABLE C750 Hex (continued)
A : NEW COMMUNICATION TABLE FROM 01/2009
4 > TABLE C850 Hex
Decimal Hex. No. of Description Unit JBUS function
address address words available
51305 C869 1 phase power factor 1 -:
leading and + : lagging 0,001 3
51306 C86A 1 phase power factor 2 -:
leading and + : lagging 0,001 3
51307 C86B 1 phase power factor 3 -:
leading and + : lagging 0,001 3
51308 C86C 1 Reserved for manufacturer - 3 51309 C86D 1 Reserved for manufacturer - 3 51310 C86E 1 Reserved for manufacturer - 3 51311 C86F 1 Ea+ MWh 3 51312 C870 1 Reserved for manufacturer - 3 51313 C871 1 ER+ MWh 3
Decimal Hex. No. of Description Unit JBUS function
address address words available
51280 C850 1 hour meter h 3 51281 C851 1 phase to phase voltage U12 V/100 3 51282 C852 1 phase to phase voltage U23 V/100 3 51283 C853 1 phase to phase voltage U31 V/100 3 51284 C854 1 phase to neutral voltage 1 V/100 3 51285 C855 1 phase to neutral voltage 2 V/100 3 51286 C856 1 phase to neutral voltage 3 V/100 3 51287 C857 1 frequency Hz/100 3 51288 C858 1 phase current 1 mA 3 51289 C859 1 phase current 3 mA 3 51291 C85B 1 neutral current mA 3 51292 C85C 1 Σ active power +/- kW/100 3 51293 C85D 1 Σ reactive power +/- kvar/100 3 51294 C85E 1 Σ apparent power +/- kVA/100 3 51295 C85F 1 Σ power factor L/C -:
leading and + : lagging 0,001 3
51296 C860 1 phase active power 1 +/- kW/100 3 51297 C861 1 phase active power 2 +/- kW/100 3 51298 C862 1 phase active power 3 +/- kW/100 3 51299 C863 1 phase reactive power 1 +/- kvar/100 3 51300 C864 1 phase reactive power 2 +/- kvar/100 3 51301 C865 1 phase reactive power 3 +/- kvar/100 3 51302 C866 1 phase apparent power 1 kVA/100 3 51303 C867 1 phase apparent power 2 kVA/100 3 51304 C868 1 phase apparent power 3 kVA/100 3
4 > TABLE C850 Hex : Main measurements not allocated from CT values (current transformer) and VT (voltage transformer) values
CAUTION : using this table involves multiplying values by transformation ratios.
5 > TABLE C900Hex : Temperature measurements
Decimal Hex. No. of Description Unit JBUS function
address address words available
51456 C900 1 Internal temperature sensor present 0 : no - 1 : yes - 3 51457 C901 1 Temperature module °C 3 51458 C902 1
External temperature sensors (1 to 5max)
- 3 51459 C903 1 extern temperature 1 °C 3 51460 C904 1 extern temperature 2 °C 3 51461 C905 1 extern temperature 3 °C 3 51462 C906 1 extern temperature 4 °C 3 51463 C907 1 extern temperature 5 °C 3
6 > TABLE C950Hex : Harmonics
Decimal Hex. No. of Description Unit JBUS function
address address words available
THD
51536 C950 1 thd U12 0,001 3 51537 C951 1 thd U23 0,001 3 51538 C952 1 thd U31 0,001 3 51539 C953 1 thd V1 0,001 3 51540 C954 1 thd V2 0,001 3 51541 C955 1 thd V3 0,001 3 51542 C956 1 thd I1 0,001 3 51543 C957 1 thd I2 0,001 3 51544 C958 1 thd I3 0,001 3 51545 C959 1 thd In 0,001 3 Current 51546 C95A 1 Max rank 3 51547 C95B 1
Harmonic
I1 row 3 0,001 3 51548 C95C 1 Harmonic I2 row 3 0,001 3 51549 C95D 1 Harmonic I3 row 3 0,001 3 51550 C95E 1 Harmonic IN row 3 0,001 3 51551 C95F 1 Harmonic I1 row 5 0,001 3 51552 C960 1 Harmonic I2 row 5 0,001 3 51553 C961 1 Harmonic I3 row 5 0,001 3 51554 C962 1 Harmonic IN row 5 0,001 3 51555 C963 1 Harmonic I1 row 7 0,001 3
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
14
15
Decimal Hex. No. of Description Unit JBUS function
address address words available
51556 C964 1 Harmonic I2 row 7 0,001 3 51557 C965 1 Harmonic I3 row 7 0,001 3 51558 C966 1 Harmonic IN row 7 0,001 3 51559 C967 1 Harmonic I1 row 9 0,001 3 51560 C968 1 Harmonic I2 row 9 0,001 3 51561 C969 1 Harmonic I3 row 9 0,001 3 51562 C96A 1 Harmonic IN row 9 0,001 3 51563 C96B 1 Harmonic I1 row 11 0,001 3 51564 C96C 1 Harmonic I2 row 11 0,001 3 51565 C96D 1 Harmonic I3 row 11 0,001 3 51566 C96E 1 Harmonic IN row 11 0,001 3 51567 C96F 1 Harmonic I1 row 13 0,001 3 51568 C970 1 Harmonic I2 row 13 0,001 3 51569 C971 1 Harmonic I3 row 13 0,001 3 51570 C972 1 Harmonic IN row 13 0,001 3 51571 C973 1 Harmonic I1 row 15 0,001 3 51572 C974 1 Harmonic I2 row 15 0,001 3 51573 C975 1 Harmonic I3 row 15 0,001 3 51574 C976 1 Harmonic IN row 15 0,001 3 51575 C977 1 Harmonic I1 row 17 0,001 3 51576 C978 1 Harmonic I2 row 17 0,001 3 51577 C979 1 Harmonic I3 row 17 0,001 3 51578 C97A 1 Harmonic IN row 17 0,001 3 51579 C97B 1 Harmonic I1 row 19 0,001 3 51580 C97C 1 Harmonic I2 row 19 0,001 3 51581 C97D 1 Harmonic I3 row 19 0,001 3 51582 C97E 1 Harmonic IN row 19 0,001 3 51583 C97F 1 Harmonic I1 row 21 0,001 3 51584 C980 1 Harmonic I2 row 21 0,001 3 51585 C981 1 Harmonic I3 row 21 0,001 3 51586 C982 1 Harmonic IN row 21 0,001 3 51587 C983 1 Harmonic I1 row 23 0,001 3 51588 C984 1 Harmonic I2 row 23 0,001 3 51589 C985 1 Harmonic I3 row 23 0,001 3 51590 C986 1 Harmonic IN row 23 0,001 3 51591 C987 1 Harmonic I1 row 25 0,001 3 51592 C988 1 Harmonic I2 row 25 0,001 3 51593 C989 1 Harmonic I3 row 25 0,001 3 51594 C98A 1 Harmonic IN row 25 0,001 3 51595 C98B 1 Harmonic I1 row 27 0,001 3 51596 C98C 1 Harmonic I2 row 27 0,001 3 51597 C98D 1 Harmonic I3 row 27 0,001 3 51598 C98E 1 Harmonic IN row 27 0,001 3 51599 C98F 1 Harmonic I1 row 29 0,001 3 51600 C990 1 Harmonic I2 row 29 0,001 3 51601 C991 1 Harmonic I3 row 29 0,001 3 51602 C992 1 Harmonic IN row 29 0,001 3 51603 C993 1 Harmonic I1 row 31 0,001 3 51604 C994 1 Harmonic I2 row 31 0,001 3 51605 C995 1 Harmonic I3 row 31 0,001 3 51606 C996 1 Harmonic IN row 31 0,001 3 51607 C997 1 Harmonic I1 row 33 0,001 3 51608 C998 1 Harmonic I2 row 33 0,001 3 51609 C999 1 Harmonic I3 row 33 0,001 3
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
Decimal Hex. No. of Description Unit JBUS function
address address words available
51610 C99A 1 Harmonic IN row 33 0,001 3 51611 C99B 1 Harmonic I1 row 35 0,001 3 51612 C99C 1 Harmonic I2 row 35 0,001 3 51613 C99D 1 Harmonic I3 row 35 0,001 3 51614 C99E 1 Harmonic IN row 35 0,001 3 51615 C99F 1 Harmonic I1 row 37 0,001 3 51616 C9A0 1 Harmonic I2 row 37 0,001 3 51617 C9A1 1 Harmonic I3 row 37 0,001 3 51618 C9A2 1 Harmonic IN row 37 0,001 3 51619 C9A3 1 Harmonic I1 row 39 0,001 3 51620 C9A4 1 Harmonic I2 row 39 0,001 3 51621 C9A5 1 Harmonic I3 row 39 0,001 3 51622 C9A6 1 Harmonic IN row 39 0,001 3 51623 C9A7 1 Harmonic I1 row 41 0,001 3 51624 C9A8 1 Harmonic I2 row 41 0,001 3 51625 C9A9 1 Harmonic I3 row 41 0,001 3 51626 C9AA 1 Harmonic IN row 41 0,001 3 51627 C9AB 1 Harmonic I1 row 43 0,001 3 51628 C9AC 1 Harmonic I2 row 43 0,001 3 51629 C9AD 1 Harmonic I3 row 43 0,001 3 51630 C9AE 1 Harmonic IN row 43 0,001 3 51631 C9AF 1 Harmonic I1 row 45 0,001 3 51632 C9B0 1 Harmonic I2 row 45 0,001 3 51633 C9B1 1 Harmonic I3 row 45 0,001 3 51634 C9B2 1 Harmonic IN row 45 0,001 3 51635 C9B3 1 Harmonic I1 row 47 0,001 3 51636 C9B4 1 Harmonic I2 row 47 0,001 3 51637 C9B5 1 Harmonic I3 row 47 0,001 3 51638 C9B6 1 Harmonic IN row 47 0,001 3 51639 C9B7 1 Harmonic I1 row 49 0,001 3 51640 C9B8 1 Harmonic I2 row 49 0,001 3 51641 C9B9 1 Harmonic I3 row 49 0,001 3 51642 C9BA 1 Harmonic IN row 49 0,001 3 51643 C9BB 1 Harmonic I1 row 51 0,001 3 51644 C9BC 1 Harmonic I2 row 51 0,001 3 51645 C9BD 1 Harmonic I3 row 51 0,001 3 51646 C9BE 1 Harmonic IN row 51 0,001 3 51647 C9BF 1 Harmonic I1 row 53 0,001 3 51648 C9C0 1 Harmonic I2 row 53 0,001 3 51649 C9C1 1 Harmonic I3 row 53 0,001 3 51650 C9C2 1 Harmonic IN row 53 0,001 3 51651 C9C3 1 Harmonic I1 row 55 0,001 3 51652 C9C4 1 Harmonic I2 row 55 0,001 3 51653 C9C5 1 Harmonic I3 row 55 0,001 3 51654 C9C6 1 Harmonic IN row 55 0,001 3 51655 C9C7 1 Harmonic I1 row 57 0,001 3 51656 C9C8 1 Harmonic I2 row 57 0,001 3 51657 C9C9 1 Harmonic I3 row 57 0,001 3 51658 C9CA 1 Harmonic IN row 57 0,001 3 51659 C9CB 1 Harmonic I1 row 59 0,001 3 51660 C9CC 1 Harmonic I2 row 59 0,001 3 51661 C9CD 1 Harmonic I3 row 59 0,001 3 51662 C9CE 1 Harmonic IN row 59 0,001 3 51663 C9CF 1 Harmonic I1 row 61 0,001 3
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
16
17
Decimal Hex. No. of Description Unit JBUS function
address address words available
51664 C9D0 1 Harmonic I2 row 61 0,001 3 51665 C9D1 1 Harmonic I3 row 61 0,001 3 51666 C9D2 1 Harmonic IN row 61 0,001 3 51667 C9D3 1 Harmonic I1 row 63 0,001 3 51668 C9D4 1 Harmonic I2 row 63 0,001 3 51669 C9D5 1 Harmonic I3 row 63 0,001 3 51670 C9D6 1 Harmonic IN row 63 0,001 3
Phase to phase voltage
51671 C9D7 1 Max rank 3 51672 C9D8 1 Harmonic U12 row 3 0,001 3 51673 C9D9 1 Harmonic U23 row 3 0,001 3 51674 C9DA 1 Harmonic U31 row 3 0,001 3 51675 C9DB 1 Harmonic U12 row 5 0,001 3 51676 C9DC 1 Harmonic U23 row 5 0,001 3 51677 C9DD 1 Harmonic U31 row 5 0,001 3 51678 C9DE 1 Harmonic U12 row 7 0,001 3 51679 C9DF 1 Harmonic U23 row 7 0,001 3 51680 C9E0 1 Harmonic U31 row 7 0,001 3 51681 C9E1 1 Harmonic U12 row 9 0,001 3 51682 C9E2 1 Harmonic U23 row 9 0,001 3 51683 C9E3 1 Harmonic U31 row 9 0,001 3 51684 C9E4 1 Harmonic U12 row 11 0,001 3 51685 C9E5 1 Harmonic U23 row 11 0,001 3 51686 C9E6 1 Harmonic U31 row 11 0,001 3 51687 C9E7 1 Harmonic U12 row 13 0,001 3 51688 C9E8 1 Harmonic U23 row 13 0,001 3 51689 C9E9 1 Harmonic U31 row 13 0,001 3 51690 C9EA 1 Harmonic U12 row 15 0,001 3 51691 C9EB 1 Harmonic U23 row 15 0,001 3 51692 C9EC 1 Harmonic U31 row 15 0,001 3 51693 C9ED 1 Harmonic U12 row 17 0,001 3 51694 C9EE 1 Harmonic U23 row 17 0,001 3 51695 C9EF 1 Harmonic U31 row 17 0,001 3 51696 C9F0 1 Harmonic U12 row 19 0,001 3 51697 C9F1 1 Harmonic U23 row 19 0,001 3 51698 C9F2 1 Harmonic U31 row 19 0,001 3 51699 C9F3 1 Harmonic U12 row 21 0,001 3 51700 C9F4 1 Harmonic U23 row 21 0,001 3 51701 C9F5 1 Harmonic U31 row 21 0,001 3 51702 C9F6 1 Harmonic U12 row 23 0,001 3 51703 C9F7 1 Harmonic U23 row 23 0,001 3 51704 C9F8 1 Harmonic U31 row 23 0,001 3 51705 C9F9 1 Harmonic U12 row 25 0,001 3 51706 C9FA 1 Harmonic U23 row 25 0,001 3 51707 C9FB 1 Harmonic U31 row 25 0,001 3 51708 C9FC 1 Harmonic U12 row 27 0,001 3 51709 C9FD 1 Harmonic U23 row 27 0,001 3 51710 C9FE 1 Harmonic U31 row 27 0,001 3 51711 C9FF 1 Harmonic U12 row 29 0,001 3 51712 CA00 1 Harmonic U23 row 29 0,001 3 51713 CA01 1 Harmonic U31 row 29 0,001 3 51714 CA02 1 Harmonic U12 row 31 0,001 3 51715 CA03 1 Harmonic U23 row 31 0,001 3 51716 CA04 1 Harmonic U31 row 31 0,001 3
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
Decimal Hex. No. of Description Unit JBUS function
address address words available
51717 CA05 1 Harmonic U12 row 33 0,001 3 51718 CA06 1 Harmonic U23 row 33 0,001 3 51719 CA07 1 Harmonic U31 row 33 0,001 3 51720 CA08 1 Harmonic U12 row 35 0,001 3 51721 CA09 1 Harmonic U23 row 35 0,001 3 51722 CA0A 1 Harmonic U31 row 35 0,001 3 51723 CA0B 1 Harmonic U12 row 37 0,001 3 51724 CA0C 1 Harmonic U23 row 37 0,001 3 51725 CA0D 1 Harmonic U31 row 37 0,001 3 51726 CA0E 1 Harmonic U12 row 39 0,001 3 51727 CA0F 1 Harmonic U23 row 39 0,001 3 51728 CA10 1 Harmonic U31 row 39 0,001 3 51729 CA11 1 Harmonic U12 row 41 0,001 3 51730 CA12 1 Harmonic U23 row 41 0,001 3 51731 CA13 1 Harmonic U31 row 41 0,001 3 51732 CA14 1 Harmonic U12 row 43 0,001 3 51733 CA15 1 Harmonic U23 row 43 0,001 3 51734 CA16 1 Harmonic U31 row 43 0,001 3 51735 CA17 1 Harmonic U12 row 45 0,001 3 51736 CA18 1 Harmonic U23 row 45 0,001 3 51737 CA19 1 Harmonic U31 row 45 0,001 3 51738 CA1A 1 Harmonic U12 row 47 0,001 3 51739 CA1B 1 Harmonic U23 row 47 0,001 3 51740 CA1C 1 Harmonic U31 row 47 0,001 3 51741 CA1D 1 Harmonic U12 row 49 0,001 3 51742 CA1E 1 Harmonic U23 row 49 0,001 3 51743 CA1F 1 Harmonic U31 row 49 0,001 3 51744 CA20 1 Harmonic U12 row 51 0,001 3 51745 CA21 1 Harmonic U23 row 51 0,001 3 51746 CA22 1 Harmonic U31 row 51 0,001 3 51747 CA23 1 Harmonic U12 row 53 0,001 3 51748 CA24 1 Harmonic U23 row 53 0,001 3 51749 CA25 1 Harmonic U31 row 53 0,001 3 51750 CA26 1 Harmonic U12 row 55 0,001 3 51751 CA27 1 Harmonic U23 row 55 0,001 3 51752 CA28 1 Harmonic U31 row 55 0,001 3 51753 CA29 1 Harmonic U12 row 57 0,001 3 51754 CA2A 1 Harmonic U23 row 57 0,001 3 51755 CA2B 1 Harmonic U31 row 57 0,001 3 51756 CA2C 1 Harmonic U12 row 59 0,001 3 51757 CA2D 1 Harmonic U23 row 59 0,001 3 51758 CA2E 1 Harmonic U31 row 59 0,001 3 51759 CA2F 1 Harmonic U12 row 61 0,001 3 51760 CA30 1 Harmonic U23 row 61 0,001 3 51761 CA31 1 Harmonic U31 row 61 0,001 3 51762 CA32 1 Harmonic U12 row 63 0,001 3 51763 CA33 1 Harmonic U23 row 63 0,001 3 51764 CA34 1 Harmonic U31 row 63 0,001 3
Phase to neutral voltage
51765 CA35 1 Max rank 3 51766 CA36 1 Harmonic V1 row 3 0,001 3 51767 CA37 1 Harmonic V2 row 3 0,001 3 51768 CA38 1 Harmonic V3 row 3 0,001 3 51769 CA39 1 Harmonic V1 row 5 0,001 3
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
18
19
Decimal Hex. No. of Description Unit JBUS function
address address words available
51770 CA3A 1 Harmonic V2 row 5 0,001 3 51771 CA3B 1 Harmonic V3 row 5 0,001 3 51772 CA3C 1 Harmonic V1 row 7 0,001 3 51773 CA3D 1 Harmonic V2 row 7 0,001 3 51774 CA3E 1 Harmonic V3 row 7 0,001 3 51775 CA3F 1 Harmonic V1 row 9 0,001 3 51776 CA40 1 Harmonic V2 row 9 0,001 3 51777 CA41 1 Harmonic V3 row 9 0,001 3 51778 CA42 1 Harmonic V1 row 11 0,001 3 51779 CA43 1 Harmonic V2 row 11 0,001 3 51780 CA44 1 Harmonic V3 row 11 0,001 3 51781 CA45 1 Harmonic V1 row 13 0,001 3 51782 CA46 1 Harmonic V2 row 13 0,001 3 51783 CA47 1 Harmonic V3 row 13 0,001 3 51784 CA48 1 Harmonic V1 row 15 0,001 3 51785 CA49 1 Harmonic V2 row 15 0,001 3 51786 CA4A 1 Harmonic V3 row 15 0,001 3 51787 CA4B 1 Harmonic V1 row 17 0,001 3 51788 CA4C 1 Harmonic V2 row 17 0,001 3 51789 CA4D 1 Harmonic V3 row 17 0,001 3 51790 CA4E 1 Harmonic V1 row 19 0,001 3 51791 CA4F 1 Harmonic V2 row 19 0,001 3 51792 CA50 1 Harmonic V3 row 19 0,001 3 51793 CA51 1 Harmonic V1 row 21 0,001 3 51794 CA52 1 Harmonic V2 row 21 0,001 3 51795 CA53 1 Harmonic V3 row 21 0,001 3 51796 CA54 1 Harmonic V1 row 23 0,001 3 51797 CA55 1 Harmonic V2 row 23 0,001 3 51798 CA56 1 Harmonic V3 row 23 0,001 3 51799 CA57 1 Harmonic V1 row 25 0,001 3 51800 CA58 1 Harmonic V2 row 25 0,001 3 51801 CA59 1 Harmonic V3 row 25 0,001 3 51802 CA5A 1 Harmonic V1 row 27 0,001 3 51803 CA5B 1 Harmonic V2 row 27 0,001 3 51804 CA5C 1 Harmonic V3 row 27 0,001 3 51805 CA5D 1 Harmonic V1 row 29 0,001 3 51806 CA5E 1 Harmonic V2 row 29 0,001 3 51807 CA5F 1 Harmonic V3 row 29 0,001 3 51808 CA60 1 Harmonic V1 row 31 0,001 3 51809 CA61 1 Harmonic V2 row 31 0,001 3 51810 CA62 1 Harmonic V3 row 31 0,001 3 51811 CA63 1 Harmonic V1 row 33 0,001 3 51812 CA64 1 Harmonic V2 row 33 0,001 3 51813 CA65 1 Harmonic V3 row 33 0,001 3 51814 CA66 1 Harmonic V1 row 35 0,001 3 51815 CA67 1 Harmonic V2 row 35 0,001 3 51816 CA68 1 Harmonic V3 row 35 0,001 3 51817 CA69 1 Harmonic V1 row 37 0,001 3 51818 CA6A 1 Harmonic V2 row 37 0,001 3 51819 CA6B 1 Harmonic V3 row 37 0,001 3 51820 CA6C 1 Harmonic V1 row 39 0,001 3 51821 CA6D 1 Harmonic V2 row 39 0,001 3 51822 CA6E 1 Harmonic V3 row 39 0,001 3 51823 CA6F 1 Harmonic V1 row 41 0,001 3
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
A : NEW COMMUNICATION TABLE FROM 01/2009
6 > TABLE C950Hex (continued)
Decimal Hex. No. of Description Unit JBUS function
address address words available
51824 CA70 1 Harmonic V2 row 41 0,001 3 51825 CA71 1 Harmonic V3 row 41 0,001 3 51826 CA72 1 Harmonic V1 row 43 0,001 3 51827 CA73 1 Harmonic V2 row 43 0,001 3 51828 CA74 1 Harmonic V3 row 43 0,001 3 51829 CA75 1 Harmonic V1 row 45 0,001 3 51830 CA76 1 Harmonic V2 row 45 0,001 3 51831 CA77 1 Harmonic V3 row 45 0,001 3 51832 CA78 1 Harmonic V1 row 47 0,001 3 51833 CA79 1 Harmonic V2 row 47 0,001 3 51834 CA7A 1 Harmonic V3 row 47 0,001 3 51835 CA7B 1 Harmonic V1 row 49 0,001 3 51836 CA7C 1 Harmonic V2 row 49 0,001 3 51837 CA7D 1 Harmonic V3 row 49 0,001 3 51838 CA7E 1 Harmonic V1 row 51 0,001 3 51839 CA7F 1 Harmonic V2 row 51 0,001 3 51840 CA80 1 Harmonic V3 row 51 0,001 3 51841 CA81 1 Harmonic V1 row 53 0,001 3 51842 CA82 1 Harmonic V2 row 53 0,001 3 51843 CA83 1 Harmonic V3 row 53 0,001 3 51844 CA84 1 Harmonic V1 row 55 0,001 3 51845 CA85 1 Harmonic V2 row 55 0,001 3 51846 CA86 1 Harmonic V3 row 55 0,001 3 51847 CA87 1 Harmonic V1 row 57 0,001 3 51848 CA88 1 Harmonic V2 row 57 0,001 3 51849 CA89 1 Harmonic V3 row 57 0,001 3 51850 CA8A 1 Harmonic V1 row 59 0,001 3 51851 CA8B 1 Harmonic V2 row 59 0,001 3 51852 CA8C 1 Harmonic V3 row 59 0,001 3 51853 CA8D 1 Harmonic V1 row 61 0,001 3 51854 CA8E 1 Harmonic V2 row 61 0,001 3 51855 CA8F 1 Harmonic V3 row 61 0,001 3 51856 CA90 1 Harmonic V1 row 63 0,001 3 51857 CA91 1 Harmonic V2 row 63 0,001 3 51858 CA92 1 Harmonic V3 row 63 0,001 3
7 > TABLE E000 Hex : Primary conguration
Decimal Hex. No. of Description Unit JBUS function
address address words available
57344 E000 1 Network type : 0 : 1BL 1 : 2BL 2 : 3BL 3 : 3NBL 4 : 4BL 5 : 4NBL – 3; 6; 16 57345 E001 1 CT secondary : 1: 1 A 5: 5 A A 3; 6; 16 57346 E002 1 CT primary A 3; 6; 16 57347 E003 1 Neutral current input on CT : 0 : No 1: Yes – 3; 6; 16 57348 E004 1 CTN secondary : 1: 1 A 5: 5 A A 3; 6; 16 57349 E005 1 CTN primary A 3; 6; 16 57350 E006 1 Voltage input on TP : 0 : No 1: Yes – 3; 6; 16
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
20
21
Decimal Hex. No. of Description Unit JBUS function
address address words available
57351 E007 1 TP secondary : 60 : 60 V 100 : 100 V 110 : 110 V 115 : 115 V 120 : 120 V 173 : 173 V 190 : 190 V V 3; 6; 16 57352 E008 2 TP primary V 3; 6; 16 57354 E00A 1 Synchronisation start 0 : internal - 1 : external – 3; 6; 16 57355 E00B 1 Internal synchronisation of mean powers P+/- Q+/- : 300 : 5mn - 480 : 8mn - 600 : 10mn 900 : 15mn - 1200 : 20mn - 1800 : 30mn s 3; 6; 16
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
7 > TABLE E000 Hex (continued)
Decimal Hex. No. of Description Unit JBUS function
address address words available
57616 E110 1 Ethernet Adress IP Class A (0-255) – 3; 6; 16 57617 E111 1 Ethernet Adress IP Class B (0-255) – 3; 6; 16 57618 E112 1 Ethernet Adress IP Class C (0-255) – 3; 6; 16 57619 E113 1 Ethernet Adress IP Class D (0-255) – 3; 6; 16 57620 E114 1 Ethernet GATE Class A (0-255) – 3; 6; 16 57621 E115 1 Ethernet GATE Class B (0-255) – 3; 6; 16 57622 E116 1 Ethernet GATE Class C (0-255) – 3; 6; 16 57623 E117 1 Ethernet GATE Class D (0-255) – 3; 6; 16 57624 E118 1 Ethernet MASK Class A (0-255) – 3; 6; 16 57625 E119 1 Ethernet MASK Class B (0-255) – 3; 6; 16 57626 E11A 1 Ethernet MASK Class C (0-255) – 3; 6; 16 57627 E11B 1 Ethernet MASK Class D (0-255) – 3; 6; 16 57628 E11C 1 Use of DHCP
0 : No - 1 : Yes – 3; 6; 16
57629 E11D 1 Reserved for manufacturer – 3; 6; 16 57630 E11E 1 JBUS RTU over Ethernet 0 : No - 1 ; Yes – 3; 6; 16 57631 E11F 1 JBUS/MODBUS gateway speed > Ethernet 0 = 2400 bps - 1 = 4800 bps - 2 = 9600 bps
3 = 19200 bps - 4 = 38400 bps – 3; 6; 16
57632 E120 1 JBUS/MODBUS gateway parity > Ethernet
0 = none 0 = none 1 = even 1 = even 2 = odd 2 = odd
57633 E121 1 JBUS/MODBUS gateway stop bits > Ethernet - 3; 6; 16
57634 E122 1 Time out Jbus / Modbus > Ethernet 500 ms 3; 6; 16
57635 E123 1 JBUS slave address (RS485 & RTU over Ethernet) 1-247 3; 6; 16
8 > TABLE E110 Hex : Ethernet conguration
COMMUNICATION
A : NEW COMMUNICATION TABLE FROM 01/2009
9 > TABLE E220 Hex : Ethernet conguration
Decimal Hex. No. of Description Unit JBUS function
address address words available
57856 E200 1 Action :
0xA1:Eeprombackupconguration
0xB2 : Product Reset - 6; 16
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
22
23
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Table of values with allocated current and voltage winf-ding ratios on 2 words
Decimal Hexa. Number Text Unit address address of words
768 300 2 Phase 1 current mA
770 302 2 Phase 2 current mA
772 304 2 Phase 3 current mA
774 306 2 Neutral current mA
776 308 2 Phase to phase voltage U12 V/100
778 30A 2 Phase to phase voltage U23 V/100
780 30C 2 Phase to phase voltage U31 V/100
782 30E 2 Phase to neutral voltage phase 1 V/100
784 310 2 Phase to neutral voltage phase 2 V/100
786 312 2 Phase to neutral voltage phase 3 V/100
788 314 2 Frequency Hz/100
790 316 2 Σ active power +/- kW/100
792 318 2 Σ reactive power +/- kvar/100
794 31A 2 Σ apparent power kVA/100
796 31C 2 Σ
power factor
0.001
-: leading and +: lagging
798 31E 2 Active power phase 1 +/- kW/100
800 320 2 Active power phase 2 +/- kW/100
802 322 2 Active power phase 3 +/- kW/100
804 324 2 Reactive power phase 1 +/- kvar/100
806 326 2 Reactive power phase 2 +/- kvar/100
808 328 2 Reactive power phase 3 +/- kvar/100
810 32A 2 Apparent power phase 1 kVA/100
812 32C 2 Apparent power phase 2 kVA/100
814 32E 2 Apparent power phase 3 kVA/100
816 330 2 Power factor phase 1
-: leading and +: lagging 0.001
818 332 2 Power factor phase 2
-: leading and +: lagging 0.001
820 334 2 Power factor phase 3
-: leading and +: lagging 0.001
822 336 2 avg I1 mA
824 338 2 avg I2 mA
826 33A 2 avg I3 mA
828 33C 2 avg Σ active power + kW/100
830 33E 2 avg Σ active power - kW/100
832 340 2 avg Σ reactive power + kvar/100
834 342 2 avg Σ reactive power - kvar/100
836 344 2 avg Σ apparent power kVA/100
838 346 2 max/avg I1 mA
840 348 2 max/avg I2 mA
842 34A 2 max/avg I3 mA
844 34C 2 max/avg Σ active power + kW/100
846 34E 2 max/avg Σ active power - kW/100
848 350 2 max/avg Σ reactive power + kvar/100
850 352 2 max/avg Σ reactive power - kvar/100
852 354 2 max/avg Σ apparent power kVA/100
854 356 2 hour meter 1/100 h
856 358 2 Active energy + kWh
858 35A 2 Reactive energy + kvarh
860 35C 2 Apparent energy kVAh
862 35E 2 Active energy - kWh
864 360 2 Reactive energy - kvarh
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Address available with the Monitoring or Control/Command option
Decimal Hexa. Number Text Unit address address of words
866 362 2 Input pulse meter 1 – 868 364 2 Input pulse meter 2 – 870 366 2 Number of impulse meters –
872 368 2 Current alarm : – 0 : no alarm 1 : I 2 : U 3: ΣP+ 4: ΣQ+ 5: ΣS 6: F 7 : ΣPFL 8 : thd I 9 : thd U 10 : In 11 : HOUr 12 : V 13 : thd In 14 : thd V 15 : ΣP- 16 : ΣQ- 17 : Σ PFC
18 : T°C 1
19 : T°C 2
20 : T°C 3
21 : T°C internal
22 : T°C predicted
23 : T°C predicted
24 : T°C predicted
874 36A 2 Current overrun : – 0 : no alarm 1 : I 2 : U 3: ΣP+ 4: ΣQ+ 5: ΣS 6: F 7 : ΣPFL 8 : thd I 9 : thd U 10 : In 11 : HOUr 12 : V 13 : thd In 14 : thd V 15 : ΣP- 16 : ΣQ- 17 : Σ PFC
18 : T°C 1
19 : T°C 2
20 : T°C 3
21 : T°C internal
22 : T°C predicted
23 : T°C predicted
24 : T°C predicted
876 36C 2 Number of inputs-outputs -
Low-ord er: number of inputs
High-or der: number of outputs
B : OLD COMMUNICATION TABLE BEFORE 01/2009
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
24
25
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
880 370 2 System value for current mA 882 372 2 System value for phase-to-phase voltage V/100 884 374 2 System value for phase-to-neutral voltage V/100 886 376 2 avg U12 V/100 888 378 2 avg U23 V/100 890 37A 2 avg U31 V/100 892 37C 2 avg V1 V/100 894 37E 2 avg V2 V/100 896 380 2 avg V3 V/100 898 382 2 avg F Hz/100 900 384 2 max/avg U12 V/100 902 386 2 max/avg U23 V/100 904 388 2 max/avg U31 V/100 906 38A 2 max/avg V1 V/100 908 38C 2 max/avg V2 V/100 910 38E 2 max/avg V3 V/100 912 390 2 max/avg F Hz/100 914 392 2 avg In mA 916 394 2 max/avg In mA 918 396 2
Mean positive active power between 2 signals
0.1 kW
920 398 2
Mean negative active power between 2 signals
0.1 kW
922 39A 2
Mean positive reactive power between 2 signals
0.1 kvar
924 39C 2
Mean negative reactive power between 2 signals
0.1 kvar
926 39E 2
Predicted total active power
0,1 kvar
928 3A0 2
Predicted total reactive power
0,1 kvar
930 3A2 2
Predicted total apparent power
0,1 kvar
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Address available with the Monitoring or Control/Command option (continued)
Slave05Function
03
High-order
address
03
Low-order
address
00
High-order
word n°
00
Low-order
word n°
9E
CRC 16
C5A2
Example: To display all the values for DIRIS number 5 in one inquiry, the following frame should be sent:
Zone size: 164 words (decimal) or A4 (hexadecimal).
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Table of values without allocated current and voltage winding ratios on 1 word
Decimal Hexa. Number Text Unit address address of words
1792 700 1 Phase 1 current mA
1793 701 1 Phase 2 current mA
1794 702 1 Phase 3 current mA
1795 703 1 Neutral current mA
1796 704 1 Phase to phase voltage U12 V/10
1797 705 1 Phase to phase voltage U23 V/10
1798 706 1 Phase to phase voltage U31 V/10
1799 707 1 Phase to neutral voltage phase 1 V/10
1800 708 1 Phase to neutral voltage phase 2 V/10
1801 709 1 Phase to neutral voltage phase 3 V/10
1802 70A 1 Frequency Hz/100
1803 70B 1 Σ active power +/- W
1804 70C 1 Σ reactive power +/- var
1805 70D 1 Σ apparent power +/- kVA
1806 70E 1 Σ power factor L/C
-: leading and +: lagging 0.001
1807 70F 1 Active power phase 1 +/- W
1808 710 1 Active power phase 2 +/- W
1809 711 1 Active power phase 3 +/- W
1810 712 1 Reactive power phase 1 +/- W
1811 713 1 Reactive power phase 2 +/- var
1812 714 1 Reactive power phase 3 +/- var
1813 715 1 Apparent power phase 1 VA
1814 716 1 Apparent power phase 2 VA
1815 717 1 Apparent power phase 3 VA
1816 718 1 Power factor phase 1 L/C
-: leading and +: lagging 0.001
1817 719 1 Power factor phase 2 L/C
-: leading and +: lagging 0.001
1818 71A 1 Power factor phase 3 L/C
-: leading and +: lagging 0.001
1819 71B 1 avg I1 mA
1820 71C 1 avg I2 mA
1821 71D 1 avg I3 mA
1822 71E 1 avg Σ active power + W
1823 71F 1 avg Σ active power - W
1824 720 1 avg Σ reactive power + var
1825 721 1 avg Σ reactive power - var
1826 722 1 avg Σ apparent power VA
1827 723 1 max/avg I1 mA
1828 724 1 max/avg I2 mA
1829 725 1 max/avg I3 mA
1830 726 1 max/avg Σ active power + W
1831 727 1 max/avg Σ active power - W
1832 728 1 max/avg Σ reactive power + var
1833 729 1 max/avg Σ reactive power - var
1834 72A 1 max/avg Σ apparent power VA
1835 72B 1 Active energy + < 10000 kWh
Instant value display
Decimal Hexa. Number Text Unit address address of words
878 36E 2
Status of inputs-outputs
– 0 : status input 1 (0 = open, 1 = closed) bit 1 : status input 2 (0 = open, 1 = closed) bit 2 : status input 3 (0 = open, 1 = closed) bit 3 : status input 4 (0 = open, 1 = closed) bit 4 : status input 5 (0 = open, 1 = closed) bit 5 : status input 6 (0 = open, 1 = closed)
bit 16 : status output 1 (0 = open, 1 = closed) bit 17 : status output 2 (0 = open, 1 = closed) bit 18 : status output 3 (0 = open, 1 = closed) bit 19 : status output 4 (0 = open, 1 = closed) bit 20 : status output 5 (0 = open, 1 = closed) bit 21 : status output 6 (0 = open, 1 = closed)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
26
27
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
1836 72C 1 Active energy + > 10000 kWh 1837 72D 1 Reactive energy + < 10000 kvarh 1838 72E 1 Reactive energy + > 10000 kvarh 1839 72F 1 Apparent energy < 10000 kVAh 1840 730 1 Apparent energy > 10000 kVAh 1841 731 1 Active energy - < 10000 kWh 1842 732 1 Active energy - >10000 kWh 1843 733 1 Reactive energy - < 10000 kvarh 1844 734 1 Reactive energy - > 10000 kvarh 1845 735 1 Input pulse meter 1 < 10000 – 1846 736 1 Input pulse meter 1 > 10000 – 1847 737 1 Input pulse meter 2 < 10000 – 1848 738 1 Input pulse meter 2 > 10000 – 1849 739 1 Input pulse meter 3 < 10000 – 1850 73A 1 Input pulse meter 3 > 10000 – 1851 73B 1 Input pulse meter 4 < 10000 – 1852 73C 1 Input pulse meter 4 > 10000 – 1853 73D 1 Input pulse meter 5 < 10000 – 1854 73E 1 Input pulse meter 5 > 10000 – 1855 73F 1 Input pulse meter 6 < 10000 – 1856 740 1 Input pulse meter 6 > 10000 – 1857 741 1 Average value of currents mA 1858 742 1 Average value of phase to phase voltages V/10 1859 743 1 Average
value of phase to neutral voltages
V/10 1860 744 1 avg U12 V/10 1861 745 1 avg U23 V/10 1862 746 1 avg U31 V/10 1863 747 1 avg V1 V/10 1864 748 1 avg V2 V/10 1865 749 1 avg V3 V/10 1866 74A 1 avg F Hz/100 1867 74B 1 max/avg U12 V/10 1868 74C 1 max/avg U23 V/10 1869 74D 1 max/avg U31 V/10 1870 74E 1 max/avg V1 V/10 1871 74F 1 max/avg V2 V/10 1872 750 1 max/avg V3 V/10 1873 751 1 max/avg F Hz/100 1874 752 1 thd I1 0.10% 1875 753 1 thd I2 0.10% 1876 754 1 thd I3 0.10% 1877 755 1 thd In 0.10% 1878 756 1 thd U12 0.10% 1879 757 1 thd U23 0.10% 1880 758 1 thd U31 0.10% 1881 759 1 thd V1 0.10% 1882 75A 1 thd V2 0.10% 1883 75B 1 thd V3 0.10%
Decimal Hexa. Number Text Unit
address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Zone size: 103 words (decimal) or 67 (hexadecimal).
Example : To read 177 645 kWh, the following message should be sent :
Decimal Hexa. Number Text Unit
address address of words
1884 75C 1
Mean positive active power between 2 signals
W
1885 75D 1
Mean negative active power between 2 signals
W
1886 75E 1
Mean positive reactive power between 2 signals
var
1887 75F 1
Mean negative reactive power between 2 signals
var 1888 760 1 Reserved – 1889 761 1 Reserved – 1890 762 1 Average values In mA 1891 763 1 In max mA 1892 764 1
Predicted total active power
W
1893 765 1
Predicted total reactive power
var
1894 766 1
Predicted total apparent power
VA
Example: To display all the values for DIRIS number 5 in one inquiry, the following frame should be sent:
DIRIS A40/A41 reply:
Slave
05
Function
03
Number of bytes
04
Word 1 < 10000
IDDD
Word 2 > 1000011CRC 16
6FD6
7645 17
Slave05Function
03
High-order
address
07
Low-order
address
2B
High-order
word n°
00
Low-order
word n°
02
CRC 16
B4F3
Slave05Function
03
High-order
address
07
Low-order
address
00
High-order
word n°
00
Low-order
word n°
64
CRC 16
44D1
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
28
29
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
1280 500 1 Current alarm OUT 1 lower threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1281 501 2 Current alarm OUT 1 lower threshold value –
1283 503 1 Current alarm OUT 1 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1
16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1284 504 2 Current alarm OUT 1 upper threshold value – 1286 506 1 Duration s.
1287 507 1 Alarm 1 OUT 1 ower threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP-
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
30
31
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1295 50F 2 Alarm 2 OUT 1 lower threshold value –
1297 511 1 Alarm 2 OUT 1 threshold value: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23
30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1288 508 2 Alarm 1 OUT 1ower threshold value –
1290 50A 1 Alarm 1 OUT 1 threshold value: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1291 50B 2 Alarm 1 OUT 1 upper threshold value –
1293 50D 1 Duration s.
1294 50E 1 Alarm 2 OUT 1 lower threshold – 0 : no alarm 1 : I1 2 : I2
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
32
33
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1298 512 2 Alarm 2 OUT 1 upper threshold value –
1300 514 1 Duration s.
1301 515 1 Alarm 3 OUT 1 lower threshold – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1302 516 2 Alarm 3 OUT 1 lower threshold value –
1304 518 1 Alarm 3 OUT 1 threshold value: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1305 519 2 Alarm 3 OUT 1 upper threshold value –
1307 51B 1 Duration s.
1308 51C 1 Current alarm OUT 2 lower threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
34
35
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1309 51D 2 Current alarm OUT 2 lower threshold value –
1311 51F 1 Current alarm OUT 2 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2
24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1312 520 2 Curr ent alarm OUT 2 upper threshold value – 1314 522 1 Duration s.
1315 523 1 Alarm 1 OUT 2 lower threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
36
37
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
38 : ΣS predicted 1316 524 2 Alarm 1 OUT 2 lower threshold value : –
1318 526 1 Alarm 1 OUT 2 upper threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1319 527 2 Alarm 1 OUT 2 upper threshold value –
1321 529 1 Duration s.
1322 52A 1 Alarm 2 OUT 2 lower threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS
11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1323 52B 2 Alarm 2 OUT 2 lower threshold value –
1325 52D 1 Alarm 2 OUT 2 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
38
39
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1326 52E 2 Alarm 2 OUT 2 upper threshold value – 1328 530 1 Duration s
1329 531 1 Alarm 3 OUT 2 lower threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1330 532 2 Alarm 3 OUT 2 lower threshold value –
1332 534 1 Alarm 3 OUT 2 upper threshold: 0 : no alarm
1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1333 535 2 Alarm 3 OUT 2 upper threshold value – 1335 537 1 Duration s. 1336 538 1 Status inputs 1 and 2 plus 3, 4, 5, 6 –
1337 539 1 Current alarm OUT 3 lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
40
41
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1338 53A 2 Current alarm OUT 3 lower threshold value –
1340 53C 1 Current alarm OUT 3 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ-
31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1341 53D 2 Current alarm OUT 3 upper threshold value – 1343 53F 1 Duration s.
1344 540 1 Current alarm OUT 4 lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1345 541 2 Current alarm OUT 4 lower threshold value –
1347 543 1 Current alarm OUT 4 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
42
43
Decimal Hexa. Number Text Unit
address address of words
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1348 544 2 Current alarm OUT 4 upper threshold value – 1350 546 1 Duration s.
1351 547 1 Current alarm OUT 5 lower threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23
20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1352 548 2 Current alarm OUT 5 lower threshold value –
1354 54A 1 Current alarm OUT 5 upper threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
44
45
Decimal Hexa. Number Text Unit
address address of words
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Decimal Hexa. Number Text Unit address address of words
35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1355 54B 2 Current alarm OUT 5 upper threshold value – 1357 54D 1 Duration s.
1358 54E 1 Current alarm OUT 6 lower threshold : 0 : no alarm – 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
1359 54F 2 Current alarm OUT 6 lower threshold value –
1361 551 1 Current alarm OUT 6 upper threshold: – 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31
8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 1362 552 2 Current alarm OUT 6 upper threshold value – 1364 554 1 Duration s.
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Alarm event log (continued)
Size of this zone : 133 words (decimal) or 83 (hexadecimal)
Table of current and voltage harmonics
Decimal Hexa. Number Text Unit address address of words
2304 900 1 thd I1 0.10% 2305 901 1 thd I2 0.10% 2306 902 1 thd I3 0.10% 2307 903 1 thd In 0.10% 2308 904 1 thd U12 0.10% 2309 905 1 thd U23 0.10% 2310 906 1 thd U31 0.10% 2311 907 1 thd V1 0.10% 2312 908 1 thd V2 0.10% 2313 909 1 thd V3 0.10% 2314 90A 1 Harmonic I1 row 3 0.10% 2315 90B 1 Harmonic I2 row 3 0.10% 2316 90C 1 Harmonic I3 row 3 0.10% 2317 90D 1 Harmonic IN row 3 0.10% 2318 90E 1 Harmonic I1 row 5 0.10% 2319 90F 1 Harmonic I2 row 5 0.10% 2320 910 1 Harmonic I3 row 5 0.10% 2321 911 1 Harmonic IN row 5 0.10%
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
46
47
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Table of current and voltage harmonics (continued)
Decimal Hexa. Number Text Unit address address of words
2378 94A 1 Harmonic V1 row 13 0.10%
2379 94B 1 Harmonic V2 row 13 0.10% 2380 94C 1 Harmonic V3 row 13 0.10% 2381 94D 1 Harmonic V1 row 15 0.10% 2382 94E 1 Harmonic V2 row 15 0.10% 2383 94F 1 Harmonic V3 row 15 0.10% 2384 950 1 Harmonic I1 row 17 0.10% 2385 951 1 Harmonic I2 row 17 0.10% 2386 952 1 Harmonic I3 row 17 0.10% 2387 953 1 Harmonic IN row 17 0.10% 2388 954 1 Harmonic I1 row 19 0.10% 2389 955 1 Harmonic I2 row 19 0.10% 2390 956 1 Harmonic I3 row 19 0.10% 2391 957 1 Harmonic IN row 19 0.10% 2392 958 1 Harmonic I1 row 21 0.10% 2393 959 1 Harmonic I2 row 21 0.10% 2394 95A 1 Harmonic I3 row 21 0.10% 2395 95B 1 Harmonic IN row 21 0.10% 2396 95C 1 Harmonic I1 row 23 0.10% 2397 95D 1 Harmonic I2 row 23 0.10% 2398 95E 1 Harmonic I3 row 23 0.10% 2399 95F 1 Harmonic IN row 23 0.10% 2400 960 1 Harmonic I1 row 25 0.10% 2401 961 1 Harmonic I2 row 25 0.10% 2402 962 1 Harmonic I3 row 25 0.10% 2403 963 1 Harmonic IN row 25 0.10% 2404 964 1 Harmonic U12 row 17 0.10% 2405 965 1 Harmonic U23 row 17 0.10% 2406 966 1 Harmonic U31 row 17 0.10% 2407 967 1 Harmonic U12 row 19 0.10% 2408 968 1 Harmonic U23 row 19 0.10% 2409 969 1 Harmonic U31 row 19 0.10% 2410 96A 1 Harmonic U12 row 21 0.10% 2411 96B 1 Harmonic U23 row 21 0.10% 2412 96C 1 Harmonic U31 row 21 0.10% 2413 96D 1 Harmonic U12 row 23 0.10% 2414 96E 1 Harmonic U23 row 23 0.10% 2415 96F 1 Harmonic U31 row 23 0.10% 2416 970 1 Harmonic U12 row 25 0.10% 2417 971 1 Harmonic U23 row 25 0.10% 2418 972 1 Harmonic U31 row 25 0.10% 2419 973 1 Harmonic V1 row 17 0.10% 2420 974 1 Harmonic V2 row 17 0.10% 2421 975 1 Harmonic V3 row 17 0.10% 2422 976 1 Harmonic V1 row 19 0.10% 2423 977 1 Harmonic V2 row 19 0.10% 2424 978 1 Harmonic V3 row 19 0.10% 2425 979 1 Harmonic V1 row 21 0.10% 2426 97A 1 Harmonic V2 row 21 0.10% 2427 97B 1 Harmonic V3 row 21 0.10% 2428 97C 1 Harmonic V1 row 23 0.10% 2429 97D 1 Harmonic V2 row 23 0.10% 2430 97E 1 Harmonic V3 row 23 0.10% 2431 97F 1 Harmonic V1 row 25 0.10% 2432 980 1 Harmonic V2 row 25 0.10% 2433 981 1 Harmonic V3 row 25 0.10%
Size of this zone : 130 words (decimal) or 82 (hexadecimal)
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Table of current and voltage harmonics (continued)
Decimal Hexa. Number Text Unit address address of words
2322 912 1 Harmonic I1 row 7 0.10%
2323 913 1 Harmonic I2 row 7 0.10%
2324 914 1 Harmonic I3 row 7 0.10%
2325 915 1 Harmonic IN row 7 0.10%
2326 916 1 Harmonic I1 row 9 0.10%
2327 917 1 Harmonic I2 row 9 0.10%
2328 918 1 Harmonic I3 row 9 0.10%
2329 919 1 Harmonic IN row 9 0.10%
2330 91A 1 Harmonic I1 row 11 0.10%
2331 91B 1 Harmonic I2 row 11 0.10%
2332 91C 1 Harmonic I3 row 11 0.10%
2333 91D 1 Harmonic IN row 11 0.10%
2334 91E 1 Harmonic I1 row 13 0.10%
2335 91F 1 Harmonic I2 row 13 0.10%
2336 920 1 Harmonic I3 row 13 0.10%
2337 921 1 Harmonic IN row 13 0.10%
2338 922 1 Harmonic I1 row 15 0.10%
2339 923 1 Harmonic I2 row 15 0.10%
2340 924 1 Harmonic I3 row 15 0.10%
2341 925 1 Harmonic IN row 15 0.10%
2342 926 1 Harmonic U12 row 3 0.10%
2343 927 1 Harmonic U23 row 3 0.10%
2344 928 1 Harmonic U31 row 3 0.10%
2345 929 1 Harmonic U12 row 5 0.10%
2346 92A 1 Harmonic U23 row 5 0.10%
2347 92B 1 Harmonic U31 row 5 0.10%
2348 92C 1 Harmonic U12 row 7 0.10%
2349 92D 1 Harmonic U23 row 7 0.10%
2350 92E 1 Harmonic U31 row 7 0.10%
2351 92F 1 Harmonic U12 row 9 0.10%
2352 930 1 Harmonic U23 row 9 0.10%
2353 931 1 Harmonic U31 row 9 0.10%
2354 932 1 Harmonic U12 row 11 0.10%
2355 933 1 Harmonic U23 row 11 0.10%
2356 934 1 Harmonic U31 row 11 0.10%
2357 935 1 Harmonic U12 row 13 0.10%
2358 936 1 Harmonic U23 row 13 0.10%
2359 937 1 Harmonic U31 row 13 0.10%
2360 938 1 Harmonic U12 row 15 0.10%
2361 939 1 Harmonic U23 row 15 0.10%
2362 93A 1 Harmonic U31 row 15 0.10%
2363 93B 1 Harmonic V1 row 3 0.10%
2364 93C 1 Harmonic V2 row 3 0.10%
2365 93D 1 Harmonic V3 row 3 0.10%
2366 93E 1 Harmonic V1 row 5 0.10%
2367 93F 1 Harmonic V2 row 5 0.10%
2368 940 1 Harmonic V3 row 5 0.10%
2369 941 1 Harmonic V1 row 7 0.10%
2370 942 1 Harmonic V2 row 7 0.10%
2371 943 1 Harmonic V3 row 7 0.10%
2372 944 1 Harmonic V1 row 9 0.10%
2373 945 1 Harmonic V2 row 9 0.10%
2374 946 1 Harmonic V3 row 9 0.10%
2375 947 1 Harmonic V1 row 11 0.10%
2376 948 1 Harmonic V2 row 11 0.10%
2377 949 1 Harmonic V3 row 11 0.10%
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
48
49
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
512 200 1 Network type: – 0 : 1BL 1 : 2BL 2 : 3BL 3 : 3NBL 4 : 4BL 5 : 4NBL
513 201 1 CT secondary : A 1 : 1 A 5 : 5 A
514 202 1 CT primary A
515 203 1 Voltage input on PT: 0 : No 1: Yes –
516 204 2 PT primary V
518 206 1 PT secondary: V 60 : 60 V 100 : 100 V 110 : 110 V 115 : 115 V 120 : 120 V 173 : 173 V 190 : 190 V
519 207 1 Synchronisation of I AVG/MAX: s Time in seconds, possible values 2 : 2 seconds 10 : 10 seconds 300 : 5 minutes (5x60s) 480 : 8 minutes (8x60s) 600 : 10 minutes (10x60s) 900 : 15 minutes (15x60s) 1200 : 20 minutes (20x60s) 1800 : 30 minutes (30x60s) 3600 : 60 minutes (60x60s)
520 208 1 Synchronisation of P/Q/S AVG/MAX: s Time in seconds, possible values 10 : 10 seconds 300 : 5 minutes (5x60s) 480 : 8 minutes (8x60s) 600 : 10 minutes (10x60s) 900 : 15 minutes (15x60s) 1200 : 20 minutes (20x60s) 1800 : 30 minutes (30x60s) 3600 : 60 minutes (60x60s)
521 209 1 OUT 1 allocation of the pulse output: – 0 : kWh + 1 : kvarh + 2 : kVAh 3 : kWh - 4 : kvarh -
522 20A 1 OUT1 impulse value: – 0 : 0.1 kWh/kvarh/kVAh 1 : 1 kWh/kvarh/kVAh 2 : 10 kWh/kvarh/kVAh
Decimal Hexa. Number Text Unit
address address of words
Decimal Hexa. Number Text Unit address address of words
257 101 1 Product code – 258 102 1 Slot option 1 – 0xFF : no option 0x00 : communication option 0x01 : metering option 0x03 : metering and harmonics option 0x20 : inputs/outputs option 0x30 : analog outputs option 0x40 : memory option   0x50:Probusoption 0xF0 : presence of IN measure 259 103 1 Slot option 2 – 260 104 1 Slot option 3 – 261 105 1 Slot option 4 – 262 106 1 Version number – 263 107 2 Serial number –
LIST OF PARAMETERS TO BE DISPLAYED (FUNCTION 3)
Option recognition table
Size of this zone : 8 words (decimal) or 8 (hexadecimal)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
50
51
Decimal Hexa. Number Text Unit
address address of words
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
3 : 100 kWh/kvarh/kVAh 4 : 1000 kWh/kvarh/kVAh 5 : 10000 kWh/kvarh/kVAh
523 20B 1 OUT 1 impulse duration: – 1 : 100 ms 2 : 200 ms 3 : 300 ms 4 : 400 ms 5 : 500 ms 6 : 600 ms 7 : 700 ms 8 : 800 ms 9 : 900 ms
524 20C 1 OUT 2 allocation of the pulse output: – 0 : kWh + 1 : kvarh + 2 : kVAh 3 : kWh - 4 : kvarh -
525 20D 1 OUT 2 impulse value: – 0 : 0.1 kWh/kvarh/kVAh 1 : 1 kWh/kvarh/kVAh 2 : 10 kWh/kvarh/kVAh 3 : 100 kWh/kvarh/kVAh 4 : 1000 kWh/kvarh/kVAh 5 : 10000 kWh/kvarh/kVAh
526 20E 1 OUT 2 impulse duration : – 1 : 100 ms 2 : 200 ms 3 : 300 ms 4 : 400 ms 5 : 500 ms 6 : 600 ms 7 : 700 ms 8 : 800 ms 9 : 900 ms
527 20F 1 Type of analog output OUT 1: – 0 : 0/20 mA 1 : 4/20 mA 2 : 30 V
528 210 1 Output allocation analog OUT 1: – 0: I1 1 : I2 2 : I3 3 : In 4 : U12 5 : U23 6 : U31 7 : ΣP 8 : ΣQ 9 : ΣS 10 : ΣPFL 11 : V1 12 : V2
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
COMMUNICATION
COMMUNICATION
13 : V3 14 : F 15 : ΣPFC
16 : I Sys 17 : U Sys 18 : V Sys 19 : ΣP predicted 20 : ΣQ predicted 21 : ΣS predicted 22 : T°C 1 23 : T°C 2 24 : T°C 3 25 : T°C internal 529 211 1 Value
at 0 or 4 mA from analog output OUT 1
–
530 212 1 Unit
at 0 or 4 mA from analog output OUT 1
: – 0 : / 1 : k 2 : M
531 213 1 Value
at 20 mA from analog output OUT 1
–
532 214 1 Unit
at 20 mA from analog output OUT 1:
– 0 : / 1 : k 2 : M
533 215 1 Type of analog output OUT 2 : – 0 : 0/20 mA 1 : 4/20 mA 2 : 30 V
534 216 1 Output allocation analog OUT 2: – 0 : I1 1 : I2 2 : I3 3 : In 4 : U12 5 : U23 6 : U31 7 : ΣP 8 : ΣQ 9 : ΣS 10 : ΣPFL 11 : V1 12 : V2 13 : V3 14 : F 15 : ΣPFC
16 : I Sys
17 : U Sys
18 : V Sys
19 : ΣP predicted
20 : ΣQ predicted
21 : ΣS predicted
22 : T°C 1
23 : T°C 2
24 : T°C 3
25 : T°C internal
535 217 1 Value
at 0 or 4 mA from analog output OUT 2
–
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
52
53
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
536 218 1 Unit
at 0 or 4 mA from analog output OUT 2 :
– 0 : / 1 : k 2 : M
537 219 1 Value
at 20 mA from analog output OUT 2:
–
538 21A 1 Unit
at 20 mA from analog output OUT 2:
– 0 : / 1 : k 2 : M
539 21B 1 Type of analog output OUT 3: 0 : 0/20 mA 1 : 4/20 mA 2 : 30 V –
540 21C 1 Output allocation analog OUT 3: – 0 : I1 1 : I2 2 : I3 3 : In 4 : U12 5 : U23 6 : U31 7 : ΣP 8 : ΣQ 9 : ΣS 10 : ΣPFL 11 : V1 12 : V2 13 : V3 14 : F 15 : ΣPFC
16 : I Sys
17 : U Sys
18 : V Sys
19 : ΣP predicted
20 : ΣQ predicted
21 : ΣS predicted
22 : T°C 1
23 : T°C 2
24 : T°C 3
25 : T°C internal
541 21D 1 Value
at 0 or 4 mA from analog output OUT 3
–
542 21E 1 Unit
at 0 or 4 mA from analog output OUT 3:
– 0 : / 1 : k 2 : M
543 21F 1 Value
at 20 mA from analog output OUT 3
–
544 220 1 Unit
at 20 mA from analog output OUT 3:
– 0 : / 1 : k 2 : M
545 221 1 Type of analog output OUT 4: – 0 : 0/20 mA 1 : 4/20 mA 2 : 30 V
546 222 1 Output allocation analog OUT 4: –
Decimal Hexa. Number Text Unit
address address of words
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
COMMUNICATION
COMMUNICATION
0 : I1 1 : I2 2 : I3 3 : In 4 : U12 5 : U23 6 : U31 7 : ΣP 8 : ΣQ 9 : ΣS 10 : ΣPFL 11 : V1 12 : V2 13 : V3 14 : F 15 : ΣPFC
16 : I Sys 17 : U Sys 18 : V Sys 19 : ΣP predicted 20 : ΣQ predicted 21 : ΣS predicted 22 : T°C 1 23 : T°C 2 24 : T°C 3 25 : T°C internal 547 223 1 Value
at 0 or 4 mA from analog output OUT 4
–
548 224 1 Unit
at 0 or 4 mA from analog output OUT 4:
– 0 : / 1 : k 2 : M
549 225 1 Value
at 20 mA from analog output OUT 4
–
550 226 1 Unit
at 20 mA from analog output OUT 4:
– 0 : / 1 : k 2 : M
551 227 1 Allocation of OUT 1 relay: – 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+ 5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ- 17 : ΣPFC 18 : Cd-t
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
54
55
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
19 : ΣP predicted 20 : ΣQ predicted 21 : ΣS predicted 22 : T°C 1 23 : T°C 2 24 : T°C 3 25 : T°C internal 552 228 1 Lower threshold OUT 1 –
553 229 1 Unit lower threshold OUT 1: – 0 : / 1 : k 2 : M
554 22A 1 Threshold value OUT 1 –
555 22B 1 Unit threshold value OUT : – 0 : / 1 : k 2 : M
556 22C 1 Hysteresis 0 to 99 OUT 1 %
557 22D 1 Specied timeOUT1 s.
558 22E 1 Relay status OUT 1: 0 : Open 1 : Closed –
559 22F 1 Allocation of OUT 2 relay : – 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+ 5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ- 17 : ΣPFC 18 : Cd-t
19 : ΣP predicted
20 : ΣQ predicted
21 : ΣS predicted
22 : T°C 1
23 : T°C 2
24 : T°C 3
25 : T°C internal
560 230 1 Lower threshold OUT 2 –
561 231 1 Unit lower threshold OUT 2: – 0 : / 1 : k 2 : M
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
562 232 1 Threshold value OUT 2 –
563 233 1 Unit upper threshold OUT 2: 0: / 1 : k 2 : M –
564 234 1 Hysteresis 0 to 99 OUT 2 %
565 235 1 Speciedtime OUT2 s.
566 236 1 Reserved –
567 237 1 Reserved –
568 238 1 Reserved –
569 239 1 Reserved –
570 23A 1 Reserved –
571 23B 1 CT secondary neutral : 1: 1 A 5: 5 A A
572 23C 1 CT primary neutral A
573 23D 1 Synchronisation of U AVG/MAX : s. 10 : 10 seconds 300 : 5 minutes (5x60s) 480 : 8 minutes (8x60s) 600 : 10 minutes (10x60s) 900 : 15 minutes (15x60s) 1200 : 20 minutes (20x60s) 1800 : 30 minutes (30x60s) 3600 : 60 minutes (60x60s)
574 23E 1 Synchronisation of F AVG/MAX : s. 10 : 10 seconds 300 : 5 minutes (5x60s) 480 : 8 minutes (8x60s) 600 : 10 minutes (10x60s) 900 : 15 minutes (15x60s) 1200 : 20 minutes (20x60s) 1800 : 30 minutes (30x60s) 3600 : 60 minutes (60x60s)
575 23F 1 Mean power memory storage P+ : 0 : no 1 : yes
576 240 1 Mean power memory storage P- : 0 : no 1 : yes
577 241 1 Mean power memory storage Q+ : 0 : no 1 : yes
578 242 1 Mean power memory storage Q- : 0 : no 1 : yes
579 243 1 Mean power synchronisation signal : 0 : internal 1 : external
580 244 1 Synchronisation period for P+, P-, Q+ et Q-: s. 300 : 5 minutes (5x60s)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
56
57
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16) LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
480 : 8 minutes (8x60s) 600 : 10 minutes (10x60s) 900 : 15 minutes (15x60s) 1200 : 20 minutes (20x60s) 1800 : 30 minutes (30x60s)
581 245 1 Allocation of OUT 3 relay: 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+ 5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ- 17 : ΣPFC 18 : Cd-t
19 : T°C 1
20 : T°C 2
21 : T°C 3
22 : T°C internal
23 : ΣP predicted
24 : ΣQ predicted
25 : ΣS predicted
582 246 1 Lower threshold OUT 3
583 247 1 Unit lower threshold OUT 3 : 0 : / 1 : k 2 : M
584 248 1 Upper threshold OUT 3
585 249 1 Unit upper threshold OUT 3 : 0 : / 1 : k 2 : M
586 24A 1 Hysteresis 0 to 99 OUT 3 %
587 24B 1 SpeciedtimeOUT3 s.
588 24C 1 Relay status OUT 3 : 0 : Open 1 : Closed
589 24D 1 Allocation of OUT 4 relay: 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+
5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ- 17 : ΣPFC 18 : Cd-t
19 : T°C 1 20 : T°C 2 21 : T°C 3 22 : T°C internal 23 : ΣP predicted 24 : ΣQ predicted 25 : ΣS predicted 590 24E 1 Lower threshold OUT 4
591 24F 1 Unit lower threshold OUT 4 : 0 : / 1 : k 2 : M
592 250 1 Upper threshold OUT 4
593 251 1 Unit upper threshold OUT 4 : 0 : / 1 : k 2 : M
594 252 1 Hysteresis 0 to 99 OUT 4 %
595 253 1 Speciedtime OUT4 s.
596 254 1 Relay status OUT 4 : 0 : Open 1 : Closed
597 255 1 Allocation of OUT 5 relay: 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+ 5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ-
Decimal Hexa. Number Text Unit
address address of words
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
58
59
COMMUNICATION
COMMUNICATION
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
LIST OF PARAMETERS TO BE DISPLAYED OR PROGRAMMED (FUNCTION 3, 6 OR 16)
Decimal Hexa. Number Text Unit address address of words
17 : ΣPFC 18 : Cd-t
19 : T°C 1 20 : T°C 2 21 : T°C 3 22 : T°C internal 23 : ΣP predicted 24 : ΣQ predicted 25 : ΣS predicted 598 256 1 Lower threshold OUT 5
599 257 1 Unit lower threshold OUT 5 : 0 : / 1 : k 2 : M
600 258 1 Upper threshold OUT 5
601 259 1 Unit upper threshold OUT 5 : 0 : / 1 : k 2 : M
602 25A 1 Hysteresis 0 to 99 OUT 5 %
603 25B 1 SpeciedtimeOUT5 s.
604 25C 1 Relay status OUT 5 : 0 : Open 1 : Closed
605 25D 1 Allocation of OUT 6 relay: 0 : Cde 1 : I 2 : U 3 : ΣP+ 4 : ΣQ+ 5 : ΣS 6 : F 7 : ΣPFL 8 : thd 3I 9 : thd 3U 10 : IN 11 : HOUR 12 : V 13 : thd In 14 : thd 3V 15 : ΣP- 16 : ΣQ- 17 : ΣPFC 18 : Cd-t
19 : T°C 1
20 : T°C 2
21 : T°C 3
22 : T°C internal
23 : ΣP predicted
24 : ΣQ predicted
25 : ΣS predicted
606 25E 1 Lower threshold OUT 6
607 25F 1 Unit lower threshold OUT 6 : 0 : /
Size of this zone: 108 words (decimals) or 6C (hexadecimals)
1 : k 2 : M
608 260 1 Upper threshold OUT 6
609 261 1 Unit upper threshold OUT 6 : 0 : / 1 : k 2 : M
610 262 1 Hysteresis 0 to 99 OUT 6 %
611 263 1 Speciedtime OUT6 s.
612 264 1 Relay status OUT 6 : 0 : Open 1 : Closed
613 265 1 Voltage dips detection threshold (SAG) %
614 266 1 Voltage dip detection threshold hysteresis (SAG) %
615 267 1
Voltage surge detection threshold hysteresis
(SWELL)
%
616 268 1 Voltage surge detection threshold hysteresis (SWELL) %
617 269 1 Hour meter allocation
1. Auxiliary power supply
2. Currents
3. phase to phase voltage
618 26A 1 Hour meter trigger threshold A/V
619 26B 1 Reserved for manufacturer
Example: Configuration of a 4-wired unbalanced network (4 NBL) for DIRIS number 5.
DIRIS A40/A41 reply: Identical to message sent.
Slave
05
Function
06
High-order
address
02
Low-order
address
00
High-order
word N°
00
Low-order
word N°
05
CRC 16
49F5
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
60
61
COMMUNICATION
COMMUNICATION
RESET TO ZERO: ENERGY METERS AND MAX. VALUES (FUNCTION 6)
Decimal Hexa. Number Text Unit address address of words
1024 400 1 RAZ: Max3I : 0 x 0001 MaxP+ : 0 x 0002 MaxP-: 0 x 0004 MaxQ+ : 0 x 0008 MaxQ- : 0 x 0010 MaxS : 0 x 0020 Hour meter : 0 x 0040 kWh+ : 0 x 0080 kvarh+ : 0 x 0100 kVAh : 0 x 0200 kWh- : 0 x 0400 kvarh- : 0 x 0800 All parameters : 0 x 1000 MaxU : 0 x 2000 MaxV : 0 x 4000 MaxF : 0 x 8000
1025 401 1 R.A.Z. : E1 : 0 x 0001 E2 : 0 x 0002 E3 : 0 x 0004 E4 : 0 x 0008 E5 : 0 x 0010 E6 : 0 x 0020 Min/Max I : 0 x 0040 Min/Max In : 0 x 0080 Min/Max U : 0 x 0100 Min/Max F : 0 x 0200 Min/Max PF : 0 x 0400 Min/Max P : 0 x 0800 Min/Max Q : 0 x 1000 Min/Max thd I : 0 x 2000 Min/Max thd In : 0 x 4000 Min/Max thd U : 0 x 8000
1026 402 1 RAZ: Min/Max thd V : 0 x 0001 Min/Max V : 0 x 0002 Min/Max S : 0 x 0004 10 alarms event log : 0 x 0008 10 voltage dips event log : 0 x 0010 10 surges event log : 0 x 0020 10 cut-offs event log : 0 x 0040 Averaged out frequencies : 0 x 0080 Averaged out voltage values : 0 x 0100 Averaged out power values : 0 x 0200
Size of this zone: 3 words (decimals) and 3 (hexadecimals)
RESET TO ZERO: ENERGY METERS AND MAX. VALUES (FUNCTION 6)
NB:
To reset several parameters to zero, add the corre-
spondinggureindicatedinthe“text” column.
Example: reset Max P+ and kvarh + to zero: 2 + 100 = 102 (Hex)
Example: To reset all values for DIRIS number 5 to zero, the following frame should be sent:
PULSE METERS VALUES
Input meters
DIRIS A40/A41 reply: identical to the message sent.
Size of this zone: 12 words (decimals) or C (hexadecimals)
Decimal Hexa. Number Text Unit address address of words
2560 A00 2 Input E1, option ES 1 2562 A02 2 Input E2, option ES 1 2564 A04 2 Input E3, option ES 2 2566 A06 2 inputE4, option ES 2 2568 A08 2 Input E5, option ES 3 2570 A0A 2 Input E6, option ES 3
Slave
SAVED COMMAND (RESET)
The following command should be done to save programming parameters changes for DIRIS number 5.
NB : The DIRIS A40/A41 responds with an identical frame.
Slave
05
Function
06
High-order
address
06
Low-order
address
00
Values
0000
CRC 16
88C6
05
Function
06
High-order
address
04
Low-order
address
00
High-order
word N°
10
Low-order
word N°
00
CRC 16
84BE
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
62
63
DATE AND HOUR SETTINGS (FUNCTION 3, 6 OR 16)
Input meters
Zone size: 6 words (decimal) or 6 (hexadecimal).
Decimal Hexa. Number Text Unit address address of words
3072 C00 1 Day
3073 C01 1 Month
3074 C02 1 Year
3075 C03 1 Hour
3076 C04 1 Minute
3077 C05 1 Second
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3092 C14 1 Lower threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3093 C15 2 Upper threshold value
3095 C17 1 Duration s
3096 C18 1 Day
3097 C19 1 Month
3098 C1A 1 Year
3099 C1B 1 Hour
3100 C1C 1 Minute
3101 C1D 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-1
Decimal Hexa. Number Text Unit address address of words
3088 C10 1 Alarm output number (1 to 6)
3089 C11 1 Lower threshold: 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3090 C12 2 Lower threshold value
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-1
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
64
65
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3102 C1E 1 Output number (1 to 6)
3103 C1F 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3104 C20 2 Lower threshold value
3106 C22 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1
Decimal Hexa. Number Text Unit
address address of words
16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3107 C23 2 Upper threshold value 3109 C25 1 Duration s 3110 C26 1 Day 3111 C27 1 Month 3112 C28 1 Year 3113 C29 1 Hour 3114 C2A 1 Minute 3115 C2B 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-2
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-1
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
66
67
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3116 C2C 1 Output number (1 to 6)
3117 C2D 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3118 C2E 2 Lower threshold value
3120 C30 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-3
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-3
Alarme n-4
Decimal Hexa. Number Text Unit address address of words
15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3121 C31 2 Upper threshold value 3123 C33 1 Duration s 3124 C34 1 Day 3125 C35 1 Month 3126 C36 1 Year 3127 C37 1 Hour 3128 C38 1 Minute 3129 C39 1 Second
Decimal Hexa. Number Text Unit
address address of words
3130 C3A 1 Output number (1 to 6)
3131 C3B 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
68
69
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3132 C3C 2 Lower threshold value
3134 C3E 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-4
Decimal Hexa. Number Text Unit address address of words
3144 C48 1 Output number (1 to 6)
3145 C49 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
Alarm n-5
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3135 C3F 2 Upper threshold value
3137 C41 1 Duration s
3138 C42 1 Day
3139 C43 1 Month
3140 C44 1 Year
3141 C45 1 Hour
3142 C46 1 Minute
3143 C47 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-4
Decimal Hexa. Number Text Unit address address of words
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
70
71
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3158 C56 1 Output number (1 to 6)
3159 C57 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3160 C58 2 Lower threshold value
3162 C5A 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-5
Decimal Hexa. Number Text Unit address address of words
36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS prédictive 3146 C4A 2 Lower threshold value
3148 C4C 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3149 C4D 2 Upper threshold value
3151 C4F 1 Duration s
3152 C50 1 Day s
3153 C51 1 Month
3154 C52 1 Year
3155 C53 1 Hour
3156 C54 1 Minute
3157 C55 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-6
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
72
73
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3174 C66 2 Lower threshold value
3176 C68 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-7
Decimal Hexa. Number Text Unit
address address of words
15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3163 C5B 2 Upper threshold value 3165 C5D 1 Duration s 3166 C5E 1 Day 3167 C5F 1 Month 3168 C60 1 Year 3169 C61 1 Hour 3170 C62 1 Minute 3171 C63 1 Second
Alarm n-7
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarme n-6
Decimal Hexa. Number Text Unit address address of words
3172 C64 1 Output number (1 to 6)
3173 C65 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
74
75
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3188 C74 2 Lower threshold value
3190 C76 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3191 C77 2 Upper threshold value
3193 C79 1 Duration s
3194 C7A 1 Day
3195 C7B 1 Month
3196 C7C 1 Year
3197 C7D 1 Hour
3198 C7E 1 Minute
3199 C7F 1 Second
Decimal Hexa. Number Text Unit
address address of wordss
3186 C72 1 Output number (1 to 6)
3187 C73 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-8
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3177 C69 2 Upper threshold value
3179 C6B 1 Duration s
3180 C6C 1 Day
3181 C6D 1 Month
3182 C6E 1 Year
3183 C6F 1 Hour
3184 C70 1 Minute
3185 C71 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-7
Decimal Hexa. Number Text Unit address address of words
Alarm n-8
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
76
77
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3214 C8E 1 Output number (1 to 6)
3215 C8F 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2
Decimal Hexa. Number Text Unit
address address of words
3200 C80 1 Output number (1 to 6)
3201 C81 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3202 C82 2 Lower threshold value
3204 C84 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL
Decimal Hexa. Number Text Unit
address address of words
15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1 33 : T°C 2 34 : T°C 3 35 : T°C internal 36 : ΣP predicted 37 : ΣQ predicted 38 : ΣS predicted 3205 C85 2 Upper threshold value 3207 C87 1 Duration s 3208 C88 1 Day 3209 C89 1 Month 3210 C8A 1 Year 3211 C8B 1 Hour 3212 C8C 1 Minute 3213 C8D 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-9
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-9
Alarm n-10
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
78
79
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3216 C90 2 Lower threshold value
3218 C92 1 Lower threshold : 0 : no alarm 1 : I1 2 : I2 3 : I3 4 : In 5 : U12 6 : U23 7 : U31 8 : ΣP+ 9 : ΣQ+ 10 : ΣS 11 : F 12 : ΣPFL 15 : thd I1 16 : thd I2 17 : thd I3 18 : thd U12 19 : thd U23 20 : thd U31 21 : HOUR 22 : V1 23 : V2 24 : V3 25 : thd In 26 : thd V1 27 : thd V2 28 : thd V3 29 : ΣP- 30 : ΣQ- 31 : ΣPFC
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-10
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-1
Zone size: 140 words (decimal) or 8C (hexadecimal).
Decimal Hexa. Number Text Unit address address of words
3328 D00 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3329 D01 2 Value
3331 D03 1 Query! : phase-to-neutral residual value : 22 : V1 23 : V2 24 : V3
3332 D04 2 Value
3334 D06 2 Duration ms
3336 D08 1 Day
3337 D09 1 Month
3338 D0A 1 Year
3339 D0B 1 Hour
3340 D0C 1 Minute
3341 D0D 1 Second
LAST 10 ALARMS EVENT LOG (FUNCTION 3)
Alarm n-10
Decimal Hexa. Number Text Unit address address of words
32 : T°C 1
33 : T°C 2
34 : T°C 3
35 : T°C internal
36 : ΣP predicted
37 : ΣQ predicted
38 : ΣS predicted
3219 C93 2 Upper threshold value
3221 C95 1 Duration s
3222 C96 1 Day
3223 C97 1 Month
3224 C98 1 Year
3225 C99 1 Hour
3226 C9A 1 Minute
3227 C9B 1 Second
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
80
81
Decimal Hexa. Number Text Unit
address address of words
3342 D0E 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3343 D0F 2 Value
3345 D11 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3346 D12 2 Value
3348 D14 2 Duration ms
3350 D16 1 Day
3351 D17 1 Month
3352 D18 1 Year
3353 D19 1 Hour
3354 D1A 1 Minute
3355 D1B 1 Second
Decimal Hexa. Number Text Unit
address address of words
3356 D1C 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3357 D1D 2 Value
3359 D1F 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3360 D20 2 Value
3362 D22 2 Duration ms
3364 D24 1 Day
3365 D25 1 Month
3366 D26 1 Year
3367 D27 1 Hour
3368 D28 1 Minute
3369 D29 1 Second
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-2
Voltage dip n-3
Decimal Hexa. Number Text Unit address address of words
3370 D2A 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3371 D2B 2 Value
3373 D2D 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3374 D2E 2 Value
3376 D30 2 Duration ms
3378 D32 1 Day
3379 D33 1 Month
3380 D34 1 Year
3381 D35 1 Hour
3382 D36 1 Minute
3383 D37 1 Second
Decimal Hexa. Number Text Unit
address address of words
3384 D38 1 Query! : phase-to-phase residual value: 0 : no 5: U12 6: U23 7: U31
3385 D39 2 Value
3387 D3B 1 Query! : phase-to-neutral residual value: 0 : no 22 : V1 23 : V2 24 : V3
3388 D3C 2 Value
3390 D3E 2 Duration ms
3392 D40 1 Day
3393 D41 1 Month
3394 D42 1 Year
3395 D43 1 Hour
3396 D44 1 Minute
3397 D45 1 Second
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-4
Voltage dip n-5
COMMUNICATION
COMMUNICATION
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
82
83
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3398 D46 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3399 D47 2 Value
3401 D49 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3402 D4A 2 Value
3404 D4C 2 Duration ms
3406 D4E 1 Day
3407 D4F 1 Month
3408 D50 1 Year
3409 D51 1 Hour
3410 D52 1 Minute
3411 D53 1 Second
Decimal Hexa. Number Text Unit
address address of words
3412 D54 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3413 D55 2 Value
3415 D57 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3416 D58 2 Value
3418 D5A 2 Duration ms
3420 D5C 1 Day
3421 D5D 1 Month
3422 D5E 1 Year
3423 D5F 1 Hour
3424 D60 1 Minute
3425 D61 1 Second
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-6
Voltage dip n-7
Decimal Hexa. Number Text Unit address address of words
3426 D62 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3427 D63 2 Value
3429 D65 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3430 D66 2 Value
3432 D68 2 Duration ms
3434 D6A 1 Day
3435 D6B 1 Month
3436 D6C 1 Year
3437 D6D 1 Hour
3438 D6E 1 Minute
3439 D6F 1 Second
Decimal Hexa. Number Text Unit
address address of words
3440 D70 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3441 D71 2 Value
3443 D73 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3444 D74 2 Value
3446 D76 2 Duration ms
3448 D78 1 Day
3449 D79 1 Month
3450 D7A 1 Year
3451 D7B 1 Hour
3452 D7C 1 Minute
3453 D7D 1 Second
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-8
Voltage dip n-9
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
84
85
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3454 D7E 1 Query! : phase-to-phase residual value : 0 : no 5: U12 6: U23 7: U31
3455 D7F 2 Value
3457 D81 1 Query! : phase-to-neutral residual value : 0 : no 22 : V1 23 : V2 24 : V3
3458 D82 2 Value
3460 D84 2 Duration ms
3462 D86 1 Day
3463 D87 1 Month
3464 D88 1 Year
3465 D89 1 Hour
3466 D8A 1 Minute
3467 D8B 1 Second
Decimal Hexa. Number Text Unit
address address of words
3584 E00 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3585 E01 2 Value
3587 E03 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3588 E04 2 Value
3590 E06 2 Duration ms
3592 E08 1 Day
3593 E09 1 Month
3594 E0A 1 Year
3595 E0B 1 Hour
3596 E0C 1 Minute
3597 E0D 1 Second
LAST 10 VOLTAGE DIPS EVENT LOG / SAG (FUNCTION 3)
Voltage dip n-10
LAST 10 VOLTAGE SURGE EVENT LOG / SWELL (FUNCTION 3)
Voltage surge n-1
Decimal Hexa. Number Text Unit address address of words
3598 E0E 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3599 E0F 2 Value
3601 E11 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3602 E12 2 Value
3604 E14 2 Duration ms
3606 E16 1 Day
3607 E17 1 Month
3608 E18 1 Year
3609 E19 1 Hour
3610 E1A 1 Minute
3611 E1B 1 Second
Decimal Hexa. Number Text Unit
address address of words
3612 E1C 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3613 E1D 2 Value
3615 E1F 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3616 E20 2 Value
3618 E22 2 Duration ms
3620 E24 1 Day
3621 E25 1 Month
3622 E26 1 Year
3623 E27 1 Hour
3624 E28 1 Minute
3625 E29 1 Seconds
LAST 10 TEMPORARY VOLTAGE SURGE EVENT LOG (FUNCTION 3)
Voltage surge n-2
Voltage surge n-3
Zone size: 140 words (decimal) or 8C (hexadecimal).
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
86
87
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3626 E2A 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3627 E2B 2 Value
3629 E2D 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3630 E2E 2 Value
3632 E30 2 Duration ms
3634 E32 1 Day
3635 E33 1 Month
3636 E34 1 Year
3637 E35 1 Hour
3638 E36 1 Minute
3639 E37 1 Second
Decimal Hexa. Number Text Unit
address address of words
3640 E38 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3641 E39 2 Value
3643 E3B 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3644 E3C 2 Value
3646 E3E 2 Duration ms
3648 E40 1 Day
3649 E41 1 Month
3650 E42 1 Year
3651 E43 1 Hour
3652 E44 1 Minute
3653 E45 1 Second
LAST 10 TEMPORARY VOLTAGE SURGE EVENT LOG (FUNCTION 3)
Voltage surge n-4
Voltage surge n-5
Decimal Hexa. Number Text Unit address address of words
3654 E46 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3655 E47 2 Value
3657 E49 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3658 E4A 2 Value
3660 E4C 2 Duration ms
3662 E4E 1 Day
3663 E4F 1 Month
3664 E50 1 Year
3665 E51 1 Hour
3666 E52 1 Minute
3667 E53 1 Second
Decimal Hexa. Number Text Unit
address address of words
3668 E54 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3669 E55 2 Value
3671 E57 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3672 E58 2 Value
3674 E5A 2 Duration ms
3676 E5C 1 Day
3677 E5D 1 Month
3678 E5E 1 Year
3679 E5F 1 Hour
3680 E60 1 Minute
3681 E61 1 Second
LAST 10 TEMPORARY VOLTAGE SURGE EVENT LOG (FUNCTION 3)
Voltage surge n-6
Voltage surge n-7
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
88
89
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3682 E62 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3683 E63 2 Value
3685 E65 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3686 E66 2 Value
3688 E68 2 Duration ms
3690 E6A 1 Day
3691 E6B 1 Month
3692 E6C 1 Year
3693 E6D 1 Hour
3694 E6E 1 Minute
3695 E6F 1 Second
Decimal Hexa. Number Text Unit
address address of words
3696 E70 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3697 E71 2 Value
3699 E73 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3700 E74 2 Value
3702 E76 2 Duration ms
3704 E78 1 Day
3705 E79 1 Month
3706 E7A 1 Year
3707 E7B 1 Hour
3708 E7C 1 Minute
3709 E7D 1 Second
LAST 10 TEMPORARY VOLTAGE SURGE EVENT LOG (FUNCTION 3)
Voltage surge n-8
Voltage surge n-9
Decimal Hexa. Number Text Unit address address of words
3710 E7E 1 Query! : maximum phase-to-phase value : 0 : no 5: U12 6: U23 7: U31
3711 E7F 2 Value
3713 E81 1 Query! : maximum phase-to-neutral value : 0 : no 22 : V1 23 : V2 24 : V3
3714 E82 2 Value
3716 E84 2 Duration ms
3718 E86 1 Day
3719 E87 1 Month
3720 E88 1 Year
3721 E89 1 Hour
3722 E8A 1 Minute
3723 E8B 1 Second
Decimal Hexa. Number Text Unit
address address of words
3840 F00 2 3I minimum mA
3842 F02 1 Day
3843 F03 1 Month
3844 F04 1 Year
3845 F05 1 Hour
3846 F06 1 Minute
3847 F07 1 Second
3848 F08 2 3I maximum mA
3850 F0A 1 Day
3851 F0B 1 Month
3852 F0C 1 Year
3853 F0D 1 Hour
3854 F0E 1 Minute
3855 F0F 1 Second
3856 F10 2 IN minimum mA
3858 F12 1 Day
3859 F13 1 Month
3860 F14 1 Year
3861 F15 1 Hour
3862 F16 1 Minute
3863 F17 1 Second
3864 F18 2 IN maximum mA
3866 F1A 1 Day
3867 F1B 1 Month
3868 F1C 1 Year
3869 F1D 1 Hour
3870 F1E 1 Minute
3871 F1F 1 Second
3872 F20 2 3U minimum mA
LAST 10 TEMPORARY VOLTAGE SURGE EVENT LOG (FUNCTION 3)
Voltage surge n-10
MINIMUM AND MAXIMUM INSTANTANEOUS VALUES (FUNCTION 3)
Zone size: 140 words (decimal) or 8C (hexadecimal).
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
90
91
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3874 F22 1 Day 3875 F23 1 Month 3876 F24 1 Year 3877 F25 1 Hour 3878 F26 1 Minute 3879 F27 1 Second 3880 F28 2 3U maximum 0.01 V 3882 F2A 1 Day 3883 F2B 1 Month 3884 F2C 1 Year 3885 F2D 1 Hour 3886 F2E 1 Minute 3887 F2F 1 Second 3888 F30 2 3V minimum 0.01 V 3890 F32 1 Day 3891 F33 1 Month 3892 F34 1 Year 3893 F35 1 Hour 3894 F36 1 Minute 3895 F37 1 Second 3896 F38 2 3V maximum 0.01 V 3898 F3A 1 Day 3899 F3B 1 Month 3900 F3C 1 Year 3901 F3D 1 Hour 3902 F3E 1 Minute 3903 F3F 1 Second 3904 F40 2 F minimum Hz / 100 3906 F42 1 Day 3907 F43 1 Month 3908 F44 1 Year 3909 F45 1 Hour 3910 F46 1 Minute 3911 F47 1 Second 3912 F48 2 F maximum Hz / 100 3914 F4A 1 Day 3915 F4B 1 Month 3916 F4C 1 Year 3917 F4D 1 Hour 3918 F4E 1 Minute 3919 F4F 1 Second 3920 F50 2 ΣPF minimum 1 / 1000 3922 F52 1 Day 3923 F53 1 Month 3924 F54 1 Year 3925 F55 1 Hour 3926 F56 1 Minute 3927 F57 1 Second 3928 F58 2 ΣPF maximum 1 / 1000 3930 F5A 1 Day 3931 F5B 1 Month 3932 F5C 1 Year 3933 F5D 1 Hour 3934 F5E 1 Minute 3935 F5F 1 Second 3936 F60 2 ΣP + minimum kW / 100
MINIMUM AND MAXIMUM INSTANTANEOUS VALUES (FUNCTION 3) MINIMUM AND MAXIMUM INSTANTANEOUS VALUES (FUNCTION 3)
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
3938 F62 1 Day
3939 F63 1 Month
3940 F64 1 Year
3941 F65 1 Hour
3942 F66 1 Minute
3943 F67 1 Second
3944 F68 2 ΣP + maximum kW / 100
3946 F6A 1 Day
3947 F6B 1 Month
3948 F6C 1 Year
3949 F6D 1 Hour
3950 F6E 1 Minute
3951 F6F 1 Second
3952 F70 2 ΣP - minimum kW / 100
3954 F72 1 Day
3955 F73 1 Month
3956 F74 1 Year
3957 F75 1 Hour
3958 F76 1 Minute
3959 F77 1 Second
3960 F78 2 ΣP - maximum kvar / 100
3962 F7A 1 Day
3963 F7B 1 Month
3964 F7C 1 Year
3965 F7D 1 Hour
3966 F7E 1 Minute
3967 F7F 1 Second
3968 F80 2 ΣQ + minimum kvar / 100
3970 F82 1 Day
3971 F83 1 Month
3972 F84 1 Year
3973 F85 1 Hour
3974 F86 1 Minute
3975 F87 1 Second
3976 F88 2 ΣQ + maximum kvar / 100
3978 F8A 1 Day
3979 F8B 1 Month
3980 F8C 1 Year
3981 F8D 1 Hour
3982 F8E 1 Minute
3983 F8F 1 Second
3984 F90 2 ΣQ - minimum kvar / 100
3986 F92 1 Day
3987 F93 1 Month
3988 F94 1 Year
3989 F95 1 Hour
3990 F96 1 Minute
3991 F97 1 Second
3992 F98 2 ΣQ - maximum kvar / 100
3994 F9A 1 Day
3995 F9B 1 Month
3996 F9C 1 Year
3997 F9D 1 Hour
3998 F9E 1 Minute
3999 F9F 1 Second
4000 FA0 2 ΣS minimum kvar / 100
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
92
93
COMMUNICATION
COMMUNICATION
Decimal Hexa. Number Text Unit address address of words
4002 FA2 1 Day 4003 FA3 1 Month 4004 FA4 1 Year 4005 FA5 1 Hour 4006 FA6 1 Minute 4007 FA7 1 Second 4008 FA8 2 ΣS maximum kvar / 100 4010 FAA 1 Day 4011 FAB 1 Month 4012 FAC 1 Year 4013 FAD 1 Hour 4014 FAE 1 Minute 4015 FAF 1 Second 4016 FB0 2 THD 3I minimum 0.10 % 4018 FB2 1 Day 4019 FB3 1 Month 4020 FB4 1 Year 4021 FB5 1 Hour 4022 FB6 1 Minute 4023 FB7 1 Second 4024 FB8 2 THD 3I maximum 0.10 % 4026 FBA 1 Day 4027 FBB 1 Month 4028 FBC 1 Year 4029 FBD 1 Hour 4030 FBE 1 Minute 4031 FBF 1 Second 4032 FC0 2 THD IN minimum 0.10 % 4034 FC2 1 Day 4035 FC3 1 Month 4036 FC4 1 Year 4037 FC5 1 Hour 4038 FC6 1 Minute 4039 FC7 1 Second 4040 FC8 2 THD IN maximum 0.10 % 4042 FCA 1 Day 4043 FCB 1 Month 4044 FCC 1 Year 4045 FCD 1 Hour 4046 FCE 1 Minute 4047 FCF 1 Second 4048 FD0 2 THD 3U minimum 0.10 % 4050 FD2 1 Day 4051 FD3 1 Month 4052 FD4 1 Year 4053 FD5 1 Hour 4054 FD6 1 Minute 4055 FD7 1 Second 4056 FD8 2 THD 3U maximum 0.10 % 4058 FDA 1 Day 4059 FDB 1 Month 4060 FDC 1 Year 4061 FDD 1 Hour 4062 FDE 1 Minute 4063 FDF 1 Second 4064 FE0 2 THD 3V minimum 0.10 %
Decimal Hexa. Number Text Unit
address address of words
4066 FE2 1 Day
4067 FE3 1 Month
4068 FE4 1 Year
4069 FE5 1 Hour
4070 FE6 1 Minute
4071 FE7 1 Second
4072 FE8 2 THD 3V maximum 0.10 %
4074 FEA 1 Day
4075 FEB 1 Month
4076 FEC 1 Year
4077 FED 1 Hour
4078 FEE 1 Minute
4079 FEF 1 Second
Zone size: 240 words (decimal) or FO (hexadecimal).
MINIMUM AND MAXIMUM INSTANTANEOUS VALUES (FUNCTION 3) MINIMUM AND MAXIMUM INSTANTANEOUS VALUES (FUNCTION 3)
Decimal Hexa. Number Text Unit address address of words
4096 1000 1 Day
4097 1001 1 Month
4098 1002 1 Year
4099 1003 1 Hour
4100 1004 1 Minute
4101 1005 1 Second
LAST 10 VOLTAGE CUT-OFFS EVENT LOG / SAG (FUNCTION 3)
Outage n-1
Decimal Hexa. Number Text Unit address address of words
4102 1006 1 Day
4103 1007 1 Month
4104 1008 1 Year
4105 1009 1 Hour
4106 100A 1 Minute
4107 100B 1 Second
Outage n-2
Decimal Hexa. Number Text Unit address address of words
4108 100C 1 Day
4109 100D 1 Month
4110 100E 1 Year
4111 100F 1 Hour
4112 1010 1 Minute
4113 1011 1 Second
Outage n-3
Decimal Hexa. Number Text Unit address address of words
4114 1012 1 Day
4115 1013 1 Month
4116 1014 1 Year
4117 1015 1 Hour
4118 1016 1 Minute
4119 1017 1 Second
Outage n-5
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
94
95
COMMUNICATION
COMMUNICATION
LAST 10 VOLTAGE CUT-OFFS EVENT LOG / SAG (FUNCTION 3)
Outage n-5
Decimal Hexa. Number Text Unit address address of words
4120 1018 1 Day 4121 1019 1 Month 4122 101A 1 Year 4123 101B 1 Hour 4124 101C 1 Minute 4125 101D 1 Second
Decimal Hexa. Number Text Unit
address address of words
4126 101E 1 Day 4127 101F 1 Month 4128 1020 1 Year 4129 1021 1 Hour 4130 1022 1 Minute 4131 1023 1 Second
Outage n-6
Decimal Hexa. Number Text Unit address address of words
4132 1024 1 Day 4133 1025 1 Month 4134 1026 1 Year 4135 1027 1 Hour 4136 1028 1 Minute 4137 1029 1 Second
Outage n-7
Decimal Hexa. Number Text Unit address address of words
4138 102A 1 Day 4139 102B 1 Month 4140 102C 1 Year 4141 102D 1 Hour 4142 102E 1 Minute 4143 102F 1 Second
Outage n-8
Decimal Hexa. Number Text Unit address address of words
4150 1036 1 Day 4151 1037 1 Month 4152 1038 1 Year 4153 1039 1 Hour 4154 103A 1 Minute 4155 103B 1 Second
Outage n-10
Decimal Hexa. Number Text Unit address address of words
4144 1030 1 Day 4145 1031 1 Month 4146 1032 1 Year 4147 1033 1 Hour 4148 1034 1 Minute 4149 1035 1 Second
Outage n-9
Zone size: 60 words (decimal) or 3C (hexadecimal).
Decimal Hexa. Number Text Unit address address of words
12288 3000 1 Mean active power pointer P+/P-
12289 3001 1 Mean reactive power pointer Q+/Q-
12290 3002 3 Date/Hour pointers updating
12293 3004 4500 Zone P.1 saving mean active power values P+ / P- W/10
16793 4198 4500 Zone P.2 saving mean active power values P+ / P- W/10
21293 532C 4500 Zone Q.1 saving mean reactive power values Q+ / Q- W/10
25793 64C0 4500 Zone Q.2 saving mean reactive power values Q+ / Q- W/10
30293 7655 Zone end
MEAN POWER EVENT LOG (FUNCTION 3)
Values not modied by current and voltage transformation ratios
Zone size: 18005 words (decimal) or 4655 (hexadecimal).
Decimal Hexa. Number Text Unit address address of words
32768 8000 1 Voltage pointer
32769 8001 2 Date/Hour pointer updating
32772 8003 875 3U, 3V voltage values V/10
33647 836E Zone end
MEAN VOLTAGE EVENT LOG (FUNCTION 3)
Values not modied by voltage transformation ratio
Taille de cette zone : 879 mots en décimal ou 36F en hexadécimal
Zone size: 8704 words (decimal) or 220 (hexadecimal).
Decimal Hexa. Number Text Unit address address of words
36864 9000 1 Frequency pointer
36865 9001 2 Date/Hour pointer updating
36868 9003 8700 Frequency values Hz/100
45568 B1FF Zone end
MEAN FREQUENCY EVENT LOG (FUNCTION 3)
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
96
97
TECHNICAL CHARACTERISTICS
NOTES
COMMUNICATION
RS485 2 or 3 wires half duplex Protocole JBUS/MODBUS® protocol / RTU mode Speed 2400 to 38400 Bauds Galvanic insulation 4 kV
GLOSSARY OF ABBREVIATIONS
COM Communication ADR Slave address BDS Speed of communication in bauds PAR Communication frame parity NO Without parity Even Even parity Odd Odd parity STOP Frame-stop beep 1 1 stop bit 2 2 stop bits
Standard UL 61010-1 CSA-C22.2 No. 61010-1
Certicate ULleNo:E257746
UL - CSA APPROVAL
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
DIRIS A40/A41 - RS485 - JBUS/MODBUS
®
GB
98
99
NOTES
NOTES
SOCOMEC - Ref.: 536 103 B GB - 05/12
DIRIS 345 A / QUAT NOT 3i
VALID FOR FRANCE
h EAd O ffICE
SOCOMEC GROUP
S.A. SOCOMEC capital
11 149 200 € R.C.S. Strasbourg B 548 500 149 B.P. 60010 - 1, rue de Westhouse F-67235 Benfeld Cedex - FRANCE
I ntERn A t IOn A L SALES d E p ARt MEnt
SOCOMEC
1, rue de Westhouse - B.P. 60010 F - 67235 Benfeld Cedex - FRANCE Tel. +33 (0)3 88 57 41 41 - Fax +33 (0)3 88 74 08 00 info.scp.isd@socomec.com
Socomec worldwide
I n EUROp E
BELGIUM
SOCOMEC BELGIUM B - 1190 Bruxelles Tel. +32 (0)2 340 02 30 - Fax +32 (0)2 346 28 99 info.scp.be@socomec.com
FRANCE
SOCOMEC F - 94132 Fontenay-sous-Bois Cedex Tel. +33 (0)1 45 14 63 30 - Fax +33 (0)1 45 14 63 38 info.scp.fr@socomec.com
GERMANY
SOCOMEC GmbH D - 76275 Ettlingen Tel. +49 (0)7243 65 29 2 0 - Fax +49 (0)7243 65 29 2 13 info.scp.de@socomec.com
ITALY
SOCOMEC Elettrotecnica s.r.l. I - 20098 San Giuliano Milanese (MI) Tel. +39 02 9849821 - Fax +39 02 98243310 info.scp.it@socomec.com
SPAIN
SOCOMEC ELECTRO, S.L. E - 08310 Argentona (Barcelona) Tel. +34 93 741 60 67 - Fax. +34 93 757 49 52 info.scp.es@socomec.com
ThE NEThERLANDS
SOCOMEC B.V. NL - 3991 CD Houten Tel. +31 (0)30 760 0901- Fax +31 (0)30 637 2166 info.scp.nl@socomec.com
In thE U n I t E d KIn G d OM
SOCOMEC Ltd UK - Knowl Piece - Wilbury Way Hitchin Hertfordshire SG4 0TY Tel. 01462 440033 - Fax 01462 431143 info.scp.uk@socomec.com
I n ASIA
NORTh EAST ASIA
SOCOMEC CHINA Co. Ltd P.R.C 200052 Shanghai - China Tel. +86 (0)21 5298 9555 - Fax +86 (0)21 6228 3468 info.scp.cn@socomec.com
SOUTh EAST ASIA & PACIFIC
SOCOMEC SWITCHING AND PROTECTION UBI TECHPARK - 408569 Singapore Tel. +65 65 07 94 90 - Fax +65 65 47 86 93 info.scp.sg@socomec.com
SOUTh ASIA
SOCOMEC INDIA 122001 Gurgaon, Haryana - India Tel. +91 124 4562 700 - Fax +91 124 4562 738 info.scp.in@socomec.com
I n MIddLE EASt
UNITED ARAB EMIRATES
SOCOMEC Middle East Dubai, U.A.E. Tel. +971 (0) 4 29 98 441 - Fax +971 (0)4 29 98 449 info.scp.ae@socomec.com
I n n ORth AMERICA
USA, CANADA & MEXICO
SOCOMEC Inc Cambridge, MA 02142 USA Tel. +1 617 245 0447 - Fax +1 617 245 0437 info.scp.us@socomec.com
www.socomec.com
Non contractual document. © 2012, Socomec SA. All rights reserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
