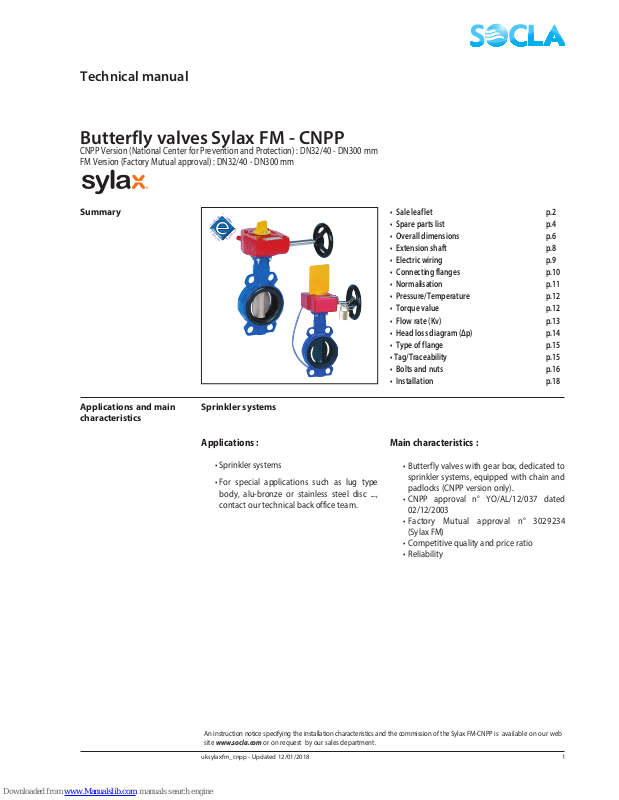

Technical manual

Butterfly valves Sylax FM - CNPP

CNPP Version (National Center for Prevention and Protection) : DN32/40 - DN300 mm
FM Version (Factory Mutual approval) : DN32/40 - DN300 mm

Summary

uksylaxfm_cnpp - Updated 12/01/2018 1

Sprinkler systems

Applications :

• Sprinkler systems

• For special applications such as lug type
body, alu-bronze or stainless steel disc ...,
contact our technical back office team.

Main characteristics :

• Butterfly valves with gear box, dedicated to
sprinkler systems, equipped with chain and
padlocks (CNPP version only).

• CNPP approval n° YO/AL/12/037 dated
02/12/2003

• Factory Mutual approval n° 3029234
(Sylax FM)

• Competitive quality and price ratio

• Reliability

Applications and main
characteristics

Inte

rnal

External

•

•



COATI NG

An instruction notice specifying the installation characteristics and the commission of the Sylax FM-CNPP is available on our web
site www.socla.com or on request by our sales department.

Technical manual Sylax FM - CNPP

Sale leaflet

By concentrating the technologies and by inte­grating technical solutions of the highest levels, Socla fulfils its ambition :

• competitiveness of a standard range,

• reliability,

• comprehensive range thanks to a multiplicity of solutions.

uksylaxfm_cnpp - Updated 12/01/20182

SYLAX

fm verSion

(Factory Mutual approval)

DN32/40 - DN300 mm

SYLAX

cnpp verSion

(National Center for Prevention and Protection approval )

DN32/40 - DN300 mm

Technical manual Sylax FM - CNPP

uksylaxfm_cnpp - Updated 12/01/2018 3

Sale leaflet

• Safety anti-ejection circlip keeps shaft in place
and allows easy maintenance (FM version
only)

• Safety reinforced by a secondary water
tightness

• Spline driven one piece shaft connected to
floating disc :

. high reliability of tightness and torque

transmission in the long term.

•

High power transmission with robust grooved
connection between the shaft and the disc.

• Complete protection of the shaft and valve
body from fluids.

• Reliability of movements with self-lubricating
bearings.

• Identification and traceability ensured by

riveted metal tag : see on page 15.

CNPP Version

FM Version

Technical manual Sylax FM - CNPP

uksylaxfm_cnpp - Updated 12/01/20184

Spare parts list CNPP Version - DN32/40 - DN300 mm

Nb.

DESCRIPTION

Qty

MATERIALS ACCORDING TO NORMS

Materials EN ASTM JIS

1

Body

1

Ductile iron EN GJS 400-15 (JS1030) FCD40

2

Liner

1

EPDM - - -

3

Disc

1

Ductile iron EN GJS 400-15 (JS1030) - FCD40

Stainless steel GX5 CrNiMo 19-11-2 (1.4408) 316 SUS 316
Stainless steel GX2 CrNiMo 19-11-2 (1.4409) 316L SUS 316L

Cupro - Aluminium CuAl10Fe5Ni5 (C333G) - -

4

Shaft

1

Stainless steel X5 CrNiCuNb 16-4 (1.4542) 630 SUS 630
Stainless steel X2 CrNiMo 17-12-2 (1.4404) 316L SUS 316L
Stainless steel X30 Cr13 (1.4028) 420 SUS 420 J2

5

Anti-friction bearing

1

Zinc coated steel/PTFE - - -

6

Anti-friction bearing

1

Zinc coated steel/PTFE - - -

7

Anti-extrusion bush

1

Plastic IXEF 50 FV - -

8

O-ring

1

Nitrile - - -

9

Sealing washer

1

Brass CuZn39Pb2 (CW612N) - -

10

Identification plate

1

Aluminium EN AW - AL995 (EN AW - 1050A) - -

11

Rivet

2

Alu/Stainless steel - - -

12

Counter square (1)

1

Steel - - -

13

Pin

1

Steel - - -

14

Screw H

4

Zinc coated steel - - -

15

Elastic washer

4

Zinc coated steel - - -

16

Gear box CNPP approved

1

Aluminium - - -

17

Flat washer

2

Zinc coated steel - - -

18

Padlock

1

Steel + brass - - -

19

Chain

1

Steel - - -

1

2

3

4

5

6

7

8

9

10

11

13

16

12

15

14

19

17

18

BOMBYX CNPP/APSAD

9

8

7

10

11

6

2

4

3

5

14

15

16

18

19

17

1

(1) DN32/40 to 100 and DN250

Technical manual Sylax FM - CNPP

uksylaxfm_cnpp - Updated 12/01/2018 5

Spare parts list FM Version - DN32/40 - DN300 mm

BOMBYX FM

1

6

5

2

3

4

7

8

9

10

15

16

13

11

17

12

14

1

4

2

12

11

7

8

9

5

3

6

14

15

16

10

17

Nr DESCRIPTION

Qty

MATERIALS ACCORDING TO NORMS

Materials EN ASTM JIS

1 Body

1

Ductile iron EN GJS 400-15 (JS1030)

- FCD40

2 Liner

1

EPDM - - -

3 Disc

1

Ductile iron EN GJS 400-15 (JS1030)

-

FCD40

Stainless steel GX5 CrNiMo 19-11-2 (1.4408) 316

SUS 316

Stainless steel GX2 CrNiMo 19-11-2 (1.4409) 316L SUS 316L

Cupro-aluminium CuAl10Fe5Ni5 (C333G) - -

4 Shaft

1

Stainless steel X30 Cr13 (1.4028) 420 SUS 420 J2

5 Anti-friction bearing

1

Zinc coated steel + PTFE - - -

6 Anti-friction bearing

1

Zinc coated steel + PTFE - - -

7 Anti-extrusion bush

1

Plastic IXEF 50 FV - -

8 O-ring

1

Nitrile - - -

9 Sealing washer

1

Plastic IXEF 50 FV - -

10 Circlips

1

Steel XC 75 - -

11 Identification plate

1

Aluminium EN AW - AL995 (EN AW - 1050A) - -

12 Rivet

1

Alu/Stainless steel - - -

13 Pin

1

Steel - - -

11 Identification plate

1

Aluminium - - -

14 Headless screw

1

Zinc coated steel - - -

15 Nut

4

Zinc coated steel - - -

16 Elastic washer

4

Zinc coated steel - - -

17 Gear box FM approved 1 Ductile iron - - -

Technical manual Sylax FM - CNPP

uksylaxfm_cnpp - Updated 12/01/20186

Overall dimensions

H1H2

E

D1

D2

N holes ØR on ØS

ØT

flat P

Square CxC

4

H3

H4

ØU

H4

H3

ØU

4

N holes ØR on ØS

Square CxC

ØT

flat P

FM version CNPP version

See on page 7

DN NPS

Iso top according to ISO 5211 Square drive outlet

N ØR ØS ØT ØU N°

o

C H3 flat P H4

32/40 1

1/2

4 6,5 50 65 36 F05 11* 19 11 12
50 2 4 6,5 50 65 36 F05 11* 19 11 12
65 2

1/2

4 6,5 50 65 36 F05 11* 19 11 12
80 3 4 6,5 50 65 36 F05 11* 19 11 12
100 FM 4 4 8,5 70 90 56 F07 14 19 14 12
100

CNPP

4 4 6,5 50 65 36 F05 11* 19 11 12
125 5 4 8,5 70 90 56 F07 14 19 14 12
150 6 4 8,5 70 90 56 F07 14 19 14 12
200 FM 8 4 10,5 102 125 71 F10 17 25 20 15,5
250 FM 10 4 10,5 102 125 71 F10 22 32 26 16
300 FM 12 4 12,5 125 150 87 F12 22 29 26 16
200

CNPP

8 4 8,5 70 90 56 F07 14 19 14 12
250

CNPP

10 4 10,5 102 125 71 F10 17** 24 20 14
300

CNPP

12 4 10,5 102 125 71 F10 22 29 22 14

* with conversion sleeve 14x11
** with conversion sleeve 17x22
