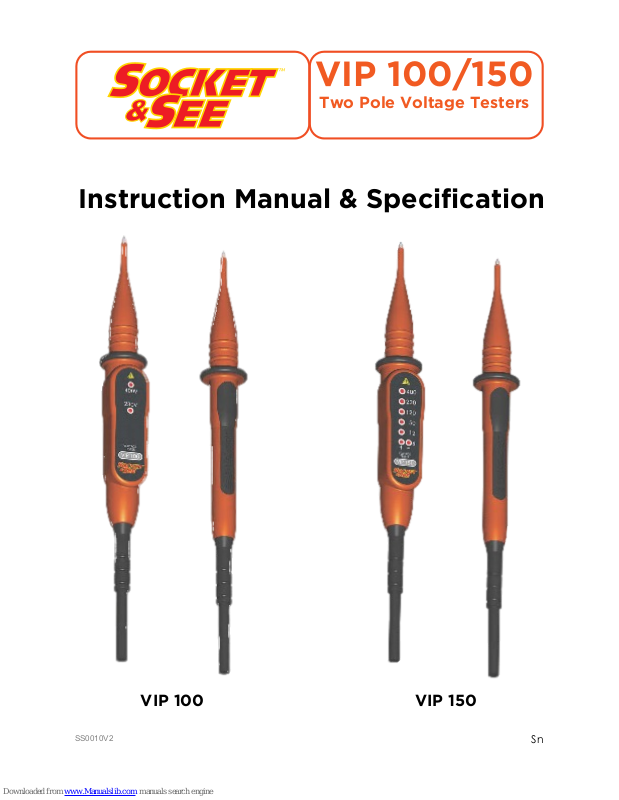

Page 1
Instruction Manual & Specification
VIP 100/150
Two Pole Voltage Testers
SS0010V2
Sn
VIP 100 VIP 150
Page 2
2
SS0010V2
1. Safety
1.1 Equipment Markings
1.2 Operational Safety
The VIP 100 and VIP 150 are designed to be used by skilled persons in
accordance with safe methods of work. If the VIP 100 or VIP 150 are used in a
manner not specified by Socket and See, the protection provided by them may
be impaired.
Inspect the product before using. If any damage is visible; such as cracks in the
casing, damage leads or probes, the unit should not be used.
Keep fingers behind the finger guards. Avoid touching a free prod while the
other prod is in contact with an electrical circuit. Avoid obscuring the indicator
LED’s during use.
This tester has been designed to be used with suitable PPE, including insulated
gloves if required.
Caution - refer to the instruction manual
Construction is double insulated
Product should be recycled as electronic waste
Conforms to EU standards
Measurement Category IV is applicable to test and measuring
circuits connected at the source of the building’s low-voltage MAINS
installation. This part of the installation is expected to have a
minimum of one level of over-current protective devices between
the transformer and connecting points of the measuring circuit.
Due to these high short-circuit currents (above 50kA) which can be
followed by a high energy level, measurements made within these
locations are extremely dangerous. Great precautions shall be made
to avoid any chance of short circuit.
Examples of CAT IV are measurements on devices installed before
the main fuse or circuit breaker in the building installation.
Page 3
3
SS0010V2
To maintain safety, check for the correct operation of the VIP 100 and VIP 150
both before and after use. Use a true AC output proving unit such as the Socket
and See SP400 or a known live source. Check the LED’s are visible in the
environment of use.
The VIP 100 and VIP 150 should not be used on voltages over 600V.
2. Description
The VIP 100 and VIP 150 are simple to use two pole voltage testers capable of
measuring AC and DC voltages. They incorporate a number of features that
make it safer and easier to use than many other two pole testers on the market.
2.1 Features
● Robust and ergonomically designed IP54 body, complete with finger
guards.
● 1.4m of dual insulated, silicon, wear indicating cable interconnects the
probes.
● HSE GS38 conforming prods
● Bright, clear and easy to read LED indication
● No batteries required
2.2 Indication
Indication Chart
Voltage
Indicated
VIP100 VIP150
Negative Polarity
✗ ✓
Positive Polarity
✗ ✓
6 V
✗ ✓
12 V
✗ ✓
50 V
✗ ✓
120 V
✗ ✓
230V
✓ ✓
400 V
✓ ✓
Page 4
4
SS0010V2
4. Maintenance and Service
If required, clean with a damp cloth and mild detergent. Do not use abrasives
or solvents.
There are no user serviceable parts.
Contact Socket and See for parts and technical assistance.
Socket and See
Century Road
High Carr Business Park
Newcastle
Staffordshire, UK
ST5 7UG
Tel: +44 (0) 1782 567096
Fax: +44 (0) 1782 567095
Email: [email protected]
Website: www.socketandsee.co.uk
3.1 Operation.
When using the VIP 100 or VIP150 ensure that fingers are behind the finger
guards. The tester is suitable for use with or without PPE.
Check the correct function of VIP 100 or VIP 150 before and after use with a
true AC output proving unit such as the Socket and See SP400.
Firmly place the tips of the two probes on the voltage source to be measured.
Check for LED illumination.
3. Usage
Page 5
5
SS0010V2
Specification
Operating Voltage Range
12 - 400V AC / DC
LED Indication
6 - 12 - 50 - 110 - 230 - 400V (VIP150)
230 - 400V (VIP100)
Overvoltage Category
Cat IV 600V
Operating Current
<3.5 mA
Operating Duty Cycle
30s on, 240s off
Operating Conditions
-10 to +55ºC at 70% RH
IP Rating
IP54
Safety Compliance
BS EN 61010-2-030 :2010
Prods
GS38 Compliant
Interconnecting Cable
1.4m Silicone rubber, Double
insulated, Wear indicating,
690V continual rating, Tested at 6.5kV
Approximate Dimensions
170H x 25W x 20D (mm)
Weight
210g
Batteries
Not required
Page 6
6
SS0010V2
Ordering Information
Item Supplier Code
Socket and See VIP 100 SOC/VIP100
Socket and See VIP 150 SOC/VIP150
Socket and See SP200 Proving unit SOC/SP200
Socket and See SP400 Proving Unit
with non contact voltage check
SOC/SP400
Socket and See MCB locking off
device
SOC/LOD10
Socket and See carry case for two
pole tester and SP200 proving unit
SOC/TECCVIPCASE
