Secure Digital Scan Card
Series 3
User’s Guide
9/2008 Document # 6410-00206 M
Copyright Notice
Copyright © 2008 Socket Mobile, Inc. All rights reserved.
Socket, the Socket logo, Battery Friendly, SocketScan and
Business Mobility Now! are registered trademarks or registered
trademarks of Socket Mobile, Inc. All other brand and product
names are trademarks of their respective holders.
The Secure Digital Scan Card includes technology licensed under
United States Patent No. 5,902,991.
Reproduction of the contents of this manual without the
permission of Socket Mobile is expressly prohibited. Please be
aware that the products described in this manual may change
without notice.
Feel free to contact Socket Mobile at:
Socket Mobile, Inc.
39700 Eureka Drive
Newark, CA 94560-4808
USA
Other than the above, Socket Mobile can assume no
responsibility for anything resulting from the application of
information contained in this manual.
Socket Mobile requests that you refrain from any applications of
the Secure Digital Scan Card that are not described in this
manual. Please refrain from disassembling the card. Disassembly
of this device will void the product warranty.
You can track new product releases, software updates and
technical bulletins by visiting the Socket Mobile website at:
www.socketmobile.com
.
2
Table of Contents
Copyright Notice 2
1 | INTRODUCTION 5
Product Versions 5
About the Software 5
System Requirements 6
Package Contents, Product Registration 6
Laser vs. Linear CMOS Scanning 6
2 | SETUP FOR WINDOWS MOBILE 7
STEP 1: Uninstall Other Scanning Software 8
STEP 2: Install the Software 9
STEP 3: Insert the Card 11
STEP 4: Assign a Trigger Button 12
STEP 5: Start SocketScan 13
STEP 6: Open Your Application 13
STEP 7: Scan Data into Your Application 14
Symbology Selector 15
Scanner Settings 16
SocketScan Trigger 18
Dual Device Support 20
3 | SETUP FOR PALM OS 21
STEP 1: Uninstall Other Scanning Software 21
STEP 2: Install the Software 22
STEP 3: Insert the Card 24
STEP 4: Start SocketScan 24
STEP 5: Configure Scanner Settings 25
STEP 6: Open Your Application 27
STEP 5: Scan Data into Your Application 28
Symbology Selector 29
Scan Test 30
Help Files 31
Version Information 31
APPENDICES
A | SPECIFICATIONS 32
B | BAR CODE LABEL SPECIFICATIONS 35
C | ENABLING OR DISABLING SYMBOLOGIES 37
D | DECODE ZONE 42
E | SCANNING TIPS 47
3
F | TROUBLESHOOTING 50
G | TECHNICAL SUPPORT 52
Limited Warranty 53
Limited Software Warranty 55
Regulatory Compliance 57
4
1 | Introduction
The Secure Digital Scan Card (SD Scan Card) Series
3 gives you the freedom of scanning bar codes
anytime anywhere into your Pocket PC or Palm
device. The SD Scan Card is a small and sleek unit
with no cables or batteries. You can scan with only
one hand, letting you collect data with maximum
ease and efficiency to increase productivity. The
most popular bar codes are automatically
detected.
Product Versions
The SD Scan Card is available in three versions
• 3E: Entry-level bar code scanner featuring a CMOS linear bar
code scanning engine.
• 3M: Mid-range bar code scanner with a Class 1 laser bar code
scanning engine.
• 3P: Performance bar code scanner with a Class 2 laser bar
code scanning engine.
About the Software
SocketScan™ software enters scanned data directly
into any Windows Mobile or Palm OS program as if
were manually typed. You can configure Prefix/
Suffixes and assign an audio file to signify good data
reads. SocketScan for Palm can even add date and
For software updates, please visit:
www.socketmobile.com/support/downloads
time stamps to each scan of data.
SocketScan Trigger for Windows Mobile gives you
an alternative method of triggering the scanner in
case you don’t want to or can’t use a hardware
button on your Pocket PC. SocketScan Trigger puts
an icon on your screen that you can tap to trigger
the scanner.
CHAPTER 1: INTRODUCTION 5
System Compatibility Requirements
Windows Mobile:
• Any of the following Windows Mobile versions:
o Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/Pocket
PC Phone Edition
o Windows Mobile 6.0 or 6.1 Classic/Professional
• SDIO slot
• Installation requires a host computer running Windows 2000,
XP or Vista and the appropriate synchronization software
(ActiveSync or the Windows Mobile Device Center), available
free from the Microsoft website
• Windows Mobile 2003/2003SE devices also require SDIO Now!
software from bSQUARE in ROM
Palm OS:
• SDSC 3E: Palm OS 4.1 or greater
SDSC 3M/3P: Palm OS 5.2 or greater
• SDIO slot
Package Contents
• Secure Digital Scan Card
• Installation CD containing software and user documentation
• Booklets containing warranty and copyright information
Product Registration
Socket highly recommends that all customers register their
products. Registered users receive priority for technical support
and can choose to receive special offers for future products and
updates and the latest new product information. Register your
product online at www.socketmobile.com/support/support/new
Accessories
Socket has a FlexGuard silicone cover for the SD Scan Card 3M/3P
for use with the Motorola/Symbol MC35. For more information,
please visit: www.socketmobile.com/products/accessories/
Laser vs. Linear CMOS Bar Code Readers
To learn about different scanning technologies in the different
versions of the SD Scan Card, please read the technology brief at:
www.socketmobile.com/support/information-center/technologybriefs/.
6
2 | Setup for Windows Mobile
This chapter explains how to install and
use the SD Scan Card in a Pocket PC or
other device running Windows Mobile.
Setup Summary
STEP 1: Uninstall other scanning software.
STEP 2: Install the software.
STEP 3: Insert the card.
STEP 4: Assign a trigger button.
STEP 5: Scan data into your application.
Additional Features
Symbology selector
Scanner settings
SocketScan Trigger.
Note: If you are using the Socket SoMo 650 handheld
computer, SocketScan software is pre-installed, so you can
skip steps 1 and 2. The pre-installed SocketScan software
cannot be removed, but you can upgrade it.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 7
STEP 1: Uninstall Other Scanning Software
Delete any bar code scanning software already in your Pocket
PC, including previous versions of SocketScan. You can
uninstall either directly from your Pocket PC, or indirectly via
ActiveSync/Windows Mobile Device Center.
Note: The pre-installed SocketScan software on the Socket
Mobile SoMo 650 cannot be removed, but it can be upgraded.
OPTION 1: Uninstall Directly from the Pocket PC
1. Make sure the bar code scanning software is closed, and
remove the SDSC from your Pocket PC.
2. Tap Start | Settings. Tap on the System tab or Control
Panel.
3. Tap on the Remove Programs icon.
4. Select the bar code scanning software, then tap Remove.
5. Tap Yes to confirm removal of the program.
6. Soft reset the Pocket PC by pressing the reset button.
OPTION 2: Uninstall with ActiveSync
1. Make sure the bar code scanning software is closed, and
remove the SDSC from your Pocket PC.
2. Use ActiveSync and a serial/USB cable or cradle to make an
active connection between your Pocket PC and a host PC.
3. On the host PC, open Microsoft ActiveSync.
4. Click Tools | Add/Remove Programs.
5. Select the bar code scanning software and click Remove.
6. In the confirmation screen, click OK.
7. The next dialog will ask if you want to remove the
software from your host PC as well.
• Click NO to keep a copy of the software on the host PC
that can later be re-installed onto a Pocket PC.
• Click YES to remove the software from the host PC.
8
STEP 2: Install the Software
ADVANCED USERS: Refer to the README file for CAB
installation instructions.
Note: If you are using the SoMo 650, software installation is
not necessary. SocketScan is pre-loaded on the device.
1. Use a serial/USB cable or cradle and the appropriate
synchronization software to make an active connection
between your device and a host PC.
2. Insert the installation CD into your host PC.
3. Use My Computer or Windows Explorer to access your
CD-ROM drive. In the CD, click on SETUP.EXE.
4. The SocketScan Setup Center will appear in your web
browser. Read the first page and click Installation in the
left margin.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 9
5. In the SocketScan Installation page, in the Windows CE
section, click Install in the first paragraph.
6. Your web browser will present a series of dialogs.
Internet Explorer:
• In the File Download –Security Warning dialog, click Run.
• In the second warning dialog, click Run.
• Internet Explorer will download the file.
Firefox:
• In the file opening dialog, click Save File.
• Firefox will download the file.
• In the Downloads list, next to SocketScanCE.exe, click Open.
• In the warning dialog, click OK to continue.
7. The installation wizard will automatically begin. Follow the
wizard to install the software.
10
8. If your device warns that the software comes from an
unknown publisher, tap Yes to continue installation.
9. When installation is complete, remove the device from the
cradle. Soft reset the device by pressing the reset button.
IMPORTANT! Soft reset your device, or some icons will not
appear properly.
STEP 3: Insert the Card
Insert the card into your device’s SDIO slot. Make sure the card
is positioned correctly. Do not insert the card upside-down or
force the card in too hard.
IMPORTANT! To remove the SDSC, push the card
completely into the slot. After the card springs back,
you can safely remove the card. Do not pull the card
out without pushing first, or you can damage the
connector the next time you insert a card.
The SDIO slot of some devices will draw power from
the device’s main battery whenever an SD/SDIO card
is inserted (regardless of the card’s manufacturer),
even when the device is turned off. If you have one
of these devices, Socket Mobile recommends that you
remove
For more information, please visit:
www.socketmobile.com/support/downloads/datacollection/series3/
the card whenever the card is not in use.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 11
STEP 4: Assign a Trigger Button
Refer to your device’s user documentation to assign a trigger
button.
If you do not want to assign a hardware button to
trigger the scanner, you can install Socket’s Floating
Trigger, available on the installation CD.
If SocketScan is not running yet, you can press the
assigned trigger button to quickly launch SocketScan.
Pressing the trigger button will activate the scanner
1. Tap Start | Settings | Buttons.
only when SocketScan is open.
2. From the Button list, tap to select a button to trigger the
SD Scan Card. In the drop-down menu, select SocketScan.
When done, tap ok.
For maximum ergonomics,
choose a button located
directly beneath your thumb or
forefinger when you hold the
device. For the SoMo 650
handheld computer, the Right
and Left side buttons are
recommended.
12
STEP 5: Start SocketScan
1. Tap Start | Programs | SocketScan.
Alternatively, you can press the trigger
button to start the program.
2. Make sure the “Scan Card detected” icon appears at the
bottom of the Today screen.
Icon Meaning
SD Scan Card detected. SocketScan is ready
for bar code scanning.
No scanner detected. The scanner is either
missing or improperly inserted.
STEP 6: Open Your Application
1. Open the application that you want SocketScan to feed
scanned data into (e.g., Excel, Notepad, etc.).
2. Make sure a document or spreadsheet is open.
3. Place the cursor where you would like data from the next
scan to go.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 13
STEP 7: Scan Data into Your Application
1. Press the assigned trigger button and scan the bar code.
Make sure the aiming beam covers the entire width of the
bar code.
When data is read, a beep will sound, and the scanner
beam will turn off. If the SD Scan Card fails to read data
within a few seconds, the scanner beam will turn off, and
you must try again.
For tips on scanning technique, please refer to Appendix E.
If your device enters sleep mode when SocketScan
is running, press the ON button to initialize the
scanner and resume operation.
2. After a successful scan, data should appear in your
document. For example, after you scan a bar code into an
Excel Mobile spreadsheet, data should appear in the first
cell. The next cell should be highlighted, ready for the next
scan.
14
Symbology Selector
The applet makes it easy to modify which symbologies you
want the scanner to recognize.
1. Tap on the scanner icon at the bottom of the Today
screen. In the pop-up menu, select Symbology
Selector...
2. In the screen that appears, check the symbologies you
wish to enable. Uncheck those you wish to disable. Tap
ok.
Symbologies not supported by your version of the
SDSC will be gray.
Enabling all possible symbologies will make the
decode process slightly longer.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 15
Scanner Settings
The SocketScan configuration utility lets you specify prefix
and/or suffix characters to be added automatically to the data
you scan, as well as sounds to indicate a good read.
1. Tap on the SDSC scanner icon
Today screen. In the pop-up menu, select Settings...
You can configure prefix/suffixes and sounds whether or not
the SDSC is inserted.
2. In the Prefix/Suffix screen, enter the characters you want to
be appended to each scan (128 character maximum).
at the bottom of the
3. Tap on the Sound tab.
16
The default suffix is a carriage return. Only
printable ASCII characters can be used as prefixes
or suffixes.
If you scan bar codes into Word Mobile, the first
letter of each prefix will be capitalized.
4. In the screen that appears, select a sound for indicating
successful scans.
To you want to play a .WAV file, after selecting Play .wav
file, you can search through files by tapping the browse
box. In the Open screen, tap on the file you want:
Note: You can only
select a WAV file
from the My
Documents folder.
If needed, copy the
file you need to this
folder.
5. After making all your scanner setting selections tap ok.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 17
SocketScan Trigger
If you find it inconvenient or impossible to assign or use a
hardware button to trigger the scanner, you can install this
virtual trigger button that “floats” on top of the active
application.
1. Make sure to do all of the following before using
SocketScan Trigger:
• Install SocketScan Trigger from the installation CD. The
software must be installed separately from SocketScan.
• Start SocketScan. Tap Start | Programs | SocketScan.
• Insert the SD Scan Card into your Pocket PC.
• Open the application that you want to scan data into.
2. Tap Start | Programs | SocketScan Trigger.
3. The floating trigger button will appear on your screen on
top of the active application.
Drag from the title bar to move the trigger button to a
convenient place on the screen.
Tap the trigger button to activate the scanner.
18
4. A SocketScan Trigger icon will also appear in the menu bar
of the Today screen. Tap this icon to open a pop-up menu
with the following options:
• Tap Scan Now to activate the scanner as if you had
tapped the trigger button.
• Tap Remove Floating Trigger to remove the trigger
button from the screen but keep the icon handy on the
task bar. To restore the trigger button, tap on the menu
bar icon. In the pop-up menu, tap Launch Floating
Trigger.
• Tap About to view SocketScan Trigger version
information.
• Tap Close SocketScan Trigger to close the application
completely. From this state, the SocketScan trigger can
only be launched from the Programs page.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 19
DUAL DEVICE SUPPORT
SocketScan for Windows Mobile versions 7.2.4.0 and later
support the simultaneous use of two Socket Mobile data
collection devices with the same computer.
Note: SocketScan can capture data from only one cordless
scanner at a time.
Simply connect or plug in each device you plan to use as you
normally would.
The functionality of each device is the same, and no extra
configuration is required.
You can configure each device separately. In the SocketScan
menu, tap on the appropriate device to configure its settings.
20
3 | Setup for Palm OS
Setup Summary
STEP 1: Uninstall other scanning software.
STEP 2: Install the software.
STEP 3: Insert the card.
STEP 4: Configure SocketScan.
STEP 5: Scan data into your application.
Additional Features
Symbology selector
Scan test
Help files
Version information
The instructions in this chapter were based on a Tungsten
T running Palm OS 5.0. The instructions for your device
may differ.
For help using SocketScan, tap on the button on the
top of any screen.
STEP 1: Uninstall Other Scanning Software
Delete any previously installed versions of SocketScan or any
other bar code scanning software you may already have installed
on your device.
1. Tap Home, then tap Menu
2. In the App menu, tap Delete.
3. In the Delete screen, scroll to select your bar code scanning
application. Tap Delete. In the confirmation screen, tap Yes.
CHAPTER 3: SETUP FOR PALM 21
STEP 2: Install the Software
1. Use HotSync and a serial/Ethernet/USB cable or cradle to
connect your device to a host PC.
2. Insert the SocketScan installation CD into your host PC.
3. Use My Computer or Windows Explorer to access your CD-
ROM drive. In the CD, click on SETUP.EXE.
4. The SocketScan Setup Center will appear in your web browser.
Read the first page and click Installation in the left margin.
5. In the SocketScan Installation page, scroll down to the Palm
OS section and click on the Install link there.
22
6. Your web browser will present a series of dialogs.
Internet Explorer:
• In the File Download –Security Warning dialog, click Run.
• In the second warning dialog, click Run.
• Internet Explorer will download the file.
Firefox:
• In the file opening dialog, click Save File.
• Firefox will download the file.
• In the Downloads list, next to SocketScanCE.exe, click Open.
• In the warning dialog, click OK to continue.
7. The installation wizard will automatically begin. Follow the
wizard to install the software.
8. When software installation is complete, disconnect the device
from the host PC. Soft reset the device by pressing the reset
button.
9. A Socket icon should appear on the screen of your device. Tap
this icon to install the correct version of SocketScan on your
Palm device.
10. Soft reset the Palm device again by pressing the reset button.
CHAPTER 3: SETUP FOR PALM 23
STEP 3: Insert the Card
Insert the card into your Palm device’s SDIO slot. Make sure the
card is positioned correctly. Do not force or shove the card in too
hard.
Older Palm m100 & m500 series devices: The SDIO slot is
reversed, so the scanner must be inserted backwards.
To remove the SD Scan Card, push the card completely
into the slot. After the card springs back, gently remove
the card. Do not pull the card out without pushing first,
or you may damage the connector the next time you
insert a card
Make sure you have soft reset your device after
software installation before you insert the card. Press
the reset button.
STEP 4: Start SocketScan
1. Start SocketScan. Tap on the Home icon.
2. In the menu in the upper right corner, select All.
3. Scroll to the SocketScan icon. Tap on the icon.
24
STEP 5: Configure Scanner Settings

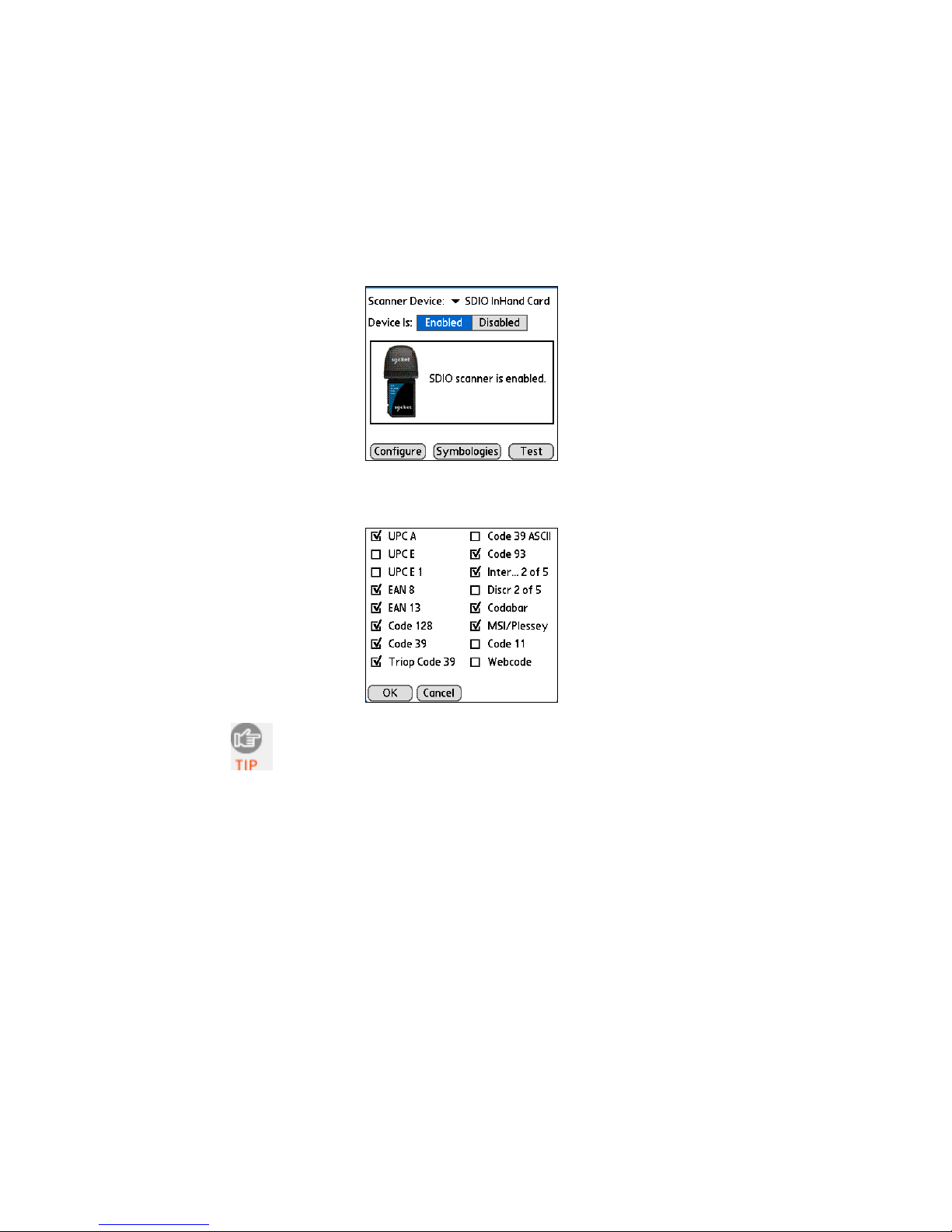

1. In the main screen of SocketScan, in Scanner Device field,
make sure SD Scan Card is selected. A picture of the SD Scan
Card should appear.
2. Tap Enabled. Buttons will appear at the bottom of the screen.
Tap Configure.
3. Use the Configure screen to configure basic options:

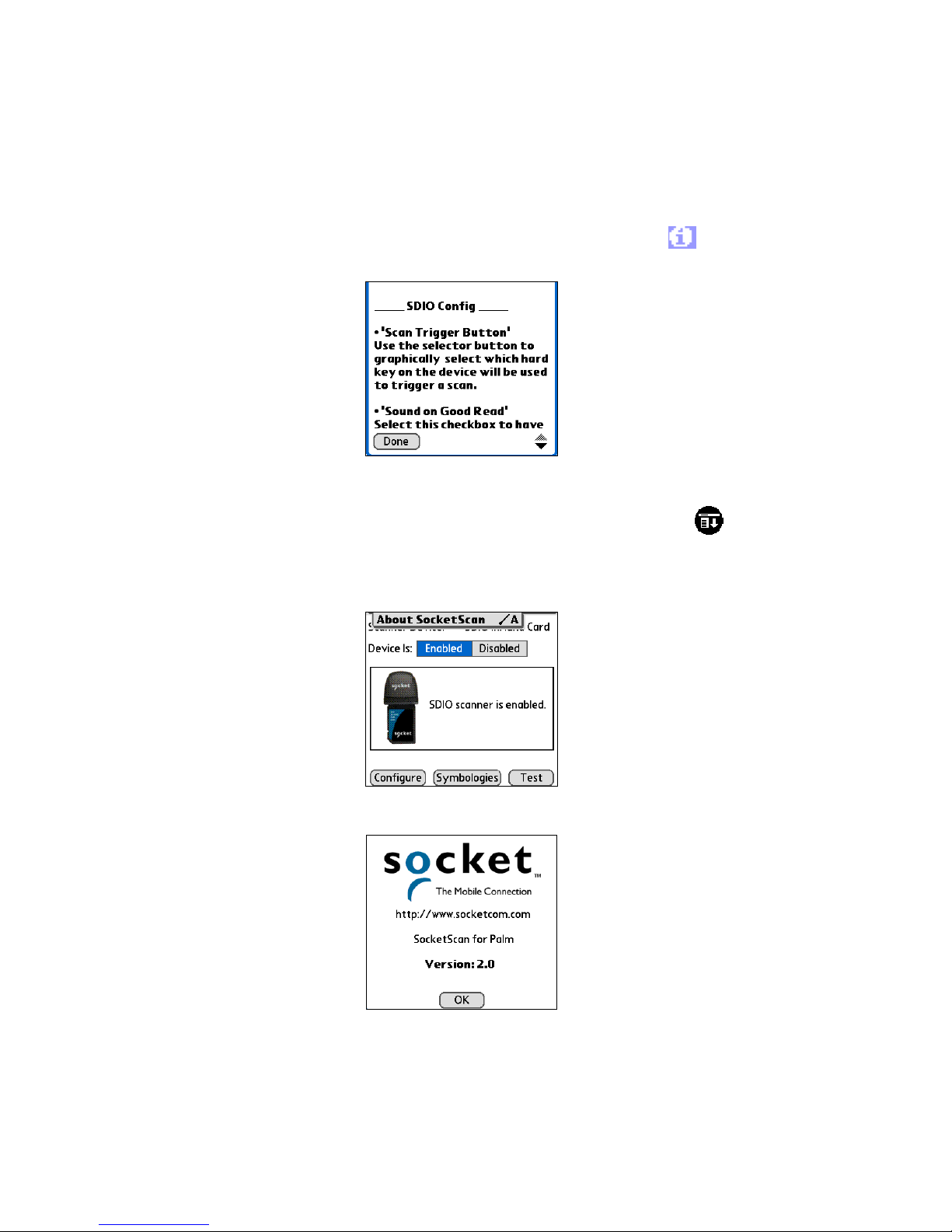

For help on SocketScan, tap on the
symbol in the
upper right corner.
CHAPTER 3: SETUP FOR PALM 25
• Scan Trigger Button: Tap to select the hardware button
you would like to use to trigger the scanner. In the screen
that appears, select the hardware button and tap OK.
At this time, Palm utilities do not allow assignment of
the Record or Voice button as a trigger.
Some older versions of the Palm Treo will only allow
you to trigger the scanner with Button 1 or Button 2
(Calendar or Email button).
• Sound on Good Read: Check if you would like the device to
make a sound whenever the scanner successfully reads a bar
code. In the drop-down menu, select the sound you want.
• Sound Volume: Select the sound volume used to indicate
good reads.
• Insert Special: Make sure the cursor is in either the Prefix
or Suffix field. Use the Insert Special drop-down menu to
select a special function or data (e.g., time stamp) to insert
before or after each scan.
• Prefix/Suffix: Enter any characters or functions you would
like to append to each scan. Besides special functions listed in
the Insert Special menu, only printable ASCII characters can
be used as prefixes or suffixes.
A carriage return [CR] is the default Suffix. This suffix
advances the cursor to the next data field in your
application.
26
• Launch App: Check if you want SocketScan to launch an
application when you start to scan. In the drop-down
menu, select the application.
Do not choose Blazer as the auto-launch application.
4. Tap OK to make the settings take effect.
STEP 6: Open Your Application
If you did not assign SocketScan to launch an application, then
you need to manually start the application that you want
SocketScan to feed scanned data into (e.g., SheetToGo).
1. Open the application.
2. Make sure a new document or spreadsheet is open.
3. Place the cursor where you want information from the next
scan to go.
CHAPTER 3: SETUP FOR PALM 27
STEP 7: Scan Data into Your Application
1. Press the assigned trigger button and scan the bar code. Make
sure the aiming beam covers the entire width of the bar code.
For scanning tips, please refer to Appendix E.
2. When data is read, your device will make a sound if you
configured SocketScan to do so, the scanner will turn off, and
data will appear in your application.
For example, after you scan the bar code above into a new
spreadsheet, data should appear on the first line.
If no data is read within a few seconds, the scanner will turn
off, and you must try again.
28
Symbology Selector
1. In the main screen of SocketScan, make sure the SDSC scanner
is enabled and tap Symbologies.
2. Use the checkboxes to select which symbologies you would
like the scanner to decode. Tap OK.
Enabling all possible symbologies will make the decode
process slightly longer.
CHAPTER 3: SETUP FOR PALM 29
Scan Test
1. In the main screen of SocketScan, make sure the SDSC scanner
is enabled and tap Test.
2. Tap Scan to trigger the scanner and scan a bar code.
You cannot use the hardware trigger button for the
scan test. Use the Scan button to trigger the scanner.
3. SocketScan will report the encoded data, as well as its
symbology type and length. To view the data in hexadecimal
format, check View as Hex.
4. When done, tap OK to exit the Test Scan.
30
Help Files
When SocketScan is open, access help files by tapping on the
symbol in the upper right corner.
Version Information
1. In the main screen of SocketScan, tap on the Options button
or tap on the upper left corner of the screen to access the
Options menu.
2. In the Options menu, tap About SocketScan.
3. View the software version information, then tap OK.
CHAPTER 3: SETUP FOR PALM 31
Appendix A
Specifications
Physical Characteristics:
Dimensions:
SDSC 3E: 61.5 x 28.0 x 14.6 mm
SDSC 3M/3P: 66.5 x 29.4 x 20.0 mm
Total Mass:
SDSC 3E: 8 g (0.3 oz)
SDSC 3M/3P: 17 g (0.6 oz)
Environmental Specifications:
Operating Temperature: 32 10 122°F (0 to 50°C)
Storage Temperature
SDSC 3E: -22 to 158°F (-30 to 70°C)
SDSC 3M/3P: -40 to 158°F (-40 to 70°C)
Relative Humidity: 5% to 95% non-condensing
Ambient Light
SDSC 3E: 0.5 ft candles (5 lux) to 8,000 ft candles (86,112 lux)
SDSC 3M/3P: Sunlight: 10,000 ft candles (107,650 lux)
Artificial light: 450 ft candles (4,844 lux)
Power Consumption (3.3 V Supply):
Standby:
SDSC 3E/3M/3P: 4 mA (13 mW)
Scanning (typical):
SDSC 3E: 56 mA (185 mW)
SDSC 3M/3P: 90 mA (297 mW)
Laser Power at 650 nm:
SDSC 3M: 0.7 mW (±0.1mW)
SDSC 3P: 1.7 mW (±0.2 mW)
Scanner Type
SDSC 3E: CMOS linear imager for linear (1D) bar codes
SDSC 3M: Class 1 laser for linear and stacked linear composite bar
codes
SDSC 3P: Class 2 laser for linear and stacked linear composite bar
codes
Bar Code Symbologies Automatically Detected:
SDSC 3E: Code 39, UPC/EAN, Code 128, I 2of5, D 2of5, Code 93,
Codabar, MSI/Plessey, Code 11, and Web Code
32 | APPENDIX A: SPECIFICATIONS
SDSC 3M/3P: Same as above except WebCode plus Chinese 20f 5
and RSS-14/Limited/Expanded
Scanner Decode Distance: Depends on symbol size,
symbology, label media, W-N ratio, scan angle
SDSC 3E: 3.8 to 20 cm (1.5 to 8 inches)
SDSC 3M: 3.8 to 51 cm (1.5 to 20 inches)
SDSC 3P: 3.8 to 114+ cm (1.5 to 45+ inches)

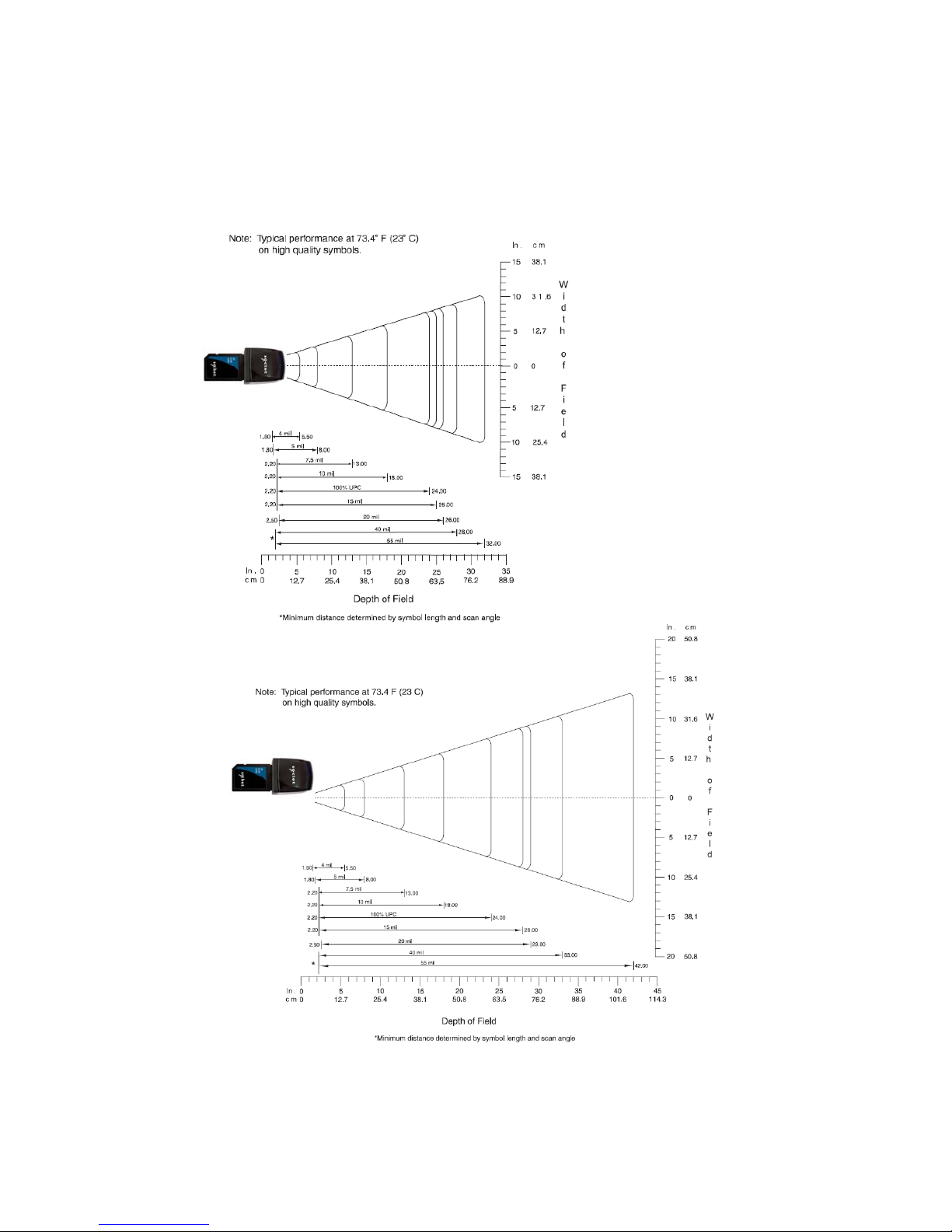

See Appendix D for more detailed information.
Scan Repetition Rate
SDSC 3E: Frame rate varies with the amount of ambient light
SDSC 3M/3P: 100 scans/second bi-directional
Optical Resolution
SDSC 3M/3P: 0.004 inch (0.102 mm) minimum per bar code
element width (X Dimension)
Print Contrast
SDSC 3E: 35% MRD measured at 674 nm
SDSC 3M/3P: Minimum 25% absolute dark/light reflectance
(MRD) measured at 650 nm
Scan Angle
SDSC 3M/3P: Wide (default): 47° ±3° Narrow: 35° ± 3°
Interface Standard: SDIO
Operating System Support:
• Windows Mobile 5.0 for Pocket PC/Pocket PC Phone
• Windows Mobile 2003/2003SE for Pocket PC/Pocket PC Phone
with BSQUARE SDIO Now! software in ROM
• Windows Mobile 6.0/6.1 Classic/Professional
• Palm OS 4.1 or greater for SDSC 3E
• Palm OS 5.2 or greater for SDSC 3M/3P
Software Included:
• Installation utility
• SocketScan software with keyboard emulation for Windows
Mobile and Palm OS
• Socket Floating Trigger for Windows CE
APPENDIX A: SPECIFICATIONS | 33
Warranty: One year
Certification/Compliance:
SDSC 3E: C-TICK s.182, FCC: Part 15, Class B, CE:EN55024:1998,
RoHS
SDSC 3M/3P: Same as above plus: ICES-003 Class B, AS 3548, CISPR
22, Japan VCCI Class B, 21CFR1040.10, 21CFR1040.11
34 | APPENDIX A: SPECIFICATIONS
Appendix B
Bar Code Label Specifications
All bar code symbols/labels should satisfy the appropriate AIM
Uniform Symbology Specification.
Background Substrate:
The bar code symbol should be printed on material (media) that
is reflective and has a matte (not glossy) finish. A background
diffuse reflectance of at least 70% to 80% is desirable for
optimum contrast. Retro-reflective media should be used to
obtain decode distances greater than 36 inches.
Ink Color and Type:
The inked bars should not exceed 25% reflectance at the
wavelength that is being used for reading, whether printed with
black ink or colored ink. The reflectance value should not vary
more than 5% within the same character.
Voids and Specks:
The code should be printed clearly, free of voids, specks,
blemishes and lines that could “fool” the scanner. Specks or
blemishes in the white spaces, or false or missing bar sections
could be interpreted by the reading equipment as part of the
code. Generally, the width of such flaws is more serious than the
height. Code symbols/ labels should be rejected if these defects
are present.
Definition:
The bars in the bar code symbol should be well defined. Their
edges should not be rough or fuzzy, so that the bars and spaces
have the proper widths intended for the bar code symbology
used.
Contrast:
Background reflectance (that of the substrate on which the codes
are printed) should always provide a good contrast relative to
the ink reflectance (that of the code bars). The difference
between the two should be at least 37.5% at the wavelength
used for reading.
APPENDIX B: BAR CODE LABEL SPECIFICATIONS | 35
Tolerance:
The ratio of the widths of bars and spaces in a bar code symbol
must conform to the appropriate AIM bar code specifications and
can cause problems if not correct throughout the bar code.
Problems can occur when bar edges are smeared or rough, or
when they exhibit voids.
36 | APPENDIX B: BAR CODE LABEL SPECIFICATIONS
Appendix C
Enabling or Disabling Symbologies
Socket Mobile bar code scanning products are pre-set to automatically detect
and decode (autodiscriminate) the most common bar code symbologies. Refer
to the following tables to determine which symbologies and parameters are
default. To change your symbology settings, use either of two methods,
depending on your device type and which settings you want to change.
Note:
• Enabling more symbologies makes the scanner work harder to search through
all possible combinations. This may make the decoding process slightly
longer.
• Do not enable Code 39 Full ASCII and Trioptic Code 39 simultaneously.
OPTION 1: Symbology Selector for Windows Mobile
If you are using a Windows Mobile-based device, you can quickly enable and
disable any of the seventeen most popular symbologies by using the SocketScan
Symbology Selector. Refer to Chapter 2 for instructions.
Note: The length of some symbologies will change after Symbology Selector is
used. Refer to the table on the next page.
OPTION 2: Scan Programming Bar Codes
If you are not using a Windows CE device, and/or if you want to modify an
option not included in Symbology Selector, you can scan programming bar
codes to configure your SD Scan Card. There are programming bar codes that
let you enable/disable symbologies as well as configure special features (e.g.,
specify bar code lengths, transmit check digits, recognize supplementals, etc.).
Programming bar codes are available in the Advanced Programming Guide
online at www.socketmobile.com/support/downloads/data-
collection/series3/?page=Detail
WARNING!
When scanning programming bar codes with the SD Scan Card, do not scan any bar
codes that set communication protocols, or the SDSC will be disabled and must be
returned to Socket Mobile for reprogramming.
APPENDIX C: ENABLING OR DISABLING SYMBOLOGIES | 37
Table 1. Default Symbologies of the SDSC 3E
Symbology
Scanner
Default
Default
Length
UPC/EAN/JAN
UPC-A Enabled N/A N/A
UPC-E Enabled N/A N/A
UPC-E1 Disabled N/A N/A
EAN-8 Enabled N/A N/A
EAN-13 Enabled N/A N/A
Code 128 (USS-128 & UCC/EAN 128) Enabled Any Any
Code 39*
Code 39 Enabled 2 to 23 2 to 55
Trioptic Code 39 Enabled 2 to 23 2 to 55
Code 39 Full ASCII Disabled 2 to 23 2 to 55
Code 93 Disabled 2 to 38 2 to 55
Interleaved 2 of 5* Enabled 14 Only 2 to 55
Discrete 2 of 5* Disabled 12 Only 2 to 55
Codabar Disabled 5 to 55 2 to 55
MSI Plessey* Disabled 1 to 30 2 to 55
Code 11 Disabled 2 to 41 2 to 41
Webcode Disabled 2 to 55 2 to 55
WARNING! Setting the length to “Any” may lead to inaccurate
decodes of these symbologies!
Length after
Symbology
38 | APPENDIX C: ENABLING OR DISABLING SYMBOLOGIES
The advanced symbology parameters listed in Table 2 can be modified by
following the instructions in the Advanced Programming Guide or by using
the SocketScan SDK. Check the Socket Mobile website for updates.
Table 2. Other Symbology Parameters of the SDSC 3E
Symbology Parameters Scanner Default
UPC/EAN/JAN
Supplementals Disabled
Transmit Check Digit Enabled
Bookland EAN Disabled
Decode UPC/EAN Supplementals Ignore
UPC/EAN Supplemental Redundancy Seven
Transmit UPC-A Check Digit Enabled
Transmit UPC-E Check Digit Enabled
Transmit UPC-E1 Check Digit Enabled
Convert UPC-E to A Disabled
Convert UPC-E1 to A Disabled
EAN-8 Zero Extend Disabled
UPC/EAN Security Level 0
UPC/EAN Coupon Code Disabled
Code 39
Convert Code 39 to Code 32 Disabled
Code 32 Prefix Disabled
Check Digit Verification Disabled
Transmit Check Digit Disabled
Code 39 Full ASCII Disabled
Interleaved 2 of 5
Check Digit Verification Disabled
Transmit Check Digit Disabled
Convert I 2 of 5 to EAN-13 Disabled
MSI Plessey
MSI Plessey Check Digits One
Transmit Check Digit Disabled
Check Digit Algorithm Mod 10/Mod 10
Webcode
Enable GT Web Code Disabled
APPENDIX C: ENABLING OR DISABLING SYMBOLOGIES | 39
Table 3. Default Symbologies of the SDSC 3M/3P
UPC/EAN
UPC-A Enable
UPC-E Enable
UPC-E1 Disable
EAN-8 Enable
EAN-13 Enable
Bookland EAN Disable
Decode UPC/EAN Supplementals Ignore
Decode UPC/EAN Supplemental
Redundancy
Transmit UPC-A Check Digit Enable
Transmit UPC-E Check Digit Enable
Transmit UPC-E1 Check Digit Enable
UPC-A Preamble System Character
UPC-E Preamble System Character
UPC-E1 Preamble System Character
Convert UPC-E to A Disable
Convert UPC-E1 to A Disable
EAN-8 Zero Extend Disable
Convert EAN-8 to EAN-13 Type Type is EAN-13
UPC/EAN Security Level 0
UCC Coupon Extended Code Disable
Code 128
Code-128 Enable
UCC/EAN-128 Enable
ISBT 128 Enable
Code 39
Code 39 Enable
Trioptic Code 39 Disable
Convert Code 39 to Code 32 Disable
Code 32 Prefix Disable
Set Length(s) for Code 39 2-55
Code 39 Check Digit Verification Disable
Transmit Code 39 Check Digit Disable
Code 39 Full ASCII Conversion Disable
Code 93
Code 93 Disable
Set Length(s) for Code 93 4-55
7
40 | APPENDIX C: ENABLING OR DISABLING SYMBOLOGIES
Code 11
Code 11 Disable
Set Lengths for Code 4 to 55
Code 11 Check Digit Verification Disable
Transmit Code 11 Check Digit(s) Disable
Interleaved 2 of 5
Interleaved 2 of 5 Enable
Set Length(s) for I 2 of 5 14
I 2 of 5 Check Digit Verification Disable
Transmit I 2 of 5 Check Digit Disable
Convert I 2 of 5 to EAN 13 Disable
Discrete 2 of 5
Discrete 2 of 5 Disable
Set Length(s) for D 2 of 5 12
Chinese 2 of 5
Chinese 2 of 5 Disable
Codabar
Codabar Disable
Set Lengths for Codabar 5-55
CLSI Editing Disable
NOTIS Editing Disable
MSI
MSI Disable
Set Length(s) for MSI 6-55
MSI Check Digits One
Transmit MSI Check Digit Disable
MSI Check Digit Algorithm Mod 10/Mod 10
RSS
RSS-14 Disable
RSS-Limited Disable
RSS-Expanded Disable
APPENDIX C: ENABLING OR DISABLING SYMBOLOGIES | 41
Appendix D
Decode Zone
The decode zone is a function of various symbol characteristics
including density, print contrast, wide-to-narrow ratio, and edge
acuity. The minimum element width (also known as the “X
Dimension”, “size” or “symbol density” of a bar code) is the
width in thousandths of an inch (or ‘mils’) of the narrowest
element (bar or space) in the bar code. The figures shown are
the typical scanning distances (Depth of Field) for selected bar
code sizes.
For example, the SD Scan Card 3E should be able to scan a 10 mil
bar code when the bar code is positioned between 1.25 and 7.5
inches from the nose of the scanner.
The maximum readable length of a bar code symbol (Width of
Field) at any given range is also shown. In the example above,
the maximum length of a 10 mil bar code scanned at a distance
of 7.5 inches is approximately 8 inches including the quiet zone.
SDSC 3E
42 | APPENDIX D: DECODE ZONE
SDSC 3M
SDSC 3P
APPENDIX D: DECODE ZONE | 43
Decode Distances
The following tables list the typical and guaranteed scanning
distances for selected bar code sizes. The minimum element
width (“X Dimension”, “size” or "symbol density") is the width in
mils of the narrowest element (bar or space) in the symbol.
SDSC 3E
Symbol
Density /Bar
Code Type
/W-N Ratio
6 mil
Code 39; 2.5:1
Bar Code
Content
/Contrast
123
80% MRD
Typical
Working Ranges
Near Far Near Far
2.25 in
5.72 cm
4.50 in
11.43 cm
Guaranteed
Working Ranges
3.00 in
7.62 cm
10.16 cm
4.00 in
7.5 mil
Code 39; 2.5:1
10 mil
Code 39; 2.5:1
13 mil
UPCA; 2.5:1
20 mil
Code 39; 2.5:1
55 mil (4)
Code 39; 2.5:1
ABCDEF
80% MRD
FGH
80% MRD
01234567890
5
80% MRD
123
80% MRD
CD
80% MRD
1.75 in
4.45 cm
1.25 in
3.18 cm
2.00 in
5.08 cm
2.20 in
5.59 cm
4.30 in
10.92 cm
6.25 in
15.88 cm
7.50 in
19.05 cm
8.50 in
21.59 cm
12.00 in
30.48 cm
24.00 in
60.96 cm
2.50 in
6.35 cm
2.00 in
5.08 cm
2.50 in
6.36 cm
Note 2
Note 2
Notes:
1. Contrast measured as Mean Reflective Difference (MRD) at 670 nm.
2. Near ranges on lower densities depend on the width of the bar code and
the scan angle.
3. Working range specifications at ambient temperature (23 C).
4. Retro-reflective label media used for 55 mil bar code.
4.75 in
12.07 cm
6.00 in
15.24 cm
7.25 in
18.42 cm
10.75 in
27.31 cm
16.00 in
40.64 cm
44 | APPENDIX D: DECODE ZONE
SDSC 3M
Symbol
Density/ Bar
Code Type/ W-
N Ratio
4.0 mil
Code 39; 2.5:1
Bar Code
Content/
Contrast
ABCDEFGH
80% MRD
Note 1
Typical Working
Ranges
Near Far Near Far
1.00 in
2.50 cm
5.50 in
13.97 cm
Guaranteed
Working Ranges
2.20 in
5.59 cm
3.20 in
8.13 cm
5.0 mil
Code 39; 2.5:1
7.5 mil
Code 39; 2.5:1
10 mil
Code 39; 2.5:1
13 mil
100% UPC
15 mil
Code 39; 2.5:1
20 mil
Code 39; 2.2:1
40 mil
Code 39; 2.2:1
55 mil
Code 39; 2.2:1
ABCDEFGH
80% MRD
ABCDEF
80% MRD
ABCDE
90% MRD
12345678905
90% MRD
ABCD
80% MRD
123
80% MRD
AB
80% MRD
CD
80% MRD
1.25 in
3.18 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.75 in
4.45 cm
X
X
8.00 in
20.32 cm
13.00 in
33.02 cm
18.00 in
45.72 cm
24.00 in
60.96 cm
25.00 in
63.50 cm
29.00 in
73.66 cm
31.00 in
78.74 cm
35.00 in
88.90 cm
2.20 in
5.59 cm
2.00 in
5.08 cm
1.75 in
4.45 cm
1.75 in
4.45 cm
1.75 in
4.45 cm
X
X
X
Notes:
1. CONTRAST measured as Mean Reflective Difference (MRD) at 650 nm.
2. Near ranges on lower densities (not specified) are largely dependent upon
the width of the bar code and the scan angle.
3. Working range specifications at ambient temperature (23°C),
Photographic quality symbols. pitch=10°, roll=0°, skew=0°, ambient light <
150 ft-candles.
4. X - Dependent on width of bar code.
5. Distances measured from front edge of chassis.
5.50 in
13.97 cm
9.00 in
22.86 cm
13.00 in
33.02 cm
17.00 in
43.18 cm
18.00 in
45.72 cm
19.00 in
48.26 cm
21.00 in
53.34cm
25.00 in
63.50 cm
APPENDIX D: DECODE ZONE | 45
SDSC 3P
Symbol
Density/ Bar
Code Type/ W-
N Ratio
4.0 mil
Code 39; 2.5:1
Bar Code
Content/
Contrast
ABCDEFGH
80% MRD
Note 1
Typical Working
Ranges
Near Far Near Far
1.00 in
2.50 cm
5.50 in
13.97 cm
Guaranteed
Working Ranges
2.20 in
5.59 cm
3.20 in
8.13 cm
5.0 mil
Code 39; 2.5:1
7.5 mil
Code 39; 2.5:1
10 mil
Code 39; 2.5:1
13 mil
100% UPC
15 mil
Code 39; 2.5:1
20 mil
Code 39; 2.2:1
40 mil
Code 39; 2.2:1
55 mil
Code 39; 2.2:1
ABCDEFGH
80% MRD
ABCDEF
80% MRD
ABCDE
90% MRD
12345678905
90% MRD
ABCD
80% MRD
123
80% MRD
AB
80% MRD
CD
80% MRD
1.25 in
3.18 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.50 in
3.81 cm
1.75 in
4.45 cm
X
X
8.00 in
20.32 cm
13.00 in
33.02 cm
18.00 in
45.72 cm
24.00 in
60.96 cm
28.00 in
71.12 cm
33.00 in
83.82 cm
36.00 in
91.44 cm
45.00 in
114.30 cm
2.20 in
5.59 cm
2.00 in
5.08 cm
1.75 in
4.45 cm
1.75 in
4.45 cm
1.75 in
4.45 cm
X
X
X
Notes:
1. CONTRAST measured as Mean Reflective Difference (MRD) at 650 nm.
2. Near ranges on lower densities (not specified) are largely dependent upon
the width of the bar code and the scan angle.
3. Working range specifications at ambient temperature (23°C), Photographic
quality symbols. pitch=10°, roll=0°, skew=0°, ambient light < 150 ft-candles.
4. X - Dependent on width of bar code.
5. Distances measured from front edge of chassis.
5.50 in
13.97 cm
9.50 in
24.13 cm
14.00 in
35.56 cm
18.00 in
45.72 cm
21.00 in
53.34 cm
27.00 in
68.58 cm
28.00 in
71.12cm
34.00 in
86.36 cm
46 | APPENDIX D: DECODE ZONE
Appendix E
Scanning Tips
Practice to determine the best scanning angle and distance for
your type of bar code.
Aiming Beam
Aim the scanner so that the red beam covers the entire width of
the bar code.
Scan Angle — SD Scan Card 3M/3P
For best results with the laser-based SD Scan Card, position the
scanner at an angle to the bar code, at least 15° from
perpendicular. Otherwise, light can bounce back into the scanner
and “blind” the sensing mechanism.
APPENDIX E: SCANNING TIPS | 47
Scanning with the SD Scan Card 3E
The SD Scan Card 3E is based on miniature CMOS linear imaging
technology. This device is basically a camera that captures
rectangular digital images measuring about 1 degree high and
40 degrees wide. The imaging rate varies between about 20 and
40 images per second and automatically compensates for
ambient lighting conditions — the more ambient light, the more
images per second. It is inappropriate, however, to compare this
imaging rate to the rate of the sweeping beam of a laser scanner
because the CMOS image is affected by blurring, while the laser
technology is not. For this reason, it’s important to hold this
scanner still while scanning.
Adequate lighting of the target bar code is critical to scanning
with imaging technology. Unfortunately, providing auxiliary
lighting increases the size, energy consumption, control
complexity and cost of the scanning device. For these reasons,
the red light from the SDSC scanner is simply an aiming beam —
it does not add any auxiliary lighting to the target bar code. For
this reason, it’s important to provide adequate ambient lighting
to the target bar code while scanning with this scanner.
Like all cameras, the SD Scan Card 3E has a "focal length"
(minimum and maximum distance from the target) where the
image can be clearly captured. The focal length of the SDSC
scanner is rather small compared to that of laser scanners. For
best results while scanning “normal” sized bar codes such as the
UPC codes used on retail items, the SDSC scanner should be held
from about 4 to 7 inches (10 to 18 cm) from the target.
Tips for Maximizing SDSC 3E Scanner Performance:
1. Minimize movement during scanning — The SD Scan Card 3E
must be held reasonably steady on the target for a short
period of time while the camera focuses and captures a clear
image. The scanner typically requires only several milliseconds
to capture a clear image, no more than a quarter to a half of a
second.
2. Provide adequate ambient lighting
any camera, works much better when the target bar code is
well-lit.
3. Determine the optimum focal length
a fairly small focal length, so it is helpful to experiment until
—The SDSC scanner, like
— The SDSC scanner has
48 | APPENDIX E: SCANNING TIPS
you find the best scanning distance. Hint: When encountering
scanning difficulties, most people have a tendency to move the
scanner too close to the target bar code! Try moving it farther
away for better results.
4. Position the scanner at an angle
— No bar code scanner works
well when positioned exactly perpendicular to the target bar
code label, because the reflected light tends to “blind” the
sensing mechanism. For best results, position the scanner at
least 15 degrees away from the perpendicular to the surface of
the bar code.
5. Experiment with different techniques and conditions
— The
more you experiment with different techniques, lighting
conditions, scanning distances and positions, the more
proficient you will become.
APPENDIX E: SCANNING TIPS | 49
Appendix F
Troubleshooting
For help on SocketScan, tap Start | Help on a Pocket PC, or tap
on the
icon on a Palm device.
SYMPTOM:
I get the “No Card Detected” icon in the task tray of my
Pocket PC and can’t trigger the scanner or scan bar codes.
POSSIBLE REASON SOLUTION
Your Pocket PC does not
recognize the SD Scan Card
3E.
Make sure the card is inserted
properly. If necessary, remove
and reinsert. If using battery
power, be sure to tap Y
asked whether you want to
use battery power.
es if
SYMPTOM:
When I try to scan, the scanner activates, but no data
appears on my screen, and the scanner eventually
deactivates.
POSSIBLE REASON SOLUTION
The scanner is too close or too
far from the bar code.
The bar code is incorrectly
formatted or poorly printed.
The bar code symbology may
be disabled.
Practice so you get
accustomed the most
effective distance and
scanning angle. See Appendix
E.
Try scanning a bar code that is
correctly formatted or printed
well, such as on a retail
package. See Appendix B.
If you have Palm device, you
can perform a scan test to
identify the symbology. If
needed, use Symbology
Selector to enable the
symbology.
50 | APPENDIX F: TROUBLESHOOTING
SYMPTOM:
When I press the trigger button, nothing happens.
POSSIBLE REASON SOLUTION
The hardware button is
defective.
You are using an older Palm
Treo and have not assigned
the trigger to Button 1 or 2.
SocketScan is configured to
automatically launch Blazer.
Test the button by assigning a
different program to it and
make sure it works properly.
If needed, use the SocketScan
utility to assign a different
button to trigger the scanner.
Download the latest ROM for
your device, or use the
SocketScan utility to change
the button assignment to
Button 1 or 2.
Use the SocketScan utility to
either deselect Auto-launch or
to change the Auto-launch
application.
APPENDIX F: TROUBLESHOOTING | 51
Appendix G
Technical Support
For help on SocketScan, tap Start | Help on a Pocket PC, or tap
on the
If you have trouble installing or using the SD Scan Card, Socket
has different support options to help you.
Online Knowledge Base: Search for articles, Frequently Asked
Questions or Hot Topics any time, day or night.
www.socketmobile.com/support
Online Requests: Register your product and submit a question
to our Technical Support Team.
www.socketmobile.com/support/support/login.asp
By Phone: Contact our Tier 1 Technical Support by calling either:
• USA & Canada Toll-Free: 800-279-1390
• Direct: +1- 510-933-3020
Please refrain from disassembling the scanner. Disassembly of
this device will void the product warranty.
icon on a Palm device.
Click on FAQs.
52 | APPENDIX G: TECHNICAL SUPPORT
Limited Warranty
Socket Mobile, Inc. warrants this product against defects in material and
workmanship, under normal use and service, for one (1) year from the
date of purchase.
EXCLUDES: Consumables such as batteries, removable cables,
cases, straps, chargers, and CF-to-PC Card adapters (90 day
coverage only)
Incompatibility is not a defect covered by the Socket Mobile warranty.
During the warranty period, Socket Mobile will, at its option, repair or
replace the defective product at no charge when furnished with proof
of retail purchase, provided that you deliver the product to Socket
Mobile or to an authorized Socket Mobile Service Center.
The returned product must be accompanied by a return material
authorization (RMA) number issued by Socket or by a Socket Mobile
Authorized Service Center. If you ship the product, you must use the
original container or equivalent and you must pay the shipping charges
to Socket Mobile. Socket Mobile will pay surface shipping charges back
to any location in the contiguous United States. This warranty applies
only to the original retail purchaser and is not transferable.
Socket Mobile may, at its option, replace or repair the product with new
or reconditioned parts and the returned product becomes the property
of Socket Mobile. Socket Mobile warrants the repaired or replaced
products to be free from defects in material or workmanship for ninety
(90) days after the return shipping date, or for the remainder of the
original warranty period, whichever is greater.
This warranty does not cover the replacement of products damaged by
abuse, accident, misuse or misapplication, nor as a result of service or
modification other than by Socket.
SOCKET MOBILE IS NOT RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY, INCLUDING DAMAGE TO PROPERTY AND, TO
THE EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Some states do not allow limitation of implied warranties, or the
exclusion or limitation of incidental or consequential damages, so that
the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights which
vary from state to state.
53
This product may contain fully tested, recycled parts, warranted as if
new.
For warranty information, please visit: www.socketmobile.com/support
Disclaimer
EXCEPT TO THE EXTENT EXPRESSLY WARRANTED BY SOCKET MOBILE,
INC, THIS PRODUCT IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. EXCEPT TO THE EXTENT REQUIRED BY LAW,
SOCKET MOBILE DOES NOT ASSUME ANY PRODUCT LIABILITY ARISING
OUT OF, OR IN CONNECTION WITH, THE APPLICATION OR USE OF ANY
PRODUCT OR APPLICATION DESCRIBED HEREIN.
54
Limited Software Warranty
LIMITED WARRANTY. Socket Mobile warrants that the original disk or
CD ROM is free from defects for 90 days from the date of delivery of the
SOFTWARE.
CUSTOMER REMEDIES. The entire liability of Socket Mobile and your
exclusive remedy shall be, at the option of Socket Mobile, either (a)
return of the price paid or (b) replacement of the SOFTWARE which
does not meet the Socket Mobile Limited Warranty and which is
returned to Socket Mobile E with a copy of your receipt. Any
replacement SOFTWARE will be warranted for the remainder of the
original warranty period or 30 days, whichever is longer. THESE
REMEDIES ARE NOT AVAILABLE OUTSIDE OF THE UNITED STATES OF
AMERICA.
NO OTHER WARRANTIES. Socket Mobile disclaims all other warranties,
either express or implied, including but not limited to implied
warranties of merchantability and fitness for a particular purpose, with
respect to the SOFTWARE and the accompanying written materials. This
limited warranty gives you specific legal rights. You may have others
which vary from state to state.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES. In no event shall Socket
Mobile or its suppliers be liable for any damages whatsoever (including,
without limitation, damages for loss of business profits, business
interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use the SOFTWARE, even if
Socket Mobile has been advised of the possibility of such damages.
Because some states do not allow the exclusion or limitation of liability
for consequential or incidental damages, the above limitation may not
apply to you.
EXPORT LAW ASSURANCES. You may not use or otherwise export or
reexport the SOFTWARE except as authorized by United States law and
laws of the jurisdiction in which the SOFTWARE was obtained. In
particular, but without limitation, none of the SOFTWARE may be used
or otherwise exported or reexported (a) into (or to a national or
resident of) a United States embargoed country or (b) to anyone on the
U.S. Treasury Department’s list of Specially Designated Nationals or the
U.S. Department of Commerce’s Table of Denial Orders. By using the
SOFTWARE, you represent and warrant that you are not located in,
under control of, or a national or resident of any such country or on any
such list.
GOVERNMENT END USERS. If the SOFTWARE is supplied to the U. S.
Government, the SOFTWARE is classified as “restricted computer
55
software” as defined in clause 52.227-19 of the FAR. The U. S.
Government ‘s rights to the SOFTWARE are as provided in clause 52.22719 of the FAR.
CONTROLLING LAW AND SEVERABILITY. This License shall be governed
by the laws of the United States and the State of California. If for any
reason a court of competent jurisdiction finds any provision, or portion
thereof, to be unenforceable, the remainder of this License shall
continue in full force and effect.
56
Regulatory Compliance
The Socket Mobile SD Scan Card is designed to be compliant with
the rules and regulations in locations where they are sold and
will be labeled as required. This product is type approved users
are not required to obtain license or authorization before using.
Radio Frequency Interference Requirements
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment is also EN55024:1998 and C-Tick compliant. These
limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user
will be required to correct the interference at his or her own
expense.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user may try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna of the radio or
television.
• Increase the distance separating the equipment and the
receiver.
• Connect the equipment to an outlet on a different branch
circuit than that of the receiver.
• Consult the dealer or an experienced radio/TV technician for
help.
The user may find the following booklet helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
57
available from the U.S. Government Printing Office, Washington,
D.C. 20402.
Product Disposal
This product must not be disposed of with municipal waste. It is
your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling
of waste electrical and electronic equipment.
Laser Device — SDSC 3M
The SD Scan Card 3M version of this product described in this
User Guide contains a Symbol SE-955 Class 1 laser scan engine,
for which the following applies:
• Complies with 21CFR1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50, dated July 26, 2001.
• Class 1 Laser devices are not considered to be hazardous when
used for their intended purpose. The following statement is
required to comply with US and international regulations:
CAUTION: Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous laser light exposure.”
Laser Device — SDSC 3P
The SD Scan Card 3P version of this product described in this User
Guide contains a Symbol SE-955 Class 2 laser scan engine, for
which the following applies:
• Complies with 21CFR1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 50, dated July 26,
2001.
Caution: Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous laser light exposure.
• Class 2 laser scanners use a low power, visible light diode.
As with any very bright light source, such as the sun, the
58
user should avoid staring directly into the light beam.
Momentary exposure to a Class 2 laser is not known to be
harmful.
A label such as the one below should appear on the end product.
Example of Class 2 Laser Warning Label
59
9/2008 Printed in U.S.A.
Loading...
