Rugged CF 10/100 Card

User's Guide

6/2009 Document # 6410-00280 D

Copyright © 2009 Socket Mobile, Inc. All rights reserved. Socket, Battery Friendly, and the Socket logo are registered trademarks of Socket Mobile, Inc. Windows Mobile is a registered trademark of Microsoft Corporation in the United States and/or other countries. All other brand and product names are trademarks of their respective holders.

The Rugged CF 10/100 Card includes technology licensed under United States Patent No. USD539286.

Reproduction of the contents of this manual without the permission of Socket Mobile is expressly prohibited. Please be aware that the products described in this manual may change without notice.

Feel free to contact Socket Mobile at:

Socket Mobile, Inc.

39700 Eureka Drive Newark, CA 94560-4808 USA

Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual.

Socket Mobile requests that you refrain from any applications of the Rugged CF 10/100 Card that are not described in this manual. Socket Mobile also requests that you refrain from disassembling the CompactFlash card. Disassembly of this device will void the product warranty.

You can track new product releases, software updates and technical bulletins by visiting the Socket website at http://www.socketmobile.com.

Please refrain from disassembling the CompactFlash card. Disassembly of this device will void the product warranty

Table of Contents

About the Software 4 System Requirements 5 Product Registration 5

2 | SETUP FOR THE SOMO 650 6

STEP 1: Prepare Network Information 6 STEP 2: Enter Network Settings 7 STEP 3: Insert Card and Connect to LAN 9

3 | SETUP FOR NON-SOMO PDAS 10

STEP 1: Prepare Network Information 10 STEP 2: Install the Software 11 STEP 3: Enter Network Settings 13 STEP 4: Insert Card and Connect to LAN 16

4 | SOCKET 10/100 ETHERNET UTILITY 17

Accessing the Utility 18 About the Task Tray Icon 18 Status Page 19 IP Info Page 19 Auto-Launch Page 20 Power Page 20

APPENDIX A SPECIFICATIONS 21 APPENDIX B SYNCHRONIZING DATA 22 APPENDIX C TROUBLESHOOTING 23 APPENDIX D TECHNICAL SUPPORT 25 LIMITED WARRANTY 26 REGULATORY COMPLIANCE 28

1 | Introduction

Thank you for purchasing the Rugged CF 10/100 Card. The card enables you to connect to any compatible Ethernet network, home network or corporate LAN using a variety of Windows Mobile-based devices. It’s perfect for secure network access where Wi-Fi

isn’t an option.

With the Rugged CF 10/100 Card, you can synchronize your calendar, contacts, and inbox in seconds. It’s also great for quickly backing up your device, installing software, connecting to network printers, and sharing files with colleagues. For IT professionals, the Rugged CF 10/100 Card is ideal for remotely performing system administration tasks such as server configuration, LAN testing, and FTP.

Featuring an exclusive Battery Friendly

design, the Rugged CF 10/100 Card is the most energy efficient product of its kind. You can use the card for hours on battery power without having to stop and recharge. The 10/100 Ethernet software utility even features different power options, so you can configure your connection according to the amount of power available on your device.

About the Software

The Rugged CF 10/100 Card comes with a handy software utility designed to enhance your networking experience. The Socket 10-100 software utility features the following components:

• Task tray icon: Quickly view your GoodLink and Activity status at a glance. The

card does not have any status indicator LEDs, so the software icon conveys important status information.

• Status page: Quickly check the status of your connection, including the IP address,

link speed, and the duration of your connection. Also view the number of packets sent and received.

• IP Info page

release the IP address assigned by DHCP.

• Auto-Launch page: Configure your device to automatically launch any program

of your choice after the card is inserted.

• Power page: Choose the level of power consumption by selecting the link speed.

For software updates, please visit: http://www.socketmobile.com/support/downloads/

: View comprehensive IP address information. Quickly renew or

System Requirements

Your device should meet these minimum requirements:

• Windows Mobile 2003, 2003SE or 5.0 for Pocket PC or Windows Mobile 6 Classic

• Available CF or PC Card slot

(Operation in PC Card slot requires a PC Card adapter.)

• Software installation requires a host computer running Windows Vista and the

Windows Mobile Device Center or a Windows 2000/XP computer with ActiveSync

4.5 or greater for Windows Mobile 6 or ActiveSync 4.0 or greater for Windows Mobile 5.0

Note: The Rugged CF 10/100 Card is NOT NE2000 compliant.

WARNING!

If you are using Windows Mobile 2003/2003SE, DO NOT install ActiveSync 4.0, or you will not be able to synchronize your device and host PC over an Ethernet connection!

Microsoft removed this feature from ActiveSync 4.0. If your Windows version does not require ActiveSync 4.0, Socket Mobile recommends that you use an older version of ActiveSync that supports device synchronization over Ethernet.

Product Registration

Socket Mobile highly recommends that all customers register their products. Registered users receive priority technical support and can choose to receive special offers, product upgrades, and new product information. Register online at:

http://support.socketmobile.com/

CHAPTER 1: INTRODUCTION 5

2 | Setup for the SoMo 650

This chapter explains how to set up the Rugged CF 10/100 Card for any version of the Socket 650 handheld computer.

Setup Summary

STEP 1: Prepare network information. STEP 2: Enter network settings. STEP 3: Insert card and connect to LAN.

STEP 1: Prepare Network Information

Contact your network administrator for the information below.

For a text-only form that you can email to your network administrator, go to the Docs folder on the installation CD.

Does the network support DHCP (Dynamic Host Configuration Protocol)?

YES. If Yes, then STOP. You do NOT need any IP addresses.

NO. If No, then please specify any applicable IP addresses (you may only need

some listed below):

 Mobile Computer IP address: _____ . _____ . _____ . _____  Subnet Mask: _____ . _____ . _____ . _____  Default Gateway: _____ . _____ . _____ . _____  Primary DNS: _____ . _____ . _____ . _____  Secondary DNS: _____ . _____ . _____ . _____  Primary WINS*: _____ . _____ . _____ . _____  Secondary WINS: _____ . _____ . _____ . _____

*Remote ActiveSync only: If your server does NOT have WINS services enabled, use the

IP address of your host PC instead of a Primary WINS address. You can only synchronize over Ethernet using Windows Mobile 2003/2003SE and a version of ActiveSync previous to 4.0.

STEP 2: Enter Network Settings

1. Open the Configure Network Adapters screen.

Windows Mobile 6: Tap Start | Settings | Connections tab | Wi-Fi | Network Adapters.

Windows Mobile 5.0

Tap Start | Settings | Connections tab | Network Cards.

2. The Configure Network Adapters screen will appear. In the drop-down menu at

the top of the screen, select the appropriate option for your network.

• The Internet: Select to connect from home and/or via an ISP (e.g., to browse

the Internet).

• Work: Select to connect to a private network, (e.g., a work or proxy network.

3. If you DO NOT need to enter IP addresses, (i.e., your network uses DHCP), tap ok.

You are now ready to proceed to STEP 4 to connect to a LAN and insert the card.

4. If you DO need to enter IP addresses, tap Socket 10-100 Driver.

CHAPTER 2: SETUP FOR THE SOMO 650 7

Do not select NE2000 Compatible Ethernet Driver, because the Rugged CF 10/100 Card is not NE2000 compatible.

5. Enter your network settings. In the IP Address screen, select Use specific IP

address to enter the necessary IP addresses. Tap on the Name Servers tab to

enter DNS and WINS addresses.

If using a static IP address, you may need to enter the host computer’s IP address in the WINS field to use ActiveSync. You can only synchronize over Ethernet using Windows Mobile 2003/2003SE and an ActiveSync version previous to 4.0.

6. When you have finished entering settings, tap ok.

IMPORTANT!

If you forget to tap ok, your settings will not take effect!

7. A screen will report that the new settings will take effect when you next insert

the network card. Tap ok.

8. Soft reset your device by pressing the reset button.

STEP 3: Insert Card and Connect to LAN

1. If you have not done so already, soft reset your device.

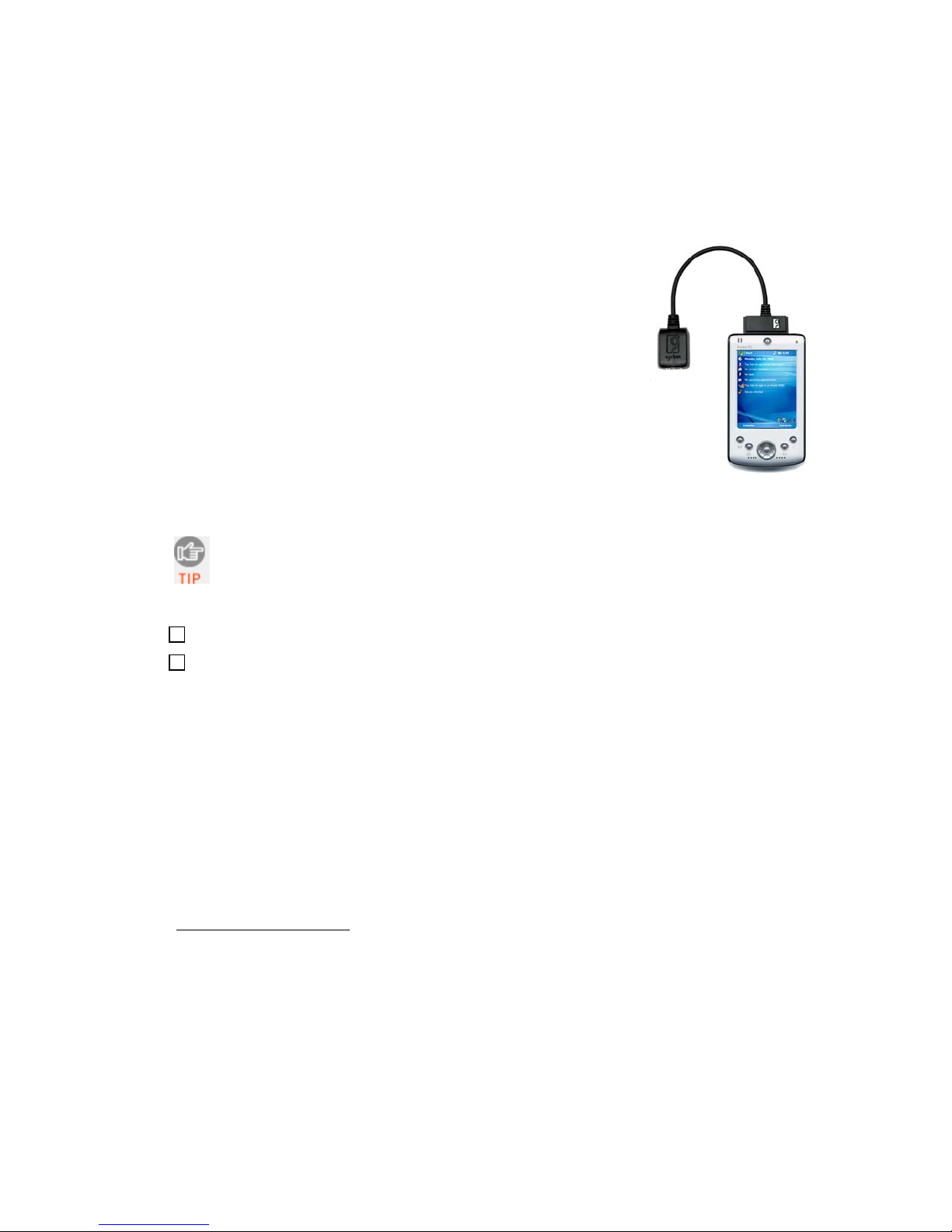

2. Insert the Rugged CF 10/100 Card into your device right-

side up, with the blue label on top.

If inserting the Rugged CF 10/100 Card into a PC Card slot, use a PC Card adapter (not included).

3. Plug the connector into a LAN port

If you would like to check whether you have a good connection, do the following:

• Check the Ethernet status icon at the bottom of the Today

screen. If it has a green square on the top left, there is a good connection.

• Verify that the connection has a valid IP address for your network. a) Tap on the Ethernet status icon to open the applet. In the pop-up

menu, tap Status.

b) In the Status screen, check the IP Address field.

− If your network uses a static IP address, make sure it appears

correctly.

− If your network uses DHCP, make sure the IP address is within the

valid range for your network. Consult with your network administrator.

• Test your web access. Start Pocket Internet Explorer. Enter a URL and test

to see if the website appears correctly.

CHAPTER 2: SETUP FOR THE SOMO 650 9

3 | Setup for Non-SoMo PDAs

This chapter explains how to set up the Rugged CF 10/100 Card for a device running Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/Pocket PC Phone Edition or Windows Mobile 6 Classic/Professional.

Setup Summary

STEP 1: Prepare network information. STEP 2: Install the software. STEP 3: Enter network settings. STEP 4: Insert card and connect to LAN.

STEP 1: Prepare Network Information

Contact your network administrator for the information below.

For a text-only form that you can email to your network administrator, go to the Docs folder on the installation CD.

Does the network support DHCP (Dynamic Host Configuration Protocol)?

YES. If Yes, then STOP. You do NOT need any IP addresses.

NO. If No, then please specify any applicable IP addresses (you may only need

some listed below):

*Remote ActiveSync only: If your server does NOT have WINS services enabled, use the

IP address of your host PC instead of a Primary WINS address. You can only synchronize over Ethernet using Windows Mobile 2003/2003SE and a version of ActiveSync previous to 4.0.

STEP 2: Install the Software

Follow these steps for software installation BEFORE you insert the Rugged CF 10/100 Card into your device. Software installation is required because the card is not NE2000 compatible.

Note: If you are using the SoMo, the software is pre-loaded on the device, so installation is not required.

1. Windows Mobile 5.0: Make sure you have ActiveSync 4.0 or greater.

2. Use your serial/USB cable or cradle to connect your device to a host PC.

Windows Mobile 6:

WARNING! If you are using Windows Mobile 2003/2003SE, DO NOT install ActiveSync 4.0, or you will not be able to synchronize your device and host PC over an Ethernet connection!

Make sure you have ActiveSync 4.5 or greater.

Windows Mobile 2003/2003SE: If you want to synchronize data, there must be a partnership (NOT a guest connection) between the device and host PC. Refer to your Pocket PC manual for instructions.

If your host computer is running Windows Vista, use the Windows Mobile Device Center instead of ActiveSync.

3. Insert the Socket Mobile 10/100 Installation Disc into the host PC.

4. Use My Computer or Windows Explorer to access the CD drive. In the CD

contents, click on Setup.

5. The Rugged CF 10/100 Setup Center will launch in your web browser.

6. Follow the setup center to install the software.

• Read the information in the first screen and click next.

• In the Main Page, click Install Software.

• In the Installation Page, click Windows Mobile.

CHAPTER 3: SETUP FOR NON-SOMO PDAS 11

7. A file download screen will appear from your web browser.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

• Internet Explorer will download the file.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScanCE.exe, click Open.

• In the warning dialog, click OK to continue.

8. The installation wizard should begin. Follow the instructions on your PC and

device screens until installation is complete.

9. After completing the installation, disconnect the device from the serial/USB

connection cable/cradle.

10. Soft reset the device by pushing the reset button.

STEP 3: Enter Network Settings

1. Open the Configure Network Adapters screen.

Windows Mobile 6: Tap Start | Settings | Connections tab | Wi-Fi | Network Adapters.

Windows Mobile 2003SE or 5.0: Tap Start | Settings | Connections tab | Network Cards.

CHAPTER 3: SETUP FOR NON-SOMO PDAS 13

Windows Mobile 2003:

• Tap Start | Settings | Connections tab | Connections.

• Tap on the Advanced tab.

• Tap on the Network Card button at the bottom of the screen.

2. The Configure Network Adapters screen will appear. In the drop-down menu at

the top of the screen, select the appropriate option for your network.

• The Internet: Select to connect from home and/or via an ISP (e.g., to browse

the Internet).

• Work: Select to connect to a private network, (e.g., a work or proxy network.

If you are connecting to a proxy or secure network, refer to your device manual for configuration information.

3. If you DO NOT need to enter IP addresses, (i.e., your network uses DHCP), tap ok.

You are now ready to proceed to STEP 4 to connect to a LAN and insert the card.

4. If you DO need to enter IP addresses, tap Socket 10-100 Driver.

Do not select NE2000 Compatible Ethernet Driver, because the Rugged CF 10/100 Card is not NE2000 compatible.

5. Enter your network settings. In the IP Address screen, select Use specific IP

address to enter the necessary IP addresses. Tap on the Name Servers tab to

enter DNS and WINS addresses.

6. When you have finished entering settings, tap ok.

IMPORTANT!

If you forget to tap ok, your settings will not take effect!

7. A screen will report that the new settings will take effect when you next insert

the network card. Tap ok.

8. Soft reset your device by pressing the reset button.

CHAPTER 3: SETUP FOR NON-SOMO PDAS 15

STEP 4: Insert Card and Connect to LAN

4. If you have not done so already, soft reset your device.

5. Insert the Rugged CF 10/100 Card into your device right-

side up, with the blue label on top.

If inserting the Rugged CF 10/100 Card into a PC Card slot, use a PC Card adapter (not included).

6. Plug the connector into a LAN port

If you would like to check whether you have a good connection, do the following:

• Check the Ethernet status icon at the bottom of the Today

screen. If it has a green square on the top left, there is a good connection.

• Verify that the connection has a valid IP address for your network. c) Tap on the Ethernet status icon to open the applet. In the pop-up

menu, tap Status.

d) In the Status screen, check the IP Address field.

− If your network uses a static IP address, make sure it appears

correctly.

− If your network uses DHCP, make sure the IP address is within the

valid range for your network. Consult with your network administrator.

• Test your web access. Start Pocket Internet Explorer. Enter a URL and test

to see if the website appears correctly.

4 | Socket 10/100 Ethernet Utility

This chapter explains how to use the Socket Mobile 10/100 Ethernet software utility for Windows Mobile.

• Task tray icon

: Quickly view your GoodLink and Activity status at a glance.

• Status page: Quickly check the status of your connection, including the IP address,

link speed, and the duration of your connection. Also view the number of packets sent and received.

• IP Info page: View comprehensive IP address information. Quickly renew or

release the IP address assigned by DHCP.

• Auto-Launch page: Configure your device to automatically launch any program

of your choice after the card is inserted.

• Power page: Choose the level of power consumption by selecting the link speed.

For software updates, visit: http://www.socketmobile.com/support/downloads

For help using the utility, tap on the Help icon on any of the utility pages.

CHAPTER 4: SOCKET 10/100 ETHERNET UTILITY 17

Accessing the Utility

1. To open the utility, tap on the Ethernet status icon at the bottom of the Today

screen. In the pop-up menu, tap Status.

Alternatively, you can tap Start | Settings | Connections tab | Socket 10-100.

2. The Socket 10/100 Ethernet utility will appear, with the Status page open. Tap on

the tabs to switch between different pages of the utility.

About the Task Tray Icon

The Ethernet status icon appears at the bottom of the Today screen whenever the Rugged CF 10/100 Card is inserted into your device.

Icon behavior Meaning No icon No card detected by your device. Green square on top left of icon Green circle is blinking

Good link. The card is connected to a network.

Network activity. Packets are being sent/received.

Status Page

The Status page displays connection information, including the IP address, link speed, and duration of connection. Connection activity is also reported, including the number of packets sent and receive.

You can only use this screen to view connection information. You cannot modify any settings.

IP Info Page

The IP Info page reports comprehensive IP addresses, as well as DHCP information. You can also renew or release the IP address assigned by DHCP.

CHAPTER 4: SOCKET 10/100 ETHERNET UTILITY 19

Auto-Launch Page

The Auto-Launch page enables you to choose a program to automatically run whenever the Rugged CF 10/100 Card is inserted into the device. Use the drop-down menu to select a program. By default, no program will automatically launch.

Program arguments: If needed, enter program arguments for custom applications.

Second delay before launch: Select how long your device will wait before auto-

launching a program. Most devices have a default of 8 seconds, which gives enough time to recognize the Rugged CF 10/100 Card. If your network is slow, or if memory is low, 8 seconds may be too short.

Power Page

The Power Page enables you to select which level of power consumption you would like the Rugged CF 10/100 Card to operate at.

Appendix A

Specifications

Physical Characteristics: CompactFlash Card: Dimensions: 2.2 x 1.69 x 0.13 in (56 x 42.8 x 3.3 mm) Mass: 1.7 oz (48.2 g)

Interconnect Cable Length`: 6.77 in (172 mm)

Operating Temperature Range: 0° to 55°C

Power Consumption (supplied by PC host):

Active with 3.3V Supply: 19 mA (63 mW)

Ethernet Interface:

Protocol: 10/100 (IEEE 802.3) Twisted Pair Module Connector: RJ-45 8-pin female connector

Operating System Support:

Windows Mobile 2003, 2003SE, 5.0 for Pocket PC/Pocket PC Phone Edition Windows Mobile 6 Classic/Professional

Software Included: Socket Mobile 10/100 Ethernet Installation Disc

Performance: Ethernet Transfer Rate: 10/100 megabits per second

Certification/Compliance:

FCC: Part 15, Class B CE: EN55024:1998

Industry Canada CompactFlash: CompactFlash Spec. 2.0

Warranty: One year

APPENDIX A: SPECIFICATIONS 21

Appendix B

Synchronizing Data

FOR WINDOWS MOBILE 2003/2003SE ONLY!

Only Windows Mobile 2003/2003SE devices can synchronize data over Ethernet, and if only using a version of ActiveSync previous to 4.0.

1. Tap Start | ActiveSync:

IMPORTANT! In order to use ActiveSync,

you must have previously created a partnership between the Pocket PC and host PC!

2. In the main ActiveSync screen, tap Tools | Options. Check the box

Sync with this PC during manual sync. Tap ok.

3. In the main ActiveSync screen, tap Sync. The Pocket PC will begin to synchronize

data with your host PC.

4. To stop ActiveSync, tap Stop. You will still have network access, but you will not

be able to synchronize data between the Pocket PC and host PC.

Appendix C

Troubleshooting

SYMPTOM: I am trying to synchronize data on my Windows Mobile

2003/2003SE device, and ActiveSync does not list the option Network Connection.

POSSIBLE REASONS SOLUTION

Your device is not receiving an IP address from the DHCP server. The server may be busy or unavailable.

Your auto-launch program starts too fast, and your device does not have enough time to connect to your network.

Your server does not have WINS services enabled.

SYMPTOM: My new IP addresses do not work.

POSSIBLE REASON SOLUTION

After entering the IP addresses for your card, you forgot to tap/click OK.

SYMPTOM:

I get the message DHCP Lease Has Expired.

Try removing the card and reinserting it. If ActiveSync still shows no network connection, wait for a few minutes. If you see the message “Unable to contact DHCP server, using cached information,” the card is probably working properly. If after a few minutes, the problem persists, ask your network administrator to verify that the DHCP server is working properly.

Increase the second delay before launch setting in the Auto-Launch tab of the Socket 10-100 Ethernet utility. If you have to set the delay to longer than 20 seconds, you should consult your network administrator.

Enter the IP address of the host computer in the Primary WINS: field in order to use ActiveSync.

Re-enter the IP addresses. When done, tap/click OK.

APPENDIX C: TROUBLESHOOTING 23

POSSIBLE REASON SOLUTION

You are using DHCP and have not used your

Tap OK and continue.

card for a while.

SYMPTOM: My DHCP server keeps reporting that it is busy, and I cannot

connect to my LAN.

POSSIBLE REASON SOLUTION

Your network DHCP Server ran out of IP addresses.

Inform your network administrator.

SYMPTOM: My device does not recognize the card after I insert it.

POSSIBLE REASONS SOLUTION

You did not install the card drivers. The card is NOT NE2000 compatible, so the software must be installed.

Install the software that came with the Rugged CF 10/100 Card. You can also download it from:

http://www.socketmobile.com/sup port/downloads/Ethernet/10-100

If are a developer and want to write NE2000 compatible drivers for the card, please refer to the “Rugged CF 10/100 Driver Porting Notes,” available online at:

http://www.socketmobile.com/sup port/downloads/ethernet/10-100

Appendix D Technical Support

For help with the Socket 10-100 Utilities, tap on the Help icon

If you have trouble installing or using the Rugged CF 10/000 Ethernet Card, Socket has various technical support resources you can use:

Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics 24 hours a day. http://support.socketmobile.com/EU_S1a.asp

Online Requests: Register your product and submit a question to our Technical Support Team. http://support.socketmobile.com

By Phone:

• USA & Canada Toll-Free: 800-279-1390

• Direct: +1- 510-933-3020

APPENDIX D: TECHNICAL SUPPORT 25

Limited Warranty

Socket Mobile Incorporated warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase.

EXCLUDES: Consumables such as batteries, removable cables, cases, straps, chargers, and CFto-PC Card adapters (90 day coverage only).

Incompatibility is not a defect covered by the Socket Mobile warranty. During the warranty period, Socket Mobile will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket Mobile or to an authorized Socket Mobile Service Center.

The returned product must be accompanied by a return material authorization (RMA) number issued by Socket Mobile or by a Socket Mobile Authorized Service Center. If you ship the product, you must use the original container or equivalent and you must pay the shipping charges to Socket Mobile. Socket Mobile will pay surface shipping charges back to any location in the contiguous United States. This warranty applies only to the original retail purchaser and is not transferable.

Socket Mobile may, at its option, replace or repair the product with new or reconditioned parts and the returned product becomes the property of Socket Mobile. Socket Mobile warrants the repaired or replaced products to be free from defects in material or workmanship for ninety (90) days after the return shipping date, or for the remainder of the original warranty period, whichever is greater.

This warranty does not cover the replacement of products damaged by abuse, accident, misuse or misapplication, nor as a result of service or modification other than by Socket Mobile.

SOCKET MOBILE IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING DAMAGE TO PROPERTY AND, TO THE EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow limitation of implied warranties, or the exclusion or limitation of incidental or consequential damages, so that the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This product may contain fully tested, recycled parts, warranted as if new.

For warranty information, please visit: http://support.socketmobile.com

Limited Software Warranty

LIMITED WARRANTY. Socket Mobile warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE.

CUSTOMER REMEDIES. The entire liability of Socket Mobile and your exclusive remedy shall be, at the option of Socket Mobile, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet the Socket Mobile Limited Warranty and which is returned to Socket Mobile with a copy of your receipt. Any replacement SOFTWARE will be warranted for the remainder of the original warranty period or 30 days, whichever is longer. THESE REMEDIES ARE NOT AVAILABLE OUTSIDE OF THE UNITED STATES OF AMERICA.

NO OTHER WARRANTIES. Socket Mobile disclaims all other warranties, either express or implied, including but not limited to implied warranties of merchantability and fitness for a particular purpose, with respect to the SOFTWARE and the accompanying written materials. This limited warranty gives you specific legal rights. You may have others which vary from state to state.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES. In no event shall Socket Mobile or its suppliers be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use the SOFTWARE, even if Socket Mobile has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.

EXPORT LAW ASSURANCES. You may not use or otherwise export or reexport the SOFTWARE except as authorized by United States law and laws of the jurisdiction in which the SOFTWARE was obtained. In particular, but without limitation, none of the SOFTWARE may be used or otherwise exported or reexported (a) into (or to a national or resident of) a United States embargoed country or (b) to anyone on the U.S. Treasury Department’s list of Specially Designated Nationals or the U.S. Department of Commerce’s Table of Denial Orders. By using the SOFTWARE, you represent and warrant that you are not located in, under control of, or a national or resident of any such country or on any such list.

GOVERNMENT END USERS. If the SOFTWARE is supplied to the U. S. Government, the SOFTWARE is classified as “restricted computer software” as defined in clause 52.227-19 of the FAR. The U. S. Government ‘s rights to the SOFTWARE are as provided in clause 52.227-19 of the FAR.

CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State of California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, the remainder of this License shall continue in full force and effect.

Regulatory Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. This equipment is also CE EN55024:1998 and Industry Canada compliant. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his or her own expense.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user may try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the radio or television.

• Increase the distance separating the equipment and the receiver.

• Connect the equipment to an outlet on a different branch circuit than that of

the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

The user may find the following booklet helpful:

How to Identify and Resolve Radio-TV Interference Problems

This booklet is available from the U.S. Government Printing Office, Washington, D.C.

20402.

Product Disposal

Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

6/2009 Printed in U.S.A.

Socket Rugged CF 10/100 Card, 10/100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
