Socket DuraScan D730 User Manual
Bluetooth Barcode Laser Scanner
Model D730
www.socketmobile.com
DURASCAN
TM
SERIES 700
socketmobile.com
Package Contents 4
Product Information 5
Scanner Setup 6
Charge the Battery 7
Optional Charging Accessories 8
Powering Scanner On/Off 9
Scanning Barcodes 10
Bluetooth Connection Modes 11
Setup without software application (Basic Mode):
• Android 13
• Apple® 14
• Windows PC® 15
TABLE OF CONTENTS
Setup using software (Application Mode):

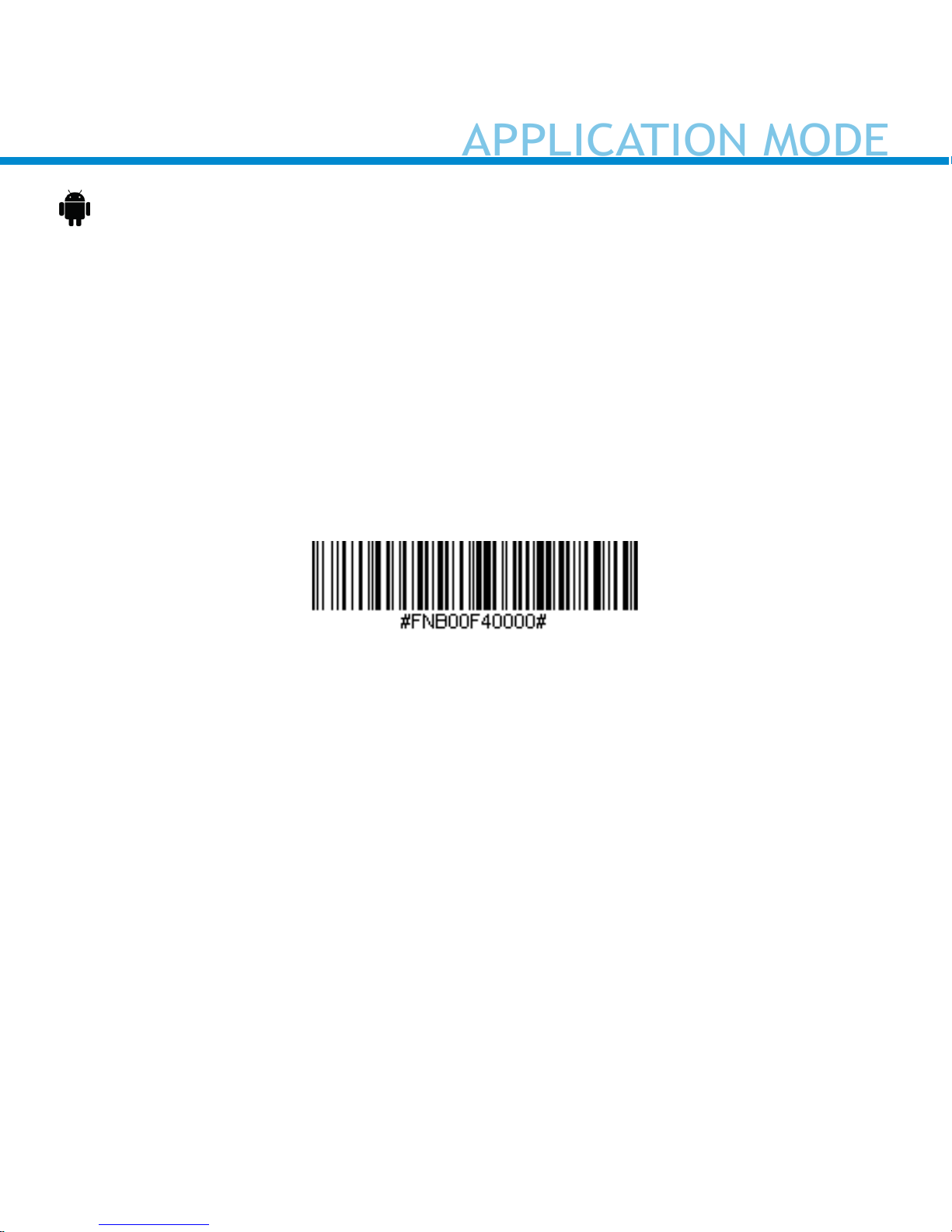

• Android 16
• Apple® iOS 18

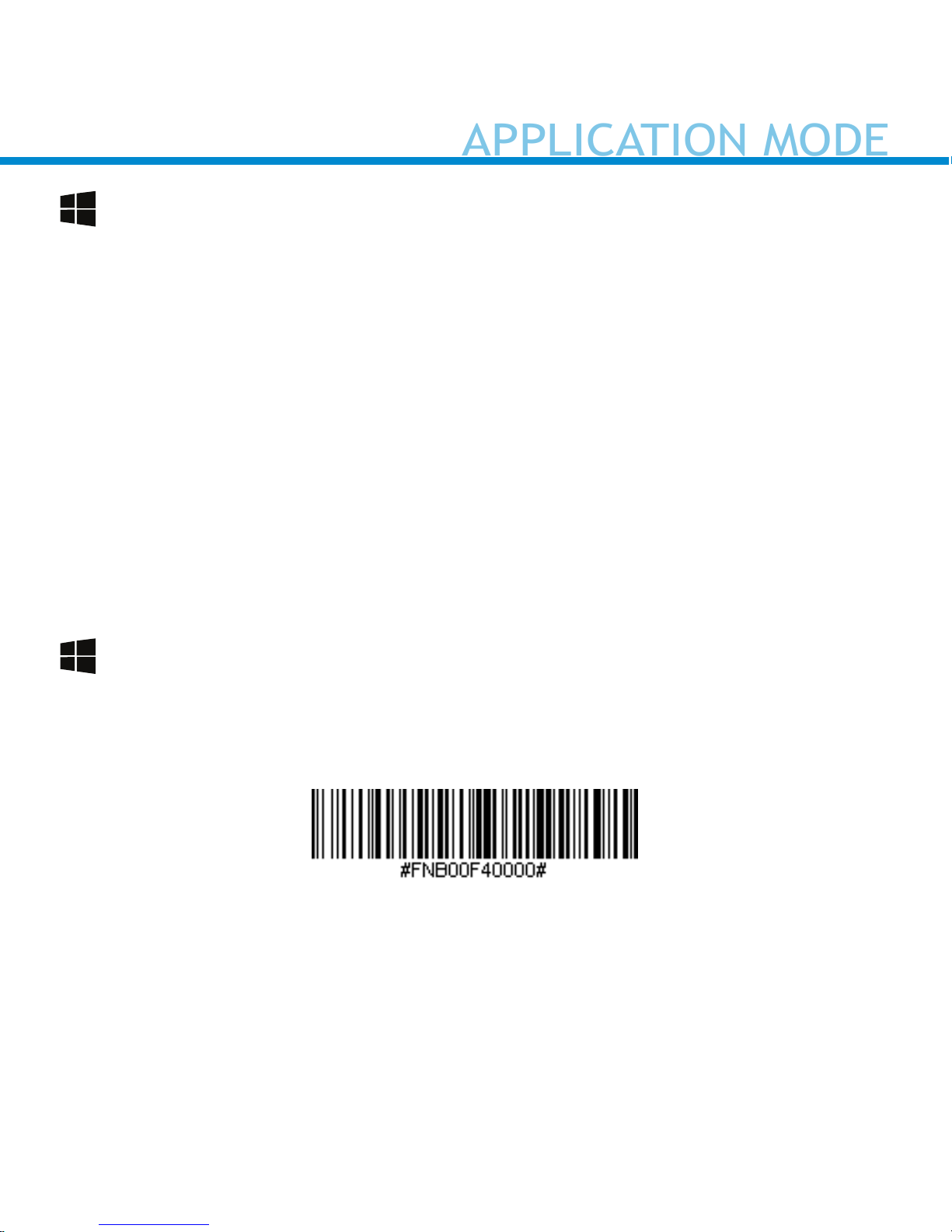

• Windows PC 20

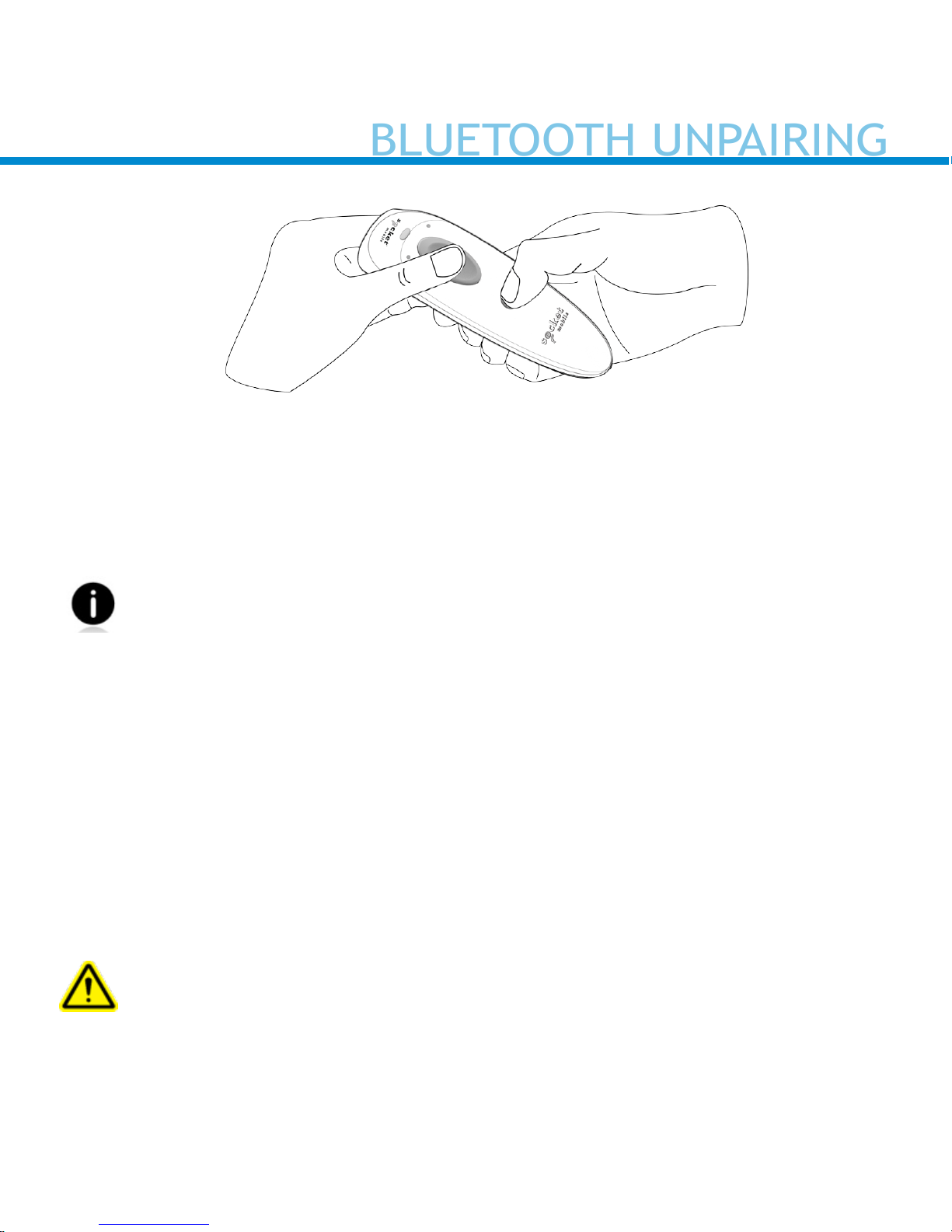

Unpairing Bluetooth Connection 22

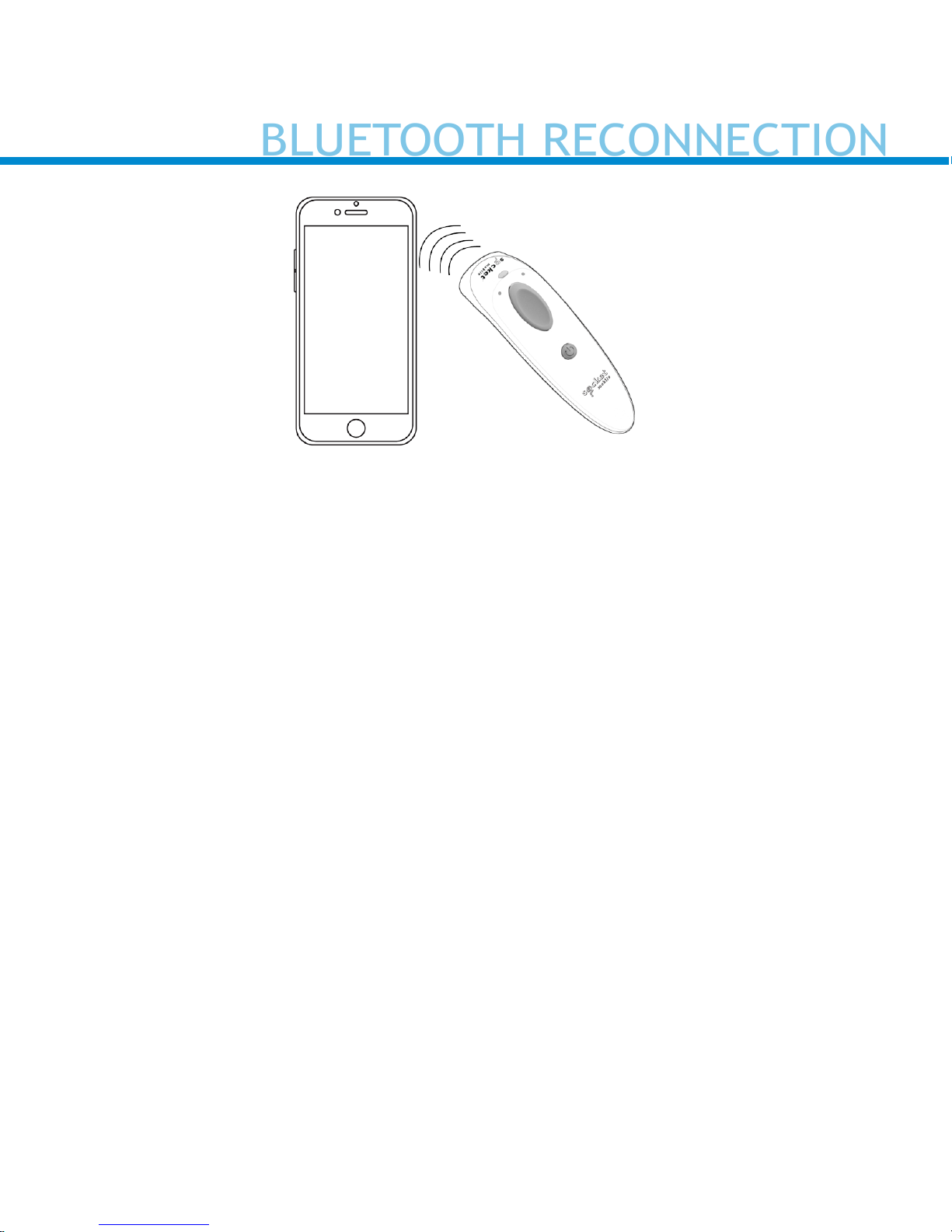

Bluetooth Reconnection of Scanner 23

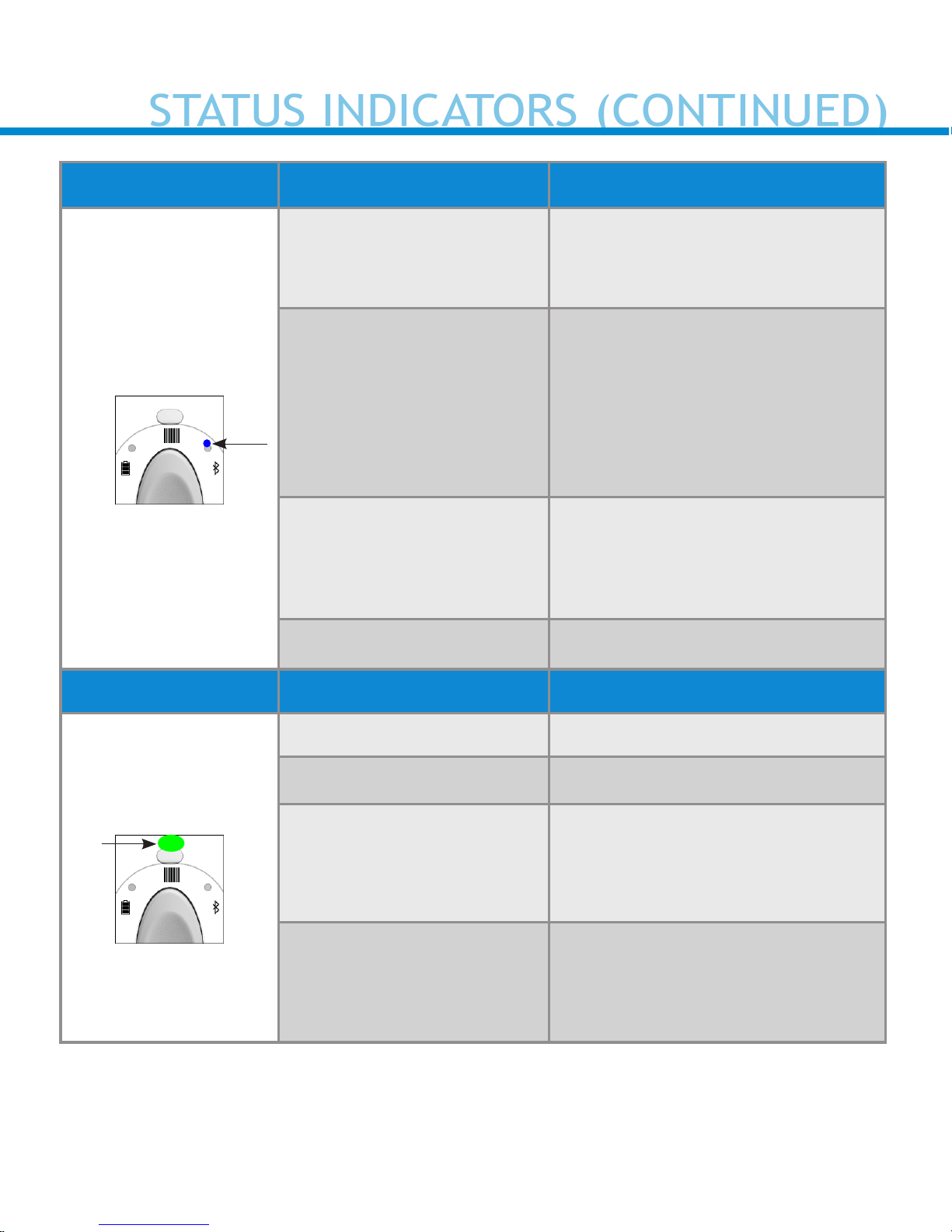

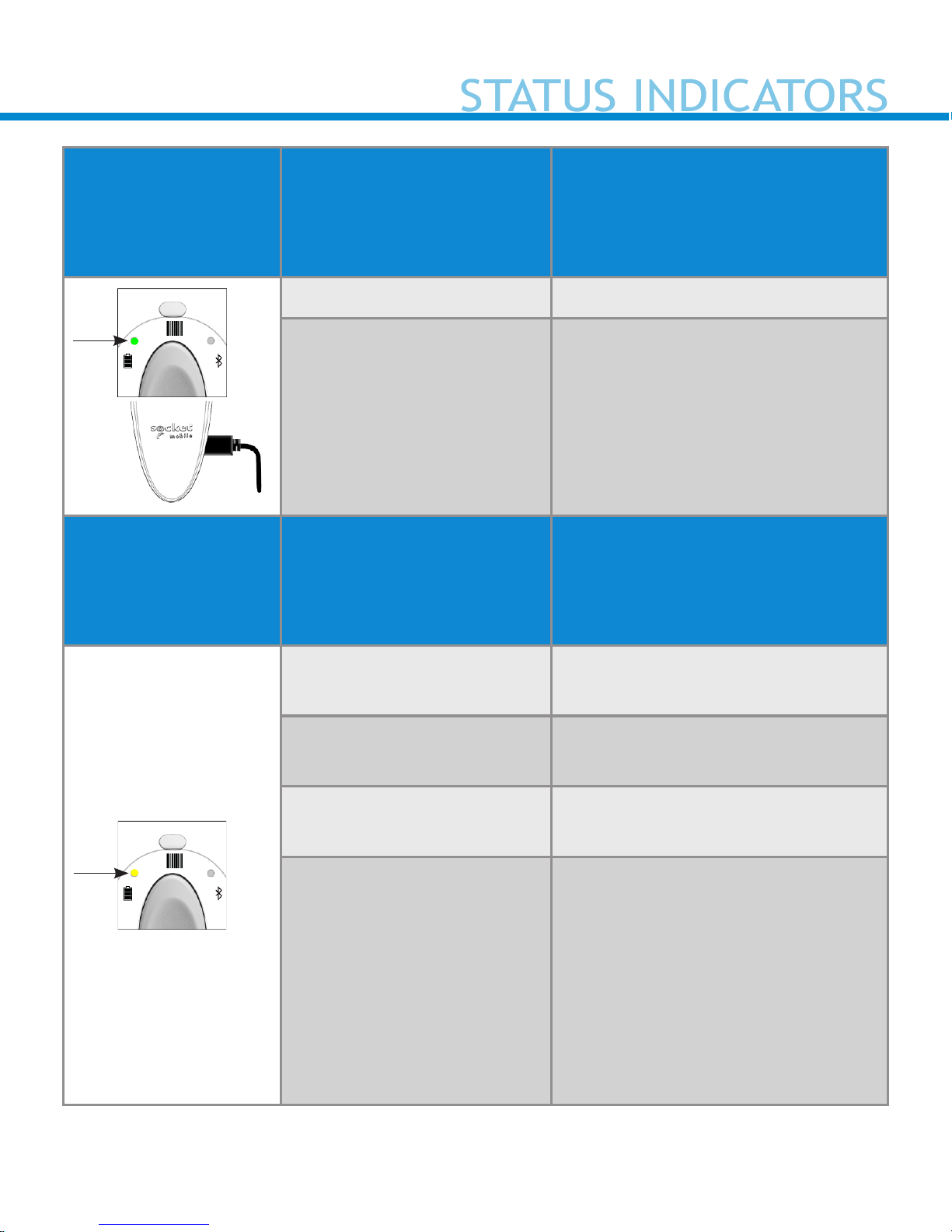

Scanner Status Indicators 24
Scanner Specifications 28
Helpful Resources 30
Safety, Compliance & Warranty 31-40
Battery Warning 36-37

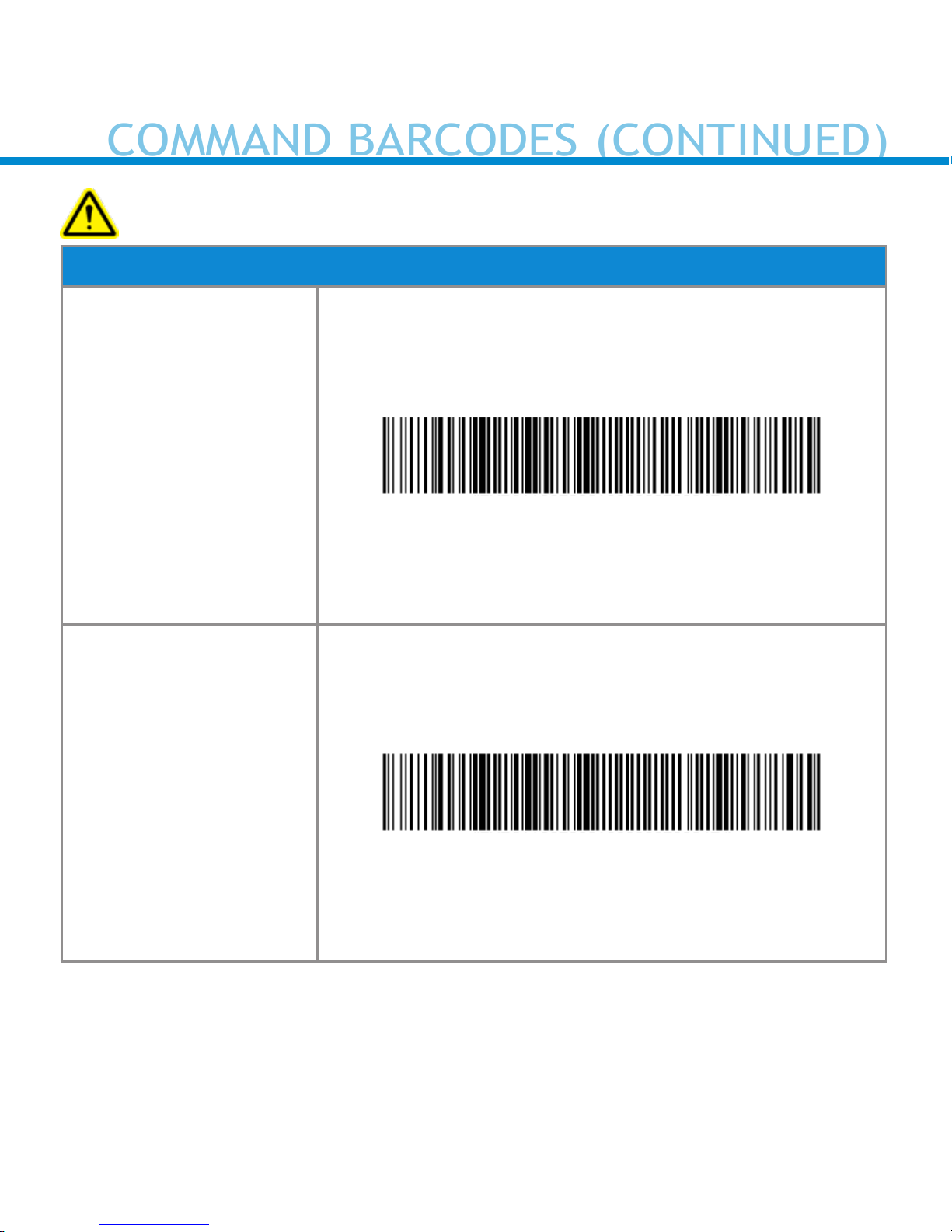

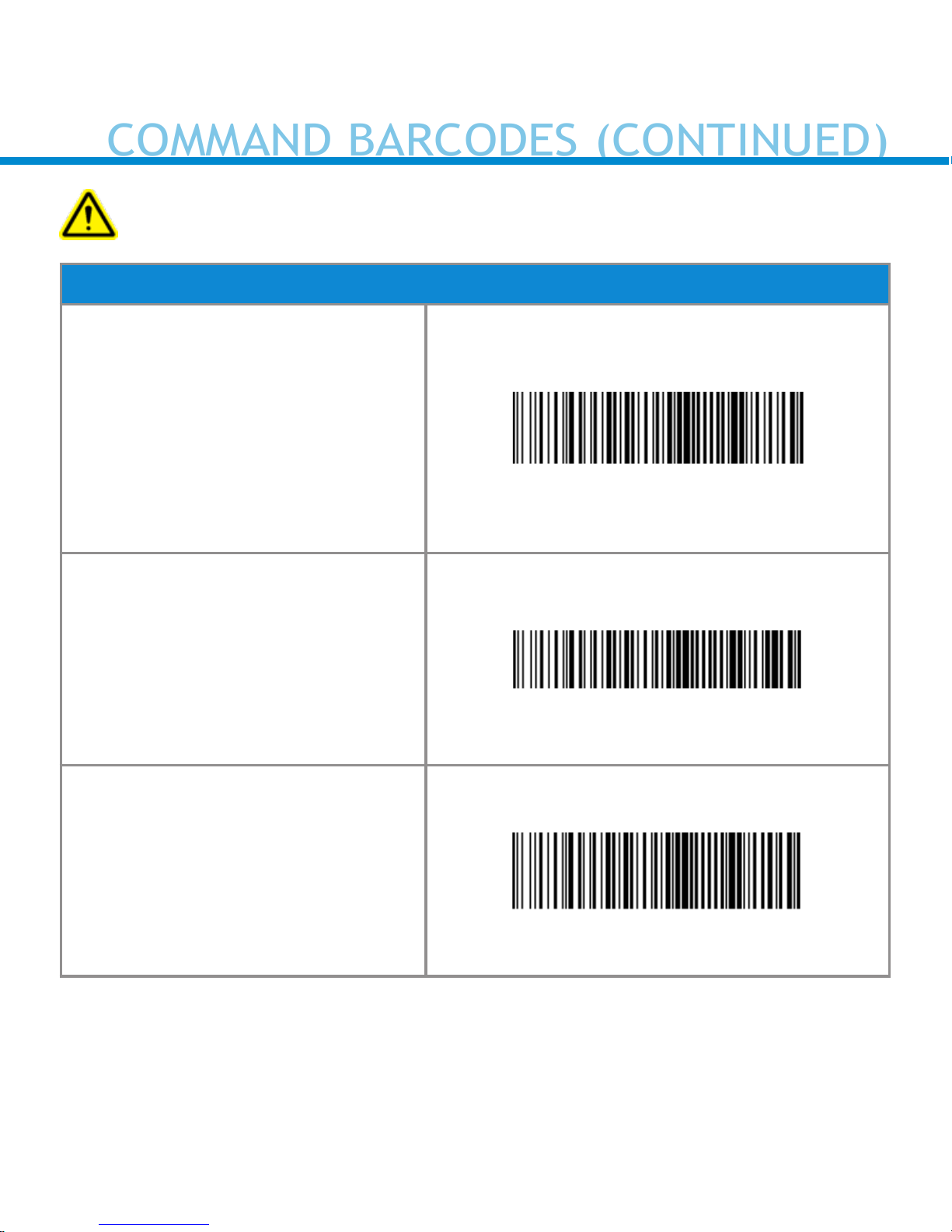

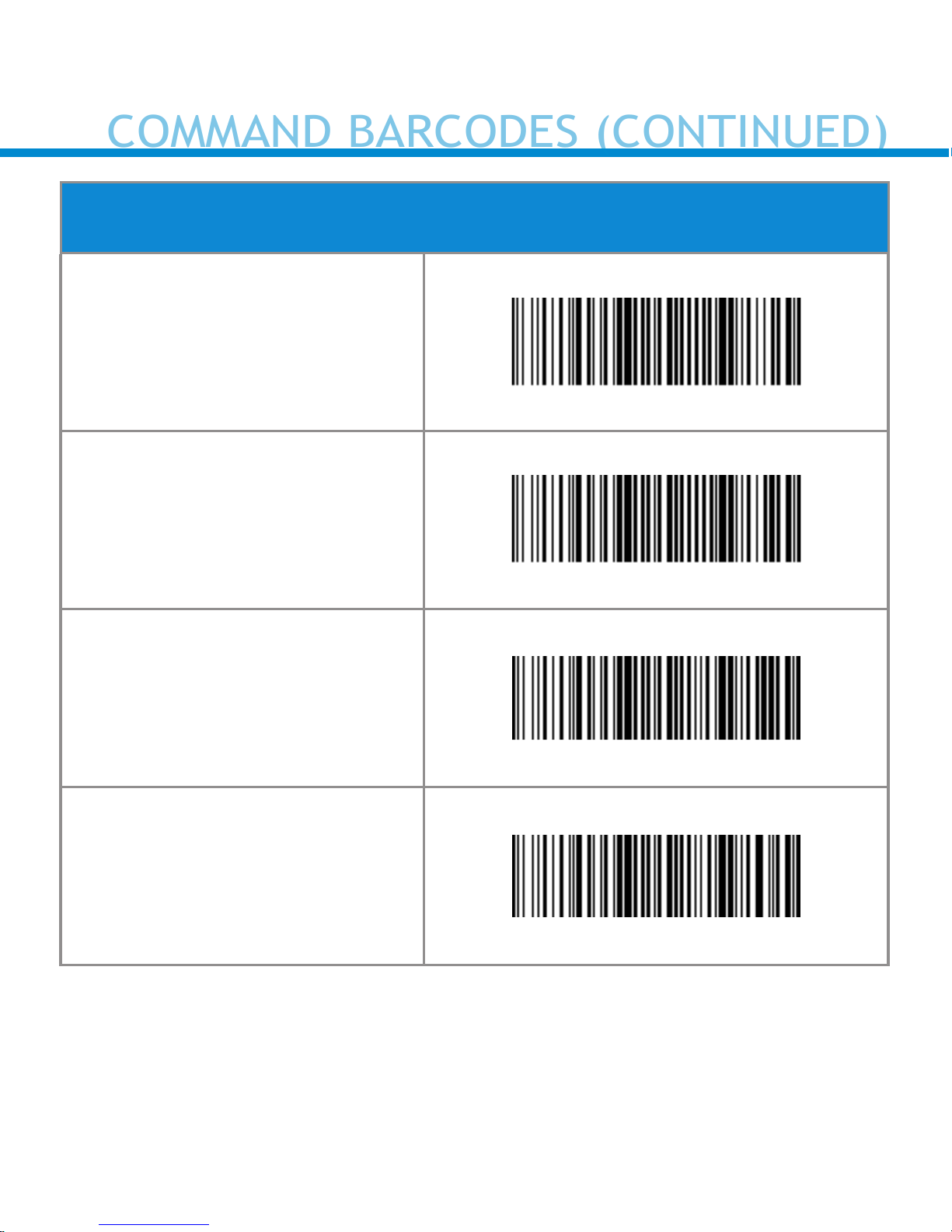

Advanced Scanner Settings (Command Barcodes) 41
Language Settings (Command Barcodes) 45
TABLE OF CONTENTS
© 2010-2016 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, and
SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The
Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc.
USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and
trade names contained herein may be those of their respective owners.
USB A to USB
Type-C Cable
Lanyard
DuraScan
D730
Thank you for choosing Socket Mobile!
Let’s get started!
PACKAGE CONTENTS
PRODUCT INFORMATION
5
The D730 has a protection rating of IP54 for dust and water resistance. It is also
made with antimicrobial additives to help provide protection against bacteria.
*Also used to display the on-screen keyboard in Basic Mode (iOS only).
Scanner Head
Product Label
Lanyard Eyelet
Scan Indicator Light
(Green/Red)
Trigger Button
Power Button*
Battery Light (Green/Yellow/Red)
Bluetooth Light (Blue)
Charging
Pins
Power Connector
Stand Attachment
Attach the Lanyard (optional)
1. Detach the string loop of the tether from the lanyard.
2. Feed the string loop through the eyelet.
3. Pull the tether through the string loop.
4. Pull tight so the string loop is secure.
5. Reattach the string loop’s tether to the lanyard.
SCANNER SETUP
6
The scanner must be fully charged before rst use. Please allow 6 hours
uninterrupted charging for the initial battery charge.
Lift the rubber ap to access the power connector.
• Blinking Yellow Light = Charging
• Solid Green Light = Fully charged
Important: Charging from a computer USB port is not reliable and
not recommended.
CHARGE THE BATTERY
Rubber Flap
To open
Power Adapter
7
Available separately.
OPTIONAL CHARGING ACCESSORIES
8
Charging Cradle Charging Stand AC Power Supply
International Adapters
available
*Recommended power
supply
(1000 mAh - 5.0 volts)
For all optional accessories visit our Socket Store.
Powering On:
Press and hold down the small
power button until the Battery
light turns on and the scanner
beeps twice (low-high).
Powering Off / Disconnecting:
Press and hold down the small
power button until the scanner
beeps twice (high-low) and all
lights turn off.
Scanner will power off
automatically if device is not connected within 5 minutes. Scanner
connected to a device will power
off within 2 hours if idle/inactive.
POWERING ON/OFF
Power button
9
1D Laser Barcode Scanner
Aim the scan beam
across the entire barcode
Scanning Barcodes
1. Hold the scanner a few inches from the barcode.
2. Aim, press and hold the trigger button.
By default, the scanner will beep, vibrate, and the scan indicator will
ash green to conrm a successful scan.

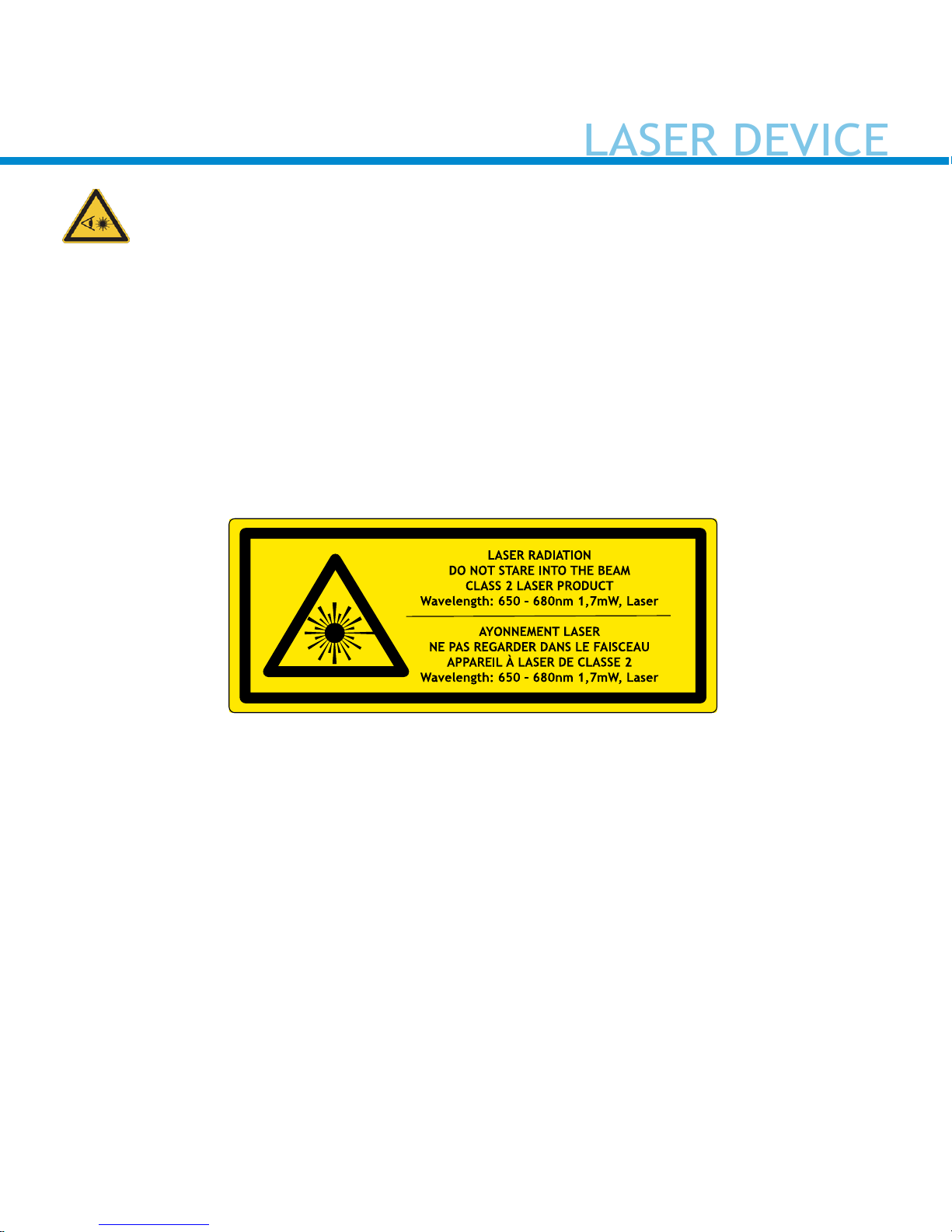

Caution: Do not stare directly into the scanner’s laser beam.
SCANNING BARCODES
Trigger button
10
Connect your scanner using one of the following Bluetooth connection
modes:
Bluetooth Connection Proles
Bluetooth Mode Description
BLUETOOTH CONNECTION MODES
Basic Mode (HID)
(Default)*
Human Interface
Device Prole
• NO software installation required
• Connects to most devices
• Good for barcodes containing small amounts of
data
• Scanner interacts with host device like a keyboard
Application Mode
(SPP)
Serial Port Prole
For Android or Windows OS devices
1. Software installation is required
2. More efcient and reliable data communications
for barcodes containing lots of data
3. If you have an application that supports Socket
Mobile Scanners, this is the recommended mode
Application Mode
(MFi-SPP)
Apple Specic
Serial Prole
For iOS Devices
1. Must use with an App developed to work with
iOS devices
2. Software installation is required
3. If you have an iOS application that supports
Socket Mobile Scanners this is the mode you want
to use
*By default, the scanner is set to Basic Mode (HID).
11
OS Connection Options
Operating
Systems
(OS)
Devices
Bluetooth
HID
Support
Bluetooth
SPP
Support
Bluetooth
Apple
Serial
Specic
(MFi Mode)
Android
Android 4.0.3 &
later
Yes Yes N/A
Apple iOS
iPod, iPhone, &
iPad
Yes N/A Yes
Windows PC Windows 7, 8, 10 Yes Yes N/A
Mac OS
Mac OS X 10.4 to
10.X
Mac Books, Mac
Mini, & iMac
Yes No N/A
Note: To switch from one mode to the other, you must remove the
pairing information from both devices - host computer and the scanner.
(see unpairing procedure on page 22)
12
BLUETOOTH CONNECTION MODES
Android: Connect Android Device in Basic Mode
In this mode the scanner functions and communicates similar to a keyboard. Therefore, scanner will work with Notes, and any other
application that supports an active cursor.
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired) and the blue light blinks fast.
2. Go to Settings | Bluetooth.
3. Make sure the device’s Bluetooth is turned “On” to scan for devices.
4. In the list of found devices, select D700 [xxxxxx]. Tap Pair.
5. The scanner will connect to the Android device.
6. The scanner will beep once after it has connected.
Note: If you have trouble connecting or pairing with host device, turn
host device’s Bluetooth off/on, and/or perform factory reset to the
scanner (see page 44).
Now you are ready to scan barcodes!
To connect to a new device or use a different prole (mode) on the
same device, you must rst unpair the scanner (see page 22).
BASIC MODE
13
Apple: Connect Apple iOS Device or Mac OS Device in Basic Mode
In this mode the scanner functions and communicates similar to a keyboard. Therefore, scanner will work with Safari, Notes, and any other
application that support an active cursor.
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired). The Blue light blinks fast.
2. Start a Bluetooth device search.
• Settings | Bluetooth: Turn on Bluetooth and search for device.
• Mac OS: Click System Preferences | Bluetooth. A Bluetooth device
search will begin.
3. In the device list, tap on D700 [xxxxxx].
4. The scanner will connect to the Apple device.
5. The scanner will beep once after it has connected.
Now you are ready to scan barcodes!
To use the virtual keyboard while the scanner is connected, double tap on
the power button (similar to double clicking a mouse).
To connect to a new device or use a different prole (mode) on the
same device, you must rst unpair the scanner (see page 22).
14
BASIC MODE
