Socket CompactFlash 56K Modem Card User Manual

CompactFlash 56K Modem Card

User’s Guide

8/2009 Document # 6410-00168 R

Socket, the Socket logo, and Battery Friendly are registered trademarks of Socket Mobile, Inc. 56K Modem Card and Mobility Friendly are trademark of Socket Mobile, Inc. All other brand and product names are trademarks of their respective holders.

The 56K Modem Card includes technology licensed under United States Patent Nos. 4,543,450, 4,603,320, 4,686,506, 4,972,470, and USD539286.

Reproduction of the contents of this manual without the permission of Socket Mobile is expressly prohibited. Please be aware that the products described in this manual may change without notice.

Feel free to contact Socket Mobile at:

Socket Mobile, Inc.

39700 Eureka Drive Newark, CA 94560-4808 USA

Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual.

Socket Mobile requests that you refrain from any applications of the 56K Modem Card that are not described in this manual. Socket Mobile also requests that you refrain from disassembling the product. Disassembly of this device will void the product warranty.

You can track new product releases, software updates and technical bulletins by visiting the Socket website at: http://www.socketmobile.com

Table of Contents

1 | INTRODUCTION 4

About the Software 4 About V.92 Modem-on-Hold 5 About V.92 Quick Connect 5 System Compatibility Requirements 6 Package Contents 6 Product Registration 6 About the Status Indicator LEDs 6

2 | SETUP FOR WINDOWS MOBILE 7

STEP 1: Prepare Dial-up Information 7 STEP 2: Install the Software (OPTIONAL) 8 STEP 3: Complete the Connection Setup Wizard 10 STEP 4: Connect to a Telephone Line 12 STEP 5: Dial and Connect 13 Using Socket Mobile Modem Utilities 16 Checking the Connection Time 18

3 | SETUP FOR WINDOWS NOTEBOOKS/TABLETS 19

STEP 1: Prepare Dial-up Information 19 STEP 2: Insert the Card 20 STEP 3: Install the Drivers 21 STEP 4: Set up Your Dial-up Connection 23 STEP 5: Connect to a Telephone Line 25 STEP 6: Dial and Connect 25 Advanced Networking 25

APPENDIX A SPECIFICATIONS 28 APPENDIX B NETWORK INFORMATION 29 APPENDIX C ADVANCED SOFTWARE INSTALLATION 30 APPENDIX D MANUAL CONNECTION SETUP 31 APPENDIX E TECHNICAL SUPPORT 35

LIMITED WARRANTY 36

REGULATORY COMPLIANCE 38

1 | Introduction

The Socket 56K Modem Card gives you the freedom of high speed Internet access, email, and faxing from any analog phone line. It plugs directly into your Pocket PC, notebook or tablet PC and provides a durable physical connection for data communication. Plus, it features V.92 technology to provide the following advanced modem options.

• Quick Connect — The modem saves information the first time it

dials into a network, so future connections to the same network are faster.

• Modem-on-Hold — This feature allows you to accept incoming

phone calls without losing your data connection. Caller ID is also supported, so you’ll know who’s calling.

Cellular coverage isn’t ubiquitous, and most hotels don’t have Wi-Fi, but virtually every place you go will have telephone access. The 56K Modem Card is your most reliable option for Internet access from you Pocket PC, notebook or tablet PC. Plus, the 56K Modem Card features an exclusive Battery Friendly® design, using only 13 mA in idle mode, maximizing the battery life of your mobile computer.

No software installation is necessary for notebook PCs, tablet PCs, and most Pocket PCs.

If using a Pocket PC or other Windows CE device, check to see if it has built-in modem drivers.

About the Software

Socket Mobile developed software expressly for Windows Mobile to simplify and enhance your connection experience.

Follow the Connection Setup wizard to quickly and easily set up a dial-up connection to your Internet Service Provider or office network. The wizard provides a simple alternative to the confusing connection software built into Pocket PCs.

Modem Utilities software allows you to take advantage of the modem’s v.92 features, including Quick Connect and Modem-on-Hold. You can also use Modem Utilities to configure the modem for different country codes and to adjust the volume of the modem’s internal speaker.

Download software updates from: http://www.socketmobile.com/support/downloads

About V.92 Modem-on-Hold

Modem-on-Hold (V.92 MoH) is a modem specification that allows you to have both data and voice service on the same line, although not simultaneously. Many households use the same phone line for both voice calls and data (Internet), and with Modem-on-Hold enabled, users can receive or initiate phone calls without losing an Internet connection.

Your V.92 ISP defines the “hold” time, which typically ranges from 10 seconds to six minutes. (If you have three-way calling, you can put the modem on hold indefinitely.) With Caller ID service from your local phone company, incoming calls will be identified upon arrival. You can choose to accept or ignore the call. When a modem is put on hold, a data connection between the modem and ISP is suspended, so you can accept or initiate a call. When you hang up the phone, you can resume the Internet connection.

In order to use Modem-on-Hold, your ISP must support V.92 MoH. Some ISPs may charge fees for the service, based on the number of minutes on hold. Additionally, you must have Call Waiting service from your local phone company. If you want to use caller identification, you must also have Type 2 Caller ID service, which can identify calls when the phone is off-hook, from your local phone company.

About V.92 Quick Connect

Quick Connect is a V.92 modem specification that reduces the time needed to establish a connection via faster handshaking. Handshaking (which makes all the noise you hear while dialing in) typically takes 25-27 seconds, but with Quick Connect, lasts only about half as long.

When enabled with Quick Connect, the 56K Modem Card will store data about the last connection — or in other words, “train” itself for the last phone line used. While dialing into a network, the 56K Modem Card will compare the phone line characteristics with the stored data, and if a match is found, the handshake starts using previous settings. Quick Connect is convenient if you plan to repeatedly use this product with the same phone line, (e.g., the phone line in your hotel room).

IMPORTANT! If you plan to use your modem in different locations, Socket recommends that you disable Connect but use the modem in different locations, the connection may take twice as long to establish because it searches for the previous line characteristics before trying to connect to the new line.

the Quick Connect feature If you enable Quick

CHAPTER 1: INTRODUCTION 5

System Compatibility Requirements

This product works in the CompactFlash or PC Card slot of the following computers:

• Device running Windows Mobile 2003/2003SE/5.0 for Pocket PC or Windows

Mobile 6 Classic/Professional

• Windows 98SE/Me/2000/XP/XP Tablet/Vista computer with a 3.3V Cardbus slot.

• Installation for Windows Mobile requires a host PC running Windows XP/Vista

and ActiveSync of Windows Mobile Device Center software, available free from the Microsoft website

Additionally, the following requirements are needed for V.92 features:

• V.92 Modem-on-Hold and Quick Connect features require a V.92 Internet Service

Provider (ISP).

• Modem-on-Hold requires a line splitter and Call Waiting service from your local

phone company.

• Caller identification requires Type 2 Caller ID service, which can identify calls when

the phone is off-hook, from your local phone company.

Package Contents

56K Modem Card, retractable RJ-11 cable, installation CD

Product Registration

Socket highly recommends that all customers register their products. Registered users receive priority technical support and can choose to receive upgrades, special offers, and new product information. Register online at:

http://support.socketmobile.com

About the Status Indicator LEDs

The Socket 56K Modem Card features two prominent LEDs to help you easily monitor the status of your connection and data transfers at a glance.

LED LED Activity Meaning

Data

Status

Link

Status

Off Not connected

Blinking Green

Off Not connected

Solid Green Connected

Dialing or connected.

2 | Setup for Windows Mobile

This chapter explains how to install and use the 56K Modem Card with a device running Windows Mobile 2003/2003SE/5.0 for Pocket PC or Windows Mobile 6 Classic/Professional.

Setup Summary

STEP 1: Prepare dial-up information. STEP 2: Install the software (optional). STEP 3: Complete the connection wizard. STEP 4: Connect to a telephone line. STEP 5: Dial and connect.

OPTIONAL: Use Modem Utilities OPTIONAL: Check connection time.

STEP 1: Prepare Dial-up Information

Find out the following dial-up information. If needed, contact your network administrator or ISP. You need this information to set up a connection.

Dial-up number: (_____) _______________________________

User name: __________________________________________

Password: ___________________________________________

Note: For most users, only the information above is necessary. If you are an advanced user and want to perform a more detailed setup, then complete the Network Information Form in Appendix B. After installing the software, refer to Appendix C to manually create a dial-up connection.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 7

STEP 2: Install the Software (OPTIONAL)

Note: The software comes pre-installed on the Socket SoMo 650 handheld computer.

Should I install the software?

The 56K Modem Card comes with software for Windows Mobile that is optional to install in most cases. The software enhances your connection experience by offering the following features:

• Connection Setup — This wizard guides you effortlessly through the

process of setting up a dial-up connection to your ISP.

• Modem Utilities — This software allows you to take advantage of the

v.92 features Quick Connect and Modem-on-Hold, adjust the sound volume of the modem’s internal speaker, and set up the modem for use in different countries.

Some devices do not have built-in modem drivers and require software installation. Check your device manual for information.

If you are using the SoMo, the modem software is pre-loaded on the device, and software installation is not required.

If you do not want to install the software, go ahead and insert the card into your device. Skip Steps 3-4 and refer to Appendix D to manually set up a dial-up connection using your device’s built-in connection software.

SOFTWARE INSTALLATION:

IMPORTANT! Install the software BEFORE you insert the Socket 56K Modem Card into your device.

ADVANCED USERS: Refer to Appendix C for CAB file installation instructions.

1. Use a serial/USB cable or cradle and ActiveSync or Windows Mobile Device Center

software to make an active connection between the mobile computer and a host PC.

2. Insert the 56K Modem Installation CD into the host PC.

3. Use My Computer or Windows Explorer to access your CD-ROM drive. Click on

SETUP.EXE.

4. The Setup program for the modem software will appear. Follow the instructions

on your screen until installation is complete.

5. When installation is complete, your device will prompt you to remove the device

from the cradle and soft reset. Tap ok.

6. Remove your device from the cradle and press the reset button.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 9

STEP 3: Complete the Connection Setup Wizard

Note: If you did not install the Socket Mobile software, refer to Appendix D for instructions on manually creating a connection.

1. If your device is connected to the host PC, remove it from the cable/cradle.

2. Tap Start | Settings | Connections tab | Connection Setup.

3. The Connection Setup Wizard will launch. Tap Next.

4. In next screen, select CF 56K Modem Connection. Tap Next.

5. Follow the next screens to enter a name for your connection, plus the user name,

password, and dial-up number for your ISP account.

6. After you enter the network information, you will be prompted to insert the 56K

Modem Card.

7. Insert the 56K Modem Card into your device’s card slot. Make sure the card is

right side up and push the card all the way in. If using a PC Card slot, first plug the card into a PC Card adapter.

WARNING! Do NOT insert the 56K Modem Card upside down, or damage may occur!

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 11

Note: If a bubble appears reporting that there are no connections on your device that use the modem card, tap Dismiss.

8. After inserting the 56K Modem Card, tap OK.

9. The last screen will report that you have completed the wizard. Tap on the link

for Remote Networking if you would like to use your Pocket PC’s Connection Manager to connect. Otherwise, tap Finish to exit the wizard.

STEP 4: Connect to a Telephone Line

Connect your modem to an analog telephone line.

WARNING! Do not plug the modem into a digital PBX line. The modem will not work and may be damaged.

STEP 5: Dial and Connect

Windows Mobile 2003/2003SE/5.0/6

Use either of two methods for dialing into your network.

METHOD 1: Use the Connection Manager

1. If you just completed the Socket Mobile Connection Setup Wizard and tapped on

the link for Remote Networking, the Connections screen will appear.

Otherwise, tap: Start | Settings | Connections | Connections.

1. Under My ISP, tap Manage Existing Connections.

2. Tap and hold your stylus on the dial-up connection you created for the 56K

Modem Card. In the pop-up menu, tap Connect.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 13

Windows Mobile 2003/2003SE only:

− Alternatively, tap on the Connection icon at the top of the

screen.

− A bubble should list the connection for the Socket 56K Modem Card. Tap on

the phone number.

Note: If a bubble reports that no connections use the modem card, tap Dismiss. Wait several seconds and tap on the connection icon again.

3. If the Network Log On screen appears, enter the Password and tap OK.

4. Dialing will begin. The Power and Data LEDs will blink.

5. When the modem connects to your network, the Link Status LED will turn on,

and the Data Status LED will blink during data transfer. The “x” will disappear from the connection icon (two arrows).

If you installed the Socket Mobile software, a modem status icon will appear at the bottom of the Today screen. It will be green when connected and red during data transfer.

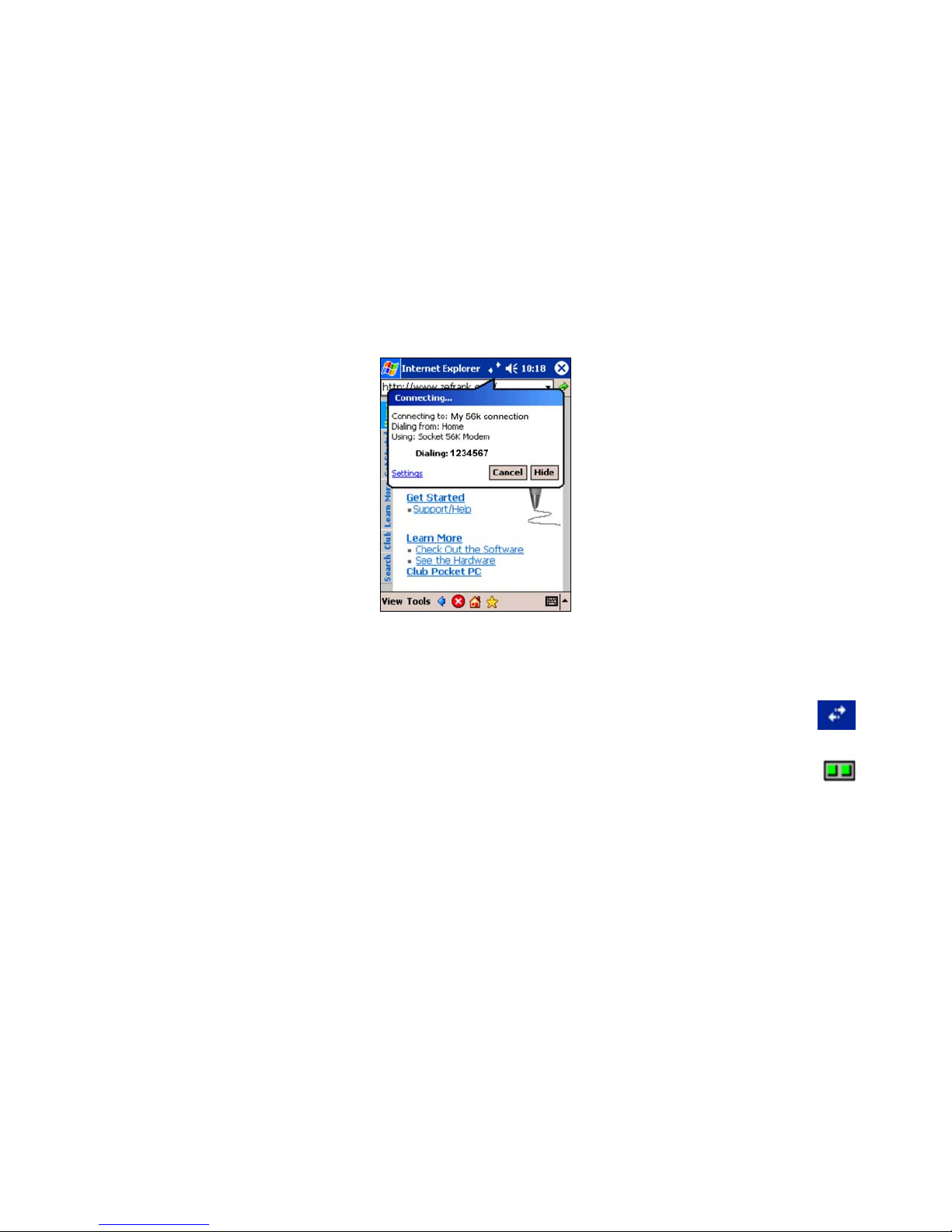

METHOD 2: Dial automatically from your application

Note: After you set up a dial-up connection, the Microsoft Connection Manager will automatically try to connect whenever you insert the 56K Modem Card and try to use a program that uses a dial-up connection (e.g., email, Internet).

1. Start the program that uses a dial-up connection. Enter a request for data

transfer (e.g., in Pocket Internet Explorer, enter a URL and tap the green arrow).

2. Dialing will begin. The Power and Data LEDs will blink.

3. If the Network Log On screen appears, enter the Password and tap OK.

4. When the 56K Modem Card has connected to the network, the Link Status LED

will turn on, and the Pocket PC will transfer data (e.g., the requested website will appear). The “x” will disappear from the connection icon (two arrows) at the top of the screen.

If you installed the Socket Mobile software, a modem status icon will appear at the bottom of the Today screen. The icon will be green when connected and red when transmitting data.

Ending a Data Call

1. Tap on the connection icon (two arrows)at the top of your screen.

2. In the bubble, tap Disconnect.

3. The connection icon will appear with an “x. If you installed the Socket Mobile

software, the modem status icon will turn red before disappearing.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 15

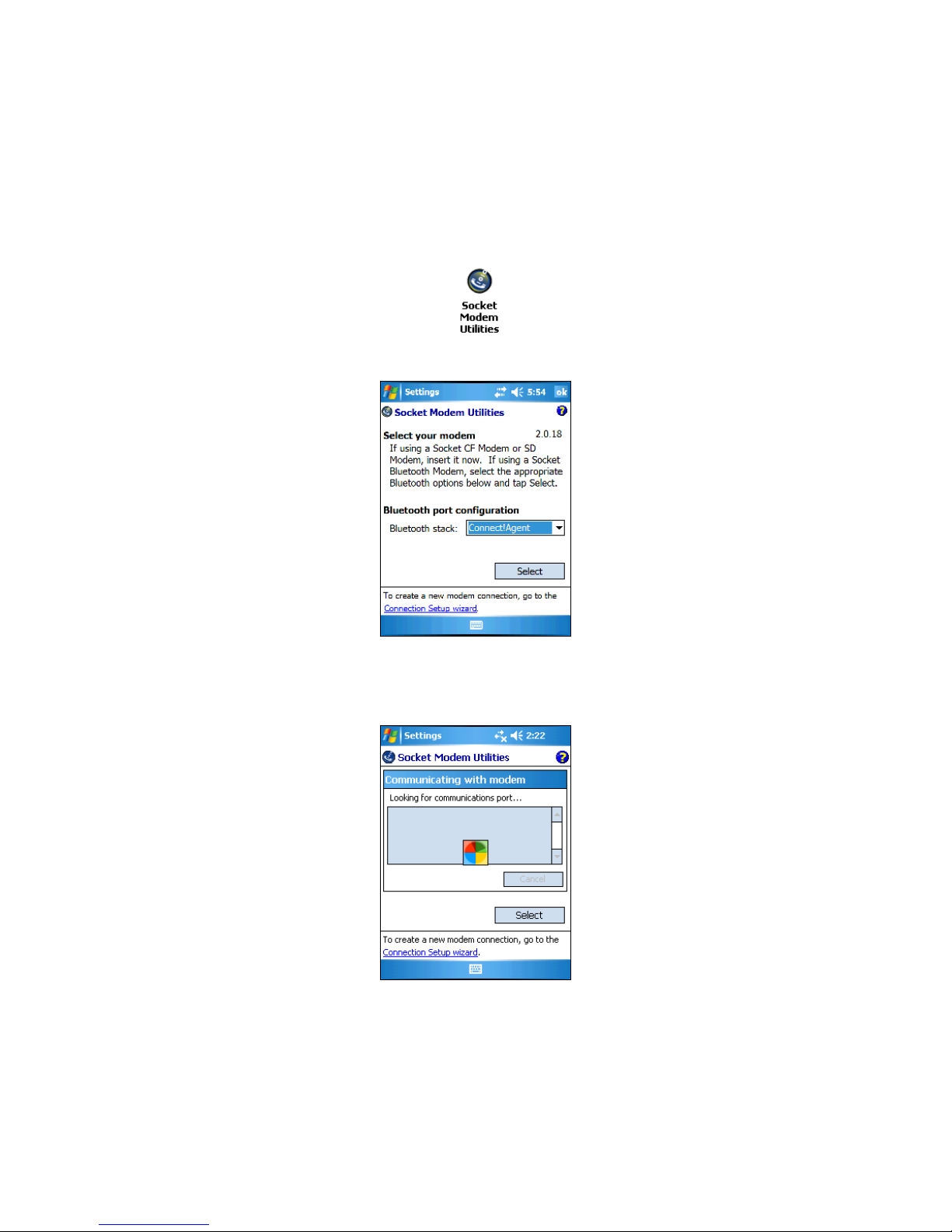

Using Socket Mobile Modem Utilities

1. Make sure your modem is NOT connected to a network.

2. Tap Start | Settings | System | Socket Modem Utilities

3. The Socket Mobile Modem Utilities screen will appear.

4. If your 56K Modem Card is currently inserted into your device, your device will

begin communicating with the modem. If the 56K Modem Card is not in your device, insert it now.

5. The Socket Mobile Modem Utilities will appear. Modify any settings as desired,

then tap ok.

• Current location: Select the country you will be dialing from. The 56K Modem

Card will be programmed with the correct country code.

• Speaker Volume: Select the sound level for the modem.

• Quick Connect: Check if you would like to configure the modem for quick

connections from a particular phone line. The first time you connect from the phone line, the modem will save the phone line’s settings, enabling quicker connections in the future from the same phone line. This feature is helpful if you plan to use the 56K Modem Card repeatedly with the same phone line. This feature requires a V.92 Internet Service Provider (ISP).

Socket Mobile recommends that you disable Quick Connect if you plan to use the modem with different phone lines. Otherwise, it may take twice as long to establish a connection because the modem searches for the previous line characteristics before trying to connect to a new line.

• Modem-on-Hold: Check if you would like to be able to identify and receive

incoming calls without dropping a network connection.

Modem-on-Hold requires a V.92 ISP, a line splitter, as well as Call Waiting service from your phone company. If you would like the Pocket PC to identify incoming calls, you also need Type 2 Caller ID service from your phone company.

• After entering your settings, tap ok.

6. Status screens will report that the new settings are taking effect.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 17

Checking the Connection Time

The Connection Manager reports the connection time. Tap on the connection icon in the Navigator bar to access the Connectivity bubble.

3 | Setup for Windows

Notebooks/Tablets

This chapter explains how to install and use the 56K Modem Card with a notebook or tablet computer running:

• Windows 98SE/Me/2000

• Windows XP/XP Tablet Edition

• Windows Vista

Please note that the Socket modem software does not notebooks. Do not install any software from the installation CD.

Setup Summary

STEP 1: Prepare dial-up information. STEP 2: Insert the card. STEP 3: Install the drivers. STEP 4: Set up your dial-up connection. STEP 5: Connect to a telephone line. STEP 6: Dial and connect.

OPTIONAL: Set up advanced networking.

Note: For instructions for Windows Vista, please refer to the documentation that came with your computer and/or the Microsoft website.

STEP 1: Prepare Dial-up Information

Find out the following dial-up information. If needed, contact your network administrator or ISP. You need this information to set up a connection.

Dial-up number: (_____) _______________________________

User name: __________________________________________

Password: ___________________________________________

Note: For most users, only the information above is necessary. If you are an advanced user and want to perform a more detailed setup, then complete the Network Information Form in Appendix B.

work with Windows

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 19

STEP 2: Insert the Card

1. Insert the 56K Modem Card into a CompactFlash-to-PC Card adapter.

2. With the computer turned ON, insert the combined unit into the PC Card slot of

your computer.

3. After a few seconds, a new hardware or device driver wizard will automatically

launch. Proceed to Step 4 to complete the wizard to install the drivers.

Warning! Do NOT insert the card upside down, or damage may occur!

When you insert the card, the Data Status LED will blink once then turn off.

STEP 3: Install the Drivers

After you insert the 56K Modem Card, a new hardware wizard will automatically launch for you to install a Standard PCMCIA Card Modem. Follow the wizard to install the card drivers.

Windows XP

1. In the first screen, the following option should be selected: Install the software

automatically (Recommended). Click Next>.

Note: You do NOT need to insert an installation CD or download any drivers.

2. Your computer will search for and install the drivers.

3. In the last screen, click Finish.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 21

Windows 2000, Me, and 98SE

1. The welcome screen will appear. Click Next>.

2. In the next screen, make sure the Recommended option is selected:

• Windows 2000: Search for a suitable driver for my device.

• Windows Me/98SE

: Search for the best deriver for your device.

Click Next>.

Note: You do NOT need to insert an installation CD or download any drivers.

3. In the next screen UNCHECK all boxes and click Next>.

4. After Windows has found a suitable driver, click Next>.

5. Windows will install the drivers. In the last screen, click Finish.

STEP 4: Set up Your Dial-up Connection

To set up your dial-up connection, use the network connection wizard included with Windows.

Windows XP and 2000

Note: Windows XP screens are shown. Windows 2000 screens will be functionally equivalent except where otherwise noted.

1. Start the Network Connection Wizard.

• Windows XP: Go to Start | Control Panel | Network Connections. Under

Network Tasks, click Create a new connection.

• Windows 2000: Go to Start | Settings | Network and Dial-up

Connections. Double-click on the Make New Connection.

2. Windows 2000: The Location Information screen will appear if you have not yet

configured your dialing location information. Enter the correct settings and click Next>.

3. The New Connection Wizard will begin. Follow the wizard to create a new dial-

up connection, making the following selections as prompted:

Windows XP:

• For Network Connection Type, select Connect to the Internet.

• In the next screen, select Set up my connection manually.

• In the next screen, select Connect using a dial-up modem.

• In the next screen, select your PCMCIA modem.

• In the next few screens, enter your dial- up settings, including a name for

the connection, the dial-up number, user name, password, and user privileges.

• In the last screen, click Finish.

Windows 2000:

• For Network Connection Type, select Dial-up to the Internet.

• In the next screen, select I want to set up my Internet connection

manually…

• In the next screen, select I connect through a phone line and a modem.

• In the next few screens, enter your dial- up settings, including a name for

the connection, the dial-up number, user name, and password.

• When prompted, set up an Internet mail account if desired.

• In the last screen, click Finish.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 23

Windows Me and 98SE

• Go to Start | Settings | Dial-up Networking. Double-click on the Make New

Connection icon.

• The Make New Connection Wizard will begin. In the first screen, enter a name for

the dial-up connection. In the Select a device field, select Standard PCMCIA Card Modem. Click Next>.

• In the next screen, enter the dial-up number and country code. Click Next>.

• The next screen will report that you have successfully created a new dial-up

connection. Click Finish.

STEP 5: Connect to a Telephone Line

With the card still in your computer, connect to an analog telephone line.

STEP 6: Dial and Connect

1. After setting up your dial-up connection in Step 4, your new connection should

be listed in the network connections screen. Double-click on your new modem connection.

2. In the Connect To screen, make sure the correct User name, Password, and

other connection information are entered. If necessary, create a new dialing location to make sure the correct area code and/or other dialing prefixes are used. Click Connect.

3. A series of screens will appear, reporting the status of your call. The Data Status

LED will blink. When the computer has connected, the status screen will report Connected.

When your computer has connected, the Link Status LED will stay on, and the Data Status LED will blink during data transmission.

4. To end a data call, in the connection status screen, tap Disconnect.

Advanced Networking

Follow the steps below to set up a dial-up connection for a RAS server. Advanced setup is necessary only if your network does NOT use DHCP (Dynamic Host Configuration Protocol).

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 25

1. Complete the Network Information Form in Appendix B.

2. To enter TCP/IP settings, after completing the wizard to create a new dial-up

connection in Step 5, follow these steps to modify the connection:

Windows XP

(a) After completing the wizard in Step 5, the Connect screen will appear for

your new connection. Click on Properties.

(b) Click on the Networking tab. Check Internet Protocol and click on

Properties.

enter DNS, WNS or other settings. When done, click OK.

(d) Click OK again in the main properties screen. (e) Restart your computer to make sure the changes take effect.

Windows 2000

(a) Right-click on the icon for the connection you just created. In the pop-up

menu, select Properties.

(b) Click on the Networking tab. Check Internet Protocol and click on

Properties.

enter DNS, WNS or other settings. When done, click OK.

(d) Click OK again in the main properties screen. Restart your computer to make

sure the changes take effect.

Windows Me

(a) Right-click on the icon for the connection you just created. In the pop-up

menu, select Properties.

(b) Click on the Networking tab. Click on the TCP/IP Settings button. (c) Enter any necessary settings, then click OK. (d) Click OK again in the main properties screen. Restart your computer to make

sure the changes take effect.

Windows 98SE

(a) Right-click on the icon for the connection you just created.

In the pop-up menu, select Properties.

(b) Click on the Server Types tab. Click on the TCP/IP Settings button. (c) Enter any necessary settings, then click OK.

(a) Click OK again in the main properties screen. Restart your computer to make

sure the changes take effect.

CHAPTER 3: SETUP FOR WINDOWS 98SE/Me/2000/XP 27

Appendix A

Specifications

Physical Characteristics: CF I/O Card Size: 88 x 42.8 x 14.8 mm Power Consumption (DC 3.3V): Active: 119 mA Inctive: 13 mA

Interface Standards:

• CompactFlash Interface: CompactFlash I/O, Type I Extended

• With CompactFlash-to-PC Card Adapter: PCMCIA, Type II

• Serial Communications: TTL

• Transmit Speed: Up to 33.6 Kbps Receive Speed: Up to 56 Kbps

• Data Modulation: ITU V.92, V.90, 56Kflex

• Fax: Send/receive 14.4 Kbps ITU-T V.17, V.24, V.27 + err, V.21 Channel 2

• Error Correction: MNP Levels 2-4 ITU V.42

• Data Compression: MNP Level 5 ITU V.42

• Line Requirement: Public Switched Telephone Network (PSTN). Analog phone line

only.

• Receiver Sensitivity: 0-43 dBm

Operating System Support:

• Windows Mobile 2003/2003SE/5.0 for Pocket PC

• Windows Mobile 6 Classic/Professional

• Windows 98SE/Me/2000/XP notebook with Cardbus.

• Windows XP Tablet PC Edition

• Windows Vista

For information on Sharp Zaurus compatibility please visit:

http://www.socketcom.com/ZaurusSharp.asp

Note: This is provided as Third Party information only. Socket does not provide technical support for the Sharp Zaurus.

Software Included: 56K Modem Installation CD

Warranty: One year

Certification: FCC: Part 15, Class B CE: ET-928-07-007

JATE ID: A03-0532JP CompactFlash Spec. 2.0 Industry Canada RoHS

Telecom Approval: FCC: Part 68, CTR 21

28 | APPENDIX A: SPECIFICATIONS

Appendix B

Network Information

Network Information Form

For Advanced Users Only

Contact your office network administrator or Internet Service Provider (ISP) for the information below.

1. Please provide the following dial-up information:

Dial-up number: ( ____ ) _______________

User name: _________________________

Password: _________________________

Domain: __________________________

2. Does the network support DHCP (Dynamic Host Configuration Protocol)?

YES. If Yes, then STOP. You do NOT need to answer Question 3.

NO. If No, then continue to Question 3. You may need only some of the IP

addresses listed below.

3. Please specify any applicable IP addresses:

(a) Mobile Computer IP address: _____ . _____ . _____ . _____

(b) Subnet Mask: _____ . _____ . _____ . _____

(d) Primary DNS: _____ . _____ . _____ . _____

(e) Secondary DNS: _____ . _____ . _____ . _____

(f) Primary WINS: _____ . _____ . _____ . _____

(g) Secondary WINS: _____ . _____ . _____ . _____

APPENDIX B: NETWORK INFORMATION | 29

Appendix C

Advanced Software Installation

for Windows Mobile

Advanced Users Only!

If you do not want to use the application installer to install Socket’s modem software, you can install the software from a CAB (cabinet) file. The CAB file contains all the software and drivers for your product to be installed on a specific Pocket PC platform. CAB files are available both on the installation CD (in the CABs folder) and at:

http://www.socketmobile.com/support/downloads

In order to install the CAB file, you need a way to transfer the CAB file to your Pocket PC, such as:

• Use Microsoft ActiveSync to transfer the CAB file to your Pocket PC. Windows

Mobile 5.0 devices require ActiveSync 4.0 or greater.

• Use a memory card reader to save the CAB file from your desktop PC to a

memory card, then insert the memory card into your Pocket PC.

• If your Pocket PC has Internet access, download the CAB file directly from

Socket’s website to your Pocket PC.

1. Transfer the correct CAB file to your Pocket PC. Refer to the chart below to

determine the correct CAB file for your Pocket PC. If transferring the CAB file with ActiveSync or downloading the CAB file directly to your Pocket PC, remember where you save the file.

Windows Mobile Version CAB File

5.0 Output.PPC2005ARMV4

2003/2003SE Output.PPC2203ARMV4

2. Tap Start | Programs | File Explorer.

3. Use File Explorer to browse to the CAB file. Tap on the CAB file.

4. The CAB file will start installing on your Pocket PC. Follow the instructions on

your device screen to install the software.

5. Your device may warn that the CAB file comes from an unknown publisher. Tap

Yes to continue installation.

6. After software installation, soft reset your device by pressing the reset button.

30 | APPENDIX C: ADVANCED SOFTWARE INSTALLATION

Appendix D Manual Connection Setup

If you did not install the Socket Mobile software, or if you do not want to use the Connection Setup wizard, you can manually set up a dial-up connection in Windows Mobile. These instructions are for a standard dial-up connection to an Internet Service Provider (ISP). If you want to connect to your work network and/or a VPN/proxy server, refer to your device manual.

1. Tap Start | Settings | Connections. Tap on Connections.

2. Tap on the Advanced tab. Tap Select Networks.

APPENDIX D: MANUAL CONNECTION SETUP | 31

3. In the Network Management screen, make sure My ISP is selected in the top

field, and My Work Network is selected in the bottom field. Tap ok.

4. Tap on the Tasks tab. In most cases, you should tap Add a new modem

connection under My ISP.

32 | APPENDIX D: MANUAL CONNECTION SETUP

5. In the next screen, enter the following:

• Enter a name…: Enter a name for the new modem connection.

• Select a modem: Socket 56K Modem or Socket-CF+_ 56K_Modem.

Tap Next.

6. In the next screen, enter the dial-up number exactly how it should be dialed from

your current location. You can enter the number without any spaces or dashes.

Note: If you plan to use the connection in different area codes, tap use dialing rules to set up the correct dialing locations. Refer to your Pocket PC manual for instructions.

7. In the next screen, enter the User name and Password. Tap Advanced.

APPENDIX D: MANUAL CONNECTION SETUP | 33

8. In the General screen, select the following:

• Baud rate: 57600.

• Wait for dial tone before dialing: Checked.

If you DO NOT need to enter any IP addresses, tap ok.

If you DO need to enter IP addresses, tap on the TCP/IP and Servers tabs to enter any necessary IP addresses. Tap ok.

In the last screen, tap Finish.

34 | APPENDIX D: MANUAL CONNECTION SETUP

Appendix E Technical Support

If you have trouble installing or using the 56K Modem Card, Socket has two technical support resources you can use:

Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics 24 hours a day. http://support.socketmobile.com/faq

Online Requests: Register your product and submit a question to our Technical Support Team. http://support.socketmobile.com

By Phone:

• USA & Canada Toll-Free: 800-279-1390

• Direct: +1- 510-933-3020

Please refrain from disassembling the modem. Disassembly of this device will void the product warranty

APPENDIX F: TECHNICAL SUPPORT | 35

Limited Warranty

Socket Mobile Incorporated warrants this product against defects in material and workmanship, under normal use and service, for one year from the date of purchase.

EXCLUDES: Consumables such as batteries, removable cables, cases, straps, chargers, and CF-to-PC Card adapters (90 day coverage only)

Incompatibility is not a defect covered by the Socket Mobile warranty. During the warranty period, Socket Mobile will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket Mobile or to an authorized Socket Mobile Service Center.

The returned product must be accompanied by a return material authorization (RMA) number issued by Socket Mobile or by a Socket Mobile Authorized Service Center. If you ship the product, you must use the original container or equivalent and you must pay the shipping charges to Socket Mobile. Socket Mobile will pay surface shipping charges back to any location in the contiguous United States. This warranty applies only to the original retail purchaser and is not transferable.

Socket Mobile may, at its option, replace or repair the product with new or reconditioned parts and the returned product becomes the property of Socket Mobile. Socket Mobile warrants the repaired or replaced products to be free from defects in material or workmanship for ninety (90) days after the return shipping date, or for the remainder of the original warranty period, whichever is greater.

This warranty does not cover the replacement of products damaged by abuse, accident, misuse or misapplication, nor as a result of service or modification other than by Socket Mobile.

SOCKET MOBILE IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING DAMAGE TO PROPERTY AND, TO THE EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow limitation of implied warranties, or the exclusion or limitation of incidental or consequential damages, so that the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This product may contain fully tested, recycled parts, warranted as if new.

For warranty information, please visit:

http://support.socketmobile.com/

Limited Software Warranty

LIMITED WARRANTY. Socket Mobile warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE.

CUSTOMER REMEDIES. The entire liability of be, at the option of the SOFTWARE which does not meet the returned to warranted for the remainder of the original warranty period or 30 days, whichever is longer. THESE REMEDIES ARE NOT AVAILABLE OUTSIDE OF THE UNITED STATES OF AMERICA.

NO OTHER WARRANTIES. implied, including but not limited to implied warranties of merchantability and fitness for a particular purpose, with respect to the SOFTWARE and the accompanying written materials. This limited warranty gives you specific legal rights. You may have others which vary from state to state.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES. In no event shall suppliers be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use the SOFTWARE, even if been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.

EXPORT LAW ASSURANCES. You may not use or otherwise export or reexport the SOFTWARE except as authorized by United States law and laws of the jurisdiction in which the SOFTWARE was obtained. In particular, but without limitation, none of the SOFTWARE may be used or otherwise exported or reexported (a) into (or to a national or resident of) a United States embargoed country or (b) to anyone on the U.S. Treasury Department’s list of Specially Designated Nationals or the U.S. Department of Commerce’s Table of Denial Orders. By using the SOFTWARE, you represent and warrant that you are not located in, under control of, or a national or resident of any such country or on any such list.

GOVERNMENT END USERS. If the SOFTWARE is supplied to the U. S. Government, the SOFTWARE is classified as “restricted computer software” as defined in clause 52.227-19 of the FAR. The U. S. Government ‘s rights to the SOFTWARE are as provided in clause 52.227-19 of the FAR.

CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State of California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, the remainder of this License shall continue in full force and effect.

Socket Mobile with a copy of your receipt. Any replacement SOFTWARE will be

Socket Mobile, either (a) return of the price paid or (b) replacement of

Socket Mobile disclaims all other warranties, either express or

Socket Mobile and your exclusive remedy shall

Socket Mobile Limited Warranty and which is

Socket Mobile or its

Socket Mobile has

Regulatory Compliance

1. This equipment complies with Part 68 of the FCC Rules. On the back of this

product is a label that contains, among other information, the FCC registration number. If requested, provide this information to your telephone company.

2. This product meets applicable Industry Canada technical specifications.

3. The registration jack USOC for the 56K Modem Card is SCIM506BSOCKETCFM.

4. The REN is useful to determine the quantity of devices that may be connected to

the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs of all devices should not exceed five (5). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

5. An FCC compliant telephone cord and modular plug is provided with this

equipment. This equipment is designed to be connected to the telephone network, which is Part 68 compliant. See installation instructions for details.

6. If the 56K Modem Card causes harm to the telephone network, the telephone

company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC if you believe it is necessary.

7. Your telephone company may make changes in its facilities, equipment,

operations, or procedures that could affect the operation of your equipment. If they do, you will be given advance notice so as to give you an opportunity to maintain uninterrupted service.

8. If you have trouble with this product, please contact Socket technical support for

repair/warranty information at http://support.socketmobile.com equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

9. For any other repairs to the device, also contact Socket technical support

department by the method mentioned above.

10. Connection to party line service is subject to state tariffs. Contact the state public

utility commission, public service commission or corporation commission for information.

11. If your home has specially wired alarm equipment connected to the telephone

line, ensure the installation of this equipment does not disable alarm equipment, consult your telephone company or a qualified installer.

Product Disposal

Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

. If your

82009 Printed in U.S.A.

Socket CompactFlash 56K Modem Card User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
