Page 1

Socket

Bluetooth

Cordless Hand Scanner

Series 7 and Series 7 Rx

User’s Guide

Page 2

7/2010 Document # 6410-00233 AA

Socket, the Socket logo, Battery Friendly, Socket Bluetooth Cordless Hand Scanner, SocketCare, SocketScan, Mobility Friendly, Connect!Agent, SoMo, ActivePairing and Error Proof Protocol are trademarks or registered trademarks of Socket Mobile, Inc. Bluetooth and the Bluetooth logos are registered trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Mobile, Inc. All other brand and product names are trademarks of their respective holders.

The Socket Bluetooth Cordless Hand Scanner includes technology licensed under United States Patent Numbers 5,902,991, 7,429,000 B1 and D526,320 S.

Reproduction of the contents of this manual without the permission of Socket Mobile is expressly prohibited. Please be aware that the products described in this manual may change without notice.

Feel free to contact Socket Mobile at:

Socket Mobile, Inc.

39700 Eureka Drive Newark, CA 94560-4808 USA

Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual.

Please refrain from any applications of the Socket Bluetooth Cordless Hand Scanner that are not described in this manual. Please refrain from disassembling the Bluetooth Cordless Hand Scanner. Disassembly of this device will void the product warranty.

You can track new product releases, software updates and technical bulletins by visiting the Socket Mobile website at: http://www.socketmobile.com.

Page 3

IMPORTANT!

The information in this User’s Guide is based on version 2 or later of the Socket Bluetooth Cordless Hand Scanner (CHS) hardware, which includes devices with any of the following part numbers:

Bluetooth CHS version Part Number

7E 8550-00056

7E2 8550-00050

8550-00051 8550-00052

7M 8550-00038

8550-00041 8550-00057

7M2 8550-00053

7P 8550-00039

8550-00058

7NRx 8550-00046

The features described in this manual that do not apply to older hardware versions of the Socket Bluetooth Cordless Hand Scanner will be noted as such.

If you have a version of the CHS 7X or 7XRx that supports only Bluetooth® Human Interface Device (HID) profile, please refer to the appropriate user’s guide at:

http://www.socketmobile.com/pdf/data-collection/chs-7x_ug.pdf

Page 4

TABLE OF CONTENTS

1 | INTRODUCTION 5

SCANNER VERSIONS 5

BOUT THE SOFTWARE 5

ACKAGE CONTENTS 6

YSTEM COMPATIBILITY REQUIREMENTS 6

RODUCT REGISTRATION 7

OCKETCARE™ SERVICE PROGRAM 7

CCESSORIES 7

DDITIONAL DOCUMENTATION 7

ARDWARE FEATURES 8

2 | HARDWARE PREPARATION 10

INSTALLING BATTERIES AND ATTACHING THE TETHER 10

SSEMBLING THE AC ADAPTER 12

HARGING THE SCANNER 12

3 | SETUP FOR WINDOWS 7, VISTA, AND XP 13

4 | SETUP FOR THE SOMO 650 36

5 | SETUP FOR WINDOWS MOBILE 51

6 | SETUP FOR PALM OS 68

7 | SETUP FOR RIM BLACKBERRY 78

8 | SETUP FOR NOKIA 85

APPENDICES A SPECIFICATIONS 92

B SAFETY AND USAGE TIPS 95

C BARCODE LABEL SPECIFICATIONS 97

D DECODE ZONE 98

E RESTORING FACTORY DEFAULTS 100

F CHANGING THE DATA MODE 101

G TROUBLESHOOTING 103

H TECHNICAL SUPPORT 107

LIMITED WARRANTY 108

REGULATORY COMPLIANCE 110

Page 5

1 | INTRODUCTION

Thank you for purchasing the Socket Bluetooth Cordless Hand Scanner (Bluetooth CHS) Series 7. The Socket Bluetooth CHS combines the power of barcode scanning with the convenience of Bluetooth wireless technology so you can collect barcoded data without being tied to your mobile or desktop computer. Compact, lightweight, and ergonomically designed to fit comfortably in a hand, the Socket Bluetooth CHS is ideal for high volume data collection applications.

SCANNER VERSIONS

Model Scanning Engine Rugged

Case 7E2 Class 1 Laser – 1D No No 7M2 Class 2 laser – 1D No No 7P Class 2 Laser – 1D Yes No 7X CMOS – 1D & 2D Yes No 7NRx Class 1 Laser – 1D Yes Yes 7XRx CMOS – 1D & 2D Yes Yes

ABOUT THE SOFTWARE

SocketScan™ enters scanned data directly into any program as if

the data were manually typed. Included is a utility for configuring Prefix/Suffixes, sounds, ActivePairing, and other special settings for the Socket Bluetooth CHS.

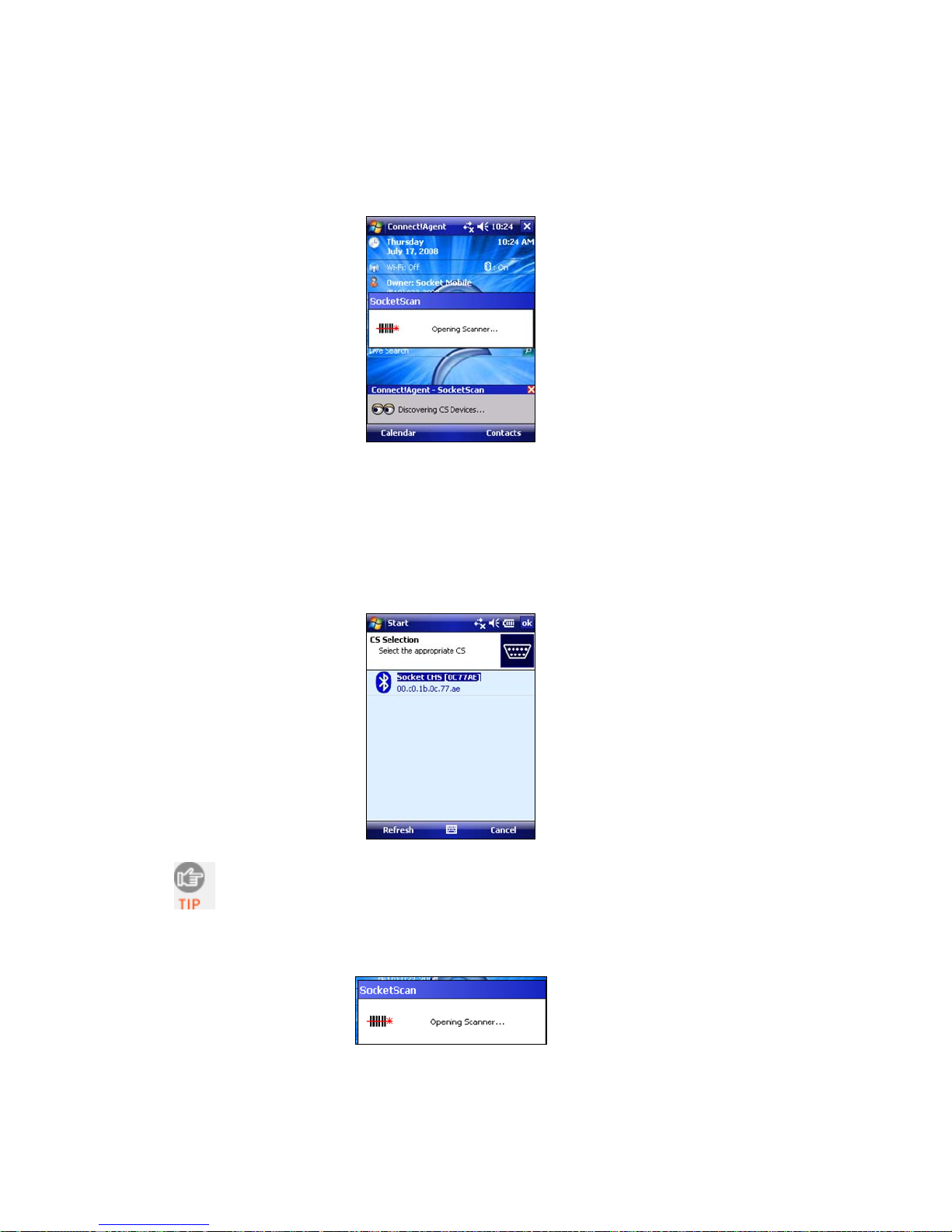

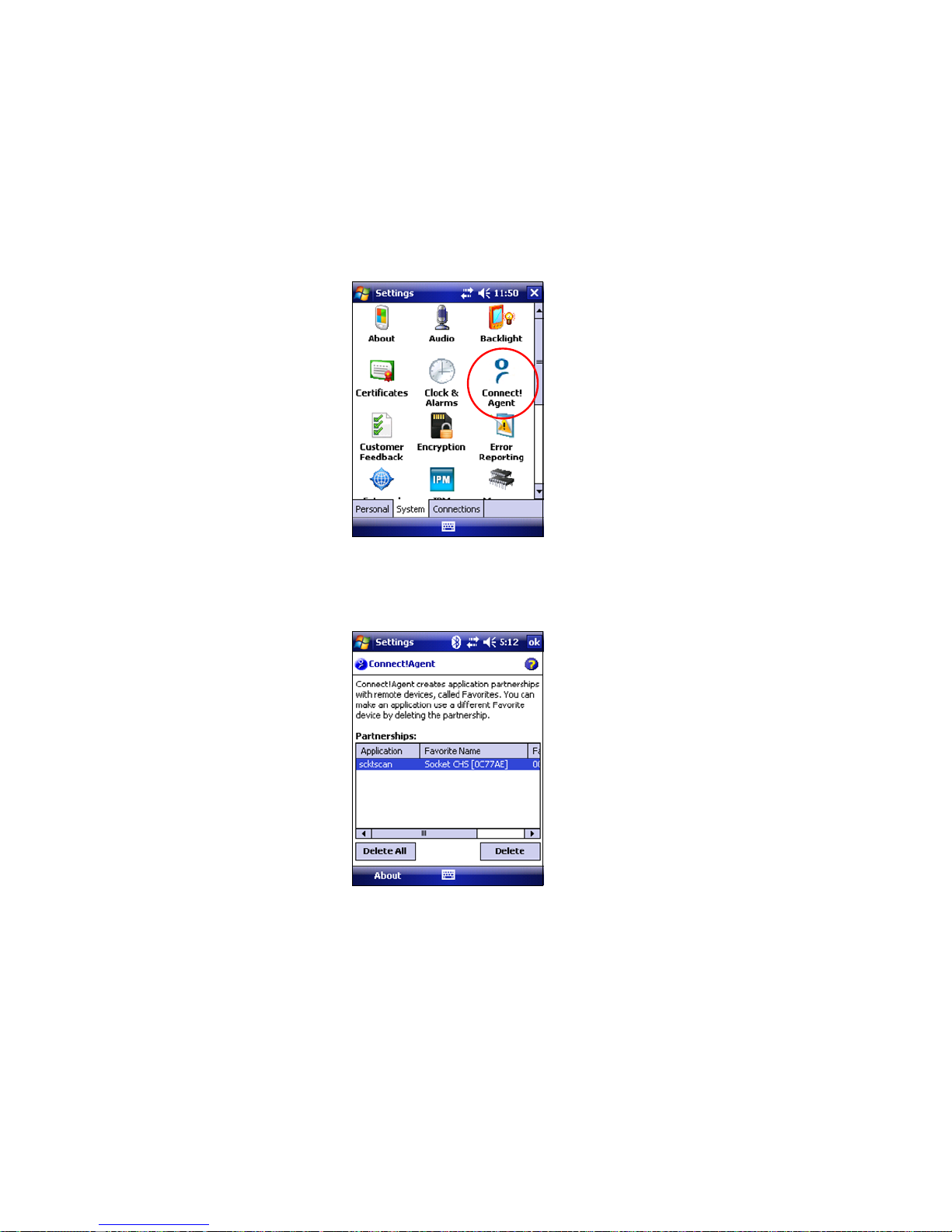

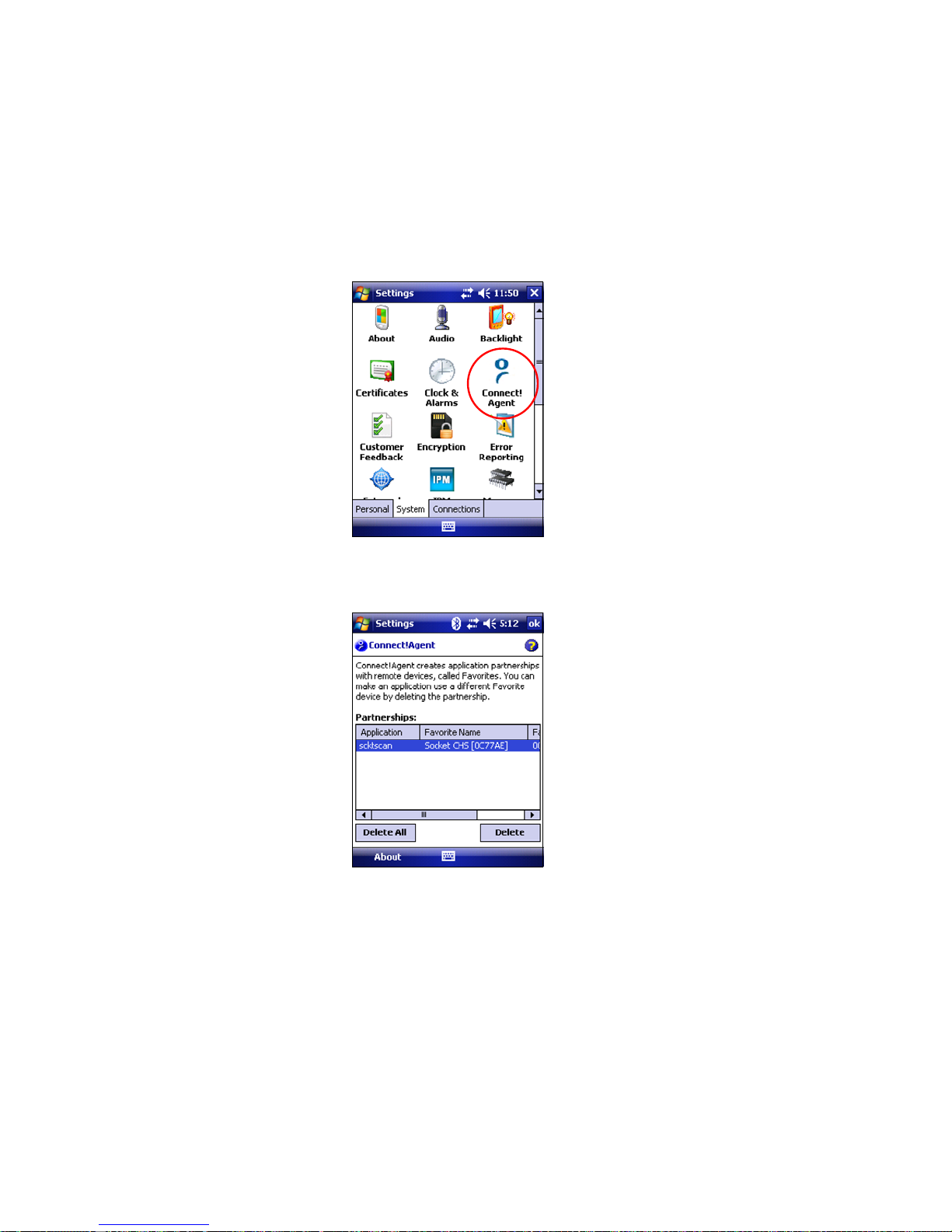

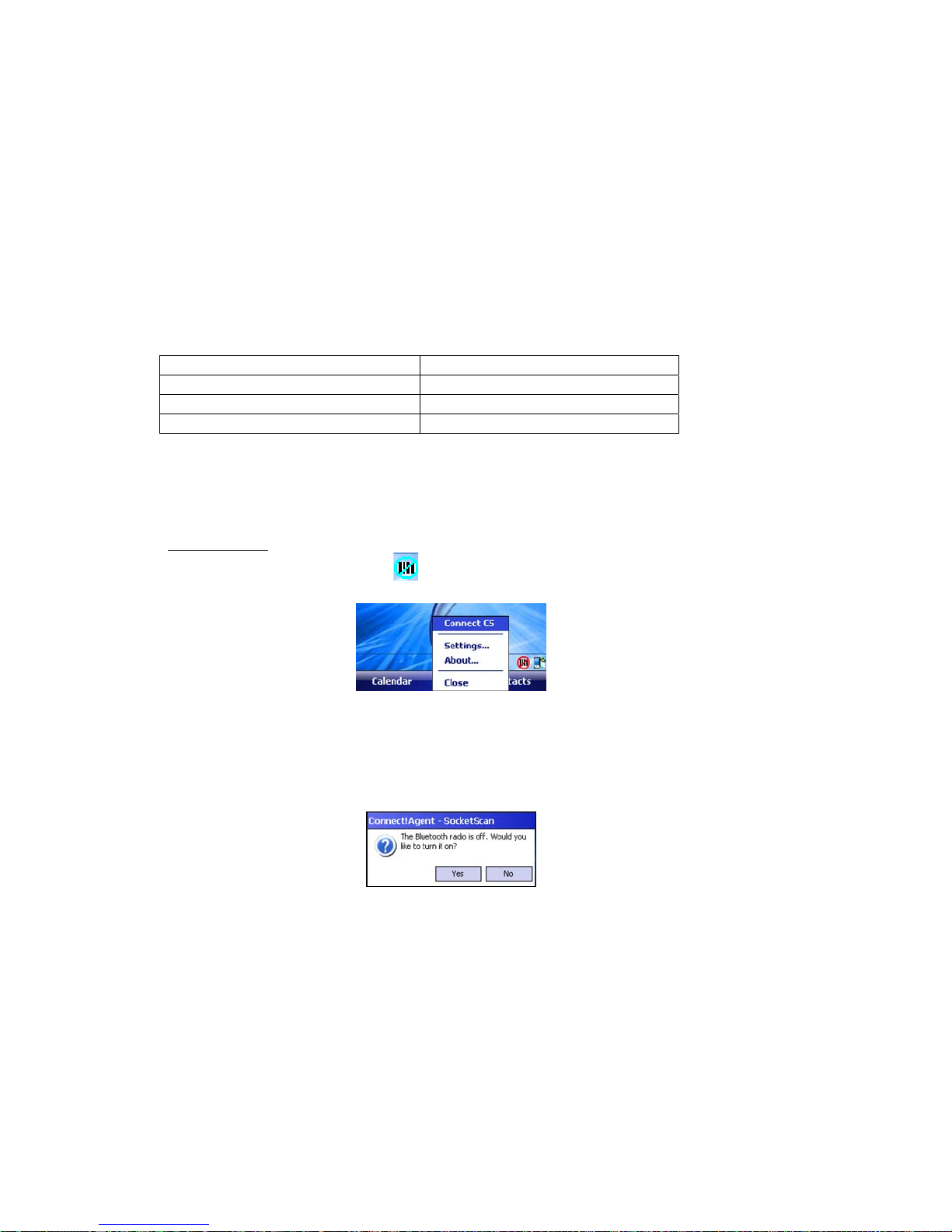

Connect!Agent™ software automates Bluetooth by setting up and

managing the wireless connection (Windows Mobile only).

ActivePairing

™

enables you to connect to a specific host computer by scanning a special barcode or setting up a “Permanent Pair.” (Windows only, requires Socket Bluetooth CHS v2)

Error Proof Protocol

™

ensures reliability of data collection by confirming in real time that scanned data has reached the host computer. This minimizes the risk of data loss from a dropped connection.

Download the latest Socket software free from:

http://www.socketmobile.com/support/downloads/

Made with Antimicrobial Materials

CHAPTER 1: INTRODUCTION 5

Page 6

PACKAGE CONTENTS

Socket Bluetooth

Cordless Hand Scanner

Lanyard with

retractable tether

AC adapter

USA, Europe, Australia

CD with software and

with plugs for

documentation

2 NiMH rechargeable

AAA batteries

Charging Cradle

(Series 7 Rx only)

SYSTEM COMPATIBILITY REQUIREMENTS

Note: The CHS 7X and 7XRx versions with support for Serial Port Profile (SPP) are only compatible with Windows 7, Vista, XP, Mobile, and RIM BlackBerry OS in SPP mode. To connect to Palm or Symbian smartphones, use HID mode, covered in a separate manual. http://www.socketmobile.com/pdf/data-

collection/chs-7x_ug.pdf

Windows 7, Vista, XP

• Bluetooth radio

• Bluetooth stack from Microsoft, Toshiba or Broadcom

Windows Mobile

• Any of the following Windows Mobile versions:

− Windows Mobile 6 Classic/Professional

− Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/Pocket PC Phone

• Bluetooth radio

• Either of the following Bluetooth stacks:*

− Broadcom 1.5 or later

− Microsoft Bluetooth stack for Windows Mobile

− Stonestreet One 1.2.4 (Build 1783)

• Software installation requires a PC with ActiveSync or Windows Mobile

Device Center software (free from Microsoft website).

Palm OS

• Palm OS 5.2 or later

• Bluetooth wireless technology

Page 7

• Software installation requires a PC running Palm Desktop Software.

RIM BlackBerry BlackBerry Curve 8200, 8300; Pearl 8100; Bold 9000, 8600, 9700; Storm 9500; and Tour 9600 series smartphones.

Symbian OS E61, E61i and E71 smartphones.

Windows CE.NET Intermec CK30. For instructions, contact technical support at:

http://support.socketmobile.com

: The Socket Bluetooth CHS Series 7 is compatible with the

: The Socket Bluetooth CHS Series 7 is compatible with the Nokia

: The Socket Bluetooth CHS Series 7 is compatible with the

PRODUCT REGISTRATION

Socket highly recommends that all customers register their products. Registered users receive priority for technical support and can choose to obtain special offers, upgrades, and new product information. Register online at:

http://support.socketmobile.com

SOCKETCARE

SocketCare is an enhanced service program that supports deployments of the Bluetooth CHS with faster technical support, faster repair and replacement, and the option for full coverage. For more information, please visit:

http://www.socketmobile.com/socketcare

™

SERVICE PROGRAM

ACCESSORIES

Accessories available for the Socket Bluetooth CHS include:

• Charging cradle (standard and antimicrobial versions)

• Car charger

• Scanning Companion USB Bluetooth adapter

• Mobile Power Pack (available in Americas and Asia Pacific)

For more information, please visit:

http://www.socketmobile.com/products/bluetooth-barcodescanners/accessories/

ADDITIONAL DOCUMENTATION

Socket has also published Quick Start Guides and an Advanced Programming Guide. Download them online at:

http://www.socketmobile.com/support/downloads/

For the 7X or 7XRx (2D and 1D) versions, please refer to the appropriate User’s Guide at: http://www.socketmobile.com/pdf/data-collection/chs-

7x_ug.pdf

CHAPTER 1: INTRODUCTION 7

Page 8

HARDWARE FEATURES

Product Diagram

Scanner window

Battery cover

Status indicator LED

Trigger button

Power button

Stylus tip

Rechargeable Batteries and AC Adapter

Charge the internal batteries by using the AC adapter or charging cradle, if included. The adapter rating is 5V, 2A, positive pole center. New, fully charged batteries last ~19 hours to scan 15,000+ barcodes. The power jack fits a 4mm barrel connector.

WARNING: Charge ONLY NiMH batteries in the Bluetooth CHS. Damage may result if other battery types are charged. Do not store the Bluetooth CHS for more than 30 days with the batteries installed.

The red Battery Status LED will not function properly if standard AAA nonrechargeable batteries are being used.

Besides the included AC adapter, you can also recharge the Bluetooth CHS by using any of the following:

• Socket charging cradle for the Socket Bluetooth CHS

• Socket car charger

• Socket Mobile Power Pack (sold in Americas and Asia Pacific)

• AC and DC adapters of the Socket SoMo

as those of most recent Pocket PCs from Casio, Fujitsu, HP, and Toshiba

Socket charging accessories are available online at:

http://www.socketmobile.com/products/bluetooth-barcodescanners/accessories/

650 handheld computer, as well

Page 9

The LED and beep behaviors below are for the Bluetooth CHS v2.

Status Indicator LED

LED LED Activity Meaning

1 blink per second Bluetooth radio is on, but not connected.

Bluetooth

Status

(Blue)

1 blink per 3 seconds Scanner connected to computer

Good Read

(Green)

Data successfully scanned and transmitted to host device.

Battery

Status

(Red)

Blinking 20% battery capacity remaining

Off Off or Good Battery status

Status Indicator Beeps

Beep Pattern Meaning

2 beeps (low-high) Power on

2 beeps (high-low) Power off

1 beep Scanner connected to computer

2 beeps (same tone)

Scanner disconnected from computer

2 long beeps (same tone) with Permanent Pairing

Scanner unsuccessfully tried 20 times to connect to the device assigned as its Permanent Pair

enabled

1 beep with green LED (optional

Data successfully scanned and sent to computer

setting)

Touch Screen Stylus

The Socket Bluetooth CHS features a stylus tip in the tail of the Bluetooth CHS that you can use on Pocket PC and other device touch screens.

WARNING: Do not use the stylus if damaged. A damaged stylus may scratch the display screen of your computer.

Note: The stylus does not work with tablets using Active Matrix displays.

CHAPTER 1: INTRODUCTION 9

Page 10

2 | HARDWARE PREPARATION

INSTALLING BATTERIES AND ATTACHING THE TETHER

1. Use a coin or screwdriver to unlock and remove the battery cover. Turn

the lock underneath the scanner to a horizontal position to unlock.

2. Remove the battery cover.

For the Bluetooth CHS v2, the Bluetooth Device Address is printed on a label inside the battery compartment. The address is used to identify the Bluetooth CHS.

3. If desired, attach the tether. Wrap the string loop around the inside part

of the lock.

Page 11

4. Install the batteries as indicated by the +/- symbols.

WARNING: Do not install the batteries incorrectly. Damage may result.

5. Replace the battery cover and turn the lock to a vertical position to

secure it.

6. If desired, attach the tether to a lanyard or belt.

CHAPTER 2: HARDWARE PREPARATION 11

Page 12

ASSEMBLING THE AC ADAPTER

The AC adapter included with the Bluetooth CHS includes four international plugs. Simply find the correct plug for your region and slide it into the head of the adapter.

CHARGING THE SCANNER

Use the AC adapter or charging cradle, if included, to charge the Bluetooth Cordless Hand Scanner. Alternatively, you can use a car charger or the Mobile Power Pack (all available separately).

The scanner must be fully charged before its first use. The LED will emit a solid red light while charging, and turn green when the batteries are fully charged.

WARNING: Do not attempt to charge alkaline batteries — this may cause alkaline batteries to leak and damage the Bluetooth CHS.

The red Battery Status LED will not work properly if standard AAA alkaline batteries are being used.

To purchase charging accessories, please visit:

http://www.socketmobile.com/products/bluetooth-barcodescanners/accessories/

Page 13

3 | SETUP FOR WINDOWS 7, VISTA, AND XP

This chapter explains how to install and use the Bluetooth Cordless Hand Scanner (Bluetooth CHS) with a Bluetooth enabled computer running Windows 7, Vista or XP

Before you begin the instructions in this chapter, make sure you have installed the batteries and charged the scanner, as described in Chapter 2, “Hardware Setup.”

CONNECTION OPTIONS

For Windows-based computers, the Socket Bluetooth CHS offers three different connection options to fit different work environments.

Scenario How the Bluetooth

Connection Initiates

Scenario 1: Single

user with one scanner per PC, no roaming.

Computer initiates the connection through Bluetooth software.

Pros/Cons Compatible

Hardware/

Easiest to configure but requires user to start connection through software.

Any version of Bluetooth CHS

Scenario 2: Enterprise deployment with one scanner per PC, no roaming.

Scenario 3: Enterprise deployment with scanner(s) roaming between different PCs.

Scanner initiates the connection automatically when it is powered on. (ActivePairing with Permanent Pair)

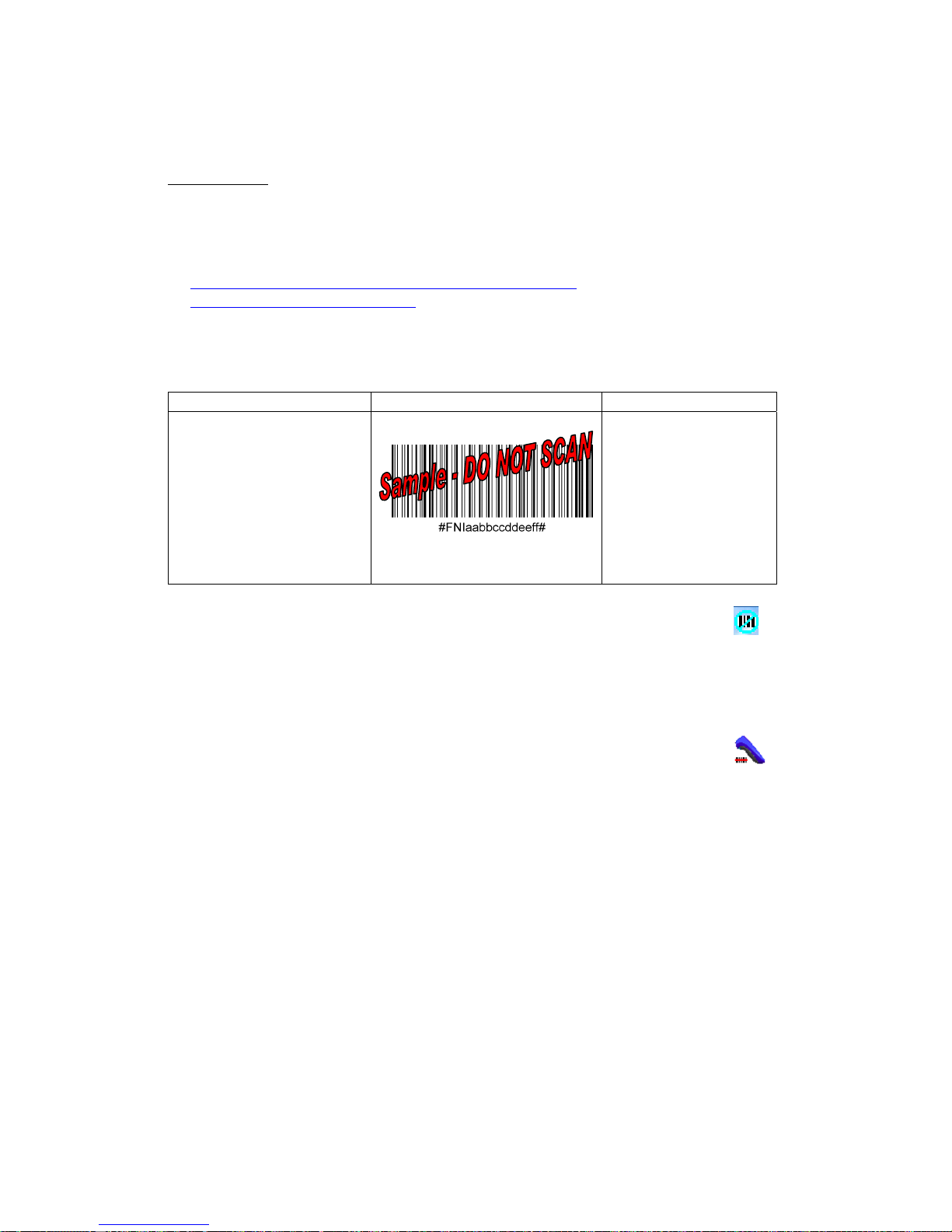

Scanner initiates the connection by reading a special barcode. (ActivePairing)

More complex to configure but easiest connection method.

Easy to connect but requires barcode generating software and printer.

Part Number (labeled in battery compartment)

8550-00037 or later

IMPORTANT! REMEMBER THE NUMBER OF THE SCENARIO YOU WANT TO SET UP THE SOFTWARE FOR!

Note: ActivePairing has been successfully tested with the Microsoft, Broadcom and Toshiba Bluetooth stacks. Due to the many possible hardware manufacturer and Bluetooth stack combinations, ActivePairing may not work correctly on all computers running Windows XP, Vista or 7.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 13

Page 14

STEP 1: UNINSTALL OTHER SCANNING SOFTWARE

Uninstall any barcode scanning software already installed in your computer, including previous versions of SocketScan.

1. Make sure the software is not running.

2. Make sure you are logged into an administrative account.

3. Click Start | Control Panel.

• For Windows 7, click Uninstall a program.

• For Windows Vista, click Programs and Features.

• For Windows XP, click Add or Remove Programs.

4. Use the utility to remove the software.

STEP 2: INSTALL THE SOFTWARE

Note: Download the latest software free from:

http://www.socketmobile.com/support/downloads

1. Make sure you are logged into an administrative account, otherwise you

will not have permission to install software and/or the software will not install correctly.

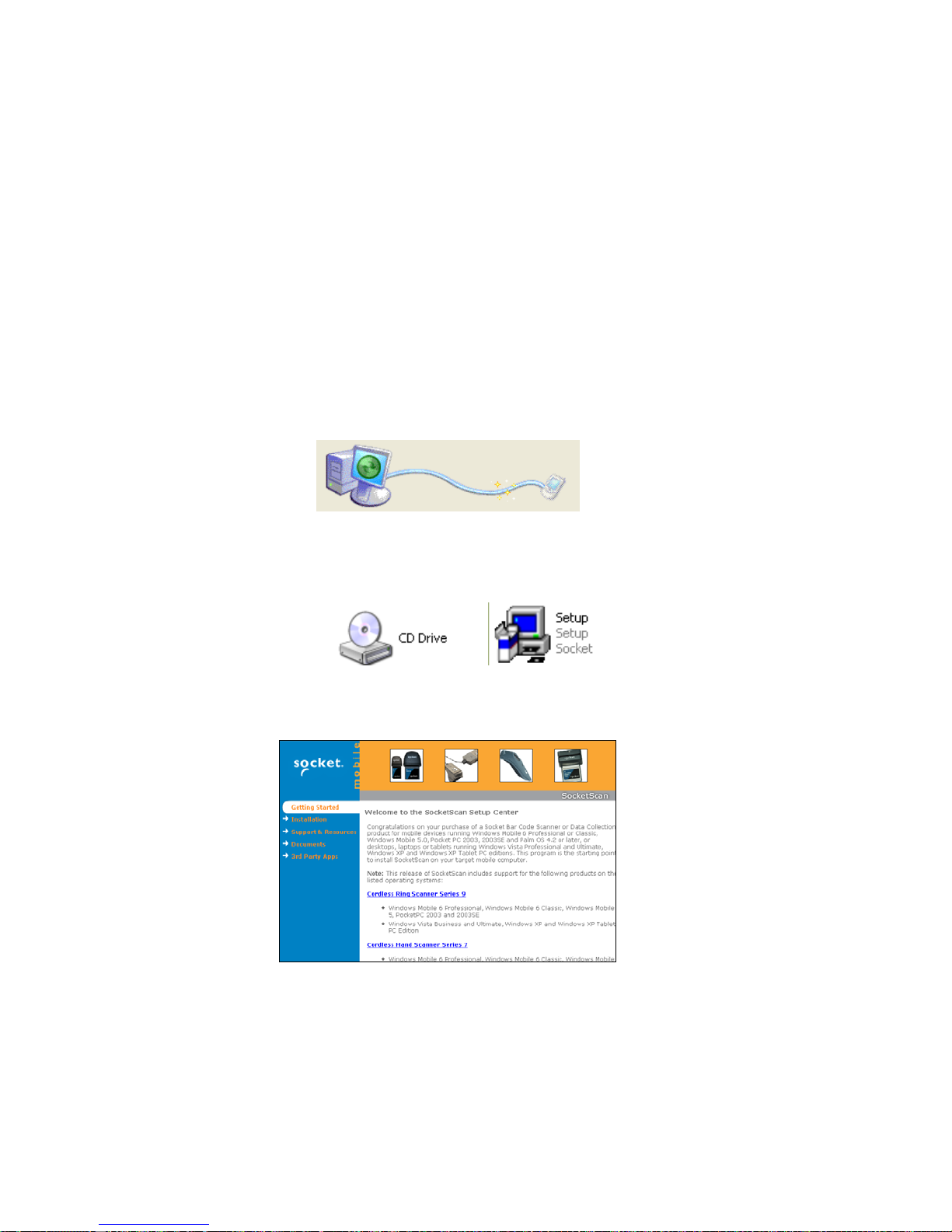

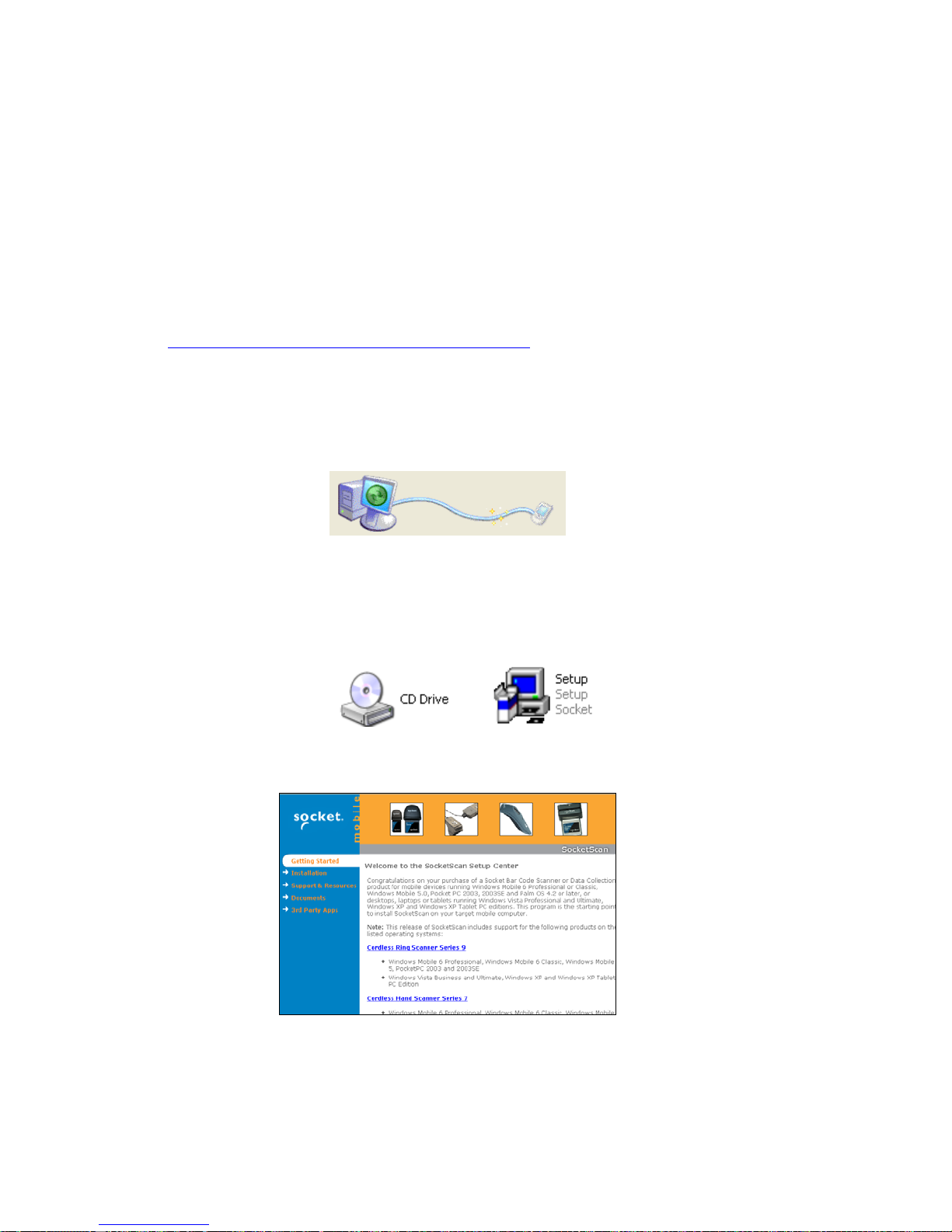

2. Insert the SocketScan installation CD into the CD drive of your PC. Use My

Computer or Windows Explorer to access your CD drive. In the CD, click on SETUP.EXE.

3. The SocketScan Setup Center will appear in your web browser. Read the

first page and click Installation in the left margin.

4. In the SocketScan Installation page, scroll down to the Windows XP and

Windows Vista section and click on the Install link there.

Page 15

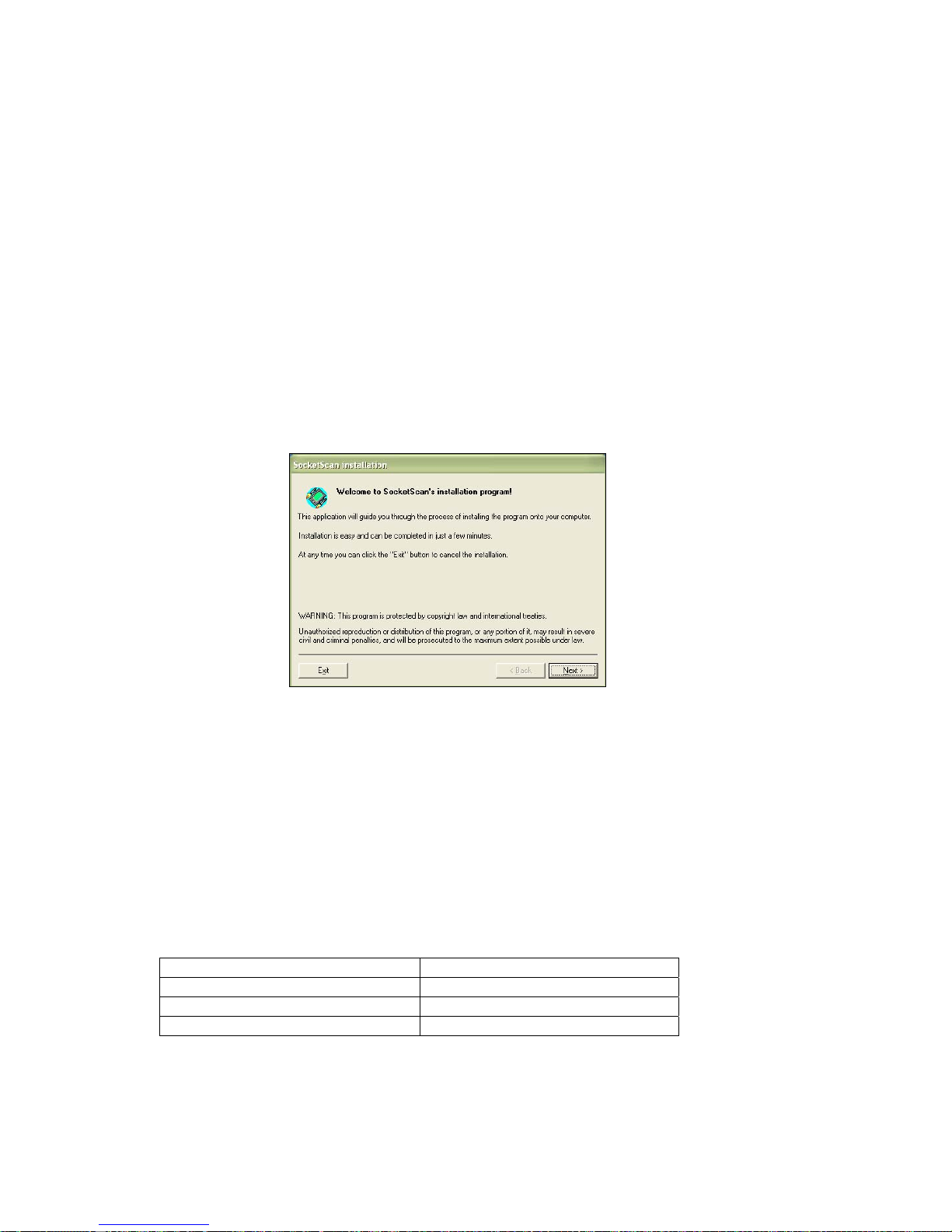

5. Your web browser will present a series of dialogs.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScan...exe, click Open.

• In the warning dialog, click OK to continue.

6. The installation wizard will launch. Follow itto install the software.

7. During installation, a message may warn that the software is unsigned or

has not passed Windows Logo testing.

• Windows Vista: Click Install this driver software anyway.

• Windows XP

: Click Continue Anyway.

8. After software installation, restart your computer.

9. Icons for SocketScan and Socket CS Connect will appear on your

desktop.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 15

Page 16

STEP 3: TURN ON THE BLUETOOTH CHS

Press and hold the small power button for 3 seconds, until the LED turns

blue and the scanner beeps twice (low-high). The LED should blink blue once per second to show that the Bluetooth radio is on but not connected.

After the scanner is turned on, its Bluetooth mode will change over time if no connection is made.

Note: This Bluetooth mode sequence is for the Bluetooth CHS v2.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable 5-20 minutes Connectable 20 minutes Scanner automatically powers off

STEP 4: START BLUETOOTH ON YOUR COMPUTER

Note: Refer to your Bluetooth hardware/software documentation for full instructions.

1. If using an add-on Bluetooth card or adapter, such as the Socket Scanning

Companion USB adapter, plug it into your computer.

2. Start your computer’s Bluetooth software. For some computers, the Bluetooth

software will automatically launch after you turn on the Bluetooth radio.

3. Turn on the Bluetooth radio. For some computers, the Bluetooth radio must be

enabled through the software. Other computers have a hardware switch.

Note: Your Bluetooth software may vary from the screen shown.

Page 17

STEP 5: CONFIGURE BLUETOOTH SETTINGS

Follow the appropriate instructions for your Bluetooth stack. Configuration is only needed the first time you connect the Bluetooth CHS to your PC. Refer to your Bluetooth software manual for full instructions.

SocketScan supports a generic Bluetooth COM port and may be able to connect to Bluetooth stacks other than those listed.

Microsoft Bluetooth Stack:

1. Right-click on the Bluetooth icon in the task tray. In the pop-up menu,

click Add a Bluetooth Device for Windows XP/Vista or Add a Device for Windows 7.

2. The Add Bluetooth Device Wizard will start.

- Windows 7: Your computer will automatically begin searching for

Bluetooth devices in range and report found devices.

- Windows XP or Vista: A welcome screen will appear. Check the box My

device is set up and ready to be found. Click Next.

3. After the search, select Socket CHS [xxxxxx]. Click Next.

Note: The characters in brackets are the last 6 characters of the scanner’s Bluetooth Device Address, which is labeled inside the battery compartment for the Bluetooth CHS v2.

4. A passkey or pairing option screen will appear.

- Windows 7: Select Enter the device’s pairing code and enter the

default PIN

1234. Click Next.

- Windows XP or Vista: Select Use the passkey found in the

documentation and enter the default PIN

1234. Click Next.

5. Your computer will connect to the scanner. Status balloons will appear,

reporting the connection progress. After connecting, the Bluetooth CHS will beep once, and the LED will blink blue once every 3 seconds.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 17

Page 18

6. Complete the wizard and note the necessary COM port number(s):

IMPORTANT!

• FOR SCENARIO 1, NOTE THE OUTGOING COM NUMBER.

• FOR SCENARIO 2, NOTE BOTH COM NUMBERS.

• FOR SCENARIO 3, NOTE THE INCOMING COM NUMBER.

• Windows 7: At the end of the wizard, click Close. To determine your

COM ports, click on the Bluetooth task tray icon. In the pop-up menu, click Open Settings. Click on the COM Ports tab.

• Windows XP/Vista: In the last screen of the wizard, note the COM port

number(s) and click Finish.

Page 19

Toshiba Bluetooth Stack:

1. Double-click on the Bluetooth icon at the bottom of your screen.

2. In Bluetooth Settings, tap New Connection.

3. The Add New Connection Wizard will launch. Select Custom Mode and

click Next. The tablet will search for Bluetooth devices in range.

4. In the list of devices, select Socket CHS [xxxxxx]. Click Next.

Note: The characters in brackets are the last 6 characters of the scanner’s Bluetooth Device Address, which is labeled inside the battery compartment for the Bluetooth CHS v2.

5. If a passkey is requested, enter the default PIN 1234. Click OK. To indicate

the connection, the Bluetooth CHS will beep once.

6. In the list of device services, select Serial Port. Click Next.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 19

Page 20

7. In the next screen, uncheck Use default COM port. Click Next.

8. The software will report that the default setting is recommended. Click OK.

9. Select another COM port. If desired, check Auto Connect. Click Next.

WARNING! Do not select a COM port used by another device on your system!

IMPORTANT! FOR SCENARIO 1 OR 2, REMEMBER WHICH COM NUMBER YOU CHOSE! THIS IS THE LOCAL COM-CLIENT

PORT NUMBER.

10. After COM port selection is complete, remember the COM port number

(it is the Local COM-Client

port number). Click Next.

11. Edit the connection name and/or icon if desired. Click Next.

12. In the last screen, click Finish.

13. For Scenario 2 or 3, check the Local COM-Server

port number.

Click Start | Control Panel | Bluetooth Local COM.

IMPORTANT!

• FOR SCENARIO 1, NOTE THE LOCAL COM-CLIENT NUMBER.

• FOR SCENARIO 2, NOTE BOTH COM PORT NUMBERS.

• FOR SCENARIO 3, NOTE THE LOCAL COM-SERVER NUMBER.

Page 21

Broadcom (Widcomm) Bluetooth Stack:

Note: Please make sure the Bluetooth serial port is enabled for your system. Refer to you computer or Bluetooth hardware manual for instructions.

1. Click the Bluetooth icon in the task tray. Click Quick Connect |

Bluetooth Serial Port | Find Devices.

Note: Be sure to use Quick Connect because this sets the Bluetooth CHS as your default Bluetooth serial device.

2. After the device search, select the Bluetooth CHS, which will appear as

Socket CHS [xxxxxx].

Note: The characters in brackets are the last 6 characters of the scanner’s Bluetooth Device Address, which is labeled inside the battery compartment for the Bluetooth CHS v2.

3. If a passkey is requested, enter 1234. After the connection starts, the

scanner will beep once, and the LED will blink blue once every 3 seconds..

Note:

• For automatic connections, click Bluetooth Configuration | Local

Service tab | Bluetooth Serial Port | Properties. Select Start up automatically.

• By default, the software will ask for the passkey each time you

connect.

• To disable the passkey requirement, under Advanced Configuration,

disable the Secure Connection requirement for the Local Service and Client Application, then unpair the devices. Refer to the documentation for your Bluetooth hardware/software for complete instructions.

4. Identify the COM ports assigned to the scanner. Open the Bluetooth

Configuration Utility. Note the COM port numbers under the Client Applications tab and Local Services tab.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 21

Page 22

IMPORTANT!

• FOR SCENARIO 1, NOTE THE COM NUMBER FOR CLIENT APPLICATIONS.

• FOR SCENARIO 2, NOTE BOTH COM NUMBERS.

• FOR SCENARIO 3, NOTE THE COM NUMBER FOR LOCAL SERVICES.

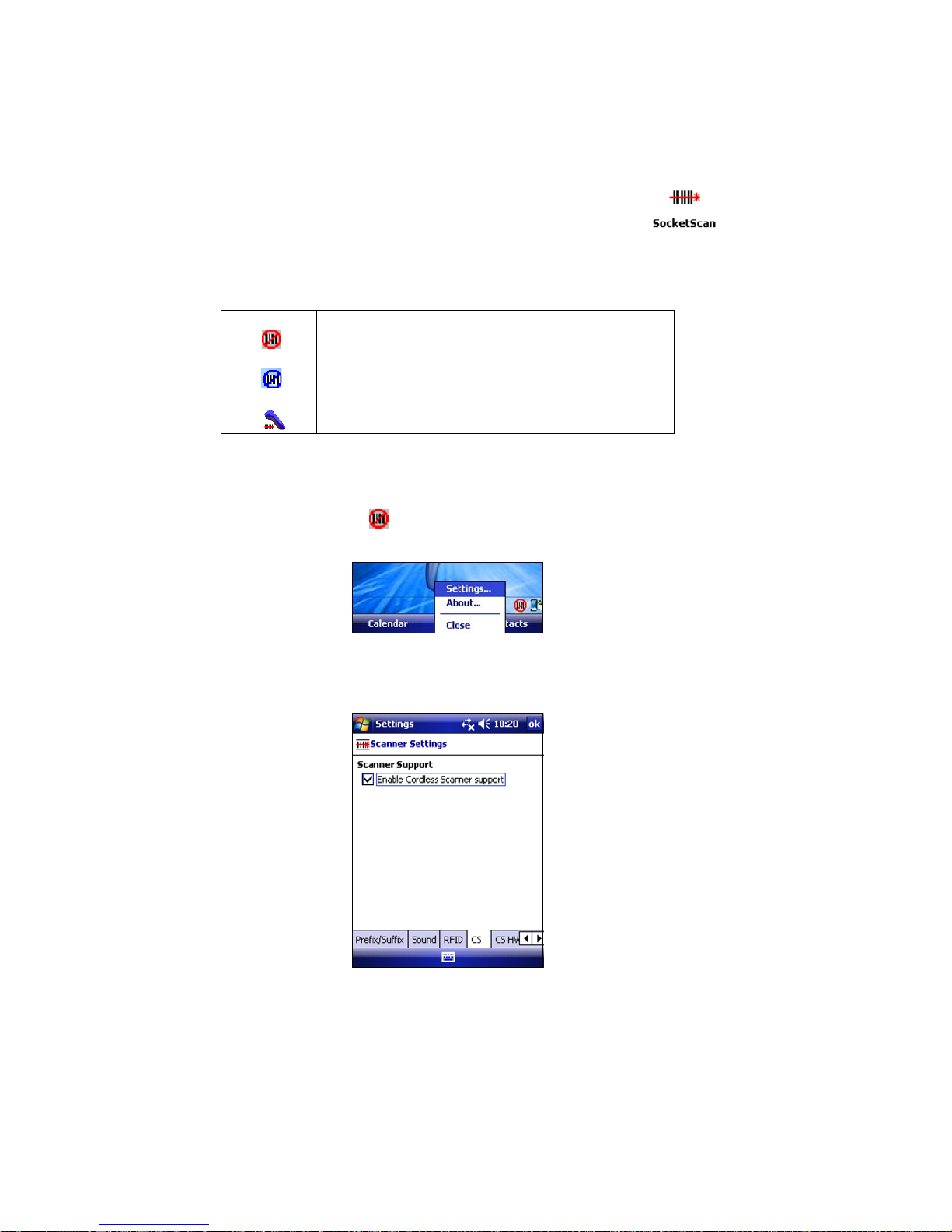

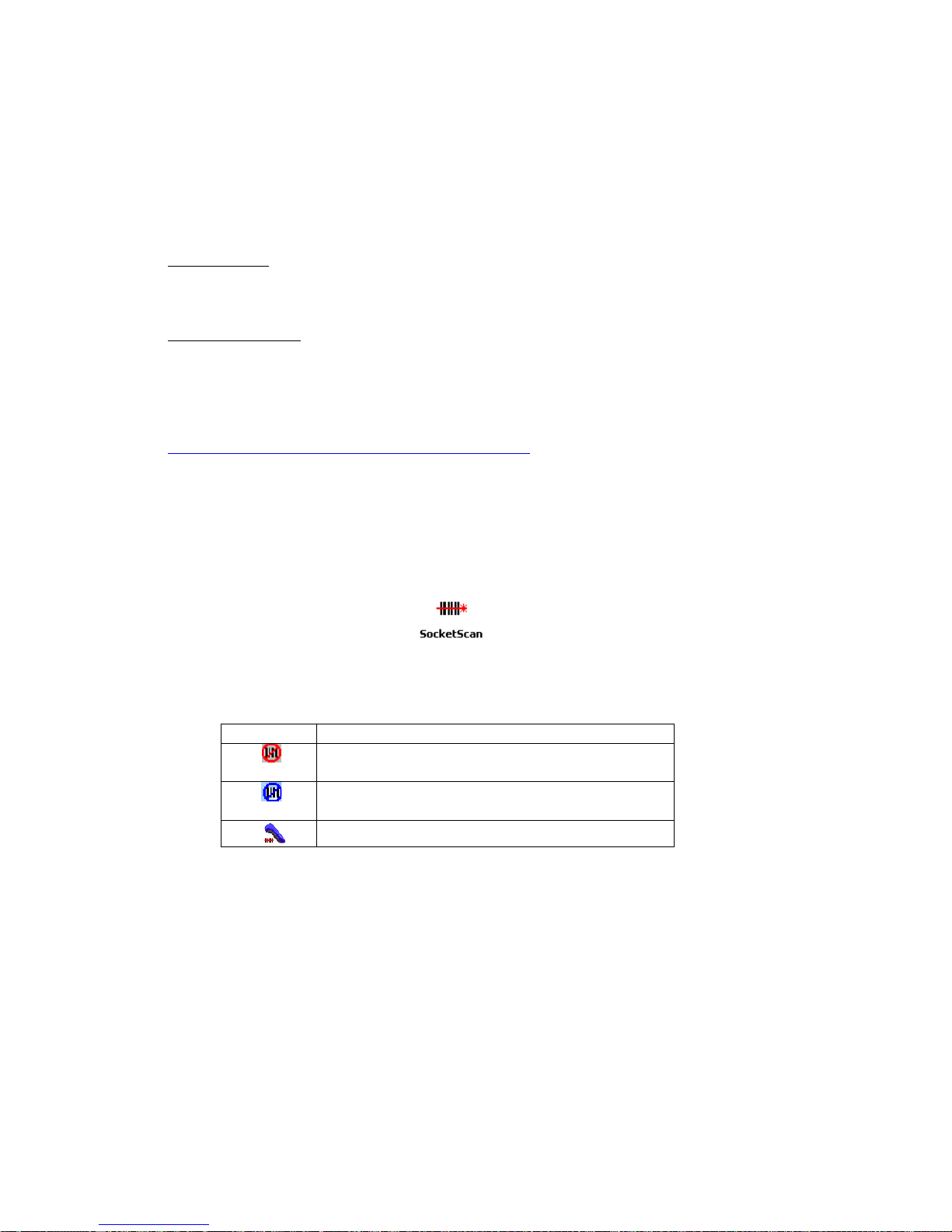

STEP 6: START SOCKETSCAN

Double-click on the SocketScan icon on your desktop.

When SocketScan is running, the SocketScan icon will appear in the task tray at the bottom of your screen.

Icon Meaning

The scanner is not connected to the computer.

The scanner is connected to the computer

SocketScan is ready for the

Spinning icon alternates between

handheld and ring scanner icons.

Bluetooth CHS to connect to the computer with ActivePairing.

Note: For Windows 7, if you started SocketScan but the SocketScan task tray

icon does not appear, click on the task tray icons.

icon in the task tray to reveal additional

Page 23

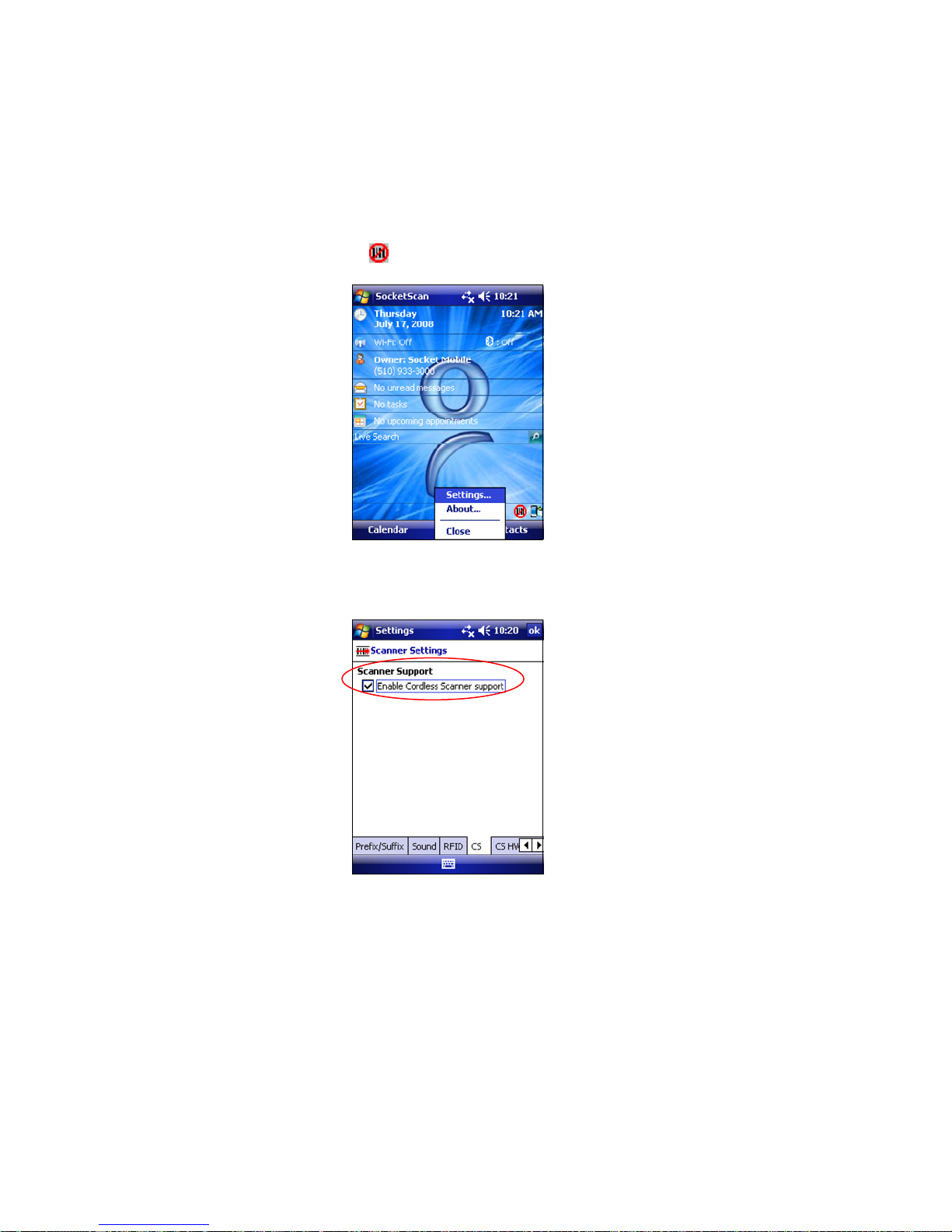

STEP 7: CONFIGURE SCANNER SETTINGS

1. Click the SocketScan icon in the task tray at the bottom of the screen.

In the pop-up menu, click Settings.

Note: If the Settings option does not appear, click Start | Control Panel | SocketScan Settings. In the General tab, select “Display ‘Settings’ option

in the SocketScan tray icon menu.”

Note: Alternatively, click Start | Control Panel | SocketScan Settings.

2. Click on the CS tab.

3. Select Enable CS Support. IMPORTANT!!!

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 23

Page 24

4. More fields will appear. Enter the following settings:

IMPORTANT!

• SCENARIO 1 OR 2

Enable ActivePairing – Do not check the box Port – Select the appropriate COM number for your Bluetooth stack:

i. Microsoft: Outgoing COM number

ii. Toshiba: Local COM-Client

• SCENARIO 3

Enable ActivePairing – Check the box Port – Select the appropriate COM number for your Bluetooth stack:

The remaining fields are optional for any of the scenarios:

• Good read indication on CS: Select how you would like the

Bluetooth CHS to indicate that it has successfully read data.

• Auto re-connect: Select the maximum number of attempts and time

limit per attempt for the Bluetooth CHS to reconnect to the computer in case they move out of range from each other.

• Disable CS Auto Power Off mode:

CAUTION: Selecting this option will disable the Auto Power Off mode and can result in complete discharge of the Bluetooth CHS batteries. Use with caution.

Note: You must disable CS Auto Power Off mode if you would like the scanner to automatically reconnect to the PC after losing a connection.

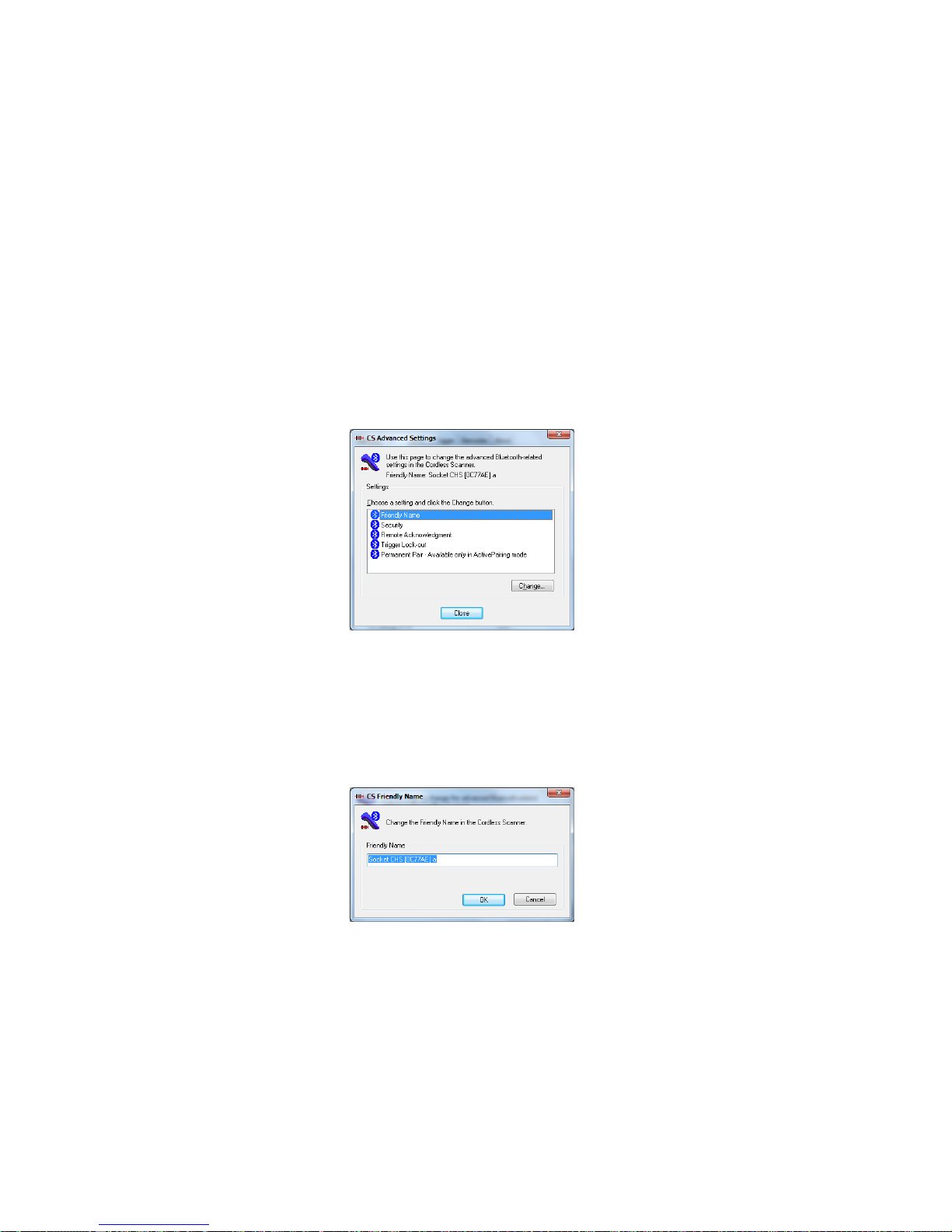

• Advanced: When the PC is connected to the scanner, you can modify

the scanner’s Bluetooth friendly name and security settings. Please refer to the instructions later in this chapter.

• Battery Level: Progress bar appears when the scanner is connected.

5. After entering settings, click OK to save the changes.

iii. Broadcom: COM for Client Applications

i. Microsoft: Incoming COM number

ii. Toshiba: Local COM-Server

iii. Broadcom: COM for Local Services

Page 25

STEP 8: PREPARE THE CONNECTION

After installing and configuring SocketScan to connect to a cordless scanner at the correct COM port, you are now ready to connect the scanner to the PC for the first time. The process varies depending on the scenario you set up for.

Note: After the scanner connects to the computer, the scanner will stay powered on as long as it is connected to the computer.

SCENARIO 1:

1. Double-click on the Socket CS Connect icon on your desktop.

Note: After you configure Bluetooth hardware settings in SocketScan, the Connect CS option lets you connect to the scanner directly from SocketScan, instead of manually through Bluetooth software.

Alternatively, click the SocketScan icon at the bottom of the screen. In the pop-up menu, click Connect CS.

2. If you are using the Microsoft Bluetooth stack, a balloon may report that a

device is requesting to connect. Click on the balloon. As prompted, enter the passkey 1234 to connect.

3. After the PC connects to the scanner, a balloon may appear, reporting

“Scanner ready.” The scanner will beep once, and the task tray icon at the bottom of the screen will change to a scanner icon.

Note: This process needs to be done every time you want to connect the computer to the scanner.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 25

Page 26

SCENARIO 2:

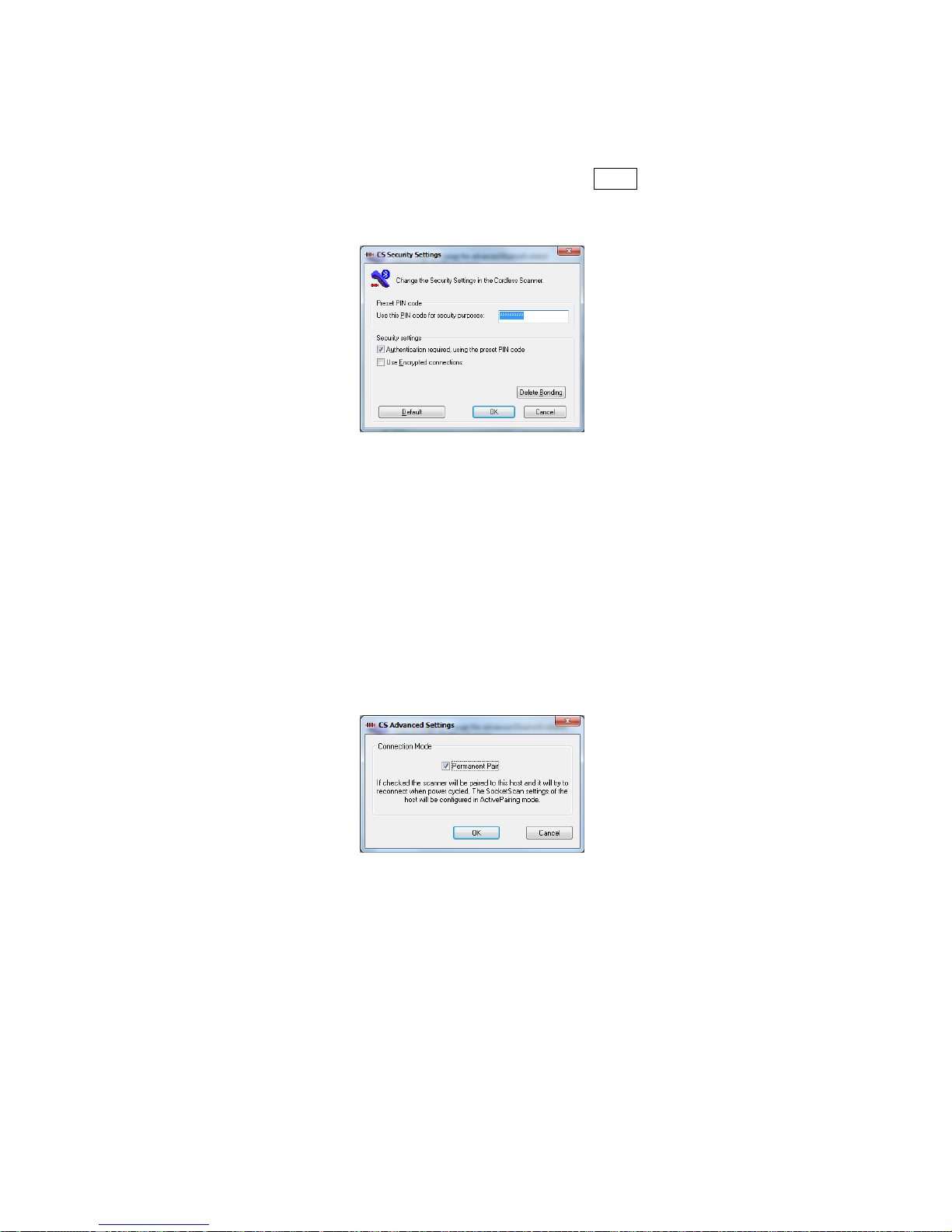

After the PC connects to the scanner, you can set up a Permanent Pair.

1. Complete the steps described on the previous page for Scenario 1.

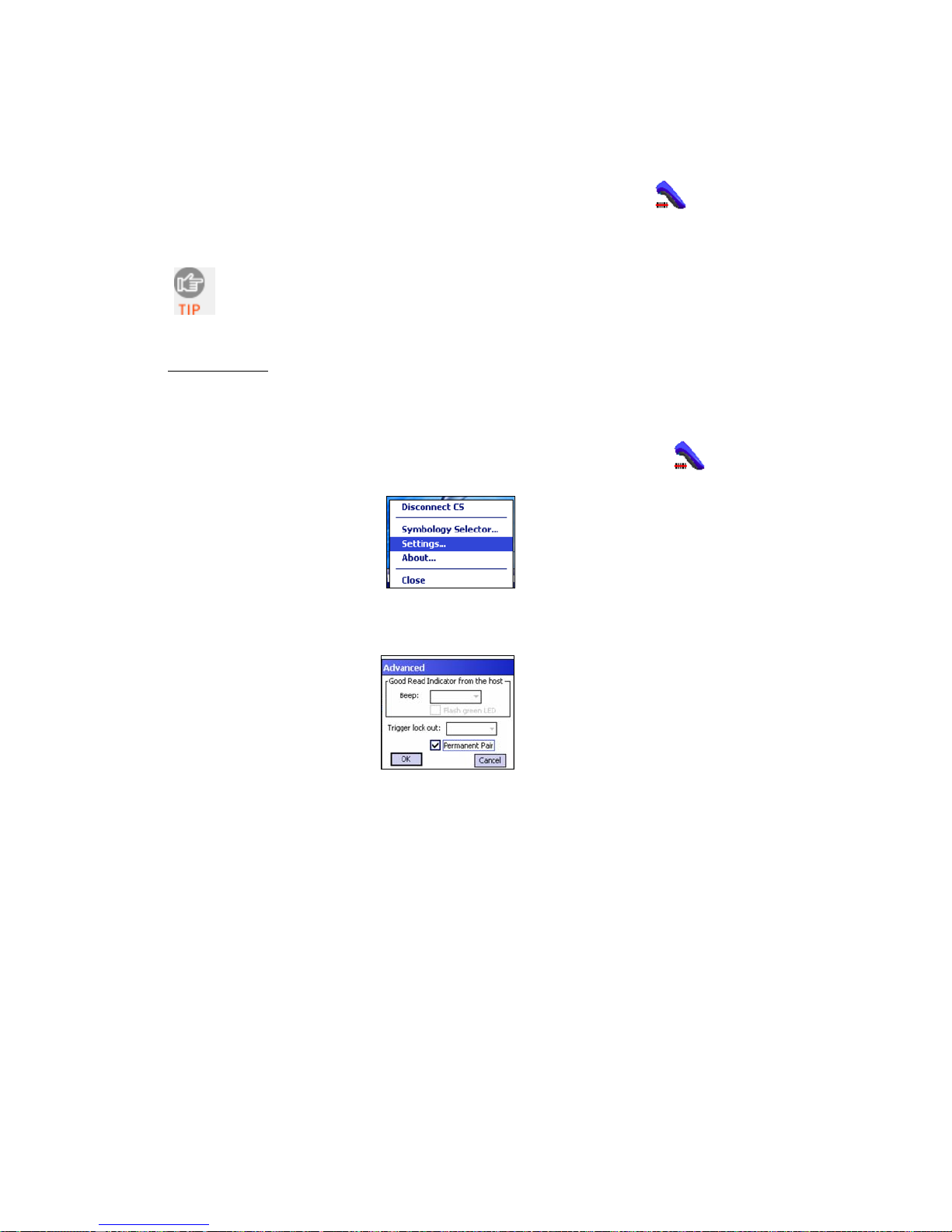

2. While the scanner is connected to the computer, click on the SocketScan

icon in the task tray. In the menu, click Settings.

3. Click on the CS tab. Select Enable ActivePairing. For Port, select the

Incoming (Microsoft) (Broadcom)

COM port. Click Advanced.

or Local COM-Server (Toshiba) or Local Services

4. Select Permanent Pair. Click Change.

5. Check the box Permanent Pair. Click OK. Click Close.

Note: After you set up the Permanent Pair, future connections can be initiated by simply powering on the scanner. The PC’s Bluetooth radio must be on, and SocketScan must be open.

Page 27

SCENARIO 3:

1. Find out the Bluetooth address of your computer.

• Your Bluetooth configuration utility should report the address.

• If you are using an add-on Bluetooth card or adapter, it may be

labeled on the device.

2. Use barcode software or a barcode generating website like

http://www.idautomation.com/java/linearservlet.html http://www.barcoding.com/upc

to print the following barcode:

IMPORTANT! FORMAT THE BARCODE IN THE SYMBOLOGY CODE 128!

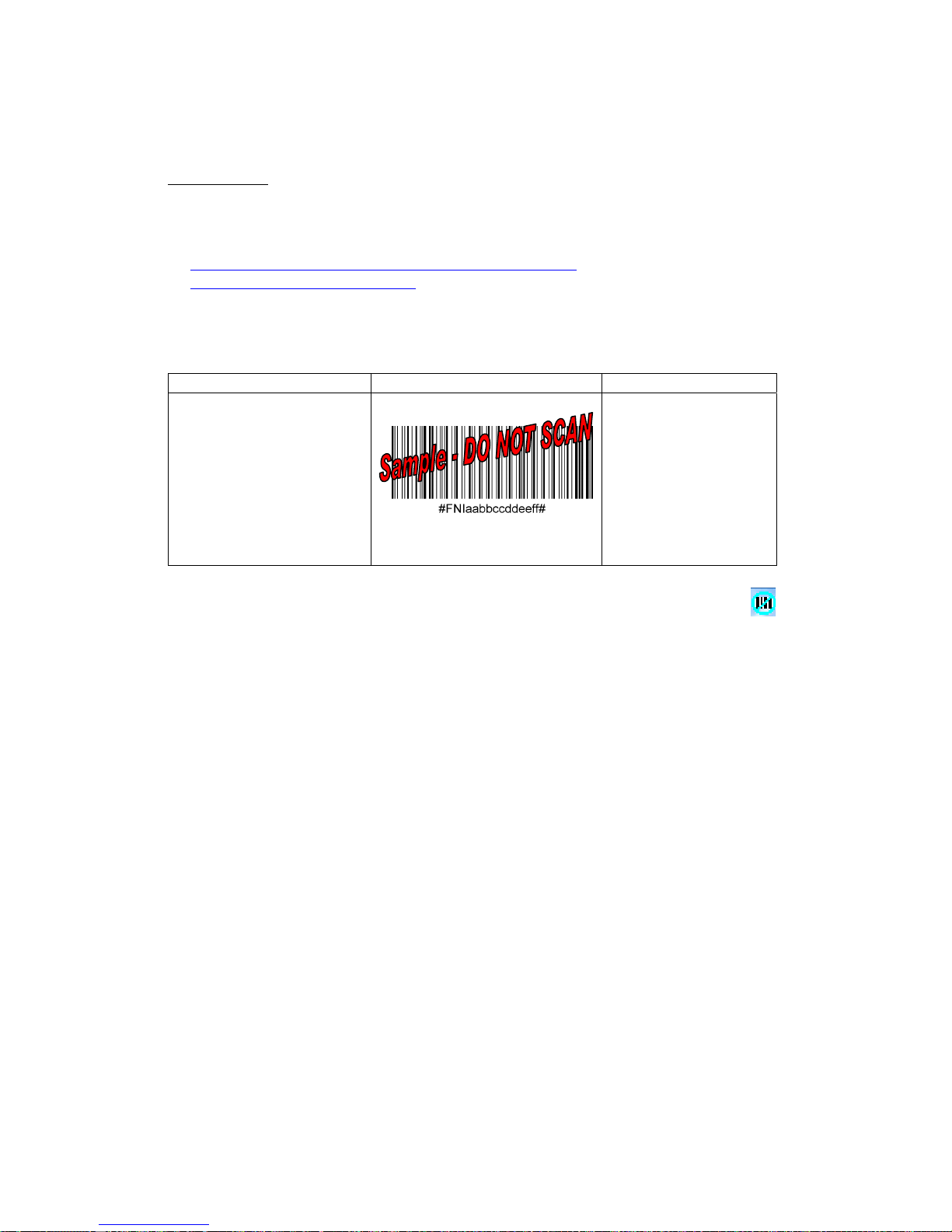

ActivePairing Barcode Sample Result after Scanning

Initiator Bar Code — contains the following data:

#FNIxxxxxxxxxxxx#

where xxxxxxxxxxxx is the Bluetooth address of the computer

The scanner will change to initiator mode and automatically try to connect to the computer with the Bluetooth address embedded in the barcode

3. Check the SocketScan task tray icon to make sure the computer is ready for

ActivePairing. There should be an animated “spinning” icon that alternates between a ring icon and a handheld scanner icon.

4. Scan the Initiator Barcode. Press the large trigger button.

Note: The scanner will try to connect every 2 seconds for a maximum of 20 attempts.

5. After connecting, the scanner will beep once, and the Bluetooth Status LED of the

wrist unit will blink once every 3 seconds. The SocketScan icon will also change to a static ring icon.

Note: After disconnecting from a computer (by turning of the scanner), you can easily connect to a different computer by scanning the Initiator Barcode customized for that computer. The computer’s Bluetooth radio must be on, and SocketScan must be open.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 27

Page 28

STEP 9: OPEN YOUR APPLICATION

1. Start the application that you want SocketScan to feed scanned data into.

Make sure a document or spreadsheet is open.

Note: If you scan into Microsoft Word, if the first character of scanned data is a letter, it will be capitalized by default.

2. Place the cursor where you want data from the next scan to be entered.

STEP 10: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and aim the scanner at the barcode. The red

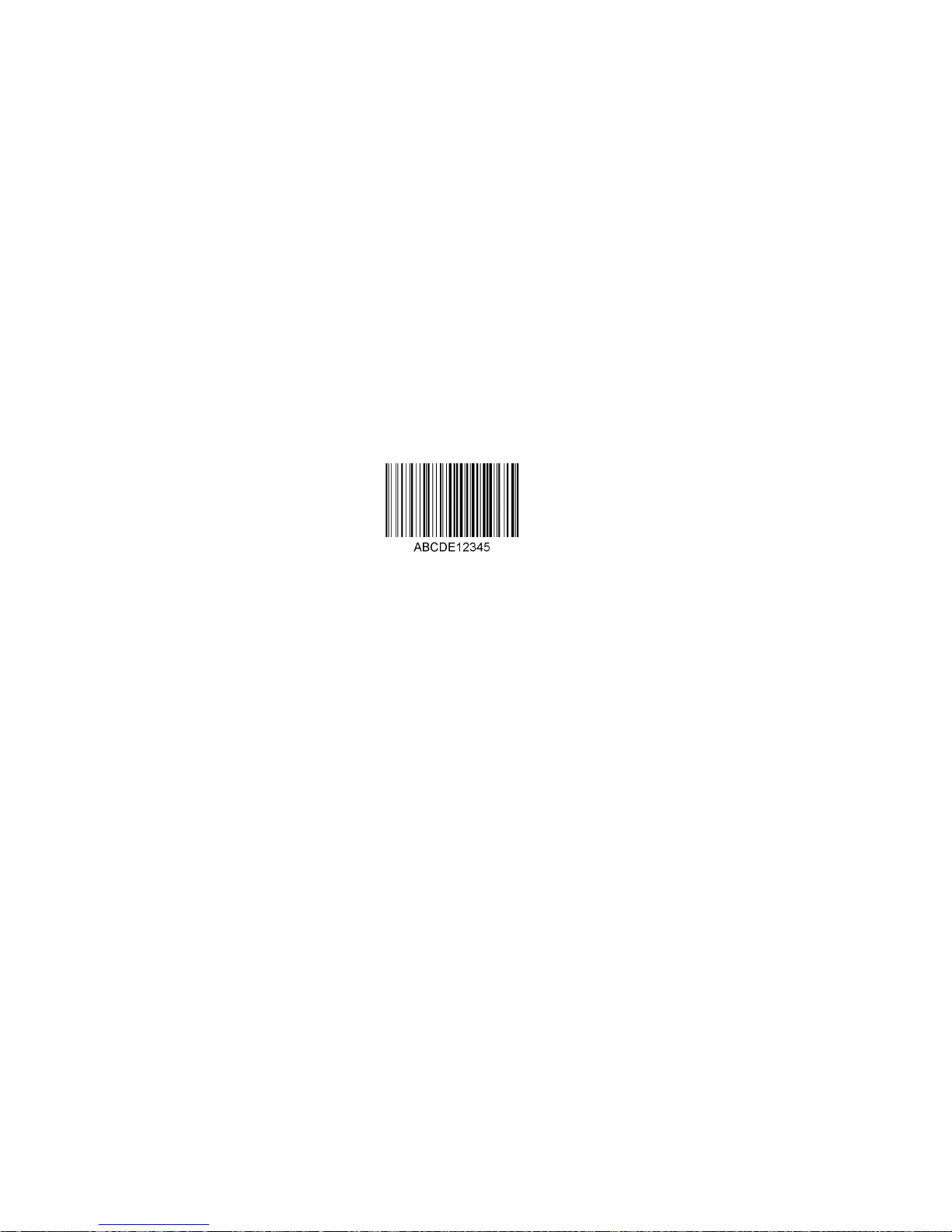

scanner beam should cover the entire width of the barcode. For example, try scanning the barcode below:

Note: When data is read and sent to the computer, the scanner will beep once, the LED will flash green, and the beam will turn off. If no data is read in a few seconds, the beam will turn off, and you must try again.

2. After a successful scan, data should appear in your document. By default,

the cursor automatically advances to the next cell or line, ready for the next scan.

SocketScan Auto-Reconnect

The scanner will disconnect if it is powered off or moves out of the connection range. If the scanner is powered back on or returns back in range within 3 minutes after disconnection, SocketScan will automatically attempt re-connection according to the “auto re-connect” settings you chose in SocketScan.

• Failure to reconnect will cause the scanner to end auto-reconnect mode

and disconnect. You will then be required to make a connection manually through SocketScan by clicking on the Socket CS Connect icon on the desktop.

Page 29

• A manual connection will also be required if the scanner is not powered

back on or does not return back in connection range within 3 minutes after a disconnection.

• A connection remains when the smartphone device is in suspend mode.

Note: By default, CS Auto Power off mode is enabled. This mode must be disabled for automatic reconnections.

DISCONNECTING

To disconnect, click on the SocketScan icon. In the menu, click Disconnect CS. The scanner will beep 2 times to disconnect the website.

Turning off the Bluetooth CHS

To turn off the Bluetooth CHS, press and hold the power button for at least 3 seconds, until the Bluetooth CHS beeps twice (high-low) and the blue LED turns off.

This beep pattern is for the Bluetooth CHS v2.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 29

Page 30

SCANNER SETTINGS

Note: You can configure these settings whether or not the Bluetooth CHS is connected to your computer.

1. Open the SocketScan Settings utility. It will open to the General tab.

2. Adjust any settings as desired:

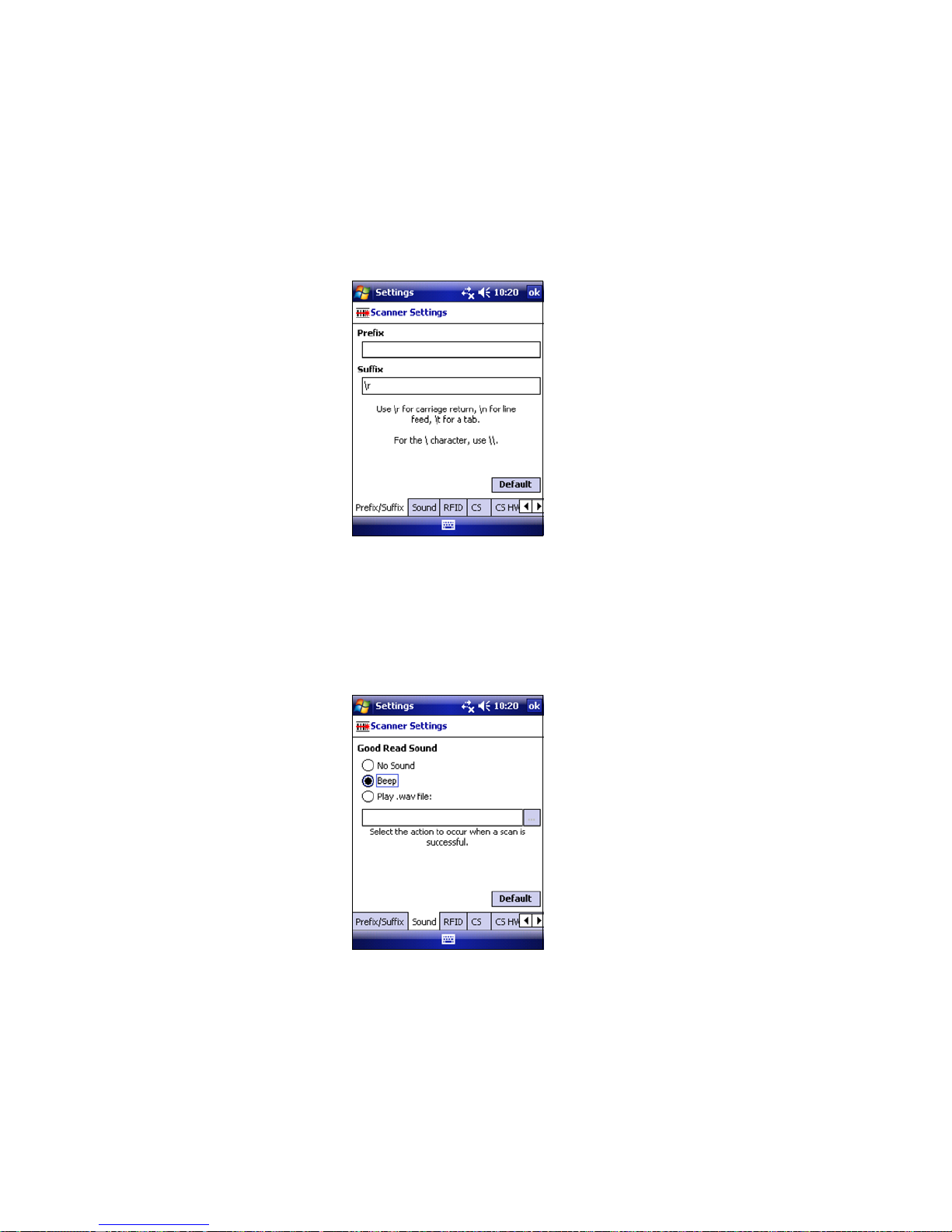

Good read notification sound: Select a sound to indicate good reads of data. By default, the computer will beep. If you would like the computer to play a .WAV file, select Play a .WAV file and click Browse to select the file location.

Prefix/Suffix: Enter any prefixes and/or suffixes you would like SocketScan to automatically add to scanned data (128 character maximum, printable ASCII characters only). By default, SocketScan will enter a carriage return after every data scan.

Display “Settings” option in the SocketScan tray icon menu: Check this box to display the “Settings” option in the SocketScan menu.

3. After entering settings, click OK to save the changes.

Page 31

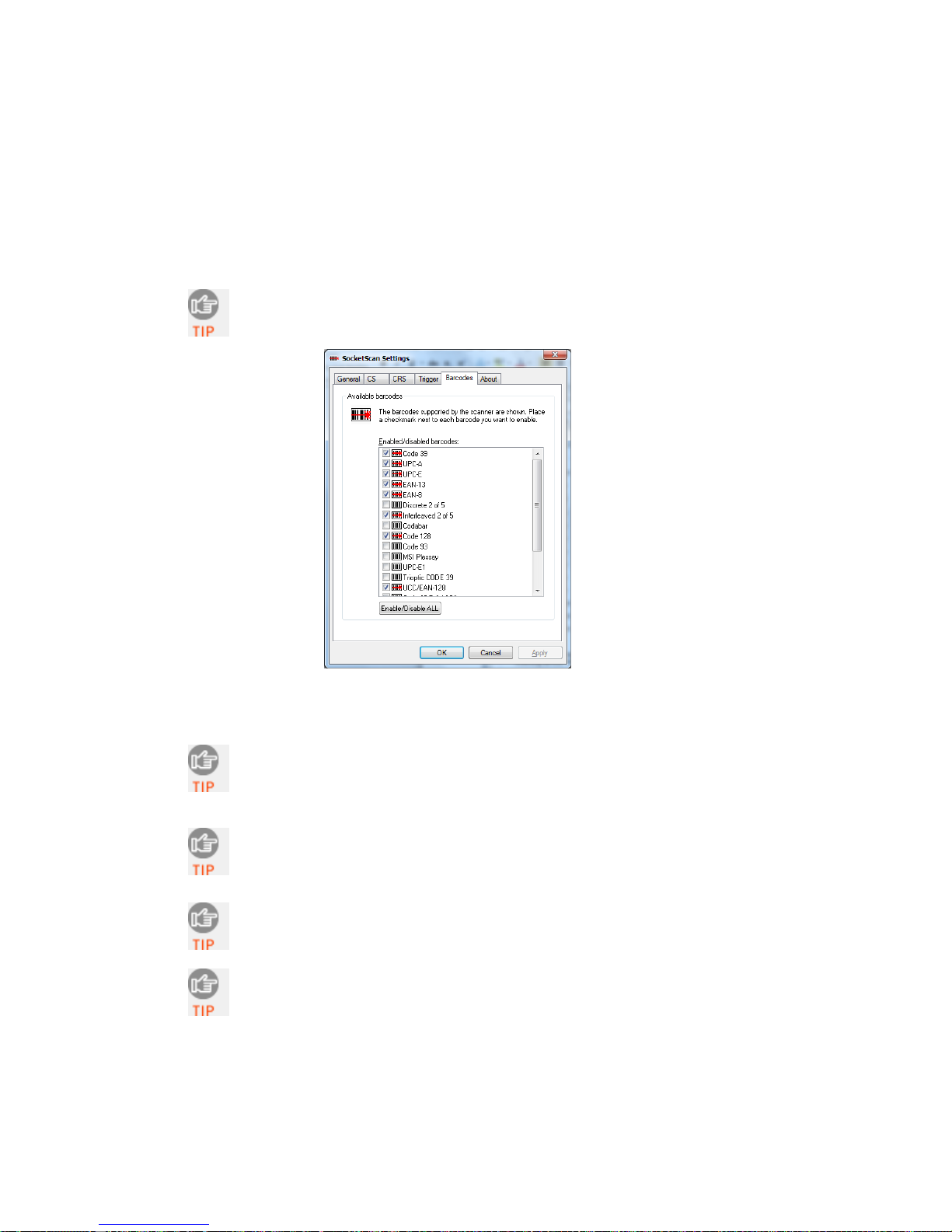

SYMBOLOGY SELECTOR

The SocketScan utility makes it easy to modify which symbologies you want the scanner to recognize and decode.

1. In SocketScan Settings, click on the Barcodes tab.

Note: The Barcodes tab will only appear if you are connected to the Bluetooth CHS.

2. Check the symbologies you wish to enable. Uncheck those you wish to

disable. Click OK.

Note: Enabling all possible symbologies will make the decode process slightly longer.

Note: If you want to scan Vehicle Identification Number (VIN) barcodes, make sure you select the VIN check box. VIN scanning is recommended only for the 7P versions of the Bluetooth CHS.

Note: The symbology RSS has been renamed to GS1 DataBar.

Note: If you would like to read UPC-A barcodes, be sure to disable GS1 DataBar so that GS1 DataBar symbols will not be mistakenly decoded.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 31

Page 32

ADVANCED SCANNER SETTINGS

Note: Advanced settings can only be configured for the Bluetooth CHS v2.

1. In SocketScan Settings, click on the CS tab.

2. At the bottom of the CS screen, the Bluetooth CHS battery level will be

indicated by a status bar. Click Advanced.

3. The CS Advanced Settings screen will appear, reporting the Bluetooth

friendly name assigned to the Bluetooth CHS.

4. If desired, select a setting and click Change.

5. In the screen that appears, enter any changes and click OK.

• Friendly Name: Enter a new friendly name and click OK.

IMPORTANT! Make sure the friendly name includes the string “CHS” if you want to also use the Bluetooth CHS with a Windows Mobile powered device. Otherwise, Connect!Agent software will not be able to find the Bluetooth CHS.

Page 33

• Security: If enabled, the default security PIN code is

1234. A new 4 digit

PIN can be entered, but you must enter it manually for each connection. The PIN is used to authenticate the device to the host every time it

connects.

If desired, click Delete Bonding to delete any bonding/pairing information. After making any changes, click OK.

• Remote Acknowledgement: Select how you would like the Bluetooth

CHS to indicate that the host PC has successfully received scanned data.

• Trigger Lockout: Select how long you would like the Bluetooth CHS to

disable the trigger until the host PC acknowledges the previous scan.

• Permanent Pair: Enable this option if you want the scanner to

automatically connect to the currently connected computer whenever the scanner is powered on (Scenario 2). Click OK.

6. If you modified any advanced settings, you will be prompted to power the

scanner off and on to make the changes take effect. Click OK. Turn the Bluetooth CHS off and back on again.

7. In CS Advanced Settings screen, click Close. In SocketScan Settings, click OK.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 33

Page 34

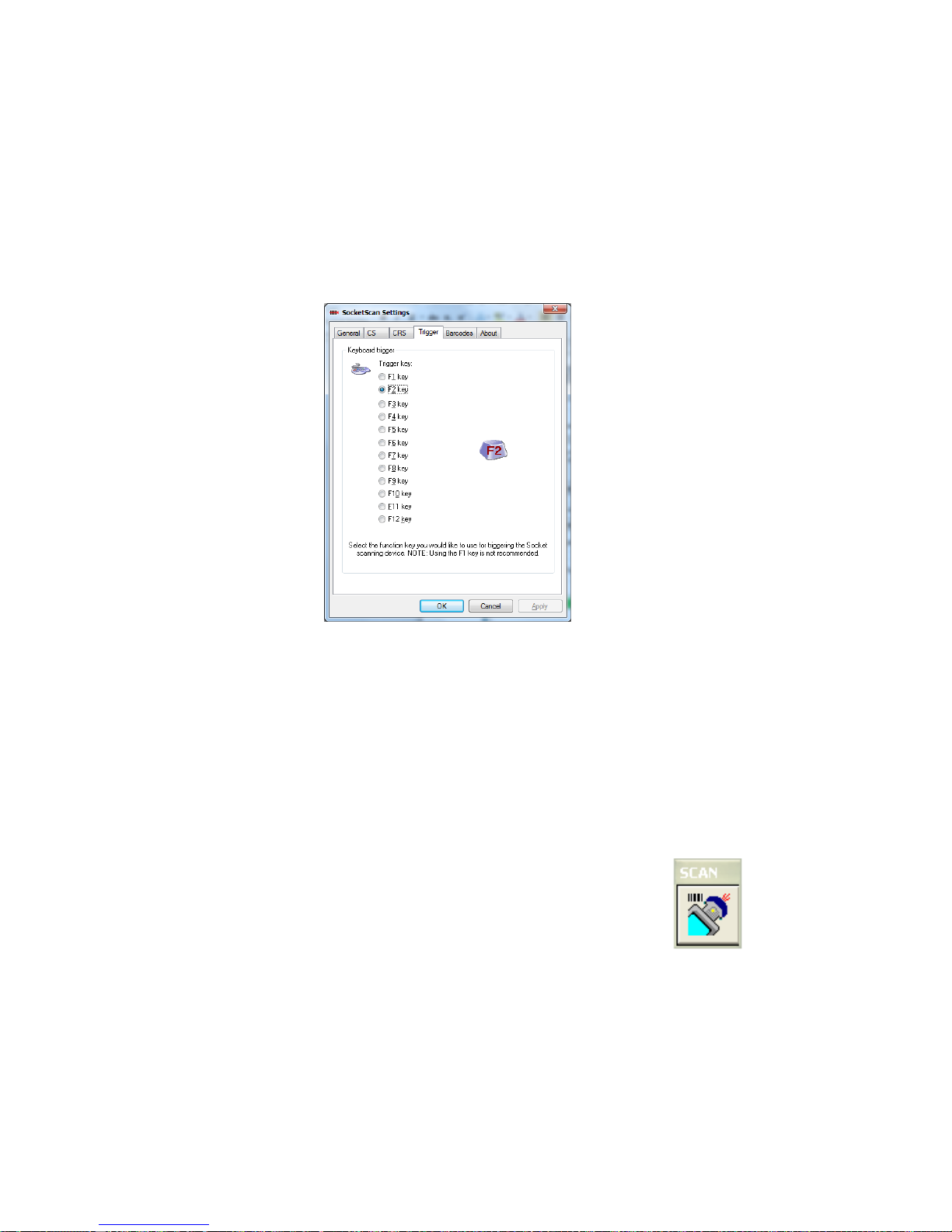

REMOTE TRIGGER BUTTON

The SocketScan utility enables you to assign a function key to trigger the Bluetooth CHS.

1. With the Bluetooth CHS connected to the computer, in SocketScan Settings,

click on the Trigger tab.

2. Select the function key you want to use as a trigger. Click OK.

FLOATING TRIGGER

The floating trigger places a software trigger on the desktop that can be clicked on to trigger the Bluetooth CHS. It can be especially useful for tablet computers.

1. With the Bluetooth CHS connected to the computer, in SocketScan menu,

click Launch Floating Trigger.

2. The floating trigger will appear on your desktop. Click on the

icon to trigger the Bluetooth CHS.

3. To close the floating trigger, in the SocketScan menu, click

Remove Floating Trigger.

Page 35

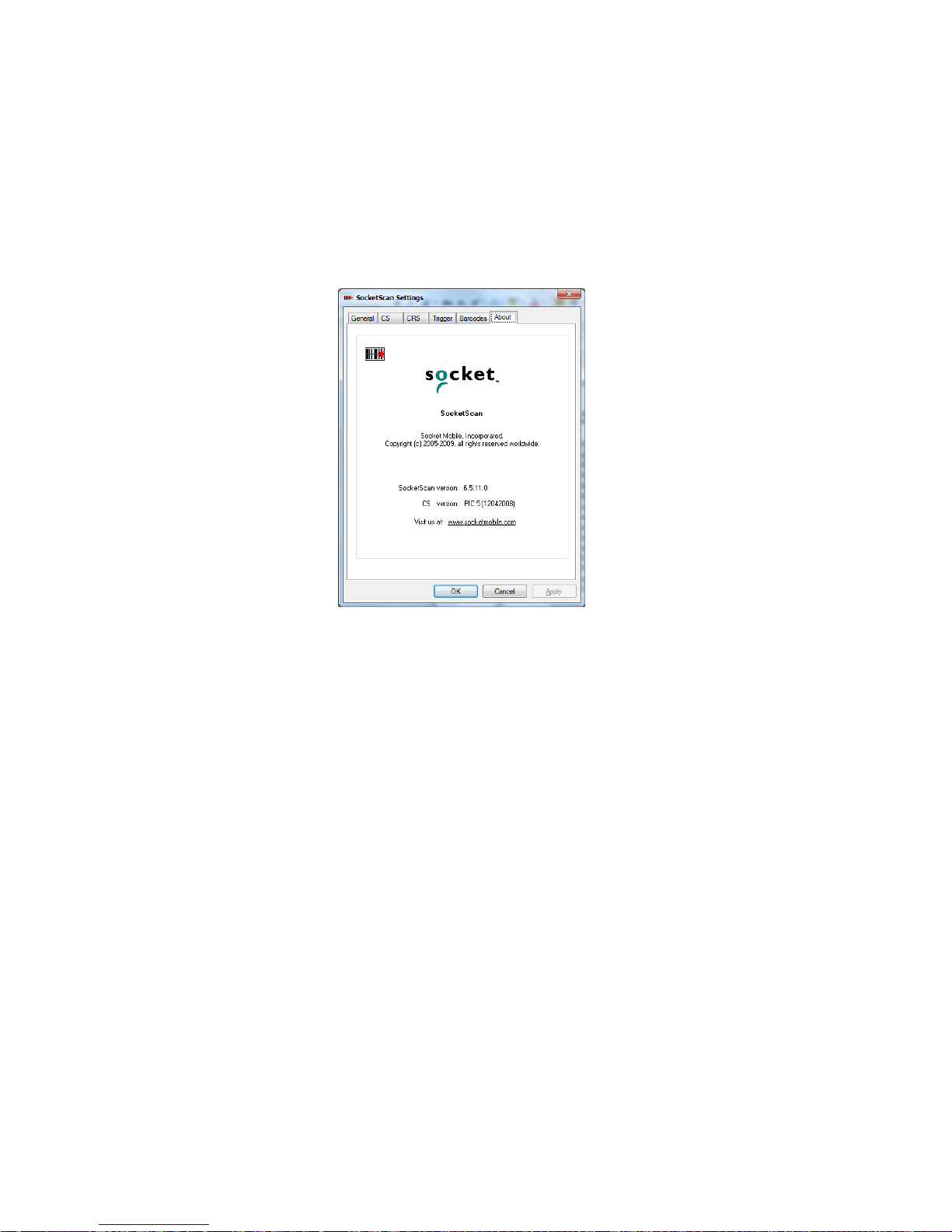

VERSION INFORMATION

1. In SocketScan Settings, click on the About tab.

2. View the version information. If the computer is connected to a Bluetooth

CHS, the Bluetooth CHS firmware version will appear. Click OK.

DUAL DEVICE SUPPORT

SocketScan versions 6.4.2 and later support the simultaneous use of two Socket data collection devices from the same PC.

SocketScan can capture data from one cordless scanner at a time.

Simply connect or plug in each device as you normally would. The functionality of each device is the same. No extra configuration is required.

You can configure each device separately. In the SocketScan menu, click the Settings option will have a submenu for you to choose which device to configure.

CHAPTER 3: SETUP FOR WINDOWS XP, VISTA, AND 7 35

Page 36

4 | SETUP FOR THE SOMO 650

This chapter explains how to install and use the Socket Bluetooth Cordless Hand Scanner (CHS) with the SoMo 650 or SoMo 650Rx handheld computer.

Before you begin the instructions in this chapter, make sure you have installed the batteries (and tether, if desired), and charged the scanner, as described in Chapter 2, “Hardware Preparation.”

CONNECTION OPTIONS

For Windows-based computers, the Socket Bluetooth CHS offers three different connection options to fit different work environments.

Scenario How the Bluetooth

Connection Initiates

Scenario 1: Single user

with one scanner per SoMo, no roaming.

SoMo initiates the connection through Bluetooth software.

Pros/Cons Compatible

Hardware/

Easiest to configure but requires user to start connection through software.

Any version of Bluetooth CHS

Scenario 2: Enterprise deployment with one scanner per SoMo, no roaming.

Scenario 3: Enterprise deployment with scanner(s) roaming between different SoMo devices.

Scanner initiates the connection automatically when it is powered on. (ActivePairing with Permanent Pair)

Scanner initiates the connection by reading a special barcode. (ActivePairing)

More complex to configure but easiest connection method.

Easy to connect but requires barcode generating software.

Part Number

(labeled in battery compartment)

8550-00037 or later

IMPORTANT! REMEMBER THE NUMBER OF THE SCENARIO YOU WANT TO SET UP THE SOFTWARE FOR!

Page 37

STEP 1: CHECK SOFTWARE VERSIONS

Note: This step is required only if you want to set up your SoMo for ActivePairing (Scenario 2 or 3).

SOCKETSCAN: Tap on the SocketScan task tray icon. In the pop-up menu, tap About. SocketScan versions 7.4.2.0 and later support ActivePairing.

CONNECT!AGENT: Tap Start | Settings | System Tab | Connect!Agent. In the Connect!Agent utility, tap About. Connect!Agent versions 1.3.xx and later support ActivePairing.

If you need to upgrade, you can download the latest software free from

http://www.socketmobile.com/support/downloads

ADVANCED USERS: Refer to the README file for CAB installation instructions.

STEP 2: START SOCKETSCAN

1. Tap Start | Programs | SocketScan folder | SocketScan.

2. When SocketScan is running a SocketScan icon will appear at the bottom

of the Today screen.

Icon Meaning

SocketScan is not ready to connect to the

(red circle)

(blue circle)

Bluetooth CHS SocketScan is ready to connect to the Bluetooth CHS

Bluetooth CHS is connected and ready to scan

CHAPTER 4: SETUP FOR THE SOMO 650 37

Page 38

STEP 3: ENABLE CORDLESS SCANNER SUPPORT

1. Go to the Today screen by tapping Start | Today.

2. Tap the SocketScan icon

menu, tap Settings.

at the bottom of the screen. In the pop-up

3. The Scanner Settings utility will appear. Tap on the CS tab at the bottom.

4. Check the box Enable Cordless Scanner support. IMPORTANT!!!

5. Tap ok to save the changes.

Notes:

• If the SoMo’s Bluetooth radio is off, a message may report that ActivePairing

is not activated. Tap ok.

• After Cordless Scanner Support is enabled, the SocketScan icon will have a

blue circle.

Page 39

STEP 4: TURN ON THE Bluetooth CHS

Press and hold the small power button for 3 seconds, until the LED

turns blue and the scanner beeps twice (low - high).

The LED should blink blue once every second to show that the Bluetooth radio is on but not connected.

The following Bluetooth mode sequence is for the Bluetooth CHS v2.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable 5-20 minutes Connectable 20 minutes Scanner automatically powers off

STEP 5: PREPARE THE CONNECTION

Follow the instructions for the scenario you want to set up for.

SCENARIO 1:

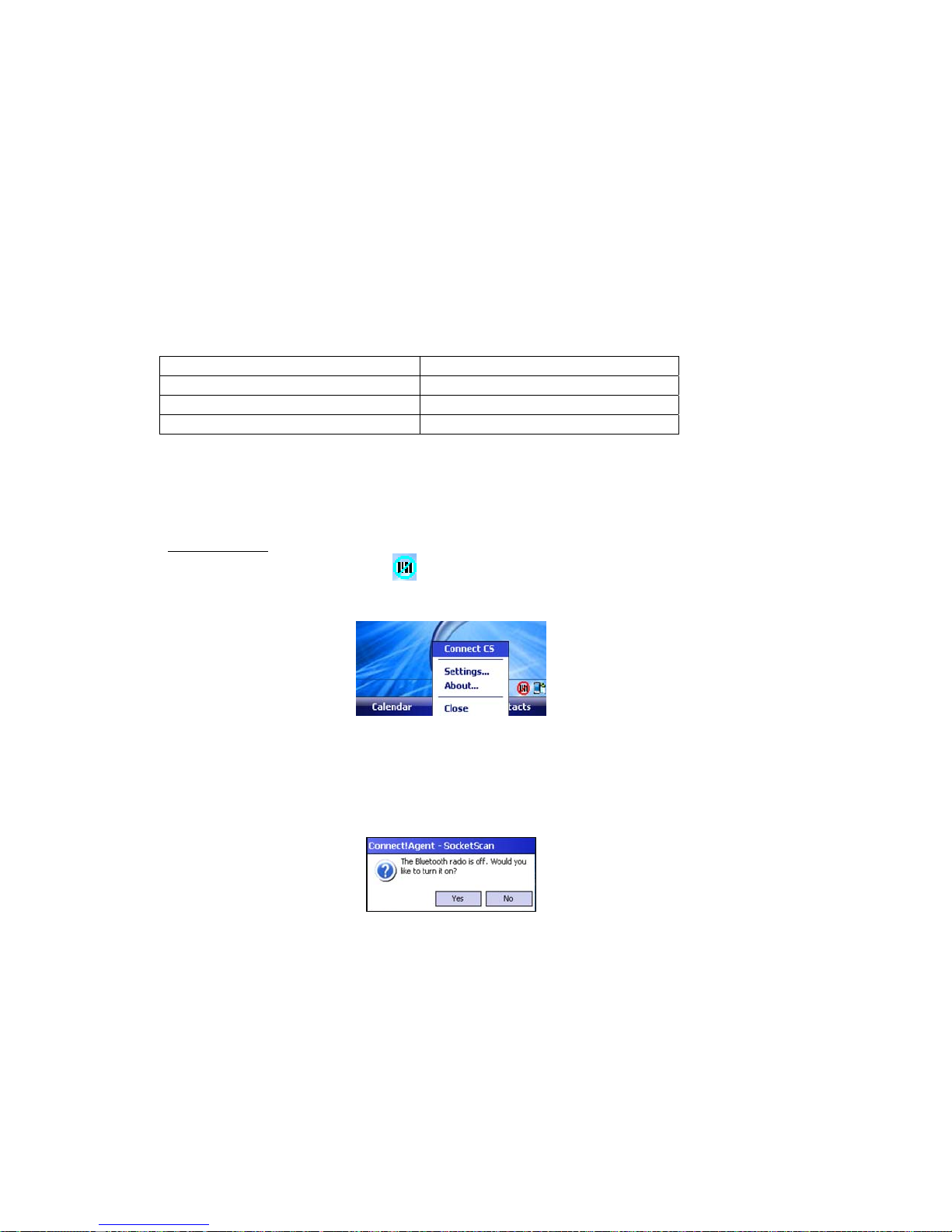

1. Tap on the SocketScan icon

at the bottom of the screen. In the pop-up

menu, tap Connect CS.

Note: The Connect CS option appears only after cordless scanner support is enabled.

2. If the Bluetooth radio of your device is turned off, Connect!Agent will ask

if you want to turn it on. Tap Yes.

CHAPTER 4: SETUP FOR THE SOMO 650 39

Page 40

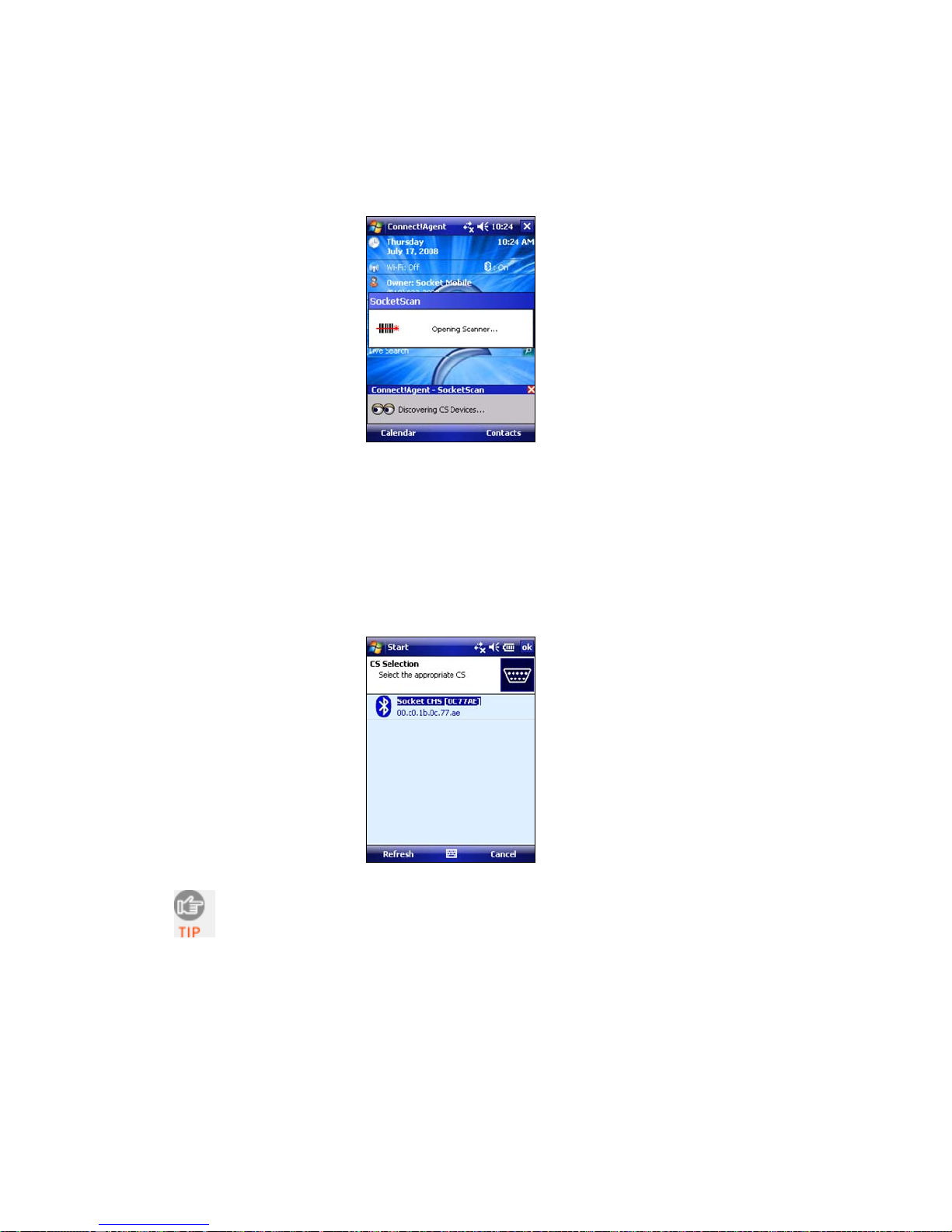

3. Connect!Agent will turn on the Bluetooth radio and begin to search for

and connect to the Bluetooth CHS.

- If this is your first time connecting to a Bluetooth CHS from this

device, Connect!Agent will search for any Bluetooth CHS in range.

- If you have previously connected to a Bluetooth CHS, Connect!Agent

will automatically search for your favorite (default) device.

4. If Connect!Agent does not have a favorite barcode scanner, select the one

you want to connect to and tap ok.

Note: To help you identify the scanner, Connect!Agent reports the Bluetooth Device Address, which is labeled inside the battery compartment for the Bluetooth CHS v2. The characters in brackets are the last six characters of the address.

5. Connect!Agent will begin connecting to the Bluetooth CHS.

Page 41

6. After the devices connect, the Bluetooth CHS will beep

once. The SocketScan icon at the bottom of the Today screen will change into a scanner icon to indicate the connection.

Note: Connect!Agent will save data to automate future connections to your Bluetooth CHS. To change the favorite scanner, use the Connect!Agent utility (see instructions at the end of this chapter)

SCENARIO 2:

After the SoMo connects to the scanner, you can set up a Permanent Pair.

1. Complete the steps described above for Scenario 1.

2. While the scanner is connected to the computer, tap on the

SocketScan icon. In the menu, tap Settings.

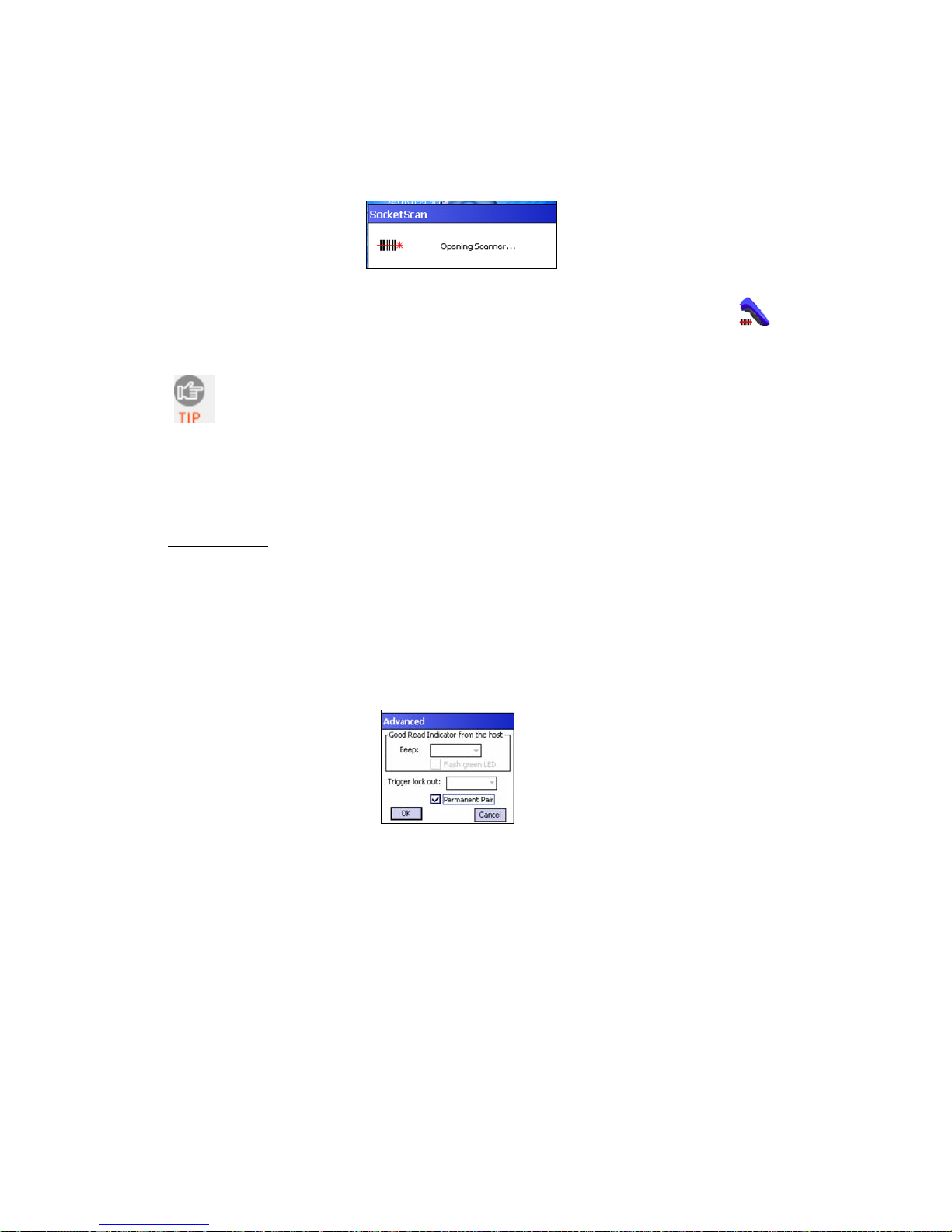

3. In the CS HW tab, tap Advanced. Check the box Permanent Pair. Tap

OK. Tap ok to save.

Note: After you set up the Permanent Pair, future connections can be initiated by simply powering on the scanner. SocketScan must be running on the SoMo.

CHAPTER 4: SETUP FOR THE SOMO 650 41

Page 42

SCENARIO 3:

1. Find out the Bluetooth address of your SoMo 650.

Tap Start | Settings | System Info | Wireless Info.

2. Use barcode software or a barcode generating website like

http://www.idautomation.com/java/linearservlet.html http://www.barcoding.com/upc

to print the following barcode:

IMPORTANT! FORMAT THE BARCODE IN THE SYMBOLOGY CODE 128!

ActivePairing Barcode Sample Result after Scanning

Initiator Bar Code — contains the following data:

#FNIxxxxxxxxxxxx#

where xxxxxxxxxxxx is the Bluetooth address of the computer

The scanner will change to initiator mode and automatically try to connect to the SoMo with the Bluetooth address embedded in the barcode

3. In the Today screen, make sure the SocketScan icon in the task tray has a

blue circle to indicate that it is ready for ActivePairing.

4. Scan the Initiator Barcode.

Note: The Bluetooth CHS will try to connect every 2 seconds for a maximum of 20 attempts.

5. After connecting, the scanner will beep once, and the LED will blink

blue once every 3 seconds. The SocketScan icon will also change to a scanner icon.

Note: After disconnecting from a SoMo device (by turning of the scanner), you can easily connect to a different SoMo by scanning the Initiator Barcode customized for that SoMo. SocketScan must be running on the SoMo.

STEP 6: OPEN YOUR APPLICATION

1. Start the application that you want SocketScan to feed the barcode data

into.

2. Place the cursor where you want data from the next scan to go.

Page 43

STEP 7: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the barcode. For example, try scanning

the barcode below:

Note: After data is read and sent to the device, the Bluetooth CHS will beep once, the LED will flash green, and the beam will turn off.

Note: If no data is read in a few seconds, the scanner beam will turn off, and you must try again.

2. After a successful scan, data should appear in your document. The default

“CR” (carriage return) suffix will advance the cursor to the next line or field, ready for the next scan.

SocketScan Auto-Reconnect

• Failure to reconnect will cause the scanner to end auto-reconnect mode

and disconnect. You will then be required to make a connection manually through SocketScan by tapping on the SocketScan icon and tapping Connect CS.

• A manual connection will also be required if the scanner is not powered

back on or does not return back in connection range within 3 minutes after a disconnection.

• A connection remains when the smartphone device is in suspend mode.

CHAPTER 4: SETUP FOR THE SOMO 650 43

Page 44

DISCONNECTING

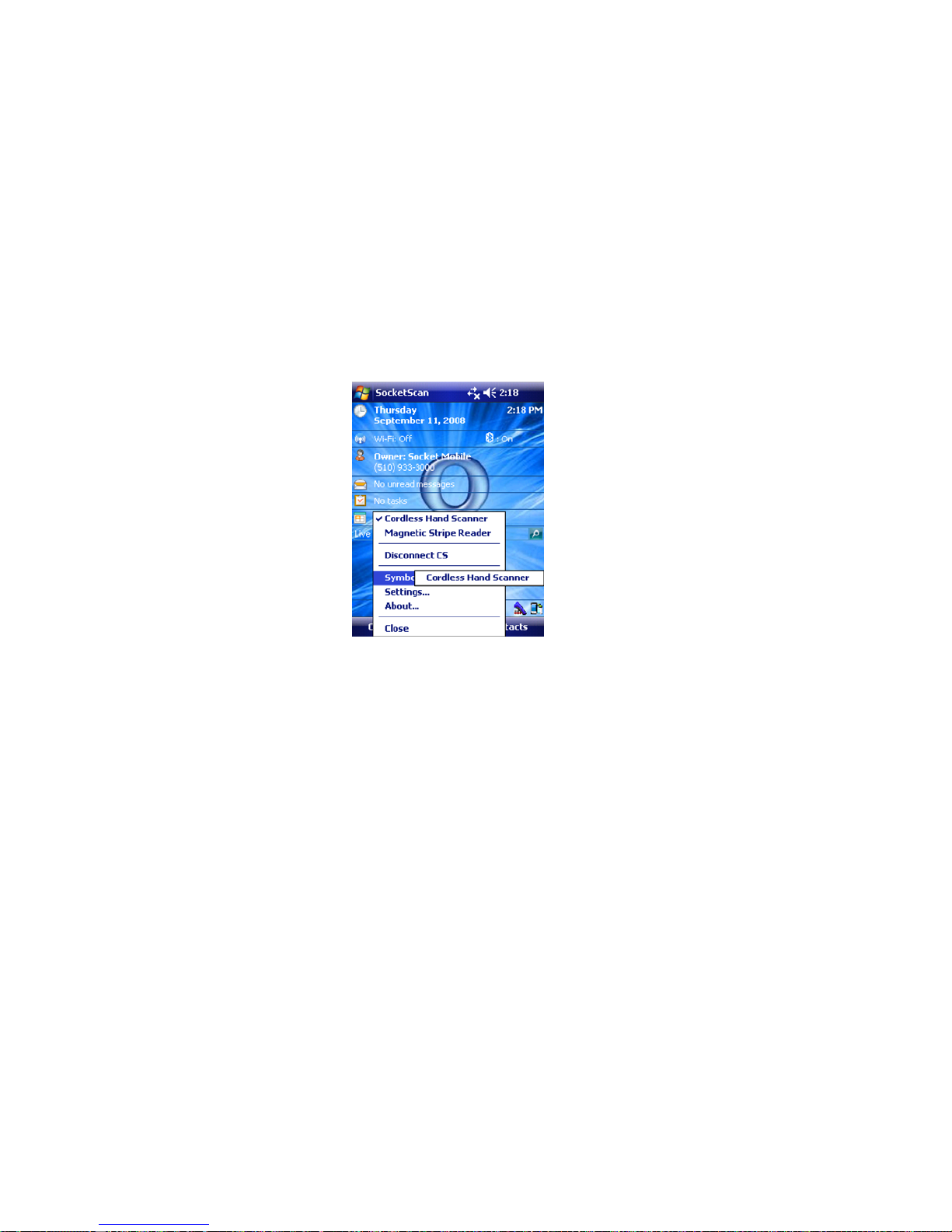

To manually disconnect, tap on the SocketScan icon at the bottom of the Today screen and tap Disconnect. The CHS will beep twice (same tone) to indicate that the connection has ended.

Note:

• To turn off the Bluetooth radio, press the right side button to access the wireless

manager.

• If using ActivePairing, disconnect by turning off the Bluetooth CHS.

Turning off the Bluetooth CHS To power off the scanner, press and hold the power button at least 3 seconds, until the blue LED turns off and the scanner beeps twice (high low).

Page 45

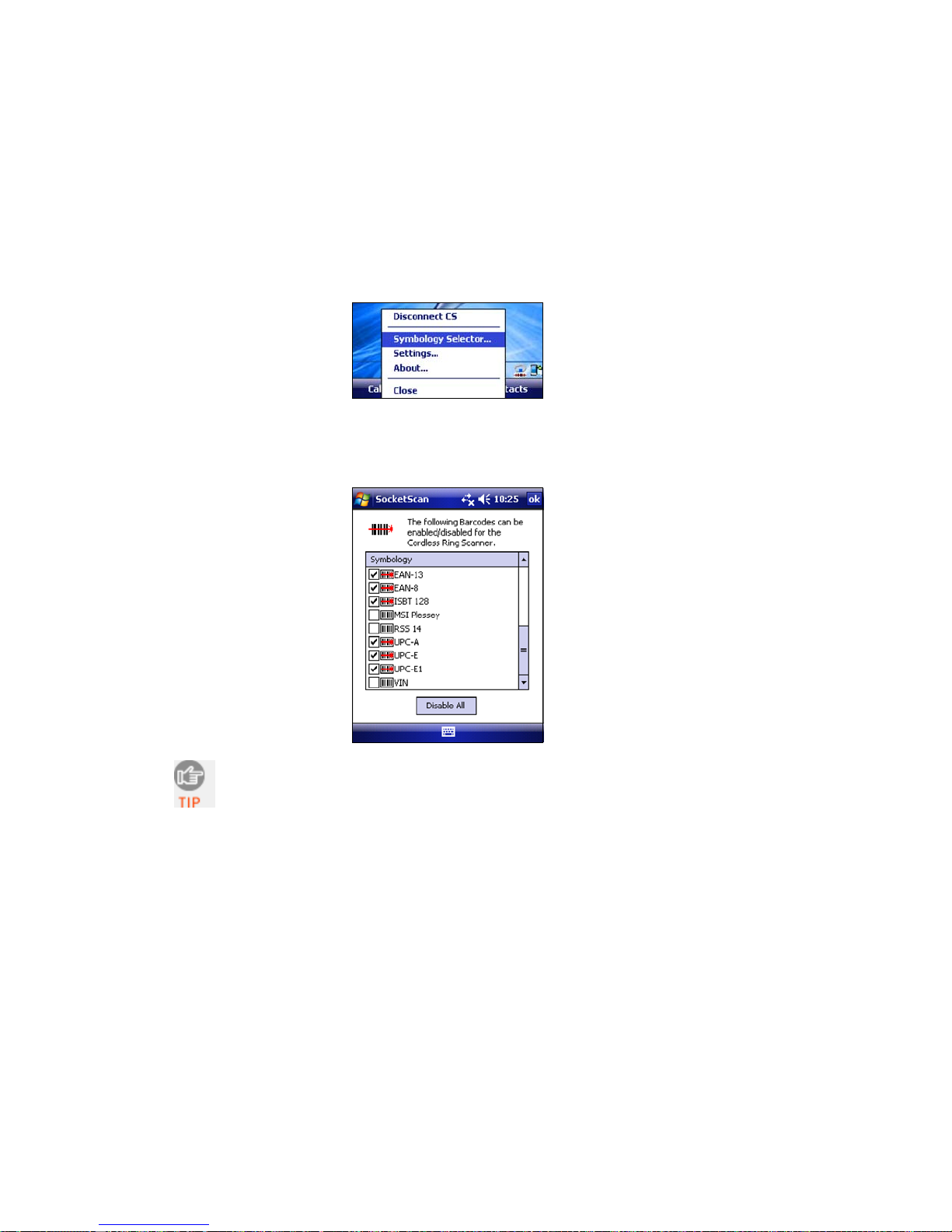

SYMBOLOGY SELECTOR

The applet makes it easy to select symbologies for the Bluetooth CHS to recognize. By default, the Bluetooth CHS recognizes several of the most common symbologies.

1. Tap on the SocketScan icon. In the pop-up menu, tap Symbology Selector...

2. In the screen, check the symbologies you wish to enable. Uncheck those

you wish to disable. For convenience, you can tap Disable All to disable all and select the ones you want. Tap ok.

Note: Socket does not recommend enabling all possible symbologies. Doing so will make the decode process slightly longer.

Note: To scan Vehicle Identification Number barcodes, select the VIN option. VIN scanning is recommended only for the Bluetooth CHS 7P.

Note: The RSS symbology has been renamed to GS1 DataBar.

Note: If you would like to read UPC-A barcodes, be sure to disable GS1 DataBar so that GS1 DataBar symbols will not be mistakenly decoded.

CHAPTER 4: SETUP FOR THE SOMO 650 45

Page 46

SCANNER SETTINGS

1. Tap on the SocketScan icon. In the pop-up menu, tap Settings.

2. Enter characters append to each scan (128 character maximum, only ASCII

printable characters).

The default suffix is a carriage return. Besides characters listed on the screen, other characters can be typed or entered using the format \nnn, where nnn = ASCII character 001 – 255.

3. Tap on the Sound tab. Select a sound to indicate a good read. If you

select Play .wav file, tap … to search for the file (it must be in My Documents).

Page 47

4. Tap on the CS HW tab. Enter the following settings:

• Good Read Indicator: Select how you would like the Bluetooth CHS

to indicate that it has successfully read data.

• Battery Level: When the Bluetooth CHS is connected, a progress bar

displays this advanced feature.

• Disable Auto Power Off mode:

CAUTION: Selecting this option will disable the Auto Power Off mode and can result in complete discharge of the Bluetooth CHS batteries. Use with caution.

• Advanced: When the scanner is connected, the Advanced button

appears. If desired, tap to configure advanced settings (configurable only with the Bluetooth CHS v2).

− Good Read Indicator from the host: Select how you would like

the Bluetooth CHS to indicate that the mobile device has received the scanned barcode data.

− Trigger lock out: Select how long you would like the Bluetooth

CHS to disable the trigger until data from the previously scanned barcode reaches the mobile device.

− Permanent Pair: Please refer to the ActivePairing section on the

next page for instructions.

− Tap OK.

5. Tap ok.

CHAPTER 4: SETUP FOR THE SOMO 650 47

Page 48

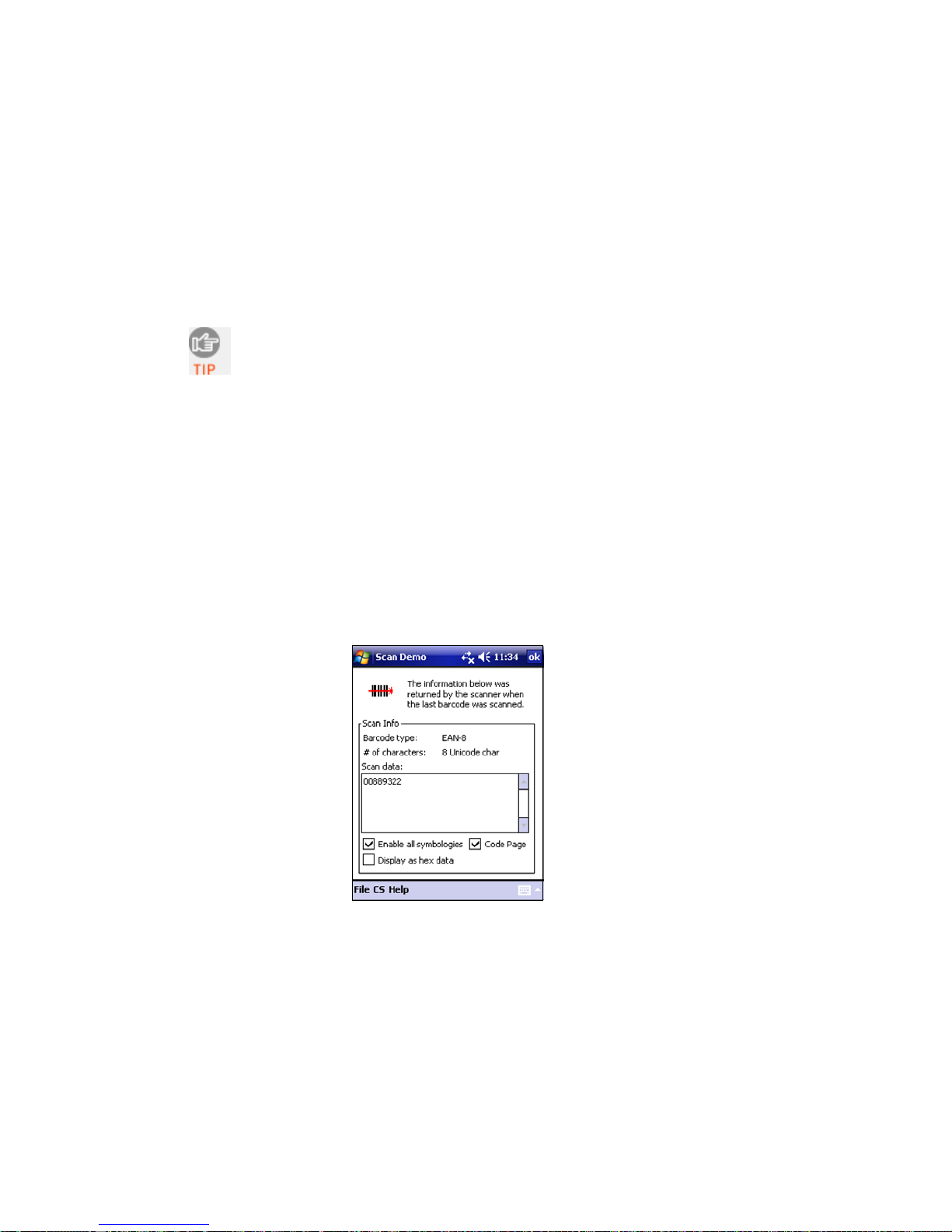

SCAN DEMO

Scan Demo makes it easy to determine the symbology, number of characters, and decoded data (in either ASCII or Hex) of any barcode supported by the scanner. This is especially useful if you encounter a barcode that the scanner will not decode by default.

1. Tap Start | Programs | SocketScan folder | Scan Demo.

Note: Accessing Scan Demo disconnects the Bluetooth link. If you have not configured the Bluetooth CHS to automatically connect, tap

2. The Scan Demo screen will appear. If desired, use the check boxes at the

bottom of the screen to modify the test.

Enable all symbologies: By default, this option is checked. Different symbologies can sometimes interpret the same barcode differently, so you may want to uncheck this option.

Display as hex data: Check this box to view scanned data in hexadecimal format. Otherwise, data will appear as ASCII.

Code Page: Check this box to enable the code page setting.

3. Scan the barcode. Scan Demo will report the properties of the barcode.

on the CS tab at the bottom of the page and tap Connect CS.

4. When done, tap ok. The device will automatically disconnect from the

Bluetooth CHS.

Page 49

CONNECT!AGENT UTILITY

The Connect!Agent utility enables you to view and change the default Socket Bluetooth peripherals for Connect!Agent.

1. Tap Start | Settings | System tab | Connect!Agent.

2. The Connect!Agent utility lists the cordless barcode scanner it has saved

as a favorite device. Connect!Agent will automatically try to connect to this device when SocketScan starts.

Note: Besides SocketScan, the Connect!Agent utility can save a favorite cordless barcode scanner for Scan Demo.

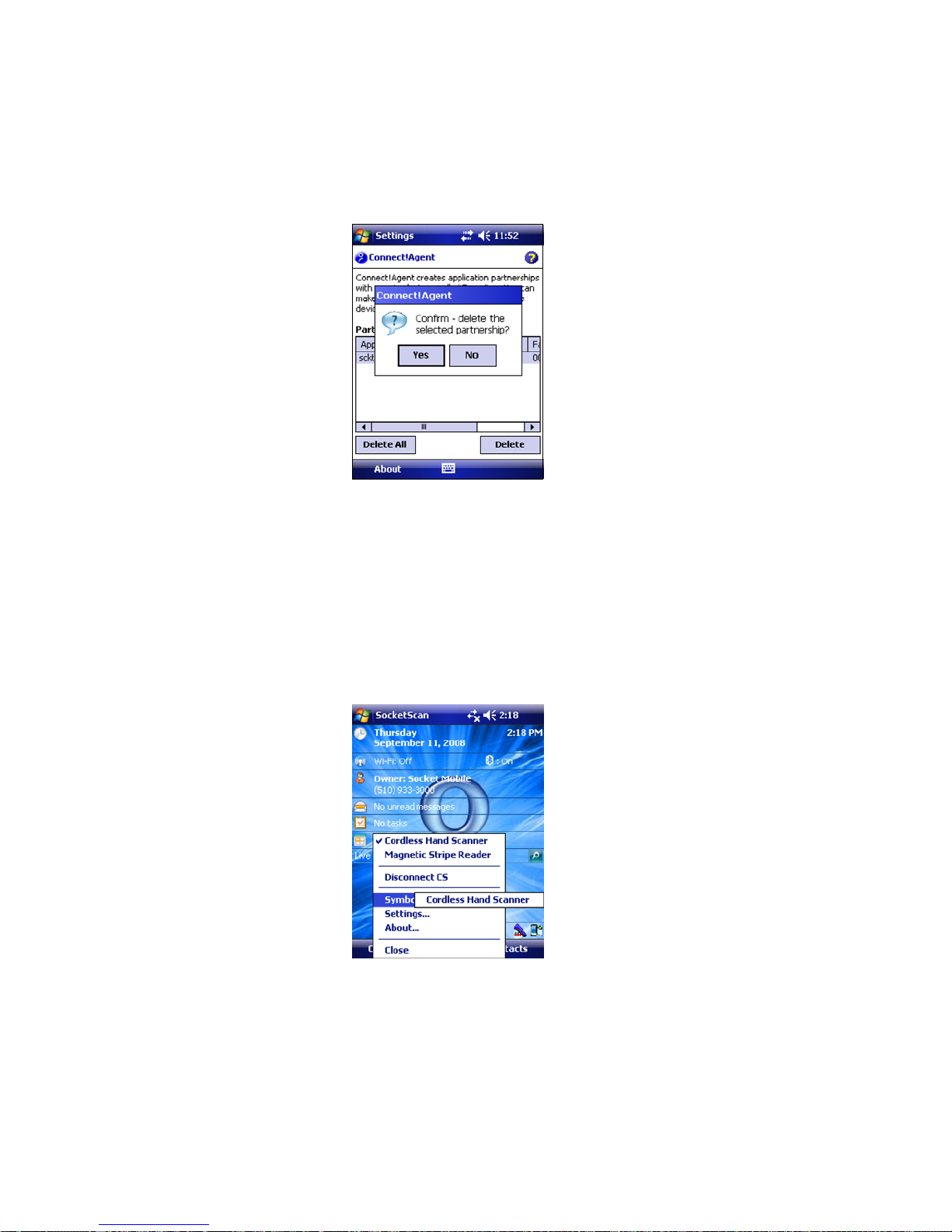

3. If you wish to remove a device from the partnership list, select the device

and tap Delete. In the confirmation screen, tap Yes.

CHAPTER 4: SETUP FOR THE SOMO 650 49

Page 50

DUAL DEVICE SUPPORT

SocketScan versions 7.2.4 and later support the simultaneous use of a cordless and a plug-in Socket data collection device with the same computer.

Simply connect or plug in each device as normal. Each device will function normally. No extra configuration is required.

The SocketScan menu will list both devices, with a checkmark next to the active device. Additionally, the Symbology Selector menu option will have a submenu for you to choose which device to choose symbologies for.

Page 51

5 | SETUP FOR WINDOWS MOBILE

This chapter explains how to install and use the Bluetooth Cordless Hand Scanner (Bluetooth CHS) with non-SoMo device running Windows Mobile or Windows CE.

Note: Before you begin the instructions in this chapter, please charge and install the battery, as explained in Chapter 2, “Hardware Preparation.”

CONNECTION OPTIONS

For Windows-based computers, the Socket Bluetooth CHS offers three different connection options to fit different work environments.

Scenario How Bluetooth

Connection Initiates

Scenario 1: Single user

with one scanner per PDA, no roaming.

Computer initiates the connection through Bluetooth software.

Pros/Cons Compatible

Easiest to configure but requires user to start connection through software.

Hardware/

Any version of Bluetooth CHS

Scenario 2: Enterprise deployment with one scanner per PDA, no roaming.

Scenario 3: Enterprise deployment with scanner(s) roaming between different PDAs.

Scanner initiates the connection automatically when it is powered on. (ActivePairing with Permanent Pair)

Scanner initiates the connection by reading a special barcode. (ActivePairing)

More complex to configure but easiest connection method.

Easy to connect but requires barcode generating software.

Part number

(labeled in battery compartment)

8550-00037 or later

IMPORTANT! REMEMBER THE NUMBER OF THE SCENARIO YOU WANT TO SET UP THE SOFTWARE FOR!

CHAPTER 5: SETUP FOR WINDOWS MOBILE 51

Page 52

STEP 1: DISABLE BLUETOOTH SERIAL PORT PROFILE

Note: This step is required only for ActivePairing (Scenario 2 or 3) with a PDA with the Broadcom or Widcomm Bluetooth stack.

IDENTIFYING YOUR BLUETOOTH STACK:

Check the About screen of your Bluetooth software to determine if it was developed by Broadcom or WIDCOMM. The table below lists some devices that have the Broadcom or WIDCOMM Bluetooth stack:

Device Operating System Dell Axim Windows Mobile 2003, 2003SE Fujitsu LOOX Windows Mobile 2003, 2003SE HP iPAQ Windows Mobile 2003, 2003SE, 5.0, 6

DISABLING THE SERIAL PORT PROFILE

Open your Bluetooth software. Tap on the Services tab. Next to the Serial Port option, uncheck the Enable Service option.

STEP 2: UNINSTALL OTHER SCANNING SOFTWARE

Remove any barcode scanning software already installed on your device.

OPTION 1: Uninstall Directly from the Pocket PC

1. Make sure the barcode scanning software is not running.

2. Tap Start | Settings. Tap on the System tab or Control Panel.

3. Tap on the Remove Programs icon.

4. Use the utility to remove the software.

OPTION 2: Uninstall with the ActiveSync

1. Make sure the barcode scanning software is not running.

2. Use ActiveSync and a serial/USB cable or cradle to make an active

connection between your device and a host PC.

3. On the host PC, open Microsoft ActiveSync.

4. Click Tools | Add/Remove Programs.

5. Use the utility to remove the software.

Page 53

STEP 3: INSTALL SOCKETSCAN AND CONNECT!AGENT

IMPORTANT! IF YOU WANT TO USE ACTIVEPAIRING (SCENARIO 2 OR 3), YOU MUST INSTALL THESE SOFTWARE VERSIONS:

• SOCKETSCAN 7.4.2.0 OR LATER

• CONNECT!AGENT 1.3.XX OR LATER

Download the latest software free from

http://www.socketmobile.com/support/downloads

ADVANCED USERS: Refer to the README file for CAB installation instructions.

1. Use a serial/USB cable or cradle and the appropriate synchronization

software (ActiveSync or the Windows Mobile Device Center) to make an active connection between your device and a host PC.

Synchronization software is available free from the Microsoft website.

2. Insert the installation CD into your host PC.

3. Use My Computer or Windows Explorer to access your CD-ROM drive.

In the CD, click on SETUP.EXE.

4. The SocketScan Setup Center will appear in your web browser. Read the

first page and click Installation in the left margin.

CHAPTER 5: SETUP FOR WINDOWS MOBILE 53

Page 54

5. In the SocketScan installation page, in the Windows CE section, click

Install In the first paragraph.

6. Your web browser will present a series of dialogs.

Internet Explorer:

• In the File Download –Security Warning dialog, click Run.

• In the second warning dialog, click Run.

• Internet Explorer will download the file.

Firefox:

• In the file opening dialog, click Save File.

• Firefox will download the file.

• In the Downloads list, next to SocketScanCE.exe, click Open.

• In the warning dialog, click OK to continue.

7. The InstallShield Wizard for SocketScan Software will automatically launch.

Follow the wizard to install the software.

8. After installing the software, a dialog on your Pocket PC will direct you to

soft reset. Tap ok.

9. Remove your device from the cable/cradle and perform a soft reset by

pressing the reset button. If you skip this step, some icons may not appear correctly.

10. Install Connect!Agent by returning to the SocketScan Setup Center. In the

Installation page, scroll down to Connect!Agent – Mobile Devices section and click on the Connect!Agent software link there.

IMPORTANT! Both SocketScan and Connect!Agent software must be installed.

Page 55

STEP 4: START SOCKETSCAN

1. Tap Start | Programs | SocketScan folder | SocketScan.

2. When SocketScan is running a SocketScan icon will appear at the bottom

of the Today screen.

Icon Meaning

SocketScan is not ready to connect to the

(red circle)

(blue circle)

Bluetooth CHS SocketScan is ready to connect to the Bluetooth CHS

Bluetooth CHS is connected and ready to scan

STEP 5: ENABLE CORDLESS SCANNER SUPPORT

1. Tap the SocketScan icon at the bottom of the Today screen. In the pop-

up menu, tap Settings.

2. The Scanner Settings utility will appear. Tap on the CS tab at the bottom.

3. Check the box Enable Cordless Scanner support. IMPORTANT!!!

4. Tap ok to save the changes.

CHAPTER 5: SETUP FOR WINDOWS MOBILE 55

Page 56

STEP 6: TURN ON THE BLUETOOTH CHS

Press and hold the small power button for 3 seconds, until the LED

turns blue and the scanner beeps twice (low - high).

The LED should blink blue once every second to show that the Bluetooth radio is on but not connected.

Note: The following Bluetooth mode sequence is for the Bluetooth CHS v2.

Time after turning on scanner Bluetooth mode

0-5 minutes Discoverable and connectable 5-20 minutes Connectable 20 minutes Scanner automatically powers off

STEP 7: PREPARE THE CONNECTION

SCENARIO 1:

1. Tap on the SocketScan icon

at the bottom of the screen. In the menu,

tap Connect CS.

Note: The Connect CS option appears after cordless scanner support. is enabled.

2. If the Bluetooth radio of your device is turned off, Connect!Agent will ask

if you want to turn it on. Tap Yes.

Page 57

3. Connect!Agent will turn on the Bluetooth radio and begin to search for

and connect to the Bluetooth CHS.

- If this is your first time connecting to a Bluetooth CHS from this

device, Connect!Agent will search for any Bluetooth CHS in range.

- If you have previously connected to a Bluetooth CHS, Connect!Agent

will automatically search for your favorite (default) device.

4. Tap to select your scanner and tap ok. The scanner will appear as Socket

CHS [xxxxxx], where the characters in brackets are the last 6 characters of the Bluetooth Device Address.

Note: To help you identify the scanner, Connect!Agent reports the Bluetooth Device Address, which is printed on a label inside the battery compartment for the Bluetooth CHS v2.

CHAPTER 5: SETUP FOR WINDOWS MOBILE 57

Page 58

5. Connect!Agent will begin connecting to the Bluetooth CHS.

6. After the devices connect, the Bluetooth CHS will beep once. The

SocketScan icon at the bottom of the Today screen will change into a scanner icon to indicate the connection.

Note: Connect!Agent will save data to automate future connections to your Bluetooth CHS. To change the favorite scanner, use the Connect!Agent utility (see instructions at the end of this chapter)

Note: After you have connected the mobile device to the Bluetooth CHS, you can use ActivePairing with the Bluetooth CHS v2 for future connections. Please refer to the instructions later in the chapter.

SCENARIO 2:

After the PC connects to the scanner, you can set up a Permanent Pair.

1. Complete the steps described above for Scenario 1.

2. While the scanner is connected to the computer, tap on the SocketScan

icon. In the menu, tap Settings.

3. In the CS HW tab, tap Advanced. Check the box Permanent Pair. Tap

OK. Tap ok to save.

Note: After you set up the Permanent Pair, future connections can be initiated by simply powering on the scanner. SocketScan must be running on the PDA, and Connect!Agent must be installed.

Page 59

SCENARIO 3:

1. Find out the Bluetooth address of your PDA.

2. Use barcode software or a barcode generating website like

http://www.idautomation.com/java/linearservlet.html http://www.barcoding.com/upc

to print the following barcode:

IMPORTANT! FORMAT THE BARCODE IN THE SYMBOLOGY CODE 128!

ActivePairing Barcode Sample Result after Scanning

Initiator Bar Code — contains the following data:

#FNIxxxxxxxxxxxx#

where xxxxxxxxxxxx is the Bluetooth address of the computer

The scanner will change to initiator mode and automatically try to connect to the PDA with the Bluetooth address embedded in the barcode

3. In the Today screen, make sure the SocketScan icon in the task tray has a

blue circle to indicate that it is ready for ActivePairing.

4. Scan the Initiator Barcode.

Note: The scanner will try to connect every 2 seconds for a maximum of 20 attempts.

5. After connecting, the scanner will beep once, and the LED will blink blue once every

3 seconds. The SocketScan icon will also change to a ring icon.

Note: After disconnecting from a PDA (by turning of the scanner), you can easily connect to a different PDA by scanning the Initiator Barcode customized for that PDA. SocketScan must be running on the PDA, and Connect!Agent must be installed.

STEP 8: OPEN YOUR APPLICATION

1. Start the application that you want SocketScan to feed the barcode data

into.

2. Place the cursor where you want data from the next scan to go.

CHAPTER 5: SETUP FOR WINDOWS MOBILE 59

Page 60

STEP 9: SCAN DATA INTO YOUR APPLICATION

1. Press the trigger button and scan the barcode. For example, try scanning

the barcode below:

Note: After data is read and sent to the device, the Bluetooth CHS will beep once, the LED will flash green, and the beam will turn off.

Note: If no data is read in a few seconds, the scanner beam will turn off, and you must try again.

2. After a successful scan, data should appear in your document. The default

“CR” (carriage return) suffix will advance the cursor to the next line or field, ready for the next scan.

SocketScan Auto-Reconnect

• Failure to reconnect will cause the scanner to end auto-reconnect mode

and disconnect. You will then be required to make a connection manually through SocketScan by tapping on the SocketScan icon and tapping Connect CS.

• A manual connection will also be required if the scanner is not powered

back on or does not return back in connection range within 3 minutes after a disconnection.

• A connection remains when the smartphone device is in suspend mode.

Note: By default, CS Auto Power off mode is enabled. This mode must be disabled for automatic reconnections.

Page 61

DISCONNECTING

To disconnect, tap on the SocketScan icon at the bottom of the Today screen and tap Disconnect.

Your mobile device will disconnect from the Bluetooth CHS, and for some mobile devices, Connect!Agent will automatically turn off the Bluetooth radio of the mobile device, depending on the device’s Bluetooth stack. The Bluetooth CHS will also beep twice (same tone) to indicate the disconnection.

Turning off the Bluetooth CHS To turn off the Bluetooth CHS, press and hold the power button at least 3 seconds, until the blue LED turns off and the Bluetooth CHS beeps twice (high - low).

CHAPTER 5: SETUP FOR WINDOWS MOBILE 61

Page 62

SYMBOLOGY SELECTOR

The applet makes it easy to select symbologies for the Bluetooth CHS to recognize. By default, the Bluetooth CHS recognizes several of the most common symbologies.

1. Tap on the SocketScan icon. In the pop-up menu, tap Symbology Selector...

2. In the screen, check the symbologies you wish to enable. Uncheck those

you wish to disable. For convenience, you can tap Disable All to disable all and select the ones you want. Tap ok.

Socket does not recommend enabling all possible symbologies. Doing so will make the decode process slightly longer.

To scan Vehicle Identification Number barcodes, select the VIN option. VIN scanning is recommended only for the Bluetooth CHS 7P.

The RSS symbology is now known as GS1 DataBar

If you would like to read UPC-A barcodes, be sure to disable GS1 DataBar so that

GS1 DataBar symbols will not be mistakenly decoded.

Page 63

SCANNER SETTINGS

1. Tap on the SocketScan icon. In the pop-up menu, tap Settings.

2. Enter characters append to each scan (128 character maximum, only ASCII

printable characters).

The default suffix is a carriage return. Besides characters listed on the screen, other characters can be typed or entered using the format \nnn, where nnn = ASCII character 001 – 255.

3. Tap on the Sound tab. Select a sound to indicate a good read. If you

select Play .wav file, tap … to search for the file (it must be in My Documents).

CHAPTER 5: SETUP FOR WINDOWS MOBILE 63

Page 64
