Socket 7Mi, 7Pi User Manual
Socket
Bluetooth® Cordless Hand Scanner (CHS)
1D Laser Models — 7Mi, 7Pi
User’s Guide
8/2013 Document# 6410-00344 A
COPYRIGHT NOTICE
Copyright © 2013 Socket Mobile, Inc. All rights reserved.
Socket, the Socket logo, Battery Friendly, Socket Bluetooth Cordless Hand Scanner, SocketCare, SocketScan, Mobility
Friendly, and SoMo are trademarks or registered trademarks of Socket Mobile, Inc. Bluetooth and the Bluetooth logos are
registered trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Mobile, Inc. Apple, iPad, iPhone, iPod
touch, and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a trademark of
Apple Inc. All other brand and product names are trademarks of their respective holders.
The Socket Bluetooth Cordless Hand Scanner includes technology licensed under United States Patent Numbers 5,902,991,
7,429,000 B1 and D526,320 S.
Reproduction of the contents of this manual without the permission of Socket Mobile is expressly prohibited. Please be
aware that the products described in this manual may change without notice. Feel free to contact Socket Mobile at:
Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of
information contained in this manual.
Please refrain from any applications of the Socket Bluetooth Cordless Hand Scanner that are not described in this manual.
Please refrain from disassembling the Bluetooth Cordless Hand Scanner. Disassembly of this device will void the product
warranty.
You can track new product releases, software updates and technical bulletins by visiting the Socket Mobile website at:
http://www.socketmobile.com.
IMPORTANT! The information in this User’s Guide pertains to 1D
laser versions of the Socket Bluetooth Cordless Hand Scanner
(CHS), which have the following part numbers:
CHS version Type of Barcode Scanner Part Number
7Mi Class 2 laser 8550-00063
7Pi Class 2 laser, durable casing 8550-00064
If you have a different version of the CHS, download the appropriate manual online at:
http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/?page=Detail
Socket Mobile, Inc.
39700 Eureka Drive, Newark, CA 94560-4808, USA
+1-510-933-3000
USA/Canada Toll-free: 1-800-552-3300
http://www.socketmobile.com/contact
TABLE OF CONTENTS
COPYRIGHT NOTICE 2
1 | INTRODUCTION 4
2 | SCANNER SETUP 10
3 | SETUP FOR APPLE IOS 13
4 | SETUP FOR ANDROID 21

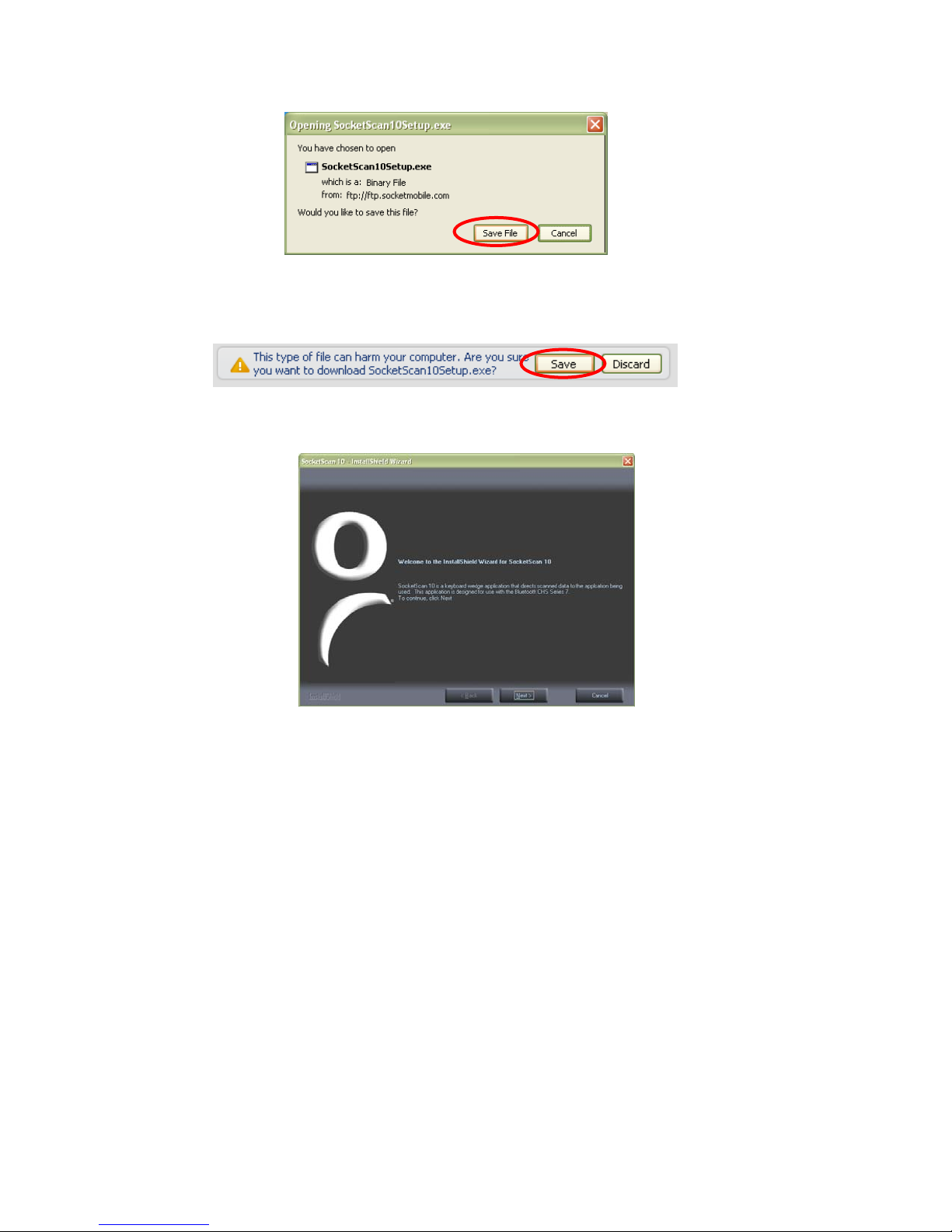

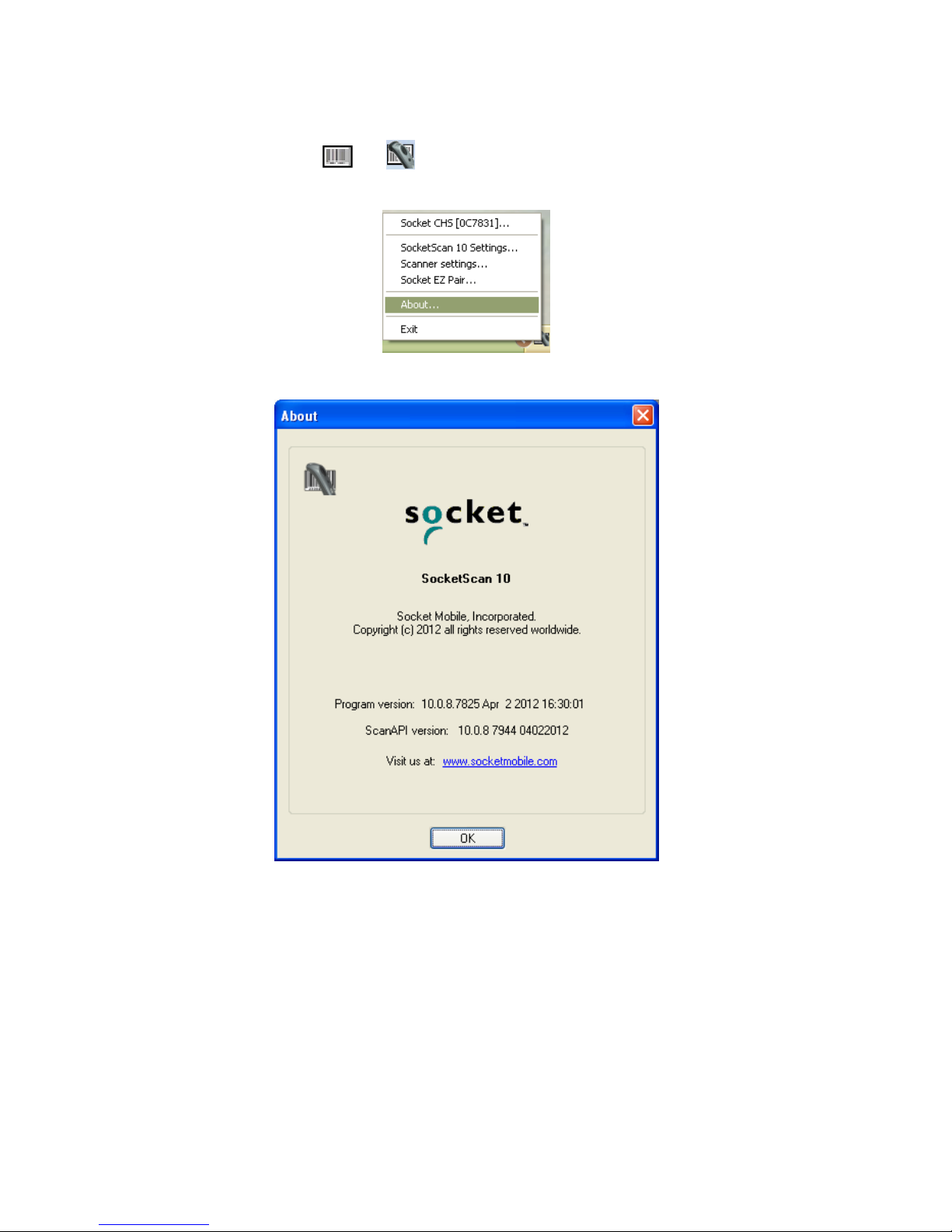

5 | SETUP FOR WINDOWS PC 37

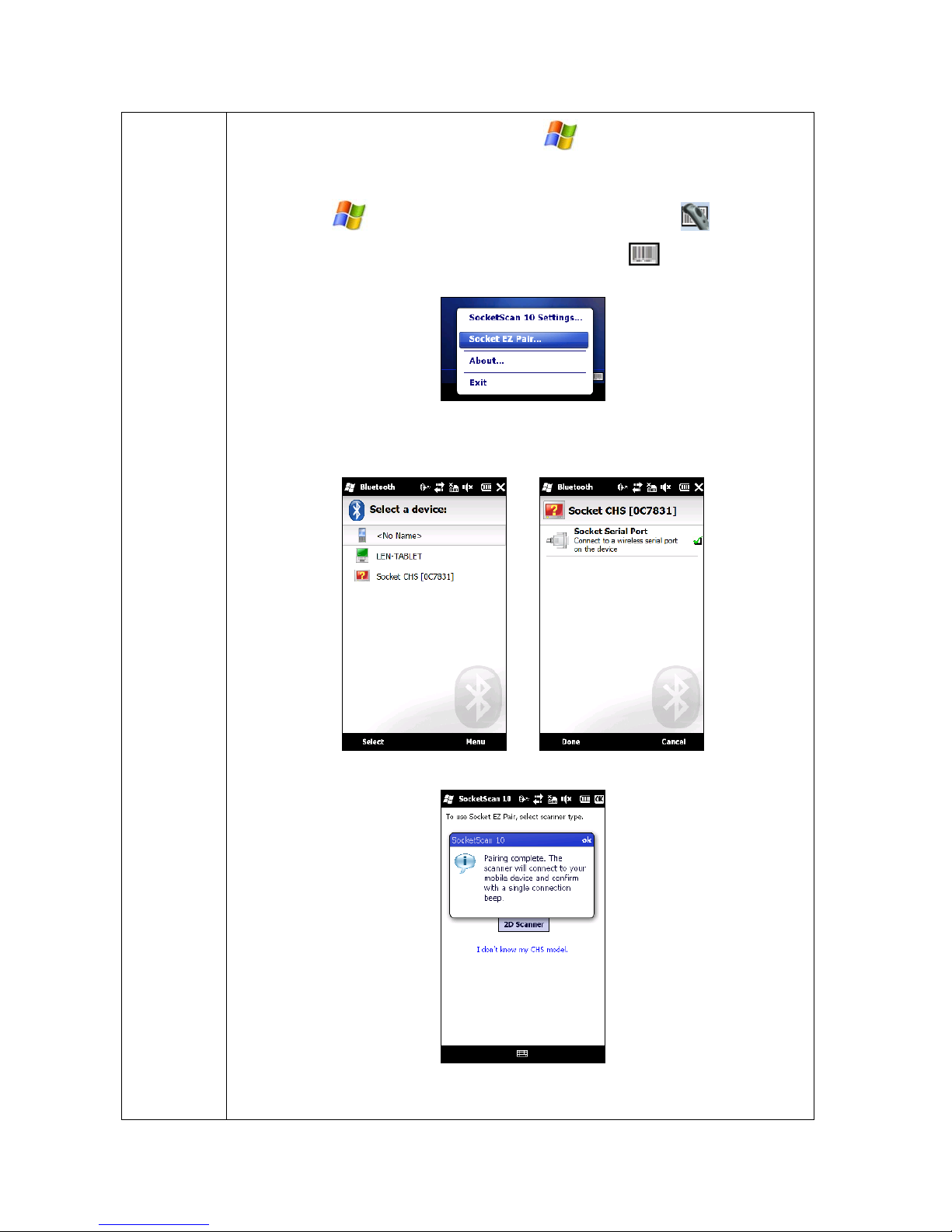

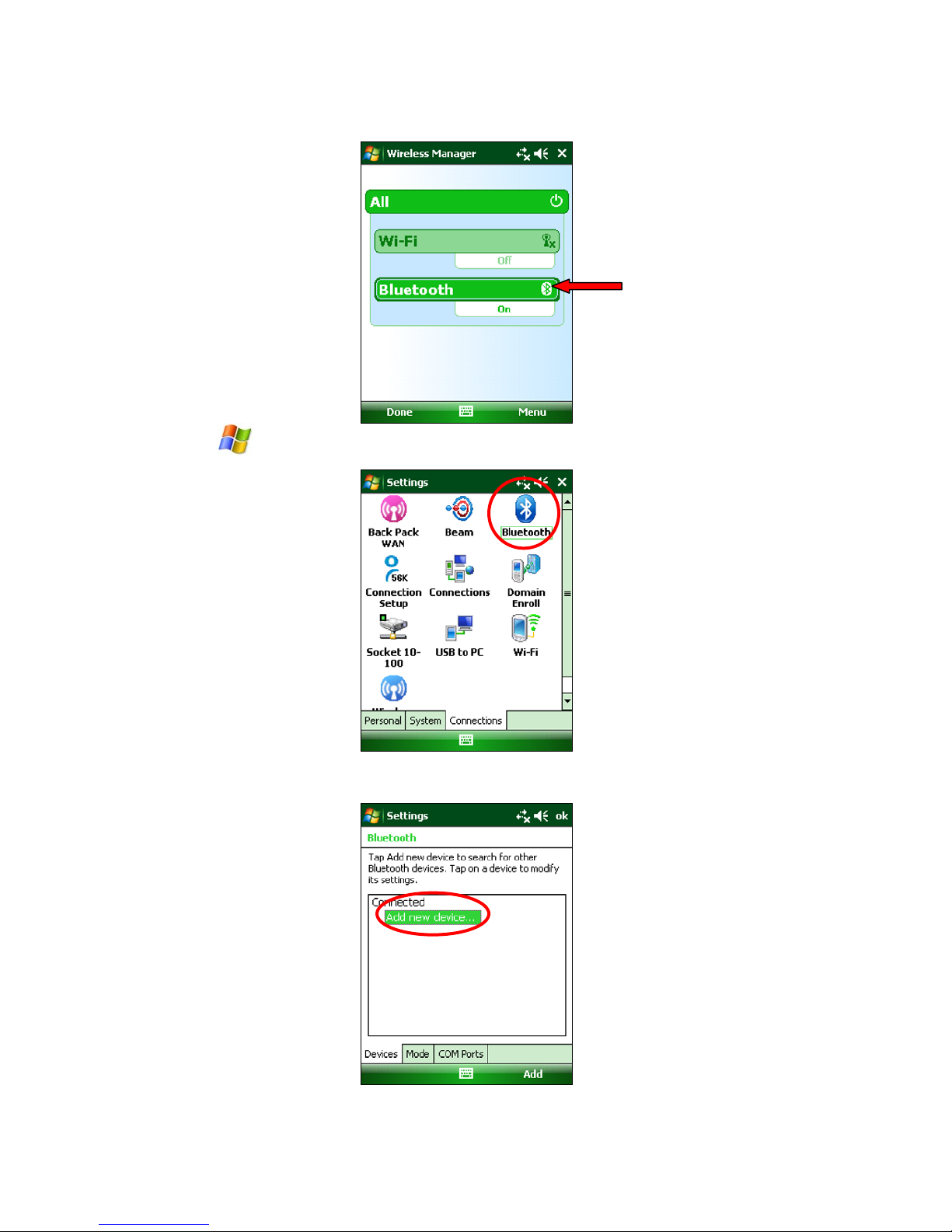

6 | SETUP FOR WINDOWS MOBILE 58

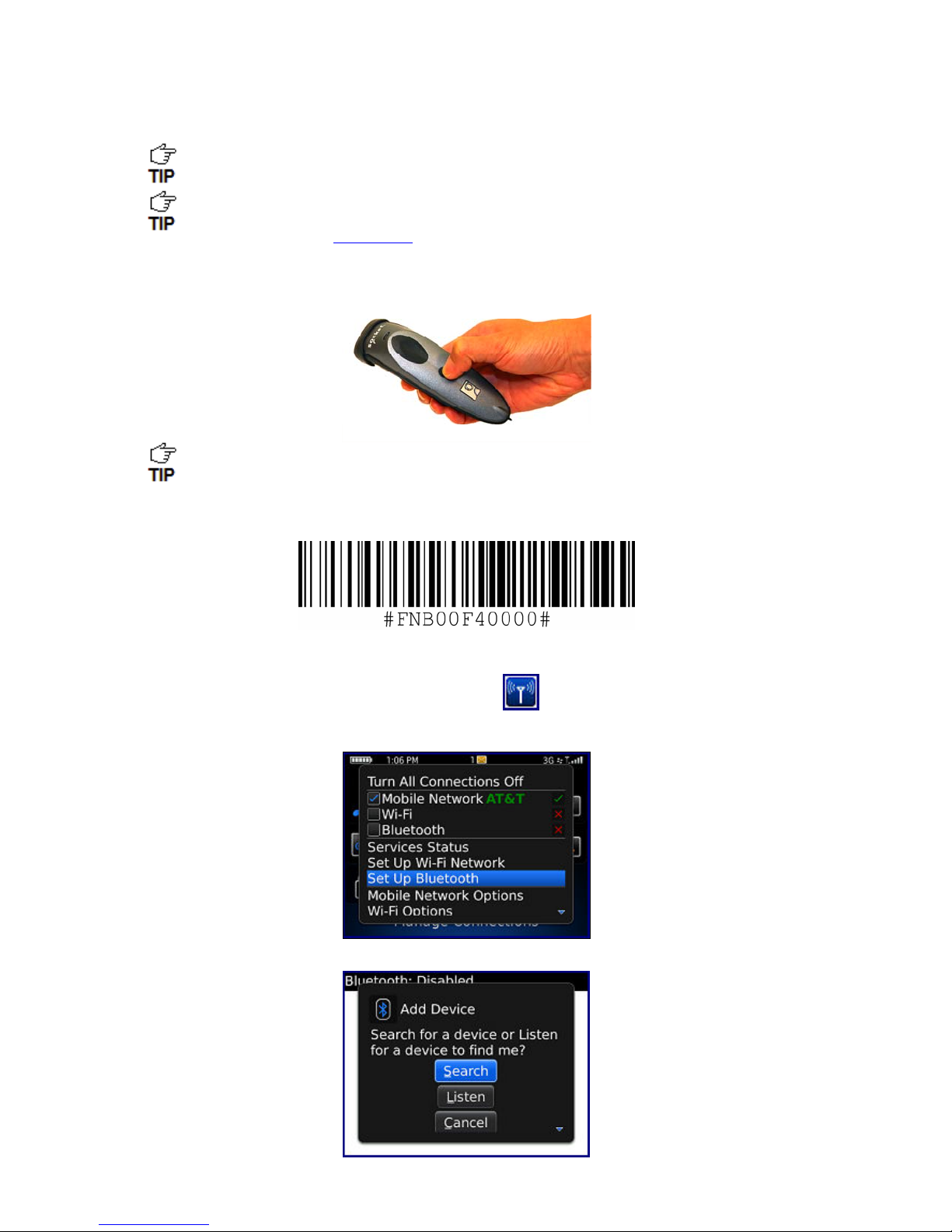

7 | SETUP FOR BLACKBERRY 78
APPENDIX A SPECIFICATIONS 91
APPENDIX B SAFETY AND USAGE TIPS 94
APPENDIX C BARCODE LABEL SPECIFICATIONS 96

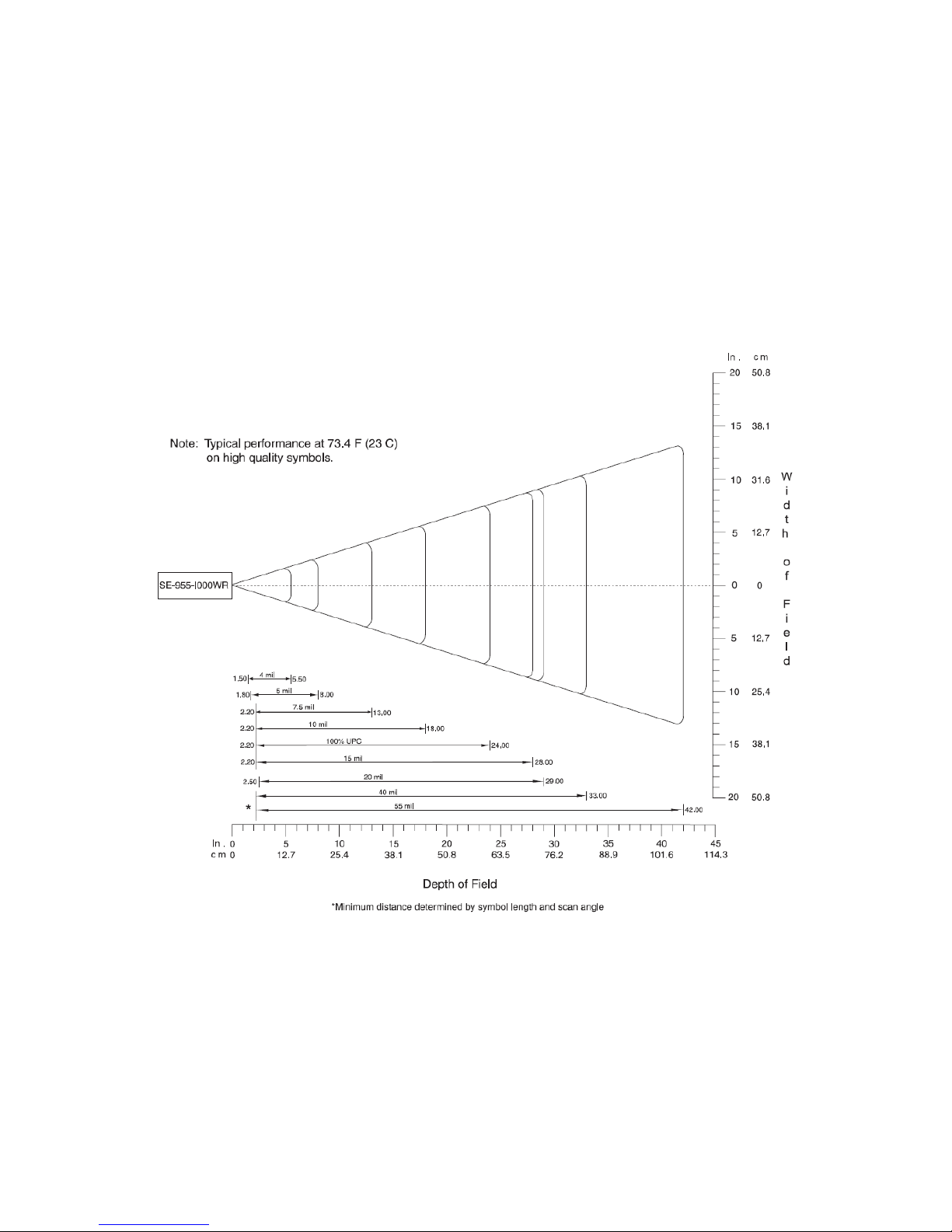

APPENDIX D DECODE ZONE 97
APPENDIX E COMMAND BARCODES 98
APPENDIX G SPECIAL BUTTON SEQUENCES 104
APPENDIX H CAB INSTALLATION 105
APPENDIX I CONNECTION BARCODES 106
APPENDIX J TROUBLESHOOTING 107
APPENDIX K TECHNICAL SUPPORT 113
LIMITED WARRANTY 114
SOCKETSCAN SOFTWARE LICENSE AGREEMENT 115
REGULATORY COMPLIANCE 116
3
1 | INTRODUCTION
p
Thank you for purchasing the Socket Bluetooth Cordless Hand Scanner (CHS). The CHS is a
portable handheld barcode scanner that is small, light, comfortable to use. 1D laser models
enable you to scan data from 1D barcodes into a wide variety of computers, smartphones and
PDAs.
SCANNER MODELS (1D LASER VERSIONS)
Model Scanning Engine Durable Exterior Casing
7Mi Class 2 laser
7Pi Class 2 Laser
PACKAGE CONTENTS
2 NiMH
Lanyard/Belt Cli
retractable tet
Socket Bluetooth
Cordless Hand Scanner
USB AC charging kit
rechargeable
AAA batteries

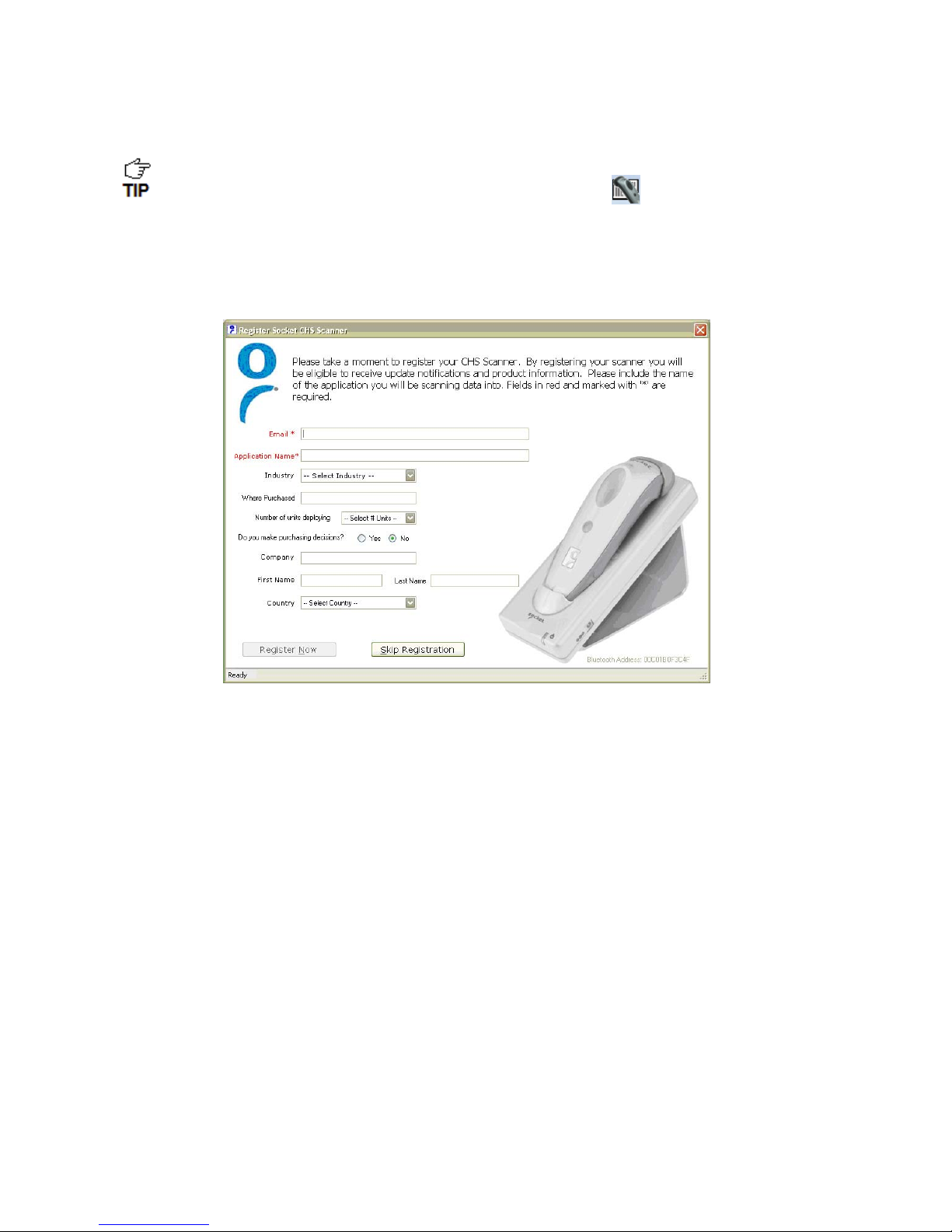

PRODUCT REGISTRATION
Socket highly recommends that all customers register their products. Product registration is
required to access technical support. You can also opt in for special offers, upgrades, and new
product information. Register online at: http://support.socketmobile.com
Alternatively, if you
install SocketScan 10 or Scanner Settings, you can register the CHS through the software.
SOCKETCARE
SocketCare is an enhanced service program that features priority technical support, accelerated
repair and replacement and more. http://www.socketcare.com/
SocketCare Plus 2 year - SKU# SC1804-1349
SocketCare Plus 3 year - SKU# SC1805-1350
SocketCare Comprehensive Plus – SKU# SC1806-1351 (requires previous purchase of
SocketCare Plus 2 or 3 year program)
™
SERVICE PROGRAM
4
SYSTEM COMPATIBILITY REQUIREMENTS / COMPATIBLE DEVICES
For the latest device compatibility information, please use our Compatibility Checker:
http://www.socketmobile.com/CompatibilityChecker/
OS System Compatibility Requirements / Compatible
Devices
Windows PC
Windows 7, Vista, XP
Microsoft, Toshiba or Broadcom Bluetooth
Bluetooth HID
Support
stack
Windows RT Windows RT
Windows
Embedded
Windows Embedded Handheld 6.x
Handheld
Apple iOS iPod touch (5th generation)
iPod touch (4
iPod touch (3
th
generation)
rd
generation)
iPhone 5
iPhone 4S
iPhone 4
iPhone 3GS
iPad mini
iPad (3
rd
generation)
iPad 2
iPad
Mac OS*
Mac OS X 10.4 to 10.6.6 for Mac / MacBook
Bluetooth driver v2.24f3 (v1965) or v2.37f1
Android OS Android 2.1 or later Android
2.2 or later
with HID
support
BlackBerry
OS
BlackBerry OS 5.0.0.714 or later for Bold 9700**
QNX BlackBerry PlayBook
*Compatibility verified for latest models at time of testing. Other models or Bluetooth driver versions not tested.
**Other devices not tested with SocketScan 10 and may require the previous software version.
ADDITIONAL DOCUMENTATION
Download Quick Start Guides, Command Barcode Sheets, or other manuals:
http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/?page=Detail
Bluetooth SPP
Support
Microsoft or
Broadcom
Bluetooth stack
Android 2.1
or later
CHAPTER 1: INTRODUCTION 5
ABOUT BLUETOOTH HID AND SPP MODES
The CHS support two kinds of Bluetooth connections (known as Bluetooth profiles): SPP (Serial
Port Profile) and HID (Human Interface Device), each with its advantages and disadvantages.
By default, the CHS is set to HID mode for Keyboard devices, which requires no
SocketScan 10 software installation.
For better performance, Socket highly recommends that you use SPP mode or iOS
mode, especially if scanning barcodes that contain a lot of data.
Feature CHS with HID mode CHS in SPP mode for Android,
Windows, BlackBerry
No software installation
required
Supports SocketScan 10
software with Socket EZ
Pair
Non-printable ASCII,
UNICODE, international
keyboard support
International keyboard
support
Parsing / data checks (with
SocketScan 10 SDK)
Binary data (with SDK)
Scanner configuration
methods
Scanner configuration
options
Barcodes containing a lot
of data
French, German,
Special barcodes SocketScan 10 utility or special
Limited configuration
options
Less efficient
communications may lead
to slower performance
as supported by OS as supported by
Spanish
barcodes
Many configuration options Many configuration
More efficient data
communications

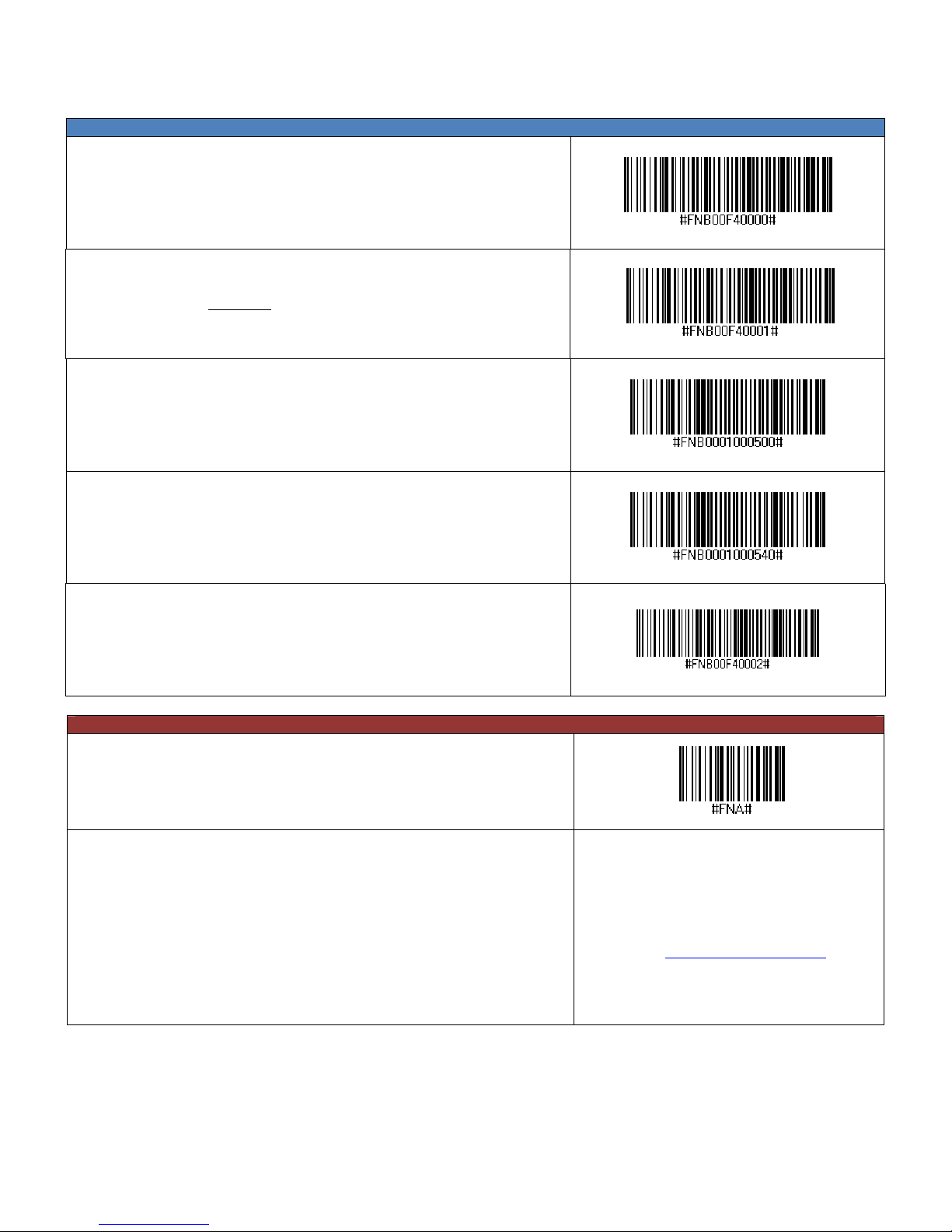

To change modes, use the Command Barcodes in Appendix E
.
To learn more about HID and SPP, please read our white paper:
http://www.socketmobile.com/pdf/techbrief/socketscan-10-sdk_white-paper.pdf
ABOUT SOCKETSCAN 10 SOFTWARE
SocketScan™ 10 keyboard wedge software for Android, Windows and BlackBerry OS enters
scanned data directly into any program as if the data were manually typed. It includes a utility
for configuring Prefix/Suffixes, sounds, symbologies, and other settings. Download the latest
version: http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/
Software for Bluetooth SPP mode only. No software installation required for HID
mode.
SocketScan 10 keyboard wedge software is designed for scanning 7 bit ASCII data. For
Unicode, DoubleByte, Multibyte (e.g., for Japanese or Chinese) or binary data, use the
SocketScan 10 SDK to convert the data before it is sent to your application. Learn more about
the SDK at: http://www.socketmobile.com/products/sdk/
CHS in iOS mode
OS
Scanner Settings app
or special barcodes
options
More efficient data
communications
6
ABOUT SOCKETSCAN 10 SDK
If you are a developer who would like to add support for the CHS to your mobile application,
Socket offers the SocketScan 10 SDK with support for Apple iOS, Android, Windows, and
BlackBerry OS.
The SDK is available to members of the Socket Mobile Developer Program ($19.95/year). For
more information, please visit: http://developer.socketmobile.com/
ACCESSORIES
Accessory SKU Number
For 7Mi: SKU# AC4054-1381
Charging Cradle with Latch
For 7Pi: SKU# AC4055-1382
USB A Male to DC Plug Cable SKU# AC4051-1192
Car Charger SKU# AC4057-1384
AC Power Supply with USB Charging
Cable
SKU# AC4058-1415
From Taylor Made Cases
Protective Carrying Case / Belt Holster
Waterproof Skin
For more information on Socket Mobile accessories for the CHS, please visit:
http://ww1.socketmobile.com/products/bluetooth-scanners/accessories-bt.aspx
For more information on accessories from Taylor Made Cases, Viziflex Seels or other Socket Mobile
partners, please visit: http://ww1.socketmobile.com/products/star/custom-cases.aspx
SKU# TM-HS650-KT
From Viziflex Seels
For 7Mi: SKU# SMS03
For 7Pi: SKU# SMS01
CHAPTER 1: INTRODUCTION 7
HARDWARE FEATURES
Product Diagram
Status indicator LED
Trigger button
Power button
Stylus tip
Power connector
(For 7Pi remove rubber cap to
access)
Status Indicator LED
Bluetooth (Blue) 1 blink per second Bluetooth radio is on but not connected
1 blink per 3 seconds CHS connected to host device
Good Read (Green) On
LED LED Activity Meaning
Protective rubber bumper
(7Pi only)
Data successfully scanned and transmitted to
host device
On and connected to charger Battery full
Battery (Red) Blinking 20% or less battery capacity remaining
Off Off or Good Battery status
8
Status Indicator Beeps
2 beeps (low-high) Power on
2 beeps (high-low) Power off
1 beep CHS connected to host device and ready to scan barcodes.
1 beep (low)
Beep Pattern Meaning
You have double-pressed the power button, and the CHS has
enabled support for simultaneous scanning and onscreen
keyboard entry for Apple iOS
1 beep with green LED (configurable
setting)
2 beeps (same tone) CHS disconnected from host device
1 long beep
5 beeps
Data successfully scanned and sent to host device
CHS unsuccessfully tried 30 times to connect to the last host
device it paired with. The CHS will become discoverable.
The CHS detects an internal fault, will reset and power off. If
connected to a host computer, the scanner will disconnect
during the reset.
Vibrate
Vibrate Power on OR data successfully scanned and sent to host device.
Vibrate Meaning
To modify the LED, beep and vibrate settings, you can use the Command Barcodes, or if the
CHS supports SPP mode for your OS, the Scanner Settings utility (see chapter for your OS).
Bluetooth Mode Sequence
When the CHS is powered on, its Bluetooth mode will gradually change if no connection is made.
Time after turning on CHS Bluetooth mode
0-5 minutes Discoverable and connectable
5-20 minutes Connectable
20 minutes CHS automatically powers off
Simultaneous Use of CHS and Socket Plug-in Device with the SoMo 655
You can use the CHS and a Socket plug-in barcode / RFID / magnetic stripe reader simultaneously with
the SoMo 655 handheld computer. However, you will need to run two different versions of
SocketScan concurrently.
For the CHS, use SocketScan 10, which you can download from:
http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/
For Socket plug-in devices, use SocketScan 7 (or older), which you can download from:
http://www.socketmobile.com/support/downloads/data-collection/series5/
CHAPTER 1: INTRODUCTION 9
2 | SCANNER SETUP
INSTALLING BATTERIES AND ATTACHING THE TETHER
1. Use a coin or screwdriver to unlock and remove the battery cover. Turn the lock
underneath the scanner to a horizontal position to unlock.
2. Remove the battery cover.
The Bluetooth Device Address (BDA) is printed on a label inside the battery
compartment. It helps you distinguish your CHS from other CHS scanners. If you install
SocketScan 10, you can also check the BDA in Scanner Settings.
Revision Letter - follows Part Number (P/N)
Bluetooth Device Address
(BDA)
3. Install the batteries in their correct positions, as indicated by the +/- symbols.
10
4. If desired, attach the tether to the battery cover. Wrap the string loop around the inside
s
part of the lock.
5. Replace the battery cover and turn the lock to a vertical position to secure it.
WARNING: Installing the batteries incorrectly may damage the scanner.
WARNING: Charge ONLY NiMH batteries in the CHS. Charging alkaline or other
battery types will damage the scanner. Remove the batteries if the CHS will not be
used for more than 30 days.
The red Battery Status LED will not function properly if standard AAA nonrechargeable batteries are being used.
Property Specification
Battery Type NiMH rechargeable AAA
Battery Life ~19 hours to scan 15,000+ barcodes for new, fully charged batterie
ASSEMBLING THE AC ADAPTER
If you wish to charge the CHS with the AC adapter, the correct plug for your region must be
attached first. Four different plugs are included. Simply find the correct plug for your region
and slide it into the head of the adapter until it latches. Plug in the cable, making sure the
USB connector is oriented the correct way.
The charger cannot be sold in Japan.
CHAPTER 2: SCANNER SETUP 11
CHARGING THE SCANNER
The CHS must be fully charged before first use. Use the AC adapter to charge from
a wall outlet, or the USB cable to charge from a PC. Initial charging takes about 5
hours with an AC adapter. Optional charging accessories are also available.
The LED will be solid red while charging and green when the batteries are full.
Connecting the USB cable to a PC to charge the CHS is not reliable and not recommended.
Included Charging
Hardware
AC adapter with international plugs
USB A Male to DC Plug Cable (2A maximum)
AC Adapter Rating 5V, 2A, positive pole center
Power Jack Connector 4 mm barrel
Optional Charging
Hardware
Charging cradle
Car charger
Mobile Power Pack (available in Americas/Asia Pac)
AC or DC adapter from Socket SoMo
Purchase online at: http://ww1.socketmobile.com/products/bluetooth-
scanners/accessories-bt.aspx
12
3 | SETUP FOR APPLE IOS
This chapter explains how to install and use the Socket Bluetooth Cordless Hand Scanner
(CHS) with Apple devices running iOS.
Made for the following Apple devices:
iPod touch (5
iPod touch (4
iPod touch (3
iPhone 5
iPhone 4S
iPhone 4
iPhone 3GS
iPhone 3G
iPad mini
iPad (3
rd
iPad 2
iPad
Before you begin the instructions in this chapter, make sure you have charged the CHS, as
described in Chapter 2, “Scanner Setup”
For the latest compatibility information, please refer to the CHS Series 7 Compatibility
Checker at: http://www.socketmobile.com/CompatibilityChecker/
th
generation)
th
generation)
rd
generation)
generation)
CONNECTION OPTIONS
For Apple iOS and Mac OS, the CHS offers two different connection options. For more
information about HID and SPP, please see Scanner Settings
Bluetooth
Mode
HID
Instructions
on next page
iOS
(equivalent
to SPP)
Instructions
on page 58
Pros Cons
No SocketScan 10 software
installation needed
Apple tested and certified
Many configuration options
Broad character set, including non-
printable ASCII, international
keyboards
More efficient data communications
for barcodes containing lots of data
Socket highly recommends that you use the CHS in iOS mode. To learn more, read our
white paper: http://www.socketmobile.com/pdf/techbrief/socketscan-10-sdk_white-
paper.pdf.
The screenshots shown in this chapter may differ from your device screen
depending on your device type.
.
Limited configuration options
Limited to printable ASCII and some
non-printable characters
Less efficient data communications
for barcodes containing lots of data
iPhone 3G not supported
Compatible iOS application
developed with SocketScan 10 SDK
required
No SocketScan 10 keyboard wedge
software offered
CHAPTER 3: SETUP FOR APPLE IOS 13
OPTION 1: USING THE CHS IN HID MODE
To pair the CHS with your Apple device:
You only need to pair the CHS with your Apple device the first time you
try to connect.
By default, the CHS is in HID mode for Keyboard devices. If you changed the
CHS to a different mode, refer to the Command Barcodes
correct mode.
1. Power on the CHS. Press and hold the small power button until the LED
turns blue and the CHS beeps twice (low-high).
to change it to the
The LED blinks blue once per second to show that the Bluetooth radio is
on but not connected.
2. Start a Bluetooth device search.
iOS: Tap Settings | General | Bluetooth. Turn on Bluetooth.
A Bluetooth device search will begin.
Mac OS: Click System Preferences | Internet & Wireless | Bluetooth. In Bluetooth
preferences, select the On checkbox. Click Set up New Device… A Bluetooth device
search will begin.
14
1. In the device list, tap Socket CHS (initially it will appear as Keyboard). Tap Pair.
In the device list, the CHS will appear as Keyboard, then as Socket CHS
[xxxxxx]. The characters in brackets are the last six characters of the CHS
Bluetooth Device Address (BDA), which is labeled inside the battery
compartment.
2. The CHS will connect to the Apple device. If prompted, enter the passkey 0000
(four zeroes).
The CHS will beep once after it has connected and is ready to scan
barcodes. The LED will also blink blue once every 3 seconds.
For iOS, the soft keyboard will automatically disappear a few seconds after
the CHS connects, because the CHS is detected as a Bluetooth keyboard. To
make the onscreen keyboard appear while connected to the CHS, see
instructions on next page.

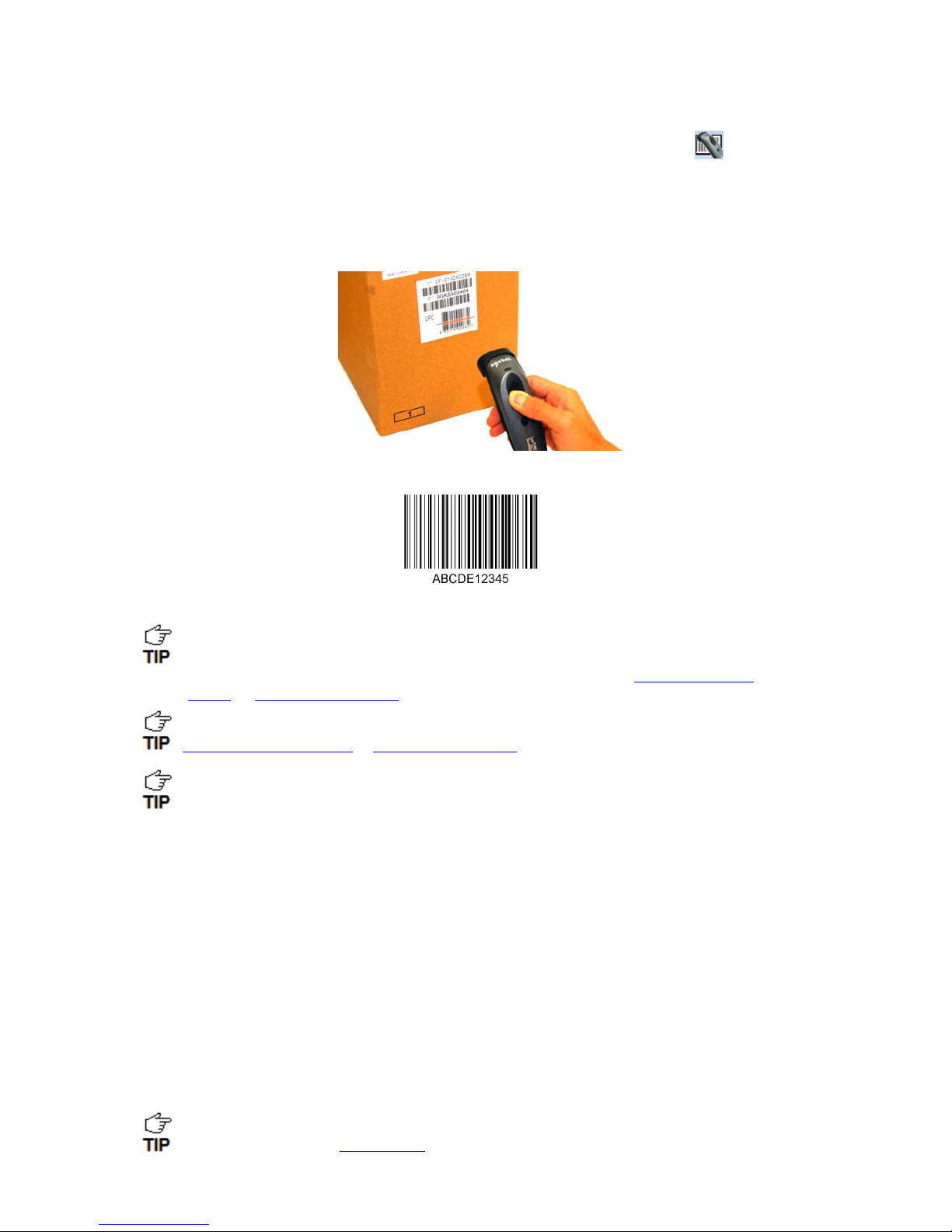

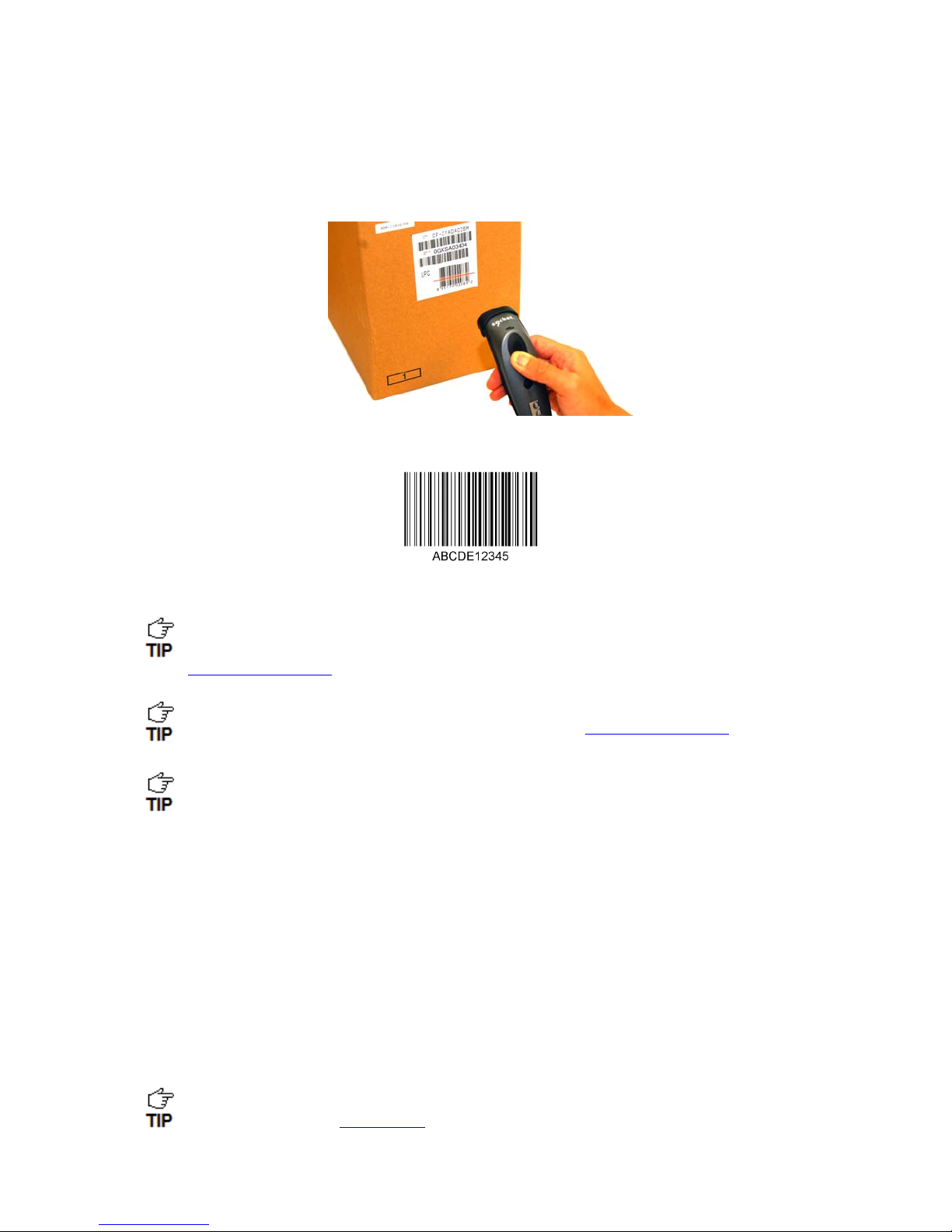

To scan barcodes:
1. Open your application. Place the cursor where you want to enter data.

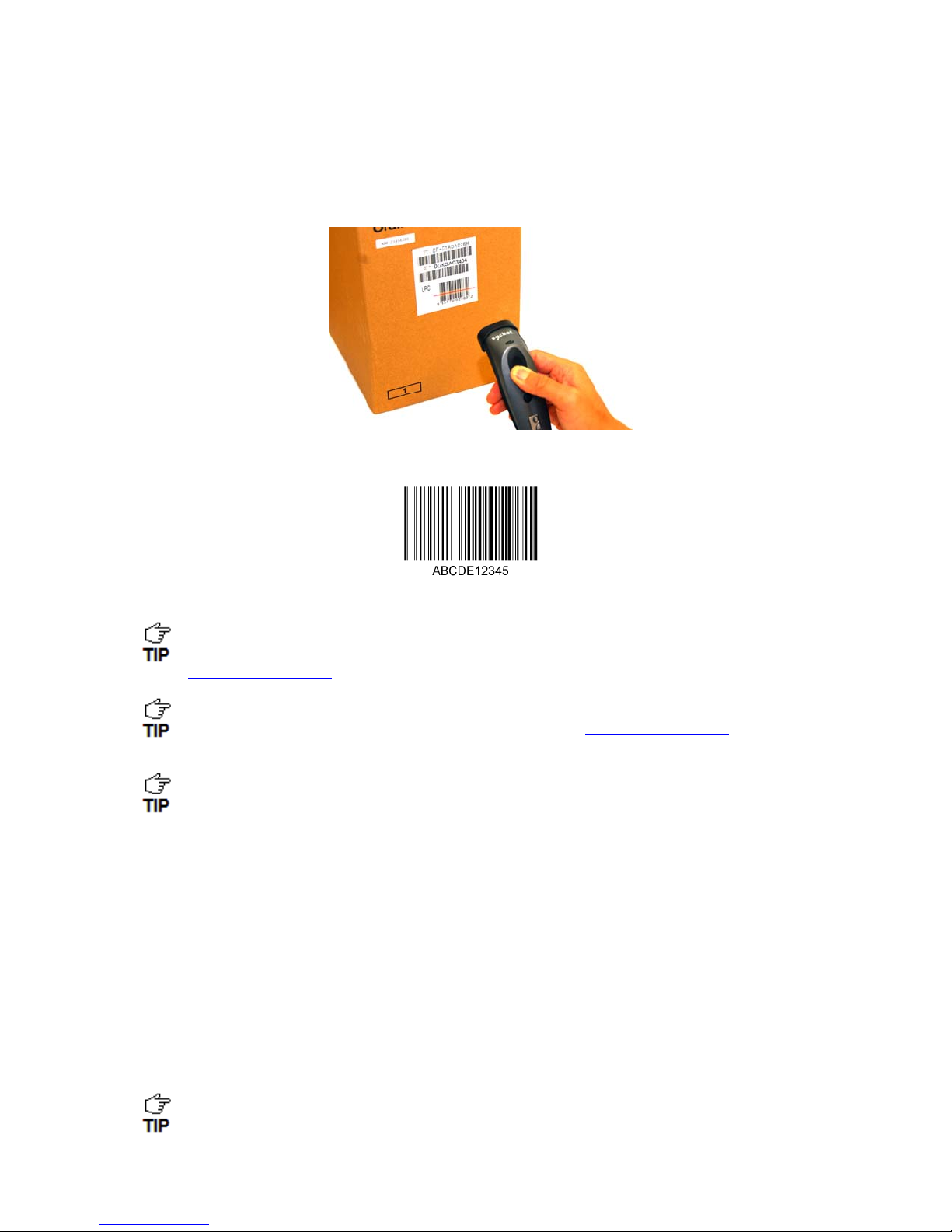

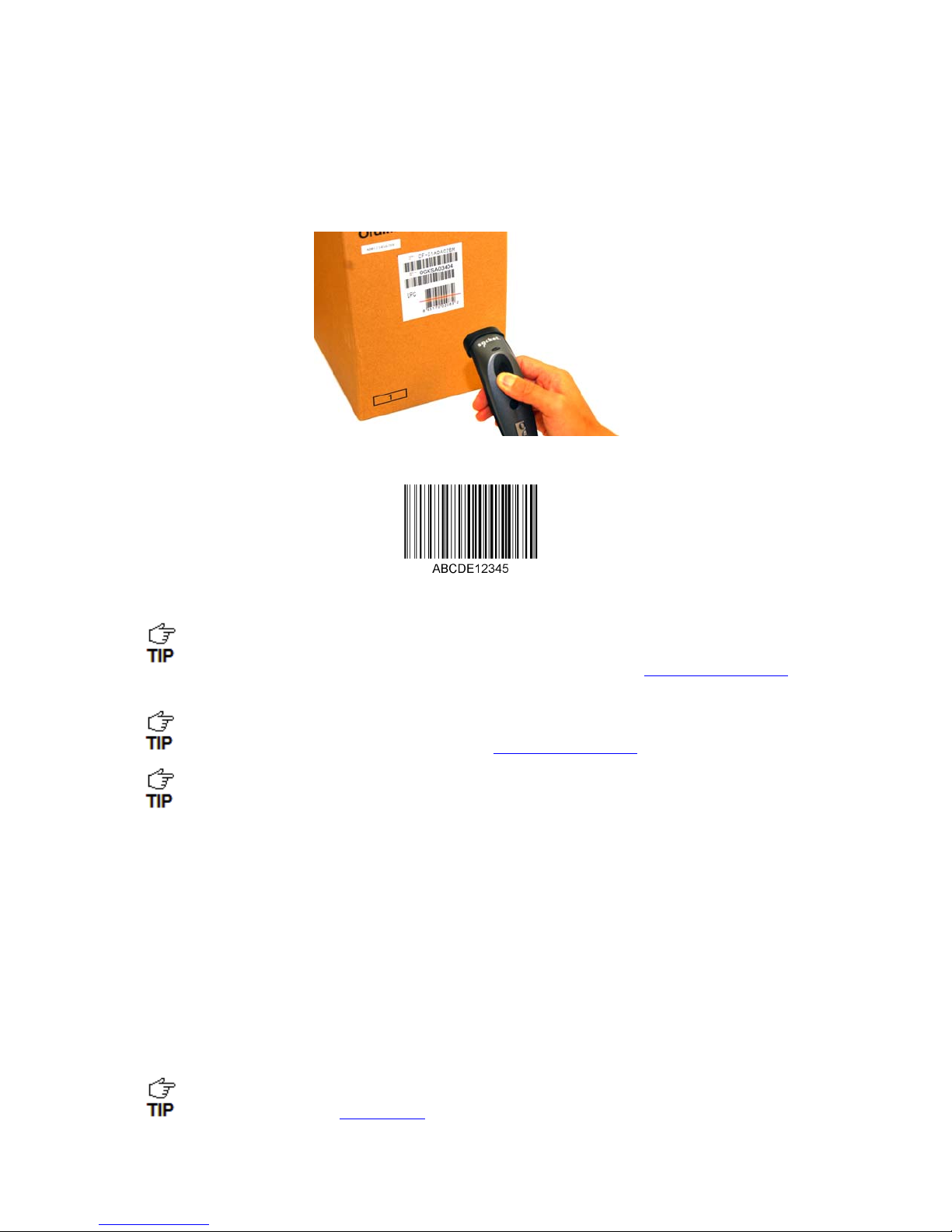

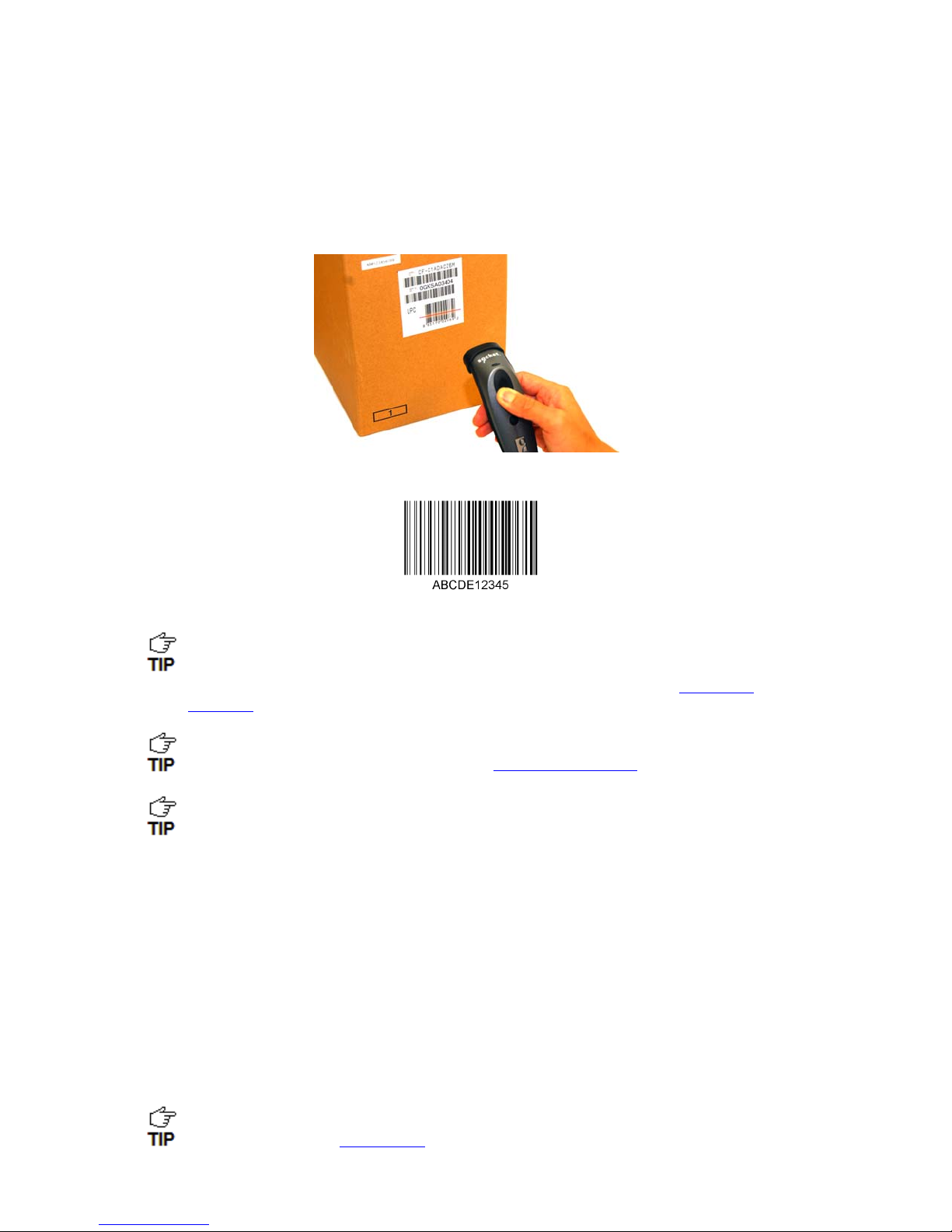

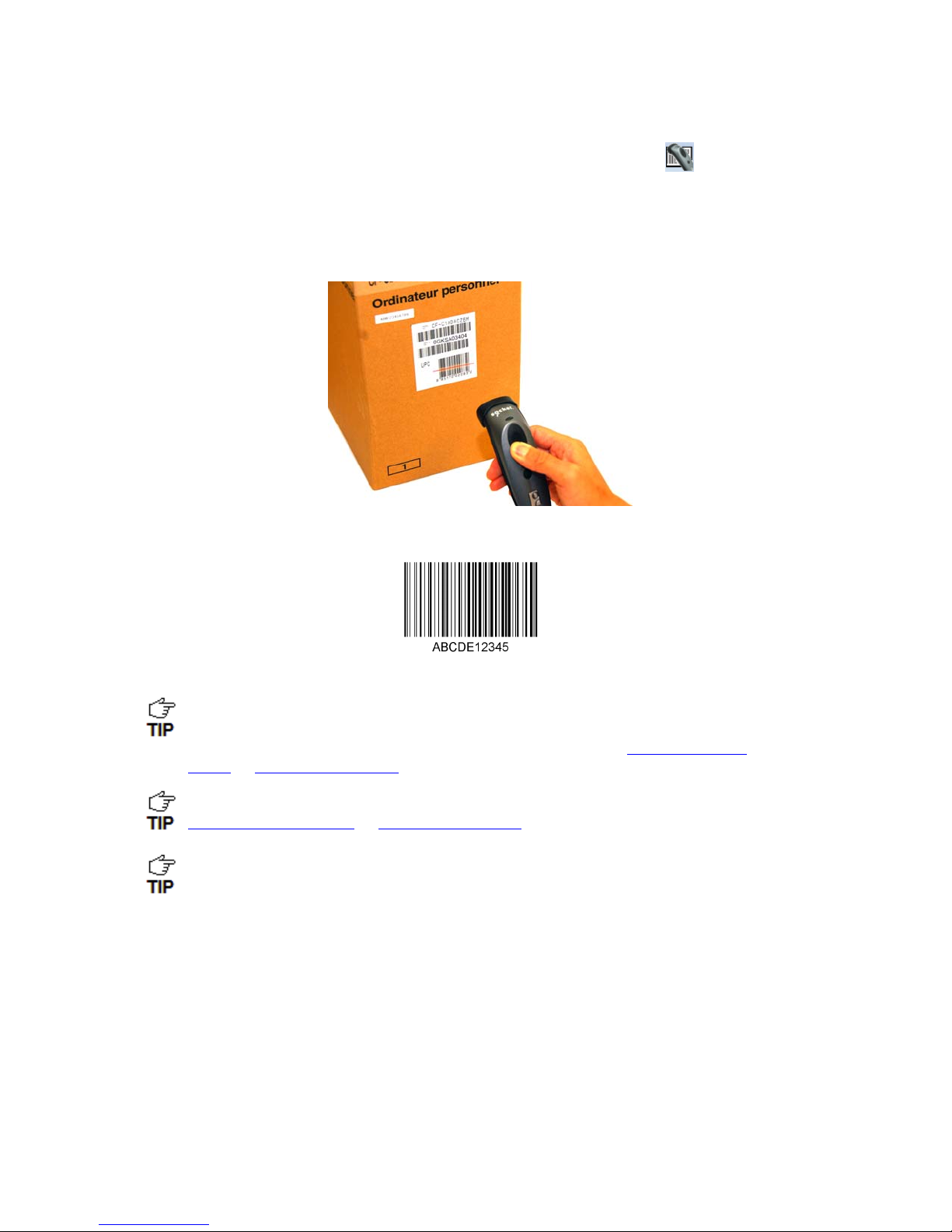

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the trigger
button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.
For example, try scanning the following barcode:
IMPORTANT! Print out this page to scan the barcode. Do not scan it onscreen.
CHAPTER 3: SETUP FOR APPLE IOS 15
After decoding the barcode and sending it to the computer, by default the CHS
will vibrate and beep once, the LED will flash green, and the aiming beam will
turn off. You can use the Command Barcodes
to modify the beep / LED / vibrate
settings.
By default, a carriage return is applied after scanned barcode data is entered. To
disable the automatic carriage return, you can use the Command Barcodes
(use
the Data Editing barcode for disabling suffixes).
If no data is read in a few seconds, the beam will turn off, and you must try
again.
To Disconnect:
To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds,
until the CHS beeps twice (high-low) and the blue LED turns off.
After the iPad disconnects from the CHS, the soft keyboard will automatically
reappear within a few seconds.
Automatic Reconnection:
After you power on the CHS, it will automatically try to connect to the last computer it
paired and connected to. Make sure your computer is in range with Bluetooth
enabled.
If the CHS is connected to your computer and gets disconnected, it will try to
reconnect. Make sure the computer is on and in range. If the CHS cannot reconnect
after several attempts, it will emit a long beep. Press the trigger button to restart the
reconnection process.
The CHS can only be paired with one device at a time. To use the CHS with a
different device, see Appendix G
Simultaneous Scanning and Soft Keyboard Support:
for unpairing instructions.
The CHS 7Mi and 7Pi support simultaneous use of the barcode scanner and the
onscreen keyboard while entering data into an application. This feature is enabled by
default and can be modified by scanning a special command barcode.
1. Connect the CHS to your Apple device.
2. Open your application and place the cursor where you want to enter data.
3. You can begin scanning barcodes. To open or close the onscreen keyboard, quickly
double-press the CHS power button (like double-clicking a mouse).
After you double-press the power button, the CHS will beep to indicate that the
onscreen keyboard was enabled / disabled.
Watch a video: http://www.youtube.com/watch?v=VhtttoC6ROs
16
OPTION 2: USING THE CHS IN IOS MODE
In iOS mode, the CHS 7Mi and 7Pi can only scan barcodes into applications
developed with SocketScan 10 SDK.
The CHS 7Mi and 7Pi work in iOS mode with iOS applications developed
with SocketScan 10 SDK 10.0.8 or later.
To learn more about compatible applications available in the App Store
Please visit: http://www.socketmobile.com/appstore
Contact your enterprise solution provider, who can also help install and set
up your iOS compatible application.
To download the SDK, please join the Socket Mobile Developer Program
($19.95/year): http://developer.socketmobile.com
To pair and connect the CHS and Apple device:
You only need to pair the CHS with your Apple device the first time you
try to connect.
The correct Bluetooth connection procedure may vary depending on
which application you are using. Please refer to your application
documentation for more information. Internet access may be required.
The CHS needs to be configured for iOS mode. Your application may
have specific instructions for configuring the CHS. Otherwise you can
use the Command Barcode for iOS mode in Appendix E
.
™
online store:
CHAPTER 3: SETUP FOR APPLE IOS 17
1. Power on the CHS. Press and hold the small power button until the LED turns
blue and the CHS beeps twice (low-high).
The LED blinks blue once per second to show that the Bluetooth radio is on
but not connected.
2. Open the CHS-compatible application that you installed.
3. Enable Bluetooth on the Apple device. A Bluetooth device search will begin.
4. In the list of found devices, select Socket CHS. If prompted, tap Pair.
In the device search, the CHS will appear as Socket CHS[xxxxxx]. The
characters in brackets are the last six characters of the CHS Bluetooth Device
Address (BDA), which is labeled inside the battery compartment.
The CHS will beep once after it has connected and is ready to scan barcodes.
The LED will also blink blue once every 3 seconds.
18
To scan barcodes:
1. In your application, place the cursor where you want to enter data.
2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the trigger
button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.
For example, try scanning the following barcode:
After data is read and sent to the Apple device, by default, the CHS will beep
once and vibrate, the LED will flash green, and the beam will turn off.
If no data is read in a few seconds, the beam will turn off, and you must try
again.
Watch a video: http://www.youtube.com/watch?v=VhtttoC6ROs
To Disconnect:
To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds,
until the CHS beeps twice (high-low) and the blue LED turns off.
After the iPad disconnects from the CHS, the soft keyboard will automatically
reappear within a few seconds.
Automatic Reconnection:
After you power on the CHS, it will automatically try to connect to the last computer it
paired and connected to. Make sure your computer is in range with Bluetooth
enabled.
If the CHS is connected to your computer and gets disconnected, it will try to reconnect
for 45 seconds. Make sure the computer is on and in range. If the CHS cannot
reconnect after several attempts, it will emit a long beep. Power cycle the scanner to
restart the reconnection process.
CHAPTER 3: SETUP FOR APPLE IOS 19
The CHS can only be paired with one device at a time. To use the CHS with a
different device, see Appendix G
for unpairing instructions.
To configure symbology support, beeps, LED, vibrate and other scanner features
use the ScannerSettings application available on Apple App Store at:
http://itunes.apple.com/us/app/scannersettings/id456055932?mt=8
20
4 | SETUP FOR ANDROID
n
This chapter explains how to install and use
the Bluetooth Cordless Hand Scanner (CHS)
with a Bluetooth enabled device running
Android 2.1 and later.
For the latest list of compatible devices, please refer to the CHS
Compatibility Checker, available online at:
http://www.socketmobile.com/CompatibilityChecker/
Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and charged
the scanner, as described in Chapter 2,
“Scanner Setup.”
CONNECTION OPTIONS
For Android OS, the CHS offers two different connection options.
Bluetooth
Mode
HID
Instruction
s on next
page
SPP
Instruction
s on page
66
Pros Cons
No SocketScan 10 software installatio
needed
Many configuration options
Broad character set, including non-
printable ASCII, international
keyboards
More efficient data communications
for barcodes containing lots of data
Compatible with Android 2.1 and
later
Limited configuration options
Limited to printable ASCII and some non-
printable characters
Less efficient data communications for
barcodes containing lots of data
Compatible only with Android 2.2 and
later devices with support for HID
Peripheral devices
Requires installation of SocketScan 10
software or an application made with
SocketScan 10 SDK
Socket highly recommends that you use the CHS in SPP mode. To learn more, read
our white paper: http://www.socketmobile.com/pdf/techbrief/socketscan-10-
sdk_white-paper.pdf.
The instructions in this chapter are based on the Motorola Droid Pro running
Android 2.2. Menus will appear differently on different devices. Some devices may
require you to touch the Menu button to open the software menu.
When SocketScan 10 is running, you can only use the keyboard provided by
SocketScan 10. You cannot use SWYPE or any custom keyboards. To enable use of
another keyboard, you can use the SocketScan 10 SDK (available separately).
http://developer.socketmobile.com
CHAPTER 4: SETUP FOR ANDROID 21
OPTION 1: USING THE CHS IN HID MODE
Compatible with Android 2.2 and later devices that support HID for Peripheral
devices.
To pair the CHS with your Android device:
1. Power on the CHS. Press and hold the small power button until the LED turns blue and
You only need to pair the CHS with your Android device the first time you try to
connect.
the CHS beeps twice (low-high).
The LED blinks blue once per second to show that the Bluetooth radio is on but not
connected.
2. Make sure the CHS is in HID mode for Peripheral Devices.
First scan this barcode to change the CHS to HID mode for Peripherals.
IMPORTANT! Print out this page to scan the barcode. Do not scan it onscreen.
3. Touch Home | Menu | Settings | Wireless & networks | Bluetooth settings.
22
1. Make sure your device has Bluetooth on and is Discoverable. Touch Scan for devices.
2. In the list of found devices, select Socket CHS.
The CHS will beep once when it has connected and is ready to scan barcodes.
The LED will also blink blue once every 3 seconds, and a Keyboard icon will
appear next to the CHS listing.
CHAPTER 4: SETUP FOR ANDROID 23
To scan barcodes:
1. Open your application. Place the cursor where you want to enter data.

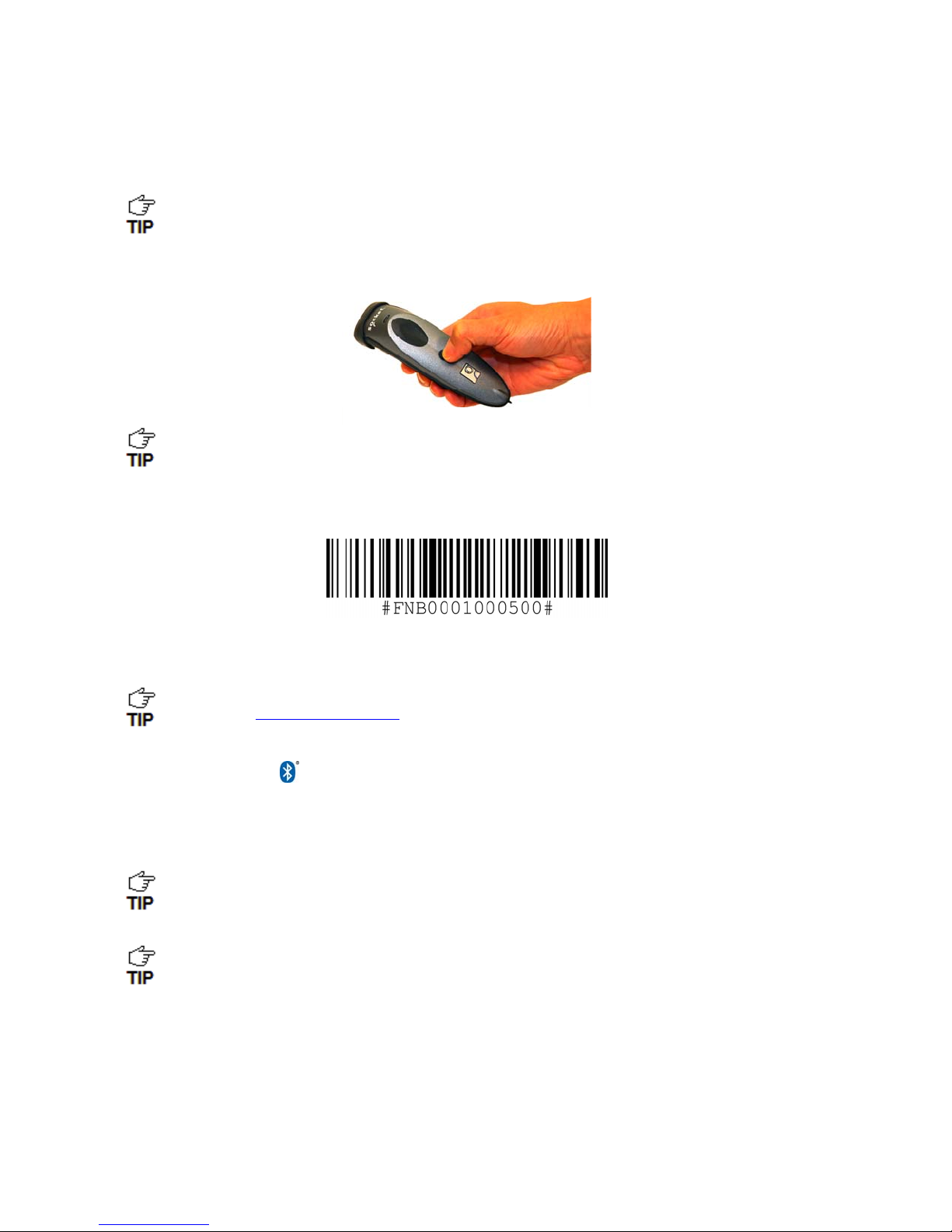

2. Press the trigger button to scan a barcode. Make sure the aiming beam extends
across the entire width of the barcode.
For example, try scanning the following barcode:
IMPORTANT! Print out this page to scan the barcode. Do not scan it onscreen.
After decoding the barcode and sending it to the phone/tablet, by default the CHS
will beep once and vibrate, the LED will flash green, and the beam will turn off.
You can use Command Barcodes
to modify the beep / LED / vibrate settings.
By default, a carriage return is applied after scanned barcode data is entered. To
disable the automatic carriage return, you can use the Command Barcodes
(use
the Data Editing barcode for disabling suffixes).
If no data is read in a few seconds, the beam will turn off, and you must try again.
To Disconnect:
To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds,
until the CHS beeps twice (high-low) and the blue LED turns off.
Automatic Reconnection:
After you power on the CHS, it will automatically try to connect to the last phone/tablet
it paired and connected to. Make sure your phone/tablet is in range with Bluetooth
enabled.
If the CHS is connected to your phone/tablet and gets disconnected, it will try to reconnect
for a few minutes. Make sure the phone/tablet is on and in range. If the CHS cannot
reconnect, you will hear a long beep. Power cycle the scanner to restart the reconnection
process.
The CHS can only be paired with one device at a time. To use the CHS with a
different device, see Appendix G
for unpairing instructions.
24
OPTION 2: USING THE CHS IN SPP MODE
To install the software:
1. If you installed barcode scanning software for your phone camera, scan this
barcode to launch the SocketScan 10 keyboard wedge page in Google Play.
Alternatively, you can open Google Play and search for SocketScan.
If prompted, allow the application to access Bluetooth connections and
settings and/or modify USB storage / SD card contents.
Follow the onscreen instructions to download and install SocketScan 10
software.
CHAPTER 4: SETUP FOR ANDROID 25
To pair the CHS with your Android device:
You only need to pair the CHS with your Android device the first time you try to
connect.
The following instructions are based on Socket EZ Pair, a feature of SocketScan 10
software. For instructions on how to connect by generating and scanning a special
barcode, please see Appendix I
.
1. Power on the CHS. Press and hold the small power button until the LED turns blue and
the CHS beeps twice (low-high).
The LED blinks blue once per second to show that the Bluetooth radio is on but not
connected.
2. Scan this barcode to change the CHS to SPP mode. Afterwards, the CHS will beep 3
times.
IMPORTANT! Print out this page to scan the barcode. Do not scan it onscreen.
3. Make sure the device has Bluetooth on. Start a device search / scan for devices.
26
4. In the list of found devices, touch Socket CHS.
The CHS will appear in the Bluetooth search as Socket CHS [xxxxxx], where the
characters in brackets are the last 6 characters of the Bluetooth Device Address (BDA),
which is printed on a label inside the battery compartment.
5. If a pop-up appears, touch Pair with this device. If prompted for a passkey, enter 0000
(four zeroes).
Only phones running Bluetooth 2.0 will prompt for a passkey.
6. Touch Home
| Menu | Settings | Language & keyboard or Locale & text.
Make sure SocketScan 10 is selected.
CHAPTER 4: SETUP FOR ANDROID 27
7. Open SocketScan 10
. For some devices, the icon will appear on the Home
screen. For other devices, touch Menu to access the Apps or Programs list.
8. A message will tell you to enable SocketScan 10 as your input method. Touch Back .
9. Touch Menu | Input Method.
28
10. Make sure SocketScan 10 is selected. Touch Back
.
11. Touch Menu | Socket EZ Pair.
12. Touch Bluetooth.
CHAPTER 4: SETUP FOR ANDROID 29
13. Touch 1D Scanner.
13. In the list of paired devices, touch Socket CHS. When notified of a pairing request,
swipe the notification down. Touch Pairing request. Touch Pair.
The CHS will beep once when it has connected and is ready to scan barcodes.
The LED will also blink blue once every 3 seconds, and the icon at the top of
the screen will also change.
Status Bar Icon
CHS not connected.
CHS connected.
14. Touch Back
15. A Socket registration icon
to close Socket EZ Pair.
will appear at the top of the screen. Swipe the icon
down to open the scanner registration software.
16. Follow the instructions to register the scanner or touch Cancel to register later.

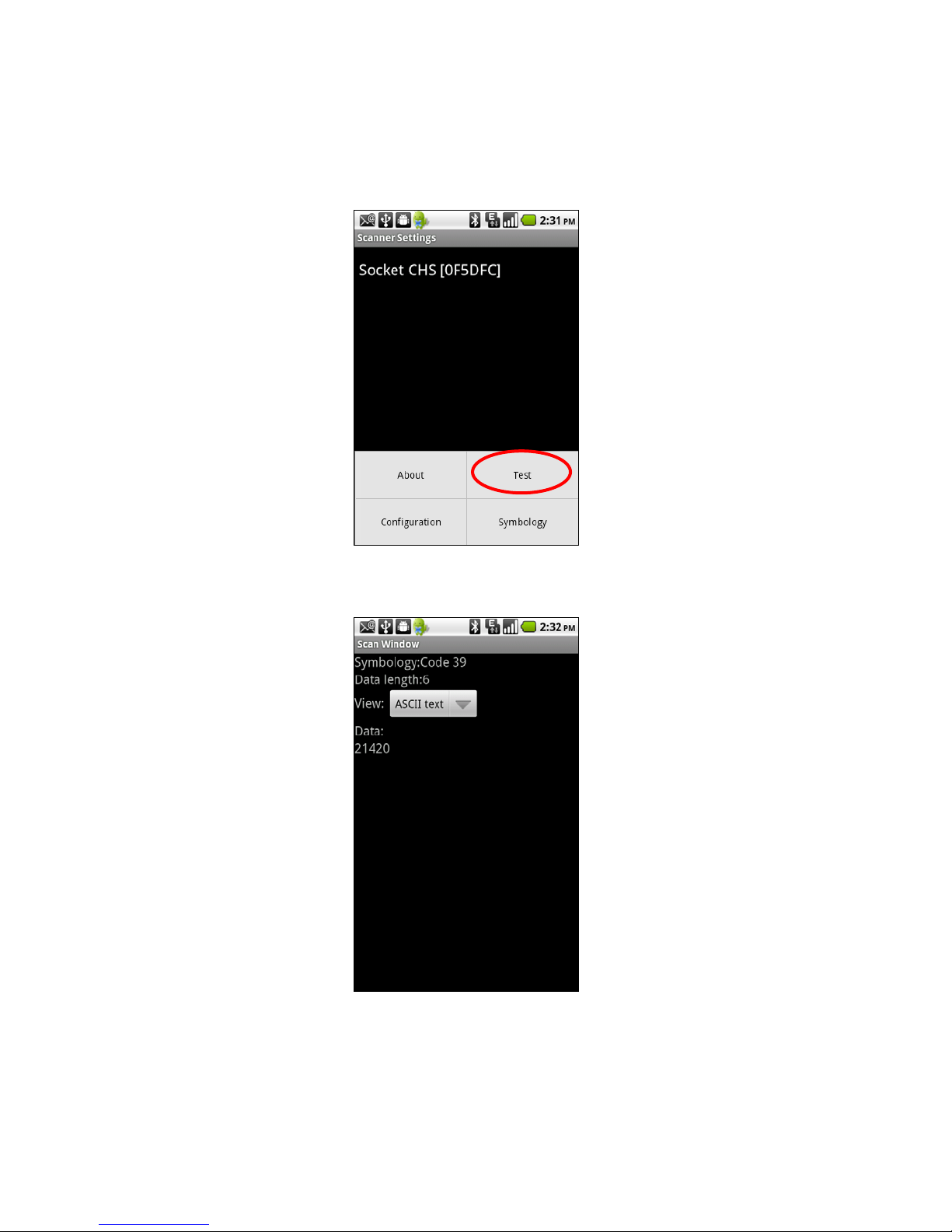

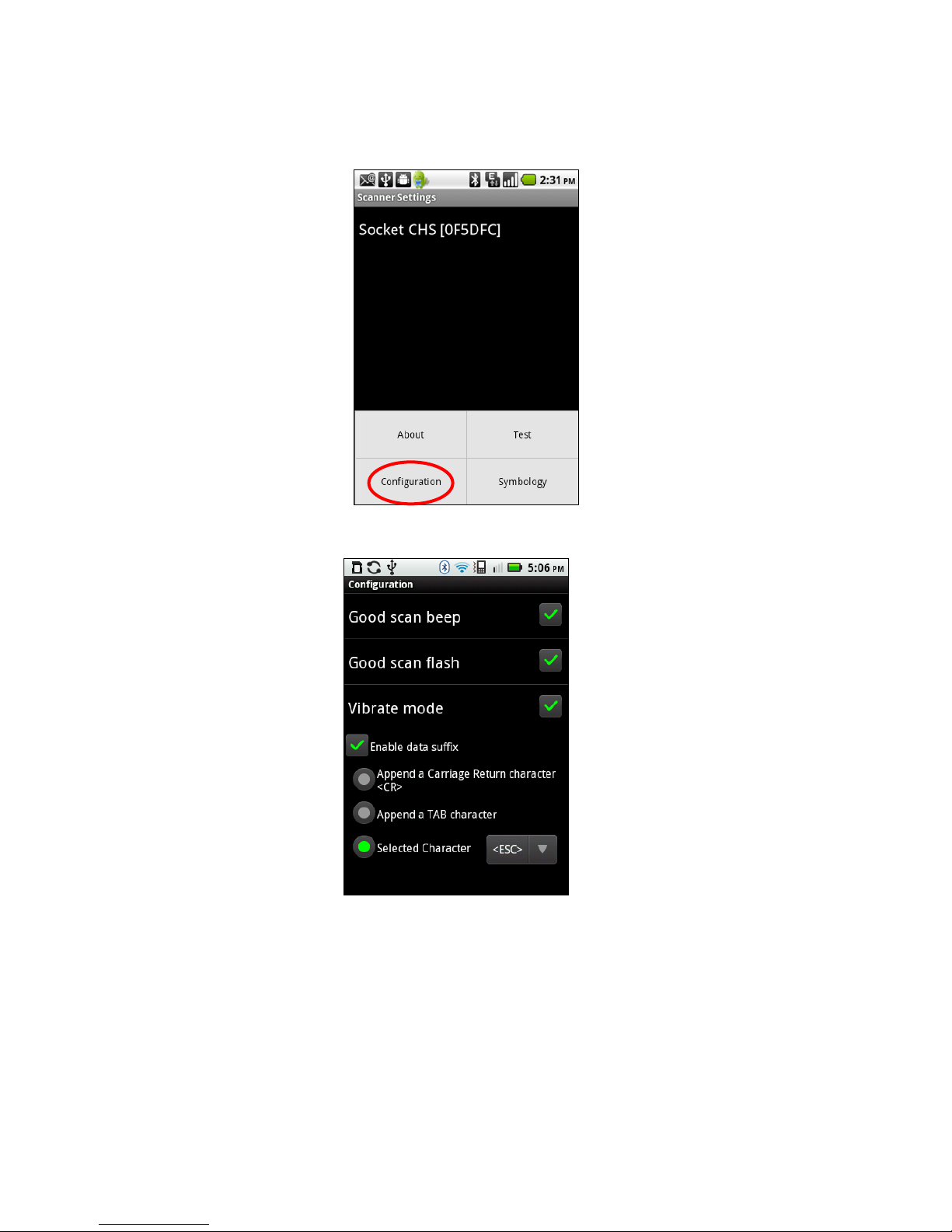

30
Loading...
