Socket 7X, 1D, 7XRx, 2D User Manual

Download

Socket

Bluetooth

Cordless Hand Scanner

7X and 7XRx

2D and 1D Barcode Scanners

User’s Guide

7/2011 Document # 6410-00233 E

Socket, the Socket logo, Battery Friendly, Socket Bluetooth Cordless Hand Scanner, SocketCare, Mobility Friendly, and SoMo are trademarks or registered trademarks of Socket Mobile, Inc. Bluetooth and the Bluetooth logos are registered trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Mobile, Inc. All other brand and product names are trademarks of their respective holders.

The Socket Bluetooth Cordless Hand Scanner includes technology licensed under United States Patent Numbers 5,902,991, 7,429,000 B1 and D526,320 S.

Reproduction of the contents of this manual without the permission of Socket Mobile is expressly prohibited. Please be aware that the products described in this manual may change without notice.

Feel free to contact Socket Mobile at:

Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual.

Please refrain from any applications of the Socket Bluetooth Cordless Hand Scanner that are not described in this manual. Please refrain from disassembling the Bluetooth Cordless Hand Scanner. Disassembly of this device will void the product warranty.

You can track new product releases, software updates and technical bulletins by visiting the Socket Mobile website at:

1Uhttp://www.socketmobile.comH.

Socket Mobile, Inc.

39700 Eureka Drive Newark, CA 94560-4808 USA

http://www.socketmobile.com/contact

Direct: +510-933-3000 USA/Canada Toll-free: 1-800-552-3300

OPYRIGHT NOTICE

IMPORTANT!

The information in this User’s Guide pertains to 2D versions of the Socket Bluetooth Cordless Hand Scanner, the CHS 7X and 7XRx

If you have a 1D laser version of the CHS (7E/M/P), please refer to the appropriate user’s guide at: http://www.socketmobile.com/pdf/data-collection/chs-series7-v3_ug.pdf

TABLE OF CONTENTS

1 | INTRODUCTION 4

2 | SCANNER SETUP 11

3 | SETUP FOR WINDOWS PC 13

4 | SETUP FOR WINDOWS MOBILE 31

5 | SETUP FOR APPLE 49

6 | SETUP FOR ANDROID 54

7 | SETUP FOR BLACKBERRY 65

APPENDICES

A SPECIFICATIONS 75

B SAFETY AND USAGE TIPS 78

C BARCODE LABEL SPECIFICATIONS 80

D DECODE ZONE 81

E COMMAND BARCODES 82

F SPECIAL BUTTON SEQUENCES 95

G CAB INSTALLATION INSTRUCTIONS 97

H TROUBLESHOOTING 98

I TECHNICAL SUPPORT 105

LIMITED WARRANTY 106

SOCKETSCAN SOFTWARE LICENSE AGREEMENT 107

REGULATORY COMPLIANCE 108

1 | INTRODUCTION

Thank you for purchasing the Socket Bluetooth Cordless Hand Scanner (CHS) 7X or 7XRx. The CHS is a portable handheld barcode scanner that is small, light, comfortable to use and enables you to scan data from 2D and 1D barcodes into a wide variety of computers, smartphones and PDAs.

The CHS is ideal for mobile applications that collect high volumes of data, such as:

• Inventory management

• Asset tracking

• Medication and patient ID verification

• Sales force automation

• Vehicle pricing, fleet management

• And much more!

PACKAGE CONTENTS

Socket Bluetooth

Cordless Hand Scanner

(2D model)

Charger with

international plugs

Lanyard/Belt Clip with

retractable tether

CD with software and

documentation

SCANNER MODELS (2D VERSIONS)

Model Antimicrobial

Casing

7X No 8550-00036

7XRx Yes 8550-00047

Part Number Revision Bluetooth Profile Support

A-C HID only

D or later HID and SPP

A-C HID only

D or later HID and SPP

SYSTEM COMPATIBILITY REQUIREMENTS / COMPATIBLE DEVICES

For the latest list of compatible devices, please view the CHS Spec Sheet at:

http://ww1.socketmobile.com/Libraries/Documents/CHS_Series_7_Spec_Sheet.sflb.ashx

OS System Compatibility Requirements /

Compatible Devices

Windows PC

Windows

• Windows 7, Vista, XP

• Microsoft, Toshiba or Broadcom Bluetooth stack

• Windows Mobile 6.x

Mobile

Apple iOS

• iPod touch (4

• iPod touch (3

generation)

• iPhone 4

• iPhone 3GS (iPhone 3G not supported)

Bluetooth HID Support

 

 Microsoft

Bluetooth stack

 

• iPad 2

• iPad

Mac OS3

Android Android 2.1 to 3.x. See Spec Sheet for device list.

• Mac OS X 10.4 to 10.6.6 for Mac / MacBook

• Bluetooth driver v2.24f3 (v1965) or v2.37f1

 

 Android 2.2

to 3.x with HID

support BlackBerry BlackBerry OS 5.0.0.714 or later for Bold 97004 Symbian Nokia E715 Windows

Intermec CK36

CE.NET

For the 7X and 7XRx, only Revisions D or later support Bluetooth SPP. Revisions A-C support only HID.

For a list of compatible applications, please visit: http://ww1.socketmobile.com/products/bluetooth-scanners.aspx

Compatibility verified for latest models at time of testing. Other models or Bluetooth driver versions not tested.

Other devices not tested with SocketScan 10 and may require the previous software version.

Other devices running Symbian OS 9.1 or later may be supported. For instructions, please visit:

http://www.socketmobile.com/pdf/data-collection/chs-symbian_ug_245.pdf

For instructions, please visit: http://www.socketmobile.com/pdf/data-collection/chs-series7-ck30_qs.pdf

 

   

PRODUCT REGISTRATION

Socket highly recommends that all customers register their products. Registered users receive priority for technical support and can opt in for special offers, upgrades, and new product information. Register online at: SocketScan 10, you can register the CHS from within the software.

SOCKETCARE

™

SERVICE PROGRAM

SocketCare is an enhanced service program that features priority technical support, accelerated repair and replacement and more.

2Uhttp://support.socketmobile.com If you install

Uhttp://www.socketmobile.com/socketcare

Bluetooth SPP Support

 Microsoft

or Broadcom

Bluetooth stack



CHAPTER 1: INTRODUCTION 5

ABOUT SPP AND HID MODES

The latest versions of the CHS 7X and 7XRx support two kinds of Bluetooth connections (known as Bluetooth profiles): SPP (Serial Port Profile) and HID (Human Interface Device), each with its advantages and disadvantages.

By default, the CHS is set to HID mode for Keyboard devices, which requires no software installation. For better performance with 2D barcodes, Socket highly recommends that you use SPP if supported for your OS.

To change modes, use the Command Barcodes Sheet, included in the package as well as in Appendix E

Feature CHS in SPP mode CHS in HID mode Windows PC support

Windows Mobile support Android support BlackBerry OS support Apple iOS / MacOS support Symbian OS support Windows CE.NET support

No software installation required

Supports SocketScan 10 software with Socket EZ Pair Non-printable ASCII, UNICODE, international keyboard support Parsing / data checks (with SocketScan 10 SDK) Binary data (with SDK)

Scanner configuration methods SocketScan 10 utility or special

Scanner configuration options Many configuration options Limited configuration options Barcodes containing a lot of data More efficient data

Compatible CHS revisions D or later All

of this manual.

barcodes

communications

    SoMo 650 only   Android 2.2 to 3.x with HID  

       

 

Special barcodes

Less efficient communications may lead to slower performance

To learn more about HID and SPP, please read our white paper:

http://www.socketmobile.com/pdf/techbrief/socketscan-10-sdk_white-paper.pdf

ABOUT THE SOFTWARE

SocketScan™ 10 keyboard wedge software enters scanned data

directly into any program as if the data were manually typed. It features Socket EZ Pair, which lets you scan an onscreen barcode to quickly pair with a device. There are also utilities for configuring scanner and software settings. Download the latest software free from: http://www.socketmobile.com/support/downloads/

Software for SPP (Serial Port Profile) mode only. No software installation required for HID mode.

SocketScan 10 keyboard wedge software is designed for scanning 7 bit ASCII data. For Unicode, DoubleByte, Multibyte (e.g., for Japanese or Chinese) or binary data, use the SocketScan 10 SDK to convert the data before it is sent to your application. Learn more about the SDK at: http://www.socketmobile.com/products/sdk/

ADDITIONAL DOCUMENTATION

Download the Quick Start Guide, Command Barcodes Sheet, the SocketScan Advanced Programming Guide or other manuals: http://www.socketmobile.com/support/downloads/

For instructions for Symbian OS (Nokia), Palm OS or Windows CE.NET, please contact Socket technical support at http://support.socketmobile.com

ACCESSORIES

Accessory SKU Number

For 7X: SKU# AC4026-708

Charging Cradle

USB A Male to DC Plug Cable SKU# AC4051-1139

Car Charger SKU# HC1630-882

For 7XRx: SKU# AC4050-1152

Scanning Companion USB Bluetooth Adapter

SKU# BL4543-734

SKU# AC4009-614 Mobile Power Pack Portable Battery Pack

Available only in Americas

and Asia Pacific

Protective Carrying Case / Belt Holster

From Taylor Made Cases

SKU# TM-HS650-KT

From Viziflex Seels Waterproof Skin

SKU# SMS01

For more information on Socket accessories for the CHS, please visit:

http://ww1.socketmobile.com/products/bluetooth-scanners/accessories-bt.aspx

For more information on our partners’ accessories for the CHS, please visit:

http://ww1.socketmobile.com/products/star/custom-cases.aspx

CHAPTER 1: INTRODUCTION 7

HARDWARE FEATURES

Product Diagram

Protective rubber bumper

Status indicator LED

Trigger button

Power button

Stylus tip

Power connector (Remove rubber cap to access)

Touch Screen Stylus

The bottom of the CHS features a stylus tip that you can use on Pocket PC and other resistive device touch screens.

WARNING: Do not use the stylus if damaged, as it may scratch the display screen of your computer. Do not use on iPhone, iPad, iPod touch or other capacitive screen device.

Antimicrobial Protection (CHS 7XRx only)

The CHS 7XRx is made with antimicrobial materials to provide an extra layer of protection to the device against the multiplication and spread of potentially harmful bacteria and microbes. Socket recommends using Sani-Cloth

Plus brand disposable cloth wipes as the standard disinfectant wipe for the CHS 7XRx. For more information about the wipes, please visit: http://www.pdipdi.com

Do not use a bleach-based or Dispatch® brand cloth wipes, as they negate all antimicrobial properties that have been added to the device.

Status Indicator LED

LED LED Behavior Meaning

1 blink per second Bluetooth radio is on, but not connected Bluetooth Status (Blue)

1 blink per 3 seconds Scanner connected to computer

Good Read (Green)

Battery Status (Red)

Status Indicator Beeps

Beep Patterns Meaning

2 beeps (low-high) Power on

2 beeps (high-low) Power off

1 beep Scanner connected to computer and ready to scan barcodes. When

1 beep with green LED (configurable setting)

1 beep (low) You have double-pressed the power button, and the CHS has enabled

2 beeps (same tone) Scanner disconnected from computer. When disconnected, the scanner

1 long beep Scanner unsuccessfully tried 15 times to connect to computer. After these

5 beeps The CHS detects an internal fault, will reset and power off. If connected

On Data successfully scanned and transmitted to

host device

On when connected to charging source

1 blink per second 20% battery capacity remaining

On when connected to charging source

Off Powered off or Good Battery status

connected, the scanner will auto power off after 2 hours of inactivity.

Data successfully scanned and sent to computer.

support for simultaneous scanning and onscreen keyboard entry for Apple iOS

will auto power off after 5 minutes of inactivity.

attempts, the scanner will go into sleep mode. In sleep mode, if the trigger button is pressed, the CHS will restart the connection attempts. The CHS will automatically power off after 5 minutes of inactivity.

to a host computer, the scanner will disconnect during the reset.

Scanner is fully charged

Battery Charging (on cradle or AC power)

CHAPTER 1: INTRODUCTION 9

Vibrate

Vibrate Meaning

Vibrate Mode Data successfully scanned and sent to host device.

If the CHS supports SPP mode for your OS, you can modify the LED, beep and vibrate settings, by using the Scanner Settings utility (see chapter for your OS).

Bluetooth Mode Sequence

When the CHS is powered on, its Bluetooth mode will gradually change if no connection is made.

Time after turning on CHS Bluetooth mode

0-5 minutes Discoverable and connectable 5 minutes CHS automatically powers off

If a button is pressed, but no connection is made, the CHS will stay powered on for another 5 minutes.

Simultaneous Use of CHS and Socket Plug-in Device

You can use the CHS and a Socket plug-in barcode / RFID / magnetic stripe reader simultaneously on the same host computer or device. However, you will need to run two different versions of SocketScan concurrently.

• For the CHS, use SocketScan 10, which you can download from:

http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/

• For Socket plug-in devices, use SocketScan 7 (or older), which you can download from:

http://www.socketmobile.com/support/downloads/data-collection/series5/

• For more information about Socket plug-in devices for data collection, please visit:

http://ww1.socketmobile.com/products/handheld-computers/accessorieshc.aspx?cat=Data%20Collection

2 | SCANNER SETUP

ASSEMBLING THE AC ADAPTER

If you wish to charge the CHS with the AC adapter, the correct plug for your region must be attached first. Four different plugs are included. Simply find the correct plug for your region and slide it into the head of the adapter. Plug the cable into the AC adapter head, making sure it is positioned correctly.

The charger cannot be sold in Japan.

CHARGING THE SCANNER

The CHS must be fully charged before first use. Use the AC adapter to charge from a wall outlet, or the USB cable to charge from a PC. Optional charging accessories are also available. Initial charging takes about 3 hours.

The LED will be solid red while charging and green when the battery is full.

If you use the USB cable, charging will cease if the PC enters suspend mode.

Included Charging Hardware

AC Adapter Rating 5V, 2A, positive pole center Power Jack Connector 4 mm barrel Optional Charging Hardware

• AC adapter with international plugs

• USB A Male to DC Plug Cable (2A maximum)

• Charging cradle

• Car charger

• Mobile Power Pack (available in Americas/Asia Pac)

• AC or DC adapter from Socket SoMo 650

For more information, including how to purchase, please see Accessories

CHAPTER 2: SCANNER SETUP 11

ATTACHING THE TETHER (OPTIONAL)

1. Use a coin or screwdriver to unlock and remove the battery cover. Turn the

lock underneath the scanner to a horizontal position to unlock.

2. Remove the battery cover.

The Bluetooth Device Address (BDA) is printed on a label inside the battery compartment. The address is used to identify the CHS.

Bluetooth Device Address (BDA)

Revision Letter - follows Part Number (P/N)

3. Attach the tether to the battery cover. Wrap the string loop around the inside

part of the lock.

4. Replace the battery cover and turn the lock to a vertical position to secure it.

WARNING: Do not remove the pre-installed battery!

Battery Type Li ion rechargeable Battery Life 10 hours on single charge*

*Based on elapse time of 5 seconds/scan under typical usage conditions. Battery performance may vary depending on vibrate settings and work environment

3 | SETUP FOR WINDOWS PC

This chapter explains how to install and use the Bluetooth Cordless Hand Scanner (CHS) 7X or 7XRx with a Bluetooth enabled computer running Windows 7, Vista or XP

Before you begin the instructions in this chapter, make sure you have charged the scanner, as described in Chapter 2, “Scanner

Setup”

CONNECTION OPTIONS

For Windows, the CHS offers two different connection options. For more information about HID and SPP, see Chapter 1

Bluetooth Mode

HID

Instructions on next page

Pros Cons

• No software installation needed

• Compatible with all revisions of 7X and

7XRx

• Limited configuration options

• Limited to printable ASCII and some

non-printable characters

• Less efficient data communications for

barcodes containing lots of data

SPP

Instructions on page 18

The CHS has been successfully tested in SPP mode with the Microsoft, Broadcom, and Toshiba Bluetooth stacks. Due to the many device manufacturer and Bluetooth stack combinations, the CHS might not work correctly in SPP mode on some PCs.

Socket highly recommends that you use the CHS in SPP mode. To learn more, read our white paper: http://www.socketmobile.com/pdf/techbrief/socketscan-10-

sdk_white-paper.pdf.

• Many configuration options

• Broad character set, including non-printable

ASCII, international keyboards

• More efficient data communications for

barcodes containing lots of data

• Software installation required

• Compatible only with Revision D or later

of 7X and 7XRx

CHAPTER 3: SETUP FOR WINDOWS PC 13

OPTION 1: USING THE CHS IN HID MODE

To pair the CHS with your computer:

1. Power on the CHS. Press and hold the small power button until the LED turns

You only need to pair the CHS with you computer the first time you try to connect.

blue and the CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

2. Scan this barcode to configure the CHS for HID mode for peripherals. Afterwards,

the CHS will beep 3 times.

3. Turn on Bluetooth on your computer. Refer to your computer’s documentation for

instructions.

4. Use your computer’s Bluetooth software to connect to the CHS (see

instructions on next page).

In the device search, the CHS will appear as Socket CHS 7x [xxxxxx]. The characters in brackets are the last six characters of the CHS Bluetooth Device Address (BDA), which is labeled inside the battery compartment.

To identify your type of Bluetooth stack, click Start. Right-click on My Computer and click Properties | Hardware tab | Device Manager and identify the manufacturer of your Bluetooth device.

Only computers running Bluetooth 2.0 will prompt for a passkey.

Bluetooth Stack

Microsoft (Windows 7)

Connection Instructions

1. Right-click on the Bluetooth icon

in the task tray. In the pop-up menu,

click Add a Device. A device search will begin.

Microsoft (Windows Vista / XP)

2. In the device list, select Socket CHS 7x and click Next.

3. If prompted, select Enter the device’s pairing code and enter the

passkey 0000 (four zeroes). Click Next.

4. Follow the remaining screens to complete the wizard.

1. Right-click on the Bluetooth icon

click Add a Bluetooth Device.

in the task tray. In the pop-up menu,

2. In the welcome screen, check the box My device is set up and ready to

be found. Click Next. A device search will begin.

3. In the device list, select Socket CHS 7x. Click Next.

4. If prompted, select Use the passkey found in the documentation and

enter the passkey 0000 (four zeroes). Click Next.

5. Follow the remaining screens to complete the wizard.

CHAPTER 3: SETUP FOR WINDOWS PC 15

Bluetooth Stack

Toshiba

Connection Instructions

1. Double-click on the Bluetooth icon

2. In Bluetooth Settings, click New Connection.

in the task tray.

3. In the connection wizard, select Express Mode. Click Next. A device

search will begin.

Broadcom (Widcomm)

4. In the device list, select Socket CHS 7x. Click Next.

5. If a passkey is requested, enter 0000 (four zeroes). Click OK.

6. Follow the remaining screens to complete the wizard.

1. Click on the Bluetooth icon

in the task tray.

2. On the left side, under Bluetooth Tasks, click Add a Bluetooth Device. A

device search will begin.

3. In the device list, select Socket CHS 7x.

4. If a passkey is requested, enter 0000 (four zeroes). Click Pair Now.

5. If prompted to select a Bluetooth service, select the CHS and click Finish.

Use Bluetooth v2.1 or later for best results. Do not use Quick Connect | Bluetooth serial devices when the CHS is in HID mode.

After the CHS connects and is ready to scan barcodes, it will beep once, and the LED will blink blue once every 3 seconds.

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the

trigger button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the computer, by default, the CHS will beep once and vibrate, the LED will flash green, and the beam will turn off.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the

Command Barcodes

(use the Data Editing barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled.

If the CHS is connected to your computer and gets disconnected, it will try to reconnect for a few minutes. Make sure the computer is on and in range. If the CHS cannot reconnect, it will emit a long beep. Press the trigger button to restart the reconnection process.

See Appendix F for unpairing instructions.

CHAPTER 3: SETUP FOR WINDOWS PC 17

OPTION 2: USING THE CHS IN SPP MODE

Note: The HID only versions (Revisions A-C

To install SocketScan 10 software:

1. Access the SocketScan 10 installation file, either from the Socket website or the

SocketScan 10 installation CD.

• To install from a web download (recommended to ensure the latest software)

− Open: http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/

− Click on the link for the exe file.

) of the CHS do not support SPP mode.

• To install from the SocketScan 10 installation CD:

− Insert the CD into the CD drive of your computer. It should auto-run.

(If the CD does not auto-run, use My Computer or File Explorer to access your CD drive and click on setup.exe)

− In the Getting Started with SocketScan 10 wizard, click on the Installation link on

the left side. Scroll down to the section for Windows Desktop and click Install.

2. Download and run the installation file.

• Internet Explorer: In the Security Warning screens, click Run. When asked if

you want to run the file, click Run.

• Firefox

: Click Save File. In the Downloads list, double-click

SocketScan10Setup.exe. In the warning screen, click OK.

• Chrome: Click Save at the bottom of the screen. Click on the link for the

SocketScan10Setup.exe file. In the Security Warning screen, click Run.

3. Follow the installation wizard to install software for Windows Desktop.

4. A message will state that on the next screen, you will need to configure an

incoming Bluetooth serial COM port to connect with the CHS. Click Yes.

CHAPTER 3: SETUP FOR WINDOWS PC 19

5. The SocketScan Settings screen will appear.

• Select the incoming Bluetooth serial COM port that you would like

SocketScan to use to connect to the CHS.

• In most cases, Use keyboard wedge and Show keyboard wedge icon in

tray should both be selected.

Click Ports if a suitable incoming Bluetooth COM port is not listed and you would like to add one. Also, if SocketScan Settings lists multiple COM ports, you can determine if any are already paired to a Socket Bluetooth barcode scanner and/or which one is incoming.

For the Toshiba Bluetooth stack, to determine which COM port is incoming, click Ports. Incoming COM ports will be listed as LocalCOM-Server.

For more information about the keyboard wedge and VIN decode options, please see SocketScan Settings

6. After making all your selections, click OK.

7. In the last screen of the installation wizard, click Finish. If prompted, restart your

computer.

After installation, a SocketScan 10 shortcut will appear on your desktop. Click it to quickly launch SocketScan 10.

To pair the CHS with your computer:

You only need to pair the CHS with you computer the first time you try to connect.

1. IMPORTANT! If using Windows 7 or Vista, make sure you are running SocketScan 10 with

administrative privileges. Right-click on the SocketScan 10 desktop shortcut icon. In the popup menu, click Properties. Click Advanced... Select Run as administrator and click OK.

2. Click on the SocketScan icon in the task tray

. In the pop-up menu, click Socket EZ Pair.

If the icon does not appear, click on the desktop shortcut for SocketScan 10 to launch the program.

3. Click 2D Scanner.

4. Power on the CHS. Press and hold the small power button until the LED turns

blue and the CHS beeps twice (low-high).

CHAPTER 3: SETUP FOR WINDOWS PC 21

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

5. Scan the barcode that appears on your screen.

6. A message will report that a Bluetooth device is trying to connect to your computer.

Click on the message.

7. If prompted for a passkey, enter 0000 (four zeroes).

Only computers running Bluetooth 2.0 will prompt for a passkey.

8. After the devices connect, click Finish.

After the CHS connects and is ready to scan barcodes, it will beep once, and the LED will blink blue once every 3 seconds. A CHS icon will also appear in the task tray.

9. Click X to close Socket EZ Pair. The CHS registration screen will appear. If desired,

CHAPTER 3: SETUP FOR WINDOWS PC 23

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the

trigger button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the computer, by default, the CHS will beep and vibrate, the LED will flash green, and the beam will turn off. You can use the Scanner Settings utility

to modify the beep / LED / vibrate settings.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Scanner

Settings utility or the Command Barcodes (use the Data Editing barcode for

Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled and SocketScan 10 is running.

See Appendix F for unpairing instructions.

SOCKETSCAN 10 SPECIAL FEATURES (SPP MODE ONLY)

SocketScan 10 software offers a variety of special features:

• Task tray icon – Indicates CHS connection status at a glance

• Basic scanner information – Quick view of basic scanner properties

• SocketScan 10 Settings – Utility for configuring COM port, keyboard wedge,

task tray icon, and VIN mode

• Scanner settings – Utility lets you view Bluetooth properties, battery level,

adjust beep / LED / vibrate settings, test barcodes, and more

• Socket EZ Pair – Feature lets you scan an onscreen barcode to quickly pair the

CHS with your computer

• About – Software version information

Task Tray Icon

CHS not connected CHS connected

Basic Scanner Information

To view more detailed scanner properties, use Scanner Settings

You can only view Basic Scanner Properties when the CHS is connected to your computer.

1. Click on the CHS icon

in the task tray. In the pop-up menu, click Socket CHS 7x.

2. A screen will appear displaying basic information about your CHS, including the

Bluetooth friendly name, scanner type, firmware, and battery level.

3. After viewing the information, click OK.

CHAPTER 3: SETUP FOR WINDOWS PC 25

SocketScan 10 Settings

1. Click on the SocketScan 10 icon or in the task tray. In the pop-up

menu, click SocketScan 10 Settings…

2. The SocketScan Settings screen will appear, reporting the manufacturer of the

computer’s Bluetooth stack and the computer’s Bluetooth Device Address.

• Port: An incoming Bluetooth serial COM port must be selected for the CHS

connection.

o If a suitable port is not listed in SocketScan Settings, click Ports to use your

computer’s Bluetooth software to add one.

o Toshiba Bluetooth stack: To determine which port is incoming, click Ports.

In the Bluetooth software, incoming ports are noted as LocalCOM-Server.

• Use keyboard wedge: Should be selected in most cases unless you plan to use

the SDK.

• Show keyboard wedge icon in tray: Select to have a task tray icon appear

that conveniently indicates whether the CHS is connected to the PC. Should be selected in most cases.

• Enable VIN decode: Select to have SocketScan 10 automatically remove the

VIN prefix when you scan VIN (Vehicle Identification Number) barcodes.

• Ports: Click to access your computer’s Bluetooth software to add or view

properties of Bluetooth COM ports (including which are incoming / outgoing).

3. After making changes, click OK.

Scanner Settings

You can access Scanner Settings only when the CHS is connected to your computer.

1. Click on the CHS icon

in the task tray. In the pop-up menu, click Scanner

settings…

2. The Scanner Settings screen will appear with an empty field. For the Microsoft

and Broadcom (Widcomm) Bluetooth stacks, the CHS will also beep twice when it disconnects from SocketScan 10.

3. After a few seconds, the CHS will connect to Scanner Settings, indicated by a

beep. Your CHS will also be listed on the screen. Make sure your CHS is selected, and click Properties.

4. The utility will read your scanner settings.

CHAPTER 3: SETUP FOR WINDOWS PC 27

5. The General properties screen will appear, reporting the Bluetooth friendly name,

Bluetooth Device Address, Type of device, firmware version, and battery level. If

desired, you can change the Bluetooth friendly name of the CHS.

6. Click on the Configuration tab. If desired, modify how the CHS confirms a good

scan and/or select a suffix to automatically add to each instance of scanned data.

7. Click on the Symbologies tab. If desired, modify which symbologies the CHS will be

able to read.

Enabling all possible symbologies may slow the decoding process.

The RSS symbology is now known as GS1 DataBar.

If you want to read UPC-A symbols, disable the GS1 DataBar option so that GS1 DataBar symbols don’t get mistakenly decoded.

Keep Data Matrix enabled so you can scan the onscreen barcode in Socket EZ Pair.

8. Click OK to exit the Scanner Properties. If desired, click Test to test scanning a

barcode. The Scan Window will appear.

9. Scan a barcode that you would like information about. The Scan Window will

report the symbology, data length, and data, in your choice of ASCII or Hexadecimal format.

10. After testing a barcode, click Close. Click OK to exit Scanner Settings.

11. The CHS will beep twice after disconnecting from Scanner Settings. A few seconds

later, the CHS will beep once after connecting to SocketScan 10.

CHAPTER 3: SETUP FOR WINDOWS PC 29

About

1. Click on the SocketScan 10 icon or in the task tray. In the pop-up

menu, click About…

2. The About screen will appear, reporting information about your version of

SocketScan 10.

3. After viewing the information, click OK to exit.

4 | SETUP FOR WINDOWS MOBILE

This chapter explains how to install and use the CHS 7X or 7XRx with any of the following devices running Windows Mobile 6 or later:

• Socket SoMo 650: HID and SPP modes supported

(Other Windows Mobile 6 devices with Microsoft Bluetooth stack may be compatible)

• Windows Mobile 6 device with Broadcom Bluetooth stack:

only SPP mode supported

Before you begin the instructions in this chapter, make sure you have charged the scanner, as described in Chapter 2,

“Scanner Setup”

CONNECTION OPTIONS

For Windows Mobile, the CHS offers two different connection options. For more information about HID and SPP, please see Chapter 1

Bluetooth Mode

HID

Instructions on next page

SPP

Instructions on page 36

Pros Cons

• No software installation needed

• Compatible with all revisions of

7X and 7XRx

• Many configuration options

• Broad character set, including

non-printable ASCII, international keyboards

• More efficient data

communications for barcodes containing lots of data

Socket highly recommends that you use the CHS in SPP mode. To learn more, read our white paper: http://www.socketmobile.com/pdf/techbrief/socketscan-10-

sdk_white-paper.pdf.

• Limited configuration options

• Limited to printable ASCII and

some non-printable characters

• Less efficient data

communications for barcodes containing lots of data

• Compatible only with SoMo 650

• Software installation required

• Compatible only with Revision D

or later of 7X and 7XRx

CHAPTER 4: SETUP FOR WINDOWS MOBILE 31

OPTION 1: USING THE CHS IN HID MODE

To pair the CHS with your SoMo:

1. Power on the CHS. Press and hold the small power button until the LED turns

You only need to pair the CHS with your SoMo the first time you try to connect.

blue and the CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

2. Scan this barcode to configure the CHS for HID mode for peripherals. Afterwards,

the CHS will beep 3 times.

3. In the Today screen, tap on the line that lists Wi-Fi and Bluetooth status.

Alternatively, press the button on the right side of the SoMo, which launches the wireless manager by default.

4. Use the wireless manager to enable Bluetooth.

5. Tap Start | Settings | Connections tab | Bluetooth.

6. In the Bluetooth utility, tap Add new device… Alternatively, tap Add at the

bottom of the screen.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 33

7. In the device list, tap Socket CHS 7x.

8. When prompted for a passcode, enter 0000 (four zeroes). Tap Next.

9. After the SoMo connects to the CHS, tap Done.

After CHS connects and is ready to scan barcodes, it will beep once, and the CHS LED will blink blue once every 3 seconds.

10. The CHS will now appear in the Bluetooth devices list. Tap ok.

11. Tap X to close the Connections screen.

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the

trigger button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the computer, by default, the CHS will beep once and vibrate, the LED will flash green, and the beam will turn off.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the

Command Barcodes

(use the Data Editing barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled.

See Appendix F for unpairing instructions.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 35

OPTION 2: USING THE CHS IN SPP MODE

Note: The HID only versions (Revisions A-C) of the CHS do not support SPP mode.

To install SocketScan 10 software:

Advanced Users: See Appendix G for CAB file installation instructions.

If you have the Socket SoMo 650 Service Pack 8 or later, SocketScan 10 is pre-loaded. To install, in the Today screen, tap Getting Started. Select the option for installing SocketScan 10.

1. Make an active connection between your PDA and a host PC. Use a USB / serial connection

cable or cradle and Windows Mobile Device Center, free from the Microsoft website.

http://www.microsoft.com/windowsphone/en-us/howto/wp6/sync/installing-wmdc.aspx

2. Make sure Bluetooth is enabled on your PDA.

3. Access the SocketScan 10 installation file, either from the Socket website or the

SocketScan 10 installation CD.

• To install from a web download (recommended to ensure the latest software):

− Open: http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/

− Click on the link for the exe file.

• To install from the SocketScan 10 installation CD

− Insert the CD into the CD drive of your computer. It should auto-run.

(If the CD does not auto-run, use My Computer or File Explorer to access your CD drive and click on setup.exe)

− In the Getting Started with SocketScan wizard, click on the Installation link on

the left side. Scroll down to the section for Windows Desktop and click Install.

4. Download and run the installation file.

• Internet Explorer: In the Security Warning screens, click Run. When asked if

you want to run the file, click Run.

• Firefox:

Click Save File. In the Downloads list, double-click

SocketScan10Setup.exe. In the warning screen, click OK.

• Chrome: Click Save at the bottom of the screen. Click on the link for

SocketScan10Setup.exe. In the Security Warning screen, click Run.

5. Follow the installation wizard to install software for Windows Mobile.

6. Your computer will instruct you to check your mobile device for additional

installation steps. Click OK. In the last screen of the wizard, click Finish.

7. Choose where you would like to install the software. Tap Install.

8. After installation, the PDA will report a soft reset is required. Tap Yes.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 37

To pair the CHS with your PDA:

You only need to pair the CHS with your PDA the first time you try to connect.

If using the HTC HD2 running Windows Mobile 6.5, make sure HTC Sense is disabled. Tap Start | Settings. In the bottom right corner, tap Menu | All Settings. Tap Today | Items tab. Uncheck HTC Sense.

1. Turn on Bluetooth on your PDA. Make sure it is Discoverable (i.e., visible to other

Bluetooth devices).

2. Tap Start | Programs | SocketScan 10 folder | SocketScan 10.

3. Tap Start

| Today.

4. Tap and hold your stylus on the SocketScan icon . In the pop-up menu, tap

SocketScan 10 Settings.

5. Make sure an incoming COM port is selected for SocketScan 10 to use. Tap ok.

For more information about keyboard wedge and VIN decode options, please see SocketScan Settings

6. Tap the SocketScan icon in the Today screen

Pair.

7. Tap 2D Scanner.

. In the pop-up menu, tap Socket EZ

8. Power on the CHS. Press and hold the small power button until the LED turns

blue and the CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 39

9. Scan the barcode that appears on the screen of your PDA.

If you have trouble scanning the barcode, you may need to adjust the brightness of your PDA screen. Tap on the link at the bottom of the screen.

10. The PDA will automatically try to pair with the CHS. If prompted to allow this pairing,

tap Yes.

11. If prompted for a passkey, enter 0000 (four zeroes).

Only devices running Bluetooth 2.0 will prompt for a passkey.

12. Your PDA will report that the pairing is complete. Click Done.

After the CHS connects and is ready to scan barcodes, it will beep once, and the LED will blink blue once every 3 seconds. A CHS icon will also appear in the task tray in the Today screen.

13. The CHS registration screen will appear. If desired, register your product.

14. Tap ok to close the EZ Pair screen.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 41

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the trigger

button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the PDA, by default, the CHS will beep once and vibrate, the LED will flash green, and the beam will turn off. You can use the

Scanner Settings utility

to modify the beep / LED / vibrate settings.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Scanner Settings utility

Command Barcodes

(use the Data Editing barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

See Appendix F for unpairing instructions.

SOCKETSCAN 10 SPECIAL FEATURES (SPP MODE ONLY)

SocketScan 10 software offers a variety of special features:

• Task tray icon – Indicates CHS connection status at a glance

• Basic scanner information – Quick view of basic scanner properties

• SocketScan settings – Utility for configuring COM port, keyboard wedge, task

tray icon, and VIN mode

• Scanner settings – Utility lets you view Bluetooth properties, battery level,

adjust beep / LED / vibrate settings, test barcodes, and more

• Socket EZ Pair – Feature lets you quickly pair the CHS with your SoMo by

scanning an onscreen barcode

• About – Software version information

Task Tray Icon (visible in Today screen)

CHS not connected CHS connected

Basic Scanner Information

You can only view Basic Scanner Properties when the CHS is connected to your PDA. To view more detailed scanner properties, use Scanner Settings

1. Tap on the CHS icon

in the task tray. In the pop-up menu, tap Socket CHS 7x.

2. A screen will appear displaying basic information about your CHS, including the

Bluetooth friendly name, scanner type, firmware, and battery level.

3. After viewing the information, click ok to exit.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 43

SocketScan 10 Settings

You can only view Basic Scanner Properties when the CHS is connected to your SoMo.

1. Tap on the SocketScan 10 icon

or in the task tray. In the pop-up

menu, tap SocketScan 10 Settings…

2. A screen will appear displaying the SocketScan software settings, as well as the

Bluetooth stack manufacturer and Bluetooth Device Address.

• Port: Select the incoming Bluetooth serial COM port that you would like

SocketScan to use to connect to the CHS (REQUIRED).

• Use keyboard wedge: Should be selected in most cases unless you plan to use

the SDK.

• Show keyboard wedge icon in tray: Select to have a task tray icon appear

that conveniently indicates whether the CHS is connected to the PDA.

• Enable VIN decode: Select to have SocketScan automatically remove the VIN

prefix when you scan VIN (Vehicle Identification Number) barcodes.

3. After making any changes, tap ok to save.

Scanner Settings

You can access Scanner Settings only when the CHS is connected to your PDA.

1. Tap on the CHS icon

in the task tray. In the pop-up menu, tap Scanner

settings…

2. The Scanner Settings screen will appear with an empty field, and the CHS will

beep twice.

3. After a few seconds, the CHS will beep once, and your CHS will appear in the list.

Make sure your CHS is selected, and tap Properties.

4. After the utility has read you scanner settings, the General properties screen will

appear, reporting the Bluetooth friendly name, Bluetooth Device Address, Type of device, firmware version, and battery level.

If desired, you can change the Bluetooth friendly name of the CHS.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 45

5. Tap on the Configuration tab. If desired, modify how the CHS confirms a good scan

and/or select a data suffix to automatically add to each instance of scanned data.

6. Tap on the Symbologies tab. If desired, modify which symbologies the CHS will

be able to read.

Enabling all possible symbologies may slow the decoding process.

The RSS symbology is now known as GS1 DataBar.

If you want to read UPC-A symbols, disable the GS1 DataBar option so that GS1 DataBar symbols don’t get mistakenly decoded.

Keep Data Matrix enabled so you can scan the onscreen barcode in Socket EZ Pair.

7. Tap ok to exit the Scanner Settings. If desired, tap Test to test scanning a

barcode.

8. Scan a barcode that you would like information about. SocketScan will report the

barcode’s symbology, data length, and data, in your choice of ASCII text or Hexadecimal format.

9. After testing a barcode, tap ok. Click ok to exit Scanner Settings.

After you exit Scanner Settings, the CHS will beep twice, followed by a single beep.

CHAPTER 4: SETUP FOR WINDOWS MOBILE 47

About

1. Tap on the SocketScan 10 icon or in the task tray. In the pop-up

menu, tap About…

2. The About screen will appear, reporting information about your version of

SocketScan 10.

3. After viewing the information, click ok to exit.

5 | SETUP FOR APPLE

This chapter explains how to install and use the Socket Bluetooth Cordless Hand Scanner (CHS) Series 7X and 7XRx with Apple devices / computers running iOS or Mac OS.

Compatible mobile devices include the

• iPad running iOS 3 or later

• iPhone running iOS 4 or later

• iPod touch running iOS 4 or later (3

Compatible Mac and MacBook computers run Mac OS X

10.4 to 10.6.6 with Bluetooth driver 2.2.4f3 (v1965) or

2.3.7f1 (latest versions at time of testing). Other computers running Mac OS may be compatible but have not been tested.

Before you begin the instructions in this chapter, make sure you have charged the CHS, as described in Chapter 2,

“Scanner Setup”

For the latest compatibility information, please refer to the CHS Series 7 Spec Sheet at:

http://ww1.socketmobile.com/Libraries/Documents/CHS_Series_7_Spec_Sheet.sflb.ashx

Due to how Apple implemented Bluetooth in its products, you can only use the CHS in HID mode with Apple devices, and the iPhone 3G is not supported.

The CHS must be in HID mode for Keyboard devices to connect to an Apple computer/device. By default, the CHS is already in this mode. If you changed the CHS to a different mode, refer to the Command

Barcodes to change it to the correct mode.

The screenshots shown in this chapter may differ from your device screen depending on your device type.

generation or later)

CHAPTER 5: SETUP FOR APPLE 49

To pair the CHS with your Apple device:

You only need to pair the CHS with your Apple device the first time you try to connect.

1. Power on the CHS. Press and hold the small power button until the LED turns

blue and the CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

2. Start a Bluetooth device search.

• iOS: Tap Settings | General | Bluetooth. Turn on Bluetooth.

A Bluetooth device search will begin.

• Mac OS: Click System Preferences | Internet & Wireless | Bluetooth. In

Bluetooth preferences, select the On checkbox. Click Set up New Device… A Bluetooth device search will begin.

Mac OS

3. In the device list, tap on Socket CHS 7x (initially it will appear as Keyboard).

Tap Pair.

In the device list, the CHS will appear as Keyboard, then as Socket CHS 7x [xxxxxx]. The characters in brackets are the last six characters of the CHS Bluetooth Device Address (BDA), which is labeled inside the battery compartment.

4. The CHS will connect to the Apple device. If prompted, enter the passkey 0000

(four zeroes).

After the CHS connects and is ready to scan barcodes, it will beep once, and the CHS LED will blink blue once every 3 seconds.

For iPad, the soft keyboard will automatically disappear within a few seconds after the CHS connects, because the CHS is detected as a Bluetooth keyboard. To make the onscreen keyboard appear while connected to the CHS, see instructions at the end of this chapter.

CHAPTER 5: SETUP FOR APPLE 51

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the trigger

button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the Apple device, by default, the CHS will beep once and vibrate, the LED will flash green, and the beam will turn off.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Command Barcodes

(use

theData Editing barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To watch a video demonstration, please visit:

http://www.youtube.com/watch?v=eZqb99pAbEc

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

After the iPad disconnects from the CHS, the soft keyboard will automatically reappear within a few seconds.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled.

See Appendix F for unpairing instructions.

Simultaneous Scanning and Soft Keyboard Support:

Revisions G and later of the CHS 7X and 7XRx support simultaneous use of the barcode scanner and the onscreen keyboard while entering data into an application. This feature is enabled by default and can be modified by scanning a special command barcode.

1. Connect the CHS to your Apple device.

2. Open your application and place the cursor where you want to enter data.

3. You can begin scanning barcodes. To open or close the onscreen keyboard, quickly

double-press the CHS power button (like double-clicking a mouse).

After you double-press the power button, the CHS will beep to indicate that the onscreen keyboard was enabled / disabled.

To view a video demonstration, please visit:

http://www.youtube.com/watch?v=VhtttoC6ROs

CHAPTER 5: SETUP FOR APPLE 53

6 | SETUP FOR ANDROID

This chapter explains how to install and use the Bluetooth Cordless Hand Scanner (CHS) 7X or 7XRx with a Bluetooth enabled device running Android 2.1 to 3.x. For the latest list of compatible devices, please refer to the CHS Spec Sheet at:

http://ww1.socketmobile.com/Libraries/Documents/CHS_Series_7_ Spec_Sheet.sflb.ashx

Before you begin the instructions in this chapter, make sure you have installed the batteries (and tether, if desired), and charged the scanner, as described in Chapter 2, “Scanner Setup.”

The instructions in this chapter are based on beta software and are subject to change.

CONNECTION OPTIONS

For Android, the CHS offers two different connection options. For more information about HID and SPP, please see Chapter 1

Bluetooth Mode

HID (Peripherals)

Instructions on next page

SPP

Instructions on page 57

Socket highly recommends that you use the CHS in SPP mode. To learn more, read our white paper: http://www.socketmobile.com/pdf/techbrief/socketscan-10-sdk_white-paper.pdf

The instructions in this chapter are based on the Dell Streak running Android 2.1 in landscape mode or Motorola Droid Pro running Android 2.2 in portrait mode. Menus will appear differently on different devices. Some devices may require you to touch the Menu button to open the software menu.

When SocketScan 10 is running, you can only use the keyboard provided by SocketScan 10. You cannot use SWYPE or any custom keyboards. To enable use of another keyboard, you can use the SocketScan 10 SDK (available separately).

http://www.socketmobile.com/products/bluetooth-barcode-scanners/softwaredevelopment-kit/

Pros Cons

• No software installation needed

• Compatible with all revisions of 7X

and 7XRx

• Many configuration options

• Broad character set, including non-

printable ASCII, international keyboards

• More efficient data communications

for barcodes containing lots of data

• Compatible with Android 2.1 to 3.x

• Limited configuration options

• Limited to printable ASCII and some non-

• Less efficient data communications for

• Compatible only with Android 2.2 to 3.x

• Software installation required

• Compatible only with Revision D or later

printable characters

barcodes containing lots of data

devices with HID support

7X and 7XRx

OPTION 1: USING THE CHS IN HID MODE

To pair the CHS with your Android device:

1. Power on the CHS. Press and hold the small power button until the LED turns blue and the

Compatible with Android 2.2 to 3.x devices that support HID for Peripheral devices.

You only need to pair the CHS with your Android device the first time you try to connect.

CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

2. Make sure the CHS is in HID mode for Peripheral Devices.

First scan this barcode to change the CHS to HID mode for Peripherals.

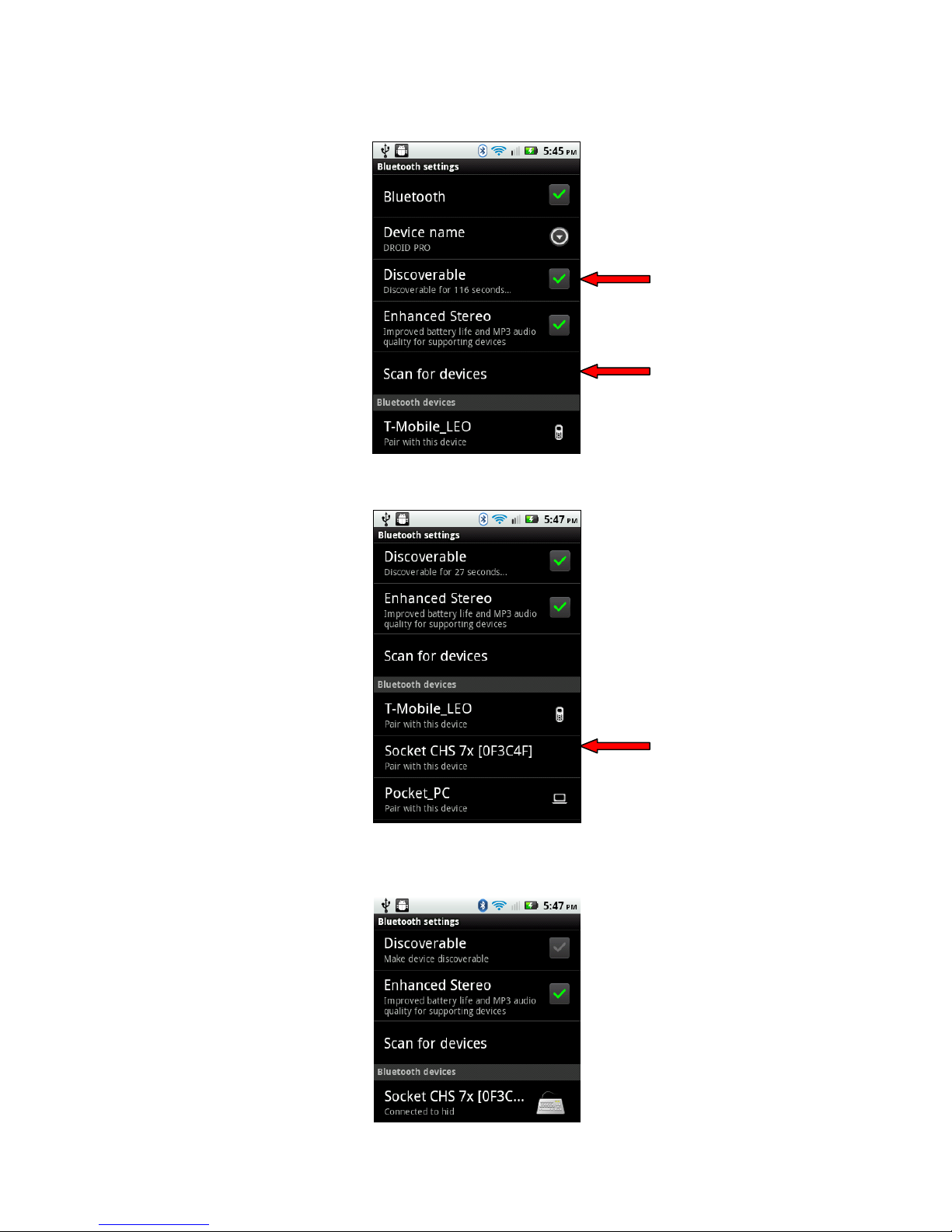

3. Touch Home

| Menu | Settings | Wireless & networks | Bluetooth settings.

CHAPTER 6: SETUP FOR ANDROID 55

4. Make sure Discoverable is selected. Touch Scan for devices.

5. In the list of found devices, select Socket CHS 7x.

6. After they have paired and connected, the CHS will beep once, and a Keyboard icon will

appear next to the scanner listing.

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Press the trigger button to scan a barcode. Make sure the aiming beam extends across the

entire width of the barcode.

For example, try scanning the following barcode:

After data is read and sent to the computer, by default the CHS will beep once, the LED will flash green, and the beam will turn off. The CHS will also vibrate to indicate that data is read. You can use Command Barcodes

to modify the beep / LED / vibrate settings.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Command Barcodes

(use the Data Editing

barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled.

If the CHS is connected to your computer and gets disconnected, it will try to reconnect for a few minutes. Make sure the computer is on and in range. If the CHS cannot reconnect, it will give a long beep. Power off and on the CHS to restart the reconnection process.

See Appendix F for unpairing instructions.

CHAPTER 6: SETUP FOR ANDROID 57

OPTION 2: USING THE CHS IN SPP MODE

1. If you installed barcode scanning software for your phone camera, scan this barcode to

launch the SocketScan 10 page in Android Market.

Alternatively, you can do one of the following:

• Open Android Market and search for SocketScan.

• In a web browser, open the Android Market SocketScan 10 page:

https://market.android.com/details?id=com.SocketMobile.SocketScan

• In a web browser, open the Amazon Appstore for Android SocketScan 10 page:

http://www.amazon.com/Socket-Mobile-SocketScan-CHS-Scanners/dp/B004X84VZA

2. In the SocketScan 10 page in Android Market, click Install. Follow the onscreen

instructions to download and install SocketScan 10 software.

If prompted, allow the application to access Bluetooth connections and settings, and/or modify USB storage / SD card contents

To pair the CHS with your Android device:

1. Make sure your Android device has Bluetooth on and is Discoverable.

2. Touch Home | Menu | Settings.

3. Touch Language and Keyboard or Locale and Text. Make sure SocketScan 10 is selected.

You only need to pair the CHS with your Android device the first time you try to connect.

4. If using the Motorola Droid Pro, make sure the phone has Bluetooth enabled in Discoverable

mode.

5. From Home

, access the Apps or Programs list and touch SocketScan 10 .

For some devices, you may need to touch Menu before selecting Apps / Programs.

6. A message will tell you to enable SocketScan 10 as the input method. Close the message by

touching Back

7. In the SocketScan 10 menu, touch Input Method.

Your menu may appear different. For some devices, press the Menu button to open the menu.

8. Make sure SocketScan10 or SocketScan 10 Keyboard is selected.

9. In the SocketScan 10 menu, touch Socket EZ Pair.

10. Touch 2D Scanner.

CHAPTER 6: SETUP FOR ANDROID 59

11. Power on the CHS. Press and hold the small power button until the LED turns blue and the

CHS beeps twice (low-high).

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

12. Scan the barcode on your Android screen. The CHS will beep 3 times.

13. The Android device will automatically try to pair and connect to the CHS. If prompted for a

passkey, enter 0000 (four zeroes).

14. After the CHS connects and is ready to scan barcodes, it will beep once, and the CHS LED will blink

blue once every 3 seconds. The icon at the top of the screen will also change (see below).

Status Bar Icon

CHS not connected.

CHS connected.

15. Close Socket EZ Pair by touching Back

friendly name of the CHS.

. The SocketScan 10 screen will report the Bluetooth

16. A Socket registration icon

open the software and register the scanner.

After you have connected, you can touch Socket CHS 7x in the main screen of SocketScan 10 to view basic scanner properties.

will also appear at the top of the screen. If desired, swipe it down to

To scan barcodes:

1. Open your application. Place the cursor where you want to enter data.

2. Press the trigger button to scan a barcode. Make sure the aiming beam extends across the

entire width of the barcode.

For example, try scanning the following barcode:

Barcodes to modify the beep / LED / vibrate settings.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Command Barcodes

(use the Data Editing

barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

See Appendix F for unpairing instructions.

CHAPTER 6: SETUP FOR ANDROID 61

SCANNER SETTINGS (SPP MODE ONLY)

The Scanner Settings application for the CHS enables you to configure scanner features and test scanning a barcode:

• Basic Scanner Information – View some basic properties of the CHS and/or change the

Bluetooth friendly name.

• Configuration – Utility lets you adjust beep / LED / vibrate settings and configure a data

suffix.

• Symbology – Lets you enable / disable symbologies decoded by the CHS.

• Test – Reports properties of a barcode you scan.

These special features only work when the CHS is connected to your Android device.

To open Scanner Settings: In the main screen of SocketScan 10, touch Scanner Settings.

The CHS will close SocketScan 10 Keyboard wedge, disconnect (indicated by 2 beeps (high-low)), open Scanner Settings and reconnect (indicated by a beep). It may take several seconds to reconnect.

Basic Scanner Information

1. In the main screen of Scanner Settings, touch Socket CHS 7x.

2. The screen will report the Bluetooth friendly name, scanner type, firmware version, and

battery level of your CHS. To change the Bluetooth friendly name, touch Socket CHS 7x.

Configuration

1. In the main screen of Scanner Settings, in the menu, touch Configuration.

Your menu may appear different. For some devices, press the Menu button to open the menu.

2. In the Configuration screen, enter any settings, as desired:

• Good scan beep: Select to have the CHS beep to indicate that data was successfully

decoded and transmitted to the Android device.

• Good scan flash: Select to have the CHS LED turn green to indicate that data was

successfully decoded and transmitted to the Android device.

• Vibrate mode: Select to have the CHS vibrate to indicate that data was successfully

decoded and transmitted to the Android device.

• Scanned data suffix: Select if you would like to automatically add a carriage return or

tab after each scan of data.

CHAPTER 6: SETUP FOR ANDROID 63

Symbology

1. In the main screen of Scanner Settings, in the menu, touch Symbology.

2. In the Symbology screen, enable or disable any symbologies (barcode types), as desired.

Enabling all possible symbologies will make the decode process slightly longer.

The RSS symbology is now known as GS1 DataBar.

If you would like to read UPC-A symbols, be sure to disable GS1 DataBar so that GS1 DataBar symbols don’t get mistakenly decoded.

Keep Data Matrix enabled so you can scan the onscreen barcode in Socket EZ Pair.

Test

The Test feature reports the properties of a scanned barcode.

1. In the main screen of Scanner Settings, in the menu, touch Test.

2. In the Scan Window screen, select if you would like scanned data to appear as ASCII or

hexadecimal format.

3. Scan a barcode. The Scan Window will report the symbology, data length, and data.

About

To identify your version of Scanner Settings, in the Scanner Settings menu, touch About.

7 | SETUP FOR BLACKBERRY

This chapter explains how to install and use the Bluetooth Cordless Hand Scanner (CHS) 7X or 7XRx with a RIM BlackBerry® Bold 9700 Smartphone running BlackBerry OS

5.0.0.714 or later. Other models have not been tested with SocketScan 10 and may require a previous software version.

Before you begin the instructions in this chapter, make sure you have charged the scanner, as described in Chapter 2,

“Scanner Setup”

The CHS can only be used in SPP mode with BlackBerry smartphones. HID only versions of the CHS7X or 7XRx (Revisions A-C) compatible with BlackBerry.

are not

CHAPTER 7: SETUP FOR BLACKBERRY 65

To install the software:

You can install SocketScan 10 software either by downloading directly to the phone or synchronizing to a host PC with BlackBerry Desktop Manager.

Downloading to the Smartphone

1. Make sure your phone is connected to the Internet.

2. Open the Browser to: http://www.socketmobile.com/blackberry

3. The SocketScan 10 for BlackBerry installation screen will appear. Read the

information in the screen. If you accept the license agreement, click I Accept.

4. The download screen will appear. Click Download. The phone will download

and install SocketScan 10.

5. After installation, a dialog will confirm successful installation. Click OK.

Synchronizing with a Desktop PC Refer to your BlackBerry Desktop Manager manual for complete instructions.

1. Insert the SocketScan 10 installation CD into the CD drive of your computer. It

should auto-run. (If the CD does not auto-run, use My Computer or File Explorer to access your CD drive and click on setup.exe)

2. In the Getting Started with SocketScan 10 wizard, click on the Installation link on

the left side. Scroll down to the section for BlackBerry and click Install.

3. Download and run the installation file.

• Internet Explorer: In the Security Warning screens, click Run. When asked if

you want to run the file, click Run.

• Firefox: Click Save File. In the Downloads list, double-click

SocketScan10Setup.exe. In the warning screen, click OK.

• Chrome:

Click Save at the bottom of the screen. Click on the link for

SocketScan10Setup.exe. In the Security Warning screen, click Run.

4. The installation wizard will launch. Follow it to install software for BlackBerry.

5. After software installation, click Finish.

6. Use a USB connection cable/cradle to connect the smartphone to the PC.

7. Launch the BlackBerry Desktop Manager. Click Start | Programs | BlackBerry |

Desktop Manager.

8. Click Applications. In the upper right corner, click Import files. Browse to

the location of the SocketScan 10 file on your computer.

9. In the Application Summary pane, click Apply.

By default, all of the SocketScan 10 subfiles will be selected for installation. Do not deselect any.

CHAPTER 7: SETUP FOR BLACKBERRY 67

To pair the CHS with your BlackBerry smartphone:

You only need to pair the CHS with your phone the first time you try to connect.

Data service is required.

1. In the Home screen, click Downloads | SocketScan 10.

2. If asked if you want to grant trusted application status, click Yes.

3. Click Menu | Socket EZ Pair.

4. When asked what kind of scanner you have, click 2D Scanner.

5. If asked for permission to access http://www.tec-it.com

6. Power on the CHS. Press and hold the small power button until the LED turns

blue and the CHS beeps twice (low-high).

, click Allow.

The LED blinks blue once per second to show that the Bluetooth radio is on but not connected.

7. Scan the barcode that appears on the screen. The CHS will beep three times.

8. When asked if you want to connect to the Socket CHS 7x, click Yes.

9. If prompted for a passkey, enter 0000 (four zeroes),

Only phones running Bluetooth 2.0 will prompt for a passkey.

After the CHS connects and is ready to scan barcodes, it will beep once, and the CHS LED will blink blue once every 3 seconds.

10. Close Socket EZ Pair. Click Menu | Close.

SocketScan 10 will report the Bluetooth name of the CHS you are connected to.

CHAPTER 7: SETUP FOR BLACKBERRY 69

To scan barcodes:

1. Make sure the CHS is powered on, the phone has Bluetooth turned on, and

SocketScan 10 is running.

2. Open your application. Place the cursor where you want to enter data.

3. Hold the CHS about 4 inches (10 cm) from the barcode and press and hold the

trigger button. An aiming beam will appear for 3 seconds. Keep your hand steady while scanning.

For example, try scanning the following barcode:

After data is read and sent to the phone, by default, the CHS will beep once and vibrate, the LED will flash green, and the beam will turn off. You can use the Scanner Settings utility (see next page) to modify the beep / LED / vibrate settings.

By default, a carriage return is applied after scanned barcode data is entered. To disable the automatic carriage return, you can use the Scanner Settings utility (see next page) or Command Barcodes

(use the Data Editing barcode for Data As Is).

If no data is read in a few seconds, the beam will turn off, and you must try again.

To Disconnect:

To disconnect, turn off the CHS. Press and hold the power button for at least 3 seconds, until the CHS beeps twice (high-low) and the blue LED turns off.

Automatic Reconnection:

After you power on the CHS, it will automatically try to connect to the last computer it paired and connected to. Make sure your computer is in range with Bluetooth enabled.

See Appendix F for unpairing instructions.

SOCKETSCAN 10 SPECIAL FEATURES

SocketScan 10 software offers a variety of special features:

• Scanner info – Provides information about your CHS.

• Scanner settings – Utility lets you view scanner info, test barcodes, configure

scanner beep / LED / vibrate behavior, configure a suffix, and enable/disable symbologies.

Scanner Info

You can view Scanner info only when the CHS is connected to your smartphone.

1. In SocketScan 10, click Menu | Scanner Info.

2. In the Scanner Info screen will report the Bluetooth name, scanner time,

firmware version, and battery level of the CHS. If desired, click in the Scanner Name field to change the Bluetooth friendly name of the CHS. After making any changes, click Menu | Save.

You can also access Scanner Info by clicking on the main screen of SocketScan 10 when you are connected to the CHS.

To view the Bluetooth Device Address of the CHS or change its Bluetooth friendly name, use the Scanner Settings utility (see next page).

CHAPTER 7: SETUP FOR BLACKBERRY 71

Scanner Settings

You can configure scanner settings only when the CHS is connected to your smartphone.

1. In SocketScan 10, click Menu | Scanner Settings. The CHS will beep twice,

indicating a disconnection.

2. If prompted to connect to the Socket CHS 7x, click Yes. The CHS will beep

once, indicating it has connected to your phone.

3. The Scanner Settings screen will report the Bluetooth name of the CHS it has

connected to.

General Scanner Info

You can view Scanner info only when the CHS is connected to your smartphone.

1. In SocketScan Settings, you can access Scanner Info by clicking on the main

screen.

2. Besides viewing general scanner properties, you can also place the cursor in

the Scanner Name field to change the Bluetooth friendly name of your CHS. After making any changes, click Menu | Save.

Scanner Settings - Test

1. In the Scanner Settings screen, click Menu | Test.

2. Select if you would like to receive data in ASCII or hexadecimal format.

3. Scan a barcode. The Scan Windows will report the symbology, data length,

and data content of the barcode you scanned.

Scanner Settings - Configuration

1. In the Scanner Settings screen, click Menu | Configuration.

2. Enter any settings, as desired:

• Good scan beep: Select to have the CHS beep to indicate that data was

successfully decoded and transmitted to the smartphone.

• Good scan flash: Select to have the CHS LED turn green to indicate that

data was successfully decoded and transmitted to the smartphone.

• Vibrate mode: Select to have the CHS LED turn green to indicate that data

was successfully decoded and transmitted to the smartphone.

• Scanned data suffix: Select if you would like to add a carriage return or

tab after each scan of data.

3. After entering any settings, click Menu | Save.

CHAPTER 7: SETUP FOR BLACKBERRY 73

Scanner Settings - Symbologies

1. In the Scanner Settings screen, click Menu | Symbologies.

2. Select/deselect any symbologies you would like to enable/disable.

3. After entering any settings, click Menu | Save.

Enabling all possible symbologies may slow the decoding process.

The RSS symbology is now known as GS1 DataBar.

If you would like to read UPC-A symbols, be sure to disable GS1 DataBar so that GS1 DataBar symbols don’t get mistakenly decoded.

Keep Data Matrix enabled so you can scan the onscreen barcode in Socket EZ Pair.

APPENDIX A

PECIFICATION

UPhysical Characteristics:

Dimensions Total Weight Antimicrobial Properties for

7XRx (JIS Z2801:2000 Test)

Power Source Expected Battery Life

UEnvironmental Characteristics:

Operating Temperature Storage Temperature Relative Humidity Ambient Light

Operating System / Device and Bluetooth Profile Support:

Operating System / Compatible Device Windows Mobile 6.x

Windows 7, Vista, XP Mac OS X 10.4 to 10.6.6 for Mac / MacBook

with Bluetooth stack v2.2.4f3 (v1965)

(other versions not tested)

Made for the following Apple devices:

• iPod touch (4

iPod touch (3rd generation)

•

iPhone 4

•

iPhone 3GS (iPhone 3G not supported)

•

• iPad 2

•

iPad

Android OS

BlackBerry OS 5.00.714 or later for Bold

(other models not tested with SocketScan 10,

9700

may require previous software version)

Symbian OS for Nokia E71 (Other devices with

Symbian OS 9.1 or later may be supported

Windows CE.NET for Intermec CK3

*HID only versions of the CHS 7X and 7XRx (Revisions A-C) do not support SPP. ** Broadcom Bluetooth stack v1.8.0.6501 or v1.9.3

generation)

132(l) x 45.1(h) x 37.9(w) mm (5.20(l) x 1.77(h) x 1.49(w) inches) approx. 68 g (2.4 oz)

on Methicillin-resistant Staphylococcus aureus (MRSA)

6.07 when cleaned with Sani-Cloth® Plus disposable cloth wipes

Contains Biosafe® HM4100 (EPA# 83019-1)

One Lithium ion battery (pre-installed, do not remove)

With Normal Operation (connected with Bluetooth):

charge

depending on vibrate settings and work environment)

(based on elapse time of 5 seconds/scan, battery performance may vary

+32 to +122°F (0 to +50°C)

-22 to +158°F (-30 to +70°C) 5% to 95% non-condensing 0 to 100,000 lux

Bluetooth HID Support Bluetooth SPP Support*

 Microsoft Bluetooth

stack

   

 

 Android 2.2 to 3.x with

HID support

 

 

10 hours on single

 Microsoft or Broadcom

Bluetooth stack**

 Android 2.1 to 3.x

CHAPTER 7: SETUP FOR BLACKBERRY 75

Barcode Symbology Support

Bookland EAN, Chinese 2 of 5, Codabar (including support for ISBT 128 bit

concatenation)

, Code 11, Code 128, Code 39, Trioptic Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, GS1 DataBar (RSS), GS1-128 (UCC-128/EAN-128), ISBN, ISBT 128, Code 39, Interleaved 2 of 5 (ITF-

14), MSI, Standard 2 of 5, Telepen, UPC/EAN (UPC-A, UPC-E, UPC-E1,

2D / Composite

EAN-13, EAN-8, UCC/EAN-128), VIN Aztec, Codablock, DataMatrix, GS1 Composite (EAN/UCC Composite), GS1 DataBar – Limited, GS1 DataBar – Omnidirectional, Matrix 2 of 5, Maxicode, MSI Code, PDF417 /

Postal

MacroPDF417 / MicroPDF417, Plessey, QR Code, TLC39 AustraliaPost, BPO 4, Canada Post, Dutch Post (KIX), Infomail, Japan Post, Planet, Postnet, RM4SCC, Sweden Post, 4 State Code

Scanner Performance:

Scanner Type Scan Repetition

Rate Optical Resolution

Print Contrast Scan Angle Decode Distance*

CMOS High-Density omni-directional area imager (2D and 1D) 2D mode : 56 images/sec, auto adaptive Linear emulation mode : 200 images/sec, auto-adaptive 752 (H) x 480 (V) pixels, 256 gray levels Down to 25% Horizontal: 38.9°, Vertical: 25.4°

3.8 to 27 cm (1.5 to 10.5 inches) typical

*Depends on symbol density, symbology, W-N Ratio, label media, and scan angle

Bluetooth C

Interface Standard

haracteristics:

Bluetooth Human Interface Device (HID) and Serial Port Profile (SPP) Default mode: HID Keyboard class device

Protocol

Radio Range Security RF Power Bluetooth Stack

Support

Bluetooth 2.1 with Enhanced Data Rates (EDR)

2.45 GHz ISM band, supports Advanced Frequency Hopping (AFH) Up to 330 ft (100 m), depending on environment 56 bit encryption Class 1 radio; Typical Output: 12 dbm Windows PC: Microsoft, Toshiba, Broadcom (Bluetooth 2.1 for best results) Windows Mobile: Microsoft, Broadcom v1.8.0.6501 or v1.9.3 Mac OS: v2.2.4f3 (v1965)

Certification/Compliance:

Electrical Safety Environmental EMI/RFI LED Safety Bluetooth SIG

Certified to IEC 60950-1, UL 60950-1, CAN/CSA C22.2, EN60950-1 RoHS FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024 IEC 60825-1, EN 60825-1 Bluetooth QD ID B0164000

About Bluetooth Range

This product features a powerful Class 1 Bluetooth radio to provide the maximum possible range. As with all wireless technologies, the connection range can vary widely depending on many factors such as the brand and placement of the host device, the type and size of physical obstacles and the presence and activity level of competing radio transmissions.

In range testing of this product while connected to a variety of typical host devices with Class 1 radios, functional connection distances from 18 to over 100 feet have been experienced

depending on the environment. The following conditions appear to reduce the Bluetooth connection range:

• The presence of soft, absorbent materials such as paper, fiberglass insulation, foam

material in office cubical walls, carpeting and, to a lesser extent, even sheetrock and wood construction materials.

• Human bodies or containers of liquid positioned between the host and the Socket CHS.

• The presence and activity level of competing Bluetooth or 802.11 (Wi-Fi) systems using the

same 2.4 GHz frequency.

• Metal in a grid pattern, such as chain link fencing or chicken wire. This type of material

may block the Bluetooth signal completely.

CHAPTER 7: SETUP FOR BLACKBERRY 77

APPENDIX B

AFETY AND USAGE TIPS

Scanning Tips

Practice to determine the best scanning distance for your type of barcode.

Scanning Distance

• The best scanning distance varies depending on barcode size, symbology, label media, W-N

Ratio, and scan angle. Check the Decode Zone in Appendix D: Decode Zone to determine the proper distance between the scanner and barcode.

• The larger the barcode, the further away you should position the scanner.

• The tighter the bars of the barcode, the closer you should position the scanner.

About Bluetooth and Health

Bluetooth wireless technology allows you to use short-range radio signals to connect a variety of devices, such as barcode scanners, mobile phones, Pocket PCs, notebook computers, printers, LAN access points, and many other devices at home or work. These radio signals replace the cables that have traditionally connected these devices.

Bluetooth products have small radio transmitters and receivers. Output power is normally very low, only 15.75 mW. This gives a working range of approximately 10 meters.

The maximum exposure levels from Bluetooth products are far below recommended safety guidelines. At most, typical Bluetooth devices (15.75 mW) reach only one percent of the prescribed safety levels.

Product Care

• Do not expose your product to liquid, moisture or extreme humidity.

• Do not expose your product to extreme high or low temperatures.

• Do not expose your product to lit candles, cigarettes, or cigars, or to open flames, etc.

• Do not drop, throw or try to bend the product, as rough treatment could damage it.

• Do not paint your product, as the paint could obstruct parts and prevent normal use.

• Do not attempt to disassemble your product: a broken warranty seal will void the

warranty. The product does not contain consumer serviceable components. Should your CHS need service, please contact technical support at:

• Treat your product with care. Keep in a clean and dust-free place.

• Changes or modifications of this product, not expressly approved by Socket, may void the

user’s authority to operate the equipment.

Antenna Care

Do not place a metallic shield around the CHS as it will reduce the radio transmission efficiency.

Efficient Use

For optimum performance, please make sure that there is no metal surrounding your CHS.

1Uhttp://support.socketmobile.com

Driving

RF energy may affect some electronic systems in motor vehicles, such as car stereo, safety equipment, etc. Check with your vehicle manufacturer to be sure that the CHS will not affect the vehicle’s electronics.

Aircraft

• Turn off your CHS before boarding any aircraft.

• To prevent interference with communications systems, you must not use your CHS while

the plane is in the air.

• Do not use it on the ground without permission from the crew.

Radio Frequency Exposure

Your CHS contains a radio transmitter and receiver. When in operation, it communicates with a Bluetooth enabled mobile computer by receiving and transmitting radio frequency (RF) magnetic fields in the frequency range 2400 to 2483.5 MHz. The output power of the radio transmitter is 15.75 mW. The CHS is designed to be in compliance with the RF exposure limits set by national authorities and international health agencies

when installed or used

separately from other antennas or radio transmitters.

Examples of RF exposure standards and guidelines:

ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz)”, International Commission on Non-Ionizing Radiation Protection (ICNIRP), Health Physics, vol. 74, pp 494-533, April 1998.

99/519/EC, EU Council Recommendation on the limitation of exposure to the general public to electromagnetic fields 0 Hz – 300 GHz, Official Journal of the European Communities, July 12, 1999.

ANSI/IEEE C95.1-1992, “Safety levels with respect to human exposure to radio frequency electromagnetic fields, 3 kHz to 300 GHz”, The Institute of Electrical and Electronics Engineers, Inc., New York, 1991.

FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications Commission (FCC), August 1996.

Radiocommunications (Electromagnetic Radiation Human Exposure) Standard 1999, Australian Communications Authority (ACA), May 1999.

APPENDIX B: SAFETY AND USAGE TIPS 79

APPENDIX C

ARCODE LABEL SPECIFICATIONS

All barcode symbols/labels should satisfy the appropriate AIM Uniform Symbology Specification.

Background Substrate:

The barcode symbol should be printed on material (media) that is reflective and has a matte (not glossy) finish. A background diffuse reflectance of at least 70% to 80% is desirable for optimum contrast. Retro-reflective media should be used to obtain decode distances greater than 36 inches.

Ink Color and Type:

The inked bars should not exceed 25% reflectance at the wavelength that is being used for reading, whether printed with black ink or colored ink. The reflectance value should not vary more than 5% within the same character.

Voids and Specks:

The code should be printed clearly, free of voids, specks, blemishes and lines that could “fool” the scanner. Specks or blemishes in the white spaces, or false or missing bar sections could be interpreted by the reading equipment as part of the code. Generally, the width of such flaws is more serious than the height. Code symbols/ labels should be rejected if these defects are present.

Definition:

The bars in the barcode symbol should be well defined. Their edges should not be rough or fuzzy, so that the bars and spaces have the proper widths intended for the barcode symbology used.

Contrast:

Background reflectance (that of the substrate on which the codes are printed) should always provide a good contrast relative to the ink reflectance (that of the code bars). The difference between the two should be at least 37.5% at the wavelength used for reading.

Tolerance:

The ratio of the widths of bars and spaces in a barcode symbol must conform to the appropriate AIM barcode specifications and can cause problems if not correct throughout the barcode. Problems can occur when bar edges are smeared or rough, or when they exhibit voids.

APPENDIX D

ECODE ZONE

The decode zone for the CHS is shown below. The minimum element width (“X Dimension” or barcode “size”) is the width in thousandths of an inch (mils) of the narrowest element (bar or space) in the symbol. The figures shown are the typical scanning distances (depths of field) for selected barcode sizes. The maximum usable length of a barcode symbol (Width of Field) at any given range is also shown.

APPENDIX D: DECODE ZONE 81

APPENDIX E

OMMAND BARCODES

Scan command barcode(s) to quickly configure the CHS 7X or 7XRx. By default, the CHS is in HID mode as a Keyboard device.

IMPORTANT! Make sure the CHS is not connected to a host computer / device before scanning a command barcode!

Bluetooth Connection Mode (General)

SPP Mode

Changes the CHS to Bluetooth Serial Port Profile (SPP) mode (required for BlackBerry, optional for Windows and Android).

HID-Peripheral

Configures the CHS as a Peripheral class device (optional for Windows and Android).

HID-Keyboard (default)

Configures the CHS as a Keyboard class device (required for Apple iOS / Mac OS, Nokia E71).

Factory Defaults

Factory Reset

Configures the CHS to revert all settings to factory defaults. The CHS powers off after scanning this barcode.

Firmware Information

Version Information

Commands the CHS to output the firmware version information into an

active application.

Bluetooth Connection Mode (ADVANCED Users Only)

SPP Acceptor Mode

Changes the CHS to Bluetooth Serial Port Profile (SPP) (waits for computer / device to initiate connection).

SPP Initiator Mode

Changes the CHS to Bluetooth Serial Port Profile (SPP) mode as an initiator. Use barcode generating software or website (e.g., http://barcode.tec-it.com) to create a barcode with the following data:

mode as an acceptor

#FNC SPP Initiator aabbccddeeff#

Where aabbccddeeff is the Bluetooth Device Address of the computer / device you want to connect the CHS to.

Recommended barcode (module) width: 2-3cm

n/a

HID Acceptor Mode

Changes the CHS to Bluetooth Human Interface Device (HID) mode as an acceptor (waits for computer / device to initiate connection).

HID Initiator Mode

Changes the CHS to Bluetooth Human Interface Device (HID) mode as an initiator. Use barcode generating software or website (e.g.,

http://barcode.tec-it.com) to create a barcode with the following data:

#FNC HID Initiator aabbccddeeff#

Where aabbccddeeff is the Bluetooth Device Address of the computer / device you want to connect the CHS to.

Recommended barcode (module) width: 2-3 cm

Data Mode

Raw Mode

Configures the CHS to raw mode (i.e., all scan data is sent as raw bytes instead of packets).

n/a

Packet Mode

Configures the CHS to packet mode (i.e., the CHS encapsulates scan data into packets, with header and tail information to ensure integrity of data when received by host).

APPENDIX E: COMMAND BARCODES 83

Scan to Enable

WITH BEEP

Apple iOS Onscreen Keyboard

Enabled by

Default

Scan to Disable

NO BEEP

Scan to Enable

Configures the CHS to activate the iOS onscreen keyboard when connected to an iOS device and the CHS power button is double-pressed.

Good Scan Indicators

Configures the CHS to Beep, Flash the LED Green, and Vibrate after successfully decoding data

Scan only with CHS in HID mode



Enabled

by Default



Scan to Disable

Disable Beep and

Vibrate

Disable Vibrate

Disable Beep

Scan to Enable WITH BEEP

Special Commands for HID Mode

Ctrl + Z

Ctrl + A

Shift + Tab

Scan to Enable NO BEEP

Ctrl + S

APPENDIX E: COMMAND BARCODES 85

Scan to Enable Symbology Name

1D SYMBOLOGIES

Enabled by

Default

Scan to Disable

Codabar

Code 93 / Code 93i

Interleaved 2 of 5

EAN/UPC – UPC-E



EAN/UPC – UPC – A

EAN/UPC – UPC-E1



Scan to Enable Symbology Name

Enabled by

Default

Scan to Disable

EAN/UPC – EAN 8

Standard 2 of 5

GS1 DataBar (RSS)

EAN/UPC – EAN-13



Code 128 / GS1 128

Code 39

Code 11

APPENDIX E: COMMAND BARCODES 87



Scan to Enable Symbology Name

2D SYMBOLOGIES

Enabled

by Default

Scan to Disable

Aztec

Data Matrix

(Required to scan onscreen

barcode in Socket EZ Pair

for SPP mode)

MaxiCode

QR Code



MicroPDF417

MSI Code

Scan to Enable Symbology Name

Enabled by

Default

Scan to Disable

PDF417

GS1 Composite – CC-A/B

GS1 Composite – CC-C

GS1 DataBar (RSS) Limited



GS1 DataBar (RSS)

APPENDIX E: COMMAND BARCODES 89

Scan to Enable Symbology Name

POSTAL SYMBOLOGIES

Enabled by

Default

Scan to Disable

Australian Post

BPO 4-State

Canada Post

Dutch Post

Infomail

Japan Post

Scan to Enable Symbology Name

Enabled by

Default

Scan to Disable

Planet

Postnet

Sweden Post

APPENDIX E: COMMAND BARCODES 91

SCANNER MODES

Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command.

Scan to Enable Description

Factory Reset

Configures the CHS to revert all settings to factory defaults. The CHS wil power off after scanning this barcode.

Continuous Scanning Mode

Makes the CHS automatically trigger the scanning beam every few seconds.

Presentation Mode

Makes the CHS automatically activate the scanning beam after a barcode is detected within scanning range.

Enabled by

Default



Scan to Disable

N/A

Aiming Beam

Makes an aiming beam appear when the CHS trigger button is pressed.

Center Decoding

When enabled, the CHS reads only the barcode that the scanner is aimed at. Helpful for barcodes positioned close together.

Decode 1D Barcodes Only

Disables CHS from decoding 2D barcodes.

N/A

Scan to Enable Description

Decode 1D and 2D Barcodes

Configures the CHS to revert all settings to factory defaults. The CHS wil power off after scanning this barcode.

Decode in Bright Environment

Enables the CHS to scan 1D and 2D barcodes in bright environment.

Decode on Reflective Surface

Enables the CHS to decode 1D and 2D barcodes printed on shiny surfaces

Enabled by

Default



Scan to Disable

N/A

APPENDIX E: COMMAND BARCODES 93

You can configure the CHS to automatically add a suffix and/or prefix to each scan of data.

Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command.

Character or Command to Insert

DATA EDITING – PREFIX / SUFFIX

Enabled by

Default

Scan to Enable

Carriage Return Suffix

Tab Suffix

Carriage Return & Line Feed Suffix



Data As Is – No prefix or suffix

APPENDIX F

PECIAL BUTTON SEQUENCES

RESTORING FACTORY DEFAULTS

To restore the CHS to its factory defaults, do the following:

1. Power on the CHS.

2. While pressing the trigger button, briefly press and release the power button.

3. After about 15 seconds, the CHS will beep. Release the trigger button. If you performed the

actions correctly, the CHS will beep 5 times and power off.

4. The next time you power on the CHS, it will take longer than normal. After the CHS finishes

powering on, it will have factory default settings (HID mode for Keyboards).

UNPAIRING THE CHS

1. Power on the CHS.

2. Press and hold down the trigger button. Press and hold down the power button until

you hear 3 beeps.

3. After you hear 3 beeps, release both buttons. The CHS will unpair and automatically power

off. The next time you power on the CHS, it will be discoverable.

APPENDIX F: SPECIAL HARDWARE RESETS 95

RETRIEVING SCANNER AND FIRMWARE INFORMATION

1. Power on the CHS and connect it to a computer/device.

2. Open an application like Notepad place the cursor in the application.

3. Press and hold down the trigger button for 15 seconds or until text information about the

scanner and firmware outputs to your application.

96 | APPENDIX F SPECIAL HARDWARE RESETS

APPENDIX G

CAB

Advanced Users Only!

For Windows Mobile, you can install SocketScan 10 software directly from a CAB (cabinet) file instead of using the installation wizard. A CAB file contains all the software and drivers needed to install your product on a particular Pocket PC platform. CAB files are available in the SocketScan 10 installation CD (in the CABs folder) and coming soon online at:

http://www.socketmobile.com/support/downloads/data-collection/series7/ss10/

In order to install the CAB file, you need a way to transfer the CAB file to your Pocket PC, such as:

• Use Windows Mobile Device Center to transfer the CAB file to your Pocket PC.

• Use a memory card reader to save the CAB file from your desktop PC to a

• If your Pocket PC has Internet access, download the CAB file directly from

1. Transfer the correct CAB file to your Pocket PC. If transferring the CAB file

2. Tap Start | Programs | File Explorer.

3. Use File Explorer to browse to the CAB file. Tap on the CAB file.

4. The CAB file will start installing on your Pocket PC. Follow the instructions on

5. Your device may warn that the CAB file comes from an unknown publisher.

6. After software installation, soft reset the device by pressing the reset button.

INSTALLATION

memory card, then insert the memory card into your Pocket PC.

Socket’s website to your Pocket PC. (coming soon)

with Windows Mobile Device Center or downloading the CAB file directly to your Pocket PC, remember where you save the file.

your device screen to install the software.

Tap Yes to continue installation.

APPENDIX G: SETUP FOR NOKIA E71 97

APPENDIX H

ROUBLESHOOTING

GENERAL TROUBLESHOOTING – ALL OS

SYMPTOM: When I try to scan, I aim the scanner beam at the barcode, but no data appears on my screen, and the beam eventually turns off.

POSSIBLE REASON SOLUTION

The scanner is too close or too far from the barcode or at an incorrect angle. The barcode is incorrectly formatted, damaged or poorly printed. The barcode symbology may be disabled or not supported by the CHS.

You don’t have an application open to scan data into. You are using the CHS in SPP mode, and SocketScan 10 keyboard wedge is not enabled / running. Revision F of the CHS 7X and 7XRx will automatically power off after you press the trigger button if the battery is low.

SYMPTOM: My computer/device cannot find the CHS, and/or I get an error message saying that there are connection problems.

POSSIBLE REASONS SOLUTION

The computer/device is too far from the CHS.

The CHS is not powered on. Power on the CHS. You are using the CHS in SPP mode and have assigned another device as your default Bluetooth serial device. Your computer/device does not have Bluetooth enabled and/or the Bluetooth software is not running. The CHS is already paired with another computer/device.

Practice scanning at different distances and angles so you get accustomed the most effective position. Try scanning a barcode that is correctly formatted, printed clearly, and in good condition. Enable the symbology. Use the Command Barcodes (Appendix E). If you are using the CHS in SPP mode, you can also use the symbology selector of SocketScan 10 software.

If you do not know the symbology of the barcode, and the CHS works in SPP mode for your computer / device, you can use the Scanner Settings utility to test scanning the barcode and determine its symbology. Open an application (e.g., a spreadsheet) and place the cursor where you want to enter data. Try scanning again. Make sure SocketScan 10 keyboard wedge is running. For Windows, make sure the Use keyboard wedge option is selected in SocketScan Settings. Charge the CHS.

Move the devices closer together, within a range of 1015 meters.

Remove any settings that assign another device as your favorite Bluetooth serial device.

Enable Bluetooth on your computer/device and make sure the Bluetooth software is running.

Unpair the CHS. See Appendix F for instructions.

SYMPTOM

which one to choose.

: The Bluetooth device search has found multiple CHS devices, and I don’t know

POSSIBLE REASONS SOLUTION

The CHS is not paired with a host system, and there are multiple CHS devices in range.

Power off the CHS device(s) you do not want to connect to and restart the Bluetooth device search.

Alternatively, If the CHS works in SPP mode with your computer/device, you can use the SocketScan Scanner Settings utility to change the scanner’s Bluetooth friendly name to something you can easily recognize.

SYMPTOM: When I scan a barcode, odd behaviors occur, such as different applications seem to be invoked in my system, and/or special characters are displayed in the application unexpectedly.

POSSIBLE REASON SOLUTION

In HID mode, the CHS will only properly read printable ASCII characters. Non-

If supported on your computer/device, use the CHS in SPP

mode to scan non-printable ASCII characters. printable ASCII characters or extended characters cannot be interpreted by the scanner. Printable ASCII characters are numbers between 0x20 and 0x7E, and any ASCII characters that fall outside of this scope are considered as non-printable.

SYMPTOM

: When I press the Shift, Caps Lock or Ctrl key on my keyboard, it affects the data

output from my CHS to my computer.

POSSIBLE REASON SOLUTION

You are using the CHS in HID mode as a Keyboard class device.

Determine how your computer implements HID keyboard

devices.

APPENDIX G: TROUBLESHOOTING 99

TROUBLESHOOTING FOR WINDOWS PC

SYMPTOM

task tray in the Today screen and can’t trigger the scanner or scan any barcodes.

: I am using the CHS in SPP mode and get the “Not connected” icon in the

POSSIBLE REASON SOLUTION

Your PC is not connected to the CHS.

Make sure the CHS is on, in range and has enough

battery power. Try to reconnect.

SYMPTOM: When I try to access SocketScan 10, I get an error message saying the installed version of the application could not be determined.

POSSIBLE REASON SOLUTION

You installed SocketScan 10 while logged into a different account.

Log into the account you used while installing

SocketScan10.

Alternatively, you can install SocketScan 10 for every user

account that plans to use the CHS.

SYMPTOM: When I try to install SocketScan 10, an error message says Access is denied, or I have insufficient privileges to complete installation.

POSSIBLE REASON SOLUTION

You tried to install SocketScan 10 on a Windows 7 computer while not logged

Abort the process. Log into an administrative account

and restart the installation. into an administrative account.

SYMPTOM: The Bluetooth software indicates that the CHS has connected, but when I try to scan data, it does not enter into my application.

POSSIBLE REASONS SOLUTION

The CHS is in SPP mode, and your PC has multiple incoming Bluetooth serial ports enabled. The CHS is in SPP mode, and SocketScan 10 Is not running. The keyboard wedge is not enabled in SocketScan Settings. The CHS is in SPP mode but not assigned to an incoming Bluetooth serial COM port.

Use your Bluetooth utility to disable extra incoming

Bluetooth serial ports. In SocketScan Settings, click Ports t

access the Bluetooth utility.

Start SocketScan 10 software by clicking on the desktop

shortcut icon.

Make sure the checkbox Use keyboard wedge is

selected.

In SocketScan Settings, make sure the CHS is assigned to

an incoming Bluetooth serial COM port.

If your computer has the Toshiba Bluetooth stack, in

SocketScan Settings, click Ports and make sure the CHS is

assigned to a Bluetooth port that appears as LocalCOM-

Server.

SYMPTOM: After I try to connect, SocketScan 10 reports the Friendly Name of the last CHS connected to the computer, and I cannot modify any advanced settings or symbologies.

POSSIBLE REASONS SOLUTION

This is a known issue in SocketScan 10 for

Close and restart SocketScan 10 and reconnect. Windows XP and Vista.

100

Socket 7X, 1D, 7XRx, 2D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
