Electric Tiller/Cultivator
Electric Tiller/Cultivator
Model No. TJ600ERM
A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
“When using the electric tiller, basic safety precautions should
always be followed to reduce the risk of re, electric shock,
and personal injury, including the following:”
m Warning: When servicing use only identical replacement.
Polarized Appliance Connections – To reduce the risk of
electric shock, this appliance has a polarized plug (one blade
is wider than the other) and will require the use of a polarized
extension cord. The appliance plug will t into a polarized
extension cord only one way. If the plug does not t fully into
the extension cord, reverse the plug. If the plug still does
not t, obtain a correct polarized extension cord. A polarized
extension cord will require the use of a polarized wall outlet.
This plug will t into the polarized wall outlet only one way. If
the plug does not t fully into the wall outlet, reverse the plug.
If the plug still does not t, contact a qualied electrician to
install the proper wall outlet. Do not change the equipment
plug, extension cord receptacle, or extension cord plug in
any way. Before using the tiller, take the time to familiarize
yourself with the controls, especially how to stop the tiller in
an emergency. Only allow responsible individuals who have
a thorough understanding of these instructions to operate
the tiller. Never allow children to operate the tiller. Retain this
manual for future reference and reread it at the start of each
tilling session.
m This symbol indicates important safety instructions. Failure
to observe and follow these instructions may result in personal
injury or property damage. Read and follow all instructions in
this manual before attempting to operate this machine.
TRAINING
1. Read, understand and follow all instructions on the tiller
and in the manual (s) before attempting to assemble and
operate. Save this manual for reference and ordering
replacement parts.
2. Never allow children under 16 years old to operate this
machine. Children 16 years old and over should be
trained and supervised by an adult who understands the
operation of the tiller.
3. Never allow an untrained individual to operate the tiller.
4. Understand the function of all the controls and their
Form No. SJ-TJ600ERM-880E
OPERATOR’S MANUAL
proper operation. Know how to stop the machine and
disengage them quickly.
5. Always plan your tilling pattern to avoid discharge of
material toward people, pets and property. Thrown
objects can cause serious personal injury.
6. Keep people, pets and property at least 25 feet from the
tiller while it is in operation. Stop the tiller if people or
pets enter the discharge area.
7. Always observe the surface conditions in order to avoid
slipping, falling and unexpected objects.
PREPARATION
1. Always inspect the area where the tiller is to be used.
Remove all objects (e.g.: stones, sticks, wires and foreign
objects) that could be thrown by the tines or cause the
operator to trip.
2. Thrown objects can cause serious injury to the eyes and
exposed body. Always wear safety glasses or eye shields
during operation and while performing an adjustment or
repair.
3. Always operate wearing adequate garments. Do not wear
jewelry or other loose clothing, which could become
entangled in moving parts. Wear footwear that provides
sure footing.
4. Observe any noise-prevention regulations and laws.
5. Inspect the tiller for worn, missing or damaged parts
and safety labels. See maintenance section for detailed
instructions.
ELECTRICAL SAFETY
1. Always use a grounded three-wire extension cord and
receptacle that is made of rubber and intended for
outdoor use.
Metal Screw
Cover of Grounded
Grounding
Pin
(C)
AA210
(A)
Adapter
Grounding
Means
Grounding method
Outlet Box
Grounding
Pin
(B)
(D)
© 2011 by Snow Joe, LLC
All rights reserved. Original instructions.
SAVE THESE INSTRUCTIONS
1
2. Keep the extension cord away from the moving tines and
hot motor housing.
3. Avoid contact with metal objects.
GENERAL OPERATION
1. Do not operate the machine while under the inuence of
alcohol or drugs.
2. Keep all safety devices in place and working. Do not
operate with missing or damaged components.
3. Ensure the controls (Start/Stop) function properly before
tilling.
4. Hold onto the tiller with both hands during operation.
Ensure the grips are dry.
5. Contact with the rotating parts can amputate hands and
feet. Do not put hands or feet near rotating parts.
6. Plan your tilling pattern to avoid discharge towards
people or property (e.g.: windows, cars etc.). Do not
direct discharge at children, bystanders and pets or allow
anyone in front of the machine.
7. Only operate the tiller when there is good visibility or light
and dry conditions. Always watch your footing and keep
a rm hold on the grips. Walk don’t run!
8. Do not operate the tiller on slippery surfaces. Check your
footing as you operate the tiller.
9. Exercise caution when changing direction and operating
on slopes. Always keep feet and legs a safe distance
away from the machine. Look for hidden obstacles or
hazards.
10. Do not overload machine capacity by attempting to till to
deeply or in ground that presents excessive resistance.
11. Stop the tiller and disconnect the electric cord before you
leave the operating position (behind the handles) to make
any adjustments or inspections. Wait until the tines have
come to a complete stop.
12. If the tiller should start to vibrate abnormally, stop the
machine and inspect thoroughly for damage.
13. Turn the machine OFF and disconnect the electrical
power when moving to a new work area. Allow the tines
to complete stop rotating before moving the tiller.
14. Always use care and good judgment when you have a
situation that is not covered in this manual. If unsure,
always contact the distributors where you bought the
tiller or the nearest service location before proceeding.
15. Avoid Dangerous Environment – Don’t use appliances in
damp or wet locations.
16. Don’t Use In Rain.
17. Keep Children Away – All visitors should be kept at a
distance from work area.
18. Dress Properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber
gloves and substantial footwear is recommended when
working outdoors. Wear protective hair covering to
contain long hair.
19. Use Safety Glasses – Always use face or dust mask if
operation is dusty.
20. Use Right Appliance – Do not use appliance for any job
except that for which it is intended.
21. Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for
the gardening appliance. Receptacles are available
having built-in GFCI protection and may be used for this
measure of safety.
Exception: This warning does not apply to a battery-
operated appliance.
22. m WARNING! – To reduce the risk of electric shock,
use only with an extension cord intended for outdoor
use, such as an extension cord of cord type SW-A,
SOW-A,STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or
SJTOW-A.
23. Extension Cord – Make sure your extension cord is
in good condition. When using an extension cord, be
sure to use one heavy enough to carry the current your
product will draw. An undersized extension cord will
cause a drop in line voltage resulting in loss of power and
overheating.
24. Avoid Unintentional Starting – Don’t carry plugged-in
appliance with nger on switch. Be sure switch is off
when plugging in.
25. Don’t Abuse Cord – Never carry appliance by cord or
yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges.
Exception: This statement does not apply to a cordless
battery-operated gardening appliance.
26. Don’t grasp the exposed cutting blades or cutting edges
when picking up or holding the appliance. (For grass
shears and similar appliances only).
27. Don’t Force Appliance – It will do the job better and with
less likelihood of a risk of injury at the rate for which it
was designed.
28. Don’t Overreach – Keep proper footing and balance at all
times.
29. Stay Alert – Watch what you are doing. Use common
sense. Do not operate appliance when you are tired.
30. Disconnect Appliance – Disconnect the appliance from
the power supply when not in use, before servicing,
when changing accessories such as blades, and the like.
Exception: This warning does not apply to a battery-
operated appliance.
31. Store Idle Appliances Indoors – When not in use,
appliances should be stored indoors in dry, and high or
locked-up place – out of reach of children.
32. Maintain Appliance With Care – Keep cutting edge sharp
and clean for best performance and to reduce the risk
2
of injury. Follow instructions for lubricating and changing
accessories. Inspect appliance cord periodically, and
if damaged, have it repaired by an authorized service
facility. Inspect extension cords periodically and replace
if damaged. Keep handles dry, clean, and free from oil
and grease.
33. Check Damaged Parts – Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it will
operateproperly and perform its intended function. Check
for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced by an
authorized service center unless indicated elsewhere in
this manual.
WORK STOPPAGE
1. Always turn the tiller OFF and disconnect the electrical
power when there is a work stoppage or changing
work areas. Never leave the machine running when
unattended.
2. The tines will continue to rotate for a short period after
turning the tiller OFF. Wait until the tines have completely
stopped before lifting the machine or conducting
inspection and maintenance.
3. The motor housing remains hot for a short period after
the machine is turned OFF. Allow the motor housing to
cool off before touching or storing near combustible
material.
Safety Symbols
The following table depicts and describes safety symbols that
may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble
and operate.
SYMBOLS DESCRIPTIONS
READ THE OPERATOR’S
MANUAL(S) Read, understand and
follow all instructions in the manual(s)
before attempting to assemble and
operate.
WARNING! Keep out of rain and
away from wet areas.
DANGER! Rotating objects may spin
off and cause personal injury. Keep
people away from hazard area.
WARNING! Always turn the machine
OFF and disconnect the electrical
power before conducting inspection,
cleaning and maintenance.
MAINTENANCE AND STORAGE
1. Maintain or replace safety and instruction labels.
2. Disengage all controls, stop the engine and wait until the
tines come to a complete stop before cleaning, repairing
or inspecting the tiller.
3. Regularly check the following:
a. Accumulation of debris around the tines could cause
a poor performance or damage to the motor. Inspect
and clean before every use.
b. Safety devices are operating properly. Do not tamper
with or adjust safety devices.
c. Bolts and screws for proper tightness. Visually
inspect machine for any damage and the tiller is in
safe working condition.
d. Always replace damaged parts with original
equipment manufacturer’s (OEM) parts only.
Replacement parts that do not meet the original
equipment specications may lead to improper
performance and compromise safety.
DANGER! Keep electrical extension
cable away from tines.
WARNING! Rotating parts may
cause serious injury. Allow the tines
to completely stop before moving
the machine, inspection, cleaning
and maintenance.
SAFETY ALERT
DOUBLE INSULATION
3
Know Your Electric Tiller/Cultivator
A
B
C
D
Part List Legends
A. Right-hand Grip
E
G
H
J
K
L
F
I
M
N
O
B. Safety Button
C. Power Switch
D. Left-hand Grip
E. Power Cable
F. Belt Clip
G. Cable Clip
H. Cable Guide
I. Plastic Cross-plate
J. Wing-nuts and Bolts
K. Lower Frame
L. Cable Clip
M. Vent
N. Motor Housing
O. Gearbox
P. Driveshaft
Q. Tines
R. Hex Bolt
S. Self-locking Nut
P
Front View

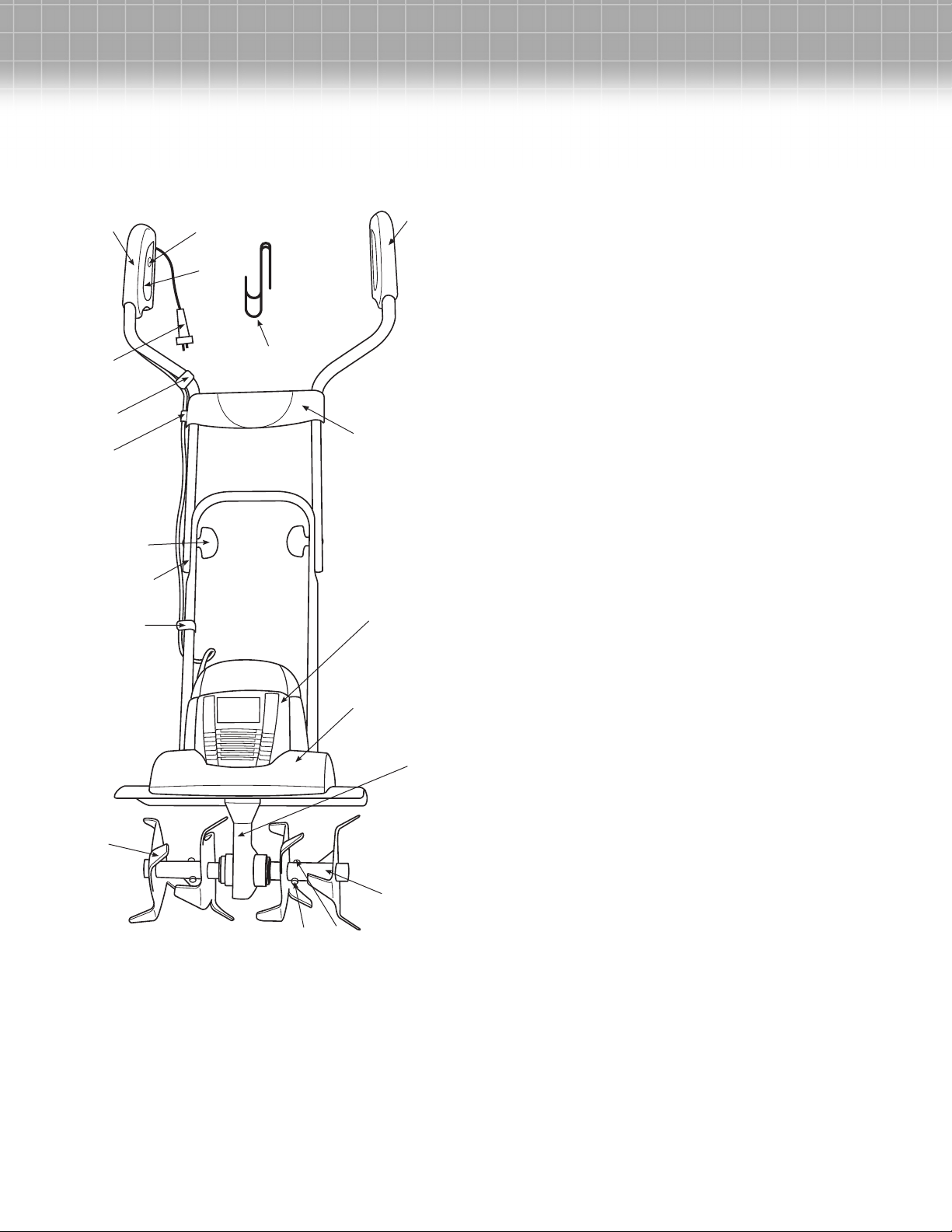

Figure 1
Technical Data
Power — 6.5 Amp
Main voltage — 120 V
Main frequency — 60 Hz
Working width — 14.17 inch/360 mm
Q
S
R
Max working depth – 7 inch/180 mm
Blades – 4
Nominal rotation rate – Approx 230 rpm
Weight – 17 lbs/7.85 kg
4
Assembly
m CAUTION m
Inspect wiring, which, if damaged during shipping,
may cause serious bodily injury during equipment use.
If any damage is seen or suspected, do not assemble.
Instead, contact Snow Joe Customer Service
(1-866-SNOW JOE) for assistance.
Handle with care during assembly so that electrical
wiring does not become damaged.
Note: Reference to right or left side of the tiller is determined
from behind the unit in the operating position. The “Operator’s
position” is dened as standing directly behind the tiller.
Follow these steps to assemble:
1. Remove tiller from the carton.

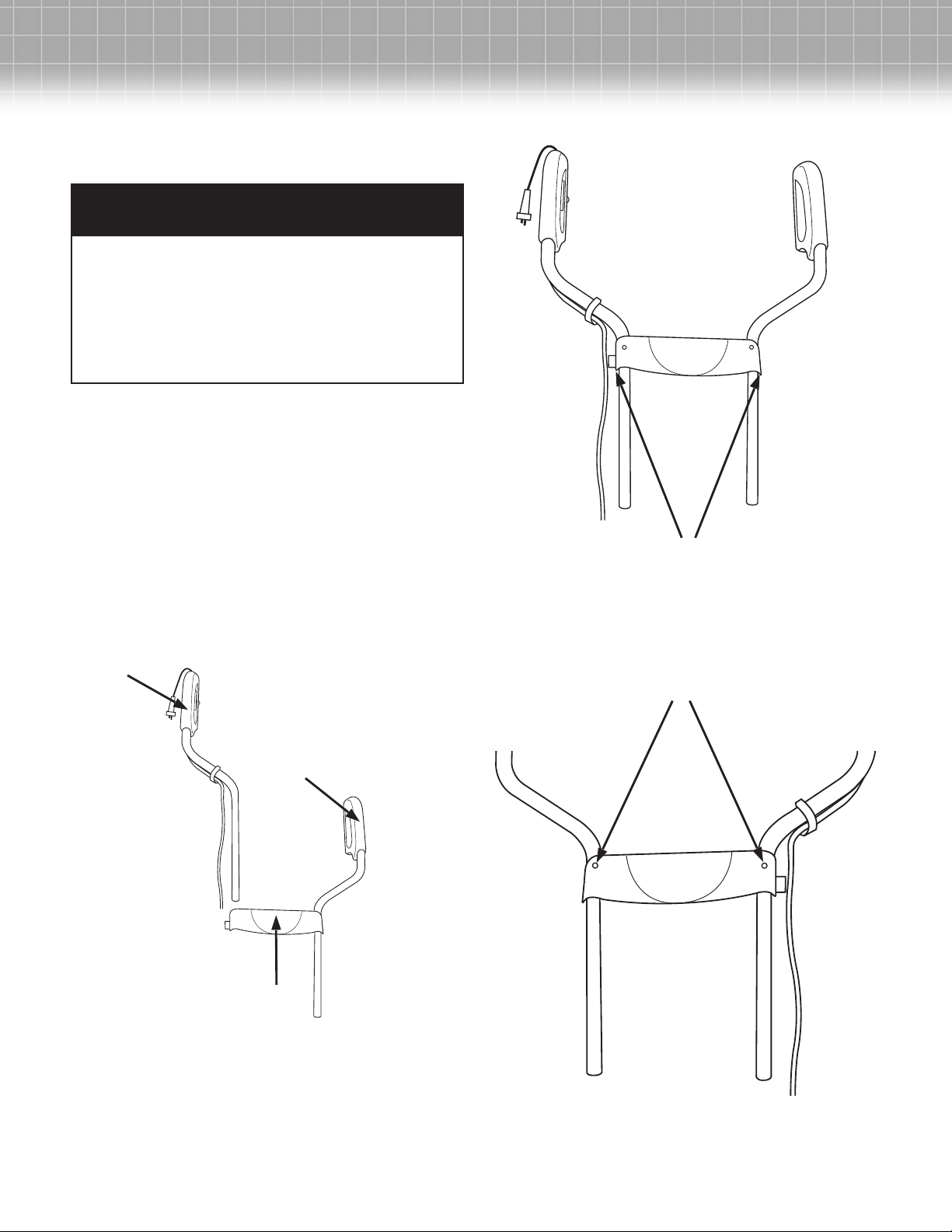

2. Slide the Right-hand Grip (A) and Left-hand Grip (D)
into the Plastic Cross Plate (I). Secure the Plastic Cross
Plate to the Left and Right-hand Grips with the included
screws. (See Fig 2-1, 2-2, 2-3)
Note: Use a phillips-head screwdriver. Aligning the holes
may be difcult. We recommend fastening one hand grip
at a time to the Plastic Cross Plate.
Align the bottom of beam with the white line on the side of
upper handle before tightening 2 screws
Front View
Figure 2-2
A
D
I
Front View
Figure 2-1
Screws
Back View
Figure 2-3
5
3. Push the power cable into the Cable Guide located on
the Plastic Cross Plate (See Fig. 3).
5. Insert the Wing-nuts and bolts (J) and tighten (See Fig. 5).
J
Front View
Figure 3
4. Position the assembled upper frame onto the motor
housing aligning the holes (See Fig. 4).
Front View
Figure 5
6. Secure the power cable to the unit body by using the
Cable Clips (G, L). Use one clip above the Plastic Cross
Plate and the second below the Plastic Cross Plate
(See Fig. 6).
G
Cable Clips
L
Front View
Figure 4
Front View
Figure 6
6
Operation
Note: Before using this machine, make sure that the power
source you will use complies with the specications detailed in
this manual.
This machine is intended for breaking up and tilling coarse
soil for the purpose of mixing in fertilizer, peat and compost in
domestic areas. Any use other than that specically named in
this manual may lead to damage to the tool and represents a
serious injury hazard for the operator.
The operator or user of the tool is responsible for any damage
or injury caused to other persons or property. Adults should
only operate the machine. Children and persons unfamiliar
with the manual must not be allowed to use the tool. Do not
use the tool in rain or damp surroundings. The manufacturer
shall not be held liable for damage arising from improper use
or incorrect operation of the Tiller.
m WARNING m
Carelessness, mishandling or error on the part of the
operator may result in bodily injury (e.g.: amputation,
projectile impact), or death. The tiller mus t be operated
according to the warnings and guidelines in this manual.
m WARNING m
Damaged electrical cords present risk of re, electrical
shock, and serious bodily injury. Before operating the
electric tiller, carefully examine the electrical cord. If the
cord is damaged, do not use the electric tiller. Replace
or repair the damaged cord immediately. If you need
assistance, contact an authorized Sun Joe dealer.
B
F
C
T
Securing the Extension Cord
1. For safe and efcient use of your electric tiller, use only
an UL-rated extension cord recommended for outdoor
use. Refer to the Extension Cord Chart that follows.
m WARNING m
Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:
• Do not allow any part of tiller to make contact with
water while powered on. If the appliance becomes
wet while turned off, wipe dry before starting.
• Use only a UL-rated extension cord for outdoor, allweather use. Do not use an extension cord over 150
feet (46 meters).
• Do not touch the appliance or its plug with wet hands
or while standing in water. Wearing rubber boots
offers some protection.
EXTENSION CORD CHART
Cord Length is: 100 ft. (30m) 150 ft. (46m)
Wire Gauge is: 16 AWG 14 AWG

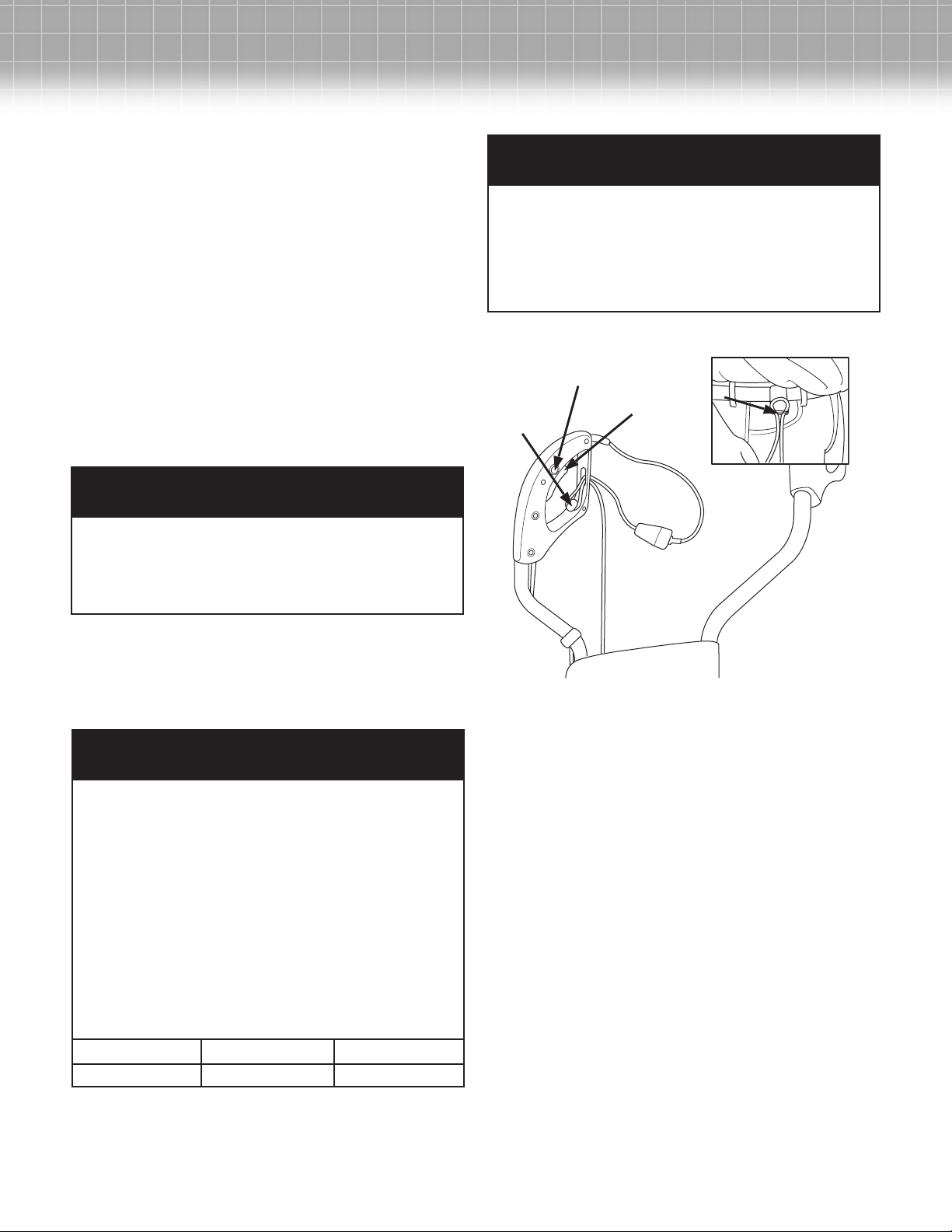

Figure 7
B. Safety Button
C. Power Switch
1. To ease tension on the cable and cord, loop the
extension cord onto the cable tension relief (T)
(See Fig. 7).
2. Plug the extension cord into the plug.
3. Plug the extension cord into the power outlet.
4. Hang the extension cord onto the Belt Clip (F)
(See Fig. 7) and fasten to your trousers.
F. Belt Clip
T. Cable Tension Relief
7
Powering ON and OFF
Note: Before starting the electric tiller do the following:
• Ensure the tines are not touching any objects.
• Hold the grips rmly with both hands.
1. Turn ON the machine by pressing the Safety Button (B)
(See Fig. 7) and the squeezing Power Switch (C) (See
Fig. 7). Release the Safety Button (B) (See Fig. 7).
Note: The tines will begin to rotate and dig themselves
into the ground.
2. After completing the work release Power Switch (C)
(See Fig. 7) to turn the machine OFF.
Operating the Electric Tiller
m WARNING m
Rotating tines may cause serious injury. The tines will
continue to turn for a few seconds after the tool has
been switched OFF. Do not touch the rotating tines.
Contact with hot components (i.e.: motor housing,
gear box) on the machine may cause burns. Allow the
machine to cool off before handling.
1. Walk the electric tiller through the soil at a normal pace
and in as straight a line as possible.
2. Always till away from the electrical outlet. Ensure the
extension cord is kept away from the work area.
3. Do not try to till to deeply or force the electric tiller into
soil that is extremely hard or resistant.
Note: Overloading the machine will cause it to shut
down. If this occurs the machine will not operate until
the motor has completely cooled down.
4. Always maintain a rm grip on the electric tiller.
5. Lift the electric tiller over hard surfaces. Do not lift or
drag the electric tiller when the motor is running.
m WARNING m
Contact with hot components (i.e.: motor housing,
gear box) on the machine may cause burns. Allow the
machine to cool off before handling.
IMPORTANT!
• Wear protective gloves when cleaning or maintaining the
machine.
• Do not use cleaning uids or solvents or spray the
machine down with water (especially water under
pressure) when cleaning the machine.
Note: After each use, follow these steps when cleaning the
machine:
1. Remove soil, dirt and foliage stuck in the tines,
driveshaft, tool surface and vents with a brush or dry
cloth.
2. Spray or rub biodegradable oil into the tines.
3. Clean soiled grips with a damp cloth.
Always inspect the machine for damaged and worn parts after
each use. Check that safety features (labels, guards) are in
place. Check that nuts, bolts and screws are tight.
Changing the Tines
The machine is tted with four tine wheels that can easily be
changed in pairs. Both of the tine wheel pairs can be tted on
the left or right, as required. Always change both tine pairs at
the same time to avoid imbalance and damage to the machine.
Cleaning, Maintenance and
Storage
m WARNING m
Unexpected tines movement may cause personal injury.
Before servicing, repairing or inspecting the tiller, turn
the motor OFF and disconnect the extension cord.
Wait for the tines to completely stop rotating before
conducting inspection, cleaning or maintenance.
S
Q
P
S
R
P. Driveshaft
R. Hex Bolt
R

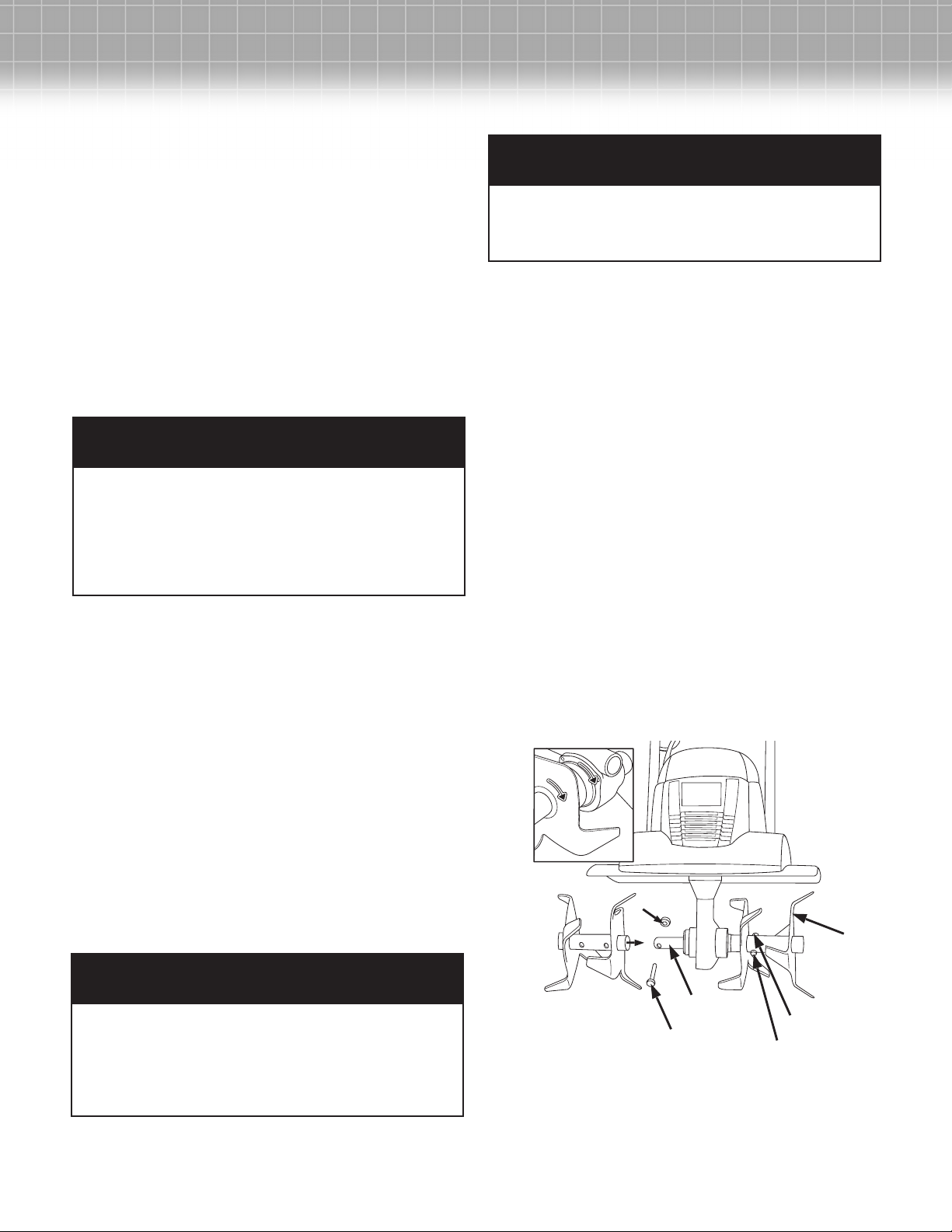

Figure 8
S. Self-locking Nut
Q. Tines
8
1. Place the electric tiller on the ground. The rating label
should be facing upward.
2. Unscrew the hex bolt (R) (See Fig. 8) and the self-locking
(S) (See Fig. 8).
3. Remove the tine wheels off the driveshaft (P) (See Fig. 8).
4. Clean the driveshaft (P) with biodegradable oil.
5. Place the new tines onto the driveshaft so that the holes
on the axles line up with the holes on the driveshaft.
IMPORTANT! The tines must be set in the correct turning
direction. Check the arrows on the tines and gearbox point in
the same direction.
6. Insert the hex bolt (R) through the holes and tighten on
the self-locking nut (S).
Storage
• Allow the motor to completely cool down before storing
the Tiller.
• Keep the machine clean, dry and out of the reach of
children.
• Do not cover the machine with a plastic bag. This may
cause moisture build-up.
1. Unscrew the wing-nuts (J) and fold the fork grips down.
2. Check to ensure the Power Cable (E) is not pinched.
3. Hang the machine on the frame tubing.
Service and Support
If your Tiller Joe Electric Tiller/Cultivator requires service or
maintenance, please call 1-866-766-9563 for assistance.
Model and Serial Numbers
When contacting the company or reordering parts, you will
need to provide the model and serial numbers of your product.
These are found on the decal afxed to the housing or handle
of your tiller. Copy these numbers into the space provided
below.
Record the following numbers from the housing or handle of your
new product:
Model #:
T J 6 0 0 E R M
Serial #:
J
E
Figure 9
E. Power Cable J. Wing-nuts and bolts
9
A One-Year Full Warranty
for residential use
in the United States and Canada
General Conditions:
Snow Joe, LLC warrants this product to the original purchaser for one year against defects in material or workmanship when used for
normal residential purposes. Snow Joe, LLC will repair any defect in material or workmanship, and repair or replace any defective part,
subject to the conditions, limitations, and exclusions set forth herein. Such repair or parts replacement will be free from charge to the
original purchaser except noted below.
The duration of the warranty applies only if the product is put to personal use around the household or residence. If the product is put
to any business use, commercial or industrial, then the duration of this warranty is 90 days from the date of original purchase. If any
product is rented or leased, the duration of the warranty is 90 days from the date of original purchase.
It is the owner’s responsibility to perform correctly all maintenance, and minor adjustments explained in the owner’s manual.
Electric Products:
To obtain a replacement electric powered unit or repair the existing electric powered unit, you must return the complete unit and
postage prepaid to: Snow Joe Return Center, 86 Executive Avenue, Edison, NJ 08817.
Gasoline / Battery Products:
Limitations
• Batteries are warranted only for the period of 12 months after the date of purchase on a prorated basis. Rechargeable batteries
will be replaced free from charge during the rst 90 days. After the initial 90 days, batteries will be replaced at prorated cost to
the customer
• Idlers, cables, and electrical components are warranted to the original purchaser for use at household or residence for a period
of one year
Exclusions
• Snow Joe brand engines are covered under this warranty. All other engines and engine accessories are covered only by the
engine manufacturer’s warranty and are not covered by this warranty
• Parts used that are not genuine Snow Joe parts are not covered by this warranty
• Damages resulting from misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires repair
is not covered under this warranty
• Belts, augers, and tines are not covered under warranty – belts, augers, and tines wear out and can be purchased at
www.snowjoe.com or by calling 1-866-766-9563
Snow Joe, LLC may from time to time change the design of its products. Nothing contained in this warranty shall be construed as
obligating Snow Joe, LLC to incorporate such design changes into previously manufactured products, nor shall such changes be
construed as an admission that previous designs were defective.
This warranty is intended to cover product defects only. Snow Joe, LLC is not liable for indirect, incidental, or consequential damages
in connection with the use of the Snow Joe Products covered by this warranty. This warranty does not cover any cost or expense
incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this
product, while waiting for completion of repairs under this warranty. Some states do not allow exclusions of incidental or consequential
damages, so the above exclusions may not apply in all states. This warranty may gives you specic legal rights in your state.
If you wish to contact Snow Joe, please direct inquiries to the:
Customer Service Department
Snow Joe Center
86 Executive Avenue
Edison, NJ 08817
Customers who have purchased Snow Joe products exported from the United States and Canada should contact their Snow Joe
Distributor (Dealer) to obtain information applicable for your country, province, or state. If for any reason, you are not satised with the
distributor’s service, or if you have difculty obtaining warranty information, contact your Snow Joe seller. If in the event your efforts
are unsatisfactory, please write to the Snow Joe Center at the above address.
If you have any questions about your product warranty, please call 1-866-SNOW-JOE or visit us online at www.snowjoe.com.
10
Loading...
