18-Inch Manual Reel Mower with Catcher
18-Inch Manual Reel Mower with Catcher
Model No. MJ501MRM
A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
m WARNING: READ ALL
INSTRUCTIONS BEFORE USE.
mWARNING: This unit can be dangerous! Careless or
improper use can cause serious injury.
mDANGER: Risk of cut. Keep hands and feet away
from tines and cutting area.
Safety Information
• Never place hands, ngers or feet inside the reel.
Although this mower is not powered by a motor, the
reel spins when the wheels turn, and it is sharp enough
to cause serious injury.
• Never mow when grass is wet as it can be slippery.
• Do not use the reel mower while barefoot or while
wearing sandals.
• Walk behind, never run, while using reel mower. Always
make sure of your footing when using this reel mower.
• Do not intentionally strike or hit trees, fences, etc. This
can cause injuries or severely damage the reel mower
mechanisms.
• Make sure your reel mower is in a safe operating
condition. Do not attempt to operate this reel mower if
damaged. Contact customer service or have the reel
mower repaired by a qualied repair service provider
before using at all times.
Form No. SJ-MJ501MRM-880E
OPERATOR’S MANUAL
SYMBOLS DESCRIPTIONS
Keep hands and feet away.
Safety alert
Read the operator’s manual
Risk of cut.
Keep hands and feet away from
tines and cutting area.
Severing of toes or ngers-rotary
mower blade.
Thrown objects and rotating line
can cause severe injury.
© 2011 by Snow Joe, LLC
All rights reserved. Original instructions.
Slip on slope
Keep bystanders/children away.
SAVE THESE INSTRUCTIONS
1
Know Your Manual Reel Mower with Catcher
(Packing List)
1. Foam Grip
2. Top handle
3. Knobs x 6
4. Center handle pieces
5. Carriage bolts x 6
6. Grass collecting bag
7. Height adjustment lever
8. Adjustable wheels (rear)
9. Reel mower body
10. Lower handle
10
3
1
2
4
9
Technical Data
Cutting width 18" (45.7 cm)
Height adjustments 1.26" – 2.44" (3.2 cm – 6.2 cm)
Front wheels 10" (25 cm)
Rear wheels 6" (15 cm)
Weight 28 lbs (12.7 kgs)
5
6
7
8
2
Assembly
1. Before attempting to assemble, empty carton and
compare parts with packing list on page 2.
NOTE:
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage
occurred during shipping.
• Do not discard the packing material until all parts are
examined.
• If any parts are damaged or missing, please call
1-866-766-9563 for assistance.
• Be sure to tighten the knobs when assembled to
prevent the handle from rocking.
Assembling the Handle (Fig. 1 & Fig. 2)
This product normally requires 6 to 10 minutes for assembly.
1. Insert the two center handle pieces into the left and
right side of the top handle and secure with two knobs
provided. (Fig. 1)
2. Attach the top handle to the lower handle using
carriage bolts and knobs provided. (Fig. 2)
3. Tighten all the knobs on the joints of the handle
assembly.
Tools Required
Pliers (Not included)
NOTE: Do not tighten the bolts completely until all bolts have
been inserted through the holes in the handle pieces.
Fig. 1
Fig. 2
Attaching the Lower Handle to the
Mower Base (Fig. 3)
1. After assembling the handle, line up the holes at the
lower end of each handle arm with the short posts that
extend out from the side plates of the mower base.
2. Clamp the both side arms to line up with the posts
while pressing inwards on the handle bars.
Fig. 3
Handle bars
Post
3

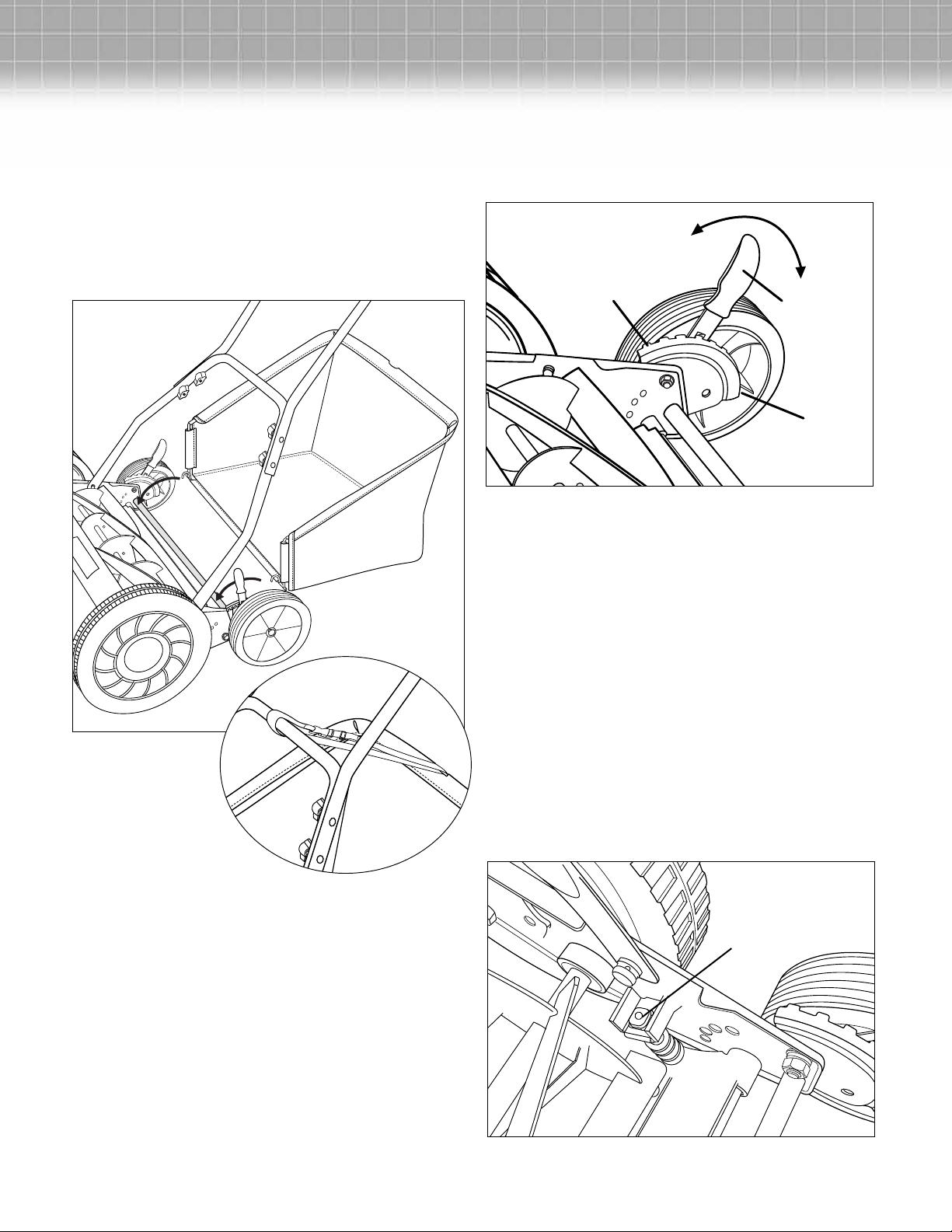

Attaching the Rear Bag (Fig. 4 & Fig. 5)
1. Assemble bag as in Fig. 4.
2. Hook bag onto steel round bar.
3. Place locking strap from the rear bag to the center bar
of the middle handle, adjust strap for proper height
so the bag does not rub the ground while mowing or
transporting. (Fig. 5).
Fig. 4
Fig. 5
4. The mower can be set to other cutting heights by
moving the adjustment levers to any position within
their range between the highest and lowest positions.
Fig. 6
Lowest
cutting
position
Adjustment
Level
Highest
cutting
position
Adjusting the Mower Blade (Fig. 7)
NOTE: The blades were pre-adjusted prior to leaving the
factory, but it is recommended that the adjustment be veried
prior to rst use.
• Vibrations during shipping can cause misalignment, which
often causes the blades to become too loose or too tight.
This will result in a rough, uneven cut, or the mower will be
hard to push.
1. Each end of the cutting bar can be adjusted separately.
2. The cutting bar blade, which is located under the reel,
is able to pivot. The two adjustment nuts located at the
back of the mower move the cutting bar away from the
blades when they are turned counter-clockwise, and
closer to the blades when they are turned clockwise.
Operation
Cutting Height Adjustment (Fig. 6)
1. The cutting height of the 18” (45.7 cm) Reel Mower
can be adjusted in 9 positions from 1.26” to 2.44”
(3.2 to 6.2 cm) by moving the height adjusment levers
to the desired position. The height adjusment levers
are located next to the smaller wheels.
2. In order to set the mower to its lowest cutting position,
one at a time, pull the adjustment levers on both sides
to their highest positions.
3. In order to set the mower to its highest cutting position,
move the adjustment levers on both sides to their
lowest positions.
NOTE: The two adjustment levers MUST be set to the same
position (height).
m WARNING: Do not overtighten adjustment screw as
this could damage cutter bar. Both screws must be tight on
nal adjustment.
Fig. 7
Adjustment
screw
4
Loosening the Blades
The cutter bar must be moved away from the cutting reel.
1. Loosen both screws by an equal amount by turning
them counter-clockwise.
Tightening the Blades
The cutter bar must be moved closer to the cutting reel.
1. Tighten the screws by an equal amount by turning
them clockwise.
Checking the Adjustment (Fig. 9)
1. Turn mower upside down.
2. Insert a piece of paper between cutter bar and reel
blades, and slowly turn wheel by hand.
3. All blades should slice the paper evenly, along the
entire length of the cutter bar while the reel turns
smoothly.
4. If mower has an intermittent cut, adjustment should be
made to the appropriate side of blades to attain proper
cutting action.
Align Cutting Path Indication Arrow With
Previously Cut Path (Fig. 8)
NOTE: The width of the real mower actual cut is indicated
below. Do not use wheels as a reference point for grass cut line.
Fig. 8
18 inches
Fig. 9
Paper
5
Care and Maintenance
1. Minimum care is required to ensure smooth operation
of your mower.
2. To avoid damage to mower or cutting blades, keep
area to be mowed free from debris.
3. For best results, regularly apply lubricant to mower’s
cutting surfaces, cutting reel axle shaft and wheels.
Sharpening the Cutting Blades:
1. Spread a thin layer of lapping compound on the front
edge of the reel blades.
2. Adjust the cutter bar so that the blade has light but rm
contact across the full width of the cutter bar.
CAUTION: Do not overtighten the adjusting screws, as this
could damage the cutter bar. Tighten both screws during nal
adjustment.
3. Turn the reel blades until the front edge of the cutter
bar blade is polished.
WARNING: Clean any grinding compound or debris from the
cutter bar blade, reel blade, pinions and pawls.
NOTE: Use industrial or valve lapping compound between 100
and 240 grit. Lubricate the axle and pinion with a light lm of
wheel bearing grease.
Service and Support
If your Manual Reel Mower with Catcher requires service or
maintenance, please call 1-866-766-9563 for assistance.
Model and Serial Numbers
When contacting the company or reordering parts, you will
need to provide the model and serial numbers of your product.
These are found on the decal afxed to the housing or handle
of your Manual Reel Mower with Catcher. Copy these numbers
into the space provided below.
Record the following numbers from the housing or handle of your
new product:
Model #:
M J 5 0 1 M R M
Serial #:
Cleaning and Storage:
1. Clean the exterior of the machine thoroughly using a
soft brush and cloth before storing. Do not use water,
solvents or polishes.
2. Turn the mower on its side to clean the blade area.
WARNING: Do not place hands in the mower near blades. If
grass cuttings are compacted in the blade area, remove using
a wood or plastic cleaning tool appropriate for the cleaning of
the blades.
3. Store the mower in a dry place. Do not place other
objects on top of the mower during storage.
Maintenance Tips:
Reel mowers are relatively low maintenance. For consistent
cutting follow the below instructions:
• Always keep the cutting bar properly adjusted. Refer to the
instruction manual for further directions.
• Regularly clean and lube cutting edges with light spray oil.
IMPORTANT: Reel mowers have a difcult time with tall weeds
such as dandelions which most times will cause the weeds to
bend and not cut – cut often to prevent this.
6
NOTES
7
A One-Year Full Warranty
for residential use
in the United States and Canada
General Conditions:
Snow Joe, LLC warrants this product to the original purchaser for one year against defects in material or workmanship when used for
normal residential purposes. Snow Joe, LLC will repair any defect in material or workmanship, and repair or replace any defective part,
subject to the conditions, limitations, and exclusions set forth herein. Such repair or parts replacement will be free from charge to the
original purchaser except noted below.
The duration of the warranty applies only if the product is put to personal use around the household or residence. If the product is put
to any business use, commercial or industrial, then the duration of this warranty is 90 days from the date of original purchase. If any
product is rented or leased, the duration of the warranty is 90 days from the date of original purchase.
It is the owner’s responsibility to perform correctly all maintenance, and minor adjustments explained in the owner’s manual.
Electric Products:
To obtain a replacement electric powered unit or repair the existing electric powered unit, you must return the complete unit and
postage prepaid to: Snow Joe Return Center, 86 Executive Avenue, Edison, NJ 08817.
Gasoline / Battery Products:
Limitations
• Batteries are warranted only for the period of 12 months after the date of purchase on a prorated basis. Rechargeable batteries
will be replaced free from charge during the rst 90 days. After the initial 90 days, batteries will be replaced at prorated cost to
the customer
• Idlers, cables, and electrical components are warranted to the original purchaser for use at household or residence for a period
of one year
Exclusions
• Snow Joe brand engines are covered under this warranty. All other engines and engine accessories are covered only by the
engine manufacturer’s warranty and are not covered by this warranty
• Parts used that are not genuine Snow Joe parts are not covered by this warranty
• Damages resulting from misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires repair
is not covered under this warranty
• Belts, augers, and tines are not covered under warranty – belts, augers, and tines wear out and can be purchased at
www.snowjoe.com or by calling 1-866-766-9563
Snow Joe, LLC may from time to time change the design of its products. Nothing contained in this warranty shall be construed as
obligating Snow Joe, LLC to incorporate such design changes into previously manufactured products, nor shall such changes be
construed as an admission that previous designs were defective.
This warranty is intended to cover product defects only. Snow Joe, LLC is not liable for indirect, incidental, or consequential damages
in connection with the use of the Snow Joe Products covered by this warranty. This warranty does not cover any cost or expense
incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this
product, while waiting for completion of repairs under this warranty. Some states do not allow exclusions of incidental or consequential
damages, so the above exclusions may not apply in all states. This warranty may gives you specic legal rights in your state.
If you wish to contact Snow Joe, please direct inquiries to the:
Customer Service Department
Snow Joe Center
86 Executive Avenue
Edison, NJ 08817
Customers who have purchased Snow Joe products exported from the United States and Canada should contact their Snow Joe
Distributor (Dealer) to obtain information applicable for your country, province, or state. If for any reason, you are not satised with the
distributor’s service, or if you have difculty obtaining warranty information, contact your Snow Joe seller. If in the event your efforts
are unsatisfactory, please write to the Snow Joe Center at the above address.
If you have any questions about your product warranty, please call 1-866-SNOW-JOE or visit us online at www.snowjoe.com.
8
Loading...
