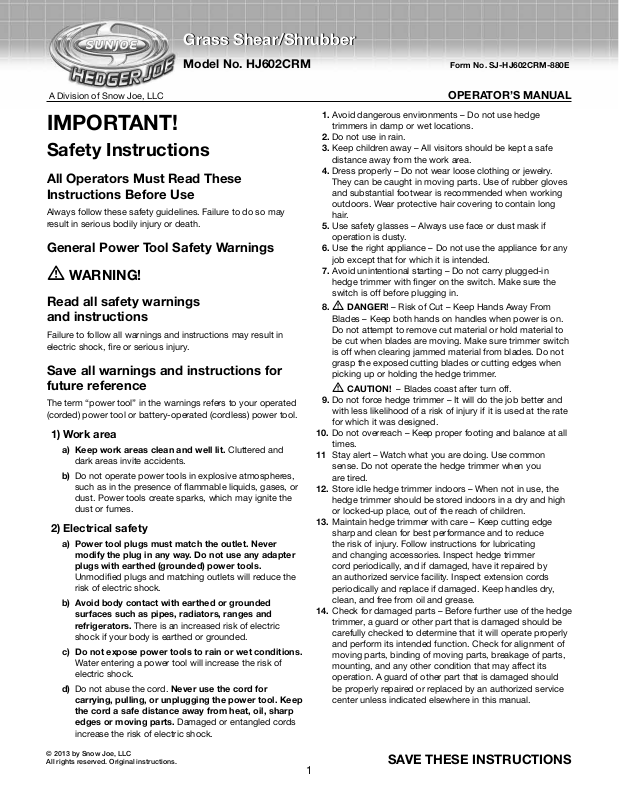

Grass Shear/Shrubber
Grass Shear/Shrubber
Model No. HJ602CRM
A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Power Tool Safety Warnings
m WARNING!
Read all safety warnings
and instructions
Failure to follow all warnings and instructions may result in
electric shock, re or serious injury.
Save all warnings and instructions for
future reference
The term “power tool” in the warnings refers to your operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area
a) Keep work areas clean and well lit. Cluttered and
dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases, or
dust. Power tools create sparks, which may ignite the
dust or fumes.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce the
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling, or unplugging the power tool. Keep
the cord a safe distance away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
Form No. SJ-HJ602CRM-880E
OPERATOR’S MANUAL
1. Avoid dangerous environments – Do not use hedge
trimmers in damp or wet locations.
2. Do not use in rain.
3. Keep children away – All visitors should be kept a safe
distance away from the work area.
4. Dress properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long
hair.
5. Use safety glasses – Always use face or dust mask if
operation is dusty.
6. Use the right appliance – Do not use the appliance for any
job except that for which it is intended.
7. Avoid unintentional starting – Do not carry plugged-in
hedge trimmer with nger on the switch. Make sure the
switch is off before plugging in.
8.
m DANGER! – Risk of Cut – Keep Hands Away From
Blades – Keep both hands on handles when power is on.
Do not attempt to remove cut material or hold material to
be cut when blades are moving. Make sure trimmer switch
is off when clearing jammed material from blades. Do not
grasp the exposed cutting blades or cutting edges when
picking up or holding the hedge trimmer.
m CAUTION! – Blades coast after turn off.
9. Do not force hedge trimmer – It will do the job better and
with less likelihood of a risk of injury if it is used at the rate
for which it was designed.
10. Do not overreach – Keep proper footing and balance at all
times.
11 Stay alert – Watch what you are doing. Use common
sense. Do not operate the hedge trimmer when you
are tired.
12. Store idle hedge trimmer indoors – When not in use, the
hedge trimmer should be stored indoors in a dry and high
or locked-up place, out of the reach of children.
13. Maintain hedge trimmer with care – Keep cutting edge
sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating
and changing accessories. Inspect hedge trimmer
cord periodically, and if damaged, have it repaired by
an authorized service facility. Inspect extension cords
periodically and replace if damaged. Keep handles dry,
clean, and free from oil and grease.
14. Check for damaged parts – Before further use of the hedge
trimmer, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other condition that may affect its
operation. A guard of other part that is damaged should
be properly repaired or replaced by an authorized service
center unless indicated elsewhere in this manual.
© 2013 by Snow Joe, LLC
All rights reserved. Original instructions.
SAVE THESE INSTRUCTIONS
1
When using the hedge
trimmer, make sure to wear
proper apparel and keep
both hands away from the
cutting area.
15. Do not charge the hedge trimmer in rain or in wet
locations.
16. Do not use the battery-operated hedge trimmer in rain.
3) Personal safety
a) Stay alert, watch what you are doing, and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Always wear Personal Protective Equipment (PPE).
This includes, but is not limited to, eye protection, dust
mask, and hearing protection.
c) Avoid accidental starting. Make sure the switch is in
the off position before plugging in. Carrying power
tools with your nger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool ON. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
e) Do not overreach. Make sure you always have proper
footing and balance. This will provide better control of
the power tool in unexpected situations.
f) Do not wear loose clothing or jewelry. Keep your
hair, clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust related hazards.
4) Use and care
a) Do not use the Grass Shear/Shrubber for
applications that are beyond its capacity. Use the
correct power tool for your application. The correct
power tool will do the job better and safer if it is used at
the rate for which it was designed.
b) Do not use the tool applications if the switch does not
turn it ON and OFF. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the tool accidentally.
d) Store the tool out of the reach of children. Do not allow
people unfamiliar with the tool or these instructions
to operate the tool. Power tools are dangerous in the
hands of untrained users.
e) Always maintain the Grass Shear/Shrubber. Check for
misalignment, binding of moving parts, breakage,
and other conditions that would affect its operation.
If damaged, have the tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting attachments sharp and clean. Properly
maintained cutting attachments with sharp cutting
edges are less likely to bind and are easier to control.
g) Only use the tool, accessories, and attachments as
described in these instructions. Using the tool for
operations it is not intended for could cause damage to
the tool and hazardous situations. Always consider the
working conditions and the work to be performed.
5) Battery use and care
a) Always recharge the battery with the charger
specied by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk
of re when used with another battery pack.
b) Only use battery packs that are designated for this tool.
Use of any other battery packs may create a risk of
injury and re.
c) When the battery pack is not in use, keep it at a
distance from other metal objects, such as paper clips,
coins, keys, nails, screws, or other small metal objects
that can make a connection from one terminal to the
other. Shorting the battery terminals together may
cause burns or a re.
2
d) Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
seek additional medical help. The liquid ejected from
the battery may cause irritation or burns.
6) Service
a) Have the tool serviced by a qualied repair
person using only manufacturer’s recommended
replacement parts. This will ensure that the safety of
the tool is maintained.
Shrubber safety warnings
• Keep all parts of the body a safe distance from the
cutter blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure the switch is
off when clearing jammed material. Lack of attention while
operating the tool may result in serious personal injury.
• Carry the machine by the handle with the cutter blade
stopped. Use the cover when transporting or storing the
tool. Proper handling of the machine will reduce possible
personal injury.
• During operation, hidden objects in shrubs, like wire and
cable, can be accidentally cut by the blade.
Grass shear safety warnings
• Keep supply and extension cords at a safe distance from
the cutting attachment.
• Only use the tool in daylight or in good articial light.
• Before turning the tool ON and during operation, make
sure all body parts are at a safe distance from the cutting
attachment.
• Always disconnect the tool from the power supply (i.e.
remove the plug from the outlet or remove the disabling
device):
– Whenever leaving the tool unattended
– Before clearing jammed material
– Before checking, cleaning, or working on the tool
– After striking a foreign object
– Whenever the tool starts to vibrate abnormally
• Always ensure that the ventilation openings are clear of
debris.
• Never allow people unfamiliar with these instructions or
children to use the machine. Local regulations can restrict
the age of the operator.
• Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
• Never operate the tool while people, especially children, or
pets are nearby.
• Wear eye protection and shoes at all times while operating
the tool.
• Only use the manufacturer’s recommended replacement
parts and accessories.
• Inspect and maintain the tool regularly. Have the tool
repaired only by an authorized repair center.
• When not in use, store the tool out of the reach of children.
Battery/battery charger safety warnings
• Protect the battery charger from rain and moisture. The
penetration of water in a battery charger increases the risk
of electric shock.
• Always recharge the battery with the charger specied by
the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used with
another battery pack.
• Do not charge other batteries. The battery charger is
suitable only for charging lithium batteries within the
listed voltage range. Otherwise there is danger of re and
explosion.
• Keep the battery clean. Contamination may cause the
danger of electric shock.
• Check the battery charger, cable, and plug each time before
using. Do not use the battery charger when defects
are detected. Do not open the battery charger yourself
and have it repaired only by qualied personnel using
original spare parts. Damaged battery chargers, cables,
and plugs increase the risk of electric shock.
• Do not operate the battery charger on easily inammable
surfaces (e.g. paper, textiles, etc.) or in combustible
environments. Heat from the battery charger may ignite
ammable materials or combustible vapors.
• Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs,
ush with water. If liquid contacts eyes, seek additional
medical help. The liquid ejected from the battery may
cause irritation or burns.
• Do not open the battery yourself. There is a danger of a
short circuit.
• Protect the battery against heat, including continuous sun
irradiation and re. There is a danger of explosion.
• Do not short-circuit the battery. There is a danger of
explosion.
• Damage and improper use of the battery may cause
vapors to be emitted. The vapors can irritate the respiratory
system. If vapors are emitted, provide fresh air and call a
physician.
3
Explanation of Symbols:
Symbol Description
Read instruction manual.
Do not expose to rain.
Only use the battery charger indoors.
Battery charger contains a safety
transformer.
Warning! The cutting attachment continues
to move after the motor is switched OFF.
Keep bystanders away.
4
Know Your Cordless Grass Shear/Shrubber
3
7
6
1
2
4
7
7
5
1. Shrubber attachment
2. Safety switch
3. Handle
4. On/Off trigger switch
Technical Data
Rated voltage DC 3.6 V
Rated no-load speed 900/min
Blade width 3.31 in. (8.4 cm) for grass shear
Blade length 5 in. (12.7 cm) for shrubber
Weight 2.11 lbs (0.96 kg)
: 59.8 dB
L
PA
Guaranteed LWA: 81 dB
(at operator position): 76.4 dB
L
PA
5. Drive cover
6. Shear attachment
7. Safety ears
Vibration: 0.952 m/s
Charging time (empty battery) 3 h
Battery type Li-ion
Battery voltage 3.6 V
Battery capacity 1500 mAh
Charger: LK-DC060060; input: AC 120 V,
60 Hz; output: DC 6 V, 600 mA
2
5
Assembly
Unit comes completely assembled with Grass Shear
blade attached.
Intended use
The product is intended for light trimming of shrubs and
lawn edges in domestic use.
Starting and Stopping
Starting: (Refer to diagram on page 5)
1) Push in the safety switch and hold (Feature 2).
2) Press in ON/OFF trigger switch (Feature 4).
3) Release the safety switch (Feature 2).
Stopping:
1) Release the ON/OFF trigger switch (Feature 4).
Introduction
This manual gives instructions on the correct assembly and
safe use of your Grass Shear/Shrubber. It is important that you
read these instructions carefully.
Unpacking
The contents of the carton includes:
• (1) HJ602C unit with shear attachment
• (1) Shrubber attachment
• (1) Battery charger
When parts are missing or damaged, please contact Snow Joe
customer service at 1-866-766-9563.
For your safety
m WARNING! Turn OFF the tool before adjusting
or cleaning. The blades continue to move for a few seconds after the tool is switched OFF.
m CAUTION! Do not touch the moving blades.
Before use
Charging procedure
The battery charger supplied matches the Li-ion battery
installed in the tool. Do not use other battery chargers.
The Li-ion battery is protected against deep discharging.
When the battery is empty, the machine is switched OFF by
a protective circuit. The blade no longer moves and a slight
whistling sound can be heard.
m If the ON/OFF switch is subject to continued use, the
Li-ion battery can be damaged.
The charging process starts as soon as the charger is plugged
into a proper outlet and the tool.
• During the charging procedure, the handle of the tool
warms up. This is normal.
• When not using for extended periods, disconnect the
battery charger from the outlet.
• Do not use the tool during the charging procedure.
m Working instructions
Hold tool at a distance from yourself. Stand in a secure and
stable position.
Cutting hedges/Shrubber
Before cutting, check the hedge/shrubber for foreign
objects (e.g. wire fences).
Cut stems up to 0.315 inches (8 mm) in thickness. When
cutting, move steadily along the line of cut, so that stems are
fed directly into the cutter blades. The double edge of the
cutting blade enables cutting in either direction, or with a
side-to-side motion. After use, place the blade transport
guard on the blade.
Recommended cutting/trimming times:
– Cut hedges with deciduous leaves in June and October.
– Cut evergreen hedges in April and August.
– Cut conifer and other fast growing shrubs approximately
every six weeks from May onwards.
Maintenance
To ensure long and reliable service, do the following
maintenance regularly:
– Check for obvious defects such as loose, dislodged or
damaged blades, loose ttings, and worn or damaged
components.
– Check that covers and guard are undamaged and correctly
tted. Complete necessary maintenance or repair before
using.
– If the machine should happen to fail despite the care taken
in manufacturing and testing, repair should be carried out
by an authorized customer service agent.
6
Blade maintenance
Always clean the cutting blades after operation and lubricate.
During longer cutting jobs, we recommend periodically
lubricating the cutting blade.
NOTE: We recommend a SAE-30 oil for lubricant.
Use a light coat.
Changing the blade
m CAUTION!
Wear gloves when changing the blade. Always handle the
blade by the safety ears (see Fig. C). Follow these easy
steps:
Removing
Push the drive cover release button (K) and slide the cover
A
(5) towards the ON/OFF trigger switch (4).
A
K
5
Lift the blade out by the Safety Ears.
C
Safety Ears
C
Fitting
Position the blades as shown aligning the holes in the
D
blade onto the drive pins. Verify that the rear part of the blade
is tucked under the rear housing tabs (6). This will ensure a
perfect alignment.
4
Lift the cover away from the housing.
B
B
Main Drive
Pin Hole
6
Housing
Tabs
D
PLEASE NOTE: When changing from Grass Shear blade to
Shrubber blade and back, please follow these TIPS:
Main
Drive Pin
7
When retting the drive cover, ensure that all four location
E
legs are properly lined up with the blade.
E
Service
If your cordless Grass Shear/Shrubber requires service or
maintenance, please call 1-866-766-9563 for assistance.
Model and Serial Numbers
When contacting the company or reordering parts, you will
need to provide the model and serial numbers of your product.
These are found at the bottom of your Cordless Grass Shear/
Shrubber. Copy these numbers into the space provided below.
Locator
Legs (4)
Slide the blade cover towards the blade to secure.
F
F
Cleaning/storage
Clean the exterior of the tool thoroughly using a soft brush
and cloth. Do not use water, solvents, or polishes. Remove all
debris, especially from the ventilation slots.
Store the tool in a secure, dry place out of the reach of
children. Do not place other objects on top of the tool.
Record the following numbers from the housing or handle of
your new product:
Model #:
H J 6 0 2 C
Serial #:
8
NOTES
9
A One-Year Full Warranty
for residential use
in the United States and Canada
General Conditions:
Snow Joe®, LLC warrants this product to the original purchaser for one years against defects in material or workmanship when used
for normal residential purposes. Snow Joe
part, subject to the conditions, limitations, and exclusions set forth herein. Such repair or parts replacement will be free from charge to
the original purchaser except noted below.
The duration of the warranty applies only if the product is put to personal use around the household or residence. If the product is put
to any business use, commercial or industrial, then the duration of this warranty is 90 days from the date of original purchase. If any
product is rented or leased, the duration of the warranty is 90 days from the date of original purchase.
It is the owner’s responsibility to perform correctly all maintenance, and minor adjustments explained in the owner’s manual.
Electric Products:
To obtain a replacement electric powered unit or repair the existing electric powered unit, you must return the complete unit and
postage prepaid to: Snow Joe Return Center, 86 Executive Avenue, Edison, NJ 08817.
Gasoline / Battery Products:
Limitations
• Batteries are warranted only for the period of 12 months after the date of purchase on a prorated basis. Rechargeable batteries
will be replaced free from charge during the rst 90 days. After the initial 90 days, batteries will be replaced at a prorated cost to
the customer.
• Idlers, cables, and electrical components are warranted to the original purchaser for use at household or residence for a period
of one year.
®
, LLC will repair any defect in material or workmanship, and repair or replace any defective
Exclusions
®
• Snow Joe
brand engines are covered under this warranty. All other engines and engine accessories are covered only by the
engine manufacturer’s warranty and are not covered by this warranty.
®
• Parts used that are not genuine Snow Joe
parts are not covered by this warranty.
• Damages resulting from misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires repair
is not covered under this warranty.
• Belts, augers, and tines are not covered under warranty – belts, augers, and tines wear out and can be purchased at
www.snowjoe.com or by calling 1-866-766-9563.
®
Snow Joe
obligating Snow Joe
, LLC may from time to time change the design of its products. Nothing contained in this warranty shall be construed as
®
, LLC to incorporate such design changes into previously manufactured products, nor shall such changes be
construed as an admission that previous designs were defective.
®
This warranty is intended to cover product defects only. Snow Joe
®
in connection with the use of the Snow Joe
Products covered by this warranty. This warranty does not cover any cost or expense
, LLC is not liable for indirect, incidental, or consequential damages
incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this
product, while waiting for completion of repairs under this warranty. Some states do not allow exclusions of incidental or consequential
damages, so the above exclusions may not apply in all states. This warranty may give you specic legal rights in your state.
®
If you wish to contact Snow Joe
, please direct inquiries to the:
Customer Service Department
Snow Joe Center
86 Executive Avenue
Edison, NJ 08817
®
Customers who have purchased Snow Joe
products exported from the United States and Canada should contact their Snow Joe®
Distributor (Dealer) to obtain information applicable for your country, province, or state. If for any reason, you are not satised with the
®
distributor’s service, or if you have difculty obtaining warranty information, contact your Snow Joe
®
are unsatisfactory, please write to the Snow Joe
Center at the above address.
seller. If in the event your efforts
If you have any questions about your product warranty, please call 1-866-SNOW-JOE or visit us online at www.snowjoe.com.
10
Loading...
