CORDLESS SNOW BLOWER

OPERATOR’S MANUAL

A Division of Snow Joe®, LLC Model iON8024-XRP Form No. SJ-iON8024-XRP-880E-M

24-INCH | 80-VOLT | LED LIGHTS | SELF-PROPELLED | 2-STAGE

IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use

Read all instructions when using cordless snow blowers.
Basic safety precautions should always be followed to reduce

the risk of re, electric shock, and personal injury.

General Safety Rules

Notice the personal safety alert symbol m used in this
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and

AWARENESS.

• Keep work area clean and well lit – Cluttered, dark areas

invite accidents.

• Keep bystanders away – All bystanders and pets should

be kept a safe distance away from the work area.

• Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.

• Use the right product – Do not use this machine for any

job except that for which it is intended.

•

mCAUTION! – Exercise caution to avoid slipping or falling.

Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.

• Use safety glasses – Also use safety footwear, snug-tting

clothing, protective gloves, hearing and head protection.

• Do not force the snow blower – Use the snow blower

at the rate for which it was designed to ensure optimal
performance and safe operation.

• Stay alert – Watch what you are doing. Use common

sense. Do not operate the snow blower when you are tired
or under the inuence of alcohol or drugs.

• Do not overreach –

all times.

• Store indoors – When not in use, the snow blower should

be kept dry and stored out of the reach of children in a high
or locked place.

• Maintain snow blower with care – Follow instructions for

lubricating and changing accessories.

Keep proper footing and balance at

mWARNING! Always disengage both triggers, press

down the safety switch, turn o and remove the key from
the switch, and disconnect the battery packs; wait for all
movement to stop before making any adjustments, inspecting,
servicing, changing accessories, cleaning the snow blower,

or when any other dangerous conditions present. Any
such operation should be performed after revolving parts
inside the snow blower stop completely. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.

mWARNING! When replacing any parts, you must strictly

observe the instructions and procedures described in this user

manual. Special care should be paid to any rubber parts, since

these parts may increase the engine load and decrease its
mechanical power if damaged.

mWARNING! If you notice that the snow blower is not

running properly or hear abnormal sounds from the engine

when it is in use, immediately stop the machine, disconnect the
battery packs, and contact Snow Joe

service center at 1-866-SNOWJOE (1-866-766-9563).

• Surfaces – This snow blower is intended for use on

paved surfaces. Do not use on gravel, stone or other
unpaved surfaces unless the snow blower is adjusted for

such surfaces according to the instructions given in the
operator’s manual.

• Moving parts present risks – Keep your face, hair,

clothing, hands, and feet away from moving parts. All

guards and safety attachments must be installed properly

before using the unit. Shut o and disconnect the battery

packs before touching any parts other than the handles and
switch.

• Avoid unintentional starting – Make sure the safety switch

and the power switch are in the o position before inserting

the battery packs in the unit. Do not carry the snow blower
with the safety switch and the triggers engaged.

• Do not overreach – Maintain proper footing and balance at

all times. Place heels rmly on the ground and tightly grasp

the handle grips. Watch for uneven surfaces and do not

overreach. In case you fall or collide with the snow blower,

inspect the unit for any damages or cracks. When stepping
backwards, be careful to avoid obstacles beneath your feet
or behind you to avoid falling.

®

+ Sun Joe® customer

mWARNING! If the snow blower strikes any object,

follow these steps:

i) Stop the snow blower, remove key and remove the

battery packs.

ii) Inspect for damage.

© 2017 by Snow Joe®, LLC
All rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

1

iii) Repair any damage before restarting and operating

the snow blower.

Battery + Charger
Safety Instructions

We pay a great deal of attention to the design of every battery

pack to ensure that we supply you with batteries that are safe,

durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.

This data is then used exclusively to be able to assemble the

best possible battery packs.

Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must

be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.

IMPORTANT! Analyses conrm that incorrect use and poor

care of high-performance batteries are the main factors
responsible for personal and/or product damage.

mWARNING! Use only approved replacement batteries;

other batteries may damage the cordless snow blower and

cause it to malfunction, which can lead to serious personal
injury.

mCAUTION! To reduce the risk of injury, charge the

EcoSharp

in its designated lithium-ion charger, the iCHRG40-DPC
or iCHRG40. Other types of chargers present risk of re,
personal injury and damage. Do not wire a battery pack to a

power supply plug or car cigarette lighter. Such misuse will
permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the

• Charge in a well-ventilated area – Do not block the

NOTE: The safe temperature range for the battery is -4°F

• Maintain charger cord – When unplugging the charger, pull

®

PRO iBAT40XRP lithium-ion battery packs only

battery pack in rain, snow or in damp or wet locations.

Do not use the battery pack or charger in the presence of

explosive atmospheres (gaseous fumes, dust or ammable

materials) because sparks may be generated when inserting

or removing the battery pack, which could lead to a re.

charger vents. Keep them clear to allow for proper

ventilation. Do not allow smoking or open ames near a
charging battery pack. Vented gases may explode.

(-20°C) to 113°F (45°C). Do not charge the battery outside

in freezing weather; charge it at room temperature.

the plug, not the cord, from the receptacle to reduce the

risk of damage to the electrical plug and cord. Never carry
the charger by its cord or yank it by the cord to disconnect

it from the receptacle. Keep the cord away from heat, oil

and sharp edges. Make sure the cord will not be stepped

on, tripped over or subjected to damage or stress when the

charger is in use. Do not use the charger with a damaged
cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly

wired extension cord poses a risk of re and electric shock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the

female plug matching the male plug on the charger. Make

sure that the extension cord is in good electrical condition.

• Charger iCHRG40 or iCHRG40-DPC is rated for 120 volt

AC only – The charger must be plugged into an appropriate
receptacle.

• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in risk of

re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove

battery packs from unplugged chargers.

mWARNING! To reduce the risk of electric shock,

always unplug the charger before performing any cleaning

or maintenance. Do not allow water to ow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock

hazards.

• Do not burn or incinerate battery packs – Battery packs
may explode, causing personal injury or damage. Toxic

fumes and materials are created when battery packs are
burned.

• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a

sharp blow, been dropped, run over or have been damaged
in any way (i.e. pierced with a nail, hit with a hammer,
stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, re or exposure to toxic
battery chemicals. If the battery or charger are damaged,

contact an authorized Snow Joe
call the Snow Joe
1-866-SNOWJOE (1-866-766-9563) for assistance.

• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use

rubber or neoprene gloves to safely dispose of it. If skin

is exposed to battery uids, wash the aected area with
soap and water and rinse with vinegar. If eyes are exposed
to battery chemicals, immediately ush with water for 20

minutes and seek medical attention. Remove and dispose
of contaminated clothing.

• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive

and negative contacts on the battery pack. Do not place a

battery pack near anything that may cause a short circuit,
such as paper clips, coins, keys, screws, nails and other
metallic objects. A short-circuited battery pack poses a risk
of re and severe personal injury.

• Store your battery packs and charger in a cool, dry

place – Do not store the battery packs or charger where

temperatures may exceed 104ºF (40ºC), such as in direct

sunlight or inside a vehicle or metal building during the
summer.

®

+ Sun Joe® customer service center at

®

+ Sun Joe® dealer or

2

Information about the battery

1. The battery packs supplied with your cordless snow

blower are only partially charged. The battery packs have
to be charged completely before you use the tool for the

rst time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery packs frequently.

3. Store the battery packs in a cool place, ideally at 59°F

(15°C) and charged to at least 40%.

4. Lithium-ion batteries are subject to a natural aging

process. The battery pack must be replaced at the latest

when its capacity falls to just 80% of its capacity when

new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your snow blower,
and therefore pose a safety risk.

5. Do not throw battery packs into an open re as this poses

a risk of explosion.

6. Do not ignite the battery pack or expose it to re.

7. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most

common cause of exhaustive discharge is lengthy storage

or non-use of partially discharged batteries. Stop working
as soon as the performance of the battery falls noticeably
or the electronic protection system triggers. Place the
battery pack in storage only after it has been fully charged.

8. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not apparent

externally.

9. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one

meter or those that have been exposed to violent shocks,

even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have

suered serious damage. In such instances, please read

the waste disposal information for proper battery disposal.

10. If the battery pack suers overloading and overheating,

the integrated protective cuto will switch o the

equipment for safety reasons.

IMPORTANT! Do not press the ON/OFF switch any more

if the protective cut-o has been activated. This may

damage the battery pack.

11. Use only original battery packs. The use of other batteries

poses a re risk and may result in injuries or an explosion.

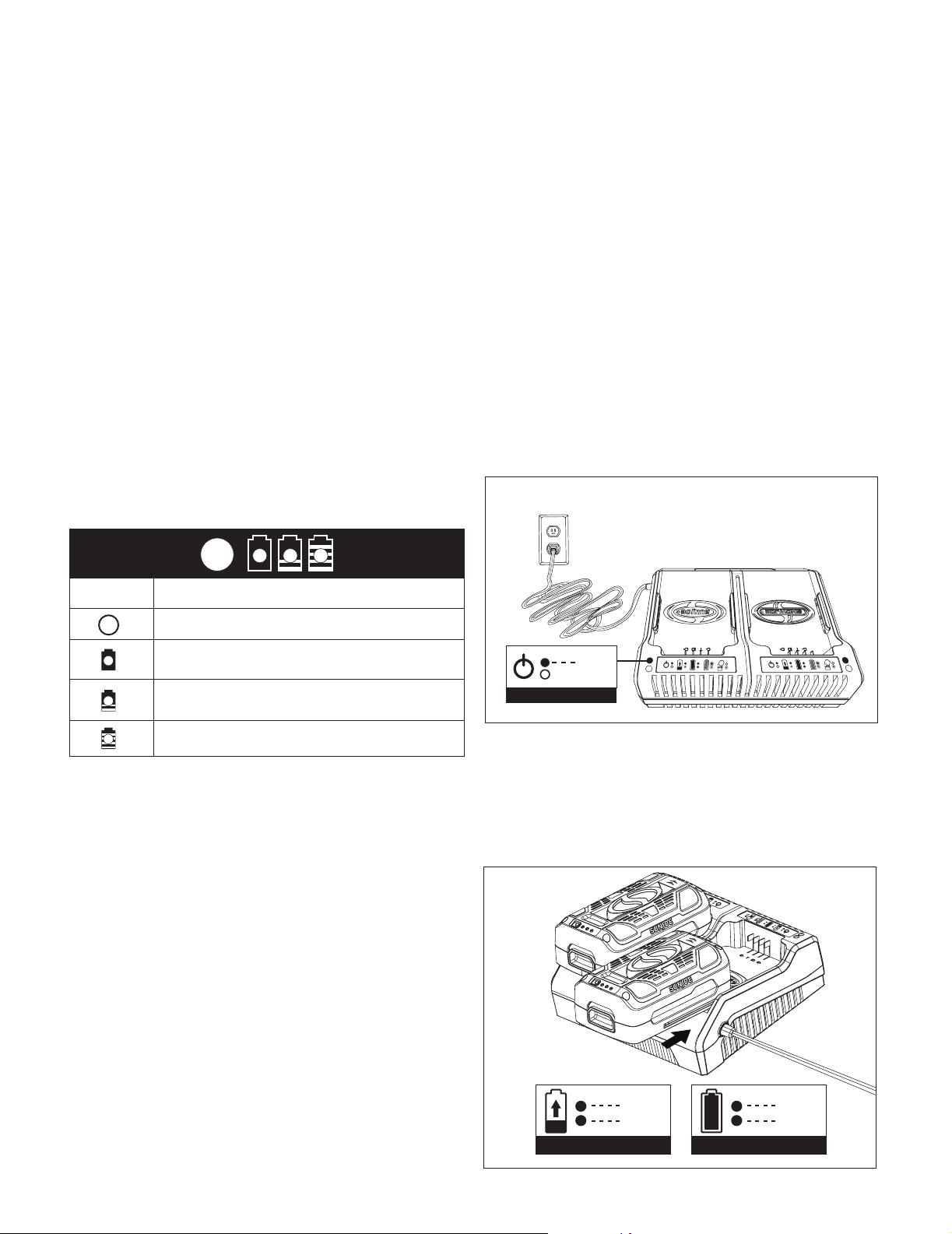

Information about the charger and the
charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating

plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and
sharp edges. Have damaged cords repaired without delay

®

by a qualied technician at an authorized Snow Joe

Sun Joe® dealer or call the Snow Joe® + Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).

3. Electrical plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

grounded appliances. Unmodied plugs and matching

outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery pack(s) and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

cordless tools.

6. During periods of heavy use, the battery pack will become

warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries in the charger for
days on end.

8. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were
charged. There is a high probability that the battery pack

has already suered dangerous damage (exhaustive

discharge).

9. Charging batteries at a temperature below 50°F (10°C) will

cause chemical damage to the cells and may cause a re.

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have
suered dangerous damage.

11. Do not use batteries that have suered curvature or

deformation during the charging process or those that

exhibit other atypical symptoms (gassing, hissing,
cracking, etc.)

12. Never fully discharge the battery pack (maximum

recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging
of the battery cells.

+

Protection from environmental

inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous
cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger only in dry conditions and at an

ambient temperature of 50-104°F (10-40°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 104°F (40°C). In

particular, do not leave the battery charger in a car that is

parked in the sunshine.

3

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result

in overheating and cell damage. Never charge or work
with batteries that have been overheated – replace them

immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 50-104°F

(10-40°C). Store your lithium-ion battery pack in a cool,

dry place at a temperature of 50-68°F (10-20°C). Protect

the battery pack, charger and cordless tool from humidity

and direct sunlight. Only place fully charged batteries in
storage (charged to at least 40%).

8. Prevent the lithium-ion battery pack from freezing. Battery

packs that were stored below 32°F (0°C) for more than 60
minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic
protection system and the battery cells. Avoid electrostatic
charging and never touch the battery poles.

Additional Safety Instructions

Safety Instructions for Walk-Behind
Snow Blowers

mWARNING! Rotating impeller can cause serious injury.

Never attempt to unclog or clean unit while auger is running.

• Read the operator’s manual carefully – Learn your snow

blower’s applications and limitations as well as the specic
potential hazards related to this machine. Do not use this
machine for any purpose other than the one for which it
was designed. Failure to adhere to these precautions may

cause mechanical defaults, serious damage, or personal
injury.

Understand:

– How to operate all controls.
– The functions of all controls.
– How to STOP in an emergency.

• Preliminary unit inspection – Thoroughly inspect the

unit before use. Make sure all the parts are secure and

installed correctly. If you notice any abnormalities, do not

use the machine until it has been properly repaired. Always
perform a test run the rst time you use the snow blower
or after replacing parts to ensure that the unit is functioning
properly.

• Preliminary area inspection – Clear the area to be plowed

before each use. Remove all objects such as rocks, broken
glass, nails, wire, or string, which can be thrown by or

become entangled in the snow blower. Keep the area of

operation clear of all persons, children, and pets.

• Excessive force – The snow blower was designed to

respond at a certain rate for various snow conditions for
optimal safety and performance. Do not force it; keep the
applied pressure constant throughout its operation.

• Malfunctioning switch – Do not use the snow blower if
the switch does not turn it on and o. Any appliance that
cannot be controlled by the switch is not safe to use and
must be repaired.

• Hitting an object – If the snow blower accidentally strikes

an object, rst stop the snow blower motor and remove the
key and battery packs; next, inspect for damage; nally,

repair or replace any damaged part before restarting and
operating the snow blower.

• Discharge chute safety – Never direct the snow discharge
chute at the operator, at bystanders, at vehicles, or at
windows. The discharged snow, which may contain foreign

objects accidentally picked up by the snow blower, can
cause serious damage and personal injury. Do not use
your hands to unclog the discharge chute. Stop the motor,

remove the key and battery packs before removing debris.

• Hand-held operating position – Operation of the snow
blower in the hand-held position is unsafe.

• Abnormal operation – If you nd that the snow blower

is not running properly or hear abnormal sounds from the

engine, immediately stop the machine, remove the key and
battery packs, and contact an authorized Snow Joe

Sun Joe
service center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.

• Noise control – When using the snow blower, respect
the local laws and regulations regarding noise control and

environmental protection. To avoid noise disturbance, you

should carefully decide upon an appropriate operation time
and consider the surrounding conditions.

• When work is completed – Remove the battery packs

from the snow blower when not in use, when changing
accessories, and before performing any maintenance task.

• Store safely – Store the snow blower indoors in a dry area

between uses. Keep in a locked area, where children and

unauthorized users cannot gain access. Never store the
snow blower with the battery packs installed. It may cause

damage and injury.

• Maintain for safety and longevity – Check for

misalignment or binding of moving parts, breakage of
parts, and any other conditions that may aect the unit’s
operation. If damaged, repair or replace the damaged part

before use. Use only those replacement parts made for your

model. When replacing any parts, you must strictly observe

the instructions and procedures described in this manual.

Special care should be paid to any rubber parts, since

these parts may increase the engine load and decrease its
mechanical power if damaged.

• Tip over hazard – DO NOT operate near drop-os, ditches,

or embankments. Unit can suddendly turn over if a wheel is

over the edge of a cli or ditch, or if an edge caves in.

• Always back up slowly – Do not operate in reverse unless
absolutely necessary. Always look down and behind before
and while backing.

• Travelling – Disengage auger drive when travelling from
one work area to another.

®

dealer or call the Snow Joe® + Sun Joe® customer

®

+

4

• Skid shoes – Adjust skid shoes to clear gravel or crushed

rock surfaces safely.

• Prevent unauthorized use – Never leave snow blower

unattended with key in. Always stop the motor, remove the

key and battery packs to prevent unauthorized use.

• Check all controls frequently – Check both triggers and

safety switch frequently. Adjust and service as required.

All motion of drive wheels and auger/impeller must stop
quickly when triggers are released.

• Avoid steep slopes – DO NOT operate on steep slopes.

DO NOT clear snow across the face of slopes. Keep all
movement on slopes slow and gradual. DO NOT make
sudden changes in speed or direction. Use a slow speed to
avoid stops or shifts on slopes. Avoid starting or stopping
on a slope.

• Keep all hardware properly tightened – Check shear bolts

frequently.

Electrical Safety

• Electrical plugs must match the outlet – Never modify

the plug in any way. Do not use any adapter plugs with

grounded appliances. Unmodied plugs and matching

outlets will reduce the risk of electric shock.

• Avoid accidental starting – Make sure the safety switch

is o and the triggers are disengaged before inserting the
battery packs into the unit. Do not transport the snow
blower with the safety switch and the triggers engaged.

5

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all

instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions

READ THE OPERATOR'S
MANUAL(S) – Read, understand

and follow all instructions in the
user manual(s) before attempting
to assemble and operate.

WARNING! Do not expose the

unit to rain or wet conditions.
Keep dry.

SAFETY ALERT – Indicates a

precaution, a warning or a danger.

Wear hearing protection.
Wear eye protection.
Wear breathing protection.

Keep hands, feet and clothing

away from the rotating auger to

avoid injury.

Wear protective gloves and non-slip
footwear when using the machine
and handling debris.

Do not use hands to unclog chute.

DANGER! Cutting/dismemberment
hazard - Keep feet away from the
rotating auger.

CAUTION! Beware of stones and

other foreign objects that could

be thrown from the appliance.

The rotating part will continuously
run for several seconds after you

turn o the machine.

Keep bystanders and children a
safe distance (at least 33 ft/10 m)
away from the work area.

DANGER! Cutting/dismemberment
hazard – Keep hands away from the
rotating auger. Do not use hands to
unclog rotor housing. Stop motor
before removing debris.

WARNING! Always turn the machine
OFF and remove the safety key

before conducting inspection,

cleaning and maintenance.

Indoor use only. Only use battery
charger indoors.

6

Know Your Cordless Snow Blower

Read the owner’s manual and safety rules carefully before operating your cordless snow blower. Compare the illustration
below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.

8

1. Auger trigger

2. Handle grip

3. LED lights (2)

4. Safety key/Power switch

5. Control panel

6. Safety switch

7. Chute control switch

8. Drive trigger

9. Battery light indicators

10. Forward speed selector buttons

11. Transport button

12. Reverse button

13. LED light button

14. Handle knob + bolt (4)

15. Upper handle assembly

16. Lower handle

17. Battery compartment

18. Chute deector trigger

19. Discharge chute deector

20. Discharge chute

21. Mounting clip

22. Chute clean-out tool

23. Wheel (2)

24. LED window (2)

25. Skid shoe (2)

26. Impeller

27. Auger gearcase

28. Auger

29. Scraper blade

30. Push button for battery

indicator

31. Battery indicator

32. Push lock button

33. EcoSharp

battery (iBAT40XRP) (2)

34. EcoSharp

charger (iCHRG40-DPC)

30

1

2

31

32

33

®

PRO lithium-ion

®

dual port battery

3

15

16

17

34

4

6

5

23 24

7

9 9

18

14

25 26 28 2927

10

ON

OFF

116 1312 4

19

20

21

22

Technical Data

Battery Voltage* 80 V D.C. (2 x 40 V in Series)

Battery Capacity 6.0 Ah (each)
Charging Time 5 hours (for full charge)

Run Time (Max) 50 mins (2 batteries)
No Load Speed 140 rpm (2.33 Hz)

Auger 2 serrated steel blades
Motor 2500 W Brushless
Clearing Width 24 in. (61 cm)
Depth of Snow Cut 13 in. (33 cm)

Throw Distance (Max) 32 ft (10 m)
Plowing Capacity (Max) 1000 lbs/min (454 kg/min)

*Initial no-load voltage, when fully charged, peaks at 80 volts; nominal voltage under typical load is 72 volts.

Stages Dual stage
Drive Type Self-propelled

Drive System 3 forward speeds,
1 reverse speed,

1 XPORT speed

Type of Snow Light, uy
Tire Size 13 in. (33 cm) inatable

Tire Pressure 20 psi

Directional Control 180º auto-rotate chute

LED Light 3 watt (each)
Weight (snow blower alone) 92.5 lbs (41.9 kg)
Weight 97.8 lbs (44.3 kg)

(snow blower with batteries installed)

7

Unpacking

Carton Contents:

• Cordless snow blower with lower handle

• Upper handle assembly

• EcoSharp

• EcoSharp

• Safety key (2)

• Handle knob (4) + bolt (4)

• Discharge chute assembly

• Chute clean-out tool

• Chute nuts (4)

• Shear bolt (2) + gasket (2) + nut (2) (Extras)

• Hex key

• Manual with registration card

1. Carefully remove the cordless snow blower and check to

see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please

call the Snow Joe
1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use the cordless snow
blower. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.

IMPORTANT! The equipment and packaging material are

not toys. Do not let children play with plastic bags, foils

or small parts. These items can be swallowed and pose a

suocation risk!

®

PRO 40 V 6.0 Ah battery (2)

®

40 V dual port battery charger

®

+ Sun Joe® customer service center at

Assembling the Handles

mWARNING! Observe the lower rear area of the snow

blower and be careful not to damage cable sleeve when
rotating the handle upward.

1. Rotate the handlebars into operating position.

2. Slightly spread the upper handle assembly down over the

lower handle until it slides into position (Fig. 1).

Fig. 1

Upper
handle
assembly

Lower
handle

Handle
knob +
bolt

Spread the

upper handle

Cable
sleeve

(BACK VIEW)

Assembly

m

WARNING! To avoid serious personal injury, read and

understand all safety instructions provided.

mWARNING! Unpacking and assembly should be

completed on a at and stable surface, with adequate space

for moving the machine and its packaging.

Tools and supplies required:

• Hex key (included)

• Tire gauge

3. Adjust upper handle assembly to the optimal position

by aligning the double bolt holes at the desired height.
Secure the connection using the 4 handle knobs and

bolts, and tighten on each side (Fig. 2).

Fig. 2

3

2

3-position
handle
height
adjustment

1

8

Discharge Chute Assembly

1. Use the hex key to remove the 4 nuts from the gear plate.

Keep them on the side (Fig. 3).

Chute Clean-Out Tool

The chute clean-out tool is fastened to the top of the auger
housing with a mounting clip (Fig. 6).

Fig. 3

Hex key

Nut

Gear plate

2. Place the discharge chute assembly onto the gear plate,

aligning the 4 holes in the gear plate, and push down until
the chute is ush and at against the housing (Fig. 4).

3. Using the 4 nuts, secure the discharge chute assembly to

the gear plate (Fig. 4).

Fig. 4

Discharge chute

assembly

Gear plate

Nuts

4. Press the chute deector trigger to raise or lower the

chute deector to the desired height of the snow stream

(Fig. 5).

Fig. 5

Chute

deector

trigger

Fig. 6

Chute clean-out tool

Skid Shoes Adjustment

Position the skid shoes based on surface conditions. Adjust
upward for hard-packed snow. Adjust downward when

operating on gravel or crushed rock surfaces.

The snow blower skid shoes are adjusted at the factory for
shipping purposes. Adjust them downward, if desired, prior to

operating the snow blower.

mWARNING! It is not recommended that you operate this

snow blower on gravel as it can easily pick up and throw loose

gravel, causing personal injury or damage to the snow blower

and surrounding property.

1. For close snow removal on a smooth surface, raise skid

shoes higher on the auger housing. Allow 1/8 in. (3 mm)

between scraper blade and hard, smooth surface(s).

2. Use a middle or lower position when the area to be

cleared is uneven, such as a gravel driveway. Allow
1-1/4 in. (30 mm) between scraper blade and uneven or
gravel surfaces.

NOTE: If you choose to operate the snow blower on a

gravel surface, keep the skid shoes in position for maximum

clearance between the ground and the scraper blade.

To adjust the skid shoes:

3. Loosen the 4 hex nuts (2 on each side). Move skid shoes

to desired position (Fig. 7).

Fig. 7

Skid shoe

Hex nut

9
