Snow Thrower
Snow Thrower
Model No. 622U1/623U1
Form No. 7622U1/623U1-880E
A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to the
use of this snow thrower. Keep this manual for future reference.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand and follow these instructions in their entirety,
and should reread them at the start of each snow season.
Failure to follow these instructions may result in ELECTRIC
SHOCK, FIRE and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol m used in
this manual to draw your attention to a WARNING
given along with the particular operating instruction.
This means that the operation requires special
ATTENTION, CAUTION, and AWARENESS.
1. Work Area
a. Keep work area clean and well lit. Cluttered,
dark areas invite accidents.
b. Do not operate snow thrower in an explosive
atmosphere, such as in the presence of flammable
liquids, gases, or dust. Electrical appliances create
sparks that may ignite the dust or fumes.
c. Keep children, pets, and bystanders away from
work area. Be aware that the normal noise of the
machine when turned on may make it difficult for
you to hear approaching people.
2. Electrical Safety
a. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not abuse the cord. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
Never carry the snow thrower by its cord or yank
the cord to disconnect it from the electrical outlet.
d. Replace or properly repair damaged cords. If
OPERATOR’S MANUAL
cord is damaged in any manner while plugged in,
pull the extension cord from the wall receptacle.
e. Contact with water while operating the
snow thrower can result in electric shock and
serious bodily injury. Do not use the snow thrower
in damp or wet locations or expose to rain. Do not
handle the plug or the appliance with wet hands or
while standing in water.
f. Extension Cord – WARNING – Only use a UL rated
extension cord for OUTDOOR, all-weather use
(usually orange color). To prevent the extension
cord from disconnecting during operation, tie it around
the top right side of the middle frame before connecting
it to the snow thrower as shown in Figure 18. See
WARNING box on page 10 for more cord information.
g. Turn off the power switch and disconnect the
power cable before inspecting, servicing, repairing,
or cleaning the snow thrower. Any such operation
should be performed after revolving parts inside the
snow thrower stop completely.
h. Do not move or transport the snow thrower when
the plug is connected to the power socket and
the switch is turned on.
3. Personal Safety
a. Stay alert – Watch what you are doing and use
common sense when operating the snow thrower.
Do not use the machine when tired, ill, or under
the influence of drugs, alcohol, or medication. A
moment of inattention may result in serious
personal injury.
b. Wear proper clothing – Wearing rubber boots offers
additional protection from electric shock. Do not wear
loose clothing or jewelry that may become caught
in the machine. Wear protective headgear to keep
hair away from revolving parts of the machine.
Safety glasses offer better protection than
everyday eyeglasses.
c. Moving parts present risks – Keep your face,
hair, clothing, hands and feet away from moving
parts. All guards and safety attachments must be
installed properly before using the unit. Shut off
and disconnect cord before touching any parts
other than the handles and switch.
d. Surfaces – This snow thrower is intended for use on
paved surfaces. Do not use on gravel, stone, or other
unpaved surfaces unless the snow thrower is adjusted
for such surfaces according to the instructions given
in the operator!s manual.
e. Avoid accidental starting – Make sure the switch is
in the off position before plugging in the unit. Do not
carry the snow thrower with your finger on the switch.
© 2010 by Snow Joe, LLC
All rights reserved. Original instructions.
SAVE THESE INSTRUCTIONS
1
f. Body position – Maintain proper footing and balance
at all times. Place heels firmly on the ground and
tightly grasp the handle bar. Watch for uneven surfaces
and do not overreach. In case you fall or collide with
the snow thrower, inspect the unit for damage. When
stepping backwards, be careful to avoid obstacles
beneath your feet or behind you to avoid falling.
4. Snow Thrower Use and Care
a. Know your snow thrower – Familiarize yourself with
the main parts of your snow thrower (Fig. 1).
Figure 1 Model 622U1/623U1
A – Lower frame
B – Middle frame
C – Upper frame
D – Joint fixing T-bolt and knob
E – Upper chute crank
F – Lower chute crank
G – Chute deflector
H – Discharge chute
I – Main cover
J – Auger
K – Rubber plate
L – Scraper
M – Wheels
N – Switch housing
O – Polarized plug
P – Handle bar
Q – Led Light (623U1 Only)
Read the operator!s manual carefully. Learn your snow thrower!s
applications and limitations as well as the specific potential
hazards related to this machine. Do not use this machine
for any purpose other than the one for which it was designed.
Otherwise, it may cause mechanical defaults, serious damage
or personal injury.
b. Preliminary unit inspection – Thoroughly inspect the
unit before use. Make sure all the parts are secure and
installed correctly. If you notice any abnormalities, do
not use the machine until it has been properly repaired.
Always perform a test run the first time you use the
snow thrower or after replacing parts to ensure that the
unit is functioning properly.
c. Preliminary area inspection – Clear the area to
be plowed before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string,
which can be thrown by or become entangled in
the snow thrower. Keep the area of operation clear
of all persons, particularly children and pets.
d. Excessive force – The snow thrower was designed
to respond at a certain rate for various snow conditions
for optimum safety and performance. Do not force
it; keep pressure constant.
e. Malfunctioning switch – Do not use the snow thrower
if the switch does not turn it on and off. Any electrical
appliance that cannot be controlled by the switch is
not safe to use and must be repaired.
f. Hitting an object – If the snow thrower accidentally
strikes an object, first stop the snow thrower; inspect
for damage; repair or replace any damaged part
before restarting and operating the snow thrower.
g. Discharge chute safety – Never direct the snow
discharge chute at the operator, at bystanders, at
vehicles or at windows. The throwing snow and foreign
objects accidentally picked up by the snow thrower can
cause serious damage and personal injury. Do not
use your hands to unclog the discharge chute. Stop
the motor before removing debris.
h. Hand-held operating position – Operation of the
snow thrower in the hand-held position is unsafe.
i. Abnormal operation – If you notice the snow thrower
running in an unstable state or hear abnormal sounds
from the engine, stop the machine, disconnect the
power immediately, and contact your original distributor.
j. Noise control – When using the snow thrower, you
must respect local laws and regulations regarding
noise control and environmental protection. To avoid
noise disturbance, you should carefully decide upon
an appropriate operation time and consider the
surrounding conditions.
2
k. When work is completed – Disconnect the snow
¡
ADVERTENCIA!
Read operator!s manual for operating and safety instructions.
Replacement manual available by sending model and serial numbers to:
Snow Joe, LLC, 86 Executive Avenue, Edison, NJ 08817, or visit www.snowjoe.com
Lea el manual de instrucciones de seguridad y operación.
Tenemos disponible manuales de reemplazo si envía el número de modelo y número de serie a:
Snow Joe, LLC, 86 Executive Avenue, Edison, NJ 08817, o visite www.snowjoe.com
Lire le manuel pour connaître le mode d!emploi et les prescriptions de sécurité.
Manuel de rechange disponible sur envoi du numéro de modèle et du numéro de série à :
Snow Joe, LLC, 86 Executive Avenue, Edison, NJ 08817, ou visiter le site www.snowjoe.com
m. Maintain for safety and longevity – Check for
thrower from the power source when not in use, when
changing accessories, and before performing any
maintenance function.
l. Store safely – Store snow thrower indoors in a dry
area between uses. Keep in a locked area, where
children and unauthorized users cannot gain access.
Do not store the machine while it is still connected
to the power source. It may cause damage and injury.
Safety and Instruction Decals
misalignment or binding of moving parts, breakage
of parts, and any other conditions that may affect the
unit!s operation. If damaged, repair or replace the
damaged part before use. Use only those replacement
parts made for your model. When replacing any
parts, you must strictly observe the instructions and
procedures described in this manual. Special care
should be paid to any rubber parts, since these parts
may increase the engine load and decrease its
mechanical power if damaged.
Safety decals and instructions are easily visible to
the operator and are located near areas of potential
m
WARNING!
Electric shock can cause serious injury
or death. To avoid electric shock: DO
NOT USE SNOW THROWER IF WIRE
INSULATION IS DAMAGED. READ
ASSEMBLY INSTRUCTIONS AND
OPERATOR’S MANUAL.
danger. Lost or damaged decals should be replaced.
Una descarga eléctrica puede causar
lesiones graves o la muerte. Para evitarla:
NO UTILIZAR EL LANZADOR DE
NIEVE SI EL AISLANTE DEL CABLE
ESTÁ DAÑADO. LEER LAS
INSTRUCCIONES DE ENSAMBLAJE
Y EL MANUAL DEL OPERARIO.
622U1/623U1-2135
DANGER
m
DANGER Do not use hands to unclog chute. Stop motor before removing debris. Do not walk in front of
running machine. Do not direct discharge at bystander.
CAUTION Use for snow removal only.
WARNING To reduce the risk of electric shock, replace damaged cord immediately.
PELIGRO No emplee las manos para desatascar la tolva. Pare el motor antes de sacar el material atascado.
No camine delante de la máquina en funcionamiento. No descargue directamente sobre los transeúntes.
ADVERTENCIA De uso exclusivo para remover la nieve.
ADVERTENCIA Para prevenir el riesgo de una descarga eléctrica, cambie el cable dañado inmediatamente.
DANGER Ne pas déboucher le conduit d!éjection à la main. Arrêter le moteur avant d!ôter tout debris.
Ne pas se mettre devant une machine en marche. Ne pas diriger le jet d!éjection de neige vers quelqu!un.
ATTENTION N!utiliser que pour ôter la neige.
AVERTISSEMENT Afin de prévenir le risque d!électrocution, remplacer immédiatement le cordon
électrique abîmé.
TO START
Press Switch
Squeeze Bar
PARA PONER
EN MARCHA
Presione el botón
del interruptor
Exprima la barra
de la manija
POUR DÉMARRER
Appuyez sur
l'interrupteur
Serrez la poignée
TO STOP
Release Bar
PARA APAGAR
Suelte la barra
POUR ARRÊTER
Relâchez la poignée
622U1/623U1-2134
AVERTISSEMENT !
Un choc électrique peut provoquer des
blessures graves voire mortelles. Pour éviter
les chocs électriques : N'UTILISEZ PAS LA
SOUFFLEUSE À NEIGE SI L'ISOLATION
D'UN FIL EST ENDOMMAGÉE. LISEZ
LES INSTRUCTIONS DE MONTAGE ET
LE MANUEL DE L'UTILISATEUR.
SNOW JOE ULTRA MODEL 622U1
120 VAC 60 HZ 13 AMP
Made in China
SNOW JOE ULTRA MODELO 622U1
120 VAC 60 HZ 13 AMP
Fabricado en China
SNOW JOE ULTRA MODÈLE 622U1
120 VCA 60 HZ 13 AMP
Fabriqué en Chine
622U1/623U1-2137
DOUBLE INSULATED: When servicing, use only identical
replacement parts.
DOBLE AISLAMIENTO:
piezas idénticas.
DOUBLE ISOLATION:
pièces de rechange identiques.
Al darle servicio, use solo
lors de l!entretien, n!employer que des
CONFORMS TO UL STD.1090
CERTIFIED TO CAN/CSA
STANDARD C22.2 NO. 147-M90
CONFORME A LA NORMA UL 1090
CERTIFICADO POR CAN/CSA
NORMA C22.2 NO. 147-M90
CONFORME À LA NORME UL 1090
CERTIFIÉ POUR CAN/CSA
STANDARD C22.2 NO. 147-M90
622U1/623U1-2136
3
Assembly
m
Inspect wiring, which, if damaged during shipping,
may cause serious bodily injury during equipment
use. If any damage is seen or suspected, do not
assemble. Instead, contact Snow Joe Customer Service
for assistance.
Handle with care during assembly so that electrical
wiring does not become damaged.
CAUTION
m
Getting Started
1. Remove the snow thrower and all other items from the box.
2. Determine the left and right hand sides of the snow thrower
by standing in the normal operating position.
3. Check all items for shipping damage. If damage is seen or
suspected or if any of the parts are missing, do not assemble.
Instead, promptly inform the dealer where you bought
the snow thrower or contact Snow Joe customer service
for assistance.
4. Check to make sure that the parts bag contains all of
the following:
Cable clips (3 pcs)
Upper chute crank (1 pc)
Two-sided open-end wrench (1 pc)
Upper, Middle, and Lower Frame
Assembly
1. Loosen and remove the four sets of joint fixing T-bolts,
washers, and knobs to separate the upper frame from the
middle frame (Fig. 2).
Figure 2
A – Upper frame
B – Middle frame
2. Hold the middle frame so that the screw holes align with
the holes on the lower frame. Insert the joint fixing T-bolt
into the aligned holes on each side. Use the washers and
joint fixing knobs to secure the connection on both sides
(Figs. 3 – 5). The joint fixing T-bolts should be inserted inside
the frame of the unit so that the washers and joint fixing
knobs are fastened to the outside of the frame.
Note:
1. Make sure the middle frame is held upright, following
the UP mark attached to the middle frame. Holding
the middle frame in the reverse direction will not
assemble the frames properly.
2. Do not overtighten the joint fixing knobs.
C – Lower frame
4
Figure 3
Figure 5
A – Middle frame B – Lower frame
Figure 4
A – Joint fixing T-bolt B – Washers
A – Joint fixing knob B – Washers
3. Connect the upper frame to the middle frame in the same
way as described in step 2. Use the joint fixing T-bolts,
washers, and knobs to secure the connection on both sides
(Figs. 6 – 8).
Figure 6
A – Upper frame B – Middle frame
5
Figure 7
A – Joint fixing T-bolt B – Washer
4. Locate the three cable clips in the parts bag. Secure the
power cord to the frame of the unit by clipping them onto
the frame at evenly spaced intervals (Fig. 9).
Figure 9
A – Cable clip
Figure 8
A – Joint fixing knob B – Washer
Discharge Chute and Chute Crank
Assembly
1. Lift the chute deflector so that it snaps and locks securely
onto the discharge chute (Figs. 10 and 11).
6
Figure 10
Figure 12
A – Chute deflector
B – Chute deflector knob
C – Discharge chute
Figure 11
A-Chute deflector B-Discharge chute
A – Chute deflector B – Chute deflector knob
3. Locate the upper chute crank in the parts bag. Remove the
screw and nut from the upper chute crank using a
Phillips screwdriver and the wrench provided (Fig. 13).
Note: You may be able to unfasten the screw and nut
by hand.
2. Raise or lower the chute deflector to the desired height of the
snow stream and tighten the chute deflector knobs (Fig. 12).
Note: Do not overtighten the chute deflector knobs.
Figure 13
A – Upper chute crank
B – Eye bolt with rubber grommet
7
C – Screw
D – Nut

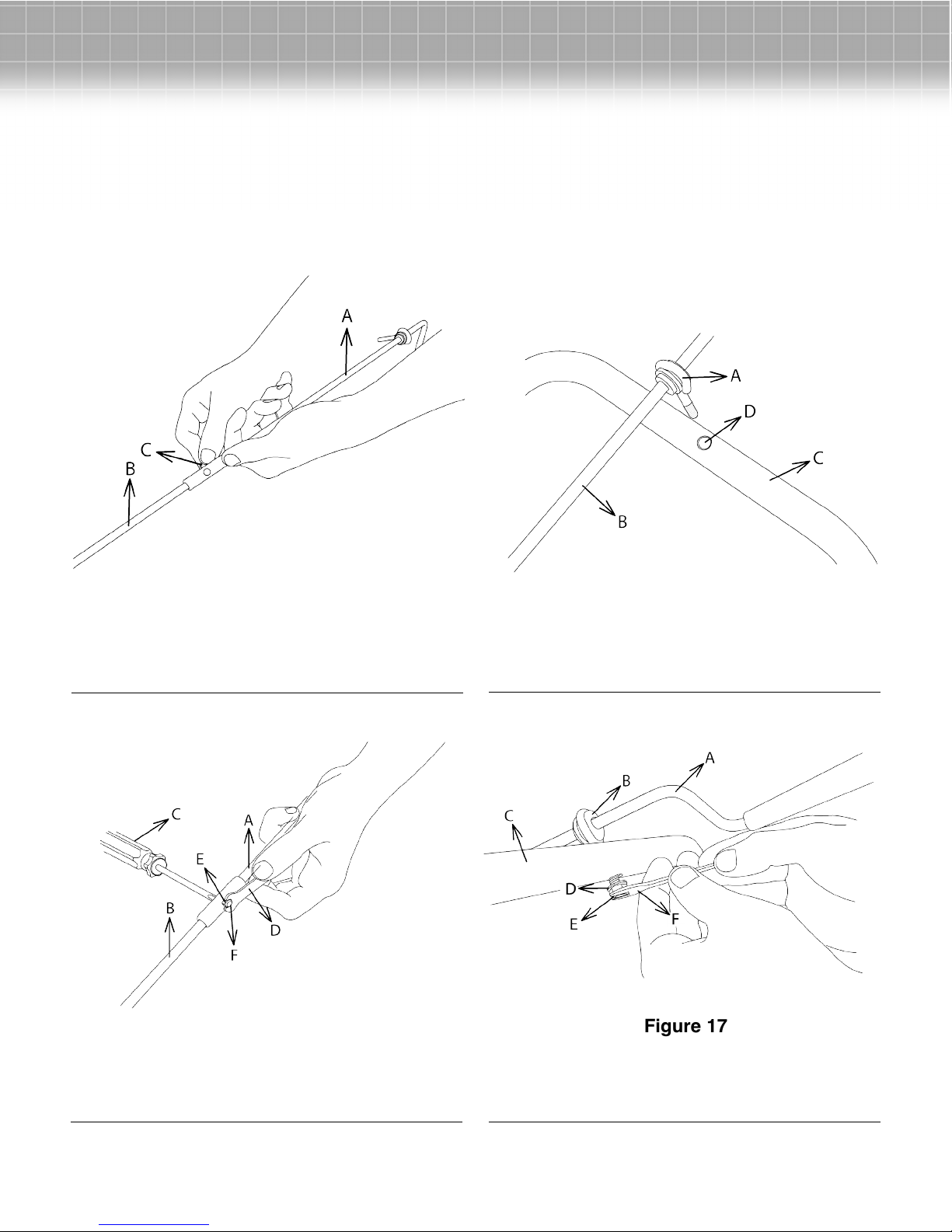

4. Slide the upper chute crank into the lower chute crank, aligning
the screw holes. Tighten the screw into the aligned holes
using a screwdriver. Fasten the nut with wrench (Figs. 14
and 15).
5. Remove the washer and nut from the eye bolt with rubber
grommet found on the upper chute crank. Position the chute
crank so that the eye bolt with rubber grommet inserts into
the center hole of the middle frame. Secure with washer
and nut (Figs. 16 and 17).
Note: Do not overtighten the nut.
A-Upper chute crank
B-Lower chute crank
A-Upper chute crank
B-Lower chute crank
C-Screwdriver
Figure 14
C-Screw
Figure 15
D-Wrench
E-Nut
F-Screw
Figure 16
A-Eye bolt with rubber grommet
B-Upper chute crank
Figure 17
A-Upper chute crank
B-Eye bolt with rubber grommet
C-Middle frame
C-Middle frame
D-Center hole
D-Washer
E-Nut
F-Wrench
8
Operation
Note: Before using this machine, make sure that the power
source you will use complies with the specifications detailed in
this manual. Before inserting the plug into the socket, verify
that the snow thrower!s roll shaft and rubber plates are firmly
secured with screws, and that the rubber plates are facing the
correct direction. Perform a test run to ensure that the rotor
turns freely.
Securing the Extension Cord
1. For safe and efficient use of your snow thrower, use only
a UL-rated extension cord recommended for outdoor use.
Refer to the Extension Cord Chart that follows.
WARNING
Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:
! Do not allow any part of snow thrower to make
contact with water while powered on. If the appliance
becomes wet while turned off, wipe dry before
starting.
! Use only a UL-rated extension cord for outdoor,
all-weather use. Do not use an extension cord
over 150 feet (46 meters).
! Do not touch the appliance or its plug with wet hands
or while standing in water. Wearing rubber boots
offers some protection.
mm

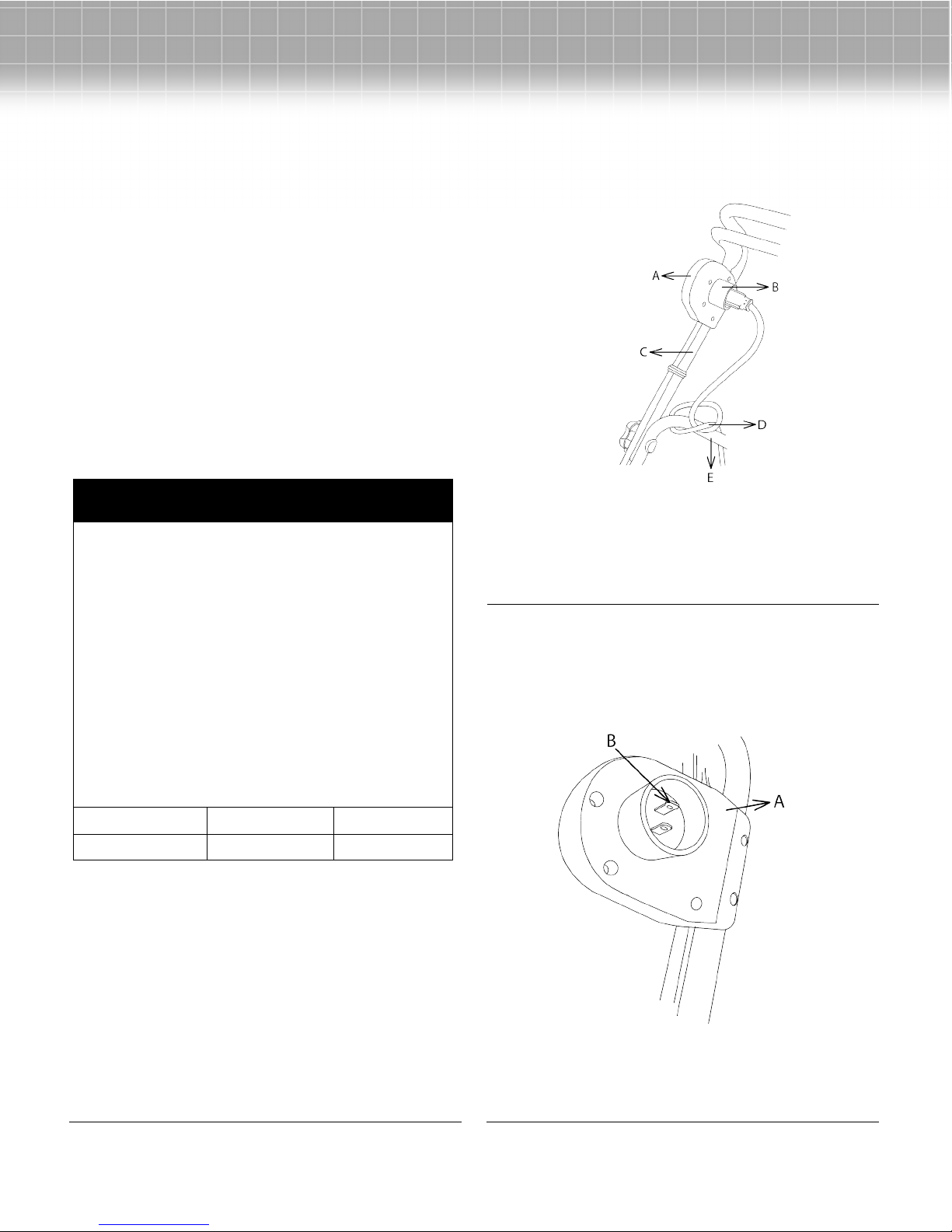

EXTENSION CORD CHART
Cord length is: 25 ft. (7.62 m) 50 ft. (15.24 m)
Wire gauge is: 14AWG 12AWG
2. To prevent the extension cord from disconnecting during
use, tie the female end of the extension cord into a
loose knot on the top right side of the middle frame
before connecting to the male plug in the switch housing
socket of the snow thrower (Fig. 20).
Figure 18
A-Switch housing
B-Polarized plug
C-Upper frame
3. Note that the snow thrower has a polarized male plug,
with one prong in the switch housing socket slightly longer
and wider than the other (Fig. 19). The extension cord
female end should be likewise polarized, so that the
extension cord fits snugly into the switch housing socket.
D-Cord tied to middle frame
E-Middle frame
Figure 19
A-Switch housing B-Polarized plug
9
m
Damaged electrical cords present risk of fire,
electrical shock, and serious bodily injury.
Before operating the snow thrower, carefully examine the
electrical cord. If the cord is damaged, do not use the
snow thrower. Replace or repair the damaged cord
immediately. If you need assistance, contact an authorized
Snow Joe dealer.
WARNING
m

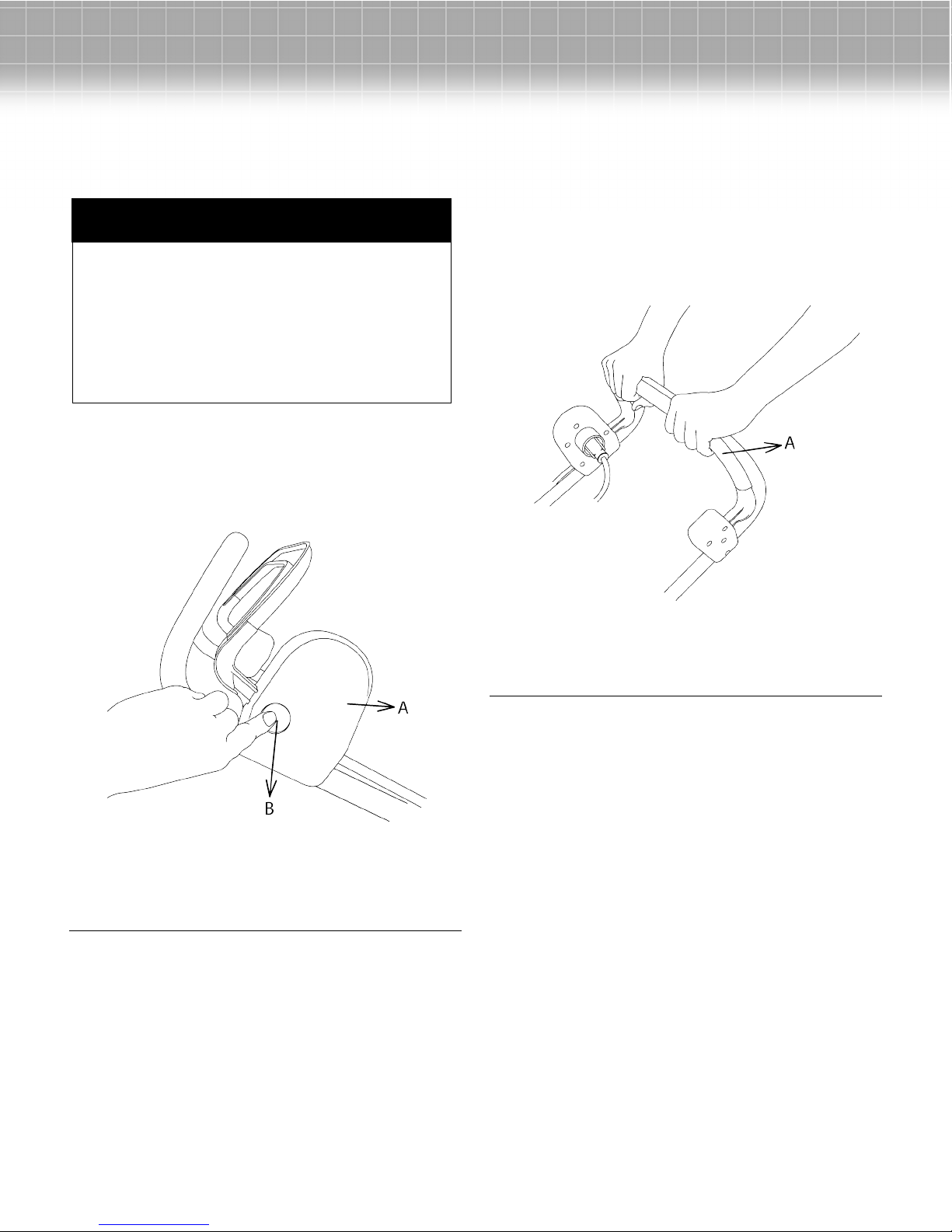

Powering On and Off
1. To power on, first press the switch button found alongside
the switch housing (Fig. 22).
2. Pull the handle bar toward you and grasp hold of it firmly
with both hands to start the machine (Fig. 21). The machine
can only be started by pressing the switch button first,
followed by squeezing the handle bar. Reverse operation
cannot start the machine.
Figure 21
Figure 20
A – Switch housing B – Push button switch
A-Handle bar
3. To power off, release your grip on the handle bar.
10
Moving the Machine and Plowing
the Snow
m
Foreign objects, such as rocks, broken glass, nails,
wire, or string, can be picked up and thrown by the
snow thrower, causing serious personal injury.
Remove all foreign objects from the area to be plowed
before operating the snow thrower.
1. Keep the area of operation free of foreign objects that can
become thrown by the rotor blades. Perform a thorough
inspection of the area since some objects may be hidden
from view by surrounding snow. If the snow thrower hits an
obstruction or picks up a foreign object during use, stop
the snow thrower, disconnect the extension cord, remove
the obstruction, and inspect the unit for damage. Repair or
replace any damaged part before restarting and operating
the unit.
2. Keep children, pets, and bystanders away from the area of
operation. Be aware that the normal noise of the machine
when turned on may make it difficult for you to hear
approaching people.
3. When moving the snow thrower, use the wheels on one side
as the pivot point. Slightly tilt the snow thrower on this
pivot point to move it forward or backward.
4. Start your clearing path near the electrical outlet and work
outward, throwing snow in a back and forth motion. To clear
in the opposite direction, step over the cord and pivot
the snow thrower on its wheels. Make sure to overlap
clearing paths.
5. Note wind direction. If possible, move in the same direction
as the wind so that the snow is not thrown against the wind
(and thus back into your face and on the just cleared path).
6. While moving the snow thrower, do not drag the power cable
violently or roughly. The snow thrower should move within
the range that the cable can reach.
7. Do not push the snow thrower with excessive force. You
should push the machine gently and evenly in accordance
with the unit!s throw rate.
8. Do not apply additional man-made load to the engine since
this may cause engine damage.
WARNING
m
9. Some parts of the snow thrower may freeze under extreme
temperature conditions. Do not attempt to operate the
snow thrower with frozen parts. If the parts freeze while the
snow thrower is in use, stop the snow thrower, unplug the
extension cord, and inspect for frozen parts. Free all parts
before restarting or operating the snow thrower. Never force
controls that have frozen.
10. Working on pebbles, gravel, or unpaved surfaces - To avoid
throwing loose surface material along with the snow, push
down on the handle to raise the scraper at the base of the
unit above the pebbles or gravel.
Changing Throw Direction and
Throw Height
m
Never direct the snow discharge chute at the
operator, at bystanders, at vehicles or at nearby
windows. The discharged snow and foreign objects
accidentally picked up by the snow thrower can
cause serious damage and personal injury.
Always orient the discharge chute in the opposite
direction from where you, bystanders, surrounding
vehicles, or windows are located.

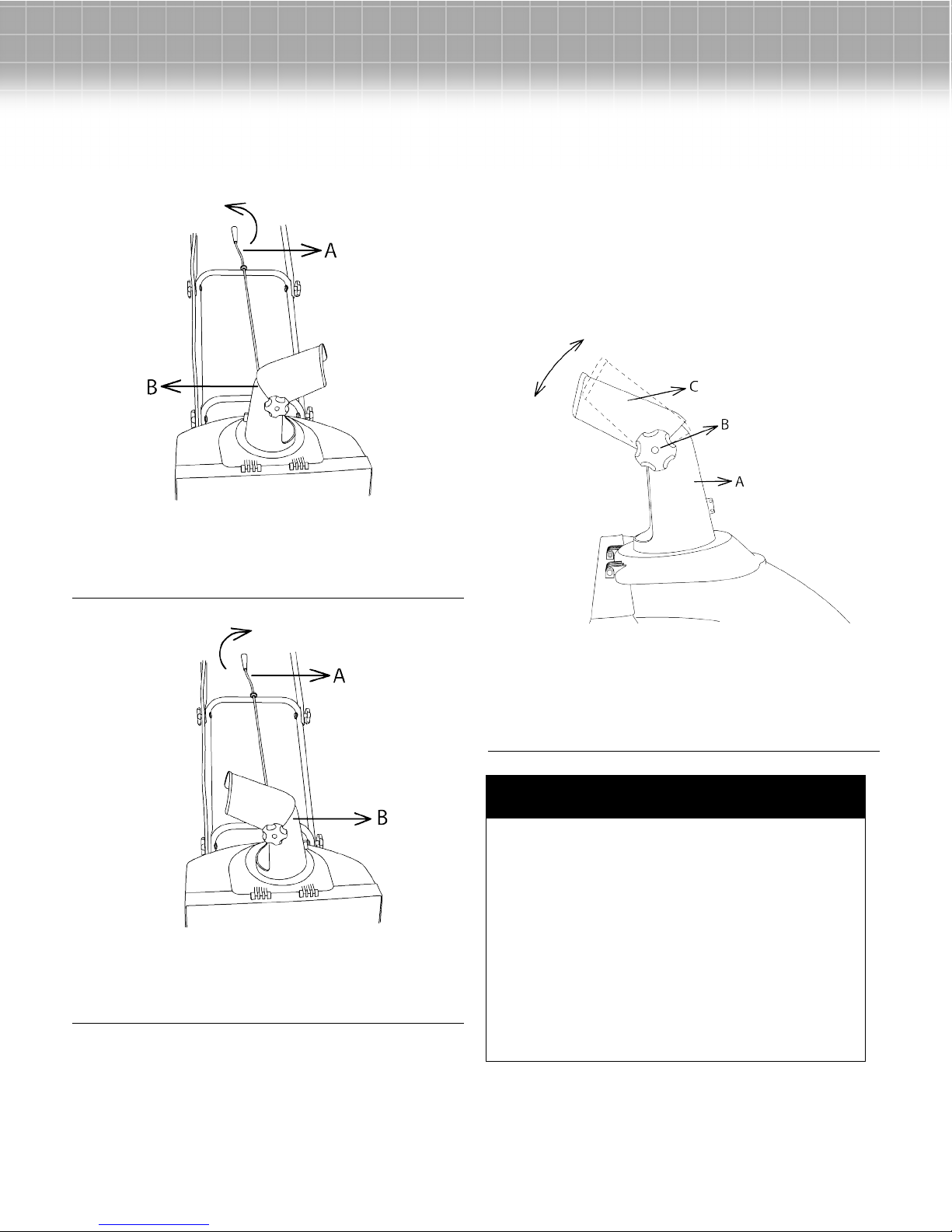

1. The discharge chute can be adjusted 180 degrees by
rotating the chute crank. Rotate the chute control crank
clockwise to move the discharge chute to the left (Fig. 24);
counterclockwise to move the chute to the right (Fig. 25).
WARNING
m
11
Figure 22
A – Chute crank B – Discharge chute
2. The chute deflector on the top of the discharge chute controls
the height of the snow stream. Loosen both chute deflector
knobs to raise or lower the deflector to the desired height
of snow you wish to throw. Tighten the knobs to secure the
deflector (Fig. 26).
Note: Do not overtighten the chute deflector knobs.
Figure 23
A – Chute crank B – Discharge chute
Figure 24
A – Discharge chute
B – Chute deflector knob
m m
Make sure that the chute deflector snaps and locks
completely onto the discharge chute. An opening
between the discharge chute and the chute deflector
may allow foreign objects to be picked up by the
snow thrower and thrown in the direction of the
operator causing serious boldly injury.
! Do not advance the chute deflector too far
forward causing an opening to appear
between the deflector and discharge chute.
! Do not overtighten the knobs on the chute
deflector (Fig. 12).
WARNING
C – Chute deflector
12
Maintenance
WARNING
m
Make sure to turn off the switch and disconnect the
extension cord before performing any maintenance
task on your snow thrower.
WARNING
m
Lifetime Lubrication
Lubrication is not necessary and may damage the unit. The
snow thrower is lubricated for lifetime use at the factory
before shipment.
General Maintenance Tips
1. Do not attempt to repair the machine unless you have the
proper tools and instructions for disassembly and repair
of the machine.
2. Check the shear bolts and other bolts at frequent intervals for
proper tightness to ensure that the equipment is in safe
working condition.
3. After each snow removal session, run the snow thrower
for a few minutes to prevent the collector/impeller from
freezing. Shut off the motor, wait for all revolving parts to
stop completely, and wipe residual ice and snow off the
unit. Rotate the chute crank several times to remove any
excess snow.
A – Rubber plate
B – Rivet
C – Small flat washer
D – Bolt
Figure 25
E – Auger
F – Large flat washer
G – Locknut

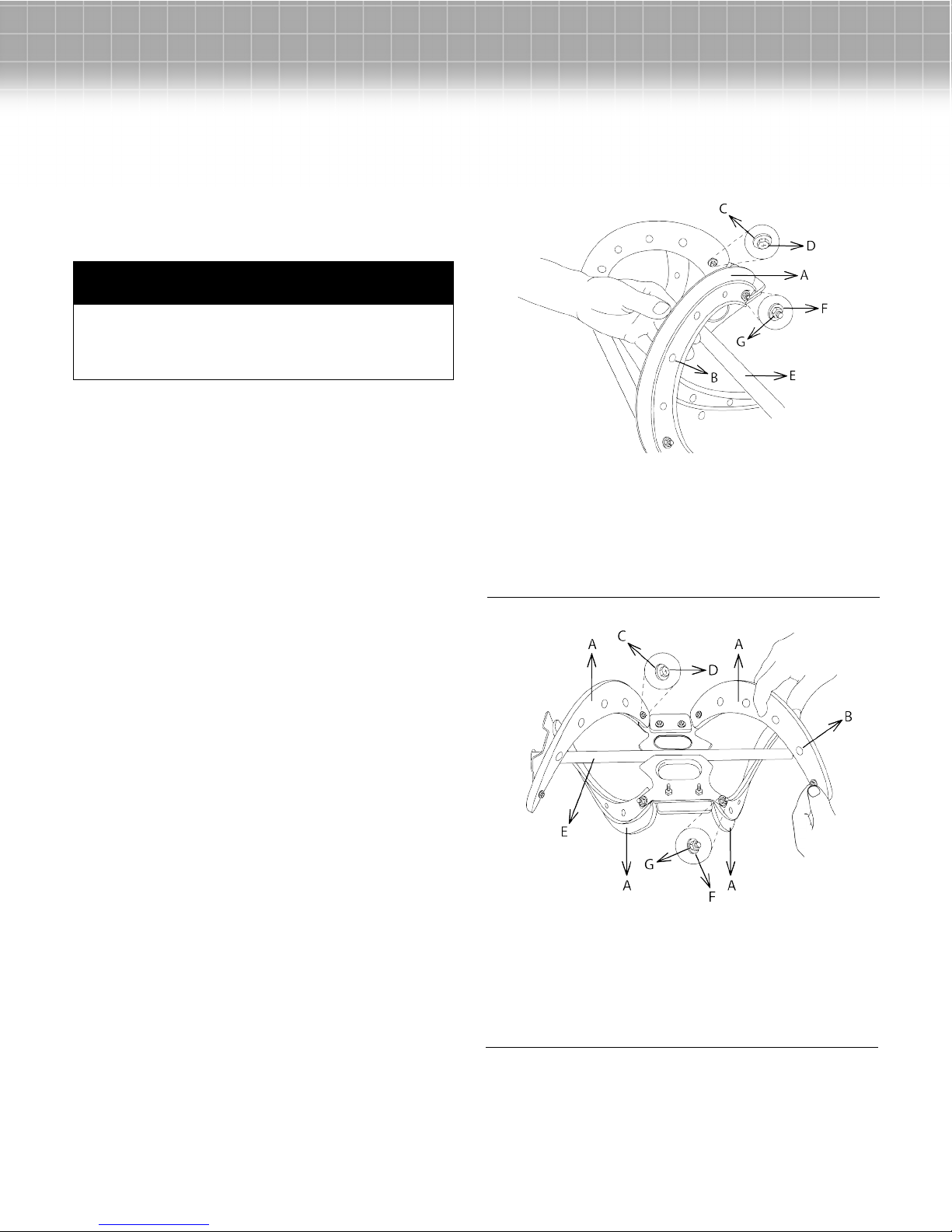

Replacing the Rubber Plates
Note: When replacing worn rubber plates, pay close attention to
carefully distinguish between the coarse and smooth side of the
plates. Place the coarse side inside and the smooth side outside.
1. Detach the worn rubber plate by removing the two sets
of nuts, bolts, and washers used to secure it.
2. Install the new rubber plate so that the coarse side faces
inward and the smooth side faces outward (Figs. 27-29).
3. Insert the bolt with the small flat washer into the corresponding
holes on each end of the rubber plate. Use the large flat
washer and locknut to secure the bolt on each end. Install
the other rubber plates in the same way (Figs. 27-29).
A – Rubber plate
B – Rivet
C – Small flat washer
D – Bolt
13
Figure 26
E – Auger
F – Large flat washer
G – Locknut
Figure 27
1. Detach the worn scraper from the snow thrower by
removing the 3 screws that hold it in place (Fig. 31).
A – Rubber plate
B – Rivet
C – Small flat washer
D – Bolt
E – Auger
Replacing the Scraper
The scraper is located at the base of the snow thrower beneath
the rotor housing (Fig. 30).
Figure 29
A – Scraper removal
2. Install the new scraper and fasten it securely to the
snow thrower with 3 screws (Fig. 32).
Figure 28
A – Scraper B – Screw
A – Scraper
B – Screw
14
Figure 30
C – Screwdriver
Replacing the Belt
Model #:
Serial #:
Please record the following numbers from the decal on the main cover of
your new product:
Note: Determine the left and right hand sides of the snow thrower
by standing behind the unit in the normal operating position.
1. Remove the screws from the left panel of the snowthrower.
2. Lift the belt tension and roll the large belt off the big pulley
(Fig. 33).
Figure 31
A – Big pulley
B – Belt tension
C – Large belt
Storage
1. Allow the engine to cool and clean the snow thrower
before storing or transporting. Be sure to secure the unit
while transporting.
2. Disconnect the extension cord from the snow thrower.
3. Inspect the extension cord closely for signs of wear or
damage. Replace it if it is worn or damaged.
4. Inspect the snow thrower carefully for worn, loose, or
damaged parts. Check connections and screws and
tighten if necessary. For repairing or replacing parts,
contact your Snow Joe dealer or Snow Joe customer
service at 1-866-SNOWJOE.
5. Store the unit, along with the disconnected extension cord,
in a locked, dry place out of the reach of children to prevent
unauthorized use or damage. Cover loosely with a tarp for
added protection.
Service and Support
If your Snow Joe 622U1/623U1 Ultra snow thrower requires
service or maintenance, please call 1-866-SNOWJOE for
assistance.
Model and Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
on the main cover of the unit to the left of the discharge chute.
Copy these numbers into the space provided below.
3. Replace the large belt by following instructions in
reverse order.
Automatic Reset
The Snow Joe 622U1 has a built in automatic reset function.
In the event of a major obstruction halting the auger, simply
unplug your unit, clear auger obstruction, wait 60 seconds and
resume use.
15
