Snell & Wilcox NRS70TX, NRS70 Operator's Manual

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.1

Operator’s

Manual

© August 2003

www.snellwilcox.com

Snell & Wilcox Ltd., Southleigh Park House, Eastleigh Road, Havant, Hants, PO9 2PE, United Kingdom.
For General Enquiry’s contact: Tel: [phone] Fax: [phone]
For Technical assistance contact: Tel: [phone] Fax: [phone]
Web: http://www.snellwilcox.com/support Ftp: ftp://ftp.snellwilcox.com/support

NRS70 and NRS70TX

Digital Noise Reducer & Frame Synchronizer

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.2

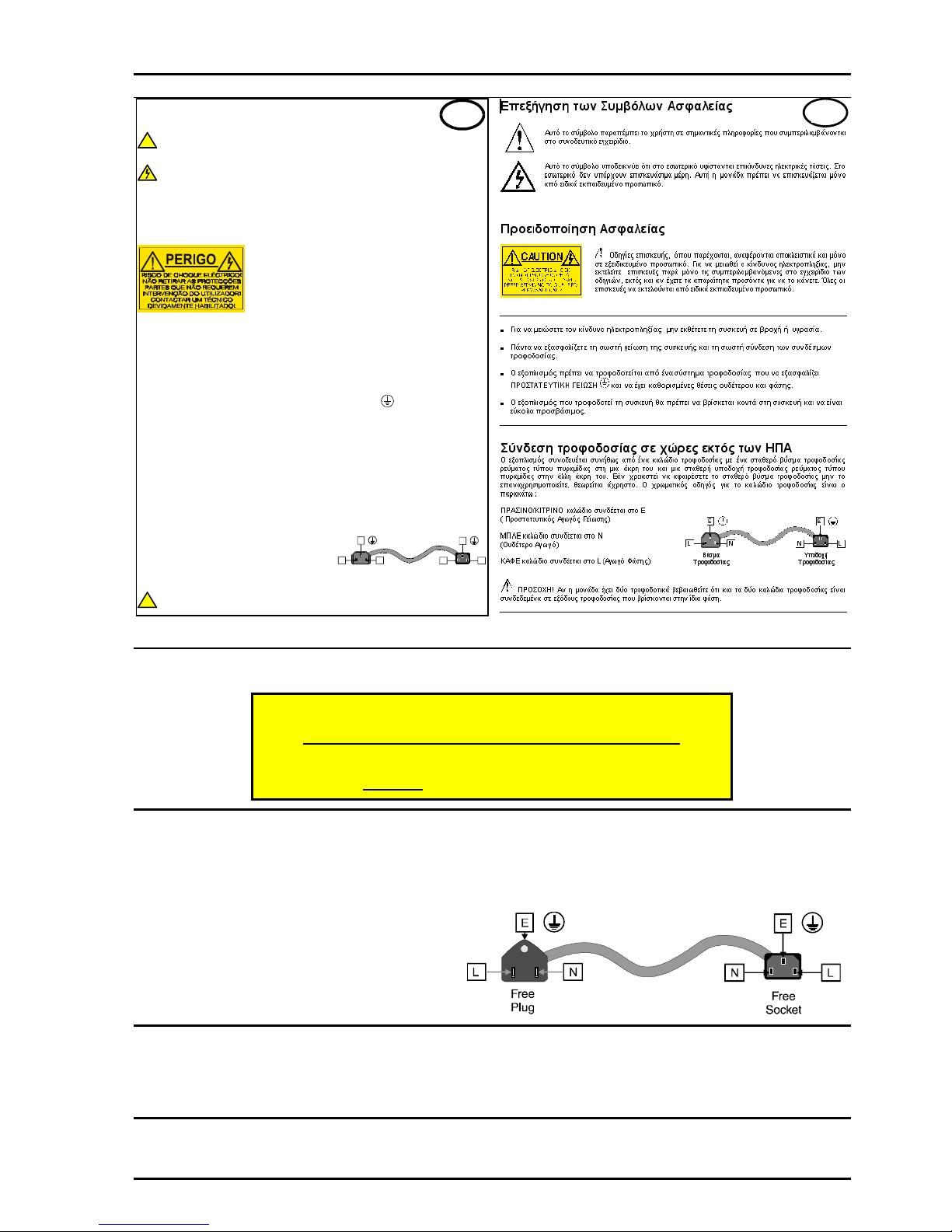

Explanation of Safety Symbols

This symbol refers the user to important information contained in
the accompanying literature. Refer to manual.

This symbol indicates that hazardous voltages are present inside.
No user serviceable parts inside.
This unit should only be serviced by trained personnel.

Servicing instructions where given, are for use by
qualified service personnel only.
To reduce risk of electric shock do not perform any
servicing other than that contained in the operating
instructions unless you are qualified to do so.
Refer all servicing to qualified personnel.

To reduce the risk of electric shock, do not expose this appliance
to rain or moisture.

Always ensure that the unit is properly earthed and power connections
correctly made.

This equipment must be supplied from a power system providing a
PROTECTIVE EARTH connection and having a neutral connection
which can be reliably identified.

The power outlet supplying power to the unit should be close to the
unit and easily accessible

Power connection in countries other than the USA

The equipment is normally shipped with a power cable with a standard IEC
moulded free socket on one end and a standard IEC moulded plug on the other.
If you are required to remove the moulded mains supply plug, dispose of the
plug immediately in a safe manner.

The colour code for the lead is as follows:

GREEN/YELLOW lead connected to E
(Protective Earth Conductor)
BLUE lead connected to N (Neutral Conductor)
BROWN lead connected to L (Live Conductor)

Caution If the unit has two mains supply inputs ensure that both power
cords are plugged into mains outlets operating from the same phase.

L N

E

N L

E

GB

!

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVERS

NO USER SERVICEABLE PARTS

REFER SERVICING TO QUALIFIED

PERSONNEL ONLY

!

!

Safety Warnings

Légende :

Ce symbole indique qu'il faut prêter attention et se référer
au manuel.

Ce symbole indique qu'il peut y avoir des tensions électriques
à l'intérieur de l'appareil. Ne pas intervenir sans l'agrément
du service qualifié.

Pour réduire le risque de choc électrique, ne pas exposer l'appareil
dans un milieu humide.

Toujours s'assurer que l'unité est correctement alimentée,
en particuliers à la liaison à la terre.

La source électrique de cet équipement doit posséder une connexion
à la terre , ainsi qu'une liaison « neutre » identifiable.

La prise électrique qui alimente l'appareil doit être proche
de celle-ci et accessible.

Câble secteur de pays autres que les Etats-Unis

L'équipement est livré avec un câble secteur au standard IEC, moulé
mâle/femelle.
Si vous souhaitez changr la prise mâle de votre cordon, voici les
codes couleurs des fils :

Le fil VERT/JAUNE est connecté à T (Terre)
Le fil BLEU est connecté à N (Neutre)
Le fil MARRON est connecté à P (Phase)

Attention si l'appareil a 2 alimentations, s'assurer que les cordons
soient branchés sur la même phase.

Précaution d'emploi :

F

Les procédures de maintenance ne concernent
que le service agréé. Afin de réduire le risque de
choc électrique, il est recommandé de se limiter
aux procédures d'utilisation, à moins d'en être qualifié.
Pour toute maintenance, contacter le service compétent.

!

ATTENTION

RISQUEDE CHOC ELECTRIQUE

NE PAS RETIRERLE COUVERCLE

NE PAS INTERVENIRSANS

L'AGREMENTDU SERVICE

QUALIFIE

P N

T

N P

T

Connecteur Prise

!

!

Erklärung der Sicherheitssymbole

Dieses Symbol weist den Benutzer auf wichtige Informationen
hin, die in der begleitenden Dokumentation enthalten sind.

Dieses Symbol zeigt an, dass gefährliche Spannung vorhanden ist.
Es befinden sich keine vom Benutzer zu wartenden Teile im Geräteinneren.
Dieses Gerät sollte nur von geschultem Personal gewartet werden

Um das Risiko eines Elektroschocks zu reduzieren, setzen Sie das
Gerät weder Regen noch Feuchtigkeit aus.

Stellen Sie immer sicher, dass das Gerät ordnungsgemäß geerdet
und verkabelt ist.

Dieses Equipment muss an eine Netzsteckdose mit Schutzleiter
angeschlossen werden und einen zuverlässig identifizierbaren Nullleiter haben.

Die Netzsteckdose sollte nahe beim Gerät und einfach zugänglich sein.

Netzanschluss in anderen Ländern als der USA

Das Equipment wird im Normalfall mit einem Netzkabel mit Standard IEC
Anschlussbuchse und einem Standard IEC Anschlussstecker geliefert.
Sollten Sie den angeschweißten Stecker auswechseln müssen, entsorgen
Sie diesen bitte umgehend. Die farbliche Belegung des Netzkabels ist wie folgt:

GRÜN GELB E = Schutzleiter
BLAU N = Nulleiter
BRAUN L = P = Phase

Achtung: Wenn das Gerät zwei Anschlussbuchsen hat, stellen
Sie bitte sicher, dass beide Netzkabel mit der selben Phase in die
Netzsteckdose gesteckt werden.

Sicherheits-Warnhinweise

D

!

!

Die angeführten Service-/Reparatur-Anweisungen sind
ausschließlich von qualifiziertem Service-Personal
auszuführen. Um das Risiko eines lektroschocks zu
reduzieren, führen Sie ausschließlich die im
Benutzerhandbuch eschriebenen Anweisungen aus,
es sei denn, Sie haben die entsprechende Qualifikation.
Wenden Sie sich in allen Service-Fragen an qualifiziertes Personal.

!

ACHTUNG

GefahrvonElektroschocks.

Abdeckungennichtentfernen

Keine vomBenutzer zu wartendeTeile

WendenSie sich ausschließlich

an qualifiziertes Personal

L =

Phase

N =

Nulleiter

N =

Nulleiter

L =

Phase

E =

Schutzleiter

E =

Schutzleiter

Explicación de los Símbolos de Seguridad

Éste símbolo refiere al usuario información importante contenida
en la literatura incluida. Referirse al manual.

Éste símbolo indica que voltajes peligrosos están presentes en el interior.
No hay elementos accesibles al usuario dentro.
Esta unidad sólo debería ser tratada por personal cualificado.

Las instrucciones de servicio cuando sean dadas, son
sólo para uso de personal cualificado. Para reducir el
riesgo de choque eléctrico no llevar a cabo ninguna
operación de servicio aparte de las contenidas en las
instrucciones de operación, a menos que se esté
cualificado para realizarlas.
Referir todo el trabajo de servicio a personal cualificado.

Para reducir el riesgo de choque eléctrico, no exponer este equipo
a la lluvia o humedad.

Siempre asegurarse de que la unidad está propiamente conectada a
tierra y que las conexiones de alimentación están hechas correctamente.

Este equipo debe ser alimentado desde un sistema de alimentación
con conexión a TIERRA y teniendo una conexión neutra fácilmente
identificable.



La toma de alimentación para la unidad debe ser cercana y fácilmente

accesible.

Conexión de alimentación en otros países que no sean USA

El equipo es normalmente entregado con un cable de alimentación con un
enchufe hembra estándar IEC en un extremo y con una clavija estándar
IEC en el otro. Si se requiere eliminar la clavija para sustituirla por otra,
disponer dicha clavija de una forma segura.
El código de color a emplear es como sigue:

Advertencia Si la unidad tuviera dos tomas de alimentación, asegurarse
de que ambos cables de alimentación están conectados a la misma fase.

ESP

!

!

Advertencias de Seguridad

L N

E

N L

E

Clavija

Aerea Macho

Enchufe

Aereo Hembra

VERDE/ AMARILLO conectado a E
(Conductor de protección a Tierra

-Earth en el original-)
AZUL conectado a N (Conductor Neutro -Neutral en el original-)
MARRÓN conectado a L (Conductor Fase -Live en el original-)

RIESGO DE CHOQUE ELECTRICO
NO QUITAR LAS PROTECCIONNES
ELEMENTOS NO ACCESIBLES AL
USUARIO.
SERVICIO SOLAMENTE A PERSONAL
CUALIFICADO

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.3

Simboli di sicurezza:

Questo simbolo indica l'informazione importante contenuta nei
manuali appartenenti all'apparecchiatura. Consultare il manuale.

Questo simbolo indica che all'interno dell'apparato sono presenti
tensioni pericolose. Non cercare di smontare l'unità.
Per qualsiasi tipo di intervento rivolgersi al personale qualificato.

Le istruzioni relative alla manutenzione sono ad uso
esclusivo del personale qualificato. E' proibito all'utente
eseguire qualsiasi operazione non esplicitamente
consentita nelle istruzioni. Per qualsiasi informazione
rivolgersi al personale qualificato.

Per prevenire il pericolo di scosse elettriche è necessario non esporre
mai l'apparecchiatura alla pioggia o a qualsiasi tipo di umidità.

Assicurarsi sempre, che l'unità sia propriamente messa a terra e che
le connessioni elettriche siano eseguite correttamente.

Questo dispositivo deve essere collegato ad un impianto elettrico
dotato di un sistema di messa a terra efficace.

 La presa di corrente deve essere vicina all'apparecchio
e facilmente accessibile.

Connessione elettrica nei paesi diversi dagli Stati Uniti

L'apparecchiatura normalmente è spedita con cavo pressofuso con la presa
e spina standard IEC. Nel caso della rimozione della spina elettrica,
gettarla via immediatamente osservando tutte le precauzioni del caso.
La leggenda dei cavi è la seguente:

VERDE/GIALLO cavo connesso
ad "E" (terra)
BLU cavo connesso ad "N" (neutro)
MARRONE cavo connesso ad "L" ( fase)

Attenzione! Nel caso in cui l'apparecchio abbia due prese di corrente,
assicurarsi che i cavi non siano collegati a fasi diverse della rete elettrica.

I

!

!

Attenzione:

!

ATTENZIONE

L N

E

N L

E

Presa volante Spina volante

RISCHIO DI SHOCK ELETTRICO

NON CERCARE DI SMONTARE

L'UNITA PER QUALSIASI TIPO DI

INTERVENTO RIVOLGERSI AL

PERSONALE QUALIFICATO

Förklaring av Säkerhetssymboler

Denna symbol hänvisar användaren till viktig information som
återfinns i litteraturen som medföljer. Se manualen.

Denna symbol indikerar att livsfarlig spänning finns på insidan.
Det finns inga servicevänliga delar inne i apparaten.
Denna apparat få endast repareras av utbildad personal.

Serviceinstruktioner som anges avser endast kvalificerad
och utbildad servicepersonal. För att minska risken för
elektrisk stöt, utför ingen annan service än den som
återfinns i medföljande driftinstruktionerna, om du ej är
behörig. Överlåt all service till kvalificerad personal.

För att reducera risken för elektrisk stöt, utsätt inte apparaten för
regn eller fukt.

Se alltid till att apparaten är ordentligt jordad samt att strömtillförseln
är korrekt utförd.

Denna apparat måste bli försörjd från ett strömsystem som är försedd
med jordadanslutning samt ha en neutral anslutning som lätt identifierbar.

Vägguttaget som strömförsörjer apparaten bör finnas i närheten samt
vara lätttillgänglig.

Strömkontakter i länder utanför USA

Apparaten utrustas normalt med en strömkabel med standard IEC gjuten
honkontakt på ena änden samt en standard IEC gjuten hankontakt på den
andra änden. Om man måste avlägsna den gjutna hankontkaten, avyttra
denna kontakt omedelbart på ett säkert sätt. Färgkoden för ledningen är följande:

GRÖN/GUL ledning ansluten till E
(Skyddsjordad ledare)

BLÅ ledning ansluten till N (Neutral ledare)
BRUN ledning ansluten till L (Fas ledare)

Varning! Om enheten har två huvudsakliga elförsörjningar, säkerställ att
båda strömkablarna som är inkopplade i enheten arbetar från samma fas.

S

!

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVERS

NO USER SERVICEABLE PARTS

REFER SERVICING TO QUALIFIED

PERSONNEL ONLY

!

!

Säkerhetsvarningar

L N

E

N L

E

Stickkontakt-Hane Stickkontakt-Hona

Forklaring på sikkerhedssymboler

Dette symbol gør brugeren opmærksom på vigtig information
i den medfølgende manual.

Dette symbol indikerer farlig spænding inden i apparatet. Ingen bruger
servicerbare dele i apparatet på brugerniveau.
Dette apparat må kun serviceres af faglærte personer..

Serviceinstruktioner er kun til brug for faglærte
servicefolk. For at reducere risikoen for elektrisk
stød må bruger kun udføre anvisninger i
betjeningsmanualen.
Al service skal udføres af faglærte personer.

For at reducere risikoen for elektrisk stød må apparatet ikke
udsættes for regn eller fugt.

Sørg altid for at apparatet er korrekt tilsluttet og jordet.

Dette apparat skal forbindes til en nettilslutning, der yder

BESKYTTENDE JORD og 0 forbindelse skal være tydeligt markeret.

Stikkontakten, som forsyner apparatet, skal være tæt på apparatet
og let tilgængelig

.

Nettilslutning i andre lande end USA

Udstyret leveres normalt med et strømkabel med et standard IEC støbt løst
hunstik i den ene ende og et standard IEC støbt hanstik i den anden ende.
Hvis et af de støbte stik på strømkablet er defekt, skal det straks kasseres på
forsvarlig vis. Farvekoden for lederen er som følger:

GRØN/GUL leder forbundet til J (Jord)
BLÅ leder forbundet til 0
BRUN leder forbundet til F(Fase)

Forsigtig Hvis enheden har to lysnetindgange, skal der sørges for at
begge ledninger tilsluttes lystnetudgange fra den samme fase.

DK

!

!

!

Sikkerhedsadvarsler

!

FORSIGTIG

RISIKO FORELEKTRISKSTØD
DÆKPLADERMÅ IKKEFJERNES
INGEN BRUGERSERVICERBARE

DELESERVICEMÅ KUN UDFØRES

AFFAGLÆRTEPERSONER

F 0

J

0 F

J

Han-stik Hun-stik

Turvamerkkien selitys

Tämä merkki tarkoittaa, että laitteen mukana toimitettu kirjallinen
materiaali sisältää tärkeitä tietoja. Lue käyttöohje.

Tämä merkki ilmoittaa, että laitteen sisällä on vaarallisen voimakas jännite.
Sisäpuolella ei ole mitään osia, joita käyttäjä voisi itse huoltaa.
Huollon saa suorittaa vain alan ammattilainen.

Huolto-ohjeet on tarkoitettu ainoastaan alan
ammattilaisille. Älä suorita laitteelle muita
toimenpiteitä, kuin mitä käyttöohjeissa on
neuvottu, ellet ole asiantuntija. Voit saada sähköiskun.
Jätä kaikki huoltotoimet ammattilaiselle.

Sähköiskujen välttämiseksi suojaa laite sateelta ja kosteudelta.

Varmistu, että laite on asianmukaisesti maadoitettu ja että

sähkökytkennät on tehty oikein.

Laitteelle tehoa syöttävässä järjestelmässä tulee olla
SUOJAMAALIITÄNTÄ ja nollaliitännän on oltava luotettavasti
tunnistettavissa.

Sähköpistorasian tulee olla laitteen lähellä ja helposti tavoitettavissa.

Sähkökytkentä

Laitteen vakiovarusteena on sähköjohto, jonka toisessa päässä on muottiin
valettu, IEC-standardin mukainen liitäntärasia ja toisessa päässä muottiin
valettu, IEC-standardin mukainen pistoliitin. Jos pistoliitin tarvitsee poistaa,
se tulee hävittää heti turvallisella tavalla. Johtimet kytketään seuraavasti:

KELTA-VIHREÄ suojamaajohdin E-napaan
SININEN nollajohdin N-napaan
RUSKEA vaihejohdin L-napaan

Huom! Jos laitteessa on kaksi verkkojännitteen tuloliitäntää, niiden johdot
on liitettävä verkkopistorasioihin, joissa on sama vaiheistus.

FI

!

!

Turvaohjeita

!

SÄHKÖISKUN VAARA ÄLÄ AVAA

LAITTEEN KANSIA EISISÄLLÄ

KÄYTTÄJÄLLEHUOLLETTAVIA

OSIA HUOLTO AINOASTAAN

AMMATTILAISEN SUORITTAMANA

VAROITUS

L N

E

N L

E

Pistoliitin Liitäntärasia

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.4

Símbolos de Segurança

O símbolo triangular adverte para a necessidade de consultar o
manual antes de utilizar o equipamento ou efectuar qualquer ajuste.

Este símbolo indica a presença de voltagens perigosas no interior
do equipamento. As peças ou partes existentes no interior do equipamento
não necessitam de intervenção, manutenção ou manuseamento por parte
do utilizador. Reparações ou outras intervenções devem ser efectuadas
apenas por técnicos devidamente habilitados.

As instruções de manutenção fornecidas são para
utilização de técnicos qualificados. Para reduzir o
risco de choque eléctrico, não devem ser realizadas
intervenções no equipamento não especificadas no
manual de instalações a menos que seja efectuadas
por técnicos habilitados.

Para reduzir o risco de choque eléctrico, não expor este equipamento
à chuva ou humidade.

Assegurar que a unidade está sempre devidamente ligada à terra e
que as ligações à alimentação estão correctas.

O sistema de alimentação do equipamento deve, por razões de
segurança, possuir ligação a terra de protecção e ligação ao
NEUTRO devidamente identificada.

A tomada de energia à qual a unidade está ligada deve situar-se na
sua proximidade e facilmente acessível.

Ligação da alimentação noutros países que não os EUA

O equipamento é, normalmente, enviado com cabo de alimentação com ficha
IEC fêmea standard num extremo e uma ficha IEC macho standard no extremo
oposto. Se for necessário substituir ou alterar alguma destas fichas, deverá
remove-la e elimina-la imediatamente de maneira segura.
O código de cor para os condutores é o seguinte:

Condutor VERDE/AMARELO ligado a E (Terra)
Condutor AZUL ligado a N (Neutro)
Condutor CASTANHO ligado a L (Vivo).

Atenção: Se a unidade tem duas fontes de alimentação assegurar que os
dois cabos de alimentação estão ligados a tomadas pertencentes à mesma fase.

P

!

!

Avisos de Segurança

L N

E

N L

E

Ficha Livre TomadaLivre

Products employing Lithium batteries

Power cable supplied for the USA

The equipment is shipped with a power cord with a standard IEC molded free socket on one end and a
standard 3-pin plug on the other. If you are required to remove the molded mains supply plug, dispose of the
plug immediately in a safe manner. The color code for the cord is as follows:

GREEN lead connected to E (Protective Earth
Conductor)

BLACK lead connected to L (Live Conductor)
WHITE lead connected to N (Neutral Conductor)

For products with more than one power supply inlet

Caution:

To reduce the risk of electric shock plug each power supply cord into separate branch circuits

employing separate service grounds.

G

CAUTION

This equipment contains a lithium battery.

There is a danger of explosion if this is replaced incorrectly.

Replace only with the same or equivalent type.

Dispose of used batteries according to the instructions of the manufacturer.

Batteries shall only be replaced by trained service technicians.

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.5

Rack Mounting the Enclosure

When rack-mounting the product, one of the following methods of installation must be used: -

• Place the unit on a suitably specified, and installed rack shelf and secure the product to the rack via the
front rack ears or,

• Fit the unit using the rear rack mount kit available from Snell & Wilcox by quoting the order code FGACK
RACK-MNT-KIT.

This product must not be rack mounted using only the front rack ears.

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.6

Safety Standard

This unit conforms to the following standards:

BS EN60950:1992 Specification for safety of information

technology equipment, including electrical business equipment

cULus Listed Professional Video Equipment File No. E193966

EMC Standards

This unit conforms to the following standards:

BS EN 55103-1 : 1997

Electromagnetic Compatibility, Product family standard for audio, video, audio-visual and entertainment lighting
control apparatus for professional use. Part 1. Emission

BS EN 55103-2 : 1997

Electromagnetic Compatibility, Product family standard for audio, video, audio-visual and entertainment lighting
control apparatus for professional use. Part 2. Immunity

Federal Communications Commission Rules Part 15, Class A :1998

EMC Environment

The product(s) described in this manual conform to the EMC requirements for, and are intended for use in,

either

The commercial and light industrial environment (including, for example, theatres) E2

or

The controlled EMC environment (for example purpose-built broadcasting or recording studios), and the rural
outdoor environment (far away from railways, transmitters, overhead power lines, etc.) E4

The applicable environment is stated in the Technical Profile section of the product operation manual under

“EMC Performance Information/Environment.”

EMC Performance Information

Please refer to the Technical Profile/Specifications section of the product operation manual.

EMC Performance of Cables and Connectors

Snell & Wilcox products are designed to meet or exceed the requirements of the appropriate European EMC
standards. In order to achieve this performance in real installations it is essential to use cables and connectors
with good EMC characteristics.

All signal connections (including remote control connections) shall be made with screened cables terminated in
connectors having a metal shell. The cable screen shall have a large-area contact with the metal shell.

COAXIAL CABLES
Coaxial cables connections (particularly serial digital video connections) shall be made with high-quality
double-screened coaxial cables such as Belden 8281 or BBC type PSF1/2M.

D-TYPE CONNECTORS
D-type connectors shall have metal shells making good RF contact with the cable screen. Connectors having
"dimples" which improve the contact between the plug and socket shells, are recommended.

No: 60AA

Professional Video

Equipment

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.7

About this Manual

This manual covers the following products:

• NRS70 and NRS70TX Digital Noise Reducers

Packing List

The unit is supplied in a dedicated packing carton provided by the manufacturer and should not be accepted if
delivered in inferior or unauthorised materials. Carefully unpack the carton and check for any shipping damage
or shortages.

Any shortages or damage should be reported to the supplier immediately.

Enclosures:

•

NRS70 unit

•

Power cable.

•

This Operator's Manual

•

Balanced (25 way D) I/O audio rear panel

Software Version Amendments

Notes about Versions Fitted

Software. The NRS70/NRS70TX is shipped with Version 6.6. . 8 of the software.

Manufacturers Notice

Copyright protection claimed includes all forms and matters of copyrightable material and information now
allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from
the software programs which are displayed on the screen such as icons, screen display looks etc.

Reproduction or disassembly of embedded computer programs or algorithms prohibited.

Copyrighted names: Microsoft Windows™

Information in this manual and software are subject to change without notice and does not represent a
commitment on the part of Snell & Wilcox Ltd. The software described in this manual is furnished under a
licence agreement and may not be reproduced or copied in any manner without prior agreement with Snell &
Wilcox Ltd. or their authorised agents.

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.8

Table of Contents

SECTION

1 Introduction

Description.......................................................................................................................... 1.1

Features .............................................................................................................................1.2

2 Specifications ................................................................................................................... 2.1

3 Installation

Unpacking the CVR550...................................................................................................... 3.1

Power Connections ............................................................................................................3.1

Removing and fitting a rear connecting panel.................................................................... 3.2

Input Connections............................................................................................................... 3.2

Output Connections............................................................................................................ 3.4

Communication Connections ............................................................................................. 3.5

Opening and Closing the Front Panel ................................................................................3.6

Installing/Removing a Module ............................................................................................3.7

Matching the Front Panel to a Gateway Address ............................................................... 3.9

4 Operation

The Control Panel............................................................................................................... 4.1

Using the Dedicated Push Buttons..................................................................................... 4.3

Browse .................................................................................................4.3

Menu System diagram ......................................................................... 4.5

Front Panel Controls

Input .....................................................................................................4.6

Audio.................................................................................................... 4.9

Y Gain, Black Level, C Gain and Hue ................................................. 4.14

Proc Amp ............................................................................................. 4.14

Noise Reduce....................................................................................... 4.15

Memory ................................................................................................4.16

Enhance............................................................................................... 4.17

Genlock................................................................................................ 4.18

Setup.................................................................................................... 4.19

RollCall Control Templates................................................................................................. 4.27

5 Modes of Operation

Modes of Operation............................................................................................................ 5.1

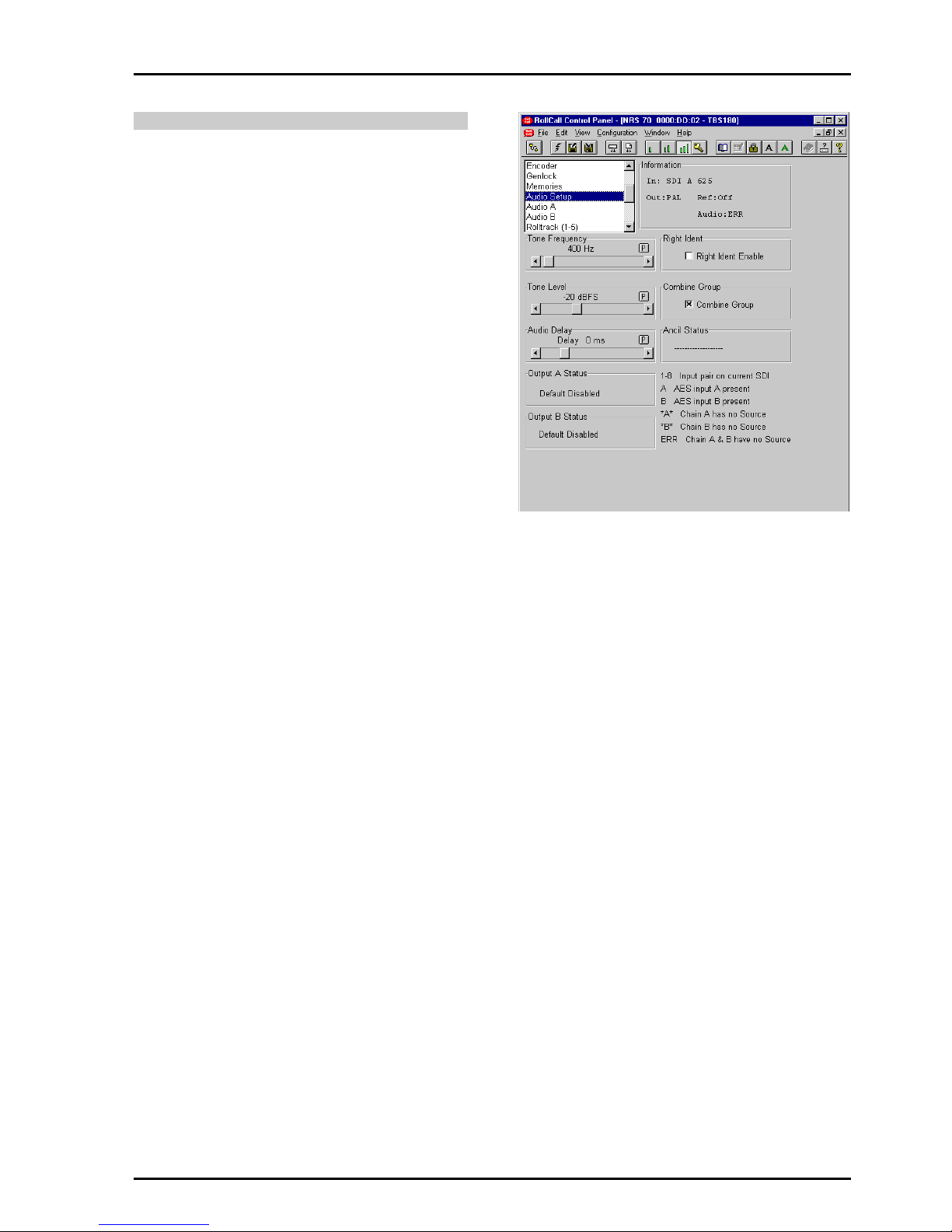

RollCall CONTROL via a PC.............................................................................................. 5.3

Advanced Front Panel Controls.......................................................................................... 5.6

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.9

Product Support Procedure

If you experience any technical or operational difficulties with a Snell & Wilcox product please do not hesitate
to contact us or utilize our online form to request assistance.

There is a lot of information you can give us that will enable us to diagnose your problem swiftly. Please read
the following guidelines, as these suggestions will help us to help you.

Basic Information

For Units ..................... Please provide the exact product Model, unit Serial Number and Software

Version information.

For Cards or Modules . Please provide the Sub-Assembly Number, card Serial Number and the

Software Version information.

Basic Application

Inputs .......................... Please provide full details of the Input Signals being used including any

references etc. and where they are being generated.

Outputs ....................... Please provide full details of the Output Signals required and how they are

being monitored.

System ........................ Please provide a brief description of the system in which your S&W equipment

is currently being used.

Basic Tests

Preset Unit .................. Please use the Preset Unit function to return the settings back to the factory

default.

RollCall ........................ Is your unit currently connected to a RollCall capable PC? This software is

obtainable for free and provides a very user friendly GUI for virtually all S&W
equipment - perfect for complex products, large systems or those with passive
front panels.

Card Edge Info. ........... What is the status of the card edge LEDs or display? These can often provide

information such as power status and input detection conditions.

Internal TPG ............... Many S&W products have an internal test pattern/tone generator. Please

activate this to assist you with your problem analysis.

In addition to the above, please do not forget to provide us with all of the necessary contact information:

• Names

• Telephone & Fax numbers

• e-mail addresses

• Business address

A form has been provided for this information and will be found on the next page or an on-line form is available
on the Snell & Wilcox website at:

http://www.snellwilcox.com/support/request

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.10

Product Support Request Form

Name: *

Company:

Address Details: *

Post/ZIP Code:

Country: *

Telephone: *

Fax:

Email: *

Local S&W Center: *

Product Name: *

Switchers (i.e. Magic DaVE, Switchpack, Kahuna)

File & Data Transfer Products (i.e. RollCall, Memphis & Asteroid)

Product Type: *

Video Products (i.e. Modular, Kudos Plus and Alchemist)

Unit Serial Number: *

Fault/Spare Part Information: *

(please advise us how many
units show this fault and the
system layout showing all other
manufacturers' products)

e-mail

* Preferred Method of Contact:

Phone

• Item is required.

Please mail to:

Snell & Wilcox Ltd.,
Southleigh Park House,
Eastleigh Road,
Havant,
Hants,
PO9 2PE.
United Kingdom.

Service Contact Information:

Tel: [phone]
Fax: [phone]
http://www.snellwilcox.com/support
ftp://ftp.snellwilcox.com/support

NRS70 Series SECTION 0

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 0.11

Manual Revision Record

Date Version No. Issue No. Change Comments
070503 1 1 First issue released
070803 1 2 Data for installing enclosed

balanced audio I/O rear added.

Complete new manual issued

NRS70 Series SECTION 1

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 1.1

Description - NRS70/NRS70TX

The NRS70 is a powerful frame-recursive noise
reducer. Designed for use in live broadcast and
post-production operations, it also provides an
economical pre-processing solution in DVD
authoring.

The NRS70 provides much improved performance
compared with adaptive technology. It
automatically eliminates almost all background
noise by a combination of techniques and filters.

A sophisticated motion detector seamlessly
switches off the noise reduction in moving picture
areas. A median filter is included to remove
impulse noise, and an additional sparkle filter can
be switched in constantly to provide extra noise
reduction with no compromise in picture quality.

In addition to noise reduction, the NRS70 also
provides multi-standard Y/C, composite and SDI
timebase correction and synchronization. The
composite input automatically detects PAL, NTSC,
NTSC-J, PAL-N, PAL-M, N4.43 and SECAM, and
is sampled and decoded using an adaptive comb
filter to ensure optimum decoding performance.

The signal correction features include RGB gamut
legalizer, luminance and chrominance gain, black
level, NTSC hue, vertical and horizontal
enhancers, Y-C horizontal timing and picture
position. Rugged sync and clock recovery ensure
reliable operation with unstable and noisy inputs.

Signals can be output as digital component SDI or
as broadcast quality composite. The 12-bit output
encoder is fully genlockable to a composite
reference and supports PAL, NTSC, NTSC-J,
PAL-N, PAL-M, N4.43 and SECAM. The NRS70
will also operate as a transcoder between any of
the available standards of the same line rate.

The NRS70 also has two separate AES inputs to
enable audio embedding into any of the eight pairs
of the SDI output. Individual channel routing is also
provided, along with two AES outputs.

Other features include freeze, pattern generation,
and GPI control / audio delay flag output. Full
RollCall remote control is available including
RollTrack for audio delay tracking.

NRS70

NRS70TX

NRS70, NRS70TX

Fuse

ROLLCALL

AES OUT

AES IN 625

AUDIO REFERENCE

A

B

A

B

A

B

INPUTS

525

SDI

1

2

GPI/O

COMPOSITE

Y

C

A

B

100-240V~

60/50 Hz

1.8A

T

T2A H 250V

OUTPUTS

COMPOSITE SDI

1

C

Y

2

1

2

REMOTE

NRS70 Series SECTION 1

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 1.2

Features - NRS70/NRS70TX

•

4:2:2 Noise reducer with frame synchronizer

•

Powerful frame recursive noise reducer with automatic noise floor measurement

•

Sophisticated motion detector seamlessly switches off the noise reduction in moving picture areas

•

Recursive, median and sparkle filters included with option to enable sparkle filter constantly without
compromising picture quality.

•

Linear horizontal and vertical enhancer

•

Broadcast quality 12-bit encoder

•

Synchronizes up to 4 channels of audio with the noise reduced video

NRS70 Series SECTION 2

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 2.1

Technical Profile NRS70 Versions

Features

Signal Inputs

SDI 2 via BNC connector - SMPTE

259M –1997 and embedded audio
SMPTE 272M level A

Composite 2 via BNC connectors

Y/C 1 via 2 BNC connectors

AES/EBU Audio 2 x BNC; Unbalanced, 25-100kHz

asynchronous or 48kHz
synchronous to input video –
SMPTE 276M-1995

Reference (525)

1 via Loop-Through BNC
connectors

Reference (625)

1 via Loop-Through BNC
connectors

Signal Outputs

Composite 2 programme outputs via BNC

connectors

Y/C 1 programme output via 2 x BNC

connectors

Serial Digital
Component (SDI)

2 outputs via BNC connectors

AES/EBU Audio 2 x BNC; Unbalanced, 48KHz

synchronous to output video

Control Interface

GPI I/O 2 via BNC connectors Closing

contact Input/Output

RollCall Via BNC connector

Remote S & W RollCall RS485 or RS422

@ 38 kB via 9 way D connector

Front Panel Controls

Input Select Composite A/B, SDI A/B, Y/C

Audio

Y Gain

C Gain

Black Level

Hue

Noise Reduction On / Off

Noise Reduce Level Y Noise Reduction Level Off / Low

/ Medium / High

C Noise Reduction Level Off / Low
/ Medium / High

Recursive Threshold Auto + 7 manual levels

Enhance On / Off

Memories 8 locations

Genlock On / Off

Browse

Setup

Audio Controls

Gain L & R

Separate L & R controls for each
embedder

± 6dB in 0.25dB steps

Invert L & R Separate L & R controls for each

embedder On / Off

Mute L & R Separate L & R controls for each

embedder On / Off

Disable Separate controls for each

embedder On / Off

Default Output Separate controls for each

embedder

Tone, Silence, Disable

Audio delay 1 – 160 ms

Tone Setup:

Amplitude -30dBFS to 0dBFS in 1dB steps

Frequency 100Hz to 10kHz in 100Hz steps

Right Channel Ident Pulse interruption every ~2s

Indicators

Input Loss

Reference Loss

Information
Readback

Audio Embedded channel data present,

AES inputs present

EDH present : error minute : error hour

Delay

Software Version

Serial Number

Unit temperature OK, Near Limit, and Overheating

Additional
RollCall™
Functions

Logging

Reference, Input, Output
Standard, EDH, AES Inputs,

RollTrack

Set up to 10 unit destinations for
Input Loss, Input restore or Delay
information

System Parameters

Internal Processing 4:2:2 with 10 bit or greater data

paths

Encoder

Composite Encoding 12 bit

Y Frequency Response 5.5 MHz ± 0.05 dB

U/I/Db & V/Q/Dr
Frequency Response

1.3 MHz <-3 dB, 4.0MHz <-20dB

Differential Gain Better than 0.2%

Differential Phase Better than 0.2°

SCH Phase 0 ± 2°

NRS70 Series SECTION 2

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 2.2

Composite Output
Return Loss

Better than 35 dB to 5.8 MHz

Free run frequency
error

< 10ppm

Genlock SC jitter < 0.5 deg

Decoder

Standards PAL, NTSC, NTSC-J, PALM,

PALN, N443, SECAM

Y Frequency Response 5 MHz +0.2 dB, -0.5 dB

Signal/Noise Ratio Better than –65dB (Weighted,

Ramp)

2T Pulse-Shape K­rating

Better than 0.5%

PbPr Frequency
Response

1.5MHz –3dB

Y non-linearity Better than 0.5%

Differential Gain Better than 0.5%

Differential Phase Less than 0.5deg (5 step

modulated staircase)

Encoder Controls

Composite Output
Standard

625 – PAL, PALN, SECAM

525 – NTSC, NTSC-J, PAL-M,
N443

Minimum Blanking On / Off for 625 and 525 outputs

PAL-I Blanking On / Off for PAL output

VITS insert On / Off for 625 and 525 outputs

Pass Vertical Data On / Off

SECAM Bottles On / Off

SECAM Notch On / Off

SECAM Carrier On / Off

SECAM Chroma
Prefilter

On / Off

Decoder Controls

Input Standard Auto / Manual PAL, NTSC, NTSC-

J, PALM, PALN, N443, SECAM

ACC On / Off

AGC On / Off

NTSC Hue ±30°

VBI Pass Selectable pass or blank for each

vertical interval line

Noise Reducer
Controls

Y Noise Reduction
Level

Off / Low / Medium / High

C Noise Reduction
Level

Off / Low / Medium / High

Sparkle Filter On / Off

Median Filter On / Off

Recursive Threshold
Level

Auto + 8 manual levels

Split Screen Off, Left-Right, Top-Bottom

Specifications

Return Loss: Inputs better than 35 dB to 5.0 MHz

Return Loss: Outputs better than 30 dB to 5.0 MHz

Return Loss SDI Inputs better than 15 dB at 270 MHz

Return Loss SDI Outputs better than 15 dB at 270 MHz

Power

Mains Supply 115/230V 60/50 Hz 1.2 A

Power Consumption 140 W max

Mechanical

Temperature Range 0° to 40° C operating

Cooling Axial fan

Case Type 1RU Rack Mounting

Dimensions Overall 483 x 440 x 45 mm.

(w x d x h).
Depth from mounting face
(including unmated connectors)
415 mm.

Weight 9.75 kg

EMC Environment

This unit is intended for use in the
commercial and light industrial
environment E2.

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.1

Installation

Unpacking the NRS70

The unit is packed in a single carton. The contents
of the flight case are as follows:

•

NRS70 unit

•

Power cable.

•

This Operator's Manual

•

Balanced (25 way D) I/O audio rear panel

Unpack the carton carefully and check for any
shortages or shipping damage. Immediately report
any shortages or damage to Snell and Wilcox
Limited.

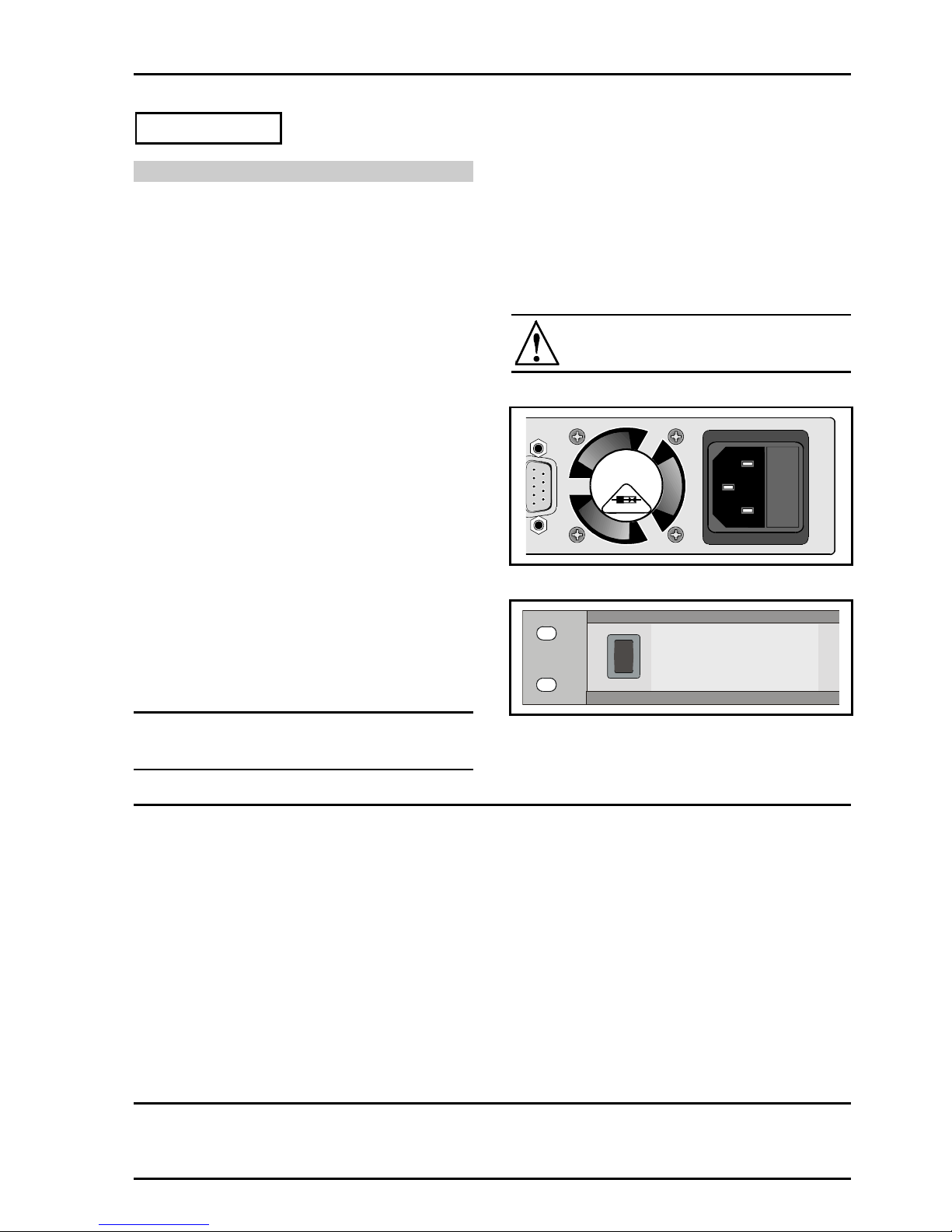

POWER CONNECTIONS

Power Supply

Mains power is supplied to the unit via a filtered IEC
connector.

The mains power fuse rating is 2 A (T) HBC and the
rated current for the unit is 1.2 A.

The power supply ON/OFF switch is located on the
front of the power supply inside the front panel.

CAUTION: THE VENTILATION HOLES AT THE
SIDES OF THE UNIT AND THE FAN EXIT AREA
MUST NOT BE OBSCURED.

Supply Voltage

The power supplies are auto switching for input
voltages in the ranges of 100 V to 250 V nominal.

No voltage adjustment procedure is required.

CAUTION: THIS UNIT MUST NOT BE

OPERATED WITHOUT

AN EARTH CONNECTION.

Fuse

100-240V~

60/50 Hz

1.8A

T

T2A H 250V

MOTE

I

O

Rack Mounting the 1U Enclosure

The product must not be rack mounted using only the front rack mounting ears. When installing the product in
a rack one of the following methods must be used: -

• Place the unit on a suitably specified, and installed rack shelf and secure the product to the rack via the
front rack ears

• Alternatively fit the unit using additional rear rack mounts

A suitable mounting kit is available for purchase from Snell & Wilcox by quoting the order code:

FGACK RACK-MNT-KIT

Note: The rear mounting brackets must be attached using the two M3 threaded inserts on both sides of the
product; the maximum length of screw that can be used is M3 x 6mm. Ensure that the product is secured to
the rack in all four corners.

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.2

Removing and fitting a rear connecting panel

Warning: Remove power from the unit when performing these operations

Removing a rear connecting panel

1. At the rear of the enclosure remove the screws securing the rear panel to the mainframe.

2. Remove the rear panel by pulling the rear panel away from the mainframe in a straight line.

Fitting a rear connecting panel

1. Ensuring correct panel orientation and correct alignment of the multi-way connector fit the rear connecting
panel to the rear of the enclosure by inserting the panel into the mainframe in a straight line.

2. Secure the panel with the fixing screws.

Warning: The rear of the enclosure must have a full complement of rear panels fitted when powered-up.

INPUT CONNECTIONS

Composite A and B

These are the 2 Composite video inputs to the
decoder module via BNC connectors. Nominal input
level is 1 V p-p terminated in 75 Ohms.

Separated Y C

A Y-C (S-VHS, Hi-8 etc.) input signal may be
connected to the unit via 2 BNC connectors.
Y should be connected to Composite A and C to
Composite B.

Y input level is a nominal 1V p-p into 75 Ohms.
C input is nominal colour burst level into 75 Ohms.

SDI A & B

These are the 2 SDI inputs to the unit via BNC
connectors.

AES A & B (BNC Rear Panel)

These are the 2 unbalanced AES/EBU Audio inputs
to the unit via BNC connectors. Nominal input level
is 1 V p-p terminated in 75 Ohms.

COMPOSITE

Y

C

A

B

COMPOSITE

Y

C

A

B

A

B

INPUTS

SDI

AES IN

AUDIO

A

B

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.3

AES A & B (25 way D Rear Panel)

All balanced audio connections are made via the 25
way D Connector.

AUDIO

25 Way D Connection Details

25 Way D Connector

Pin Number

Description

Ribbon Cable

Strand Number

Standard Pin Assignment

1 1 CHASSIS

14 AES IN A Gnd 2 GND1

2 AES IN A + 3 1+

15 AES IN A - 4 1-

3 AES IN B + 5 2+

16 AES IN B - 6 2-

4 AES IN B Gnd 7 GND2

17 Unused 8 GND3

5 Unused 9 3+

18 Unused 10 3-

6 Unused 11 4+

19 Unused 12 4-

7 Unused 13 GND4 (CH)

20 Unused 14 GND5

8 Unused 15 5+

21 Unused 16 5-

9 AES OUT A + 17 6+
22 AES OUT A - 18 6­10 AES OUT A Gnd 19 GND6
23 AES OUT B Gnd 20 GND7
11 AES OUT B + 21 7+
24 AES OUT B - 22 7­12 Unused 23 8+
25 Unused 24 8-

Reference Inputs

525 and 625

When suitable signals are connected to these
inputs, the video output of the unit will be fully
synchronised to the relevant signal source when the
genlock function is selected. There are separate
inputs for 525 and 625 line standard signals. If no
signal is present the unit will automatically revert to
internal free-running operation.
BNC loop-through connectors are provided and the
signal may be black burst or composite video at
standard level.

625

REFERENCE

525

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.4

OUTPUT CONNECTIONS

Composite Outputs 1 & 2

Two isolated composite outputs are available from
these BNC connectors.
Output level is standard 1V p-p into 75 Ohms.

SDI 1 & 2

These are the 2 SDI outputs of the unit via BNC
connectors.

Y-C Separated Output

A Y-C (S-VHS/Hi-8) output signal is available via
these 2 BNC connectors marked Y and C.

Y output level is a nominal 1 V p-p into 75 Ohms.
C output is a nominal colour burst level into 75
Ohms.

AES A & B (BNC Rear Panel)

The unbalanced audio outputs can be configured to
be AES input A/B, embedded audio or internally
generated test tone.

AES A & B (25 way D Rear Panel)

All balanced audio connections are made via the 25
way D Connector.
For connection details please see page 3.4,

25 Way D Connection Details.

OUTPUTS

COMPOSITE

1

2

SDI

1

2

C

Y

AES OUT

2

1

AUDIO

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.5

COMMUNICATIONS CONNECTORS

Remote

This 9 pin `D' connector on the rear panel allows
the unit to be connected to the RollCall 485 network
communications system. This connector may also
be used as a RS422 port. For more information see
Section 5 Modes of Operation.

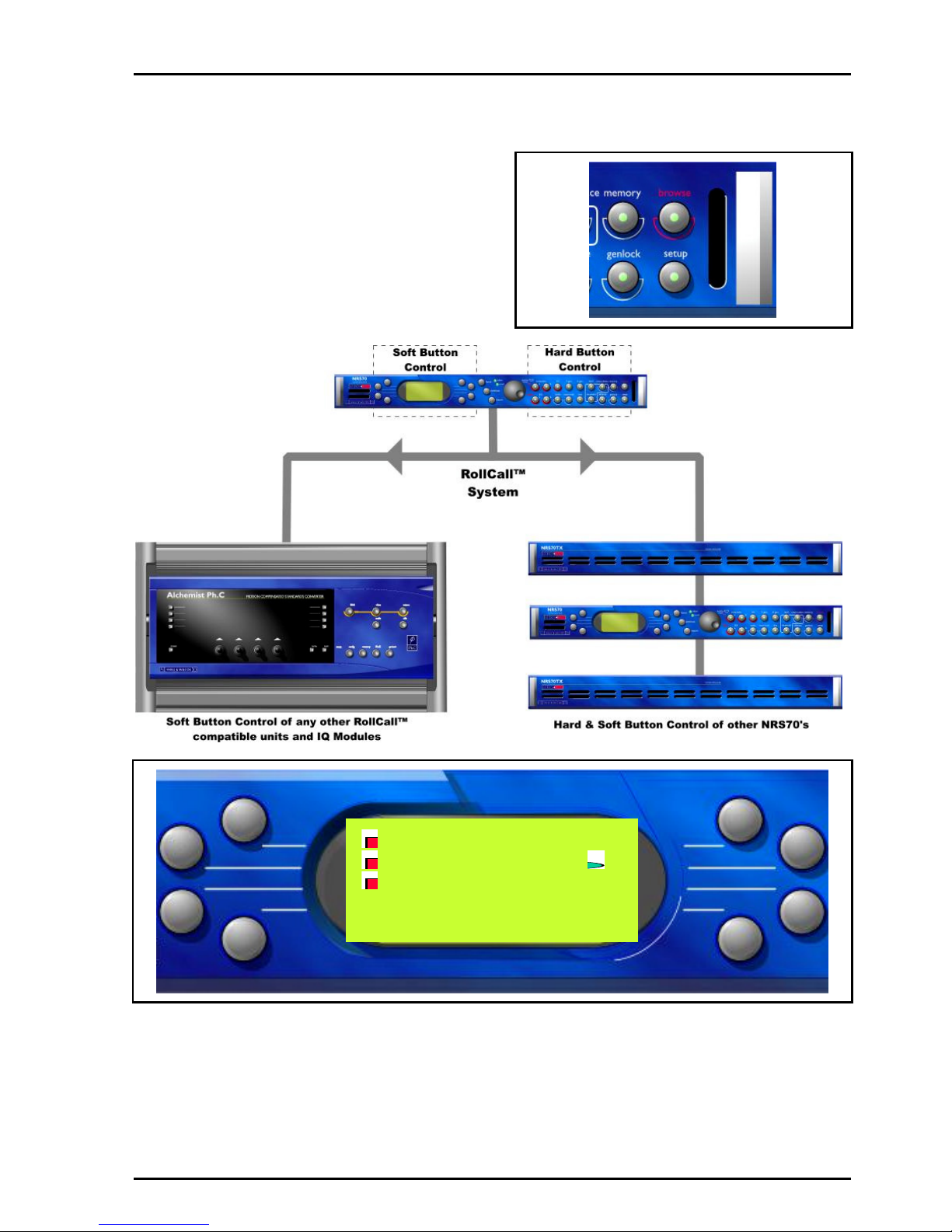

RollCall

This single BNC connector allows the unit to be
connected to the RollCall network communications
system.

GPI I/O 1 and 2

These BNC connectors provide GPI input and
output control for the module.

Both GPI1 and GPI2 may be configured as inputs
that will allow memory locations to be recalled.

GPI2 may be configured as an output and will
provide an audio delay flag representing the video
delay through the unit.

100-240V~

60/50 Hz

1.8A

T

T2A H 250V

REMOTE

ROLLCALL

IQ AUDIO

DAC

Y

1

2

GPI/O

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.6

OPENING AND CLOSING THE FRONT PANEL

To Open

Release the front panel by pulling the front panel
forward and downwards using the release handles
on either side of the front panel.

To Close

Replace the front panel by pushing the front panel
rearwards and upwards using the release handles
on either side of the front panel. Ensure that the
panel is fully seated in the case.

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.7

INSTALLING/REMOVING A MODULE

Internal View of Mainframe.

Rear of Mainframe

Fuse

ROLLCALL

AES OUT

AES IN 625

AUDIO REFERE NCE

A

B

A

B

A

B

INPUTS

525 SDI

1

2

GPI/O

COMPOSITE

Y

C

A

B

100-240V~

60/50 Hz

1.8A

T

T2A H 250V

OUTPUTS

COMPOSITE S DI

1

C

Y

2

1

2

REMOTE

Warning

Before installing a new module into the enclosure
the Configuration Rules given below must be
followed.

The rear of the enclosure must have a full
complement of rear panels. Any vacant slots must
have a blank rear panel fitted

Configuration Rules

These rules limit the total power dissipation of
modules that can be installed in the box. Use the
module power ratings to calculate the total power
dissipated in the enclosure.

Module Power Rating

The power rating for each module is given in its
associated operation manual.

Available Power

The Enclosure has 70 W of available power. The
power ratings of each module should be added
together and the total should not exceed 70 W.

The table opposite may be used for this
calculation.

Warning

The sum of the module power ratings (calculated
using the method above) in the enclosure must not
exceed 70 W.

REFER TO USER MANUAL

BEFORE INSTALLING MODULES

!!

Power Rating Table

Slot Position Module Name Power Rating

3
5

Main Card
Total Power (Watts)

(70 W Maximum)

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.8

Installing a New Module

Warning Ensure that the power supply is

switched OFF and the mains power connection at
the rear of the unit is removed before these
operations are attempted.

1. Before installing a new module consult the
“Installing/Removing a Module” section to
ensure there is adequate power available for
the module to be added.

2. Release the front panel by pulling the front
panel forward and downwards using the
release handles on either side of the front
panel.

3. Choose an empty slot position for the module.

4. Loosen the screw securing the appropriate
module retaining plate.

5. Slide the module retaining plate upwards or
downwards as appropriate to uncover the card
entry slots.

6. At the rear of the enclosure remove the screws
securing the blanking plate associated with the
chosen slot position.

7. Store the blanking plate in a safe place for
future use.

8. Ensuring correct orientation fit the rear
connecting panel (supplied with the new
module) to the rear of the enclosure in the
vacant aperture and secure with the fixing
screws provided.

9. At the front of the enclosure, (ensuring correct
orientation) carefully slide in the new module
until it fully mates with the rear connector
panel.

10. Slide the module retaining plate upwards or
downwards as appropriate to cover the card
entry slots.

11. Tighten the screw securing the module
retaining plate.

12. Replace the front panel ensuring that the panel
is fully seated in the case.

13. Update the Power Rating table on previous
page.

Removing a Module

1. Remove the front panel as previously
described

2. Loosen the screw securing the appropriate
module retaining plate.

3. Slide the module retaining plate upwards or
downwards as appropriate to uncover the card
entry slots.

4. Carefully slide out the desired module

If a different type of module is to be installed in this
position proceed as in Installing a New Module
item 1 and items 4 to 14.

If the slot is to left vacant, proceed as follows:

1. Tighten the screw securing the module
retaining plate.

2. Replace the front panel ensuring that the panel
is fully seated in the case.

3. At the rear of the enclosure fit the blanking
plate in the associated position using two
screws.

4. Update the Power Rating table on previous
page.

NRS70 Series SECTION 3

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 3.9

Matching the Front Panel to a Gateway Address

If the NRS70 is to be used on a RollCall network with other equipment, it may be necessary to change the unit
address to that of a vacant network slot in order to avoid confusion between units.

If an address is already in use by the network the RollCall receive and transmit LEDs will flash alternately at a
1-second rate. In this event, the following steps must be taken to set a new unit address:

1. Select an unused network address for the unit.

2. Set the address using the two switches on the gateway card, which is located behind the front panel.

Position 0 on the left-hand switch will disable the RollCall function on the unit.
Addresses 00 to 0F are pre-arranged.
All other positions on these switches may be used to set the unit address in hex.

3. Restart the front panel by holding down the C Gain and Hue buttons together.

4. Select Yes to the front panel question “Restart panel! Are you sure?”

5. Hold down the C Gain button to enter the setup mode.

6. When the message “Setup mode” is displayed, release the C Gain button.

7. Momentarily press the C Gain button.

8. Select Auto-Connect.

9. Ensure that the top two lines read
Auto-Connec\\\\snellwilcox.local\\root\\Marketing\\Prodmgmt\\Data00
?

by selecting

 ▶

if necessary.

10. On the third line, change the middle two numbers
0000 (35) 02
to match the network address selected in step 2 above.

11. Restart the unit.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.1

Operation

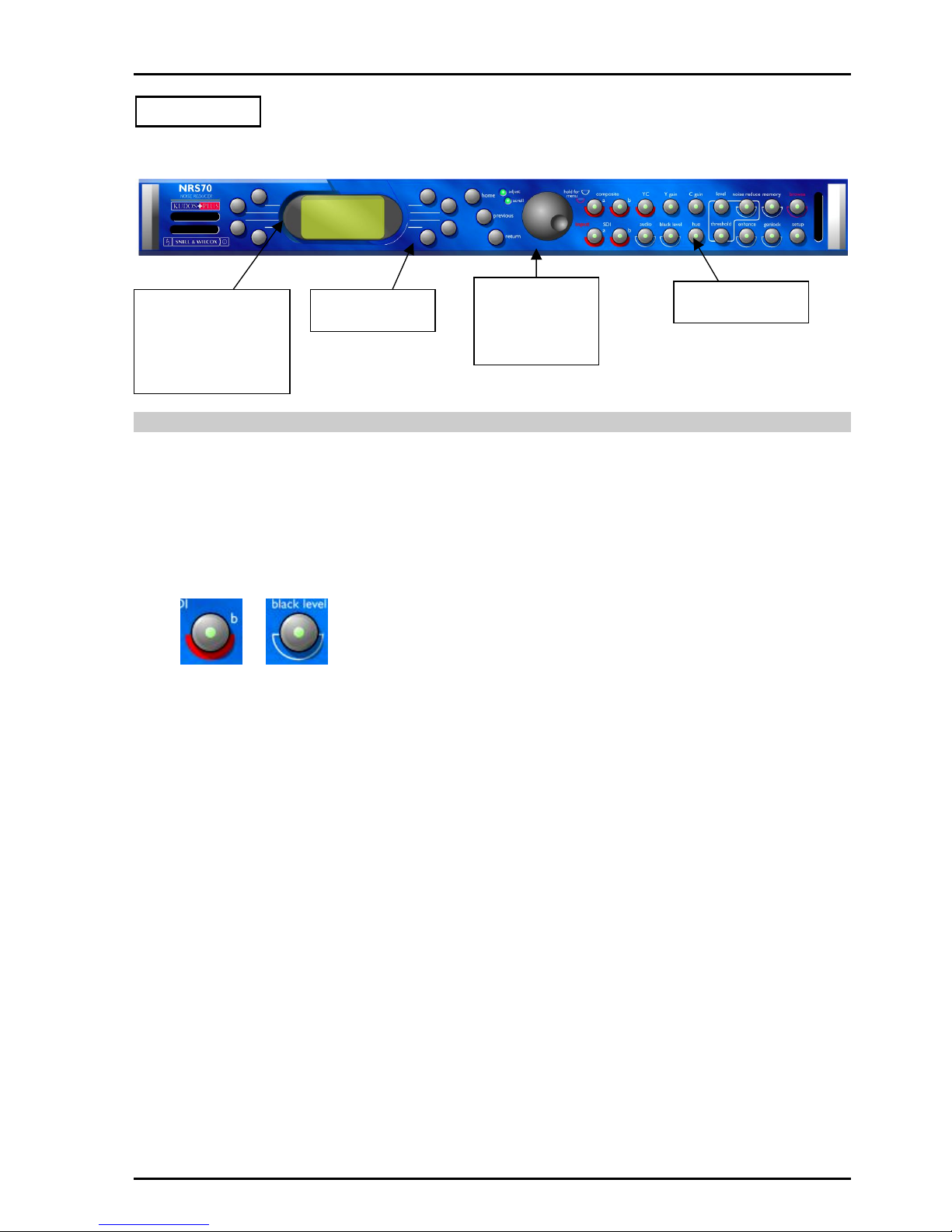

THE CONTROL PANEL

Operating the NRS70 using the Front Panel Buttons and the Menu System

USING THE FRONT PANEL PUSH BUTTONS

These buttons have two modes of operation
depending on the length of time they are pressed.

A momentary push will select or deselect the
named function.

Holding down a button underlined with a crescent

shape or will reveal the menu
associated with the chosen function.

Making a Direct Function Selection

A momentary push of the COMPOSITE





A

button will select Composite Input A.

Making a Direct Adjustment Selection

A momentary push of the







Y GAIN button will

reveal the Luminance Gain adjustment screen.

Turning a Function ON or OFF

A momentary push of the







Genlock button will

turn the genlock function ON or OFF.

Accessing the Menus

Holding down a button underlined with a crescent
shape will reveal the menu associated with the
chosen function.

For example, holding down the







Pattern

button will reveal the Pattern selection menu.

Note that some buttons do not have an ON/OFF
function e.g. SETUP; in this case a momentary
push will reveal the associated menu.

USING THE MENU SYSTEM

The system may be considered structured as a set
of menus and sub-menus that are displayed in the
LCD window.

(See NRS70 Menu System drawing on page 4.5)

A new menu is selected by pressing the
appropriate dedicated function button.

If necessary a sub-menu may then be selected by
pressing the push button adjacent to the
arrowhead in the text line of the menu name.

This sub-menu will then be displayed in the window
and will have the option of selecting another
sub-menu in the same manner, or allow the
adjustment of a particular parameter. Parameters
enabled will appear as highlighted reverse text
(white text on a black background).

The spin-wheel
allows parameters
and menus to be
displayed in the
LCD window

Display Control
Buttons

This LCD window
displays the parameters
and sub-menus that may
be selected by the push
buttons and by the spin-

wheel

Dedicated Push
Buttons

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.2

CONTROL PANEL - GENERAL INFORMATION

Pressing the Home button displays the home
status screen in the display window from any
position in the menu hierarchy.

The Previous button allows a return to the last
menu item that was changed. Up to 20 changed
menu items may be retraced using this function.

The Return button allows access to the previously
selected menu or back to the home screen as
appropriate.

When the Scroll LED is illuminated this indicates
that a menu contains more than four text lines and
the spinwheel may be used to scroll through the
menu.

When the Adjust LED is illuminated this indicates
that parameter values and alpha-numerics may be
changed using the spinwheel.

If a menu title is followed by three dots

e.g. Input Standards...

this indicates that a further sub-menu is available
for selection.

Display Window

The display window displays all selection menus
sub-menus and unit status information.

The selection is made by pressing the button
adjacent to the required item and will become
highlighted (reversed text) when active.

The example opposite shows the Auto Gain
Control function selected.

An example of the display showing the unit status
is shown opposite.

Note that the display window will automatically
revert to the home page (as would be seen if the
Home button was pressed) if a front panel control
has not been operated for a period of 1 minute.

For details of the abbreviations used in this display
please see page 4.44.

◀

◀ ◀

◀

Auto Gain Control

◀

◀ ◀

◀

Auto Color Control

◀

◀ ◀

◀

NTSC Hue

◀◀◀◀

PAL Line 23

NRS70
In:CVBS A PAL
Out: PAL Ref : OK
Pattern Audio:OK

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.3



BROWSE

The Browse function is used to view a RollCall
Network.

An example is shown below.

Pressing the Browse button will enable a display
that shows the RollCall network.

Note the browse button will remain illuminated to
indicate that the unit being controlled is not the
default unit.

This allows connections to be made to other
RollCall network addresses as demonstrated in
this example.

Note that if the Browse button is held down the
connection will return to the default unit (Default
unit is a menu item in section 5 page 5.6)

◀ NRS70 ▶
◀ NRS70TX ▶
◀ Another module/unit ▶

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.4

Pressing the button adjacent to the required item
allows a connection to be made.

◀ NRS70

A connection may be made to a NRS70 and then
controlled from this unit’s front panel (soft and hard
button control).

◀ NRS70TX

A connection may be made to a NRS70TX and
then controlled from this NRS70 front panel (soft
and hard button control).

◀ Another module/unit

Other modules or units on the network may be
connected to in the same way.

For more details on the RollCall operating network
please consult the operating manual for IQ
Modular Shoebox.

The symbols used are shown below:

This symbol represents a gateway to a
module.

This indicates that the unit is currently
connected to this control panel. Pressing
the adjacent button will disconnect the unit
from the control panel.

This indicates that this unit is currently
connected to and locked by another control
panel.

This shows that the unit is in the standby
mode (i.e. currently not active but locked
by this control panel).

This represents a bridge connection.

This indicates that a connection has been
already made to this unit but the unit will
still accept another connection.

The RollCall network may also be browsed by
using the RollCall Control Templates as described
on page 4.27.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.5

NTSC Hue

0 deg

Preset

NTSC Hue

NRS70 MAIN MENU

Input...
ProcAmp...
Features...
Memories...

Output...

Audio...

Status...

Setup...

NRS70

Menu System

Note that highlighted items

indicate

Preset Unit conditions

625

AutoDetect

PAL Line 23

Process As Video

Process as Data
Blank Line 23

625

AutoDetect

NTSC Line 21/283

Process As Video

Process as Data
Blank Line 21/283

Decoder

Auto Gain Control
Auto Color Control

PAL Line 23...
NTSC Line 21/283...

NTSC Hue

Genlock

Genlock Enable

PAL H Phase
PAL SC Phase
PALN H Phase
PALN SC Phase
SECAM NTSC443H Phase
NTSC H Phase
NTSC SC Phase
PALM H Phase
PALM SC Phase

H Phase

0 ns

Preset

H Phase

SC Phase

0.0 Deg

Preset

SC Phase

Pattern

Pattern Enable

Black
75% Colour Bars

100% Colour Bars

MultiBurst
100% Ramp

Black

Input

Input Select...
Input Standards...
Freeze Input
Decoder...

Input Select

Serial Digital A

Serial Digital B
Composite A

Composite B
YC

Input Standards

SDI 625
SDI 525
PAL
PALN

NTSC

PALM
N443

SECAM

NTSCJ

Chroma Gain

0.0 dB

Preset

Chroma Gain

Black Level

0 mV

Preset

Black Level

YC Timing

0ns

Preset

YC Timing

Picture Position

0ns

Preset

Picture Position

625

AutoDetect

Timing

Timing Enable
Picture Position
YC Timing

Preset

Luminance Gain

0.0 dB

Luminance Gain

Proc Amp

Proc Amp Enable
Luminance Gain
Black Level
Chroma Gain
RGB Legaliser
Timing...

H Enhance

Mid Off
Mid Low
Mid Med
Mid High

Hi Off
Hi Low
Hi Med

Hi High

V Enhance

V Enhance Off

V Enhance Low
V Enhance Med

V Enhance High

Enhance

Enable Enhance
V Enhance...
H Enhance...

Features

Enhance...
Noise Reduce...
RGB Legaiser

Noise Reduce

Noise Reduce
Recursive Level...
Recursive Threshold
Sparkle Filter
Median Filter
Split Screen..

Recursive Level

C Off
C Low
C Medium
C High

Y Off

Y Low

Y Medium

Y High

Recursive Threshold

5

Preset

Recursive Threshold

Split Screen

Split Screen Off
Left Right
Top Bottom

Output

625 Standard Setup...

525 Standard Setup...

Default Output...

625

AutoDetect

525 Standard Setup

NTSC

PALM

NTSCJ

N443

625

AutoDetect

625 Standard Setup

PAL

PALN

SECAM

625

AutoDetect

Default Output

Input

Freeze

Pattern

Black

Output A/B Status

Output A/B Staus

audio chan status a/b

OK

Delay Offset

Delay 0 ms

Preset

Delay Offset

Frequency

400 Hz

Preset

Frequency

625

AutoDetect

Tone Setup

Amplitude

Frequency

Right Channel Ident

Output A Status

Output B Status

Output Status

Amplitude

0 dBFS

Preset

Amplitude

Gain L/R

0.00 dB

Preset

Gain L/R

625

AutoDetect

Default Audio

Tone

Silence

Disable

Destination

SDI Pair 1
SDI Pair 2
SDI Pair 3
SDI Pair 4
SDI Pair 5
SDI Pair 6
SDI Pair 7
SDI Pair 8

Source Chain A/B L/R

Source 1L
Source 1R
Source 2L
Source 2R
Source 3L
Source 3R
Source 4L
Source 4R
Source 5L
Source 5R
Source 6L
Source 6R
Source 7L
Source 7R
Source 8L
Source 8R
AES INPUT AL
AES INPUT AR
AES INPUT BL
AES INPUT BR

Audio

Output A...

Output B...

Tone Setup...

Delay Offset

Output Status...

Combine Group

Output A/B

Stereo Routing

Mono Routing

Src Chain A/B Left...

Src Chain A/B Right...

Destination...
Tone A/BL Enable
Tone A/BR Enable
Gain L
Gain R
Invert Left
Invert Right
Mute Left
Mute Right
Disable
Default Audio...

Status

Status Display

GPI Delay

Unit Temperature

ANC. Status

Software Version

Serial Number
Build Number
Restart

Serial Number

Serial No
xxxxxxx

OK

Build Number

Build Number

xxxxxxx

OK

Software Version

Software Version

x.x.x

OK

Anc. Status

ANC. Status

ancil status

OK

GPI Delay

GPI Delay
gpi delay

OK

Unit Temperature

OK
Near Limit
Overheating

Status Display

Default Display

Status Display 1

Status Display 2

Status Display EDH

Reset EDH Status

625

AutoDetect

SECAM Options

Notch Disable

Bottles Enable

Carrier Disable
Chroma Filt Disable

Encoder

VITS 625 Insert

VITS 525 Insert

Min Blanking 625

Min Blanking 525

PAL-I Blanking

SECAM Options...

Pass Vertical Data

Clear

Clear M1

Clear M3

Clear M5

Clear M7

Clear M2

Clear M4

Clear M6

Clear M8

Name

Name M1
Name M3
Name M5
Name M7

Name M2
Name M4
Name M6
Name M8

Recall

Recall M1
Recall M3
Recall M5
Recall M7

Recall M2
Recall M4
Recall M6
Recall M8

Save

Save M1
Save M3
Save M5
Save M7

Save M2
Save M4
Save M6
Save M8

Memories

Recall...
Clear...

Save...

Name...

Name 1 to 8

Name 1 to 8

Clear
Preset

memory 1 to 8 name

OK

Setup

Encoder...
Genlock...
Pattern...
GPI...

VI Blanking

RollTrack...
Logging...
Preset Unit

Logging

Log Input Status
Log Input Standard
Log Reference
Log EDH Errors
Log AES Input
Log Audio
Log Temperature

RollTrack Mode

Not Used
Delay
Input Loss
Input Restore

RollTrack 1-10

RollTrack Unit

RollTrack Params

RollTrack Mode...

RollTrack

RollTrack 1...
RollTrack 2...
RollTrack 3...
RollTrack 4...
RollTrack 5...
RollTrack 6...
RollTrack 7...
RollTrack 8...
RollTrack 9...

RollTrack 10...

RollTrack Params

RollTrack Params

Clear
Preset

Rollparams 1-10

OK

RollTrack Unit

RollTrack Unit

Clear
Preset

Rollunit 1-10

OK

VI Blank 525...

VI Blank 625...

VI Blanking

VI Blank 625

Blank All
Line 6
to
Line 22
Line 335

Pass All

Line 318

to

Line 334

VI Blank 525

Blank All
Line 10
to
Line 20

Pass All

Line 273

to

Line 282

GPI 1, 2 Open

OFF
Memory 2
Memory 4
Memory 6
Memory 8

Memory 1
Memory 3
Memory 5
Memory 7

OFF

Memory 2

Memory 4

Memory 6

Memory 8

Memory 1

Memory 3

Memory 5

Memory 7

GPI 1, 2 Close

GPI

GPI1 Open...

GPI2 Open...

GPI 2 Select...

1 Close...
2 Close...

GPI 2

Audio Delay Flag

GPI 2 Select

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.6

FRONT PANEL CONTROLS







INPUT (Composite a, b, SDI a, b, and YC)

These buttons allow the input signal connected to
the rear panel to be selected for processing.

A prolonged push of any of these buttons will
reveal the Input Menu.

Note that these buttons are mutually exclusive and
only one of the inputs may be selected.

◀

◀ ◀

◀ Input…

This function allows the input parameters to be set.

Input

Input Select...
Input Standards...
Freeze Input
Decoder...

◀

◀ ◀

◀ Input Select

This allows any of the 5 sources of video input
signal to be selected for processing.







Composite a, b, SDI a, b and YC

Input Select

Serial Digital A

Serial Digital B
Composite A

Composite B
YC

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.7

◀

◀ ◀

◀ Input Standards

The decoder employs an auto standard detection
system. It will auto detect any of the standards that
are checked in the list of standards.

Input Standards

SDI 625
SDI 525
PAL
PALN

NTSC

PALM
N443

SECAM

NTSCJ

In the example above it will auto detect all
standards except NTSCJ. Any number (one or
more) of standards may be selected. For example,
in a given situation where it is known that only PAL
and NTSC input signals are expected, only the
PAL and NTSC standards should be checked.

The decoder will then only auto detect between
PAL and NTSC standards. Other standards will not
be decoded and will produce an unstable lock.

To force the unit to decode only one standard,
check that standard and uncheck all others.

Note that at least one standard must be selected; if
an attempt is made to uncheck all items the last
standard selected will remain checked and become
the only standard to be decoded.

For NTSC signals either NTSC or NTSCJ may be
checked, but it is not possible to check both NTSC
and NTSCJ.

The output line standard will be the same as the
detected input standard. i.e. the output signal will
be at a line rate of 625 if the detected input signal
has a line rate of 625; similarly the output signal
will be at a line rate of 525 if the detected input
signal has a line rate of 525.

NTSCJ When this function is enabled the decoder
will correctly process a NTSCJ signal (an NTSC
signal without pedestal).

◀

◀ ◀

◀ Freeze Input

This function toggles between a normal picture and
a frozen picture.

◀

◀ ◀

◀ Decoder

This function allows settings to be made to the
decoder section.

Decoder

Auto Gain Control

Auto Color Control

PAL Line 23...

NTSC Line 21/283...

NTSC Hue

◀

◀ ◀

◀ Auto Gain Control

When this item is enabled the luminance gain will
vary relative to the input peak white amplitude.
This will maintain the output signal at a normalized
level even though the input signal level may be
above or below standard level. The control will be
effective over an input level range of +3 dB to

-6 dB.

◀

◀ ◀

◀ Auto Color Control

When this item is enabled the chrominance gain
will vary relative to the input burst amplitude. This
will maintain correct color saturation regardless of
changes in subcarrier amplitude.

◀

◀ ◀

◀ NTSC Hue

This selection reveals a numerical readout display
for the Hue of NTSC signals. By using the scroll
bar the Hue may be adjusted by ±30 ° in steps of
1°.

NTSC Hue

0 deg

Preset

NTSC Hue

Selecting Preset returns the setting to the
calibrated value of 0°.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.8

◀

◀ ◀

◀ PAL Line 23

625

AutoDetect

PAL Line 23

Process As Video

Process as Data
Blank Line 23

This item allows various options to be applied to
line 23 of the input signal.

◀

◀ ◀

◀ Process As Video

When enabled line 23 of the PAL input signal will
be processed as active picture and the ProcAmp
controls will effect line 23.

◀

◀ ◀

◀ Process as Data

When selected (text reversed) line 23 is passed
unprocessed and the ProcAmp controls will not
effect line 23.
The Chroma information will not be decoded from
a Composite or Y/C source.

◀

◀ ◀

◀ Blank Line 23

When enabled line 23 of the PAL input signal will
be blanked.

◀

◀ ◀

◀ NTSC Line 21/283

This item allows various options to be applied to
line 21/283 of the input signal.

625

AutoDetect

NTSC Line 21/283

Process As Video

Process as Data
Blank Line 21/283

◀

◀ ◀

◀ Process As Video

When enabled line 21/283 of the input signal will
be processed and the ProcAmp controls will effect
Line 21/283.

◀

◀ ◀

◀ Process as Data

When selected (text reversed) lines 21/283 are
passed unprocessed and the ProcAmp controls will
not effect Line 21/283.
The Chroma information will not be decoded from
a Composite or Y/C source.

◀

◀ ◀

◀ Blank Line 21/283

When enabled line 21/283 of the input signal will
be blanked.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.9



Audio

There are 2 separate identical audio processing chains in the NRS70, Chain A and Chain B. The chain may be
set to either stereo or mono source routing mode.

Source Selection

Audio pairs can be routed using stereo mode or
alternatively each audio channel (subframe) can be
determined individually using mono routing mode
as shown above.

Processing

Gain Left and right separately adjustable by

±6 dB.

Invert Left and right separately to normal or

invert polarity signal.

Mute Left and right separately to mute or

pass signal.

Disable Left and right signals will both be

disabled.

Default Audio

If the audio source selected by the MUX is absent
the output will automatically default to the signal
selected in the Default Audio menu:

Tone The output will be the tone as set by the

Tone Setup function.

Silence The output will become Audio silence.

Disable The Default Audio function will be

disabled.

Destination

This allows the processed signal to be embedded
into any of the 8 pairs of the SDI signal.

A separate AES output is also provided.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.10

Audio ▶▶▶▶

This menu allows various audio functions to be set
up.

Audio

Output A...
Output B...
Tone Setup...
Delay Offset
Output Status...
Combine Group

◀

◀ ◀

◀ Output A and Output B

This allows audio processing adjustments of chain
A and B to be made for outputs A and B.

Output A/B

Stereo Routing
Mono Routing
Src Chain A/B Left...

Src Chain A/B Right...

Destination...
Tone A/BL Enable
Tone A/BR Enable
Gain L
Gain R
Invert Left
Invert Right
Mute Left
Mute Right
Disable
Default Audio...

◀ Stereo Routing

When this item is selected a stereo pair may be
selected for routing through the audio processing
chain.
For example, if Source 3L is selected in Src Chain
A Right menu then automatically the Src Chain A
Left will be changed to Source 3R. i.e. Chain A
would be sourced from pair 3 with a stereo
inversion.

◀ Mono Routing

When this item is selected a single channel may
be selected for routing through the audio
processing chain.
For example, if source 5L is selected in Src Chain
A Right then the Src Chain A Left is not changed.
i.e. each channel is selected independently.

Note that if the routing mode is changed the Mux
selection will not actually change until a new input
source chain selection is made.

◀ Source Chain A/B Left/Right

This menu allows any of the input audio sources to
be selected for processing.

Source Chain A/B Left

Source 1L
Source 1R
Source 2L
Source 2R
Source 3L
Source 3R
Source 4L
Source 4R
Source 5L
Source 5R
Source 6L
Source 6R
Source 7L
Source 7R
Source 8L
Source 8R
AES INPUT AL
AES INPUT AR
AES INPUT BL
AES INPUT BR

Source Chain A/B Right

Source 1L
Source 1R
Source 2L
Source 2R
Source 3L
Source 3R
Source 4L
Source 4R
Source 5L
Source 5R
Source 6L
Source 6R
Source 7L
Source 7R
Source 8L
Source 8R
AES INPUT AL
AES INPUT AR
AES INPUT BL
AES INPUT BR

◀ Destination

Selecting items in this menu allows the processed
signal to be embedded into any one of the 8 pairs
of the SDI signal. Chain A has priority so if
destinations are identical it is Chain A that is
embedded.

Destination

SDI Pair 1
SDI Pair 2
SDI Pair 3
SDI Pair 4
SDI Pair 5
SDI Pair 6
SDI Pair 7
SDI Pair 8

◀ Tone A/B Enable

This will enable the internal tone as set by the
Tone Setup function.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.11

◀ Gain L and Gain R

This function allows the gain of the left and right
channels to be adjusted independently.

Gain L/R

0.00 dB

Preset

Gain L/R

The range of adjustment is ±6 dB in 0.25 dB steps.

Preset is to 0.00 dB.

◀ Invert Left and Invert Right

When enabled these functions will invert the
selected audio signal channel.

Preset is to not inverted.

◀ Mute Left and Mute Right

When enabled these functions will mute the
selected audio signal channel.

Preset is to not muted.

◀ Disable

Selecting this item will disable the embedded
output signal (not the AES output).

Preset is to not disabled.

◀ Default Audio

If the audio signal is absent the output will be set to
this default signal.

625

AutoDetect

Default Audio

Tone
Silence
Disable

This menu function defines what the output signal
will become under these conditions. It can be
either an internally generated Tone or Silence or
to Disable (no signal is embedded).

Preset is to Disable.

◀

◀ ◀

◀ Tone Setup

This allows the characteristics of the tone used in
the Default Audio function, to be set.

625

AutoDetect

Tone Setup

Amplitude
Frequency
Right Channel Ident

The frequency and amplitude settings are active on
both left and right channels.

◀ Amplitude

This allows the amplitude of the tone signal to be
set.

Amplitude

0 dBFS

Preset

Amplitude

The range of adjustment is from -30 dBFS to
0 dBFS in steps of 1 dBFS.
(dBFS = decibels Full Scale).

Preset is to -20 dBFS.

◀ Right Channel Ident

When enabled the right channel will be identified
by the signal being muted for 0.5 second every 2.5
seconds.

◀ Frequency

This allows the frequency of the tone signal to be
set.

Frequency

400 Hz

Preset

Frequency

The range of adjustment is from 100 Hz to
10 000 Hz in steps of 100 Hz.

Preset is to 400 Hz.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.12

◀

◀ ◀

◀ Delay Offset

In addition to the delay compensating for the video
path through the system, an extra audio delay
period can be added to compensate for any video
delay introduced elsewhere in the system.

Delay Offset

Delay 0 ms

Preset

Delay Offset

The range of adjustment is from –40 ms to
+160 ms in steps of 1 ms.

Preset is to 0 ms.

Audio Delay Timing

Audio

Video Input

x ms

Audio

Video Output

y ms

Audio Output

Audio Input

In the above diagram, the delay through the
NRS70 is x ms. The timing of the audio output is
set using the delay offset control. A negative audio
delay will advance the audio by up to –x ms. The
delay offset in the above diagram is –y ms.

Note that the absolute audio delay will be shown in
the GPI section of the status display. (see page

4.26, GPI Delay).

◀

◀ ◀

◀ Output Status

This function allows the status of output A and
output B to be displayed.

Output A Status
Output B Status

Output Status

The status of the selected output will be shown in
the window.

Output A/B Status

Output A/B Staus
audio chan status a/b

OK

Examples of messages are as follows:

Muted pair 2

Default disable

Default tone 2

Default mute 2

◀

◀ ◀

◀ Combine Group

Two pairs in the same group can be presented in
two valid but different ways in the Ancillary data
(combined or not combined).

The Combine Group function allows the user to
specify which one of these two alternatives the
NRS70 will use to embed the audio.

When the text is highlighted the group will be
combined; when the text is normal the group will
not be combined.
Default is to ON (Combine Group).

This control should be used if equipment
downstream of the NRS70 is only able to recognize
an uncombined group.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.13







Y GAIN (Luminance Gain)

Pressing this button will reveal a numerical readout
display for the gain of the luminance signal.

By rotating the spinwheel the gain may be adjusted
by ±3 dB in steps of 0.1 dB.

Luminance Gain

0.0 dB

Luminance Gain

Selecting Preset returns the setting to the
calibrated value of 0.







BLACK LEVEL

This selection reveals a numerical readout display
for the Y pedestal or black level.

By rotating the spinwheel the pedestal may be
adjusted by ±100 mV in steps of 1 mV.

Black Level

0 mV

Preset

Black Level

Selecting Preset returns the setting to the
calibrated value of 0.



C GAIN (Chrominance Gain)

Pressing this button will reveal a numerical readout
display for the gain of the chrominance signal.

By rotating the spinwheel the gain may be adjusted
by ±3 dB in steps of 0.1 dB.

Chroma Gain

0.0 dB

Preset

Chroma Gain

Selecting Preset returns the setting to the
calibrated value of 0.







HUE

Pressing this button will reveal a numerical readout
display for the Hue of NTSC signals. By using the
scroll bar the Hue may be adjusted by ±30 ° in
steps of 1°.

NTSC Hue

0 deg

Preset

NTSC Hue

Selecting Preset returns the setting to the
calibrated value of 0°.

Note that if the Proc Amp is enabled and settings
are not at their preset values the text UnCal will be
in the default display.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.14







Y Gain, C Gain, Black Level and Hue

A prolonged push of any of the above buttons will
reveal the Proc Amp menu.

Proc Amp

Proc Amp Enable
Luminance Gain
Black Level
Chroma Gain
RGB Legaliser
Timing...

◀ Proc Amp Enable

Selecting the Proc Amp Enable function will enable
the settings of the Luma Gain, Black Level and
Chroma Gain functions.

◀

◀ ◀

◀ RGB Legaliser

When selected this will enable the RGB Gamut
legalizer. This will prevent the unit from producing
RGB signals greater than 101%.

◀

◀ ◀

◀ Timing

625

AutoDetect

Timing

Timing Enable
Picture Position
YC Timing

◀ Timing Enable

When this item is selected (text highlighted) the
timing values will be enabled.

◀ Picture Position

Selecting this item will reveal a display showing the
timing of the picture position relative to the normal
value, in nanoseconds. Rotating the spin-wheel will
adjust this value.

Picture Position

0ns

Preset

Picture Position

Range is from ±592 ns in 148 ns steps.

Selecting Preset returns the setting to the preset
value of 0.

◀ YC Timing

Selecting this item will reveal a display showing the
timing of the chrominance signal relative to the
luminance signal, (i.e. Y to Cb/Cr timing) in
nanoseconds. Rotating the spin-wheel will adjust
this value.

YC Timing

0ns

Preset

YC Timing

Range is from ±444 ns in 148 ns steps.

Selecting Preset returns the setting to the preset
value of 0.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.15







NOISE REDUCE

This item allows Recursive noise reduction with
automatic threshold to be applied to the Luminance
and Chrominance channels.

A momentary push of this button will toggle the
Noise Reducer function ON or OFF.

Holding down this button will reveal a menu that
allows various forms of noise reduction to be
applied to the signal.

◀

◀ ◀

◀ Features…

Features

Enhance...
Noise Reduce...
RGB Legaiser

◀ Noise Reduce…

Noise Reduce

Noise Reduce
Recursive Level...
Recursive Threshold
Sparkle Filter
Median Filter
Split Screen..

◀ Noise Reduce

Selecting this item will enable the noise reduction
function.

◀ Recursive Level or







LEVEL

This item allows Recursive noise reduction to be
applied to the luminance and chrominance
channels.

Recursive Level

C Off
C Low
C Medium
C High

Y Off

Y Low

Y Medium

Y High

The range of adjustment is off, low, medium and
high. Defaults settings are C Medium and
Y Medium.

◀ Recursive Threshold or







THRESHOLD

This sets the noise reduction threshold of the
recursive filters.

Recursive Threshold

5

Preset

Recursive Threshold

The range of adjustment is from Auto (0) to 7 units.
Preset is to Auto (0).

Note that applying a high threshold level may
assist with extremely noisy images; however this
may result in plain areas appearing flat.

◀ Sparkle Filter

This item allows a sparkle filter to be applied to the
signal, reducing the effect of sparkle noise
associated with edge-of-reception signals from
satellite feeds, impulse noise or drop-outs from
tape-recorded signals.

◀ Median Filter

Note that this function is only active when the
Sparkle filter is enabled.

When selected, sparkle concealment is enabled
that employs a threshold controlled 3-dimensional
median filter. This permits the removal of picture
disturbances that the normal sparkle detection
algorithm may miss. For example low-level
sparkles will be concealed. The Median filter is
particularly effective on very noisy sources. Note
that some loss of resolution may be observed
depending on the source material.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.16

◀ Split Screen

This function allows the effects of noise reduction
to be easily seen by splitting the screen in half.
One half will show the picture with noise reduction
and the other half without noise reduction.

Split Screen

Split Screen Off
Left Right
Top Bottom

◀

◀ ◀

◀ Off This disables the split screen function.

◀

◀ ◀

◀ Left/Right

When enabled, the screen will be split into two
equal sections separated by a vertical white line.
The processed picture will occupy the left hand
section of the screen and the unprocessed picture
will occupy the right hand side section.

◀

◀ ◀

◀ Top/Bottom

When enabled, the screen will be split into two
equal sections separated by a horizontal white line.
The processed picture will occupy the bottom
section of the screen and the unprocessed picture
will occupy the top section.



MEMORY

◀ Memories

This function allows a number of setups of the
NRS70 to be saved, recalled, cleared and
renamed. There are 8 memory locations available.

Memories

Recall...
Clear...

Save...

Name...

◀

◀ ◀

◀ Recall…

This will reveal a list of the memory locations.

Recall

Recall M1
Recall M3
Recall M5
Recall M7

Recall M2
Recall M4
Recall M6
Recall M8

Selecting a memory location will recall the settings
stored in the selected memory location and apply
them to the unit.

Save…▶

This will reveal a list of the memory locations.

Save

Save M1
Save M3
Save M5
Save M7

Save M2

Save M4

Save M6

Save M8

Selecting a memory location will save the settings
and store them in the selected memory location.

◀

◀ ◀

◀ Clear…

This will reveal a list of the memory locations.

Clear

Clear M1
Clear M3
Clear M5
Clear M7

Clear M2
Clear M4
Clear M6
Clear M8

Selecting a memory location will clear the settings
stored in the selected memory location and return
them to the factory default settings.

Name…▶

This will reveal a list of the memory locations and
allow the naming of the selected memory location.

Name

Name M1
Name M3
Name M5
Name M7

Name M2

Name M4

Name M6

Name M8

Name 1 to 8

Name 1 to 8

Clear
Preset

memory 1 to 8 name

OK

To edit the text the right ▶ and left ◀ buttons
adjacent to the upper text line in the menu should be
used to select the position in the text and the
spinwheel used to select the character.

The ◀ Clear function blanks the selected character.

The ◀ Preset function loads the default text, for
example, Memory 1.

O.K. ▶ saves the caption text and returns to the
main menu.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.17



ENHANCE

A momentary push of this button will toggle the
Enhance function ON or OFF.

A prolonged push of this button will reveal the
enhance menu.

◀

◀ ◀

◀ Enhance…

Enhance

Enable Enhance
V Enhance...
H Enhance...

◀

◀ ◀

◀ Enable Enhance

Selecting this item will enable the Vertical and
Horizontal enhance functions.

◀

◀ ◀

◀ V Enhance

This allows Vertical enhancement to be applied to
the processed signal. The non-linear process
prevents enhancement of low amplitude signals
typical of noise.

V Enhance

V Enhance Off
V Enhance Low
V Enhance Med
V Enhance High

The amount of enhancement may be selected as
Off (None), Low, Medium and High.

◀

◀ ◀

◀ H Enhance

This allows Horizontal High Frequency and
Horizontal Medium Frequency enhancement to be
applied to the processed signal. The non-linear
process prevents enhancement of low amplitude
signals typical of noise.

H Enhance

Mid Off
Mid Low
Mid Med
Mid High

Hi Off

Hi Low

Hi Med

Hi High

The amount of enhancement may be selected as
Off (None), Low, Medium and High for both
medium and high frequency bands.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.18



GENLOCK

A momentary push of this button will toggle the
Genlock function ON or OFF.

When enabled the unit will lock to an incoming
reference signal.
When not enabled the output signal will be free
running. In this mode the frequency accuracy will
be ±10 ppm.

A prolonged push of this button will reveal a menu
that allows various genlock phase adjustments to
be made.

Genlock

Genlock Enable
PAL H Phase
PAL SC Phase
PALN H Phase
PALN SC Phase
SECAM H Phase
NTSC H Phase
NTSC SC Phase
PALM H Phase
PALM SC Phase

◀

◀ ◀

◀ Genlock Enable

When this item is selected (text highlighted) the
genlock function will be enabled.

◀

◀ ◀

◀ (PAL/PALN/SECAM/NTSC/PALM) H Phase

Selecting this item reveals a display showing the
horizontal timing of the output signal relative to the
reference sync signal, in nanoseconds. Rotating
the spin-wheel will adjust this value.

H Phase

0 ns

Preset

H Phase

The range is ±113 µs in steps of one cycle of
subcarrier this ensures the correct SC/H timing is
maintained.

Selecting Preset returns the setting to zero (output
coincident with reference).

Note that the Preset Unit function in the Setup
menu will not change this setting.

◀ (PAL/PALN/SECAM/NTSC/PALM) SC Phase

This function allows the relative phasing between
the reference subcarrier and the output signal
subcarrier to be adjusted. Rotating the spin-wheel
will adjust this value and the numerical display
shows the phasing in degrees.

SC Phase

0.0 Deg

Preset

SC Phase

The range of adjustment is 359.9° (continuously
adjustable) in steps of 0.1°. The preset value is 0°
(output coincident with reference).

Note that the Preset Unit function in the Setup
menu will not change this setting.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.19



SETUP

Pressing this button will reveal the main menu that
allows other functions to be accessed.

NRS70 MAIN MENU

Input...
ProcAmp...
Features...
Memories...

Output...

Audio...

Status...

Setup...

Setup ▶

Setup

Encoder...
Genlock...
Pattern...
GPI...
VI Blanking
RollTrack...
Logging...
Preset Unit

◀

◀ ◀

◀ Encoder

This menu allows various parameters of the
encoding section to be set up.

Encoder

VITS 625 Insert
VITS 525 Insert
Min Blanking 625
Min Blanking 525
PAL-I Blanking
SECAM Options...
Pass Vertical Data

◀ VITS 625 Insert (on analog outputs only)

When this function is selected the 625 standard
VITS lines are inserted in the vertical interval.
Note that this insertion takes priority over the Pass
Vertical Data function.

◀ VITS 525 Insert (on analog outputs only)

When this function is selected the 525 standard
VITS lines are inserted in the vertical interval.
Note that this insertion takes priority over the Pass
Vertical Data function.

◀ Min Blanking 625

When selected the blanking width will be reduced to the
minimum allowed by CCIR 624 for the 625 standard.

◀ Min Blanking 525

When selected the blanking width will be reduced
to the minimum allowed by CCIR 624 for the 525
standard.

◀ PAL-I Blanking

When this item is enabled blanking will conform to
the PAL System-I standard.

◀ SECAM Options

625

AutoDetect

SECAM Options

Notch Disable
Bottles Enable
Carrier Disable

Chroma Filt Disable

◀ Notch Disable

When selected (text highlighted) the SECAM
luminance notch filter will be disabled.

Preset Unit sets Notch Disable to OFF.

◀ Bottles Enable

This function allows the SECAM-V colour ident
signal (Bottles) to be switched ON (text
highlighted) or OFF.

Preset Unit sets Bottles Enable to OFF.

◀ Carrier Disable

This function allows the chrominance carrier to be
switched ON or OFF (text highlighted).

Preset Unit sets Carrier Disable to OFF.

◀ Chroma Filt Disable

This function allows the chrominance filter to be
switched OFF (text highlighted) or ON.

Preset Unit sets Chroma Filt Disable to OFF.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.20

◀ Pass Vertical Data (active on analog outputs)

SDI

Processing

Encoder

VI Blanking

(Individual Line

Selection)

via Setup/VI Blanking

Menu

Pass Vertical Data

via

Setup/Encoder

Menu

SDI Channel

When selected input vertical data is passed on a
line-by-line basis (as selected by the VBI function)
into the analog signals. When not selected the
vertical blanking in the analog outputs are blanked
without effecting the SDI channel.

◀

◀ ◀

◀ Genlock

For details see page 4.18.

◀

◀ ◀

◀ Pattern

This function allows various patterns to be selected
and used as the output signal.

Pattern

Pattern Enable
Black
75% Colour Bars
100% Colour Bars
MultiBurst
100% Ramp

Black

◀

◀ ◀

◀ Pattern Enable

When this item is selected (text highlighted) the
selected pattern will become the output signal.

◀

◀ ◀

◀ GPI

This menu allows the 2 GPI inputs to be
configured.

GPI

GPI1 Open...
GPI2 Open...
GPI 2 Select...

1 Close...
2 Close...

◀ GPI 1 and GPI 2 Open

This function determines what happens when the
selected GPI input condition changes from closed
to open.

GPI 1, 2 Open

OFF
Memory 2
Memory 4
Memory 6
Memory 8

Memory 1
Memory 3
Memory 5
Memory 7

◀ OFF No response.

◀ Memory 1 to 8 The unit will revert to the

setup stored in the selected
memory location.

◀ 1 Close (GPI 1 Close) and 2 Close (GPI 2 Close)

This function determines what happens when the
selected GPI input condition changes from open to
closed.

OFF

Memory 2
Memory 4
Memory 6
Memory 8

Memory 1

Memory 3

Memory 5

Memory 7

GPI 1, 2 Close

◀ OFF No response.

◀ Memory 1 to 8 The unit will revert to the

setup stored in the selected
memory location.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.21

◀ GPI 2 Select

This item allows the function of GPI 2 input to be
changed.

GPI 2

Audio Delay Flag

GPI 2 Select

◀ GPI 2

When selected GPI 2 will function normally in the
same manner as the GPI 1 input.

◀ Audio Delay Flag

When this is selected GPI 2 will provide an output
signal that remains high for a duration
corresponding to the total audio delay through the
unit.

The audio delay is comprised of the measured
input to output system delay plus the amount of
Audio Delay Offset. The minimum is 1 ms.

This signal may be used by other equipment to
compensate for the video delay introduced by the
NRS70.

◀

◀ ◀

◀ VI Blanking

This function is used to select which lines of the
Vertical Blanking Interval are to be blanked and
which ones are to be passed through unprocessed.

VI Blank 525...
VI Blank 625...

VI Blanking

◀ VI Blank 525

This function reveals a menu that allows individual
525 standard vertical interval lines to be selected.

VI Blank 525

Blank All
Line 10
to
Line 20

Pass All

Line 273

to

Line 282

◀ Blank All

When selected all VBI data lines will be blanked.

Pass All ▶

When selected all VBI data lines will be passed.

◀ Line 10 to 20 Line 273 to 262 ▶

Selecting lines from this list will blank the VBI data
on that line.
If the line is unselected the VBI data on that line
will be passed through unprocessed.

For the line 21/283 controls see page 4.8.

◀ VI Blank 625

This function reveals a menu that allows individual
625 standard vertical interval lines to be selected.

VI Blank 625

Blank All
Line 6
to
Line 22
Line 335

Pass All

Line 318

to

Line 334

◀ Blank All

When selected all VBI data lines will be blanked.

Pass All ▶

When selected all VBI data lines will be passed.

◀ Line 6 to 22 & 335 Line 318 to 334 ▶

Selecting lines from this list will blank the VBI data
on that line.
If the line is unselected the VBI data on that line
will be passed through unprocessed.

For the line 23 controls see page 4.8.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.22

◀

◀ ◀

◀ RollTrack

This function allows information about the status of
the unit to be communicated to other RollTrack
compatible modules connected to the network.
This message can then be used to cause another
unit to perform a specific action. Up to 10
RollTrack communication channels to compatible
modules may be selected from the following menu:

RollTrack

RollTrack 1...
RollTrack 2...
RollTrack 3...
RollTrack 4...
RollTrack 5...
RollTrack 6...
RollTrack 7...
RollTrack 8...
RollTrack 9...
RollTrack 10...

◀ RollTrack 1 to 10

Selecting a RollTrack communication channel
reveals the following menu.

625

AutoDetect

RollTrack 1-10

RollTrack Unit

RollTrack Params

RollTrack Mode...

◀ RollTrack Unit

This item allows the address of the destination unit
to be set.

RollTrack Unit

RollTrack Unit

Clear
Preset

Rollunit 1-10

OK

To edit the text the right ▶ and left ◀ buttons
adjacent to the upper text line in the menu should be
used to select the position in the text and the
spinwheel used to select the character.

To save the new text, press the OK button. It
should be noted that this is the only way to save
the new text as any other button function will return
to the previous menu without modifying the original
text.

The Preset button sets the text line to the default
value.

The Clear function sets the text line to all zeros.

◀ RollTrack Params

To make the destination unit perform a particular
function a RollCall command number must be
entered using this function.

RollTrack Params

RollTrack Params

Clear
Preset

Rollparams 1-10

OK

For details of the RollCall command numbers for
specific units please contact your local Snell &
Wilcox agent.

◀ RollTrack Mode

This sub-menu allows the unit to provide the
following information about the status of the unit to
the connected RollTrack Unit. The destination unit
will then perform a specific action in response to
this information.

RollTrack Mode

Not Used
Delay
Input Loss
Input Restore

◀ Not used Function is not used.

◀ Delay The measured Video delay

through the unit.

◀ Input Loss The input signal has been lost.

◀ Input Restore The input signal has been

restored.

For more information please see page 4.37
RollTrack setup.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.23

◀

◀ ◀

◀ Logging

Information about various parameters can be
made available to a logging device that is attached
to the RollCall™ network.

Selecting this item shows the seven parameters
that are available for logging.

Logging

Log Input Status
Log Input Standard
Log Reference
Log EDH Errors
Log AES Input
Log Audio
Log Temperature

◀ Log Input Status

When activated, a presence or loss of input signal
condition will be available for the logging device.

◀ Log Input Standard

When activated, the input line standard will be
available for the logging device.

◀ Log Reference

When activated a presence or loss of reference
signal condition will be notified to any logging
device.

◀ Log EDH Errors

When activated EDH error data will be notified to
any logging device.

◀ Log AES Input

When activated, AES input status condition will be
available for the logging device.

◀ Log Audio

Data about the embedded audio presence will be
available for the logging device.

◀ Log Temperature

Data about the internal temperature will be
available for the logging device.

◀

◀ ◀

◀ Preset Unit

Selecting this item sets all functions that are
available at user level to their factory default
values. e.g. this function will not change any
genlock phase adjustment settings.

Note also that this is a momentary action and the
text will not become reversed.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.24

Output ▶

The output line standard will always be the same
as the detected input line standard.
This menu allows the encoded formats for 625 or
525 line standards to be selected.

Output

625 Standard Setup...

525 Standard Setup...

Default Output...

◀◀◀◀ 625 Standard Setup

625

AutoDetect

625 Standard Setup

PAL

PALN
SECAM

This allows the 625-line composite standard to be
selected when operating in the 625-line output
standard.

◀◀◀◀ 525 Standard Setup

625

AutoDetect

525 Standard Setup

NTSC

PALM
NTSCJ
N443

This allows the 525-line composite standard to be
selected when operating in the 525-line output
standard.

When the NTSCJ is selected the encoder will
produce an NTSCJ signal (an NTSC signal without
a pedestal).

◀ Default Output

If the input signal fails the output may be
configured to become one of the items in this
menu.

625

AutoDetect

Default Output

Input

Freeze

Pattern

Black

◀ Black

The output will become a black picture.

◀ Pattern

The output will become the test pattern as selected
from the Setup/Pattern menu.

◀ Freeze

The output will become a frozen picture of the last
frame.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.25

Status ▶▶▶▶

This menu allows information about the status of
the unit to be displayed.

Status

Status Display
GPI Delay
Unit Temperature
ANC. Status
Software Version
Serial Number
Build Number
Restart

◀

◀ ◀

◀ Status Display

Status Display

Default Display

Status Display 1
Status Display 2
Status Display EDH
Reset EDH Status

◀

◀ ◀

◀ Default Display

When this item is selected the display window
shows details about the Input Signal, Reference
signal and the output as shown in the example
below.

The first line shows the name of the unit.

The second line shows which input has been
selected and the detected standard of the input
signal.
The third line shows the standard of the output
signal and the genlock status.
The fourth line shows the status of the output
signal, audio status and the state of the ProcAmp
controls. The output signal status may be nothing,
(output is processed picture), Pattern or Freeze.
Note that if Pattern, Black or Freeze has been
forced because of an input signal failure the words
will be prefixed by an asterisk.
e.g. *Pattern, *Black or *Freeze.

If the proc amp controls are not preset then UnCal
appears in the display.

◀

◀ ◀

◀ Status Display 1, 2

When these are selected the display window will
be as shown in the examples below.

Status Display 1

Status Display 2

◀

◀ ◀

◀ Status Display EDH

When selected the information area will display the
number of errors from the time the function was
enabled. The elapsed time in hours, minutes and
seconds is also displayed. Meanings are as follows:

EDH: This is the state of the input error

detection handler.

None No EDH information present.
OK No EDH errors.
Err An EDH error has occurred.

Err: The number of EDH errors that have

occurred since the last EDH reset.

E-Time: This is time since EDH was reset

in Hours:Minutes:Seconds.

◀ Reset EDH Status

This will reset the EDH error count and the timer
shown in the information window to zero.

NRS70
In:SDI A 525
OUT : NTSC REF : OK

AUDIO : OK

NRS70
In:CVBS A PAL
Enhance: On RGB: Off

ProcAmp: On

NRS: On

NRS70
In:CVBS A PAL
Enhance: Off RGB: Off

Timing: Off

NRS: Off

NRS70
In:SDI A 625
EDH:None Err: 0

E-Time

:03:06:18

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.26

◀

◀ ◀

◀ GPI Delay

GPI Delay

GPI Delay
18 ms

OK

This function will display the total audio delay
through the unit in milliseconds.
It is comprised of the Audio Delay Offset and the
measured video delay.

◀

◀ ◀

◀ Unit Temperature

Unit Temperature

OK
Near Limit
Overheating

The internal temperature of the unit is continuously
monitored. This item will display one of the above
messages with the following meanings:

OK Internal temperature within design

limits.

Near Limit Internal temperature approaching

the upper design limit.

Overheating Internal temperature is above the

upper design limit.
The cause should be investigated
and rectified.

◀

◀ ◀

◀ Anc Status

Anc. Status

ANC. Status
ancil status

OK

This will display the status of the audio auxiliary
data. e.g. 1- 2- - - - - 5- - - 7- - A - -

Each number corresponds to an embedded audio
input pairs presence in the selected SDI. The
presence of the letters A, B, corresponds to the
AES inputs.

◀

◀ ◀

◀ Software Version

Software Version

Software Version
x.x.x

OK

Selecting this item reveals a display showing the
version of the software fitted in the module. Select
OK to return to the Status Menu.

◀

◀ ◀

◀ Serial Number

Serial Number

Serial No
xxxxxxx

OK

Selecting this item reveals a display showing the
serial number of the module. Select OK to return to
the Status Menu.

◀ Build Number

Build Number

Build Number
xxxxxxx

OK

This will indicate the factory build number. This
number defines all parameters of the unit (software
versions, build level etc.) for identification
purposes. Select OK to return to the Status Menu.

◀

◀ ◀

◀ Restart

This function restarts the unit, restoring all power
up settings. This is equivalent to switching the
mains power off and on.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.27

RollCall Control Templates for the NRS70

CONTROL

Input Select

This allows any of the 5 sources of video input
signal to be selected for processing.

Input Standard

The decoder employs an auto standard detection
system. It will auto detect any of the composite or
SDI standards that are checked in the list of Input
Standards.
In the example shown it will auto detect all
standards (including the SDI standards) except
NTSCJ. Any number (greater than one) of
standards may be selected.
For example, in a given situation where it is known
that only PAL and NTSC input signals are
expected, only the PAL and NTSC standards
should be checked.

The decoder will then only auto detect between
PAL and NTSC standards. Other standards will not
be decoded and will produce an unstable lock.
To force the unit to decode only one standard,
check that standard and uncheck all others.

Note that at least one standard must be selected; if
an attempt is made to uncheck all items the last
standard selected will remain checked and
become the only standard to be decoded.
Note also that for NTSC signals either NTSC or
NTSCJ may be checked but not NTSC and NTSC
Format J.

NTSC Format J

When this function is enabled the decoder will
correctly process a NTSCJ signal (an NTSC signal
without pedestal).

Freeze Input

When enabled the input signal will be frozen.

Default Output

If the input signal fails the output may be
configured to become one of the following:

Freeze

The output will become a frozen picture of the last
frame.

Black

The output will become a black picture.

Pattern

The output will become the test pattern as selected
from the Setup/Pattern menu.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.28

Proc Amp

Note that for this and other screens the following
applies:

The symbol represents the Preset function
and will return the function to the default setting.

The

an

symbols at the ends of the scroll

bar allow the value to be adjusted in discrete steps.

The numerical value will be shown above the scroll

bars and selecting Preset will return the setting
to the calibrated value of 0 for items on this screen.

This screen will allow the settings of the Chroma
Gain, Black Level, NTSC Hue, Luma Gain, Y/C
Timing and Picture position to be adjusted. AGC
and ACC may also be enabled.

Note that if the Proc Amp is enabled and settings
are not at their preset values the text UnCal will be
displayed in the Status display window.

Proc Amp Enable

Selecting the Proc Amp Enable function will
enable the settings of the Luma Gain, Black Level
and Chroma Gain functions.

Luminance Gain

By using the scroll bar the gain may be adjusted by
±6 dB in steps of 0.1 dB.

Selecting Preset returns the setting to the
calibrated value of 0.

Black Level

By using the scroll bar the pedestal may be
adjusted by ±100 mV in steps of 1 mV.

Selecting Preset returns the setting to the
calibrated value of 0.

Chroma Gain

By using the scroll bar the gain may be adjusted by
±3 dB in steps of 0.1 dB.

Selecting Preset returns the setting to the
calibrated value of 0.

RGB Legalizer Enable

When selected this will enable the RGB Gamut
legalizer. This will prevent the unit from producing
RGB signals greater than 101%.

Timing Enable

Selecting the Timing Enable function will enable
the settings of the Picture Position and YC Timing
functions.

Picture Position

This item allows the timing of the picture position
relative to the normal value, to be adjusted by
using the scroll bar.

Range is from ±592 ns in 148 ns steps.

Selecting Preset returns the setting to the preset
value of 0.

YC Timing

This item allows the timing of the chrominance
signal relative to the luminance signal, (i.e. Y to
Cb/Cr timing) to be adjusted by using the scroll
bar.

Range is from ±444 ns in 148 ns steps.

Selecting Preset returns the setting to the preset
value of 0.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.29

Noise Reduction

This screen allows various forms of noise
reduction to be applied to the signal.

Noise Reduction

Noise Reduction Enable

When enabled the noise reduction system will be
active. Default is to Off

Y Noise Reduction

This item allows Recursive noise reduction to be
applied to the luminance channel.

The range of adjustment is off, low, medium and
high. Default is to Medium.

C Noise Reduction

This item allows Recursive noise reduction to be
applied to the chrominance channel.

The range of adjustment is off, low, medium and
high. Default is to Medium.

Recursive Threshold

This control sets the noise reduction threshold of
the recursive filters.

The range of adjustment is from Auto (0) to 7 units.
Preset is to Auto (0).

Note that applying a high threshold level may
assist with extremely noisy images; however this
may result in plain areas appearing flat.

Filters

Sparkle

Enabling this item applies a sparkle filter to the
signal, reducing the effect of sparkle noise
associated with edge-of-reception signals from
satellite feeds, impulse noise or drop-outs from
tape-recorded signals.

Median

When selected sparkle concealment is enabled
that employs a threshold controlled 3-dimensional
median filter. This permits the removal of picture
disturbances that the normal sparkle detection
algorithm may miss. For example low-level
sparkles will be concealed. The Median filter is
particularly effective on very noisy sources. Note
that some loss of resolution may be observed
depending on the source material.

Split Screen

This function allows the effects of noise reduction
to be easily seen by splitting the screen in half.
One half will show the picture with noise reduction
and the other half without noise reduction.

Off

This disables the split screen function.

Left-Right

When enabled, the screen will be split into two
equal sections separated by a vertical white line.
The processed picture will occupy the left hand
section of the screen and the unprocessed picture
will occupy the right hand side section.

Top-Bottom

When enabled, the screen will be split into two
equal sections separated by a horizontal white line.
The processed picture will occupy the bottom
section of the screen and the unprocessed picture
will occupy the top section.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.30

Enhance

Linear Enhance

Selecting Enhance Enable will enable the settings
of the Vertical and Horizontal enhance functions.

Vertical Enhance

This allows Vertical enhancement to be applied to
the processed signal. The non-linear process
prevents enhancement of low amplitude signals
typical of noise.

The amount of enhancement may be set to Off
(None), Low, Medium or High.

Horizontal Middle Enhance

This allows Horizontal enhancement to be applied
to middle frequencies of the processed signal. The
non-linear process prevents enhancement of low
amplitude signals typical of noise.

The amount of enhancement may be set to Off
(None), Low, Medium or High.

Horizontal High Enhance

This allows Horizontal enhancement to be applied
to high frequencies of the processed signal. The
non-linear process prevents enhancement of low
amplitude signals typical of noise.

The amount of enhancement may be set to Off
(None), Low, Medium or High.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.31

Decoder

This function allows settings to be made to the
color decoding section of the decoder.

Auto Gain Control

When this item is enabled the luminance gain will
vary relative to the input peak white amplitude.
This will maintain the output signal at a normalised
level even though the input signal level may be
above or below standard level.
The control will be effective over an input level
range of +1 dB to –6 dB.

Auto Color Control

When this item is enabled the chrominance gain
will vary relative to the input burst amplitude. This
will maintain correct color saturation regardless of
changes in subcarrier amplitude.

NTSC Hue

This selection displays a numerical readout display
for the Hue of NTSC signals. By using the scroll
bar the Hue may be adjusted by ±30 ° in steps of
1°.

Selecting Preset returns the setting to the
calibrated value of 0°.

PAL Line 23

Process As Video

When enabled line 23 of the PAL input signal will
be processed as active picture and the ProcAmp
controls will effect Line 23.

Process as Data

When selected line 23 is passed unprocessed and
the ProcAmp controls will not effect Line 23.
The Chroma information will not be decoded from
a Composite or Y/C source.

Blank Line 23

When enabled line 23 of the PAL input signal will
be blanked.

NTSC Line 21 & 283

This item allows various options to be applied to
line 21 and line 283 of an NTSC signal.

Process As Video

When enabled line 21/283 of the NTSC input
signal will be processed and the ProcAmp controls
will effect Line 21/283.

Process as Data

When selected lines 21/283 are passed
unprocessed and the ProcAmp controls will not
effect Line 21/283.
The Chroma information will not be decoded from
a Composite or Y/C source.

Blank Line 21 & 283

When enabled line 21 & 283 of the NTSC input
signal will be blanked.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.32

Encoder

This screen allows various parameters of the
encoding section to be set up.

Encoder Options

VITS 625 (on analog outputs only)

When this function is selected the 625 standard
VITS lines are inserted in the vertical interval.

Minimum Blanking 625

When selected the blanking width will be reduced
to the minimum allowed by CCIR 624 for the 625
standard.

PAL-I Blanking

When this item is enabled blanking will conform to
the PAL System-I standard.

Pass Vertical Data

When selected input vertical data is passed on a
line-by-line basis (as selected by the VBI function)
into the analog signals.

VITS 525 (on analog outputs only)

When this function is selected the 525 standard
VITS lines are inserted in the vertical interval.

Minimum Blanking 525

When selected the blanking width will be reduced
to the minimum allowed by CCIR 624 for the 525
standard.

SECAM Options

Notch Filter Disable

When selected the SECAM luminance notch filter
will be disabled.

Preset Unit is to notch filter OFF.

Bottles Enable

This function allows the SECAM-V colour ident
signal (Bottles) to be switched ON or to OFF.

Preset Unit is to Bottles OFF.

Carrier Disable

This function allows the chrominance carrier to be
switched ON or OFF.

Preset Unit is to OFF.

Chroma Filter Disable

This function allows the chrominance filter to be
switched ON or OFF.

Preset Unit is to OFF.

625 Output Standards

This selects the 625-line composite standard to be
used when operating in the 625-line output line
standard.

525 Output Standards

This selects the 525-line composite standard to be
used when operating in the 525-line output line
standard.

When the NTSCJ is enabled the encoder will
produce an NTSCJ signal (an NTSC signal without
pedestal).

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.33

Genlock

This function allows various modes of genlock to
be enabled.

Genlock

Genlock Enable

When selected the unit will lock to an incoming
reference signal.
When not selected the output signal will be
free-running.
In this mode the frequency accuracy will be
±10 ppm.

Genlock Offset SECAM NTSC443 (ns Scroll Bar)

These items allow adjustment of the horizontal
timing of the output signal relative to the reference
sync signal, in nanoseconds.

The range is ±1.9 lines in steps of one cycle of
subcarrier.

Genlock Offset Phase PAL (ns Scroll Bar)
(also PALN/NTSC/PALM)

These items allow adjustment of the horizontal
timing of the output signal relative to the reference
sync signal, in nanoseconds.

The range is ±1.9 lines in steps of one cycle of
subcarrier (this ensures the correct SC/H timing is
maintained).

Selecting Preset returns the setting to zero (output
coincident with reference).

Genlock Offset Phase PAL (Deg Scroll Bar)
(also PALN/NTSC/PALM)

This function allows the relative phasing between
the reference subcarrier and the output signal
subcarrier to be adjusted.

The range of adjustment is 359.9° (continuously
adjustable) in steps of 0.1°. The preset value is 0°
(output coincident with reference).

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.34

Memories

This function allows a number of particular setups
of the NRS70 to be saved and recalled. There are
8 memory locations available.

To change the memory name, type the new name

in the text area and then select (return).

Selecting Preset will return the text to the
default name.

This function clears the memory location and
returns to the default (preset) setting.

This function saves the current settings of all items
at a memory location.

This function recalls the settings saved at a
memory location.

Note that all the above functions are momentary
actions.

Selecting this item sets all functions that are
available at user level to their factory default
values. e.g. this function will not change any
genlock phase adjustment settings.

Note that this is a momentary action.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.35

Audio Setup

Tone Frequency

This allows the frequency of the tone signal to be set.

The range of adjustment is from 100 Hz to
10 000 Hz in steps of 100 Hz. Preset is to 400 Hz.

Tone Level

This allows the amplitude of the tone signal to be set.

The range of adjustment is from -30 dBFS to
0 dBFS in steps of 1dBFS. Preset is to -20 dBFS.

Audio Delay

In addition to the delay compensating for the video
path through the system, an extra audio delay
period can be added to compensate for any video
delay introduced elsewhere in the system.

The range of adjustment is from –40 ms to
+160 ms in steps of 1 ms. Preset is to 0 ms.

Right Ident

When enabled the right channel will be identified
by the signal being muted for 0.5 second every 2.5
seconds.

Combine Group

Two pairs in the same group can be presented in
two valid but different ways in the Ancillary data
(combined or not combined).

The Combine Group function allows the user to
specify which one of these two alternatives the
NRS70 will use to embed the audio.

When ticked the group will be combined; when
cleared the group will not be combined.
Preset is to enabled (combine group).

This control should only be used if equipment
downstream of the NRS70 were only able to
recognize an uncombined group.

Ancil Status

This will display the status of the audio auxiliary
data. e.g. 1 - 2 - - - - - - - - - - - - A - B

Output A Status/Output B Status

This function displays the status of output A and
output B.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.36

Audio A and Audio B

These items allow various audio functions to be set
up for the 2 audio processing chains.

Audio A (B) Destination

Selecting items in this menu allows the processed
signal to be embedded into any one of the 8 pairs
of the SDI signal.

Routing Style

This function allows either Stereo or Mono routing
to be selected for the audio processing chain.

Stereo Routing

When this item is selected a stereo pair may be
selected for routing through the audio processing
chain.
For example, if Source 3L is selected in Audio A
Source Right menu then automatically the Audio A
Source A Left will be changed to Source 3R. i.e.
Chain A would be sourced from pair 3 with a stereo
inversion.

Mono Routing

When this item is selected a single channel may
be selected for routing through the audio
processing chain.
For example, if source 5L is selected in Src Chain
A Right then the Src Chain A Left is not changed.
i.e. each channel is selected independently.

Note that if the routing mode is changed the Mux
selection will not actually change until a new input
source chain selection is made.

Audio A (B) Source Left/Right

This menu allows any of the input audio sources to
be selected for processing.

Tone Enable

This will enable the internal tone as set by the
Tone Frequency and Tone Amplitude function in
the Audio Setup screen.

Audio A (B) Left Gain

This function allows the gain of the left channel to
be adjusted by ±6 dB.
Preset is to 0 dB.

Audio A (B) Right Gain

This function allows the gain of the right channel to
be adjusted by ±6 dB.
Preset is to 0 dB.

Audio A (B) Control Left/Right

Invert Left and Invert Right

When enabled these functions will invert the
selected audio signal channel.

Preset is to not inverted.

Mute Left and Mute Right

When enabled these functions will mute the
selected audio signal channel.

Preset is to not muted.

Audio A (B) Defaults

If the audio signal is absent the output may be set
to this default signal.

This function defines what the output signal will
become under these conditions. It can be an
internally generated Tone or Silence, or Disable
when no signal is embedded.
Preset is to Disable.

Output Disable

Checking this item will disable the embedded
output signal (not the AES output).

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.37

RollTrack 1-5
RollTrack 6-10

This function allows information about the status of
the unit to be communicated to other RollTrack
compatible modules connected to the network.
This message can then be used to cause another
unit to perform a specific action. Up to 10
RollTrack communication channels to compatible
modules may be selected from the RollTrack 1-5
and 6-10 screens.

Each of the RollTrack channels may be set to the
following modes:

Off Function is not used.

Delay Video delay through the unit.

I/P Loss The input signal has been lost.

I/P Restore The input signal has been restored.

Unit

This item allows the address of the selected
destination unit to be set.

To change the address, type the new destination in

the text area and then select (return).

(Preset) returns to the default destination.

For details of the RollCall command numbers for
specific units please contact your local Snell &
Wilcox agent.

The unit address has three sets of numbers.

For example: 0000:35:02

The first set (0000) is the network segment code
number

The second set (35) is the number identifying the
(enclosure/mainframe) unit.

The third set (02) is the slot number in the unit

Parameter

To make the destination unit perform a particular
function a RollCall command number must be
entered using this function.

To add/change the number type the number in the

text area and then select (return).

(Preset) returns to the default number.

The Parameter has three sets of numbers. e.g.
100*001*000 (command 100 is memory recall and
parameter 001 means recall memory 1 on a
NRS70).

The first set (100) is the command or channel
number.

Note that channel numbers 14, 15, 16 & 17 should
be used for audio delay cards.

The second set represents the parameter. For
delay it is automatically inserted by the NRS70 and
represents the delay through the unit that is
communicated to an audio delay card.

The third set is the RollCall unit ID and it identifies
the board type. When the third set is not (000) the
RollCall ID has to match at the correct RollCall
address otherwise no action will take place.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.38

GPI

This screen allows the 2 GPI inputs to be
configured.

GPI 1 and GPI 2 Open

This function determines what happens when the
selected GPI input condition changes from closed
to open.

OFF No response.

Memory 1 to 8 The unit will revert to the

setup stored in the selected
memory location.

GPI 1 and GPI 2 Close

This function determines that happens when the
selected GPI input condition changes from open to
closed.

OFF No response.

Memory 1 to 8 The unit will revert to the

setup stored in the selected
memory location.

Select GPI 2 Function

This item allows the function of GPI 2 input to be
changed.

Input Enable

When selected GPI 2 will function normally in the
same manner as the GPI 1 input.

Audio Delay Output Enable

When selected GPI 2 will provide an output signal
that remains high for a duration corresponding to
the total audio delay through the unit.

The audio delay is comprised of the measured
input to output system delay plus the amount of
Audio Delay Offset. The minimum is 1 ms.

This signal may be used by other equipment to
compensate for the video delay introduced by the
NRS70.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.39

Logging And Preset

Logging

Information about 7 parameters can be made
available to a logging device that is attached to the
RollCall™ network.

Preset Unit

Selecting this item sets all functions that are
available at user level to their factory default
values. e.g. this function will not change any
genlock phase adjustment settings.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.40

VBI

This function allows the user to select which
vertical interval lines to pass through to the output
and which lines to blank.

525 Pass

This section allows lines 10 to 20 and lines 273 to
282 of 525 line signals to be selected and passed
through to the output by checking the appropriate
box.

For line 21/283 controls see page 4.31

625 Pass

This section allows lines 6 to 22 and lines 318 to
335 of 625 line signals to be selected and passed
through to the output by checking the appropriate
box.

For line 23 controls see page 4.31

All

This section allows all vertical interval lines to be
selected and either passed to or blanked from the
output signal.

Pass 525

Selecting this item will select all vertical interval
lines in the 525 line list and allow them to be
passed through to the output.

Pass 625

Selecting this item will select all vertical interval
lines in the 625 line list and allow them to be
passed through to the output.

Blank 525

Selecting this item will select all vertical interval
lines in the 525 line list and blank them from the
output.

Blank 625

Selecting this item will select all vertical interval
lines in the 625 line list and blank them from the
output.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.41

Pattern

This function allows various patterns to be used as
the output signal.

Pattern Enable

When this item is active a pattern, selected from
the list, will become the output signal.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.42

Status

This screen displays information about the unit.

Unit Temperature

The internal temperature of the unit is continuously
monitored. This item will display one of the
following messages.

OK Internal temperature within design

limits.

Near Limit Internal temperature approaching

the upper design limit.

Overheating Internal temperature is above the

upper design limit.
The cause should be investigated
and rectified.

GPI Delay

This displays the total audio delay through the unit
in milliseconds. It is comprised of the Audio Delay
Offset and the measured video delay.

Ancil Status

This will display the status of the audio auxiliary
data.
e.g. – 2- 4 - - - - - - - - - - - A - B

Software Version

This item shows the version of the software fitted
in the NRS70.

Serial Number

This item shows the serial number of the NRS70.

Build Number

This will indicate the factory build number. This
number defines all parameters of the unit (software
versions, build level etc.) for identification
purposes.

Restart

This function restarts the unit, restoring all power
up settings. This is equivalent to switching the
mains power off and on.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.43

Status (Display Information)

Display Information

This item allows the type of data that is displayed
in the Information area to be chosen.

Default

When this item is selected the display window will
show details about the Input Signal, Reference
signal and the output as shown in the example
below.

EDH

When enabled the information area will display the
number of errors from the time EDH was reset.
The elapsed time in hours, minutes and seconds is
also displayed.

The In: data will be as in the default screen.

Meanings are as follows:

EDH: This is the state of the input error

detection handler.

None No EDH information present.
OK No EDH errors.
Err An EDH error has occurred.

Err: The number of EDH errors that have

occurred since the last EDH reset.

E-Time: This is time since EDH was reset

in Hours:Minutes:Seconds.

Preset EDH Stats

This will reset the EDH error count and
the timer shown in the information
window to zero.

Status 1, Status 2

When either of these items are selected the
display window will show details about the Input
Signal and some of the processing controls as
shown in the example below.

Status 1

Status 2

Selecting this item will reset the EDH error count
and the timer shown in the information window, to
zero.

See the Help section on the next page for details of
the abbreviations used in the information area.

NRS70 Series SECTION 4

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 4.44

Help

Information Window Definitions

This area shows abbreviated data about the status
of the unit.

Examples of abbreviations used are as follows:

First Line

Item 1: In (Input Selection)

CVBS A Composite input A selected.
CVBS B Composite input B selected.
SDI A SDI input A selected.
SDI B SDI input B selected.

Item 2: (Detected input signal standard)

*** No input or invalid signal detected.
525 Input is a 525 line SDI signal.
625 Input is a 625 line SDI signal.
PAL Input is a PAL composite signal.
PALN Input is a PALN composite signal.
SECAM Input is a SECAM composite signal.
NTSC Input is a NTSC composite signal.
NTSCJ Input is a NTSCJ composite signal.
PALM Input is a PAL-M composite signal.

Second Line

Item 1

Ou\\\\snellwilcox.local\\root\\Marketing\\Prodmg
mt\\Data (Encoder output signal standard)

PAL Output is a PAL composite signal.
PALN Output is a PALN composite signal.
SECAM Output is a SECAM composite signal.
NTSC Output is a NTSC composite signal.
NTSCJ Output is a NTSCJ composite signal.
PALM Output is a PAL-M composite signal.

Item 2 Ref: (Reference signal information)

OK Reference signal is valid and the unit is

genlocked.

*** A reference signal error or no reference

has been detected while trying to genlock.
wl Waiting lock.
Off Genlock is Off.

Third Line

The third line will show the status of the output
signal or the state of the ProcAmp controls.

Item 1 (Output Signal)

(Nothing) Output is processed picture.
Pattern Output is a pattern.
Freeze Output is a frozen picture.

Note that if Pattern or Freeze has been forced
because of an input signal failure the words will be
prefixed by an asterisk e.g *Pattern or *Freeze.

Item 2 Audio: (Audio chains status)

This will show the state of the Audio processing.

OK Both audio processing chains are enabled

and valid.
Err Both audio processing chains are in error.
OFF Both chains are disabled.
*A* Chain A is in error.
*AL Chain A Left Channel is in error.
*AR Chain A Right Channel is in error.
*B* Chain B is in error.
*BL Chain B Left Channel is in error.
*BR Chain B Right Channel is in error.

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.1

Modes of Operation

The unit may be operated and controlled by three
different methods.

1. Via the dedicated front panel buttons







(The NRS70/75 is supplied in this mode)

Various selections may be made directly by a
single push of a button. e. g. INPUT Source.

Pressing the button again deactivates the function
and the button LED will turn off.

Holding down a button will reveal an appropriate
menu in the display window. e.g. PATTERN.

2. Via the RollCall menu Structure

Menus may be selected by the push buttons
adjacent to the display and further menu selections
made by rotating a spinwheel and pressing the
adjacent push button.
The spinwheel also allows continuously variable
parameters, e.g. Gain, to be adjusted and the
setting to be seen in the LCD window.

3. Via a PC using the RollCall Templates

All operational parameters and selections may be
made on the RollCall system via a PC.

Selecting the Mode of Operation

1 & 2 Via the dedicated front panel buttons and the RollCall menu Structure

As supplied, the NRS70 is controlled from the front panel via the internal Gateway card and using the push
buttons and menus in the LCD window.

This configuration is shown below:

NRS70 Electronics

RollCall

Gateway

Card

NRS70 Front Panel

R

o

l

l

C

a

l

l

n

e

t

w

o

r

k

composite

input

hue

black level

audio

genlock

a

abb

YC Y gain memor y browseC gain

setup

SDI

NRS70

NOISE REDUCER

scroll

adjust

home

previous

return

hold for

menu

threshold

enhance

noise reduce

level

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.2

3. Via a PC using the RollCall Templates

The NRS70 may be controlled from a suitable RollCall compatible unit connected to the RollCall network.

This configuration is shown below:

RollCall

Gateway

Card

RollCall network

Control via PC
with Templates

Control via Activ

e

Front panel

setup

lock save

recall

modules help

adjust

scroll

power

previous

return

home

control

information

display
select

NRS70 Electronics

NRS70 Front Panel

composite

input

hue

black level

audio

genlock

aab

b

YC Y gain memory browseC gain

setup

SDI

NRS70

NOISE REDUCER

scroll

adjust

home

previous

return

hold for
menu

threshold enhance

noise reduce

level

The following methods may be used to disconnect a front panel:

A. Using the Controlling Unit

The new controlling unit (PC, Active Front Panel etc.) in Supervisor Mode may be used to disconnect the
control from the NRS70 front panel. For details of this operation please consult the Operating manual for

the controlling unit.

B. Using the NRS70 to reconnect the front panel or disconnect from a remote session

Hold down the Y Gain and Black Level buttons.

This will reveal the following display:

Select Clear and the front panel, the name of the
controlling unit as in line 3 above, will be
disconnected.

NRS70
Unit held by……….

Name of controlling unit

Clear OK

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.3

RollCall Control via a PC

For full details please see the operator’s manual for the IQSPCR, RollCall™ Software Installation Guide &
Operational Overview

IQSPCR is a PC application that runs under Windows 3.1x or 95. It allows full remote control of RollCall for this
and other compatible units.

SOFTWARE INSTALLATION GUIDE

System Requirements

The minimum requirement for installing the RollCall software is:
RollCall PC Control Software (IQSPCR).
IQ Modular 1RU or 3RU rack with Gateway card installed.
PC running Microsoft Windows 3.1x or Windows ‘95 .
Either a RollCall PC card (IQCPC) or a RS232 to RS422 9 way converter fitted to the PC.

Connecting the hardware:
There are two choices for connecting the PC to the Modular IQ System:

1. 75 Ohm co-axial cable BNC for box-to-box connections running at 2.5 Mbs.

3RU box

PC

1RU box

75 Ohm T-pieces

75 Ohm terminator

75 Ohm terminator

75 Ohm sections

75 Ohm network

IQCPC

Each unit is physically joined via a T-piece connector. Each T-piece is connected by 75 Ohm co-ax cable to
create a section. Each section of cable can be up to 400m. Each end of the network is terminated by a
75 Ohm terminator.

2. RS422 running at 38.4 kbs asynchronous:

1RU box

3RU box

75 Ohm network

RS422 link

Computer

Gate

-way

RS232/422
converter

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.4

Connect the RS232/RS422 converter to COM1 or COM2 of the PC and connect this via RS422 cable to the 9
pin ‘D’ on the IQ modular unit. This interface is specifically designed for third party connections into the system.
This allows PC’s or any other serial device access to any of the units within the system. Every active 1RU or
3RU box has one of these ports.

N.B. Connector is a socket,
viewed from mating face.
Equivalently, this is a plug,
viewed from the rear,
cable face.

hysical Interface - RollCall RS42

2

For reference, the A signal
is at 0V at line idle, and
the B signal at 5V.

162738495

162738495

9-Way Ribbon connections

TxA

Pin 2

RxB

Pin 3

GND
Pin 1

TxB

Pin 7

RxA

Pin 8

Standard Connections

9-way

Connector

FUNCTION

1 Frame Ground

2 Transmit A (Tx-)

3 Receive B (Rx+)

4 Receive Common

5 [No connection]

6 Transmit Common

7 Transmit B (Tx+)

8 Receive A (Rx-)

9 Frame Ground

N.B. The D connector on the Gateway card could
also be configured as RS485.
Selection of the interface format is by a switch on
the card.
Note that RS485 interconnections should be
pin to pin and only be used for Snell & Wilcox
RollNet applications.
DOWN i.e. towards the PCB selects RS422
UP i.e. away from the PCB selects RS485

Switch set to RS485

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.5

Software Installation

Run SETUP.EXE from the installation diskette to install the suite of Rollcall programs. Product code IQSPCR
contains the Rollcall Remote Control (rollcall.exe) and communications driver (commtrol.exe) programs.
Product code IQSPCD contains the Rollcall Remote Control (rollcall.exe), communications driver
(commtrol.exe), logserver (rolllog.exe) and logviewer (rollview.exe) programs.
On startup, the setup program prompts for an installation directory. The default installation directory is
C:\ROLLCALL. The set-up procedure will copy all the necessary files to this directory. Set-up will also create a
Windows Group called RollCall.
Depending on the product code of the diskette, Either two icons (RollCall and Commtrol for IQSPCR) or four
icons (RollCall, Commtrol, LogServer and LogViewer for IQSPCD) will appear in the group.

Overview

ROLLCALL.EXE:
This program allows control of RollCall compatible units. (IQ Modules, Supervisor, other S&W units with
RollCall gateway). Each unit has a ‘control template’ window for control of that device. The user can configure
the program for USER, ENGINEER or SUPERVISOR access levels with password protection. It can install
“template” files from new units automatically or by user request.

ROLLLOG.EXE:
This is the Log Server application that collects logging information from units on the network. Keeps a running
log file of every event received. Writes a current status file for configured units and allows the LogViewer
program to display the information.

ROLLVIEW.EXE:
This program displays the current status file written by ROLLLOG.EXE in a tabulated form. Coloured
conditions highlight warning and failure states. Can be configured for network access for remote monitoring
using share information from the LogServer program.

COMMTROL.EXE:
This program is called automatically by ROLLCALL.EXE or ROLLLOG.EXE and normally runs minimized.
Usually, there is no need to run this program by itself. This program provides the basic communications with
the PC card, serial comms ports or TCP/IP protocols. It also has monitoring facilities for data analysis.

For more details see the operator’s manual for the IQSPCR Section 3

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.6

Advanced Front Panel Controls

1. Restart the front panel by holding down the C Gain and Hue buttons together.

2. Select Yes to the front panel question “Restart panel! Are you sure?”

3. Hold down the C Gain button to enter the setup mode.

4. When the message “Setup mode” is displayed, release the C Gain button.

5. Momentarily press the C Gain button.

6. The menu structure of the front panel is shown below.

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.7

SETUP Sub-Menus

These are selected by pressing the button adjacent
to the desired function.

Note that all these sub-menus include a SAVE
function which is used to save particular settings. If
the changed settings do not need to be saved use
the RETURN function to return to the previous
menu; this action will abandon any changes and
revert to the previously saved settings.

F/Panel Address

The address of this control panel will be displayed
as a 2-digit hexadecimal code.

Note that the code 0,0 effectively switches the unit
off from the network. The codes 0,1 to 0,F inclusive
are reserved for bridge addresses. Codes 1,0 to
F,F inclusive are available to the user.

The address code is user defined in the range 1,0
to F,F and is set by rotating the spinwheel to the
desired code and selecting the SAVE function.

F/Panel Name

The control panel may be given a name using this
function (e.g. Edit Suite, Studio 2 etc.) The
maximum number of characters, including spaces,
is 19 and may consist of letters and numbers
(ASCII Characters)
To edit the name press either the left or right hand
button adjacent to the arrows for the centre text
line until the character to be changed is flashing.
Using the spinwheel, scroll through to the
character required and then, using the left and right
hand buttons, select the next character; the other
characters may be changed in the same way.

When the name has been set to that required
press the SAVE function to save the name. Note
that to remove a character and leave a clear space
in the text line the Clear function (above Preset)
should be used. The Preset function returns the
text to the original data.

Auto Connect

The Auto Connect menu allows a number of units
to be automatically connected to the control panel
at power-up.

Up to 16 units may be designated in this way by
assigning a number to them (00 to 15).

Note that these numbers are also used to
assign the default unit.

The units in this list are (on power-up) in the

standby mode and although not currently active are
locked to this control panel and may not be
controlled by any other panel.

The unit name (second text line of the control
window display) may be displayed by scrolling
through the list using the button adjacent to the ì
arrow.

The network address of the unit is shown in the
third text line as three sets of hexadecimal codes.

The first set is the network address, the second set
is the physical unit address and the third set is the
port address. Each set of these codes may be
selected (the set will be shown enclosed in
brackets) by pressing the button adjacent to this
line.

The code may then be changed using the
spinwheel.

The code may be reset to 0000 00 00 by pressing
the clear button. This action also removes the unit
name from the display and inserts a ? symbol
indicating that no unit will be connected to this
session.

The Auto Connect set-up may be saved by
pressing either the dedicated front panel Save
button or by pressing the button adjacent to the
Save display text.

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.8

Default Unit

On power-up the default unit will be automatically
connected, its menus retrieved and will be ready
for active control.

To define the default unit select Default Unit. Press
the button adjacent to the default text arrowhead
until the desired number is reached. (This number
is the number assigned to a particular unit in the
Auto Connect set-up) The name of this unit will
appear in the second line of text.

Select Save to save this setting.

The Clear selection sets the default unit to `None'.

Note that if no units have been assigned numbers
in the Auto Connect set-up a ? will appear in the
second line of text. Also when the numbers are
selected (in rotation) the word `None' will appear
after Default Unit when the number 15 is
exceeded. This confirms that no units have been
assigned a number.

Note that only one unit may designated as the
default unit.

BackLight

Selecting this function allows the backlighting of
the display windows to set, by rotating the
spinwheel, to the following modes:

OFF

Backlight always Off. Use this mode where
ambient light level is high.

ON

Backlight always On. Use this mode where
ambient light level is low to improve text visibility.

AUTO

Backlight will normally be On but will default to Off
after 2 minutes. The backlight will return to Auto
On whenever any front panel control is operated.

Press the button adjacent to the Save text to save
the backlight mode.

Network

This function allows the front panel to be `hidden'
from the network system. In the Hide mode this
front panel will not appear in the Module List
displayed on other control panels in the system.

SHOW

This front panel will appear in the Module List of
other control panels.

HIDE

This front panel will not appear in the Module List
of other control panels.

Min/Max Unit Addr

The front panel can only hold a maximum of 200
addresses. The Min and Max Unit Addr (Address)
function allows a range of addresses to be
configured for partial use of the network.

The Min Unit Addr selection sets the minimum
address.

The Max Unit Addr selection sets the maximum
address.

The overall range of addresses is from 1 to 255.

NRS70 Series SECTION 5

NRS70OPS 070803 Version 1 Issue 2 www.snellwilcox.com 5.9

Lock Controls

This item allows the front panel to be locked-out
such that it is inoperative. This function can only be
entered in the Supervisor access mode.

To set this function, enter at Supervisor level,
select the Lock Controls item to reveal the
dialogue box.

Select either YES or NO and save.

The function is now set.

Note that if this function is set to

Lock Controls: YES

and the unit is powered-up, the message

Front Panel Locked by Supervisor!

will appear.

Access Level

The setup of the active front panel may be
accessed at various levels. At the highest level
(Supervisor) access is allowed to all functions. This
level may only be accessed by entering a
password. At lower levels (User and Engineer)
access is only allowed to a limited number of
functions.

As supplied the unit will be in a temporary
Supervisor mode with no password protected
access levels.

From the main menu select Set Password

To enter the Supervisor level and set up a
password proceed as follows:

1. Power-down the unit

2. Hold down the YC button and power-up the

unit. Continue to hold down the button for a
few seconds while powering-up.

3. From the main menu select Access Level

4. Using the spinwheel, select Supervisor and

press Save

5. From the main menu select Set Password

6. The default password will be 0000. To change

the password select the line for digits 1, 2, 3
and 4, and using the spinwheel to select the
desired characters. Press Save.

The password has now been set.

Selection levels are:

USER Provides access to basic user

controls.

ENGINEER Provides access to more controls

than at user level but less than at
supervisor level.

SUPERVISOR Provides access to all available

control functions.

To set up this function, rotate the spinwheel to the
desired level and select Save.

Note that the number of control functions available
at the various levels are set by the
software/hardware of the module and are not user­adjustable.

Version

This shows the Software version number. Press
OK to return to the previous menu.
