User Manual

RollPCI

RollNet Interface Card

RollPCI User Manual Information and Notices

Information and Notices

Copyright protection claimed includes all forms and matters of copyrightable materia l and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen display looks etc.

Information in this manual and software are subject to change without notice and does not represent a commitment on the part of SAM. The software described in this manual is furnished under a license agreement and can not be reproduced or copied in any manner without prior agreement with SAM, or their authorized agents.

Reproduction or disassembly of embedded computer programs or algorithms prohibited. No part of this publication can be transmitted or reproduced in any form or by any means,

electronic or mechanical, including photocopy, recording or any information storage and retrieval system, without permission being granted, in writing, by the publishers or their authorized agents.

SAM operates a policy of continuous improvement and development. SAM reserves th e ri ght to make changes and improvements to any of the products described in this document without prior notice.

Contact Details

Customer Support

For details of our Regional Customer Support Offices please visit the SAM web site and navigate to Support/Contact Support.

www.s-a-m.com/support/contact-support/

Customers with a support contract should call their personalize d number, which can b e found in their contract, and be ready to provide their contract number and details.

RollPCI User Manual Safety

Safety

Explanation of Safety Symbols

This symbol refers the user to important information contained in the accompanying literature. Refer to manual.

This symbol indicates that hazardous voltages are present inside. No user serviceable parts inside. This unit should only be serviced by trained personnel.

Servicing instructions where given, are for use by qualified service personnel only. To reduce risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified personnel.

· To reduce the risk of electric shock, do not expose this appliance

to rain or moisture.

· Always ensure that the unit is properly earthed and power connections correctly made.

· This equipment must be supplied from a power system providing a PROTECTIVE EARTH connection and having a neutral connection which can be reliably identified.

· The power outlet supplying power to the unit should be close to the unit and easily accessible

Power connection in countries other than the USA

The equipment is normally shipped with a power cable with a standard IEC moulded free socket on one end and a standard IEC moulded plug on the other. If you are required to remove the moulded mains supply plug, dispose of the plug immediately in a safe manner.

The colour code for the lead is as follows:

GREEN/YELLOW lead connected to E (Protective Earth Conductor) BLUE lead connected to N (Neutral Conductor) BROWN lead connected to L (Live Conductor)

Caution If the unit has two mains supply inputs ensure that both power cords are plugged into mains outlets operating from the same phase.

LNENL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVERS

NO USER SERVICEABLE PARTS

REFER SERVICING TO QUALIFIED

PERSONNEL ONLY

Safety Warnings

Erklärung der Sicherheitssymbole

Dieses Symbol weist den Benutzer auf wichtige Informationen hin, die in der begleitenden Dokumentation enthalten sind.

Dieses Symbol zeigt an, dass gefährliche Spannung vorhanden ist. Es befinden sich keine vom Benutzer zu wartenden Teile im Geräteinneren. Dieses Gerät sollte nur von geschultem Personal gewartet werden

· Um das Risiko eines Elektroschocks zu reduzieren, setzen Sie das

Gerät weder Regen noch Feuchtigkeit aus.

· Stellen Sie immer sicher, dass das Gerät ordnungsgemäß geerdet und verkabelt ist.

· Dieses Equipment muss an eine Netzsteckdose mit Schutzleiter angeschlossen werden und einen zuverlässig identifizierbaren Nullleiter haben.

· Die Netzsteckdose sollte nahe beim Gerät und einfach zugänglich sein.

Netzanschluss in anderen Ländern als der USA

Das Equipment wird im Normalfall mit einem Netzkabel mit Standard IEC Anschlussbuchse und einem Standard IEC Anschlussstecker geliefert. Sollten Sie den angeschweißten Stecker auswechseln müssen, entsorgen Sie diesen bitte umgehend. Die farbliche Belegung des Netzkabels ist wie folgt:

GRÜN GELB E = Schutzleiter BLAU N = Nulleiter BRAUN L = P = Phase

Achtung: Wenn das Gerät zwei Anschlussbuchsen hat, stellen Sie bitte sicher, dass beide Netzkabel mit der selben Phase in die Netzsteckdose gesteckt werden.

Sicherheits-Warnhinweise

Die angeführten Service-/Reparatur-Anweisungen sind ausschließlich von qualifiziertem Service-Personal auszuführen. Um das Risiko eines lektroschocks zu reduzieren, führen Sie ausschließlich die im Benutzerhandbuch eschriebenen Anweisungen aus, es sei denn, Sie haben die entsprechende Qualifikation. Wenden Sie sich in allen Service-Fragen an qualifiziertes P ersonal.

ACHTUNG

Gefahr von Elektrosc hocks.

Abdeckungennichtentfernen

Keine vom Be nutzer z u wartende Teile

Wenden Sie sic h aussc hließlich

an qualifi ziertesPersonal

PhaseN=NulleiterN=NulleiterL=Phase

Schutzleiter

Légende :

Ce symbole indique qu'il faut prêter attention et se référer au manuel.

Ce symbole indique qu'il peut y avoir des tensions électriques à l'intérieur de l'appareil. Ne pas intervenir sans l'agrément du service qualifié.

· Pour réduire le risque de choc électrique, ne pas exposer l'appareil

dans un milieu humide.

· Toujours s'assurer que l'unité est correctement alimentée, en particuliers à la liaison à la terre.

· La source électrique de cet équipement doit posséder une connexion à la terre , ainsi qu'une liaison « neutre » identifiable.

· La prise électrique qui alimente l'appareil doit être proche de celle-ci et accessible.

Câble secteur de pays autres que les Etats-Unis

L'équipement est livré avec un câble secteur au standard IEC, moulé mâle/femelle. Si vous souhaitez changr la prise mâle de votre cordon, voici les codes couleurs des fils :

Le fil VERT/JAUNE est connecté à T (Terre) Le fil BLEU est connecté à N (Neutre) Le fil MARRON est connecté à P (Phase)

Attention si l'appareil a 2 alimentations, s'assurer que les cordons soient branchés sur la même phase.

Précaution d'emploi :

Les procédures de maintenance ne concernent que le service agréé. Afin de réduire le risque de choc électrique, il est recommandé de se limiter aux procédures d'utilisation, à moins d'en être qualifié. Pour toute maintenance, contacter le service compétent.

ATTENTION

RISQUEDE CHOC ELECTRIQUE

NE PASRETIRERLE COUVERCLE

NE PAS INTERVEN IR SAN S

L'AGREMENTDU SERVICE

QUALIFIE

PNTNP

Connecteur Prise

Explicación de los Símbolos de Seguridad

Éste símbolo refiere al usuario información importante contenida en la literatura incluida. Referirse al manual.

Éste símbolo indica que voltajes peligrosos están presentes en el interior. No hay elementos accesibles al usuario dentro. Esta unidad sólo debería ser tratada por personal cualificado.

Las instrucciones de servicio cuando sean dadas, son sólo para uso de personal cualificado. Para reducir el riesgo de choque eléctrico no llevar a cabo ninguna operación de servicio aparte de las contenidas en las instrucciones de operación, a menos que se esté cualificado para realizarlas. Referir todo el trabajo de servicio a personal cualificado.

· Para reducir el riesgo de choque eléctrico, no exponer este equipo

a la lluvia o humedad.

· Siempre asegurarse de que la unidad está propiamente conectada a tierra y que las conexiones de alimentación están hechas correctamente.

· Este equipo debe ser alimentado desde un sistema de alimentación con conexión a TIERRA y teniendo una conexión neutra fácilmente identificable.

La toma de alimentación para la unidad debe ser cercana y fácilmente

accesible.

Conexión de alimentación en otros países que no sean USA

El equipo es normalmente entregado con un cable de alimentación con un enchufe hembra estándar IEC en un extremo y con una clavija estándar IEC en el otro. Si se requiere eliminar la clavija para sustituirla por otra, disponer dicha clavija de una forma segura. El código de color a emplear es como sigue:

Advertencia Si la unidad tuviera dos tomas de alimentación, asegurarse de que ambos cables de alimentación están conectados a la misma fase.

ESP

Advertencias de Seguridad

LNENL

Clavija

Aerea Macho

Enchufe

Aereo Hembra

VERDE/ AMARILLO conectado a E (Conductor de protección a Tierra

-Earth en el original-) AZUL conectado a N (Conductor Neutro -Neutral en el original-) MARRÓN conectado a L (Conductor Fase -Live en el original-)

RIESGO DE CHOQUE ELECTRICO NO QUITAR LAS PROTECCIONNES ELEMENTOS NO ACCESIBLES AL USUARIO. SERVICIO SOLAMENTE A PERSONAL CUALIFICADO

RollPCI User Manual Safety

Simboli di sicurezza:

Questo simbolo indica l'informazione importante contenuta nei manuali appartenenti all'apparecchiatura. Consultare il manuale.

Questo simbolo indica che all'interno dell'apparato sono presenti tensioni pericolose. Non cercare di smontare l'unità. Per qualsiasi tipo di intervento rivolgersi al personale qualificato.

Le istruzioni relative alla manutenzione sono ad uso esclusivo del personale qualificato. E' proibito all'utente eseguire qualsiasi operazione non esplicitamente consentita nelle istruzioni. Per qualsiasi informazione rivolgersi al personale qualificato.

· Per prevenire il pericolo di scosse elettriche è necessario non esporre

mai l'apparecchiatura alla pioggia o a qualsiasi tipo di umidità.

· Assicurarsi sempre, che l'unità sia propriamente messa a terra e che le connessioni elettriche siano eseguite correttamente.

· Questo dispositivo deve essere collegato ad un impianto elettrico dotato di un sistema di messa a terra efficace.

· La presa di corrente deve essere vicina all'apparecchio e facilmente accessibile.

Connessione elettrica nei paesi diversi dagli S t ati Uniti

L'apparecchiatura normalmente è spedita con cavo pressofuso con la presa e spina standard IEC. Nel caso della rimozione della spina elettrica, gettarla via immediatamente osservando tutte le precauzioni del caso. La leggenda dei cavi è la seguente:

VERDE/GIALLO cavo connesso ad "E" (terra) BLU cavo connesso ad "N" (neutro) MARRONE cavo connesso ad "L" ( fase)

Attenzione! Nel caso in cui l'apparecchio abbia due prese di corrente, assicurarsi che i cavi non siano collegati a fasi diverse della rete elettrica.

Attenzione:

ATTENZIONE

LNENL

Presa volante Spina volante

RISCHIO DI SHOCK ELETTRICO

NON CERCARE DI SMONTARE

L'UNITA PER QUALSIASI TIPO DI

INTERVENTO RIVOLGERSI AL

PERSONALE QUALIFICATO

Forklaring på sikkerhedssymboler

Dette symbol gør brugeren opmærksom på vigtig information i den medfølgende manual.

Dette symbol indikerer farlig spænding inden i apparatet. Ingen bruger servicerbare dele i apparatet på brugerniveau. Dette apparat må kun serviceres af faglærte personer..

Serviceinstruktioner er kun til brug for faglærte servicefolk. For at reducere risikoen for elektrisk stød må bruger kun udføre anvisninger i betjeningsmanualen. Al service skal udføres af faglærte personer.

· For at reducere risikoen for elektrisk stød må apparatet ikke

udsættes for regn eller fugt.

· Sørg altid for at apparatet er korrekt tilsluttet og jordet.

· Dette apparat skal forbindes til en nettilslutning, der yder

BESKYTTENDE JORD og 0 forbindelse skal være tydeligt markeret.

· Stikkontakten, som forsyner apparatet, skal være tæt på apparatet og let tilgængelig

Nettilslutning i andre lande end USA

Udstyret leveres normalt med et strømkabel med et standard IEC støbt løst hunstik i den ene ende og et standard IEC støbt hanstik i den anden ende. Hvis et af de støbte stik på strømkablet er defekt, skal det straks kasseres på forsvarlig vis. Farvekoden for lederen er som følger:

GRØN/GUL leder forbundet til J (Jord) BLÅ leder forbundet til 0 BRUN leder forbundet til F(Fase)

Forsigtig Hvis enheden har to lysnetindgange, skal der sørges for at begge ledninger tilsluttes lystnetudgange fra den samme fase.

Sikkerhedsadvarsler

FORSIGTIG

RISIKO FOR ELEKTRISK STØD DÆKPLADERMÅ IKKE FJERNES INGEN BRUGER SERVIC ERBARE

DELESERVICEMÅ KUN UDFØRES

AF FAGLÆRTE PERSONER

F0J0F

Han-stik Hun-stik

Förklaring av Säkerhetssymboler

Denna symbol hänvisar användaren till viktig information som återfinns i litteraturen som medföljer. Se manualen.

Denna symbol indikerar att livsfarlig spänning finns på insidan. Det finns inga servicevänliga delar inne i apparaten. Denna apparat få endast repareras av utbildad personal.

Serviceinstruktioner som anges avser endast kvalificerad och utbildad servicepersonal. För att minska risken för elektrisk stöt, utför ingen annan service än den som återfinns i medföljande driftinstruktionerna, om du ej är behörig. Överlåt all service till kvalificerad personal.

· För att reducera risken för elektrisk stöt, utsätt inte apparaten för

regn eller fukt.

· Se alltid till att apparaten är ordentligt jordad samt att strömtillförseln är korrekt utförd.

· Denna apparat måste bli försörjd från ett strömsystem som är försedd med jordadanslutning samt ha en neutral anslutning som lätt identifierbar.

· Vägguttaget som strömförsörjer apparaten bör finnas i närheten samt vara lätttillgänglig.

Strömkontakter i länder utanför USA

Apparaten utrustas normalt med en strömkabel med standard IEC gjuten honkontakt på ena änden samt en standard IEC gjuten hankontakt på den andra änden. Om man måste avlägsna den gjutna hankontkaten, avyttra denna kontakt omedelbart på ett säkert sätt. Färgkoden för ledningen är följande:

GRÖN/GUL ledning ansluten till E

(Skyddsjordad ledare)

BLÅ ledning ansluten till N (Neutral ledare)

BRUN ledning ansluten till L (Fas ledare)

Varning! Om enheten har två huvudsakliga elförsörjningar, säkerställ att båda strömkablarna som är inkopplade i enheten arbetar från samma fas.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT REMOVE COVERS

NO USER SERVICEABLE PARTS

REFER SERVICING TO QUALIFIED

PERSONNEL ONLY

Säkerhetsvarningar

LNENL

Stickkontakt-Hane Stickkontakt-Hona

Turvamerkkien selitys

Tämä merkki tarkoittaa, että laitteen mukana toimitettu kirjallinen materiaali sisältää tärkeitä tietoja. Lue käyttöohje.

Tämä merkki ilmoittaa, että laitteen sisällä on vaarallisen voimakas jännite. Sisäpuolella ei ole mitään osia, joita käyttäjä voisi itse huoltaa. Huollon saa suorittaa vain alan ammattilainen.

Huolto-ohjeet on tarkoitettu ainoastaan alan ammattilaisille. Älä suorita laitteelle muita toimenpiteitä, kuin mitä käyttöohjeissa on neuvottu, ellet ole asiantuntija. Voit saada sähköiskun. Jätä kaikki huoltotoimet ammattilaiselle.

· Sähköiskujen välttämiseksi suojaa laite sateelta ja kosteudelta.

· Varmistu, että laite on asianmukaisesti maadoitettu ja että

sähkökytkennät on tehty oikein.

· Laitteelle tehoa syöttävässä järjestelmässä tulee olla SUOJAMAALIITÄNTÄ ja nollaliitännän on oltava luotettavasti tunnistettavissa.

· Sähköpistorasian tulee olla laitteen lähellä ja helposti tavoitettavissa.

Sähkökytkentä

Laitteen vakiovarusteena on sähköjohto, jonka toisessa päässä on muottiin valettu, IEC-standardin mukainen liitäntärasia ja toisessa päässä muottiin valettu, IEC-standardin mukainen pistoliitin. Jos pistoliitin tarvitsee poistaa, se tulee hävittää heti turvallisella tavalla. Johtimet kytketään seuraavasti:

KELTA-VIHREÄ suojamaajohdin E-napaan SININEN nollajohdin N-napaan RUSKEA vaihejohdin L-napaan

Huom! Jos laitteessa on kaksi verkkojännitteen tuloliitäntää, niiden johdot on liitettävä verkkopistorasioihin, joissa on sama vaiheistus.

Turvaohjeita

SÄHKÖISKUNVAARAÄLÄ AVAA

LAITTEEN KAN SIA EI SISÄLLÄ

KÄYTTÄJÄLLEHUO LLETTAVIA

OSIAHUOLTO AINOASTAAN

AMMATTILAISEN SUORITTAMANA

VAROITUS

LNENL

Pistoliitin Liitäntärasia

RollPCI User Manual Safety

EMC Standards

These units conform to the following standards: BS EN 55103-1: 1997 Electromagnetic Compatibility, Product family standard for audio, video, audio-visual and

entertainment lighting control apparatus for professional use. Part 1. Emission BS EN 55103-2: 1997 Electromagnetic Compatibility, Product family standard for audio, video, audio-visual and

entertainment lighting control apparatus for professional use. Part 2. Immunity Federal Communications Commission Rules Part 15, Class A:1998

EMC Environment

The product(s) described in this manual conform to the EMC requirements for, and are intended for use in,

The controlled EMC environment (for example purpose-built broadcasting or recording studios), and the rural outdoor environment (far away from railways, transmitters, overhead power lines, etc.) E4

EMC Performance of Cables and Connectors

SAM products are designed to meet or exceed the req uirement s of the appro priate Europe an EMC standards. In order to achieve this performance in real installations it is essential to use cables and connectors with good EMC characteristics.

All signal connections (including remote control connections) shall be made with screened cables terminated in connectors having a metal shell. The cable screen shall have a large-area contact with the metal shell.

Símbolos de Segurança

O símbolo triangular adverte para a necessidade de consultar o manual antes de utilizar o equipamento ou efectuar qualquer ajuste.

Este símbolo indica a presença de voltagens perigosas no interior do equipamento. As peças ou partes existentes no interior do equipamento não necessitam de intervenção, manutenção ou manuseamento por parte do utilizador. Reparações ou outras intervenções devem ser efectuadas apenas por técnicos devidamente habilitados.

As instruções de manutenção fornecidas são para utilização de técnicos qualificados. Para reduzir o risco de choque eléctrico, não devem ser realizadas intervenções no equipamento não especificadas no manual de instalações a menos que seja efectuadas por técnicos habilitados.

· Para reduzir o risco de choque eléctrico, não expor este equipamento

à chuva ou humidade.

· Assegurar que a unidade está sempre devidamente ligada à terra e que as ligações à alimentação estão correctas.

· O sistema de alimentação do equipamento deve, por razões de segurança, possuir ligação a terra de protecção e ligação ao NEUTRO devidamente identificada.

· A tomada de energia à qual a unidade está ligada deve situar-se na sua proximidade e facilmente acessível.

Ligação da alimentação noutros p aíses que não os EUA

O equipamento é, normalmente, enviado com cabo de alimentação com ficha IEC fêmea standard num extremo e uma ficha IEC macho standard no extremo oposto. Se for necessário substituir ou alterar alguma destas fichas, deverá remove-la e elimina-la imediatamente de maneira segura. O código de cor para os condutores é o seguinte:

Condutor VERDE/AMARELO ligado a E (Terra) Condutor AZUL ligado a N (Neutro) Condutor CASTANHO ligado a L (Vivo).

Atenção: Se a unidade tem duas fontes de alimentação assegurar que os dois cabos de alimentação estão ligados a tomadas p ertencentes à mesma f as e.

Avisos de Segurança

LNENL

FichaLivre TomadaLivre

CAUTION

RISK OF ELECTRIC SHOCK DO NOT REM OVE COVERS

NO USER SERVIC EABLE PA RTS

REFER SERVICIN G TO QUA LIFIED

PERSONNEL ONLY

RollPCI User Manual Safety

Coaxial Cables

Coaxial cables connections (particularly serial digital video connections) shall be made with high-quality double-screened coaxial cables such as Belden 1694 or BBC type PSF1/2M.

D-Type Connectors

D-type connectors shall have metal shells making good RF contact with the cable screen. Connectors having "dimples" which improve the contact between the plug and socket shells, are recommended.

About This Manual

This manual covers the following products.

• RollPCI - RollNet Interface Card

Packing List

The unit is supplied in a dedicated packing carton provided by the manufacturer and should not be accepted if delivered in inferior or unauth orized materials. Carefully unpack the carton and check for any shipping damage or shortages. Please retain the box and original packing materials in case the unit needs to be returned.

Any shortages or damage should be reported to the supplier immediately.

Enclosures

• RollPCI - RollNet Interface Card

• User Manual

Software Version Amendments

Notes about Versions Fitted: None

Manufacturers Notice

Reproduction or disassembly of embedded computer programs or algorithms prohibited. Copyrighted names: Microsoft Windows™ Information in this manual and software are subject to change without notice and does not

represent a commitment on the part of SAM. The software described in this manual is furnished under a license agreement and may not be reproduced or copied in any manner without prior agreement with SAM or their authorized agents.

RollPCI User Manual Contents

Contents

Information and Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contact Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Explanation of Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Manufacturers Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.1 Installing the RollPCI Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 Connecting RollPCI to the RollNet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 RollNet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 RollNet Over RS485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Device Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1 Windows 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.2 Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RollPCI User Manual Introduction

1. Introduction

1.1 Description

The RollPCI is a network interface card enabling connec tio n be twe e n a PC workstation and the RollNet high-speed 75 ohm co-axial network. The network connection, made with RG-62/u cable via BNC T-conne ctors, supports data rates up to 2.5Mbps. BNC-style 75 ohm terminators must be fitted at either end of a bus.

Supported Operating Systems: Windows 7 (64-bit, 32-bit), XP, Vista, 2000

1.2 Features

Standard plug and play compliant 32-bit PCI card

• Enables control of SAM products from a PC with RollCall software and 75 ohm co-axial network

• Automatic configuration of I/O and interrupt

• High speed I/O access to RollNet controller

• Enhanced software capabilities

• Universal voltage for use in PCI-X slot, or conventional PCI slot

RollPCI User Manual Hardware Installation

2. Hardware Installation

2.1 Installing the RollPCI Card

1. Remove the cover from the computer.

2. Identify the PCI slot where the RollPCI card is to be fitted.

3. Remove the cover and retaining screw from behind the slot.

4. Position the RollPCI card over the slot and carefully insert the card until it is fully seated.

5. Secure the bracket of the RollPCI card by refitting the retaining screw.

6. Refit the computer cover.

7. Install the relevant software drivers. See Device Driver Installation on page 11.

2.2 Connecting RollPCI to the RollNet Network

• Connect the RollPCI to the RollNET using a BNC ‘T’ connector and RG-62/u cable.

• Ensure that 75 ohm BNC terminators are fitted at both ends-of-line.

2.3 RollNet

RollNet is SAM's variant of ArcNet. It is a token bus protocol. RollNet uses standard video coaxial cables and connectors, and uses voltage levels that are compatible with video signals. Therefore, no damage should occur if video and RollNet cables are accidentally mis-connected.

RollNet is wired using 75ohm; video coaxial cable. Each device has a ‘T’ connector fitted to its BNC connector. The ‘T’ connectors are joined using 75ohm; video coaxial cable. The two end ‘T’ connectors have a 75ohm; terminator fitted.

There are physical limitations on the number of units on a single coaxial cable run. Each cable run can only have a maximum of 64 "Unit loads". Different units have different unit loads:

Important:

Before starting the installation, ensure that the PC and any peripheral equipment is switched off, and the power connections are removed.

Important:

Never attach a network coaxial cable directly to the RollPCI. Always use a BNC ‘T’ connector.

RollPCI User Manual Hardware Installation

2.4 RollNet Over RS485

RollNet coaxial segments may be joined by ‘RS485’ links to over come the 64 unit load limit. The ‘RS485’ link is connected between two RollCall units that support ‘RS485’, and each of these two units is connected to a different RollNet coaxial segment. The RollCall units at each end of the ‘RS485’ link monitor the signals on the link and regenerate the signal on the RollNet cable; and vice-versa. A unit (or an oscilloscope) connected to the RollNet will not be able to distinguish signals from units on the RollNet segment from those transmitted via the ‘RS485’ link. The RollNet segments and the ‘RS485’ link appear to be a single cable run.

Unit Type Unit Load

IQ 3U Box (IQ3A) 2 IQ 1U Box (IQH1S) 4 IQ 1U Box (IQH1A) 2 Roll PCI 1

RollPCI User Manual Device Driver Installation

3. Device Driver Installation

Before using RollPCI in conjunction with RollNet IP Share, the relevant device drivers must be installed. The drivers are copied to the hard drive during installation of Rollcall Suite. The procedure for installing the device drivers is different depending on the version of Windows used.

3.1 Windows 7

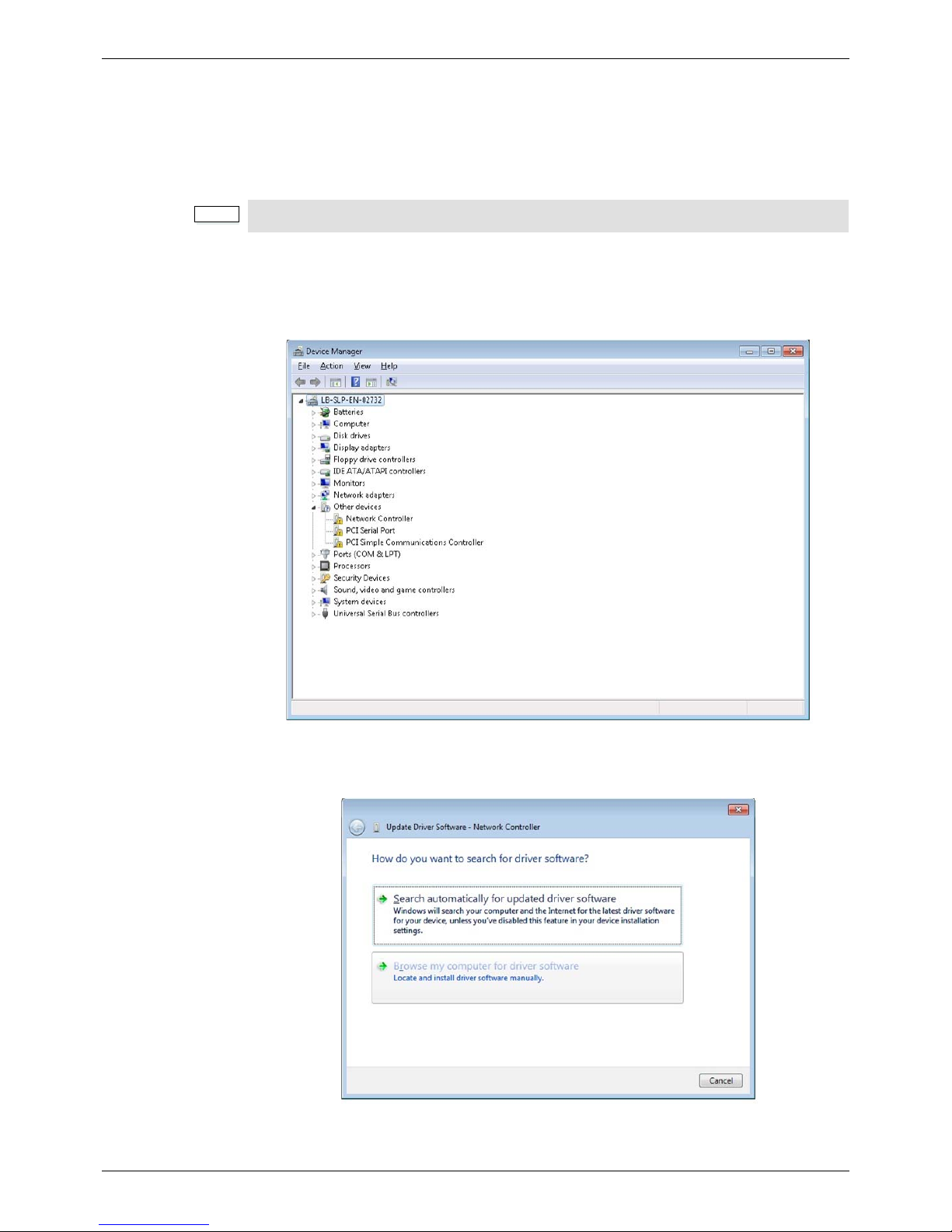

1. Click Start > Control Panel > Device Manager. Navigate to the hardware. It can be found under Other Devices > Network Controller.

2. Right click and select Update driver software.

3. Select Browse my computer for driver software.

Note:

Ensure that the PCI card is fitted correctly before attempting to install the device drivers.

RollPCI User Manual Device Driver Installation

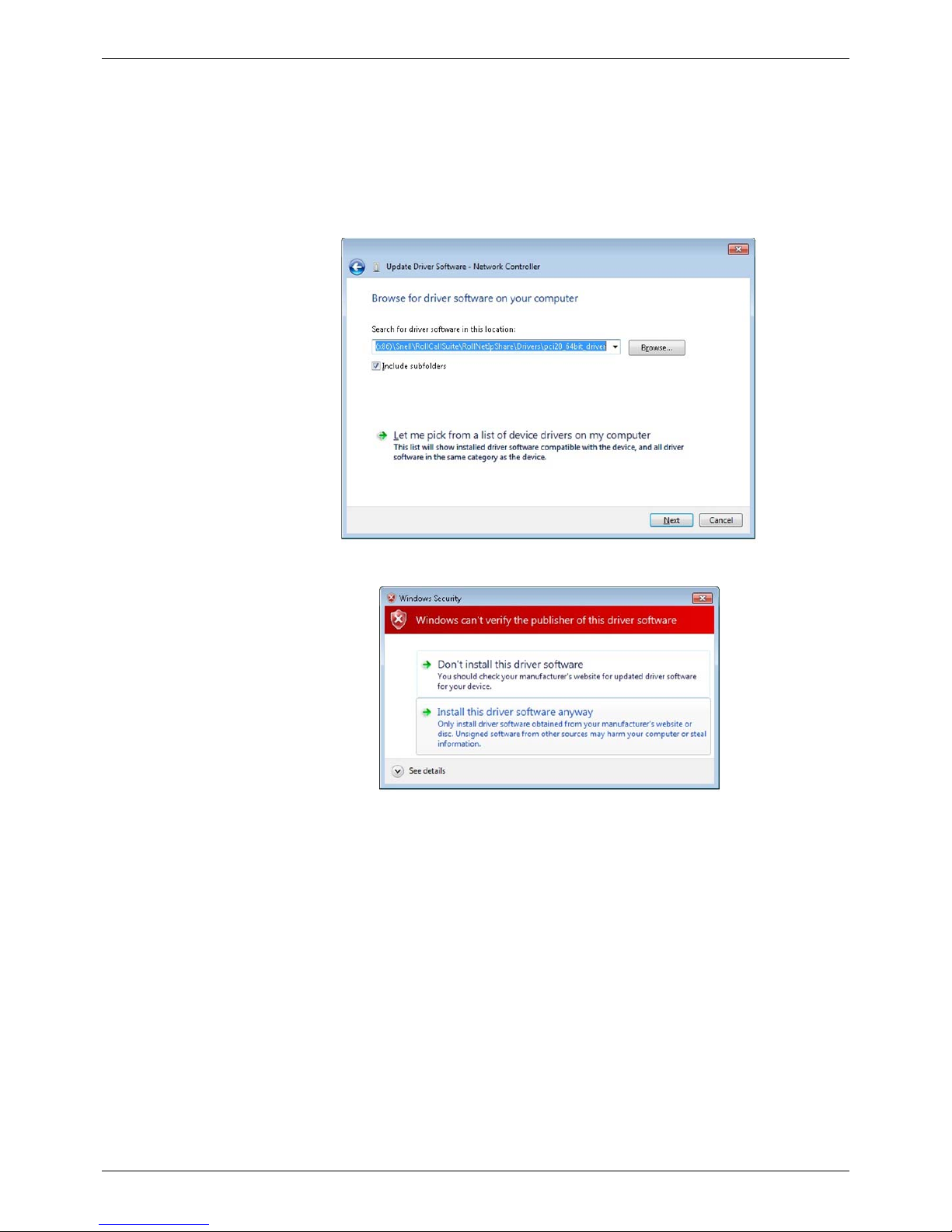

4. Navigate to the directory in which the driver is stored. In this example it is: C:\Program Files (x86)\SAM\RollCallSuite\RollNetIpShare\Drivers\pci20_64bit_driver

5. Select the 32 or 64-bit directory as required.

6. Click Next.

7. Select Install this driver anyway .

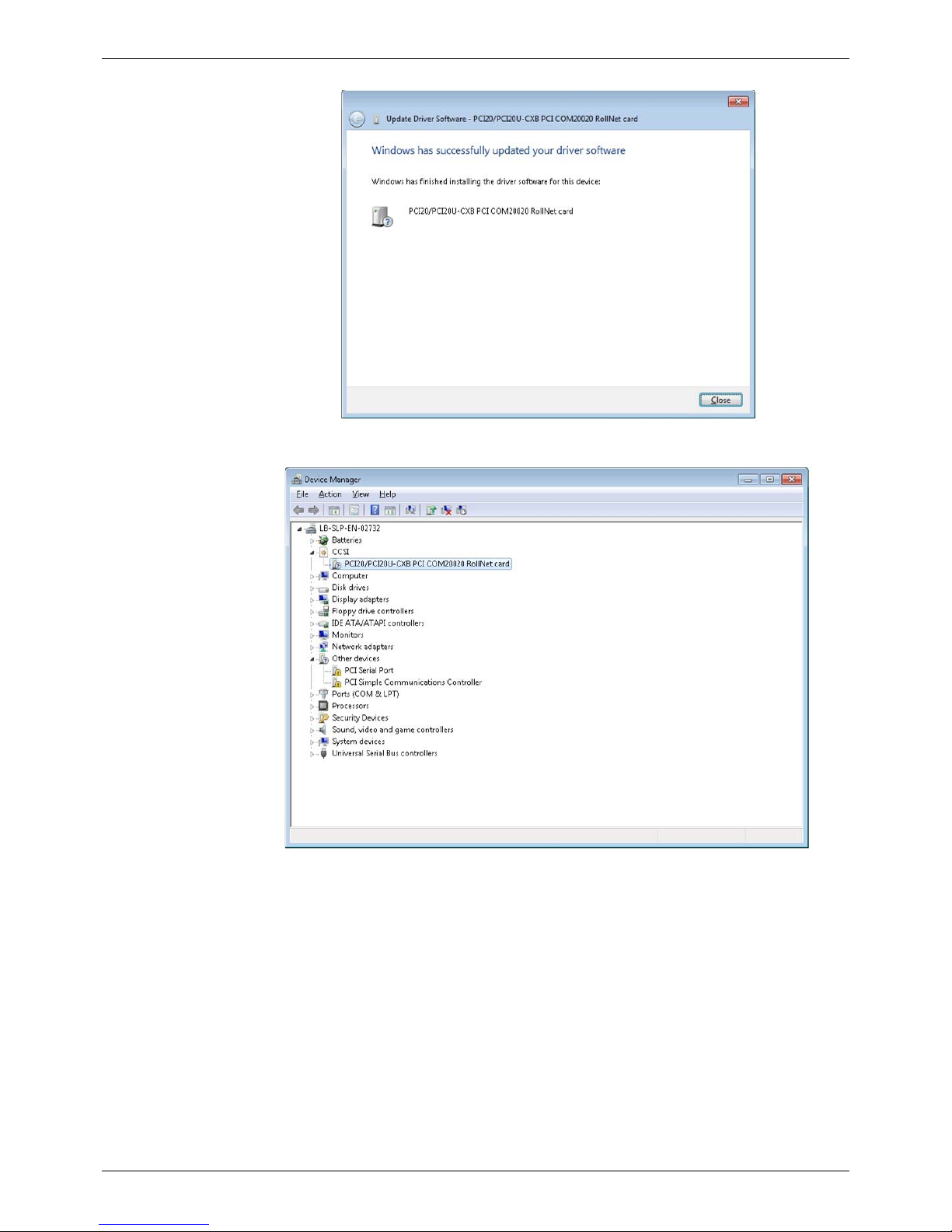

8. After a few seconds the wizard will have installed the driver. Select Close.

RollPCI User Manual Device Driver Installation

9. The hardware displays under CCSI. Right click on it and select Update driver.

10. Select Browse my computer for suitable hardware.

RollPCI User Manual Device Driver Installation

11. Select Let me pick from a list of device drivers on my comput er.

12. Click Next.

RollPCI User Manual Device Driver Installation

13. When the driver has successfully updated, click Close.

3.2 Windows XP

1. The Found New Hardware Wizard displays. Select No, not at this time, and click Next.

2. Select Install from a list or specific location and click Next.

RollPCI User Manual Device Driver Installation

3. Select Don't search. I will choose the driver to install, and click Next.

4. Select Non-Plug and Play Device, and click Next.

5. Click Have Disk.

RollPCI User Manual Device Driver Installation

6. Click Browse to navigate to the directory in which the driver is stored. In this example it is: C:\Program Files\SAM\RollCallSuite\RollNetIpShare\Drivers\pci20_32bit_driver

7. Select the 32 or 64 bit directory as required. Click OK.

8. Click Next.

9. After a few seconds the wizard will have installed the driver. Select Close.

RollPCI User Manual Device Driver Installation

10. The hardware now displays under CCSI.

RollPCI User Manual Technical Data

4. Technical Data

4.1 Specifications

Functionality

Data rate 2.5Mbps Compatibility RollNet and PCI bus

LED indicators

Green LED (ON) Transmitting RollNET traffic to the network Yellow LED (ON) RollPCI is being accessed via its I/O address

Power Requirement

Current Demand 400 mA (maximum)

Environmental

Temperature 0 °C to 60 °C operating

-40 °C to +85 °C storage

Relative Humidity 10% to 95% non-condensing

Mechanical

Dimensions 120 x 64 mm (4.72 x 2.50 inches) Shipping Weight 0.45 kg (1 lb)

Snell Advanced Media RollPCI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
