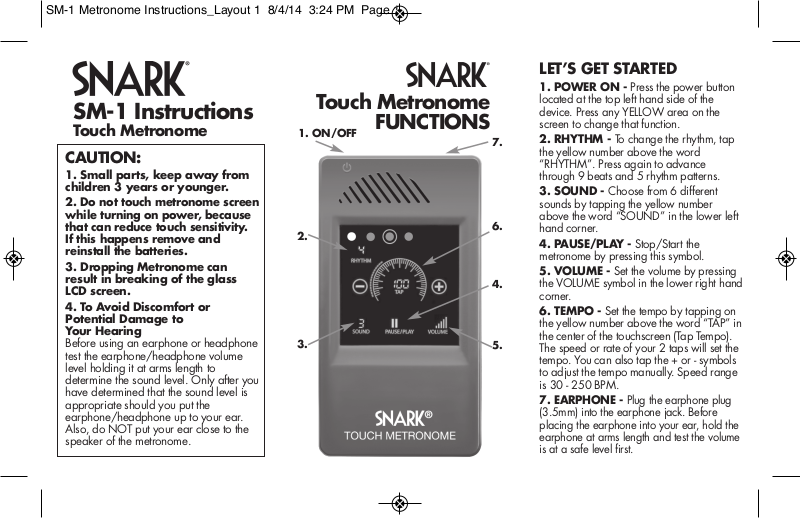

SNARK SM-1 Instructions

SM-1 Instructions

Touch Metronome

CAUTION:

1. Small parts, keep away from
children 3 years or younger.

2.

Do not touch metronome screen
while turning on power, because
that can reduce touch sensitivity.
If this happens remove and
reinstall the batteries.

3. Dropping Metronome can
result in breaking of the glass
LCD screen.

4. To Avoid Discomfort or
Potential Damage to
Your Hearing

Before using an earphone or headphone
test the earphone/headphone volume
level holding it at arms length to
determine the sound level. Only after you
have determined that the sound level is
appropriate should you put the
earphone/headphone up to your ear.
Also, do NOT put your ear close to the
speaker of the metronome.

Touch Metronome

FUNCTIONS

1. ON/OFF

7.

2.

3.

6.

4.

5.

LET’S GET STARTED

1. POWER ON - Press the power button

located at the top left hand side of the
device. Press any YELLOW area on the
screen to change that function.

2. RHYTHM - To change the rhythm, tap
the yellow number above the word
“RHYTHM”. Press again to advance
through 9 beats and 5 rhythm patterns.

3. SOUND - Choose from 6 different
sounds by tapping the yellow number
above the word “SOUND” in the lower left
hand corner.

4. PAUSE/PLAY - Stop/Start the
metronome by pressing this symbol.

5. VOLUME - Set the volume by pressing
the VOLUME symbol in the lower right hand
corner.

6. TEMPO - Set the tempo by tapping on
the yellow number above the word “TAP” in
the center of the touchscreen (Tap Tempo).
The speed or rate of your 2 taps will set the
tempo. You can also tap the + or - symbols
to adjust the tempo manually. Speed range
is 30 - 250 BPM.

7. EARPHONE - Plug the earphone plug
(3.5mm) into the earphone jack. Before
placing the earphone into your ear, hold the
earphone at arms length and test the volume
is at a safe level first.

SM-1 Metronome Instructions_Layout 1 8/4/14 3:24 PM Page 1

This product complies with FCC Part 15
rules. Operation of this product is permitted
in USA provided this product does not
cause harmful interference and provided
this product accepts interference from other
devices, even if that interference is
detrimental to performance of this product.

EEC Agent: John Hornby
Skewes & Co., Ltd.
Salem House, Parkinson
Approach, Garforth,
Leeds LS25 2HR UK

© Snark 2014

Printed in China

LIMITED WARRANTY

This product is warranted to the original purchaser to
be free from defects in material and workmanship
that affect product performance for a period of 12
months from the date of original purchase, provided
this warranty card is filled out and mailed within 10
days of the date of purchase or you provide proof of
purchase at the time of requesting warranty service.
In the event of a covered defect we will, at our
option, repair or replace the defective product with a
new or reconditioned product or refund the product’s
original purchase price, provided the defective
product is returned beforehand postage and insur­ance prepaid to Evets Corporation at the address
below. The replacement product is warranted for the
balance of the existing warranty. This warranty does
not cover batteries, casings, or damage caused by
accident or misuse. THIS LIMITED WARRANTY IS
THE ONLY EXPRESS WARRANTY APPLICABLE TO
THIS PRODUCT. THERE IS NO OTHER EXPRESS
WARRANTY. NO ONE IS AUTHORIZED TO MODIFY
OR EXPAND THIS LIMITED WARRANTY. THE AB­SOLUTE LIMIT OF EVETS’ LIABILITY IS THE
ORIGINAL PURCHASE PRICE OF THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS EXPRESS WARRANTY. THIS
LIMITED WARRANTY IS THE PURCHASER’S
EXCLUSIVE REMEDY AND LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
UNDER ANY AND ALL WARRANTIES IS EXCLUDED
TO THE EXTENT PERMITTED BY LAW. Warranty
valid only in the USA. This warranty gives you specific
legal rights. You may also have other rights which
vary from state to state – check your own state law
for additional rights. Please retain a copy of this
warranty and your sales receipt.

Evets Corporation
P.O. Box 1327, Camarillo, CA 93011 USA
Tel: [phone] Fax: [phone]

www.snarktuners.com

Largo

Larghetto

40-60

60-66

Adagio

Andante

66-76

76-108

Moderato

Allegro

108-120

120-168

Presto

Prestissimo

168-200

200-208

Battery cover removal

2x AAA batteries

Back of SNARK

Batteries

2x AAA batteries. The back cover
slides down to reveal the battery
compartment. Battery life is maximized
when using headphones.

REGISTER

YOUR WARRANTY

ON-LINE!

Go to: www.snarktuners.com

and click on “Warranty”

Largo

Larghetto

40-60

60-66

Adagio

Andante

66-76

76-108

Moderato

Allegro

108-120

120-168

Presto

Prestissimo

168-200

200-208

Tilt back stand

Power
ON/OFF

Earphone Jack

A list of tempos is

located on the back.

Wunderbar!

SM-1 Metronome Instructions_Layout 1 8/4/14 3:24 PM Page 4
