Parts Manual for
TM
MID MOUNT Z-RIDER
ZERO TURNING HYDRO DRIVE
SERIES 0,1,2
POWER UNIT MODELS
ZM2200K
ZM2500KH
ZMT2500KH
MZM2200KH
MZM2300KH
ZM2501KH
MZM2301KH
ZM2502KH
MOWER UNIT MODELS
ZM5200M ZM6100M
ZM5201M ZM6101M
ZM5202M ZM6102M
Model ZM2200K shown
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
(Rev. 6, 09/25/02) MANUAL No. 06110
CONTENTS
DESCRIPTION PAGE
DRIVE TIRE/WHEEL ASSEMBLY...............................................................................................3
ENGINE SUB-ASSEMBLY.......................................................................................................4, 5
FUEL TANK ASSEMBLY.........................................................................................................6, 7
TANDEM HYDRO TRANSAXLE ASS’Y (Models ZM2200K, ZM2500KH)..............................8, 9
TANDEM HYDRO TRANSAXLE ASS’Y (All Models Except ZM2200K, ZM2500KH)........10, 11
FOOTREST ASSEMBLY......................................................................................................12, 13
HYDRO RESERVOIR ASSEMBLY ......................................................................................14, 15
UPPER CHASSIS AND SEAT LATCH ASSEMBLY..................................................................16
CASTER WHEEL ASSEMBLY...................................................................................................17
LOWER CHASSIS/CASTER WHEEL ASSEMBLY..............................................................18, 19
JOYSTICK CONTROL ASSEMBLY (All Except for ZMT2500KH).....................................20, 21
TWIN STICK CONTROL ASSEMBLY (Model ZMT2500KH)...............................................22, 23
PARKING BRAKE ASSEMBLY ...........................................................................................24, 25
SEAT SUPPORT ASSEMBLY..............................................................................................26, 27
FENDER/CONTROL CABLE ASSEMBLY.................................................................................28
CUTTER HOUSING ASSEMBLY...............................................................................................29
UPPER DRIVE SHAFT ASSEMBLY ....................................................................................30, 31
DECK DRIVESHAFT ASSEMBLY (All Except for MZM Models) .......................................32, 33
DECK DRIVESHAFT ASSEMBLY (MZM Models)...............................................................34, 35
DECK LIFT SYSTEM ............................................................................................................36, 37
52” DECK, IDLERS, ROLLERS...........................................................................................38, 39
61” DECK, IDLERS, ROLLERS...........................................................................................40, 41
CHUTE, DECK COVERS & BAFFLE...................................................................................42, 43
SEAT ASSEMBLY (All Except for MZM Models)...............................................................44, 45
SEAT ASSEMBLY (MZM Models).............................................................................................46
TRACTION DRIVE IDLER ASSEMBLY .....................................................................................47
DECALS................................................................................................................................48, 49
ELECTRICAL COMPONENTS (except wiring)...................................................................50, 51
WIRING HARNESS ..............................................................................................................52, 54

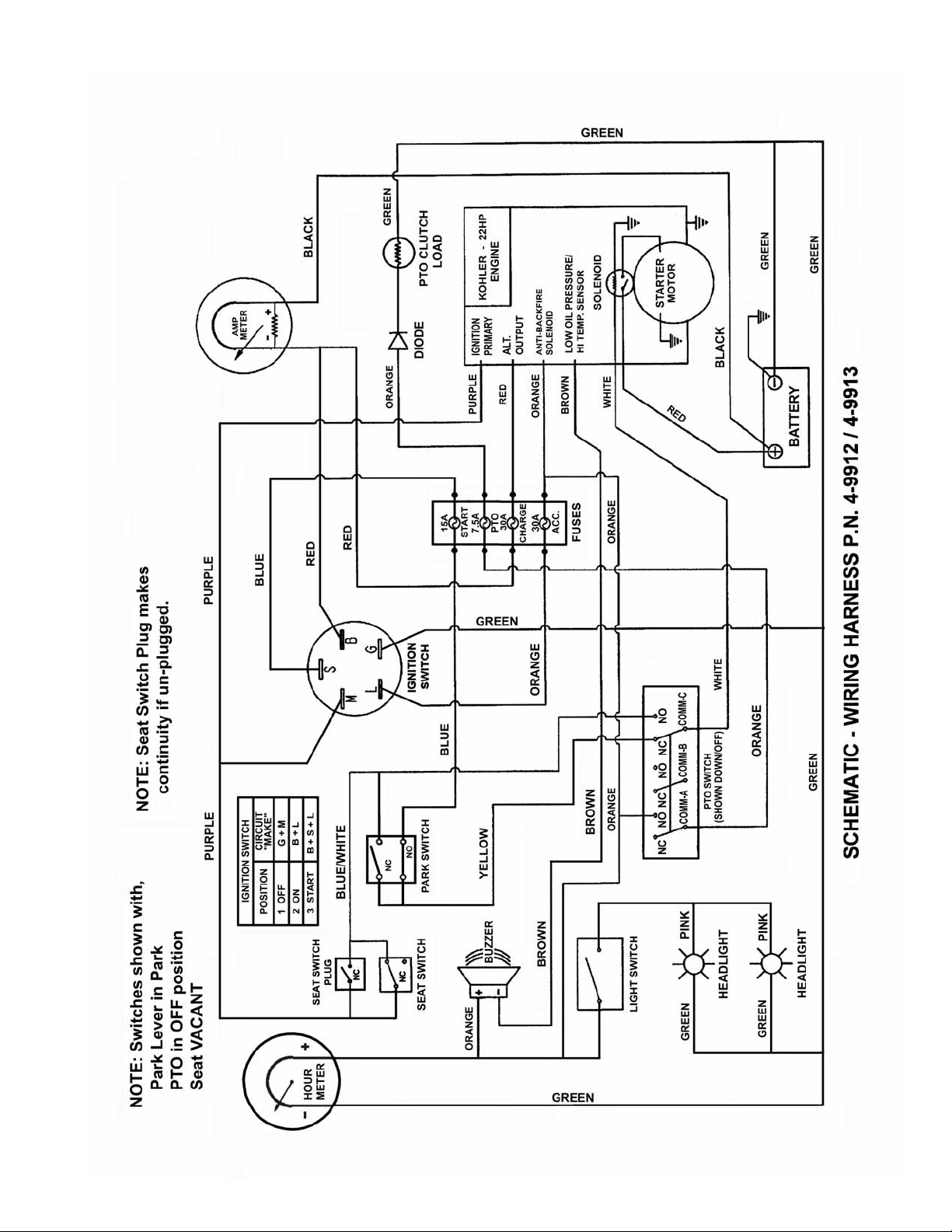

WIRING SCHEMATICS........................................................................................................53, 55
MANUAL No. 06110 MID MOUNT Z-RIDER
2
DRIVE TIRE/WHEEL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-4526 ASSEMBLY, Rear Tire & Rim (Includes Item 2, 3 & 4)
-- 5-7706 ASSEMBLY, Rear Tire & Rim (Left Hand)
(Model MZM2200KH Only) (Includes Item 2A, 3A & 4)
-- 5-7707 ASSEMBLY, Rear Tire & Rim (Right Hand)
(Model MZM2200KH Only) (Includes Item 2A, 3A & 4)
-- 5-8193 ASSEMBLY, Rear Tire & Rim (Includes Item 2B, 3 & 4)
(Model ZMT2500KH & ZM2501KH)
-- 5-9161 ASSEMBLY, Rear Tire & Rim (Includes Item 2C, 3 & 4)
(Model ZM2502KH)
2 4-4771 TIRE, 23 x 10.5 - 12 NHS
2A 4-4707 TIRE, 21 x 11 - 8 AG (Model MZM2200KH Only)
2B 7-2110 TIRE, 23 x 10.5 – 12 “Turf Mate”
2C 7-4157 TIRE, 23 x 10.5 – 12 “Super Turf”
3 4-4772 RIM, 12” Diameter x 7.00”
3A 4-7032 RIM, 8” Diameter x 6-3/8 (Model MZM2200KH Only)
4 1-2234 VALVE, Air
5 2-7192 NUT, 1/2-20 Lug (5)
6 5-4461 ASSEMBLY, Wheel Hub
7 9-1793 PIN, 9/64 x 1-1/2” Cotter
8 9-1778 KEY, #808 Woodruff
8A 9-1978 KEY, #806 Woodruff
(Model ZMT2500KH, ZM2501KH, ZM2502KH)
9 9-1828 NUT, 3/4-20 Slotted Hex
MID MOUNT Z-RIDER MANUAL No. 06110
1 ASSEMBLY
3, 3A
9
4
2, 2A, 2B
8, 8A
6
7
L. H. TRANSAXLE ASSEMBLY
(See Pages 8 thru 11)
5
3
ENGINE SUB-ASSEMBLY
24
23
8
22
16
17
18
25
MANUAL No. 06110 MID MOUNT Z-RIDER
15
14A
12A
26
10B
14B
13
9B
7
9A
10A
4
6
12B
1
11
20
17
19
8
21B
21A
3
2
4
5
ENGINE SUB-ASSEMBLY
ITEM PART NO. DESCRIPTION
1 ** ENGINE, 22HP (Kohler No. CH22S PS-66536)
-- ** ENGINE, 23HP (Kohler No. CH23S PS-76536)
-- ** ENGINE, 25HP (Kohler No. CH25S PS-68577)
2 3-5638 J-CLIP, 3/8” Cushioned (2)
3 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self Tap (2)
4 9-1299 NUT, 3/8-16 Nyloc (4)
5 9-1553 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, Grade 5 (4)
6 2-2486 OIL DRAIN, Short
7 2-7972 ASSEMBLY, Oil Valve
8 9-1838 SCREW, M6 x 1 x 6mm Hex Flange Cap (Qty. 2 for 22 HP;
Qty. 4 for 25 HP) (Kohler part no. M-0650012)
9A 4-2708 BRACKET, Muffler, 22HP Kohler
9B 4-6486 BRACKET, Muffler, 25HP Kohler (Series 0)
10A ** MUFFLER, 22HP Kohler (Kohler part no. A-24 068 00)
10B 4-6488 MUFFLER, 25HP Kohler (Kohler part no. A-24 068 17)
11 9-1839 SCREW, M5 x 8 x 16mm Hex Head Self Tapping (2) (Kohler # M-0545016)
12A 4-2707 GUARD, Muffler
12B 7-2155 GUARD, Muffler (used on ZMT2500KH & ZM2501KH models)
13 9-1840 SCREW, M5 x 8 x 10mm Hex Head Flange (2) (Kohler #M0550010)
14A 3-5675 SPACER, Clutch
14B 4-6410 SPACER, Clutch (Model MZM2200KH Only)
15 3-5520 CLUTCH, Electric
-- 4-6409 CLUTCH, Electric (Model MZM2200KH Only)
16 9-1806 SCREW, 7/16-20 x 1-1/2” Hex Head Cap. Grade 5
17 9-1301 WASHER, 7/16” Split Lock (2)
18 9-1807 WASHER, 7/16 I.D. x 1-3/8 O.D. x 1/4 Flat
-- 9-1962 WASHER,7/16” I.D.x 1-5/8” O.D. x 1/4 Flat
19 9-1304 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5
20 9-1808 SCREW, 7/16-14 x 1”, Grade 5
21A 3-5852 BRACKET, Anti-Rotation (5/16”)
21B 5-8207 BRACKET, Anti-Rotation (Model MZM2200KH Only)
22 4-6487 SHIELD, Heat, 25HP Kohler
23 7-2256 SPACER, Muffler Guard
24 9-2016 SCREW, 1/4-20 x 1-1/2” Hex Washer Self-Tap (2)
25 1-3250 KEY, 1/4 Square x 1”
26 4-6411 BRACKET, Torque
NOTE: Items 2, 3 & 8 thru 13 are included with engine.
MID MOUNT Z-RIDER MANUAL No. 06110
5
FUEL TANK ASSEMBLY
15 17 14
11 13 11 11
18
18
11 11 11
16
19
1
11
9
2A
3
4
7
5
5
12
10
7
4
8
1
19
20
20 & 21
18
21
2B
MANUAL No. 06110 MID MOUNT Z-RIDER
6
1
3
5
6
FUEL TANK ASSEMBLY
ITEM PART NO. DESCRIPTION
1 2-8903 CAP, 3-1/2” Fuel (2)
2A 5-4430 FUEL TANK, Main (Includes Item 1 - Fuel Cap)
2B 5-7705 FUEL TANK, Main (Includes Item 1 - Fuel Cap)
(MZM2200KH Models Only) (Includes Fuel Gauge)
3 2-6746 TRIM, 2 Inch (3)
4 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage Grade 5 (2)
5 2-3295 U-NUT, 1/4-20 Locking (4)
6 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self Tapping (2)
7 9-1298 NUT, 5/16-18 Hex Nylon Insert (2)
8 4-2886 BRACKET, Fuel Tank Support
9 5-4528 FUEL TANK, Auxiliary (Includes Item 1 - Fuel Cap)
10 4-4701 BRACKET, Mounting Auxiliary Fuel Tank
11 2-9900 CLAMP, 7/16” Hose (8)
(4 used on MZMs; 8 used on ZMT2500KH;
8 used on ZM2501KH)
12 3-2956 HOSE, 1/4” I.D. x 10” Fuel
13 4-4777 FILTER, 15 Micron Fuel (Included With Engine)
14 3-5853 HOSE, 1/4” I.D. x 4” Fuel (2)
15 4-4681 VALVE, 3-Way Fuel
16 4-4797 HOSE, 1/4” I.D. x 45” Fuel
-- 4-5333 HOSE, 1/4” x 36” Fuel (MZM Models Only)
17 7-7345 PAD, Foam (3)
18 5-4529 ASSEMBLY, Fuel Pick-up (Main) (11.75” Long)
19 5-4530 ASSEMBLY, Fuel Pick-up (Auxiliary) (5.25” Long)
20 4-7038 FUEL GAUGE, Kelch
21 4-7112 GROMMET, Fuel Tank Gauge
NOTE: Items 9, 10, 12 & 15 are not used with Model MZM2200KH.
MID MOUNT Z-RIDER MANUAL No. 06110
7
TANDEM HYDRO TRANSAXLE ASSEMBLY
32
HYDRO MODULE
28 28
(Models ZM2200K, ZM2500KH)
NOTE:
HYDRO TRANSAXLE MAINTENANCE
SHOULD ONLY BE PERFORMED BY
AN AUTHORISED SNAPPER DEALER.
35
33
34
29
30
29
26
25
27
26
25
31
29
28
29
24
28
19
21
22
23
10
11
20
15
9
16
7
18
17
4
6
5
8
14
12
10
5
13
11
10
9
PULLEY MOUNTING
DETAIL FOR R. H.
MANUAL No. 06110 MID MOUNT Z-RIDER
8
36
37
1
2
3
4
6
TANDEM HYDRO TRANSAXLE ASSEMBLY
(Models ZM2200K, ZM2500KH)
ITEM PART NO. DESCRIPTION
1 5-4437 ASSEMBLY, Transaxle 771B (L.H.) Side (shown)
-- 5-4436 ASSEMBLY, Transaxle 771A (R.H.) Side
2 9-1514 WASHER, 13/32 I.D. x 13/16 O.D. Flat (4)
3 9-1299 NUT, 3/8-16, Hex Nyloc (4)
4 1-0935 WASHER, 3/4 I.D. x 1-1/8” O.D. Flat (7)
5 9-0201 SET SCREW, 5/16-18 x 5/16” Hex Recess (4)
6 4-4754 PULLEY, Transmission 4.95” Diameter (2)
7 3-5923 SPACER/ADAPTER, Fan
8 9-1787 SCREW, 1/4-20 x 5/8”, Hex Flange Lock, Grade 5 (8)
9 4-2612 SPACER, Fan (2)
10 2-7223 WASHER, 1/4 Split Lock (4)
11 9-1814 SCREW, 1/4-20 x 1-1/4”, Hex Head Cap (3)
12 9-0505 SCREW, 1/4-20 x 2”, Hex Head Cap, Grade 5
13 9-1603 NUT, 1/4-20 Hex Nyloc (8)
14 4-3897 FAN, Blade 7” Dia. (2)
15 9-1627 WASHER, 1/4 I.D. x 1” O.D. (2)
16 4-2639 CAM, Neutral Return (Weldment) (2)
17 3-5910 PLATE, Neutral Adjust (2)
18 1-2709 RETAINING RING, 1” External (2)
19 2-7175 BOLT, 5/16-18 x 2-1/2” Hex Head (2)
20 3-5915 SPRING, Neutral Return Adjust (2)
21 3-5927 SPRING, Neutral Return (2)
22 9-1812 NUT, 1/4-28, Hex Nyloc (4)
23 1-4264 WOODRUFF KEY, #404 (2)
24 5-9440 ASSY, Driveshaft Bracket
25 9-1315 WASHER, 21/64” Split Lock (6)
26 9-1904 SCREW, 5/16-18 x 7/8”, Hex Head Cap (6)
27 5-4293 PLATE, Neutral Return (Weldment)
28 1-5753 BALL-JOINT (4)
29 9-1605 NUT, 1/4-28 Hex, Grade 5 or B (4)
30 4-4755 ROD, Threaded 1/4-28 x 6-5/8”
31 3-5914 ROD, Threaded 1/4-28 x 5-3/8”
32 1-5894 WOODRUFF KEY, #605 (2)
33 4-5184 FILTER, Oil (Eaton)
34 3-5925 ROD, Roll Release (2)
35 9-1629 COTTER-PIN, 1/16 x 1/2” (2)
36 9-1786 BOLT, 3/8-16 x 4-3/4” Grade 5 (4)
37 7-2017 SPACER, Eaton Transaxle (8)
NOTE: HYDRO TRANSXALE MAINTENANCE SHOULD ONLY BE PERFORMED
BY AN AUTHORIZED SNAPPER DEALER.
MID MOUNT Z-RIDER MANUAL No. 06110
9
TANDEM HYDRO TRANSAXLE ASSEMBLY
30
HYDRO MODULE
(All Models Except ZM2200K, ZM2500KH)
NOTE:
HYDRO TRANSAXLE MAINTENANCE
SHOULD ONLY BE PERFORMED BY
AN AUTHORISED SNAPPER DEALER.
28
12
29
28
26
25
27
26
25
29
31
29
28
29
32
28
19
24
21
22
20
9
17
18
11
23
10
16
15
5
14
13
MANUAL No. 06110 MID MOUNT Z-RIDER
10
10
8
6
11
5
PULLEY MOUNTING
DETAIL FOR R. H.
7
4
1
2
3
8
TANDEM HYDRO TRANSAXLE ASSEMBLY
(All Models Except ZM2200K, ZM2500KH)
ITEM PART NO. DESCRIPTION
1 5-4437 ASS’Y, Eaton Transaxle 771B (L.H.) Side (shown)
-- 5-9154 ASS’Y, Eaton Transaxle 771-090 (L.H.) (w/needle bearings)
-- 5-4436 ASS’Y, Eaton Transaxle 771A (R.H.) Side
-- 5-9153 ASS’Y, Eaton Transaxle 771-089 (R.H.) Side (w/needle bearings)
2 9-1514 WASHER, 13/32 I.D. x 13/16 O.D. Flat (4)
3 9-1299 NUT, 3/8-16, Hex Nyloc (4)
4 7-2017 SPACER, Eaton Transaxle (8)
5 9-1995 SET SCREW, 5/16-18 x 5/16” Square Head (4)
6 4-6967 PULLEY, Transmission (Right Hand) 4.95” Diameter (2)
7 9-1786 BOLT, 3/8-16 x 4-3/4” Hex Flange, Grade 5 (4)
8 9-1787 SCREW, 1/4-20 x 5/8”, Hex Flange Lock, Grade 5 (8)
9 4-6966 PULLEY, Transmission (Left Hand) 4.95” Diameter (2)
10 2-7223 WASHER, 1/4 Split Lock (4)
11 9-1814 SCREW, 1/4-20 x 1-1/4”, Hex Head Cap (3)
12 9-0505 SCREW, 1/4-20 x 2”, Hex Head Cap, Grade 5
13 9-1603 NUT, 1/4-20 Hex Nyloc (8)
14 4-3897 FAN, Blade 7” Dia. (2)
15 9-1627 WASHER, 1/4 I.D. x 1” O.D. (2)
16 4-2639 CAM, Neutral Return (Weldment) (2)
17 3-5910 PLATE, Neutral Adjust (2)
18 1-2709 RETAINING RING, 1” External (2)
19 2-7175 BOLT, 5/16-18 x 2-1/2” Hex Head (2)
20 3-5915 SPRING, Neutral Return Adjust (2)
21 3-5927 SPRING, Neutral Return (2)
22 9-1812 NUT, 1/4-28, Hex Nyloc (4)
23 1-4264 WOODRUFF KEY, #404 (2)
24 5-9440 ASSEMBLY, Driveshaft Bracket
25 9-1315 WASHER, 21/64” Split Lock (6)
26 9-1904 SCREW, 5/16-18 x 7/8”, Hex Head Cap (6)
27 5-4293 PLATE, Neutral Return (Weldment)
28 1-5753 BALL-JOINT 1/4-28 Thread (4)
29 9-1605 NUT, 1/4-28 Hex, Grade 5 or B (4)
30 4-4755 ROD, Threaded 1/4-28 x 6-5/8”
31 3-5914 ROD, Threaded 1/4-28 x 5-3/8”
32 1-5894 WOODRUFF KEY, #605 (2)
33 4-5184 FILTER, Oil (Eaton)
34 3-5925 ROD, Roll Release (2)
35 9-1629 COTTER-PIN, 1/16 x 1/2” (2)
NOTE: HYDRO TRANSXALE MAINTENANCE SHOULD ONLY BE PERFORMED
BY AN AUTHORIZED SNAPPER DEALER.
MID MOUNT Z-RIDER MANUAL No. 06110
11
FOOTREST ASSEMBLY
13
1A
12
14
12
9
11
12
10
6
2
3
4
6
5
7
8
MANUAL No. 06110 MID MOUNT Z RIDER
FOOTREST ASSEMBLY
ITEM PART NO. DESCRIPTION
1A 4-6727 BRACKET, Floor Pan
1B
1B 5-8362 WELDMENT, Floor Pan (Model ZMT2500KH only!)
2 4-3843 PAD Left Hand Friction
3 9-1318 SCREW, 5/16-18 x 3/4” Hex Head Cap
4 9-1296 WASHER, 11/32” Flat Lock
5 4-3795 BRACKET, Left Hand Footrest
6 9-1298 NUT, 5/16-18 Hex Nylon Insert (2)
7 4-3800 BRACE, Left Hand Footrest
8 4-6730 BRACKET, Footrest
9 4-4867 PAD, Floor Pan Trim (2)
10 9-1508 BOLT, 5/16-18 x 3/4” Carriage Short Neck Grade 5
11 4-4905 PAD, Right Hand Front Friction
12 9-1541 SCREW, 5/16-18 x 3/4” Hex Self Tapping (6)
13 4-3842 PAD, Right Hand Rear Friction
14 4-3794 BRACKET, Footrest (Right Hand)
MID MOUNT Z-RIDER MANUAL No. 06110
13
HYDRO RESERVOIR ASSEMBLY (left hand)
7
1 ASSEMBLY
ITEM PART NO. DESCRIPTION
6
2
8
3
3
9
3
4
5
VIEWED FROM
UNDERNEATH
10
3
1 5-4103 RESERVOIR, L. H. Hydro (includes cap, item 2)
2 3-5512 CAP, Reservoir
3 1-6130 CLAMP, for 13/16” Hose (8)
4 3-5514 HOSE, Rubber 5/8 I. D. x 13-1/2” long
5 4-4788 HOSE, Rubber 5/8” I. D. x 20” long
6 4-4790 BRACKET, Tank L. H.
7 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage, Grade 5
8 1-1791 RETAINER, 5/16” Bolt
9 9-1298 NUT, 5/16-18 Hex Nyloc
10 1-2080 CABLE TIE, 7” long
MANUAL No. 06110 MID-MOUNT Z-RIDER
14
HYDRO RESERVOIR ASSEMBLY (right hand)
15
12
ITEM PART NO. DESCRIPTION
14
2
11 ASSEMBLY
16
3
3
13
VIEWED FROM
UNDERNEATH
3
3
11 5-4521 RESERVOIR, (R.H.) Hydro (Includes cap, item 2)
12 4-4789 HOSE, Rubber 5/8” I.D. 32” Long
13 4-4787 HOSE, Rubber 5/8” I.D. 12” Long
14 4-4791 BRACKET, Tank, (Right Hand)
15 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
16 7-7345 PAD, Gas Tank (2)
MID-MOUNT Z-RIDER MANUAL No. 06110
15
UPPER CHASSIS AND SEAT LATCH ASSEMBLY
8
ITEM PART NO. DESCRIPTION
1 4-2946 UPPER CHASSIS (Models MZM2200K, ZM2501KH, ZM2502KH)
-- 7-1940 UPPER CHASSIS (Models ZMT2500KH & ZMT2501KH) (not shown)
2 9-1298 NUT, 5/16-18 Hex Nyloc
3 3-5993 LATCH, Seat Support
-- 7-2106 LATCH, Seat Support (MZM2300K, ZMT2500KH, ZM2501KH ZM2502KH)
4 9-1800 BOLT, 5/16-18 Shoulder, Hex Head, Nylon Patch
5 2-6292 SPRING
6 4-4769 SCREEN, Drivetrain
7 2-3341 SCREW, 1/4-20 x 3/4” Thumb (2)
8 9-1909 WELL-NUT, 1/4-20 x 53/64” (2)
9 7-2111 PLATE, Trim (Model ZMT2500KH Only)
10 9-0361 SCREW, 5/16-18 x 5/8” Self Tapping (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
9
7
6
2
3
1
5
4
10
16
CASTER WHEEL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 9-0361 SCREW, 5/16-18 x 5/8” Hex Flange Self Tap
2 3-6578 CAP, Caster Shaft
3 1-0965 RING, 1-3/16” External Retaining
4 9-1795 WASHER, 1-1/4” Flat
5 3-5602 BEARING, 30mm x 62mm (2)
6 4-2590 WELDMENT, Caster Support
-- 5-8760 WELDMENT, Caster Support (5 degree)
(used on model ZMT2500KH only)
7 4-2591 WELDMENT, Caster Yoke
8 9-1325 NUT, 1/2-13 Hex Nyloc
9 5-4087 ASSEMBLY, Tire & Rim (includes items 10 thru 12)
10 1-2700 FITTING, Lube
11 2-8722 BEARING (2)
12 1-2234 VALVE, Air
13 3-5476 SLEEVE, Axle
14 9-1773 SCREW, 1/2-13 x 7-1/4”, Grade 5
MID MOUNT Z-RIDER MANUAL No. 06110
14
13
11
1
2
3
4
5
6
5
7
8
10
9
11
12
17
LOWER CHASSIS/CASTER WHEEL ASSEMBLY
19
18
12B
19
4
18
21
18
20B
20A
13
3
4
1
2
5
12A
5
9
10
15
16
*NOTE: Front axle assembly
(5-4602) contains one item
12B as well as six items
18 and three items 19.
10
10
VIEWED FROM
UNDERNEATH
MANUAL No. 06110 MID MOUNT Z-RIDER
3
18
6
15
2
18
18
18
4
3
10
9
1
8
14
8
13
19
2
1
7
**NOTE: This wheel assembly
contains all items from
page 17 except for items
5 and 6.
11
25
22
23
21
10
24
10
LOWER CHASSIS/CASTER WHEEL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 9-0361 SCREW, 5/16-18 x 5/8” Hex Flange Self Tap
2 3-6578 CAP, Caster Shaft
3 1-0965 RING, 1-3/16” External Retaining
4 9-1795 WASHER, 1-1/4” I.D. x 1-7/8” O.D. Flat (2)
5 3-5602 BEARING, 30 mm x 62 mm (2)
6 5-4507 CASTER WHEEL (2) (see page 17)
7 9-1888 BOLT, 3/8-16 x 4”, Carriage Short Neck Grade 5 (8)
8 4-2928 TUBE, 3/4” x 5/32” x 2-45/64” (12)
9 9-1514 WASHER, 13/32” Flat (12)
10 9-1299 NUT, 3/8-16 Hex (20)
11 9-1901 BOLT, 3/8-16 x 4-1/4” Carriage Short Neck Grade 5 (4)
12A 4-2929 WELDMENT, Front Axle (straight)
12B 5-3382 WELDMENT, Front Axle (Wide Stance)
13 4-5212 WELDMENT, Front Axle Pivot
14 4-2792 FRAME, Lower (Models MZ2200K,ZM2500K) (Shown)
-- 4-7029 FRAME, Lower (Model MZM2200KH & MZM2300K)
-- 5-8330 FRAME, Lower (Models ZMT2500KH, ZM2501KH, ZM2502KH)
15 9-1790 BOLT, 3/8-16 x 1-1/4” Carriage Short Neck Gr. 5 (4)
16 4-6968 GUARD, Skid
17 7-2827 GUARD, Skid (Left Hand) (Not Shown)
18 7-4915 BUSHING, DX (6)
19 1-3864 GREASE FITTING, 3/16” Serrated (3)
20A 7-4956 BRACKET, Axle Stop (Wide Stance Caster)
20B 7-2041 BRACKET, Axle Stop (Wide Stance Caster)
21 9-2046 WASHER, 1-3/16” Flat (3)
22 7-4154 BRACKET, Frame Stabilizer Bar (2)
23 9-1640 BOLT, 3/8-16 x 1” Square Neck Carriage (4)
24 2-9355 BOLT, 1/2-13 x 3-3/4” Hex Head Cap, Grade 5 (2)
25 9-1922 NUT, 1/2-13 Hex Nyloc (2)
MID MOUNT Z-RIDER MANUAL No. 06110
19
JOYSTICK CONTROL ASSEMBLY
2
18
6
5
3
9
29
14
19
24
22
21
3
22
18
9
27
17 17
23
25
22
12
13
14
8 16 8 8
(All Models except ZMT2500KH)
MANUAL No. 06110 MID MOUNT Z-RIDER
1
10
9
5
4
17
28
20
4
17
23
23
26
7
10
11
15
20
1
4
JOYSTICK CONTROL ASSEMBLY
(All Models except ZMT2500KH)
ITEM PART NO. DESCRIPTION
1 9-1809 COTTER PIN, 1/8” x 1-1/4” (3)
2 4-3881 SHAFT, Hydro Left Hand
3 4-2638 ARM/HUB Weldment (4)
4 9-1298 NUT, 5/16-18 Hex Nyloc (7)
5 7-3060 PLATE, Hydro Shaft (2)
6 1-1791 RETAINER, 5/16” Bolt (2)
7 9-1296 WASHER, 11/32” Flat (4)
8 9-1508 BOLT, 5/16-18 x 3/4” Carriage, Grade 5 (3)
9 7-2934 BUSHING (notched) (8)
10 1-3072 ROLL PIN, 1/4 x 1” (4)
11 2-3656 HANDLE, Plastic
12 9-0844 ROLL PIN 3/16 x 3/4”
13 4-2599 HANDLE, Joystick Control (Weldment)
14 9-1800 BOLT, 5/16-18 Shoulder (4)
15 3-5533 BLOCK, Joy Stick Control Pivot
16 3-5532 BRACKET, Joystick Mounting
17 9-1812 NUT, 1/4-28 Hex Nyloc (8)
18 9-1303 BOLT, 3/8-16 x 1” Carriage Short Neck (4)
19 4-3871 SHAFT, Joystick Control Pivot
20 9-1917 NUT, 7/16-14 Hex
21 9-1816 ROLL PIN, 1/4 x 2-3/4”
22 1-5753 BALL-JOINT (8)
23 9-1605 NUT, 1/4-28 Hex, Grade 5 or B (8)
24 3-5908 ROD, Threaded 1/4-28 x 2-23/32 (2)
25 4-3880 ROD, Threaded 1/4-28 x 13-21/32 (2)
26 2-2112 SPACER (2)
27 4-3874 PIVOT ARM, Joystick Control Weldment (2)
28 9-1628 WASHER, 13/32” Flat
29 4-3882 SHAFT, Hydro (Right Hand)
MID MOUNT Z-RIDER MANUAL No. 06110
21
TWIN STICK CONTROL ASSEMBLY
(Model ZMT2500KH)
MANUAL No. 06110 MID MOUNT Z-RIDER
22
TWIN STICK CONTROL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 1-0061 KEY, 3/16” Square x 1”
2 1-0739 RING, 5/8” External Retaining
3 1-1791 RETAINER, 5/16” Bolt (2)
4 1-3072 ROLL PIN, 1/4” x 1” (5)
5 1-3874 BUSHING, 5/8 I. D. x 5/8” (5)
6 2-3556 BUSHING, Caster
7 3-5532 BRACKET, Joystick Mounting
8 3-5533 BLOCK, Pivot
9 4-2638 WELDMENT, Arm/Hub (4)
10 7-3060 PLATE, Bushing, Hydro Shaft (2)
11 5-8108 WELDMENT, R. H. Control Bellcrank
12 5-8109 WELDMENT, L. H. Control Bellcrank
13 5-8110 WELDMENT, R. H. Control
14 5-8111 WELDMENT, L. H. Control
15 5-8115 ASSEMBLY, Ball Joint Link 5.12” (2)
Includes 7-1970 (Rod), 1-5753 Ball Joint (2) & 9-1605 Hex Nut (2)
16 5-8116 ASSEMBLY, Ball Joint Link 20.4”
Includes 7-1971 (Rod), 1-5753 Ball Joint (2) & 9-1605 Hex Nut (2)
17 5-8117 ASSEMBLY, Ball Joint Link 20.56”
Includes 7-1971 (Rod), 1-5753 Ball Joint (2) & 9-1605 Hex Nut (2)
18 7-1944 HYDRO SHAFT, L.H.
19 7-1945 HYDRO SHAFT, R.H.
20 7-1959 PLATE, R.H. Bearing
21 7-3061 PLATE, L.H. Bearing (Twin-Stick Z Mower)
22 7-1964 ARM, R.H. Twin Stick Control
23 7-2022 ARM, L.H. Twin Stick Control
24 7-2047 BRACKET, Dampener Mounting
25 7-2212 GRIP, Twin Stick (2)
26 7-2442 BRACKET, Joystick Control
27 9-0361 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap (2)
28 9-0848 SET SCREW, 5/16-18 x 1/2” Square Head Cup Point (2)
29 9-1016 SCREW, 1/4-20 x 5/8” Hex Head Self-Tap (4)
30 9-1067 NUT, 5/16-18 Hex Center Lock, Grade 8 (4)
31 9-1099 NUT, 1/4-20 Hex Center Lock, Grade 5 or B (4)
32 9-1190 BOLT, 5/16-18 x 1-1/2” Curved Head Square Neck (4)
33 9-1296 WASHER, .34 I.D. Flat (20)
34 9-1298 NUT, 5/16-18 Hex Nyloc (7)
35 9-1303 BOLT, 5/16-18 x 1” Round Head Short Neck Carriage, Grade 5 (3)
36 9-1508 BOLT, 5/16-18 x 3/4” Round Hd. Short Neck Carriage, Grade 5 (3)
37 9-1628 WASHER, 5/8” I. D. Flat
38 9-1800 BOLT, 5/16-18 Shoulder (4)
39 9-1809 COTTER PIN, 1/8 x 1-1/4” (2)
40 9-1812 NUT, 1/4-28 Hex Nyloc (9)
41 9-1816 ROLL PIN, 1/4 x 2-3/4”
42 7-2934 BUSHING, .632 I. D. x .753 O.D. Teflon Impregnated (2)
43 9-2009 CYLINDER, Dampener
44 9-2010 BOLT, 1/4-20 Socket Head Shoulder (4)
MID MOUNT Z-RIDER MANUAL No. 06110
(Model ZMT2500KH)
23
PARKING BRAKE ASSEMBLY
4
MANUAL No. 06110 MID MOUNT Z-RIDER
1
10
16
2B
12
13
7
18
11
19
15
12
14
6
17
7
12
8B
24
13
12
13
9
3
5
2A
8A
18
19
15
6
12
12
PARKING BRAKE ASSEMBLY
ITEM PART NO. DESCRIPTION
1 1-2068 RING, Rear Lift Arm (3)
2A 2-6420 GRIP, Flat Bar (Models ZM2200K & ZM2500K)
2B 7-2222 GRIP, Park Brake Lever (Models ZMT2500KH, MZM2200KH,
MZM2300K, ZM2501KH, ZM2502KH)
3 4-6451 SWIVEL, Adjustable
4 1-0935 WASHER, 3/4” I.D. x 1-1/8” O.D. x 1/16 Thick, Flat
5 4-6449 ROD, Brake Parking
6 4-3876 ROD, Hydrostatic Brake (2)
7 3-6399 SLEEVE Bearing, 1/2 I.D. x 5/8 O.D. (2)
8A 4-6469 WELDMENT, Brake Arm (Models ZM2200K & ZM2500K)
8B 5-8082 WELDMENT, Brake Arm (Models ZMT2500KH, MZM2200KH,
MZM2300KH, ZM2501KH, ZM2502KH)
9 4-3875 SHAFT, Brake (Weldment)
10 4-2647 BRACKET, Joystick Lockout (Weldment)
11 4-2648 PLATE, Support (Weldment)
12 9-1597 COTTER PIN, 3/32 x 3/4” (6)
13 9-1514 WASHER, 13/32 I.D. x 13/16 O.D. x 5/64 Flat (3)
14 9-1523 SCREW, 5/16-18 x 5/8” Hex Self-Tapping (3)
15 9-1605 NUT, 1/4-28 Hex, Grade 5 or B (2)
16 9-1809 COTTER PIN, 1/8 x 1-1/4
17 1-4001 PIN, 1/8 x 3/4” Roll
18 9-1812 NUT, 1/4-28 Hex Nyloc (2)
19 9-1832 SWIVEL, 1/4” Smooth (2)
MID MOUNT Z-RIDER MANUAL No. 06110
25
SEAT SUPPORT ASSEMBLY
11
14
14
ADJUSTER WITH LOCK
See Pages 44 and 45
MANUAL No. 06110 MID MOUNT Z-RIDER
14
12
3
15
16
10
2
8
26
9, 9A
15
14
1
6
4
5
13
7
SEAT SUPPORT ASSEMBLY
16 16 16
15 15 15
1
10A
ITEM PART NO. DESCRIPTION
1 1-5761 BOLT, 5/16-18 x 3/4” Shoulder (2)
2 2-3354 SWITCH, Seat (Normally Closed)
3 9-0951 NUT, 5/16-18 Hex Flange Lock (2)
4 3-6492 SPRING (2)
-- 9-2007 SPRING (Models MZM2200KH, MZM2300K & ZMT2500KH Only)
5 2-2793 BUSHING, Molded Seat, 1/2 I.D. x 5/8” O.D. (2)
6 2-2794 SPACER, 5/16 I.D. x 1-3/8” Long (2)
7 2-3606 CAP, Vinyl (2)
8 3-3362 HOLDER, Seat Switch
9 3-5827 PLATE, Seat Support
9A 4-6960 PLATE, Seat Support (Models MZM2200K & MZM2300K Only)
9B 7-2015 PLATE, Seat Support (Model ZMT2500KH Only)
10 7-2210 HINGE, Seat Support
10A 7-2034 BRACKET, Seat Hinge (Model ZMT2500KH Only)
11 3-5839 BRACKET, Upper Seat Support Hinge (Used on all but ZMT2500KH)
12 9-1046 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, Grade 5 (2)
13 9-1296 WASHER, 5/16 x 11/16 O.D. Flat (10)
14 9-1298 NUT, 5/16-18 Hex Nyloc (12)
15 9-1508 BOLT, 5/16-18 x 3/4 Carriage Grade 5 (6)
16 1-1791 RETAINER, 5/16” Bolt (5)
MID MOUNT Z-RIDER MANUAL No. 06110
15
14
16
9B
3
3
1
14
14
27
13
6
17 18
18
13 10
12 11 11 10
FENDER/CONTROL CABLE ASSEMBLY
13
2
13
14
13
5
19
16
ITEM PART NO. DESCRIPTION
1 3-5548 HANDLE, 5/8” Tubing
2 3-5940 PLATE, Joystick Control
(shown)
-- 7-2043 COVER, Joystick Hole (Model
ZMT2500KH Only)
3 4-2984 FENDER, Right Hand
-- 4-6407 FENDER, Right Hand (MZM
Models Only)
4 4-2985 FENDER, Left Hand
-- 4-7006 FENDER, Left Hand (MZM
Models Only)
5 4-2986 BRACKET, R. H. Headlight
-- 4-6420 BRACKET, Right Hand (MZM
Models Only)
6 4-2987 BRACKET, L. H. Headlight
-- 4-6421 BRACKET, Left Hand (MZM
Models Only)
7 4-3898 BRACKET, Fender Brace
8 4-4700 BRACKET, Rear Fender (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
7
13
9
14
8
14
13
1
13
3
4
17
14
19
ITEM PART NO. DESCRIPTION
9 4-4820 BRACKET, Instrument Panel
(shown)
-- 4-6863 BRACKET, Instrument Panel
(MZM Models Only)
10 9-0913 SCREW, #10-24 x 1/2” Hex
Washer Self-Tap Torx (8)
11 9-1523 SCREW, 5/16-18 x 5/8” Hex
Washer Self-Tapping (9)
12 9-1603 NUT, 1/4-20 Hex Nyloc
13 9-1906 SCREW, 1/4-20 x 3/4” Hex
Cap Grade 5 (21)
14 2-3295 U-NUT, 1/4-20 Lock, (16)
15 3-5837 CABLE, Choke, Kohler
16 3-5838 CABLE, Throttle, Kohler
17 2-3655 LEVER, Throttle Control (2)
18 9-1017 SCREW, #8-32 x 3/8” Curved
Machine (2)
19 9-1018 NUT, #8-32 Hex (2)
8
13
15
28
CUTTER HOUSING ASSEMBLY
7B
16 10 12 13
17
ITEM PART NO. DESCRIPTION
1 2-9422 BEARING, Sealed (2)
2 2-9270 WASHER, Spindle
3 2-9274 SNAP-RING, Spindle Shaft
4 5-9311 SHAFT, Spindle
5 2-9254 SPACER, Bearing
6 2-9271 SPACER, Blade (4)
7A 2-9246 BLADE, 18” (ZM5200M Mower)
7B 7-3395 BLADE, Low Lift 18” (ZM5201M, ZM5202M Mower)
7C 1-7037 BLADE, High Lift 18” (ZM5202M Mower)
7D 1-7081 BLADE, 21” (ZM6100M & ZM6102M Mowers)
7E 7-3396 BLADE, Low Lift 21” (ZM6101M, ZM6102M Mower)
8 1-6440 WASHER, Beveled
9 6-3234 BOLT, 5/8-11 x 7-1/2” Hex Head Cap, Grade 5
10 2-9275 FITTING, Lube
11 2-9252 HOUSING, Cutter
12 2-9384 VENT, Spindle
13 2-9302 BOLT, 3/8-16 x 1-1/4” Rib Necked (6)
14 2-9249 PULLEY, 5-3/4” O.D.
15 6-3237 NUT, 5/8-11 Hex Flange Grade 5
16 9-1299 NUT, 3/8-16 Hex Nyloc (6)
17 6-3238* SEAL, Nylos
18 1-3370* WASHER
NOTE: 5-4017 (Spindle Housing Sub-Asy.) is made of items 11 & 12 (one each) and item 13 (six each).
*NOTE: For Bearing Pre-Seal Kit (6-3240) installation, discard item 3 and replace with items 17 & 18 as shown.
MID MOUNT Z-RIDER MANUAL No. 06110
1
15
2
4
14
7A
18
6
3
11
8
9
5
1
29
UPPER DRIVE SHAFT ASSEMBLY
19
11 11
14
22 11
14
10 10 14
See pages 8 thru 11,
item 24
14
5
16A
2
5
16A
16A
7
11
9
11
18A
3
3
21
20
6
21
8A
17B
8B
MANUAL No. 06110 MID MOUNT Z-RIDER
30
2
5
15
5
4
1
12
15
18B
16B
16
16
17B
17A
8C
17A
UPPER DRIVE SHAFT ASSEMBLY
ITEM PART NO. DESCRIPTION
1 1-4338 DISC, Flexible
2 1-4803 SPACER, Coupling (2)
3 4-7225 FLANGE, Bearing (2) (requires Item 18A, order separately)
(Models MZM2200K & MZM2300K)
4 1-8626 HUB, Drive Shaft Adapter
5 3-2070 WASHER, 13/32 I.D. x 3/4 O.D., Flat (4)
6 4-5254 BELT, Traction Drive (AX Cogged, 34.35 Eff. Length) (2)
-- 7-2357 BELT, Traction Drive (2) (Model ZMT2500KH Only)
7 9-1803 KEY, 3/16 x 1-1/2” Square
8A 7-4916 PULLEY, Dual V-Groove (4.95” O.D.) (requires items 20 & 21)
8B 3-5564 PULLEY, Dual V-Groove (4.95 O.D.) (includes 17B (2))
8C 7-2266 PULLEY, Dual V-Groove (5.45 O.D.) (includes 17A (2))
(used on Model ZMT2500KH Only)
9 4-2805 DRIVE SHAFT, 3/4” Upper
10 9-0848 SET SCREW, 5/16-18 x 1/2” Square Head (2)
11 9-1298 NUT, 5/16-18 Hex Nyloc (3)
12 9-1299 NUT, 3/8-16 Hex Nyloc (2)
13 9-1304 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5 (2)
-- 9-1328 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, Grade 5 (2)
14 9-1320 WASHER, 3/8” Split Lock (2)
15 9-1497 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, Grade 5 (2)
16A 9-1508 BOLT, 5/16-18 x 3/4”, Carriage, Grade 5 (3)
(Models MZM2200K, MZM2300K & ZM2501KH)
16B 9-1928 BOLT, 5/16-18 x 1-1/4” Square Neck Carriage Gr. 5 (3)
17A 9-1802 SCREW, 5/16-18 x 5/8”, Socket-Head (2)
17B 9-2018 SET SCREW, 5/16-18 x 3/4” Square Head (2)
18A 1-5971 BEARING (MZM Models Only, use with item 19)
18B 5-4655 ASSEMBLY, Flange/Bearing/Lock Collar
(Includes 1-4625, 3/4” Lock Collar w/Set Screw and 4-5246, Flange Bearing)
19 1-4625 LOCK COLLAR, 3/4” I.D. (includes 1/4-28 set screw)
20 7-4917 PULLEY HUB, Taper-Lock
21 9-1814 SCREW, 1/4-20 x 1-1/4” Hex Head Cap (2)
22 7-2318 SUPPORT, Bearing Mount
MID MOUNT Z-RIDER MANUAL No. 06110
31
DECK DRIVESHAFT ASSEMBLY
(Except for MZM Models)
MANUAL No. 06110 MID MOUNT Z-RIDER
6
17
17
COMPONENT OF
LOWER FRAME
WELDMENT
SEE NEXT PAGE
15
17
24
11
3
16
8
15
19
18
2
26
7A, 7B
18
14
3
13
25
4
18
14
26
18
14
NOTE: ITEM 12 ALSO MOUNTS
TO LEFT & RIGHT TRANSAXLES
SEE PAGES 8 THRU 11
26
5
4
9
10
21
32
MOUNTS TO LOWER
FRAME MIDDLE BRACE
SEE NEXT PAGE
25
12
MOUNTS TO ENGINE BASE
SEE NEXT PAGE
26
20
22
23
23
1
16
6
16
DECK DRIVESHAFT ASSEMBLY
(Except for MZM Models)
ENGINE
BASE
LOWER
FRAME
MIDDLE
BRACE
ITEM PART NO. DESCRIPTION
1 1-2315 KEY, 1/4 x 2” Square
2 1-3324 FITTING, Lube (45 degree, for 3/16” hole)
3 1-4409 BUSHING (2)
4 4-7227 BEARING, 1” I.D. (2)
5 9-0990 BOLT, 3/8-16 x 2” Short Neck Carriage, Grade 2
6 4-2801 DRIVE SHAFT, Deck (1” Diameter, 15 Spline)
7A 3-5531 PULLEY, Double V (5.45 O.D., A Section)
7B 7-2388 PULLEY, Double V (4.95 O.D., A Section)
(Models ZMT2500KH, ZM2501KH, ZM2502KH)
8 3-5543 BELT, Deck Drive (HA 36.5 Effective Length) (2)
-- 7-2293 BELT, Deck Drive (AX 38.5 Effective Length) (2)
(Model ZMT2500KH, ZM5201KH, ZM2502KH)
9 3-5713 SPRING, Torsion
10 3-5816 STUD, Idler (3/8-24 Thread)
11 3-5867 FLAT IDLER, 2-3/4” O.D x 1-1/4” Wide
12 4-2865 WELDMENT, Hydro Support
13 4-2622 WELDMENT, Idler Arm
14 9-0776 SET SCREW, 1/4-20 x 1/4” Socket Head, Cone Point (4)
15 9-1802 SET SCREW, 5/16-18 x 5/8” Socket Hd., Cup Pt. (used with 7A)
-- 9-0848 SET SCREW, 5/16-18 x 1/2” Sq. Hd. Knurled Cup (used with 7B)
16 9-1298 NUT, 5/16-18 Hex Nyloc (6)
17 9-1299 NUT, 3/8-16 Hex Nyloc (5)
18 9-1303 BOLT, 5/16-18 x 1” Round Head Short Neck, Grade 5 (6)
19 9-0122 WASHER, 3/8” Flat (3)
20 9-1518 NUT, 3/8-24 Hex Nyloc
21 9-1598 COTTER PIN, 1/8 x 3/4”
22 9-1787 SCREW, 1/4-20 x 5/8” Hex Flange Lock, Grade 5 (16)
23 2-7181 BOLT, 3/8-16 x 1-1/4” Short Neck Carriage, Grade 5 (4)
24 9-1804 WASHER, 9/16” Flat
25 1-4265 ASSEMBLY, Lock Collar, 1” (with 1/4” Set Screw, item 14)
26 4-7226 FLANGE, 1” Bearing (4)
MID MOUNT Z-RIDER MANUAL No. 06110
LOWER
FRAME
WELDMENT
33
DECK DRIVESHAFT ASSEMBLY
(MZM Model s )
MANUAL No. 06110 MID MOUNT Z-RIDER
6
17
17
COMPONENT OF
LOWER FRAME
WELDMENT
SEE NEXT PAGE
17
11
24
15
13
15
3
8
7
19
16
2
18
18
26
9
3
14
4
18
14
26
18
14
NOTE: ITEM 12 ALSO MOUNTS
TO LEFT & RIGHT TRANSAXLES
SEE PAGES 8 THRU 11
25
26
5
4
10
21
34
MOUNTS TO LOWER
FRAME MIDDLE BRACE
SEE NEXT PAGE
25
22
12
MOUNTS TO ENGINE BASE
SEE NEXT PAGE
20
23
23
1
16
6
16
DECK DRIVESHAFT ASSEMBLY
(MZM Model s )
ENGINE
BASE
LOWER
FRAME
MIDDLE
BRACE
ITEM PART NO. DESCRIPTION
1 1-2315 KEY, 1/4 x 2” Square
2 1-3324 FITTING, Lube (45 degree, for 3/16” hole)
3 1-4409 BUSHING (2)
4 4-7227 BEARING, 1” I.D. (2)
5 9-0990 BOLT, 3/8-16 x 2” Short Neck Carriage, Grade 2
6 4-2801 DRIVE SHAFT, Deck (1” Diameter, 15 Spline)
7 4-6969 PULLEY, Single V (5.75” O.D., B Section)
8 5-8209 BELT, Deck Drive (AX 36.5” Effective Length)
9 3-5713 SPRING, Torsion
10 3-5816 STUD, Idler (3/8-24 Thread)
11 1-8573 PULLEY, Idler (3.56” O.D.)
12 4-2865 WELDMENT, Hydro Support
13 4-2622 WELDMENT, Idler Arm
14 9-0776 SET SCREW, 1/4-20 x 1/4” Socket Head, Cone Point (4)
15 9-1995 SET SCREW, 5/16-18 x 5/8” Socket Head, Knurled Point
16 9-1298 NUT, 5/16-18 Hex Nyloc (6)
17 9-1299 NUT, 3/8-16 Hex Nyloc (5)
18 9-1303 BOLT, 5/16-18 x 1” Round Head Short Neck, Grade 5 (6)
19 4-7213 SPACER, Idler
20 9-1518 NUT, 3/8-24 Hex Nyloc
21 9-1598 COTTER PIN, 1/8 x 3/4”
22 9-1787 SCREW, 1/4-20 x 5/8” Hex Flange Lock, Grade 5 (16)
23 2-7181 BOLT, 3/8-16 x 1-1/4” Short Neck Carriage, Grade 5 (4)
24 9-1804 WASHER, 9/16” Flat
25 1-4265 ASSEMBLY, Lock Collar, 1” (with 1/4” Set Screw, item 14)
26 4-7226 FLANGE, 1” Bearing (4)
MID MOUNT Z-RIDER MANUAL No. 06110
LOWER
FRAME
WELDMENT
35
DECK LIFT SYSTEM
20
37
23
12
23 22
7 35 15 34 33 30 31 32
26
24 28 28 24 26 21 20 24 2 1 21 20
41 24 25 5 10
14 38 10 5 25 24 41 14
39 20 21 29 19 22 23
13
27 13 12
22 29 36 17
11B
23
11B
12
9B
21
3
11A
12
13
24
38 6
18
3
18
9A
37
16
22
11A
4
13
24
26
MANUAL No. 06110 MID MOUNT Z-RIDER
38
6
5
24
39
27
5
8, 8A
28
22
38
36
DECK LIFT SYSTEM
ITEM PART NO. DESCRIPTION
1 1-4354 WASHER, 29/32” I.D. x 1-1/4” O.D.
2 1-5020 RING, 7/8” External Retaining
3 3-4453 WASHER, 25/32” x 1-1/2” Flat (ZM Series 0 Models Only) (2)
4 4-3801 BRACKET, Deck Height Quadrant
5 4-3803 BRACKET, Deck Support (4)
6 4-3819 PLATE, Rear Link (4.95” long) (2) (ZM Series 0 Models Only)
-- 7-2422 PLATE, Rear Link (4.33” long) (2) (ZMT, MZM & ZM Series 1 & 2 Models)
7 4-3823 WELDMENT, Lift Handle Link
8 4-3827 LIFT, Front Deck (ZM Series 0 Models Only)
8A 5-8741 LIFT, Front Deck (ZMT, MZM & ZM Series 1 Models)
9A 4-6404 WELDMENT, Shaft Deck Lift (ZM Series 0 Models Only)
9B 5-8225 WELDMENT, Shaft Deck Lift (ZMT, MZM & ZM Series 1 & 2 Models)
10 7-3196 PLATE, Front Link (5.45” long) (2) (ZM Series 0, 1 & 2 & ZMT Models)
-- 7-3197 PLATE, Front Link (5.20” long) (2) (MZM Model Only)
11A 4-4859 SWIVEL, Spring Anchor (ZM Series 0 Models Only) (2)
11B 4-6412 BRACKET, Spring Adjustment (2) (ZMT, MZM & ZM Series 1 & 2 Models)
12 4-4860 EYEBOLT, 5/16-18 x 3” (2)
13 7-2225 SPRING, Extension Lift Assist (2)
14 4-4870 PLATE, Shim (6)
15 1-5019 PLUG, Rod
16 5-4543 ASSEMBLY, Pivot Plate (Includes 4-3804 Weldment, 1-3864 Lube Fitting
and two 1-8289 Sleeve Bearings)
17 4-4857 WELDMENT, Timing Rod
18 9-0820 NUT, 3/4-16 Hex Jam Lock (used on ZM Series 0 Only) (2)
19 9-1194 WASHER, 17/32” x 1-1/2”
20 9-0188 WASHER, 11/32” x 11/16” Flat (8)
21 9-1298 NUT, 5/16-18 Hex Nylon Insert (8)
22 9-1299 NUT, 3/8-16 Hex (7)
23 9-0122 WASHER, 3/8” Flat (4)
24 9-1587 WASHER, 17/32” x 1-1/16” (8)
25 9-1612 BOLT, 5/16-18 x 1-1/2” Carriage Grade 5 (4)
26 9-1640 BOLT, 3/8-16 x 1” Carriage (5)
27 9-1714 BOLT, 5/16-18 x 1-1/2” Carriage Grade 5 (4)
28 9-1809 PIN, 1/8” x 1-1/4” Cotter (3)
29 9-1894 NUT, 1/2-13 Hex Center Lock Grade 5 (3)
30 4-4833 ROD, Lift Lever
31 1-9363 GRIP, Lift Lever Handle
32 1-4361 CAP, Lift Rod
33 1-4432 SPRING
34 4-3833 WELDMENT, Deck Lift Lever
35 1-4437 PIN, 1/4” x 2-1/4” Groove
36 4-4858 SWIVEL, Timing Rod
37 9-1947 PIN, 1/8 x 1/2” Hair (used on ZM Series 0 Only) (4)
38 9-2017 BOLT, 1/2-20 Shoulder (ZMT, ZM & MZM Series 1 & 2 Models) (4)
39 9-0559 NUT, 1/2-20 Hex Jam (ZMT & ZM Series 1 Models) (2)
40 9-1508 BOLT, 5/16-18 x 3/4” Carriage, Gr. 5 (ZMT & ZM Series 1 & 2 Models) (6)
41 9-0393 NUT, 1/2-20 Hex Nyloc (4)
MID MOUNT Z-RIDER MANUAL No. 06110
37
52” DECK, IDLERS, ROLLERS
32
27 28
24
50 48
12
18
17 16 15 46 45 11 30
34 35 36 37 39 25 38 11 10
40 39 41 42 13 49
1
2
3
4
5
7
8
6
8
7
43
9
44
9
6
6
7
12
2
6
8
31
33A
53
14
18
8
6
6
19
8
6
20
12
29
26
21
22
MANUAL No. 06110 MID MOUNT Z-RIDER
47
49
38
6
23
52” DECK, IDLERS, ROLLERS
53 52
56 55 54 56
12
ITEM PART NO. DESCRIPTION
1 9-1899 SCREW, 3/8-24 x 1” Cap, Gr. 5
2 9-1331 WASHER, 13/32” Flat (2)
3 9-1802 SET-SCREW, 5/16” x 5/8”
Socket Head (2)
4 4-2867 PULLEY, Cast 5-3/4” O.D.
5 3-5668 SPACER
6 9-1299 NUT, 3/8-16 Hex Nyloc (17)
7 9-1305 SCREW, 3/8-16 x 2” (3)
8 9-1300 WASHER, 7/16” Flat (12)
9 3-5789 PULLEY, 5-1/2 Idler (2)
10 3-5858 SPACER, 3/4” Outside Diameter
11 9-1553 SCREW, 3/8-16 x 1-3/4” Hex
Head Cap Grade 5 (3)
12 9-1304 SCREW, 3/8-16 x 1” Hex Head
Cap, Grade 5 (13)
13 3-6449 STAND, Fixed Idler
14 4-4784 WELDMENT, Deck, 52”
15 9-1541 SCREW, 5/16-18 x 3/4” Hex
Washer Self Tap (3)
16 4-4839 CAP, Caster Shaft (3)
17 2-1960 SPACER, 1” (6)
18 4-4892 BEARING, Radial Flanged (6)
19 4-4643 WELDMENT, Gauge Wheel
Bracket
20 2-3747 BUSHING, 1” Machine (3)
21 4-4646 WELDMENT, Gauge Wheel
Caster (3)
22 9-1617 SCREW, 3/8-16 x 6” (3)
23 7-9868 ROLLER, 3-3/4” x 4-13/16”
Nylon (3)
24 7-9882 TUBE, Axle (3)
25 9-1640 BOLT, 3/8-16 x 1” Carriage,
Grade 5 (5)
26 3-6455 GEARBOX, Shim
MID MOUNT Z-RIDER MANUAL No. 06110
55
33B
55
55
51
ITEM PART NO. DESCRIPTION
27 5-8342 GEARBOX, Right Angle
(Peerless Series 1000-52)
28 9-1328 SCREW, 3/8-16 x 1-1/4” Gr. 5(2)
29 1-0008 KEY, #6 Woodruff
30 9-0613 NUT, 3/8-16 Hex Flange
31 3-5667 SPRING, Extension
32 1-3847 RETAINER, 3/8” Bolt
33A 9-1822 SCREW, 1/2-13 x 5” Cap (2)
33B 9-2072 SCREW, 1/2-13 x 7” Gr. 5 (2)
34 3-6457 FORK, Gauge Wheel (2)
35 3-6456 SPACER, Gauge Wheel (2)
36 2-9264 WHEEL, Gauge (2)
37 9-1325 NUT, 1/2-13 Hex Nylock (2)
38 4-2976 WELDMENT, Idler Pivot
39 2-3556 BUSHING, Caster (2)
40 4-2619 WELDMENT, Idler Arm
41 3-2031 WASHER, 1-1/32” Flat
42 1-2709 RING, 1” External Retaining
43 4-2776 BELT, 52” HB (122”)
44 7-6998 ZERK, 1/4-28 Self Tapping
45 4-1821 WELDMENT, Gauge Wheel (2)
46 4-4752 SPACER, 3/8” Inside Dia. (2)
47 5-8494 DRIVESHAFT, Telescoping
(Includes items 48-50)
48 1-0211 KEY, #9 Woodruff
49 9-0132 SET SCREW, 3/8-16 x 3/8” Hex
Recess (2)
50 1-2700 FITTING, 1/4-28 Lube
51 7-4155 L-BRK’T, Deck Stabilizer Bar (2)
52 9-0122 WASHER, 3/8” Flat (4)
53 9-1585 NUT, 3/8-16 Hex Center Lock (8)
54 5-9184 STRUCTURE, 52” Stabilizer
Bar (2)
55 2-9258 BUSHING, Suspension (8)
56 2-9263 SLEEVE, Suspension (4)
39
61” DECK, IDLERS, ROLLERS
1
2
36
37
3
4
12
33A
35
42
5
9
7
8
25
7
8 6
13
9
43
11
45
41
32
31
44
7
2
30
25
39
40
6
8
39
38
6
10
11
19
6
25
46
15
16
17
18
8
12
34
53
14
6
8
18
20
21
6
6
50
48
26
29
MANUAL No. 06110 MID MOUNT Z-RIDER
47
49
27
28
40
6
23
24
22
61” DECK, IDLERS, ROLLERS
53 52
56 55 54 56
12
ITEM PART NO. DESCRIPTION
1 9-1899 SCREW, 3/8-24 x 1” Cap, Gr. 5
2 9-1331 WASHER, 13/32” Flat (2)
3 9-1802 SET-SCREW, 5/16” x 5/8”
Socket Head (2)
4 7-4466 PULLEY, 5.25 Cast
5 3-5668 SPACER
6 9-1299 NUT, 3/8-16 Hex Nyloc (17)
7 9-1305 SCREW, 3/8-16 x 2” (3)
8 9-1300 WASHER, 7/16” Flat (12)
9 3-5789 PULLEY, 5-1/2 Idler (2)
10 3-5858 SPACER, 3/4” Outside Diameter
11 9-1553 SCREW, 3/8-16 x 1-3/4” Hex
Head Cap Gr. 5 (3)
12 9-1304 SCREW, 3/8-16 x 1” Hex Head
Cap (13)
13 3-6449 STAND, Fixed Idler
14 4-3847 WELDMENT, Deck, 61”
15 9-1541 SCREW, 5/16-18 x 3/4” Hex Self
Tapping (3)
16 4-4839 CAP, Caster Shaft (3)
17 2-1960 SPACER, 1” (6)
18 4-4892 BEARING, Radial (6)
19 4-4643 WELDMENT, Gauge Wheel
Bracket
20 2-3747 BUSHING, 1” Machine (3)
21 4-4646 WELDMENT, Gauge Wheel
Caster (3)
22 9-1617 SCREW, 3/8-16 x 6” (3)
23 7-9868 ROLLER, 3-3/4” x 4-13/16”
Nylon (3)
24 7-9882 TUBE, Axle (3)
25 9-1640 BOLT, 3/8-16 x 1” Carriage,
Grade 5 (6)
26 3-6455 GEARBOX, Shim
MID MOUNT Z-RIDER MANUAL No. 06110
55
33B
55
55
51
ITEM PART NO. DESCRIPTION
27 5-8342 GEARBOX, Right Angle
(Peerless Series 1000-52)
28 9-1328 SCREW, 3/8-16 x 1-1/4” Gr. 5(2)
29 1-0008 KEY, #6 Woodruff
30 9-0613 NUT, 3/8-16 Hex Flange
31 3-5667 SPRING, Extension
32 1-3847 RETAINER, 3/8” Bolt
33A 9-1822 SCREW, 1/2-13 x 5” Cap (2)
33B 9-2072 SCREW, 1/2-13 x 7”, Gr. 5 (2)
34 3-6457 FORK, Gauge Wheel (2)
35 3-6456 SPACER, Gauge Wheel (2)
36 2-9264 WHEEL, Gauge (2)
37 9-1325 NUT, 1/2-13 Hex Nylock (2)
38 4-1295 WELDMENT, Idler Pivot
39 2-3556 BUSHING, Caster (2)
40 4-2619 WELDMENT, Idler Arm
41 3-2031 WASHER, 1-1/32” Flat
42 1-2709 RING, 1” External Retaining
43 3-5542 BELT, 61” HB (134-1/2”)
44 7-6998 ZERK, 1/4-28 Self Tapping
45 4-1821 WELDMENT, Gauge Wheel (2)
46 4-4752 SPACER, 3/8” Inside Diameter
47 5-8494 DRIVESHAFT, Telescoping
(Includes items 48-50)
48 1-0211 KEY, #9 Woodruff
49 9-0132 SET SCREW, 3/8-16 x 3/8” Hex
Recess (2)
50 1-2700 FITTING, 1/4-28 Lube
51 7-4155 BRACKET, Deck Stabilizer
52 9-0122 WASHER, 3/8” Flat (4)
53 9-1585 NUT, 3/8-16 Hex Center Lock (8)
54 5-9166 STRUCTURE, 61” Stabilizer
Bar (2)
55 2-9258 BUSHING, Suspension (8)
56 2-9263 SLEEVE, Suspension (4)
41
CHUTE, DECK COVERS & BAFFLE
11 12 13
16*
REAR LINK PLATE
(See Pages 36 and 37)
4
5
1
2
3
15
10
14
MANUAL No. 06110 MID MOUNT Z-RIDER
FRONT AXLE
(Page 18, Item 12A)
2
4
3
42
4
17
5
10
1
1
3
1
FRONT LINK PLATE
(See Pages 36 and 37)
4
5
6
DECK
(See Pages 38 thru 41)
9
*NOTE: Item 16 not used with
Wide Stance Front Axle
8
7
CHUTE, DECK COVERS & BAFFLE
ITEM PART NO. DESCRIPTION
1 9-1587 WASHER, 17/32 x 1-1/16 Flat (10)
2 4-3824 BRACKET, Rear Lift (2)
3 9-1299 NUT, 3/8-16 Hex (12)
4 9-1516 PIN, 5/32 x 1” Cotter (8)
5 9-1948 PIN, 1/2 x 23/32 Clevis (6)
6 4-4670 BRACKET, Front Lift (2)
7 9-1304 SCREW, 3/8-16 x 1” Hex Cap (6)
8 9-1331 WASHER, 13/32 x 1-1/2” Flat (6)
9 4-2914 BAFFLE, 52 Front (2)
-- 3-6445 BAFFLE, 61 Front (2)
10 9-1640 BOLT, 3/8-16 x 1” Carriage (12)
11 9-1313 PIN, 3/32 x 1” Cotter
12 2-9277 PIN, Chute Hinge
13 2-7950 SPRING, Chute
14 4-2903 CHUTE, 52” Deck
-- 4-4806 CHUTE, 52” Deck (Euro)
-- 4-2656 CHUTE, 61” Deck
-- 5-8291 CHUTE, 61” Deck (Euro)
15 4-4756 COVER, Spindle (2)
16 4-5339 WELDMENT, Pull Bar
17 1-2802 PIN, 1/2 x 1-1/8” Clevis (2)
MID MOUNT Z-RIDER MANUAL No. 06110
43
SEAT ASSEMBLY
23
21 11
15 14 16 14 18 17
19
(Except for MZM2200K & MZM 2300KH)
3
7
24
7
1
26
22
6
17
13
5
4
11
9
8
27
12
10
MANUAL No. 06110 MID MOUNT Z-RIDER
25
20
2
44
SEAT ASSEMBLY
(Except for MZM2200K & MZM 2300KH)
ITEM PART NO. DESCRIPTION
** 5-4117 SEAT ASSEMBLY (Includes indented items below)
1 ** PAN, Complete
2 3-6476 CUSHION, Seat
3 3-6477 CUSHION, Back
4 4-4724 BRACKET, Armrest (Right Hand
5 3-5568 BRACKET, Armrest (Left Hand)
6 3-6478 CHANNEL, Armrest
7 3-6479 ARM PAD, Grey (2)
8 3-6484 ADJUSTER (with lock)
9 3-6485 ADJUSTER (without lock)
10 ** STUD GUARD (4)
11 3-6486 SPACER, Bell (4)
12 9-1296 WASHER, 5/16” Flat (8)
13 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (6)
14 ** SCREW, 1/4-20 x 3/4” Phillips (9)
15 ** SCREW, #8-32 x 1/2” Self Tapping (2)
16 2-7174 SCREW, 5/16-18 x 2” Hex Head Cap, Grade 5 (2)
17 3-5797 WASHER, 13/32” I.D. x 3/4 O.D. Poly (4)
18 9-1067 NUT, 5/16-18 Hex Head Center Lock, Grade B (2)
19 9-0646 SCREW, 1/2-13 x 1” Hex Head Cap, Grade 5 (2)
20 9-0975 NUT, 1/2-13 Hex Head Center Lock, Grade 5 (2)
21 9-0683 SCREW, 5/16-18 x 1” Slotted Pan Head
22 4-2968 HOLDER, Beverage
23 4-4902 SPACER, Cup Holder
24 4-4903 COVER, Cup Holder
25 9-1919 RIVET, 3/16” Pan Head (3)
26 4-4904 BRACKET, Armrest Cup Holder
27 9-1303 BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5 (6)
**NOTE: Not a Part Sales item.
Refer to pages 26 & 27 for Seat Support Components.
MID MOUNT Z-RIDER MANUAL No. 06110
45
SEAT ASSEMBLY (MZM Models)
12
10
4
3
5
10
12
11
ITEM PART NO. DESCRIPTION
1 4-7036 ASSEMBLY, Seat Support
2 4-4897 SEAT, Milco High Back
3 7-2401 BRACKET, Armrest (Painted) (2)
4 4-4855 ARM REST (2)
5 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap (4)
6 7-2106 LATCH, Seat Support
7 9-1800 BOLT, 5/16-18 Shoulder w/ Nylon Patch
8 9-1298 NUT, 5/16-18 Nyloc
9 2-6292 SPRING, Extension
10 1-9348 CLIP, Seat Cushion (2)
11 1-9109 COVER, Spring (Rubber) (2)
12 9-1151 SCREW, 5/16-18 x 1-1/4” Hex Washer Self-Tap (3)
13 9-1296 WASHER, 11/32 I.D. x 11/16 O.D. (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
46
11
2
9
5
8
5
6
7
1
ASSEMBLY (for components
See Seat Support Assembly pages)
4
3
TRACTION DRIVE IDLER ASSEMBLY
12
15
9
12
15
ITEM PART NO. DESCRIPTION
11
5
10
4
8
16
2
9
1
2
3
1
7
14
10
11
2
6
3
13
1 1-3324 FITTING, 3/16 Lube (2)
2 1-4409 BUSHING, 9/16 I.D., 3/4” O.D. (4)
3 1-8573 PULLEY, Idler 3.48 O.D. (2)
4 1-9109 COVER, Spring (Rubber) (2)
5 1-9348 CLIP, Seat Cushion (2)
6 9-1804 WASHER, 9/16 Flat (Type B) (4)
7 4-4765 SPRING, Torsion
8 3-5812 SPACER, 3/8 I.D. 5/8 O.D. x 5/8” Long
9 3-5816 PIN, 3/8-24 (2)
10 4-2622 IDLER ARM (Weldment) (2)
11 9-1299 NUT, 3/8-16 Hex Nyloc (2)
12 9-1518 NUT, 3/8-24 Hex Nyloc (2)
13 9-1553 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, Grade 5
14 9-1560 SCREW, 3/8-16 x 2-1/4” Hex Head Cap, Grade 5
15 9-1598 COTTER PIN, 1/8 x 3/4” (2)
16 4-4760 SPRING, Torsion
MID MOUNT Z-RIDER MANUAL No. 06110
47
1
DECALS
2
5
6
3
7
4
8
9
ITEM PART NO. DESCRIPTION
1 3-5847 LOGO, Side 24.5” Long
2 3-5848 LOGO, Front 16.33” Long
10
3 7-3603 DECAL, Control Panel (MZM Models)
4 7-3604 DECAL, Control Panel
-- 4-4757 DECAL, Control Panel (not shown)
-- 4-6425 DECAL, Control Panel (not shown)
5 4-5122 DECAL, Pro Cruiser
6 2-9470 DECAL, Patent Numbers
7 7-2444 DECAL, Twin Stick Control
8 4-5108 DECAL, Tank Selector
9 2-4156 DECAL, Caution
10 3-5846 DECAL, Fuse
]
MANUAL No. 06110 MID MOUNT Z-RIDER
48
DECALS
15
17
ITEM PART NO. DESCRIPTION
11 7-3601 DECAL, Throttle/Choke
-- 7-2446 DECAL, Throttle/Choke Twin Stick (not shown)
12 7-3647 DECAL, Danger Guard/Catcher
13 4-4640 DECAL, Nameplate Snapper
14 1-3010 DECAL, Warning (Cut-Finger)
15 2-2522 DECAL, Warning
16 4-5107 DECAL, Park Brake
17 4-4793 DECAL, Deck Size (52” only)
18
18 4-4794 DECAL, Deck Size (61” only)
19 7-1916 DECAL, Snapper (3D)
MID MOUNT Z-RIDER MANUAL No. 06110
12
13
19
11
14
16
49
ELECTRICAL COMPONENTS (except wiring)
6
9
5
7
8
10
RED
(NEGATIVE)
BLACK
(POSITIVE)
4
BLUE
13
12
BLUE/WHITE
3
YELLOW
(JUMPER)
YELLOW
ORANGE
(TO FUSE
BOX)
2
ORANGE
1
YELLOW
BLUE (S)
16
14
15
ORANGE
(POSITIVE)
PINK
ORANGE
GREEN
(NEGATIVE)
PURPLE (M)
ORANGE (L)
17
GREEN (G)
24
11
RED (B)
WHITE
BLUE/WHITE
19
BLUE/WHITE
BROWN
(NEGATIVE)
ORANGE
(POSITIVE)
25
23
22
PURPLE
21
28
31
26
32
30
29
27
18
22
23
20
MANUAL No. 06110 MID MOUNT Z-RIDER
50
ELECTRICAL COMPONENTS (except wiring)
ITEM PART NO. DESCRIPTION
1 2-6343 SWITCH, Ignition- After Fire Solenoid
2 1-6132 SPACER, 5/8”
3 9-1546 WASHER, 5/8” Internal Tooth Lock
4 1-2685 NUT, 5/8-32 Hex
5 2-3506 BEZEL
6 1-1138 KEY, and Ring
7 2-3355 SWITCH, DPDT
8 9-1240 SCREW, #10-32 x 5/8” Hex Machine, Grade. 5 (2)
9 9-0376 NUT, #10-32 Hex Nyloc (2)
10 1-9547 ASSEMBLY, Ammeter and Clamp
11 3-5658 SWITCH, PTO
12 1-5277 HOUR METER, D.C.
13 9-0927 SCREW, #6-32 x 1/2” Round Head Machine (2)
14 9-0926 WASHER, #6 Internal Tooth Lock (2)
15 9-0925 NUT, #6-32 Hex (2)
16 3-5659 SWITCH, Lights
17 7-9208 BUZZER, Pulsing
18 3-2296 BRACKET, Battery Hold Down (1/4-20 Thread)
19 2-3354 SWITCH, Seat NC (see page 28, item 2)
20 3-5610 BATTERY, 11 Plate- 375CCA
21 9-0072 SCREW, 1/4-20 x 5/8”, Hex Head Cap Gr. 5 (2)
22 9-1294 WASHER, 9/32 I.D. x 5/8 O.D. Flat (2)
23 9-0372 NUT, 1/4-20 Hex Center Lock Grade B or 5 (2)
24 2-2366 BRACKET, Battery
25 9-1568 WING NUT, 1/4-20
26 9-1304 SCREW, 3/8-16 Hex Head Cap, Grade 5
27 1-2080 CABLE TIE, 7” (15)
28 1-8829 HEAD LIGHT (2)
29 3-5550 BEZEL, Headlight (2)
30 3-5661 SPACER, PTO Switch
31 9-1320 WASHER, 3/8” Split Lock
32 3-5638 CLIP, 3/8” Open Cushioned (2)
33 9-1523 SCREW, 5/16-18 x 5/8 Hex Washer Self-Tap (Swage) (2)
34 9-0585 NUT, 5/16-18 Hex Flange Lock, Grade 5
MID MOUNT Z-RIDER MANUAL No. 06110
51
WIRING HARNESS
(Non-MZM Models)
TO PTO
TO CONTROL
PANEL
HARNESS
(GREEN WIRE)
TO ENGINE
TO STARTER
SOLENOID
TO
BATTERY
1
FUSES
TO L.H. LIGHT
TO PTO SWITCH
TO LIGHT S WITCH
TO AMP METER
TO HOUR METER
TO BUZZER
TO FRONT
HARNESS
TO IGNITION
SWITCH
TO CONSOLE
HARNESS
ITEM PART NO. DESCRIPTION
1 4-4912 HARNESS, Control Panel
2 4-4913 HARNESS, Front
3 3-5607 CABLE, Battery- Positive (6 Ga., 47”)
4 3-5609 CABLE, Battery- Negative (6 Ga., 38”)
MANUAL No. 06110 MID MOUNT Z-RIDER
52
TO NEG.
BATTERY
TERMINAL
TO GROUND
(ENGINE BASE)
TO CONTROL
PANEL
HARNESS
(BLACK WIRE)
2
TO STARTER
SOLENOID
4
3
TO POS.
BATTERY
TERMINAL
TO SEAT
SWITCH
TO PARK
BRAKE
SWITCH
TO R.H. LIGHT
WIRING SCHEMATIC
(Non-MZM Models)
MID MOUNT Z-RIDER MANUAL No. 06110
53
WIRING HARNESS
(MZM Models)
TO PTO
TO CONTROL
PANEL
HARNESS
(GREEN WIRE)
TO ENGINE
TO STARTER
SOLENOID
TO
BATTERY
1
FUSES
TO PTO SWITCH
TO HOUR METER
TO FRONT
HARNESS
TO IGNITION
SWITCH
TO CONSOLE
HARNESS
2
ITEM PART NO. DESCRIPTION
1 4-6423 HARNESS, Control Panel
2 4-6422 HARNESS, Front
3 3-5607 CABLE, Battery- Positive (6 Ga., 47”)
4 3-5609 CABLE, Battery- Negative (6 Ga., 38”)
MANUAL No. 06110 MID MOUNT Z-RIDER
54
TO NEG.
BATTERY
TERMINAL
TO GROUND
(ENGINE BASE)
TO CONTROL
PANEL
HARNESS
(BLACK WIRE)
TO SEAT
SWITCH
TO PARK
BRAKE
SWITCH
TO STARTER
SOLENOID
4
3
TO POS.
BATTERY
TERMINAL
WIRING SCHEMATIC
(MZM Models)
MID MOUNT Z-RIDER MANUAL No. 06110
55
Parts Manual for
TM
MID MOUNT Z-RIDER
ZERO TURNING HYDRO DRIVE
SERIES 0, 1, 2
IT IS THE POLICY O F SNAPPER TO IM PRO VE ITS PRODUCTS WHENEVER IT IS POSSIBLE
AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH
CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
MANUAL No. 06110 (Rev. 6, 09/25/02) Printed in U.S.A.
56
Loading...
