Parts Manual fo
r
E
V
V
V
LAWN TRACTORS MANUAL CLUTCH
HYDRO DRIV
SERIES "G"
MODEL
ELT145H33GBV
LT145H33GB
LT145H38GB
LT150H38GK
WLT145H38GKV
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 4,
McDonough, GA, 30253 U.S.A.
2/24/2006
Manual No. 7006448
TP 400-5170-4-TC-N
s
PAGE GROUP
4
6
8
10
12
18
22
24
26
28
30
32
34
36
38
44
46
48
52
56
58
60
62
Wheels, Front & Rear
Hood, Bumper, Headlights & Components
Steering Wheel, Console, Fuel Tank
Cast Front Axle
Frame, Clutch, Brake & Steering Components
Blade Engagement & Transmission Controls
Implement Lift Parts
Transmission Group (Hydro Drive)
Hydro Reservoir Assembly
Engine Components
Belt Guide Assembly
Seat, Rear Fender & Components
Decals (Part 1)
Decals (Part 2)
33" Cutting Deck, Belts, Brakes
Spindle - 33" Cutting Deck
38" Cutting Deck Assembly (Part 1)
38" Cutting Deck Assembly (Part 2)
38" Cutting Deck, Belts, Brakes
Spindle - 38" Cutting Deck
Electrical Components

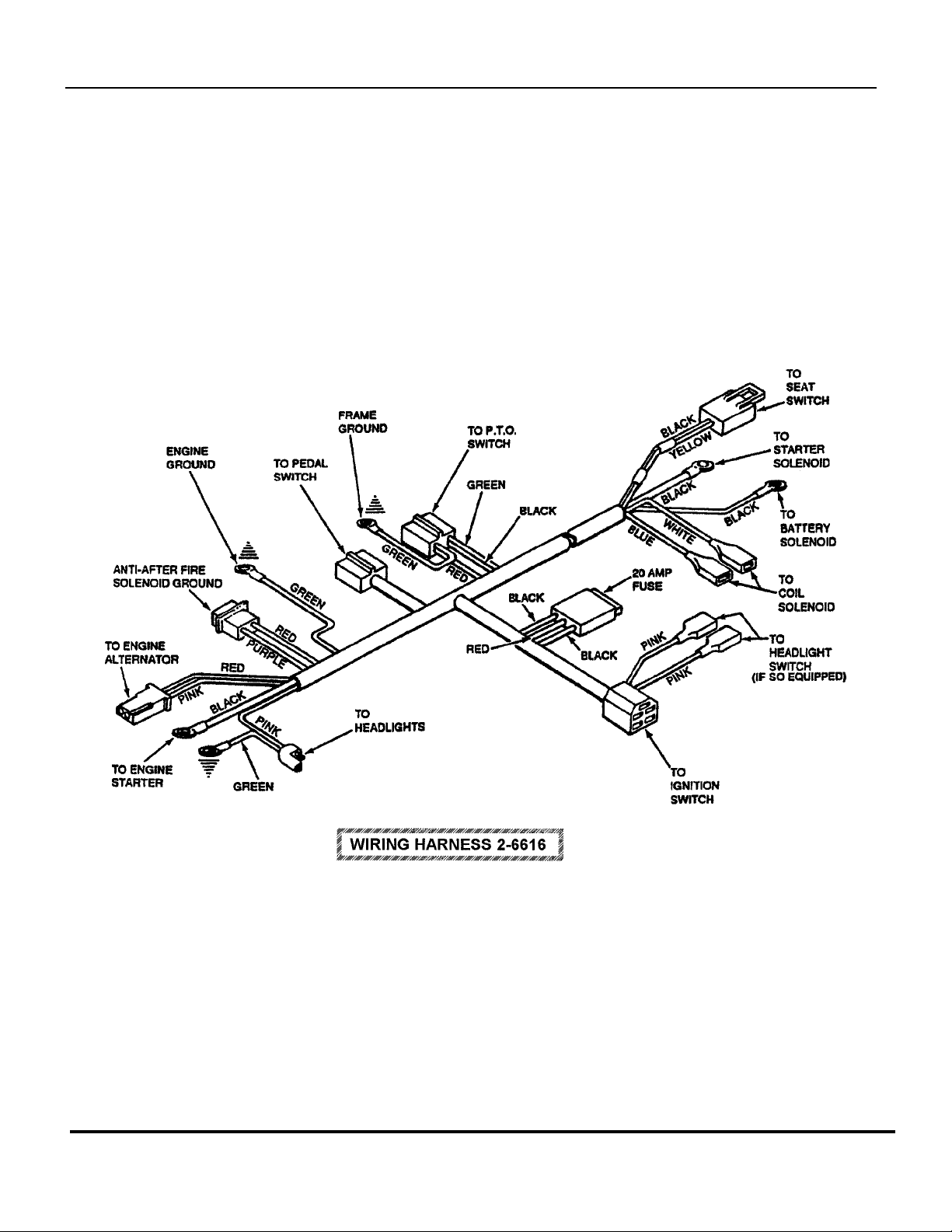

Electrical Illustrated Diagram - Wiring Harness P/N 26616
Electrical Schematic - Wiring Harness P/N 26616
Table Of Content
SERIES "G"
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
3
TP 400-5170-4-TC-N
Wheels, Front & Rear
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
4
SERIES "G"
Wheels, Front & Rear
p
y
Part No Descri
1 7058515 ASSEMBLY, Front Tire & Rim (Includes items 2, 3, 4, 5 & 6)
7058517 ASSEMBLY, Front Tire & Rim (Includes items 2A, 3, 4, 5 & 6)
2 7072702 TIRE, 13 x 5.00
2A 7072704 TIRE, 15 x 6.00
3 7022772 RIM, 6.00 x 3.50
4 7014483 4 BEARING, Wheel
5 7012234 4 VALVE, Air (Snap-in)
6 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876
7 7034453 2 WASHER, Flat, 5/32 x 25/32" I.D. x 1-1/2" O.D.
8 7029618 4 WASHER, Hub-Cap Retaining
9 7029617 8 WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16" O.D.
10 7011022 4 HUB-CAP
11 7091516 2 COTTER-PIN, 5/32 x 1"
12 7010746 2 RING, External Retaining, 3/4" Was 29738
13 7058518 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)
14 7024454 RIM, 8 x 7.00
15 7072705 TIRE, 18 x 8.50-8
tionItem Qt
Note
(Models: LT145H33GBV &
ELT145H33GBV)
(Model: LT145H38GBV &
LT150H38GBV)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
5
TP 400-5170-4-TC-N
Hood, Bumper, Headlights & Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
6
SERIES "G"
Hood, Bumper, Headlights & Components
p
y
Part No Descri
1 7063298 HOOD Was 24605 (All Models except
7024471 HOOD, Mozart (Model ELT145H33GBV)
2 7016766 ROD, Hood Support
3 7024718 LATCH, Spring
4 7090999 2 SCREW, 1/4-20 x 5/8" Truss Head, Torx
5 7076978 6 NUT, 1/4-20 Hex Nyloc
6 7022971 DECAL - SNAPPER, 8" Molded Logo, Silver Letters
7 7090803 4 BOLT, 1/4-20 x 5/8" Flat Head Carriage, Grade 5
8 7029572 PANEL, Hood (Left Hand) (Black) (Model ELT145H33GBV)
9 7029571 PANEL, Hood (Right Hand) (Black) (Model ELT145H33GBV)
10 7029076 DECAL, Hood (Right Hand) (Model ELT145H33GBV)
7029075 DECAL, Hood (Left Hand) (Model ELT145H33GBV)
11 7091095 8 RIVET, 1/8" Pop
12 7017175 DECAL, Clear Lens (Left Hand) (All Models except
7017174 DECAL, Clear Lens (Right Hand) (All Models except
13 7091106 5 SCREW, M4.8 x 1.59 x 16.00MM, Special
14 7029570 GRILLE, Hood (Model ELT145H33GBV)
15 7026482 CLIP, "J"
16 7026377 DECAL, Molded Medallion Was 71544
17 7029602 LENS, Grille (Headlights)
18 7026180 DECAL, Reflect (Left Hand) (Model ELT145H33GBV)
19 7026179 DECAL, Reflect (Right Hand) (Model ELT145H33GBV)
20 7022968 DECAL - SNAPPER, 4" Molded Logo (Silver Letters - Blue Stripe)
21 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping, Grade 5
22 7024061 2 BOLT, Shoulder, 3/8-16 x 1-1/4" Hex Socket, Torx
23 7034324 BRACE, Hood Support
24 7011791 4 RETAINER, 5/16" Bolt
25 7026172 2 BULB, Headlights
26 7024709 2 SOCKET, Headlight Bulb
27 7026171 HARNESS, Headlight Wiring
28 7024893 LENS, Clear (Models with Headlights)
29 7029620 BUMPER, Front Hood Support
tionItem Qt
Note
ELT145H33GBV)
ELT145H33GBV)
ELT145H33GBV)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
7
TP 400-5170-4-TC-N
Steering Wheel, Console, Fuel Tank
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
8
SERIES "G"
Steering Wheel, Console, Fuel Tank
p
y
Part No Descri
1 7053746 ASSEMBLY, Console (Includes items 2 thru 7)
2 7028565 CONSOLE
3 7011791 4 RETAINER
4 7091495 2 SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
5 7052891 2 ASSEMBLY, Strap-Clinch Stud
6 7076978 2 NUT, 1/4-20 Hex Nyloc
7 7026196 ASSEMBLY, Flange Bearing
8 7091575 4 NUT, 5/16-18 Hex Center Lock, Grade 5
9 7022368 GEAR, Pinion, Steering Shaft
10 7022369 PIN, Dowel, 1/4 x 1-1/4"
11 7024641 TIE, Wire
12 7052907 ASSEMBLY, Fuel Tank (Includes item 13)
13 7012515 CAP, Fuel Tank Was 14363
14 7091290 2 NUT, #10-24 Hex Nyloc Was 91599
15 7026343 KEYSWITCH (Includes item 27)
16 7090951 NUT, 5/16-18 Hex Flange Center Lock
17 7033883 BRACKET, Hood Latch Catch
18 7022380 SHAFT, Steering
19 7012765 ROLL-PIN
20 7035496 BUSHING
21 7029595 STEERING WHEEL
22 7028561 DECAL, Console (Hydro Drive Models - With
23 7011138 KEY, Pair
24 7091001 SCREW, 5/16-18 x 5/8" Truss Head, Torx
25 7023187 SWITCH, Lights
26 7029714 SPACER
27 7012685 NUT, 5/8-32 Hex Was 29721
28 7023506 BEZEL
29 7091188 2 SCREW, #10-24 x 5/8" Machine
30 7091018 NUT, #8-32 Hex
31 7023655 HANDLE, Throttle Control
32 7024642 CONTROL, Throttle
33 7091017 SCREW, #8-32 x 3/8" Cross-Recessed, Machine
tionItem Qt
Note
Lights)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
9
TP 400-5170-4-TC-N
Cast Front Axle
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
10
SERIES "G"
Cast Front Axle
p
y
Part No Descri
1 7010746 RING, 5/8 External Retaining
2 7010935 3 WASHER, 49/64 x 1-1/8 x 1/16" Flat
3 7014669 3 FITTING, 3/16 Lube
4 7019034 ARM, Steering
5 7072411 AXLE, Cast
6 7028666 2 SPACER, 25/64 x 1/2 x 1-13/16"
7 7028689 SPACER, Center
8 7031036 2 WASHER, Thrust
9 7033383 2 BRACKET, Deck Hanger
10 7074424 BRACKET, Cast Axle (Rear) Was 34740
11 7041245 WELDMENT, Right Hand Spindle Wheel (Long)
12 7041246 WELDMENT, Left Hand Spindle Wheel (Long)
13 7054515 ASSEMBLY, Cast Axle Front Bracket
14 7091299 2 NUT, 3/8-16 Hex Nyloc Was 76979
15 7090122 2 WASHER, 3/8 x 5/64" Flat
16 7091575 3 NUT, 5/16-18 Hex Center Lock Was 90184
17 7090250 3 WASHER, 1/2 x 3/32" Flat
18 7091557 2 SCREW, 3/8-16 x 2-3/4" Hex Head Cap, Grade 2 Was 90795
19 7090842 PIN, 1/4 x 1-1/4" Roll
20 7090831 2 SCREW, 5/16-18 x 2-3/4" Hex Head Cap, Grade 5
21 7091121 NUT, 1/2-13 Hex Nyloc
22 7091821 SCREW, 1/2-13 x 3" Hex Head Cap Grade 5 Was 91694
23 7028326 TIE ROD, Reduced Radius
24 7012706 2 BEARING, Sleeve
25 7091302 2 NUT, 3/8-16 Hex, Grade 5
26 7035372 2 SPACER, Steering Stop
27 7091497 2 SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
28 7091320 2 WASHER, 3/8 Split Lock
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
11
TP 400-5170-4-TC-N
Frame, Clutch, Brake & Steering Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
12
SERIES "G"
Frame, Clutch, Brake & Steering Components
p
y
Part No Descri
1 7073345 FRAME, Tractor (1 piece)
2 7014451 TIE, Wire
3 7027936 2 ROD END
4 7090482 2 NUT, 3/8-24 Hex Jam
5 7090163 2 SCREW, 3/8-24 x 1-1/4" Hex Cap
6 7028420 LINK, Drag
7 7024180 2 SPACER
8 7091619 NUT, 3/8-16 Hex Flange Lock Was 90613
9 7053568 ASSEMBLY, Sector Gear (Includes 41267 Weldment &
10 7012706 2 BEARING, Sector Gear
11 7031036 WASHER, 3/4" Thrust
12 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 90583
13 7022381 2 BOLT, 1/2-13 x 2" Shoulder
14 7090975 NUT, 1/2-13 Hex Center Lock Gr. A
15 7072636 BRACE, Sector Gear
16 7012080 TIE, Cable 7"
17 7091601 4 NUT, 5/16-18 Hex Flange Lock, Gr. 5 Was 90585
18 7022743 PEDAL, Clutch Brake
19 7012661 PAD, Pedal
20 7091299 NUT, 3/8-16 Hex Nyloc
21 7090122 2 WASHER, 3/8 Bright Zinc, Flat
22 7024381 SPRING, Brake
23 7028037 SWIVEL, Inline Brake
24 7091593 5 PIN, 3/8 x 1-7/32" Cotter (Self Locking)
25 7091575 4 NUT, 5/16-18 Hex Center Lock
26 7092031 NUT, 5/16-24 Hex Jam Lock
27 7090517 WASHER, 44" ID Flat Was 91300
28 7058339 WELDMENT, Brake Arm
29 ARM, Speed Control
30 7072369 ROD, Brake
31 7090188 WASHER, 5/16" Flat
32 7046782 SPRING
33 7032070 2 WASHER, .406 I.D. Flat
34 7073607 SWIVEL, Brake Link
35 7092058 NUT, 5/16-24 Hex Top Lock
36 7072626 ASSEMBLY, Clutch/Brake Cable
37 7052431 ASSEMBLY, Foot Shaft Pivot (Includes item 38)
tionItem Qt
Note
item 10)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
13
TP 400-5170-4-TC-N
Frame, Clutch, Brake & Steering Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
14
SERIES "G"
Frame, Clutch, Brake & Steering Components
p
y
Part No Descri
38 7013864 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
39 7090509 WASHER, 1/2" Internal Tooth Lock
40 7090619 NUT, 1/2-13 Hex Flange Lock
41 7027344 2 WASHER, 5/8" Flat Was 15992
42 7023645 PIN, 3/16 x 1-1/2" Clevis
43 7022742 BEARING, Flange
44 7041236 WELDMENT, Clutch Brake Arm
45 7041244 LATCH, Park Brake
46 7090361 3 SCREW, 5/16-18 x 5/8" Self-Tap
47 7090803 6 BOLT, 1/4-20 x 5/8" Carriage
48 7091240 2 SCREW, #10-32 x 5/8" Self-Tap
49 7011016 2 BUSHING, 1/2" Nylon
50 7091587 2 WASHER, 1/2" Flat
51 7014341 3 RING, 1/2" External Retaining
52 7091001 5 SCREW, 5/16-18 x 5/8" Truss
53 7090122 3 WASHER, 3/8" Flat Was 91514
54 7072298 BRACKET, Pivot Mounting
55 7023649 2 WASHER, 5/16" Nylon
56 7072403 KNOB, Clutch/Brake (5/16-18)
57 7091302 NUT, 3/8-16 Hex, Grade B or 5
58 7033557 ARM, Idler (Traction Drive)
59 7090376 2 NUT, #10-32 Hex Nyloc
60 7023355 SWITCH, DPDT NC/NO
61 7024383 SPRING, Traction Drive
62 7034410 BRACKET, Rear Lift/PTO Lever
63 7034347 LINK, Lift (33" Deck)
7034850 LINK, Lift (38" Deck)
64 7034384 2 SPACER
65 7033520 BRACKET, Deck Hang Pivot
66 7041249 WELDMENT, Rear Lift Arm (33" Deck)
7042597 WELDMENT, Rear Lift Arm (38" Deck)
67 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx)
68 7034377 2 PLATE, Lift Sector
69 7034326 EXTENSION, Idler Arm
70 7091501 SCREW, 3/8-16 x 2-1/2" Cap Grade 5
71 7023954 PULLEY, Flat Idler, 3 47" O.D
72 7033556 2 GUIDE, Pulley
73 7091320 WASHER, 3/8" Split Lock
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
15
TP 400-5170-4-TC-N
Frame, Clutch, Brake & Steering Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
16
SERIES "G"
Frame, Clutch, Brake & Steering Components
p
y
Part No Descri
74 7047072 BRACKET, Frame Brace
75 7090731 2 BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
76 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tap Was 90368
77 7091593 COTTER PIN, 1/16 x 1-7/32" Self Lock Was 24159
78 7072598 BRACKET, Mounting Brace
79 7090316 2 BOLT, 5/16-18 x 3/4" Carriage Was 91097
80 7091497 SCREW, 3/8-16 x 1-1/2" Cap, Grade 5
81 7024344 PULLEY, Idler V 3.30
82 7091585 NUT, 3/8-16 Hex Center Lock
83 7027139 LINKAGE
84 7073608 FOOD, Shift Linkage
85 7091540 SCREW, 5/16-18 x 1-1/2" Cap Was 91066
86 7029973 SPACER
87 7091575 NUT, 5/16-18 Hex Center Lock
88 7024604 BOLT, 12-13X3-7/8" Shoulder
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
17
TP 400-5170-4-TC-N
Blade Engagement & Transmission Controls
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
18
SERIES "G"
Blade Engagement & Transmission Controls
p
y
Part No Descri
1 7073345 FRAME, Tractor (1 Piece)
2 7024616 2 BUSHING, Flange
3 7033488 BRACKET, Hood Pivot
4 7028630 CLIP, Wire
5 7091598 PIN, 1/8 x 3/4" Cotter
6 7014296 WASHER, 1/2 Shim
7 7091573 BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5
8 7052562 ASSEMBLY, Steering Adjuster
9 7091584 NUT, 1/4-20 Hex Flange Lock, Grade 5
10 7022368 GEAR, Steering Pinion
11 7058874 LEVER, Shift (Upper)
12 7091508 2 BOLT, 5/16-18 x 3/4" Carriage
13 7023656 2 KNOB, Deck Lift Lever
14 7019245 BUSHING, 314 Flange
15 7031036 WASHER, Thrust
16 7010754 SPRING, Shift Detent
17 7091601 2 NUT, 5/16-18 Flange Lock
18 7091597 PIN, 3/32 x 3/4" Cotter Was 90037
19 7091497 SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
20 7090122 WASHER, 3/8" Flat Was 91514
21 7024344 PULLEY, Idler
22 7033556 GUIDE, Pulley Belt
23 7091524 3 SCREW, 5/16-18 x 1-1/4" Swage
24 7035524 SUPPORT, PTO Lever
25 7091585 2 NUT, 3/8-16 Hex Center Lock, Grade 5
26 7040598 STRUCTURE, Arm
27 7091524 4 SCREW, 5/16-18 x 1-1/4" Self-Tapping Was 91151
28 7023914 PIN, 1/4 x 1-5/8" Clevis
29 7033825 ANCHOR, Blade Brake
30 7091198 SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
31 7072756 DECAL, Instruction Frame Top
7072754 DECAL, Instruction Frame Top (Euro)
32 7028203 2 PAD, Foot (Rubber Deluxe)
33 7046900 GUIDE, Belt
34 7046899 2 BRACE, Frame
35 7091588 8 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612
36 7024518 BOLT, 1/2-13 Shoulder
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
19
TP 400-5170-4-TC-N
Blade Engagement & Transmission Controls
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
20
SERIES "G"
Blade Engagement & Transmission Controls
p
y
Part No Descri
37 7041238 WELDMENT, Bellcrank PTO
38 7031036 WASHER, Thrust
39 7090509 2 WASHER, 1/2" Internal Tooth Lock
40 7041237 WELDMENT, PTO Link
41 7042598 WELDMENT, PTO Lever
42 7029152 CABLE, 33 Blade (33" Deck)
7046896 CABLE, PTO (38" Deck)
43 7090500 3 WASHER, 7/16" Flat
44 7091593 3 COTTER PIN, 3/8 Self-Lock Was 24159
45 7090619 NUT, 1/2-13 Hex Flange Lock, Grade 5
46 7091619 8 NUT, 3/8-16 Hex Flange Lock Was 90613
47 7019246 BUSHING, 3/4 Flange
48 7023355 SWITCH, DPDT NC/NO
49 7091240 2 SCREW, #10-32 x 5/8" Self-Tap.
50 7075366 ASSEMBLY, Cable Was 73222
51 7058749 WELDMENT, Bracket
52 7058876 WELDMENT, Pivot Plate
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
21
TP 400-5170-4-TC-N
Implement Lift Parts
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
22
SERIES "G"
Implement Lift Parts
p
y
Part No Descri
1 7041655 LEVER, Implement Lift (33" Decks)
7041015 LEVER, Implement Lift (38" Decks)
2 7022565 ROD, Lift Lever
3 7019363 KNOB, Lift Lever
4 7014361 CAP, Lift Lever Rod
5 7033449 QUADRANT, Lift Lever
6 7091001 SCREW, 5/16-18 x 5/8" Truss Head (Torx)
7 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx)
8 7091604 2 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 Was 90005
9 7034559 DETENT, High Cut Lockout (Euro Models Only!)
10 7091584 2 NUT, 1/4-20 Hex Flange Lock, Grade 5 Was 90583
11 7091601 2 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 90585
12 7022567 PIVOT, Lift Lever
13A 7041254 BELL CRANK, Lift Lever (33" Decks)
13B 7041255 BELL CRANK, Lift Lever (38" Decks)
14 7022566 SPRING
15 7091596 2 PIN, Hair, 5/32 x 2 5/8" Was 13844
16 7022895 PIN, Dowel, 1/4 x 1 1/8"
17 7022568 DETENT, Latch
18 7090999 SCREW, 1/4-20 x 5/8" Truss Head (Torx)
19 7024742 LATCH, Pivot
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
23
TP 400-5170-4-TC-N
Transmission Group (Hydro Drive)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
24
SERIES "G"
Transmission Group (Hydro Drive)
p
y
Part No Descri
1 7074398 ASSEMBLY, Transaxle, Tuff Torq Was 73684
2 7072387 ROD, Roll Release (K46)
3 7091708 PIN, Clevis 1/4" x 5/8"
4 7091294 2 WASHER, 1/4 x 5/8 x 1/16" Flat Was 90055
5 7091597 PIN, 3/32" x 1/2" Cotter Was 90555
6 7072601 BRACKET, Torque
7 7091497 SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
8 7090188 WASHER, 5/16 x 11/16 x 1/16", Grade 5 Was 91296
9 7091585 NUT, 3/8-16 Hex Center Lock
10 7091830 4 SCREW, 5/16-18 x 3-1/4" Hex Head Cap, Grade 5
11 7091675 4 WASHER, 5/16" Flat
12 7073613 SPACER, Hydro Axle- K46
13 7091601 4 NUT, 5/16-18 Hex Flange Lock Grade 5
14 7072884 2 WASHER, Axle
15 7031036 2 WASHER, Thrust
16 7072385 2 SPACER, Axle
17 7073757 2 RING, E 15 (Vendor # 192154-89090)
18 7073753 FAN (Vendor # 1A640-83050)
19 7073800 PULLEY, 4" Diameter (Vendor # 1A6460-25333)
20 7073754 WASHER, Wave (Vendor # 1A6460-83060)
21 7073747 SPACER (Vendor # 1A6460-25300)
22 7072657 BELT, Traction Drive (HA Section, 97.881 Effective Length) (MY
2000)
7073834 BELT, Traction Drive (HA Section, 95.60 Effective Length) (MY
2001)
23 7072386 2 KEY, 3/16" Square x 2-3/16" long
24 7072607 BRACKET, Spool
25 7034399 GUIDE, Cable
26 7029600 ROD, Spool Pivot
27 7023182 SPOOL
28 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 90585
29 7090361 2 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
25
TP 400-5170-4-TC-N
Hydro Reservoir Assembly
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
26
SERIES "G"
Hydro Reservoir Assembly
p
y
Part No Descri
1 7072739 BRACKET, Reservoir Mounting
2 7072736 RESERVOIR, Expansion
3 7016130 2 CLAMP, 13/16"
4 7072901 HOSE, Hydraulic 4-1/2" Long
5 7091431 VALVE, Vent
6 7090858 2 BOLT, 5/16-18 x 1/2" Hex Washer Self-Tap
7 7072914 CABLE TIE, 9"
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
27
TP 400-5170-4-TC-N
Engine Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
28
SERIES "G"
Engine Components
p
y
Part No Descri
1 * ENGINE, B & S 14.5 HP, Model 287707-1250-E1
* ENGINE, Kohler 15.0 HP, Model CV15S, PS-41603
2 7090391 WASHER, 5/16 Internal Tooth Lock
3 7072905 ASSEMBLY, Engine Pulley (LT145H33GBV & ELT145H33GBV)
7073804 ASSEMBLY, Engine Pulley (LT145H38GBV & LT150H38GBV) Was 72904
4 7091301 WASHER, 7/16 Split Lock
5 7091579 3 BOLT, 1/4-20 x 1/2" Hex Flange Lock, Grade 5
6 7091531 SCREW, 7/16-20 x 1" Socket Head Cap
7 7090669 2 SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
8 7027972 ASSEMBLY, Oil Valve
9 7091581 3 SCREW, #8-18 x 1/2" Hex Head, Self-Tapping
10 7041537 EXTENSION, Muffler
11 7041269 HEAT SHIELD, Muffler
12 7026482 CLIP, "J" Type
13 7029900 2 CLAMP, Fuel Line
14 7029982 LINE, Fuel, 14" Long
15 7091511 4 NUT, 5/16-18 Hex, Grade 5
16 7091315 4 WASHER, 5/16 Split Lock
17 7090188 5 WASHER, 5/16 Flat Was 91296
18 7015861 2 CLIP, Wiring Harness
19 7091075 4 SCREW, #10-24 x 5/8" Self-Tapping
20 7041677 HEAT SHIELD, Muffler (European Models)
21 7073231 DECAL, Warning Speed Setting
tionItem Qt
Note
Footnotes:
NOTE: * PURCHASE ENGINE & ENGINE PARTS OTHER THAN LISTED, FROM ENGINE SERVICE OUTLETS.
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
29
TP 400-5170-4-TC-N
Belt Guide Assembly
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
30
SERIES "G"
Belt Guide Assembly
p
y
Part No Descri
1 7035963 BRACKET, Belt Guide
2 7091575 4 NUT, 5/16-18 Hex Center Lock, Grade B or 5
3 7028303 2 or 4 STUD, Belt Guide
4 7035528 2 STUD, Belt Guide 38" Dual Brake Deck
5 7072924 STUD, Belt Guide
6 7028304 2 STUD, Belt Guide 33" Deck
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
31
TP 400-5170-4-TC-N
Seat, Rear Fender & Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
32
SERIES "G"
Seat, Rear Fender & Components
p
y
Part No Descri
1 7059215 ASSEMBLY, Seat Support Was 53761 (Includes 2, 3, 4 & 5)
2 7074204 SUPPORT, Seat Was 28579
3 7023354 SWITCH, Seat, Gray, NC
4 7073266 2 SPRING
5 7028580 HOLDER, Cushion
6 7019109 2 CUSHION, Seat
7 7017875 2 KNOB, Seat Adjustment
8 7091001 4 SCREW, 5/16-18 x 5/8" Truss Head, Torx
9 7091819 4 SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping Was 90362
10 7073346 PAN, Seat (Fender)
11 7091761 2 RIV-NUT, 5/16-18 Round
12 7022971 DECAL - SNAPPER, 7.28" Molded Logo, Silver Letters & Blue
Stripe
13 7026415 DECAL - CAUTION, Battery Location
14 7073344 SUPPORT, Fender
15 7091523 2 SCREW, 5/16-18 x 5/8" Hex Washer Head
16 7091524 2 SCREW, 5/16-18 x 1-1/4" Hex Washer Head
17 7091105 4 SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
18 7073347 DETENT, Shift (Hydro Drive Models)
19 7073408 COVER, Shift
20 7073424 DECAL, Shift Cover, 5-Speed Was 16576 (Hydro Drive Models)
21 7091525 3 BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
22 7033318 BRACKET, Seat Support
23 7074452 ROD, Seat Hinge Was 33435
24 7091503 PIN, 3/32 x 1-1/2" Hair
25 7028621 SEAT, Operator's
26 7058851 ASSEMBLY, Lockout Latch/Stop
27 7073308 OVERIDE, Latch
28 7015761 BOLT, 5/16-18 x Shoulder
29 7090953 3 WASHER, 5/16 Flat
30 7091298 NUT, 5/16-18 Hex Top Lock
31 7073223 SPRING
32 7090913 2 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
33
TP 400-5170-4-TC-N
Decals (Part 1)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
34
SERIES "G"
Decals (Part 1)
p
y
Part No Descri
1 7026154 DECAL, 38 Inch
2 7022991 DECAL, 33 Inch Hi-Vac
3 7014852 DECAL, Caution, Rotating Blades Was 16973
4 7014852 DECAL, Caution, Rotating Blades
5 7026415 DECAL, Caution, Battery Location
6 7029784 DECAL, Deck/Chute International Warning
7 7013010 DECAL, Danger, Cut-Finger (Shown)
7013010 DECAL, Danger, Cut-Finger (Heavy Adhesive Version) Was 26831
8 7022841 DECAL, Cut-Finger (European Only)
9 7072756 DECAL, Instructions, Frame, Top
7072758 DECAL (German Version of Above)
7072759 DECAL (French Version of Above)
7073207 DECAL (Spanish Version of Above)
7073208 DECAL (Italian Version of Above)
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
35
TP 400-5170-4-TC-N
Decals (Part 2)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
36
SERIES "G"
Decals (Part 2)
p
y
Part No Descri
10 7073433 DECAL, 2001 Year of Manufacture
7072820 DECAL, 2000 Yr. of Mfr. (Not shown)
7072404 DECAL, 1999 Yr. of Mfr. (Not shown)
11 7028561 DECAL, Console, Basic
7073579 DECAL, Console (2001 Model Year)
12 7023009 DECAL, Noise Control, Euro
13 7026377 LOGO, Convert- Blue/Silver Was 71544
14 7029776 DECAL, European Community
15 7073424 DECAL, Shift Cover Was 16576
16 7044767 DECAL, Hydro Reservoir
17 7046720 DECAL, Chute/Deflector
18 7072749 DECAL, Roll Release
19 7073231 DECAL, Warning Speed Setting
7073255 DECAL (German Version of Above)
7073256 DECAL, Dutch Version of Above)
7073257 DECAL, (Spanish Version of Above)
7073258 DECAL (Italian Version of Above)
7073259 DECAL (French Version of Above)
20 7073335 DECAL, OPEI
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
37
TP 400-5170-4-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
38
SERIES "G"
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
1 7061956 ASSEMBLY, Deck 33" Cutting Was 53690 or 53693 (Includes
2 7026558 PULLEY, Spindle, 7" O.D.
3 7074467 NUT, 3/4-16 Hex Jam Was 10027
4 7014304 PIN, 1/4 x 1-1/4" Clevis
5 7052886 ASSEMBLY, Brake Band
6 7032169 DRUM, Brake
7 7024192 ROD, Link, Clutch/Brake
8 7010740 2 RING, 2” External Retaining
9 7038018 BRACE, Spindle
10 7091541 SCREW, 5/16-18 x 3/4" Self-Tapping Was 90368
11 7091585 NUT, 3/8-16 Hex Center Lock, Gr. 5
12 7012264 SPRING, Clutch & Brake
13 7075346 GUIDE, Belt Was 41487
14 7091597 2 COTTER-PIN, 3/32 x 3/4" Was 90037
15 7091294 WASHER, 1/4" I.D. x 5/8" O.D. Flat Was 90055
16 7075707 PULLEY, Idler, 4" O.D. Was 27717
17 7090122 3 WASHER, 3/8" Flat
18 7091553 SCREW, 3/8-16 x 1-3/4" Cap
19 7029694 SWIVEL, Brake
20 7012431 2 PIN, 1/4 x 1-1/8" Hair
21 7026677 BOLT, 1/4-20 Eye
22 7014303 NUT, 1/4-20 Tee
23 7091576 NUT, 1/4-20 Hex, Grade 5 Was 90063
24 7026639 ROD, Front Lift
25 7033938 BRACKET, Front Lift Hanger
26 7013460 PIN, 3/8 x 1-1/2" Clevis
27 7027471 PIN, Front Deck Hanger
28 7091596 2 HAIRPIN, 5/8"
29 7041613 LIFT, Front Arm
30 7032028 4 WASHER, 3/4" I.D. Flat
31 7015272 3 SPACER
32 7019190 3 WHEEL, Gage
33 7090289 3 NUT, 3/8-24 Hex Center. Lock, Gr. 5 Was 91600
34 7090731 6 BOLT, 5/16-18 x 1/2" Carriage Gr. 5 Was 90004
35 7091601 9 NUT, 5/16-18 Hex Lock, Gr. 5 Was 90585
tionItem Qt
Note
46A & 81)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
39
TP 400-5170-4-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
40
SERIES "G"
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
36 7091532 3 SCREW, 3/8-24 x 3-3/4" Cap, Gr. 5
7052555 ASSEMBLY, Deflector (Includes items 37, 38, 40, 41,
37 7026483 PALNUT, 1/4 Hex
38 7026234 PIN, Hinge
39 7091588 15 BOLT, 3/8-16 x 3/4" Flange Lock, Gr. 5 Was 90612
40 7033780 HINGE, Deflector
41 7026233 DEFLECTOR, Discharge
42 7013010 DECAL, Danger (Cut Finger) Was 26831
43 7075706 BELT, Drive, 33" Cutting Deck Was 26546
44 7091508 BOLT, 5/16-18 x 3/4" Carriage Gr. 5
45 7091619 18 NUT, 3/8-16 Hex Flange Lock Was 90613
46A 7014852 DECAL - CAUTION, Deflector
46B 7022841 DECAL - CAUTION, Deflector
47 7090188 2 WASHER, 5/16 Flat Was 91296
48 7091537 NUT, 5/16-18 Wing Was 90492
7091511 NUT, 5/16-18 Hex, Grade 5
49 7091302 2 NUT, 3/8-16 Hex, Grade 5 Was 90130
50 7090118 2 WASHER, 3/8 Split Lock
51 7090584 BOLT, 1/4-20 x 1/2" Flange Lock. Gr. 5
52 7091547 BOLT, 3/8-16 x 3/4" Carriage, Gr. 5 Was 90850
53 7032432 LINK, Adjustment
54 7015012 ECCENTRIC, Leveling
55 7091304 SCREW, 3/8-16 X 1" Hex Cap, Gr. 5 Was 90563
56 7090721 4 BOLT, 5/16-18 x 1/2" Flange Lock, Gr. 5
57 7038453 2 RAIL, Side
58 7033952 ANCHOR, Brake
59 7052917 ASS'Y, Spindle (Incl. 60 thru 70)
60 7024687 SPINDLE
61 7010817 FITTING, Lube
62 7052294 HOUSING, Spindle (Incl. item 61)
63 7012491 2 RING, Retaining
64 7013313 2 BEARING, Spindle
65 7014407 2 WASHER, Spindle
66 7037751 HOLDER, Blade
67 7091939 4 NUT, 1/2-20 Hex Jam
68 7090509 2 WASHER, 1/2 Int. Tooth Lock
69 7090491 4 SCREW, 1/2-20 x 1-1/4" Cap Gr. 5
70 7090356 NUT, 5/8-18 Hex Lock, Gr. B or 5
tionItem Qt
Note
42, 96)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
41
TP 400-5170-4-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
42
SERIES "G"
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
71 7019523 ASSEMBLY, Blade & Air Lift Was 57482 (Includes 72 thru 76)
72 7019523 BLADE, 33" Cutting Deck Euro
73 7037723 2 AIR-LIFT
7034468 2 AIR-LIFT (European)
74 7090228 6 SCREW, 5/16-24 x 11/16" Machine
75 7090391 6 WASHER, 5/16 Int. Tooth Lock
76 7091297 6 NUT, 5/16-24 Hex, Grade 5 Was 90223
77 7033571 2 BRACKET, Gage Wheel (Rear)
78 7042608 BRACKET, Rear Deck Lift, Left Side
79 7042578 BRACKET, Rear Deck Lift, Right Side
80 7022991 DECAL, 33" Hi-Vac
81 7014852 DECAL - CAUTION (Rotating Blades) Was 16973
82 7024183 ARM, Pivot
83 7033578 BRACKET, Pivot Arm
84 7033926 GUIDE, Belt
85 7090361 2 SCREW, 5/16-18 x 5/8" Self-Tap.
86 7015761 SCREW, 5/16-18 x 3/4" Shoulder
87 7091584 NUT, 1/4-20 Hex Flange Lock, Gr. 5 Was 90583
88 7012670 RING, Tolerance
89 7033586 BRACKET, Link, Clutch/Brake
90 7033570 BRACKET, Gage Wheel (Front)
91 7041311 ARM, Idler
92 7090122 2 WASHER, 3/8" Flat Was 91514
93 7091503 2 HAIRPIN, 3/8"
94 7091587 2 WASHER, 1/2" I.D. Flat
95 7091588 3 BOLT, 3/8-16 x 3/4" Flange Lock, Gr. 5
96 7016341 SPRING, Hinge
97 7034168 BLADE, 33" Cutting Deck (Not shown)
98 7029152 CABLE, 33 Blade Hydro (Not shown, Attaches to Item 82)
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
43
TP 400-5170-4-TC-N
Spindle - 33" Cutting Deck
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
44
SERIES "G"
Spindle - 33" Cutting Deck
p
y
Part No Descri
7052917 ASSEMBLY, Spindle Housing, 33" Cutting Deck (Not shown,
includes items 2 thru 11)
2 7012491 2 RING, Retaining
3 7013313 2 BEARING, Spindle
4 7052294 HOUSING, Spindle (Includes item 5)
5 7010817 FITTING, Lube
6 7090491 2 SCREW, 1/2-20 x 1-1/4" Hex Head Cap, Grade 5
7 7091939 2 NUT, 1/2-20 Hex Jam
8 7090356 NUT, 5/8-18 Hex Center Lock Jam
9 7037751 HOLDER, Blade
10 7014407 WASHER, Spindle
11 7024687 SPINDLE (7.54" overall length)
12 7012670 RING, Tolerance
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
45
TP 400-5170-4-TC-N
38" Cutting Deck Assembly (Part 1)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
46
SERIES "G"
38" Cutting Deck Assembly (Part 1)
p
y
Part No Descri
1 7061960 DECK, 38" (Painted shell w/decals 14852,
2 7028365 2 BRACKET, Front Linkage
3 7033756 BRACKET, LH Front Gage Wheel
4 7033891 BRACKET, LH Rear Wheel
5 7034875 ANGLE, Front
6 7035494 BRACKET, RH Front Gage Wheel
7 7035505 CRADLE, Spring
8 7035506 GUIDE, Belt Dual Spindle Brake
9 7035577 BRACKET, Front Lift Arm - LS
10 7042578 BRACKET, Sector Lift RH Rear
11 7042606 BRACKET, Sector Lift LH Rear
12 7012063 WASHER, Cone
13 7035603 FRONT LIFT ARM, 38 Deck
14 7042602 STRUCTURE, Front Lift Arm
15 7091575 NUT, 5/16-18 Hex Center Lock Was 90184
16 7091169 2 BOLT, 5/16-18 x 1-1/8" Short Square Neck Carriage, Grade 5
17 7063198 2 ASSEMBLY, 38 Spindle Was 58357
18 7027792 2 PULLEY, Spindle
19 7042998 BLADE, 38 Cutting Deck
20 7091601 19 NUT, 5/16-18 Flange Lock, Grade 5 Was 90585
21 7091619 6 NUT, 3/8-16 Hex Flange Lock Was 90613
22 7090799 14 BOLT, 5/16-18 x 5/8" Short Square Neck Carriage, Grade 5
23 7090815 6 BOLT, 3/8-16 x 3/4" Hex Washer Self Tap
24 7091547 4 BOLT, 3/8-16 x 3/4" Short Square Neck Carriage, Grade 5 Was 90850
25 7091006 2 NUT, 5/8-18 Nyloc
26 7036563 GUIDE, Belt Side Rail
27 7091169 BOLT, 5/16-18 x 1-1/8", Square Neck Carriage, Grade 5
28 7091575 NUT, 5/16-18 Hex Center lock, Grade 5
29 7091541 SCREW, 5/16-18 x 3/4" Hex Washer Self-tapping Was 90368
30 7072440 2 SPACER, Pulley, 38 Spindle
tionItem Qt
Note
16973 & 26154)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
47
TP 400-5170-4-TC-N
38" Cutting Deck Assembly (Part 2)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
48
SERIES "G"
38" Cutting Deck Assembly (Part 2)
p
y
Part No Descri
1 7013847 RETAINER, 3/8" Bolt
2 7018574 IDLER, 4-1/8" Flat
3 7024604 BOLT, 3/4" Dia. X 3.01 Shoulder; 1/2-13 Thread
4 7024607 SWIVEL, Brake Link
5 7026122 3 WHEEL, Gage 38" Deck
6 7013010 DECAL, CPSC Cut Finger Was 26831
7 7027168 3 SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
8 7029425 CHUTE, Discharge 38" Deck
9 7029617 WASHER, 3/4" I.D. Flat
10 7035500 BELT, 38" Deck Dual Spindle Brake
11 7035502 ROD, Pivot, Side Discharge
12 7035503 ROD, Mounting, Side Discharge
13 7035507 2 PIVOT, Dual Brake
14 7035510 2 BRAKE LINK, Dual Spindle Brake
15 7035518 LEVER, Engagement
16 7035529 GUARD, Belt, 38" Dual Spindle Brake
17 7036586 J-BOLT, 3/8-16 x 6-1/4"
18 7042595 2 ARM, Brake
19 7054096 ASSEMBLY, 38" Dual Brake Deck
20 7042596 ARM, Idler, Dual Brake
21 7035496 2 BEARING, 3/4" I.D.
22 7090289 3 NUT, 3/8-24 Hex Center Lock, Grade 5
23 7091830 2 SCREW, 5/16-18 x 3" Hex Head Cap, Grade. 5 Was 90553
24 7090975 NUT, 1/2-13 Hex Center Lock
25 7091810 BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Grade 5 Was 91158
26 7091294 4 WASHER, 1/4" I.D. Flat
27 7091302 NUT, 3/8-16 Hex, Grade 5
28 7091331 WASHER, 13/32" I.D. Flat
29 7091508 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
30 7090122 3 WASHER, 3/8" Flat Was 91514
31 7091526 3 BOLT, 5/8" Dia. Shoulder, 3/8-24 Thread
32 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tapping
33 7091575 3 NUT, 5/16-18 Hex Center Lock, Grade 5
34 7091587 3 WASHER, 1/2" I.D. Flat
35 7091310 2 PIN, #13 Hair
36 7091597 4 PIN, 3/32 x 3/4" Cotter
37 7091601 4 NUT, 5/16-18 Hex, Grade 5
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
49
TP 400-5170-4-TC-N
38" Cutting Deck Assembly (Part 2)
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
50
SERIES "G"
38" Cutting Deck Assembly (Part 2)
p
y
Part No Descri
38 7091675 4 WASHER, 11/32" I.D. Flat
39 7091775 WASHER, 1/2" I.D. x 2-1/2" O.D. Special "D"
40 7091619 NUT, 3/8-16 Hex Flange Lock Was 90613
41 7012264 SPRING
42 7029025 SPRING, Extension
43 7091732 SCREW, 1/4-20 x 2-3/4" Hex Head Cap, Grade 5 Was 90971
44 7091576 NUT, 1/4-20 Hex, Grade 5 Was 90063
45 7091545 NUT, 1/4-20 Hex Flange Lock, Grade 5 Was 90477
46 7091596 HAIRPIN (for 5/8" diameter shaft)
47 7027471 PIN, Deck Hanger
48 7035813 SPRING, Side Discharge
49 7026154 DECAL, 38 Inch Deck
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
51
TP 400-5170-4-TC-N
38" Cutting Deck, Belts, Brakes
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
52
SERIES "G"
38" Cutting Deck, Belts, Brakes
p
y
Part No Descri
1 7013847 RETAINER, 3/8" Bolt
2 7018574 IDLER, 4-1/8" Flat
3 7024604 BOLT, 3/4" Dia. X 3.01 Shoulder; 1/2-13 Thread
4 7024607 SWIVEL, Brake Link
5 7026122 3 WHEEL, Gage 38" Deck
6 7013010 DECAL, CPSC Cut Finger Was 26831
7 7027168 3 SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
8 7029425 CHUTE, Discharge 38" Deck
9 7029617 WASHER, 3/4" I.D. Flat
10 7035500 BELT, 38" Deck Dual Spindle Brake
11 7035502 ROD, Pivot, Side Discharge
12 7035503 ROD, Mounting, Side Discharge
13 7035507 2 PIVOT, Dual Brake
14 7035510 2 BRAKE LINK, Dual Spindle Brake
15 7035518 LEVER, Engagement
16 7035529 GUARD, Belt, 38" Dual Spindle Brake
17 7036586 J-BOLT, 3/8-16 x 6-1/4"
18 7042595 2 ARM, Brake
19 7054096 ASSEMBLY, 38" Dual Brake Deck
20 7042596 ARM, Idler, Dual Brake
21 7035496 2 BEARING, 3/4" I.D.
22 7090289 3 NUT, 3/8-24 Hex Center Lock, Grade 5
23 7091830 2 SCREW, 5/16-18 x 3" Hex Head Cap, Gr. 5 Was 90553
24 7090975 NUT, 1/2-13 Hex Center Lock
25 7091810 BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Gr. 5 Was 91158
26 7091294 4 WASHER, 1/4" I.D. Flat
27 7091302 NUT, 3/8-16 Hex, Grade 5
28 7091331 WASHER, 13/32" I.D. Flat
29 7091508 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Gr. 5
30 7090122 3 WASHER, 3/8" Flat Was 91514
31 7091526 3 BOLT, 5/8" Dia. Shoulder, 3/8-24 Thread
32 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tapping
33 7091575 3 NUT, 5/16-18 Hex Center Lock, Grade 5
34 7091587 3 WASHER, 1/2" I.D. Flat
35 7091310 2 PIN, #13 Hair
36 7091597 4 PIN, 3/32 x 3/4" Cotter
37 7091601 4 NUT, 5/16-18 Hex, Grade 5
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
53
TP 400-5170-4-TC-N
38" Cutting Deck, Belts, Brakes
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
54
SERIES "G"
38" Cutting Deck, Belts, Brakes
p
y
Part No Descri
38 7091675 4 WASHER, 11/32" I.D. Flat
39 7091775 WASHER, 1/2" I.D. x 2-1/2" O.D. Special "D"
40 7091619 NUT, 3/8-16 Hex Flange Lock Was 90613
41 7012264 SPRING
42 7029025 SPRING, Extension
43 7091732 SCREW, 1/4-20 x 2-3/4" Hex Head Cap, Grade 5 Was 90971
44 7091576 NUT, 1/4-20 Hex, Grade 5 Was 90063
45 7091545 NUT, 1/4-20 Hex Flange Lock, Grade 5 Was 90477
46 7091596 HAIRPIN
47 7027471 PIN, Deck Hanger
48 7035813 SPRING, Side Discharge
49 7026154 DECK, 38 Inch
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
55
TP 400-5170-4-TC-N
Spindle - 38" Cutting Deck
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
56
SERIES "G"
Spindle - 38" Cutting Deck
p
y
Part No Descri
7063198 ASSEMBLY, Spindle Housing, 38" Cutting Deck Was 58357 (Includes items 2
1 7010817 FITTING, Lube
2 7012491 2 RING, Retaining
3 7013313 2 BEARING, Spindle
4 7063199 HOUSING, Spindle Was 58356
5 7072537 SHAFT, Spindle (7.181" overall length)
6 7072109 WASHER, Spindle
7 7024467 2 WASHER, Belleville, 19/32" I.D. x 1-3/4" O.D.
8 7091633 NUT, 9/16-18 Hex Jam
9 7042998 BLADE, 19"
tionItem Qt
Note
thru 9)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
57
TP 400-5170-4-TC-N
Electrical Components
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
58
SERIES "G"
Electrical Components
p
y
4
Part No Descri
1 7060618 KIT, Battery (Includes Caution Tag, Part No.
2 7090372 2 NUT, 1/4-20 Hex Center Lock, Grade B or 5
3 7017853 TRAY, Battery
4 7012485 RETAINER, 1/4" Bolt
5 7026414 CABLE, Ground (Black)
6 7075622 SOLENOID Was 18604
7 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
8 7090977 2 NUT, 1/4-20 Hex Jam
9 7090053 2 WASHER, 1/4 Internal Tooth Lock Was 91314
10 7014476 CABLE, Positive (Red)
11 7090072 2 SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5 Was 27172
12 7012444 COVER, Positive Terminal
13 7026415 DECAL, Caution, Battery Installation
7016134 TAG, Caution
613
tionItem Qt
Note
16134 & Battery without Acid)
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
59
TP 400-5170-4-TC-N
Electrical Illustrated Diagram - Wiring Harness P/N 26616
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
60
SERIES "G"
Electrical Illustrated Diagram - Wiring Harness P/N 26616
p
y
Part No Descri
66167026616 WIRING HARNESS
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
61
TP 400-5170-4-TC-N
Electrical Schematic - Wiring Harness P/N 26616
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
TP 400-5170-4-TC-N
62
SERIES "G"
Electrical Schematic - Wiring Harness P/N 26616
p
y
Part No Descri
66167026616 WIRING HARNESS
tionItem Qt
Note
Footnotes:
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
63
TP 400-5170-4-TC-N
Parts Manual fo
r
LAWN TRACTORS MANUAL CLUTCH
HYDRO DRIVE
SERIES "G"
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Manual No. 7006448
Revision 4,
2/24/2006
TP 400-5170-4-TC-N
Loading...
