Safety Instructions & Operator’s Manual for
SINGLE STAGE
EXTENDED FRAME
SNOW THROWER
SERIES 0
MODELS
SX5200R
SX5200E
MODEL NUMBER EXPLANATION
S X 5 20 0 E
MODEL DESIGNATION ENGINE OPTIONS
ENGINE HP SERIES DESIGNATION
AUGER WIDTH
S – Single Stage Operation Model 20 – 20” Auger Width
X – Extended Frame Model 0 – Series Designation
5 – 5.0 Engine HP (Engine Horse Power) E – 110 Volt Electric Start
R – Recoil Start
Thank you for buying a SNAPPER Product! Before operating your Snow Thrower, read this manual carefully and pay
particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED
INSTRUCTION No. 4-1997 (REV. 2, 3/30/00)
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful machine is capable of amputating hands and feet and can throw objects that can cause injury
and damage! Failure to comply with the following instructions may result in serious injury to the operator or
other persons. The owner of the snow thrower must understand these instructions and, furthermore, must
allow only persons who understand these instructions to operate snow thrower. Each person operating the
snow thrower must be of sound mind and body and must not be under the influence of any substance, which
might impair vision, dexterity, or judgment. If you have any questions pertaining to your snow thrower which
your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER,
McDonough, Georgia 30253. Phone: 800/935-2967.
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the snow removal
activity. Never assume that the children will remain
where you last saw them.
1. DO NOT allow children in the area when snow
thrower is being operated.
2. DO NOT allow pre-teenage children to operate
snow thrower.
3. ALLOW only responsible adults and teenagers
with mature judgment to operate the machine
and then only after being thoroughly instructed
and under the close supervision of an
experienced adult operator.
4. Keep the area clear of all persons, particularly
small children and pets.
5. Know how to STOP the snow thrower and
disengage the controls quickly.
PREPARATION
1. Warn everyone in advance to stay clear of area.
Keep especially watchful for children and pets
darting into area while operating.
2. Read, understand, and follow instructions and
warnings in this manual and on the machine.
Know the controls and the proper use of the
snow thrower before starting.
3. Data indicates th at operators, age 60 and above,
are involved in a large percentage of snow
thrower-related injuries. These operators should
evaluate their ability to operate t he snow thrower
safely enough to protect themselves and others
from serious injury.
4. Disengage all clutches and shift into neutral
before starting the engine (motor).
5. Wear adequate winter clothing including boots
which will giv e you maximum footing on slippery
surfaces. Exercise CAUTION to avoid slipping or
falling.
6. Before the first snow fall, check the area to be
cleared and remove all objects such as
doormats, sticks, toys, wires, rocks, etc., which
could be hurled or jam the snow thrower.
PREPARATION
7. Survey the area to be cleared beforehand and
plan where snow is to be blown. Be prepared to
release auger/impeller clutch or to change
discharge chute direction quickly to discharge
away from windows, cars, buildings and
doorways to avoid property damage or personal
injury from hurled objects
8. Use only approved extension cords and
receptacles in good condition and with sufficient
capacity to carry the current to the machine if
equipped with electric starting motors.
9. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Store only in an
approved fuel container. Never remove fuel cap
or add fuel with the engine running. Add fuel
outdoors only with the engine stopped and cool.
Clean spilled fuel and oil from machine. DO NOT
smoke. DO NOT run engine indoors.
OPERATIONAL PRECAUTIONS
1. Before starting, make v isual check to make sure
auger/impeller housing is clear and all guards
and shields are in place and tight.
2. DO NOT operate machine without proper guards
shields, deflectors, or other safety protective
devices in place and functioning properly.
3. Should the auger/impeller become clogged,
release the auger/impeller clutch control an d, as
an additional precaution, STOP the engine
before attempting to unclog the auger/impeller or
discharge chute.
4. DO NOT attempt to unclog the auger/impeller or
discharge chute by reaching in wit h your hands.
Use a long stick or similar implement to unclog.
5. DO NOT attempt to unclog the auger/impeller or
discharge chute with the engine running. STOP
engine and remove key.
6. STOP engine (motor) and remove key before
leaving the operator position for any reason.
7. DO NOT put hands or feet near or under rotating
parts. Keep clear of the discharge op ening at all
times.
2
IMPORTANT SAFETY INSTRUCTIONS
OPERATIONAL PRECAUTIONS
8. Start engine only where exhaust fumes will be
safely dissipated. Allow a brief warm-up period,
and practice operation of controls outside
before putting the machine to work.
9. After striking a foreign object, STOP the engin e
(motor), remove the key, and remove the wire
from spark plug. Thoroughly inspect the snow
thrower for any damage, and repair the damage
before restarting and operating the snow
thrower.
10. STOP t he engine if the machin e starts to vibrat e
excessively as this normally indicates
mechanical problems. Remove the key and
disconnect the spark plug wire to prevent
unintentional starting before servicing or
repairing the machine.
11. DO NOT clear snow across the face of slopes.
Exercise extreme CAUTION when changing
direction on slopes. DO NOT attempt to clear
steep slopes.
12. DO NOT leave machine unattended with the
engine running. STOP engine and remove key
to prevent unauthorized operation.
13. Release clutch control and make sure
auger/impeller has STOPPED before rotating
discharge chute, adjusting deflector, or placing
hands near auger/impeller.
14. DO NOT use snow thrower on surfaces above
ground level, such as, a roof of a building.
15. Exercise extreme CAUTION when operating on
or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
16. DO NOT overload the machine capacity by
attempting to clear snow at too fast a rate.
17. Never operate the machine at high transport
speeds on slippery surfaces. Look behind and
use care when backing.
18. Disengage power to the auger/impeller when
snow thrower is transported or not in use.
19. Use only attachments and accessories
approved by the manufacturer of the snow
thrower (such as wheels weights,
counterweights, cabs and the like).
20. Never operate the snow thrower without good
visibility or light. Always be sure of your
footing, and keep a firm hold on the handles.
Walk; never run.
MAINTENANCE AND STORAGE
1. DO NOT store machine or fuel con tainer inside
where fumes may reach an open flame, spark,
or pilot light as in a water heater, furnace,
clothes dryer or other gas appliance. Allow
engine to cool before storing machine in an
enclosure. Store fuel container out of reach of
children in a well ventilated, unoccupied
building.
2. Keep machine and engine free of excess oil,
grease and spilled fuel to reduce fire hazard.
3. When draining fuel tank, drain fuel into an
approved container outdoors and away from
open flame.
4. Inspect all bolts, nuts and screws frequently
and keep properly tightened.
5. Use only recommended shear bolts (if
equipped) to prevent possible damage to
machine.
6. Service engine and make adjustments only
when engine is stopped. Remove key, remove
wire from spark plug, secure wire away from
plug, and discon nect cord fro m electric starting
motors to prevent accidental starting.
7. DO NOT change engine governor speed
settings or overspeed engine.
8. DO NOT test for spark by grounding the spark
plug next to spark plug hole. Spark from the
plug could ignite gas exiting engine.
9. Have machine serviced by an authorized
SNAPPER dealer at least once a year and have
the dealer install any new safety devices.
10. Use only genuine SNAPPER replacement parts
to assure that original standards are
maintained.
3
TABLE OF CONTENTS
SECTION 1 - IMPORTANT SAFETY INSTRUCTIONS.......................... 2-3
TABLE OF CONTENTS............................................................................ 4
SECTION 2 - OPERATING INSTRUCTIONS.........................................5-9
Pre-start Checklist ..............................................................................................5-6
Starting & Stopping Engine (Recoil Start Models) ..............................................7-8
Engaging & Stopping Auger................................................................................7-8
Discharge Chute & Deflector Adjustment.............................................................. 7
Starting & Stopping Engine (Electric Start Models)............................................. 8-9
Engaging & Stopping Auger................................................................................8-9
Discharge Chute & Deflector Adjustment.............................................................. 9
SECTION 3 - MAINTENANCE INSTRUCTIONS .................................... 10
Checking Auger Drive Belt................................................................................... 10
Checking Auger Flite Shoes ................................................................................ 10
Checking Auger Clutch Control Cable ................................................................. 10
Annually – End of Each Season........................................................................... 10
Engine............................................................................................................. 10
Spark Plug....................................................................................................... 10
Storage Procedure............................................................................................... 10
SECTION 4 - ADJUSTMENTS AND REPAIR....................................11-12
Auger Drive Belt Adjustment................................................................................ 11
Auger Drive Belt Replacement............................................................................. 11
Auger Flite Shoe Replacement............................................................................ 12
Chute Crank Adjustment...................................................................................... 12
TROUBLESHOOTING ............................................................................ 13
SERVICE SCHEDULE ............................................................................ 13
Maintenance/Replacement Parts......................................................................... 13
WARRANTY............................................................................................14
4
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Make the following checks and perform the service
required before each start-up.
2.1.1. Check guards , chutes, deflectors and covers to
make sure all are in place and securely tightened.

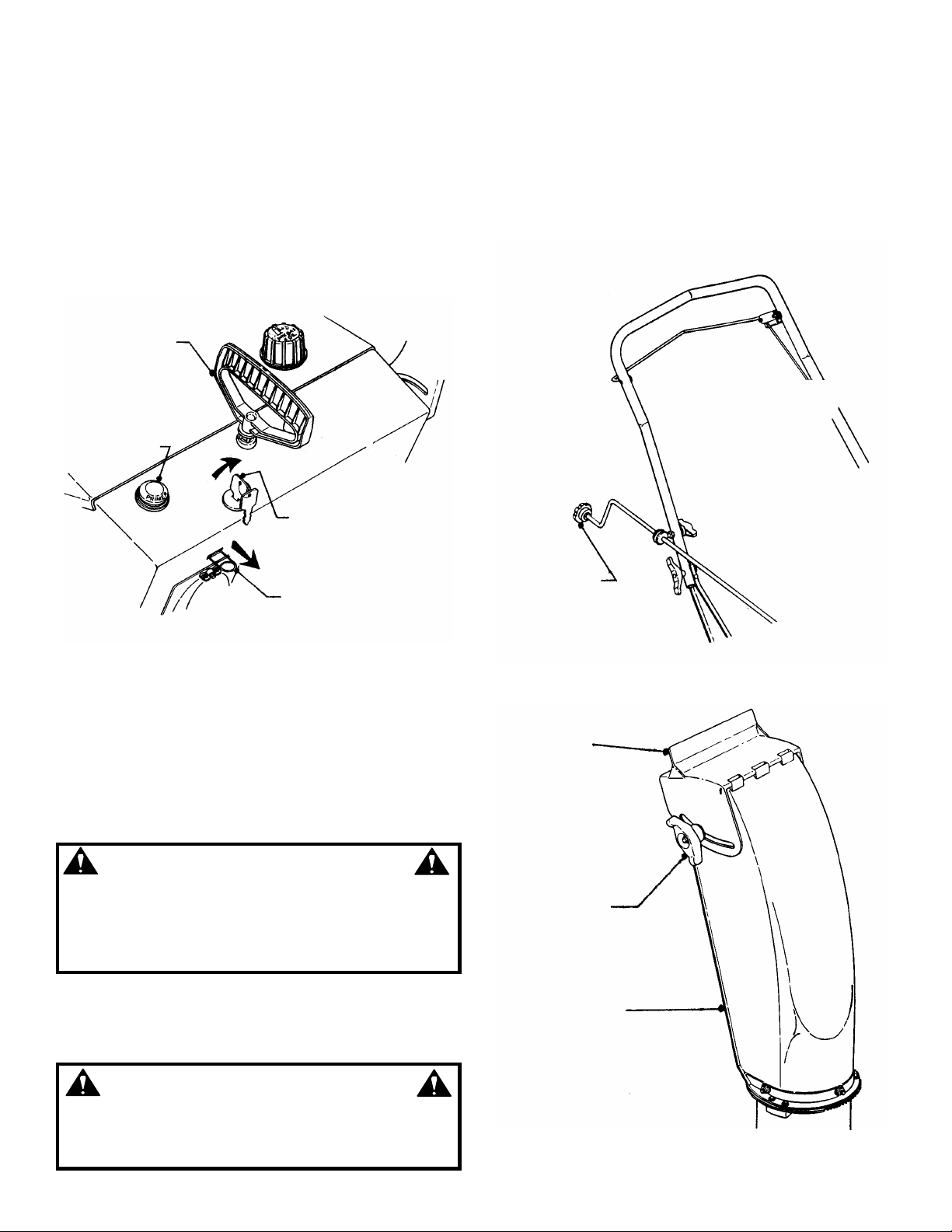

2.1.2. Chec k auger control to insure it work s freely.
Engage and disengage auger control to insure
proper engagement. See Figure 2.1.
ENGAGE AND DISENGAGE AUGER
CONTROL TO INSURE PROPER
OPERATION
AUGER
CONTROL
FIGURE 2.1
2.1.3. Check chute operation. Rotate chute to
insure smooth rotation throughout its range.
WARNING
Use approved fuel container. DO NOT smoke near
open fuel container. DO NOT fill fuel tank indoors or
when engine is running. Allow engine to cool for at
least ten minutes before refilling. Wipe off any
spilled fuel before starting engine. DO NOT run
engine indoors.
2.1.4. Mix fresh, good quality unleaded gasoline and
SNAPPER 2-cycle engine oil or equivalent. Mix fuel
and oil to a 32:1 ratio. See Figure 2.2.
2.1.5. Add premix fuel to tank after pushing the
machine outside where fumes can safely dissipate.
Make sure cap is tightened after refueling. Refer to
Engine Owners Manual for specifications.
2.1.6. Check auger housing, must be free of all
obstructions. Clean engine of any accumulation of
spilled fuel, dirt, etc.
STANDARD FLUID MEA SURE MENT (32:1 Ratio)
METRIC FLUID MEASUREMENT (32:1 Ratio)
GASOLINE
GASOLINE
(Gallons)
0.25 1.00
0.50 2.00
0.75 3.00
1.00 4.00
1.25 5.00
1.50 6.00
2.00 8.00
(Liters)
0.50 15.63
1.00 31.26
1.50 46.88
2.00 62.50
2.50 78.15
3.00 93.75
4.00 125.00
FIGURE 2.2
(Continued on Next Page)
2 CYCLE OIL
(Ounces)
2 CYCLE OIL
(Cubic Centimeters)
5
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
(Continued from Previous Page)
Make the following checks and perform the service
required before each start-up.
WARNING
DO NOT use an electrical extension cord that is
damaged. A damaged electrical extension cord could
cause a shock or fire. Thoroughly inspect electrical
extension cord before using machine. If cord is
damaged, do not use and do not operate machine.
Replace damaged cord immediately. Contact your
Snapper service dealer for assistance. T o reduce the
risk of electric shock, use only with an extension
cord intended for outdoor use having a cord type:
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A or
SJTOW-A.
2.1.7. Check and make sure extension cord is in
good condition. Extension cord should not have any
broken insulation or exposed wires. Use an
extension cord that is heavy enough to carry the
correct amount of current to the machine. See
Figure 2.3 for correct size to use depending on cord
length and nameplate am per e rating. If in doubt, us e
the next heavier gauge cord.
MINIMUM GAUGE FOR CORD SETS
120 Volt Total Length of Cord in Feet
Rating - Amps 25 ft. 50 ft. 100 ft. 150 ft.
More
Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12
Not More
Than
FIGURE 2.3
2.1.8. Check the AC electrical outlet that will be
used and make sure it is a polarized outlet. The
machine has a polarized plug (one blade of plug is
wider than the other) that will accept a polarized
extension cord. The extension cord will fit into a
polarized outlet (receptacle) only one way. If plug
does not fit f ully into your outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to
install a proper polarized outlet. DO NOT m odify or
change this polarized plug in any way.
IMPORTANT! Electric Start Kit optional
accessory on some models.
A.W.G.
Not
Recommended
6
Section 2 - OPERATING INSTRUCTIONS
2.2 STARTING, STOPPING & OPERATION
(RECOIL START MODELS)
(Go to Page 8 for Electric Start Models)
2.2.1. ENGINE & AUGER
1. Move c hoke control to the choke “ON” position.
See Figure 2.4.
IMPORTANT: Stop the auger by releasing the auger
control. Stop the engine by turning the key switch to the
“OFF” position.
PULL ROPE
START
HANDLE
PUSH PRIMER
THREE TIMES
2.2.3. DISCHARGE CHUTE and DEFLECTOR
ADJUSTMENT
1. Release auger control and allow auger to come to a
complete stop before performing any adjustments.
2. Loosen deflector knob and position deflector to
desired angle. Retighten knob. See Figure 2.6.
3. Rotate chute crank to position the discharge
chute in desired direction. See Figure 2.5.
MOVE AUGER CONTROL
AGAINST HANDLE TO ENGAGE
AUGER
RELEASE AUGER CONTROL
BEFORE ADJUSTING DEFLECTOR
& CHUTE CRANK
TURN KEY TO THE
“ON” POSITION
MOVE CHOKE TO THE “ON”
POSITION
FIGURE 2.4
2. Turn ignition key to the “ON” position.
3. Push primer button three times to start a cold
engine. NOTE: Do not use primer button to start
warm engine. See Figure 2.4.
4. Pull rope start handle to crank engine.
5. After engine starts, move the choke control to
the no choke “OFF” pos ition. Allow a brief warm-up
until engine runs smooth.
WARNING
Objects can be thrown by the snow thrower while it
is in operation. Thrown objects could cause serious
injury to the operator or bystanders. Always wear
safety goggles or other suitable eye protection. Keep
people and pets away from area.
2.2.2. ENGAGING AUGER
1. Pull auger control against handle to engage
auger See Figure 2.5.
ROTATE CHUTE
CRANK TO CHANGE
DIRECTION OF
DISCHARGE
FIGURE 2.5
DEFLECTOR
LOOSEN DEFLECTOR
KNOB & MOVE TO
DESIRED POSITION
CHUTE
WARNING
Release auger clutch control and make sure auger
has STOPPED before rotating discharge chute, or
adjusting deflector. DO NOT place hands near auger
while engine is running.
FIGURE 2.6
7
Section 2 - OPERATING INSTRUCTIONS
2.2.4. STOPPING
Stop the auger by releasing the auger control. Stop
the engine by turning the key switch to the “OFF”
position. Always remove key from key switch
before leaving machine unattended. See
Figure 2.7.
RELEASE AUGER
CONTROL TO STOP
AUGER
TURN KEY TO THE “ON”
POSITION
1. Connect the power cord to the starter switch
box on machine’s c ontrol panel then plug the other
end into 120 volt AC receptacle.
2. Move c hoke control to the choke “ON” position.
See Figure 2.8.
IMPORTANT: Stop the auger by releasing the auger
control. Stop the engine by turning the key switch to the
“OFF” position.
PUSH STARTER BUTTON
PUSH PRIMER
THREE TIMES
TURN KEY TO THE “OFF”
POSITION TO STOP ENGINE
FIGURE 2.7
2.2 STARTING, STOPPING & OPERATION
(ELECTRIC START MODELS)
(Go to Page 7 for Recoil Start Models)
2.2.5. ENGINE & AUGER
WARNING
DO NOT use an electrical extension cord that is
damaged. A damaged electrical extension cord
could cause a shock or fire. Thoroughly inspect
electrical extension cord before using machine. If
cord is damaged, do not use and do not operate
machine. Replace damaged cord immediately.
Contact your Snapper service dealer fo r assistance.
To reduce the risk of electric sh ock, use only with
an extension cord intended for outdoor use having
a cord type: SW-A, SOW-A, STW-A, STOW-A, SJWA, SJTW-A or SJTOW-A.
INSERT POWER
CORD INTO STARTER
BOX
MOVE CHOKE TO
THE “ON” POSITION
FIGURE 2.8
3. Turn ignition key to the “ON” position.
4. Push primer button three times to start a cold
engine. NOTE: Do not use primer button to start
warm engine.
5. Push the electric starter button. DO NOT hold
button for more than 20 sec onds to avoid damaging
the starting motor. See Figure 2.8
6. After engine star ts, move the chok e control to the
no choke “OFF” pos ition. Allow a brief warm-up until
engine runs smooth.
7. Disconnect power cord from AC receptacle.
Disconnect power cord from machine and remove
cord from area where machine will be in operation.
8
Section 2 - OPERATING INSTRUCTIONS
WARNING
Objects can be thrown by the snow throw er while it
is in operation. Thrown objects could cause serious
injury to the operator or bystanders. Always wear
safety goggles or other suitable eye protection.
Keep people and pets away from area. Release
auger clutch control and make sure auger has
STOPPED before rotating discharge chute, or
adjusting deflector. DO NOT place hands near auger
while engine is running.
2.2.6. ENGAGING AUGER
1. Pull auger control against handle to engage
auger. See Figure 2.5.
2.2.7. DISCHARGE CHUTE and DEFLECTOR
ADJUSTMENT
1. Release auger c ontrol and allow auger to com e to
a complete stop before performing any adjustments.
2. Loosen deflector knob and position deflector to
desired angle. Retighten knob.
3. Rotate discharge chute in desired direction. See
Figure 2.6.
2.2.8. STOPPING
Stop the auger by releasing the auger control. Stop
the engine by turning the key switch to the “OFF”
position. Always remove key from key switch
before leaving machine unattended. See Figure
2.7.
9
Section 3 - MAINTENANCE
3.1 INTRODUCTION
To retain the quality of the snow thrower, use
genuine SNAPPER replacement par ts only. Contact
a local SNAPPER dealer for parts and service
assistance. For the correc t part or information for a
particular snow thrower, always mention model and
serial number.
3.2 SERVICE - AFTER FIRST 5 HOURS
3.2.1 CHECK AUGER DRIVE BELT
1. Visually check engine drive belt for cracking,
fr aying, severed or belt str ands expos ed. Replac e belt
before operating snow thrower. See Figure 3.1
3.2.3 CHECK AUGER CLUTCH CONTROL CABLE
1. Visually check cable for fraying, kinking or
severed cable strands. Replace cable and adjust
tension before operating snow thrower.
CHECK AUGER
CONTROL
CABLE
CHECK
AUGER DRIVE
BELT
FIGURE 3.1
3.2.2 CHECK AUGER FLITE SHOE
1. Visually check flite shoes for cracking, fraying,
severed or belt strands exposed. Replace flite shoes
before operating snow thrower.
CHECK AUGER
FLITE SHOE
FIGURE 3.2
FIGURE 3.3
3.3 ANNUALLY (END OF EACH SEA SON)
Perform all m aintenance as described in the maintenance
schedule.
3.3.1. Engine
Refer to engine owner’s manual for service
instructions.
3.3.2. Spark Plug
Refer to engine owner’s manual for service
instructions.
3.4 STORAGE PROCEDURE
Refer to the Engine Owner’s Manual for directions
regarding engine storage preparations. Prepare the snow
thrower for “end of season” storage as follows:
1. Drain fuel from fuel tank and let engine run until
all fuel is out of the carburetor.
2. Disconnect and remove the spark plug wire
away from spark plug before any other
preparations are made!
3. Tape all openings closed to prevent spraying
water into exhaust or air intakes during washing.
4. Tilt snow thrower up on its wheels and
thoroughly clean the underside of the auger.
5. Lubricate all exposed metal with a light coating
of oil to prevent corrosion.
6. Store the machine in a shed or other dry area,
protected from weather.
10
AUGER BELT
REMOVAL OF PULLEY
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any adjustments, maintenance,
service, or repairs with engine running. Stop auger.
Stop engine. Remove key. Remove spark plug wire
and secure wire away from spark plug.
4.1 AUGER BELT ADJUSTMENT/REPLACEMENT
When operating machine release the auger clutch
control. The auger should com e to a complete s top in
5 seconds. If auger does not com e to a com plete stop
in the required time, check and adjust belt tension.
Inspect belt frequently for signs of excessive wear.
Observe drive belt for slippage due to wear when
operating machine. If slippage does occur adjust as
follows.
4.1.1. AUGER BELT CABLE ADJUSTMENT
1. Measure control cable extension from a relaxed
position to full extended position. Move control lever
against handle. Measure the overall length of the
spring. The length of the cable spring should
increase by 1/2” to 3/4” when the clutch control is
depressed. See Fi g u r e 4 .1 .
4.1.2. AUGER BELT REPLACEMENT
Inspect belt frequently for signs of excessive wear.
Visually check engine drive belt for cracking,
fraying, severed or belt strands exposed.
1. Remove belt cover. See Figure 4.2.
2. Loosen or rem ove auger pulley to allow removal of
belt. IMPORTANT: Pulley has left hand threads.
3. Push the spring tensioned idler pulley down and
remove belt.
4. Use recoil start handle to rotate engine and roll
belt off engine pulley.
5. Use recoil start handle to rotate engine and roll
new belt onto engine pulley.
6. Position new belt around auger pulley and
reinstall and tighten pulley onto auger shaft.
7. Push the spring tensioned idler pulley down and
install new belt. See Figure 4.3.
8. Reinstall belt cover and tighten screws securely.
CABLE HOUSING
JAM
NUT
CABLE SPRING
SHOULD
EXTEND 1/2” TO
AUGER
CONTROL
CABLE
FIGURE 4.1
2. Loosen jam nut at the upper end of cable. Hold
threaded end of cable and then turn cable clockwise
until correct extension is achieved. Retighten jam nut.
IMPORTANT: DO NOT over tighten. Cable must have
slack for the auger brake to function properly. If all
adjustment is used up, belt must be replaced. Refer to
Section “Auger Belt Replacement”.
REMOVE
COVER
FIGURE 4.2
PUSH IDLER DOWN TO
REMOVE & INSTALL
LOOSEN OR REMOVE
AUGER PULLEY TO ALLOW
FIGURE 4.3
11
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any adjustments, maintenance,
service, or repairs with engine running. Stop auger.
Stop engine. Remove key. Remove spark plug wire
and secure wire away from spark plug.
4.1.3. AUGER FLITE SHOE REPLACEMENT
Inspect flite shoes frequently for signs of excessive
wear. Vis ua ll y ch ec k flite shoes fo r cr ac k i ng , f r ayin g,
severed or belt strands exposed. #6-0631 Flite Shoe
Kit will be required to replace existing flite shoes.
1. T ilt machine backward to gain access to auger.
Secure machine in the tilted position to prevent
tipping over.
2. Remove all self-tapping screws that secure the
flite shoes to auger. Save screws for future use.
3. Install new flite shoes to auger using self-tapping
screws rem oved previously. Tighten screws securely.
DO NOT overtighten. See Figure 4.4.
AUGER
ALIGN ANGLED ENDS
OF FLITE SHOE WITH
ANGLED ENDS OF
AUGER
FIGURE 4.4
4.1.4. CHUTE CRANK ADJUSTMENT
1. Loosen pivot bolt and nut. Rotate adjustm ent nut
clockwise to move worm bracket closer to ring gear.
Rotate adjustment nut counter clockwise to move
worm bracket away from ring gear. NOTE: The
worm gear should always maintain full contact with
ring gear after adjustm ent. Retighten pivot bolt and
nut. If crank still does not operate satisfactorily,
lubricate worm gear and ring gear with grease.
See Figure 4.5.
FLITE SHOE
SELF-TAPPING
SCREWS
LOOSEN PIVOT
BOLT & NUT
FIGURE 4.5
WORM
BRACKET
ROTATE NUT TO
ADJUST WORM
GEAR CONTACT
WITH RING GEAR
12
1. Power extension cord not plugged into machine or into
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Engine Will Not Start 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel/oil mix.
Using Recoil Starter 2. Engine needs choking and priming. 2. Move choke control to “CHOKE” position.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
Engine Will Not Crank
Using Electric Starter
2. Power extension cord damaged. 2. Discard damaged power extension cord
3. Starter switch damaged or faulty. 3. Replace starter switch.
4. Fuel filter clogged. 4. Replace with new in line filter.
Engine Stalls or Stops 1. Fuel and 2-Cycle oil mixture ratio incorrect. 1. Mix fuel and 2-Cycle oil to 32:1 ratio.
After Running 2. Choke control in the “CHOKE” position. 2. Move choke control to “OFF” position.
3. Fuel tank empty. 3. Fill with fuel to proper level.
4. Air intake clogged with snow or debris. 4. Unclog air intake.
5. Spark plug defective or gap set improperly. 5. Service spark plug.
6. Water, debris or stale fuel in fuel system. 6. Drain and clean fuel system.
7. Fuel filter clogged. 7. Replace with new in line filter.
Engine Loses Power 1. Fuel and 2-Cycle oil mixture ratio incorrect. 1. Mix fuel and 2-Cycle oil to 32:1 ratio.
2. Spark plug faulty. 2. Service spark plug.
3. Water, debris or stale fuel in fuel system. 3. Drain and clean fuel system.
Excessive Vibration 1. Damaged, out of balance or bent auger. 1. Service auger.
2. Loose engine or auger components. 2. Service and tighten loose components.
3. Loose or missing flightings. 3. Replace flightings.
4. Cracked, severed or frayed belt 4. Replace belt.
5. Bent or loose Idler pulley 5. Tighten or replace pulley.
Poor Snow
Discharging
110 Volt outlet.
1. Clogged discharge chute. 1. Stop engine and unclog discharge chute.
2. Damaged or bent auger or components. 2. Service auger or components.
3. Cracked, severed or frayed belt. 3. Replace belt.
4. Belt tension out of adjustment. 4. Adjust belt tension.
5. Auger flight shoes damaged or missing. 5. Replace flight shoes.
Push primer bulb three times
1. Plug power extension cord into machine & into
110 Volt outlet.
SERVICE SCHEDULE
SERVICE PERFORMED
ITEM
Spark Plug Replace Engine Manual. X
Engine Cooling
Clean Shroud & Fins Engine Manual
System
Drive Belts Check For Wear And
Tension & Replacement
Auger &
Flightings
Check For Wear, Damage
& Replacement
4.2. MAINTENANCE/REPLACEMENT PARTS
Auger Drive Belt 4-1947
Auger Clutch Control Cable 1-8796
Scraper Blade 2-8427
Auger Flite Shoe Kit 6-0631
Parts Manual for SX Model Series 0 Snow Thrower
Models: SX5200R, SX5200E
REF. EACH
USE 5 HRS
25
HRS
50
HRS
100
HRS
EACH
SEASON
X
& Page 10
Pages 10-11 X X X
Pages 10-11 X
MAINTENANCE PARTS
06016
13
3 YEAR LIMITED WARRANTY
For three (3) years from pur chase date f or the original pur chaser 's res idential, non-com m erc ial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applic able), any part or parts found
upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the or iginal purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to engines and their components , and batteries, as these item s are warranted separately.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,
normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or com ponent
part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year prorated warranty period with free replacement if requir ed during the first ninety (90) days
from the original purchas e date. SNAPPER will not be responsible for any installation cost incurred. T he battery warranty
only covers original equipment batteries and does not cover dam age to the battery or machine caused by neglect or
abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three
(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety
(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for
consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPL ACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper’s Product Registration Ce nter, P.O. Box 1379, McDonough, Georgia 30253
14
NOTES
15
Safety Instructions & Operator’s Manual for
SINGLE STAGE
EXTENDED FRAME
SNOW THROWER
SERIES 0
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on
the date manufactured. The labels on those engines contain very important emissions information and
critical safety warnings. Read, Understand , and Follow all warnings and instructions in this manual, the
engine manual, and on the machine, engine and attachments. If you have any questions about your
Snapper product, contact your local authorized Snapper dealer or contact Snapper Customer Service at
Snapper, McDonough, GA. 30253. Phone: (1-800-935-2967).
WARNING
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
WARNING
ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER
REPRODUCTIVE HARM.
COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED
INSTRUCTION No. 4-1997 (REV. 2, 3/30/00)
16
Loading...
