Parts Manual for

SINGLE STAGE

SNOW THROWER

SERIES 0

MODELS

SX5200R SX5200E

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

(Rev. 4, 6/30/02) MANUAL No. 06016

HANDLES, BLADE CONTROL

4

5

3

13

12

1

2

16

7

11

9

6

8

10

6

14

15

17

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

2

HANDLES, BLADE CONTROL

ITEM PART NO. DESCRIPTION

1 4-1946 HANDLE, Upper

2 1-4343 BUSHING, Auger Control (2)

3 2-8309 DECAL, Auger Control Instruction

4 1-7072 CONTROL, Auger

5 3-3904 CLIP, Auger Control

6 4-6363 KNOB, 1/4-20 Wing (Black) (2)

7 3-5744 KNOB, 5/16-18 Wing

8 4-2723 BRACKET, Lower Handle (Left Side)

9 9-1083 BOLT, 1/4-20 x 2” Square Neck Carriage, Grade 5 (2)

10 4-2724 BRACKET, Lower Handle (Right Side)

11 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5

12 1-7623 EYE-BOLT, 5/16-18

13 1-7622 GROMMET, Chute Crank

14 9-1064 BOLT, 1/4-20 x 1/2” Short Neck Carriage, Grade 5 (4)

15 9-1065 NUT, 1/4-20 Hex Flange Lock (4)

16 2-3813 CLIP, Wiring Harness

17 1-2485 RETAINER, 1/4” Bolt (4)

SINGLE STAGE SNOW THROWER MANUAL No. 06016

3

COLLECTOR HOUSING, BELTS, PULLEYS, AUGER

A

2

6

1

38

39

3

36

3534

36 ASSEMBLY

33

41

37

39

37

15

17

9

16

18

10

17

12

19

5

10 14

4

24

8

2625

36B

13

20

23

22

2127

11

30

42

21

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

31

32

14

28

4

29

17

COLLECTOR HOUSING, BELTS, PULLEYS, AUGER

ITEM PART NO. DESCRIPTION

1 4-1850 WELDMENT, Blower Housing 2 1-8796 CABLE, Clutch 3 9-0584 BOLT, 1/4-20 x 1/2” Hex Flange Lock (2) 4 9-1283 BOLT, #10-24 x 5/8”Flat Head Carriage (4) 5 9-0372 NUT, 1/4-20 Hex Center Lock 6 4-1952 STRAP, Engine 7 9-0187 WASHER, 5/16 Split Lock (no longer used with item 13) 8 2-8427 SCRAPER, Blade 9 1-0008 KEY, #6 x 5/8” Woodruff 10 2-8363 PULLEY, Engine 11 2-8312 BLADE, Wear Indicator 12 1-4098 WASHER, .343 I.D. x 1” O.D. Flat 13 7-2621 SCREW, 5/16-24 x 3/4” Hex Head Cap w/patch lock, Grade 5 * 6-1382 KIT, Engine Pulley (Includes items 10, 12, 13 & 1 item 7) 14 9-1079 NUT, #10-24 Hex Flange Lock (5) 15 9-1075 SCREW, #10-24 x 5/8” Self-Tap 16 3-2345 GUIDE, Belt 17 9-0981 SCREW, #10-32 x 1/4” Slotted Hex Washer Head, Self-Tap (20) 18 5-1506 ASSEMBLY, Idler Arm 19 1-4722 PULLEY, Idler Arm 20 9-1067 NUT, 5/16-18 Hex Center Lock (2) 21 9-1076 WASHER, 5/16 Flat (2) 22 1-4920 SPRING, Idler Brake 23 1-4919 SPACER, Bearing 24 1-4608 BEARING, Auger (2) 25 4-2722 RETAINER, Bearing (2) 26 1-0935 WASHER, 3/4” Flat 27 1-8635 PULLEY 28 4-1947 BELT, Auger 32.89 29 1-9753 COVER, Belt

-- 5-2309 ASSEMBLY, Auger (Includes items 30 thru 33) 30 4-7027 AUGER Structure 20” 31 1-4612 SHOE, Flight, Center (2) 32 9-1286 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Sems) (28) 33 2-9565 SHOE, Flite (4) ** 6-0631 KIT, Flite Shoe (Includes 2 item 31 & 4 item 33) 34 4-1958 DECAL, Model (Recoil)

-- 4-6308 DECAL, Model (Electric Start) 35 4-6307 DECAL, Model, Auger Housing (Recoil)

-- 4-6309 DECAL, Model, Auger Housing (Electric Start) 36 5-1560 ASSEMBLY, Bracket/Bushing (Includes 36A & 36B) 36A 3-2459 BRACKET, Cable Guide 36B 1-5146 BUSHING, Nylon 37 9-1084 SCREW, 1/4-20 x 3/8” Hex Washer Self-Tap (4) 38 4-1953 BRACKET, Fuel Tank 39 9-1070 NUT, 1/4-20 Hex Flange Lock, Grade 5 40 9-1246 SCREW, 1/4-20 x 3/4” Pan Head Self-Tap (Torx) 41 9-1064 BOLT, 1/4-20 x 1/2” Short Neck Carriage, Grade 5 (4) 42 9-0361 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

*NOTE: Order Complete Assembly by Kit Number.

**NOTE: Order items 31 & 33 by Kit Number.

SINGLE STAGE SNOW THROWER MANUAL No. 06016

5

CONTROL PANEL, FUEL TANK

24

1

31

32

22

8

2

29

33

12

9

23

25

27

15

20

14

13

17

10

5

30

3

7

28

11

18

19

26

4

27

25

6

21

16

27

ELECTRIC STARTER

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

6

CONTROL PANEL, FUEL TANK

ITEM PART NO. DESCRIPTION

1 4-1955 COVER, Top

2 4-1954 HANDLE, Rope Starter (Mitten) (Tecumseh # 178-223)

3 9-1246 SCREW, 1/4-20 x 3/4” Pan Head Self-Tap (Torx)

4 1-4359 FILTER, Fuel (In-Line)

5 9-1530 BOLT, 1/4-20 x 3/4” Short Neck Carriage, Grade 5

6 1-2485 RETAINER, 1/4” Bolt

7 2-7910 ISOLATOR, Fuel Tank/Cover

8 1-4918 CONTROL, Choke

-- 4-6473 CONTROL, Choke SX5200

9 2-3506 BEZEL

10 9-1286 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Sems) (6)

11 4-1852 PANEL, Bottom

12 1-1138 KEY, Ignition

13 9-0880 WASHER, 5/8” Internal Tooth Lock

14 1-2685 NUT, 5/8-32 Hex (Special)

15 1-6132 SPACER

16 2-9161 NUT, 1/4-20 Wing (Black Nylon)

17 1-7817 SWITCH, Ignition (Includes items 13 & 14)

18 1-4638 PRIMER, Fuel

19 9-1065 NUT, 1/4-20 Hex Flange Lock

20 1-4924 GUIDE, Rope

21 4-1956 COVER, Carburetor

22 4-1959 DECAL, Control Panel

23 2-4603 TANK, Fuel (Includes Cap, Item 24)

24 2-4495 CAP, Fuel Tank

25 7-6272 LINE, Fuel (2)

26 1-4639 HOSE, Primer

27 2-9900 CLAMP, Fuel Line (4)

28 9-1084 SCREW, 1/4-20 x 3/8” Hex Washer Self-Tap (6)

29 9-1572 SCREW, #6-32 x 2-1/2” Hex Head Cap (2) (Electric Start only)

30 9-1570 NUT, #6-32 Hex (Keps) (2) (Electric Start only)

31 2-9747 CORD, Extension (10 Ft.) (Electric Start only)

(Tecumseh # 1A174-17 or 32450B)

32 9-1286 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Sems) (2)

33 1-2652 WIRE CLAMP, Vinyl Covered

SINGLE STAGE SNOW THROWER MANUAL No. 06016

7

DISCHARGE CHUTE ASSEMBLY

12

11

6

7

5

3

8

1

9

10

25

23

2

6

16

4

13

14

15

25

22

2627

19

18

24

7

12

17

20 21

* BLOWER THROAT

(PART OF BLOWER HOUSING

WELDMENT SHJOWN ON PAGE 4

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

8

DISCHARGE CHUTE ASSEMBLY

ITEM PART NO. DESCRIPTION

1 2-8217 CHUTE, Discharge

2 2-8184 DEFLECTOR, Chute

3 2-4773 DECAL, Hand danger

4 2-8253 PIN, Wire

5 9-1021 SCREW, 5/16-24 x 3/4” Hex Head Cap, Grade 5

6 9-1076 WASHER, 5/16 Flat (2)

7 9-0222 NUT, 5/16-24 Hex Center Lock (2)

8 9-1097 BOLT, 5/16-18 x 3/4” Square Neck Carriage, Grade 5

9 3-5744 KNOB, 5/16-18 Wing (Black)

10 4-1949 CRANK, Chute

11 1-3901 KNOB, Fluted

12 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B (2)

13 4-1957 CHUTE RING, 6” Right Side

14 9-1077 BOLT, 5/16-18 x 5/8” Square Neck Carriage, Grade 5 (3)

15 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

16 9-1075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap (6)

17 1-1938 RETAINER, Spout (3)

18 9-1303 BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5

19 1-1791 RETAINER, 5/16 Bolt

20 3-7963 BRACKET, Worm

21 9-0246 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, Grade 5

22 1-1724 WASHER, .44 I.D. x .78 O.D. Curved

23 2-1852 SHAFT, W orm

24 2-1828 WORM

25 1-4001 ROLL PIN, 1/8 x 3/4” (2)

26 3-2126 CONNECTOR

27 9-0041 PIN, 1/8 x 1” Cotter

SINGLE STAGE SNOW THROWER MANUAL No. 06016

9

ENGINE

L.H. END OF BLOWER HOUSING WELDMENT (SEE PAGE 5)

5

3

4

5

ITEM PART NO. DESCRIPTION

1 ------- ENGINE, Tecumseh; Model HSK850-8318C, 5HP, 2-Cycle (Electric Start)

-- ------- ENGINE, Tecumseh; Model HSK850-8317C, 5HP, 2-Cycle (Recoil Start) 2 4-1951 PLATE, Stiffener 3 9-1021 SCREW, 5/16-24 x 3/4” Hex Head Cap, Grade 5 4 9-0187 WASHER, 5/16 Split Lock 5 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

AXLE, WHEELS

1

2

3

1

ITEM PART NO. DESCRIPTION

1 4-6384 WHEEL (2) 2 4-1950 AXLE 3 1-4667 NUT, 3/8” Push (2)

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

10

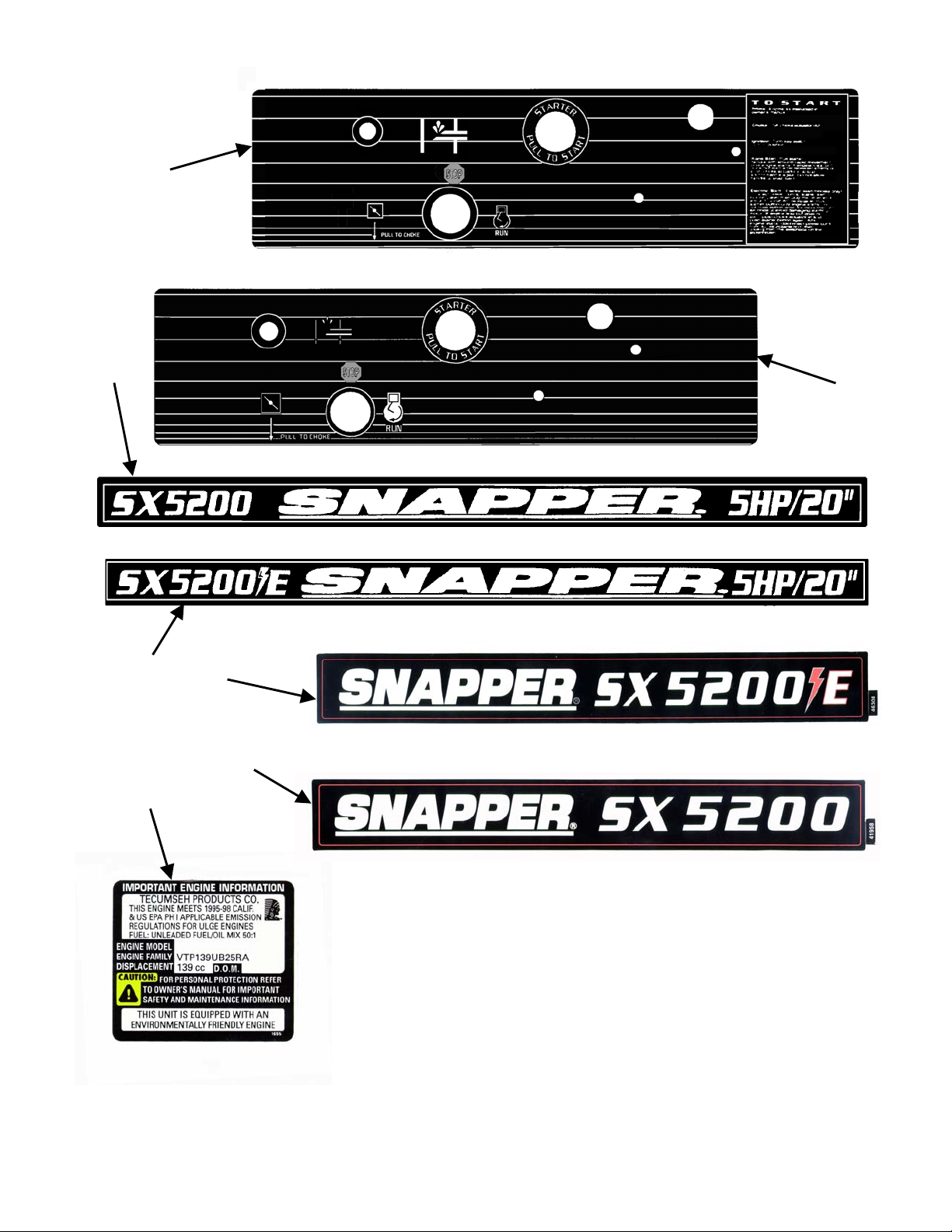

DECALS

1

3

2

4

7

5

6

ITEM PART NO. DESCRIPTION

1 4-1959 DECAL, Control Panel 2 7-3464 DECAL, Control Panel Recoil/ES 3 4-6307 DECAL, Model, Auger Housing (Recoil) 4 4-6309 DECAL, Model, Auger Housing (Electric Start) 5 4-6308 DECAL, Model (Electric Start) 6 4-1958 DECAL, Model (Recoil) 7 4-6277 DECAL, Tecumseh 5HP CARB/EPA Certified

SINGLE STAGE SNOW THROWER MANUAL No. 06016

11

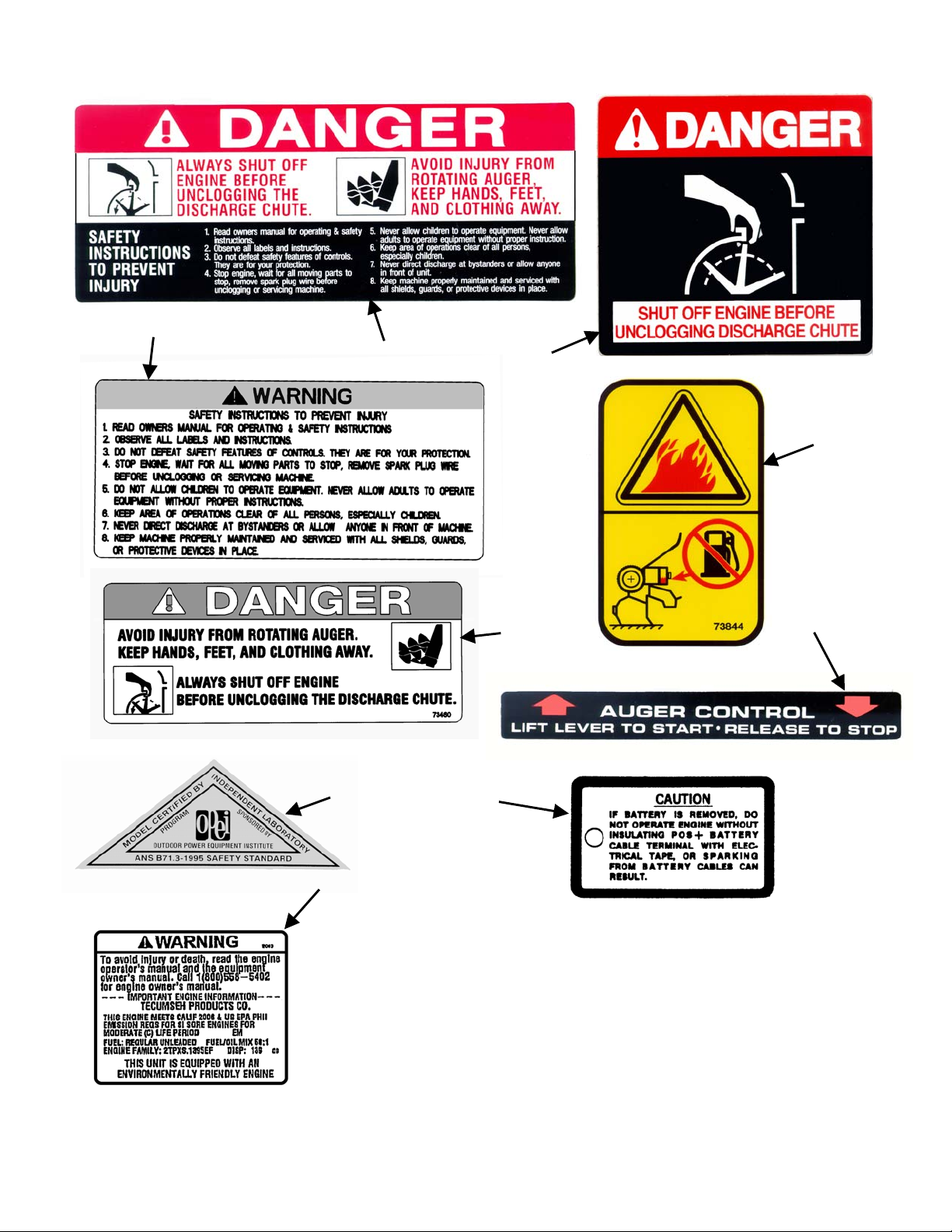

DECALS

(Continued)

9

8

11

14

10

12

15

ITEM PART NO. DESCRIPTION

8 2-7448 DECAL, Chute Danger

9 7-3461 DECAL, Warning Safety Instructions 10 7-3460 DECAL, Danger Chute 11 2-4773 DECAL, Hand Danger 12 7-3342 DECAL, OPEI, Snow 13 2-8309 DECAL, OPC 14 7-3844 DECAL, Fuel Safety 15 7-4548 DECAL, 2002 Year of Manufacture (not shown) 16 1-6134 DECAL, Caution Tag 17 7-2630 DECAL, Carb/EPA Certified (Tecumseh)

16

13

MANUAL No. 06016 SINGLE STAGE SNOW THROWER

12

1

Tecumseh No. 1133-106

ITEM PART NO. DESCRIPTION

-- -- KIT, Electric Start (Tecumseh # 590670, refer to Tecumseh Engineering # 179-146)

1 9-0866 SCREW, #10-24 x 1-3/4” Pan Head Phillips (2) 2 9-0623 NUT, #10-24 Hex Flange Lock (2) 3 9-1702 WASHER, #10 Flat (2)

3

10 FT. CORD INCLUDED WITH STARTER KIT )Tecumseh Part

2

*Parts Available Only from Engine Manufacturer.

Numbers 1A174-17 or 32450-B Snapper P/N 2-9747

ELECTRIC START

SINGLE STAGE SNOW THROWER MANUAL No. 06016

13

SERVICE NOTES

___________________________________________________________________

14

SERVICE NOTES

___________________________________________________________________

15

Parts Manual for

SINGLE STAGE SNOW THROWER SERIES 0

MODELS

SX5200R SX5200E

MANUAL No. 06016 (Rev. 4, 6/30/02) Printed in U.S.A.
