Snapper SST-BC User Manual

Specifications and Main Features

  • Model: Brush Cutter (Snapper SST-BC)
  • Engine: 34cc Briggs & Stratton 4 cycle
  • Shaft Type: Straight
  • Shaft Length: 62.5 inches.
  • Cutting Width: nylon line – 17 inches, blade – 8 inches
  • Cutter Diameter: .095 inches / 2.4 mm
  • Weight: 13.7lbs (J Handle Bar Unit 6.264kg, Bike Handle Bar 6.292kg)
  • Head Type: Bump feed with inclusion of 8 inches diameter blade
  • Starting Type: Easy start 4 cycle
  • Type of Handle: J Type (SST-BC) and optional Bike Handle
  • Clutch: Yes
  • Shoulder Harness: Yes
  • Warranty: 2 years for Consumer, 90 days for Commercials
  • Volume of Fuel Reservoir: 296cm3
  • Maximum Engine Performance: 0.746 kw
  • Maximum Operational Rotational Speed of the Spindle: 6467RPM
  • Maximum Engine Speed corresponding to Maximum Spindle Speed: 8600RPM
  • Low Idling Engine Speed: 3600RPM
  • Fuel Burn: 0.399 kg/h
  • Specific Fuel Consumption: 542 g/kWh
  • Vibration Levels:

– Wide Open Throttle – Left Hand=3.20 m/s², Right Hand=2.76 m/s²

– Idle – Left Hand=2.14 m/s², Right Hand=2.28 m/s²

  • Sound Pressure Levels: Operator Ear Lp dB(A)= 91.44

——

Frequently Asked Questions

A1: The Snapper SST-BC Brush Cutter is powered by a 34cc 4-cycle Briggs & Stratton engine which gives it more pace.

Q2: Could you provide me with the measurements of the SST-BC Brush Cutter?

A2: The unit weight is 13.7 lbs (6.264 kg for J Handle Bar Unit; 6.292 kg for Bike Handle Bar Unit).

Q3: How wide can the brush cutter be during the trimming session?

A3: The brush cutter possesses a trimming range of 17 inches with a nylon line and 8 inches with a blade.

Q4: Will I be provided with a shoulder harness along with the device?

A4: Yes, a shoulder harness is included.

Yes, a shoulder harness is included.

Q5: How long can I use the Snapper SST-BC before I have to get it checked or serviced?

A5: The warranty is 2 years while used in the consumer sector and 90 days while used commercially.

Q6: Is there something specific that I should do if I face issues starting the engine?

A6: Improper fuel or plugged fuel filters or carburetor(idle speed outside of limits) may be seen as some reasons and it is suggested that you take these points into consideration.

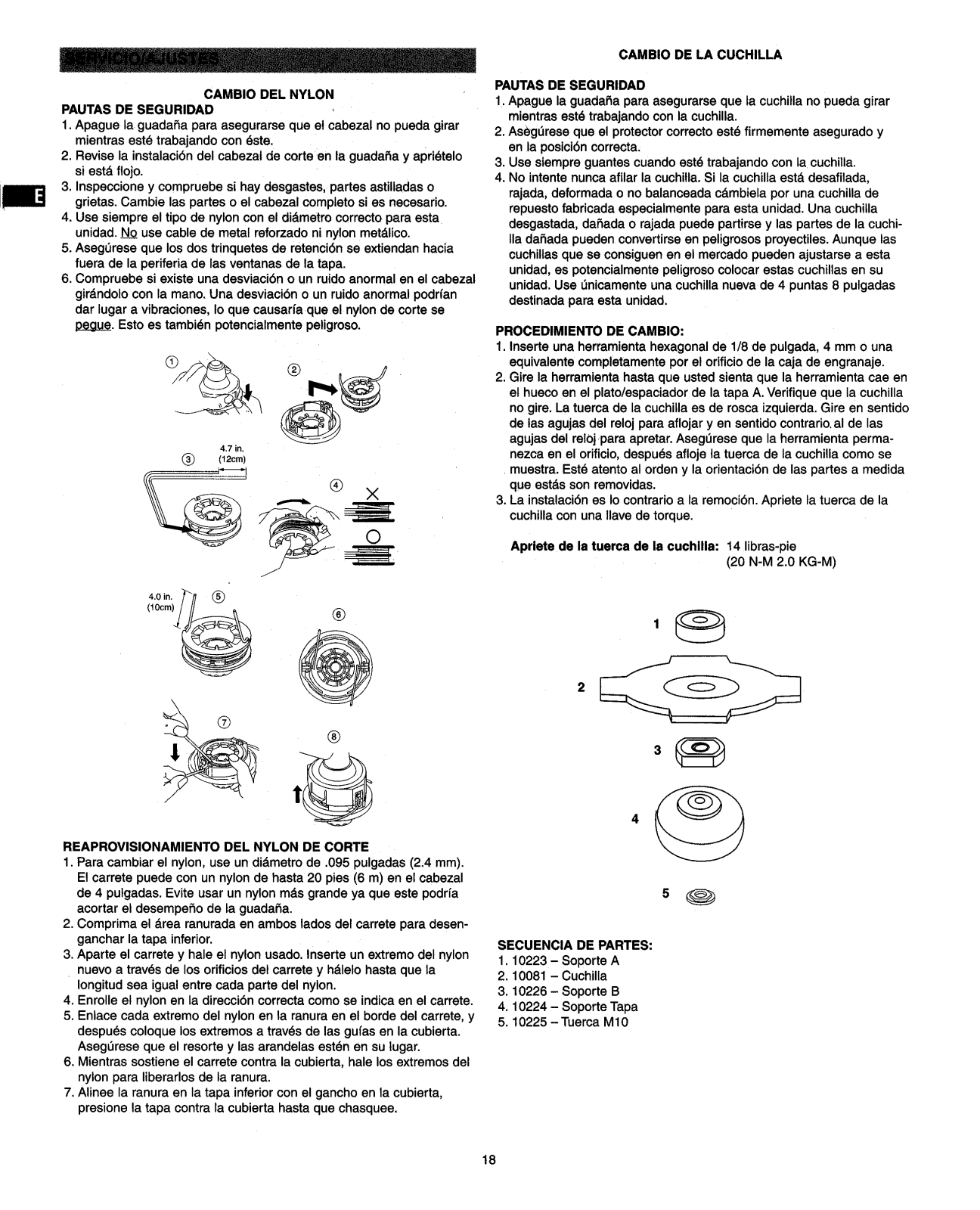

Q7: What can I do to change the trimming line?

A7: Use .095 inch (2.4 mm) diameter replacement line as instructed in the manual. Moreover, read about spool removal and installation of line for a better experience.

Q8: What safety measures do you recommend to your users while handling a brush cutter?

A8: As a coverall, always put on all necessary protective gear, keep bystanders out of the brush cutter operation zone and do not use the cutter in any indoor area or a confined setting.

Q9: Is it permissible to install aftermarket blades on the unit SST-BC Brush Cutter?

A9: Certainly not, it is a very high safety risk to apply any aftermarket head or attachment or accessory onto this device. Only installation made parts by Snapper for this apparatus should be utilized.

Q10: Whom should I contact for seeking customer support in relation to Snapper SST-BC?

A10: In case of any queries regarding the customer support reach out to the Snapper Customer Relations via 1-800-935-2967.
