520 Single Stage Snow Throwe
Series 0 & 1
MODEL
SS5200
SS5200
SS5201
SS5201
Briggs & Startton Yard Power Products Group
Copyright © 2006
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
McDonough, GA, 30253 U.S.A.
Revision 3,
11/20/2006
Manual No. 7006178
TP 400-5006-3-LE-N
s
PAGE GROUP
4
8
12
16
Frame, Handle, & Engine Group
Auger Housing and Chute Group
Auger and Drive Group
Decal Group
Table Of Content
Series 0 & 1
Manual No. 7006178520 Single Stage Snow Thrower
3
TP 400-5006-3-LE-N
Frame, Handle, & Engine Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
4
Series 0 & 1
Frame, Handle, & Engine Group
p
y
Part No Descri
1 1720525 1 HANDLE, Auger Control
2 1720641 1 HANDLE, Upper
3 1921961 3 CAPSCREW, Hex Head, 1/4-20 x 1-1/4”
4 1923358 1 NUT, Hex Centerlock, 1/4-20
5 1720323 1 CABLE, Auger Control
6 925094 1 TIE, Self Locking
7 1931338 2 BOLT, 5/16-18 x 1-3/4” Round Head
8 1716678 1 SNAP BUSHING, 3/8
9 1720574 1 BRACKET, Chute Rotator Rod
10 1933896 1 NUT, Hex Lock, #10-24
11 1920397 4 NUT, Hex Lock Esna, 1/4-20
12 7035744 2 KNOB, Wing (5/16-18 Black) was 1716632
13 1717312 2 WASHER, Curved, 5/16”
14 1720573 1 HANDLE, Lower
15 1919326 6 WASHER, 5/16 I.D. x 3/4 O.D. Flat
16 1921332 6 CAPSCREW, Hex Head, 5/16-18 x 3/4”
17 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1” ref. Snapper part no. 7027168
18 1917356 4 LOCKWASHER, 5/16”
19 1921332 4 CAPSCREW, Hex Head, 5/16-18 x 3/4”
20 7015368 1 CORD, Extension (Electric Start Models)
21 1716608 1 SHAFT, Axle
22 1924940 4 WASHER, .41 I.D. x .87 O.D.
23 7100909 2 TIRE, Semi-pneumatic replaces 1716607
24 1716622 2 RING, Retainer, Ext., #37
25 7100088 2 CAP, Hub replaces 1716664
26 1716613 1 WELDMENT, Frame Assy.
27 1719541 1 BRACKET, Reinforcement
28 1919438 9 NUT, Hex Lock, Esna, 5/16-18
29 1720322 1 STRAP, Support
30 960604 1 SCREW, Hex Washer Head, #10-24 x 1-1/4”
31 1 * ENGINE, Manual Start Mod HSK850-8319D
31 1 * ENGINE, Electric Start Mod HSK850-8325D
32 1716638 1 BRACKET, Fuel Tank
33 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4”
34 1716646 1 CAP, Fuel Tank
35 1716634 1 TANK, Fuel
36 1921319 2 WASHER, .27 I.D. x .62 O.D.
tionItem Qt
Note
Footnotes:
NOTE: * See your local Tecumseh distributor for service parts.
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
5
TP 400-5006-3-LE-N
Frame, Handle, & Engine Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
6
Series 0 & 1
Frame, Handle, & Engine Group
p
y
Part No Descri
37 1723104 1 HOSE CLAMP (worm type) or 1679061 (Hose Clamp, Wire)
38 1716681 1 HOSE, Fuel, 5-1/2” long
38 7076272 1 HOSE, Fuel, 8-1/2” long
39 1960112 3 HOSE CLAMP, Wire Form
40 173206 1 FILTER, Fuel
41 1716676 1 SNAP BUSHING, 1/4”
42 1720640 1 BRACKET, Starter Handle
43 7041954 1 HANDLE, Start (Mitten)
44 7075342 1 HOLDER, Snostik- Lower (5/16-18 thread)
45 7071895 1 HOLDER, Snostik- Upper
46 7091757 1 SCREW, #10-24 x 1-1/4” Hex Head Cap
47 7090011 2 WASHER, #10 Internal Tooth Lock
48 7091267 1 NUT, #10-24 Hex Center Lock
49A 7075909 1 SNOW STICK
49B 1733209 1 SNOW STICK w/Brush replaces 7075909
tionItem Qt
Note
Footnotes:
NOTE: * See your local Tecumseh distributor for service parts.
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
7
TP 400-5006-3-LE-N
Auger Housing and Chute Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
8
Series 0 & 1
Auger Housing and Chute Group
p
y
Part No Descri
1 7075689 1 HOUSING, Upper Plastic w/Louvers 520 Snow Snapper Red Part
2 1928732 2 SCREW, Hex Head, Taptite #10-24 x 1”
3 1960593 2 NUT, Retainer, Speed #10-24 w/Extrusion
4 1716628 1 COLLAR
5 1923341 9 CAPSCREW, Hex Head, 1/4-20 x 3/4” GR 5
6 1716640 1 GASKET
7 1716625 2 RETAINER
8 1716641 1 RETAINER, Gasket
9 1960521 8 NUT, Push for .156 dia. Stud
10 1716611 1 BASE, Chute
11 1960093 1 NUT, Push, Pal, 3/8”
12 1714084 1 KNOB, Chute, Rotate
13 1720578 1 HANDLE, Chute Rotator Upper
14 918454 2 PIN, Cotter, 1/8 x 1-1/2”
15 1716630 1 BRACKET, Gear
16 1716636 1 GEAR, Idler
17 1716635 1 GEAR, Drive
18 1927429 4 SCREW, Hex Head Taptite, 1/4-20 x 5/8”
19 1716658 1 ASSEMBLY, Universal Joint
20 1916622 2 NUT, Hex, 1/4-20
21 1916964 2 LOCKWASHER, Spring, 1/4”
22 1920397 11 NUT, Hex Lock Esna 1/4-20
23 1960001 3 SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8”
24 1716609 1 HOUSING, Auger
25 1921319 9 WASHER, 1/4”
26 1931318 4 CARRIAGE BOLT, 1/4-20 x 7/8”, GR 5
27 1716606 1 SCRAPER BAR
28 1716596 1 SCOOP
29 1933896 1 NUT, Hex Lock, #10-24
30 1933126 2 NUT, Wing 5/16-18 Lock
31 1960570 1 SCREW, Truss Head Torx, #10-24 x 5/8” GR 5
32 1716610 1 PLATE, Chute Base
33 1960001 2 SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8”
34 1960282 3 CARRIAGE BOLT, 5/16-18 x 3/4”
35 1919326 3 WASHER, 5/16
36 1919438 4 NUT, Hex Lock ESNA Light 5/16-18
tionItem Qt
Note
Footnotes:
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
9
TP 400-5006-3-LE-N
Auger Housing and Chute Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
10
Series 0 & 1
Auger Housing and Chute Group
p
y
Part No Descri
37 1716612 1 CHUTE
38 1931335 2 CARRIAGE BOLT, 5/16-18 x 1”, GR 5
39 1716642 2 WASHER, Octagon
40 1716624 2 WASHER, Rubber
41 7035744 1 KNOB, Wing (5/16-18 Black) was 1716632
42 1920283 2 WASHER, 1-1/2 O.D.
43 1716631 1 DEFLECTOR, Chute
44 1720576 1 HANDLE, Chute Rotator Lower, E-Coat
45 1720577 1 TUBE, Chute Handles 1/2 OD 7.00 Long E-Coat
46 1926228 1 PIN, Spring 5/32 x 1” SAE 1095
47 1960074 1 CLIP, Hair Pin .093 Dia. Spring Wire 1.625 long
tionItem Qt
Note
Footnotes:
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
11
TP 400-5006-3-LE-N
Auger and Drive Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
12
Series 0 & 1
Auger and Drive Group
p
y
Part No Descri
1 1960241 8 RIVET, Pop, 1/4 x 1/2”
2 1960570 8 SCREW, Truss Head Torx, #10-24 x 5/8” GR 5
3 1910531 8 WASHER, Rivet
4 1933896 8 NUT, Hex Lock, #10-24
5 1716595 1 FRAME, Right Side
6 1665521 2 BALL BEARING, Auger
7 1716649 2 RETAINER, Bearing
8 1718151 1 WELDMENT, Auger
9 1686705 1 KIT, Flighting Replacement (includes Ref. Nos. 10 & 11,
10 1718207 8 FLIGHTING, Rubber
11 1716661 4 CENTER FLIGHT, Rubber
12 1716590 1 FRAME, Left Side
13 1960001 1 SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8”
14 1716619 1 SHIELD, Belt
15 1716663 1 AIR DEFLECTOR
16 1929477 1 SCREW, Hex Head, #10-24 x 1-1/4”
17 905850 1 KEY, Parallel .187 x .187 x 1”
18 1716616 1 PULLEY, Drive
19 1960141 1 WASHER
20 1917356 1 LOCKWASHER, 5/16” Spring
21 1921982 1 CAPSCREW, Hex Head, 5/16-24 x 1-1/4”, GR 5
22 1921969 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2”, GR 5
23 1924940 1 WASHER, 3/8”
24 1716615 1 PULLEY, Idler ref. Snapper part no. 7010948
25 1716618 1 IDLER ARM
26 1931211 1 NUT, Flange Whiz Lock, 3/8-16
27 1923358 1 NUT, Hex Centerlock 1/4-20
29 1716656 1 ROLLER, Belt Stop
30 1716653 1 SPRING, Idler Return
31 1921960 1 CAPSCREW, Hex Head, 1/4-20 x 1” GR 5
32 1924009 1 CAPSCREW, Hex Head, 1/4-20 x 7/8” GR 5
33 1716617 1 BRACKET, Belt
34 1927429 1 SCAPCREW, Hex Washer Head Taptite, 1/4-20 x 5/8”
35 1716655 1 SPACER, Pulley
36 1716614 1 PULLEY, Driven
37 1716645 1 BELT, Drive Poly Rib J; 37.525” effective
38 1716589 1 BELT GUARD
tionItem Qt
Note
plus fasteners and instructions)
length
Footnotes:
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
13
TP 400-5006-3-LE-N
Auger and Drive Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
14
Series 0 & 1
Auger and Drive Group
p
y
Part No Descri
39 1716654 1 IDLER PIVOT BOLT
40 1714055 1 FLANGE NUT, Ignition Switch, 5/8-32
41 1716637 1 CONTROL PANEL
42 1716627 1 HOUSING, Lower
43 1921319 3 WASHER, 1/4
44 1960568 2 SCREW, Hex Head, Taptite, 1/4-20 x 7/8”
45 1718337 1 SWITCH, Ignition
46 1716676 1 SNAP BUSHING, 1/4”
47 1714054 1 KEY, Ignition
48 1960595 1 SPEED NUT, 1/4-20
49 1919438 1 NUT, Hex Lock ESNA Light 5/16-18
50 1920397 1 NUT, Hex Lock Esna 1/4-20
51 960604 4 SCREW, Hex Head, Taptite, #10-20 x 1/2”
52 1933896 1 NUT, Hex Lock, #10-24
53 7014638 1 PRIMER, Tecumseh 1/4-20
54 7091100 1 NUT, 1/4-20 Hex, GR 5 or B
55 1716675 1 LINE, Primer
tionItem Qt
Note
Footnotes:
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
15
TP 400-5006-3-LE-N
Decal Group
Manual No. 7006178 520 Single Stage Snow Thrower
TP 400-5006-3-LE-N
16
Series 0 & 1

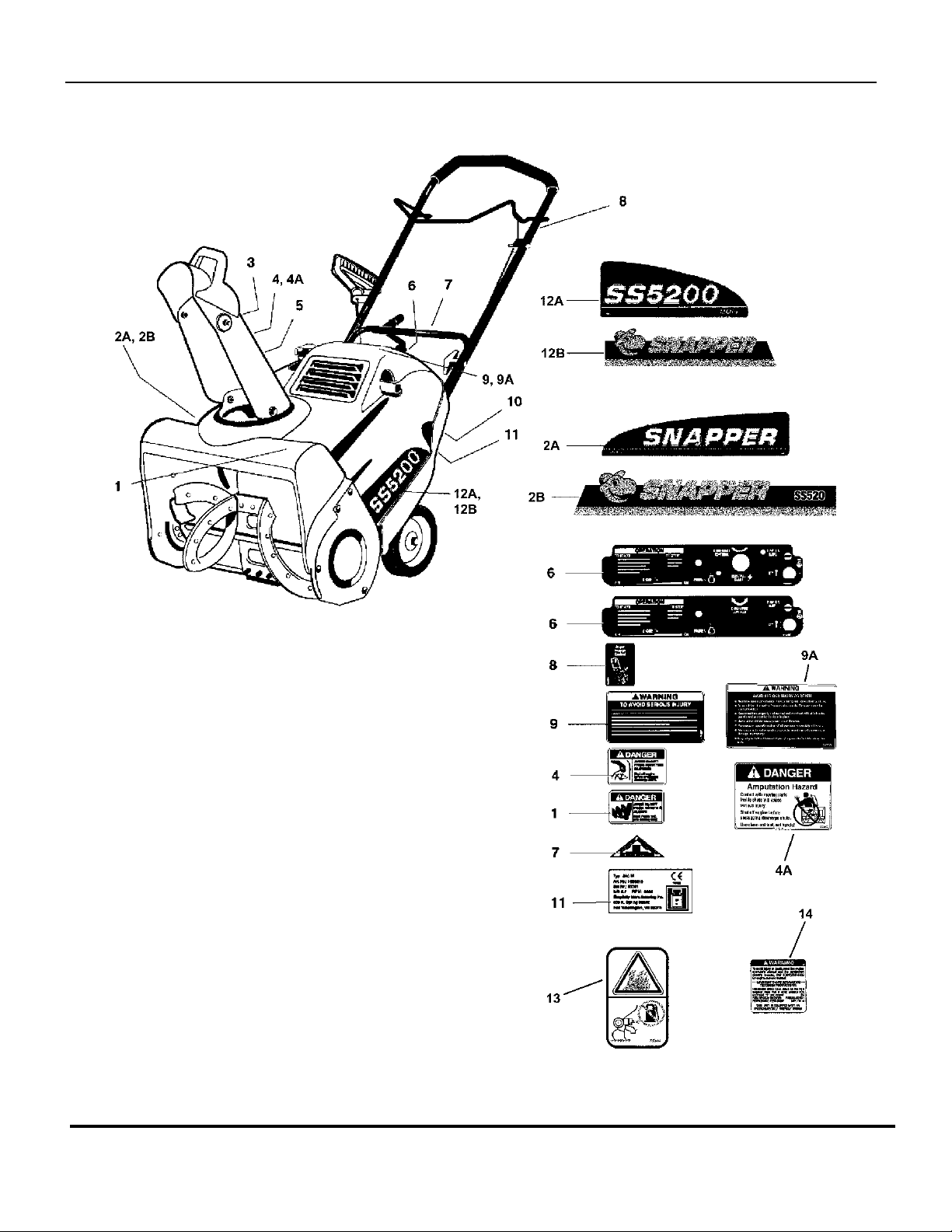

Decal Group
p
y
Part No Descri
1 1716532 1 DECAL, Danger, Auger
2A 7075691 1 DECAL, 5200 Logo, Right Hand (Snapper)
2B 7100786 1 DECAL, Top Cover RH (Snapper) replaces 7075691 on SS5201R
3 1717960 1 DECAL, Power-Mass (export models only) not shown
4 1716533 1 DECAL, Danger, Discharge Chute
4A 1733057 1 DECAL, Danger, Chute/Deflector replaces 7071880 on SS5201R
5 1709933 1 DECAL, C.E. (export models only) not shown
6 1716669 1 DECAL, Console (electric start models)
6 1716670 1 DECAL, Console (manual start models)
7 1 DECAL, OPEI Not a Service Part.
8 1716672 1 DECAL, Auger Control
9 1716671 1 DECAL, Warning
9A 7026733 1 DECAL, Warning, Safety Instructions replaces 7073461
10 1 DECAL, Compliance Not a Service Part.
11 1 DECAL, Serial Number Not a Service Part
12A 7075692 1 DECAL, 5200 Logo, Left Hand (Snapper)
12B 7100787 1 DECAL, Top Cover LH (Snapper)
13 7073844 1 DECAL, Fuel Safety Snapper Decal
14 7100699 1 DECAL, Tec. 5HP Carb/EPA Certified or 7045000
tionItem Qt
Note
& SS5201E
& SS5201E
Footnotes:
Manual No. 7006178520 Single Stage Snow Thrower
Series 0 & 1
17
TP 400-5006-3-LE-N
Parts Manual fo
r
520 Single Stage Snow Thrower
Series 0 & 1
