Snapper SPE150KH, SPE140KW, SPE1250KW Owner’s Manual

Safety Instructions and Operator's Manual for

PRO GEAR EXPRESS

WALK BEHIND MOWERS

MID-SIZE

SERIES 0

POWER UNIT

MODEL

SPE1250KW
SPE140KW

SPE150KH

MOWER UNIT

MODEL

SPE361
SPE481

MODEL NUMBER EXPLANATION

t P E 125 0 KW

MODEL DESIGNATION
MODEL TYPE

MODEL OPTION

S - Snapper Commercial Model

P- Pro Mid Size Model
E- Express Model

Thank you for buying a SNAPPER Product! Before operating your PRO GEAR WALK BEHIND, read this manual
carefully and pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all

power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!

ENGINE HORSE POWER
125- 12.5 Engine HP
140- 14.0 Engine HP

150- 15.0 Engine HP

CUTTING DECK WIDTH

361 - 36" Cutting Deck

481 -48" Cutting Deck

I

SERIES DESIGNATION

0- Series Designation KW - Kawasaki Engine

ENGINE TYPE

ENGINE HP

KH - Kohler Engine

COPYRIGHT © 2000
SNAPPER INC
ALL RIGHTS RESERVED

SNAPPERMcDonough,GA,, 30253 U.S.A.

MANUAL No. 7-3683 (I.R. 5/15/00)

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious

injury or death to the operator or other persons. The owner of the machine must understand these instructions

and must allow only persons who understand these instructions to operate machine. Each person operating the

machine must be of sound mind and body and must not be under the influence of any substance, which might

impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer
cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,
Georgia 30253. Phone: [phone]).

PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often
attracted to the machine and the mowing activity.

Never assume that children will remain where you last
saw them.

1. KEEP children out of the mowing area and under
the watchful care of a responsible adult.

2. DO NOT allow children in yard when machine is
operated (even with the blades OFF).

3. DO NOT allow children or others to ride on

machine or on attachments (even with the blades

OFF). They may fall and be seriously injured.

4. DO NOT allow pre-teenage children to operate or
service the machine. Local regulations may

restrict the age of the operator.

5. ALLOW only adults or responsible teenagers with
mature judgment under close adult supervision to

operate machine.

6. DO NOT operate blades in reverse. STOP BLADES.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

7. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may

obscure vision.

SLOPE OPERATION

1. Slopes are a major factor related to slip and fall

accidents, which can result in severe injury. All
slopes require extra caution and slow speed. If
you feel uneasy on a slope, DO NOT mow it.

2. Mow across slopes, never up and down. Exercise
extreme CAUTION when changing directions on

slopes. Practice operation of machine on slopes
with blades off.

3. Use extra care with grass catchers or other
attachments: these affect the handling and the
stability of the machine.

4. DO NOT use tow behind attachments on slopes.

5. AVOID uphill starts.

6. Turf conditions can affect the machine's stability.

DO NOT operate machine under any condition

where traction, steering or stability is doubtful.

PREPARATION

1. Read, understand and follow instructions and

warnings in this manual and on the machine,
engine, and attachments. Know the controls and

the proper use of the machine before starting. If
the operators or mechanics cannot read English, it is
the owner's responsibility to explain this material to

them.

2. Only mature, responsible persons shall operate
the machine and only after proper instruction. The
owner is responsible for training the operators.

Further, the owner/operator can prevent and/or is
responsible for accidents or injuries occurring to

themselves, other people or property.

3. Data indicates that operators age 60 and above,
are involved in a large percentage of mower-

related injuries. These operators should evaluate

their ability to operate the mower safely enough to

protect themselves and others from serious injury.

4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved

fuel container. DO NOT remove fuel cap or add
fuel with engine running. Add fuel outdoors only
with engine stopped and cool. Clean spilled fuel

from machine. DO NOT smoke.

5. Practice operation of machine with BLADES OFF
to learn controls and develop skills.

6. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limbs and other

objects that could cause injury if thrown by blade
or interfere with mowing.

7. Evaluate the terrain to determine what accessories
and attachments are needed to properly and safely

perform the job. Only use accessories and

attachments approved by SNAPPER

8. Keep people and pets out of mowing area.

Immediately, STOP blades, STOP engine, and Stop
machine if anyone enters the area.

9. DO NOT operate machine unless all shields,
deflectors, switches, blade controls and other
safety devices are in place and functioning

properly.

10. Make sure all safety decals are clearly legible.
Replace if damaged.

A IMPORTANT SAFETY INSTRUCTIONS A

PREPARATION

(Continued From Previous Page)

11. Protect yourself when mowing and wear
appropriate clothing including safety glasses, long

pants, ear protection, hardhat and substantial

footwear with good traction. Long hair, loose
clothing or jewelry may get tangled in moving

parts.

12. Know how to STOP blades and engine quickly in

preparation for emergencies.

13. Use extra care when loading or unloading the

machine into a trailer or truck.

14. Check grass catcher components frequently for
signs of wear or deterioration and replace as

needed to prevent injury from thrown objects

going through weak or worn spots.

OPERATION

1. DO NOT put hands or feet near or under rotating

parts. Keep clear of the discharge area while the

engine is running.

2. BEFORE STARTING ENGINE, blades must be OFF

and Traction Levers LOCKED in the Traction Lock

position.

3. Stop Blades when crossing gravel drive, walks,
and under any conditions where thrown objects

might be a hazard.

4. DO NOT raise deck with the blades running.

5. Mow only in daylight or good artificial light.

6. USE EXTRA CARE when approaching blind
corners, shrubs, trees or other objects that may

obscure vision.

7. DO NOT operate the machine while under the

influence of alcohol or drugs.

8. After striking a foreign object or if the mower
vibrates abnormally, STOP the blades and engine.

Remove the key. Disconnect and secure the spark
plug wire. Inspect the mower for any damage and
repair the damage.

9. DO NOT operate machine near drop offs, ditches,
embankments, washouts culverts, fences and

protruding objects. STAY ALERT for holes and

other hidden hazards. Tall grass can hide
obstacles.

10. DO NOT operate machine on wet grass. Always be

sure of your footing while operating machine,
especially while backing up. Keep a firm grip on
the handle. Walk: never run. Slipping and falling
could cause injury.

11. DO NOT leave the machine with the engine
running. STOP BLADES, STOP ENGINE and
REMOVE KEY before leaving the operator position

for any reason.

OPERATION

(Continued From Previous Column)

12. Before cleaning, repairing, or inspecting make
certain blades, engine and all moving parts have

STOPPED. Remove key and secure spark plug
wire away from spark plug key to prevent
accidental starting.

13. STOP MACHINE on level ground, engage parking

brake (if equipped) and make sure engine and
blades have stopped before leaving the operator's
position for any reason including removing grass

catcher or unclogging mower to prevent injury to

hands or feet.

14. Blades must be OFF except when cutting grass.
Set blades in highest position when mowing over

rough ground.

15. Keep hands and feet away from rotating blades

underneath deck.

16. DO NOT operate machine without entire grass
catcher or guards in place. DO NOT point

discharge at people, passing cars, windows or
doors.

17. Slow down before turning.

18. Watch out for traffic when near or crossing

roadways.

19. Move motion control levers SLOWLY to maintain
control during speed and directional changes.

20. DO NOT operate engine in enclosed areas. Engine
exhaust gases contain carbon monoxide, a deadly

poison.

MAINTENANCE

1. Shut off fuel while storing or transporting. DO
NOT store machine or fuel container inside where

fumes may reach an open flame, spark or pilot

light such as in a water heater, furnace, clothes

dryer or other gas appliance. Allow engine to cool

before storing machine in an enclosure. Store fuel

container out of the reach of children in a well
ventilated, unoccupied building.

2. Clean grass and debris from engine, mufflers,
drives and cutting units to help prevent fires.
Clean up fuel, oil and excess grease.

3. When draining fuel tank, drain fuel into an
approved container outdoors and away from open

flame.

4. Check brakes frequently (if equipped); adjust,

repair or replace as needed.

5. Keep all bolts, nuts and screws properly tight.

Check that all cotter pins are in proper position.

6. Always provide adequate ventilation when running
engine. Exhaust gases contain carbon monoxide,

an odorless and deadly poison.

3

A IMPORTANT SAFETY INSTRUCTIONS

MAINTENANCE
(Continued From Previous Page)

7. Disconnect battery before performing
maintenance or service. Cranking engine could

cause injury. Disconnect negative (black) cable
from battery first and positive (red) last.

Reconnect positive first and negative last. Charge
battery in an open well ventilated area, free from

spark and flames. Unplug charger before
connecting or disconnecting from battery. Wear

protective clothing and insulated gloves.

8. Park machine on level ground. DO NOT work
under machine without safety blocks.

9. Service engine and clean, adjust or repair only

when engine and blades are stopped. Remove key.

Remove spark plug wire(s) from spark plug(s) and

secure wire(s) away from spark plug(s).

10. DO NOT change engine governor speed settings
or overspeed engine. DO NOT make adjustments
with the engine running.

11. Lubricate machine at intervals specified in manual
to prevent controls from binding.

12. Mower blades are sharp and can cut, Wrap the

blades or wear heavy leather gloves and use
CAUTION when handling them. DO NOT straighten
or weld blades, only replace them.

13. DO NOT test for spark by grounding spark plug

next to spark plug hole; spark plug could ignite
gas exiting engine.

14. Carefully release pressure from components with

stored energy.

15. Have machine serviced by an authorized
SNAPPER dealer at least once a year and have the

dealer install any new safety devices. DO NOT
allow untrained personnel to service the machine.

16. Use only genuine SNAPPER replacement parts to
assure that original standards are maintained.

A

4

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ................................................................................... 2-4

TABLE OF CONTENTS ................................................................................................................ 5

SECTION 1 - FAMILIARIZATION ................................................................................................. 6

SECTION 2 - SAFETY MESSAGES&SYMBOLS ................................................................... 7-8

Controls ................................................................................................................. 9

SECTION 3 -OPERATING INSTRUCTIONS ........................................................................ 10-16

Before Operating .......................................................................................................... 10

Stopping Machine ........................................................................................................ 10

Pre-Start Checklist ....................................................................................................... 11

Starting and Operating ........................................................................................... 11-13

Reverse Operation ........................................................................................................ 13

Traction Lock Operation .............................................................................................. 14

Turning Mower .............................................................................................................. 14

Mowing and Turning on Hillsides ............................................................................... 14

Cutting Height Adjustment (Fixed Decks) ................................................................. 15

Adjusting Caster Wheels ............................................................................................. 15

Adjusting Blade on Cutter Spindle ........................................................................ 15-16

Adjusting Fixed Deck Attachment .............................................................................. 16

SECTION 4 - TROUBLESHOOTING ..................................................................................... 17-18

Engine Troubleshooting .............................................................................................. 17

Mower Troubleshooting ......................................................................................... 17-18

Transmission Troubleshooting ................................................................................... 18

Service & Lubrication ................................................................................................... 18

SECTION 5 - ADJUSTMENTS .............................................................................................. 19-20

Steering and Brakes ..................................................................................................... 19

Traction Levers & Rods ............................................................................................... 19

Handle Height ............................................................................................................... 20

Transmission Shift Lever Adjustment ........................................................................ 20

SECTION 6 - POWER UNIT SERVICE ...................................................................................... 21

Replacement Parts ....................................................................................................... 21

Transmission Parts & Service ..................................................................................... 21

General Transmission Servicing ................................................................................ 21

Transmission/Lube ...................................................................................................... 21

SECTION 7 - MOWER ATTACHMENT SERVICE ................................................................ 22-24

Transmission Belt Removal/Installation .................................................................... 22

Traction Belt Removal/Installation ............................................................................. 22

Cutter Deck Belt Removal/Installation ....................................................................... 22

Cutting Blade Service: Removal, Sharpening, Balancing & Replacement ............. 23

Mower Spindles (Field Serviceable Spindles) Bearing Replacement ..................... 24

ELECTRICAL ......................................................................................................................... 25-26

WARRANTY ................................................................................................................................ 27

PRIMARY MAINTENANCE .................................................................................................... 28-31

5

SECTION 1 - FAMILIARIZATION

TRANSMISSION SHIFT
LEVER

OPERATOR'S
PRESENCE
CONTROL (OPC)

TRACTION OPERATOR'S

LOCK KEY CONTROL (OPC)

SWITCH

PRESENCE

LH. TRACTION

R.H. TRACTION

LEVER

CAP

BELT

COVER

COVER
RETAINING

KNOBS

\

LEVER

SPEED

CONTROL

STARTER ROPE

AIR FILTER

MUFFLER

DECK COVER

DECK

(36"SHOWN)

41D...

DISCHARGE
DEFLECTOR

CASTER
WHEEL

ASSEMBLY

FIGURE 1.1

1.1 INTRODUCTION

This manual has been prepared for the operator's of the
SNAPPER PRO GEAR WALK BEHIND MOWER• Its

purpose, aside from recommending standard operating
procedures and routine service requirements, is to promote

SAFETY through the use of accepted operating practices•

Read, Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Pages 2 thru 4 of this manual and All

SAFETY messages on the PRO GEAR WALK BEHIND

MOWER and its attachments before operating• SNAPPER
recommends returning the MACHINE to an authorized

SNAPPER dealer annually for inspection and addition of any

new devices which might upgrade the safety of the mower.

DECK HEIGHT
ADJUSTMENTSPACERS

FRONT TIRES

1.2 NOMENCLATURE

It is recommended that all operator's of this equipment
become thoroughly familiar with the controls,
components, and operation of this machine before

operating. Specific details involving the engine are found
in the separate engine owner's manual. Study these
manuals before operating and keep both handy for future

reference. For the nearest SNAPPER dealer in your
area, check the yellow pages under the heading LAWN

MOWERS. For engine parts and service, look for the
engine manufacturer's dealers under the heading,

ENGINES - gasoline.

6

SECTION 2 - SAFETY MESSAGES AND SYMBOLS

CHOKE BLADES ENGAGED"ON" "STOP .... RUN"

I i i [E"G'NEIIE"°'NE]

I BLADES DISENGAGED"OFF" I

LEFT TRACTION LEVER

SQUEEZE FOR LEFT TURN

DANGER! ROTATING BLADES

KEEP CHILDREN AND OTHERS

OUT OF THE MOWING AREA

RIGHT TRACTION LEVER

SQUEEZE FOR RIGHT TURN

DANGER! ROTATING BLADES

7

SECTION 2 - SAFETY MESSAGES AND SYMBOLS

IMPORTANT SAFETY AND OPERATING INSTRUCTIONS

8

SECTION 2 - CONTROLS

KEY SWITCH
SHOWN IN

OPERATOR'S

PRESENCE

CONTROL
(OPC)

"STOP" POSITION

BLADE CLUTCH
SWITCH

ENGINE SPEED
CONTROL

TRANSMISSION
SHIFT LEVER

RIGHT HAND
TRACTION LEVER

TRACTION
LOCK

FIGURE 2.1

NOTE: TRACTION LOCK SHOWN IN THE

TRACTION LEVER "LOCKED" POSITION

To avoid sudden and unexpected turning, both Traction Levers must be moved the same way when stopping or

I _IL WARNING

starting machine motion.

9

SECTION 3 - OPERATING INSTRUCTIONS

3.1 BEFORE OPERATING

Be thoroughly familiar with all controls and how to use

them before operating the machine. Know beforehand

how to STOP the Traction Wheel Drives, Mower Blades

and Engine in preparation for possible emergencies.

3.2 STOPPING MACHINE

1. To STOP forward or reverse motion,

firmly squeeze

both Traction Levers towards the handle and hold.
Using your index fingers, pulI right and left Traction

Locks back until both Traction Levers lock in

Traction Locked position. See Figure 3.1.

2,

Make sure that both Traction Locks are in the

Traction Locked position.

3.

Release both Traction Levers slowly and with

caution.

4.

Move Transmission Shift Lever to "Neutral".

5.

Pull Blade Clutch Switch rearward to the OFF
position. See Figure 3.1.

6.

Move Engine Speed Control Lever to SLOW (turtle)
position. See Figure 3.1.

7.

STOP ENGINE by turning Key Switch to "Stop"

position. Remove key. See Figure 3.1.

ENGINE
SPEED

BLADE CLUTCH CONTROL

RIGHT HAND
TRACTION

LEVER

SWITCH
SHOWN IN OFF

POSITION

When the Operator's Presence Control (OPC) is

released, the machine will continue to operate a few

feet. DO NOT use this Operator's Presence Control

(OPC) to rout ne y stop the mach he.

WARNING I

TRACTION LOCK

SHOWN IN TRACTION
LOCKED POSITION

FIGURE 3.1

10

SECTION 3 - OPERATING INSTRUCTIONS

3.3 PRE-START CHECK LIST

Make the following checks and perform the services as
required before each start-up:

1. If required, make cutting height adjustments. Refer
to Section "CUTTING HEIGHT ADJUSTMENT".

2, Check tires and add air as needed to bring pressure

to 25 psi in front and 12-15 psi in rear tires.

3. Check Guards, Deflector, and Belt Covers to make
sure all are in place and secure.

4. Check Condition of Cutter Deck Belt(s). If dam-
aged, replace before operating machine. Refer to

Section "CUTTER DECK BELT REMOVAL".

5. Clean Interior and Exterior Surfaces of cutting deck
and clean Engine of any accumulation of dirt, grass,

oil, etc. Keep Engine air intake screens and cooling
fins clear at all times.

6. Check Engine Oil and add oil as needed to bring
level up to (but not over) the FULL mark. (Refer to
Engine manual for oil specifications).

7. Add Fuel to tank after pushing the Mower outside

where fumes can be dissipated. Make sure Fuel
Tank Cap is tightened after refueling. (Refer to

Engine manual for fuel specifications).

NOTE: DO NOT add fuel while engine is running or hot.

Use fresh, clean, lead-free gasoline. DO NOT use
gasoline that has been stored for long periods. Leaded
gasoline or gasohot is NOT recommended.

3.4 STARTING & OPERATING

3.4.1. ENGINE: START ENGINE AS FOLLOWS:

3. Place Transmission Shift Lever in NEUTRAL(N)

position. See Figure 3.3.

TRANSMISSION

SHIFT LEVER

FIGURE 3.3

4. Pull Blade Clutch Switch rearward to the OFF
position. See Figure 3.4.

1,

Turn Fuel Shut-OffValve ON. See Figure 3.2.

2,

Squeeze both Traction Levers toward the Handle
while pulling right and left Traction Locks rearward

until BOTH Traction Levers are LOCKED in the

Traction Locked position. See Figure 3.2.

RIGHT HAND
TRACTION

LEVER

TRACTION LOCK
SHOWN IN TRACTION

LOCKED POSITION

FUEL SHUT OFF

VALVE SHOWNIN
CLOSED POSITION

(ROTATE HANDLE 90

DEGREES TO OPEN)

FIGURE 3.2

BLADE CLUTCH

SWITCH SHOWN

IN OFF

FIGURE 3.4

(Continued on next page)

11

SECTION 3 - OPERATING INSTRUCTIONS

3,4 STARTING & OPERATING -

(Continued from previous page)

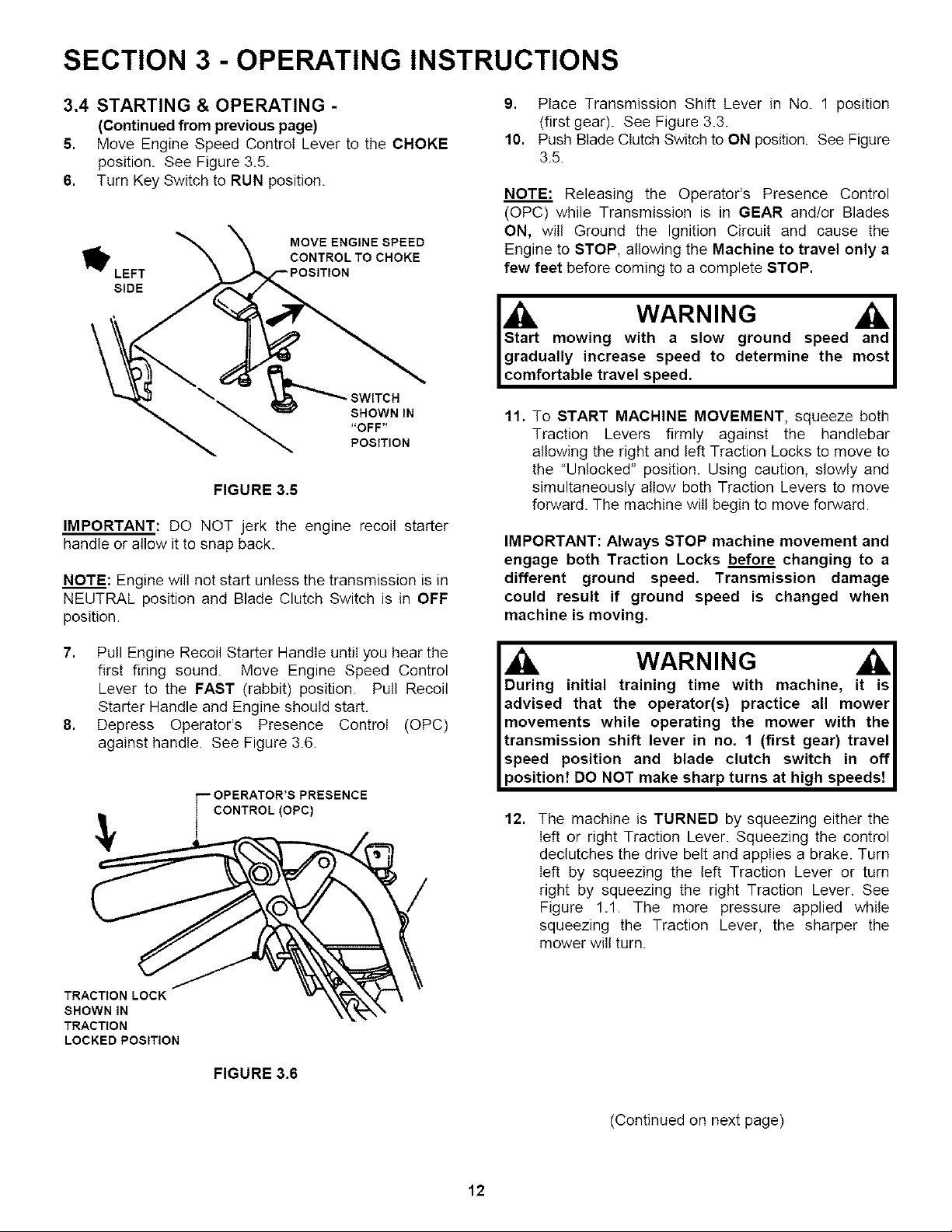

5. Move Engine Speed Control Lever to the CHOKE

position. See Figure 3.5.

6. Turn Key Switch to RUN position.

MOVE ENGINESPEED

I_LEFT

SIDE

CONTROL TO CHOKE

\

_ SWITCH

"OFF"

SHOWN IN

POSITION

FIGURE 3.5

IMPORTANT: DO NOT jerk the engine recoil starter

handle or allow it to snap back.

NOTE: Engine will not start unless the transmission is in
NEUTRAL position and Blade Clutch Switch is in OFF

position,

9. Place Transmission Shift Lever in No. 1 position

(first gear). See Figure 3.3.

10. Push Blade Clutch Switch to ON position. See Figure

3.5.

NOTE: Releasing the Operator's Presence Control
(OPC) while Transmission is in GEAR and/or Blades
ON, will Ground the Ignition Circuit and cause the
Engine to STOP, allowing the Machine to travel only a
few feet before coming to a complete STOP.

, IL WARNING

Start mowing with a slow ground speed and I
gradually increase speed to determine the most I

comfortable travel speed. I

11. To START MACHINE MOVEMENT, squeeze both

Traction Levers firmly against the handlebar
allowing the right and left Traction Locks to move to
the "Unlocked" position. Using caution, slowly and

simultaneously allow both Traction Levers to move
forward. The machine wilI begin to move forward.

IMPORTANT: Always STOP machine movement and

engage both Traction Locks before changing to a
different ground speed. Transmission damage
could result if ground speed is changed when
machine is moving.

7. Pull Engine Recoil Starter Handle until you hear the

first firing sound. Move Engine Speed Control
Lever to the FAST (rabbit) position. Pull Recoil

Starter Handle and Engine should start.

8. Depress Operator's Presence Control (OPC)
against handle. See Figure 3.6.

CONTROL(OPC)

TRACTION LOCK

SHOWNIN

TRACTION

LOCKED POSITION

FIGURE 3.6

WARNING

During initial training time with machine, it is
advised that the operator(s) practice all mower
movements while operating the mower with the
transmission shift lever in no. 1 (first gear) travel
speed position and blade clutch switch in off

position! DO NOT make sharp turns at high speeds!

12.

The machine is TURNED by squeezing either the

left or right Traction Lever. Squeezing the control
declutches the drive belt and applies a brake. Turn
left by squeezing the left Traction Lever or turn

right by squeezing the right Traction Lever. See
Figure 1.1. The more pressure applied while
squeezing the Traction Lever, the sharper the

mower wilI turn.

12

(Continued on next page)

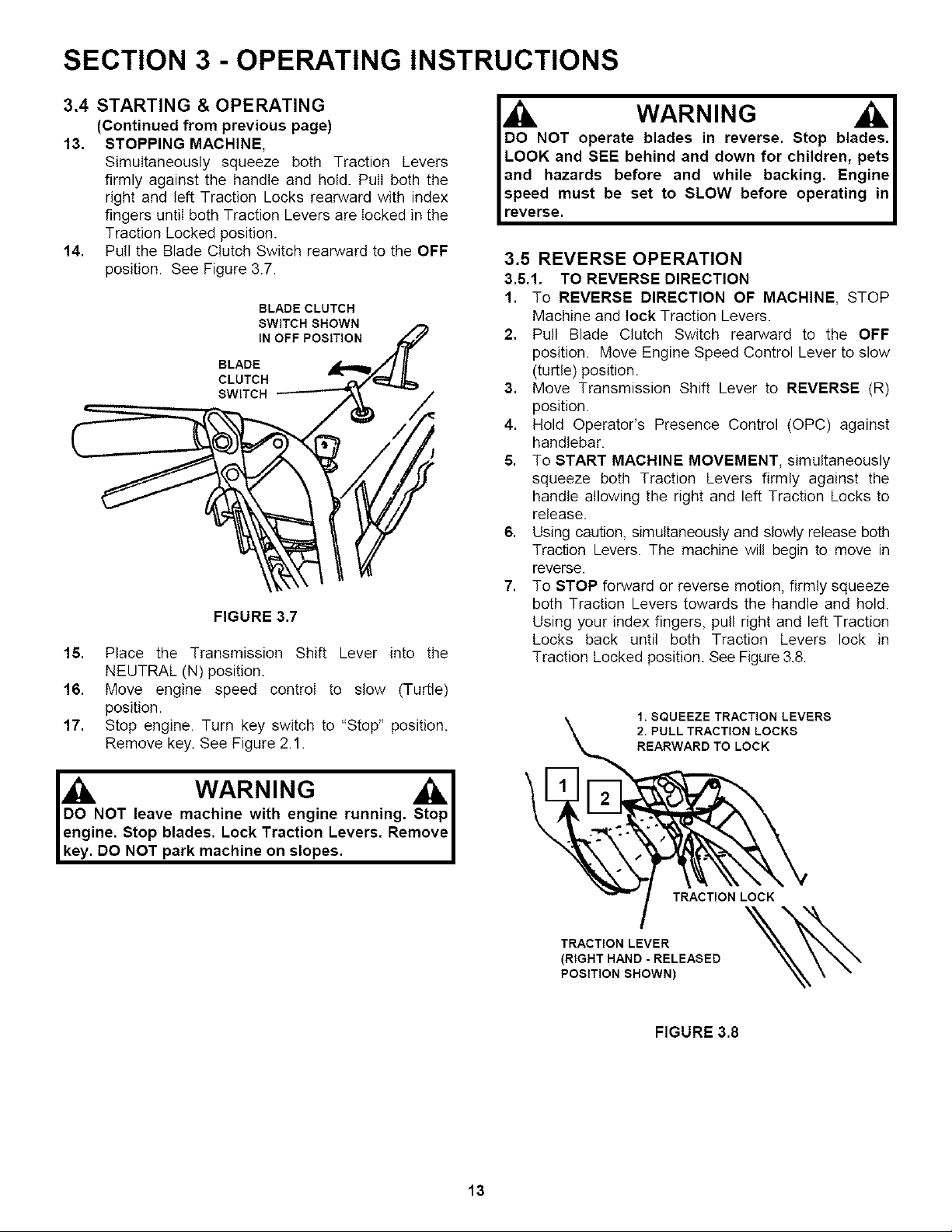

SECTION 3 - OPERATING INSTRUCTIONS

3.4 STARTING & OPERATING

(Continued from previous page)

13. STOPPING MACHINE,

Simultaneously squeeze both Traction Levers
firmly against the handle and hold. Pull both the

right and left Traction Locks rearward with index

fingers until both Traction Levers are locked in the
Traction Locked position.

14. Pull the Blade Clutch Switch rearward to the OFF
position. See Figure 3.7.

BLADE CLUTCH
SWITCH SHOWN

IN OFF POSITION

SWITCH

FIGURE 3.7

15. Place the Transmission Shift Lever into the

NEUTRAL (N) position.

16. Move engine speed control to slow (Turtle)
position.

17. Stop engine. Turn key switch to "Stop" position.
Remove key. See Figure 2.1.

WARNING

DO NOT operate blades in reverse. Stop blades.
LOOK and SEE behind and down for children, pets
and hazards before and while backing. Engine
speed must be set to SLOW before operating in

reverse.

3.5 REVERSE OPERATION

3.5.1. TO REVERSE DIRECTION

1. To REVERSE DIRECTION OF MACHINE, STOP

Machine and lock Traction Levers.

2. Pull Blade Clutch Switch rearward to the OFF
position. Move Engine Speed Control Lever to slow

(turtle) position.

3. Move Transmission Shift Lever to REVERSE (R)
position.

4. Hold Operator's Presence Control (OPC) against
handlebar.

5. To START MACHINE MOVEMENT, simultaneously
squeeze both Traction Levers firmly against the

handle allowing the right and left Traction Locks to
release.

6. Using caution, simultaneously and slowly release both
Traction Levers. The machine will begin to move in
reverse.

7. To STOP forward or reverse motion, firmly squeeze
both Traction Levers towards the handle and hold.

Using your index fingers, pull right and left Traction
Locks back until both Traction Levers lock in

Traction Locked position. See Figure 3.8.

1. SQUEEZE TRACTION LEVERS

2. PULL TRACTION LOCKS
REARWARD TO LOCK

WARNING AI

DO NOT leave machine with engine running. Stop I

engine. Stop blades. Lock Traction Levers. Removel

key. DO NOT park machine on slopes.

\

TRACTION LOCK

TRACTION LEVER
(RIGHT HAND - RELEASED

POSITION SHOWN)

FIGURE 3.8

13

SECTION 3 - OPERATING INSTRUCTIONS

WARNING

Brakes require maintenance. Inspect for proper
operation before operating machine. Refer to
Section "ADJUSTMENTS, STEERING AND

BRAKES".

3.6 TRACTION LOCK OPERATION -

3.6.1 TO LOCK

1. Simultaneously squeeze both Traction Levers
toward the handte, to stop movement of machine.

2, Using index fingers pulI right and Ieft Traction Locks

rearward until both Traction Levers are locked in the

Traction Locked position.

3.6.2 TO UNLOCK

1. Simultaneously squeeze both Traction Levers firmly

against the handle. The right and ieft Traction Locks
will move to the "Unlocked" position. See Figure 3.9.

IMPORTANT! Always make sure that both right and
left Traction Locks are in the same position before
moving or releasing the Traction Levers.

TRACTION LEVER
(LEFT HAND)

WARNING &l

Machine should always be in forward motion before I
attempting a turn. DO NOT attempt a turn from a[

stopped position. I

3.7 TURNING MOWER

3.7.1. GRADUAL RIGHT & LEFT HAND TURN

IMPORTANT: Squeezing the right or left traction lever

applies the brake to the right or left wheel. The brake
turns the machine right or left.

RIGHT TURN:

1. With machine in motion gradually squeeze the right
hand Traction Lever. The machine will turn to the right.

LEFT TURN:

2, With machine in motion gradually squeeze the left

hand Traction Lever. The machine will turn to the left.

TRACTION LEVER POSITION

BRAKE POSITION

\

LEFT HAND

TRACTION LOCK LEVER

TRACTION LEVER
(RIGHT HAND - RELEASED

POSITION SHOWN)

FIGURE 3.9

DRIVE POSITION

FIGURE 3.10

3.8 MOWING AND TURNING ON

HILLSIDES

1. Always mow hillsides starting at bottom of hill. Mow

across slopes, never up and down. Exercise
caution when changing directions on slopes. DO
NOT mow steep slopes!

IJ IL WARNING AI

DO NOT mow on steep slopes. DO NOT use with I
any type rider attachment on slopes. DO NOT park [

machine on slopes. I

2, Hillside mowing is accomplished by squeezing

Traction Lever on the UPHILL SIDE of machine.
This helps reduce side slipping of mower.

3. When turning mower on hillsides, always turn
toward the UPHILL SIDE of mower for better

control and balance.

14

SECTION 3 - OPERATING INSTRUCTIONS

3.9 CUTTING HEIGHT ADJUSTMENT
(Fixed Decks)

Mower has three methods of adjusting cutting height:

1. Moving position of BLADE on cutter spindle shaft.

2. Moving position of CASTER WHEEL on support.

3. Moving position of MOWER DECK on power unit.

WARNING

DO NOT attempt any maintenance, adjustments or

service with the engine running. Stop engine. Stop

blades. Lock Traction Levers. Remove key.
Disconnect spark plug wires from spark plugs and

secure wires away from spark plugs. Engine and
components are HOT. Avoid serious burns, allow all

parts to cool before working on machine.

3.10. ADJUSTING CASTER WHEELS

The Caster Wheel Assembly has four (4) 1/2" and one

(1) 1/4" thick spacer. The 1/4" thick spacer always stays

on the stop side of the caster support tube. The 1/2"
thick spacers are used to adjust the cutting height. When

placed above or below Caster Support Tube, they raise

or lower cutting height in 1/2" increments, thus providing
a "Quick-Adjust" method. The deck mounting has to be
changed to correspond to the caster repositioning. Refer

to Section "ADJUSTING FIXED DECK ATTACHMENT".

3.11 ADJUSTING BLADE ON CUTTER

SPINDLE

To change cutting height of Blades, move the Spacers from
under the Cutter Housing to above the Cutter Housing

Pulley. Each Spacer moved above the Cutter Housing
Pulley will provide an additional 1/4" of cutting height. DO

NOT put any Spacers below Blade. See Figures 3.13 and

3.14.

FLAT//\

FIGURE 3.12

1. Remove Retainer Pin from Caster Shaft. See Figure

3.11.

CASTER

CASTER

SHAFT

FIGURE 3.11

2. Lift Caster Support while adding or removing bottom

spacer. See Figure 3.12.

NOTE: Remove (or add) spacers by rotating slots to

align with flat area on caster shaft.

SUPPORT

PIN

HEIGHT

ADJUSTING

SPACERS

BEVEL

BLADE

TIGHTEN TO 60-75 FOOT POUNDS

FIGURE 3.13

NOTE: Changing cutting height of blades does not

change the deck ground clearance. If an undesirable
cutting pattern results, then cutting height adjustment

must be made by adjusting mower deck height and
caster wheels.

Install Blades (Air Lift Up) with retaining hardware as
shown below and tighten to 60 to 75ft.-Ibs. See Figure 3.14.

(Continued on Next Page)

AIR LIFT

15

SECTION 3 - OPERATING INSTRUCTIONS

3.11 ADJUSTING BLADE ON CUTTER

SPINDLE (Continued)

CUTTER SPACERS
HOUSING t!l_ _ ON TOP

PULLEY ._... ,....,,,.,,,,,,....._

_......--,

CUTTER

I r" HOUSING

SPACERS

BLAOl f

_1 SPACERS ON

u_

FIGURE 3.14

3.12 ADJUSTING FIXED DECK ATTACHMENT

The mower deck has four different positions for attaching

it to the power unit. The lowest setting provides a cutting
height range of 1-1/2" to 2-1/2", the middle low cut is 2-

1/4" to 3-1/4", the middle high cut is 3" to 4", and highest
cut is 3-3/4" to 4-3/4". Make sure the spacers on the
caster wheels are moved up or down as shown to

correspond with the bolt )ositions to keep deck level.
Once a desired cutting height is reached, attach the

mower deck to the power unit by installing 3 bolts on
each side in selected height of cut holes. Tighten bolts to

70 to 80 foot pounds torque. See Illustration.

SIDE PROFILE OF UNIT

POWER
UNIT _ HOLES

BOTTOM

BLACK DOTS
REPRESENT

BOLT ANCHOR

FIGURE 3.15C: MIDDLE HIGH CUT 3" TO 4"

SPACERS

FIGURE 3.15D: HIGH CUT 3-3/4" TO 4-3/4"

FIGURES 3.15C-D

• REAR

FIGURE 3,15A: LOW CUT 1-1/2" TO 2-1/2"

FIGURE 3.15B: MIDDLE LOW CUT 2-1/4" TO 3-1/4"

FIGURES 3.15A-B

16

SECTION 4 - TROUBLESHOOTING

ENGINE TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Engine ................... Key OFF. .............................................................................................. .Turn Key to Run.

does not ................ Fuel Tank empty. .................................................................................. Fill Fuel Tank.

stare ...................... Fuel Shut-Off Closed. ........................................................................... .Open Fuel Shut-Off.

............................... Engine Throttle Control not at FAST (Rabbit) position .......................... Put Engine Throttle Control to FAST

............................... Choke NOT closed ................................................................................ Put Throttle Control in CHOKE position.

Check choke adjustment.

............................... Spark Plug Wire loose or disconnected. ............................................... Connect Spark Plug Wire.

............................... Operator Presence Control (OPC) Switch out of adjustment ............... .Adjust Switch

............................... Blade Clutch Switch in ON position. ..................................................... .Pull Blade Clutch Lever to OFF position.

............................... Spark Plug bad ...................................................................................... Install new Spark Plug.

............................... Dirty Air Filter ....................................................................................... .Clean Air Filter.

............................... Transmission not in NEUTRAL ............................................................. Shift Transmission Lever to NEUTRAL.

Engine ................... Dirt or water Fuel Tank. ........................................................................ Drain and clean Fuel Tank. Fill with

Starts Hard fresh Fuel.

or Loses ................ Vent in Gas Cap plugged. .................................................................... ,Clean Vent or install new Gas Cap.

Power. ................... Air Filter dirty. ........................................................................................ Clean or install new Air Filter.

.............................. Spark Plug not gapped correctly. .......................................................... Check and set Spark Plug gap.

............................... Spark Plug bad ..................................................................................... Install new Spark Plug,

Engine .................. Spark Plug ba& ..................................................................................... Install new Spark Plug.

Runs ...................... Spark Plug not gapped correctly. .......................................................... Clean and set Spark Plug gap.

Erratically. ............. Fuel Filter plugged or dirty. ................................................................... Replace Fuel Filter.

Engine .................. Dirty Air Filter ....................................................................................... .Clean or replace Filter.

Idles PooHy. .......... Fuel Filter plugged ................................................................................ Replace Fuel Filter.

Engine .................. Engine Oil tow in Crankcase ................................................................ .Add OiL

Overheats. ............. Engine Cooling Fins clogged ............................................................... Clean Engine Cooling Fins.

Machine ................ Blade Mounting Bolts loose. ................................................................. .Tighten Blade Mounting Bolts.

Vibrates ................. Blade out of Balance. ............................................................................ Sharpen and balance Blade.

Excessive. ............. Engine Mounting Bolts loose. ............................................................... .Tighten Mounting Bolts.

............................... Damaged or Severed Belt ..................................................................... Replace Belt

Engine ................... Mowing grass too tall ........................................................................... .Adjust cutting height.

Dies. ....................... Mowing too fast. .................................................................................... Reduce travel speed.

MOWER TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Mower does ............. Transmission in neatraJ .................................................................... .Select Gear

not move .................. Traction Control Rod adjustment. ..................................................... .Adjust Rod

when Traction .......... Engine to Transmission Belt Damaged or Broken ............................. Replace Belt

Levers released ....... tdter Spring Damage or Broken ......................................................... Replace Spring

Mower does ............. Slipping or broken Traction Belt ....................................................... .Adjust or replace Belt.

riot track ................... Tire pressure in both Traction Wheels ............................................. .Adjust air pressure.

straight. .................... not the same.

Blades DO ................ Belt slipping or broken. ...................................................................... Replace or adjust Belt.

NOT engage. ............ Clutch does not engage .................................................................... .Check Electrical Connections & Clutch

Mower ....................... Travel speed too fast. ........................................................................ Reduce ground speed.

mows ........................ Operator making mower turn corner too fast. .................................. Reduce ground speed.

unevenly. .................. Rough terrain. .................................................................................... Change mowing pattern.

.................................. Unequal number of Blade Spacers on

...................................... Cutter Shafts or Caster Wheels. .................................................... Install equal number of Spacers.

.................................. Low Or No Air Pressure in Tires ........................................................ Fill Tires with Correct Air Pressure

.................................. Dull Blades ........................................................................................ Sharpen Blades or Install new Blades

17

SECTION 4 - TROUBLESHOOTING

MOWER TROUBLESHOOTING (Continued)

SYMPTOM PROBLEM SOLUTION

Mower not ...................................... Broken or slipping Blade Belt ....................................... Replace Belt.

cutting full ...................................... Dull, Damaged or Worn Blades ................................... Sharpen Blades or Install new Blades

width.

Discharge ....................................... Grass wet. .................................................................... Let Grass dry.

Deflector Becomes ........................ Mower too low.............................................................. Raise cutting height

Obstructed ..................................... Engine overloaded ....................................................... Run Engine at full Throttle and reduce

travel speed.

TRANSMISSION TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Unit is ............................................ Gearing is overly noisy - chatter, etc. ........................... Return to Authorized Snapper Dealer

Noisy. .............................................. Worn Gears.

........................................................ Worn Bearings - mainly input Shaft

........................................................ Ball Bearing.

Unit Jumps .................................... Teeth of Gears are worn beyond tolerances.

Out of Gear. .................................... Spring in Shifter Fork weak or broken.

SERVICE & LUBRICATION

HOURS PROCEDURE COMMENTS

BREAK4N ....................................... Check all Grease Points and add if necessary

........................................................ Check alt Fasteners for proper tightness.

........................................................ Change Engine Oil and Filter at 5 hours. ..................... (See Engine Manual)

DAILY. ............................................. Check Engine Oil......................................................... Change Oil if extreme dusty conditions.

........................................................ Clean Air Filter. ............................................................ More often if needed.

........................................................ Clean Air Intake Screen. ............................................. More often if needed.

........................................................ Remove Debris from under Belt Cover. ....................... More often if needed.

........................................................ Sharpen Cutter Blades. ................................................ Tighten to 60-75 Ft.-Lbs.

........................................................ Grease Cutter Spindle Bearings. ................................. Use Chevron SRt Grease or equal.

............................................................................................................................................. (NLGI No. 2)

........................................................ Inspect Interlock Switches for Damage ........................ Replace if Needed.

........................................................ Inspect Belts for Wear or Damage ............................... Replace if Neede&

........................................................ Inspect brakes. ............................................................ .Adjust for proper steering / stopping.

WEEKLY ........................................ Check Tire Pressure. ................................................. .Add or Adjust as required.

........................................................ Check Safety Interlock System .................................... Inspect OPC Switch for proper Operation.

........................................................ Lube Traction (Drive) Levers. ..................................... .One Shot General Purpose Grease.

........................................................ Inspect Traction Lock for Wear .................................... Replace if Worn.

........................................................ Change Engine Oil and Filter ....................................... More often if needed.

........................................................ Replace Air Filter ......................................................... More often if needed.

........................................................ Grease Caster Wheel Bearings. ................................. .General Purpose Grease.

........................................................ Grease Caster Support Arms. ..................................... .General Purpose Grease.

........................................................ Grease Traction Wheels. ............................................ .General Purpose Grease.

........................................................ Grease Idler Arm Pivots on Cutter Deck. .................... .General Purpose Grease.

........................................................ Fuel Filter ..................................................................... Replace with SNAPPER P.N. 1-4359

........................................................ Grease Traction Idler Pulley (Located on the

Underside of Power Unit) ............................................ .General Purpose Grease.

MONTHLY. ...................................... Clean and Adjust Spark Plugs. .................................... (See Engine Manual)

........................................................ Lube Controls and Unkages. ....................................... Use Medium Duty Oit.

18

SECTION 5 - ADJUSTMENTS

5.1 STEERING/BRAKES

If machine is not as responsive as desired when either

Traction Lever is squeezed, one or both brakes should

be adjusted as follows:

1. Operate mower on level terrain with Transmission
Shift Lever in No. 1 position. Determine which

brake requires adjustment.

2. Stop engine, remove the key from switch and
disconnect spark plug wire from spark plug. Secure

wire away from plug.

3. Turn nut clockwise to increase brake tension. See

Figure 5.1. ROTATE

'1 \" (_ 1 BETWEEN

Pull rearward hard on the Traction Levers. The
space used to lock the Traction Locks should not

bottom in the slot. Set the Traction Locks into the
Locked position. The Idler Pulleys, Upper and

Lower should have completely declutched the belt.
Release the Traction Locks and adjust as required.

4,

Remove the hairpins from the traction rod
adjustment blocks and remove the adjustment

blocks from the traction links on each side of the
mower. See Figure 5.2.

1/16" TO 1/8' tj BLOCK REMOVE

GAP .._ ,__H AIRPIN

"iT-"-

TENSION

ADJUSTMENT

TORN

BRAKE ARM

FIGURE 5.1

4,

Place spark plug wire onto spark plug. Start engine

and operate mower with transmission in the No. 1

position to check for proper adjustment. If further

adjustment is required, follow all steps above.

5.2 TRACTION LEVERS/RODS
If the Traction Wheel Drive Belts become slack or new

belts have been installed, it will be necessary to adjust

the Traction Levers as follows:

1. Move the machine to a smooth, level surface and
turn the engine OFF. Release the traction locks.

Disconnect the Brake Rods from the Brake Arms.

See Figure 5.1

2. Remove the key from the switch, remove the spark
plug wire from the spark plug and secure it away

from the plug.

3. Shift the transmission to No. 1 position.

FIGURE 5.2

5. Rotate the adjustment block as required to make

the idler arms almost touch against the belt cover
studs when the Traction Levers are locked. There

should be about 1/16" to 1/8" gap between the idler
arms and studs. See Figure 5.2

6. Reinstall the adjustment blocks and the hairpins.
Check the settings as described above. Repeat as

necessary.

7. Reassemble the Brake Rods to the Brake Arms
with the hairpins removed earlier.

8. Replace the Spark Plug Wire onto the Spark Plug.
Start the mower according to the Safety Instructions

and operate it to check the adjustments.

NOTE: It may be necessary to adjust the Traction Brakes

after adjustment of the Traction Belts is complete.

Iuo. o WARNING

NOTd attempt to operate machine without beltI

studs secured into the proper position, I

19

SECTION 5 - ADJUSTMENTS

5.3 HANDLE HEIGHT

The operator handle can be adjusted for operator
comfort as follows:

1. Loosen the upper carriage bolt and nut on both sides
of handlebar. See Figure 5.4.

2. Remove lower carriage bolt and nut on both sides of
handlebar.

3. Raise or lower handlebar to desired height. See
Figure 5.3.

4. Install the carriage bolt and nut in the lower hole in
handlebar and securely tighten nut. See Figure 5.4.

5. Securely tighten the upper carriage bolt and nut.

6. After adjusting the handle height readjust traction

links as described earlier. Shift rod (Connects the

ground speed control lever and the transmission) will

have to be readjusted.

7. Readjust traction levers/rods when handle height is

changed.

*FACTORY SETTING U

't,

5.4

TRANSMISSION SHIFT LEVER
ADJUSTMENT

1.

Disconnect the hair pin from shift rod that connects
to the Transmission Shift lever. See Figure 5.5.

2,

Move the Transmission Shift Lever to the neutral
position. Move the shift lever, located on the

transmission, to the neutral position.

3.

Rotate the shift rod clockwise or counter clockwise to
allow the upper portion of shift rod to be inserted into

the ground speed control lever without moving the
speed control lever or the Transmission Shift lever.

Reinstall hair pin. See Figure 5.6.

TRANSMISSION
SHIFT
LEVER

(3)%-

(1)--,_.l

LOOSEN
UPPER

CARRIAGE
BOLT

REMOVE

LOWER

CARRIAGE
BOLT

FIGURE 5.3

RAISE

LOWER

DISCONNECT

SHIFT ROD

FROM THIS
POINT

SHIFT ROD

SHIFT

FIGURE 5.5

SHIFT

FIGURE 5.4

FIGURE 5.6

20

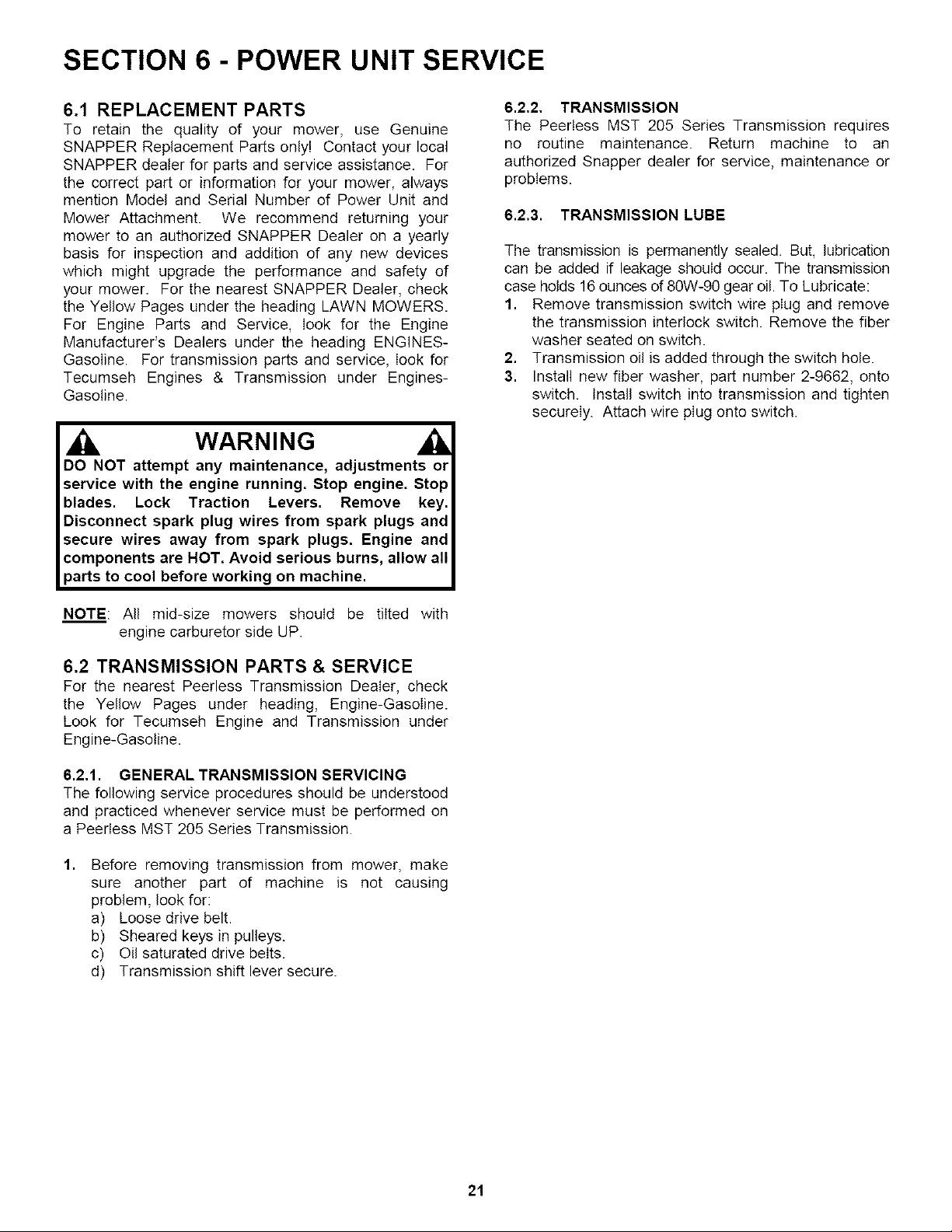

SECTION 6 - POWER UNIT SERVICE

6,1 REPLACEMENT PARTS

To retain the quality of your mower, use Genuine
SNAPPER Replacement Parts only! Contact your local

SNAPPER dealer for parts and service assistance. For
the correct part or information for your mower, always

mention Model and Serial Number of Power Unit and
Mower Attachment. We recommend returning your

mower to an authorized SNAPPER Dealer on a yearly
basis for inspection and addition of any new devices

which might upgrade the performance and safety of
your mower. For the nearest SNAPPER Dealer, check

the Yellow Pages under the heading LAWN MOWERS.

For Engine Parts and Service, look for the Engine
Manufacturer's Dealers under the heading ENGINES-

Gasoline. For transmission parts and service, Iook for

Tecumseh Engines & Transmission under Engines-

Gasoline.

WARNING

DO NOT attempt any maintenance, adjustments or

service with the engine running. Stop engine. Stop

blades. Lock Traction Levers. Remove key.
Disconnect spark plug wires from spark plugs and

secure wires away from spark plugs. Engine and
components are HOT. Avoid serious burns, allow all

parts to cool before working on machine.

6.2,2, TRANSMISSION

The Peerless MST 205 Series Transmission requires
no routine maintenance. Return machine to an

authorized Snapper dealer for service, maintenance or
problems.

6.2,3. TRANSMISSION LUBE

The transmission is permanently sealed. But, lubrication
can be added if leakage should occur. The transmission

case holds 16 ounces of 80W-90 gear oil. To Lubricate:

1. Remove transmission switch wire plug and remove
the transmission interlock switch. Remove the fiber

washer seated on switch.

2. Transmission oil is added through the switch hole.

3. Install new fiber washer, part number 2-9662, onto

switch. Install switch into transmission and tighten
securely. Attach wire plug onto switch.

NOTE: All mid-size mowers should be tilted with

engine carburetor side UP.

6,2 TRANSMISSION PARTS & SERVICE

For the nearest Peerless Transmission Dealer, check

the Yellow Pages under heading, Engine-Gasoline.

Look for Tecumseh Engine and Transmission under
Engine-Gasoline.

6.2,1. GENERAL TRANSMISSION SERVICING

The following service procedures should be understood
and practiced whenever service must be performed on

a Peerless MST 205 Series Transmission.

1,

Before removing transmission from mower, make

sure another part of machine is not causing

problem, look for:

a) Loose drive belt.

b) Sheared keys in pulleys.

c) Oil saturated drive belts.
d) Transmission shift lever secure.

21

SECTION 7 - MOWER ATTACHMENT SERVICE

7.1 TRANSMISSION BELT
REMOVAL/REPLACEMENT

WARNING

DO NOT attempt any maintenance, adjustments or

service with the engine running. Stop engine. Stop

blades. Lock Traction Levers. Remove key.
Disconnect spark plug wires from spark plugs and

secure wires away from spark plugs. Engine and
components are HOT. Avoid serious burns, allow
all parts to cool before working on machine.

1. Disconnect idler arm spring.

2, Remove existing belt. Replace with new belt, part

no. 2-9118.

3. Reconnect idler arm spring. See Figure 7.1.

TRANSMISSION

IDLER BELT

IDLER ARM

ELECTRIC
CLUTCH

o

FIGURE 7.1

SPRING

4,

Adjust Traction Rod and Brake Rod as necessary.
Refer to Section "ADJUSTMENTS

STEERING/BRAKES and TRACTION
LEVERS/RODS".

TRACTION BELT

OUTPUT PULLEY

(WHEEL PULLEY /

NOT SHOWN)

BELT COVER WING NUT

FIGURE 7.2

7,3 CUTTER DECK BELT REMOVAL &

INSTALLATION

1. Remove mower deck belt cover.
2, Remove idler spring and swing idler away from belt.

See Figure 7.3.

3. Remove old belt from spindle pulleys and electric
clutch pulley.

4. Route new belt, part number 3-5710 for 36" Deck &
2-9261 for 48" Deck around spindle pulleys.

NOTE: 36" Deck Belt also connects to electric clutch.

5. Move idler to belt and re-attach tension spring.

6. For 48" Deck to electric clutch use belt 2-9262.

36" DECK SHOWN

7,2 TRACTION BELT REMOVAL &

REPLACEMENT

7.2,1. TRACTION BELT REMOVAL

1. STOP ENGINE! Remove two wing-nuts retaining

belt cover. Remove belt cover. See Figure 7.2.

2. Remove Traction Belt from Wheel Pulley first by
running Belt off as Wheel is turned. Remove belt

from Transmission output Pulley next.

3. Lay Traction Belt flat on ground (around tire) and roll
Mower Wheel over Traction Belt, removing Traction

Belt from machine,

7.2,2, TRACTION BELT INSTALLATION

1. STOP ENGINE! Lay new Traction Belt, part

number 4-6240, flat on ground in front of Traction

Wheel. Roll Traction Wheel over Traction Belt until
wheel is in middle of belt.

2, Place Traction Belt on Wheel Pulley followed by

Transmission Output Pulley.

3. Reinstall belt cover and tighten two wing-nuts.

REMOVE IDLER
BELT

FIGURE 7.3

22

SECTION 7 - MOWER ATTACHMENT SERVICE

7.4 CUTTING BLADE SERVICE

Check blades after each use for signs of excessive
wear and damage. See Figure 7.4 for blade wear limits.

NEW BLADE""

_'_t_ WEAR LIMIT

_._._ _ _ (NOTCH STARTS)

DANGEROUS CONDITION!
DO NOT USE ON MOWER!
REPLACE WITH NEW BLADE.

FIGURE 7.4

1. Use the following chart for ordering replacement
Blades for the 36" & 48" Mowing Decks.

STANDARD REPLACEMENT BLADES

I 36"DECK t 48"DECK I

2-9246 2-9247

7.4.1. BLADE REMOVAL AND SHARPENING

1. Place the mower on a smooth level surface, turn

engine OFF, remove key, disconnect Spark Plug Wire
from Spark Plug and secure Wire away from Plug.

2. Remove blades.

WARNING

Blades are extremely sharp and can cause severe
injury. Wear heavy leather gloves when handling or
working around blades. DO NOT use a blade that is
excessively worn or damaged.

HEAVY
END OF

BLADE

BLADE

NOTE: When sharpening Blades, leave 1/64"
untouched. Razor sharp Blades dull quicker and

damage easier. Commercial balancers are available
and should be used in accordance with the

manufacturers instructions.

8. Install Blade Mounting Bolt with spacers and Blade
into spindle.

9. Install an equat amount of Blade Spacers onto each
blade mounting bolt.

10. Install the Blade Mounting Nut on each Blade
Mounting Bolt. See Figure 7.6.

11. Torque each Blade Mounting Bolt and Nut to 60 to
75 ft. Ibs of torque.

22° TO 28°

1/64"

ORIGINAL CUTTING EDGE

FIGURE 7.5

IMPORTANT: Note the number of blade spacers that

are under the Blade Mounting Nuts and on the Spindle
side of the Blade.

3. Clean and inspect each Blade for excessive wear and
damage. Refer to Section "BLADE WEAR LIMITS".

4. Refer to the STANDARD REPLACEMENT BLADE
chart above for correct SNAPPER Replacement Blades.

5. Should Blades be in acceptable condition, sharpen at
22 to 28 degrees. DO NOT sharpen beyond original

cutting edge. See Figure 7.5.

6. Balance each Blade after sharpening by grinding
metal from the heavy end of the Blade.

7. Place the Blade mounting bolt through bevel washer

and into Blade and place Blade Spacers over Bolt.

Make certain each Blade is installed with the same

amount of Spacers between blade and spindle.

23

BLADE
SPACERS

BLADE

AIR LIFT

BLADE
MOUNTING
BOLT

TIGHTEN TO 60-75 FOOT POUNDS

FIGURE 7.6

SECTION 7 - MOWER ATTACHMENT SERVICE

7.5 MOWER SPINDLES (Field Serviceable

Spindles) BEARING REPLACEMENT

In the event that a spindle bearing requires
replacement, the SNAPPER Field Serviceable Spindles
have been designed so that no special tools or presses

are required.

1. Remove belt. Loosen blade nut and remove. Allow
blade bolt, washer, blade and four spacers to drop

down out of the spindle housing.

See Figure 7.7.

FROM SPINDLE

REMOVE NUT _'--I 0/ REMOVE BELT

f

J

i "--;g TOVEBLABE

FIGURE 7.7

2. Remove spindle pulley from spindle shaft.

3. Locate circular retaining ring on spindle shaft at top

bearing. Remove retaining ring. Allow spindle shaft

to drop out of housing.

4. Top and bottom bearings are now removable. Pull
out on inner race to slide bearing from housing.
See Figure 7.8.

5. Thoroughly clean all parts removing all old
contaminated grease.

6. Install new bottom bearing first.

NOTE: The bearing is sealedlshielded on one side only.

The bottom bearing must be installed with the
seated/shielded side DOWN.

7. Insert spindle shaft up through the bottom bearing.
Slide spacer down over spindle shaft.

8. Install new top bearing. Install the top bearing with
the seal/shield UP.

9. Slide circular retaining ring down spindle shaft until
it fully locks into groove on shaft.

10. Place spindle pulley and spacer on top of spindle
shaft.

11. Reinstall blade bolt, washer, blade and four
spacers.

12. Torque blade bolt and nut to 60 to 75 ft. Ibs.

IMPORTANT: Spindle housing must be filled with
grease before operating mower. Failure to fill
housing will cause premature bearing failure.

13. Pump grease into spindle housing until grease
purges from vent on housing.

14. After the first 5 hours of operation, grease spindle
housing to insure it is full, then every 25 hours.

BEARING
SEAL UP

HOUSING

INNER RACE "_O{_

BEARING "_O ¢

÷

PULLEY

RING

BEARING SEAL
DOWN

FIGURE 7.8

24

OPC SWITCH

(PISTOL GRIP MODELS)

KEY WITH
COVER

KEYSWITCH...-----_

ELECTRICAL

15 AMP
FUSE

OPC SWITCH

(PISTOL GRIP MODELS ONLY)

BLADE
CLUTCH

SWITCH

MAIN

KAWASAKI
ENGINE ONLY

i__ KAWASAKI MODULE

KAWASAKI
CAPACITOR

PIGTAIL

TO MAIN
HARNESS

TO

TRANSMISSION

SWITCH

TO ELECTRIC CLUTCH

HARNESS

TO ENGINE-

GROUND TO ENGINE

NOTE:THIS TERMINAL HAS A LOCK-OUT BARB

WHICHMUSTSLIDEINTOTHECONNECTOR

NOTCH.

TERMINAL

FIGURE 7.9

25

ELECTRICAL

ELECTRIC CLUTCH

BLACK [_ BLUEs YELLOW

ENGINE

GREEN _ GREEN

BLACK _ WHITE _ YELLOW
IISEE NOTEI _ ]'

RED _ YELLOW4

15A FUSE

RED

OPC R,H. OPC L,H.

TRANSMISSION

IGNITION

RED

BLACK

WIRING SCHEMATIC FOR PISTOL GRIP HANDLE & ELECTRIC BLADE BRAKE CLUTCH

FIGURE 7,10

TRANS SWITCH

RED (16GA)

D%

ENGINE

ELECTRIC CLUTCH

(SEE NOTE)

RED{t_ 0.*}

II_.,UE (_40A)

YELLOW (16 TE(IG

L,H. OPC

PTO SWITCH

NOTE:
NUMBERS SHOWN ARE CIRCUIT NUMBERS

WHICH CORRESPOND TO ONES SHOWN IN
WIRING AND TERMINAL TABLE BELOW,

FIGURE 7,11

;REEN (14 GA)

R.H. OPC

IGNITION

WIRE AND TERMINAL TABLE

_ZRH GAUGE COLOR CIRCUIT TERN

{ _4 BLACK I IT

Z 14 GREEN Z i9

3 16 RED 3 IB
4 _6 RED 3 _*

5 t6 YELLOW 4 {2
6 14 BLACE i _-

14 14 BLACE I --
_3 16 RED 3 _"

8 16 YELLOW 4 *-

7 14 BLUE _ Ii

18 !4 GREEN 6 IO

9 {6 WHIT[ 7 16

26

2 YEAR LIMITED WARRANTY

For two (2) years from purchase date for the original purchaser's use, SNAPPER, through any authorized
SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

SNAPPER FIELD SERVICEABLE SPINDLES and their components used on SNAPPER PRO Mid Size walks
and SNAPPERZRIDER '_ ride on commercial equipment have a three (3) year limited warranty against defects

in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for

replacement under this warranty must be paid by the purchaser.
This warranty does not apply to engines and their components, and batteries, as these items are warranted

separately. This warranty does not apply to parts that have been damaged by accident, alteration, abuse,

improper lubrication, normal wear, or other cause beyond the control of SNAPPER. This warranty does not
cover any machine or component that has been altered or modified, changing safety, performance, or durability.

Batteries have a one (1) year prorated warranty period with free replacement if required during the first ninety

(90) days from the original purchase date. SNAPPER will not be responsible for any installation cost incurred.
The battery warranty only covers original equipment batteries and does not cover damage to the battery or

machine caused by neglect or abuse, destruction by fire, explosion, freezing, overcharging, improper

maintenance, or use of improper electrolyte.
There is no other express warranty.

DISCLAIMER OF WARRANTY

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to
two (2) years from purchase date for the original purchaser's use, and up to the extent permitted by law
and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential

damages, under any and all warranties are excluded.

®

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the

exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion ma_

not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY

IMPAIR THE SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY
SNAPPER ASSOCIATED WITH THE USE OF SUCH PARTS.

IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and maii to:

Snapper's Product Registration Center, P.O. Box 1379, McDonough, Georgia. 30253

27

PRIMARY MAINTENANCE

an

illustration of

how dirt can

dama

& how

can protect it!

Snapper uses the best avail-
able engines and components

In their products In order to _=

provide long, satisfactory
service. However, proper • =

care Is essential In ""
prolonging engine life. Dirt

Is your engine's enemy

number 11

naintenance

The engine on your Snapper
product spends Its entire life

operaUng close to the ground at
high speed cresting a virtual

storm of dust and dlrtl

28

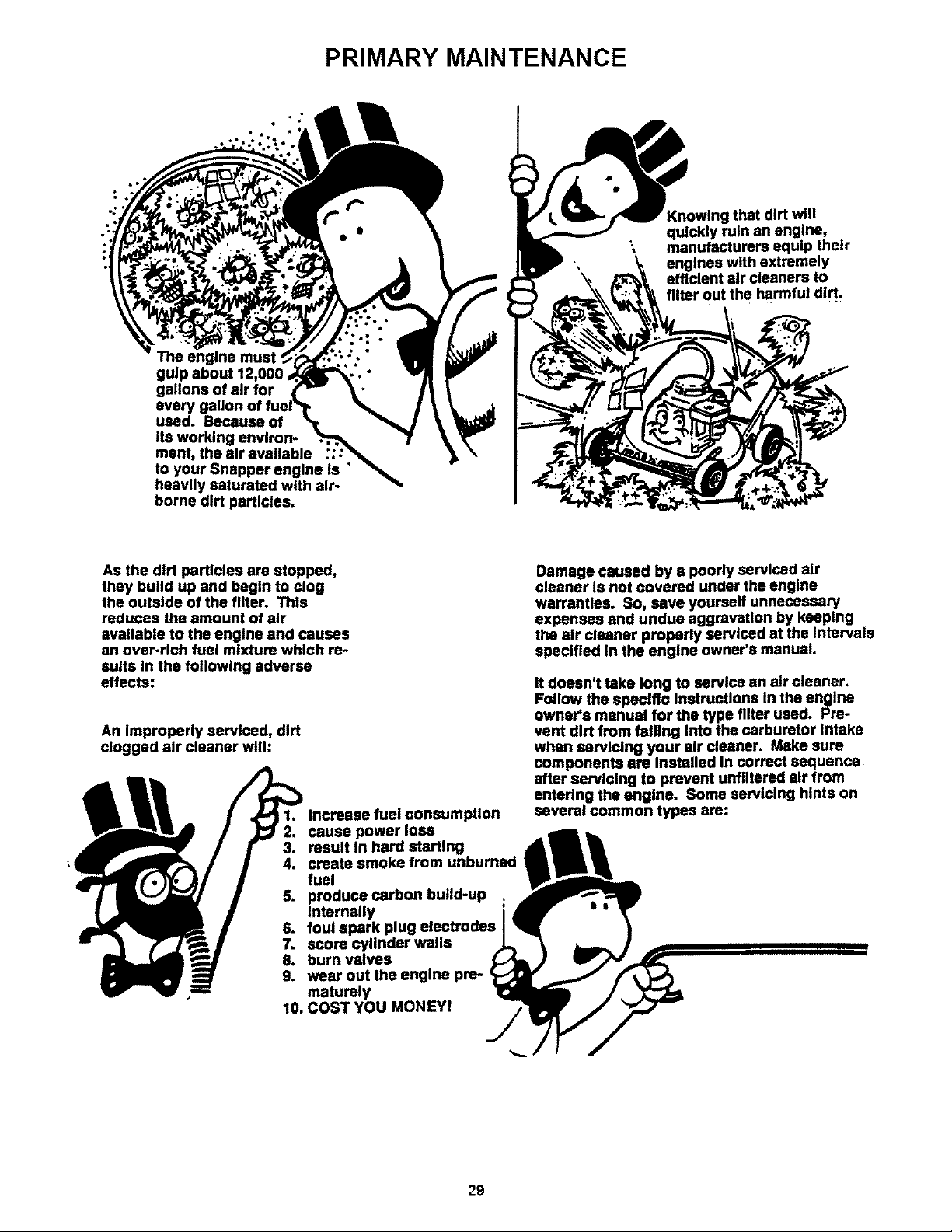

PRIMARY MAINTENANCE

gulp about 12,000,
gallons of air for

every gallon of f=

used. Because of

Its working environ-

ment, the air available
to your Snapper engine Is "

heavily saturated with air-
borne dirt particles.

that dirt will

quickly ruin an engine,
manufacturers equip their

englnse with extremely

efficient air cleaners to

filter out the harmful dirt,

As the dirt pertlclse are stopped,

they build up and begin to clog
the outside of the filter. This

reduces the amount of air

available to the engine and causes
an over-rich fuel mixture which rs-

suite In the following adverse
effects:

An Improperly serviced, dirt

clogged air cleaner will:

Increase fuel consumpUon several common types are:

2. cause power loss _=m

3. result in hard starUng _L_I

4. create smoke from unburned _, •

5. _:/ucecarbonbulld-up .
Internally i _ ' ' •

6. foul spark plug electrodes I _

7. score cyllnder walls _L, -_ _ ]

8. burn valves _ ) _/_/_

9. wear out the engine pre- _ J _
maturely _ ./

10, COST YOU MONEY! /_IF/_ ''_

Damage caused by a poorly serviced air

cleaner Is not covered under the engine

warranties. So, save yourself unnecessary
expenses end undue aggravation by keeping
the air cleaner properly serviced at the Intervals
specified In the engine owner's manual.

It doesn't take long to service an air cleaner.
Follow the specific Inefmctlons Inthe engine

owner's manual for the type filter used. Pre-
vent dirt from falling Into the carburetor Intake
when servicing your air cleaner. Make sure

components are Installed in correct sequence
after servicing to prevent unfiltered air from
entering the engine. Some servicing hints on

29

PRIMARY MAINTENANCE

Air Is also needed to keep

your engine coot. Dirt, dust

& debris build up to restrict

and clog cooling air Intake
screens and fins. Clean

screens and fins at frequent
Intervals. The engine blower

housing and shrouds should
be removed at least once

each season or more often

under dry, dusty conditions

/h

Generally, wash foam-type filters _
In a dlshwashlng detergent and I_-'_3 1 P Failure to keep external

water solution. Rinse and wring ( . '_ surfaces clean not only

dry, then saturate with oll and _ j presents fire hazards, but
squeeze out excess. Failure to "_,_// causes overheating and

re-oil this type _ter will ruin the _ resulting engine damages
engine. /f/_l_ SUChas:

V// I _\ \_ 1. distorted valve guides

Clean paper elements by tapplng ,._ _L_ \o 2. aticklngvalves
lightly. Blowlngwlthalrwlll ,r(_ T_, _ J o..3. scuffad, ecoredcyl

rupture paper elements, i_._._"_-:_ _,_ walls

_::_'_'___ __._ Oj_ 4. overspesdlng

Use a flashlight to detect clogged _@I_'._L--_.._ _'-_ r_ / 5. loss of power .
or torn paper elements - replace If I _ _ uLv'v':_I b. complete lailure or

damaged In any way. __ /_ engine.

J) fins.

for a thorough cleaning of

Dirt can also be introduced

into an engine In dirty fuel

from a contaminated
container. Always use clean

fresh fuel from a clean

container to guard against
dirt, sludge and water

contamination.

Be aware that fuel breaks
down In storage and forms

will block carburetor pass-
ages. Never use fuel more

than 3 months old. Drain
tank then run the engine out

of fuel before storing during
the off-season.

An engine must also have proper lubrication.
All engines use some oil On 4-cycle engines,

CHECK OIL LEVEL BEFORE EACH START-UP.

Wipe area clean around the oll check plug or

dipstick opening to keep dirt from falling Into

the engine when checking the oil Always
check with the machine on a level surface.

On engines with dipstick, keep the level up to,
but not over, the FULL mark. When adding oil,

allow time for all of the oll to flow down the fill
tube to prevent a false full reading when the

level could actually be low and result In engine

damage.

3O

PRIMARY MAINTENANCE

On 4-cyle engines with an oil level plug,

don't be footed into thinking the engine has
sufficient lubricating all If you can see "some"

oll In the opening - the level should always be
brought up to the point of
top of the fill hole.

@

Change all at regular Intervals using s a high

quality oll such as Snapper's small engine
formulated 4-cycle engine oil Refer to the
engine owner's manual for all details.

On 2-cyele engines, lubrication must be

provided by an exact mixture of gasoline
and 2-cycle air-cooled engine oil. A 2-cycle

engine that Is mistakenly run on strelght

gasoline will be ruined in less than 5

mlnutosl If you keep straight gasoline In
addition to pre-mlxed 2-cycle engine fuel,

be sure the containers are clearly marked
to avoid mix-up.

Snapper 2-cyale engines require a 32 to 1
mixture of gasoline and BIA certified TC-W

oUsuch as Snapper's 2-cyele engine oil
Many of the 2-cyele engine oils on the

market today make fantasflc claims, but for

the best performance and long engine life,
always use Snapper 2-cycle oti. Premix

the fuel and always shake the container
before filling the tank.

STARTING CHECK LIST

1.

EngineOil

2.

Air Cleaner

3.

Fuel Tank

4. Choke

5. Primer (on
some engines)

6. Safety Inter-
lock Switches

7. 8witch &
Blade Control

8. Bparkplug

• Good connection

9. Throttle

control

10. Blade

11. Muffler

• 8tart position

• ProperlyInstalledand

• Sharpened

• Good condition

• Notclogged

• Grass& leavescleaned away

* To full level (4-cycle)

• Properly mixedwith gas
(2 cycle)

• Cleanand properlyserviced

• Fullfresh clean gaS.line

• Fuel valve open
* Cap vent open

• Inllne filter clean
* Operating properly

• Used properly

• Inproper position

• All wiresproperly connected

• Switch On

• Blade cantrel properly

positionedon walk mower

• Wire connected

torq.

_ f& r Rcad and tollow all safety

_lr |Instructions In safety book-|

d that dirt Is your engine's enemy

II I #1 both Internally and externallyl Internally,
I| I dirt will quickly ruin an engine and externally

| | It w/it cauamoverheating and resulting internal

.t _damages. Damage caused by Improper Iubrl-

_" cation, poor air cleaner service or overheating

v (j due to dirt cannot be covered under warranty.

It only takes a few momenta to service the

engine (and equipment) ona routine basis

but the rewards will be a quick starting, re-

sponsive engine that will provide long
satisfactory service with minimum maintenance

coat. The prestart checklist In the next column
and Inetructions In your Snapper Operator's

Manual are dealgnated to help you keep your

Snapper In top operating condition with
minimum effortt

II

31

NOTES

32

NOTES

33

Safety Instructions and Operator's Manual for

PRO GEAR EXPRESS
MID-SIZE

WALK BEHIND

MOWERS

SERIES 0

IMPORTANT

Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical

safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine

manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,
contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,
GA. 30253. Phone: [phone]).

WARNING

BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

WARNING

ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER

REPRODUCTIVE HARM.

SNAPPER McDonough,

COPYRIGHT © 2000
SNAPPER INC

ALL RIGHTS RESERVED

MANUAL No. 7-3683 (I.R. 5/15/00)

GA. 30253 U.S.A.

Printed in U.S.A.

34
