Snapper Series A User Manual
Specifications and Main Features
- Model: LT120G30AB & LT125G38AB
- Engine: Briggs & Stratton, 12HP (30” Model) & 12.5HP (38” Model)
- Cutting Deck Sizes: 30 inch & 38 inch
- Transmission: Gear driven
- Seating: Operator’s seat with backing support
- Features: Movable seat, adjustment of the height, and alternatively headlight (38’’ model)

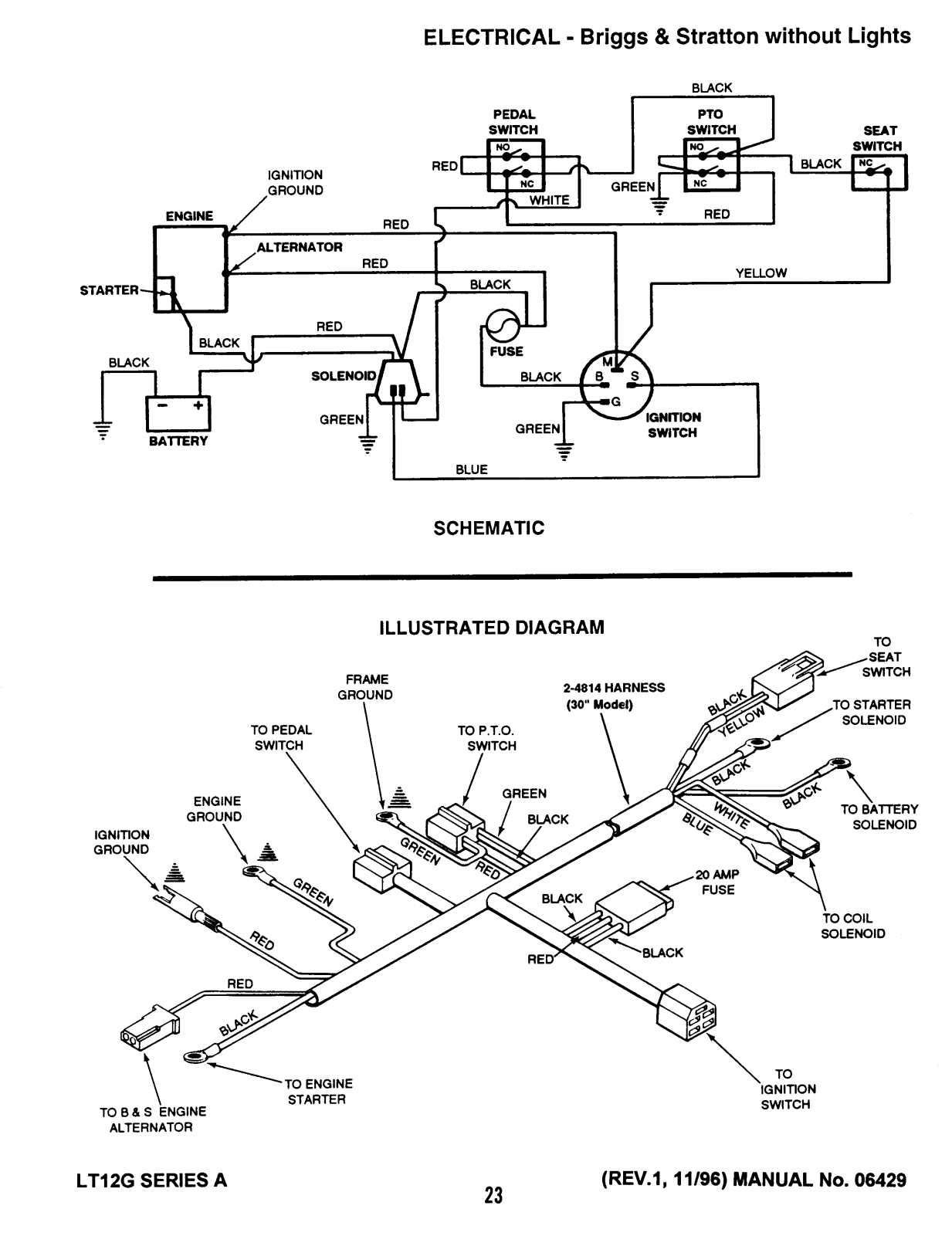

- Electrical System:
- With Lights: Ignition switch and battery and wiring harness to be included
- Without Lights: Handset basic electrical wiring
- Wheel Specifications:
- Front Wheels: 13 x 5.00 for model 30”, 15 x 6.00 for model 38”
- Rear Wheels: 18 x 7.50 for model 30”, 18 x 8.50 for model 38”
- Other mechanical parts such as clutch; brake and steering mechanisms are Compact additional parts available.
- Cutting Deck: ( Blade housing ) Parts comprising of assembling and replacement components for both 30 inches and 38 inches decks.
Frequently Asked Questions
Q1: What size engine do the LT120G30AB and LT125G38AB use?
A1: LT120G30AB uses Briggs & Stratton 12HP engine and LT125G38AB uses 12.5HP engine.
Q2: Can I adjust the height of the cutting deck?
A2: Yes, the height of the cutting deck is adjustable.
Q3: Do both models have headlights?
A3: No, headlights are only provided in the LT125G38AB model.
Q4. What are the front wheels’ tire sizes?
A4: Both LT120G30AB and LT125G38AB have different sizes of front tires. The former has a size of 13 x 5.00 which is quite applicable and the latter has a greater size of 15 x 6.00.
Q5: What does the cutting deck option offer?
A5: The blades have a range of two options for the cutting deck: either 30 or 38 inches.
Q6: Does the model which contains headlights have a special electrical system?
A6: The complexity and configurability of the electrical system of the model with the lights is advanced due to the additional wires required to link the lights.
