Safety Instructions & Operator’s Manual for
21” ‘EASY LINE’
WALK BEHIND
MOWERS
MODEL NUMBER EXPLANATION
S P V 21 E
MODEL DESIGNATION OPTION DESIGNATION
SELF-PROPELLED CUTTING WIDTH
VARIABLE SPEED
S – ‘Easy Line’ V – Variable Speed Model 21 – 21” Cutting Width S – Swivel Front Wheels
P – Self Propelled Model E – Electric Start
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and
pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 - 4. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense.
NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
COPYRIGHT © 2006
SNAPPER – A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
MANUAL No. 7100490 (Rev. 1, 1/20/2006)
MODELS
S21
SP21
SPV21
SPV21S
SPV21E
TP 100-5117-01-WB-N
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating
the machine must be of sound mind and body and must not be under the influence of any substance, which
might impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your
dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER,
McDonough, Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume
that children will remain where you last saw them.
1. KEEP children out of the mowing area and under
the watchful care of a responsible adult other than
the operator.
2. DO NOT allow children in yard when machine is
operated and turn machine OFF if anyone enters
the area.
3. DO NOT allow pre-teenage children to operate
machine.
4. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.
5. DO NOT pull mower backwards unless absolutely
necessary. LOOK and SEE behind and down for
children, pets and hazards before and while
backing.
6. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may
obscure vision.
SLOPE OPERATION
1. Slopes are a major factor related to slip and fall
accidents, which can result in severe injury. All
slopes require extra caution. If you feel uneasy on
a slope, DO NOT mow it.
2. Mow across slopes, never up-and-down. Exercise
extreme CAUTION when changing directions on
slopes. DO NOT mow steep slopes or other areas
where stability or traction is in doubt.
3. Use extra care with grass catchers or other
attachments; these affect the handling and the
stability of the machine.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the mower, engine
and attachments. Know the controls and the
proper use of the mower before starting.
2. Only mature, responsible persons shall operate the
machine and only after proper instruction.
PREPARATION
(Continued From Previous Column)
3. Data indicates that operators age 60 and above, are
involved in a large percentage of mower-related
injuries. These operators should evaluate their
ability to operate the mower safely enough to
protect themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add fuel
with engine running. Add fuel outdoors only with
engine stopped and cool. Clean spilled fuel and oil
from machine. DO NOT smoke.
5. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limbs and other
objects that could cause injury if thrown by blade
or interfere with mowing. Also note the location of
holes, stumps, and other possible hazards.
6. Keep people and pets out of the mowing area.
Immediately, STOP Blade, Stop engine and Stop
mower if anyone enters the area.
7. Check shields, deflectors, switches, blade controls
and other safety devices frequently for proper
operation and location.
8. Make sure all safety decals are clearly legible.
Replace if damaged.
9. Protect yourself when mowing and wear safety
glasses, long pants and substantial footwear. DO
NOT mow barefooted or with sandals.
10. Know how to STOP blade and engine quickly in
preparation for emergencies.
11. Use extra care when loading or unloading the
machine into a trailer or truck.
12. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or torn spots.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive
1. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
2. Use only an approved fuel container.
2
IMPORTANT SAFETY INSTRUCTIONS
SAFE HANDLING OF GASOLINE
(Continued From Previous Page)
3. DO NOT remove fuel cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. DO NOT refuel the machine indoors.
5. DO NOT store the machine or fuel container inside
where there is an open flame, spark or pilot light
such as on a water heater or other appliances.
6. DO NOT fill fuel containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always place
the containers on the ground away from the vehicle
before filling.
7. Remove gas-powered equipment from the vehicle or
trailer and refuel it on the ground. If this is not
possible, then refuel equipment using a portable
container, rather than a gasoline dispenser nozzle.
8. DO NOT start gas powered equipment in enclosed
vehicles or trailers.
9. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. DO NOT use a nozzle lock-open device
10. If fuel is spilled on clothing, change clothing
immediately.
11. DO NOT overfill a fuel tank. Replace fuel cap and
tighten securely.
OPERATION
1. DO NOT put hands or feet near or under rotating
parts. Keep clear of discharge area while engine is
running.
2. STOP engine when crossing gravel drives, walks, or
roads, and under any conditions where thrown
objects might be a hazard.
3. Mow only in daylight or good artificial light.
4. DO NOT operate mower while under the influence of
alcohol or drugs.
5. After striking a foreign object or if mower vibrates
abnormally, STOP the engine, disconnect and
secure spark plug wire. Inspect the mower for any
damage and repair the damage before starting.
6. DO NOT mow near drop offs, ditches or
embankments. Operator could lose footing or
balance.
7. STAY ALERT for holes and other hidden hazards.
Tall grass can hide obstacles. Keep away from
ditches, washouts, culverts, fences and protruding
objects.
8. DO NOT mow on wet grass. Always be sure of your
footing. Keep a firm hold on the handle and walk,
never run. Slipping could cause injury.
9. ALWAYS stay behind handle when engine (motor) is
running.
10. DO NOT leave the machine with the engine running.
STOP BLADE and STOP ENGINE before leaving the
operators position for any reason.
OPERATION
(Continued From Previous Column)
11. Before cleaning, repairing or inspecting make
certain engine, blade and all moving parts have
STOPPED. Disconnect and secure spark plug wire
away from plug to prevent accidental starting.
12. STOP engine and wait until the blade comes to
complete STOP before removing grass bag and/or
clearing grass.
13. DO NOT operate mower without the entire grass
catcher, discharge guard, rear guard or other safety
devices in place and working. DO NOT point
discharge at people, passing cars, windows or
doors.
14. DO NOT discharge material against a wall or
obstruction. Material may ricochet back towards the
operator.
15. Slow down before turning.
16. Watch out for traffic when near or crossing
roadways.
17. DO NOT operate engine in enclosed areas. Engine
exhaust gases contain carbon monoxide, a deadly
poison.
18. Only use accessories approved by the
manufacturer. See manufacturer’s instructions for
proper operation and installation of accessories.
MAINTENANCE AND STORAGE
1. DO NOT store mower or fuel container inside where
fumes may reach an open flame, spark or pilot light
such as in a water heater, furnace, clothes dryer or
other gas appliance. Allow engine to cool before
storing machine in an enclosure. Store fuel
container out of reach of children in a well
ventilated, unoccupied building.
2. Keep mower and engine free of grass, leaves or
excess grease to reduce fire hazard and engine
overheating.
3. When draining fuel tank, drain fuel into an approved
container outdoors and away from open flame.
4. Keep all bolts, especially blade bolts, nuts and
screws properly tight. Check that all cotter pins are
in proper position.
5. Always provide adequate ventilation when running
engine. Engine exhaust gases contain carbon
monoxide, a deadly poison.
6. Service engine and make adjustments only when
engine is stopped. Removed spark plug wire from
spark plug and secure wire away from spark plug to
prevent accidental starting.
7. DO NOT change engine governor speed settings or
overspeed engine.
8. Check grass bag assembly frequently for wear or
deterioration to avoid thrown objects and exposure
to moving parts. Replace with new bag if loose
seams or tears are evident. Replace slider or bag
adapter if broken or cracked.
3
IMPORTANT SAFETY INSTRUCTIONS
MAINTENANCE AND STORAGE
(Continued From Previous Page)
9. Mower blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.
10. DO NOT test for spark by grounding spark plug next
to spark plug hole; spark plug could ignite gas
exiting engine.
11. Have machine serviced by an authorized SNAPPER
dealer at least once a year and have the dealer install
any new safety devices.
12. Use only genuine SNAPPER replacement parts to
assure that original standards are maintained.
4
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 2 - 4
TABLE OF CONTENTS......................................................................................................5
SECTION 1 - FAMILIARIZATION.......................................................................................6
SECTION 2 - OPERATING INSTRUCTIONS............................................................... 7-10
Pre-start Checklist................................................................................................7
Starting & Stopping Engine & Blades ................................................................7
Propelling Mower .................................................................................................8
Handle Height Adjustment ..................................................................................8
Cutting Height Adjustment..................................................................................9
Recycling Operation.............................................................................................9
Installation of Side Discharge Deflector ..........................................................10
Installation of Grass Bag Adapter ....................................................................10
Installation of Grass Bag ...................................................................................10
SECTION 3 - MAINTENANCE INSTRUCTIONS ....................................................... 11-12
Change Engine Oil..............................................................................................11
Check Mower Blade ...........................................................................................11
Check Engine Drive Belt....................................................................................11
Service - Periodic ...............................................................................................11
Engine ..............................................................................................................11
Air Filter............................................................................................................11
Engine Oil.........................................................................................................11
Wheel Drive Components...............................................................................12
Storage Procedure .............................................................................................12
SECTION 4 - ADJUSTMENTS AND REPAIR............................................................ 13-16
Mower Blade Replacement................................................................................13
Blade Sharpening...............................................................................................13
Wheel Drive Control Adjustment ......................................................................14
Ground Speed Control Adjustment..................................................................15
Belt Service .........................................................................................................16
Engine Drive Belt Replacement.....................................................................16
Battery Service ...................................................................................................17
Rear Cover Removal & Installation...................................................................18
TROUBLESHOOTING......................................................................................................19
SERVICE SCHEDULE......................................................................................................20
Maintenance/Replacement Parts ......................................................................20
WARRANTY......................................................................................................................21
PRIMARY MAINTENANCE ........................................................................................ 22-25
PRODUCT REGISTRATION FORM.................................................................................26
5
Section 1 - FAMILIARIZATION
(
)
BLADE
CONTROL
ROPE START
HANDLE
REAR HEIGHT
ADJUSTMENT
LATCH
RECYCLING
COVER
1.1 INTRODUCTION
This manual has been prepared for the operators of
the SNAPPER ‘EASY LINE’ WALK BEHIND
MOWERS. Its purpose, aside from recommending
operating and routine service requirements, is to
promote safety through the use of accepted
operating practices. Read, Understand and Follow
the “IMPORTANT SAFETY INSTRUCTIONS” on
Pages 2 - 4 of this manual and all safety messages
on the mower and attachments before operating the
mower.

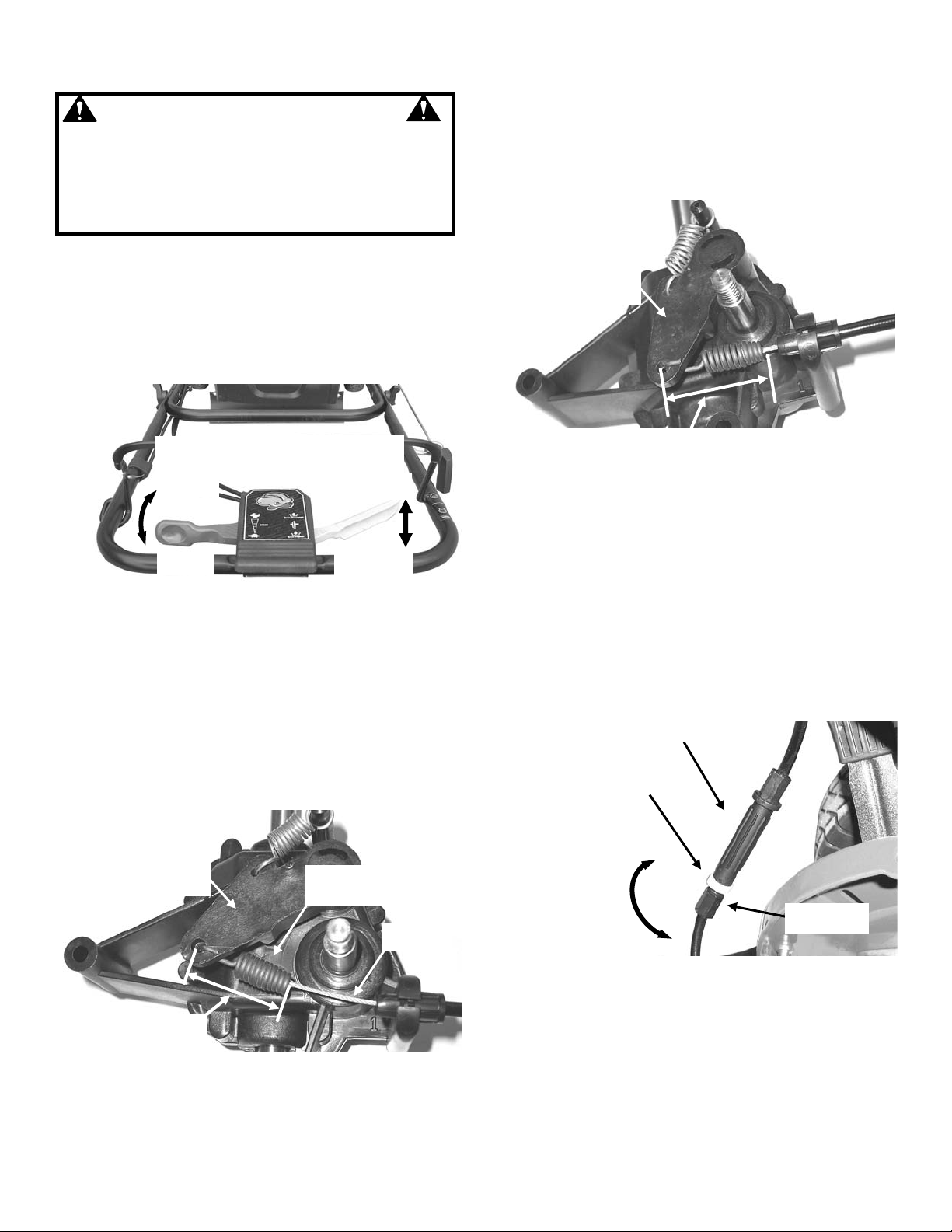

GROUND SPEED
CONTROL
NOT ALL MODELS
WHEEL DRIVE CONTROL
(NOT ALL MODELS)
FIGURE 1.1
(MODEL SPV21 SHOWN)
IMPORTANT
The figures and illustrations in this manual are
provided for reference only and may differ from
your specific model. Contact your Snapper
dealer if you have questions.
FUEL FILLER
CAP
OIL FILL CAP
AND DIPSTICK
ENGINE
PRIMER
FRONT HEIGHT
ADJUSTMENT
LATCHES
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows
the essential parts of the SNAPPER ‘EASY LINE’
WALK BEHIND MOWERS. It is recommended that
all operators of the mower become thoroughly
familiar with the controls, parts and operation of the
mower before operating. Specific details involving
the engine are found in the separate engine owner’s
manual. Study these manuals before operating and
keep both handy for future reference.
6
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Make the following checks and perform the service
required before each start-up.
2.1.1. Check guards, deflectors, grass bag, adapter
and covers to make sure all are in place and
securely tightened.
2.1.2. Check blade control, wheel drive control, and
ground speed control to insure they work freely. See
Figure 2.1.
BLADE
CONTROL
GROUND SPEED
CONTROL
WHEEL DRIVE
CONTROL
FIGURE 2.1
2.1.3. Check cutting height. Adjust to desired height.
Refer to Section ‘Cutting Height Adjustment’.
2.1.4. Check engine oil and add oil as needed to bring
level up to the full mark. Refer to Engine Owner’s
Manual for oil specifications. See Figure 2.2.
2.2 STARTING & OPERATION
2.2.1. ENGINE & BLADE
1. Push primer button three times to start a cold
engine. See Figure 2.3. NOTE: The primer should
not be required to restart a warm engine.
PRIMER
BUTTON
(PUSH 3X)
2. Pull blade control against handle. See Figure
2.4.
3. Start Mower:
Manual Start Models: Pull rope start handle to
crank engine. See Figure 2.4.
PULL ROPE
START
HANDLE
FIGURE 2.3
SQUEEZE
BLADE
CONTROL
FIGURE 2.2
2.1.5. Add fuel to tank after pushing the mower
outside where fumes can safely dissipate. Make sure
cap is tightened after refueling. Refer to Engine
Owners Manual for specifications.
2.1.6. Clean exterior surfaces of cutting deck and
engine of any accumulation of spilled fuel, dirt, grass,
oil, etc. Keep engine air intake screen and cooling
fins clear at all times.
FIGURE 2.4
Electric Start Models: Insert key into ignition
switch, located on right side of handle above
rope guide. Turn key to crank engine. See Figure
2.5.
RUN
FIGURE 2.5
4. After engine starts, allow a brief warm-up until
engine runs smooth before beginning mower
operation.
NOTE: To stop the engine (and blade), release the blade
control.
7
Section 2 - OPERATING INSTRUCTIONS
(3)
2.2 STARTING & OPERATION
2.2.2. PROPELLING MOWER
(Self Propelled Models Only)
1. Start engine. Refer to Section “Starting &
Operation – Engine & Blade”.
2. Move ground speed control to the desired
speed position. See Figure 2.6.
3. Squeeze wheel drive control against handle to
engage wheel drive and propel mower forward.
Forward speed can be adjusted while mower is
moving by changing position of ground speed
control. See Figure 2.6.
GROUND SPEED
CONTROL
FAST
WHEEL DRIVE
CONTROL
DISENGAGE
SLOW
ENGAGE
FIGURE 2.6
2.3 STOPPING
Stop forward motion of mower by releasing the
wheel drive control. Stop engine and blade by
releasing the blade control.
2.3 LOCKING SWIVEL WHEELS (SPV21S ONLY)
The left front swivel wheel on the SPV21S can be
locked to keep the mower traveling in a straight
line:
1. Move mower straight forward to align caster
stud pin with notches in swivel locking clip, located
above left caster stud. See Figure 2.7.
LOCKING
CLIP
ALIGN PIN
WITH
NOTCHES
SWIVEL
CASTER
ASSEMBLY
FIGURE 2.7
8
2. Move swivel caster lock lever, located on left
side of handle assembly, to ‘LOCK’ position to lock
clip down over caster stud. See Figure 2.8.
3. To release caster, simply move swivel caster
lock lever back from locked position. See Figure
2.8.
UNLOCK
CASTER
2.4 HANDLE HEIGHT ADJUSTMENT
The height of the mower handle can be adjusted
as follows:
1. Remove T-knobs and carriage bolts securing
lower handle to mounting brackets.
2. Align holes in handle assembly with one of
three handle height adjustment holes in mounting
bracket. See Figure 2.9.
3. Replace removed hardware, tightening
securely.
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
FIGURE 2.8
HIGHER
LOWER
HANDLE HEIGHT
ADJUSTMENT
HOLES
FIGURE 2.9
WARNING
LOCK
CASTER
SWIVEL CASTER
LOCK LEVER
HANDLE
ASSEMBLY
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
2.5 CUTTING HEIGHT ADJUSTMENT
1. Pull the height adjusting latch outward and
move to desired cutting height. See Figure 2.10.
WARNING
Stop engine and mower blade by releasing the
blade control before adjusting cutting height.
HIGHEST
CUTTING
HEIGHT
HIGHEST
CUTTING
HEIGHT
2
3
4
5
6
7
5
6
7
LOWEST CUTTING
1
HEIGHT
3
4
LATCH (IN
NOTCH # 4)
FRONT
WHEEL
(EXCEPT
SPV21S)
2
1
LATCH (IN
NOTCH # 4)
LOWEST
CUTTING
HEIGHT
EACH NOTCH RAISES CUT 0.5”
LATCH
POSITIONS
1.2”
2.6 RECYCLING OPERATION
NOTE: For best recycling results, cut up to a maximum of 1/3
of grass blade length and recycle ONLY when grass is dry.
1. Set all wheels in the highest cutting position (Notch
7). Refer to Section “Cutting Height Adjustment”.
2. Move engine speed control to “FAST” (Rabbit)
position.
3. Move ground speed control to slowest speed
setting.
4. Proceed mowing slowly. If grass is very dense,
lower each rear wheel latch one notch lower than the
front wheel latches to improve recycling performance.
NOTE: The recycling cover should remain on the
machine at all times, unless alternate discharge
operations are desired, such as side discharging or
bagging.
TO REMOVE RECYCLING COVER:
Remove knob nuts and internal/external tooth lock
washers securing recycling cover to mower deck.
Remove cover. See Figure 2.12.
CUTTING HEIGHT SETTINGS
FIGURE 2.11
4.2”
REAR WHEEL
(SPV21S FRONT
WHEEL SIMILAR)
FIGURE 2.10
2. Set all wheels at the same cutting height. The
highest cutting position is Notch 7. The lowest
cutting position is Notch 1. See Figure 2.11.
REMOVE KNOB NUTS
AND LOCK WASHERS
FIGURE 2.12
9
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
2.6 INSTALLATION OF SIDE DISCHARGE
DEFLECTOR
STEP 1: Remove recycling cover. Refer to Section
“Recycling Operation”.
STEP 2: Install deflector to deck in place of recycling cover,
making sure that: 1) front hole on outside front of deflector
fits over stud where front of recycling cover was originally
secured, 2) slot on top of deflector slips under restraining
nut on top of deck (under right front corner of engine), and
3) slot on inside rear of deflector slips onto stud behind rear
of discharge opening, where rear of recycling cover was
originally secured. Install internal/external tooth lock
washers and knob nuts onto studs and tighten securely.
See Figure 2.13.
REAR SLOT
OVER STUD;
INSTALL LOCK
WASHER AND
KNOB NUT
2.7 INSTALLATION OF GRASS BAG ADAPTER
(Optional Accessory on Some Models)
STEP 1: Remove recycling cover. Refer to Section
“Recycling Operation”.
STEP 2: Install grass bag adapter to the deck in place of
recycling cover, making sure that: 1) front hole on outside
front of adapter fits over stud where front of recycling cover
was originally secured, 2) slot on top of adapter slips under
restraining nut on top of deck (under right front corner of
engine), and 3) slot on bottom rear of adapter slips onto
stud behind rear of discharge opening, where rear of
recycling cover was originally secured. Install
internal/external tooth lock washers and knob nuts onto
studs and tighten securely. See Figure 2.14.
STEP 3: Route recoil rope around outside of rope guide
pulley. See Figure 2.14. (NOTE: Recoil rope may need to
be slackened. Refer to “Handle Assembly”.)
TOP
SLOT
UNDER NUT
FIGURE 2.13
FRONT HOLE
OVER STUD;
INSTALL LOCK
WASHER AND
KNOB NUT
REAR SLOT
OVER STUD;
INSTALL LOCK
WASHER AND
KNOB NUT
2.8 INSTALLATION OF GRASS BAG
(Door Type Bag)
STEP 1: Install grass bag adapter. Refer to Section
“Installation of Grass Bag Adapter”.
STEP 2: Install grass bag by opening adapter cover
and sliding connector over adapter flange. See Figure
2.15.
STEP 3: Attach grass bag hooks over middle handle
cross bar. See Figure 2.15.
DO NOT operate without entire Grass Catcher or
guard in place. Grass Catcher components are
subject to deterioration during normal use. Inspect
frequently and replace worn or damaged
components immediately.
Grass Catcher bags used on SNAPPER products are
made of woven fabric, and are subject to
deterioration and wear during normal usage. Check
condition of bag before each use. Immediately
replace worn or damaged catcher bags with only
bags recommended by SNAPPER. The grass catcher
is optional equipment on some models.
10
ROUTE RECOIL ROPE
AROUND PULLEY
FIGURE 2.14
HOOK DOOR AND
BAG HOOKS TO
MIDDLE HANDLE
FIGURE 2.15
WARNING
TOP
SLOT
UNDER NUT
FRONT HOLE
OVER STUD;
INSTALL LOCK
WASHER AND
KNOB NUT
SLIDE CONNECTOR
OVER FLANGE
Section 3 – MAINTENANCE
3.1 INTRODUCTION
To retain the quality of the mower, use genuine
SNAPPER replacement parts only. Contact a local
SNAPPER dealer for parts and service assistance.
For the correct part or information for a particular
mower, always mention model and serial number.
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.
3.2 SERVICE - AFTER FIRST 5 HOURS
3.2.1. CHANGE ENGINE OIL
IMPORTANT: Drain fuel tank before tipping machine.
DO NOT tip machine with carburetor or spark plug down.
Oil from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If
contamination does occur, the air filter will have to be
replaced.
1. Refer to Engine Manual for proper oil
specifications, procedures and proper service
intervals.
For simplest/cleanest oil change, simply turn mower on its
side to drain oil, as shown in Figure 3.1. Drain oil through
dipstick tube into a container. Allow sufficient time for all oil
to drain.
FIGURE 3.1
2. Dispose of drain oil properly.
3. Fill engine with oil as specified in Engine Manual.
Do Not overfill.
3.2.2. CHECK MOWER BLADE
1. Disconnect spark plug wire and secure end away
from plug.
2. Tilt mower up on its rear wheels for access to the
blade cap screw. Do not tilt mower with spark plug or
carburetor down. See Figure 3.2.
3. Check torque of blade retaining cap screw.
Recommended torque should be 40 ft. lbs.
See Figure 3.2.
4. Check blade for sharpness, wear and damage.
Refer to Section “Blade Wear Limits”.
FIGURE 3.2
IMPORTANT: Drain fuel tank before tipping mower. DO
NOT tip machine with carburetor or spark plug down. Oil
from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If contamination
does occur, the air filter will have to be replaced.
3.2.3. CHECK ENGINE DRIVE BELT
1. Visually check engine drive belt for cracking,
fraying, severed or belt strands exposed. If worn or
damaged, replace belt before operating mower.
3.3 SERVICE - PERIODIC
Perform all maintenance as described in the “Service
Schedule” section of this manual.
3.3.1. Engine
Service engine according to engine owner’s manual.
3.3.2. Air Filter
Refer to engine owner’s manual for service
instructions.
3.3.3. Engine Oil
Refer to engine owner’s manual for service
instructions.
11
RECOMMENDED
BLADE RETAINING
CAP SCREW TORQUE
VALUE SHOULD BE
40 FT. LBS.
Section 3 – MAINTENANCE
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.
3.3.4. Wheel Drive Components
1. Remove rear cover. Refer to Section “Rear Cover
Removal & Installation”.
2. Clean debris buildup on or around transmission,
axles, idler, pulleys, belt, etc., as well as on underside
of cover. Check components for wear or damage.
Replace worn or damaged components immediately.
3. Replace rear cover.
IMPORTANT: DO NOT operate mower without rear cover
securely in place.
3.4 STORAGE PROCEDURE
Refer to the Engine Owner’s Manual for directions
regarding engine storage preparations. Prepare the
mower for “end of season” storage as follows:
1. Drain fuel from fuel tank and let engine run until
all fuel is out of the carburetor.
2. Disconnect and remove the spark plug wire
away from spark plug before any other preparations
are made!
3. Tape all openings closed to prevent spraying
water into exhaust or air intakes during washing.
4. Tilt mower up on its rear wheels and thoroughly
clean the underside of the deck. Do not tilt mower
with spark plug or carburetor down. Scrape away
any accumulation of grass with a putty knife and or
wire brush.
5. Lubricate all exposed metal with a light coating
of oil to prevent corrosion.
6. On self-propelled models, move ground speed
control back to slow (‘turtle’) position to prevent
stretching of belt and/or idler spring.
7. Carefully fold the handles, “flexing” the control
cables to prevent cable damage.
8. Store the mower in a shed or other dry area,
protected from weather.
12
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.
4.1 MOWER BLADE REPLACEMENT
4.1.1. STANDARD BLADE WEAR LIMIT
1. Inspect blade frequently for signs of excessive
wear or damage. See Figure 4.1.
NEW BLADE
WEAR LIMIT
(NOTCH STARTS)
DANGEROUS CONDITION !
DO NOT USE ON MOWER !
REPLACE WITH NEW
BLADE.
4. Sharpen blade on a grinding wheel at an angle of
22 to 28 degrees. DO NOT sharpen blade beyond
original cutting edge. See Figure 4.3.
DO NOT SHARPEN
BEYOND ORIGINAL
CUTTING EDGE
BLADE
HUB
FLANGE
BLADE
CONE WASHER
(Concave Side Up)
CAPSCREW
FIGURE 4.2
22-28º
MAKE SURE THAT
BLADE HUB IS
SEATED
BETWEEN
FLANGES
FIGURE 4.1
WARNING
DO NOT use a cutting blade that shows signs of
excessive wear or damage. Refer to Section
“MOWER BLADE REPLACEMENT” for proper blade
inspection and service procedures.
4.1.2. BLADE SHARPENING
1. Disconnect spark plug wire and secure end away
from plug.
IMPORTANT: Drain fuel tank before tipping mower.
DO NOT tip machine with carburetor or spark plug down.
Oil from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If
contamination does occur, the air filter will have to be
replaced.
2. Tilt mower up on its rear wheels. Do not tilt
mower with spark plug or carburetor down.
3. Remove blade. See Figure 4.2.
BLADE TIP
END VIEW OF
BLADE ASSEMBLY
ORIGINAL CUTTING EDGE
FIGURE 4.3
5. Check blade for balance. If necessary, correct
balance by grinding heavy end of blade.
6. Reinstall blade. See Figure 4.2. Check torque of
blade retaining cap screw. Recommended torque
should be 40 ft. lbs.
13
Section 4 - REPAIR & ADJUSTMENTS
DO NOT attempt any maintenance, adjustments or
WARNING
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
4.2 WHEEL DRIVE CONTROL ADJUSTMENT
The wheel drive control lever should engage the
transmission when the lever is squeezed back
against the handlebar, and disengage the
transmission when the lever is released. See
Figure 4.4.
GROUND SPEED
CONTROL
FAST
SLOW
FIGURE 4.4
If the transmission does not fully engage or disengage,
adjustment may be performed as follows:
1. Remove rear cover from mower. Refer to
Section “Rear Cover Removal & Installation”.
2. With wheel drive control lever in ‘DISENGAGE’
position (see Figure 4.4), spring on end of wheel
drive control cable should have no tension.
Measure overall length of unextended spring. See
Figure 4.5.
TRANSMISSION
ENGAGE LEVER
(DISENGAGED)
MEASURE
UNEXTENDED SPRING
FIGURE 4.5
(Top of transmission; pulley removed for clarity)
WHEEL DRIVE
CONTROL
DISENGAGE
ENGAGE
SPRING HAS NO
TENSION
CABLE
3. Engage lever, and roll mower back and forth
several times to ensure clutch dogs are fully
engaged. With lever engaged, measure length of
extended spring. Overall spring length should
increase by 0.090 – 0.110” (3/32 – 7/64”). See
Figure 4.5a.
TRANSMISSION
ENGAGE LEVER
(ENGAGED)
EXTENDED SPRING – SHOULD BE LENGTH OF UNEXTENDED
SPRING PLUS 0.090 to 0.110” (3/32 to 7/64”) EXTENSION
4. To adjust spring extension:
a. Disengage lever.
b. To increase extended spring length, loosen jam
nut, and rotate ferrule below adjustment
turnbuckle, located on lower end of wheel drive
control cable, ½ turn out from turnbuckle. Tighten
jam nut. See Figure 4.5b.
c. To decrease extended spring length, loosen
jam nut, and rotate ferrule ½ turn in toward
turnbuckle. Tighten jam nut. See Figure 4.5b.
LOOSEN JAM NUT
ROTATE FERRULE
OUT TO INCREASE
SPRING LENGTH
ROTATE FERRULE IN
TO DECREASE
SPRING LENGTH
5. Engage lever and recheck extended spring
length. Repeat step 4 as needed.
IMPORTANT: INCORRECT ADJUSTMENT CAN
CAUSE DAMAGE TO THE TRANSMISSION.
FIGURE 4.5a
TURNBUCKLE
FERRULE
FIGURE 4.5b
14
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.3 GROUND SPEED CONTROL ADJUSTMENT
4.3.1. IDLER SPRING TENSION ADJUSTMENT
Correct idler spring tension assures that mower will
achieve fastest attainable speed when ground
speed control lover is placed in ‘FAST’ position.
1. Remove rear cover from mower. Refer to
Section “Rear Cover Removal & Installation”.
2. Idler spring tension is adjusted properly when:
a. With lever in ‘SLOW’ position (see Figure 4.4),
belt is relaxed, and idler spring on end of ground
speed control cable has no extension. See Figure
4.6.
GROUND SPEED
LEVER IN ‘SLOW’
POSITION
SPRING HAS NO
TENSION
INNER NUT
OUTER NUT
FIGURE 4.6
b. With lever in ‘FAST’ position (see Figure 4.4), belt
is tight, and idler spring on end of ground speed
control cable is extended approx. 1”. See Figure
4.7.
GROUND SPEED
LEVER IN ‘FAST’
POSITION
1”
SPRING LENGTH
EXTENDED 1”
FIGURE 4.7
BELT IS RELAXED
UNEXTENDED
LENGTH
BELT IS TIGHT
To adjust idler spring tension:
Loosen outer nut on end of ground speed cable,
and run inner nut in toward cable (clockwise) or out
from cable (counterclockwise) by 1/2 turn
increments until correct adjustments are attained.
See Figure 4.6. Be sure to tighten outer nut.
3. Replace rear cover.
4.3.2. MINIMUM GROUND SPEED ADJUSTMENT
If mower is traveling too fast or too slow when
ground speed control lever is placed in ‘SLOW’
position, minimum ground speed can be adjusted.
NOTE: Before adjusting minimum ground speed, be
sure idler spring tension is adjusted correctly, as
idler spring tension may affect minimum ground
speed. Refer to Section “Idler Spring Tension
Adjustment”.
1. Remove rear cover from mower. Refer to
Section “Rear Cover Removal & Installation”.
2. Place ground speed control lever in ‘SLOW’
position. See Figure 4.4.
3. Adjust minimum ground speed:
To decrease minimum ground speed:
Remove end of idler spring from current adjustment
hole, and relocate spring one hole closer to idler
arm pivot bolt. See Figure 4.7a.
To increase minimum ground speed:
Remove end of idler spring from current adjustment
hole, and relocate spring one hole farther from idler
arm pivot bolt. See Figure 4.7a.
ADJUSTMENT
HOLES
NOTE: After adjusting minimum ground speed,
readjustment of idler spring tension may be
necessary.
4. Replace rear cover.
5. Check minimum ground speed; repeat
adjustment as necessary.
THE DRIVE BELT ON THIS UNIT IS SUBJECT TO
WEAR, AND SHOULD BE CHECKED
REGULARLY. REPLACE A WORN, FRAYED OR
DAMAGED BELT IMMEDIATELY.
INCREASE MINIMUM
GROUND SPEED
DECREASE MINIMUM
GROUND SPEED
IDLER PIVOT BOLT
FIGURE 4.7a
15
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.4 BELT SERVICE
On self-propelled mowers, the engine belt transmits
power from the engine to the transmission that
powers the rear wheels. Should the belt become
worn, it could cause slippage, which would impair
mower performance. The condition of the engine belt
should be checked after every 25 hours of mower
operation.
4.4.1. Engine Drive Belt Replacement
1. Empty fuel tank.
2. Remove blade. Refer to Section “Blade
Sharpening”.
3. Remove rear cover of mower. Refer to Section
“Rear Cover Removal & Installation”.
LOOSEN ENGINE
MOUNTING BOLTS;
SWING BELT GUIDES
AWAY FROM ENGINE
PULLEY
ENGINE
PULLEY
WHEN REPLACING BELT
GUIDES, ALLOW 1/16”
SPACING BETWEEN BELT
GUIDE AND BELT
REPLACE
DRIVE BELT
SINGLE
SPEED
MODELS
REPLACE
DRIVE BELT
GROUND
SPEED IDLER
4. SINGLE SPEED MODELS
a. Loosen (do not remove) engine mounting bolts
securing belt guides, and swing belt guides out away
from engine pulley. See Figure 4.8.
b. Replace belt, noting belt routing in Figure 4.8.
c. Replace belt guides, allowing approx 1/16” spacing
between guides and belt. Torque engine mounting
bolts to 40 ft-lbs.
d. Replace blade and rear cover.
5. VARIABLE SPEED MODELS
a. Loosen (do not remove) engine mounting bolts
securing belt guides, and swing belt guides out away
from engine pulley. Also loosen nut securing
transmission belt guide, and swing guide back away
from transmission pulley. See Figure 4.9.
b. Loosen (do not remove) nuts securing ground
speed idler pulleys to idler plate to ease removal of
belt. See Figure 4.9.
c. Replace belt, noting belt routing in Figure 4.9.
d. Replace belt guides, allowing approx 1/16” spacing
between guides and belt. Torque engine mounting
bolts to 40 ft-lbs. Retighten idler pulley bolts, making
sure idler belt guide is aligned as shown in Figure 4.9.
e. Replace blade and rear cover.
ENGINE
PULLEY
VARIABLE
SPEED
MODELS
LOOSEN
ENGINE
MOUNTING
BOLTS; SWING
BELT GUIDES
AWAY FROM
ENGINE
PULLEY
WHEN REPLACING BELT
GUIDES, ALLOW 1/16”
SPACING BETWEEN BELT
GUIDE AND BELT
LOOSEN (DO
NOT REMOVE)
THESE NUTS
TRANSMISSION
PULLEY
LOOSEN NUT; SWING
BELT GUIDE AWAY
FIGURE 4.8 FIGURE 4.9
FROM TRANSMISSION
PULLEY
16
TRANSMISSION
PULLEY
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
4.5. BATTERY SERVICE
4.5.1. NEW BATTERY PREPARATION
1. Remove battery from carton.
2. Place battery in a well ventilated area on a level
non-concrete surface.
3. Test battery. Refer to Section “Battery Testing”. If
battery needs charging, charge battery. Refer to
Section “Battery Charging”.
4. Connect positive (+) lead (red) first, from battery
harness to the positive terminal (+) on battery using
bolt and nut plate supplied with battery. Connect
negative (-) lead (black) last, to negative terminal (-)
on battery using bolt and nut plate. Apply a small
amount of grease over terminals to prevent
corrosion. NOTE: Battery may come with harness
already connected. If so, simply check to be sure
terminal hardware is securely tightened.
5. Install battery into power unit.
6. Plug main harness battery harness connector
WARNING
Shield the positive terminal with terminal cover
located on battery harness. This prevents metal from
touching the positive terminal, which could cause
sparks.
4.5.2. BATTERY SERVICE
1. Remove rear cover from mower. Refer to
Section “Rear Cover Removal”.
2. Test battery. Refer to Section “Battery Testing”. If
battery needs charging, charge battery. Refer to
Section “Battery Charging”.
3. If battery will not accept charge or is partially
charged after charging per instructions, replace with
new battery.
4.5.3. BATTERY STORAGE
If Walk Behind is to be stored out of season on its
rear bumper, it is recommended the battery be
removed, charged and stored.
1. Remove battery.
2. Perform battery service. Refer to Section
“Battery Service”.
3. Store battery in an area away from the Walk
Behind on a wood surface. DO NOT STORE
BATTERY ON A CONCRETE SURFACE.
17
4.5.4. BATTERY TESTING
Check the battery’s state of charge using a
voltmeter. Remember to hook the positive lead to
the battery’s positive terminal, and the negative lead
to the negative terminal. Check reading against chart
below. If voltage reads less than 12.80 volts, charge
battery. Refer to Section “Battery Charging”.
100% Charged 12.80v
75% Charged 12.40v
50% Charged 12.10v
25% Charged 11.90v
0% Charged Less than 11.80v
4.5.5. BATTERY CHARGING
Supplied DC charger. Plug charger connector
into battery harness connector. See Figure 4.10.
Plug charger into wall outlet and charge battery for
48 hours. (Longer periods will not damage battery.)
Automotive-type charger. Connect battery
charger to battery terminals; RED to positive (+) and
BLACK to negative (-) terminal. Slow charge battery
at 0.4 amps for 5-10 hours. For quick charge, charge
battery at 4.0 amps for 30 minutes.
MAIN
HARNESS
CONNECTOR
BATTERY
Keep all sparks, flame and fire away from area when
charging battery or when handling battery. Never use
“BOOST” chargers on the battery.
Battery Condition
State of Charge Digital Voltmeter
BATTERY HARNESS
CONNECTOR (CHARGER
CONNECTS HERE)
BATTERY
HARNESS
LEADS
FIGURE 4.10
WARNING
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.6. REAR COVER REMOVAL & INSTALLATION
1. To remove rear cover, remove six threaded
fasteners securing rear cover to machine, and lift
cover from machine. See Figure 4.11. Set
components aside.
2. To install rear cover, place cover onto rear of
mower, aligning holes in cover with holes in mower.
Secure cover to mower with threaded fasteners. See
Figure 4.11.
REAR COVER
FIGURE 4.11
THREADED
FASTENERS (6)
18
TROUBLESHOOTING
p
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Engine Will Not Start 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel.
Using Recoil Starter 2. Engine needs priming. 2. Prime. Check Engine Manual for Instructions.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
Engine Will Not Start 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel.
(Electric Start Models) 2. Engine needs priming. 2. Prime. Check Engine Manual for Instructions.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
4. Wiring harness disconnected. 4. Connect wiring harness.
5. Battery dead. 5. Charge or replace battery.
Engine Stalls or Stops
After Running
2. Fuel tank empty. 2. Fill with fuel to proper level.
3. Engine air pre-cleaner and or air cleaner dirty. 3. Clean free of all debris.
4. Spark plug defective or gap set improperly. 4. Service spark plug.
5. Water, debris or stale fuel in fuel system. 5. Drain and clean fuel system.
Engine Loses Power 1. Engine air pre-cleaner or air cleaner dirty. 1. Clean or replace filters.
2. Spark plug faulty. 2. Service spark plug.
3. Water, debris or stale fuel in fuel system. 3. Drain and clean fuel system.
Excessive Vibration 1. Damaged, out of balance or bent mower blade. 1. Service mower blade.
2. Loose blade components. 2. Service and tighten loose parts.
3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.
4. Lumpy or frayed belt. 4. Replace belt.
Mower Will Not Move
Loss Of Traction
(Self-Propelled Models)
Transmission Noise
(Self-Propelled Models)
Ground Speed
Too Fast / Too Slow;
Unable to Adjust
Ground Speed
(Variable-Speed Self-
Propelled Models)
Cutting Grass
Improperly
Poor Grass Discharge
Oil Leaking
1. Blade control is released or is not being held securely
against handle.
1. Build-up of debris on or around wheel drive
onents.
com
2. Transmission clutch cable adjustment required. 2. Adjust transmission clutch cable.
3. Drive belt requires replacement. 3. Replace drive belt.
4. Damaged transmission.
1. Transmission clutch cable adjustment required. 1. Adjust transmission clutch cable.
2. Damaged transmission.
1. Build-up of debris on or around ground speed control
components.
2. Ground speed control adjustment required. 2. Adjust ground speed control.
3. Drive belt requires replacement. 3. Replace drive belt.
4. Damaged transmission.
1. Cutting height too low or high. 1. Adjust cutting height.
2. Forward ground speed too fast. 2. Move ground speed control to a slower speed.
3. Terraced cut, side to side. 3. Adjust height of cut with height adjust levers.
4. Excessive deck pitch, front to rear. 4. Adjust height of cut with height adjust levers.
5. Cutting blade dull or damaged. 5. Sharpen cutting edges or replace blade.
1. Forward speed too fast. 1. Move ground speed control to a slower speed.
2. Grass is wet. 2. Mow when grass is dry.
3. Excessively worn or damaged blade. 3. Service mower blade.
4. Build up of grass clippings and debris under deck. 4. Clean deck.
5. Improper blade installed on deck.
6. Blade installed improperly on deck. 6. Install blade properly.
1. Leaking engine case.
1. Blade control should be held securely against
handle at all times during operation of mower.
1. Clean debris.
4. Contact authorized SNAPPER dealer.
2. Contact authorized SNAPPER dealer.
1. Clean debris.
4. Contact authorized SNAPPER dealer.
5. Install proper SNAPPER blade.
1. Contact authorized SNAPPER dealer.
2. Check and tighten drain plug.
3. Make sure dip stick or oil filler cap is securely
in place.
19
SERVICE SCHEDULE
ITEM SERVICE PERFORMED REF. EACH
Engine Oil
Check Oil Level Page 7
25
USE 5 HRS
X
HRS
50
HRS
100
HRS
EACH
SEASON
Air Pre-Cleaner
Air Cleaner
Spark Plug
Engine Cooling
System
Drive Belt
Mower Blade
Mower Deck
Wheel Drive
Components
Transmission
Clutch Cable
Spring
Adjustment
Front Caster
Bushing
(Swivel Wheel
Models Only)
*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
MAINTENANCE/REPLACEMENT PARTS
Initial Oil Change Page 11
Periodic Oil Change Page 11
Clean Sponge Element Engine Manual
Clean or Replace Engine Manual
Replace Engine Manual
Clean Shroud & Fins Engine Manual
Check For Wear And
Tension
Check For Wear, Damage
& Replacement
Clean Debris
Accumulation
Clean Debris
Accumulation; Check for
Wear or Damage
Check & Adjust Page 14
Lubricate Page 8
Pages 11, 16
Page 13
Page 7
Page 12
X
X*
X**
X**
X
X**
X X X
X
X
X
X X X
X
MAINTENANCE PARTS
Blade Control Cable 7100074
Wheel Drive Control Cable (Self-Propelled Models) 7100263
Ground Speed Control Cable (Variable Speed Self-Propelled Models) 7100264
Cutter Blade (Double Wave) 7100242
Drive Belt (Self-Propelled Models) 7100058
Parts Manual for 21” Easy Line Walk Behind Mower 7006205
Parts Manual for 21” Easy Line Walk Behind Mower (Swivel-Wheel) 7006206
20
2 YEAR LIMITED WARRANTY
For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts
found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to certain transmissions, to engines and their components, and batteries, as these items
are warranted separately. This warranty does not apply to parts that have been damaged by accident, alteration,
abuse, improper lubrication, normal wear, or other cause beyond the control of SNAPPER. This warranty does not
cover any machine or component part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year warranty period with free replacement if required for one (1) year from the original
purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty only covers
original equipment batteries and does not cover damage to the battery or machine caused by neglect or abuse,
destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to two (2)
years from purchase date for the original purchaser's residential or other non-commercial use, and ninety (90)
days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities
for consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper’s Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253
21
PRIMARY MAINTENANCE
22
PRIMARY MAINTENANCE
23
PRIMARY MAINTENANCE
24
PRIMARY MAINTENANCE
25
SNAPPER PRODUCT REGISTRATION FORM
IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS
(Complete the following information on your Snapper purchase)
Model Number_____________________________________________________________
Serial Number _____________________________________________________________
Date of Purchase ___________________________________________________________
Retailer____________________________________________________________________
Retailer’s Phone Number____________________________________________________
It is very important that you register your purchase with Snapper to ensure
warranty coverage. Please mail your product registration card to:
Snapper at P.O. Box 777, McDonough, Georgia 30253.
Or you may register on line at www.snapper.com.
You can contact us at our web site or if you would like to speak with a Customer
Service Representative. Call us at the Snapper Customer Relations Center. For
faster service please have your Serial Number and Model Number available.
Call the Snapper Customer Relations Center at 1-800-935-2967.
26
NOTES
27
Safety Instructions & Operator’s Manual for
21” ‘EASY LINE’
WALK BEHIND
MOWERS
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper
product, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper,
McDonough, GA. 30253. Phone: (1-800-935-2967).
WARNING
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
WARNING
ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER
REPRODUCTIVE HARM.
COPYRIGHT © 2006
SNAPPER – A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
MANUAL No. 7100490 (Rev. 1, 1/20/2006)
TP 100-5117-01-WB-N
28
Loading...
