Parts Manual fo

r

K

E

21" STEEL DEC

WALK BEHIND MOWERS

SERIES 18

PUSH MODELS PROPELLED

MODELS

216518B EP217018BV

ERP217018BV

P216018KWV

P216518B

P217018BV

P217018BV

RP216018KWV

RP217018BV

RP217018BVE

COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

Revision 1,

McDonough, GA, 30253 U.S.A.

9/9/2005

Manual No. 7006139

TP 400-5047-1-WB-N

s

PAGE GROUP

4

8
12
14
16
18
20
24
26
28
30
32
34
36
38
40

HANDLES & CONTROLS
CUTTING DECK, BLADES
FRONT WHEEL BRACKET
REAR WHEEL BRACKETS, LATCHES
FRONT WHEELS
REAR WHEELS
DRIVE SYSTEM SELF-PROPELLED
TRANSMISSION (DIFFERENTIAL)

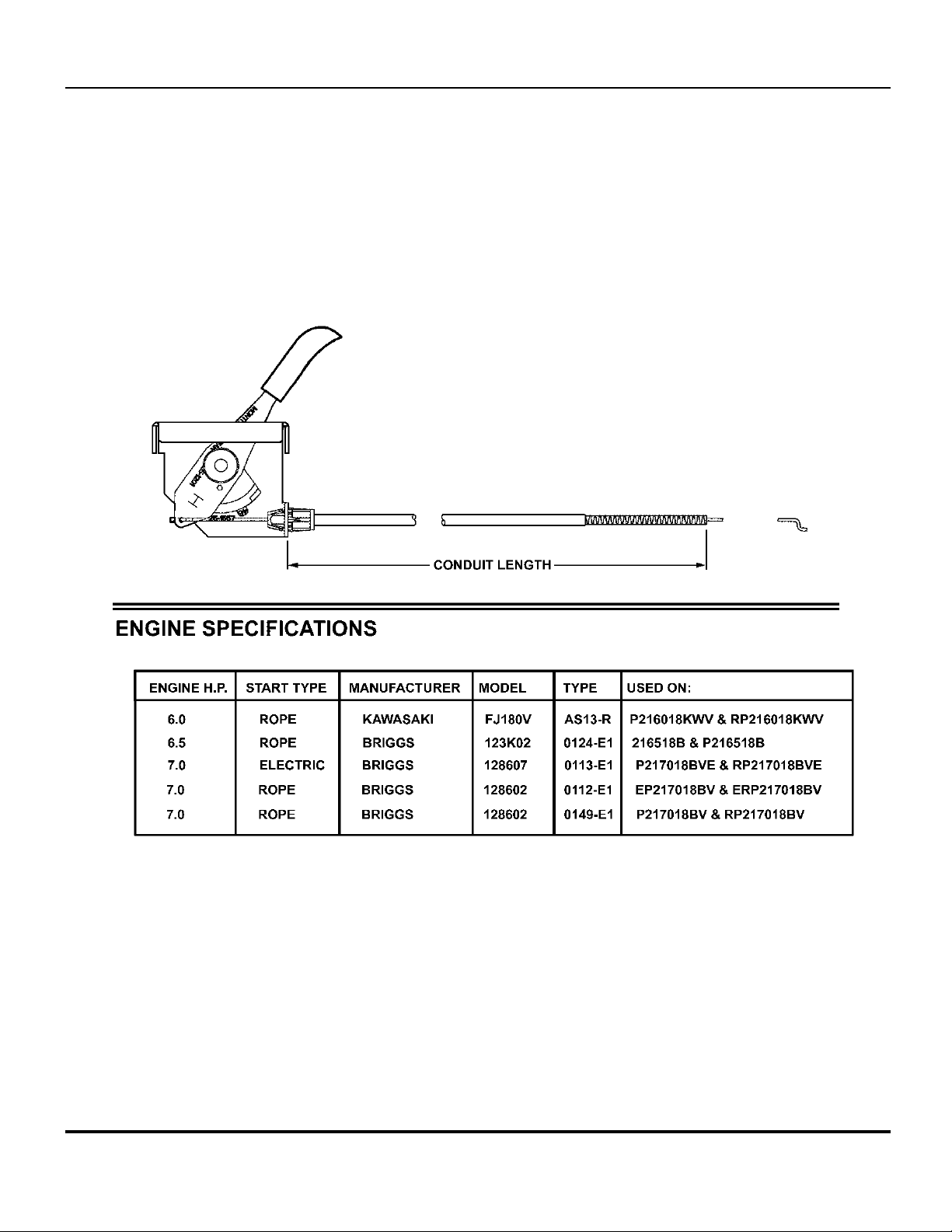

THROTTLE CONTROLS/ENGINE SPECS

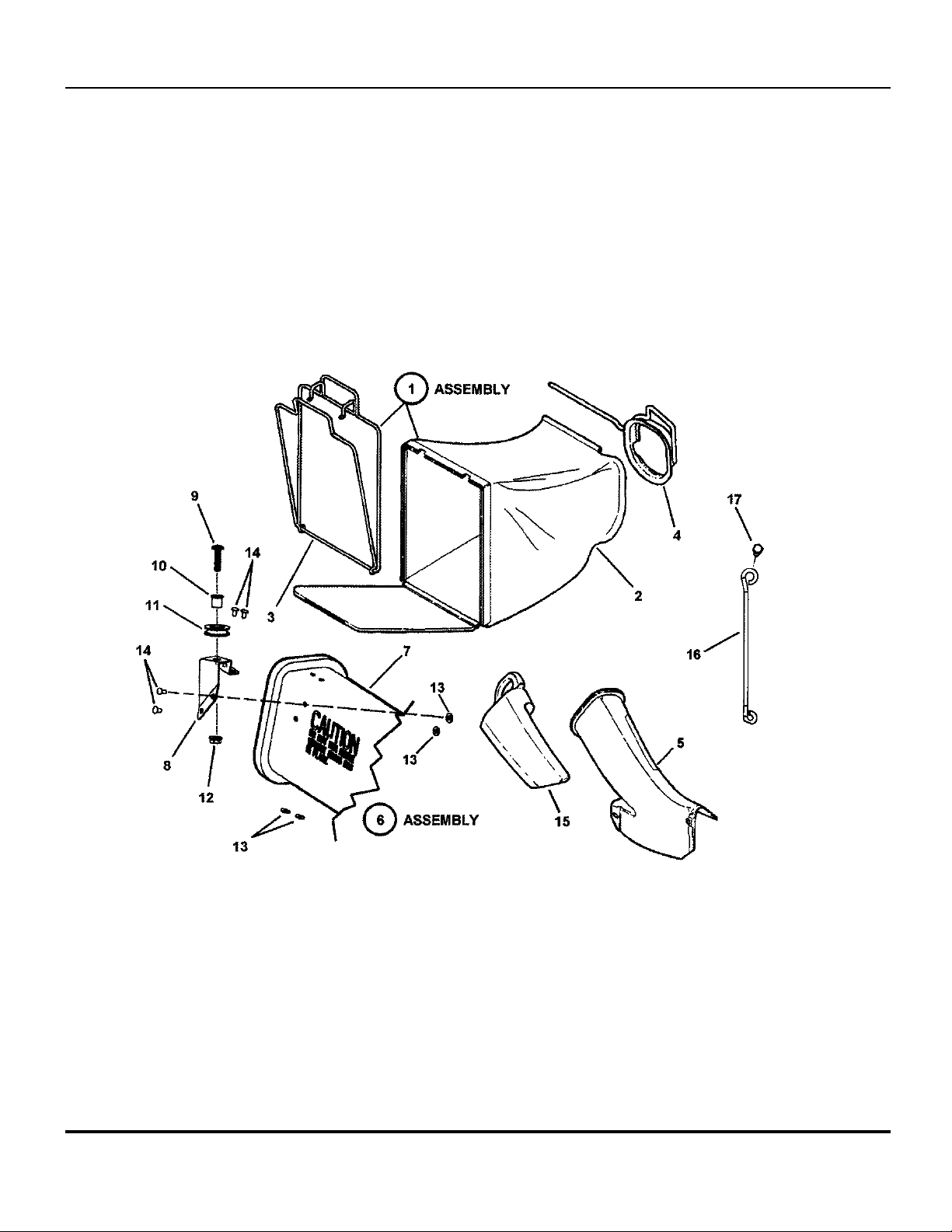

SIDE CHUTE ADAPTER
ACCESSORY GRASS BAG
ELECTRIC START COMPONENTS
DECALS
SNAPPERIZER ACCESSORY
THATCHERIZER ASSEMBLY
RECYCLING KITS ACCESSORY

Table Of Content

SERIES 18

Manual No. 700613921" STEEL DECK

3

TP 400-5047-1-WB-N

HANDLES & CONTROLS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

4

SERIES 18

HANDLES & CONTROLS

p

y

Part No Descri

1 7074411 1 HANDLE, Upper All
2 7074156 1 HANDLE, Middle All
3 7033985 1 HANDLE, Lower LH (Adjustable) All
4 7033986 1 HANDLE, Lower RH (Adjustable) All
5 7074418 1 BAIL, OPC Control All
6 7034872 1 CLIP, Zone Control All
7 7034608 1 *CABLE, Zone Control (52-63/64” Long)
7 7078078 1 CABLE, Zone Control (50-31/64” Long) P217018BVE & RP217018BVE
7 7074141 1 CABLE, Zone Control (56-5/16” Long) P216018KWV & RP216018KWV
8 7074473 1 HANDLE, Clutch Self-Propelled Models

9 7028407 1 GRIP, International Symbol Self-Propelled Models
10 7034604 1 CABLE, Clutch Control (41-1/4” Long) Self-Propelled Models
11 7012121 1 COVER, Vinyl Self-Propelled Models
12 7012122 1 SPRING, Clutch- 21S Self-Propelled Models
13 7074003 1 BRACKET, Shift All
14 7024641 2 TIE, Wire, 1.29 long, black Self-Propelled Models
15 7073822 1 BRACKET, Bell Crank Self-Propelled Models
16 7013849 1 SPACER, .33 x .63 x .156 Self-Propelled Models
17 7073913 1 BELL CRANK Self-Propelled Models
18 7073826 1 CONTROL PANEL (w/o Ground Drive Slot) 216518B
18 7074140 1 **CONTROL PANEL (w/o Electrical Switch Hole)
18 7074469 1 CONTROL PANEL (w/Electrical Switch Hole) P217018BVE & RP217018BVE
19 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx) All
20 7091130 1 WASHER, .33 x .88 x .09 Flat Self-Propelled Models
21 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5 Self-Propelled Models
22 7090895 1 TEENUT, 5/16-18 Self-Propelled Models
23 7012114 1 BUSHING, Differential, .328 x .625 x .41 Self-Propelled Models
24 7090595 3 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5 All
25 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7090585 (All)
26 7091575 1 NUT, 5/16-18 Hex Center Lock was 7091067 (S-P Models)
27 7074113 1 LEVER, Shift Self-Propelled Models
28 7091606 1 NUT, 5/16-24 Hex Center Lock GR 5 was 7091074 (All)
29 7023813 1 CLIP, Wiring Harness All
30 7091740 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR 2 was 7091189 (All)
31 7035744 4 KNOB, 5/16-18 Wing (Black) All
32 7079577 2 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR 5 All
33 7090053 3 WASHER, 1/4” Internal Tooth Lock was (All)

tionItem Qt

Note

Footnotes:

Note* used on 216518B, P216518B, P217018BV, RP217018BV, EP217018BV & ERP217018BV
Note** used on P217018BV, P216518B, P216018KWV, RP217018BV, RP216018KWV, EP217018BV & ERP217018BV
Note* See also Throttle Control Page
ref Decal Page

Manual No. 700613921" STEEL DECK

SERIES 18

5

TP 400-5047-1-WB-N

HANDLES & CONTROLS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

6

SERIES 18

HANDLES & CONTROLS

p

y

Part No Descri

34 7091576 3 NUT, 1/4-20 Hex was 7091100 (All)
35 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
36 7014343 2 BUSHING, .27 x .35 x .4 Flange Self-Propelled Models
37 7023792 1 PIN, 1/4 x 1-1/2” Self-Propelled Models
38 7091020 1 PUSH-NUT, 1/4” Self-Propelled Models
39 7015753 2 BALL JOINT, 1/4-28 Self-Propelled Models
40 7090095 4 NUT, 1/4-28 Hex Self-Propelled Models
41 7022458 1 FOAM GRIP, 15” long All
42 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5 Self-Propelled Models
42 7091553 1 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, GR 5 Push Models
43 7091585 1 NUT, 3/8-16 Hex Center Lock All
44 7090391 4 WASHER, 5/16” Internal Tooth Lock All
45 7031961 8 WASHER, 7/16” Flat Self-Propelled Models
46 7028465 2 WASHER, Nylon Self-Propelled Models
47 7074133 1 ROD, Speed Control (1/4-28 thread) Self-Propelled Models
48 7028488 1 GUIDE, Rope (1/4-20 thread) All
49 7076978 1 NUT, 1/4-28 Hex GR 5 or B All
50 7012080 2 CABLE-TIE, 7” Self-Propelled Models
51 7074460 1 *THROTTLE CONTROL, .48 x .61 Briggs models
51 7074138 1 *THROTTLE CONTROL, 6.0 KWV Kawasaki models
52 7075308 1 THROTTLE KNOB All
53 7075182 1 KNOB, Shift Self-Propelled Models
54 7026219 1 CLAMP, 7/8” Double Cable Self-Propelled Models
55 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine Self-Propelled Models
56 7091018 1 NUT, #8-32 Hex Self-Propelled Models
57 7032408 1 BELT GUIDE, Lower Self-Propelled Models
58 7028568 1 WASHER, Belleville Self-Propelled Models
59 7090053 4 WASHER, 1/4” Internal Tooth Lock Self-Propelled Models
60 7090188 1 WASHER, 3/8” Flat Self-Propelled Models
61 7034162 1 COTTER PIN, 5/16 Self Lock Self-Propelled Models
62 7029365 1 DECAL, Easy Walk All
63 7023153 1 CLAMP, Casing models with Briggs Engine
64 7023154 1 SCREW,#10-32 x 5/8” Self-Tap models with Briggs Engine
65 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR 5 All

tionItem Qt

Note

Footnotes:

Note* used on 216518B, P216518B, P217018BV, RP217018BV, EP217018BV & ERP217018BV
Note** used on P217018BV, P216518B, P216018KWV, RP217018BV, RP216018KWV, EP217018BV & ERP217018BV
Note* See also Throttle Control Page
ref Decal Page

Manual No. 700613921" STEEL DECK

SERIES 18

7

TP 400-5047-1-WB-N

CUTTING DECK, BLADES

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

8

SERIES 18

CUTTING DECK, BLADES

p

y

Part No Descri

1 7057663 1 DECK, Mower (incl. painted “HV” Deck with Decals) Non-Recycler models

1 7072716 1 DECK, Mower, 21” Hi-Vac (HV) 216518B

1 7074949 1 DECK, Mower (Includes painted “Euro M” Deck with No Decals) RP217018BVE

1 7057884 1 * DECK, Mower, 21” Non-Adj Air (was 7041857 or 7057784) Recycler models

2 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7090585

3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5

4 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Neck Carriage, GR 5

5 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping engine mount bolts

6 7046780 2 PLUG, Hole, Polyethylene

7 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR 5

8 7090702 1 BOLT, 5/16-18 x 2-1/4”, Hex Flange Lock

9 7013320 1 BUSHING, .388 x .625 x 1.62
10 7033863 1 COVER, Belt European models
11 7031961 3 WASHER, 7/16” Flat
12 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
13 7012063 2 WASHER, Cone

14A 7019795 1 BLADE, Cutter, 21” Air Lift (European) EP217018BV
14B 7026691 1 BLADE, Cutter (Standard Lift) Domestic Push & S.P.models
14C 7026407 1 BLADE, 21” Ninja (Quad Edge) Recycler models

15 7015626 1 HUB, Blade Drive 25mm I.D.
16 7091214 1 KEY, Woodruff #HP-506 Hi-Pro
17 7090201 1 SET SCREW, 5/16-18 x 5/16” Hex Socket
18 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)
19 7091122 6 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap (was 90539) EP217018BV & ERP217018BV
20 7041400 1 WELDMENT, Fender European models
21 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 was 7090001
22 7011791 1 RETAINER, 5/16” Bolt
23 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070

-- 7060785 -- KIT, Air Lift (Incl. items 24 thru 27)
24 7032558 2 AIR LIFT
25 7090391 4 WASHER, 5/16” Internal Tooth Lock
26 7091297 4 NUT, 5/16-24 Hex, GR 5 was 7090223
27 7090228 4 SCREW, 5/16-24 x 21/32” Machine
28 7044770 3 SPACER, .06 Thick for blade hub
29 7074568 1 COVER, Belt
30 7046471 3 PLUG, 5/16” Square Hole Push Models
31 7045264 2 PLUG, 5/16” Round Hole qty. 3 on Push Models

tionItem Qt

Note

Footnotes:

Note* Same deck as 7074949 except w/o battery bracket holes.
Note* Purchase engine parts from engine manufacturer dealer.

Manual No. 700613921" STEEL DECK

SERIES 18

9

TP 400-5047-1-WB-N

CUTTING DECK, BLADES

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

10

SERIES 18

CUTTING DECK, BLADES

p

y

Part No Descri

32 7073462 1 DECAL, Caution, International Symbols European models
33 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock

-- -- 1 *ENGINE, 6.0 Kawasaki, Model FJ180V-AS13-R P216018KWV & RP216018KWV

-- -- 1 *ENGINE, 6.5 Briggs Intek, Model 123K02-0124E1 216518B & P216518B

-- -- 1 *ENGINE, 7.0 Briggs Intek E/S, Model 128607-0113E1 P217018BVE & RP217018BVE

-- -- 1 *ENGINE, 7.0 Briggs Intek, Model 128602-0112E1 EP217018BV & ERP217018BV

-- -- 1 *ENGINE, 7.0 Briggs Intek, Model 128602-0149E1 P217018BV & RP217018BV

tionItem Qt

Note

Footnotes:

Note* Same deck as 7074949 except w/o battery bracket holes.
Note* Purchase engine parts from engine manufacturer dealer.

Manual No. 700613921" STEEL DECK

SERIES 18

11

TP 400-5047-1-WB-N

FRONT WHEEL BRACKET

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

12

SERIES 18

FRONT WHEEL BRACKET

p

y

Part No Descri

1 7051885 1 ASSEMBLY, Left Wheel Arm (Incl. items 2, 3, 4, 5B & 6)

-- 7051886 1 ASSEMBLY, Right Wheel Arm (Incl. items 2, 3, 4, 5A & 6)

2 7015761 1 BOLT, 5/16-18 Hex washer Face Shoulder per wheel arm assembly
3 7012325 1 LATCH, Height per wheel arm assembly

4 7027702 1 GRIP, Height Latch per wheel arm assembly
5A 7031017 1 WHEEL ARM, R.H. Front (Round Hole)
5B 7031016 1 WHEEL ARM, L.H. Front (Square Hole) not shown

6 7011791 1 RETAINER, 5/16” Bolt

7 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070

8 7074702 1 WELDMENT, Front Wheel Bracket was 7041770 or 7074702 (all)

9 7021119 1 AXLE, 21”

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

13

TP 400-5047-1-WB-N

REAR WHEEL BRACKETS, LATCHES

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

14

SERIES 18

REAR WHEEL BRACKETS, LATCHES

p

y

Part No Descri

1 7012312 1 BEARING, 9/16” I.D. per Rear Wheel Arm

2 7091012 3 SCREW, #10-32 x 3/8” Hex washer Self-Tap per Rear Wheel Arm

3 7035717 1 LATCH, Height Adjusting (long) per Rear Wheel Arm

4 7091576 1 NUT, 1/4-20 Hex was 7090063 or 7091100

5 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070

6 7054228 1 ASSY, Wheel Arm, Right Rear (Round hole) (Push) (Incl. items 3, 10, 14, 15 & 16)

7 7054229 1 ASSY, Wheel Arm, Left Rear (Square hole) (Push) (Incl. items 3, 11, 14, 15 & 16)

8 7054230 1 ASSY, Wheel Arm, Right Rear (S.P.) Incl. 1,2,3,12,14,15 & 16

9 7054247 1 ASSY, Wheel Arm, Left Rear (S.P.) Incl. 1,2,3,13,14,15 & 16
10 7033776 1 WHEEL ARM, R.H. Rear (round opening) used on Push models
11 7033775 1 WHEEL ARM, L.H. Rear (square opening) used on Push models
12 7032722 1 ARM, Wheel, Right Rear used on Self-Propelled models
13 7032723 1 ARM, Wheel, Left Rear used on Self-Propelled models
14 7011078 1 BOLT, 5/16-18 x 1” Shoulder per wheel arm assembly
15 7011791 2 RETAINER, 5/16” Bolt per wheel arm assembly
16 7027702 1 GRIP, Height Latch per wheel arm assembly
17 7033494 1 BRACKET, Right Rear Wheel all
18 7033495 1 BRACKET, Left Rear Wheel all
19 7021119 1 AXLE, 21” qty. 2 on push ; 1 on s-p
20 7035741 1 FOOT GUARD, Long, Rear Push Models only
21 7029008 1 FOOT GUARD, Rear Domestic Self Propelled
21 7042918 1 FOOT GUARD, Rear Euro Self-Propelled
22 7023791 1 RING, Split (Black) used on Self-Propelled models
23 7012616 1 SUPPORT, Foot Guard used on Self-Propelled models
24 7091604 1 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR 5 was 7090005 (Self-Propelled)
25 7090053 1 WASHER, 1/4” Internal Tooth Lock was 7091023
26 7090731 2 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

15

TP 400-5047-1-WB-N

FRONT WHEELS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

16

SERIES 18

FRONT WHEELS

p

y

Part No Descri

1 7029010 2 WHEEL, 8 x 1.75 Plastic all

2 7090377 2 NUT, 7/16-20 Hex Center Lock Jam

3 7012309 2 BUSHING, Axle

4 7031961 2 WASHER, 7/16” Flat

5 7017829 2 PLUG, Wheel all

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

17

TP 400-5047-1-WB-N

REAR WHEELS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

18

SERIES 18

REAR WHEELS

p

y

Part No Descri

1 7074924 2 WHEEL, 10 x 1.75” Plastic Push Models only

2 7029011 2 WHEEL, 10 x 1.75” Plastic used on Self-Propelled models

3 7090377 2 NUT, 7/16-20 Hex Center Lock Jam all

4 7012309 2 BUSHING, Axle Push Models only

5 7031961 2 WASHER, 7/16” Flat

6 7017829 2 PLUG, Wheel all

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

19

TP 400-5047-1-WB-N

DRIVE SYSTEM SELF-PROPELLED

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

20

SERIES 18

DRIVE SYSTEM SELF-PROPELLED

p

y

Part No Descri

1 7012354 1 BELT, Poly-V

2 7034179 1 LINK, Differential

-- 7051921 -- ASSEMBLY, Clutch Idler (Includes items 3 thru 7)

3 7032832 1 ARM, Clutch Idler

4 7012124 1 PULLEY, Idler

5 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap, GR 5

6 7090303 1 NUT, 1/4-28 Hex Top Lock

7 7012117 4 BUSHING, 3/8” I.D. Nylon

8 7072284 1 SHAFT, Hex Drive

9 7024521 1 PULLEY, Poly-V (2” O.D.) for non-Commercial models
10 7090188 1 WASHER, 3/8” Flat
11 7012126 1 SPRING, Idler- Torsion
12 7012111 1 STUD, Idler (3/8-24 thread)
13 7031873 1 HOLDER, Bearing (Inner Half)
14 7028014 1 BALL BEARING, Spherical O.D., .38 I.D.
15 7011025 1 O-RING
16 7090289 1 NUT, 3/8-24 Hex Center Lock, GR 5
17 7031809 1 HOLDER, Bearing (Outer Half)
18 7091294 1 WASHER, .28 x .63 x .06 Flat
19 7090673 1 COTTER PIN, .06 x .50 was 7091629
20 7046784 1 BELT, Engine Drive (Stretch)
21 7034281 1 THRUST PLATE, Short
22 7010746 2 RETAINING RING, .625 External
23 7026693 1 BALL BEARING- 3/4” Bore
24 7012125 1 GUIDE, Thrust Plate (3/8-24 thread)
25 7032664 1 SHIELD, Hex Shaft European models only
26 7015753 1 BALL JOINT, 1/4-28 (not shown) see Handles & Controls page

27 7090095 2 NUT, 1/4-28 Hex (not shown) see Handles & Controls page

28 7074145 1 LINK, Transfer (1/4-28 thread)
29 7010121 1 WASHER, 3/4” Shim
30 7090390 3 WASHER, 3/8” Internal Tooth Lock
31 7090122 1 WASHER, 3/8” Flat
32 7091630 2 NUT, 3/8-24 Hex
33 7012122 1 SPRING, Clutch- 21S
34 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070
35 7090731 1 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5
36 7091122 2 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap was 7090539

tionItem Qt

Note

(39)

(40)

Footnotes:

Note* Includes Steel Drive Disc Assy (7073528), Bushing (7013893), 3/8-16 Hex Nut (7091302) & item 38.

Manual No. 700613921" STEEL DECK

SERIES 18

21

TP 400-5047-1-WB-N

DRIVE SYSTEM SELF-PROPELLED

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

22

SERIES 18

DRIVE SYSTEM SELF-PROPELLED

p

y

Part No Descri

37 7091597 1 COTTER PIN, 3/32 x 1/2” was 7090555
38 7017696 1 BUSHING, Powdered Metal
39 7041855 1 DISC, Driven (Cantilever)
40 7011724 1 WASHER, 44 x .78 x .025 Curved
41 7013847 1 RETAINER, 3/8” Bolt
42 7029025 1 SPRING, Wheel Drive
43 7090799 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5 was 7091026

-- 7059462 1 ASSEMBLY, Deck Bracket (Incl. items 7 & 44A) RP216018KWV & RP217018BV

-- 7052987 1 ASSEMBLY, Deck Bracket (Incl. items 44B, 45 & 46) all S. P. models except for 2

44A 7031919 1 BRACKET, Deck, V21
44B 7033774 1 BRACKET, Deck, P21S

45 7012306 2 BUSHING, Flange, .381 x .625 x .62
46 7021758 1 SPACER, .500 x .65 x 1.75
47 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR 5
48 7090391 1 WASHER, 5/16” Internal Tooth Lock
49 7061275 -- *KIT, Drive Disc Assembly

tionItem Qt

Note

shown above

Footnotes:

Note* Includes Steel Drive Disc Assy (7073528), Bushing (7013893), 3/8-16 Hex Nut (7091302) & item 38.

Manual No. 700613921" STEEL DECK

SERIES 18

23

TP 400-5047-1-WB-N

TRANSMISSION (DIFFERENTIAL)

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

24

SERIES 18

TRANSMISSION (DIFFERENTIAL)

p

y

Part No Descri

-- 7059070 1 ASSEMBLY, Transmission (Incl. items 1 thru 30) Self-Propelled Models

1 7092062 4 NUT, 5/16-18 Hex Lock was 7011201

2 7092063 1 WASHER, Cone

3 7019213 1 PULLEY, Poly-V Belt (3.5 O.D.)

4 7011724 2 WASHER, 44 x .78 x .025 Curved

5 7053941 1 ASSEMBLY, Right Housing (Incl. items 6, 7, 8, 9, 10 & 30)

6 7029034 1 HOUSING, Right Side

7 7014155 3 SCREW, 5/16-24 x 1-1/8” Rib Neck, GR 5

8 7012314 1 SEAL, 5/8” Internal Diameter

9 7029035 1 BEARING, Tapered- (Differential Housing)
10 7073963 1 BALL BEARING, 7/16 I.D., 1/1/8” O.D. was 7011767
11 7016544 1 PLUG, Transmission Housing
12 7050767 1 GEAR, Input
13 7051932 1 AXLE, Short
14 7012495 1 GEAR, Differential (46 Tooth)
15 7031970 2 PLATE, 46T Gear
16 7031965 2 WASHER, Thrust, 3/4” I.D.
17 7090557 4 SCREW, #10-32 x 1-1/2” Hex Head Cap GR 5
18 7011774 1 GASKET, Housing
19 7090189 3 WASHER, 5/16” Internal/External Tooth Lock
20 7051903 1 BRACKET, Differential
21 7091825 4 SCREW, 1/4-20 x 1” Hex washer Self-Tap was 7092064
22 7012543 1 SPACER, Axle Gear
23 7051933 1 ASSEMBLY, Long Axle
24 7021115 4 GEAR, Pinion (12 tooth)
25 7012500 4 SPACER, Pinion Gear
26 7011110 4 SHAFT, Pinion
27 7090376 4 NUT, #10-32 Hex Nyloc
28 7053938 1 ASSY, Left Housing (Phantom)
29 7029033 1 HOUSING, Left
30 7024442 3 GASKET, 5/8” O. D.

-- 7061017 32oz. “00” Grease not shown

tionItem Qt

Note

Footnotes:

NOTE: Transmission Assemblies 7053928 & 7053971 (Euro) are available & include Foot Guards.
NOTE: Maximum capacity of transmission case is 4 oz. DO NOT OVERFILL!

Manual No. 700613921" STEEL DECK

SERIES 18

25

TP 400-5047-1-WB-N

THROTTLE CONTROLS/ENGINE SPECS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

26

SERIES 18

THROTTLE CONTROLS/ENGINE SPECS

p

y

Part No Descri

-- 7074460 1 THROTTLE CONTROL, .48 x .61 Briggs models

-- 7074138 1 THROTTLE CONTROL, 6.0 KWV Kawasaki models

tionItem Qt

Note

Footnotes:

conduit length: 48-1/2”
conduit length: 53-1/4”

Manual No. 700613921" STEEL DECK

SERIES 18

27

TP 400-5047-1-WB-N

SIDE CHUTE ADAPTER

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

28

SERIES 18

SIDE CHUTE ADAPTER

p

y

Part No Descri

1 7051951 1 ASSY, Bag Adapter & Cover (Euro only) (Incl items 2 thru 9)

2 7016107 1 ADAPTER, Grass Bag

3 7019287 1 COVER, Bag Adapter

4 7023000 1 HINGE, Chute Cover

5 7091064 5 BOLT, 1/4-20 x 1/2” Short Neck Carriage, GR 5

6 7090053 5 WASHER, 1/4” Internal Tooth Lock was 7091023

7 7091576 5 NUT, 1/4-20 Hex was 7091100

8 7032661 1 STOP, Cover

9 7023042 1 MOULDING, Trim

10A 7016050 1 ADAPTER, Grass Bag
10B 7058037 1 ASSY, Grass Bag Adapter see Grass Bag Accessory page

11 7024340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
12 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
13 7011791 1 RETAINER, 5/16” Bolt
14 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 was 7090001
15 7042965 1 CHUTE, 21” Side P216018KWV
16 7090122 2 WASHER, 5/16” Flat was 7091514
17 7024085 2 WING-NUT, 5/16-18 Nyloc
18 7029149 1 COVER, 21” Deck Recycler models
19 7090951 2 NUT, 5/16-18 Hex Large Flange Center Lock

tionItem Qt

Note

Footnotes:

Note: For Grass Catcher components see Grass Bag Accessory page.

Manual No. 700613921" STEEL DECK

SERIES 18

29

TP 400-5047-1-WB-N

ACCESSORY GRASS BAG

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

30

SERIES 18

ACCESSORY GRASS BAG

p

y

Part No Descri

-- 7061919 -- KIT, Grass Bag Catcher was 7061824 (Incl. items 2 thru

1 7059322 -- ASSEMBLY, Grass Bag was 7054058 (Incl. items 2 thru

2 7075765 1 GRASS BAG (Door w/Gray Letters) all

3 7051906 1 ASSEMBLY, Bag Wire (12” Wide) all

4 7042489 1 CONNECTOR, Grass Bag (weldment) all

5 7016050 1 ADAPTER, Grass Bag used on Euro S. P.

6 7058037 1 ASSEMBLY, Grass Bag Adapter Includes items 7 thru 14

7 7047081 1 ADAPTER, Grass Bag used on Domestic S. P.

8 7047082 1 BRACKET, Rope Guide

9 7091984 1 SCREW, 5/16-18 x 1-1/4” Pan Head Machine
10 7012306 1 BUSHING, Flange, .381 x .625 x .62
11 7024228 1 PULLEY, Nylon
12 7091601 1 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070
13 7072107 3 WASHER, 15/32” Flat
14 7013860 3 RIVET, 3/16 x .344
15 7016814 1 *PLUG, Chute Adapter
16 7043327 1 BRACE, Bag Adapter P216018KWV & RP216018KWV
17 7078102 1 SCREW, M6 x 1.0 x 30MM Hex Head Cap P216018KWV & RP216018KWV
18 7078101 1 SLEEVE, .237/.242 ID x .3135/.3185 x .748 (not shown) Kawasaki models only

tionItem Qt

Note

5)

4)

Footnotes:

NOTE: Bag Assembly 7058571 is composed of items 2, 3 and 4.
Note* Used on P216018KWV, P217018BV, P217018BVE & EP217018BV

Manual No. 700613921" STEEL DECK

SERIES 18

31

TP 400-5047-1-WB-N

ELECTRIC START COMPONENTS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

32

SERIES 18

ELECTRIC START COMPONENTS

p

y

Part No Descri

-- 7067012 1 *KIT, Battery 12V P217018BVE & RP217018BVE

1 7067012 1 BATTERY, 12 Volt, 35 CCA was 7019763

2 7015488 1 HARNESS, Battery

3 7043977 2 SCREW, #10-24 x 1/2” Pan Head Machine

4 7090932 2 NUT, #10-24 Square

5 -- 1 **SWITCH ASSEMBLY (Incl. items 6 thru 11)

6 7011138 1 KEY (Set of Two)

7 7023506 1 BEZEL (Seal & Face Nut)

8 7029080 1 COVER, Switch

9 7012685 1 NUT, 5/8-32 Hex Lock
10 7028765 1 SWITCH, Ignition (spring loaded ON/OFF 2 prong)
11 7016132 1 SPACER
12 7078025 1 WIRING HARNESS, B&S WBM similar to 7074383
13 7032906 1 BRACKET, Battery
14 7036132 1 COVER, Battery
15 7090731 2 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR 5
16 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7090585
17 7012652 1 CLIP, Wiring
18 7018834 1 CHARGER, Battery (120 Volt; 60 Hertz)
18 7018977 1 CHARGER, Battery (230 Volt; 50 Hertz)
19 7090799 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5 was 7091026
20 7011791 1 RETAINER, 5/16” Bolt

tionItem Qt

Note

Footnotes:

Note* For battery and charger kit order 7061267.
Note** Not available as a part sale item, order individual parts.

Manual No. 700613921" STEEL DECK

SERIES 18

33

TP 400-5047-1-WB-N

DECALS

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

34

SERIES 18

DECALS

p

y

Part No Descri

1 7029365 1 DECAL, Easy Walk

2 7075524 1 DECAL, Throttle Control, KWV

3 7075532 1 DECAL, Throttle Control, B&S

4 7075471 1 DECAL, Speed Shift

5 7046720 1 DECAL, Chute/Deflector

6 7075688 1 DECAL, Ignition Switch

7 7013010 1 DECAL, Danger, Cut Finger

8 7075750 1 DECAL, Hi Vac

9 7075619 1 DECAL, Ninja
10 7075618 1 DECAL, Snapper
11 7072921 1 DECAL, Warning (Deck)
12 7029490 1 DECAL, 2004 Year of Mfg.
13 7029776 1 DECAL,Euro Community (CE)
14 7029779 1 DECAL, Spart Plug International Symbol
15 7073462 1 DECAL, Caution, Symbols
16 7074135 1 DECAL, Noise (European)
17 7022841 2 DECAL, Warning (Euro)
18 7078022 1 DECAL, OPEI Walk/Ride
19 7046357 1 DECAL, Warning
20 7029784 2 DECAL, Deck/Chute International Warning
21 7029782 1 DECAL, OPC Bail (International Symbol)
22 7029470 1 DECAL, Patent Numbers not shown

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

35

TP 400-5047-1-WB-N

SNAPPERIZER ACCESSORY

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

36

SERIES 18

SNAPPERIZER ACCESSORY

p

y

Part No Descri

-- 7060440 -- KIT, Snapperizer (Incl. items 1 & 2 thru 5) (for Hi-Vac Rolled Under Lip

-- 7063041 -- KIT, Snapperizer (Incl. items 1& 2A thru 5) (for “FR” type decks)

1 7051243 1 SCREEN, Fastener Assembly

2 7039579 1 RING, Bottom (21.77” Inside Diameter)
2A 7072002 1 RING, Bottom (22.60” Inside Diameter)

3 7091297 3 NUT, 5/16-24 Hex, GR 5 was 7090223 (only 1 shown)

4 7090187 3 WASHER, 5/16” Split Lock only 1 shown

5 7012587 3 SPRING only 1 shown

tionItem Qt

Note

type decks)

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

37

TP 400-5047-1-WB-N

THATCHERIZER ASSEMBLY

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

38

SERIES 18

THATCHERIZER ASSEMBLY

p

y

Part No Descri

-- 7061256 -- KIT, Thatcherizer (Incl. items 1 thru 27)

1 7032891 2 LATCH, Frame Attachment
2A 7026572 1 BAR, Mount (Right Hand)
2B 7026573 1 BAR, Mount (Left Hand)

3 7018499 2 ROD, Tine

4 7018700 1 SUPPORT, Wheel

5 7019948 1 TRAY, Tine

6 7018496 6 KIT, Tine Thatching Spring was 7060574

7 7014100 1 BUSHING, Wheel Adjuster

8 7018493 1 AXLE, Wheel

9 7018189 1 WHEEL, 7.00 x 1.50 Gage
10 7091705 10 NUT, 1/4-20 Hex Top Lock was7090761 (only 9 shown)
11 7091294 4 WASHER, 1/4” Flat was 7090055
12 7022425 2 SPRING, Compression
13 7090825 2 BOLT, 1/4-20 x 1-1/4” Hex, GR 5
14 7091576 2 NUT, 1/4-20 Hex, GR 5 was 7090063
15 7022424 2 CAP, Vinyl
16 7090015 2 BOLT, 1/4-20 x 2-1/2” Square Neck Carriage only 1 shown
17 7091303 6 BOLT, 5/16-18 x 1” Square Neck Carriage, GR 5 was 7090383 (only 1 shown)
18 7091530 2 BOLT, 1/4-20 x 3/4” Square Neck Carriage, GR 5 was 7090074
19 7014098 6 WASHER, Reinforcing only 1 shown
20 7090187 6 WASHER, 5/16” Split Lock only 1 shown
21 7091511 6 NUT, 5/16-18 Hex, GR 5 was 7090196 (only 1 shown)
22 7014101 2 NUT, 1/2” Push
23 7014342 4 BEARING, Nyliner
24 7014103 1 SCREW, 5/16-18 x 1/4” Set
25 7090250 2 WASHER, 1/2” Flat
26 7014115 1 DECAL, Adjustment
27 7014062 1 DECAL, Thatcherizer

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

39

TP 400-5047-1-WB-N

RECYCLING KITS ACCESSORY

Manual No. 7006139 21" STEEL DECK
TP 400-5047-1-WB-N

40

SERIES 18

RECYCLING KITS ACCESSORY

p

y

Part No Descri

7061200 -- KIT, Recycling Cover (Includes the 2 items below) for 4HP & above engines

7061201 -- KIT, Recycling Plug (Incl. items 1 & 2 below) for 4HP & above engines
1 7029149 1 COVER, 21” Deck
2 7016814 1 PLUG, Chute Adapter
3 7026407 1 BLADE, 21” Quad Edge Ninja

tionItem Qt

Note

Footnotes:

Manual No. 700613921" STEEL DECK

SERIES 18

41

TP 400-5047-1-WB-N

Parts Manual fo

r

K

21" STEEL DEC
WALK BEHIND MOWERS
SERIES 18

COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

McDonough, GA, 30253 U.S.A.

Manual No. 7006139

Revision 1,

9/9/2005

TP 400-5047-1-WB-N
