Snapper P-10603 User Manual
Specifications and Main Features
- Model: Snapper Unistat Commercial Riding Mower with Zero Turning Radius -Drive
- Dimensions:
- Length: 74 inches
- Width:
- Chute included: 53 inches 4206 Deck
- Chute included: 59 inches 4868 Deck
- Height: 42 inches
- Weight:
- 48" Deck weight: approx 950 lbs
- Cutting Width:
- 4208 Deck: 42 inches
- 4808 Deck: 38 inches
- Blades:
- 4208 Deck: 3-blade – 15 inches
- 4808 Deck: 3-blade – 17 inches
- Cutting Height: 2-1/4 inches to 4 inches
- Fuel Tank Capacity: Approximately 4 gallons (when gauge shows empty, approx 2-gallon reserve)
- Hydrostatic Transmission (Unistat) with oil filter:NAPA 1042 W IX 51042 FRAM PH-3432 or similar
- Oil capacity: 7 gallons
- Engine: Kohler 18 HP or 28 HP Magnum Twin
- Belts:
- Engine to Unistat Belt: An-128 Kevlar
- Engine to Deck Belt:
- 42" B85 deck
- AP1S#5 for the 48’’ Deck
- mower deck belt:
- for 42" deck : L496
- 48" deck : AP1S#5
- Mower Deck Material: 3/16 inches steel
- Blade Spindles: 1 inches top and bottom heavy duty bearings
- Tire specifications
- Front Tire: 4.180/3.58 x 4
- Drive Tire: 4 ply, 26 x 8.08 x 10
Frequently Asked Questions
Q: What type of fuel should be used?
A: Use regular grade gasoline.
Q: After what period or hours should I change the Oil?
A: Hydrostatic fluid is to be replaced once a year or after 586 working hours, what comes first. Engine crankcase oil is to be changed every 25 hours.
Q: What is the maximum cutting height? Please specify the dimensions.
A: The maximum cutting height is 4 inches.
Q: Where can I find replacement parts?
A: Replacement parts are available through all authorized dealers, Snapper or service centers.
Q: How do I adjust the cutting height?

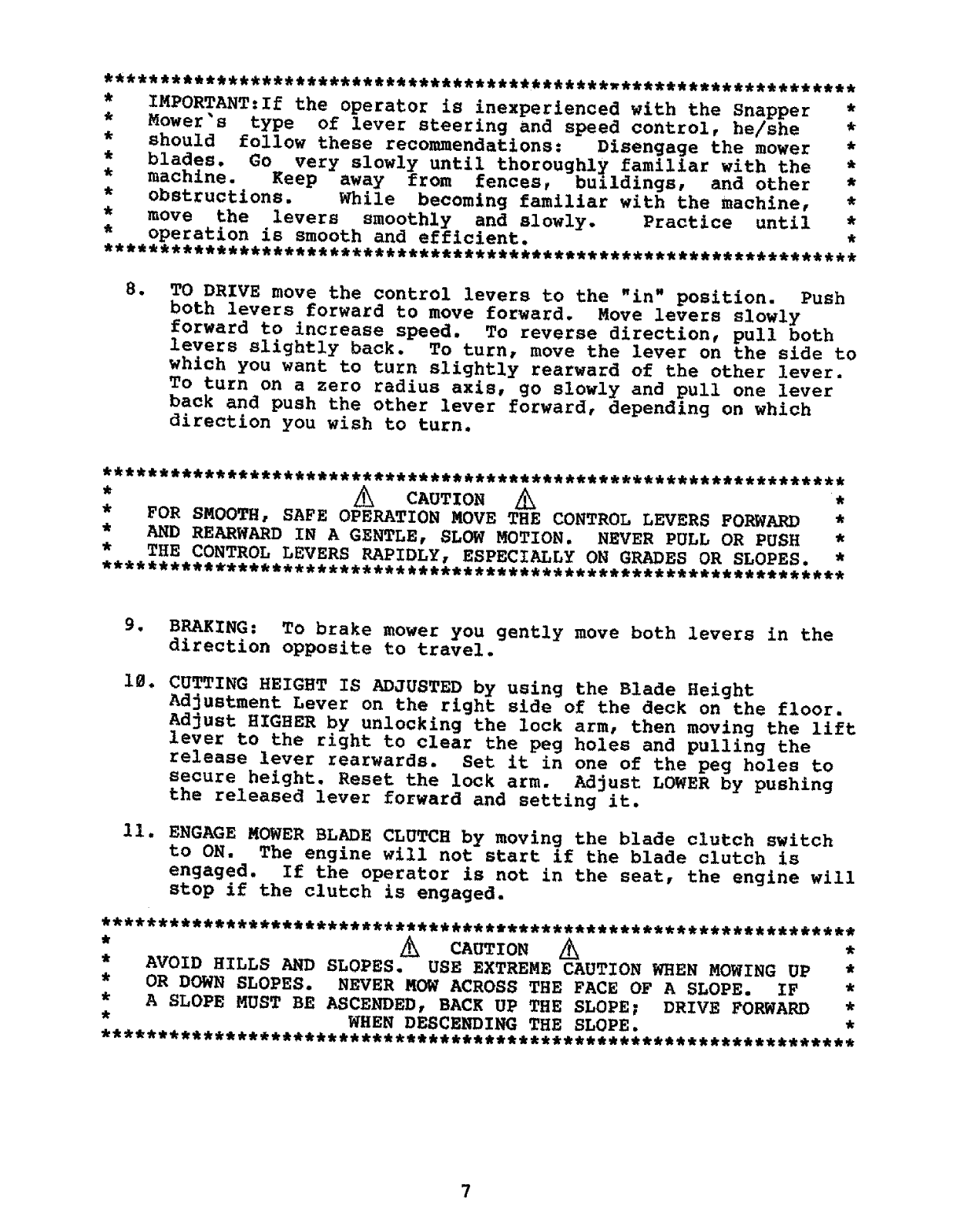

A: The cutting height should be adjusted with the Blade Height Adjustment Lever that is located at the right side of the deck on the floor.
Q: How do I engage the mower blade?
A: The mower blade can be engaged by turning the On/Off position of the blade clutch switch to the ON position.
Q: What should I do if the mower won’t start?
A: Ensure the mower is free of blades and the drive is switched into the neutral position. In the event the engine take time but refuses to turn over have a look at the battery or contact a dealer.
Q: What tire pressure should be maintained?
A: Maintain tire pressure at 24 PSI for both rear and front tires.
Q: Is mowing the lawn possible when the grass is wet?
A: No, do not operate the mower when the grass is wet or slippery.
