Snapper R21407T, R21507TV, 21357B, MP21357B, MP21507BE User Manual

Parts Manual fo

r

T

2

E

T

2

T

T

21" STEEL DECK WALK BEHIND MOWER

SERIES 7

PUSH MODELS PROPELLED

MODELS

21357B DP21357B
21407T DP21407

21407T-2 DP21407T-

21507B DP21507B

21507T DP21507BE
G23157B GP21507B
M21357B GP21507B
R21357B MP21357B

R21407

R21507B OP21407T-2

R21507TV OP21507B

MP21507BE

P21357B

P21407R-

P21407

P21407T-2

P21507B
P21507BE
P21507TV

PD21357B
RP21357B
RP21407

RP21507B
RP21507BE
RP21507TV

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision 3,

McDonough, GA, 30253 U.S.A.

8/10/2007

Manual No. 7006051A

TP 400-5143-3-WB-N

s

PAGE GROUP

4

8
10
12
14
16
18
22
24
26
28
30
32
34
36
38
40
42

Handles & Controls
Cutting Deck, Blade, Interlock
Front Wheel Bracket, Latches
Rear Wheels, Brackets, Latches
Front Wheels
Rear Wheels
Drive System - Self Propelled
Transmission (Differential)
Throttle Controls - Series 7

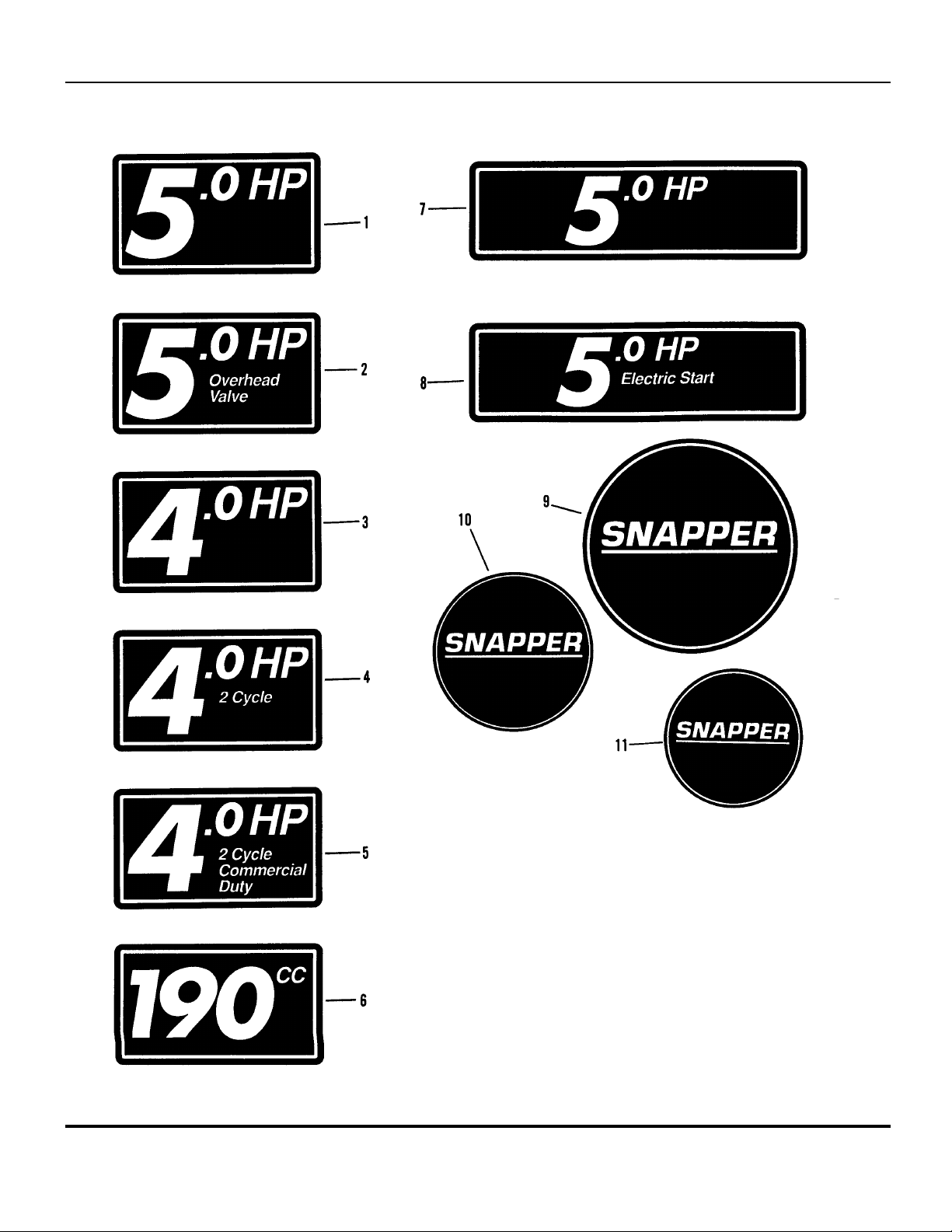

Decals (Part 1)
Decals (Part 2)
Side Chute, Adapter
Grass Bag

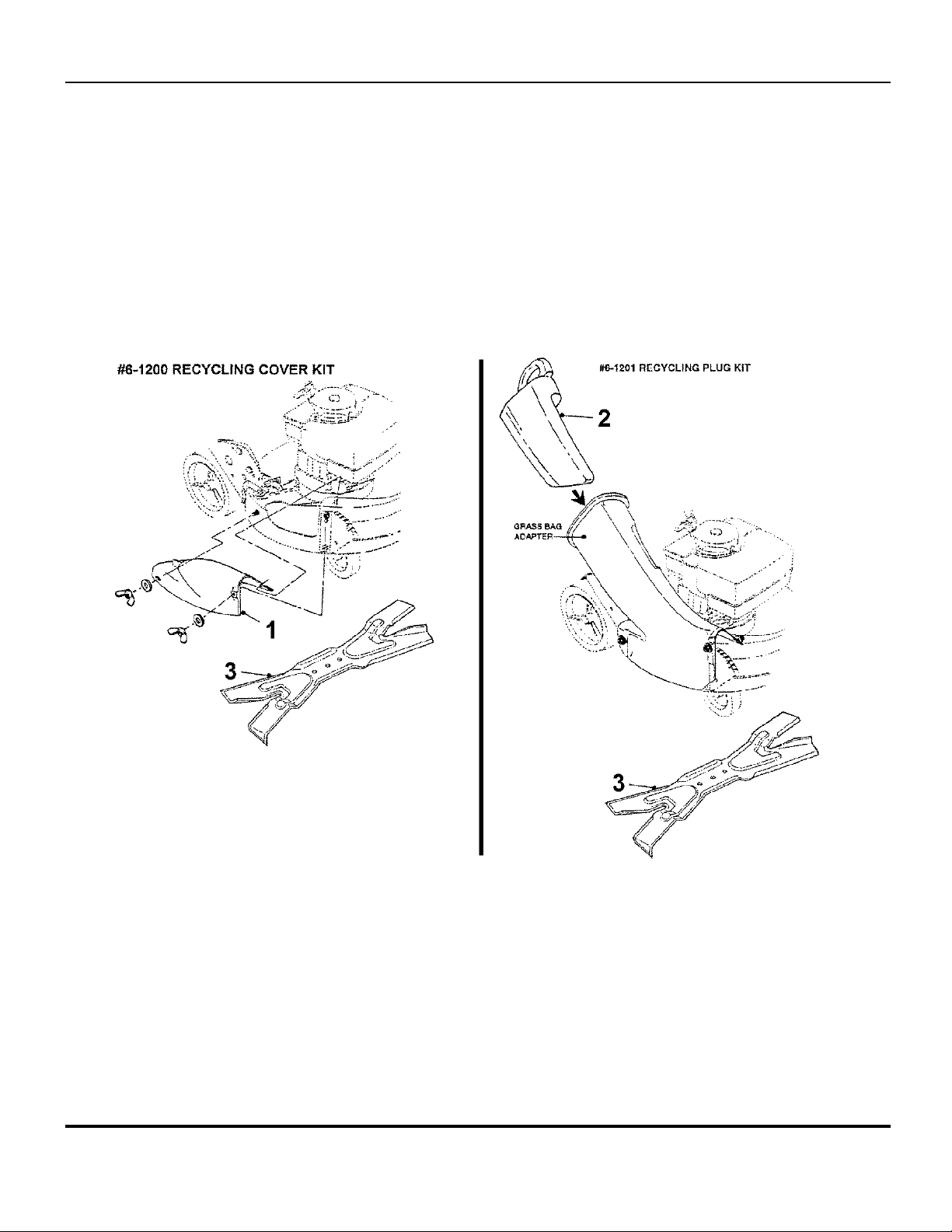

Accessories - Recycling Kits
21" Hi-Vac Mulcherizer Kits
Accessory - Snapperizer
Accessory - Thatcherizer
Electric Start Group

Table Of Content

SERIES 7

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

3

TP 400-5143-3-WB-N

Handles & Controls

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

4

SERIES 7

Handles & Controls

p

y

Part No Descri

1 7036354 1 HANDLE, Upper Used on Push
1 7036357 1 HANDLE, Upper Used on Self-Propelled
2 7036350 1 HANDLE, Middle Used on All
3 7046502 1 HANDLE, Lower Left Hand Was 38467, Used on All
4 7035342 1 HANDLE, Lower Right Hand Was 38466, Used on All
5 7017072 1 CONTROL, Blade Used on All
6 7033904 1 CLIP, Blade Control Used on All (Same either side)
7 7023820 1 CABLE, Blade Control, 47.94" Overall length B&S 3.5 H.P. Engine 1990 Model
7 7023835 1 CABLE, Blade Control, 63.87" Overall length TEC 2-cycle Engine 1990 Model
7 7023765 1 CABLE, Blade Control, 52.65" Overall length B&S 5.0 H.P. Engine 1990 Model
7 7016566 1 CABLE, Blade Control, 46.3" Overall lenght Used on Briggs (All Engines)

7 7016708 1 CABLE, Blade Control, 56.93" Overall length Used on Tecumseh (Side Valve

7 7016709 1 CABLE, Blade Control, 63.42" Overall length TEC 2 Cycle Engine 1991 &

7 7016425 1 CABLE, Blade Control, 57.0" Overall length Used on Tecumseh OHV Engine
7 7017276 1 CABLE, Blade Control, 47.95" Overall length Used on Robin
8 7032826 1 HANDLE, Wheel Drive Used on Self-propelled

9 7014307 1 GRIP, Wheel Drive Handle Used on Self-propelled
10 7023134 1 CABLE, Clutch Pull (Z-BEND) Used on Self-propelled
11 7012121 1 COVER, Vinyl (Part of item 10)
12 7012122 1 SPRING, Clutch Used on Self-propelled
13 7038478 1 SECTOR, Speed Used on Self-propelled
14 7023795 1 LEVER, Speed Control Used on Self-propelled
15 7012093 1 SPRING, Speed Control Used on Self-propelled
16 7090188 1 WASHER, 3/8" Flat Used on All-different locations
17 7023801 1 GRIP, Speed Control Handle Used on Self-propelled
18 7032830 1 ANCHOR, Speed Control Used on Self-propelled
19 7032408 1 GUIDE, Lower V-Belt Used on Self-propelled
20 7023790 1 ROD, Transfer Used on Self-propelled
21 7010937 1 CLIP, Transfer Rod Used on Self-propelled
22 7090895 1 TEE-NUT, 5/16-18 Used on Self-propelled
23 7012114 1 BUSHING, Differential Used on Self-propelled
24 7090595 1 BOLT, 5/16-18 x 3/4 Flange Lock Used on Self-propelled
25 7090238 1 CAPSCREW, 5/16-24 x 1 Used on Self-propelled
26 7090799 2 BOLT, 5/16-18 x 5/8 Carriage Was 91026 (Used on All

27 7091601 4 NUT,5/16-18 Hex Flange Lock Was 90585 (Used on All

28 7090222 1 NUT, 5/16-24 Center Lock Used on Self-propelled
29 7023813 1 CLIP Cable/Wiring Used on All

tionItem Qt

Note

("91 Models & Later)

Engines) ("91 Models & Later

Later

(different locations)

(different locations))

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

5

TP 400-5143-3-WB-N

Handles & Controls

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

6

SERIES 7

Handles & Controls

p

y

Part No Descri

30 7091013 4 SCREW, 1/4-20 x 1-7/8 Curved Head Used on All
31 7023735 4 KNOB, 5/16-18 Used on All
32 7091025 2 CAPSCREW, 1/4-28 x 1-3/8 Used on Self-propelled
33 7090053 5 LOCKWASHER, 1/4 Internal Tooth Was 91023 (Used on All

34 7090095 3 NUT, 1/4-20 Hex Was 91024 (Used on All

35 7091022 1 CAPSCREW, 1/4-28 x 1-3/4 Used on All (throttle control)
36 7014343 4 BUSHING Used on All
37 7023792 1 PIN, Clutch Handle Used on Self-propelled
38 7091020 1 PUSH-NUT (for handle pin) Used on Self-propelled
39 7023745 1 DECAL, Blade Control Used on All
40 7023901 1 GRIP, Foam 18" Used on Push
40 7022460 1 GRIP, Foam 13.5" Was 23841, Used on Self-

41 7091077 1 BOLT, 5/16-18 x 5/8" Carriage Used on Self-Propelled

tionItem Qt

Note

(different locations))

(different locations)

Propelled

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

7

TP 400-5143-3-WB-N

Cutting Deck, Blade, Interlock

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

8

SERIES 7

Cutting Deck, Blade, Interlock

p

y

Part No Descri

1 7057663 1 DECK, Mower (Includes painted deck with

2 7091601 12 NUT, 5/16-18 Hex Flange Lock Was 90585

3 7090731 9 BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr.)

4 7091303 4 BOLT, 5/16-18 x 1" Short Neck Carriage Was 90383

5 7090324 2 SCREW, 3/8-16 x 1" Self-tapping (Engine Mounting)

6 7032417 1 SPRING, Wheel Bracket Type Interlock

7 7032416 1 BRACKET, Wheel Bracket Type Interlock

8 7012048 1 INSULATOR, Interlock

9 7091122 2 SCREW, 1/4-20 x 1/2" Self-tapping Was 90539
10 7090385 1 WASHER, #8 Tab Internal Tooth Lock
11 7090379 1 SCREW, #8-18 x 3/4" Hex Head Machine
12 7090167 1 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
13 7012063 1 WASHER, Cone
14 7019795 1 BLADE, Cutter
14 7017168 1 BLADE, Cutter (For Recycling Models)
15 7012927 1 HUB, Blade Drive (7/8" Dia. I.D.) (For '90 Models &. Earlier)
15 7015626 1 HUB, Blade Drive (25mm Dia. I.D.) (For '91 Models & Later)
16 7010783 2 KEY, Hi-Pro (For '90 Models & Earlier)
16 7015894 2 KEY, Woodruff (Briggs)(Tecumseh 2 Cycle) (For '91 Models & Later)
16 7016755 1 KEY, Square (Robin & Tecumseh) (For '91 Models & Later)
17 7090201 1 SCREW, 5/16-18 x 5/16" Hex Socket Set
18 7021707 1 PULLEY, Engine (Briggs 3.5 H.P.) (7/8" I.D. x 1-7/8" O.D.) (For '90 Models & Earlier)
18 7015780 1 PULLEY, Engine (Briggs) (Tecumseh 2 Cycle) (25mm I.D. x 2-

1/8" O.D.)
18 7022106 1 PULLEY, Engine (Tec. & Robin) (25mm I.D.x 2-1/8" O.D.) (For '91 Models & Later)
19 7031968 1 SHIELD, Belt Opening Cover (For Push Models Only)
20 7012135 1 BUSHING, Interlock Wire
21 7060785 1 KIT, Air Lift (Includes items 22 thru 25); For

22 7032558 2 LIFT, Air
23 7090391 4 WASHER, 5/16 Internal Tooth Lock
24 7091297 4 NUT, 5/16-24 Hex Was 90223
25 7090228 4 SCREW, 5/16-24 x 11/16" Machine
26 7011791 2 RETAINER, 5/16 Bolt
27 7090799 2 BOLT, 5/16-18 x 5/8" Carriage

tionItem Qt

Note

decals)

(For '91 Models & Later)

use with P/N 1-9795 Blade

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

9

TP 400-5143-3-WB-N

Front Wheel Bracket, Latches

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

10

SERIES 7

Front Wheel Bracket, Latches

p

y

Part No Descri

1 7051885 1 ARM ASSEMBLY, Left Wheel (Not shown) (Consists of items 2, 3, 4, 5A,6)
1 7051886 1 ARM ASSEMBLY, Right Wheel (Consists of items 2, 3, 4, 5B, 6)
2 7015761 2 BOLT, 5/16-18 Shoulder
3 7012325 2 LATCH, Height
4 7027702 2 GRIP, Latch
5 7031016 1 ARM, Left Wheel (Not shown)
5 7031017 1 ARM, Right Wheel
6 7011791 2 RETAINER, 5/16 Bolt
7 7090391 2 WASHER, 5/16 Internal Tooth Lock
8 7091511 2 NUT, 5/16-18 Hex Was 90196
9 7047971 1 BRACKET, Front Wheel

10 7021119 1 AXLE

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

11

TP 400-5143-3-WB-N

Rear Wheels, Brackets, Latches

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

12

SERIES 7

Rear Wheels, Brackets, Latches

p

y

Part No Descri

1 7046983 2 BEARING Was 18767
2 7091012 6 SCREW, #10-32 x 3/8" Self-Tapping
3 7035717 2 LATCH, Height Adjusting Was 19218 (Self-Propelled

4 7090731 6 BOLT, 5/16-18 x 1/2" Short Neck Carriage
5 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585
6 7052909 1 ASSEMBLY, Wheel Arm (Square Hole, Front Left & Rear Right) Was 51954 (Includes items

7 7052908 1 ASSEMBLY, Wheel Arm (Round Hole, Front Right & Rear Left) Was 51955 (Includes Items

8 7054246 1 WHEEL ARM ASSEMBLY (Rear Right "P" Models) Was 51814 Includes items

9 7054247 1 WHEEL ARM ASSEMBLY (Rear Left "P" Models) Was 51815 Includes items

10 7031016 1 ARM (Square Axle End)
11 7031017 1 ARM (Round Axle End)
12 7032722 1 ARM, Wheel Rear Right "P" Models
13 7032723 1 ARM, Wheel Rear Left "P" Models
14 7015761 2 BOLT, 5/16-18 x 1 Shoulder
15 7011791 2 RETAINER, 5/16 Bolt
16 7012325 2 LATCH, Height Adjusting (For Push Models)
17 7027702 2 GRIP, Latch
18 7036050 1 BRACKET, Right Rear Wheel (For Push Models)
19 7036049 1 BRACKET, Left Rear Wheel (For Push Models)
20 7036048 1 BRACKET, Right Rear Wheel (For Self-prop. "P" Models)
21 7036242 1 BRACKET, Left Rear Wheel (For Self-prop. "P" Models)
22 7021119 1 AXLE (For Rear on Push Models also

23 7011780 2 RING (For Push Models)
24 7026166 1 GUARD, Rear Foot Was 37765 (Push Models)
25 7091809 2 PIN, 1/8 x 1-1/2" Cotter Was 90297
26 7019522 1 GUARD, Rear Foot (For Self-prop. "P" Models)
27 7012616 1 SUPPORT, Foot Guard
28 7091604 1 BOLT, 1/4-20 x 1/2 Short Neck Carriage Gr.5 Was 90005
29 7090053 1 WASHER, 1/4 Int. Tooth Lock Was 91023
30 7091576 1 NUT, 1/4-20 Hex Was 90063
31 7023791 1 RING
32 7090391 2 WASHER, 5/16 Int. Tooth Lock
33 7091511 2 NUT, 5/16-18 Hex Was 90196

tionItem Qt

Note

Models)

10,14,15,16,17)

11,14,15,16,17)

(1,2,3,12,14,15,16,17,25)

(1,2,3,13,14,15,16,17,25)

front on all)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

13

TP 400-5143-3-WB-N

Front Wheels

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

14

SERIES 7

Front Wheels

p

y

Part No Descri

1 7019195 2 WHEEL, 7 x 1.75 Plastic Rim Was 19333 on "90 Models &

2 7019381 2 COVER, Wheel
3 7090377 2 NUT, 7/16-20 Hex Center Lock
4 7031960 2 CAP, Deep-Dish Hub
5 7031961 4 WASHER, 7/16 Flat
6 7012309 2 BUSHING, Axle

tionItem Qt

Note

Earlier

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

15

TP 400-5143-3-WB-N

Rear Wheels

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

16

SERIES 7

Rear Wheels

p

y

Part No Descri

1 7019420 2 WHEEL, 9 x 2.00 Plastic Rim Was 19196 or 19334 (For Push

2 7022801 2 WHEEL, 9 x 2.00 Plastic Rim Was 19335 (For 3.5 H.P. Self-

2 7019421 2 WHEEL, 9 x 2.00 Plastic Rim Was 19197 (For 3.5 H.P. 1990

3 7022801 2 WHEEL, 9 x 2.00 Steel Rim Was 19336 (Self-Propelled)("91

3 7019201 2 WHEEL, 9 x 2.00 Steel Rim Was 19198 (Self-Propelled,

4 7019385 2 COVER, Wheel (For Push & w.5 H.P. Self-

5 7019349 2 COVER, Wheel (For Self-Propelled)
6 7090377 2 NUT, 5/16-18 Hex Center Lock
7 7031960 4 CAP, Deep-Dish Hub
8 7031961 4 WASHER, 7/16 Flat
9 7012309 2 BUSHING, Axle (Push)

tionItem Qt

Note

Models)

Propelled) ('91 Models & Later)

Self-Propelled Models & Earlier)

Models & Later)

1990 Models & Earlier)

Propelled)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

17

TP 400-5143-3-WB-N

Drive System - Self Propelled

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

18

SERIES 7

Drive System - Self Propelled

p

y

Part No Descri

1 7012354 1 BELT, Poly-Vee
2 7034179 1 LINK, Differential Was 31880

-- 7051921 1 ASSEMBLY, Clutch Idler (Includes items 3 thru 7)
3 7032832 1 ARM, Clutch Idler
4 7012124 2 PULLEY, Idler
5 7090552 1 CAPSCREW, 1/4-28 x 1-3/8" Hex Head
6 7090303 1 NUT, 1/4-28 Hex Lock
7 7012117 2 BUSHING, 3/8 I.D. Nylon
8 7072284 1 HEX-SHAFT Was 23744

9 7019383 1 PULLEY
10 7012316 1 WASHER
11 7012126 1 SPRING, Torsion
12 7012111 1 STUD
13 7031873 1 HOLDER, Bearing (Inner Half)
14 7028014 1 BEARING, Ball Was 12304
15 7011025 1 O-RING
16 7090289 1 NUT, 3/8 Hex Center Lock
17 7031809 1 HOLDER, Bearing (Outer Half)
18 7010937 1 CLIP, 1/4 Right Arc (Transfer Rod)
19 7023790 1 ROD, Transfer
20 7012353 1 BELT, Engine Drive

-- 7053225 1 ASSEMBLY, Driven Disc Was 57444 (Includes 21 thru 28)
21 7038486 1 PLATE, Thrust
22 7010746 1 RING, Retaining
23 7026693 1 BEARING, Ball Was 15474
24 7090981 4 SCREW, #10-32 x 1/4" Self-Tapping Machine
25 7061276 1 ASSEMBLY, Hub Was 51616 (Includes 11108

26 7023364 1 DRIVEN-RING
27 7031013 1 PLATE, Ring Retaining
28 7090913 5 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
29 7012125 1 GUIDE, Thrust Plate
30 7090390 2 WASHER, 3/8 Internal Tooth Lock
31 7090122 3 WASHER, 3/8" Flat
32 7091630 3 NUT, 3/8-24 Hex Was 90155
33 7091511 1 NUT, 5/16-18 Hex Was 90196
34 7090187 1 WASHER, 5/16 Split Lock
35 7090316 1 BOLT, 5/16-18 x 3/4 Carriage

tionItem Qt

Note

Bushing & 90913 Screws)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

19

TP 400-5143-3-WB-N

Drive System - Self Propelled

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

20

SERIES 7

Drive System - Self Propelled

p

y

Part No Descri

36 7032831 1 CONNECTOR, Transfer Rod
37 7061275 1 ASSEMBLY, Drive-Disc (Includes item 38)(Was 60710)
38 7013893 1 BUSHING
39 7029025 2 SPRING (Wheel Drive & Idler) Was 17326
40 7032116 1 ARM, Idler
41 7013847 1 RETAINER, 3/8 Bolt
42 7090078 1 BOLT, 1/4-20 x 1-1/4" Carriage
43 7090372 1 NUT, 1/4-20 Hex Center Lock

-- 7050751 1 ASSEMBLY, Deck Bracket (Includes items 44 thru 46)
44 7033774 1 BRACKET, Deck Was 31919 (Now 17696 +

45 7012306 2 BUSHING, Flange
46 7021758 1 SPACER
47 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap
48 7090391 1 WASHER, 5/16 Internal Tooth Lock
49 7011079 1 WASHER, Spring
50 7091597 1 COTTER-PIN, 3/32 x 1/2" Was 90555
51 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
52 7090731 2 BOLT, 5/16-18 x 5/8" Short Neck Carriage
53 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585
54 7012122 1 SPRING, Clutch
55 7015752 1 LINK, Transfer Used on Electric Start models

56 7015753 1 JOINT, Ball Used on Electric Start models

57 7090095 2 NUT, 1/4-28 Hex Used on Electric Start models

58 7091294 1 WASHER, 1/4 Flat Was 90055 (Used on Electric

59 7090053 1 WASHER, 1/4 Internal Tooth Lock Used on Electric Start models

tionItem Qt

Note

33774)

only.

only.

only.

Start models only.)

only.

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

21

TP 400-5143-3-WB-N

Transmission (Differential)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

22

SERIES 7

Transmission (Differential)

p

y

Part No Descri

-- 7059070 1 ASSEMBLY, Transmission Was 57525 (Includes 1 thru 29)

1 7092062 3 NUT, 5/16-24 Hex Lock, GR C Was 11201
2 7011132 1 WASHER, Spring
3 7019213 1 PULLEY, Poly-Vee Belt
4 7011724 1 WASHER, Spring
5 7053942 1 HOUSING ASSEMBLY, Right Was 59794 (Includes 6 thru 10)
6 7051908 1 HOUSING, Right Side Was 17080
7 7014155 3 SCREW, 5/16-24 x 1-1/8" Rib Neck
8 7012314 2 SEAL, 5/8" ID

9 7012507 2 BEARING, Differential
10 7073963 2 BEARING, Ball Was 11767
11 7016544 1 PLUG, Housing Was 11133
12 7050767 1 GEAR, Input Includes one of #10)
13 7050830 1 AXLE, Short
14 7012495 1 GEAR, Differential, 46 Tooth
15 7031970 2 PLATE
16 7031965 2 WASHER, Thrust
17 7090557 4 SCREW, Cap, 10-32 x 1-1/2"
18 7011774 1 GASKET, Housing
19 7090189 3 WASHER, 5/16" Internal External Tooth Lock
20 7051903 1 BRACKET, Differential
21 7090911 4 SCREW, 1/4-20 x 1-1/4 Self-Tapping
22 7012543 1 SPACER, Axle Gear
23 7050831 1 AXLE, Long
24 7021115 4 GEAR, Pinion, 12 Tooth
25 7012500 4 SPACER, Pinion Gear
26 7011110 4 SHAFT, Pinion
27 7090376 4 LOCKNUT, 10-32
28 7053939 1 HOUSING ASSEMBLY, Left Was 57523 (Includes 8, 9 & 29)
29 7057634 1 HOUSING, Left Side Was 17015

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

23

TP 400-5143-3-WB-N

Throttle Controls - Series 7

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

24

SERIES 7

Throttle Controls - Series 7

p

y

Part No Descri

-- 7019254 1 Conduit Length, 45.0" - Briggs 4 Cycle For '90 Models & Earlier

-- 7023829 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '90 Models & Earlier

-- 7016565 1 Conduit Length, 58.0" - Briggs 4 Cycle For '91 Models & Earlier

-- 7016705 1 Conduit Length, 44.25" - Tecumseh 4 Cycle For '91 Models & Earlier

-- 7016706 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '91 Models & Earlier

-- 7016798 1 Conduit Length, 44.0" - Robin 2 Cycle For '91 Models & Earlier

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

25

TP 400-5143-3-WB-N

Decals (Part 1)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

26

SERIES 7

Decals (Part 1)

p

y

Part No Descri

1 7013010 1 DECAL, Danger

2 7023745 1 DECAL, Blade Control

3 7023870 1 DECAL, Warning

4 7044640 1 DECAL, SNAPPER Was 19279

5 7016191 1 DECAL, Warning & Starting

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

27

TP 400-5143-3-WB-N

Decals (Part 2)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

28

SERIES 7

Decals (Part 2)

p

y

Part No Descri

1 7017300 1 NLA - DECAL, Housing

2 7017303 1 NLA - DECAL, Housing

3 7017298 1 NLA - DECAL, Housing

4 7017297 1 NLA - DECAL, Housing

5 7017305 1 NLA - DECAL, Housing

6 7017295 1 NLA - DECAL, Housing

7 7017302 1 NLA - DECAL, Housing

8 7017306 1 NLA - DECAL, Housing

9 7017301 1 NLA - DECAL, Recoil (3.85 O.D.)
10 7017304 1 NLA - DECAL, Recoil (3.35 O.D.)
11 7017294 1 NLA - DECAL, Recoil (2.575 O.D.)

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

29

TP 400-5143-3-WB-N

Side Chute, Adapter

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

30

SERIES 7

Side Chute, Adapter

p

y

Part No Descri

1 7060955 NLA - KIT, Side Chute (Included 10 per box of item 2)

2 7042965 1 CHUTE, Side Was 16090

3 7016050 1 ADAPTER, Grass Bag Deck

4 7090951 3 NUT, 5/16-18 Hex Flange Lock

5 7090188 1 WASHER, 5/16 Flat

6 7023152 1 DEFLECTOR, Muffler

7 7023023 3 SCREW, #8-18 x 3/8" Hex Head Cap

8 7090316 2 BOLT, 5/16-18 x 3/4" Carriage Was 91097

9 7011791 2 RETAINER, 5/16 Bolt
10 7090122 1 WASHER, 5/16 Flat
11 7029149 1 COVER, Deck Was 16111 (For Recycling

tionItem Qt

Note

Models)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

31

TP 400-5143-3-WB-N

Grass Bag

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

32

SERIES 7

Grass Bag

p

y

Part No Descri

-- 7060935 1 KIT, Grass Bag Catcher (Incl. items 1 thru 4)

1 7059322 1 ASSEMBLY, Grass Bag Was 51899 (Incl. items 2 and 3)

2 7017069 1 BAG, Door Type (Charocoal)

3 7051906 1 ASSEMBLY, Bag Wire

4 7042489 1 CONNECTOR, Grass Bag Was 47969

5 7016050 1 ADAPTER, Bag

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

33

TP 400-5143-3-WB-N

Accessories - Recycling Kits

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

34

SERIES 7

Accessories - Recycling Kits

p

y

Part No Descri

-- 7061200 1 KIT, Recycling Cover Was 61030 (Includes items

-- 7061201 1 KIT, Recycling Plug Was 61032 (Includes items

1 7029149 1 COVER, 21" Deck Was 16111

2 7016814 1 PLUG, Chute Adapter

3 7017168 1 BLADE, 21"

tionItem Qt

Note

below)

below)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

35

TP 400-5143-3-WB-N

21" Hi-Vac Mulcherizer Kits

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

36

SERIES 7

21" Hi-Vac Mulcherizer Kits

p

y

Part No Descri

-- 7060842 * NLA - KIT, Mulcherizer (For 7/8" Crankshaft) (Includes 1 thru 8)

-- 7060420 * NLA - KIT, Mulcherizer (For 25mm Crankshaft) (Includes 1 thru 8)

1 7019814 3 LINER

2 7013870 1 HUB, 7/8" I.D.

2 7015936 1 HUB (25mm I.D.)

3 7019521 1 BLADE, Mulcherizer

4 7090483 1 SCREW, 3/8-24 x 1 3/4" Hex Head Cap (Gr.5)

5 7012063 2 WASHER, Cone

6 7090100 3 SCREW, 1/4-28 x 5/8" Hex Head Cap (Gr.5)

7 7091294 6 WASHER, 1/4 Flat Was 90055

8 7090303 3 NUT, 1/4-28 Hex Lock

tionItem Qt

Note

Footnotes:

NOTE:* Use either 7016814 Chute Plug or 7061200 Cover

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

37

TP 400-5143-3-WB-N

Accessory - Snapperizer

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

38

SERIES 7

Accessory - Snapperizer

p

y

Part No Descri

-- 7060440 1 KIT, Snapperizer (Includes items 1 thru 5)

1 7051243 1 SCREEN, Fastener Assembly

2 7039759 1 RING, Bottom

3 7091297 3 NUT, 5/16-24 Hex Was 90223

4 7090187 3 WASHER, 5/16 Split Lock

5 7012587 4 SPRING

tionItem Qt

Note

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

39

TP 400-5143-3-WB-N

Accessory - Thatcherizer

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

40

SERIES 7

Accessory - Thatcherizer

p

y

Part No Descri

-- 7061256 KIT, Thatcherizer (Includes items listed below) Recommended for propelled

1 7032891 2 ** LATCH, Frame Attachment
2A 7026572 1 BAR, Mount (Right Hand)
2B 7026573 1 BAR, Mount (Left Hand)

3 7018499 2 ROD, Tine

4 7018700 1 SUPPORT, Wheel

5 7019948 1 TRAY, Tine

6 7018496 6 KIT, Tine Thatching Spring Was 60574

7 7014100 1 ** BUSHING, Wheel Adjuster

8 7018493 1 ** AXLE, Wheel

9 7018189 1 WHEEL, 7.00 x 1.50 Gage
10 7091705 10 * NUT, 1/4-20 Hex Top Lock Was 90761, only 9 shown
11 7091294 4 * WASHER, 1/4” Flat Was 90055
12 7022425 2 ** SPRING, Compression
13 7090825 2 * BOLT, 1/4-20 x 1-1/4” Hex, GR 5
14 7091576 2 * NUT, 1/4-20 Hex, GR 5 Was 90063
15 7022424 2 ** CAP, Vinyl
16 7090015 2 * BOLT, 1/4-20 x 2-1/2” Square Neck Carriage only 1 shown
17 7091303 6 * BOLT, 5/16-18 x 1” Square Neck Carriage, GR 5 Was 90383, only 1 shown
18 7091530 2 * BOLT, 1/4-20 x 3/4” Square Neck Carriage, GR 5 Was 90074
19 7014098 6 * WASHER, Reinforcing (.343 I.D.) only 1 shown
20 7090187 6 * WASHER, 5/16” Split Lock only 1 shown
21 7091511 6 * NUT, 5/16-18 Hex, GR 5 Was 90196, only 1 shown
22 7014101 2 ** NUT, 1/2” Push
23 7014342 4 ** BEARING, Nyliner
24 7014103 1 ** SET SCREW, 5/16-18 x 1/4” slotted headless cup point
25 7090250 2 WASHER, 1/2” Flat
26 7014115 1 DECAL, Adjustment
27 7014062 1 DECAL, Thatcherizer

-- 7060554 1 NLA - HARDWARE BAG, Thatcherizer 21” (Std.) Not shown

-- 7060555 1 NLA - HARDWARE BAG, Thatcherizer 21” (Special) Not shown

-- 7026700 1 MANUAL, Operator's (61256) Not shown

tionItem Qt

Note

models only.

Footnotes:

* Included in Hardware Bag # 60554
** Included in Hardware Bag # 60555

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

41

TP 400-5143-3-WB-N

Electric Start Group

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

42

SERIES 7

Electric Start Group

p

y

Part No Descri

1 7067012 1 KIT, Battery, 12 Volt, 35 CCA (Includes 1, 2, 3, & 4) Was 19763

2 7015488 1 HARNESS, Battery

3 7043977 2 SCREW, #10-24 x 1/2 Hex Head Cap

4 7090932 2 NUT, #10-24 Square

5 7011167 2 KEY, (Set of 2)

6 7015207 1 ASSEMBLY, Seal & Face Nut

7 7038485 1 BRACKET, Ignition Switch

8 7023894 1 COVER, Switch

9 7015206 1 NUT, 3/4-20 Lock
10 7011139 1 SWITCH, Ignition Was 15205
11 7090552 2 SCREW, 1/4-28 x 1 3/8" Hex Head Cap
12 7090053 2 WASHER, 1/4 Internal Tooth Lock
13 7090095 2 NUT, 1/4-28 Hex
14 7019298 1 HARNESS, Wiring 60" Was 17213, 46" on "90 Models

15 7032906 1 BRACKET, Battery (For Self-Propelled Models)
16 7036132 1 COVER, Battery (For Self-Propelled Models)
17 7090731 3 BOLT, 5/16-18 x 1/2" Carriage
18 7091601 3 NUT, 5/16-18 Hex Flange Lock Was 90585
19 7012652 2 CLIP, Wiring
20 7061188 1 CHARGER, Battery (60 Hertz) Was 18834
21 7090779 1 BOLT, 5/16-18 x 5/8" Short Neck. Carriage, Gr. 5
22 7011791 1 RETAINER, 5/16" Bolt

tionItem Qt

Note

& Earlier)

Footnotes:

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

SERIES 7

43

TP 400-5143-3-WB-N

Parts Manual fo

r

21" STEEL DECK WALK BEHIND MOWER
SERIES 7

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

McDonough, GA, 30253 U.S.A.

Revision 3,

8/10/2007

Manual No. 7006051A

TP 400-5143-3-WB-N
