Parts Manual fo
r
)
T
T
T
T
19" LIGHT WEIGHT (STANDARD & OPP
WALK BEHIND MOWERS
SERIES 9
MODEL
DLW359
DLW409R2
LW359
LW359T2
ODLW309
RLW359
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 1,
McDonough, GA, 30253 U.S.A.
9/16/2005
Manual No. 7006039
TP 400-5096-1-WB-N
s
PAGE GROUP
4
6
8
10
12
14
16
18
20
22
Handles & Controls
Cutting Deck, Blade, Interlock
Cutting Deck, Blade, Interlock (OPP Models Only)
Wheels, Guards, Axles
Wheels, Guards, Axles (OPP Models Only)
Decals
Accessory - Grass Bag
Accessory - Side Chute, Adapter
Accessory - Recycling Kits
Accessory - Snapperizer
Table Of Content
SERIES 9
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
3
TP 400-5096-1-WB-N
Handles & Controls
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
4
SERIES 9
Handles & Controls
p
y
Part No Descri
1 7074384 HANDLE, Upper Was 33473
7033477 HANDLE, Upper Was 33474 (For OPP Models
2 7036350 HANDLE, Middle
7033406 HANDLE, Middle (For OPP Models Only)
3 7033985 HANDLE, Lower Left Hand Was 38469
4 7033986 HANDLE, Lower Right Hand Was 38468
5 7017072 CONTROL, Blade
6 7033904 CLIP, Blade Control Was 32829
7 7022379 CABLE, Blade Control (Tecumseh 4-Cycle)
7024143 CABLE, Blade Control (Tecumseh 2-Cycle)
7027475 CABLE, Blade Control (Robin 2-Cycle) Was 24146
8 7014343 BUSHING
9 7023813 CLIP, Wiring Harness
10 7022550 CONTROL, Throttle (Tecumseh)
7024140 CONTROL, Throttle (Robin)
11 7090095 NUT, 1/4-28 Hex Was 91024
12 7016544 2 PLUG (For OPP Models Only)
13 7023735 4 KNOB, 5/16-18
14 7091013 4 SCREW, 5/16-18 x 2" Curved Head
15 7024088 DECAL, Blade Control
16 7090898 SCREW, #10-32 x 5/16" Sems
17 7090799 4 BOLT, 5/16-18 x 5/8" Short Neck Carriage Was 91026
18 7091601 4 NUT, 5/16-18 Hex Flange Lock Was 91070
19 7091022 SCREW, 1/4-28 x 1-3/4" Hex Head Cap
20 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023
21 7090391 WASHER, 5/16 Internal Tooth Lock Was 91068
tionItem Qt
Note
Only)
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
5
TP 400-5096-1-WB-N
Cutting Deck, Blade, Interlock
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
6
SERIES 9
Cutting Deck, Blade, Interlock
p
y
Part No Descri
1 7057662 DECK, Mower Was 47972 (Includes painted
2 7019795 BLADE, Cutter
7017167 BLADE, Cutter (For Recycling Models Only)
3 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
4 7012063 WASHER, Cone
5 7010783 KEY, Hi-Pro (Tecumseh 2-Cycle)
6 7012927 HUB, Blade Drive (Tecumseh 2-Cycle)
7015626 HUB, Drive Blade (Tecumseh 4-Cycle & Robin 2-Cycle)
7 7033408 SPRING, Interlock
8 7012048 INSULATOR, Interlock
9 7090385 WASHER, #8 Tab
10 7090379 SCREW, #8-18 x 3/4" Self-Tapping
11 7090071 SCREW, 1/4-20 x 3/4" Hex Flange Lock
12 7091584 2 NUT, 1/4-20 Hex Flange Was 90583
13 7090595 3 BOLT, 5/16-18 x 3/4" Hex Flange Lock
14 7091601 3 NUT, 5/16-18 Hex Flange Lock Was 90585
15 7011762 COVER, Spark Plug (Not Shown)
16 7090324 2 SCREW, 3/8-16 x 1" Self-Tapping
tionItem Qt
Note
deck with decals)
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
7
TP 400-5096-1-WB-N
Cutting Deck, Blade, Interlock (OPP Models Only)
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
8
SERIES 9
Cutting Deck, Blade, Interlock (OPP Models Only)
p
y
Part No Descri
1 7057662 DECK, Mower Was 52502 (Includes painted
2 7022396 BLADE, Cutter
3 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
4 7012063 WASHER, Cone
5 7022390 HUB, Blade Drive (Tecumseh 2-Cycle)
6 7033408 SPRING, Interlock
7 7012048 INSULATOR, Interlock
8 7090385 WASHER, #8 Tab
9 7090379 SCREW, #8-18 x 3/4" Self-Tapping
10 7090071 2 SCREW, 1/4-20 x 1/2" Hex Head Cap Was 91145
11 7091584 2 NUT, 1/4-20 Hex Flange Was 91065
12 7090324 3 SCREW, 3/8-16 x 1" Self-Tapping
13 7011762 COVER, Spark Plug (Not Shown)
tionItem Qt
Note
deck with decals)
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
9
TP 400-5096-1-WB-N
Wheels, Guards, Axles
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
10
SERIES 9
Wheels, Guards, Axles
p
y
Part No Descri
1 7022259 2 WHEEL, Front 7 x 1.75
2 7013024 4 HUB-CAP, Wheel
3 7013320 BUSHING, Height Adjustment
4 7013307 SPRING, Front Axle
5 7090122 6 WASHER, 3/8" Flat
6 7034357 2 AXLE, 3/8 x 19-3/8" Was 37946
7 7022260 2 WHEEL, Rear 8 x 2.00
8 7032118 2 CLIP, Rear Guard
9 7013027 2 SPRING, Rear Guard
10 7018444 GUARD, Rear Foot
11 7017829 4 PLUG, Wheel
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
11
TP 400-5096-1-WB-N
Wheels, Guards, Axles (OPP Models Only)
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
12
SERIES 9
Wheels, Guards, Axles (OPP Models Only)
p
y
Part No Descri
1 7022795 WHEEL, Front 7 x 1.75 (2)
2 7022374 WHEEL, Rear 8 x 2.00 (2)
3 7024280 GUARD, Rear Foot
4 7024086 SUPPORT, Foot Guard
5 7090913 2 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
6 7091142 4 SCREW, 3/8-16 x 3-1/8" Hex Head Cap
7 7091149 8 WASHER, 3/8" Flat
8 7012309 4 BUSHING, Axle Was 22375
9 7022376 4 BUSHING, Height Adjustment
10 7091150 NUT, 3/8-16 Hex Center Lock
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
13
TP 400-5096-1-WB-N
Decals
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
14
SERIES 9
Decals
p
y
Part No Descri
1 7024263 DECAL, Mulching Chamber/Foot Probe
2 7024088 DECAL, Blade Control
3 7013312 DECAL, Caution
4 7013010 DECAL, Danger
5 7024220 DECAL, SNAPPER
6 7024169 DECAL, Hi-Vac/Foot Probe
7 7024214 DECAL, SNAPPER (Recycling)
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
15
TP 400-5096-1-WB-N

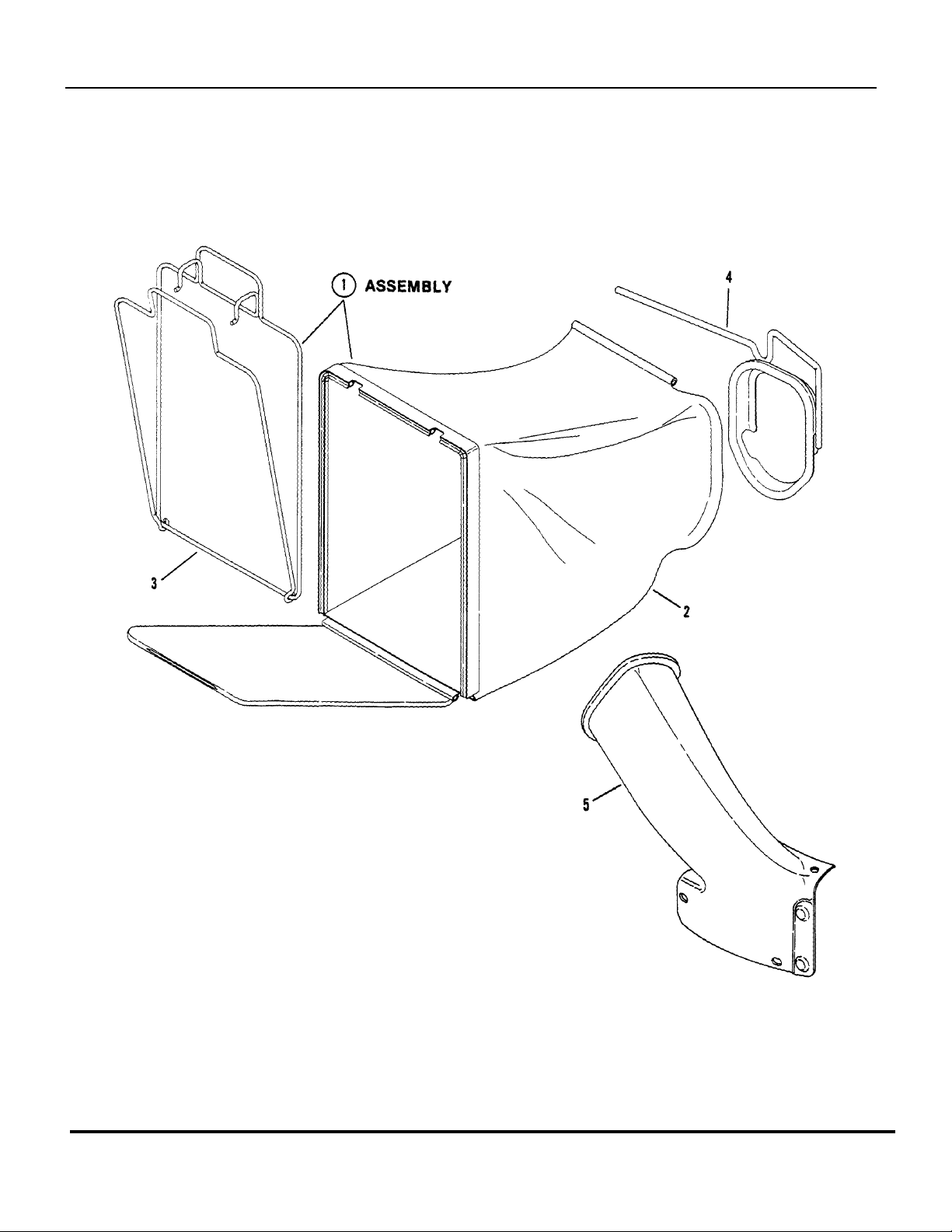

Accessory - Grass Bag
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
16
SERIES 9
Accessory - Grass Bag
p
y
Part No Descri
7061918 KIT, Grass Bag Was 60934 (Includes 1 thru 5)
7059322 KIT, Grass Bag Was 60932 (Includes 1 thru 4)
1 7059322 ASSEMBLY, Grass Bag (Door Type) Was 51899
2 7017069 BAG, KWIK-N-EZY
3 7051906 ASSEMBLY, Bag Wire
4 7042489 CONNECTOR, Grass Bag Was 47969
5 7016050 ADAPTER, Bag
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
17
TP 400-5096-1-WB-N
Accessory - Side Chute, Adapter
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
18
SERIES 9
Accessory - Side Chute, Adapter
p
y
Part No Descri
1 7053681 ADAPTER, Bag Was 16088
2 7035771 CHUTE, Side Was 60956
3 7090799 3 BOLT, 5/16-18 x 5/8" Short Neck Carriage Was 91026
4 7024085 3 NUT, 5/16-18 Wing
5 7011791 3 RETAINER, 5/16 Bolt
6 7091076 3 WASHER, 5/16 Flat
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
19
TP 400-5096-1-WB-N
Accessory - Recycling Kits
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
20
SERIES 9
Accessory - Recycling Kits
p
y
Part No Descri
7061029 KIT, Recycling Cover (Includes items 1 thru 4)
1 7017167 BLADE, 19" Recycling
2 7017169 COVER
3 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
4 7012063 WASHER, Cone
7061033 KIT, Recycling Plug (Includes items 1 thru 4)
1 7017167 BLADE, 19" Recycling
2 7016814 PLUG, Chute Adapter
3 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
4 7012063 WASHER, Cone
tionItem Qt
Note
Footnotes:
This Kit is used on Side Discharge Models.
This Kit is used on models with grass bags.
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
21
TP 400-5096-1-WB-N
Accessory - Snapperizer
Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP)
TP 400-5096-1-WB-N
22
SERIES 9
Accessory - Snapperizer
p
y
Part No Descri
7060450 KIT, Snapperizer (Includes items 1 thru 5)
1 7051246 ASSEMBLY, Screen Fastener
2 7039762 RING, Bottom
3 7091297 3 NUT, 5/16-24 Hex Was 90223
4 7090187 3 WASHER, 5/16 Split Lock
5 7012587 3 SPRING
tionItem Qt
Note
Footnotes:
Manual No. 700603919" LIGHT WEIGHT (STANDARD & OPP)
SERIES 9
23
TP 400-5096-1-WB-N
Parts Manual fo
r
)
19" LIGHT WEIGHT (STANDARD & OPP
WALK BEHIND MOWERS
SERIES 9
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Revision 1,
9/16/2005
Manual No. 700603 9
TP 400-5096-1-WB-N
