Snapper NZMJ25613KH, NZMJ23523KH User Manual

Parts Manual fo

r

J

H

H

MID MOUNT Z-RIDER ZERO TURNING

HYDRO DRIVE NZM

SERIES 3

MODEL

NZMJ23523K
NZMJ25613K

COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

Revision IR,

McDonough, GA, 30253 U.S.A.

6/28/2006

Manual No. 7006938

TP 400-5208-IR-NZ-N

s

PAGE GROUP

4
6

8
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64

CASTER WHEEL ASSEMBLY
DRIVE TIRE & WHEEL ASSEMBLY
FRONT FRAME ASSEMBLY (Frame)
FRONT FRAME ASSEMBLY (Deck Lift)
REAR FRAME & TANK BRACKETS
FUEL TANK ASSEMBLY
JOYSTICK CONTROL ASSEMBLY (R. H. Side)
JOYSTICK CONTROL ASSEMBLY (L. H. Side)
PARKING BRAKE ASSEMBLY

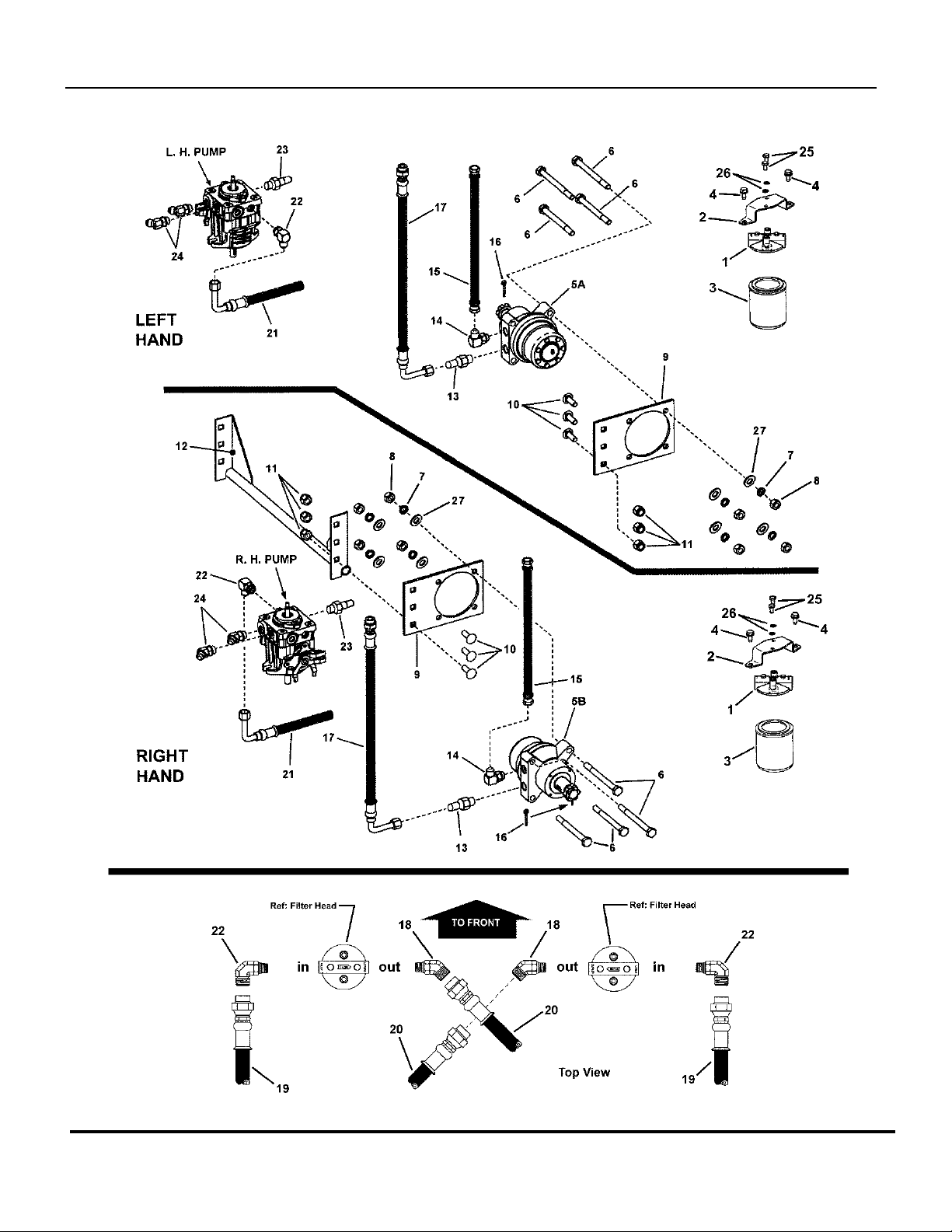

HYDRO PUMP ASSEMBLIES
HYDRO PUMP LINKAGE
HOSE ASSEMBLY (52" Deck)
HOSE ASSEMBLY (61" Deck)
HYDRO RESERVOIR ASSEMBLY
HYDRO IDLER ASSEMBLY
ENGINE SUB-ASSEMBLY

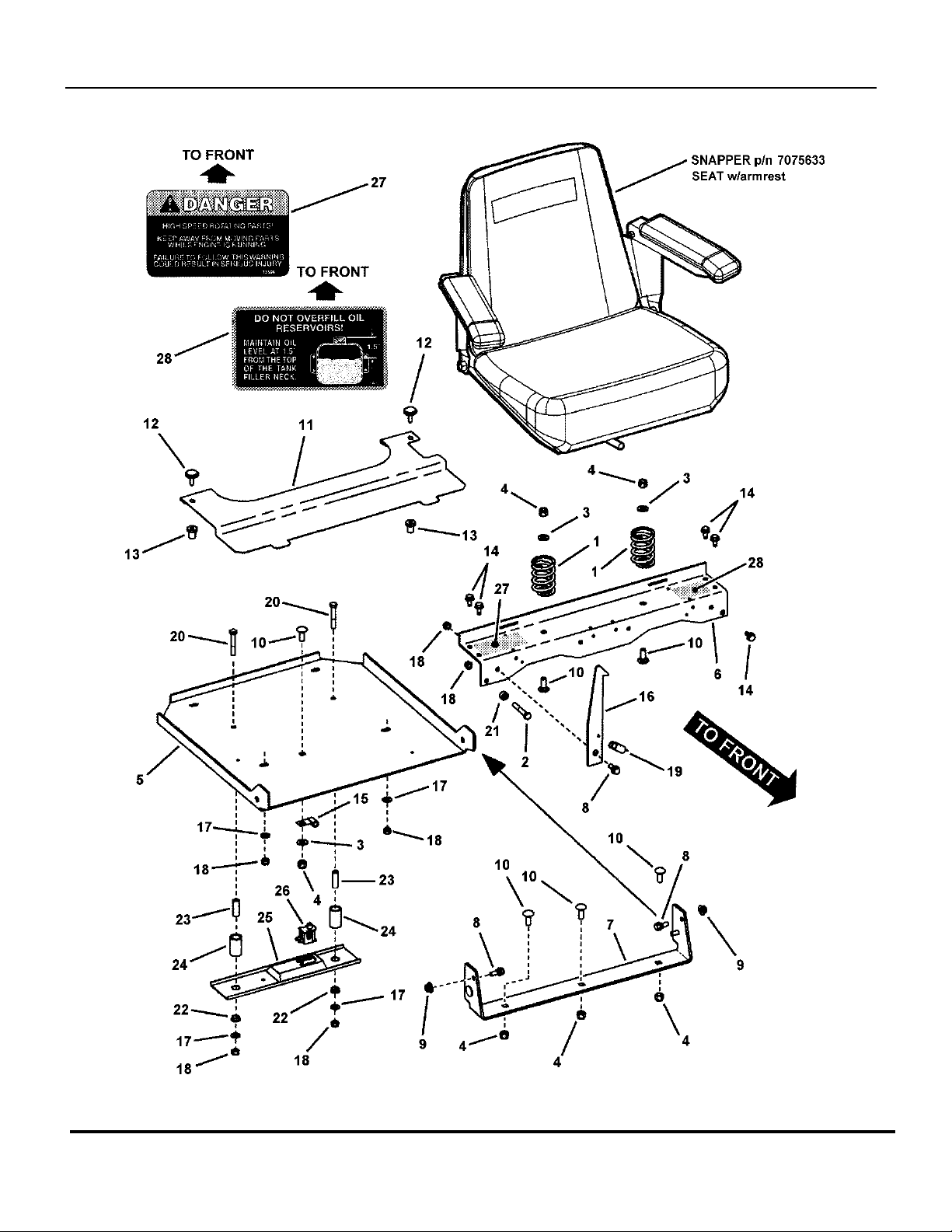

SEAT ASSEMBLY

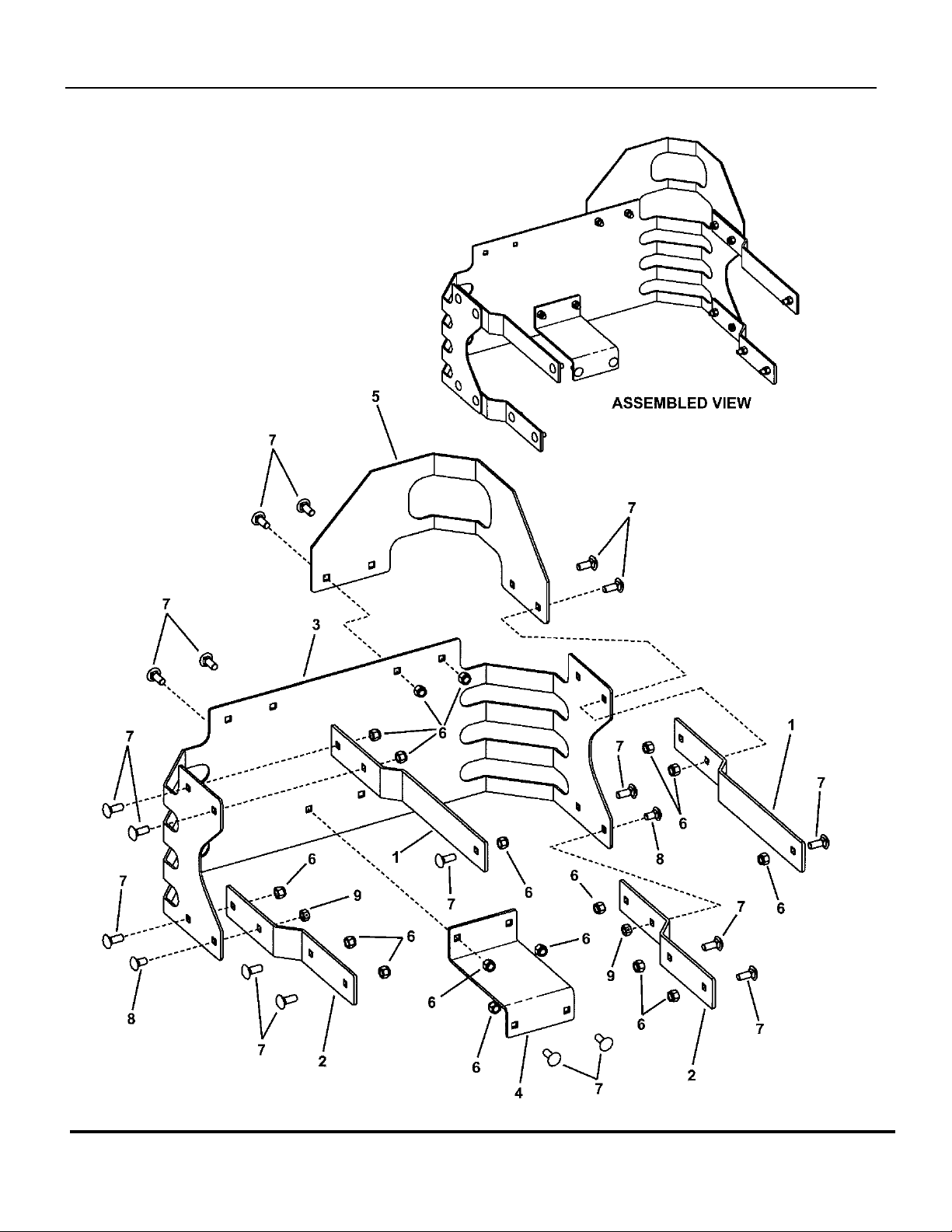

MUFFLER GUARD ASSEMBLY

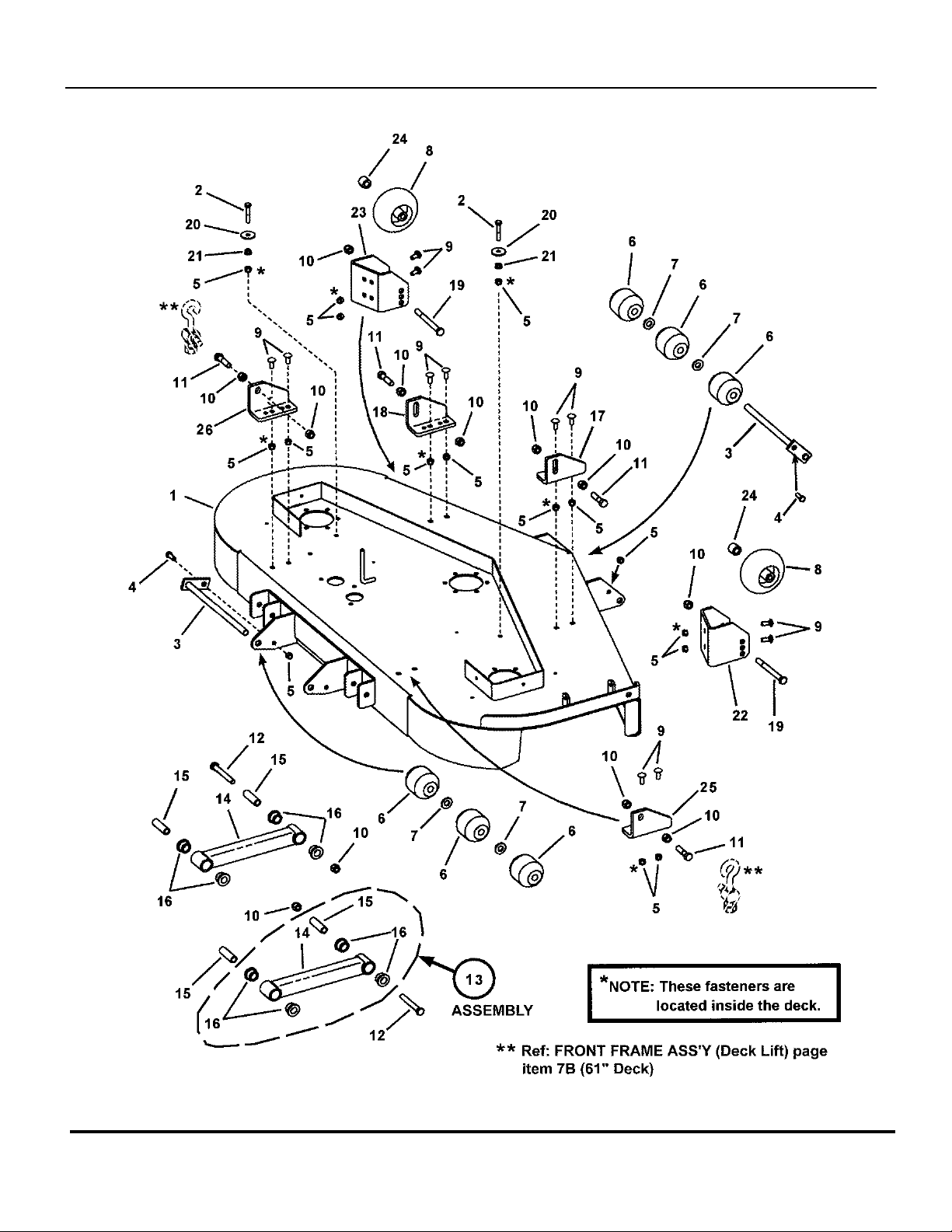

52" CUTTING DECK ASSEMBLY (Sub Assy)

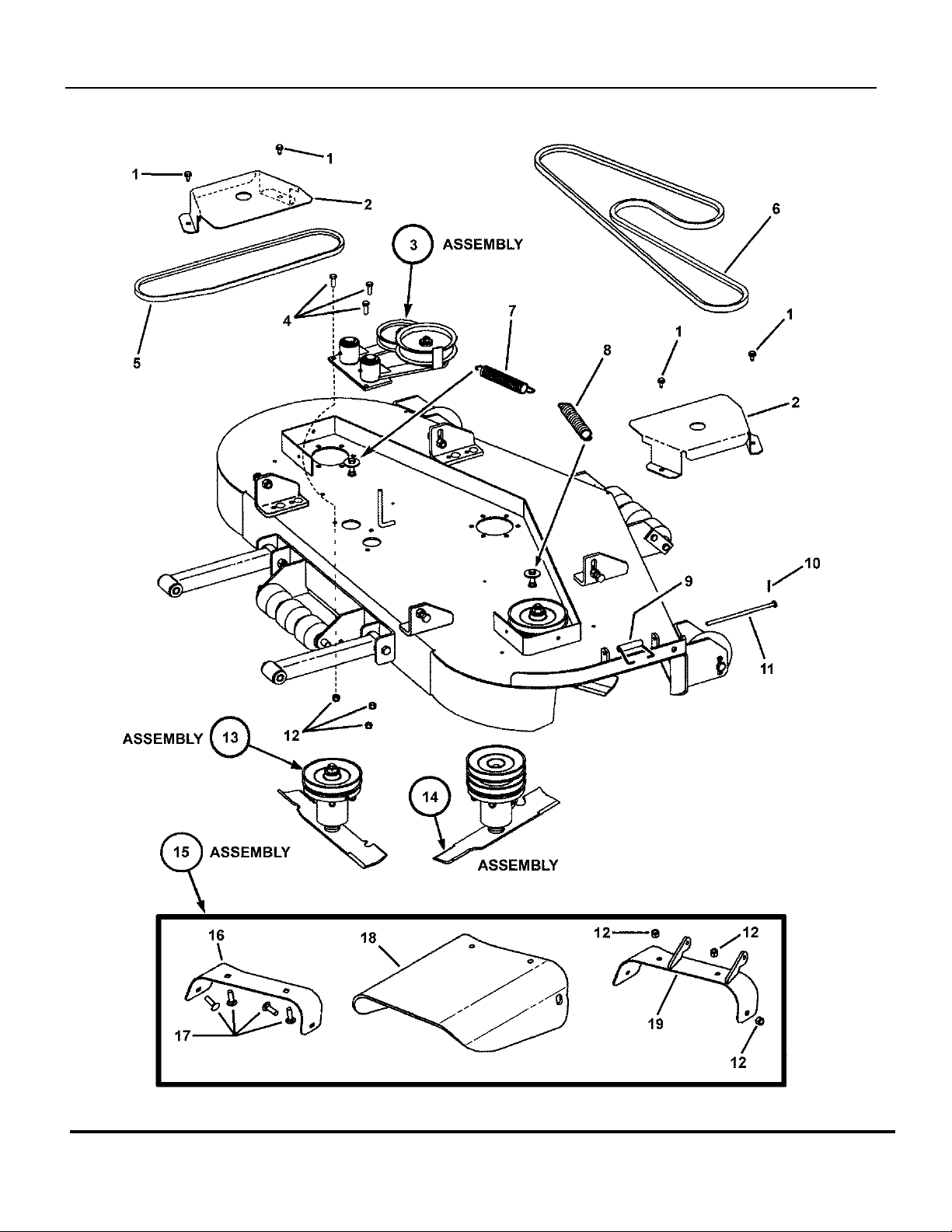

52" CUTTING DECK ASSEMBLY (Final Assy)
61" CUTTING DECK ASSEMBLY (Sub Assy)
61" CUTTING DECK ASSEMBLY (Final Assy)
IDLER ASSEMBLIES
DECK SPINDLE ASSEMBLIES
DECALS
ROLL BAR PROTECTIVE STRUCTURE
CONTROL PANEL ASSEMBLY

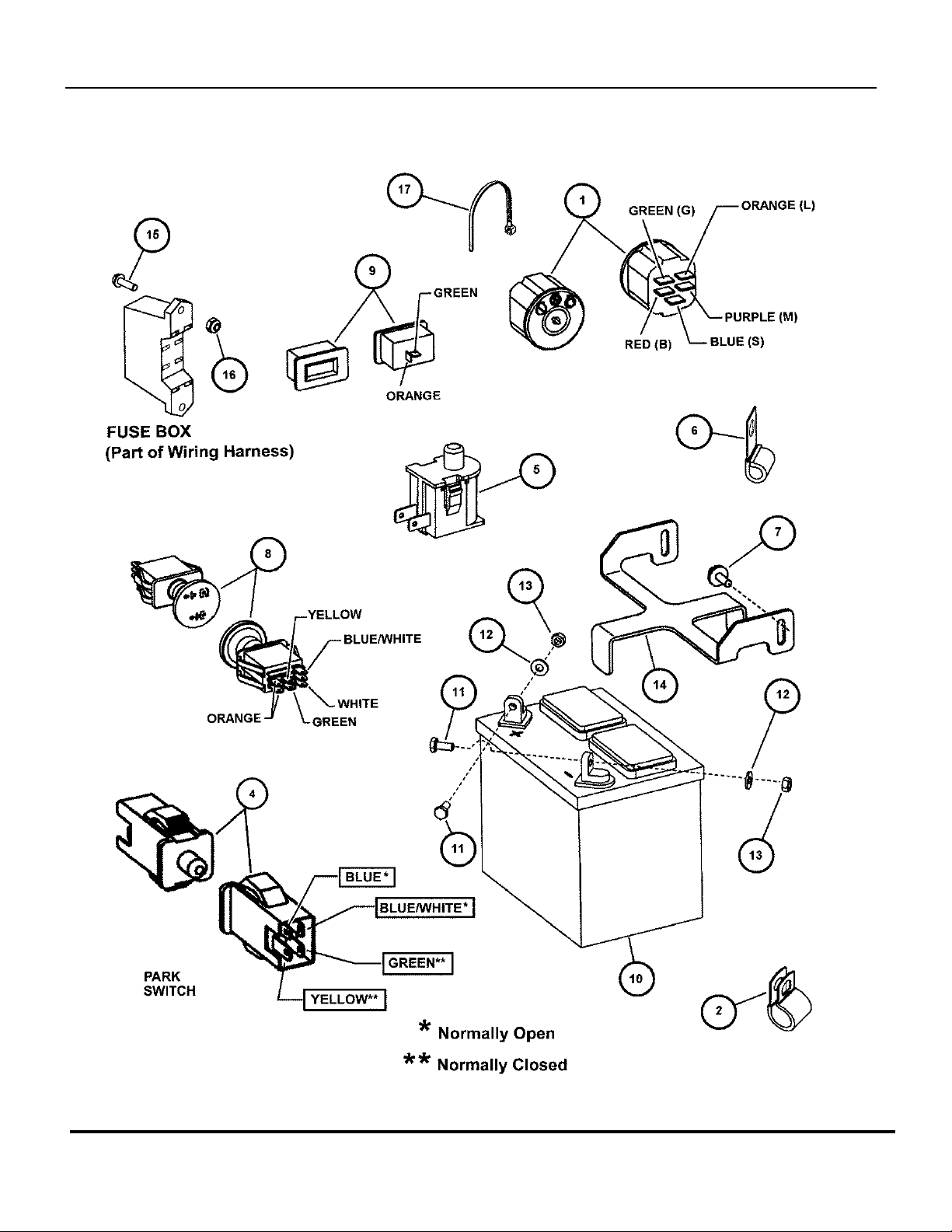

ELECTRICAL COMPONENTS
WIRING HARNESS
WIRING SCHEMATIC (Kohler Engines)

Table Of Content

SERIES 3

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

3

TP 400-5208-IR-NZ-N

CASTER WHEEL ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

4

SERIES 3

CASTER WHEEL ASSEMBLY

p

y

Part No Descri

1 7058744 2 WELDMENT, Caster Yoke used on 52” Deck Model only

1A 7075398 2 WELDMENT, Caster Yoke, 7-1/4” Wide used on 61” Deck Model only

2 7091773 1 SCREW, 1/2-13 x 7” Hex Head Cap, GR 5 used on 52” Deck Model only

2A 7092094 2 SCREW, 1/2-13 x 9-1/2” Hex Head Cap, GR 5 used on 61” Deck Model only

3 7091325 1 NUT,1/2-13 Nyloc
4 7035476 1 SPACER, Bearing, 5.29” Long used on 52” Deck Model only

4A 7075462 1 SPACER, Bearing, 7.29” Long used on 61” Deck Model only

5 7026188 2 ASSY, Tire & Wheel (Incl. items 6, 7, 8, 9, 10 & 11) used on 52” Deck Model only

5A 7072795 2 ASSY, Tire & Wheel (Incl. items 6A, 7A, 8, 9, 10 & 11) used on 61” Deck Model only

6 7078276 1 WELDMENT, Wheel Hub & Rim (Grey) used on 52” Deck Model only

6A 7078285 1 WELDMENT, Wheel Hub & Rim (Grey) used on 61” Deck Model only

7 7078275 1 TIRE, 13 x 5.00-6 4 Ply Smooth TL used on 52” Deck Model only

7A 7078277 1 TIRE, 13 x 6.5-6 4 Ply Smooth TL used on 61” Deck Model only

8 7028722 2 BEARING, .750 Heim

9 7076998 1 FITTING, Lube
10 7012234 1 VALVE STEM, Air
11 7075883 1 SPACER

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

5

TP 400-5208-IR-NZ-N

DRIVE TIRE & WHEEL ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

6

SERIES 3

DRIVE TIRE & WHEEL ASSEMBLY

p

y

Part No Descri

1A 7072796 2 ASSEMBLY, 23” Rear Tire & Rim (Incl. Items 2, 3 & 4) used on 52”
1B 7072797 2 ASSEMBLY, 24” Rear Tire & Rim (Incl. Items 2, 3 & 4) used on 61”

2 7100298 -- TIRE, 24 x 12.00 - 12 HHS 49R (Carlisle)

3 7100297 -- RIM, 12” Diameter x 8.50”

4 7012234 -- VALVE, Air

5 7092073 10 NUT, 1/2-20NF Lug

6 7071819 2 DRUM, Brake (Ausco)

7 7091793 -- PIN, 9/64 x 1-1/2” Cotter included as part of wheel motor

8 7013861 -- KEY, #11 Woodruff included as part of wheel motor

9 7091828 -- NUT, 3/4-20 Slotted Hex included as part of wheel motor

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

7

TP 400-5208-IR-NZ-N

FRONT FRAME ASSEMBLY (Frame)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

8

SERIES 3

FRONT FRAME ASSEMBLY (Frame)

p

y

Part No Descri

1 7044821 1 WELDMENT, Front Frame

2 2 GROUP, Front Wheel (see Caster Wheel Assembly Page)

3 7074723 2 GREASE SEAL

4 7058554 4 BEARING, Tapered Roller comprised of 7074706 (tapered

5 7029137 2 SPACER, Jackstaff

6 7092083 2 CASTLE NUT, 1-1/ UNF, GR B

7 7090841 2 ROLL PIN, 3/16 x 1-1/2”

8 7074537 2 CAP, Dust

9 7090768 12 BOLT, 1/2-13 x 1-1/2” Square Neck Carriage, GR 5
10 7091325 12 NUT, 1/2-13 Hex Nyloc
11 7073326 2 BUSHING, Teflon
12 7041818 3 PAD, Floor Pan
13 7044860 1 EYEBOLT, 3/8-16 x 3”
14 7091299 5 NUT, 3/8-16 Hex Nyloc
15 7035667 1 SPRING, Extension, Lift Assist
16 7074777 1 SPACER, Lift Adjust (1.08” Long)
17 7074580 2 SPACER, Lift Adjust (1.43” Long)
18 7058446 1 WELDMENT, Height Adjust
19 7091501 3 SCREW, 3/8-16 x 2-1/2” Hex Head Cap, GR 5
20 7074657 1 BRACKET, Deck Lift Detent
21 7091640 1 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
22 7074716 1 CLIP, Roll Pin, 1/2”
23 7010935 1 WASHER, .77 I.D. Flat
24 7010746 1 RING, 3/4” External Retaining
25 7300100 1 FLOORPAN
26 7058552 ASSY, Deck Lift Handle (Incl. items 27 thru 40)
27 7012313 1 RING, .375” Diameter External Retaining
28 7014669 1 LUBE FITTING, 3/16” or 7076998, 1/4-28 Straight

29 7058901 1 WELDMENT, Deck Lift Handle
30 7072450 1 SPRING, Neutral Return
31 7074531 1 BRACKET, Handle Support
32 7074532 1 ROD, Latch
33 7074533 2 STOP, Latch
34 7090209 2 SCREW, 5/16-18 x 1” Hex Head Cap, GR 2
35 7090555 2 PIN, 3/32 x 1/2” Cotter
36 7091067 2 NUT, 5/16-18 Hex Center Lock
37 7090122 1 WASHER, 3/8” Flat SAE

tionItem Qt

Note

roller brg.) and 7074707 (inner
race)

Lube Fitting

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

9

TP 400-5208-IR-NZ-N

FRONT FRAME ASSEMBLY (Frame)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

10

SERIES 3

FRONT FRAME ASSEMBLY (Frame)

p

y

Part No Descri

38 7075330 1 COVER, Plastic
39 7012117 1 BUSHING, 3/8” Plastic
40 7076986 1 ROLLPIN,1/8 x 7/8”

41A 7075027 1 MAT, Footpan (22-11/16” long)
41B 7100221 1 MAT, Foot Pan (24-9/16” long)

42 7100128 1 MAT, Foot Pan

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

11

TP 400-5208-IR-NZ-N

FRONT FRAME ASSEMBLY (Deck Lift)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

12

SERIES 3

FRONT FRAME ASSEMBLY (Deck Lift)

p

y

Part No Descri

1 7091544 12 NUT, 1/2-13 Hex Flange GR 5

2 7091803 1 KEY, 3/16” Square x 1-1/2”

3 7091516 3 PIN, 5/32 x 1” Cotter

4 7012802 3 PIN, 1/2 x 1-1/8” Clevis

5 7090543 6 SCREW, 1/2-13 x 2” Hex Head Cap, GR 5

6 7053562 2 ASSEMBLY, Chain & Eyebolt used on 52” Deck Model only
7A 7059173 2 CHAIN, 3 Links
7B 7058590 2 ASSEMBLY, Rear Linkage (incl. items 22 thru 25) used on 61” Deck

8 7090848 2 SET SCREW, 5/16-18 Square Head Cup Point

9 7058182 1 WELDMENT, Bellcrank Lift
10 7058148 1 WELDMENT, Rear Lift
11 7091894 5 NUT, 1/2-13 Hex Center Lock, GR 5
12 7044858 1 SWIVEL, Timing Rod (1/2-13 External Thread)
13 7091303 4 BOLT, 5/16-18 x 1” Short Neck Carriage, GR 5
14 7044870 2 SHIM PLATE
15 7043803 2 BRACKET, Deck Support
16 7090188 4 WASHER, 5/16” Flat
17 7091298 4 NUT, 5/16-18 Hex Nyloc
18 7058181 1 WELDMENT, Front Deck Lift
19 7074579 1 ROD, Timing (1/2-13 Thread)
20 7091587 6 WASHER, .531 I.D. Flat
21 7074698 1 LINK, Front
22 7075783 1 ROD LINK (1/2-13 thread)
23 7075782 1 ROD SWIVEL (1/2-13 thread)
24 7091316 2 NUT, 1/2-13 Hex, GR B
25 7090509 1 WASHER, 1/2” Internal Tooth Lock

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

13

TP 400-5208-IR-NZ-N

REAR FRAME & TANK BRACKETS

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

14

SERIES 3

REAR FRAME & TANK BRACKETS

p

y

Part No Descri

1A 7044846 1 WELDMENT, Rear Frame (52” Deck)
1B 7044816 1 WELDMENT, Rear Frame (61” Deck)

2 7053476 1 WELDMENT, Left Hand Fuel Tank Bracket

3 7053518 1 WELDMENT, Right Hand Fuel Tank Bracket

4 7091640 10 BOLT, 3/8-16 x 1” Square Neck Carriage GR 5

5 7091299 10 NUT, 3/8-16 Hex Nyloc

6 7090122 4 WASHER, 3/8” Flat

7 7035638 5 CLIP, Open 3/8” Cushioned

8 7400080 1 WELDMENT, Right Hand Socket see also on ROLL BAR

9 7400081 1 WELDMENT, Left Hand Socket see also on ROLL BAR

10 7091619 10 NUT, 3/8-16 Hex Flange Lock
11 7091884 4 SCREW, 1/2-13 x 1-1/2” Hex Head Cap or 7090646 (1” long)
12 7091894 4 NUT, 1/2-13 Hex Center Lock, GR 5 or 7090975

tionItem Qt

Note

PROTECTIVE STRUCTURE
page

PROTECTIVE STRUCTURE
page

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

15

TP 400-5208-IR-NZ-N

FUEL TANK ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

16

SERIES 3

FUEL TANK ASSEMBLY

p

y

Part No Descri

1 7024669 1 ASSEMBLY, LH Fuel Tank includes: tank (7042924) plus

2 7100217 1 ASSEMBLY, RH Fuel Tank includes: tank (7042925) plus

3 7046326 1 ASSEMBLY, Fuel Pickup includes items 4 & 5

4 7074835 1 ELBOW, 90 Degree

5 7046804 1 TUBE, Pickup

6 7012337 1 GROMMET, Tube Dapco p/n 10672

7 7078165 1 GAGE, Fuel

8 7011247 1 GROMMET, Gage

9 7100211 1 LID, Fuel Tank
10 7075135 1 CAP, 3-1/2” Fuel Kelch p/n 201906
11 7092089 6 SCREW, 7/16-14 x 2” Hex Head Cap, GR 5
12 7090250 12 WASHER, 1/2” Flat SAE
13 7091294 2 WASHER, 1/4” Flat
14 7027223 2 WASHER, 1/4” Split Lock
15 7090825 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5 or 7091527
16 7092088 2 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, GR 5
17 7090188 2 WASHER, 5/16” Flat
18 7091298 2 NUT, 5/16-18 Hex Nyloc
19 7091640 10 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
20 7091299 10 NUT, 3/8-16 Hex Nyloc
21 7091917 6 NUT, 7/16-14 Hex Nyloc
22 7035638 1 CLIP, Open 3/8” Cushioned
23 7091909 2 WELL-NUT, 1/4-20 x 53/64 also shown on SEAT

24 7044681 1 ASSEMBLY, 3-Way Fuel Valve
25 7074687 1 BRACKET, RH
26 7074689 1 HOSE, 1/4” I.D. x 1'-8” Long Fuel (L.H.)
27 7074688 1 HOSE, 1/4” I.D. x 3'-7.5” Long Fuel (R.H.)
28 7075717 1 HOSE, 1/4” I.D. x 1'-9” Long Fuel
29 7012222 6 CLAMP, Fuel Hose
30 7012080 5 CABLE TIE, 7” Long (not shown)
31 7300139 1 BRACKET, Seat Beal, LH see also on ROLL BAR

tionItem Qt

Note

items 3, 6, 7, 8 & 10

items 3, 6, 7, 9 & 10

ASSEMBLY page

PROTECTIVE STRUCTURE
page

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

17

TP 400-5208-IR-NZ-N

JOYSTICK CONTROL ASSEMBLY (R. H. Side)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

18

SERIES 3

JOYSTICK CONTROL ASSEMBLY (R. H. Side)

p

y

Part No Descri

1 7043207 1 COVER, Right Hand Outside

2 7090361 2 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap see also item 2, next page

3 7075270 1 LIMITER BRACKET, Right Hand

4 7091867 7 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap Yellow Zinc see also item 4, next page

5 7053994 1 WELDMENT, Side Plate Right Hand

6 7075287 1 BRACKET, Shaft Support

7 7072934 2 BUSHING, Teflon Impregnated see also item 7, next page

8 7013874 1 BUSHING 5/8 x 5/8” Bronze

9 7053995 1 WELDMENT, Joystick Pivot
10 7054002 1 WELDMENT, Bellcrank
11 7092091 2 GROOVE PIN, 1/4 x 1-1/4” see also item 11, next page
12 7010739 1 RING, 5/8” External Retaining see also item 12, next page
13 7075641 1 DECAL, Lever Control see also Decal Page
14 7035533 1 PIVOT, Joystick Control
15 7091800 4 SHOULDER BOLT, 5/16-18 thread was 7015761
16 7059073 1 WELDMENT, Joystick Handle 7059126, Joystick Control Assy,

17 7023656 1 LEVER, Shift Handle (Grip)
18 7091294 4 WASHER, .28 x .63 x .06 Flat see also item 18, next page
19 7015753 4 BALL JOINT, 1/4-28
20 7035909 2 THREADED ROD, 1/4-28 x 3.85 long
21 7091812 4 NUT, 1/4-28 Hex Nyloc
22 7092010 1 SHOULDER BOLT, 1/4-20 thread shoulder: 5/16 Dia. x 3/8” long;

23 7090188 2 WASHER, .34 x .69 x .08 Flat see also item 23, next page
24 7090095 4 NUT, 1/4-28 Hex or 7091605
25 7090372 2 NUT, 1/4-20 Hex Center Lock see also item 25, next page
26 7091814 1 SCREW, 1/4-20 x 1-1/4” Hex Head Cap see also item 26, next page
27 7075026 1 SPACER, Twin Stick see also item 27, next page
28 7075746 1 DAMPENER, Hydraulic see also item 28, next page
29 7074672 1 BRACKET, Dampener see also item 29, next page
30 7090844 1 ROLL PIN, 3/16 x 3/4”
31 7075636 1 BRACKET, Rubber Boot
32 7035936 1 BOOT, Joystick, Rubber
33 7090913 3 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
34 7090793 3 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

tionItem Qt

Note

includes items 14-17 & 30.

see also item 22, next page

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

19

TP 400-5208-IR-NZ-N

JOYSTICK CONTROL ASSEMBLY (L. H. Side)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

20

SERIES 3

JOYSTICK CONTROL ASSEMBLY (L. H. Side)

p

y

Part No Descri

1 7075265 1 SHAFT, Pivot

2 7090361 13 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

3 7075267 1 MOUNT, Bearing, Left Hand

4 7091867 5 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap Yellow Zinc

5 7075268 1 LIMITER BRACKET, Left Hand

6 7053998 1 WELDMENT, Bellcrank

7 7072934 2 BUSHING, Teflon Impregnated

8 7075040 1 DECAL, Parking Brake see also Decal Page

9 7027733 1 DECAL, Ear Protection see also Decal Page
10 7075654 1 HANDLE, Support
11 7092091 2 GROOVE PIN, 1/4 x 1-1/4”
12 7010739 1 RING, 5/8” External Retaining
13 7075264 1 CHANNEL, Joystick Mounting
14 7043214 1 COVER, Left Hand Outside
15 7091628 7 WASHER, 5/8” Flat
16 7075761 1 BRACKET, Bearing Support
17 7090548 2 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5
18 7091294 4 WASHER, .28 x .63 x .06 Flat
19 7091603 2 NUT, 1/4-20 Hex Nyloc
20 7028620 3 SPACER, .340 I.D. x .63 O.D. x .310 Thick
21 7091541 2 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap or 7090793
22 7092010 1 SHOULDER BOLT, 1/4-20 thread shoulder: 5/16 Dia. x 3/8” long
23 7090188 2 WASHER, .34 x .69 x .08 Flat
24 7059171 2 BELLCRANK, Dampener (weldment)
25 7090372 2 NUT, 1/4-20 Hex Center Lock
26 7091814 1 SCREW, 1/4-20 x 1-1/4” Hex Head Cap
27 7075026 1 SPACER, Twin Stick
28 7075746 1 DAMPENER, Hydraulic
29 7074672 1 BRACKET, Dampener

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

21

TP 400-5208-IR-NZ-N

PARKING BRAKE ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

22

SERIES 3

PARKING BRAKE ASSEMBLY

p

y

Part No Descri

1 7010739 3 RING, 5/8” External Retaining

2 7092091 1 GROOVE PIN, 1/4 x 1-1/4” long

3 7024159 8 PIN, 3/8” Self Locking Cotter or 7091593

4 7011231 2 SWIVEL, 3/8” Thru Hole, Special

5 7046451 2 SWIVEL, 3/8-24 Adjustment

6 7046782 2 SPRING, Rectangular Wire Die, Blue

7 7054043 1 WELDMENT, Park Brake Crossrod

8 7059085 1 WELDMENT, Park Brake Handle

9 7059086 2 WELDMENT, Brake Linkage Pivot
10 7059087 2 WELDMENT, Brake Linkage Bellcrank
11 7071820 2 ASSEMBLY, Brake Ausco p/n CC 83022
12 7041140 2 BRACKET, Brake Mounting
13 7072934 6 BUSHING, Teflon Impregnated
14 7073989 2 FRONT LINKAGE, Park Brake (3/8-24 thread)

15A 7073990 2 REAR LINKAGE, Park Brake (3/8-24 thread) 52” Deck Models only
15B 7072094 2 ROD, Brake Rear (3/8-16 thread) 61” Deck Models only

16 7074196 1 GRIP, Parking Brake
17 7090122 2 WASHER, 3/8” SAE Flat

18A 7090482 2 NUT, 3/8-24, Hex Jam, GR 5 or B
18B 7090665 4 NUT, 3/8-16, Hex Jam, GR 5 or B

19 7091298 6 NUT, 5/16-18 Hex Nyloc
20 7091508 6 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
21 7091628 6 WASHER, .64 I.D. x .99 O.D. x .05 Flat
22 7041148 4 SHOULDER BOLT, 3/8-16 Hex Socket Head
23 7091518 2 NUT, 3/8-24 Hex Nyloc

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

23

TP 400-5208-IR-NZ-N

HYDRO PUMP ASSEMBLIES

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

24

SERIES 3

HYDRO PUMP ASSEMBLIES

p

y

Part No Descri

1 7075647 1 PUMP, Hydro-Gear (BDP-10A-334) Left Hand

2 7075648 1 PUMP, Hydro-Gear (BDP-10A-457) Right Hand

3 7074738 2 HUB KIT for BDP-10A Pump w/Thru Shaft (Incl. 1 ea. of 3 items

below)
7074738_A HUB, Fan Mount
7074738_B WASHER, Belleville, Fan Mount
7074738_C NUT, Hex Nyloc

4 7074968 2 FAN, 7” Nylon, Counter-Clockwise
5 7091299 4 NUT, 3/8-16 Hex Nyloc
6 7090122 4 WASHER, 3/8” Flat
7 7013847 4 RETAINER, 3/8” Bolt
8 7027181 4 BOLT, 3/8-16 x 1-1/4” Short Neck Carriage GR 5

9 7071831 2 PULLEY, “D” Bushing x 15mm Bore
10 7090548 2 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5
11 7027199 2 KEY, M5 x M20
12 7091627 2 WASHER, .281 x 1.00 x .125 Flat
13 7027223 2 WASHER, 1/4” Split Lock
14 7091835 2 SCREW, M6 1.0 x 12mm Hex Head Cap
15 7041330 2 PULLEY, 4.25 O.D. x 1.375 OA x “H” Tapered Bore

tionItem Qt

Note

(Hydro Gear p/n 7070632 for
BDP-10A Pump w/thru shaft)

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

25

TP 400-5208-IR-NZ-N

HYDRO PUMP LINKAGE

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

26

SERIES 3

HYDRO PUMP LINKAGE

p

y

Part No Descri

1 7059118 2 ASSY, Pump Control Linkage (Incl. 3 items below)

2 7073995 1 LINKAGE ROD, Pump Control (5/16-24 threads, both ends)

3 7091297 2 NUT, 5/16-24 Hex GR 5 (2 per assembly)

4 7027139 2 LINKAGE (2 per assembly)

5 7091527 4 SCREW, 5/16-18 x 1-1/4” Hex Head Cap GR 5 or 7090825

6 7090188 12 WASHER, 5/16” Flat

7 7091298 4 NUT, 5/16-18-3B Hex Nyloc

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

27

TP 400-5208-IR-NZ-N

HOSE ASSEMBLY (52" Deck)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

28

SERIES 3

HOSE ASSEMBLY (52" Deck)

p

y

Part No Descri

1 5023096 2 FILTER HEAD

2 7075919 2 BRACKET, Filter

3 1719168 2 FILTER

4 7090361 4 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
5A 7075637 1 MOTOR, Hydraulic, Left Hand Includes Castle Nut & #502

5B 7075638 1 MOTOR, Hydraulic, Right Hand Includes Castle Nut & #502

6 7092087 8 BOLT, 1/2-13 x 6” Hex Head Cap GR 5

7 7091322 8 WASHER, 1/2” Split Lock

8 7091316 8 NUT, 1/2-13 Hex GR B

9 7073996 2 MOUNTING PLATE, Hydro Motor
10 7090768 6 BOLT, 1/2-13 x 1-1/2” Square Neck Carriage, GR 5
11 7091325 6 NUT, 1/2-13 Hex Nyloc
12 7059091 1 WELDMENT, Rear Crossbrace
13 7075058 2 CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
14 7075059 2 CONNECTOR, 90-Degree Hydraulic (Parker # 8-10 C5OLO-S)
15 7075049 2 HOSE, 13-3/4” Hydraulic (Parker # F436BKJCJC080808-13-75)
16 7090297 2 COTTER PIN, 1/8 x 1-1/2”
17 7075051 2 HOSE, 17-1/2” Hydraulic (Parker # F436BKJCJ5080808-17.5)
18 7041247 2 CONNECTOR, 45-Degree Hydraulic (Parker #8-6 V 50L0-S)
19 7075052 2 HOSE, 18-1/2” (Parker R836BKJCJ9090808-18.5)
20 7075053 2 HOSE, 12-1/4” (Parker # R836BKJ9NR080008-12.5)
21 7075054 2 HOSE, 6-1/2” (Parker # R836BKJ9NR080008-6.5)
22 7075056 4 CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S)
23 7075057 2 CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
24 7075055 4 CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
25 7090071 4 SCREW, 1/4-20 x 1/2” Hex Head Cap, GR 5
26 7090052 4 WASHER, 1/4” Split Lock
27 7091587 8 WASHER, .531 I.D. Flat

tionItem Qt

Note

Woodruff Key, 5/16 x 1”

Woodruff Key, 5/16 x 1”

Footnotes:

NOTE: Order 7059172 for Hose and Connector Kit for 48” & 52” Deck.
NOTE: Order 7075604 for Hose and Connector Kit for 61” Deck.

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

29

TP 400-5208-IR-NZ-N

HOSE ASSEMBLY (61" Deck)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

30

SERIES 3

HOSE ASSEMBLY (61" Deck)

p

y

Part No Descri

1 5023096 2 FILTER HEAD

2 7075919 2 BRACKET, Filter

3 1719168 2 FILTER

4 7090361 4 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
5A 7075637 1 MOTOR, Hydraulic, Left Hand Includes Castle Nut & #502

5B 7075638 1 MOTOR, Hydraulic, Right Hand Includes Castle Nut & #502

6 7092087 4 BOLT, 1/2-13 x 6” Hex Head Cap, GR 5

7 7091322 8 WASHER, 1/2” Split Lock

8 7091316 8 NUT, 1/2-13 Hex GR B

9 7075443 2 PLATE, Mounting
10 7090768 6 BOLT, 1/2-13 x 1-1/2” Square Neck Carriage, GR 5
11 7091325 6 NUT, 1/2-13 Hex Nyloc
12 7059091 1 WELDMENT, Rear Crossbrace
13 7075058 4 CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
14 7029355 4 BOLT, 1/2-13 x 3-3/4” Hex Head Cap
15 7075470 2 HOSE, 15-1/2” Hydraulic (Parker # F436JCJ9080808-15.50)
16 7075051 1 HOSE, 17-1/2” Hydraulic (Parker # F436BKJCJ5080808-17.5)
17 7091587 8 WASHER, .531 I.D. Flat
18 7075056 4 CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S)
19 7075052 2 HOSE, 18-1/2” (Parker # R836BKJCJ9090808-18.5)
20 7075053 2 HOSE, 12-1/4” (Parker # R836BKJ9NR080008-12.5)
21 7075054 2 HOSE, 6-1/2” (Parker # R836BKJ9NR080008-6.5)
22 7041247 2 CONNECTOR, 45-Degree Hydraulic (Parker #8-6 V 50L0-S)
23 7075057 2 CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
24 7075055 4 CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
25 7090071 4 SCREW, 1/4-20 x 1/2” Hex Head Cap, GR 5
26 7090052 4 WASHER, 1/4” Split Lock
27 7090297 2 PIN, 1/8 x 1-1/2” Cotter or 7091809, 1-1/4” long
28 7075050 1 HOSE, 19-1/2” (Parker # F436BKJCJ5080808)

tionItem Qt

Note

Woodruff Key, 5/16 x 1”

Woodruff Key, 5/16 x 1”

Footnotes:

NOTE: Order 7075604 for Hose and Connector Kit for 61” Deck.

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

31

TP 400-5208-IR-NZ-N

HYDRO RESERVOIR ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

32

SERIES 3

HYDRO RESERVOIR ASSEMBLY

p

y

Part No Descri

1 7059088 2 ASSY, Hydraulic Tank (Incl. tank, p/n 7074002 & 3 items shown

below)
2 7075289 1 CAP, Vented Kelch p/n H4550D
3 7075687 2 GROMMET (Dapco #12078) was Snapper #7012337
4 7073238 2 FITTING, #8 Elbox (Dapco #12183)
5 7073999 1 BRACKET, R.H. Hydro Tank Mount
6 7074001 1 BRACKET, L.H. Hydro Tank Mount
7 7090548 8 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5 (or 7027230)
8 7091294 16 WASHER, 1/4” Flat
9 7090361 4 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

10 7091603 8 NUT, 1/4-20 Hex Nyloc
11 7012080 5 CABLE TIE, 7” Long not shown

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

33

TP 400-5208-IR-NZ-N

HYDRO IDLER ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

34

SERIES 3

HYDRO IDLER ASSEMBLY

p

y

Part No Descri

1 7091585 2 NUT, 3/8-16 Hex Center Lock
2 7091619 1 NUT, 3/8-16 Hex Flange Lock
3 7073992 1 SPRING, Extension
4 7091497 2 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5
5 7075082 1 WASHER, .468 x 1.85 x .25
6 7091503 1 HAIR PIN, 3/32 x 1-1/2”
7 7090122 3 WASHER, 3/8” Flat SAE
8 7075078 1 SWIVEL, Adjustable
9 7028620 1 SPACER, .340 I.D. x .63 O.D. x .310 Thick

10 7091511 1 NUT, 5/16-18 Hex, GR 5 or B
11 7091298 1 NUT, 5/16-18 Hex Nyloc
12 7074440 1 WELDMENT, Idler Arm
13 7041262 1 PULLEY, 4” O.D. x .391 I.D. x 1.25 Backside Idler
14 7075109 1 BELT, Hydro Drive (HA Section, 47.5 Effective Length)

7041547 1 SET, Matched Traction Drive Belts (Kit contains two belts (p/n

15 7078063 1 EYEBOLT, 5/16-18 may be used instead of 7075078
16 1723806 1 BOSS, Idler Arm Pivot
17 1723805 2 SLEEVE BUSHING, 3/4” I.D.
18 7027221 1 BOLT, 3/8-16 x 3-1/2” Hex Head, GR 5
19 7090130 1 NUT, 3/8-16 Hex, GR 5 or B
20 7090118 1 WASHER, 3/8” Split Lock
21 7090517 1 WASHER, 3/8” Flat SAE

tionItem Qt

Note

7075109)

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

35

TP 400-5208-IR-NZ-N

ENGINE SUB-ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

36

SERIES 3

ENGINE SUB-ASSEMBLY

p

y

Part No Descri

1 1 ** ENGINE, 23HP Kohler (Model CV730S, Spec. PS-CV730-

0022)

1 1 ** ENGINE, 25HP Kohler (Model CV730S, Spec. PS-CV730-

0023)
2 7091540 4 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5
3 7013847 2 RETAINER, 3/8” Bolt
4 7091706 5 NUT, 5/16-18 Hex Top Lock, GR B
5 7027972 1 ASSEMBLY, Oil Valve
6 7016755 1 KEY, 1/4” Square x 3/4” long
7 7071828 1 PULLEY, Engine (Double)
8 7075672 1 CLUTCH, Electric (Ogura GT-2.5)
9 7034448 1 WASHER, Rectangular Steel

10 7029704 1 BUMPER, Electric Clutch
11 7091527 1 SCREW, 5/16-18 x 1-1/4” Hex Head Cap, GR 5
12 7075082 1 WASHER, .468 x 1.85 x .25 Flat
13 7091301 1 WASHER, 7/16” Split Lock
14 7092071 1 SCREW, 7/16-20 x 2-1/2” Hex Head Cap, GR 5 (w/Nyloc Patch)
15 7034829 1 BRACKET, Clutch
16 7091640 2 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
17 7091299 2 NUT, 3/8-16 Hex Nyloc
18 7017033 1 KEY, 1/4” Square x 2-1/4” Long
19 7011791 4 RETAINER, 5/16” Bolt
20 7025071 1 SPACER, Clutch
21 7090188 4 WASHER, 5/16” Flat
22 7075734 1 OUTLET, Muffler
23 7091581 4 SCREW, # 8-18 x 1/2” Hex Washer Head Self-Tap
24 7092044 2 NUT, M8 x 1.25 Hex (not shown) used on NZMJ23523KH only
25 7091315 2 WASHER, 5/16” Split Lock (not shown) used on NZMJ23523KH only

tionItem Qt

Note

Footnotes:

**See your local Kohler distributor for engine service parts.

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

37

TP 400-5208-IR-NZ-N

SEAT ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

38

SERIES 3

SEAT ASSEMBLY

p

y

Part No Descri

7075633 1 SEAT ASSY (Seats, Inc. p/n 907 EVC order parts from 1-800-

767-3287)

1 7074218 2 SPRING, Compression- Seat Support
2 7090368 1 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
3 7090122 3 WASHER, 3/8” Flat
4 7091299 6 NUT, 3/8-16 Nyloc
5 7075419 1 SEAT PAN
6 7074673 1 CROSSMEMBER, Seat
7 7058546 1 WELDMENT, Hinge Bracket
8 7015761 6 SHOULDER BOLT, 5/16-18
9 7090951 2 NUT, 5/16-18 Large Flange Hex Center Lock

10 7091640 7 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
11 7074740 1 GUARD, Fan
12 7023341 2 KNOB, 1/4-20 x 3/4” Thread
13 7091909 2 WELL-NUT, 1/4-20 x 53/64”
14 7090361 5 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
15 7035638 1 CLIP, Open J 3/8 Cushioned
16 7075616 1 LATCH, Seat
17 7090188 6 WASHER, 5/16” Flat
18 7091298 7 NUT, 5/16-18 Hex Nyloc
19 7026292 1 SPRING, Extension
20 7027174 2 SCREW, 5/16-18 x 2” Hex Head Cap, GR 5
21 7028620 1 SPACER, .340 I.D.x .63 O.D. x .310 Thick
22 7022793 2 BUSHING, Seat
23 7022794 2 SPACER
24 7036492 2 SPRING, Compression
25 7033362 1 HOLDER, Seat Switch
26 7023354 1 SWITCH, Seat, NC
27 7073596 1 DECAL, Warning
28 7075433 1 DECAL, Oil Reservoir Overfill Warning

tionItem Qt

Note

(Incl. angle brackets, seat pan,
cushions, armrests, adjusters &
seat switch)

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

39

TP 400-5208-IR-NZ-N

MUFFLER GUARD ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

40

SERIES 3

MUFFLER GUARD ASSEMBLY

p

y

Part No Descri

1 7074691 2 UPPER BRACKET, Muffler Guard
2 7074692 2 MOUNT, Lower Muffler Guard
3 7074693 1 GUARD, Muffler (Back Plate)
4 7074785 1 REAR BRACE, Muffler Guard
5 7075073 1 GUARD, Muffler
6 7091299 17 NUT, 3/8-16 Nyloc
7 7091640 18 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
8 7091923 2 BOLT, 3/8-16 x 3/4” Square Neck Carriage
9 7091585 3 NUT, 3/8-16 Hex Center Lock

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

41

TP 400-5208-IR-NZ-N

52" CUTTING DECK ASSEMBLY (Sub Assy)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

42

SERIES 3

52" CUTTING DECK ASSEMBLY (Sub Assy)

p

y

Part No Descri

1 7059374 1 WELDMENT, 52” Deck
2 7091305 2 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5
3 7027327 2 WELDMENT Pivot Pin
4 7091304 2 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5
5 7091299 6 NUT, 3/8-16 Hex Nyloc
6 7073142 6 ROLLER Low Density Polyethylene
7 7027344 2 WASHER, 5/8” Flat SAE
8 7029264 2 GAUGE WHEEL, Polyethylene
9 7091640 6 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5

10 7091544 4 NUT, 1/2-13 Hex Flange GR 5
11 7090543 2 SCREW, 1/2-13 x 2” Hex Head Cap, GR 5
12 7029355 2 BOLT, 1/2-13 x 3-3/4” Hex Head Cap, GR 5
13 7091922 4 NUT, 1/2-13 Hex Light Nyloc
14 7059107 2 ASSEMBLY, Pusher Bar (Includes items 15-17)
15 7059108 1 WELDMENT, Pusher Bar
16 7029263 2 SLEEVE - Suspension
17 7029258 4 BUSHING - Suspension
18 7053562 2 ASSEMBLY, Chain & Eyebolt (see Front Frame Assy page) Ref. FRONT FRAME ASSY

19 7075582 1 BRACKET, Front Deck Hanger R. H.
20 7075583 1 BRACKET, Front Deck Hanger L. H.
21 7091822 4 BOLT, 1/2-13 x 5” Hex Head
22 7036456 2 SPACER, Gauge Wheel
23 7091331 2 WASHER, .406 x 1.50 x .120 Flat
24 7091619 2 NUT, 3/8-16 Hex Flange Lock
25 7074789 1 WHEEL BRACKET Front Right
26 7074790 1 WHEEL BRACKET Front Left

tionItem Qt

Note

(Deck Lift) page, item 6

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

43

TP 400-5208-IR-NZ-N

52" CUTTING DECK ASSEMBLY (Final Assy)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

44

SERIES 3

52" CUTTING DECK ASSEMBLY (Final Assy)

p

y

Part No Descri

1 7090361 4 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
2 7074571 1 BELT COVER, Left Hand
3 7074552 1 BELT COVER, Right Hand
4 7091304 3 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5
5 7058885 1 ASSEMBLY, Idler (see breakdown on Idler Assy page)
6 7029266 1 *V-BELT, Secondary- 52” (HB Section, 116.30” effective length)
7 7075083 1 *BELT, Primary (HB Section, 91.30” effective length)
8 7029278 1 SPRING, Idler (1.17” O.D. x 7.5” long)
9 7072915 1 SPRING, Idler Primary (1.25” O.D. x 10” long)

10 7027950 1 SPRING, Chute
11 7091313 1 PIN, 3/32 x 1” Cotter
12 7029277 1 PIN, Chute Hinge
13 7091299 7 NUT, 3/8-16 Hex Nyloc
14 7057960 2 ASSEMBLY, Spindle (see breakdown on Deck Spindle Assy

page)

15 7054011 1 ASSEMBLY, Center Spindle (see breakdown on Deck Spindle

Assy page)
16 7500231 1 ASSY, Discharge Chute, 52” Deck incl. items 13, 17, 18, 19 & 20
17 7300036 1 DEFLECTOR BOTTOM (52” Deck)
18 7091790 4 BOLT, 3/8-16 x 1-1/4” Square Neck Carriage, GR 5
19 7100623 1 DEFLECTOR, 52” Chute (Rubber)
20 7400008 1 WELDMENT, 52” Discharge Chute

tionItem Qt

Note

Footnotes:

*NOTE: Snapper part number stamped on belt

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

45

TP 400-5208-IR-NZ-N

61" CUTTING DECK ASSEMBLY (Sub Assy)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

46

SERIES 3

61" CUTTING DECK ASSEMBLY (Sub Assy)

p

y

Part No Descri

1 7044815 1 WELDMENT, 61” Deck
2 7091305 2 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5
3 7027327 2 WELDMENT Pivot Pin
4 7091304 5 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5
5 7091299 16 NUT, 3/8-16 Hex Nyloc
6 7073142 6 ROLLER, Low Density Polyethylene
7 7027344 4 WASHER, 5/8” Flat SAE
8 7029264 2 GAUGE WHEEL, Polyethylene

9 7091640 12 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
10 7091922 12 NUT, 1/2-13 Hex Light Nyloc
11 7090543 4 SCREW, 1/2-13 x 2” Hex Head Cap, GR 5
12 7029355 2 BOLT, 1/2-13 x 3-3/4” Hex Head Cap, GR 5
13 7075397 2 ASSEMBLY, Pusher Bar (Includes items 14-16)
14 7044823 1 WELDMENT, Pusher Bar
15 7029263 2 SLEEVE - Suspension
16 7029258 4 BUSHING - Suspension
17 7075382 1 BRACKET, Deck Lift, Right Hand
18 7075381 1 BRACKET, Deck Lift, Left Hand
19 7091822 2 BOLT, 1/2-13 x 5” Hex Head
20 7091331 2 WASHER, .406 x 1.50 x .120 Flat
21 7091619 2 NUT, 3/8-16 Hex Flange Lock
22 7074789 1 WHEEL BRACKET, Front Right
23 7074790 1 WHEEL BRACKET, Front Left
24 7036456 2 SPACER, Gauge Wheel
25 7075781 1 BRACKET, Deck Lift, RH Rear
26 7075780 1 BRACKET, Deck Lift, LH Rear

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

47

TP 400-5208-IR-NZ-N

61" CUTTING DECK ASSEMBLY (Final Assy)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

48

SERIES 3

61" CUTTING DECK ASSEMBLY (Final Assy)

p

y

Part No Descri

1 7090361 4 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

2 7075384 2 BELT COVER, 61” Deck

3 7058885 1 ASSEMBLY, Idler (see breakdown on Idler Assy page)

4 7091304 3 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5

5 7071766 1 *BELT, Primary (HB Section, 94.2” effective length)

6 7029268 1 *V-BELT, Secondary- 61” (HB Section, 127.0” effective length)

7 7029278 1 SPRING, Idler (1.17” O.D. x 7.5” long)

8 7072915 1 SPRING, Idler Primary (1.25” O.D. x 10” long)

9 7027950 1 SPRING, Chute
10 7091313 1 PIN, 3/32 x 1” Cotter
11 7029277 1 PIN, Chute Hinge
12 7091299 7 NUT, 3/8-16 Hex Nyloc
13 2 ASSEMBLY, Spindle (see breakdown on Deck Spindle Assy

page)

14 7058900 1 ASSEMBLY, Center Spindle (see breakdown on Deck Spindle

Assy page)

15 7500232 1 ASSEMBLY, Discharge Chute, 61” Deck incl. items 10, 11, 12, 17, 19 &

16 7300034 1 DEFLECTOR BOTTOM (61” Deck)
17 7091790 4 BOLT, 3/8-16 x 1-1/4” Square Neck Carriage, GR 5
18 7100622 1 CHUTE, Rubber (61” Deck)
19 7400007 1 WELDMENT, 61” Discharge Chute

tionItem Qt

Note

20

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

49

TP 400-5208-IR-NZ-N

IDLER ASSEMBLIES

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

50

SERIES 3

IDLER ASSEMBLIES

p

y

Part No Descri

1 7058147 1 WELDMENT, Idler Plate

2 7058875 1 ASSEMBLY, Primary Idler Includes items 6 (2), 7, 8 (3), 9,

3 7058844 1 ASSEMBLY, Secondary Idler Includes items 6 (2), 7, 8, 9, 15,

4 7023747 2 BUSHING, 1” Machine

5 7012709 2 RING, 1” External Retaining

6 7074720 4 BUSHING, Idler (Powdered Metal)

7 7014669 2 LUBE FITTING, 3/16”

8 7090517 4 WASHER, 3/8” Flat

9 7091585 2 NUT, 3/8-16 Hex Center Lock, GR 5 or B
10 7027220 1 SCREW, 3/8-16 x 3-1/4” Hex Head Cap, GR 5
11 7058877 1 WELDMENT, Primary Idler Arm
12 7035657 1 BUSHING - Idler
13 7035656 1 RETAINER, Idler Belt
14 7034422 1 PULLEY, Flat Idler
15 7091553 1 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, GR 5
16 7058329 1 WELDMENT, Secondary Idler Arm
17 7029273 1 PULLEY, Idler

tionItem Qt

Note

10, 11, 12, 13 & 14

16 & 17

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

51

TP 400-5208-IR-NZ-N

DECK SPINDLE ASSEMBLIES

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

52

SERIES 3

DECK SPINDLE ASSEMBLIES

p

y

Part No Descri

1 7054011 1 SUB-ASSEMBLY, Spindle (Incl.the 8 items below)

2 7029254 1 SPACER, Bearing

3 7029274 1 *RING, Spindle Retaining

4 7029384 1 VENT, Spindle (Alemite # 321839)

5 7029422 2 BALL BEARING (2 per item 1, sub-assembly)

6 7058237 1 ASSEMBLY, Spindle Housing (includes items 4 & 8) 7054017, Casting Ass'y includes

7 7029302 6 BOLT, Ribbed (3/8-16 x 1-1/4” Thread) (6 per item 1, sub-

assembly)
8 7029275 1 FITTING, Lube (1/4-28 Special Thread Forming) Alemite #3038-B
9 7059311 1 SHAFT, Spindle

10 7029271 4 SPACER, Blade
11 7029245 1 PULLEY, 5.75” Diameter
12 7091299 6 NUT, 3/8-16 Hex Nyloc (6 per spindle assembly)
13 7016440 1 WASHER, Beveled
14 7075076 1 PULLEY, Driven (52” Deck only)
14 7029250 1 PULLEY, Driven (61” Deck only)
15 7075751 1 BLADE, 18” Commercial w/Extra Cut (52” Deck only)
15 7075770 3 BLADE, 21” (61” Deck only)
16 7063234 1 BOLT, 5/8-11 x 7-1/2” Hex, Grade 5
17 7063237 1 NUT, 5/8-11 Hex Flange Lock, GR 5
18 7029270 1 WASHER, Spindle
19 7063238 1 *SEAL, Nylos
20 7013370 1 *WASHER

tionItem Qt

Note

spindle housing & 6 item 7's.

Footnotes:

*NOTE: For Bearing Pre-Seal Kit (63240) installation, discard 3 & replace with 19 & 20.

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

53

TP 400-5208-IR-NZ-N

DECALS

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

54

SERIES 3

DECALS

p

y

Part No Descri

1 7074862 2 DECAL, Snapper Pro
2 7027733 1 DECAL, Ear Protection
3 7075040 1 DECAL, Park Brake
4 7075433 1 DECAL, Oil Reservoir Overfill Warning
5 7075296 1 DECAL, Caution (Spring Mechanism)
6 7075747 1 DECAL, Detent
7 7045108 1 DECAL, Tank Selector
8 7100170 1 DECAL, Caution ROPS
9 7100171 1 DECAL, Caution ROPS (Spanish)

10 7100284 1 DECAL, ROPS Overhang
11 7075743 1 DECAL, Fuse
12 7075756 1 DECAL, Control Panel
13 7075640 1 DECAL, 23HP Kohler Engine
14 7073596 1 DECAL, Danger (High Speed Rotating Parts)
15 7100172 1 DECAL, Warning ROPS
16 7100173 1 DECAL, Warning ROPS (Spanish)
17 7075641 1 DECAL, Lever Control
18 7073647 2 DECAL, Danger, Guard/Catcher
19 7075566 1 DECAL, 52” Deck (silver)
20 7075567 1 DECAL, 61” Deck (silver)

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

55

TP 400-5208-IR-NZ-N

ROLL BAR PROTECTIVE STRUCTURE

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

56

SERIES 3

ROLL BAR PROTECTIVE STRUCTURE

p

y

Part No Descri

1 7100091 1 TOP LOOP, Folding
2 7100089 1 WELDMENT POST, RH
3 7100090 1 WELDMENT POST, LH
4 7100095 2 PIN, Hinge (ROPS)
5 7100099 2 STAR KNOB (5/16-18 thread)
6 7092123 6 SCREW, 1/2-13 x 3-1/4” Hex Head Cap, GR 5
7 7090975 11 NUT, 1/2-13 Hex Center Lock, GR 5 or 7091894
8 7091640 1 BOLT, 3/8-16 x 1” Square Neck Carriage, GR 5
9 7100228 1 SEAT BELT, w/Metal Strap

10 7091585 1 NUT, 3/8-16 Hex Center Lock
11 7400080 1 WELDMENT, Right Hand Socket see also on REAR FRAME &

12 7400081 1 WELDMENT, Left Hand Socket see also on REAR FRAME &

13 7100227 1 SEAT BELT, Retracter
14 7300139 1 BRACKET, Seat Beal, LH see also on FUEL TANK

15 7090646 5 SCREW, 1/2-13 x 1” Hex Head Cap, GR 5

tionItem Qt

Note

TANK BRACKETS page

TANK BRACKETS page

ASSEMBLY page

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

57

TP 400-5208-IR-NZ-N

CONTROL PANEL ASSEMBLY

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

58

SERIES 3

CONTROL PANEL ASSEMBLY

p

y

Part No Descri

1 7074676 1 CONTROL PANEL
2 7074801 2 CONTROL LEVER, Throttle/Choke
3 7074804 1 CONTROL CABLE, Throttle
4 7075086 1 STRAP, Tether
5 7075046 1 CONTROL CABLE, Choke
6 7090361 9 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
7 7091240 2 SCREW, #10-32 x 5/8” Hex Washer Self-Tap Note: These items are also

8 7090376 2 NUT, #10-32 Nyloc Note: These items are also

9 7075132 1 SWITCH, PTO, Yellow Note: These items are also

10 7072684 1 SWITCH, Ignition Note: These items are also

11 7074796 1 HOUR METER w/Flash Alerts Note: These items are also

12 7300225 1 CHOKE PLATE, Kohler

tionItem Qt

Note

shown on the Electrical
Components page.

shown on the Electrical
Components page.

shown on the Electrical
Components page.

shown on the Electrical
Components page.

shown on the Electrical
Components page.

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

59

TP 400-5208-IR-NZ-N

ELECTRICAL COMPONENTS

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

60

SERIES 3

ELECTRICAL COMPONENTS

p

y

Part No Descri

1 7072684 1 SWITCH, Ignition
2 7015861 1 CLIP, Harness
3 7073406 1 KEY SET (not shown)
4 7022886 1 SWITCH, DP NO/NC Snap-In
5 7023354 1 SWITCH, Seat, NC shown also on Seat Assembly

6 7035638 4 CLIP, Open J 3/8 Cushioned shown on Rear Frame & Tank

7 7090741 2 SCREW, 1/4-20 x 5/8” Hex Head w/loose captured washer
8 7075132 1 SWITCH, PTO, Yellow shown also on CONTROL

9 7074796 1 HOUR METER w/2 Flash Alerts Sendec Corp. Model No. 804-

10 7075911 1 BATTERY, 12V - Wet, 11 Plate 375CCA 7075911 replaces 7035610
11 7090072 2 SCREW, 1/4-20 x 5/8” Hex Head Cap, GR 5
12 7091294 2 WASHER, 9/32 I.D. x 5/8” O.D. Flat
13 7090372 2 NUT, 1/4-20 Hex Center Lock, GR 5 or B
14 7074809 1 BRACKET, Battery Hold-Down
15 7091240 2 SCREW, #10-32 x 5/8” Hex Washer Self-Tap
16 7090376 2 NUT, #10-32 Hex Nyloc
17 7012080 15 CABLE TIE, 7” long

tionItem Qt

Note

page

Bracket page & Seat Assembly
page

PANEL ASSEMBLY page

204

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

61

TP 400-5208-IR-NZ-N

WIRING HARNESS

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

62

SERIES 3

WIRING HARNESS

p

y

Part No Descri

1 7075426 1 HARNESS, Wiring (Kohler)
2 7075038 1 CABLE, Battery- Positive (6 Gage, 34” long) (not shown)
3 7035609 1 CABLE, Battery- Ground (6 Gage/14 Gage, 23” long) (not shown)

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

63

TP 400-5208-IR-NZ-N

WIRING SCHEMATIC (Kohler Engines)

Manual No. 7006938 MID MOUNT Z-RIDER ZERO TURNING
TP 400-5208-IR-NZ-N

64

SERIES 3

WIRING SCHEMATIC (Kohler Engines)

p

y

Part No Descri

1 7075426 1 SCHEMATIC, Wiring, Kohler 23 & 25 HP

tionItem Qt

Note

Footnotes:

Manual No. 7006938MID MOUNT Z-RIDER ZERO TURNING

SERIES 3

65

TP 400-5208-IR-NZ-N

Parts Manual fo

r

MID MOUNT Z-RIDER ZERO TURNING
HYDRO DRIVE NZMJ
SERIES 3

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

McDonough, GA, 30253 U.S.A.

Manual No. 7006938

Revision IR,

6/28/2006

TP 400-5208-IR-NZ-N
