Snapper NP216012 User Manual

Download

Parts Manual fo

21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

PUSH MODELS PROPELLED

MODELS

215012 EFRP216012TV 215014 EFRP216512TV 215015 EFRP216516BV

216015 EFRP216516TV 216515BV EP216012 FR215014 FRP216012

N21501

NR215012 FRP216016

R21501

FRP216012TV

FRP216512TV

NP216012

NRP215012

P216012

P216012TV

P216512BV

P216512TV

RP215012

RP215012T2

RP216012

WP216512BV

Revision 7,

McDonough, GA, 30253 U.S.A.

11/14/2005

Manual No. 7006059

TP 400-5137-7-WB-N

PAGE GROUP

4 10 14 16 18 20 22 26 28 30 32 34 36 38 40 42 44 46 48

Handles & Controls Cutting Deck, Blades Front Wheel Bracket Rear Wheel Brackets, Latches Front Wheels Rear Wheels Drive System Self-Propelled Transmission (Differential) Throttle Controls (1997 Thru 2001 Models) Decals (Part 1) Decals (Part 2) Decals (Part 3) Decals (Part 4) Side Chute, Adapter Accessory - Grass Bag Accessory - Snapperizer Accessory - Recycling Kits Thatcherizer - Accessory Electric Start

Table Of Content

SERIES 12, 14, 15, & 16

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

TP 400-5137-7-WB-N

Handles & Controls

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Handles & Controls

Part No Descri

1 7046914 HANDLE, Upper Was 24889

7035252 HANDLE, Upper NRP215012, RP215012 7074384 HANDLE, Upper Was 33473, Note #2 7074254 HANDLE, Upper 215015, 216015, 216515BV 7046914 HANDLE, Upper Used on P216012E

2 7024890 HANDLE, Middle Note #1

7036350 HANDLE, Middle Note #3

3 7033985 HANDLE, Lower Left Hand Note #1

7046502 HANDLE, Lower Left Hand Was 35343, Note #3 7046502 HANDLE, Lower Left Hand 215015, 216015, 216515BV

4 7033986 HANDLE, Lower Right Hand Note #1

7035342 HANDLE, Lower Right Hand Note #4

5 7017072 CONTROL, Blade Note #3

7047011 CONTROL, Blade 215015, 216015, 216515BV

6 7033904 CLIP, Blade Control Used on All Except 215015

7034872 CLIP, Blade Control 215015, 216015, 216515BV

7 7025036 CABLE, Blade Control (50-1/2" Long) Note #1

7026136 CABLE, Blade Control (74-1/16" Long) Used on RP215012T2 7035808 CABLE, Blade Control (46-1/16" Long) Note #3 7035840 CABLE, Blade Control (60" Long) P216012TV, FRP216012TV,

7072933 CABLE, Blade Control (49-1/4" Long) 215015, 216015, 216515BV 8 7032826 HANDLE, Wheel Drive Self-Propelled Models 9 7014307 GRIP, Wheel Drive Handle Self-Propelled Models

7029775 GRIP, Wheel Drive Handle European Models

10 7025013 CABLE, Clutch Pull (Z-BEND) (41-7/16" Long) Note #1

7023134 CABLE, Clutch Pull (Z-BEND) (36-1/16" Long) NRP215012, RP215012

11 7012121 COVER, Vinyl Self-Propelled Models 12 7012122 SPRING, Clutch Self-Propelled Models 13 7038478 SECTOR, Speed Self-Propelled Models 14 7024641 TIE, Wire (3) Self-Propelled Models 15 7012093 SPRING, Speed Control Self-Propelled Models 16 7090188 WASHER, 3/8" Flat Self-Propelled Models 17 7023801 GRIP, Speed Control Handle Note #1

7023801 GRIP, Speed Control Handle NRP215012, RP215012

18 7034892 ANCHOR, Speed Control Self-Propelled Models 19 7032408 GUIDE, Lower V-Belt Self-Propelled Models 20 7023790 ROD, Transfer American models

tionItem Qt

Note

EFRP216012TV

Footnotes:

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV, EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Handles & Controls

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Handles & Controls

Part No Descri

20A 7051698 ASSEMBLY, Transfer Rod European models

21 7010937 CLIP, Transfer Rod Self-Propelled Models 22 7090895 TEE-NUT, 5/16-18 Self-Propelled Models 23 7012114 BUSHING, Differential Self-Propelled Models 24 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5 25 7090238 SCREW, 5/16-24 x 1" Hex Cap, Grade 5 26 7090799 BOLT, 5/16-18 x 5/8" Carriage, Grade 5 Was 91026 (Used on All Models) 27 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on All Models) 28 7091606 NUT, 5/16-24 Center Lock, Grade 5 Was 91074 (Used on All Models) 28 7091606 NUT, 5/16-24 Center Lock, Grade 5 Was 91074 (Used on All Models) 29 7023813 CLIP, Cable/Wiring 30 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on All Models) 31 7035744 T-KNOB, 5/16-18 32 7079577 SCREW, 1/4-20 x 1-1/2 Hex Cap, Grade 5 33 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023 (Used on All Models) 34 7091576 NUT, 1/4-20 Hex, Grade 5 or B Was 91100 (Used on All Models) 35 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5 36 7014343 4 BUSHING 37 7023792 PIN, 1/4" X 1-1/2" 38 7091020 PUSH-NUT, 1/4" 39 7024211 DECAL, Blade Control (L.H. Side) Used on All (Except European)

7029782 DECAL, Operator's Presence Control Used on European Models

7029785 DECAL, Handle International Warning Used on European Models

40 7026141 GUIDE, Rope 41 7075634 GRIP, Foam Was 73115, Note #1

7022460 GRIP, Foam Used on P216012E &

42 7024087 DECAL, Speed Select Except European

7029783 DECAL, Speed Select European Models

43 7023153 CLAMP, Casing 44 7090391 WASHER, 5/16 Internal Tooth Lock 45 7090545 SCREW, 5/16-24 x 1-1/2" Machine, Grade 5 46 7022779 GUIDE, Rope Used on Grass Bag Models 47 7029217 ASSEMBLY, Speed Control Lever (Includes Items 48 thru 51),

47A 7029233 ASSEMBLY, Speed Control Lever Includes Items 48A, 49A, 50A &

48 7029217 ROD, Upper Was 29153, Note #1

48A 7029189 ROD, Upper NRP215012, RP215012

49 7029217 ROD, Intermediate Was 29154, Note #1

49A 7029190 ROD, Intermediate NRP215012, RP215012

tionItem Qt

Note

P216512BV

Note #1

Footnotes:

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV, EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Handles & Controls

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Handles & Controls

Part No Descri

50 7029217 ROD, Lower Was 29155, Note #1

50A 7029191 ROD, Lower NRP215012, RP215012

51 7029161 2 NUT, 1/4-20 Wing Used on Item 47 & 47A 52 7023154 SCREW, #10-32 x 5/8" Self-Tapping Used on All Models 53 7024669 TIE, Wire Self-Propelled Models 54 7026219 CLAMP Self-Propelled Models 55 7046465 GUIDE, Rope Used on: 215014. 56 7076978 NUT, 1/4-20 Nyloc Used on: 215014. 57 7012080 CABLE-TIE, 7" Used on: 215014. 58 7079577 SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5 Used on: 215014.

-- Note 3: NRP215012, RP215012, N215012, 215012, 216015, NR215012, 8215012.

-- Note 4: NRP215012, RP2150122, N215012, 215012, 216015, NR215012, 8215012, 215015, 216015, 216515BV.

tionItem Qt

Note

Footnotes:

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV, EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Cutting Deck, Blades

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Cutting Deck, Blades

Part No Descri

1 7057663 DECK, Mower Painted deck with decals

A&B7058540 DECK, Mower FR & EFR Models; Painted

2 7091601 10 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 90585 3 7090731 10 BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr. 5) 4 7091169 BOLT, Bolt 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5 5 7090324 3 SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting) 7 7090534 SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 5 8 7090702 BOLT, 5/16-18 x 2-1/4" Hex Flange Lock

9 7013320 BUSHING 10 7033863 COVER, Belt (European Models) 11 7031961 2 WASHER, 7/16 Flat 12 7090483 SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5 13 7012063 WASHER, Cone (2) 14 7019795 BLADE, Cutter (European)

14A 7017168 BLADE, Cutter (Mulching) 14B 7026691 BLADE, Cutter (Standard Lift) 14C 7026407 BLADE, Cutter (Quad Edge - Ninja)

15 7015626 HUB, Blade Drive 25mm 16 7015894 KEY, Woodruff #506 (Briggs) 17 7090201 SCREW, 5/16-18 x 5/16" Hex Socket Set 18 7015780 PULLEY, Engine (25mm I.D. x 2-1/8" O.D.) 19 7031968 SHIELD, Belt Opening Cover (Push Models Only) 20 7041400 STRUCTURE, Fender (European Models) 21 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 Was 90001 22 7011791 RETAINER, 5/16 Bolt 23 7091601 3 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070

7060785 KIT, Air Lift (Includes items 24 thru 27) 24 7032558 2 LIFT, Air 25 7090391 6 WASHER, 5/16 Internal Tooth Lock 26 7091297 4 NUT, 5/16-24 Hex, Grade 5 Was 90223 27 7090228 4 SCREW, 5/16-24 x 21/32" Machine 28 7054494 ASSEMBLY, Front Baffle Used on FRP216012,

29 7029193 DECAL, Front Baffle 30 7054493 ASSEMBLY, Front Baffle Used on EFRP216012TV,

31 7036463 DECAL, Front Baffle

tionItem Qt

Note

Baffle Type Deck w/Decals

FRP216012TV, Includes decal

EFRP216512TV,Includes decal

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Cutting Deck, Blades

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Cutting Deck, Blades

Part No Descri

32 7090316 2 BOLT, 5/16-18 x 3/4" Carriage, Grade 5 33 7090189 2 WASHER, 5/16 Internal/External Lock 34 7024085 2 WINGNUT, 5/16-18 Nylok 35 7091076 WASHER, 5/16 Flat 36 7029000 3/16" THICK SPACER, Blade Hub ("FRP" & "EFRP" Models)

7044770 1/16" THICK SPACER, Blade Hub 37 7046446 BAFFLE, Belt 38 7046471 PLUG, 5/16" Square Hole (Qty. 3 on Push) 39 7045264 PLUG, 5/16" Round Hole (Qty. 3 on Push; Qty. 2 on Self-

40 7091122 4 SCREW, 1/4-20 X 1/2" Hex Self-Tapping Was 90539 41 7046720 DECAL, Warning Chute/Deflector 42 7046780 2 PLUG, Hole 43 7072426 BAFFLE, Front (FRP216016, EFRP216516TV

44 7090951 2 NUT, 5/16-18 Hex Center Lock

tionItem Qt

Note

Propelled)

and EFRP216516BV Models Only)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Front Wheel Bracket

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Front Wheel Bracket

Part No Descri

1 7051886 ASSEMBLY, Arm Right Wheel (Consists of Items 2,3,4,5A,6)

7051885 ASSEMBLY, Arm Left Wheel (Consists of Items 2,3,4,5B,6)

2 7015761 BOLT, 5/16-18 x 3/4" Shoulder 3 7012325 LATCH, Height

4 7027702 GRIP, Latch 5A 7031017 ARM, Right Wheel (Round Hole) 5B 7031016 ARM, Left Wheel (Square Hole) (Not shown)

6 7011791 RETAINER, 5/16 Bolt

7 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070

8 7074702 BRACKET, Front Wheel Was 41770

9 7021119 AXLE

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Rear Wheel Brackets, Latches

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Rear Wheel Brackets, Latches

Part No Descri

1 7012312 BEARING, 9/16

2 7091012 3 SCREW, #10-32 x 3/8" Self-Tapping (Torx)

3 7035717 LATCH, Height Adjusting (Long)

4 7091576 NUT, 1/4-20 Hex, Grade 5 Was 90063

5 7091601 6 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070

6 7054228 ASSEMBLY, Wheel Arm (Right Rear) (Push Models); (Round

7 7054229 ASSEMBLY, Wheel Arm (Left Rear) (Push Models); (Square

8 7054230 ASSEMBLY, Wheel Arm (Right Rear) Was 54230 (Self-Propelled

9 7054247 ASSEMBLY, Wheel Arm (Left Rear) Was 54231 (Self-Propelled

10 7033776 ARM, Round Axle End (Round Opening) (Right Rear) (Push Models) 11 7033775 ARM, Square Axle End (Square Opening) (Left Rear) (Push Models) 12 7032722 ARM, Wheel Right Rear (Self Propelled Models) 13 7032723 ARM, Wheel Left Rear (Self Propelled Models) 14 7011078 BOLT, 5/16-18 x 1" Shoulder 15 7011791 RETAINER, 5/16 Bolt 16 7027702 GRIP, Latch 17 7033494 BRACKET, Right Rear Wheel 18 7033495 BRACKET, Left Rear Wheel 19 7021119 AXLE (Rear on Push Models - Also

20 7035741 GUARD, Rear Foot (Push Models) 21 7029008 GUARD, Rear Foot (Self-Propelled Models); (Except

7017010 GUARD, Rear Foot (European Models) 22 7023791 RING 23 7012616 SUPPORT, Foot Guard 24 7091604 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 Was 90005 25 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023 26 7090731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5

tionItem Qt

Note

Opening - Includes Items 3, 10, 14, 15, 16)

Opening - Includes Items 3, 11, 14, 15, 16)

models)(Incl. 1, 2, 3, 12, 14, 15 & 16)

Models)(Includes 1, 2, 3, 13, 15, & 16)

Front on All)

European)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Front Wheels

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Front Wheels

Part No Descri

1 7022374 WHEEL, 8 x 1.75 Plastic (Push & RP215012 &

7046990 WHEEL, 8 x 1.75, .442 Bore (215014, 215015, 216015 &

2 7029010 WHEEL, 8 x 1.75 Plastic (Self-Propelled Except

3 7017829 PLUG, Wheel 4 7090377 NUT, 7/16-20 Hex (Thin) 5 7012309 BUSHING, Axle (All Models except 215014 &

6 7031961 WASHER, 7/16 x 1" O.D. Flat

tionItem Qt

Note

NRP215012 Models)

216515BV Models.)

RP215012 & NRP215012)

215015)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Rear Wheels

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Rear Wheels

Part No Descri

1 7035739 WHEEL, 10 x 1.75 Plastic (Push Models)

7035740 WHEEL, 10 x 1.75 Plastic (RP215012 & NRP215012

7041987 WHEEL, 10 1.75 Plastic (215014, 215015, 216015 &

2 7029011 WHEEL, 10 x 1.75 Plastic (Self-Propelled Except

3 7017829 PLUG, Wheel 4 7090377 NUT, 7/16-20 Hex (Thin) 5 7012309 BUSHING, Axle (All Push Models except 215014

6 7031961 WASHER, 7/16 x 1" O.D. Flat

tionItem Qt

Note

Models)

216515BV Models)

RP215012 & NRP215012)

& 215015)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Drive System Self-Propelled

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Drive System Self-Propelled

Part No Descri

1 7012354 BELT, Poly-Vee 2 7034179 LINK, Differential

7051921 ASSEMBLY, Clutch Idler (Includes items 3 thru 7)

3 7032832 ARM, Clutch Idler 4 7012124 2 PULLEY, Idler 5 7091025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 6 7090303 NUT, 1/4-28 Hex Top Lock 7 7012117 2 BUSHING, 3/8 I.D. Nylon 8 7072284 SHAFT, Hex Drive Was 23744

9 7024521 PULLEY, Poly-V (2" O.D.) 10 7012316 WASHER, 3/8" Flat 11 7012126 SPRING, Torsion 12 7012111 STUD 13 7031873 HOLDER, Bearing (Inner Half) 14 7028014 BEARING, Ball 15 7011025 O-RING 16 7090289 NUT, 3/8-24 Hex Center Lock, Grade 5 17 7031809 HOLDER, Bearing (Outer Half) 18 7010937 CLIP, 1/4 Right Arc (Transfer Rod) 19 7023790 ROD, Transfer (Except European) 20 7012353 BELT, Engine Drive

7053225 ASSEMBLY, Driven Disc (Includes items 21 thru 29) 21 7035477 PLATE, Thrust 22 7010746 RING, Retaining 23 7026693 BEARING, Ball 24 7090981 4 SCREW, #10-32x1/4" Self-Tapping Machine 25 7061276 ASSEMBLY, Hub (Includes 11108 Bushing & 90913 Screws) Was 53217 26 7023364 RING, Driven 27 7031013 PLATE, Ring Retaining 28 7090913 5 SCREW, #10-24 x 1/2" Self-Tapping Machine (Torx) 29 7010121 WASHER, 3/4 Shim 30 7090390 3 WASHER, 3/8 Internal Tooth Lock 31 7090122 WASHER, 3/8" Flat 32 7091630 3 NUT, 3/8-24 Hex, Grade B Was 90155 33 7091511 NUT, 5/16-18 Hex, Grade 5 Was 90196 34 7090187 WASHER, 5/16 Split Lock 35 7090316 BOLT, 5/16-18 x 3/4" Carriage, Grade 5 Was 91097

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Drive System Self-Propelled

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Drive System Self-Propelled

Part No Descri

36 7032831 CONNECTOR, Transfer Rod 37 7061275 KIT, Drive Disc Assembly 38 7017696 BUSHING 39 7029025 2 SPRING (Wheel Drive & Idler) 40 7032116 ARM, Idler 41 7013847 RETAINER, 3/8" Bolt 42 7090947 BOLT, 1/4-20 x 1-1/2" Carriage, Grade 5 43 7090372 NUT, 1/4-20 Hex Center Lock, Grade 5 or B

7052987 ASSEMBLY, Deck Bracket (Includes items 44 thru 46) 44 7033774 BRACKET, Deck 45 7012306 2 BUSHING, Flange 46 7021758 SPACER 47 7090534 SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 5 48 7090391 WASHER, 5/16 Internal Tooth Lock 49 7011724 WASHER, Spring 50 7091597 PIN, 3/32 x 1/2" Cotter Was 90555 51 7091122 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539 52 7090731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5 53 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 54 7012122 SPRING, Clutch 55 7015752 LINK, Transfer Used on Electric Start &

56 7015753 JOINT, Ball Used on Electric Start &

57 7090095 NUT, 1/4-28 Hex, Grade 5 Used on Electric Start &

58 7091294 WASHER, 1/4 Flat Was 90055 (Used on Electric

59 7090053 WASHER, 1/4 Internal Tooth Lock Used on Electric Start &

60 7032664 SHIELD, Hex Shaft (European Models) 61 7016380 SCRAPER, Drive Pulley 62 7012125 GUIDE, Thrust Plate 63 7090799 BOLT, 5/16-18 X 5/8" Short Neck Carriage, Grade 5 Was 91026

tionItem Qt

Note

European Models Only.

Start & European Models Only.)

European Models Only.

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Transmission (Differential)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Transmission (Differential)

Part No Descri

7059070 ASSEMBLY, Transmission Was 53945 (Includes 1 thru 30)

1 7092062 4 NUT, 5/16-24 Hex Lock Was 11201 2 7014263 WASHER, Spring 3 7019213 PULLEY, Poly-Vee Belt 4 7011724 2 WASHER, Spring 5 7053942 ASSEMBLY, Housing Right (Includes items 6, 7, 8, 9 & 10) 6 7029034 HOUSING, Right Side 7 7014155 3 SCREW, 5/16-24 x 1-1/8" Rib Neck, Grade 5 8 7012314 2 SEAL, 5/8 I.D.

9 7029035 2 BEARING, Differential 10 7073963 BEARING, Ball Was 11767 11 7016544 PLUG, Housing 12 7050767 GEAR, Input 13 7050830 AXLE, Short 14 7012495 GEAR, Differential (46 Tooth) 15 7031970 2 PLATE 16 7031965 2 WASHER, Thrust 17 7090557 4 SCREW, #10-32 x 1-1/2" Hex Head Cap, Grade 5 18 7011774 GASKET, Housing 19 7090189 3 WASHER, 5/16 Internal/External Tooth Lock 20 7051903 BRACKET, Differential 21 7091825 4 SCREW, 1/4-20 x 1-1/4" Self-Tapping 22 7012543 SPACER, Axle Gear 23 7050831 AXLE, Long 24 7021115 4 GEAR, Pinion (12 Tooth) 25 7012500 4 SPACER, Pinion Gear 26 7011110 4 SHAFT, Pinion 27 7090376 4 NUT, #10-32 Hex Nyloc 28 7053939 ASSEMBLY, Housing Left (Includes items 8, 9 & 29) 29 7029033 HOUSING, Left Side 30 7024442 GASKET, 5/8 O.D.

7061017 "00" GREASE (32 oz.)

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Throttle Controls (1997 Thru 2001 Models)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Throttle Controls (1997 Thru 2001 Models)

Part No Descri

7029036 Throttle Controls BRIGGS Engine, 4 Cycle,

7024139 Throttle Controls TECUMSEH Engine, 2 Cycle,

7029052 Throttle Controls TECUMSEH Engine, 4 Cycle,

tionItem Qt

Note

Conduit Length 48"

Conduit Length 55.5"

Conduit Length 51.5"

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Decals (Part 1)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Decals (Part 1)

Part No Descri

1 7026384 DECAL, Recycling Mulcher (Ninja)

2 7029713 DECAL, Snapper

3 7024211 DECAL, Blade Control

4 7029782 DECAL, Blade Control (European)

5 7029619 DECAL, Briggs Logo

6 7024087 DECAL, Speed Sector

7 7029783 DECAL, Speed Sector (European)

8 7072921 DECAL, Convertible Was 29965

9 7013010 DECAL, Danger

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Decals (Part 2)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Decals (Part 2)

Part No Descri

10 7028919 DECAL, 6.0 HP Briggs XTL 11 7029779 DECAL, Spark Plug (European) 12 7023009 DECAL, Noise Control (European) 13 7073433 DECAL, 2001 Year of Manufacture

7072820 DECAL, 2000 Year of Mfr. (Not shown) 7072404 DECAL, 1999 Year of Mfr. (Not shown)

7041827 DECAL, 1998 Year of Mfr. (Not shown) 14 7026383 DECAL, Mulching Convertible 15 7029470 DECAL, Patent Numbers 16 7029785 DECAL, Handle International Warning 17 7029657 DECAL, Snapper (3.87" Diameter)

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Decals (Part 3)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Decals (Part 3)

Part No Descri

18 7022841 DECAL, Warning (European Models) 19 7046357 DECAL, Warning 20 7029780 DECAL, Primer (International Models) 21 7029781 DECAL, Air Filter (International Models) 22 7024187 DECAL, 5 HP 2 Cycle 23 7029784 DECAL, Chute (International Models) 24 7028440 DECAL, Warning (Deck) 25 7072921 DECAL, Warning (Deck) (215015 Model) 26 7029776 DECAL, European Community

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

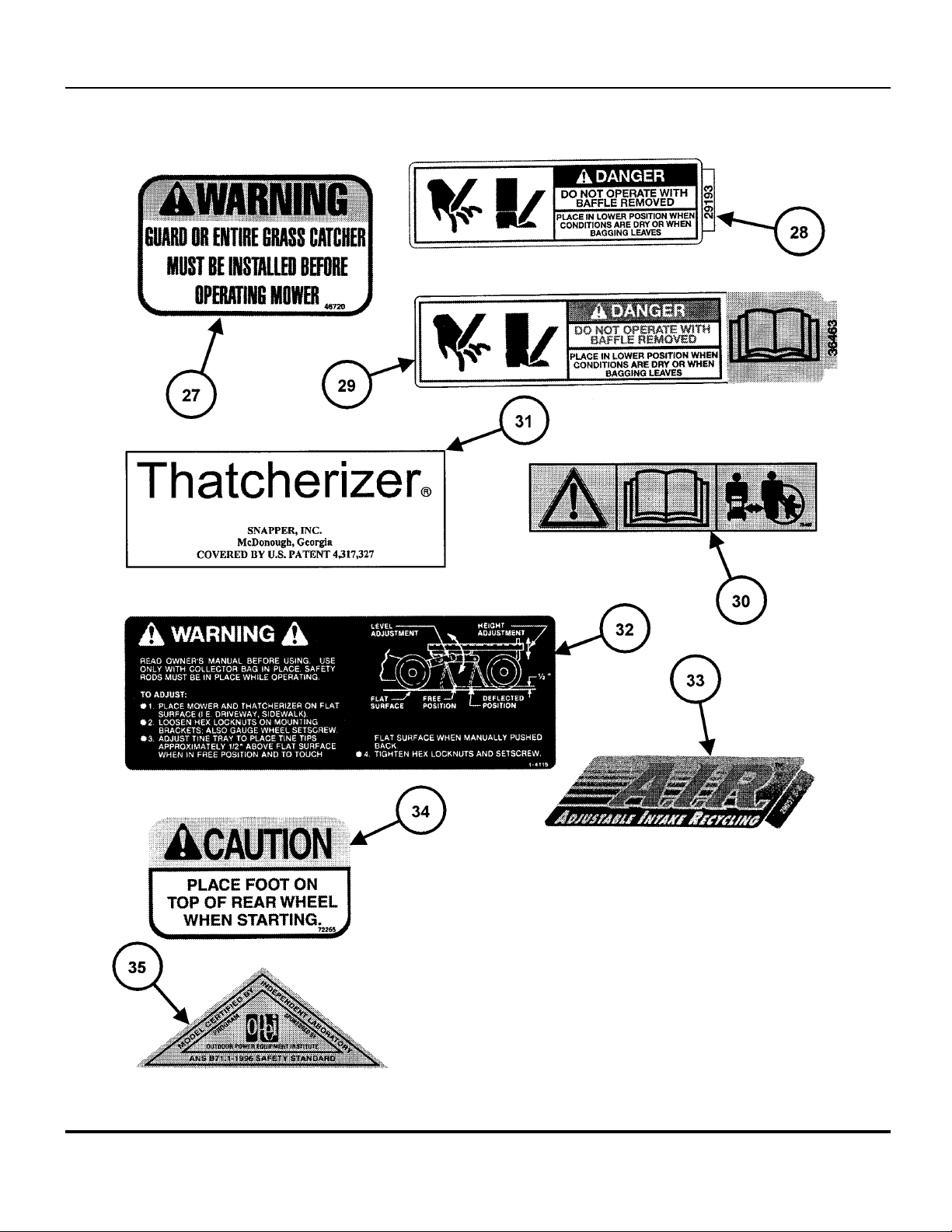

Decals (Part 4)

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Decals (Part 4)

Part No Descri

27 7046720 DECAL, Warning Chute/Deflector 28 7029193 DECAL, Front Baffle 29 7036463 DECAL, Front Baffle (European Models) 30 7073462 DECAL, Caution, Symbols 31 7014062 DECAL, Thatcherizer 32 7014115 DECAL, Warning Thatcherizer 33 7029057 DECAL, Medallion (Deck) 34 7072265 DECAL, Stabilization 35 7073335 DECAL, OPEI

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Side Chute, Adapter

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Side Chute, Adapter

Part No Descri

1 7051951 ASSEMBLY, Bag Adapter & Cover (European Models Only);

2 7016107 ADAPTER, Grass Bag 3 7019287 COVER, Bag Adapter 4 7023000 HINGE, Chute Cover 5 7091064 5 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 6 7090053 5 WASHER, 1/4 Internal Tooth Lock Was 91023 7 7091576 5 NUT, 1/4-20 Hex, Grade 5 Was 91100 8 7032661 STOP, Cover

9 7023042 MOLDING, Trim 10A 7016050 ADAPTER, Grass Bag 10B 7058037 ASSEMBLY, Grass Bag Adapter (See "Accessory - Grass Bag"

11 7024340 SPACER 12 7090951 NUT, 5/16-18 Hex Flange Center Lock 13 7011791 2 RETAINER, 5/16 Bolt 14 7091508 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 Was 90001 15 7042965 KIT, Side Chute Was 60955 (10 per box) 16 7090122 2 WASHER, 5/16 Flat Was 91514 17 7024085 2 WING-NUT, 5/16-18 Nyloc 18 7029149 COVER, 21" Deck 19 7090951 2 NUT, 5/16-18 Large Flange Center Lock (Model 215014)

tionItem Qt

Note

(Includes Items 2 thru 9)

illustration and parts; (Model

215014)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Accessory - Grass Bag

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Accessory - Grass Bag

Part No Descri

7060935 KIT, Grass Bag Catcher Was 61919 (Includes 2 thru 4) 1 7059322 ASSEMBLY, Grass Bag Was 54058 (Includes 2 thru 4) 2 7074425 BAG, Door Type (Black) (13" Wide) Was 29963 3 7051906 ASSEMBLY, Bag Wire (13" Wide) 4 7042489 CONNECTOR, Grass Bag 5 7016050 ADAPTER, Bag 6 7058037 ASSEMBLY, Bag Adapter (Includes items 7 thru 14) 7 7047081 ADAPTER, Bag 8 7047082 BRACKET, Rope Pulley 9 7091984 SCREW, 5/16-18 x 1-1/4" Pan Head Machine

10 7012306 BUSHING, Flange 11 7024228 PULLEY, Plastic 12 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 13 7072107 4 WASHER, 15/32" 14 7013860 4 RIVET, 3/16 x .344

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Accessory - Snapperizer

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Accessory - Snapperizer

Part No Descri

7060440 KIT, Snapperizer (Includes Items 1, 2 Thru 5)

7060341 KIT, Snapperizer (Includes Items 1, 2A Thru 5);

1 7051243 SCREEN, Fastener Assembly 2 7039759 RING, Bottom (21.77" Inside Diameter) 2 7072002 RING, Bottom (22.60" Inside Diameter) 3 7091297 3 NUT, 5/16-24 Hex, Grade 5 Was 90223 4 7090187 3 WASHER, 5/16 Split Lock 5 7012587 3 SPRING

tionItem Qt

Note

("FR" Type Decks)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Accessory - Recycling Kits

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Accessory - Recycling Kits

Part No Descri

7061200 KIT, Recycling Cover (Includes Items Below)

7061201 KIT, Recycling Plug (Includes Items Below) 1 7029149 COVER, 21" Deck 2 7016814 PLUG, Chute Adapter 3 7026407 BLADE, 21" Quad Edge Ninja

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Thatcherizer - Accessory

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Thatcherizer - Accessory

Part No Descri

7061256 KIT, Thatcherizer (Includes Items 1 Thru 27) 1 7032891 2 LATCH, Frame Attachment

2A 7026572 BAR, Mount (Right Hand) 2B 7026573 BAR, Mount (Left Hand)

3 7018499 2 ROD, Tine 4 7018700 SUPPORT, Wheel 5 7019948 TRAY, Tine 6 7018496 6 KIT, Tine Thatching Spring Was 60574 7 7014100 BUSHING, Wheel Adjuster 8 7018493 AXLE, Wheel 9 7018189 WHEEL, 7.00 x 1.50 Gage

10 7091705 10 NUT, 1/4-20 Hex Top Lock Was 90761 11 7091294 4 WASHER, 1/4 Flat Was 90055 12 7022425 2 SPRING, Compression 13 7090825 BOLT, 1/4-20 x 1-1/4" Hex, Grade 5 14 7091576 2 NUT, 1/4-20 Hex, Grade 5 Was 90063 15 7022424 2 CAP, Vinyl 16 7090015 2 BOLT, 1/4-20 x 2-1/2" Carriage 17 7091303 6 BOLT, 5/16-18 x 1" Carr., Gr. 5 Was 90383 18 7091530 2 BOLT, 1/4-20 x 3/4" Carr. Gr. 5 Was 90074 19 7014098 6 WASHER, Reinforcing 20 7090187 6 WASHER, 5/16 Split Lock 21 7091511 6 NUT, 5/16-18 Hex, Gr. 5 Was 90196 22 7014101 2 NUT, 1/2 Push 23 7014342 4 BEARING, Nyliner 24 7014103 SCREW, 5/16-18 x 1/4" Set 25 7090250 2 WASHER, 1/2 Flat 26 7014115 DECAL, Adjustment See "Decals (Part 4)" illustration

27 7014062 DECAL, Thatcherizer See "Decals (Part 4)" illustration

7060965 KIT, Adapter (Includes Items 1, 2 & 10 Thru

tionItem Qt

Note

and parts list.

13)

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Electric Start

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS TP 400-5137-7-WB-N

SERIES 12, 14, 15, & 16

Electric Start

Part No Descri

7067012 KIT, Battery (Includes Items 1 Thru 4) 1 7067012 BATTERY, 12 Volt, 35 CCA Was 19763 2 7015488 HARNESS, Battery 3 7043977 2 SCREW, #10-24 x 1/2" Hex Head Cap 4 7090932 2 NUT, #10-24 Square

7058120 ASSEMBLY, Switch/Brkt. (Incl. Items 5 Thru 10) 5 7011138 KEY, (Set of Two) 6 7023506 ASSEMBLY, Seal & Face Nut 7 7071972 BRACKET, Ignition Switch 8 7029080 COVER, Switch 9 7012685 NUT, 3/4-20 Hex Lock

10 7028765 SWITCH, Ignition-(spring loaded ON/OFF 2 prong) 11 7016132 SPACER 12 7090053 2 WASHER, 1/4 Internal Tooth Lock Was 91023 13 7090095 2 NUT, 1/4-28 Hex Grade 5 or B Was 91024 14 7029081 HARNESS, Wiring 15 7032906 BRACKET, Battery 16 7036132 COVER, Battery 17 7090731 2 BOLT, 5/16-18 x 1/2" Short Neck. Carr., Gr. 5 18 7091601 3 NUT, 5/16-18 Hex Flange Lock Grade 5 Was 90585 19 7012652 CLIP, Wiring 20 7061188 CHARGER, Battery (120 Volt - 60 Hertz) Was 18834

7018977 CHARGER, Battery (230 Volt - 50 Hertz)

21 7090799 BOLT, 5/16-18 x 5/8" Short Neck. Carriage, Gr. 5 Was 91026 22 7011791 RETAINER, 5/16 Bolt 23 7091025 2 SCREW, 1/4-28 x 1-3/8" Hex Hd. Cap, Gr. 5

tionItem Qt

Note

Footnotes:

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

TP 400-5137-7-WB-N

Parts Manual fo

21" STEEL DECK WALK BEHIND MOWERS SERIES 12, 14, 15, & 16

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

McDonough, GA, 30253 U.S.A.

Manual No. 7006059

Revision 7,

11/14/2005

TP 400-5137-7-WB-N
