Parts Manual fo
r
21" STEEL DECK WALK BEHIND MOWER
"MR" SERIES 17
PUSH
MODELS
MR216017B MRP216017B
MR216017BV MRP216017BV
MRP216517B MRP216517B
WMR216017B WMRP216017B
WMR216017BV WMRP216517B
WMR216517B EMRP216017B
PROPELLED
MODELS
EMRP216517B
COPYRIGHT ©2003
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 03,
McDonough, GA, 30253 U.S.A.
10/23/2003
Manual No. 06135
TP 400-5001-03-WB-N
s
PAGE GROUP
Table Of Content
4
8
12
14
16
18
20
22
26
28
30
32
34
36
38
40
42
HANDLES & CONTROLS (2002 & EARLIER)
HANDLES & CONTROLS (2003 Model Year)
CUTTING DECK, BLADE
FRONT WHEEL BRACKET
REAR WHEEL BRACKETS, LATCHES

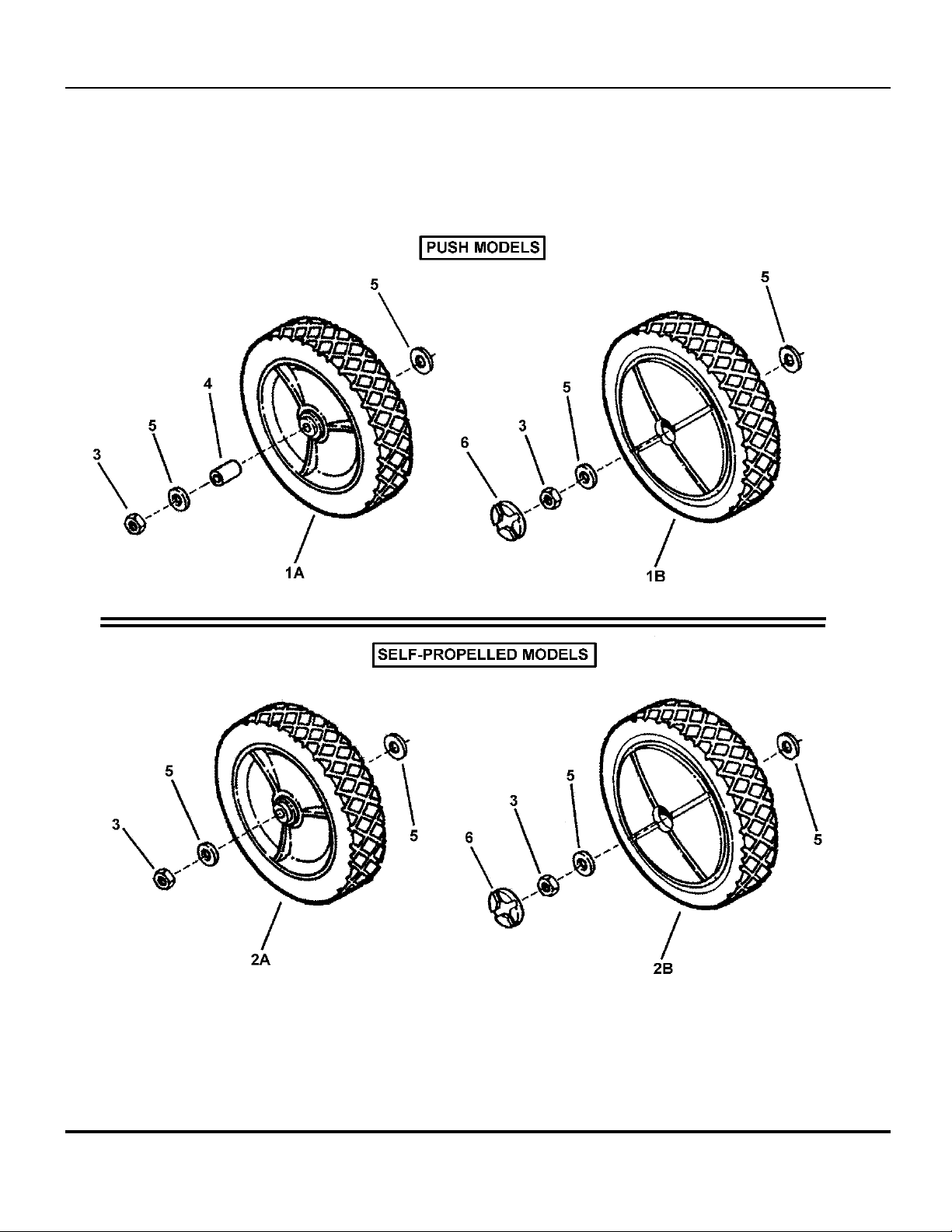

FRONT WHEELS
REAR WHEELS

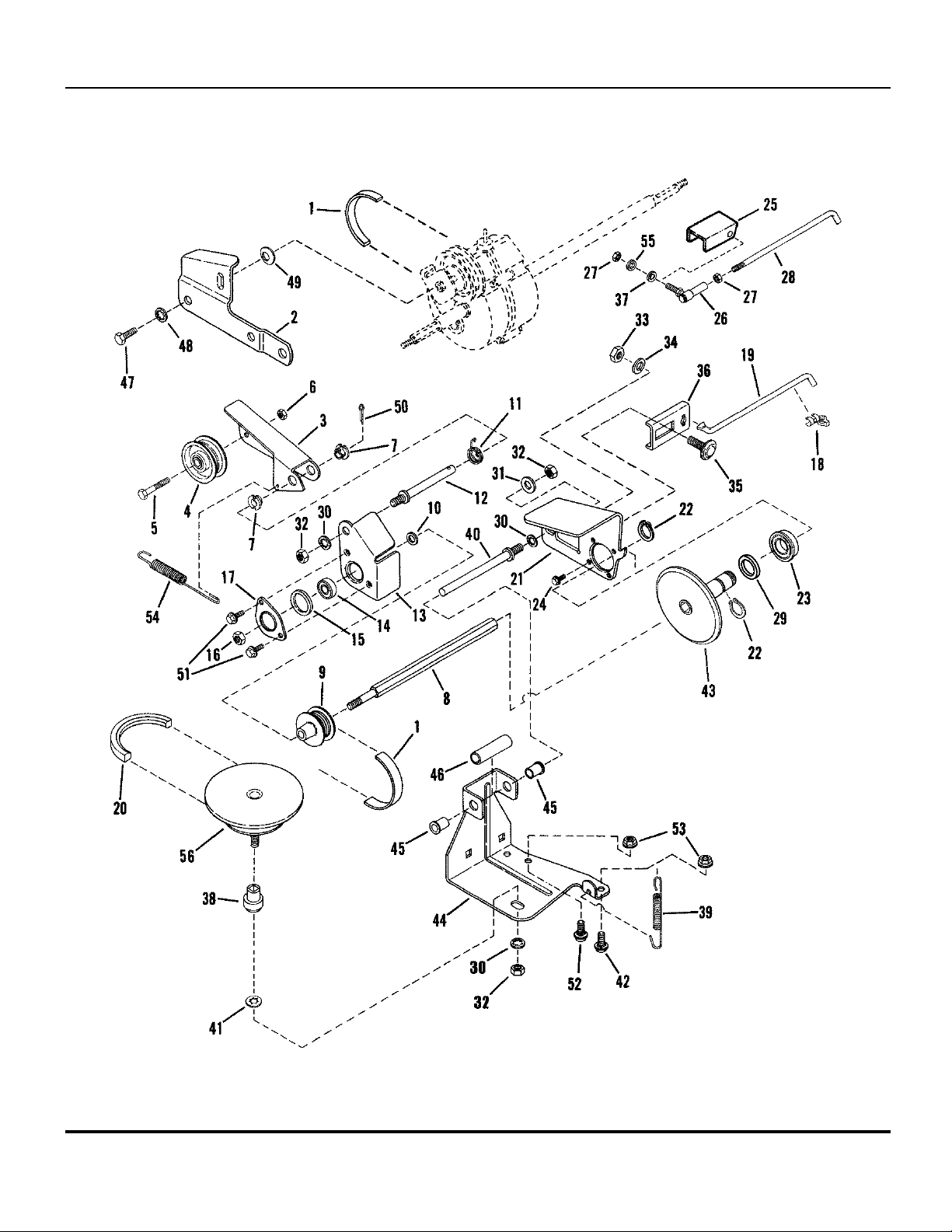

DRIVE SYSTEM SELF-PROPELLED
TRANSMISSION (DIFFERENTIAL)

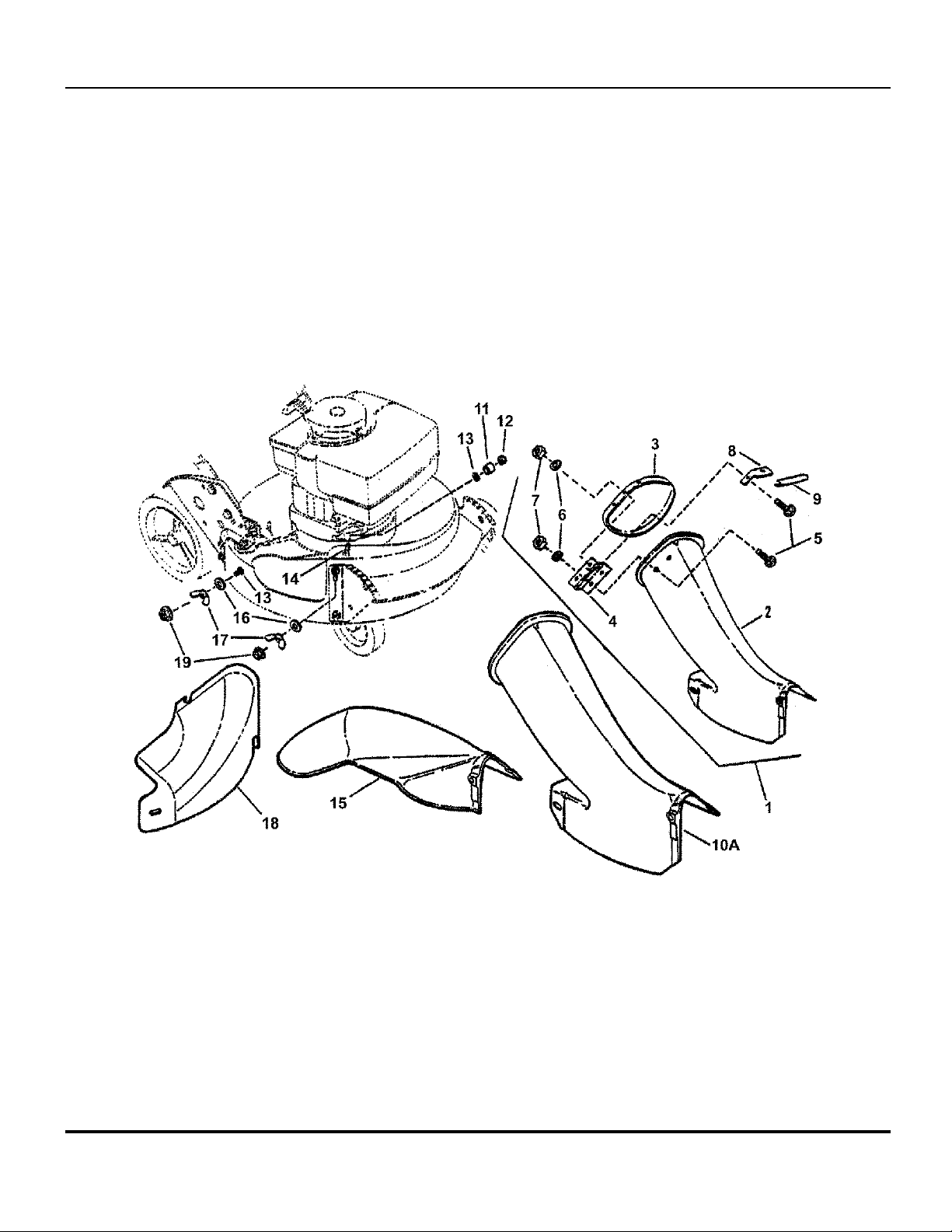

SIDE CHUTE, ADAPTER
GRASS BAG ACCESSORY

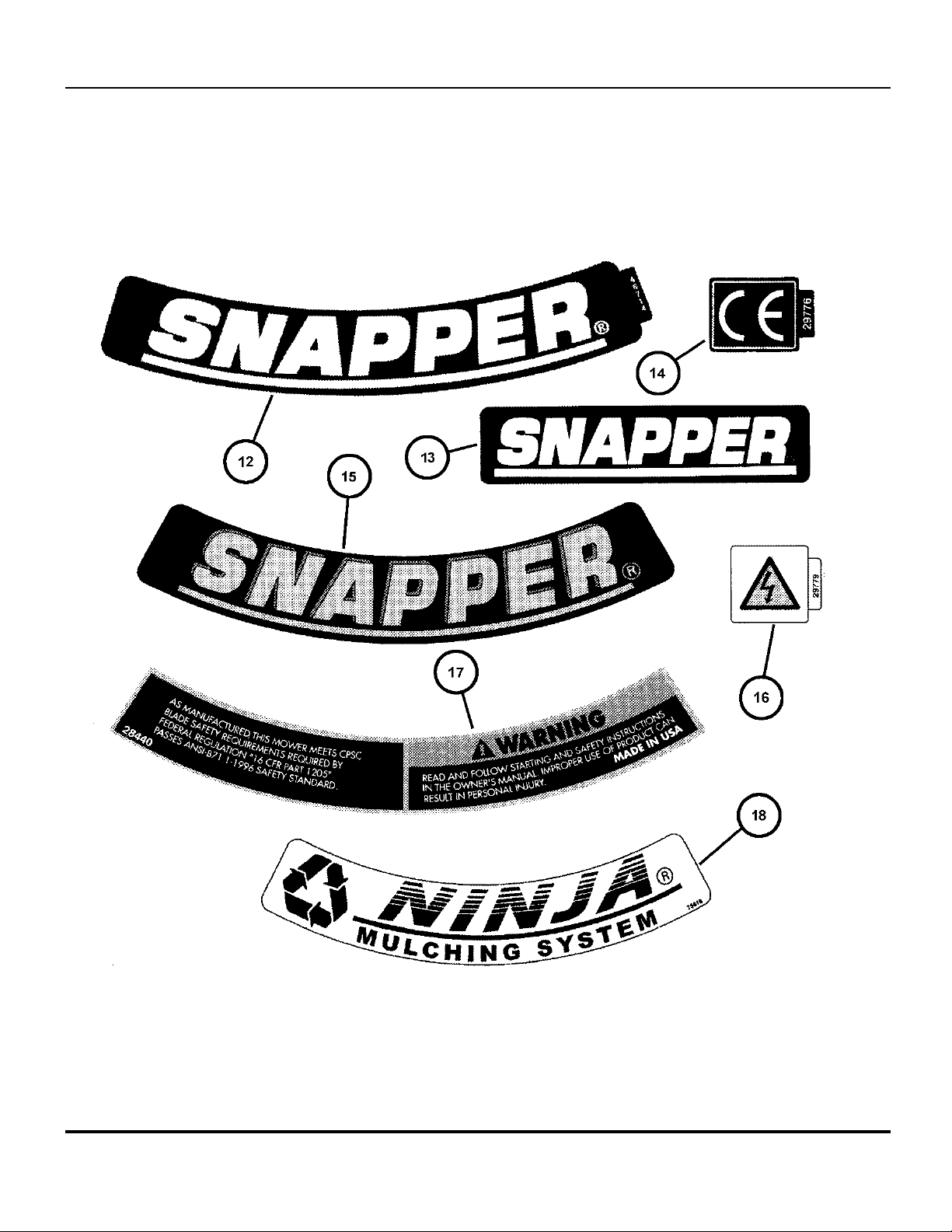

DECALS
DECALS (Continued)
DECALS (Cont.)
THATCHERIZER ACCESSORY
SNAPPERIZER ACCESSORY
RECYCLING KITS ACCESSORY
"MR" SERIES 17
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
3
TP 400-5001-03-WB-N
HANDLES & CONTROLS (2002 & EARLIER)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
4
"MR" SERIES 17
HANDLES & CONTROLS (2002 & EARLIER)
p
Part No Descri
1 72931 1 HANDLE, Upper used on All
2 36350 1 HANDLE, Middle- 1990 used on All
3 46502 1 HANDLE, Lower Left Hand used on All
4 35342 1 HANDLE, Lower Right Hand used on All
5 47011 1 BAIL, Blade Control used on All
6 34872 1 CLIP, Blade Control used on All
7 72933 1 CABLE, Blade Control (49-1/4” long) used on All
8 32826 1 HANDLE, Wheel Drive used on Self-Propelled
9 14307 1 GRIP, Wheel Drive Handle used on Self-Propelled
-- 29775 1 GRIP,Wheel Drive Handle (Euro) used on Self-Propelled (Euro)
10 72932 1 CABLE, Clutch Pull (Z-Bend, 38-5/8” long) used on Self-Propelled
11 12121 1 COVER, Vinyl used on Self-Propelled
12 12122 1 SPRING, Clutch used on Self-Propelled
13 41871 1 SECTOR, Speed used on Self-Propelled
14 91238 1 BOLT, 5/16-18 x 1” Square Neck Carriage GR 5 used on All
15 12093 1 SPRING, Speed Control used on Self-Propelled
16 90188 1 WASHER, 3/8” Flat used on Self-Propelled
17 29383 1 GRIP, Speed Control Handle used on Self-Propelled
18 24087 1 DECAL, Speed Select used on Self-Propelled
-- 29783 1 DECAL, Speed Select (Euro) used on Self-Propelled (Euro)
19 32408 1 GUIDE, Lower V-Belt used on Self-Propelled
20 23790 1 ROD, Transfer used on Self-Propelled
-- 51698 1 ASSY., Transfer Rod (Incl. indented items below) used on Self-Propelled (Euro)
20a 15752 1 LINK, Transfer used on Self-Propelled (Euro)
20b 15753 1 BALL JOINT, 1/4-28 used on Self-Propelled (Euro)
20c 90095 1 NUT, 1/4-28 Hex used on Self-Propelled (Euro)
21 10937 1 CLIP, Transfer Rod 1/4” used on Self-Propelled
22 90895 1 TEE-NUT, 5/16-18 used on Self-Propelled
23 12114 1 BUSHING, Differential used on Self-Propelled
24 90595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR5 used on All
25 90238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR5 used on All
26 91026 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 used on All
27 91070 10 NUT, 5/16-18 Hex Flange Lock GR5 used on All
28 46202 1 BRACKET, Speed Control Rod used on Self-Propelled
29 24641 2 WIRE TIE, 1.29” Long (Black) used on All
30 91189 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR2 used on All
31 35744 4 T-KNOB, 5/16-18 (BLACK) used on All
32 41870 1 LEVER, Speed Control used on Self-Propelled
33 90391 4 WASHER, 5/16” Internal Tooth Lock used on All
34 76978 1 NUT, 1/4-28 Hex GR5 or B used on All
tionItem Qty Note
Footnotes
"MR" SERIES 17
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
5
TP 400-5001-03-WB-N
HANDLES & CONTROLS (2002 & EARLIER)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
6
"MR" SERIES 17
HANDLES & CONTROLS (2002 & EARLIER)
p
Part No Descri
35 73115 1 FOAM GRIP, .84 I.D. x 11” long used on All
36 14343 2 BUSHING used on All
37 23792 1 PIN, Clutch Handle used on Self-Propelled
38 91020 1 PUSH-NUT, 1/4” (for handle pin) used on Self-Propelled
39 24211 1 DECAL, Blade Control (Right Hand Side) used on all (except Euro)
-- 29782 1 DECAL, Blade Control (Right Hand Side) used on European
40 46465 1 GUIDE, Rope used on All
41 26219 1 CLAMP, 7/8” Double Cable used on All
42 91074 1 NUT, 5/16-24 Hex Center Lock GR5 used on All
43 41942 1 DECAL, Shift Warning used on Self-Propelled
44 91100 3 NUT, 1/4-20 Hex used on All
45 91022 3 WASHER, 1/4” Internal Tooth Lock used on All
46 91222 1 SCREW, 1/4-20 x 1-3/4” Hex Head Cap GR5 used on All
tionItem Qty Note
Footnotes
"MR" SERIES 17
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
7
TP 400-5001-03-WB-N
HANDLES & CONTROLS (2003 Model Year)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
8
"MR" SERIES 17
HANDLES & CONTROLS (2003 Model Year)
p
Part No Descri
1 72931 1 HANDLE, Upper used on Push Models (except MR216517B)
-- 75313 1 HANDLE, Upper used on Push Model MR216517B
-- 74254 1 HANDLE, Upper used on Self-Propelled
2 36350 1 HANDLE, Middle- 1990 used on All
3 46502 1 HANDLE, Lower Left Hand used on All
4 35342 1 HANDLE, Lower Right Hand used on All
5 47011 1 BAIL, Blade Control used on All
6 34872 1 CLIP, Blade Control used on All
7 72933 1 CABLE, Blade Control (49-1/4” long) used on MR216517B & MRP216517B
-- 74868 1 CABLE, Blade Control (46.-15/16” long) used on All Other Models
8 32826 1 HANDLE, Wheel Drive used on Self-Propelled
9 14307 1 GRIP, Wheel Drive Handle used on Self-Propelled
10 72932 1 CABLE, Clutch Pull (Z-Bend, 38-5/8” long) used on Self-Propelled
11 12121 1 COVER, Vinyl used on Self-Propelled
12 12122 1 SPRING, Clutch used on Self-Propelled
13A 41871 1 SECTOR, Speed used on MRP216517B
13B 38478 1 SECTOR, Speed used on all other Self-Propelled models
14 24641 1 WIRE TIE, 1.29” Long (Black) used on All
15 12093 1 SPRING, Speed Control used on Self-Propelled
16 90188 1 WASHER, 3/8” Flat used on Self-Propelled
17A 29383 1 GRIP, Speed Control Handle used on MRP216517B
17B 23801 1 GRIP, Speed Control Handle used on all other Self-Propelled models
18A 46202 1 BRACKET, Speed Control Rod used on MRP216517B
18B 32830 1 ANCHOR, Speed Control used on all other Self-Propelled models
19 32408 1 GUIDE, Lower V-Belt used on Self-Propelled
20 23790 1 ROD, Transfer used on Self-Propelled
21 10937 1 CLIP, Transfer Rod 1/4” used on Self-Propelled
22 90895 1 TEE-NUT, 5/16-18 used on Self-Propelled
23 12114 1 BUSHING, Differential used on Self-Propelled
24 90595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR5 used on All
25 90238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR5 used on All
26 91026 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 used on All
27 91070 10 NUT, 5/16-18 Hex Flange Lock GR5 used on All
28 91074 1 NUT, 5/16-24 Hex Center Lock GR5 used on All
29 23813 1 CLIP, Cable/Wiring used on All
30 91189 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR2 used on All
31 35744 4 T-KNOB, 5/16-18 (BLACK) used on All
32 79577 2 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR5 used on All
33 91023 3 WASHER, 1/4” Internal Tooth Lock used on All
34 91100 3 NUT, 1/4-20 Hex GR5 or B used on All
tionItem Qty Note
Footnotes
"MR" SERIES 17
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
9
TP 400-5001-03-WB-N
HANDLES & CONTROLS (2003 Model Year)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
10
"MR" SERIES 17
HANDLES & CONTROLS (2003 Model Year)
p
Part No Descri
35 90505 1 SCREW, 1/4-20 x 2” Hex Head Cap GR5 used on All except MR216517 and
36 14343 2 BUSHING used on All
37 23792 1 PIN, Clutch Handle used on Self-Propelled
38 91020 1 PUSH-NUT, 1/4” (for handle pin) used on Self-Propelled
39A 24211 1 DECAL, Blade Control (Left Hand Side) used on all (except Euro)
39B 29782 1 DECAL, Blade Control (Left Hand Side) used on European
40 26141 2 GUIDE, Rope used on All except MR216517 and
41 73115 1 FOAM GRIP, .84 I.D. x 11” long used on All
42A 24087 1 DECAL, Speed Select used on Self-Propelled (except Euro)
42B 29783 1 DECAL, Speed Select (Euro) used on Self-Propelled (Euro)
43 23153 1 CLAMP, Casing used on All except MR216517 and
44 90391 4 WASHER, 5/16” Internal Tooth Lock used on All
45 90545 1 SCREW, 5/16-24 x 1-1/2” Round Hd. Machine,
GR5
46 26219 1 CLAMP, 7/8” Double Cable used on All
47A 41870 1 LEVER, Speed Control used on MRP216517B
47B 74255 1 LEVER, Speed Control used on all other Self-Propelled models
48 46465 1 GUIDE, Rope used on Self-Propelled
49 76978 1 NUT, 1/4-20 Hex GR5 or B used on Self-Propelled
50 12080 1 CABLE-TIE, 7” used on Self-Propelled
51 79577 1 SCREW, 1/4-20 x 1-1/2” Hex Head Cap, GR5 used on Self-Propelled
52 23154 1 SCREW, #10-32 x 5/8” Hex Head Self-Tap used on All except MR216517 and
53 24649 1 WIRE TIE, 11” Long (Black) used on Self-Propelled
54 91238 1 BOLT, 5/16-18 x 1” Square Neck Carriage GR5 used on MRP216517B
tionItem Qty Note
MRP216517
MRP216517
MRP216517
used on All except MR216517 and
MRP216517
MRP216517
Footnotes
"MR" SERIES 17
11
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
CUTTING DECK, BLADE
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
12
"MR" SERIES 17
CUTTING DECK, BLADE
p
Part No Descri
1 57884 1 DECK, 21” Mower Includes painted deck with decals
2 90585 10 NUT, 5/16-18 Hex Flange Lock, GR5
3 92061 9 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
4 91169 1 BOLT, 5/16-18 x 1-1/8” Short Neck Carriage
GR5
5 90324 3 SCREW, 3/8-16 x 1” Self-Tap (engine mounting screws)
6 90483 1 SCREW, 3/8-24 x 1-3/4 Hex Head Cap GR5
7 12063 2 WASHER, 3/8” I.D. Cone
8A 41939 1 BLADE, Cutter (Mulching)
8B 26407 1 BLADE, 21” Ninja used on MR216517B, MRP216517B &
9 15626 1 HUB, Blade Drive 25mm
10 91214 1 KEY, Hi-Pro #HP506 (Briggs engine)
11 90201 1 SCREW, 5/16-18 x 5/16” Hex Socket Set
12 15780 1 PULLEY, Engine Drive (25mm x 2-1/8” O.D.)
13 90702 1 BOLT, 5/16-18 x 2-1/4” Hex Flange Lock used on Euro models
14 90001 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5 (only one shown)
15 11791 2 RETAINER, 5/16” Bolt (only one shown)
16 91070 3 NUT, 5/16-18 Hex Flange Lock, GR5
17 90539 4 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap used on Euro models
18 31961 1 WASHER, 7/16” Flat
19 29785 1 DECAL, Operator Safety used on Euro models
20 46780 2 PLUG, Hole Polyethylene
21A 46446 1 BAFFLE, Belt
21B 74568 1 BAFFLE, Belt used on MRP216517B
22 29000 1 SPACER, Blade Hub
23 41400 1 WELDMENT, Fender used on Euro models
24 46471 3 PLUG, 5/16” Square Hole used on Push models; (only one shown)
25 45264 3 PLUG, 5/16” Round Hole qty. 3 on Push, qty. 2 on Self-Propelled (only
26 91076 1 WASHER, 5/16” Flat used on Euro models
27 31961 2 WASHER, 7/16” Flat used on Euro models
28 33863 1 COVER, Belt used on Euro models
29 90534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR5 used on Euro models
30 13320 1 BUSHING used on Euro models
-- -- ENGINE, 6HP B&S OHV Recoil Mod 126602; Type 0110-E1
-- -- ENGINE, 6HP B&S Recoil Mod 12H802; Type 1987-B1
-- -- ENGINE, 6.5HP B&S Recoil Mod 123K02; Type 0119E-B1
-- -- ENGINE, 6.5HP B&S Recoil Mod 123K02; Type 0125E-E1
tionItem Qty Note
EMRP216517B models
one shown)
Footnotes
NOTE: Purchase engine parts from engine manufacturer dealer.
"MR" SERIES 17
13
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
FRONT WHEEL BRACKET
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
14
"MR" SERIES 17
FRONT WHEEL BRACKET
p
Part No Descri
1 51886 1 ASSEMBLY, Right Wheel Arm (Consists of items 2, 3, 4, 5A & 6)
-- 51885 1 ASSEMBLY, Left Wheel Arm (Consists of items 2, 3, 4, 5B & 6)
2 15761 2 BOLT, 5/16-18 Hex Washer Face Shoulder
3 12325 2 LATCH, Height
4 27702 2 GRIP, Latch
5A 31017 1 ARM, Right Wheel (Round Hole)
5B 31016 1 ARM, Left Wheel (Square Hole) not shown
6 11791 2 RETAINER, 5/16” Bolt (Black)
7 91070 2 NUT, 5/16-18 Hex Flange Lock
8 41770 1 WELDMENT, Front Wheel Bracket
-- 74702 1 WELDMENT, Front Wheel Bracket used on MR216517B & MRP216517B models
9 21119 1 AXLE
tionItem Qty Note
Footnotes
"MR" SERIES 17
15
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
REAR WHEEL BRACKETS, LATCHES
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
16
"MR" SERIES 17
REAR WHEEL BRACKETS, LATCHES
p
Part No Descri
1 12312 2 BALL BEARING, 9/16” I.D.
-- 18767 2 BALL BEARING, 9/16” I.D. (Commercial)
2 91012 3 SCREW, #10-32 x 3/8” Hex Washer Self-Tap (Torx)
3 35717 2 LATCH, Height Adjusting (Long)
4 90063 1 NUT, 1/4-20 Hex
5 91070 6 NUT, 5/16-18 Hex Flange Lock, GR5
6 54228 1 ASSEMBLY, Wheel Arm, Right Rear (Round
hole)
7 54229 1 ASSEMBLY, Wheel Arm, Left Rear (Square
hole)
8 54230 1 ASSEMBLY, Wheel Arm, Right Rear used on Self-Propelled models (Incl. items 1,
-- 54224 1 ASSEMBLY, Wheel Arm, Right Rear used on Commercial models (Incl. items 1B,
9 54231 1 ASSEMBLY, Wheel Arm, Left Rear used on Self-Propelled models (Incl. items 1,
-- 54225 1 ASSEMBLY, Wheel Arm, Left Rear used on Commercial models (Incl. items 1B,
10 33776 1 ARM, Round Axle End, Right Rear (Round hole) used on Push models
11 33775 1 ARM, Square Axle End, Left Rear (Square hole) used on Push models
12 32722 1 ARM, Wheel, Right Rear used on Self-Propelled models
13 32723 1 ARM, Wheel, Left Rear used on Self-Propelled models
14 11078 2 BOLT, 5/16-18 x 1” Shoulder
15 11791 2 RETAINER, 5/16” Bolt
16 27702 2 GRIP, Latch
17 33494 1 BRACKET, Right Rear Wheel
18 33495 1 BRACKET, Left Rear Wheel
19 21119 1 AXLE Rear axle on Push Models; Front axle on All
20 35741 1 GUARD, Rear Foot used on Push models
21 29008 1 GUARD, Rear Foot used on Self-Propelled models (except
-- 42918 1 GUARD, Rear Foot used on Euro Self-Propelled models
22 23791 1 RING, Split (Black) used on Self-Propelled models
23 12616 1 SUPPORT, Foot Guard used on Self-Propelled models
24 90005 1 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5 used on Self-Propelled models
25 91023 1 WASHER, 1/4” Internal Tooth Lock
tionItem Qty Note
used on Push models (Incl. items 3, 10, 14,
15 & 16)
used on Push models (Incl. items 3, 11, 14,
15 & 16)
2, 3, 12, 14, 15 & 16)
2, 3, 12, 14, 15 & 16)
2, 3, 13, 14, 15 & 16)
2, 3, 13, 14, 15 & 16)
Models
European)
Footnotes
"MR" SERIES 17
17
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
FRONT WHEELS
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
18
"MR" SERIES 17
FRONT WHEELS
p
Part No Descri
1 22374 2 WHEEL, 8 x 1.75 Plastic used on 2002 Model Year and Earlier
2 29010 2 WHEEL, 8 x 1.75 Plastic used on 2003 Model Year and Later
3 90377 2 NUT, 7/16-20 Hex Center Lock Jam
4 12309 2 BUSHING, Axle
5 31961 6 WASHER, 7/16 x 1” O.D. Flat Qty. of (2) for Push; Qty. of (1) for Self-
6 17829 2 PLUG, Wheel
tionItem Qty Note
Propelled Models
Footnotes
Always replace wheel nut # 90377 when removing or replacing wheel.
"MR" SERIES 17
19
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
REAR WHEELS
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
20
"MR" SERIES 17
REAR WHEELS
p
Part No Descri
1A 35739 2 WHEEL, 10 x 1.75” Plastic (Push Models) used on 2002 Model Year and Earlier
1B 74924 2 WHEEL, 10 x 1.75” Plastic (Push Models) used on 2003 Model Year and Later
2A 35740 2 WHEEL, 10 x 1.75” Plastic (Self-Propelled
Models)
2B 29011 2 WHEEL, 10 x 1.75” Plastic (Self-Propelled
Models)
3 90377 2 NUT, 7/16-20 Hex Center Lock Jam
4 12309 2 BUSHING, Axle
5 31961 4 WASHER, 7/16 x 1” O.D. Flat
6 17829 2 PLUG, Wheel
tionItem Qty Note
used on 2002 Model Year and Earlier
used on 2003 Model Year and Later
Footnotes
"MR" SERIES 17
21
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
DRIVE SYSTEM SELF-PROPELLED
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
22
"MR" SERIES 17
DRIVE SYSTEM SELF-PROPELLED
p
Part No Descri
1 12354 1 BELT, Poly-Vee
2 34179 1 LINK, Differential
-- 51921 ASSEMBLY, Clutch Idler (includes items 3 thru 7)
3 32832 1 ARM, Clutch Idler
4 12124 2 PULLEY, Idler
5 91025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap GR5
6 90303 1 NUT, 1/4-28 Hex Top Lock
7 12117 2 BUSHING, 3/8” Plastic
8 72284 1 SHAFT, Hex Drive
9 24521 1 PULLEY, Poly-V, 2” O.D. Non Commercial Models
10 12316 1 WASHER, 3/8” Flat
11 12126 1 SPRING, Torsion
12 12111 1 STUD, Idler (3/8-24 thread)
13 31873 1 HOLDER, Bearing (Inner Half)
14 28014 1 BEARING, Ball, .38 I.D. Spherical O.D.
15 11025 1 O-RING
16 90289 1 NUT, 3/8-24 Hex Center Lock GR5 or B
17 31809 1 HOLDER, Bearing (Outer Half)
18 10937 1 CLIP, Transfer Rod 1/4”
19 23790 1 ROD, Transfer used on Non-Euro models
-- 51698 ASSY., Transfer Rod (Incl. items 61, 62 & 63) used on Self-Propelled Euro
20 46784 1 BELT, Engine Drive 3L (Stretch) used on Self-Propelled
-- 53225 1 ASSEMBLY, Driven Disc (Cantilever) used on Self-Propelled Euro
21 35477 1 PLATE, Thrust
22 10746 2 RING, 5/8” External Retaining used on Self-Propelled
23 26693 1 BALL BEARING, 3/4” I.D. used on Self-Propelled
24 90981 4 SCREW, #10-32 x 1/4” Self-Tap Machine
25 32664 1 SHIELD, Hex Shaft used on Self-Propelled Euro
26 15753 BALL JOINT, 1/4-28 used on Self-Propelled Euro
27 90095 1 NUT, 1/4-28 Hex GR5 used on Self-Propelled Euro
28 15752 1 LINK, Transfer used on Self-Propelled Euro
29 10121 1 WASHER, 3/4” Shim
30 90390 3 WASHER, 3/8” Internal Tooth Lock
31 90122 1 WASHER, 3/8” Flat
32 90155 3 NUT, 3/8-24 Hex, GR B
33 90196 1 NUT, 5/16-18 Hex GR5 or B continued on next page
34 90187 1 WASHER, 5/16” Split Lock
35 91097 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5
36 32831 1 CONNECTOR, Transfer Rod
37 91294 1 WASHER, Flat 1/4" (European Models Only) used on Self-Propelled Euro
tionItem Qty Note
Footnotes
"MR" SERIES 17
23
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
DRIVE SYSTEM SELF-PROPELLED
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
24
"MR" SERIES 17
DRIVE SYSTEM SELF-PROPELLED
p
Part No Descri
38 17696 1 BUSHING
39 29025 1 SPRING, Wheel Drive
40 12125 1 GUIDE, Thrust Plate (3/8-24 thread)
41 13847 1 RETAINER, 3/8” Bolt
42 91026 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5
43 41855 1 DISC, Driven (Cantilever)
-- 59462 1 ASSY, Deck Bracket (Includes items 44 & 45)
44 31919 1 BRACKET, Deck
45 12117 2 BUSHING, Flange
46 21758 1 SPACER used on Commercial models
47 90534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR5
48 90391 1 WASHER, 5/16” Internal Tooth Lock
49 11724 1 WASHER, Spring
50 90555 1 PIN, 3/32 x 1/2” Cotter
51 90539 2 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap
52 90731 3 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
53 91070 2 NUT, 5/16-18 Hex Flange Lock, GR5
54 12122 1 SPRING, Clutch
55 90053 1 WASHER, 1/4” Internal Tooth Lock used on Self-Propelled Euro
56 61275 KIT, Drive Disc Assembly
tionItem Qty Note
Footnotes
"MR" SERIES 17
25
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
TRANSMISSION (DIFFERENTIAL)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
26
"MR" SERIES 17
TRANSMISSION (DIFFERENTIAL)
p
Part No Descri
-- 53945 1 ASSY, Transmission (Incl. items 1 thru 30)
1 11201 1 NUT, 5/16-24 Hex Lock, GR C
2 92063 1 WASHER, Cone
3 19213 1 PULLEY, Poly-Vee Belt
4 11724 2 WASHER, Spring only 1 shown
5 53942 1 ASSEMBLY, Right Housing (Includes items 6, 7, 8, 9, 10 & 30)
6 29034 1 HOUSING, Right Side
7 14155 3 SCREW, 5/16-24 x 1-1/8” Rib Neck, GR5
8 12314 2 SEAL, 5/8” Internal Dia.
9 29035 2 BEARING, Tapered- (Differential Housing)
10 11767 1 BEARING, Ball, .437 I.D. x 1.125 O.D. x .375
Thk.
11 16544 1 PLUG, Housing
12 50767 1 GEAR, Input
13 50830 1 AXLE, Short
14 12495 1 GEAR, Differential (46 tooth)
15 31970 2 PLATE, 46T Gear
16 31965 2 WASHER, Thrust, 3/4” I.D.
17 90557 4 SCREW, #10-32 x 1-1/2” Hex Head Cap GR5 only 1 shown
18 11774 1 GASKET, Housing
19 90189 3 WASHER, 5/16” Internal/External Tooth Lock only 1 shown
20 51903 1 BRACKET, Differential
21 91825 4 SCREW, 1/4-20 x 1-1/4” Hex Washer Self-Tap only 1 shown
22 12543 1 SPACER, Axle Gear
23 50831 1 AXLE, Long
24 21115 4 GEAR, Pinion (12 tooth)
25 12500 4 SPACER, Pinion Gear
26 11110 4 SHAFT, Pinion
27 90376 4 NUT, #10-32 Hex Nyloc only 1 shown
28 53939 1 ASSEMBLY, Left Housing (Includes items 8, 9 & 29)
29 29033 1 HOUSING, Left
30 24442 3 GASKET, 5/8” O. D.
-- 61017 “OO” Grease (32 oz.)
tionItem Qty Note
Footnotes
NOTE: Maximum capacity of transmission case is 4 oz.
DO NOT OVERFILL Transmission!
"MR" SERIES 17
27
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
SIDE CHUTE, ADAPTER
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
28
"MR" SERIES 17
SIDE CHUTE, ADAPTER
p
Part No Descri
1 51951 ASSEMBLY, Bag Adapter & Cover Includes items 2 thru 9; used on European
2 16107 1 ADAPTER, Grass Bag
3 19287 1 COVER, Bag Adapter
4 23000 1 HINGE, Chute Cover
5 91064 5 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5
6 91023 5 WASHER, 1/4” Internal Tooth Lock
7 91100 5 NUT, 1/4-20 Hex
8 32661 1 STOP, Cover
9 23042 1 MOLDING, Trim
10A 16050 1 ADAPTER, Grass Bag
10B 58037 ASSEMBLY, Grass Bag Adapter
11 24340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
12 90951 1 NUT, 5/16-18 Hex Large Flange Center Lock
13 11791 1 RETAINER, 5/16” Bolt
14 90001 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5
15 42965 1 CHUTE, Side
16 91514 2 WASHER, 5/16” Flat
17 24085 2 WING-NUT, 5/16-18 Nyloc
18 29149 1 COVER, 21” Deck
19 90951 2 NUT, 5/16-18 Hex Large Flange Center Lock
tionItem Qty Note
Models Only
Footnotes
NOTE: For Grass Catcher Components see Grass Bag page.
"MR" SERIES 17
29
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
GRASS BAG ACCESSORY
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
30
"MR" SERIES 17
GRASS BAG ACCESSORY
p
Part No Descri
-- 60791 KIT, Grass Bag Catcher (Includes items 1 thru 5)
1 74734 1 GRASS BAG, Slider Type (Black)
2 50711 1 ASSEMBLY, Slider
3 42489 1 CONNECTOR, Grass Bag (weldment)
4 19247 1 WIRE, Bag Adapter
5 16050 1 ADAPTER, Bag
6 58037 1 ASSEMBLY, Grass Bag Adapter (Includes items 7 thru 14)
7 47081 1 ADAPTER, Bag
8 47082 1 BRACKET, Rope Pulley
9 91984 1 SCREW, 5/16-18 x 1-1/4” Pan Head Machine
10 12306 1 BUSHING, Flange
11 24228 1 PULLEY, Plastic
12 91070 1 NUT, 5/16-18 Hex Flange Lock GR5
13 72107 2 WASHER, 15/32” Flat
14 13860 4 RIVET
tionItem Qty Note
Footnotes
"MR" SERIES 17
31
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
DECALS
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
32
"MR" SERIES 17
DECALS
p
Part No Descri
1 24211 1 DECAL, Blade Control
2 29782 1 DECAL, Blade Control (Euro)
3 24087 1 DECAL, Speed Select used on Self-Propelled models
4 29783 1 DECAL, Speed Select (Euro) used on Self-Propelled models
5 13010 1 DECAL, Danger, Cut Finger
6 22841 1 DECAL, Warning (Euro)
7 41942 1 DECAL, Shift Warning used on Self-Propelled models
8 29657 1 DECAL, SNAPPER, 3.87 Dia. (Push)
9 46357 1 DECAL, Warning
10 29785 1 DECAL, Operator Safety
11 73462 1 DECAL, Caution Symbols
tionItem Qty Note
Footnotes
"MR" SERIES 17
33
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
DECALS (Continued)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
34
"MR" SERIES 17
DECALS (Continued)
p
Part No Descri
12 46714 1 DECAL, SNAPPER (Deck) silver letters, black background
13 29713 1 DECAL, SNAPPER silver letters, black background
14 29776 1 DECAL, Euro Community (CE)
15 74386 1 DECAL, SNAPPER (Commercial) gold letters/red border/black background
-- 75618 1 DECAL, SNAPPER gray letters/red border/black background
16 29779 1 DECAL, Spark Plug International Symbol
17 28440 1 DECAL, Deck Warning
-- 72921 1 DECAL, Deck Warning used on EMRP216017B (similar to 28440)
18 75619 1 DECAL, Ninja
tionItem Qty Note
Footnotes
"MR" SERIES 17
35
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
DECALS (Cont.)
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
36
"MR" SERIES 17
DECALS (Cont.)
p
Part No Descri
19 29470 1 DECAL, Patent Numbers
20 29780 1 DECAL, Primer (European)
21 29781 1 DECAL, Air Filter (European)
22 29784 1 DECAL, Deck/Chute (European)
23 75378 1 DECAL, 2003 Year of Manufacture shown
-- 74548 1 DECAL, 2002 Year of Manufacture
-- 73433 1 DECAL, 2001 Year of Manufacture used on EMRP216017B
24 46720 1 DECAL, Chute/Deflector Warning
25 74135 1 DECAL, Noise (European)
26 73335 1 DECAL, OPEI
27 16134 1 DECAL, Caution Tag not used in 2003 model year
tionItem Qty Note
Footnotes
"MR" SERIES 17
37
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
THATCHERIZER ACCESSORY
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
38
"MR" SERIES 17
THATCHERIZER ACCESSORY
p
Part No Descri
-- 61256 KIT, Thatcherizer (Incl. items 1 thru 27)
1 32891 2 LATCH, Frame Attachment
2A 26572 1 BAR, Mount (Right Hand)
2B 26573 1 BAR, Mount (Left Hand)
3 18499 2 ROD, Tine
4 18700 1 SUPPORT, Wheel
5 19948 1 TRAY, Tine
6 60574 6 KIT, Tine Thatching Spring
7 14100 1 BUSHING, Wheel Adjuster
8 18493 1 AXLE, Wheel
9 18189 1 WHEEL, 7.00 x 1.50 Gage
10 90761 10 NUT, 1/4-20 Hex Top Lock only 9 shown
11 90055 4 WASHER, 1/4” Flat
12 22425 2 SPRING, Compression
13 90825 2 BOLT, 1/4-20 x 1-1/4” Hex, GR5
14 90063 2 NUT, 1/4-20 Hex, GR5
15 22424 2 CAP, Vinyl
16 90015 2 BOLT, 1/4-20 x 2-1/2” Square Neck Carriage only 1 shown
17 90383 6 BOLT, 5/16-18 x 1” Square Neck Carriage, GR5 only 1 shown
18 90074 2 BOLT, 1/4-20 x 3/4” Square Neck Carriage, GR5
19 14098 6 WASHER, Reinforcing only 1 shown
20 90187 6 WASHER, 5/16” Split Lock only 1 shown
21 90196 6 NUT, 5/16-18 Hex, GR5 only 1 shown
22 14101 2 NUT, 1/2” Push
23 14342 4 BEARING, Nyliner
24 14103 1 SCREW, 5/16-18 x 1/4” Set
25 90250 2 WASHER, 1/2” Flat
26 14115 1 DECAL, Adjustment
27 14062 1 DECAL, Thatcherizer
tionItem Qty Note
Footnotes
"MR" SERIES 17
39
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
SNAPPERIZER ACCESSORY
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
40
"MR" SERIES 17
SNAPPERIZER ACCESSORY
p
Part No Descri
-- 63041 KIT, Snapperizer (Incl. items 1 thru 5)
1 51243 1 SCREEN, Fastener Assembly
2 72002 1 RING, Bottom
3 90223 3 NUT, 5/16-24 Hex, GR5 only 1 shown
4 90187 3 WASHER, 5/16” Split Lock only 1 shown
5 12587 3 SPRING only 1 shown
tionItem Qty Note
Footnotes
"MR" SERIES 17
41
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
RECYCLING KITS ACCESSORY
Manual No. 06135 21" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
42
"MR" SERIES 17
RECYCLING KITS ACCESSORY
p
Part No Descri
-- 61200 KIT, Recycling Cover (Incl. items 1 & 2 below) for 4HP & above engines
1 29149 1 COVER, 21” Deck
2 26407 1 BLADE, 21” Quad Edge Ninja
-- 61201 KIT, Recycling Plug (Incl. items 1 & 2 below) for 4HP & above engines
1 16814 1 PLUG, Chute Adapter
2 26407 1 BLADE, 21” Quad Edge Ninja
tionItem Qty Note
Footnotes
"MR" SERIES 17
43
Manual No. 0613521" STEEL DECK WALK BEHIND MOWER
TP 400-5001-03-WB-N
Parts Manual fo
r
21" STEEL DECK WALK BEHIND MOWER
"MR" SERIES 17
COPYRIGHT ©2003
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS
McDonough, GA, 30253 U.S.A.
Revision 03,
10/23/2003
Manual No. 06135
TP 400-5001-03-WB-N
Loading...
