Parts Manual
Regent / 500 / 2500
Series Lawn Tractors & Mower Decks
18HP Product
Mfg. No. Description
1694654 Regent, 18HP Gear
1694657 Regent, 18HP Gear (CE)
1694663 2518G, 18HP Gear
1694667 2518G, 18HP Gear (CE)
1694798 Regent, 18HP Gear (CE)
1694800 2518G, 18HP Gear (CE)
1694803 Regent, 18HP Gear
1694835 2518G, 18HP Gear (CE)
Mower Decks
Mfg. No. Description
1694688 38" Mower Deck
1694689 38" Mower Deck (CE)
1694690 38" Mower Deck
1694691 38" Mower Deck (CE)
1694827 44" Mower Deck (CE)
Rev.
TP 400-4199-00-RG-SMA
03/205
Table Of Content
s
PRODUCT COMPONENTS PAGES
Frame Group ........................................................................................................................................................
Steering Group .....................................................................................................................................................
Engine Group - 18HP Briggs & Stratton ..............................................................................................................
Engine Group - 18HP Briggs & Stratton ..............................................................................................................
Transmission Group - Peerless Model MST 205-515A .......................................................................................
Transmission Group - Tuff Torq K-46AA .............................................................................................................

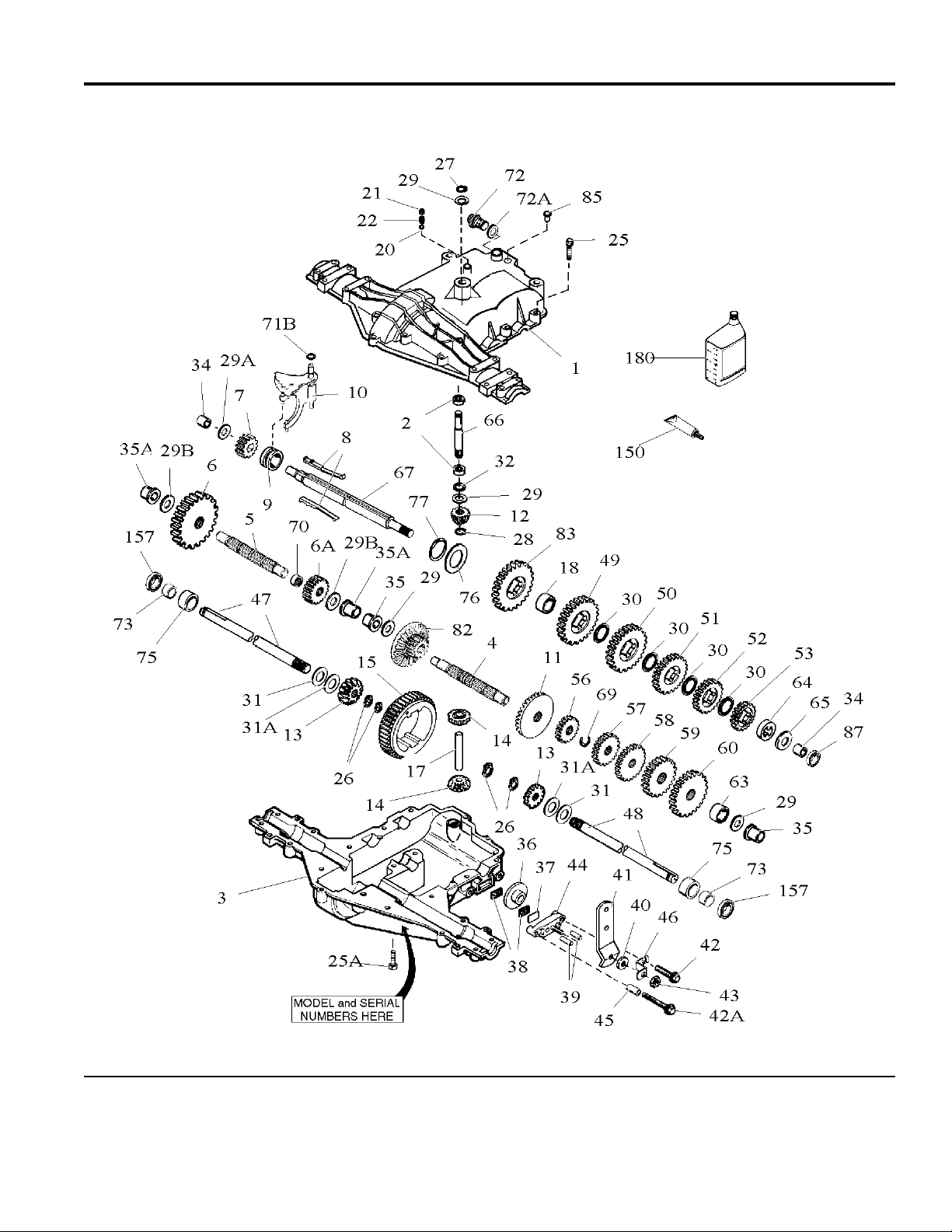

Transmission SERVICE PARTS - Peerless Model MST 205-515A ....................................................................
Transmission SERVICE PARTS - Tuff Torq K-46AA ..........................................................................................
Controls Group .....................................................................................................................................................
Electrical Group ....................................................................................................................................................

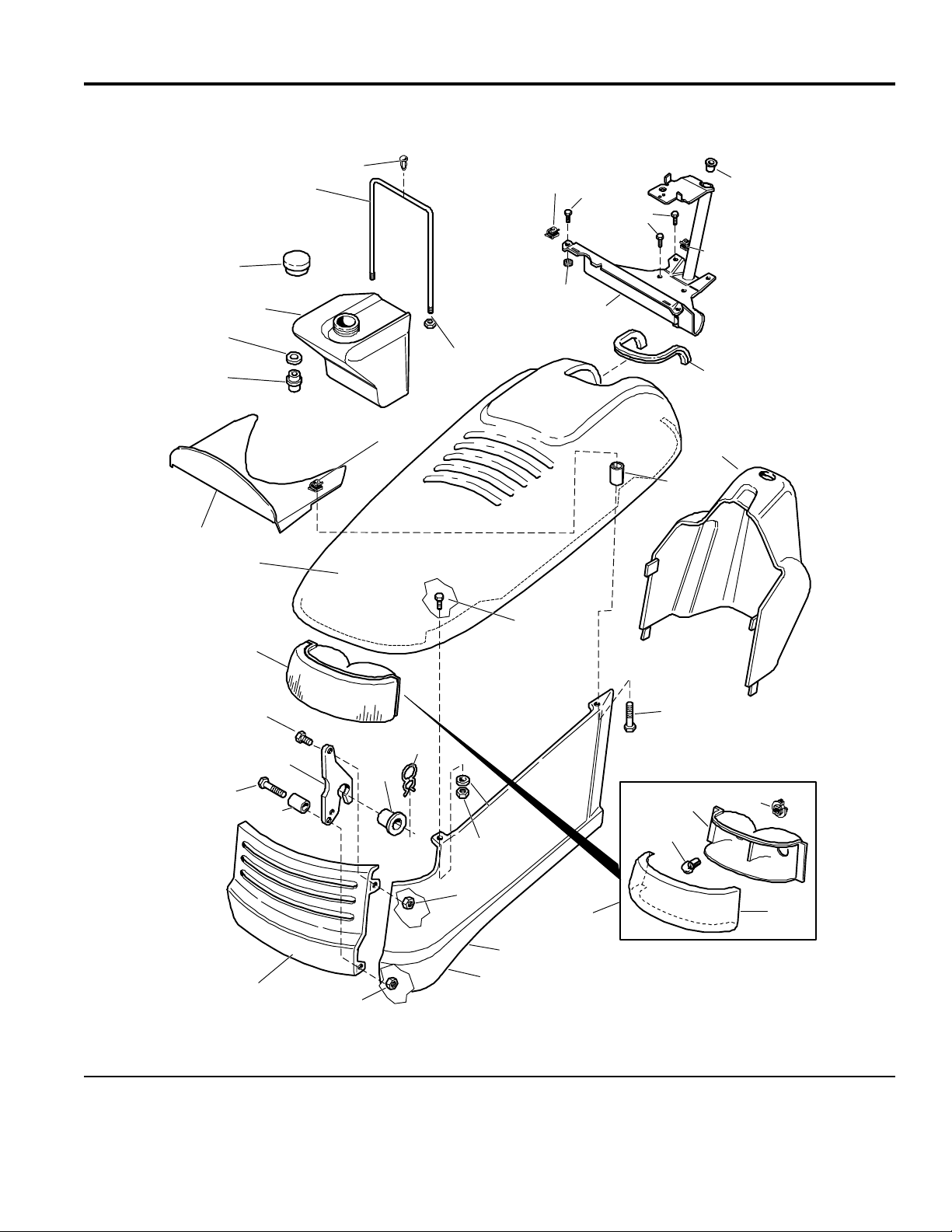

Hood, Dash & Fuel Tank Group ..........................................................................................................................

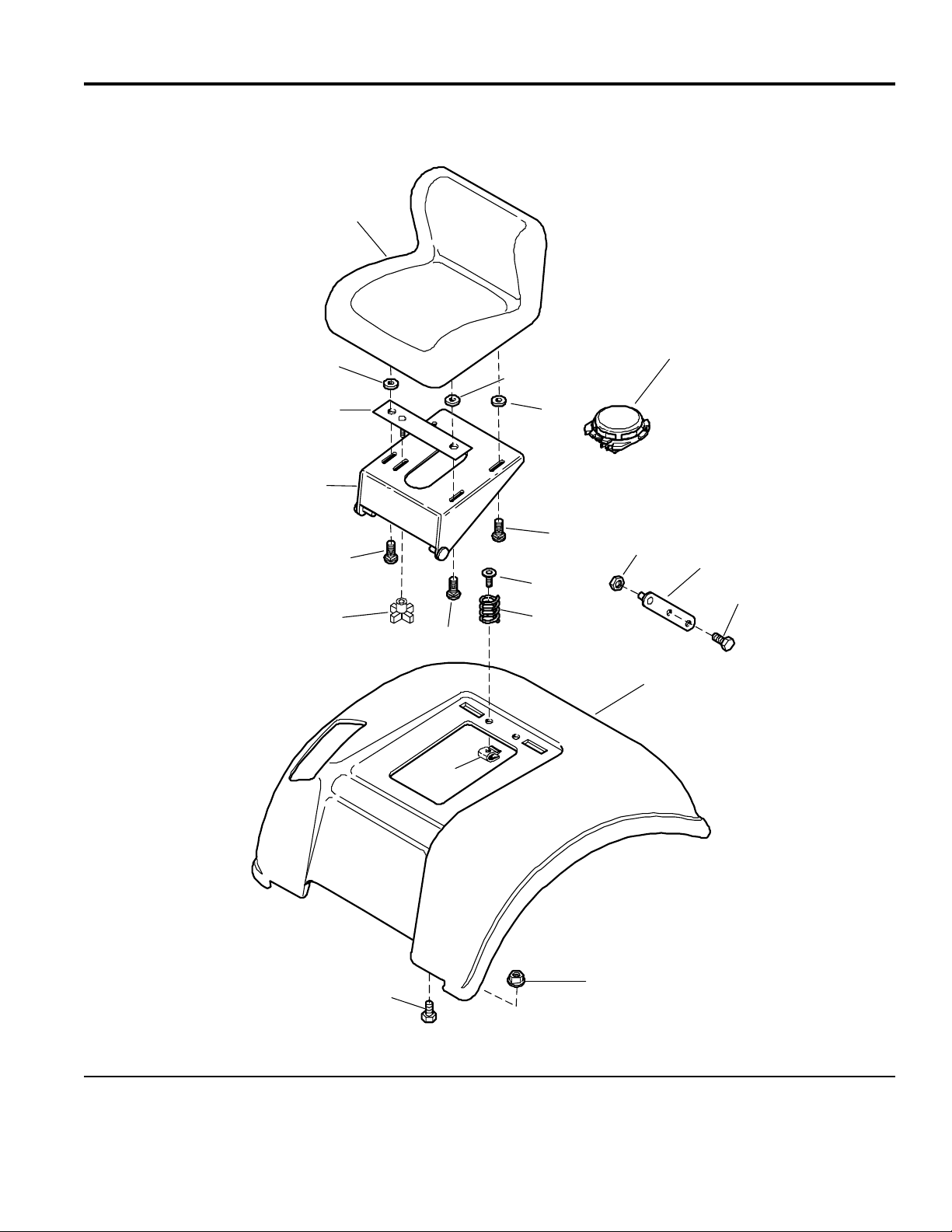

Seat & Seat Deck Group ......................................................................................................................................
Wheels & Tire Group ...........................................................................................................................................
Decals Group .......................................................................................................................................................
38" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................
38" Mower Deck - Height Adjustment & Roller Bar .............................................................................................
38" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................
44" Mower Deck - Belt, Idler Arm & Hitch Group .................................................................................................
44" Mower Deck - Height Adjustment & Roller Bar Group ..................................................................................
44" Mower Deck - Housing, Arbors & Blades ......................................................................................................
10
14
18
22
26
30
34
36
38
40
42
44
46
50
52
54
58
4
6
8
Torque Specification Chart ..................................................................... Inside Back Cover
Frame Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
3
3
1
986694
8
5
6
9
4
2
19
21
Torque to
45 ft/lbs
(61Nm)
21
10
11
10
14
15
19
7
17
13
11
16
12
11
13
18
19
20
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
4
TP 400-4199-00-RG-SMA
Frame Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1726966 1 FRAME ASSEMBLY
2 1715015 1 PLUG, Hole
3 1715016 1 PAD, Footrest RH
4 1714417 1 PAD, Footrest LH
5 1704351 12 FASTENER, Panel
6 1935255 4 NUT, Speed 5/16-18
7 1719869 1 J HOOK, Hitch
8 1930591 4 SCREW, Hex Head Flange Lock, 5/16-18 x 3/4
9 1715796 1 WRAPPER ASSEMBLY, Hydro
10 1920328 2 CAPSCREW, Hex Head, 1/2-13 x 1/2
11 1918431 3 WASHER
12 1709235 1 SPACER
13 1930644 2 NUT, Hex Head, 1/2-13
14 1726769 1 CARRIER ASSEMBLY, Hydro
15 1717286 1 SPACER
16 1713400 1 BAR, Torsion, Hydro
17 960681 1 NUT, Hex Toplock Spiralock Flange, 3/8-16
18 1924356 1 WASHER
19 176440 6 BUSHING
20 1719868 1 SPACER
21 1960614 1 CAPSCREW, Hex Head, 3/8-16 x 3, G8
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
5
TP 400-4199-00-RG-SMA
Steering Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
14
11
12
10
985576
1
23
3
4
5
7
9
10
6
Tor que to
28-36 ft/lbs
(35-48 Nm)
8
13
15
2
10
22
14
24
28
27
25
26
12
31
30
29
25
Tor que t o
28-36 ft/lbs
(35-48 Nm)
32
19
33
Tor que t o
17 ft/lbs
(23 Nm)
24
Tor que to
28-36 ft/lbs
(35-48 Nm)
16
17
18
19
20
14
21
22
10
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
6
TP 400-4199-00-RG-SMA
Steering Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1722738 1 STEERING WHEEL
2 1722319 1 CAP
3 1714400 1 TUBE
4 1960540 1 PIN, Spring
5 1723051 1 SHAFT & PINION ASSEMBLY
6 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
7 1703508 1 PLATE, Mounting
8 1928352 2 NUT, Hex Head Whiz Lock, 3/8-16
9 176440 1 BUSHING
10 1960114 5 WASHER
11 1919438 1 NUT, Hex Lock, 5/16-18
12 1933468 2 WASHER
13 1666001 2 BUSHING
14 1611710 4 RING, Clipring Extension
15 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
16 1922611 1 WASHER
17 1723072 1 STEERING GEAR ASSEMBLY
18 1713469 1 LINK, 19.66" Long
19 1930645 3 NUT, Hex Flange Lock, 3/8-16
20 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
21 1721472 1 ARM & SPACER ASSEMBLYMY, LH Splined
22 1960160 2 WASHER
23 1919314 1 PIN, Cotter
24 1721542 2 SPINDLE & CUP ASSEMBLY
25 1713791 2 SPACER
26 1722484 1 ROD
27 1721473 1 ARM & SPACER ASSEMBLY, RH
28 1664847 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
29 1960268 2 CARRIAGE BOLT, 3/8-16 x 1-1/4
30 1921221 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2
31 1673796 1 SPACER
32 1710437 1 SPACER
33 1935048 1 NUT, Hex Flange Lock, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
7
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
34
35
33
E986683
5
4
3
8
2
1
16
36
37
15
Tor que t o
19-23 ft/lbs
(26-31) Nm
18
Tor que t o
19-23 ft/lbs
(26-31) Nm
20
32
18
31
17
19
21
22
7
6
14
23
Tor que t o
45-50 ft/lbs
(61-68) Nm
13
18
Torque to
19-23 ft/lbs
(26-31) Nm
9
10
11
12
30
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694663 - 2518G
1694803 - Re
1694835 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
29
24
25
28
27
26
24
8
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
PART NO. DESCRIPTIONREF NO QTY.
1 1708405 1 VALVE-SHUT OFF
2 920427 1 LOCKWASHER, External Tooth 3/8
3 916950 1 NUT, Hex 3/8-16
4 1723738 1 SEAL, Foam
5 1723213 1 SEAL, Foam
6 173206 1 FILTER, Fuel
7 960112 2 CLAMP, Hose Type E
8 1727209 1 HOSE, 12" Long
9 1933896 1 NUT, Nylon
10 1725337 1 KNOB, Slot
11 1960393 1 SCREW, #10-24
12 1960498 2 CAPSCREW, Hex Washer Head 1/4-14 x 5/8
13 1726795 1 CABLE, Throttle Control, 14" Long
14 * 1 ENGINE-18HP B&S INTEK SINGLE
15 1930598 3 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2
16 * 1 KEY, Hydro Only
17 * 1 PULLEY
18 1933263 3 WASHER
19 1719456 1 PULLEY, 5.40 O.D.
20 960361 1 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 2
21 1918199 1 LOCKWASHER, 7/16
22 1920594 1 CAPSCREW, 7/16-20 x 2
23 1719460 1 GUIDE-BELT
24 1935255 4 NUT, Speed 5/16-18
25 1723735 1 DUCT, Muffler
26 1930595 2 CAPSCREW, Hex Flange Lock, 5/16-18 x 1-1/4
27 1705248 2 PIVOT
28 1705249 2 SPACER
29 1930591 2 CAPSCREW, Hex Flange Lock, 5/16-18 x 3/4
30 1715006 1 DUCT, Muffler, Upper
31 1924856 4 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
32 1927428 2 CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
33 1717429 1 MUFFLER
34 1936228 2 CAPSCREW, 5/16-18 x 3/4, G8
35 1917356 1 LOCKWASHER, 5/16
36 1720567 1 PIPE, Exhaust
37 1650670 1 GASKET
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694663 - 2518G
1694803 - Re
1694835 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
9
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
44
39
43
37
E986767
5
4
3
8
2
1
17
45
40
38
39
46
16
Tor que t o
19-23 ft/lbs
(26-31) Nm
19
Tor que t o
19-23 ft/lbs
(26-31) Nm
21
42
19
41
18
20
22
23
7
6
15
24
Tor que t o
45-50 ft/lbs
(61-68) Nm
13
19
Torque to
19-23 ft/lbs
(26-31) Nm
9
10
11
12
14
36
35
34
The above parts group applies to the following Mfg. Nos.:
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
33
32
31
10
30
25
29
25
26
28
27
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
PART NO. DESCRIPTIONREF NO QTY.
1 1708405 1 VALVE-SHUT OFF
2 920427 1 LOCKWASHER, External Tooth 3/8
3 916950 1 NUT, Hex 3/8-16
4 1723738 1 SEAL, Foam
5 1723213 1 SEAL, Foam
6 173206 1 FILTER, Fuel
7 960112 2 CLAMP, Hose Type E
8 1727209 1 HOSE, 12" Long
9 1933896 1 NUT, Nylon
10 1725337 1 KNOB, Slot
11 1960393 1 SCREW, #10-24
12 1960498 2 CAPSCREW, Hex Washer Head 1/4-14 x 5/8
13 1727018 1 CABLE, Throttle Control, 14" Long
14 1724015 1 CHOKE, Control, Push/Pull
15 * 1 ENGINE-18HP B&S INTEK SINGLE
16 1930598 3 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2
17 * 1 KEY, Hydro Only
18 * 1 PULLEY
19 1933263 3 WASHER
20 1719456 1 PULLEY, 5.40 O.D.
21 960361 1 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 2
22 1918199 1 LOCKWASHER, 7/16
23 1920594 1 CAPSCREW, 7/16-20 x 2
24 1719460 1 GUIDE-BELT
25 1935255 4 NUT, Speed 5/16-18
26 1723735 1 DUCT, Muffler
27 1930595 2 CAPSCREW, Hex Flange Lock, 5/16-18 x 1-1/4
28 1705248 2 PIVOT
29 1705249 2 SPACER
30 1727791 1 INSULATION, LH
31 1921333 1 CAPSCREW, 5/16-18 X 1
32 1919381 1 WASHER
33 1930591 2 CAPSCREW, Hex Flange Lock, 5/16-18 x 3/4
34 1727792 1 INSULATION, RH
35 1723336 1 INSULATION
36 1715006 1 DUCT, Muffler, Upper
37 1715509 1 STRAP, Torque
38 1919326 1 WASHER
39 1917356 3 LOCKWASHER, 5/16
40 1917372 1 NUT, Hex 5/16-18
41 1924856 4 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
42 1927428 2 CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
43 1717429 1 MUFFLER
44 1936228 2 CAPSCREW, 5/16-18 x 3/4, G8
Footnotes
* See Transmission Group
* See your local Briggs & Stratton distributor for parts.
The above parts group applies to the following Mfg. Nos.:
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
11
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
44
39
43
37
E986767
5
4
3
8
2
1
17
45
40
38
39
46
16
Tor que t o
19-23 ft/lbs
(26-31) Nm
19
Tor que t o
19-23 ft/lbs
(26-31) Nm
21
42
19
41
18
20
22
23
7
6
15
24
Tor que t o
45-50 ft/lbs
(61-68) Nm
13
19
Torque to
19-23 ft/lbs
(26-31) Nm
9
10
11
12
14
36
35
34
The above parts group applies to the following Mfg. Nos.:
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
33
32
31
12
30
25
29
25
26
28
27
TP 400-4199-00-RG-SMA
Engine Group - 18HP Briggs & Stratton
g
PART NO. DESCRIPTIONREF NO QTY.
45 1720567 1 PIPE, Exhaust
46 1650670 1 GASKET
Footnotes
* See Transmission Group
* See your local Briggs & Stratton distributor for parts.
The above parts group applies to the following Mfg. Nos.:
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
13
TP 400-4199-00-RG-SMA
Transmission Group - Peerless Model MST 205-515A
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
1
262
986685
10
11
12
9
8
5
6
7
253
17
16
44
15
48
13
14
49
92018
45
46
47
44
35
40
9
37
30
41
42
37
43
39
38
11
34
29
29
33
32
28
313130
29
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
3130
36
3130
3150
35
14
27
3151
26
25
25
19
21
22
23
21
24
TP 400-4199-00-RG-SMA
Transmission Group - Peerless Model MST 205-515A
g
PART NO. DESCRIPTIONREF NO QTY.
1 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
2 1714536 2 PULLEY
3 1924359 2 WASHER
4 1713843 1 KNOB
5 1714756 1 ROD
6 156302 1 SPRING, Extension
7 1664789 1 V-BELT
8 1916950 1 NUT, Hex 3/8-16
9 1916965 2 LOCKWASHER, 3/8
10 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
11 1924940 2 WASHER
12 1719595 1 GUIDE, Belt
13 927103 1 RING, Shaft
14 1714764 1 PULLEY & HUB ASSEMBLY
15 1678341 1 SPRING, Extension
16 1960638 1 NUT, Speed
17 1717749 2 KEY
18 960202 4 WASHER
19 927794 2 RING, Shaft
20 1715043 4 SPACER
21 960551 6 SCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2
22 1919381 2 WASHER
23 1716103 2 ANCHOR, Torsion Bar
24 1927557 2 NUT, Hex Head Whiz Lock, 5/16-18
25 1930601 3 SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
26 1722544 1 TRANSMISSION ASSEMBLY
27 1960555 1 CARRIAGE BOLT, 5/16-18 x 1-1/2
28 1714556 1 LEVER, Shift
29 1960223 3 CARRIAGE BOLT, 5/16-18 x 1-1/4
30 1919438 5 NUT, Hex Lock, 5/16-18
31 1715029 1 LINK, Shift Upper
32 1921319 1 WASHER
33 1916964 1 LOCKWASHER, 1/4
34 1922234 1 CAPSCREW, Hex Head, 1/4-28 x 5/8
35 1917372 2 NUT, Hex, 5/16-18
36 1715028 1 LINK, Shift, Lower
37 1663114 2 BUSHINGS
38 1660735 1 BELLCRANK ASSEMBLY w/Bushings (Incl. Ref ??)
39 921133 1 FITTING, Grease
40 1921965 1 CAPSCREW, Hex Head, 3/8-16 x 3/4
41 1919326 3 WASHER
42 1719824 1 SPRING-Compression
43 1719825 1 SPRING-Compression
44 1918448 2 PIN, Cotter
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
15
TP 400-4199-00-RG-SMA
Transmission Group - Peerless Model MST 205-515A
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
1
262
986685
10
11
12
9
8
5
6
7
253
17
16
44
15
48
13
14
49
92018
45
46
47
44
35
40
9
37
30
41
42
37
43
39
38
11
34
29
29
33
32
28
313130
29
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
3130
36
3130
3150
35
16
27
3151
26
25
25
19
21
22
23
21
24
TP 400-4199-00-RG-SMA
Transmission Group - Peerless Model MST 205-515A
g
PART NO. DESCRIPTIONREF NO QTY.
45 1917356 1 LOCKWASHER, 5/16
46 1720293 1 GUARD, Belt
47 1714767 1 ROD
48 1918447 1 PIN, Cotter
49 905123 1 KEY, Woodruff #9
50 1726804 1 SWITCH, Actuator
51 1727051 1 SWITCH, Mounting Bracket
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
17
TP 400-4199-00-RG-SMA
Transmission Group - Tuff Torq K-46AA
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
49
1
24
2
43
25
26
34
545
32
31
44
35
4
36
37
48
43
986686
6
17
40
7
8
4
46
47
10
9
39
17
42
41
15
11
13
12
14
16
5
33
38
33
30
Part of
frame
29
28
21
27
23
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
21
21
17
20
22
21
2318
19
2318
18
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
18
TP 400-4199-00-RG-SMA
Transmission Group - Tuff Torq K-46AA
PART NO. DESCRIPTIONREF NO QTY.
1 1713843 1 KNOB
2 1724547 1 ROD
3 1918451 2 PIN, Cotter
4 1919326 2 WASHER
5 1960541 1 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
6 1721007 1 STOP, Bel
7 1917372 1 NUT, Hex 5/16-18
8 1917356 1 LOCKWASHER, 5/16
9 1721130 1 V-BELT
10 * 1 SNAP RING
11 * 1 LOCKWASHER
12 * 1 SPLINE COLLAR
13 * 1 PULLEY
14 * 1 FAN
15 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1
16 * 3 E RING
17 1927557 5 NUT, Hex Flange Whizlock, 5/16-18
18 960202 4 WASHER
19 1717451 6 SPACER
20 1717749 2 KEY
21 960551 8 CAPSCREW, Hex Head Taptite, 5/16-18 x 2-1/2
22 1717427 1 ANCHOR, Torsion Bar LH
23 1960585 1 CAPSCREW, Hex Head Flange Whizlock, 5/16-18 x 1-3/4
24 1724504 1 POD, Control Pod
25 1721041 1 SPRING
26 1724232 1 LINK, Transmission
27 1721021 1 TRANSMISSION ASSEMBLY
28 1717428 1 ANCHOR, Torsion Bar RH
29 1918448 2 PIN, Cotter
30 1720998 1 ROD
31 1723497 1 PULLEY & HUB ASSEMBLY
32 171241 1 KEY
33 1935048 2 NUT, Hex Two Way Lock, 5/16-18
34 1921977 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
35 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4
36 1924356 1 WASHER
37 108717 1 SPACER
38 1960534 1 WASHER
39 1916950 1 NUT, Hex, 3/8-16
40 1916965 1 LOCKWASHER, 3/8
41 1918447 1 PIN, Cotter
42 1721005 1 ROD
43 1724233 1 LEVER & CLEVIS ASSEMBLY
44 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
19
TP 400-4199-00-RG-SMA
Transmission Group - Tuff Torq K-46AA
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
49
1
24
2
43
25
26
34
545
32
31
44
35
4
36
37
48
43
986686
6
17
40
7
8
4
46
47
10
9
39
17
42
41
15
11
13
12
14
16
5
33
38
33
30
Part of
frame
29
28
21
27
23
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
21
21
17
20
22
21
2318
19
2318
18
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
20
TP 400-4199-00-RG-SMA
Transmission Group - Tuff Torq K-46AA
PART NO. DESCRIPTIONREF NO QTY.
45 1924359 2 WASHER
46 1726750 1 BRACKET, Switch
47 1960252 2 CARRIAGE BOLT, 1/4-20 X 5/8
48 1960694 2 NUT, Flange, Nylon 1/4-20
49 1709188 2 PLUG
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
21
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Peerless Model MST 205-515A
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1722544
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
22
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Peerless Model MST 205-515A
g
PART NO. DESCRIPTIONREF NO QTY.
1 772144 1 Transaxle Cover
2 780086A 2 Needle Bearing 5/8" ID
3 770128 1 Transaxle Case
4 776395 1 Countershaft
5 776409 1 Output Shaft
6 778364 1 Spur Gear (38 teeth)
6A 778365 1 Spur Gear (15 teeth-steel)
7 778330 1 Spur Gear (11 teeth-steel)
8 792136A 2 Shift Key
9 784352 1 Shift Collar
10 784378 1 Shift Rod & Fork
11 778334 1 Bevel Gear (30 teeth)
12 778309 1 Input Bevel Pinion (13 teeth)
13 778327 2 Bevel Gear (16 teeth-steel)(Incl. 14)
14 778327 2 Bevel Gear (16 teeth-steel)(Incl. 13)
15 778312A 1 Ring Gear (43 teeth)
17 786139 1 Drive Pin
18 786102 1 Spacer
20 792077 1 Ball 5/16" dia
21 792078 1 Set Screw 3/8-16 x 3/8"
22 792079 1 Spring
25 792073A 16 Screw 1/4-20 x 1-1/4"
25A 792177 2 Screw 1/4-20 X 1-3/8"
26 792125 4 Retaining Ring (pkg of 2)
27 792035 1 Retaining Ring
28 788040 1 Retaining Ring
29 780072 4 Washer
29A 780160 1 Washer
29B 780165 2 Thrust Washer
30 780108 4 Washer
31 780001 2 Washer (.056 wide) (USE AS NEEDED)
31A 780195 2 Flat Washer (.062 wide)
32 788083 1 Oil Seal 5/8"
34 780194 2 Bushing
35 780193 2 Flanged Bushing
35A 780197 2 Flanged Bushing 3/4"
36 790075 1 Brake Disk
37 790007 1 Brake Pad Plate
38 799021 2 Brake Pad (pkg of 2)
39 786026 2 Dowel Pin
40 792076A 1 Washer
41 790019 1 Brake Lever
42 792073A 1 Screw 1/4-20 x 1-1/4"
42A 792085A 1 Screw 1/4-20 x 2-1/4"
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
23
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Peerless Model MST 205-515A
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1722544
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
24
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Peerless Model MST 205-515A
g
PART NO. DESCRIPTIONREF NO QTY.
43 792075 1 Locknut 5/16-24
44 790025 1 Brake Pad Holder
45 786066 1 Spacer
46 786086 1 Brake Lever Bracket
47 774942 1 Axle (12-7/32" long)
48 774869 1 Axle (16-13/16" long)
49 778356 1 Spur Gear (29 teeth-steel)
50 778354 1 Spur Gear (23 teeth-steel)
51 778352 1 Spur Gear (19 teeth-steel)
52 778350 1 Spur Gear (16 teeth-steel)
53 778346 1 Spur Gear (15 teeth-steel)
56 778355 1 Spur Gear (11 teeth-steel)
57 778353 1 Spur Gear (17 teeth-steel)
58 778351 1 Spur Gear (21 teeth-steel)
59 778349 1 Spur Gear (24 teeth-steel)
60 778345 1 Spur Gear (25 teeth)
63 786071 1 Countershaft Spacer 1-1/8" x 3/8"
64 786072 1 Brake Shaft Spacer 1-3/8" X 3/8"
65 780189 1 Washer
66 776394 1 Input Shaft
67 776396 1 Shifter & Brake Shaft
69 792170 1 Retaining Ring
70 786178 1 Spacer
71B 788092 1 "O" Ring
72A 788091 1 "O" Ring
72 792165 1 Threaded Plug 9/16-18
73 780140 2 Needle Bearing 3/4"
75 786084 2 Sleeve .999 ID
76 780090 1 Washer
77 788078A 1 Inverted Retaining Ring
82 778333 1 Bevel & Spur Gear (30 & 13 teeth)
83 778338 1 Spur Gear (27 teeth)
85 792154 1 Oil Fill Plug
87 788089 1 Oil Seal 9/16"
150 788093 1 Liquid Gasket RTV Silicone
157 788088 2 Oil Seal 3/4"
180 730229A 1 Gear Oil 80W90
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694835 - 2518G
25
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Tuff Torq K-46AA
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
THI CKE R P LAT E
1721021
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
PLATE OF SMALLER INNER DIA.
SHOULD CONTACT PISTONS.
SEAL SIDE; OUTER
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
26
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Tuff Torq K-46AA
PART NO. DESCRIPTIONREF NO QTY.
1 1724316 2 SNAP RING
2 1724312 2 SPLINE COLLAR
3 1724315 1 LOCKWASHER
4 1724313 1 PULLEY
5 1724314 1 FAN
6 1718076 3 RING
7 1724291 1 PUMP SHAFT
8 1724283 1 SEAL
9 1708650 1 RING, Snap
10 1708673 1 BEARING
11 1724282 1 SEALING CAP
12 1724279 2 MAGNET
13 1724280 1 HOLDER, Magnet
14 1718052 1 VENT VALVE
15 1724310 1 PIN
16 1724306 1 ARM, Brake
17 1724311 2 PIN, Spring
18 1708690 2 "O" RING
19 1724308 1 RETURN SPRING
20 1720814 2 BUSHING
21 1718111 2 SEAL
22 1724307 1 SHAFT, Brake
23 1724305 1 SHOE, Brake
24 1724309 1 ACTUATOR, Brake
25 1724285 1 CENTER CASE
26 1718070 1 PIN
27 1720805 3 BOLT
28 1718071 1 FILTER
29 1718084 1 WASHER
30 1724292 1 CYLINDER BLOCK
31 1718078 1 BEARING
32 1718077 1 HOUSING
33 1724293 1 SHAFT MOTOR
34 1708672 1 RING, SNAP
35 1718083 1 BEARING
36 1724294 1 MOTOR GEAR
37 1720439 2 WASHER
38 1724301 1 REDUCTION GEAR
39 1724299 1 COLLAR, Fina
40 1724302 1 FINAL PINION
41 1724300 1 REDUCTION SHAFT
42 1724303 1 AXLE SHAFT
43 1718110 2 BUSHING
44 1718112 2 THRUST WASHER
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
27
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Tuff Torq K-46AA
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
THI CKE R P LAT E
1721021
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
PLATE OF SMALLER INNER DIA.
SHOULD CONTACT PISTONS.
SEAL SIDE; OUTER
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
28
TP 400-4199-00-RG-SMA
Transmission SERVICE PARTS - Tuff Torq K-46AA
PART NO. DESCRIPTIONREF NO QTY.
45 1718113 2 RING
46 1724297 2 DIFFERNIAL PINION
47 1724298 1 FINAL GEAR
48 1724304 1 AXLE SHAFT R
49 1707789 14 SCREW, Tapping
50 1724323 2 WASHER, Seal
51 1724324 2 SCREW, Cap
52 1724284 2 TAPPING SCREW
53 1724278 1 LOWER HOUSING
54 1724287 2 IDS SPRING
55 1724288 2 BALL
56 1724286 2 IDS VALVE
57 1724296 1 SPRING PIN
58 1724295 1 CONTROL ARM
59 1708684 2 SPRING
60 1724289 1 CYLINDER BLOCK
61 1724290 1 SPRING, Pump
62 1718088 1 THRUST PLATE
63 1718086 1 BEARING
64 1718087 1 THRUST PLATE
65 1720426 1 SWASH PLATE
66 1718089 2 THRUST METAL
67 1718061 1 RING
68 1720427 1 PLUG
69 1724318 1 OIL SEAL
70 1724317 1 UPPER HOUSING
71 1724281 1 SHAFT, Bypass
72 1708691 2 "O" RING
73 1707839 1 SPRING PIN
74 1720421 1 PIN
75 1720418 1 LEVER
76 1724319 1 CONTROL SHAFT
77 1720432 2 WASHER
78 1724320 2 FRICTION PLATE
79 1724321 1 CONTROL LEVER
80 1718100 1 PIN, Roll
81 1720422 1 STUD BOLT
82 1720429 1 COLLAR
83 1720430 1 SPRING, Friction
84 1720431 1 WASHER
85 1720437 1 LOCK NUT
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
29
TP 400-4199-00-RG-SMA
Controls Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985853
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
30
TP 400-4199-00-RG-SMA
Controls Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1704849 1 PAD, Brake Black Rubber
2 1717994 1 FOOT PEDAL & BRAKE ARM ASSEMBLY
3 1918447 2 PIN, Cotter, 3/32 X 3/4 (Gear)
3 1918451 2 PIN, Cotter, 1/8 X 3/4 (Hydro)
4 1919326 2 WASHER
5 1713432 1 ROD (Gear)
5 1717115 1 ROD (Hydro)
6 1717439 1 LEVER, Parking
7 1713855 1 KNOB
8 1714385 1 ROD
9 165068 1 SPRING, Extension
10 1921319 1 WASHER
11 1663114 2 BUSHING
12 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4
13 1717438 1 ARM, Idler
14 1721133 1 PULLEY, Idler
15 1717440 1 ROD
16 1717728 1 GUIDE BELT & STUD ASSEMBLY
17 1703900 1 SPACER
18 1935048 1 NUT, Hex Flange, 5/16-18
19 1919438 5 NUT, Hex Lock, 5/16-18
20 1919381 1 WASHER
21 1705249 1 SPACER
22 1708360 1 SPRING, Compression
23 1928352 1 NUT, Hex Head Whiz Lock, 3/8-16
24 1924940 3 WASHER
25 1721276 1 STOP, Belt
26 1667811 1 SPACER
27 1719590 1 SPRING, Extension
28 1921971 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4
29 1916965 1 LOCKWASHER, 3/8
30 1721134 1 PULLEY
31 1713785 1 GUIDE, Brake
32 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4
33 1713784 1 CLAMP
34 1713843 1 KNOB
35 1917372 2 NUT, 5/16-18
36 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1
37 1719534 1 ARM & HUB ASSEMBLY
38 916001 2 PIN, SPRING
39 1719422 1 HUB & BAR ASSEMBLY
40 1719532 1 SHAFT, Control
41 1707002 1 SPRING, Extension
42 1923362 2 NUT, Hex Center Lock, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
31
TP 400-4199-00-RG-SMA
Controls Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985853
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
32
TP 400-4199-00-RG-SMA
Controls Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
43 1960555 1 CARRIAGE BOLT, 5/16-18 x 1-1/2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
33
TP 400-4199-00-RG-SMA
Electrical Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
UNDER SEAT DECK
11
10
9
4
7
986692
41
29
28
32
To
Engine GND
30
31
2
23
23
22
24
27
26
25
22
20
21
14
15
17
13
12
16
8
To
Starter
18
19
33
2
34
1
35
1
UNDER HOOD
6
36
37
To
Headlights
3
From
Solenoid
18
5
To
Starter
To
Charging
Circuit
To
Fuel Shutoff
Magneto
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
Switch
38
To
Engine GND
PTO
34
From
Batter y
Negative
33
UNDER FRAME
N.O.
(Black)
39
Pedal
Switches
N.C.
(Gray)
40
TP 400-4199-00-RG-SMA
Electrical Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1719837 1 WIRE ASSEMBLY (G & H/C)
1 1726624 1 WIRE ASSEMBLY (Hydro)
1 1727759 1 WIRE ASSEMBLY (H/C w/Elec Clutch)
2 1715014 1 TUBE, Shrink
3 1960294 1 NUT, Hex Flange, Whiz Lock, 1/4-20
4 1676123 1 SWITCH, Neutral Safety
5 122023 1 COVER, Terminal
6 172434 1 CLIP, Tinnerman
7 960658 2 CAPSCREW, Round Head, Phillips, #4 - 40 x 3/4
8 1960547 1 LOCKWASHER, Internal Tooth, 5/8
9 101025 3 WASHER, 5/8
10 1717549 1 NUT, Hex, Flange, 5/8-32
11 1717550 1 COVER, Ignition
12 1686734 1 SWITCH, Ignition, 6-Pole (Includes Ref. 8, 9, 10, 11 & 13)
13 1717163 1 IGNITION KEY (Set of 2)
14 1718981 1 SWITCH, Seat
15 1665237 1 WIRE ASSEMBLY
16 1665238 1 CIRCUIT BREAKER
17 1927429 2 CAPSCREW, Taptite Hex Washer Head, 1/4-20 x 5/8
18 1703484 1 CABLE, # 6 x 42-1/2 long (Solenoid to Starter)
19 1686981 1 SOLENOID
20 916622 2 NUT, Hex, 1/4-20
21 916964 2 LOCKWASHER, 1/4
22 920426 2 LOCKWASHER, External Tooth, 5/16
23 1716549 1 CABLE, # 6 x 10 Long, with 2 Ring Terminals
24 1677296 1 BOOT, Insulator
25 1920263 2 NUT, Hex, 5/16-24 NF
26 921319 2 WASHER, Plain, 1/4
27 923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
28 1919326 1 WASHER, Plain, 5/16
29 1919438 1 NUT, Hex Nylon Lock, 5/16-18
30 1723048 1 ROD, Battery Hold Down
31 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 3/4
32 1685215 1 BATTERY
33 1723109 1 CABLE, # 6 x 52-1/2 long (Battery to Ground)
34 1701011 1 TIE-SELF LOCKING (Qty 2 on Gear Models)
35 1720510 1 HARNESS, Wiring
36 934683 2 CLIP, Wire
37 1717050 1 SWITCH, Neutral Start
38 1726556 1 MODULE, No-Mow
39 1720411 1 SWITCH, Pedal, N.O., Black
40 1720401 1 SWITCH, Pedal, N.C., Gray
41 1704379 1 SWITCH
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
35
TP 400-4199-00-RG-SMA
Hood, Dash & Fuel Tank Group
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
3
2
1
32
31
986688
6
5
7
10
10
11
13
1212
10
8
9
14
15
16
18
21
26
31
16
27
25
28
29
8
26
25
19
30
20
18
Panel, Left Side
Panel, Right Side
23
17
22
21
24
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
36
TP 400-4199-00-RG-SMA
Hood, Dash & Fuel Tank Group
g
PART NO. DESCRIPTIONREF NO QTY.
1 1674792 1 ELBOW
2 1726400 1 BUSHING
3 1726636 1 TANK, Fuel
4 1714020 1 CAP, Fuel Tank
5 1715044 1 STRAP
6 1704351 1 FASTENER, Panel
7 1919438 2 NUT, Hex Lock, 5/16-18
8 1921319 A/R WASHER, 1/4 (2 used for Hood, A/R for Bulkhead)
9 1726965 1 BULKHEAD & TUBE ASSEMBLY, Electric PTO
9 1726785 1 BULKHEAD & TUBE ASSEMBLY, Manual PTO
10 1960368 6 NUT, Speed
11 1722737 4 SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
12 1925003 4 SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
13 176440 1 BUSHING
14 1661348 2 MOLDING
15 1726924 1 DASHBOARD
16 1710703 2 SPACER
17 1922837 2 CAPSCREW, Hex Head, 1/4 - 20 x 1-1/2
18 1719484 1 PANEL, Hood, LH
19 1719485 1 PANEL, Hood, RH
20 1714353 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23, 24 & 25)
21 1714787 2 SOCKET, Light
22 1714786 1 BEZEL, Housing
23 1677371 2 BULB, #1156
24 1714785 1 LENS, Headlight
25 1920397 6 NUT, Hex Lock, 1/4-20
26 1714352 1 GRILLE
27 1714875 2 HINGE
28 1704626 2 SPACER
29 1704628 2 PIN, Quick
30 1960295 6 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8
31 1719483 1 HOOD-REGENT w/LOUVERS (ORANGE)
32 1727005 1 DUCT, Cooling
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694667 - 2518G
1694798 - Re
1694800 - 2518G
1694803 - Regent
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
37
TP 400-4199-00-RG-SMA
Seat & Seat Deck Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
812
82
813
986393
1
See
Electrical
Group
82
82
83
3
84
86
7
8
11 85
3
10
8
9
6
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
38
TP 400-4199-00-RG-SMA
Seat & Seat Deck Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1725486 1 SEAT
2 1919381 2 WASHER
3 1716654 4 CARRIAGE BOLT, 5/16-18 x 3/4
4 1960486 2 SCREW, Flat Head, 5/16-18 x 1-1/4
5 1708360 2 SPRING, Compression
6 1931277 6 NUT, Hex Head Whiz Lock, 5/16-18
7 1713758 2 BAR
8 1930591 6 CAPSCREW, Hex Head Whiz Lock Flange, 5/16-18 x 3/4
9 1714317 1 DECK, Seat
10 1935255 2 NUT, Speed 5/16-18
11 1670578 1 KNOB
12 1725533 1 SUPPORT & PIN ASSEMBLY
13 1725530 1 CLAMP & SCREW ASSEMBLY
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
39
TP 400-4199-00-RG-SMA
Wheels & Tire Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985867W
1
2
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
40
5
TP 400-4199-00-RG-SMA
Wheels & Tire Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1719450 2 WHEEL & TIRE ASSEMBLY, Rear 18 x 8-1/2-8
1 1716131 2 WHEEL & TIRE ASSEMBLY, Rear 20 x 8-8
2 1726303 2 WHEEL & TIRE ASSEMBLY, Front 15 x 6-6
2 1726302 2 WHEEL & TIRE ASSEMBLY, Front 15 x 6-1/2-6
3 1960160 4 WASHER, 3/4
4 1722675 4 CAP, Hub
5 960202 4 WASHER, 3/4
6 927794 4 E RING
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
41
TP 400-4199-00-RG-SMA
Decals Group
g
g
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
3
5
6
11
14
13
10
5
985867D
13
STOP ENGINE.
MOTOR ST OPP EN.
MOTOR ANHA LTEN.
STOP M OTOR.
ARRETER LE MOTEUR.
FERMARE MOTORE .
DO NOT TOW!
NIET SLEPEN!
4
9
1
2
NICHT SCHLEPPEN!
IKKE BUGSERE!
NE PAS REMORQUER!
NON TRAINARE!
PUSH
DUWEN
SCHIEBEN
SKUB
POUSSER
SPINGERE
DRIVE
RIJDEN
FAHRE N
KØR
CONDUIRE
GUIDARE
10
3
7
THR O TTLE
8
5
4
4
12
Choke
Fast
Slow
To St art Engi ne
• Seat m ust be occ upied, ground speed c ontrol in neutra l,
PTO must be off, and clutch/brake pedal depressed.
When Operat or Leaves S eat
• Put ground spee d contr ol in neutral,
turn PTO off, and set parking brake.
Tract ion C ont rol
• To stop tractor m otion, fully depress clutch/brake pedal.
• On hydrostat ic drive tr actor s, m oveme nt of t ract ion from
neutral, in either direction, increases ground speed.
To Operat e P TO C lut ch
• The operator must be in seat.
• To engage PTO push PTO Lever forward.
• To disengage PTO pull PTO Lever rearward.
Disengage Engage
Clutch/ Brake Pedal
• Depress clutch/brake pedal to
slow or stop trac tor motion.
To SET Parki ng Brake
• Depress clutch/brake pedal
and p ull k nob UP.
To RELEASE Parking Brake
• Depress clutch/brake pedal
and pu sh k no b DOW N.
Ignit ion Sw it chPTO Lever
Cutti ng Hei ght
Adjustm ent
Mower DOWN
Mower UP
14
2
1
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
ent
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
1694803 - Re
ent
1694835 - 2518G
42
4
4
5
6
TP 400-4199-00-RG-SMA
Decals Group
g
g
PART NO. DESCRIPTIONREF NO QTY.
1 1719635 1 DECAL, Transmission Release Valve
2 1708927 1 DECAL, USA Logo
3 1725157 1 DECAL, Drive Belts, Mower Blades
4 1726985 1 DECAL, Operating Instructions (DOM)(Simplicity)
4 1727829 1 DECAL, Operating Instructions (CE)(Simplicity)
4 1726988 1 DECAL, Operating Instructions (CE)(Simplicity)
4 1726987 1 DECAL, Operating Instructions (CE)(Simplicity)
4 1719519 1 DECAL, Operating Instructions (AGCO)
4 1720625 1 DECAL, Operating Instructions (CE) (AGCO)
4 1720944 1 DECAL, Operating Instructions (AGCO)
4 1716530 1 DECAL, Operating Instructions (AGCO)
4 1722814 1 DECAL, Operating Instructions (AGCO)
4 1723731 1 DECAL, Operating Instructions (AGCO)
4 1726986 1 DECAL, Operating Instructions (AGCO)
5 1722551 3 DECAL, Simplicity
6 1720454 1 DECAL, Touch up Paint (Simplicity, AGCO)
6 1725072 1 DECAL, Touch up Paint (Massey)
7 1713054 1 DECAL, Patent
8 1719776 1 DECAL, PTO Control
9 1722772 1 DECAL, Regent
10 1722779 1 DECAL, 18HP (Simplicity)
10 1722548 1 DECAL, 15HP (AGCO)
10 1722549 1 DECAL, 16HP (AGCO)
10 1722550 1 DECAL, 17HP (AGCO)
10 1727218 1 DECAL, 518 (AGCO)
10 1727219 1 DECAL, 2518 (Massey)
11 1719517 1 DECAL, Stripe L.H. (Simplicity)
11 1722557 1 DECAL, Stripe L.H. (AGCO)
11 1720515 1 DECAL, Stripe L.H. (Massey)
12 1719516 1 DECAL, Stripe R.H. (Simplicity)
12 1722558 1 DECAL, Stripe R.H. (AGCO)
12 1720516 1 DECAL, Stripe R.H. (Massey)
13 1717692 1 DECAL, Simplicity, Icon
13 1708926 2 DECAL, AGCO
13 1714363 2 DECAL, Massey Ferguson
14 1722720 2 DECAL, 515 (AGCO)
14 1722722 2 DECAL, 516 (AGCO)
14 1722724 2 DECAL, 517 (AGCO)
- 1666816 0 GREASE, Multi Purpose
- 1663553 0 LUBRICANT, Anti Seize
- 1666820 0 OIL, 10W-30
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694654 - Regent
1694657 - Regent
1694663 - 2518G
1694667 - 2518G
1694798 - Re
1694800 - 2518G
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
ent
2005
1694803 - Re
1694835 - 2518G
ent
43
TP 400-4199-00-RG-SMA
38" Mower Deck - Belt, Idler Arm & Hitch
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Note: Cotter pin should
be in inner most hole
when assembling new.
As belt wears, move to
outer most hole to
decrease blade stopping
time.
985487
Note: Item Ref. No. 9 must
be assembled from inside
of tractor as shown.
9
10
11
12
13
14
15
2
2
16
Outside
Hole
1
143
5
4
8
6
7
2520
21
22
23
24
6
2
25
17
18
19
4
6
Inside
Hole
18
27
5
37
36
35
Hook Spring (Ref 8)
here when assembled.
34
29
28
33
32
2
Insert Must
Face Out
31
30
19
26
28
143
25
62
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
44
TP 400-4199-00-RG-SMA
38" Mower Deck - Belt, Idler Arm & Hitch
PART NO. DESCRIPTIONREF NO QTY.
1 1716854 1 V-BELT
2 1924940 7 WASHER, 3/8
3 1927557 4 NUT, Hex Head Flange Lock, 5/16
4 1719419 2 ACTUATOR & PAD ASSEMBLY
5 1960607 2 PIN
6 1719526 2 SPRING, Torsion
7 1719434 1 ROD
8 1918451 1 PIN, Cotter
9 1960074 1 CLIP
10 1720450 1 ROD
11 1719777 1 COLLAR, Set
12 1928721 1 SCREW, Set, Cup Point, 5/16-18 x 1/2, G8
13 1720462 1 SPRING, Compression
14 1921972 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/2
15 1719539 1 GUIDE
16 108717 1 SPACER
17 1677135 1 GUARD, Spring
18 1960339 2 NUT, Hex Head Flange Lock, 3/8-16
19 1924356 2 WASHER, 3/8
20 1922755 2 WASHER, 3/8
21 1685150 1 PULLEY ASSEMBLY, (Includes Ref. No. 22)
22 1716553 1 HUB
23 1667812 1 SPACER
24 1720594 1 ARM
25 1924356 2 WASHER
26 1714255 1 SPACER
27 1719433 1 ROD
28 1918447 2 PIN, Cotter
29 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
30 1922605 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G8
31 960641 2 NUT, Hex Lock, Aluminum Insert, 3/8-16
32 157081 2 SPACER
33 1713578 1 ROD
34 1715759 1 ROD
35 1713561 1 HITCH, Mower
36 1960519 1 NUT, Push, 1/2
37 156302 1 SPRING, Extension
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
45
TP 400-4199-00-RG-SMA
38" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
55
Note: Apply Locktite
380 in Hole prior to
assembling on rod
16
17
54
53
49
50
48
52
51
19
1
50
Insert Must
Face Out
86068AA
2
3
4
5
6
7
4
44
38
40
9
10
18
20
21
11
24
22
12
23
46
43
4343
45
47
15
14
44
13
43
20
33
35
34
37
42
35
26
28
56
36
38
39
40
8
41
27
29
30
35
29
34
25
25
4
4
31
32
33
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
46
TP 400-4199-00-RG-SMA
38" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
1 1664847 2 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
2 1714910 1 BRACKET, Upstop
3 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
4 1960044 8 WASHER, 5/16
5 1960074 1 CLIP, Spring
6 1714529 1 ROD, Transport
7 1710703 2 SPACER
8 1960027 2 WASHER, 1/2
9 1923362 2 NUT, Hex Lock, 5/16-18
10 1720372 1 U-BRACKET
11 1960655 1 CARRIAGE BOLT, 5/16-18 x 1-1/4
12 1717297 1 ARM, Rear
13 1924856 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
14 1721635 1 BRACKET, Decal
15 1720919 1 DECAL, Height
16 1721634 1 ROD LATCH
17 1931350 1 CARRIAGE BOLT, 3/8-16 x 1
18 1714327 1 ROCKER ARM ASSEMBLY
19 1920397 1 NUT, Hex Lock, 1/4-20
20 1919439 2 NUT, Hex, Lock ESNA, 3/8-16
21 1665374 1 STRAP
22 1714879 1 ECCENTRIC
23 1924874 1 WASHER, Flat, 5/16
24 1960541 2 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
25 960643 3 NUT, Hex, Flange Collar Lock, 5/16-18
26 960641 2 NUT, Hex Lock, Aluminum Insert, 3/8-16
27 1960594 1 CAPSCREW, Hex Head Taptite, 5/16 x 7/8
28 1704082 1 NUT, Adjuster
29 1960236 4 SPACER
30 1719846 1 BAR, Roller, Support
31 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1
32 1960373 2 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
33 1960520 2 PUSHNUT, 5/8"
34 1717675 2 ROLLER, End
35 1924366 3 WASHER, 5/8
36 1668513 8 ROLLER
37 1719905 1 SHAFT ASSEMBLY
38 1960288 2 PIN
39 1960221 2 CLIP, Hair
40 1714760 2 GAUGE WHEEL
41 158399 2 E-RING, 1/2
42 1714878 2 ARM ASSEMBLY, Adjustable
43 1924940 4 WASHER, Flat, 3/8
44 1611705 1 SPACER
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
47
TP 400-4199-00-RG-SMA
38" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
55
Note: Apply Locktite
380 in Hole prior to
assembling on rod
16
17
54
53
49
50
48
52
51
19
1
50
Insert Must
Face Out
86068AA
2
3
4
5
6
7
4
44
38
40
9
10
18
20
21
11
24
22
12
23
46
43
4343
45
47
15
14
44
13
43
20
33
35
34
37
42
35
26
28
56
36
38
39
40
8
41
27
29
30
35
29
34
25
25
4
4
31
32
33
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
48
TP 400-4199-00-RG-SMA
38" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
45 1715024 1 SPACER
46 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
47 1721081 1 ARM, Pitch
48 1720599 1 LATCH
49 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2-1/4
50 1918265 2 WASHER
51 1723321 1 SPRING, Compression
52 1960518 1 PUSHNUT, 1/4
53 1713995 1 GRIP
54 1723124 1 BUTTON
55 1721620 1 HANDLE ASSEMBLY
56 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
49
TP 400-4199-00-RG-SMA
38" Mower Deck - Housing, Arbors & Blades Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
30
29
Note: 2 for Export
1 for Domestic
27
26
31
28
36
35
33
32
30
13
986782
15
1
2
2
Torque to
50-70 ft/lbs
6
8
13
1
3
7
7
22
15
12
5
9
33
6
32
28
11
5
10
34
28
4
8
Export
Only
7
7
9
10
27
11
40
40
41
38
2725,14
24
37
22
23
1716
18
17
1918
20
21
Torque to 45-55 ft. lbs.
39
3937
19
21
22
23
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
50
TP 400-4199-00-RG-SMA
38" Mower Deck - Housing, Arbors & Blades Group
PART NO. DESCRIPTIONREF NO QTY.
1 1714419 2 NUT, Hex, Flange, 9/16-8
2 1713675 4 WASHER, Belleville
3 1713160 1 PULLEY, LH, 4" OD
4 1917372 1 NUT, Hex, 5/16-18
5 1713616 2 HUB
6 1713199 2 COVER, Arbor Housing
7 1705897 4 BEARING
8 1713204 2 SPACER
9 1707335 2 GASKET, Foam
10 1713338 2 ARBOR HOUSING ASSEMBLY (Includes Fitting Ref. No. 11)
11 1704314 2 FITTING, Grease
12 1714321 1 STOP, Belt, LH
13 1927557 6 NUT, Hex, Whiz Lock, 5/16-18
14 1931320 2 CARRIAGE BOLT, 1/4-20 x 1-1/4, (CE)
15 1924940 6 WASHER, Flat, 3/8
16 1713619 2 WASHER
17 1713612 2 SHAFT, Arbor
18 1713196 2 SHIELD, Grass, Lower
19 1704856 1 BLADE, Mower, 16-1/8
20 1704101 1 BLADE, Mower, 22-1/4
21 1713089 2 WASHER, Hex
22 1656916 2 WASHER, Spring
23 923471 2 CAPSCREW, Hex Head, 7/16-14 x -1/4
24 1723422 1 MOWER DECK HOUSING, 38", Orange
24 41723422 1 MOWER DECK HOUSING, 38", Red
25 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
26 1705449 1 DEFLECTOR, Plastic
27 1960518 2 NUT, Push On
28 1960353 6 CARRIAGE BOLT, 1/4-20 x 1-1/4, (CE)
29 1704873 1 CLAMP
30 1919326 1 WASHER, Plain, 5/16
31 1723938 1 SPRING
32 1916964 2 LOCKWASHER, 1/4
33 1916622 2 NUT, Hex, 1/4-20
34 1706709 1 ROD, Deflector, Front
35 1714346 1 PULLEY, RH, 5-1/4OD
36 1714322 2 STOP, Belt, RH
37 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
38 1705115 2 PLUG, Plastic
39 1721143 1 COVER ASSEMBLY, LH, (CE)
40 1664847 3 CARRIAGE BOLT, 1/4-20 x 1-1/4, (CE)
41 1721142 1 COVER ASSEMBLY, RH, (CE)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694688 - 38" Mower
1694689 - 38" Mower
1694690 - 38" Mower
1694691 - 38" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
51
TP 400-4199-00-RG-SMA
44" Mower Deck - Belt, Idler Arm & Hitch Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Arbor Drive•
Pulley
Arbor Drive•
Pulley
Engine•
Pulley
Tensioning
Idler Pulley
1
Arbor Drive•
Pulley
13
14
12
985348
2
3
4
5
6
7
8
11
24
19
3
17
23
22
16
16
Hook Spring (Ref 25)
here when assembled.
21
18
Slot "A"
17
20
3
19
Insert Must
Face Out
9
10
To Slot "A"
13
15
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
52
TP 400-4199-00-RG-SMA
44" Mower Deck - Belt, Idler Arm & Hitch Group
PART NO. DESCRIPTIONREF NO QTY.
1 1718017 1 V-BELT, Arbor Drive
2 1921972 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/2
3 1924940 3 WASHER, 3/8
4 171247 1 PULLEY ASSEMBLY, 5 OD
5 1667812 1 SPACER
6 1665835 1 GRIP, Lever
7 1718020 1 ARM, Idler
8 1916965 1 LOCKWASHER, Spring, 3/8
9 1916950 1 NUT, Hex, 3/8-16
10 1930645 1 NUT, Hex Flange Lock, 3/8-16
11 1715772 1 SPRING, Idler Arm
12 1960339 1 NUT, Hex, Center Lock, 3/8-16
13 1924356 2 WASHER, 3/8
14 1714255 1 SPACER, Idler Arm
15 1922605 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
16 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
17 157081 2 SPACER
18 1919384 1 WASHER, 3/8
19 960641 2 NUT, Hex Lock Aluminum Insert, 3/8-16
20 1713578 1 ROD, Mower Hitch
21 1715759 1 ROD, Latch
22 1713561 1 HITCH
23 1960519 1 NUT, Push, 1/2
24 156302 1 SPRING, Hitch Release
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
53
TP 400-4199-00-RG-SMA
44" Mower Deck - Height Adjustment & Roller Bar Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985778
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
54
TP 400-4199-00-RG-SMA
44" Mower Deck - Height Adjustment & Roller Bar Group
PART NO. DESCRIPTIONREF NO QTY.
1 1960373 5 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
2 1716555 1 BRACKET, Upstop
3 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
4 1960044 8 WASHER, 5/16
5 1720372 1 BRACKET, U
6 1960074 1 CLIP, Spring
7 1714529 1 ROD, Transport
8 1710703 2 SPACER
9 1923362 4 NUT, Hex Lock, 5/16-18
10 1717145 1 ARM, Rear
11 1960223 1 CARRIAGE BOLT, 5/16-18 x 1-1/4
12 1721552 1 QUADRANT 44"
13 1720919 1 DECAL, Height
14 1721635 1 BRACKET, Decal
15 1924856 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
16 1931350 1 CARRIAGE BOLT, 3/8-16 x 1
17 960641 1 NUT, Hex Lock, Alum Insert, 3/8 (Later Models)
17 1916950 1 NUT, Hex, 3/8 (Early Models)
18 1916965 1 WASHER, Lock, 3/8 (Early Models)
19 1704082 1 NUT, Adjuster
20 1721634 1 ROD, Latch
21 1919439 2 NUT, Hex Lock, ESNA, 3/8-16
22 1715671 1 ARM ASSEMBLY, Rocker
23 1665374 2 STRAP
24 1714879 1 ECCENTRIC
25 1924874 1 WASHER, 5/16
26 1917356 2 LOCKWASHER, 5/16 (Early Models)
27 960643 2 NUT, Hex, Flange Collar Lock, 5/16-18 (Later Models)
27 1917372 2 NUT, Hex, Full, 5/16-18 (Early Models)
28 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
29 1709195 2 SPACER, 1-1/4 x 5/8
30 1960236 4 SPACER
31 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1
32 1960373 4 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
33 1719907 1 SHAFT ASSEMBLY
34 1960520 2 PUSHNUT, 5/8
35 1717675 2 ROLLER, End
36 1924366 7 WASHER, 5/8
37 1668513 9 ROLLER
38 1719846 1 BAR, Roller, Support
39 1960288 2 PIN
40 1960221 2 CLIP, Hairpin
41 1714760 3 WHEEL, Gauge
42 1960027 2 WASHER, 1/2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
55
TP 400-4199-00-RG-SMA
44" Mower Deck - Height Adjustment & Roller Bar Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985778
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
56
TP 400-4199-00-RG-SMA
44" Mower Deck - Height Adjustment & Roller Bar Group
PART NO. DESCRIPTIONREF NO QTY.
43 158399 2 E-RING, 1/2
44 1714878 2 ARM ASSEMBLY, Adjustable
45 1924940 4 WASHER, 3/8
46 1611705 1 SPACER
47 1718019 1 ARM, Pitch
48 1667812 1 SPACER
49 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
50 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 3/4
51 1920397 1 NUT, Hex Lock ESNA, 1/4-20
52 1720599 1 LATCH
53 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2-1/4
54 1918265 2 WASHER
55 1676526 1 SPRING, Compression
56 1960518 1 PUSH NUT
57 1713995 1 GRIP, Lift Lever
58 1720689 1 BUTTON
59 1721620 1 HANDLE ASSEMBLY
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
57
TP 400-4199-00-RG-SMA
44" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
35
Apply gasket
former to this
surface if foam
gasket (Ref. 10)
is not used.
32
31
32
31
42
33
36
85346AA
Torque nuts to 50-70 ft. lbs.
1
3
37
2
2
3
38
4
5
6
7
8
14
9
27
10
12
11
14
28
27
26
Plug holes
outside foot rest
as required
Torque screws to 45-55 ft. lbs.
30
29
34
23
24
25
25
22
39
14
40
13
41
Plug holes
outside foot rest
as required
15
16
17
18
19
20
21
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
58
TP 400-4199-00-RG-SMA
44" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
1 1714419 3 NUT, Hex, Flange, 9/16-8
2 1713675 6 WASHER, Belleville
3 1713161 2 PULLEY, RH Arbor & LH Arbor, 41/2
4 1713616 1 HUB, Adapter, LH
5 1655729 3 COVER, Arbor Housing
6 108202 3 BEARING, Upper
7 1715724 3 SPACER, Sleeve, Upper Bearing
8 1715723 3 SPACER, Arbor, Internal
9 1705897 3 BEARING, Lower
10 1707335 3 GASKET, Foam
11 1713338 3 ARBOR HOUSING ASSEMBLY (Includes Fitting Ref. No. 12)
12 1704314 3 FITTING, Grease
13 1720560 1 COVER, Arbor LH
14 1664847 28 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
15 1713619 3 WASHER, Cup, 23/32
16 1713612 1 SHAFT, Arbor LH
17 1713196 3 SHIELD, Grass, Lower
18 1704100 3 BLADE, Mower, 16-1/8
19 1713089 3 WASHER, Hex
20 1656916 3 WASHER, Spring
21 923471 3 CAPSCREW, Hex, Head, 7/16-14 x 1-1/4
22 1713609 1 SHAFT, Arbor (RH)
23 41686816 1 HOUSING ASSEMBLY, Red
23 1686816 1 HOUSING ASSEMBLY, Orange
23 61686816 1 HOUSING ASSEMBLY, Black
24 1715673 1 COVER, Arbor (RH)
25 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
26 1960518 2 NUT, Push
27 1960353 2 WASHER, Plain, 1/4
28 1704873 1 CLAMP
29 1919326 1 WASHER, Plain, 5/16
30 1705080 1 SPRING, Deflector Retaining
31 1916964 2 LOCKWASHER, 1/4
32 1916622 2 NUT, Hex, 1/4-20
33 1706709 1 ROD, Deflector, Front
34 1705115 1 * PLUG, Hole
35 1705449 1 DEFLECTOR, Plastic
36 1713613 1 HUB, Pulley, RH
37 1718021 1 PULLEY, Arbor (Center)
38 1713614 1 HUB, Pulley (Center)
39 1713610 1 SHAFT, Arbor (Center)
40 1924856 3 * CAPSCERW, Hex Head, Taptite, 5/16-18 x 1/2
41 1931277 3 * NUT, Hex Whiz Lock, 5/16-18
42 1723323 1 CAP, Spring End
Footnotes
* Plug holes outside footrest as required
The above parts group applies to the following Mfg. Nos.:
1694827 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
59
TP 400-4199-00-RG-SMA
Hardware Identification & Torque Specifications
Common Hardware Types
Hex Head Capscrew
Carriage Bolt
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
second number is present it represent the
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
body length
Washer
Lockwasher
Hex Nut
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
(16 in this
of the
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
Nut, 1/2”
Inside
Diameter
1
1/4 3/4
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
No
Marks
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
NOTES
3.4
3.5
4.9
5.5
in/lbs
41
43
60
68
4.6
4.9
6.8
7.7
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
© Copyright Simplicity Manufacturing, Inc.
All Rights Reserved. Printed In USA.
2005
Loading...
