Snapper LT18538 User Manual

Parts Manual fo

r

E

)

)

)

)

)

)

)

)

ELECTRIC CLUTCH HYDRO DRIV

RMO & ACS TRACTORS

LT-200 SERIES

MODEL

ELT18538 (2690593
ELT18538 (2690685

ELT2044 (2690689
ELT2044 (2690594

LT18538 (2690577

LT2042 (2690578
LT2044 (2690579
LT2250 (2690580

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

McDonough, GA, 30253 U.S.A.

Revision IR,

6/8/2007

Manual No. 7006474

TP 400-5279-IR-TC-N

s

PAGE GROUP

4
6

8
10
12
14
16
18
20
22
24
26
28
32
34
36
40
42

Wheels & Tires Group
Hood, Grille & Dash Group
Steering Group
Seat Deck & Fuel Tank Group
Frame & Front Axle Group
Controls Group
Transmission Group
Engine Group
Lift Group - Manual
38" & 42" Mower Deck - Housing, Arbors & Blades Group
38" & 42" Mower Deck - Belt, Idler Arm & Hitch Group
38" & 42" Mower Deck - Height Adjustment & Roller Bar Group
44" Mower Deck - Housing, Arbors & Blades Group
44" & 50" Mower Deck - Belt, Idler Arm & Hitch Group
44" & 50" Mower Deck - Height Adjustment & Roller Bar Group
50" Mower Deck - Housing, Arbors & Blades Group
Decals Group
Electrical Group

Table Of Content

LT-200 SERIES

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

3

TP 400-5279-IR-TC-N

Wheels & Tires Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

4

LT-200 SERIES

Wheels & Tires Group

p

y

Part No Descri

1 1729708 2 WHEEL & TIRE ASSEMBLY, Front
2 1731951 1 TIRE, Turf 15 X 6.00 - 6 Saver TL
3 1664090 1 TUBE, Tire, Front
4 1726301 1 WHEEL & BUSHINGS ASSEMBLY, Front
5 1713167 4 BEARING
6 2812808 1 FITTING, Grease, 1/4-28 Thread
7 2172353 2 VALVE STEM & CAP
8 2860183 8 WASHER, 3/4

9 1722717 4 WASHER, Special Yellow
10 2827794 4 RING, Retaining
11 1722676 4 CAP, Hub
12 1713409 2 KEY, 3/16 x 3/16 x 3
13 2860202 2 WASHER
14 1730181 2 SPACER, 0.77 ID x 1-1/4 OD x 1.65 LG Powdered Metal Black
15 1729709 2 WHEEL & TIRE ASSEMBLY, Rear 20"
15 1732324 2 WHEEL & TIRE ASSEMBLY, Rear 22"
16 1731952 1 TIRE, Turf 22 X 8.00 - 8 Saver TL
16 1731953 1 TIRE, Turf 22 X 10.00 - 8 Saver TL
17 2164247 1 TUBE, Tire, Rear, 22 X 8 - 8
17 2173477 1 TUBE, Tire, Rear, 22 X 10 - 8
18 1731954 1 WHEEL, Hub

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

5

TP 400-5279-IR-TC-N

Hood, Grille & Dash Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

6

LT-200 SERIES

Hood, Grille & Dash Group

p

y

Part No Descri

1 1728031D 1 HOOD, W/Scoop

2 1960295 12 CAPSCREW, Whizlock, 1/4-20 x 5/8

3 1731891 1 DUCT, Air Inlet Plastic

4 1960392 1 SCREW, Pan Head #10-24 x 1/2

5 1960674 2 PUSH NUT

6 1728090 1 KNOB, Cruise Lock Green Plastic

7 1727999 1 COVER, Steering Shaft Plastic

8 1664847 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4

9 1919381 2 WASHER, Plain, 5/16
10 1728089 1 KNOB, Brake Lock Plastic
11 1727293 1 DASHBOARD
12 1732031 1 GUIDE, Hood RH
13 1960096 2 WASHER
14 1928707 2 RIVET, Pop, Stem Black
15 1732030 1 GUIDE, Hood LH
16 1930641 12 NUT, Hex Flange Whiz, 1/4-20
17 1727295D 1 PANEL, Hood LH Side
18 1723123 1 ROD, Dash Support
19 1925003 1 SCREW, Taptite, 1/4-20 x 1/2
20 1933896 1 NUT, Hex, Nylon, Lock, #10-24
21 1727279A 1 HINGE, Hood LH
21 1727280A 1 HINGE, Hood RH
22 1728059D 1 GRILLE
23 1727294D 1 PANEL, Hood RH Side
24 1728975 1 INSERT, Lightbar
25 1727296 1 HEADLIGHT ASSEMBLY

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

7

TP 400-5279-IR-TC-N

Steering Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

8

LT-200 SERIES

Steering Group

p

y

Part No Descri

1 1725024 1 CAP, Steering Wheel, Plain

2 1960576 1 NUT, Hex Lock, ESNA Light, 5/8-18, Thin

3 1924366 1 WASHER, 5/8

4 1728069 1 STEERING WHEEL, w/Aluminum Insert

5 1611710 1 RING, Klipring Extension

6 1960114 2 WASHER

7 1729665 2 BUSHING, Steering

8 1931277 4 NUT, Hex, Flange Whizlock, 5/16-18

9 1727940A 1 BRACKET, Sector Support
10 1930591 4 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
11 1931211 2 NUT, Whizlock, 3/8-16
12 1728027 1 GEAR, Steering, 26 teeth
13 1728122 2 SPACER, Sector Gear Powdered Metal Yellow
14 1934654 2 CAPSCREW, Hex, Flange, Whizlock, 3/8-16 x 1
15 1727813 1 SHAFT, Steering Gear & Spline Yellow

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

9

TP 400-5279-IR-TC-N

Seat Deck & Fuel Tank Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

10

LT-200 SERIES

Seat Deck & Fuel Tank Group

p

y

Part No Descri

1 1730158 1 SEAT, Low Back

1 1730159 1 SEAT, Hi Back, Steel Pan

2 1919381 4 WASHER, Plain, 5/16

3 1727268 1 LATCH, Seat 20GA E-Coat

4 1960667 4 CAPSCREW, Hex Head Flange Dog Point, 5/16-18 x 1

5 1731300 4 SPACER, Powdered Metal Yellow

6 1727265A 1 SUPPORT, Seat 12GA

7 1960282 2 CARRIAGE BOLT, 5/16-18 x 3/4

8 1727266A 1 PIVOT, Seat 10GA

9 1931333 4 BOLT, Carriage, 5/16-18 x 3/4
10 1960686 4 NUT, Hex Flange, 5/16-18 ESNA
11 1729576 2 BOLT, Shoulder 5/16-18 G5
12 1704728 2 SPRING, Compression
13 1709256 4 WASHER, Spring Black
14 1704724 2 COVER, Spring
15 1729001 1 POD, LH Cup Holder
16 1674231 1 ELBOW FITTING
17 1654930 1 BUSHING
18 1727305 1 TANK, Fuel
19 1715917 1 CAP, Gas
20 1728006 1 PAD, Footrest LH
21 1931277 4 NUT, Hex, Flange Whizlock, 5/16-18
22 1728007 1 PAD, Footrest RH
23 1727264D 1 DECK, Seat w/Footrests (Red)
24 1960536 6 SCREW, Hex, Washer Head, Plastite, 1/4-20 x 1/2
25 1930601 2 SCREW, Taptite, 5/16-18 x 5/8
26 1729000 1 POD, RH Lift Quadrant

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

11

TP 400-5279-IR-TC-N

Frame & Front Axle Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

12

LT-200 SERIES

Frame & Front Axle Group

p

y

Part No Descri

1 1728086 2 PIVOT, Hood Powdered Metal

2 1931277 16 NUT, Hex, Flange Whizlock, 5/16-18

3 1727982A 1 SUPPORT, Muffler, Hood 14GA

4 1931335 2 CARRIAGE BOLT, 5/16-18 x 1

5 1930601 14 SCREW, Taptite, 5/16-18 x 5/8

6 2860744 1 CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5

7 1960035 1 WASHER, Flat, 5/8

8 1727904A 1 SUPPORT, Front Footrest RH

9 1727260A 1 TOWER, 12GA
10 1731310A 1 SUPPORT, Seat Deck 12GA
11 1731309A 1 SUPPORT, Rear Frame 12GA
12 1930591 14 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
13 1727905A 1 SUPPORT, Front Footrest LH
14 1727901A 1 FRAME, 12GA
15 2860646 1 NUT, Hex Flange Two-Way Lock, 5/8-11
16 1727902A 1 PLATE, Axle Support
17 1930650 2 LOCKNUT, Hex, Flange, 7/16-14
18 2176440 4 BUSHING, Nylon, 3/4 Diameter
19 1704214 3 FITTING, Zerk
20 1727868 1 LINK, Drag
21 1727873A 1 SPINDLE & ARM ASSEMBLY, LH
22 1960747 2 NUT, Hex Nylock 3/8-24
23 1960160 4 WASHER, 3/4
24 1728080A 1 ROD, Tie
25 1930645 2 NUT, Hex, Flange, Locking, 3/8-16
26 1727872A 1 SPINDLE & CUP ASSEMBLY, RH
27 1731912 2 BUSHING, Powdered Metal
28 1960032 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
29 1927531 2 CAPSCREW, 7/16-14 x 2
30 1721918A 1 HOOK, “J”
31 1730186 2 BUSHING, Axle Pivot Powdered Metal
32 1728018 1 AXLE, Front Iron Casting Machined
33 1611710 2 RING, Klipring Extension
34 1726504 2 CAP, Hub

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

13

TP 400-5279-IR-TC-N

Controls Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

14

LT-200 SERIES

Controls Group

p

y

Part No Descri

1 1727259 1 PAD, Foot Pedal Reverse

2 1960223 2 CARRIAGE BOLT, 5/16-18 x 1-1/4

3 1727935 2 SPACER, Pivot Powdered Metal

4 1727246A 1 PEDAL, Reverse

5 1728024 1 SPACER, Foot Pedal Powdered Metal

6 1931277 6 NUT, Hex, Flange Whizlock, 5/16-18

7 1728025 1 ACTUATOR, RMO Switch 20GA

8 1727898 1 ROD, Cruise Latch, 16.97LG

9 1728111 2 CLIP, Linkage, Black
10 1727267 1 ROD, Parking Brake, 16.38 LG Yellow
11 1960268 2 CARRIAGE BOLT, 3/8-16 x 1-1/4
12 1727894A 1 BRACKET, Idler 7GA
13 1729620 1 SPRING, Extension 07.52 LG Black
14 1728001 1 PULLEY, 3 OD Plastic
15 1960687 2 NUT, Hex Flange, 3/8-16 ESNA
16 1931335 1 CARRIAGE BOLT, 5/16-18 x 1
17 1728000 1 PULLEY, Idler
18 1721995 1 SPRING, Extension
19 1918447 1 PIN, Cotter 3/32 x 3/4
20 1727253 1 ROD, Brake, 15.1 LG
21 1731262 1 SPRING, Extension 05.37 LG Black
22 1727261 1 PEDAL, Brake Rubber
23 1722460 1 PIN, Quick
24 1727254 1 ROD, Brake Return, 12.60 LG
25 1727252A 1 PEDAL ASSEMBLY, Brake
26 1727899 1 ROD, Cruise Latch, 2.83 LG
27 2159181 1 SPRING, Tension, Clutch
28 1727897 1 LATCH, Cruise Powdered Metal
29 1728976 1 BOLT, Shoulder 5/16-18 G5
30 1727269A 1 LATCH, Brake Lock 10GA
31 1729576 1 BOLT, Shoulder 5/16-18 G5
32 1930601 3 SCREW, Taptite, 5/16-18 x 5/8
33 1727911A 1 PLATE, Bearing
34 1727909A 1 BRACKET, Pedal Pivot 10GA
35 1930591 1 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
36 1727250A 1 PEDAL ASSEMBLY, Forward
37 1721675 1 PAD, Foot Pedal Forward

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

15

TP 400-5279-IR-TC-N

Transmission Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

16

LT-200 SERIES

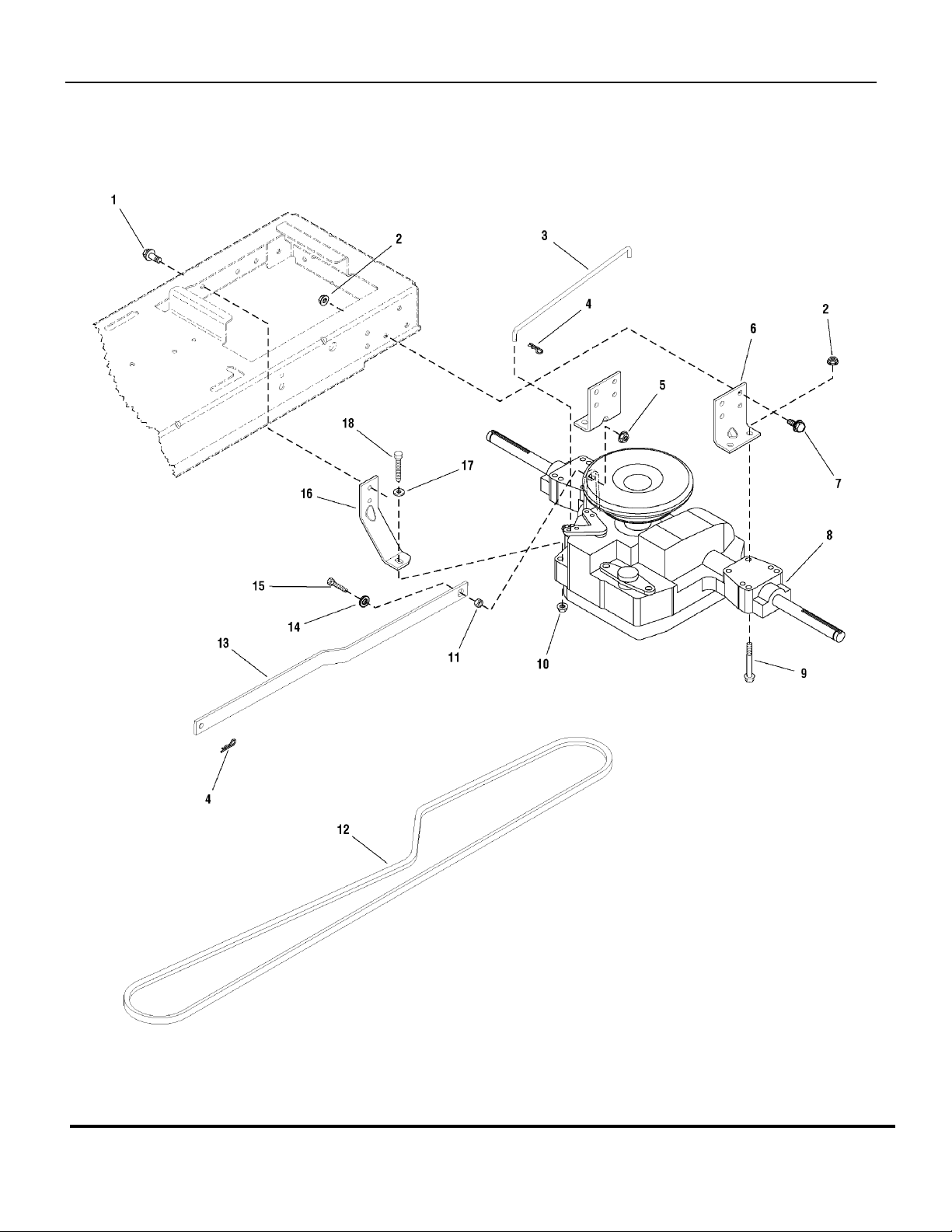

Transmission Group

p

y

Part No Descri

1 1664847 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4

2 1931277 8 NUT, Hex, Flange Whizlock, 5/16-18

3 1728120 1 ROD, Bypass, 11.44 LG Yellow

4 1722460 2 PIN, Quick

5 1960686 1 NUT, Hex Flange, 5/16-18 ESNA

6 1727903A 2 SUPPORT, Transmission

7 1930591 4 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4

8 1729588 1 TRANSMISSION ASSEMBLY, K46

8 1729589 1 TRANSMISSION ASSEMBLY, K46HD (Used with 22" Tire Models)

9 1960586 4 SCREW, Hex Head Flange Lock, 5/16-18 x 2-1/2
10 1960686 1 NUT, Hex Flange, 5/16-18 ESNA
11 1666697 1 SPACER
12 1728008 1 V-BELT, Drive Belt, Aramid/Kevlar
13 1727258A 1 ARM, Control 7GA
14 1919326 1 WASHER, Flat, 5/16
15 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1
16 1728043A 1 STRAP, Torque 7 GA
17 1919381 1 WASHER, Plain, 5/16
18 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

17

TP 400-5279-IR-TC-N

Engine Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

18

LT-200 SERIES

Engine Group

p

y

Part No Descri

1 -- 1 * ENGINE, 18.5HP Briggs & Stratton Intek, Mod. #31Q777-0113-

B1

1 -- 1 * ENGINE, 20HP Briggs & Stratton Twin Inte, Mod. #40G777-

0400-E1

1 -- 1 * ENGINE, 22HP Briggs & Stratton Twin Intek, Mod. #44K777-

0115-E1
2 1717473 1 VALVE, Shut Off Oil Drain
3 1731970 1 SEAL, Short
3 1731971 1 SEAL, Long (B&S Single)
4 1728058A 1 SHIELD, Heat
5 1930601 4 SCREW, Hex Washer Head Taptite 5/16-18 x 5/8
6 1727997A 1 SHIELD, Heat (B&S Twin)
7 1727994 1 MUFFLER (B&S Twin)
8 1727976A 1 BRACKET, Muffler Mount
9 1727979 1 PIPE, Exhaust R.H. (B&S Twin)

10 1727980 1 PIPE, Exhaust L.H. (B&S Twin)
11 1727996A 1 SHIELD, Heat
12 1727993 1 MUFFLER
13 1728959 1 PIPE, Exhaust (B&S Single)
14 1925003 4 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
15 2834683 1 CLIP, Speed Wire
16 1731410 1 CONTROL, Throttle Double (B&S Single)
16 1731411 1 CONTROL, Throttle Double (B&S Twin)
17 2860112 2 CLAMP, Hose
18 1732001 1 HOSE, Fuel
19 1730268 2 CLIP, Hose
20 2827187 3 SCREW, Hex Washer Head Taptite 3/8-16 x 1 (B&S Single)
21 2820427 1 LOCKWASHER, External Tooth 3/8
22 1924940 1 WASHER, 3/8
24 1732576 1 PULLEY & HUB ASSEMBLY, Engine
25 1701011 1 TIE, Self Locking
26 1732875 1 RETAINER, Clutch
28 1731275 1 CLUTCH, Electric OGURA
29 1708264 1 WASHER, Hex
30 1918199 1 LOCKWASHER, Spring
31 1960649 1 CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5
32 1731214 1 GASKET, Exhaust
33 2828635 4/1 SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/4
34 1936228 2 CAPSCREW, Hex Socket Head 5/16-18 x 3/4 G8
35 1917356 2 LOCKWASHER, Spring 5/16

tionItem Qt

Note

Footnotes:

NOTE* See your local Briggs & Stratton distributor for parts and service.

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

19

TP 400-5279-IR-TC-N

Lift Group - Manual

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

20

LT-200 SERIES

Lift Group - Manual

p

y

Part No Descri

1 1730264 1 DECAL, Height Of Cut
2 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8 G5
3 1727985A 1 QUADRANT, Lift Height 12GA
4 1930641 1 NUT, Hex Flange Whiz, 1/4-20
5 1722302 1 GRIP
6 1728070 1 ROD, Lift Handle E-Coat, 17.7 LG
7 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1
8 1960044 1 WASHER, Plain, 21/64 x 1-1/4
9 1729652 1 SPRING, Torsion, 2.12 LG Black

10 1728990A 1 CLEVIS, Lift 7GA
11 1727935 1 SPACER, Pivot Powdered Metal
12 1931277 3 NUT, Hex, Flange Whizlock, 5/16-18
13 1727911A 1 PLATE, Bearing
14 1930601 2 SCREW, Taptite, 5/16-18 x 5/8
15 1960074 4 CLIP, Spring
16 1960170 2 WASHER, 1/2
17 2721135 2 PIN, Threaded Shoulder
18 1731417A 2 ARM, Lift Rear 10GA
19 1928352 2 NUT, Hex, Flange, Whizlock, 5/16-18 x 1/2
20 1732070 2 DECAL, CAUTION! Pinch Point
21 1732426 2 BOLT, Shoulder
22 1960687 2 NUT, Hex Flange, 3/8-16 ESNA
23 1656397 2 SPACER (Used on 38" & 42" Mower

23 1666294 2 SPACER (Used on 44" & 50" Mower

24 1731894 2 TRUNNION, Powdered Metal
25 1727955 2 ROD, Lower Life, 10.00 LG
26 1727951A 1 SHAFT ASSEMBLY, Lift
27 1727954 1 ROD, Lift, 5.43 LG
28 1731939 1 SPRING, Extension 5.10 LG Black (Used on 44" & 50" Mower

tionItem Qt

Note

Decks)

Decks)

Decks)

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

21

TP 400-5279-IR-TC-N

38" & 42" Mower Deck - Housing, Arbors & Blades Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

22

LT-200 SERIES

38" & 42" Mower Deck - Housing, Arbors & Blades Group

p

y

Part No Descri

1 1960093 2 NUT, Push, 3/8
2 721371 1 ROD, Deflector
3 1931333 6 BOLT, Carriage, 5/16-18 x 3/4
4 721369A 1 BRACKET, Hinge 9GA
5 720154 1 SPRING, Torsion
6 1931277 6 NUT, Hex, Flange Whizlock, 5/16-18
7 721339 1 DEFLECTOR & SUPPORT ASSEMBLY, Chute Riveted
8 720911A 2 PLATE, Rear (38" Only)
8 721083A 2 PLATE, Rear (42" Only)
9 1732952 2 PULLEY, 5.25 (38" Only)
9 1732354 2 PULLEY, 5.50 (42" Only)
9 1734064 2 PULLEY, 7.00 (42" Only) (CE/Export)

10 1731209A 1 UPSTOP, "L" 10GA
11 2108202 2 BEARING, Upper
12 1922014 2 NUT, Hex Lock, ESNA Light, 5/8-18, Thin
13 7072440 2 SPACER, Pulley, 38" Deck
14 7012491 2 RETAINING RING, Extension, 1-3/4
15 1923683 10 SCREW, Hex, Washer Head, Taptite, 3/8-16 x 3/4
16 1732555A 1 UPSTOP, "L" 10GA (38" Only)
17 1687207 1 HOUSING, 42" (42" Only)
17 1687206 1 HOUSING, 38" (38" Only)
18 1704314 1 FITTING, Grease
19 7072537 1 SHAFT, Spindle, 38" Deck
20 1731372Z 1 TUBE & PLATE ASSEMBLY, Spindle
21 7024467 4 WASHER, Belleville
22 7091633 2 NUT, Hex 9/16-18
23 1731898A 2 BLADE, Mower 42" (42" Only)
23 1731914 2 BLADE, Mower 38" (38" Only)
24 1731917 2 WASHER, Spindle Blade Powdered Metal
25 1733888A 2 COVER, Spindle (38" Only) (CE/Export)
26 1733889A 3 SUPPORT, Spindle Cover (38" Only) (CE/Export)
27 1925003 6 SCREW, Tapitite 1/4-20 x 1/2 (38" Only) (CE/Export)
28 1734035A 2 COVER, Pulley (42" Only) (CE/Export)
29 1734039A 2 SCREW, Taptite 5/16-20 x 1/2 (42" Only) (CE/Export)
30 1924856 4 LOCKWASHER, Interior Tooth 5/8 (42" Only) (CE/Export)

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

23

TP 400-5279-IR-TC-N

38" & 42" Mower Deck - Belt, Idler Arm & Hitch Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

24

LT-200 SERIES

38" & 42" Mower Deck - Belt, Idler Arm & Hitch Group

p

y

Part No Descri

1 1677135A 1 GUARD, Spring (Used on Kevlar Belts)
1 1732884A 1 GUARD, Spring (Used on A-Wedge Aramid Belts)
2 2860361 1 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 2
3 1924356 1 WASHER, Plain, 13/32 x 1-1/2 x 1/8
4 1731944A 1 ARM
5 1729007 1 SPACER, 0.387 ID x 1-1/2 OD x 1.04 LG Powdered Metal
6 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4
7 1922755 4 WASHER, 3/8
8 7018574 2 IDLER, Flat
9 1931277 2 NUT, Hex, Flange Whizlock, 5/16-18

10 1921971 1 CAPSCREW, Hex Head, 3/8-16 X 1-3/4
11 1731911A 1 SUPPORT, Idler
12 1931211 2 NUT, Whizlock, 3/8-16
13 1731311 1 SPRING, Extension 07.75 LG Black
14 1960339 1 NUT, 3/8-16, Hex Flange MAC Locking Large, Black
15 1931333 2 BOLT, Carriage, 5/16-18 x 3/4
16 1732204 1 V-BELT, 91.10 LG Kevlar
16 1732205 1 V-BELT, 94.45 LG Kevlar
16 1733217 1 V-BELT, 91.10 LG A-Wedge Aramid
16 1732955 1 V-BELT, 94.45 LG A-Wedge Aramid

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

25

TP 400-5279-IR-TC-N

38" & 42" Mower Deck - Height Adjustment & Roller Bar Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

26

LT-200 SERIES

38" & 42" Mower Deck - Height Adjustment & Roller Bar Group

p

y

Part No Descri

1 2108765 2 BOLT, Rear Wheel (42" Only)
2 1960170 2 WASHER, 1/2 (42" Only)
3 1714760 2 WHEEL, Gauge (42" Only)
4 1931277 11 NUT, Hex, Flange Whizlock, 5/16-18 (38" Only)
4 1931277 13 NUT, Hex, Flange Whizlock, 5/16-18 (42" Only)
5 1731402A 1 SUPPORT, Gauge Wheel RH 7 GA (42" Only)
6 1960687 2 NUT, Hex Flange, 3/8-16 ESNA (42" Only)
7 1931333 11 BOLT, Carriage, 5/16-18 x 3/4 (38" Only)
7 1931333 13 BOLT, Carriage, 5/16-18 x 3/4 (42" Only)
8 1730072D 1 SUPPORT, Mower RH
9 1730201D 1 BRACE, Mower Support (38" Only)

10 1730071D 1 SUPPORT, Mower LH
11 1731403A 1 SUPPORT, Gauge Wheel LH 7 GA (42" Only)
12 1731967D 1 HITCH, Front 38" Mower
12 1731966D 1 HITCH, Front 42" Mower
13 1731414 1 PIN, Hitch
14 1679166 2 SPACER, .532 ID x 3/4 OD x 1-1/4 LG Yellow
15 1960379 2 NUT, ESNA, Lock, 1/2-13 (Thin)
16 2176012 1 CLIP, Pin, Safety
17 1730221A 1 HANGER, Front Mower
18 1730097 1 ROD, Bail Mowers Yellow

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

27

TP 400-5279-IR-TC-N

44" Mower Deck - Housing, Arbors & Blades Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

28

LT-200 SERIES

44" Mower Deck - Housing, Arbors & Blades Group

p

y

Part No Descri

1 1714419 3 NUT, Hex, Flange, 9/16-8
2 1713675 6 WASHER, Belleville
3 1713098 3 PULLEY, RH Arbor & LH Arbor, 4-1/4
4 1713613 2 HUB, Pulley, RH (Middle)
5 1713204 3 SPACER
6 1713199A 3 COVER, Arbor Housing
7 1705897 6 BEARING
8 1707335 3 GASKET, Foam
9 1713338A 3 HOUSING, Arbor Bottom, w/Lube Fitting

10 1704314 1 FITTING, Grease
11 1713616 1 HUB, Adapter, LH
12 1720560A 1 COVER, Arbor
13 1664847 29 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
14 1713619 3 WASHER
15 1713612 1 SHAFT, Arbor
16 1713196 3 SHIELD, Grass, Lower
17 1704100 3 BLADE, 44”
18 1713089 3 WASHER, Hex
19 1656916 3 WASHER, Spring
20 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1-1/4
21 1931333 2 BOLT, Carriage, 5/16-18 x 3/4
21 1931333 8 BOLT, Carriage, 5/16-18 x 3/4 (CE Only)
22 1724538A 1 BAFFLE, Anti-Blowout
23 1931277 2 NUT, Hex, Flange Whizlock, 5/16-18
23 1931277 8 NUT, Hex, Flange Whizlock, 5/16-18
24 1716879A 1 BAFFLE, Blowout LH, 44” (CE Only)
25 1731990A 1 BAFFLE, Blowout RH, 44” (CE Only)
26 1713609 2 SHAFT, Arbor, RH
27 1960698 2 CARRIAGE BOLT, 1/4-20 x 1, Black
28 1715673 1 COVER, Arbor, RH
29 1960518 2 NUT, Push On
30 1960353 2 WASHER, Plain, 1/4 (6 Total for Export)
31 1704873 1 CLAMP
32 1920397 2 NUT, Hex Lock, ESNA, 1/4-20
33 1919326 1 WASHER, Flat, 5/16
34 1705449 1 DEFLECTOR, Plastic
35 1723938 1 SPRING

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

29

TP 400-5279-IR-TC-N

44" Mower Deck - Housing, Arbors & Blades Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

30

LT-200 SERIES

44" Mower Deck - Housing, Arbors & Blades Group

p

y

Part No Descri

36 1706709A 1 ROD, Deflector, Front
37 1729597D 1 HOUSING ASSEMBLY, 44” Mower Frame Mount
38 1705115 1 PLUG, Plastic (Not Shown)

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

31

TP 400-5279-IR-TC-N

44" & 50" Mower Deck - Belt, Idler Arm & Hitch Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

32

LT-200 SERIES

44" & 50" Mower Deck - Belt, Idler Arm & Hitch Group

p

y

Part No Descri

1 1960339 2 NUT, Hex Flange Center Locking, 3/8-16
2 1924356 2 WASHER, Plain, 13/32 x 1-1/2 x 1/8
3 1730090A 1 ARM, Idler 7GA
4 1714255 1 SPACER
5 1921972 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/2
6 1924940 1 WASHER, 3/8
7 2171247 1 PULLEY ASSEMBLY
8 1667812 1 SPACER
9 1931211 1 NUT, Whizlock, 3/8-16

10 1656936 1 SPRING, Extension, Idler Arm (44” Mower Deck)
10 1715435 1 SPRING, Extension, Idler Arm (50” Mower Deck)
11 1729627 1 V BELT, Arbor Drive, 44”
11 1732409 1 V BELT, Arbor Drive, 44” (CE Only)
11 1703466 1 V-BELT, Arbor Drive, 50”
12 1922605 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G8

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

33

TP 400-5279-IR-TC-N

44" & 50" Mower Deck - Height Adjustment & Roller Bar Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

34

LT-200 SERIES

44" & 50" Mower Deck - Height Adjustment & Roller Bar Group

p

y

Part No Descri

1 2176012 1 CLIP, Pin, Safety
2 1730221A 1 HANGER, Front Mower
3 1960379 2 NUT, ESNA, Lock, 1/2-13 (Thin)
4 1679166 2 SPACER
5 1731414 1 PIN, Hitch
6 1730097 1 ROD, Bail Mowers Yellow
7 1731899A 2 PLATE, PIVOT Lock 10 GA
8 1931277 2 NUT, Hex, Flange Whizlock, 5/16-18
9 1930591 2 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4

10 1960687 4 NUT, Hex Flange, 3/8-16 ESNA
11 1960170 4 WASHER, 1/2
12 1714760 4 WHEEL, Gauge
13 2108765 4 BOLT, Rear Wheel

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

35

TP 400-5279-IR-TC-N

50" Mower Deck - Housing, Arbors & Blades Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

36

LT-200 SERIES

50" Mower Deck - Housing, Arbors & Blades Group

p

y

Part No Descri

1 1714419 3 NUT, Hex Flange 9/16-18
2 1732951 3 PULLEY
3 1713616 1 HUB
4 1713199A 3 HOUSING, Arbor Top
5 1705897 6 BEARING, Ball 11/16 x 9/16 x 15/32
6 1732543 3 SPACER, Powdered Metal
7 1707335 3 GASKET
8 1713338A 3 HOUSING, Arbor Bottom w/Lube Fitting
9 1664847 26 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

10 1720560A 1 COVER, Arbor
11 1728998D 1 HOUSING ASSEMBLY, 50" (Red)
12 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 G5
13 1724538A 1 BAFFLE, Blowout, Short
14 1931277 3 NUT, Hex Flange 5/16-18, Whiz Lock Small
15 1713619 3 WASHER, Cup
16 1713612 1 SHAFT, Arbor
17 1713196 3 SHIELD, Grass Lower Arbor, Heat Treated
18 1708229 3 BLADE, Mower
19 1713089 3 WASHER, Hex 11/16 x 2
20 1656916 3 WASHER, Spring
21 2823471 3 CAPSCREW, Hex Head 7/16-14 x 1-1/4 G8
22 1713609 2 SHAFT, Arbor
23 1960698 1 CARRIAGE BOLT, 1/4-20 x 1 G5
24 1715673 1 COVER, Arbor
25 1960518 2 NUT, Push for 1/4 Diameter Thread
26 1960353 4 WASHER, 1/4
27 1704873 1 CLAMP, Wire
28 1919326 1 WASHER, 5/16
29 7101082 1 SPRING, Torsion, Chute
30 1920397 2 NUT, Hex Lock ESNA Light 1/4-20
31 1705449 1 DEFLECTOR
32 1706709 1 ROD, Deflector
33 1713613 2 HUB
34 1705115 1 PLUG
36 1713675 6 WASHER, Bellville
37 1960730 1 SCREW, Hex Head Serange Flange Taptite 5/16-18 x 2

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

37

TP 400-5279-IR-TC-N

50" Mower Deck - Housing, Arbors & Blades Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

38

LT-200 SERIES

50" Mower Deck - Housing, Arbors & Blades Group

p

y

Part No Descri

38 1960633 1 CARRIAGE BOLT, 1/4-20 x 1-1/2 G5

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

39

TP 400-5279-IR-TC-N

Decals Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

40

LT-200 SERIES

Decals Group

p

y

Part No Descri

1 1731392 1 DECAL, Snapper, LH Hood Stripe
2 1731393 1 DECAL, Snapper, RH Hood Stripe
3 1722806 1 DECAL, Ignition Switch Symbol, White/Black
4 1731419 1 DECAL, Steering Wheel Icon
5 1730264 1 DECAL, Height of Cut
6 1731955 1 DECAL, Snapper Rear Stripe, Silver/ 8.5LG
7 1730202 1 DECAL, Transmission Tow/ Release Lever
8 1730172 1 DECAL, Fuel Level
9 1730170 1 DECAL, Tunnel
9 1723175 1 DECAL, Safety Instructions (CE/Export)
9 1734027 1 DECAL, Safety Instructions (Used only on ACS

10 1733251 1 DECAL, Belts, Blades
11 -- 1 * DECAL, ID Plate
12 1731927 1 DECAL, LT200 18.5HP
12 1731928 1 DECAL, LT200 20HP
12 1731929 1 DECAL, LT200 22HP
13 1704277 1 DECAL, Danger, Chute in Place
14 1732070 1 DECAL, Pinch Point
15 1704276 1 DECAL, Danger, Hand Under Deck
16 -- 1 * DECAL, OPEI
17 1722787 1 DECAL, 38"
17 1731924 1 DECAL, 42"
17 1722789 1 DECAL, 44"
17 1722790 1 DECAL, 50"
18 1720389 1 DECAL, Hand Under Deck (CE/Export)

tionItem Qt

Note

models)(CE/Export)

Footnotes:

Note* Not a serviceable part.

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

41

TP 400-5279-IR-TC-N

Electrical Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

42

LT-200 SERIES

Electrical Group

p

y

Part No Descri

1 1716061 1 SWITCH ASSEMBLY, Ignition, 6-Pole (Includes Ref. 2, 3, 4 & 5)
2 2101025 1 WASHER, 5/8
3 1960547 1 LOCKWASHER, Internal Tooth, 5/8
4 1717549 1 NUT, Hex, Flange, 5/8-32
5 1717550 1 COVER, Ignition
6 1717163 1 IGNITION KEY (Set of 2)
7 1716951 1 SWITCH, Headlights, 2 Terminal
8 1722611 1 PLUG, Hole, Square
9 1729993 1 PLUG, Hour Meter (Kohler and B&S Single)

10 1728068 1 METER, Hour, LCD (B&S V-Twin Only)
11 1960353 1 WASHER, Plain, 1/4 (6 Total for Export)
12 2860293 1 NUT, Wing, 1/4-20
13 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8
14 1960518 1 NUT, Push On
15 1730007 1 HOLD DOWN, Battery
16 1732005 1 SWITCH, Push Button (NC)
17 2825094 3 TIE, Self Locking 7-5/16
18 7073090 1 OUTLET, 12 Volt DC Power
19 1732007 1 PLUG, Hole Models W/O 12V Adapter
20 1732006 1 SWITCH, Push Button (NO/NC)
21 1727282A 1 SUPPORT, Battery 12 GA
22 1930601 4 SCREW, Taptite, 5/16-18 x 5/8
23 1727296 1 HEADLIGHT ASSEMBLY (Includes Ref. 24, 25, 26 & 27)
24 1723451 2 SOCKET ASSEMBLY
25 1677371 2 BULB, 1141-12V 21CP
26 1728973 1 REFLECTOR, Headlight
27 1728974 1 LENS, Headlight
28 2834683 1 CLIP, Speed Wire
29 1960294 1 NUT, Hex, Flange, 1/4-20
30 1713535 1 COVER, Terminal
31 1728097 1 HARNESS, Wiring
32 1721830 1 CABLE, Solenoid to Starter
33 1728963 1 SOLENOID
34 1925003 2 SCREW, Taptite, 1/4-20 x 1/2
35 2820426 2 LOCKWASHER, External Tooth, 5/16
36 2820263 2 NUT, Hex, 5/16-24 NF

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

43

TP 400-5279-IR-TC-N

Electrical Group

Manual No. 7006474 ELECTRIC CLUTCH HYDRO DRIVE
TP 400-5279-IR-TC-N

44

LT-200 SERIES

Electrical Group

p

y

Part No Descri

37 1716549 1 CABLE, #6 x 10 Long, with 2 Ring Terminals, Battery to Solenoid
38 1931277 2 NUT, Hex, Flange Whizlock, 5/16-18
39 1728026A 1 SUPPORT, RMO Switch
40 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4
41 1677296 1 BOOT, Insulator
42 1722841 1 BATTERY
43 1732004 1 SWITCH, Push Button (NO), Reverse Pedal
44 2816622 2 NUT, Hex, Full, 1/4-20
45 2816964 2 LOCKWASHER, 1/4
46 2821319 2 WASHER, 1/4 I.D.
47 1713163 1 CABLE, Battery to Ground
48 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
49 1731957 1 FUSE, Wiring Harness
50 1726556 1 NO-MOW MODULE
51 1727185 1 KEY, w/Hang Tag for RMO Module
52 1722887 1 SWITCH, PTO, Push/Pull Symbols

tionItem Qt

Note

Footnotes:

Manual No. 7006474ELECTRIC CLUTCH HYDRO DRIVE

LT-200 SERIES

45

TP 400-5279-IR-TC-N

Parts Manual fo

r

ELECTRIC CLUTCH HYDRO DRIVE
RMO & ACS TRACTORS
LT-200 SERIES

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision IR,

McDonough, GA, 30253 U.S.A.

6/8/2007

Manual No. 7006474

TP 400-5279-IR-TC-N
