Snapper LT1644 User Manual

Parts Manual fo

r

E

)

LAWN TRACTOR

ELECTRIC CLUTCH HYDRO DRIV

SERIES 0

MODEL

LT1644 (2690117

COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

Revision R1,

McDonough, GA, 30253 U.S.A.

8/29/2005

Manual No. 7006451

TP 400-5011-R1-TC-N

s

PAGE GROUP

4
6

8
10
14
18
20
22
28
30
32
34
36
40
44
46

Wheels & Tires Group
Hood, Grill & Dash Group
Steering Group - Manual Steering
Frame & Front Axle Group
Controls Group
Cruise Control Group
Transmission Group - Tuff Torq K-57
Transmission Service Parts - Tuff Torq K-57A
Seat & Seat Deck Group
Engine & Electric Clutch Group - 16HP Briggs & Stratton, Vanguard
Lift Group - Manual Lift
44" Mower Deck - Belt, Idler Arm & Hitch
44" Mower Deck - Height Adjustment & Roller Bar
44" Mower Deck - Housing, Arbors & Blades
Decal Group
Electrical Group

Table Of Content

SERIES 0

Manual No. 7006451LAWN TRACTOR

3

TP 400-5011-R1-TC-N

Wheels & Tires Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

4

SERIES 0

Wheels & Tires Group

p

y

Part No Descri

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4,

5, & 6)
2 1722838 1 TIRE, 15 x 6, Super Turf
3 1664090 1 TUBE, Tire, Front, 4.10/3.50
4 1717056 2 BEARING, Ball
5 1722837 1 WHEEL, 4-1/2” x 6”
6 2172353 4 VALVE STEM & CAP ASSEMBLY
7 1919394 4 WASHER, 1, (As Required for All Front)
8 1722726A 4 WASHER, Special, (As Required for All Front)
9 2832577 2 RING, Retaining, External #98

10 1722676 4 CAP, Hub, Gray
11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2
12 2860202 4 WASHER, 3/4
13 1709527 2 SPACER
14 1721694 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17)
15 1722826 1 TIRE, 20 x 10, 8 Super Turf
16 2173477 1 TUBE, Tire, 20 x 8, Rear
17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD
18 1722717A 2 WASHER, Special
19 2827794 2 RING, “E” External
20 1960114 2 WASHER, 3/4

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

5

TP 400-5011-R1-TC-N

Hood, Grill & Dash Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

6

SERIES 0

Hood, Grill & Dash Group

p

y

Part No Descri

1 1721804D 1 PANEL, RH Side, Red
2 1721801D 1 HOOD, Red
3 1960295 12 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
4 1960392 1 SCREW, Pan Head Phillips, #10-24 x 1/2
5 1724082 1 DASHBOARD
6 1723123 1 ROD, Dash Support
7 1933896 1 NUT, Hex Lock, w/Nylon Insert, 10-24
8 1930641 12 NUT, Hex Flange Whiz Lock, 1/4-20, Large, Black
9 1721803D 1 PANEL, LH Side, Red

10 1721808A 1 HINGE, LH
11 1721802D 1 GRILLE, Red
12 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb (See Electrical Group for

internal components)

13 1721809A 1 HINGE, RH
14 1722391A 1 DUCT, Air Inlet

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

7

TP 400-5011-R1-TC-N

Steering Group - Manual Steering

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

8

SERIES 0

Steering Group - Manual Steering

p

y

Part No Descri

1 1722318 1 STEERING WHEEL, Straight, Shaft
2 1725024 1 CAP, Steering Wheel, Plain
3 1960540 1 PIN, Spring, 5/16 x 2-1/2
4 1722749 1 COVER, Rubber, Upper Steering Shaft
5 1960114 5 WASHER, 3/4
6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon
7 2828372 2 NUT, Hex KEPS 1/4-20
8 1721736A 1 PLATE, Mounting Steering
9 1960518 2 NUT, Push

10 1960655 2 CARRIAGE BOLT, 1/4-20 x 1-1/4
11 1722385 1 GEAR & SHAFT ASSEMBLY, Steering
12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16
14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual
16 1611710 1 RING, Clipring Extension
17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3” Long Housing
18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal
19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small
20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black
21 1919314 1 PIN, Cotter, 1-1/4, Black

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

9

TP 400-5011-R1-TC-N

Frame & Front Axle Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

10

SERIES 0

Frame & Front Axle Group

p

y

Part No Descri

1 1930645 7 NUT, Hex Flange Lock, 3/8-16
2 1960035 2 WASHER
3 2860646 1 NUT, Hex Flange, 5/8-11
4 1722212A 1 PLATE, Axle
5 1724081A 1 TOWER & SUPPORT ASSEMBLY
6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
7 1723528A 1 SUPPORT
8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
9 1726887 1 FRAME ASSEMBLY

10 2860645 1 CAPSCREW, 5/8-11 x 3-1/2
11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball
12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
13 1722541 1 LINK, Drag
14 1922755 1 WASHER
15 1960103 2 WASHER
16 1919262 1 NUT, Hex Jam, 1/2-20
17 1702779A 1 JOINT, Ball
18 1708236 1 SPACER
19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
20 1611705 2 SPACER
21 1722626A 1 ROD, Tie
22 1721682 6 BUSHING
23 1930650 2 NUT, Hex Flange Lock, 7/16-14
24 1704314 3 FITTING, Lube
25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26,

27, 28, 29 & 30)

26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8
27 1663151 1 WASHER, Spring, 3/8
28 1725112 1 HUB & ARM ASSEMBLY
29 2830671 1 KEY, Woodruff
30 1724264 1 SPINDLE, LH
31 1722200A 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos.

22, 24, 41, 42 & 43)

32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8
34 1721918A 1 HOOK, “J”
35 1721752 1 SPACER
36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8
37 1721805A 1 BUMPER, Black, Steel, Standard

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

11

TP 400-5011-R1-TC-N

Frame & Front Axle Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

12

SERIES 0

Frame & Front Axle Group

p

y

Part No Descri

37 1723502 1 BUMPER, Chrome, Optional
38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
39 1724801A 1 PLATE, Axle Wear
40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18
41 1722199 1 SPINDLE, RH
42 1919394 1 WASHER
43 2832577 1 RETAINING RING

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

13

TP 400-5011-R1-TC-N

Controls Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

14

SERIES 0

Controls Group

p

y

Part No Descri

1 1721353 1 ROD, Brake Lock
2 1721891 1 KNOB, Push On, Red Plastic “P”
3 1930591 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
4 1919326 2 WASHER, 5/16, Black
5 1721476 1 ROD, Brake
6 1931353 2 CARRIAGE BOLT, 3/8-16 x 1 3/4
7 1663114 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon
8 1704314 1 FITTING, Lube, 1/4
9 1725250 1 SPRING, Extension

10 1722460 3 PIN, Quick
11 1726882 1 ARM & HUB ASSEMBLY, Idler
12 1960020 1 WASHER, 5/8
13 1704420 1 RING, Clipring Extension
14 1721134 1 PULLEY, w/Bearing
15 1924940 1 WASHER, 3/8
16 1960687 2 NUT, Hex Flange ESNA, 3/8-16
17 1721133 1 PULLEY, Idler
18 1723237 2 BUSHING, 1 x 1-1/8 x 5/8, Nylon
19 1722513 1 ARM, Brake
20 1722084 1 PEDAL ASSEMBLY, Foot
21 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4
22 1918447 1 PIN, Cotter, Black
23 1721354A 1 LATCH, Brake
24 1664847 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
25 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
26 1919381 1 WASHER, 5/16, Black
27 1927557 2 NUT, Hex Flange Whiz Lock Large, 5/16-18
28 1722535A 1 PEDAL, Brake
29 1721577 1 PAD, Brake Pedal
30 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8
31 1921333 2 CAPSCREW, 5/16-18 x 1
32 1722083A 1 ACTUATOR, Switch 2.53” Long
33 1923683 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
34 1722070A 1 PEDAL, Forward
35 1960636 4 NUT, Hex KEPS, 5/16-18
36 1721675 1 PAD, Foot Pedal Forward
37 1722071A 1 PEDAL, Reverse

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

15

TP 400-5011-R1-TC-N

Controls Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

16

SERIES 0

Controls Group

p

y

Part No Descri

38 1721674 1 PAD, Foot Pedal Reverse
39 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20
40 1686612 1 CAM, Roller
41 1721995 1 SPRING, Extension

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

17

TP 400-5011-R1-TC-N

Cruise Control Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

18

SERIES 0

Cruise Control Group

p

y

Part No Descri

1 1723713 1 DECAL, Cruise & Lift
2 1960666 1 SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8
3 1722303 1 KNOB, Cruise
4 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20
5 1722003 1 LEVER & BRACKET ASSEMBLY, Cruise
6 1960103 2 WASHER, 3/8, Black
7 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
8 2826192 2 WASHER, 9/16 x 1-1/4 x 1/8
9 1709043 1 SPACER, w/Flange, 11/32 x 15/32 x 3/4

10 1931342 1 CARRIAGE BOLT, 5/16-18 x 2 3/4
11 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4
12 1722460 2 PIN, Quick
13 1722117 1 ROD, Cruise
14 1722481 1 ROD, Return
15 2159106 1 SPRING, Cruise Return to Frame
16 1960636 2 NUT, Hex KEPS, 5/16-18
17 1960001 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8
18 1717050 1 SWITCH, Push, Neutral Start, Gray
19 1722080 1 SPACER, 11/32 x 5/8 x 1-13/32
20 1919326 1 WASHER, 5/16, Black
21 1919381 1 WASHER, 5/16, Black
22 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18
23 1677746 1 SPRING, Compression
24 1918447 1 PIN, Cotter
25 1705928 1 DISC, Fricion

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

19

TP 400-5011-R1-TC-N

Transmission Group - Tuff Torq K-57

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

20

SERIES 0

Transmission Group - Tuff Torq K-57

p

y

Part No Descri

1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black
2 1722345 1 PAD, Footrest, LH, without Differential Lock
3 1722173 1 PAD, Footrest, RH
4 1960636 1 NUT, Hex KEPS, 5/16-18, Black
5 1704351 15 FASTENER, Panel
6 1960637 6 NUT, Hex KEPS, 3/8-16, Black
7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black
8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black
9 1721728A 2 SUPPORT, Transmission

10 1724316 1 RING, Snap, Transmission
11 1724312 1 COLLOR, Spline, Transmission
12 1724315 2 LOCK WASHER, Transmission
13 1724314 1 FAN, 10 Blade, Transmission
14 1718076 1 RING, E, Transmission
15 1960027 2 WASHER, 1/2
16 1721666 1 PULLEY & HUB ASSEMBLY
17 1721696 1 V-BELT, Drive
18 1721616 1 ROD
19 1722460 3 PIN, Quick
20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2
21 1919326 4 WASHER, 5/16, Black
22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
23 1918267 1 WASHER, 15/32 x 15/16, Black
24 1918447 1 PIN, Cotter, Black
25 1721579 1 ROD
26 1722684 1 SPRING, Compression, 3-1/4” Long, Black
27 1729277 1 SPRING, Compression, 3-5/8” Long, Black
28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black
29 1924940 3 WASHER, 3/8, Black
30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley
31 1725317 1 CONTROL ARM ASSEMBLY
32 1724423A 1 ARM, Control
33 1960636 2 NUT, KEPS Lock, 5/16-18
34 1721592A 1 STRAP, Torque
35 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black
36 1960141 1 WASHER, 5/16, Black
37 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4, Balck

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

21

TP 400-5011-R1-TC-N

Transmission Service Parts - Tuff Torq K-57A

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

22

SERIES 0

Transmission Service Parts - Tuff Torq K-57A

p

y

Part No Descri

2 1724951 1 HOUSING ASSEMBLY, UPPER
3 1724938 1 HOUSING, LOWER
7 1718052 1 VENT VALVE 15
8 1724279 2 MAGNET, K50
9 1724280 1 HOLDER, MAGNET

11 1708684 1 SPRING
12 1724281 1 SHAFT, BYPASS
13 1720418 1 LEVER, BYPASS
14 1718061 1 RING
15 1724282 1 SEALING CAP
16 1708650 1 RING 35
19 1708691 2 PACKING
20 1724283 1 SEAL TC
21 1707789 14 SCREW, TAPPING
22 1724284 2 SCREW, TAPPING
24 1724939 1 CASE, CENTER
25 1718070 1 PIN 3 x 9.8
26 1724954 1 FILTER
27 1720805 3 BOLT 10 x 75
28 1724286 2 VALVE, IDS 1.0
29 1724287 2 SPRING, IDS
30 1724288 2 BALL, 3/16
31 1724940 1 CYLINDER BLOCK ASSEMBLY
32 1724290 1 SPRING, PUMP
33 1724941 1 SHAFT, PUMP
34 1718076 3 RING E15
35 1708673 1 BEARING
36 1718077 1 HOUSING
37 1724942 1 BEARING, THRUST
38 1724289 1 BLOCK, CYLINDER
39 1718084 1 WASHER 12 x 24 x 1
40 1724943 1 SHAFT, MOTOR
41 1708672 1 RING 15
42 1724944 1 GEAR, MOTOR
43 1718083 1 BEARING 6202UC3
44 1718089 2 THRUST METAL
45 1720426 1 SWASH PLATE ASSEMBLY
46 1718088 1 THRUST PLATE B

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

23

TP 400-5011-R1-TC-N

Transmission Service Parts - Tuff Torq K-57A

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

24

SERIES 0

Transmission Service Parts - Tuff Torq K-57A

p

y

Part No Descri

47 1718086 1 BEARING K81105
48 1718087 1 THRUST PLATE A
49 1724343 1 SHAFT, CONTROL
50 1724344 1 FULCRUM, ECCENTRIC
51 1724345 1 SPRING, TORSION
52 1724346 1 LEVER, CONTROL
53 1724347 1 ARM, CONTROL
54 1724348 1 PLATE, JERK
55 1708689 1 WASHER
56 1724349 1 PIN, COTTER
57 1724296 1 PIN, SPRING
59 1707879 2 PACKING
58 1718100 1 PIN 6.0A x 4.0
60 1708692 1 NUT 12
61 1724955 1 GEAR & PINION ASSEMBLY
62 1724945 1 GEAR, FINAL CONTR TRAC
63 1724946 2 COLLAR, PINION
64 1724947 1 SHAFT, REDUCTION
65 1724948 2 WASHER, 12 x 32 x 3.2
66 1724949 1 GEAR, REDUCTION
67 1724950 1 PINION, FINAL
68 1724304 1 SHAFT, AXLE RH
69 1724303 1 SHAFT, AXLE LH
70 1718112 2 WASHER, THRUST
71 1718113 2 RING 17
72 1718111 2 SEAL 19 x 32 x 8
73 1718110 2 BUSHING 19 x 21
75 1724305 1 SHOE, BRAKE
76 1724306 1 ARM, BRAKE
77 1724307 1 SHAFT, BRAKE
78 1724308 1 SPRING, RETURN B
79 1724309 1 BRAKE, ACTUATOR
80 1724310 1 PIN
81 1708690 2 PACKING
82 1724311 2 PIN, SPRING
83 1724312 2 COLLAR, SPLINE
85 1724314 1 FAN

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

25

TP 400-5011-R1-TC-N

Transmission Service Parts - Tuff Torq K-57A

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

26

SERIES 0

Transmission Service Parts - Tuff Torq K-57A

p

y

Part No Descri

86 1724315 1 LOCKWASHER
87 1724316 1 RING, SNAP
90 1720421 1 PIN 3.0A x 20
91 1724318 1 OIL SEAL
95 1707839 1 PIN, ROLL
97 1724956 2 WASHER, THRUST DIFF
98 1724958 2 PIN, 3.0A x 18

99 1724957 1 SPRING, CHARGE
100 1724953 1 CHARGE PUMP CASE ASSEMBLY
200 1727542 1 K57 SMP SEAL KIT

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

27

TP 400-5011-R1-TC-N

Seat & Seat Deck Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

28

SERIES 0

Seat & Seat Deck Group

p

y

Part No Descri

1 1722129A 1 BRACKET, 1-5/8 x 1-3/4
2 1725019 1 SEAT, 15” Back
3 1722128A 1 SUPPORT, Seat
4 2172434 1 CLIP, Wire
5 1709256A 2 WASHER, Spring, 5/16 x 1-1/4
6 1714263 2 SPRING, Compression
7 1919438 10 NUT, Hex Lock, ESNA Light, 5/16-18
8 1717051 2 SPRING, Compression

9 1930591 8 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2
11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1
12 1722356 1 SLIDE, Seat
13 1935255 4 NUT, Speed, 5/16-18, Lug Type
14 1930601 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
15 1722309 2 PLUG, Plastic
16 1722109 1 POD, with Cup Holder, LH
17 2860664 8 CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
18 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18
19 1715917 1 CAP, Gas
20 1726902 1 TUBE & ELBOW ASSEMBLY
21 1654930 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber
22 1722432 1 TANK, Fuel
23 1960636 8 NUT, Hex KEPS, 5/16-18
24 1722106D 1 DECK, Seat, Red
25 1722108 1 POD, RH with 2 Slots
26 1729322D 1 TUNNEL, Red
27 1960667 8 CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1
28 1663752 2 SPACER, 25/64 x 5/8 x 3/16, Hardened
29 1930645 2 NUT, Hex Flange Two-Way Lock, 3/8-16
30 1924940 2 WASHER, 3/8

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

29

TP 400-5011-R1-TC-N

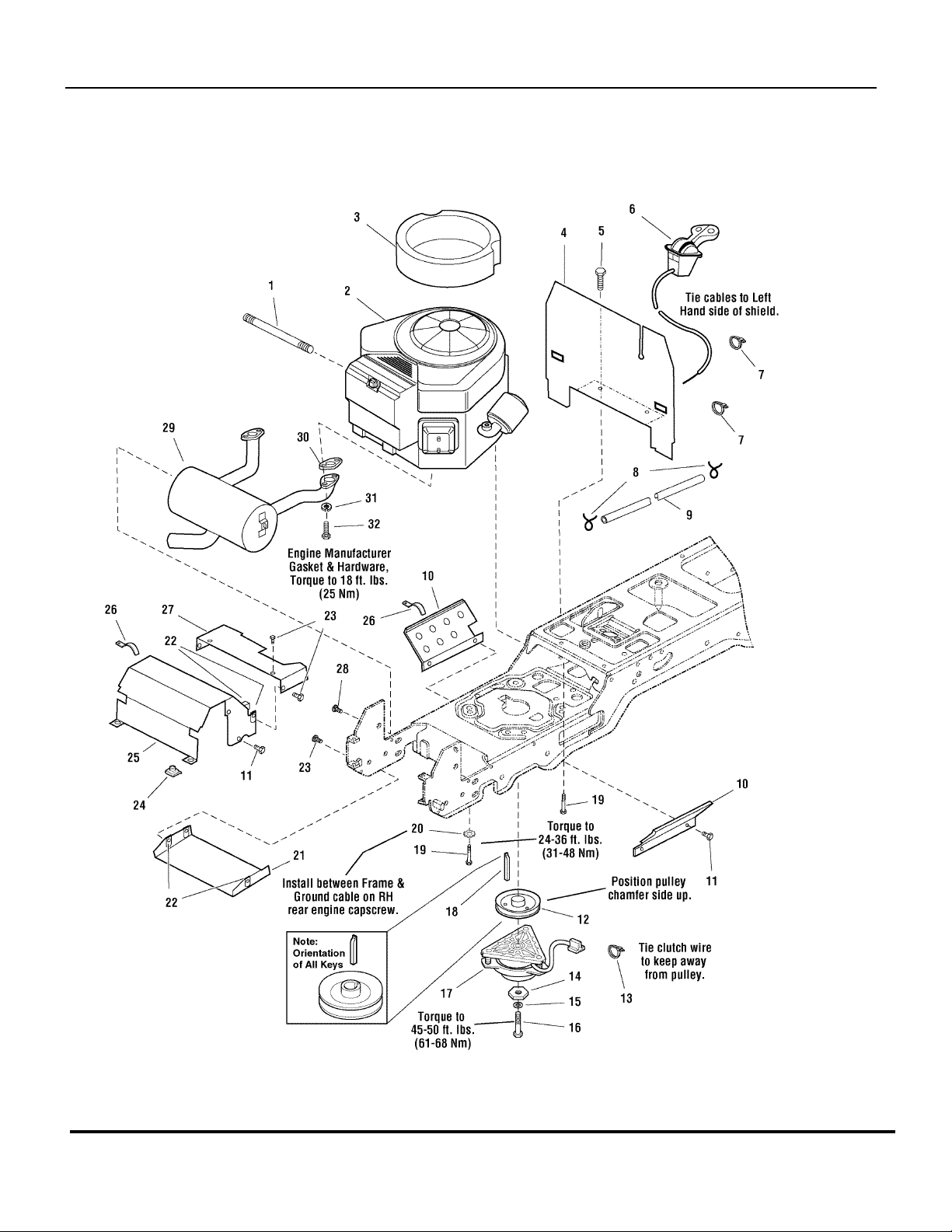

Engine & Electric Clutch Group - 16HP Briggs & Stratton, Vanguard

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

30

SERIES 0

Engine & Electric Clutch Group - 16HP Briggs & Stratton, Vanguard

p

y

Part No Descri

1 1723165 1 HOSE, Oil Drain, 10-1/2” Long, 3/8-18 Fittings

2 * 1 ENGINE, 16HP Briggs & Stratton Vanguard Twin, Model

303777, Type 1114-E1
3 1722950 1 SEAL, Circle, 16HP Only
4 1722388A 1 BULKHEAD
5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
6 1727223 1 CONTROL, Throttle Double 39” Long w/Knobs
7 1701011 2 TIE, Wire, 7-5/16” Long
8 2860112 2 CLAMP, Hose Type E
9 1718678 1 HOSE, Fuel, 59” Long

10 1722392A 2 SHIELD, Side
11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
12 1722288 1 PULLEY & HUB ASSEMBLY
13 2832747 1 TIE, Self Locking, 3-5/8 Long
14 1708264 1 WASHER, Hex, 7/16, Black
15 1918199 1 LOCKWASHER, 7/16
16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4
17 1686880 1 CLUTCH, Electric
18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2
19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2
20 2820427 1 LOCKWASHER, External Tooth, 3/8
21 1722414A 1 SHIELD, Muffler Bottom
22 1960368 8 NUT, Speed, 1/4-20, Lug
23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
24 1935255 2 NUT, Speed, 5/16-18, Lug, Black
25 1722389A 1 DUCT, Muffler Top
26 2834683 2 CLIP, Wire 1/8
27 1722390A 1 DUCT, Muffler Extension
28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black
29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin
30 * 1 GASKET, Briggs & Stratton, Vanguard Twin
31 1917356 4 LOCKWASHER, 5/16
32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8

tionItem Qt

Note

Footnotes:

* See your local Briggs & Stratton distributor for parts and service.
* See your local Briggs & Stratton distributor for parts and service.

Manual No. 7006451LAWN TRACTOR

SERIES 0

31

TP 400-5011-R1-TC-N

Lift Group - Manual Lift

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

32

SERIES 0

Lift Group - Manual Lift

p

y

Part No Descri

1 1722285 1 COVER, Dash
2 1924940 2 WASHER
3 1721789 1 ROD
4 1722024A 1 ROD, Lift
5 1722302 1 GRIP, Black Vinyl
6 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
7 1722108 1 POD, RH
8 1722313 1 COVER, with Lift Icon, for Models without Cruise Control
9 1722284A 1 QUADRANT

10 1920397 2 NUT, Hex Lock ESNA, 1/4-20
11 1930645 1 NUT, Hex Flange Lock, 3/8-16
12 1722460 3 PIN, Quick
13 2162085 1 SPRING, Compression
14 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2
15 1921977 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
16 1722491 1 CAM & PIN ASSEMBLY
17 1704629 1 SPACER
18 1960044 1 WASHER
19 1919438 1 NUT, Hex Lock, 5/16-18
20 1704756A 1 LINK
21 1722607 1 SCREW, Torx Head, # 8-16 x 1/2

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

33

TP 400-5011-R1-TC-N

44" Mower Deck - Belt, Idler Arm & Hitch

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

34

SERIES 0

44" Mower Deck - Belt, Idler Arm & Hitch

p

y

Part No Descri

1 1601672 1 V-BELT, Mower Drive
2 1721532 1 V-BELT, Arbor Drive
3 1665835 1 GRIP, Lever
4 1916950 2 NUT, Hex, 3/8-16
5 1916965 2 WASHER, Lock, 3/8
6 1677135A 1 BELT STOP, Idler
7 1924940 14 WASHER, 3/8
8 1666294 2 SPACER, 25/64 x 21/32 x 7/16, Powder Metal
9 1685150 2 PULLEY, Idler, (Includes Ref. No. 8)

10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal
12 1715435 1 SPRING
13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened
14 2812808 2 GREASE FITTING
15 1704658 1 LEVER ASSEMBLY, Idler, (Includes Ref. Nos. 3, 11 & 14)
16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2
17 1718561 1 LEVER ASSEMBLY, Idler Arm, (Includes Ref. Nos. 11 & 14)
18 1924356 2 WASHER, 3/8, Black
19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
20 1656936 1 SPRING
21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2
22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8
23 2157081 2 SPACER, 3/8 x 3/4 x 1/2
24 2860681 2 NUT, Hex Toplock Spiralock Flange, 3/8-16
25 2156302 1 SPRING
26 1707432A 1 HITCH ASSEMBLY
27 1715759 1 ROD, Latch

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

35

TP 400-5011-R1-TC-N

44" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

36

SERIES 0

44" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

1 1685443 1 SHAFT & BAR ASSEMBLY, 44” (Includes Ref. No. 9)
2 1704082 1 NUT, Adjuster
3 2860681 3 NUT, Toplock Spiral Flange, 3/8-16
4 1677507 1 SLIDE
5 1924361 1 WASHER, Plain, 1/2
6 2172622 1 BOLT, Shoulder, 3/8-16
7 1602946 2 SPACER, 25/64 x 13/16 x 13/16, Steel, Black
8 1722036 2 ROLLER, Rounded, 2-1/2 Long
9 1960520 2 NUT, Push

10 1924366 10 WASHER, Plain, 1-1/4
11 1668513 7 ROLLER
12 1704074A 1 BAR, Roller
13 1930644 2 NUT, Hex, Flange, Lock, 1/2-13
14 1664847 5 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4
15 1924940 3 WASHER, 3/8
16 1918448 1 PIN, Cotter
17 2176012 1 RETAINER, Pin, Spring
18 1705049 1 BRACKET & PIN ASSEMBLY
19 1720659 1 UPSTOP
20 1665374A 3 STRAP, Mower Arm Assembly
21 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
22 1723407A 1 ARM ASSEMBLY, Mower
23 1704093 1 ROD, Adjustment
24 1706644 1 SPACER, 3/8 x 3/4 x 15/16
25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4
26 1722750 1 BRACKET, Upstop
27 1960373 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1, Black
28 1704080A 1 PLATE, Mower Support
29 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
30 1919381 1 WASHER, 5/16, Black
31 1704114 1 INDICATOR, Height of Cut
32 1704097 1 WASHER, Detent
33 1704086 1 TRUNNION
34 2816001 1 PIN, Roll, 1
35 1913744 2 NUT, Hex, Jam, 1/2-13
36 1960170 3 WASHER, 33/64
37 2118053 1 PIN, Clevis

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

37

TP 400-5011-R1-TC-N

44" Mower Deck - Height Adjustment & Roller Bar

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

38

SERIES 0

44" Mower Deck - Height Adjustment & Roller Bar

p

y

Part No Descri

38 1704081A 1 TRUNNION
39 1960074 2 CLIP, Hair Pin
40 1917372 2 NUT, Hex, 5/16-18
41 1917356 2 WASHER, Lock, 5/16
42 1704116A 1 BRACKET, Height of Cut
43 1704083A 1 ARM, Rear, Mower, RH
44 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4
45 1704087 1 TRUNNION, Threaded
46 1719901 1 CRANK, Height of Cut
47 1714084 1 KNOB, Height Crank
48 1960093 1 PAL NUT

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

39

TP 400-5011-R1-TC-N

44" Mower Deck - Housing, Arbors & Blades

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

40

SERIES 0

44" Mower Deck - Housing, Arbors & Blades

p

y

Part No Descri

1 1714419 3 NUT, Hex Flange, 9/16-18
2 1713675 6 WASHER, Bellevilled, 9/16
3 1713161 1 PULLEY, 4-1/2 O.D.
4 1713158 1 HUB, Double Pulley
5 1713098 3 PULLEY, 4-1/4 O.D.
6 1713533 1 HUB, Double Pulley
7 1655729A 3 COVER, Arbor Housing
8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8
9 1715724 3 SPACER, 21/32 x 3/4 x 5/8

10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16
11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32
12 1707335 3 GASKET, Foam
13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)
14 1704314 3 FITTING, Grease
15 1720560A 1 COVER, Arbor
16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black
18 1931277 1 NUT, Hex Flange, 5/16,
19 1713619 3 WASHER, Bellevilled, 9/16, Black
20 1713612 1 SHAFT, Arbor (LH)
21 1713196 3 SHIELD, Grass, Lower
22 1704100A 3 BLADE, Mower, 16-1/8 (for 44” Decks)
23 1713089 3 WASHER, Hex, 11/16 x 2
24 1656916 3 WASHER, Spring 15/32, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1
26 1713195 2 SHAFT, Arbor (Center & RH)
27 1687154 1 MOWER HOUSING ASSEMBLY, 44” Mower (Red)
28 1703601 1 COVER, Arbor
29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8
30 1705115 1 PLUG, Hole
31 1960518 2 NUT, Push
32 1960353 2 WASHER, 1/4, Black
33 1704873 1 CLAMP
34 1919326 1 WASHER, 5/16, Black
35 1723938 1 SPRING
36 1916964 2 WASHER, Lock, 1/4
37 1916622 2 NUT, Hex, 1/4-20

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

41

TP 400-5011-R1-TC-N

44" Mower Deck - Housing, Arbors & Blades

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

42

SERIES 0

44" Mower Deck - Housing, Arbors & Blades

p

y

Part No Descri

38 1706709A 1 ROD, Deflector, Front
39 1705449 1 DEFLECTOR, Plastic
40 1713197 2 HUB, Pulley, Center & RH
41 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4
42 1927557 2 NUT, Hex Flagne Whiz Lock, 5/16-18
43 1724538A 1 BAFFLE, Blowout, 44” & 50”

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

43

TP 400-5011-R1-TC-N

Decal Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

44

SERIES 0

Decal Group

p

y

Part No Descri

1 1725062 2 DECAL, LT1644
2 1725065 1 DECAL, Hood Stripe, Snapper, LH
2 1725066 1 DECAL, Hood Stripe, Snapper, RH
3 1722806 1 DECAL, Ignition Switch Symbols, White/Black
4 1718025 1 DECAL, Automatic Control Traction
5 1722814 1 DECAL, Tunnel Cover, Danger Slopes/Blades
6 1725158 1 DECAL, Drive Belts & Mower Blades
7 1723296 2 DECAL, Protective Sticker
8 * 1 DECAL, I.D. Plate
9 * 1 DECAL, Patent

10 1708927 1 DECAL, USA Logo Stars & Stripe
11 1723160 1 DECAL, Transmission Release Valve
12 1725061 1 DECAL, Snapper
13 1704276 1 DECAL, Danger Do Not Put Hands/Feet in Mower
14 1722771 1 DECAL, Free Floating Mower, Silver
15 * 1 DECAL, OPEI Certified
16 1722789 1 DECAL, 44”, Silver on Black with Stripe
17 1704277 1 DECAL, Danger Do Not Operate Without Deflector
18 1721197 1 DECAL, Height of Cut, 38” & 44”

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

45

TP 400-5011-R1-TC-N

Electrical Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

46

SERIES 0

Electrical Group

p

y

Part No Descri

1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3)
2 1677371 4 BULB, Headlight, 12.8V
3 1723451 4 SOCKET ASSEMBLY, Headlight, Sealed
4 1722669 1 HARNESS, Headlight
5 1722887 1 SWITCH, PTO Push/Pull Symbols
6 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black
7 1665238 1 BREAKER, Circuit, 12 Volt 20 Amps
8 1665237 1 WIRE, 12GA 5-15/16 Long, Red
9 1722611 1 PLUG, Hole, Square

10 1725523 1 HOUR METER, (Includes Ref. Nos. 12)
11 1725524 1 PLUG, Dash
12 1725835 1 CLIP, Hour Meter (Service Only)
13 1920263 2 NUT, Hex, 5/16-24
14 2820426 3 LOCKWASHER, External Tooth, 5/16
15 1722739 1 SOLENOID
16 1686734 1 SWITCH ASSEMBLY, Ignition, 6 Pin, (Includes Ref. Nos. 17, 18,

19, 20 & 21)

17 1717163 1 KEYS, Set of 2
18 1717550 1 COVER, For Ignition Switch, Plastic
19 1717549 1 NUT, Hex Flange, 5/8-32, Ignition Switch
20 1960547 1 LOCKWASHER, Internal Tooth, 5/8, Thin
21 2101025 1 WASHER, Shim
22 1701011 3 TIE, Strap, 7-5/16 Long
23 1716951 1 SWITCH, Headlights , 2 Terminal
24 1713535 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red
25 1721830 1 CABLE, #6 x 25” Long, Ring Terminals
26 1603618 1 CABLE, #6 x 8” Long, Ring Terminals
27 1677296 1 BOOT, Insulator Battery Terminal
28 2816622 3 NUT, Hex, 1/4-20
29 2816964 2 LOCKWASHER, 1/4
30 2821319 2 WASHER, 1/4
31 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
32 1713163 1 CABLE, #6 x 26 Long, Ring Terminal
33 1685215 1 BATTERY, 12 Volt
34 1722009 1 STRAP, Battery, 14 Long, Rubber
35 1960536 2 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2
36 1716368 1 SWITCH, Seat, Grey, NC
37 1723249 1 SWITCH, Push Button, Foot Pedal

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

47

TP 400-5011-R1-TC-N

Electrical Group

Manual No. 7006451 LAWN TRACTOR
TP 400-5011-R1-TC-N

48

SERIES 0

Electrical Group

p

y

Part No Descri

38 1717050 1 SWITCH, Cruise Control, Grey, NO
39 1722715 1 HARNESS, Wiring Upper (Units with 2 Piece Harnes)
40 1724871 1 HARNESS, Wiring Lower (Units with 2 Piece Harness)
41 1725634 1 HARNESS, Wiring, (Units with 1 Piece Harness)

tionItem Qt

Note

Footnotes:

Manual No. 7006451LAWN TRACTOR

SERIES 0

49

TP 400-5011-R1-TC-N

Parts Manual fo

r

LAWN TRACTOR
ELECTRIC CLUTCH HYDRO DRIVE
SERIES 0

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

McDonough, GA, 30253 U.S.A.

Revision R1,

8/29/2005

Manual No. 700645 1

TP 400-5011-R1-TC-N
