Parts Manual fo
r
E
V
V
V
V
V
V
LAWN TRACTORS MANUAL CLUTCH
HYDRO DRIV
SERIES 2
MODEL
ELT160H422BV
LT125H382K
LT130H382K
LT140H422K
LT150H422K
LT160H422B
LT160H482B
RLT140H422KV
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 5,
McDonough, GA, 30253 U.S.A.
7/31/2006
Manual No. 7006432
TP 400-5080-5-TC-N
s
PAGE GROUP
4
6
8
10
14
18
22
24
26
28
30
32
34
38
42
44
46
48
54
58
60
66
68
70
72
74
76
78
80
82
84
Wheels - Front
Wheels - Rear
Hood, Bumper, Headlights
Engine, Engine Base & Drive Components (Briggs Engines)
Engine, Engine Base & Drive Components (Kohler Engines)
Steering & Front Axle Parts
Dash Panel, Fuel Tank, Battery (Part 1)
Dash Panel, Fuel Tank, Battery (Part 2)
Transmission Support & Components (Part 1)
Transmission Support & Components (Part 2)

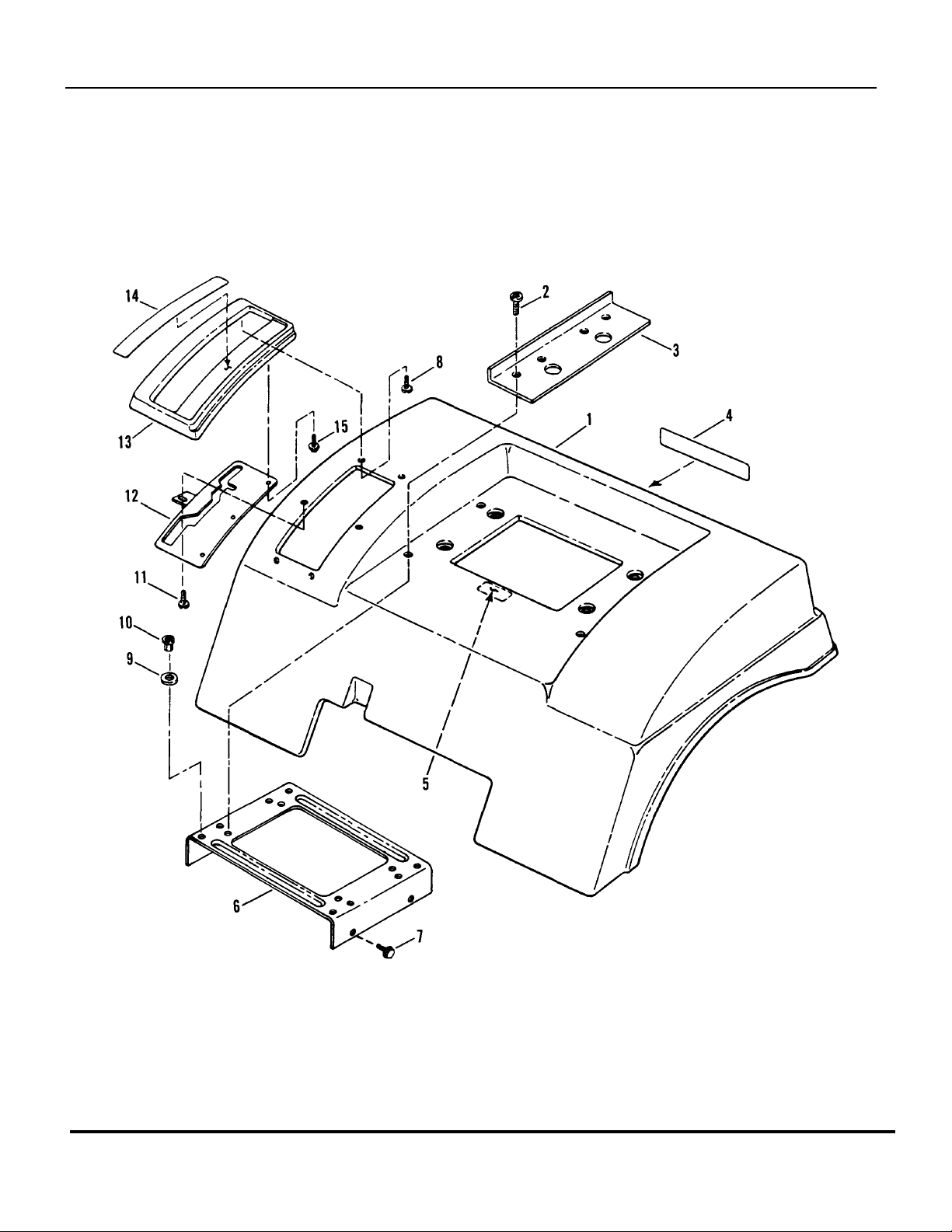

Rear Fender & Components
Seat, Support Components
Clutch, Brake & Transmission
Transmission Group
Transmission - Service Parts List
Blade Engagement
Implement Lift Parts

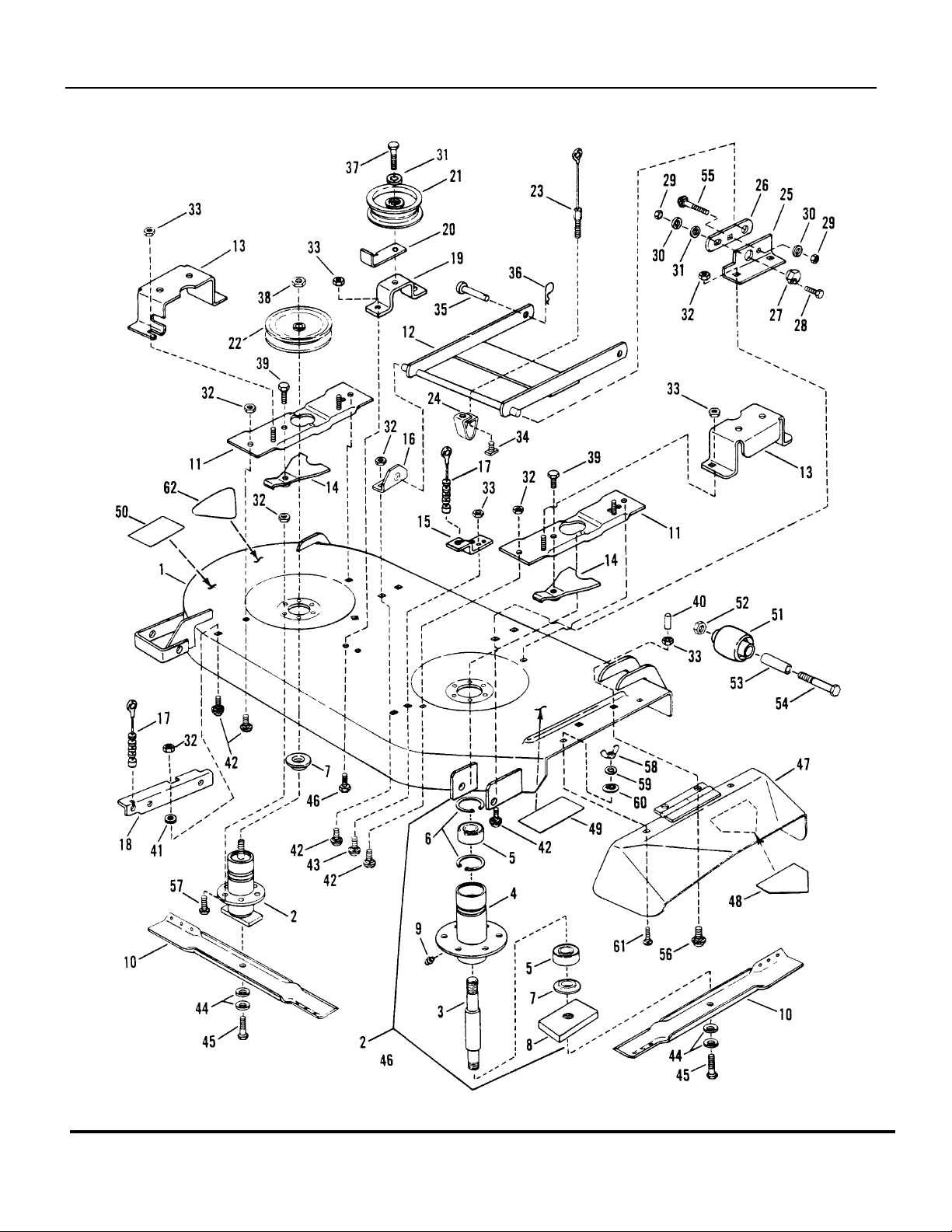

38" Cutting Deck, Belts, Brakes
42" Cutting Deck & Components
Belt, Blade Brake Components (42" Deck)

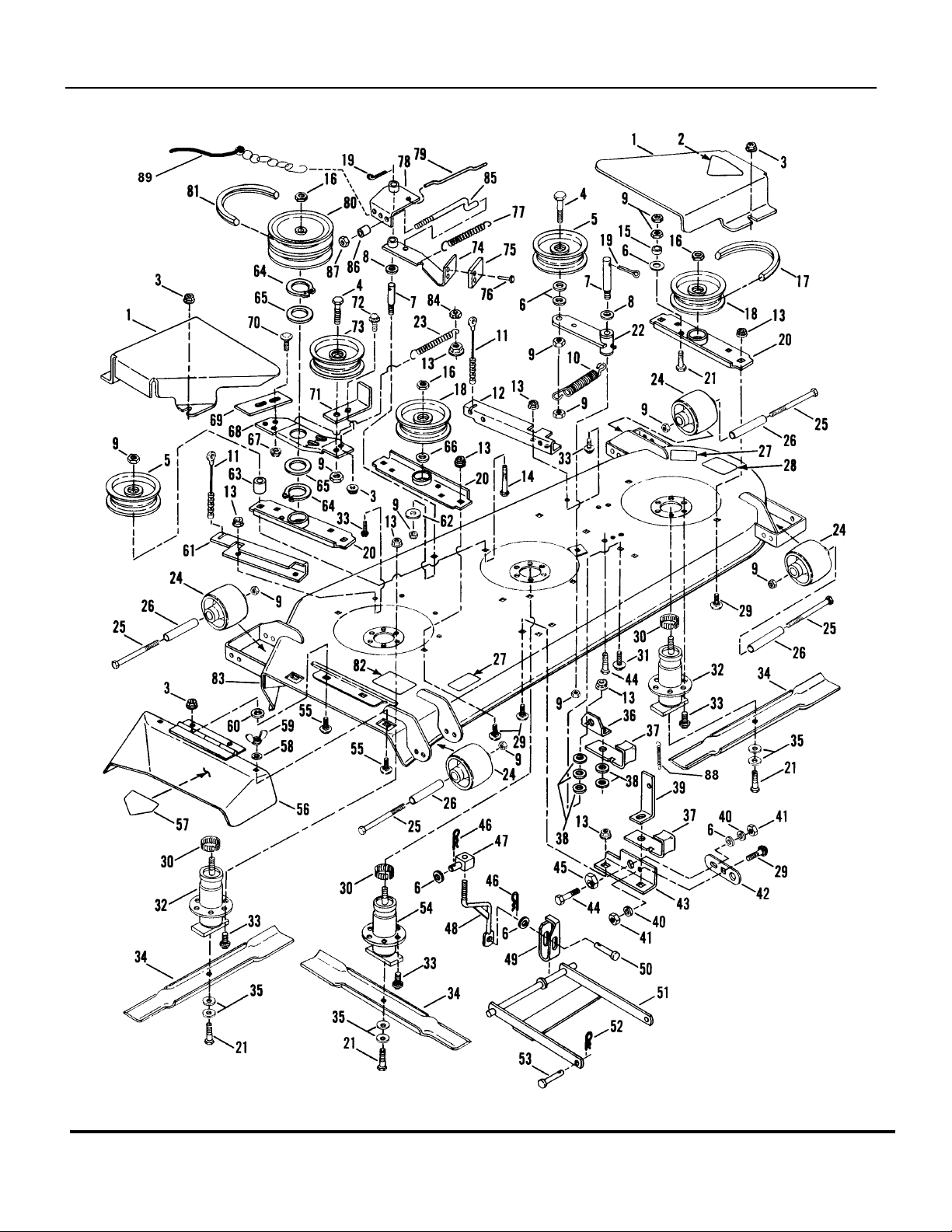

48" Cutting Deck, Belts, Brakes

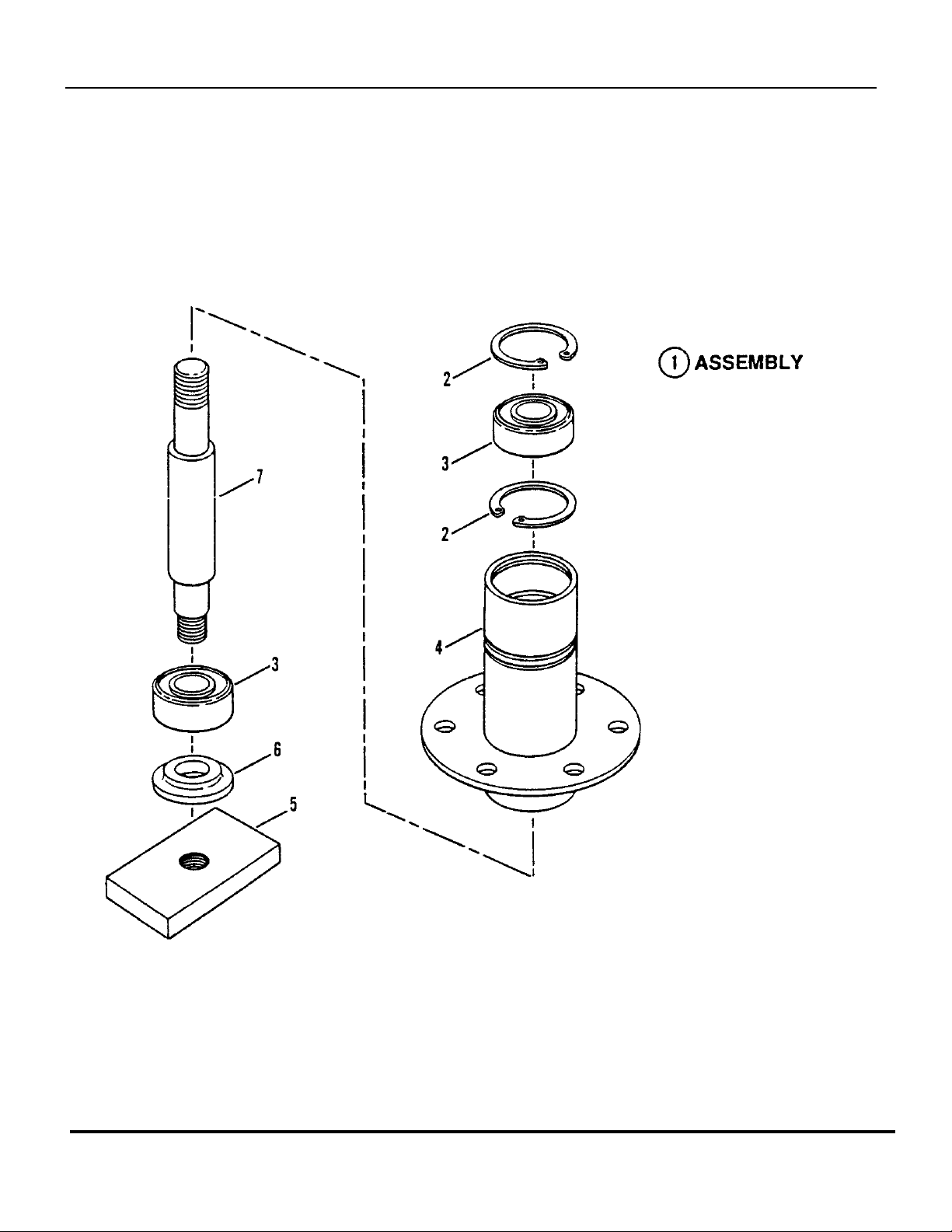

Spindle Assembly - 38" Cutting Deck
Spindle Assembly - 42" Cutting Deck
Spindle Assembly - 48" Cutting Deck

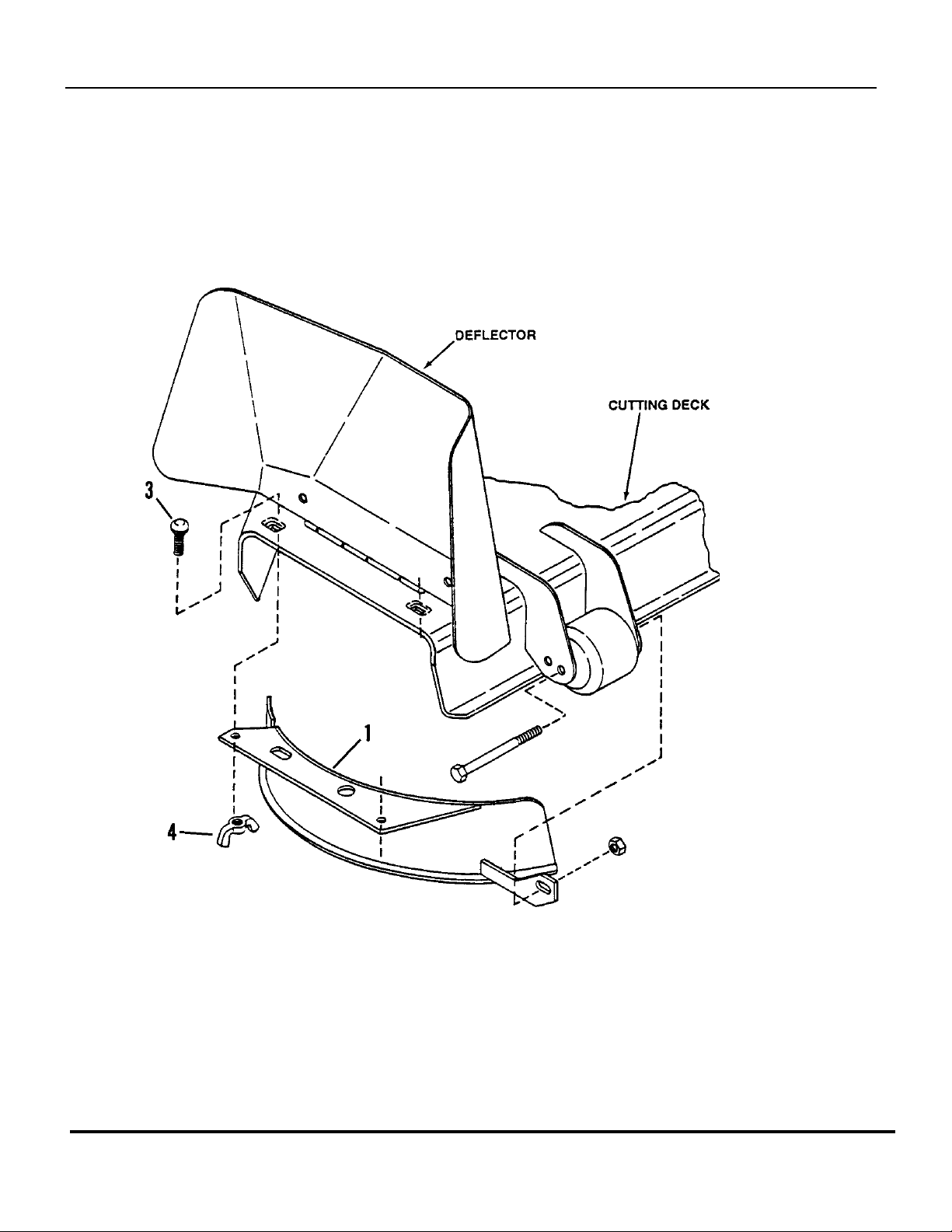

Recycling Kit For 42" Models
Electrical System (Briggs Engines Only)
Electrical System (Kohler Engines Only)

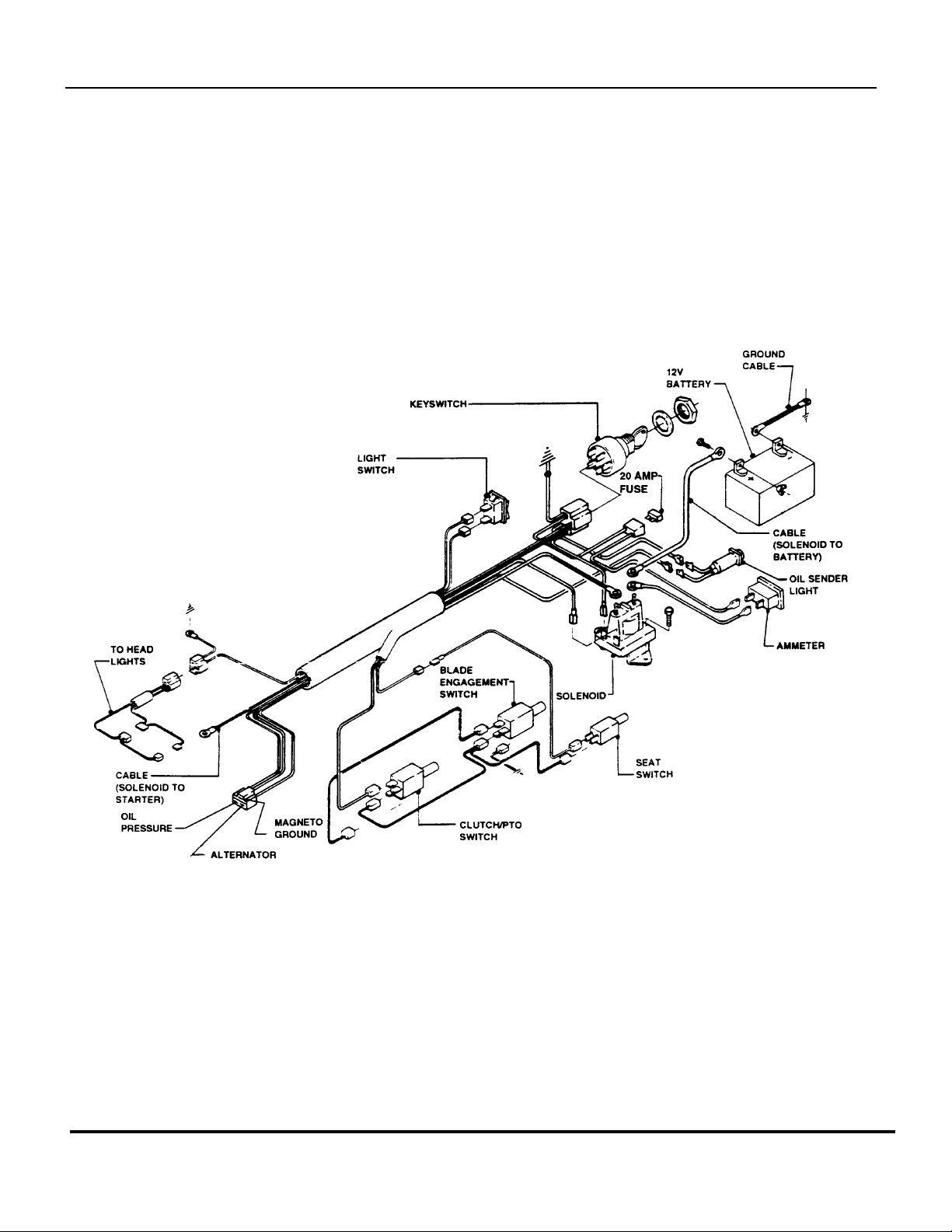

Illustrated Diagram Briggs Engine Models
Illustrated Diagram Kohler Engine Models

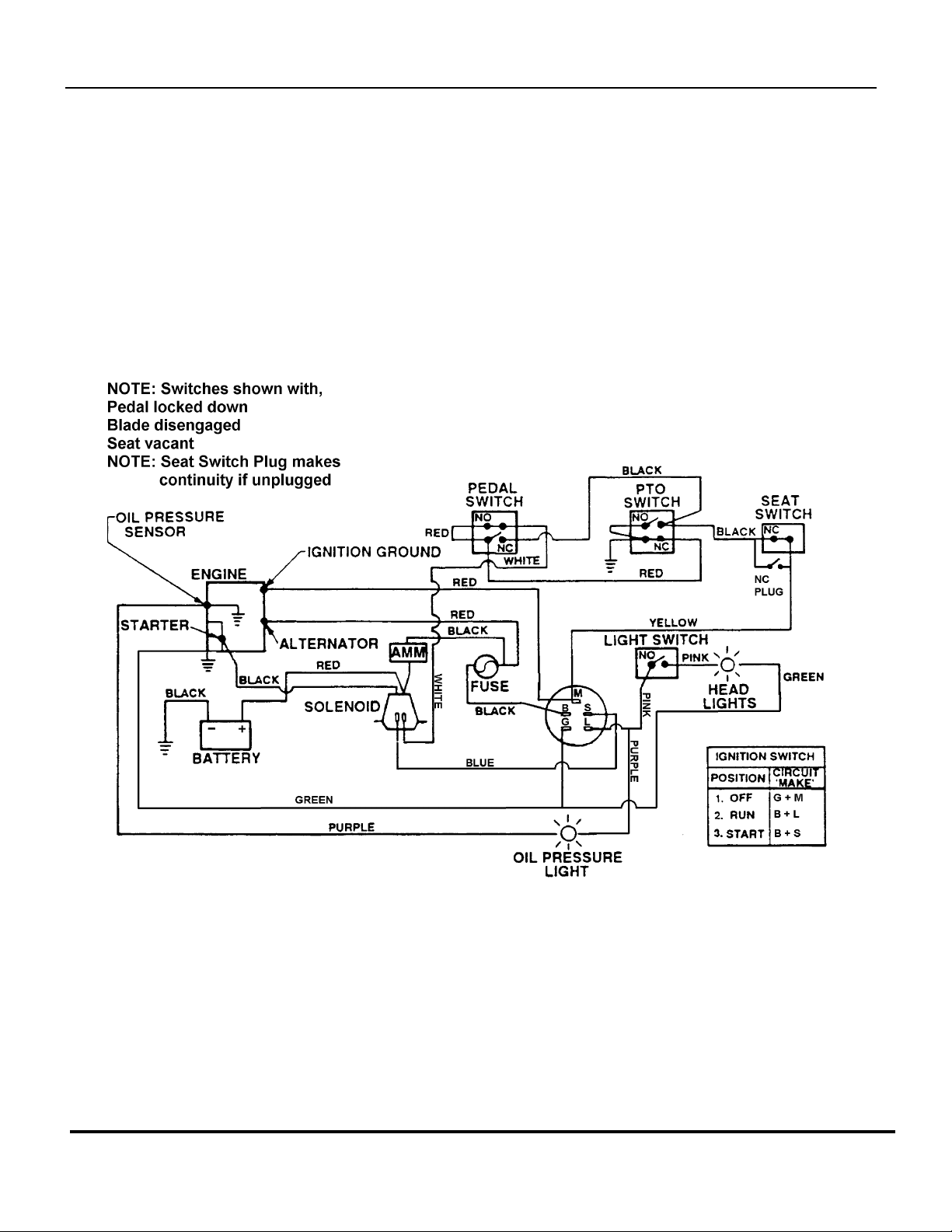

Schematic Electrical System (Briggs Engine Only)
Schematic Electrical System (Kohler Engines Only)
Table Of Content
SERIES 2
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
3
TP 400-5080-5-TC-N
Wheels - Front
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
4
SERIES 2
Wheels - Front
p
y
Part No Descri
1 7058517 2 ASSEMBLY, Front Tire & Rim 15x5.50-6.00 Was 53151 (Includes 2, 3, & 4)
2 7022772 2 RIM, 6 x 4.50
3 7072704 2 TIRE, 15-6.00 x 6 Was 26457
4 7012234 2 VALVE, Air (Snap-in)
5 7014483 4 BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L
6 7032027 2 WASHER .77 x 1.5 x .06
7 7019417 2 WHEEL-COVER Was 25009
8 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364
9 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
5
TP 400-5080-5-TC-N
Wheels - Rear
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
6
SERIES 2
Wheels - Rear
p
y
Part No Descri
1 7053152 2 ASSEMBLY, Rear Tire & Rim 20x10.0-8 (Includes items 2, 3, & 4)
2 7026458 2 TIRE, 20-10.00 x 8
3 7024454 2 RIM, Keyed 8 x 6.937 Gray
4 7012234 2 VALVE, Air (Snap-in)
5 7072385 2 SPACER, 3/4" x 2-1/4" O.D. Was 24858
6 7019418 2 COVER, Wheel Was 25010
7 7032027 4 WASHER, 3/4 Flat
8 7017173 2 KEY, 3/16 x 2 1/2" Square
9 7012899 2 RING, Retaining EXT .75 Was 12829
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
7
TP 400-5080-5-TC-N
Hood, Bumper, Headlights
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
8
SERIES 2
Hood, Bumper, Headlights
p
y
Part No Descri
1 7063298 1 KIT, Hood Assembly, Sloped Mozart (Contains mos items on
page)
2 7016766 1 ROD, Hood Support
3 7017359 1 LATCH, Spring
4 7090999 2 SCREW, 1/4-20 x 5/8" Truss Head
5 7076978 6 NUT, 1/4-20 Hex (Nyloc)
6 7024984 2 LOGO - SNAPPER (Chrome)
7 7090803 4 BOLT, 1/4-20 x 5/8" Carriage
8 1 PANEL, Hood (Left Side) (No longer available) Was 24474
9 7024968 1 DECAL, Hood LX130H (Left Hand)
9 7024970 1 DECAL, Hood LX150H (Left Hand)
9 7024974 1 DECAL, Hood RX150H (Left Hand)
9 7024972 1 DECAL, Hood LX170H (Left Hand)
10 7091095 2 RIVET, 1/8" Pop
11 7026476 1 LANYARD, Hood 17.5" (Briggs Engines)
11 7073446 1 LANYARD, Hood 14.5" Was 26192 (Kohler Engines)
12 7091106 5 SCREW, M4.8 x 1.59 x 16.00mm Special
13 1 FOAM, 1/2" x 3/4" x 14.25" (No longer available) Was 26803
14 7026784 1 PLENUM (Briggs 16 HP Only)
15 7029570 1 GRILLE, Hood Was 24472
16 7026482 1 CLIP, "J"
17 7026844 1 FOAM, 2" x 2" x 3.5" (Briggs 16 HP Only)
18 7026180 1 DECAL, Reflect (Left Side)
19 7024475 1 LENS
20 7026179 1 DECAL, Reflect (Right Side)
21 7026377 1 LOGO, Convertible (No longer available) Was 26377
22 7024983 1 LOGO - SNAPPER, 4" (Chrome)
23 7026172 2 BULB, Headlights 1141
24 7024709 2 SOCKET, Headlight Bulb
25 7026171 1 HARNESS, Headlight Wiring
26 1 PANEL, Hood (Right Side) (No longer available)
27 7024967 1 DECAL, Hood LX130H (Right Side)
27 7024969 1 DECAL, Hood LX150H (Right Side)
27 7024973 1 DECAL, Hood RX150H (Right Side)
27 1 DECAL, Hood LX170H (Right Side)(No longer available) Was 24971
tionItem Qt
Note
Was 26406 or 61383
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
9
TP 400-5080-5-TC-N
Engine, Engine Base & Drive Components (Briggs Engines)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
10
SERIES 2
Engine, Engine Base & Drive Components (Briggs Engines)
p
y
Part No Descri
1 1 ENGINE, Brigg's & Stratton, 16 HP V-Twin (B&S # 303777-0424-
01)
2 7033983 1 HEAT SHIELD, Manifold
3 7091084 2 SCREW, 1/4-20 x 3/8" Self-Tapping
4 1 HEAT SHIELD, Muffler (No longer available, try using 7034761) Was 33970
5 7033968 1 SUPPORT, Heat Shield
6 1 MANIFOLD, Exhaust (No longer available, try using 7041742) Was 41514
7 7091545 1 NUT, 1/4-20 Hex Flange Lock Was 90477
8 7014509 1 GASKET, Exhaust
9 7024241 1 MUFFLER
10 7024566 1 LOCK, Screw
11 7024161 2 BOLT, 5/16C x 4.1" Hex Head Cap
12 7026778 1 DEFLECTOR, Direct Out
13 7091122 1 SCREW, 1/4-20 x 1/2" Hex Flange, Self-Tapping Was 90539
14 7016719 2 SPACER .750 OD x .390 ID x .5 L
15A 7018573 1 PULLEY, Idler, 3.56" O.D.
15B 7011029 1 PULLEY, Idler, 4" O.D.
16 7090629 2 BOLT, 3/8-16 x 2 1/4" Hex Head
17 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
17 7091612 2 BOLT, 5/16-18 x 1 1/2" Carriage (38" Models Only) Was 90577
18 7014438 1 EYE-BOLT
19 7033145 1 BASE, Engine
20 7029900 2 CLAMP, Fuel Line .490 x .31 Was 12222
21 7076532 1 LINE, Fuel 10.5" x 1/4" ID
22 7091585 4 NUT, 3/8-16 Hex Center Lock Was 90546
23 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 90585
24 7091581 4 SCREW, 8/18 x 1/2" Hex Head, Self-Tapping Was 90525
25 7033896 1 SUB-PLATE, Brigg's Engine
26 1 OIL DRAIN, Pipe 3.5" Long 1/2" ID .375 NPF (No longer
available)
27 7091511 4 NUT, 5/16-18 Hex Was 90196
28 7090187 4 WASHER, 5/16 Split Lock
29 7090188 4 WASHER, 5/16 Flat
30 7091000 4 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
31 7011791 2 RETAINER, 5/16 Bolt
32 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
33 7091540 4 SCREW, 5/16-18 x 1 1/2" Hex Head Cap Was 90211
34 7091619 6 NUT, 3/8-16 Hex Flange Lock Was 90613
35 1 SUPPORT, Axle (No longer available) Was 33100
tionItem Qt
Note
(B&S # 303777-0424-01)
Was 24318
Footnotes:
Purchase engine & engine parts other than those listed, from engine service outlets.
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
11
TP 400-5080-5-TC-N
Engine, Engine Base & Drive Components (Briggs Engines)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
12
SERIES 2
Engine, Engine Base & Drive Components (Briggs Engines)
p
y
Part No Descri
36A 7041544 1 GUIDE, Belt (38" Models Only)
36B 7019042 1 GUIDE, Belt (42" & 48" Models)
37 7026118 1 V-BELT, Traction Drive A113.6
38 7090836 1 SCREW, 7/16-20 x 1" Hex Cap, Socket Head
39 7091301 1 WASHER, 7/16 Split Lock Was 90247
40 7019036 1 ASSEMBLY, Engine Pulley
41 7024061 2 SCREW, 3/8-16 x 1 1/4" Shoulder (Torx)
42 7026281 2 BRACKET, Hood
43 7091086 4 SCREW, 3/8-16 x 3/4" Hex Head Cap
44 7090595 2 BOLT, 5/16-18 x 3/4" Hex Flange Lock
45 7024802 2 SPACER, .81 OD X .48 ID x .5 L (38" Models Only)
46 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
47 7027856 1 SPRING, Idler Arm Was 17807
48 7014527 1 SPACER .623 OD x .38 ID x .25 L
49 7091302 1 NUT, 3/8-16 Hex Was 90130
50 7090118 1 WASHER, 3/8 Split Lock
51 7023199 1 PULLEY, Idler, 3 3/4" O.D.
52 7090517 2 WASHER, 3/8" Flat Was 90600
53 7040565 1 ARM, Idler
54 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .75 L Was 22062
55 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
tionItem Qt
Note
Footnotes:
Purchase engine & engine parts other than those listed, from engine service outlets.
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
13
TP 400-5080-5-TC-N
Engine, Engine Base & Drive Components (Kohler Engines)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
14
SERIES 2
Engine, Engine Base & Drive Components (Kohler Engines)
p
y
Part No Descri
1 ENGINE, 16 HP B&S Twin Cyl. (303777-0424-01)
1 7026281 2 BRACKET, Hood
2 7017313 1 MUFFLER, Exhaust
3 1 ENGINE, Kohler 12.5 HP (Kohler # CV12.5S PS1260)
3 1 ENGINE, Kohler 14 HP (Kohler # CV14S PS-1431)
4 7091585 4 NUT, 3/8-16 Hex Center Lock Was 90546
5 7033145 1 BASE, Engine
6 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
6 7091612 2 BOLT, 5/16-18 x 1 1/2" Carriage (38" Models Only) Was 90577
7 7090595 2 BOLT, 5/16-18 x 3/4" Flange Lock
8 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 90585
9 7014438 1 EYE-BOLT
10 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
11 7090517 2 WASHER, 3/8" Flat Was 90600
12 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .75 L Was 22062
13 7040565 1 ARM, Idler
14A 7018573 1 PULLEY, Idler, 3.56" O.D.
14B 7011029 1 PULLEY, Idler, 4" O.D.
15 7023199 1 PULLEY, Idler, 3 3/4" O.D.
16 7090629 2 BOLT, 3/8-16 x 2 1/4" Hex
17 7090118 1 WASHER, 318 Split Lock
18 7091302 1 NUT, 3/8-16 Hex Was 90130
19 7014527 1 SPACER .623 OD x .38 ID x .25 L
20 7027856 1 SPRING, Idler Arm Was 17807
21 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
22A 7019042 1 GUIDE, Belt (42" & 48" Models Only)
22B 7041544 1 GUIDE, Belt (38" Models Only)
23 7091116 1 SCREW, M10-1.50 x 25mm Hex Head Cap
24 7091301 1 WASHER, SLW 7/16" YZ Was 91117
25 7019036 1 ASSEMBLY, Engine Pulley
26 7024061 2 SCREW, 3/8-16 x 1 1/4" Shoulder (Torx)
27 7091619 6 NUT, 3/8-16 Hex Flange Lock Was 90613
28 7026118 1 V-BELT, Traction Drive A113.6
29 1 SUPPORT, Axle (No longer available) Was 33100
30 7077692 4 BOLT, M8-1.25 x 25mm Hex Head
31 7090187 4 WASHER, 5/16 Split Lock
32 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
33 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
tionItem Qt
Note
Footnotes:
Purchase engine & engine parts other than those listed, from engine service outlets.
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
15
TP 400-5080-5-TC-N
Engine, Engine Base & Drive Components (Kohler Engines)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
16
SERIES 2
Engine, Engine Base & Drive Components (Kohler Engines)
p
y
Part No Descri
34 7033424 1 SPACER, Kohler Engine
35 7011791 2 RETAINER, 5/16 Bolt
36 7016719 2 SPACER .750 OD x .390 ID x .5 L
37 7024802 2 SPACER, .81 OD X .48 ID x .5 L (38" Models Only)
38 7091086 4 SCREW, 3/8-16 x 3/4" Hex Head Cap
39 7090071 2 SCREW, 1/4-20 x 1/2" Hex Head Cap, Grade 5
tionItem Qt
Note
Footnotes:
Purchase engine & engine parts other than those listed, from engine service outlets.
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
17
TP 400-5080-5-TC-N
Steering & Front Axle Parts
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
18
SERIES 2
Steering & Front Axle Parts
p
y
Part No Descri
1 7026448 1 WHEEL, Steering
2 7012765 1 PIN, 1/4 x 2-1/4" Roll
3 7040610 1 SHAFT, Steering
4 7091313 1 PIN, Cotter 3/32" x 1" Was 90038
5 7014296 3 WASHER, Shim .5 x .75 x .03
6 7091584 1 NUT, 1/4-20 Hex Flange Lock Was 90583
7 7052562 1 ADJUSTER, Steering Was 51751
8 7011071 2 WASHER, Thrust
9 7047938 1 ASSEMBLY, Steering Support
10 7091573 1 BOLT, 1/4-20 x 5/8" Short Neck Carriage Was 90551
11 7090361 4 SCREW, 5/16-18 x 5/8" Self-Tapping
12 7010746 2 RING, Retaining EXT .625
13 7015048 1 BEARING, DX, 3/4X1
14 7051752 1 ASSEMBLY, Sector
15 7027936 2 ROD-END, Drag Link .377 ID Ball x 3/8-24 End Was 23200
16 7090118 4 WASHER, 3/8 Split Lock
17 7090163 2 SCREW, 3/8-24 x 1-1/4" Hex Head Cap
18 7090482 4 NUT, 3/8-24 Hex Jam
19 7016062 1 DRAG-LINK
20 7019034 1 ARM, Steering
21 7090842 2 PIN, 1/4 x 1 1/4" Roll
22 7032027 3 WASHER, 49/64 x 1-1/2" O.D. Flat
23 7012706 4 BEARING, Sleeve .875 OD
24 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
25 7031036 2 WASHER, Thrust
26 7040977 1 ASSEMBLY, Spindle (Left Hand)
27 7091516 2 PIN, 5/32 x 1" Cotter Was 90364
28 7091630 2 NUT, 3/8-24 Hex Was 90155
29 7017608 1 TIE-ROD
30 7040976 1 ASSEMBLY, Spindle (Right Hand)
31 7090993 1 SCREW, 1/2-20 x 4 1/2" Hex Head Cap
32 7057536 1 ASSEMBLY, Front Axle (Includes four item 23, two item
33 7022070 1 SPACER, Axle Pivot .748 OD x .508 ID x 3.77 L
34 7090819 1 NUT, 1/2-20 Hex Lock
35 7010935 1 WASHER .77 x 1.13 x .06
36 7014871 1 FITTING, Lube 3/16
37 7033264 1 HEAT SHIELD, Fuel Line (Kohler Engines Only)
tionItem Qt
Note
24, one item 36)
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
19
TP 400-5080-5-TC-N
Steering & Front Axle Parts
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
20
SERIES 2
Steering & Front Axle Parts
p
y
Part No Descri
38 7033899 1 ADAPTER, Steering Wheel
39 7026360 1 COVER, Steering Shaft
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
21
TP 400-5080-5-TC-N
Dash Panel, Fuel Tank, Battery (Part 1)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
22
SERIES 2
Dash Panel, Fuel Tank, Battery (Part 1)
p
y
Part No Descri
1 7052685 1 PANEL, Dash Was 53007 or 53160
2 7091212 4 SCREW, 1/4-20 x 1" Phillips
3 7040734 1 SUPPORT, Steering Shaft (For Kohler Engines)
3 7041548 1 SUPPORT, Steering Shaft w/choke (For Briggs Engines)
4 7051915 1 CHANNEL, Foot Rest (Includes item 30)
5 7091000 14 SCREW, 5/16-18 x 7/8" Self-Tapping (Torx) Was 91001
6 7019400 1 TREAD, Left Side (Non-Skid)
7 7019399 1 TREAD, Right Side (Non-Skid)
8 7090361 2 SCREW, 5/16-18 x 5/8" Self-Tapping
9 7033073 1 MOUNT, Fuel Tank/Battery
10 7026196 1 FLANGE ASSM'Y., Steering Shaft .75" ID Bearing Was 23173
11 7076978 4 NUT, 1/4-20 Hex
12 7090896 2 SCREW, #10-24 x 1/2" Self-Tapping Was 90853
13 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping
14 7033078 1 PLATE, Fuel Tank & Battery Mount
15 7091122 4 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
29 7016824 1 CONTROL, Throttle 41.6" Long (Kohler 12.5 & 14 HP Engines)
29 7026475 1 CONTROL, Throttle 28.0" Long (Briggs 16 HP Engines)
30 1 DECAL, Caution & Instruction (No Longer available) Was 26335
30 1 DECAL, Caution & Instruction (No Longer available) Was 27876
32 1 GROMMET, 5/16 I.D. for .75 Hole (No Longer available) Was 14856
33 7023655 1 HANDLE, Throttle Control
34 7091017 1 SCREW, #8-32 x 3/8" Recessed Fillister Head
35 7091018 1 NUT, #8-32 Hex
36 7033828 1 ROD, Hood Latch
37 7090803 6 BOLT, 1/4-20 x 5/8" Flat Head Carriage
38 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 90583
39 7024943 1 DECAL, Dash Panel (Not Shown)
39 7026699 1 DECAL, Dash Panel (For Briggs Engines) (Not Shown)
40 7018674 1 CONTROL, Choke 29.1" Long (For Briggs Engines) (Not Shown)
tionItem Qt
Note
Footnotes:
* NOTE: This part may be available from DPNI 1-800-558-1848 (Todd Graff)
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
23
TP 400-5080-5-TC-N
Dash Panel, Fuel Tank, Battery (Part 2)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
24
SERIES 2
Dash Panel, Fuel Tank, Battery (Part 2)
p
y
Part No Descri
16 7014475 1 CABLE, Negative Terminal 15" 8 AWG Black
17 7091568 2 WING-NUT, 1/4-20 Was 90311
18 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074
19 7012444 1 COVER, Positive Terminal
20 7022366 1 CLAMP, Battery
21 7014476 1 CABLE, Positive Terminal 11" 8 AWG Red
22 7060618 1 KIT, Battery, 12 Volt
23 7022696 1 SPRING, Battery Bracket
24 7012515 1 CAP, Fuel Tank Was 14363
25 7052258 1 TANK, Fuel w/cap (Includes item 24)
26 7029900 2 CLAMP, Fuel Line .490 x .31 Was 12222
27 1 LINE, Fuel (14.5" Long) (No longer available) Was 32633
28 7023195 1 CABLE-TIE, Fuel Tank Hold Down
31 1 HEAT SHIELD, Fuel Tank 3" x 5.5" (No longer available) Was 17788
39 7024943 1 DECAL, Dash Panel (Not Shown)
39 7026699 1 DECAL, Dash Panel (meter/choke) (Not Shown) (For Briggs Engines)
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
25
TP 400-5080-5-TC-N
Transmission Support & Components (Part 1)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
26
SERIES 2
Transmission Support & Components (Part 1)
p
y
Part No Descri
1 1 TRANSMISSION SUPPORT, R.H. (No longer available) Was 33063
2 2 BRACKET, Transmission Mount (No longer available) Was 33059
3 7016360 2 WASHER
4 7017164 1 ROD, Release
5 7023606 1 CAP, Release Rod Was 23525
6 7033061 1 BRACE, Torque
7 7016116 6 NUT, 5/16 Push-On
8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping
9 1 TRANSMISSION SUPPORT, L.H. (No longer available) Was 33062
10 7027198 4 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582
11 1 EXTENSION, Transmission Support (Left Hand)(No longer
available)
12 7091585 4 NUT, 318-16 Hex Center Lock Was 90546
13 7090122 4 WASHER, 3/8" Flat
14 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tapping Was 90368
15 1 BRACE, Shift Bracket (No longer available) Was 33065
16 1 EXTENSION, Transmission Support, R.H. (No longer available) Was 35180
17 7022289 2 U-BOLT
18 7033320 2 SADDLE, U-Bolt
19 7091601 4 NUT, 5/16-18 Hex Flange Lock Was 90585
24 7026321 2 SUPPORT, Footrest
25 7091000 1 TORX, ST Bolt 5/16" C x 7/8"
tionItem Qt
Note
Was 33300
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
27
TP 400-5080-5-TC-N
Transmission Support & Components (Part 2)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
28
SERIES 2
Transmission Support & Components (Part 2)
p
y
Part No Descri
8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping
20 7033068 1 COVER, Rear
21 7017209 1 DECAL, Roll
22 1 COVER, Transmission Oil Access (No longer available) Was 16863
23 7017327 2 SCREW, Expansion
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
29
TP 400-5080-5-TC-N
Rear Fender & Components
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
30
SERIES 2
Rear Fender & Components
p
y
Part No Descri
1 7024887 1 PAN, Seat, Fender
2 7091000 4 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
3 7033958 2 BRACE, Fender
4 7024984 1 LOGO - SNAPPER, Molded (Chrome)
5 7026415 1 DECAL - CAUTION, Battery Installation
6 1 SUPPORT, Fender (No longer available) Was 33787
7 7090361 8 SCREW, 5/16-18 x 5/8" Self-Tapping
8 7091563 5 SCREW, #10-24 x 5/8" Self-Tapping Was 91223
9 7090500 2 WASHER, SAE 7/16 Was 26187
10 2 RIV-NUT, 5/16-18 (No longer available, try using 7023193) Was 26183
11 7091195 1 SCREW, #10-16 x 3/4" Self-Tapping
12 7041492 1 DETENT, Gear Shift
13 7026125 1 COVER, Shift
14 1 DECAL, Shift Cover (Hydro)(No longer available, try using
7073424)
15 7091105 3 SCREW, #10-16 x 1/2" Self-Tapping
tionItem Qt
Note
Was 26444
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
31
TP 400-5080-5-TC-N
Seat, Support Components
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
32
SERIES 2
Seat, Support Components
p
y
Part No Descri
1 7059215 1 ASSEMBLY, Seat Support (Includes 2, 4, 5, & 2 item 3) Was 52606
2 7059215 1 SUPPORT, Seat Was 17852
3 7073266 2 SPRING Was 22759
4 7023354 1 SWITCH, Seat NC
5 7028580 1 HOLDER, Cushion Was 17851
6 7019109 2 CUSHION, Seat
7 7017875 2 KNOB, Seat Adjustment 5/16-18MX2
8 7090721 3 BOLT, 5/16-18 x 1/2" Hex Flange Lock
9 7012431 1 PIN, Hair 1.12"
10 7074452 1 ROD, Seat Hinge Was 33435
11 7033318 1 BRACKET, Seat Support
12 7028621 1 SEAT, Operator's Was 25002
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
33
TP 400-5080-5-TC-N
Clutch, Brake & Transmission
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
34
SERIES 2
Clutch, Brake & Transmission
p
y
Part No Descri
1 7023656 1 KNOB, Shifter (Elongated)
2 7041399 1 SHIFTER, Transmission
3 7091597 1 PIN, 3/32 x 3/4" Cotter Was 90037
4 7022182 1 PIN, Shifter
5 7033159 1 EXTENSION, Hub
6 7090112 1 SCREW, 1/4-28 x 2" Hex Head Cap
7 7090303 1 NUT, 1/4-28 Hex Lock
8 7052346 1 ASSEMBLY, Rub Plate
9 7052274 1 ASSEMBLY, Shift Pivot
10 1 BEARING, Shift Pivot Assembly (No longer available, try using
7015048)
11 7017818 1 SPRING, Shift
12 7017820 1 SPACER, 1.0 OD x .755 ID x .310 L
13 7040704 1 CONTROL, Speed
14 7091130 2 WASHER, 5/16 Flat
15 7091297 1 NUT, 5/16-24 Hex Was 90223
16 7017415 1 WASHER, Special
17 7017416 1 SPRING, Tension
18 7090517 1 WASHER, 3/8" Flat Was 90600
19 7090289 1 NUT, 3/8-24 Hex Lock
20 7017543 1 FOLLOWER, Cam
21 7026704 1 CABLE, Clutch (23.88" Long)
22 7032926 1 BRACE
23 7023649 2 WASHER, Nylon 5/16"
24 7023189 1 RING, Tolerance 5/16" x 1/2"
25 7023188 1 KNOB, Latch 5/16"
26 7012661 1 PAD, Pedal
27 7017024 1 PEDAL, Clutch/Brake
28 7019033 1 LATCH, Clutch/Brake
29 7012431 1 PIN, 1/4 x 1 1/8" Hair
30 7091000 2 SCREW, 5/16-18 x 7/8" Torx
31 7014871 1 FITTING, Lube 3/16"
32 7052431 1 PIVOT, Clutch/Brake Pedal (Includes item 31)
33 7091511 2 NUT, 5/16-18 Hex Was 90196
34 7091313 1 PIN, 3/32 x 1" Cotter Was 90038
35 7023645 1 PIN, 3/16 x 1 1/2" Clevis
36 7041309 1 BRAKE ARM Was 41016
37 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074
tionItem Qt
Note
Was 16955
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
35
TP 400-5080-5-TC-N
Clutch, Brake & Transmission
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
36
SERIES 2
Clutch, Brake & Transmission
p
y
Part No Descri
38 7023182 1 SPOOL, Bracket
39 7012715 1 PIN, 3/8 x 1 9/32" Clevis
40 7091809 1 PIN, 1/8 x 1 1/4" Cotter Was 90042
41 1 BRACKET, Spool (No longer available, try modifying 7033328 to
fit)
42 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping
43 7091593 1 PIN, 1/16 x 1 7/32" Self-Lock Cotter Was 24159
44 7090905 1 WASHER, 13/32 I.D. x 1 3/8" O.D.
45 7011791 1 RETAINER, 5/16
tionItem Qt
Note
Was 32694 or 33154
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
37
TP 400-5080-5-TC-N
Transmission Group
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
38
SERIES 2
Transmission Group
p
y
Part No Descri
1 7026084 1 TRANSAXLE ASSEMBLY (HG, 215-1000)
2 7033133 1 LEVER, Release
3 7076978 1 NUT, 1/4-20 Hex Lock
4 7017166 1 SPACER .37 OD x .271 ID x .120 L
5 7016927 1 SPRING, Brake Return
6 7091511 4 NUT, 5/16-18 Hex Was 90628
7 7090187 1 WASHER, 5/16 Split Lock
8 7052281 1 ASSEMBLY, Torque Bracket
9 7017121 1 ROD, Brake Spring
10 7090692 3 WASHER 5/16 x 7/8 x .083
11 7091598 2 PIN, 5/32 x 1" Cotter Was 90365
12 7040702 1 ROD, Brake Stop
13 7091575 1 NUT, 5/16-18 Hex Center Lock Was 90184
14 7016721 1 SPRING, Brake
15 7015464 1 STUD, Neutral Pivot
16 7090390 1 WASHER, 3/8 Internal Tooth Lock
17 7091630 1 NUT, 3/8-24 Hex Was 90155
18 7091809 1 PIN, 1/8 x 1 1/4" Cotter Was 90042
19 7040703 1 ASSEMBLY, Neutral Pivot
20 7072801 1 WASHER, .632 ID x 1.0 OD (No longer available, try using
7072801)
21 2 BEARING, 5/8 Flanged Nylon .625 ID x .719 x .325 (No longer
available)
22 7033056 1 SUPPORT, Neutral Pivot
23 7016723 1 SPRING, Torsion
24 1 SPACER, 1.120 OD x .635 ID x .38 L (No longer available) Was 17165
25 7090842 1 PIN, 1/4 x 1 1/4" Roll
26 7016715 1 CAM, Neutral Return
27 7016726 1 TRANSMISSION, Hydro (HG BDU-105-120) (Hydrogear BDU 10S-120)
28 7016727 1 RESERVOIR ASSEMBLY (HG 2003081) (Internal Diaphram, HG
29 7016712 1 HUB, Speed Control
30 1 SCREW, 1/4-28, 1/8 Hex Socket Set (No longer available, try
using 7077667)
31 7017732 1 PIN, Spiral 5 MM x 36 MM
32 7027139 1 ROD END, Speed Control Was 17128
33 7091297 2 NUT, 5/16-24 Hex Was 90223
34 1 ROD, Adjustment 4.41" l, 5/16-24 Ends (No longer available) Was 17816
35 7016729 1 PIN, Eccentric
36 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap Was 90203
tionItem Qt
Note
Was 12855
Was 16956
#2003084)
Was 13670
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
39
TP 400-5080-5-TC-N
Transmission Group
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
40
SERIES 2
Transmission Group
p
y
Part No Descri
37 7014263 1 WASHER, Cone .32 x 1.4 x .1
38 7091130 2 WASHER, Flat .327 x .875 x .09
39 7011968 1 ROLLER
40 7033054 1 PLATE, Speed Control
41 1 NUT, Special 3/4 Hex Stock/5/16-24 Thru/9/16-18x1.0 Deep (No
longer available)
42 7076940 3 SCREW, 5/16-18 x 4 1/2" Hex Head Cap
42 7090924 1 SCREW, 5/16-18 x 4 1/8" Hex Head Cap (Not Shown)
43 7016716 1 PULLEY, Drive
44 7090322 1 SCREW, 5/16-24 x 1/2" Hex Head Cap
45 7011763 1 WASHER, Fender 5/16
46 7016728 1 FAN, 7" DIA 10 Blade
47 5023202 1 WASHER, 3/8 Wave Was 17855
48 7024235 4 COUPLING, Pump
49 7024425 1 KEY, 3/32" x 5/8"
tionItem Qt
Note
Was 16717
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
41
TP 400-5080-5-TC-N
Transmission - Service Parts List
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
42
SERIES 2
Transmission - Service Parts List
p
y
Part No Descri
1 7024395 1 ASSEMBLY, Transaxle Housing (Left Hand)
2 7091511 1 NUT, 5/16-18 Hex Was 90628
3 7024235 4 COUPLING Pump
4 7024397 1 ASSEMBLY, Differential Was 27786
5 7024399 1 ASSEMBLY, Reduction Gear
6 7024400 1 SHAFT, Drive
7 7024401 1 GEAR, Drive Pinion
8 7024402 1 SHAFT, Pinion Gear
9 7024396 1 ASSEMBLY, Transaxle Housing (Right Hand)
10 7024428 1 SEAL, Grease
11 7024416 1 KEY, 3/16 x 5/8" Hi-Pro
12 7024404 2 PUCK, Brake
13 7024403 1 DISC, Brake
14 7024405 1 PLATE, Puck
15 7024406 1 ASSEMBLY, Brake Yoke
16 7024420 1 SPACER
17 7024419 1 WASHER, 9/32 I.D. x 7/8" O.D. Flat
18 1921963 1 BOLT, 1/4-20 x 2" Hex Was 24418
19 7024412 1 PIN, Cotter
20 7024411 1 NUT, 5/16-24 Castle
21 7024410 1 WASHER, 11/32 I.D. x 7/8" O.D.Flat
22 7024409 1 ARM, Brake Actuator
23 7024408 2 PIN, Brake Actuating
24 2816622 1 NUT, 1/4-20 Hex Was 24414
25 7024415 1 WASHER, 1/4 Spring Lock
26 7024421 4 BOLT, 1/4-20 x 2" Self-Tapping
27 7024424 1 BOLT, 5/16-18 x 3 3/4" Hex Head
28 7024422 4 BOLT, 1/4-20 x 3" Self-Tapping
29 7024398 1 ASSEMBLY, Input Pinion Housing
30 7024425 1 KEY, 3/32 x 5/8" Hi-Pro
31 7024413 3 SCREW, 1/4-20 x 3/4" Hex Head
32 7090841 2 PIN, Roll, 3/16 x 1.5" Was 24427
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
43
TP 400-5080-5-TC-N
Blade Engagement
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
44
SERIES 2
Blade Engagement
p
y
Part No Descri
1 7016356 1 KNOB, Handle 7/16"
2 1 HANDLE, Blade Engagement (No longer available, try using
7040674)
3 7013321 4 BUSHING
4 7033364 1 BRACKET, Handle
5 7090122 3 WASHER, 3/8 SAE YZ
6 7091597 4 PIN, 3/32 x 3/4" Cotter Was 90037
7 7090803 4 BOLT, 1/4-20 x 5/8" Flat Head Carriage
8 7091584 4 NUT, 1/4-20 Hex Flange Lock Was 90583
9 7023206 1 SPACER .625 OD x .380 ID x .560 L
10 7040570 1 ASSEMBLY, Pivot Arm
11 7091313 1 PIN, 3/32 x 1" Cotter Was 90038
12 7032712 1 LINK
13 7023165 1 SPRING, Return
14 7033277 1 BRACKET, Idler Support
15 7017748 1 PULLEY, Idler 2.75" OD
16 7091580 1 BOLT, 3/8-16 x 1-3/4" Hex Flange Lock Was 90701
17 7091619 1 NUT, 3/8-16 Hex Lock Was 90613
18 7090731 2 BOLT, 5/16-18 x 1/2" Short Neck Carriage
19 7091601 2 NUT, 5/16-18 Hex Lock Flanged Was 90585
20 7035431 1 CABLE, Blade (35.0" Long - 38" Models) Was 26195
7026119 1 CABLE, Blade (30.44" Long - 42" Models)
7026777 1 CABLE, Blade (21.5" Long - 48" Models)
tionItem Qt
Note
Was 40996
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
45
TP 400-5080-5-TC-N

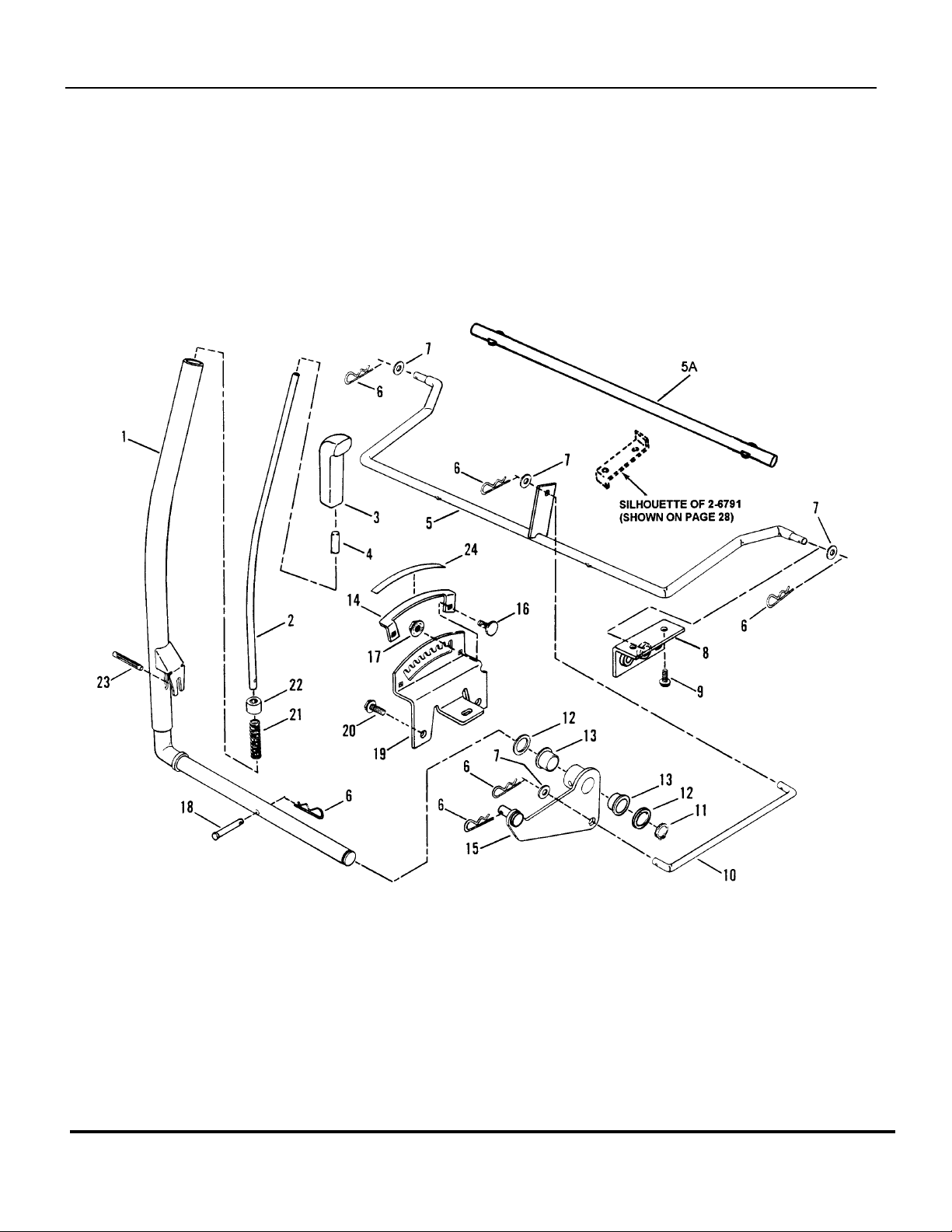

Implement Lift Parts
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
46
SERIES 2
Implement Lift Parts
p
y
Part No Descri
1 7040698 1 ARM, Implement Lift Lever
2 7033047 1 ROD, Lift Lever
3 7019363 1 GRIP, Lift Lever
4 7014361 1 CAP, Lift Release
5 7047967 1 ARM, Rear Lift
5A 7026501 1 ROD, Uplatch (Used on ground-following decks only) Used on ground-following decks
6 7091503 5 PIN, 3/32 x 1-1/2" Hair Was 15067
7 7090122 4 WASHER, 3/8" Flat
8 7033737 2 BRACKET, Hanger
9 7090361 4 SCREW, 5/16-18 x 5/8" S.-Tap
10 7023171 1 LIFT-ROD
11 7015020 1 RING, Retaining EXT 7/8"
12 7014354 2 WASHER, Lift Lever .905 x 1.25 x .091
13 7023197 2 BEARING, Lift Lever
14 7033176 1 INDICATOR, Cut Height
15 7041528 1 ASSEMBLY, Lift Lever Pivot
16 7090803 2 BOLT, 1/4-20 x 5/8" Carriage
17 7091584 2 NUT, 1/4-20 Hex Flange Lock Was 90583
18 7029841 1 PIN, Clevis, 5/16 x 1 11/16" Was 12407
19 7033046 1 QUADRANT, Lift Lever
20 7091000 3 SCREW, 5/16-18 x 7/8" Self-Tapping Was 91001
21 7014432 1 SPRING, Lift Lever
22 7015019 1 PLUG, Lift Lever Nylon
23 7090881 1 PIN, 3/16 x 2" Groove
24 7017445 1 DECAL, Cut Height
tionItem Qt
Note
only.
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
47
TP 400-5080-5-TC-N
38" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
48
SERIES 2
38" Cutting Deck, Belts, Brakes
p
y
Part No Descri
1 7026688 1 BELT, Drive, 38" Cutting Deck HA 95.5" EL
2 7091006 2 NUT, 5/8-18 Hex Nyloc
3 7024634 2 PULLEY, Spindle
4 7091601 28 NUT, 5/16-18 Hex Flange Lock Was 90585
5 7091576 1 NUT, 1/4-20 Hex GR 5 YZ Was 90063
6 7024908 1 NUT, 1/4-20 "T" Lock
7 7033816 1 DRUM, Brake
8 7014304 1 PIN, 1/4 x 1 5/8" Clevis
9 7014302 1 BOLT, 1/4-20 Eye
10 7091596 2 PIN, Hair .148 X 2.62 YZ Was 13844
11 7052886 1 ASSEMBLY, Brake Band
12 7091597 7 PIN, 3/32 x 3/4" Cotter Was 90037
13 7033825 1 ANCHOR, Blade Brake
14 7024801 2 GUARD, Belt
15 7027471 1 PIN, Deck Hanger Was 33407
16 7026826 1 SCREW, 1/2-13 x 3-1/4" Hex Cap
17 7041510 1 LIFT, Front Arm
18 7026158 1 SPRING, Chute Deflector Hinge
19 7090188 2 WASHER, Flat 5/16
20 7026750 1 HINGE, Deck
21 7026161 1 PIN, 5/16 x 3-3/16" Clevis
22 7091503 2 PIN, Hair, 3/32 x 1-19/32" Was 15067
23 7025074 1 WASHER, Flat .531X1X.063 BZ
24 7026648 1 SWIVEL, Lift
25 7090625 1 NUT, 1/2-13 Hex Jam
26 7026173 1 SPRING, Blade Brake
27 7035577 1 HITCH (Left Hand) Was 26757
28 7026827 1 SWIVEL, Lift 1/2-13THD
29 7024267 1 BOLT, 3/8-24 x 1.33" Hex Shoulder
30 7091598 2 PIN, 1/8 x 1" Cotter Was 90041
31 7041509 1 BELLCRANK
32 7091508 28 BOLT, 5/16-18 x 3/4" Carriage Was 90001
33 7026525 1 BRACKET, Front Linkage
34 7090289 3 NUT, 3/8-24 Hex Center Lock
35 7033756 2 BRACKET, Gage Wheel Front
36 7090122 5 WASHER, 3/8" Flat
37 7091587 3 WASHER, 1/2 Flat Was 90250
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
49
TP 400-5080-5-TC-N
38" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
50
SERIES 2
38" Cutting Deck, Belts, Brakes
p
y
Part No Descri
38 7026122 2 WHEEL, Gage 4x1.5
39 7091526 2 BOLT, 3/8-24 Shoulder Was 11720
40 7061960 1 DECK, 38" Cutting (Drill holes as needed) Was 33639
41 7090844 1 PIN, 3/16 x 3/4" Roll
42 7012776 1 PIN, 1/4 x 1 1/16" Round Head
43 7027230 2 SCREW, 1/4-20 x 1" Hex Cap (Gr. 5) Was 90548
44 7034349 1 TUBE, Structural (Right Hand) Was 33971
45 7026504 1 HANDLE, Lift
46 7026524 1 CATCH, Lift Handle
47 7023658 1 KNOB, Lift Handle
48 7026790 1 GRIP, Lever
49 7026761 1 LEVER, Latch
50 7091020 1 NUT, 1/4" Push
51 7026762 1 ANCHOR, Cable
52 7091705 3 NUT, 1/4-20 Hex Top Lock Was 90761
53 7026774 1 CABLE, Transport Latch
54 7091537 1 WING-NUT, 5/16-18 Was 90492
55 7053227 1 ASSEMBLY, Chute Deflector (Includes 12, 19, 18, 20, 21 & 56)
56 7013010 1 DECAL, DANGER Was 26831
57 7026538 1 STRIP, Outer
58 7026695 5 ROLLER
59 7026658 1 SPRING, Extension
60 7026497 1 STRIP, Center
61 7041511 1 ASSEMBLY, Torque Tube
62 1 QUADRANT, Height Adjustment (No longer available) Was 26537
63 7026765 1 DECAL, Height Adjustment
64 7041519 1 ASSEMBLY, Latch Shaft
65 7026792 1 SPRING, Extension
66 7026791 1 CATCH, Up-Latch
67 7092062 1 NUT, 5/16-24 Hex Was 11201
68 7026514 1 LINK, Deck
69 1 PIN, 3/16 x 1-3/4" Cotter (No longer available) Was 90310
70 7091310 1 PIN, 5/64 x 1-3/16" Hair Was 16231
71 7026764 1 BAR, Stabilizing
72 7026536 1 ANGLE, Adjustment
73 1960702 1 BOLT, 3/8-16 x 1" Short Neck Carriage Was 90645
74 7091619 1 NUT, 318-16 Hex Lock Was 90613
75 7033972 1 TUBE, Structural (Left Hand)
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
51
TP 400-5080-5-TC-N
38" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
52
SERIES 2
38" Cutting Deck, Belts, Brakes
p
y
Part No Descri
76 7090665 1 NUT, 3/8-16 Hex Jam
77 1921969 1 SCREW, 3/8-16 x 1 1/2" Hex Head Cap, Grade 5 Was 91239
78 7090748 1 SCREW, 1/2-13 x 3 1/2" Hex Head Cap, Grade 5
79 7027168 1 BOLT, 5/16-18 x 1" Hex Head Cap Was 90636
80 7091152 2 WASHER, 13/32 x 1.50 O.D. Flat
81 7033728 1 BRACKET, Idler
82 7034045 1 GUIDE, Belt Was 34022
83 7026310 1 PULLEY, Idler 3.25 OD x 1.75 Flat
84 7091121 1 NUT, 1/2-13 Hex (Nyloc)
85 7025061 1 DECAL, 38" Deck
86 7014852 1 DECAL, CAUTION (Rotating Blades) Was 16973
87 7090815 6 SCREW, 3/8-16 x 3/4" Self-Tapping
88 7026618 1 STUD, Idler
89 7012306 2 BUSHING, Flange
90 7033929 1 GUIDE, Belt
91 7041392 1 ARM, Idler Pulley
92 7013847 1 RETAINER, 3/8 Bolt
93 7024725 1 PULLEY, Idler 3.25 OD x 1.75 Flat
94 7091299 1 NUT, 3/8-16 Hex Nyloc Was 76979
95 7014852 1 DECAL - CAUTION
96 7041512 1 ASSEMBLY, Roller Shaft
97 7092000 1 BOLT, 3/8-16 x 2-3/4" Carriage (Gr. 5) Was 90738
98 7011791 1 RETAINER, 5/16 Bolt
1 CUTTER UNIT, LTH 38 GF-SE (No longer available) Was 61314
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
53
TP 400-5080-5-TC-N
42" Cutting Deck & Components
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
54
SERIES 2
42" Cutting Deck & Components
p
y
Part No Descri
1 7051916 1 DECK, Mower, 41" (Includes items 49 & 50)
2 7051914 2 ASSEMBLY, Spindle (Includes items 3 thru 9)
3 7027668 2 SPINDLE 6.5" Long
4 7051918 2 HOUSING, Spindle 5.1" Tall (Includes item 9)
5 7013313 4 BEARING, Spindle
6 7012491 4 RING, Retaining EXT 1.75"
7 7014407 4 WASHER, Spindle
8 7032294 2 HOLDER, Blade
9 7010817 2 FITTING, Lube (Press into .187" hole, no ball)
10 7019795 2 BLADE, 21" Cutter
11 7052487 2 ASSEMBLY, Rear Support
12 7042469 1 ASSEMBLY, Front Hanger Was 49762
13 7034409 2 GUARD, Pulley Was 33367
14 7051747 2 ASSEMBLY, Spindle Lock
15 7033083 1 ASSEMBLY, Chain Support
16 7032297 1 BRACKET, Front Left Hanger
17 7016844 2 CABLE, Support (4.25", 8 Spacers)
18 7033086 1 ASSEMBLY, Rear Support
19 7051748 1 BRACKET, Idler Mount
20 7032368 1 GUIDE, Belt
21 7018574 2 PULLEY, Flat Idler 4.12" OD
22 7015724 2 PULLEY, Spindle "V" 5.75" OD .750" ID Hole
23 7023180 1 CABLE, Front Lift 6.12"
24 7038043 1 BRACKET, Front Lift Arm Hanger
25 7038382 1 BRACKET, Front Right
26 7032432 1 LINK, Adjustment
27 7015012 1 RING, Adjustment
28 7091304 1 SCREW, 3/8-16 x 1" Hex Head Cap Was 90563
29 7091302 2 NUT, 3/8-16 Hex Was 90130
30 7090118 2 WASHER, 3/8" Split Lock
31 7090122 2 WASHER. 3/8 Flat
32 7091619 22 NUT, 3/8-16 Hex Flange Lock Was 90613
33 7091601 9 NUT, 5/16-18 Hex Flange Lock Was 90585
34 7090388 1 T-NUT, 5/16-18
35 7012951 2 PIN, 1/2 x 1 3/8" Clevis
36 7091596 2 HAIRPIN, Cotter Was 13844
37 7091497 1 SCREW, 3/8-16 x 1 1/2" Hex Cap Was 90655
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
55
TP 400-5080-5-TC-N
42" Cutting Deck & Components
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
56
SERIES 2
42" Cutting Deck & Components
p
y
Part No Descri
38 7074467 2 NUT, 3/4-16 Hex Jam Was 10027
39 7027198 2 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582
40 7023606 2 CAP, Vinyl
41 7090517 1 WASHER. 7/16 Flat Was 90600
42 7091547 9 BOLT, 3/8-16 x 3/4" Carriage Was 90850
43 7091508 2 BOLT, 5/16-18 x 3/4" Carriage Was 90788
44 7012063 4 WASHER, 13/32 x 1 13/32" Dia., Cone
45 7090824 2 SCREW, 3/8-24 x 1 1/4" Hex Cap
46 7090595 2 BOLT, 5/16-18 x 3/4" Hex Flange Lock
47 7051401 1 DEFLECTOR, Side Chute (Includes item 48)
48 7013010 1 DECAL, Danger
49 7014852 1 DECAL, Caution (Deflector in Place)
50 7014852 1 DECAL, Caution (Rotating Blades) Was 16973
51 7019190 4 WHEEL, Gage
52 7090289 4 LOCKNUT, 3/8-24 Hex
53 7015272 4 SPACER
54 7091532 4 SCREW, 3/8-24 x 3 3/4" Hex Head Cap Was 90859
55 7091547 1 BOLT, 3/8-16 x 3/4" Short Neck Carriage Was 90850
56 7091303 2 BOLT, 5/16-18 x 1" Short Neck Carriage Was 90383
57 7091588 12 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612
58 7091537 2 WING-NUT, 5/16-18 Was 90375
59 7090187 2 WASHER, 5/16 Split Lock
60 7011791 2 RETAINER, 5/16 Bolt
61 7090799 2 BOLT, 5/16-18 x 5/8" Carriage
62 7024910 1 DECAL, 42"
7060929 1 42" Cutter Unit, Complete
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
57
TP 400-5080-5-TC-N
Belt, Blade Brake Components (42" Deck)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
58
SERIES 2
Belt, Blade Brake Components (42" Deck)
p
y
Part No Descri
1 7015724 1 PULLEY, Drive 5.75" OD
2 7014799 1 BELT, Drive A101
3 7052886 1 ASSEMBLY, Brake Band
4 7032169 1 DRUM, Brake
5 7047912 1 ASSEMBLY, Brake Arm
6 7018574 1 PULLEY, Flat Idler 4.12" OD
7 7032587 1 ANCHOR, Brake
8 7014303 1 TEE-NUT, 1/4-20
9 7014302 1 BOLT, 1/4-20 Eye
10 7011021 1 PIN, 1/4 x 1 1/4" Clevis
11 7029788 1 SPRING, Blade Brake Was 23172
12 7026119 1 CABLE, Blade 30.44"
13 7074467 1 NUT, 3/4-16 Hex Jam Was 10027
14 7091576 1 NUT, 1/4-20 Hex Was 90063
15 7090167 1 SCREW, 3/8-24 x 2" Hex Head Cap
16 7010740 2 RING, 2” External Retaining
17 7090289 2 NUT, 3/8-24 Hex Lock
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
59
TP 400-5080-5-TC-N
48" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
60
SERIES 2
48" Cutting Deck, Belts, Brakes
p
y
Part No Descri
1 7035054 2 GUARD, Pulley
2 7024431 DECAL, 48" Deck
3 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 90585
4 7090167 2 SCREW, 3/8-24 x 2" Hex Head Cap
5 7018651 2 PULLEY, Idler 4-1/2" O.D.
6 7090122 6 WASHER, 3/8" Flat
7 7035816 2 STUD, Idler Was 14408
8 7090183 2 WASHER, 5/8 Flat
9 7090289 12 NUT, 3/8-24 Hex Lock
10 7014513 2 SPRING
11 7026474 2 CABLE, Support (4.75", 8 Spacers)
12 7033118 1 SUPPORT, Cable (Left Side - Rear)
13 7091619 23 NUT, 3/8-16 Hex Flange Lock Was 90613
14 7090169 1 SCREW, 3/8-24 x 2-1/2" Hex Cap
15 7014527 1 SPACER, .623 OD X .380 ID X .250 L
16 7090820 3 NUT, 3/4-16 Hex Jam Lock
17 7024497 1 BELT, AA 107" EL
18 7014544 2 PULLEY, 4-3/4" O.D.
19 7091598 2 PIN, 1/8 x 1" Cotter Was 90041
20 7038078 3 BRACE, Spindle
21 7090824 4 SCREW, 3/8-24 x 1-1/4" Hex Cap
22 7051475 1 ASSEMBLY, Idler Arm
23 7012264 1 SPRING, Idler Arm Weldment
24 7019190 4 WHEEL, Gage
25 7091532 4 SCREW, 3/8-24 x 3-3/4" Hex Cap Was 90859
26 7015272 4 SPACER, .625 OD X .435 ID X 3 L YZ
27 7012929 2 PAD, Foot
28 7014852 1 DECAL, Caution Was 16973
29 7091547 10 BOLT, 3/8-16 x 3/4" Carriage Was 90850
30 7012670 3 RING, Tolerance 2.0"
31 7027198 2 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582
32 7051473 2 ASSEMBLY, Spindle (Outboard) See note at bottom of page
33 7091588 13 BOLT, 3/8-16 x 3/4" Hex Fig. Lock Was 90612
34 7019733 3 BLADE 16.5"
35 7012063 6 WASHER, 13/32x1-13/32" Dia. Cone
36 7032297 1 BRACKET, Front Hanger (Left Side)
37 7033556 2 BELT Guide (Yellow)
tionItem Qt
Note
Footnotes:
(See "Wheels-Front" illustration & parts list for Parts Breakdown)
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
61
TP 400-5080-5-TC-N
48" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
62
SERIES 2
48" Cutting Deck, Belts, Brakes
p
y
Part No Descri
38 7090517 5 WASHER, 3/8" Flat Was 90600
39 7034001 1 BRACKET, Spring
40 7090118 2 WASHER, 3/8 Split Lock
41 7091302 2 NUT, 318-16 Hex Was 90130
42 7032432 1 LINK, Adjustment
43 7038382 1 BRACKET, Front Hanger (Left Side)
44 7091304 2 SCREW, 3/8-16 x 1" Hex Cap (Gr. 5) Was 90563
45 7015012 1 RING, Adjustment
46 7091503 2 PIN, 3/32 x 1-19/32" Hair Was 15067
47 7017516 1 SWIVEL, Front Lift Rod
48 7041534 1 ROD, Front Lift
49 7034016 1 HANGER, Front Lift
50 7013460 2 PIN, 3/8 x 1-1/2" Clevis
51 7042469 1 ASSEMBLY, Front Hanger Was 49762
52 7091596 2 PIN, 5/32 x 2-5/8" Hair Was 13844
53 7012951 2 PIN, 1/2 x 1-3/8" Clevis
54 7051528 1 ASSEMBLY, Spindle (Center) See note at bottom of page
55 7090799 8 BOLT, 5/16-18 x 5/8" Carriage
56 7051401 1 ASSEMBLY, Side Chute (Includes Item 57)
57 7013010 1 DECAL, DANGER
58 7090187 2 WASHER, 5/16 Split Lock
59 7091537 2 NUT, 5/16-18 Wing Was 90375
60 7011791 2 RETAINER, 5/16 Bolt
61 7033119 1 SUPPORT, Cable (Right Side - Rear)
62 7032368 1 GUIDE, Belt
63 7021945 1 SPACER, 1.00 OD X.39 ID X1.12 L
64 7010740 2 RING, 2” External Retaining
65 7014795 2 WASHER, Nylon
66 7010935 1 WASHER, 3/4 x 1-1/8" O.D. Flat
67 7091584 2 NUT, 1/4-20 Hex Flange Lock Was 90583
68 7041570 1 WELDMENT, Idler Arm (Center)
69 7033860 1 STRIP, Brake
70 7091573 2 BOLT, 1/4-20 x 5/8" Carriage Was 90551
71 7034005 1 GUIDE, Belt
72 7091508 1 BOLT, 5/16-18 x 3/4" Carriage Was 90788
73 7018574 1 PULLEY, Flat Idler 4.12" OD
74 7053299 1 ASSEMBLY, Brake Weldment (Includes Items 75 & 76)
75 7026836 1 LINER, Brake
tionItem Qt
Note
Footnotes:
(See "Wheels-Front" illustration & parts list for Parts Breakdown)
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
63
TP 400-5080-5-TC-N
48" Cutting Deck, Belts, Brakes
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
64
SERIES 2
48" Cutting Deck, Belts, Brakes
p
y
Part No Descri
76 7017366 2 RIVET, Brake Liner 3/16X1/2 ZP
77 7022696 1 SPRING, Brake Assembly
78 7041471 1 WELDMENT, Clutch Bracket
79 7026334 1 LINK, Clutch
80 7014545 1 PULLEY, Double
81 7026305 1 BELT, 48 Deck Drive HA 52.25
82 7014852 1 DECAL, Caution
83 7049961 1 DECK, 48" Mower
84 7091585 1 NUT, 3/8-16 Hex Center Lock Was 90546
85 7027888 1 ROD, Brake Adjustment
86 1 SPACER, .5 OD X .258 ID X .75 L (No longer available, try using
7024114)
87 7090372 1 NUT, 1/4-20 Hex Center Lock
88 7027753 1 SPRING, Weight Transfer
89 7026843 1 "S" HOOK & CHAIN
7061266 1 CUTTER UNIT, 48" LTH-SERVIC
tionItem Qt
Note
Was 10826
Footnotes:
(See "Wheels-Front" illustration & parts list for Parts Breakdown)
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
65
TP 400-5080-5-TC-N
Spindle Assembly - 38" Cutting Deck
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
66
SERIES 2
Spindle Assembly - 38" Cutting Deck
p
y
Part No Descri
1 7054513 1 ASSEMBLY, Spindle Housing Was 52847 (Includes 2 thru 8)
2 7026754 1 SPINDLE 7.019" Long
3 7026808 2 BEARING, Spindle 17MM
4 7024465 1 SPACER, Spindle Housing .875 OD X .687 ID X 3.79 L
5 7024461 1 HOUSING, Spindle 4.78" Tall
6 7024468 1 NUT, 9/16-18 Hex Jam
7 7024467 2 WASHER, Belleville .594 x 1.75
9 7024463 1 SPACER, Blade
7042998 1 BLADE, 19-1/2" Was 24466 (Shown)
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
67
TP 400-5080-5-TC-N
Spindle Assembly - 42" Cutting Deck
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
68
SERIES 2
Spindle Assembly - 42" Cutting Deck
p
y
Part No Descri
1 7051914 1 ASSEMBLY, Spindle Housing Was 59723 (Includes 2 thru 7)
2 7012491 2 RING, Retaining EXT 1.75"
3 7013313 2 BEARING, Spindle
4 7051918 1 HOUSING, Spindle, 5.1" Was 47917
5 7032294 1 HOLDER, Blade
6 7014407 1 WASHER, Spindle
7 7027668 1 SPINDLE, 6.5" Long
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
69
TP 400-5080-5-TC-N
Spindle Assembly - 48" Cutting Deck
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
70
SERIES 2
Spindle Assembly - 48" Cutting Deck
p
y
Part No Descri
1 7051473 2 ASSEMBLY, Spindle (Includes 2 thru 7)(48" Outboard) Was 59622
1 7051528 1 ASSEMBLY, Spindle (Includes 2 Thru 7) (48" Center) Was 57343
2 7012491 6 RING, Retaining EXT 1.75"
3 7013313 6 BEARING, Spindle
4 7051472 2 HOUSING, Spindle - Outboard, 4.25" Was 47825
4 7051527 1 HOUSING, Spindle - Center, 4.59" Was 47839
5 7032294 3 HOLDER, Blade
6 7014407 3 WASHER, Spindle
7 7027632 2 SPINDLE, 6.06" Long (48" Outboard)
7 7027641 1 SPINDLE, 7.25" Long (48" Center)
8 7010817 3 FITTING, Lube (Press fit for .187 hole-no ball)
9 7012670 3 RING, Tolerance 2.0"
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
71
TP 400-5080-5-TC-N
Recycling Kit For 42" Models
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
72
SERIES 2
Recycling Kit For 42" Models
p
y
Part No Descri
7061220 1 KIT, Recycling (42" Models) (Includes Items 1 Thru 4)
1 7041372 1 COVER, Recycling
2 7026407 2 BLADE, 21" Quad Edge (Ninja)(Not shown) Was 24234
3 7090316 2 BOLT, 5/16-18 x 3/4" Carriage
4 7091537 2 NUT, 5/16-18 Wing Lock YZ Was 90375
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
73
TP 400-5080-5-TC-N
Electrical System (Briggs Engines Only)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
74
SERIES 2
Electrical System (Briggs Engines Only)
p
y
Part No Descri
1 7026668 1 HARNESS, Wiring (Briggs Engine)
2 7024126 1 HARNESS, Interlock
3 7023355 2 SWITCH, Clutch & PTO (NC/NO)
4 7023354 1 SWITCH, Seat (NC) Was 17590
5 7075622 1 SOLENOID Was 18604
6 7023187 1 SWITCH, Light
7 7026343 1 SWITCH, Key (Includes 2 of Item 8)
8 7073406 2 KEY, Switch (With Cover) Was 23504
9 7012685 1 NUT, 5/8-32 Hex
10 7012444 1 COVER, Positive Terminal
11 7014475 1 CABLE, Negative 15" 8 AWG Black
12 7091530 2 BOLT, 1/4-20 x 3/4" Carriage Was 90074
13 7091568 2 NUT, 1/4-20 Wing Was 90311
14 7060618 1 KIT, Battery
15 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
16 7090913 4 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307
17 7014451 1 TIE, Wire
18 7012080 1 TIE, Cable 7"
19 7014476 1 CABLE, Positive 11" 8 AWG Red
20 7023506 1 BEZEL
21 7023653 1 FUSE, 20 Amp
22 7022690 1 AMMETER
23 7060982 1 OIL LIGHT Was 22791
24 7026171 1 HARNESS, Headlight M&G Sockets
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
75
TP 400-5080-5-TC-N
Electrical System (Kohler Engines Only)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
76
SERIES 2
Electrical System (Kohler Engines Only)
p
y
Part No Descri
1 7022699 1 HARNESS, Wiring (Kohler Engine)
2 7024126 1 HARNESS, Interlock
3 7023355 2 SWITCH, Clutch & PTO (NC/NO)
4 7023354 1 SWITCH, Seat (NC) Was 17590
5 7075622 1 SOLENOID Was 18604
6 7023187 1 SWITCH, Light
7 7027698 1 SWITCH, Key Was 18562 (Includes 2 of Item 8)
8 7073406 2 KEY, Switch (With Cover) Was 23504
9 7012685 1 NUT, 5/8-32 Hex
10 7012444 1 COVER, Positive Terminal
11 7014475 1 CABLE, Negative 15" 8 AWG Black
12 7091530 2 BOLT, 1/4-20 x 3/4" Carriage Was 90074
13 7091568 2 NUT, 1/4-20 Wing Was 90311
14 7060618 1 KIT, Battery
15 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
16 7090913 4 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307
17 7014451 1 TIE, Wire
18 7012080 1 TIE, Cable 7"
19 7014476 1 CABLE, Positive 11" 8 AWG Red
20 7023506 1 BEZEL
21 7023653 1 FUSE, 20 Amp
22 7022690 1 AMMETER
23 7060982 1 OIL LIGHT Was 22791
24 7026171 1 HARNESS, Headlight M&G Sockets
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
77
TP 400-5080-5-TC-N
Illustrated Diagram Briggs Engine Models
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
78
SERIES 2
Illustrated Diagram Briggs Engine Models
p
y
Part No Descri
Electrical diagram for Briggs engine models
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
79
TP 400-5080-5-TC-N
Illustrated Diagram Kohler Engine Models
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
80
SERIES 2
Illustrated Diagram Kohler Engine Models
p
y
Part No Descri
Electrical diagram for Kohler engine models
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
81
TP 400-5080-5-TC-N
Schematic Electrical System (Briggs Engine Only)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
82
SERIES 2
Schematic Electrical System (Briggs Engine Only)
p
y
Part No Descri
Wiring schematic includes harness #'s 7026668 & 7024126
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
83
TP 400-5080-5-TC-N
Schematic Electrical System (Kohler Engines Only)
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
TP 400-5080-5-TC-N
84
SERIES 2
Schematic Electrical System (Kohler Engines Only)
p
y
Part No Descri
Wiring schematic includes harness #'s 7022699 & 7024126
tionItem Qt
Note
Footnotes:
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2
85
TP 400-5080-5-TC-N
Parts Manual fo
r
LAWN TRACTORS MANUAL CLUTCH
HYDRO DRIVE
SERIES 2
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Manual No. 7006432
Revision 5,
7/31/2006
TP 400-5080-5-TC-N
Loading...
