Table Of Content

SERIES 1

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

3

TP 400-5217-2-TC-N

Hood, Bumper, Headlights

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

4

SERIES 1

Hood, Bumper, Headlights

p

y

Part No Descri

1 7063298 1 KIT, Hood Assembly, Sloped Mozart Was 61082 or 61383 (Includes 2

2 1 HOOD (No longer available) Was 19411
3 7016766 1 ROD, Hood Latch
4 7024980 2 LOGO-SNAPPER, Molded Was 16974 or 36438
5 7019397 1 DECAL, Stripe (R.H.)

7019398 1 DECAL, Stripe (L.H. Shown)
6 7076978 10 LOCKNUT, 1/4-20 Hex
7 7090999 10 SCREW, 1/4-20 x 5/8 Torx, Truss Head
8 1 BUMPER (R.H.)(No longer available) Was 19412

1 BUMPER (L.H. Shown)(No longer available) Was 19413

9 7012691 2 CLIP, Wiring Harness

10 7017174 1 DECAL, Reflect (R.H.)

7017175 1 DECAL, Reflect (L.H. Shown)

11 7033265 2 BRACKET, Latch Hook
12 1 BUMPER, Front (No longer available) Was 19414
13 7091106 5 SCREW, #12 x 1/2"
14 7024893 1 LENS, Clear Bezel Was 19415
15 7016876 1 LOGO-SNAPPER, Molded
16 7016756 2 BULB, Headlights, 1156
17 7016757 2 SOCKET, Headlight Bulb
18 7016765 1 HARNESS, Headlight Wiring
19 7017359 1 CLIP, Spring Latch
20 7017750 2 FASTENER, Ratchet
21 7017787 1 HEAT SHIELD, Hood
22 7016819 2 DECAL, Model LT14H33

7016820 2 DECAL, Model LT14H41

tionItem Qt

Note

thru 21)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

5

TP 400-5217-2-TC-N

Wheels - Front

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

6

SERIES 1

Wheels - Front

p

y

Part No Descri

1 7058517 2 ASSEMBLY, Front Tire & Rim 15x5.50-6.00 Was 52185 (Includes Items 2, 3

2 7022772 2 RIM, 6 x 4.50 Was 16739
3 7072704 2 TIRE, 15-5.50 x 6 Was 16740
4 7012234 2 VALVE, Air (Snap-in)
5 7014483 4 BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L
6 7032027 2 WASHER .77 x 1.5 x .06
7 7019417 2 WHEEL-COVER
8 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364
9 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876

tionItem Qt

Note

& 4)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

7

TP 400-5217-2-TC-N

Wheels - Rear

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

8

SERIES 1

Wheels - Rear

p

y

Part No Descri

1 7052187 2 ASSEMBLY, Rear Tire & Rim (41" Deck) (No longer available) Was 52187 (Included items 2, 3

7052186 2 ASSEMBLY, Rear Tire & Rim (33" Deck) (No longer available) Was 52186 (Included items 2, 3

2 7016744 2 TIRE, 18x8.504 (Used with 41" Deck)

7036488 2 TIRE, 18x6.504 Was 16743 (Used with 33" Deck)
3 7016742 2 RIM, 8x7 (Used with 41" Deck)

7016741 2 RIM, 8x5.375 (Used with 33" Deck)
4 7012234 2 VALVE, Air (Snap-In)
5 7091502 6 BOLT, 1/2-20x3/4" Lug Was 90367
6 7019418 2 HUB-CAP
7 7040720 2 HUB, Rear Wheel
8 7017173 2 KEY, Square, 3/16x2-1/2"
9 7012899 2 RING, Retaining EXT .75 Was 12829

tionItem Qt

Note

& 4)

& 4)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

9

TP 400-5217-2-TC-N

Engine Base & Drive Parts

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

10

SERIES 1

Engine Base & Drive Parts

p

y

Part No Descri

1 7017358 1 DECAL, Engine 14 HP OHV
2 7017313 1 MUFFLER, Exhaust
3 1 ENGINE, Kohler Model CV14S, Spec. PS1431 (Purchase engine parts, other

4 7091585 4 NUT, 3/8-16 Hex Center Lock Was 90546
5 7033145 1 BASE, Engine
6 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
7 7090595 2 BOLT, 5/16-18 x 3/4" Flange Lock
8 7091575 1 LOCKNUT, 5/16-18 Hex Was 90184
9 7014438 1 EYE-BOLT

10 7091008 1 BOLT, 3/8-1B x 2-1/2" Short Neck Carriage
11 7090517 2 WASHER, 3/8" Flat Was 90600
12 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .25 L Was 22062
13 7040565 1 ARM, Idler
14 7011029 1 PULLEY, Idler, 4" O.D.
15 7023199 1 PULLEY, Idler, 3-3/4" O.D.
16 7090629 2 BOLT, 3/8-16 x 2-1/4" Hex
17 7090118 1 WASHER, 3/8 Split Lock
18 7091302 1 NUT, 3/8-16 Hex Was 90130
19 7014527 1 SPACER .623 OD x .38 ID x .25 L
20 7027856 1 SPRING, Idler Arm Was 17807
21 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585
22 7019042 1 GUIDE, Belt (42" & 48" Models Only)
23 7090836 1 CAPSCREW, 7/18-20 x 1" Hex Socket Head
24 7091301 1 LOCKWASHER, 7/16 Split Was 90247
25 7019036 1 ASSEMBLY, Engine Pulley
26 7012306 2 BUSHING
27 7023198 2 SCREW, Shoulder, 3/8-16 x 1-5/8"
28 7091619 2 LOCKNUT, 3/8-16 Hex Flange Was 90613
29 7016724 1 V-BELT, Traction Drive, (111.6" EL) LT140H33, LT140H41, &

RLT140H33
30 1 AXLE SUPPORT (No longer available) Was 33100
31 7077692 4 BOLT, M8-1.25 x 25mm Hex Head
32 7090187 4 WASHER, 5/16 Split Lock
33 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
34 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
35 7033107 1 SPACER, Kohler Engine
36 7011791 2 RETAINER, 5/16 Bolt
37 7016719 2 SPACER .750 OD x .390 ID x .5 L

tionItem Qt

Note

than those listed, from engine
service outlets.)

(A111.6 Polyester Wrapped)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

11

TP 400-5217-2-TC-N

Engine Base & Drive Parts

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

12

SERIES 1

Engine Base & Drive Parts

p

y

Part No Descri

38 7091580 BOLT, 3/8-16 x 1-3/4" Hex Flange Lock Was 90701

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

13

TP 400-5217-2-TC-N

Transmission Support & Components

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

14

SERIES 1

Transmission Support & Components

p

y

Part No Descri

1 1 TRANSMISSION SUPPORT, R.H. (No longer available) Was 33063
2 2 BRACKET, Transmission Mount (No longer available) Was 33059
3 7016360 1 WASHER .406 x 1.38 x .25
4 7017164 1 ROD, Release
5 7033061 1 BRACE, Torque
6 7016116 6 NUT, 5/16 Push-On
7 7090361 14 SCREW, 5/16-18x5/8" Self-Tapping
8 1 TRANSMISSION SUPPORT, L.H. (No longer available) Was 33062

9 7027198 4 BOLT, 3/8-16x1" Hex Flange Lock Was 90582
10 1 EXTENSION, Transmission Support, L.H. (No longer available) Was 35179
11 7091585 4 NUT, 3/8-16 Center Lock Was 90546
12 7090122 4 WASHER, 3/8 SAE
13 7091541 2 SCREW, 5/16-18x3/4" Self-Tapping Was 90368
14 1 BRACE, Shift Bracket (No longer available) Was 33065
15 1 EXTENSION, Transmission Support, R.H. (No longer available) Was 35180
20 7023606 1 CAP, Release Rod Was 23525

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

15

TP 400-5217-2-TC-N

Transmission Components

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

16

SERIES 1

Transmission Components

p

y

Part No Descri

7 7090361 14 SCREW, 5/16-18x5/8" Self-Tapping
16 7033068 1 COVER, Rear
17 7017209 1 DECAL, Roll
18 7016863 1 COVER, Transmission Oil Access (No longer available) Was 16863
19 7017327 2 SCREW, Expansion

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

17

TP 400-5217-2-TC-N

Dash Panel

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

18

SERIES 1

Dash Panel

p

y

Part No Descri

1 7052685 1 PANEL, Dash Was 57557

2 7090996 4 SCREW, 1/4-20x1" Phillips

3 7040734 1 SUPPORT, Steering Shaft

4 7051915 1 CHANNEL, Foot Rest (Includes Decal, Item 31)

5 7091000 14 SCREW, 5/16-18x7/8" Torx, S.T. Was 91001

6 7019400 1 TREAD, Left Side (Non-Skid)

7 7019399 1 TREAD, Right Side (Non-Skid)

8 7090361 2 SCREW, 5/16-18x5/8" H.C.S.T.

9 7033073 1 MOUNT, Fuel Tank/Battery
10 7026196 1 FLANGE ASSM'Y., Steering Shaft .75" ID Bearing Was 23173
11 7076978 4 NUT, 1/4-20 Hex
12 7090896 2 SCREW, #10-24x1/2" Self-Tapping Was 90853
13 7090858 4 SCREW, 5/16-18x1/2" Self-Tapping
14 7033078 1 PLATE, Fuel Tank & Battery Mount
15 7091122 4 SCREW, 1/4-20x1/2" H.C.S.T. Was 90539
30 7016824 1 CONTROL, Throttle 41.6" Long
31 7017026 1 DECAL, Caution & Instruction
33 1 GROMMET, 5/16 I.D. for .75 Hole (No Longer available) Was 14856
34 7023655 1 HANDLE, Throttle Control
35 7091017 1 SCREW, #8-32x3/8" Rec. Fill. Hd.
36 7091018 1 NUT, #8-32 Hex
37 1 ROD, Hood Latch (No longer available, try using 7033828) Was 17345
38 7090803 2 BOLT, 1/4-20x5/8" Flat Hd. Carr.
39 7091584 2 NUT, 1/4-20 Hex Flg. Lock Was 90583

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

19

TP 400-5217-2-TC-N

Steering & Front Axles

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

20

SERIES 1

Steering & Front Axles

p

y

Part No Descri

1 7017040 1 STEERING WHEEL

2 7012765 1 ROLL-PIN Spiral .26 x 2.25

3 7040610 1 SHAFT, Steering

4 7091313 1 PIN, Cotter 3/32 x 1.0 YZ Was 90038

5 7014296 3 WASHER, Shim .5 x .75 x .03

6 7091584 1 LOCKNUT, 1/4-20 Hex Flange Was 90583

7 7052562 1 ADJUSTER, Steering Was 51751

8 7011071 2 WASHER, Thrust

9 7047938 1 ASSEMBLY, Steering Support
10 7091573 1 BOLT, 1/4-20x5/8" Short Neck Carriage Was 90551
11 7090361 4 SCREW, 5/16-18x5/8" Self-Tapping
12 7010746 2 RING, Retaining EXT .625
13 7015140 1 BEARING
14 7051752 1 ASSEMBLY, Sector
15 7027936 2 ROD-END, Drag Link .377 ID Ball x 3/8-24 End Was 23200
16 7090118 2 LOCKWASHER, 3/8 Split
17 7090163 2 SCREW, 3/8-24 x 1 1/4" Hex Head Cap Nylon Patch
18 7090482 4 JAM-NUT, 3/8-24 Hex
19 7016062 1 DRAG-LINK
20 7019034 1 ARM, Steering
21 7090842 1 ROLL-PIN 1/4 x 1.25"
22 7032027 3 WASHER, Flat .77 x 1.5 x .06
23 7012706 4 BEARING, Sleeve .875 OD
24 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
25 7031036 2 WASHER, Thrust
26 7040977 1 SPINDLE ASSEMBLY, L.H.
27 7090384 2 COTTER-PIN
28 7091630 2 NUT, 3/8-24 Hex Was 90155
29 7017608 1 TIE-ROD
30 7040976 1 SPINDLE ASSEMBLY, R.H.
31 7090993 1 SCREW, 1/2-20x4-1/2 Hex Head Cap
32 7057536 1 ASSEMBLY, Front Axle (Includes four Item 23, two item

33 7022070 1 SPACER, Axle Pivot .748 OD x .508 ID x 3.77 L
34 7090819 1 LOCKNUT, 1/2-20 Hex
35 7010935 1 WASHER .77 x 1.13 x .06
36 7014871 1 FITTING, Lube 3/16
37 7033264 1 HEAT SHIELD

tionItem Qt

Note

24, one item 36)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

21

TP 400-5217-2-TC-N

Seat, Rear Fender

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

22

SERIES 1

Seat, Rear Fender

p

y

Part No Descri

1 7028650 1 SEAT, Operator's Was 17833

2 7019109 2 CUSHION, Seat

3 7023191 1 KNOB, 3 Prong 5/16-18 x 3/4

4 7011763 1 WASHER 5/16"

5 7023190 2 SPRING

6 7033085 1 SUPPORT, Seat

7 7038536 1 BRACKET, Seat Support, L.H.

8 7017149 1 DECAL, SNAPPER Molded Logo

9 7091000 4 SCREW, 5/16-18x7/8" Torx. Hd., S.T.
10 7033049 1 FENDER, Rear
11 7012431 1 PIN, Hair 1.12"
12 7023193 3 RIV-NUT, 5/16-18
13 7090799 2 BOLT, 5/16-18x5/8" Short Neck Carriage
14 7032692 2 SPACER, WEAR Nylon 2.0 x .62 x .055
15 7090999 6 SCREW, 1/4-20x5/8" Torx Hd., Self-Tapping
16 7033120 1 DETENT, Shift
17 7023192 2 WASHER, Flat .445 x 1.0 x .059
18 7015761 2 SCREW, Shoulder, 5/16-18x3/4"
19 7019035 1 ROD, Seat Hinge
20 7090721 2 BOLT, 5/16-18x1/2" Hex Flange Lock
21 7077683 2 SCREW, 5/16cx1" Flat Hd. Hex Recess
22 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585
23 7032732 1 BRACKET, Switch
24 2 SPACER, .39 x .375 (No longer available) Was 16359
25 7038537 1 BRACKET, Seat Support, R.H.
26 7016360 2 WASHER, Flat .406X1.38X.25 BZ
27 7019348 2 CLIP, Seat Bumper
28 7019416 1 COVER, Shift Detent
29 7091105 4 SCREW, #10-16x1/2" Self-Tapping
30 7073424 1 DECAL, Shift Cover Was 16576

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

23

TP 400-5217-2-TC-N

Clutch, Brake & Transmission Controls

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

24

SERIES 1

Clutch, Brake & Transmission Controls

p

y

Part No Descri

1 7023656 1 KNOB, Shifter (Elongated)

2 7040716 1 SHIFTER, Transmission

3 7091597 1 PIN, 3/32 x 3/4" Cotter Was 90037

4 7022182 1 PIN, Shifter

5 7033159 1 EXTENSION, Hub

6 7090112 1 SCREW, 1/4-28 x 2" Hex Head Cap

7 7090303 1 NUT, 1/4-28 Hex Lock

8 7052346 1 ASSEMBLY, Rub Plate

9 7052274 1 ASSEMBLY, Shift Pivot
10 2 BEARING, Shift Pivot Assembly (No longer available, try using

7015048)
11 7017818 1 SPRING, Shift
12 7017820 1 SPACER, 1.0 OD x .755 ID x .310 L
13 7040704 1 CONTROL, Speed
14 7091130 2 WASHER, 5/16 Flat
15 7091297 1 NUT, 5/16-24 Hex Was 90223
16 7017415 1 WASHER, Special
17 7017416 1 SPRING, Tension
18 7090517 1 WASHER, 3/8" Flat Was 90600
19 7090289 1 NUT, 3/8-24 Hex Lock
20 7017543 1 FOLLOWER, Cam
21 7019170 1 CABLE, Clutch (23.5 long)

7026704 1 CABLE, Clutch (23.88" Long)
22 7032926 1 BRACE
23 7023649 2 WASHER, Nylon 5/16"
24 7023189 1 RING, Tolerance 5/16" x 1/2"
25 7023188 1 KNOB, Latch 5/16"
26 7012661 1 PAD, Pedal
27 7017024 1 PEDAL, Clutch/Brake
28 7019033 1 LATCH, Clutch/Brake
29 7012431 2 PIN, 1/4 x 1-1/8" Hair
30 7091000 2 SCREW, 5/16-18 x 7/8" Torx
31 7014871 1 FITTING, Lube 3/16"
32 7052431 1 PIVOT, Clutch/Brake Pedal (Includes item 31)
33 7091511 2 NUT, 5/16-18 Hex Was 90196
34 7091313 1 PIN, 3/32 x 1" Cotter Was 90038
35 7023645 1 PIN, 3/16 x 1 1/2" Clevis
36 7040564 1 BRACKET, Pedal Pivot

tionItem Qt

Note

Was 16955

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

25

TP 400-5217-2-TC-N

Clutch, Brake & Transmission Controls

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

26

SERIES 1

Clutch, Brake & Transmission Controls

p

y

Part No Descri

37 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074
38 7023182 1 SPOOL, Bracket
39 7012715 1 PIN, 3/8 x 1 9/32" Clevis
40 7091809 1 PIN, 1/8 x 1 1/4" Cotter Was 90042
41 1 BRACKET, Spool (No longer available, try modifying 7033328 to

fit)

42 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping

tionItem Qt

Note

Was 32694 or 33154

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

27

TP 400-5217-2-TC-N

Transmission Group

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

28

SERIES 1

Transmission Group

p

y

Part No Descri

1 7026084 1 TRANSAXLE ASSEMBLY (HG, 215-1000) Was 16725
2 7034133 1 LEVER, Release
3 7076978 1 NUT, 1/4-20 Hex Lock
4 7017166 1 SPACER .37 OD x .271 ID x .120 L
5 7016927 1 SPRING, Brake Return
6 7091511 4 NUT, 5/16-18 Hex Was 90628
7 7090187 1 WASHER, 5/16 Split Lock
8 7052281 1 TORQUE BRACKET ASSEMBLY

9 7017121 1 ROD, Brake Spring
10 7090692 3 WASHER 5/16 x 7/8 x .083
11 7090867 2 COTTER-PIN, 5/32 x 1" Was 90865
12 7040702 1 ROD, Brake Stop
13 7091575 1 NUT, 5/18-18 Hex Center Lock Was 90184
14 7016721 1 SPRING, Brake
15 7015464 1 STUD, Neutral Pivot
16 7090390 1 WASHER, 3/8 Internal Tooth Lock
17 7091630 1 NUT, 3/8-24 Hex Was 90155
18 7091809 1 COTTER-PIN, 1/8 x 1-1/4" Was 90042
19 7040703 1 NEUTRAL PIVOT ASSEMBLY
20 7072801 1 WASHER Was 12855
21 2 BEARING, 5/8 Flanged Nylon .625 ID x .719 x .325 (No longer

available)
22 7033056 1 SUPPORT, Neutral Pivot
23 7016723 1 SPRING, Torsion
24 1 SPACER, 1.120 OD x .635 ID x .38 L (No longer available) Was 17165
25 7090842 1 PIN, Roll, 1/4 x 1-1/4"
26 7016715 1 CAM, Neutral Return
27 7016726 1 TRANSMISSION, Hydro (HG BDU-105-120)
28 7016727 1 RESERVOIR ASSEMBLY (HG 2003081)
29 7016712 1 HUB, Speed Control
30 7013670 1 SCREW, 1/4-28, 1/8 Hex Socket Set (No longer available, try

using 7077667)
31 7017732 1 PIN, Spiral 5 MM x 36 MM
32 7027139 1 ROD END, Speed Control Was 17128
33 7091297 2 NUT, 5/16-24 HeX Was 90223
34 1 ROD, Adjustment 4.41" l, 5/16-24 Ends (No longer available) Was 17816
35 7014729 1 PIN, Eccentric
36 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap Was 90203
37 7014263 1 WASHER, Cone .32 x 1.4 x .1

tionItem Qt

Note

Was 16956

Was 13670

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

29

TP 400-5217-2-TC-N

Transmission Group

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

30

SERIES 1

Transmission Group

p

y

Part No Descri

38 7091130 2 WASHER, Flat .327 x .875 x .09
39 7011968 1 ROLLER
40 7033054 1 PLATE, Speed Control
41 1 NUT, Special 3/4 Hex Stock/5/16-24 Thru/9/16-18x1.0 Deep (No

longer available)
42 7076940 3 SCREW, 5/16-18 x 4-1/2, Hex Head Cap

7090924 1 SCREW, 5/16-18 x 4-1/8" Hex Head Cap (Not Shown)
43 7016716 1 PULLEY, Drive
44 7090322 1 SCREW, 5/16-24 x 1/2" Hex Head Cap
45 7011763 1 WASHER, Fender 5/16
46 7016728 1 FAN, 7" DIA 10 Blade
47 7024235 4 Coupler
48 7022289 2 U-BOLT 5/16-18 Was 16718
49 7091601 4 NUT, 5/16-18 Hex Flange Lock (Torque to 23 ft/lbs.) Was 91511
50 7072385 2 SPACER, 3/4" I.D. x 2-1/4" Long Was 24858
51 7032027 4 WASHER, 3/4" Flat
52 5023202 1 WASHER, 3/8 Wave Was 17855

7033320 2 SADDLE, U-Bolt (Not shown on U-Bolt)

tionItem Qt

Note

Was 16717

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

31

TP 400-5217-2-TC-N

Implement Lift Parts

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

32

SERIES 1

Implement Lift Parts

p

y

Part No Descri

1 7040698 1 ARM, Implement Lift Lever
2 7034041 1 ROD, Lift Lever
3 7019363 1 GRIP, Lift Lever
4 7014361 1 CAP, Lift Release
5 7047961 1 ARM, Rear Lift
6 7091503 5 PIN, Hair, 3/32x1-1/2" Was 15067
7 7090122 4 WASHER, 3/8 SAE Flat
8 7032789 4 SPACER

9 7032898 2 BRACKET, Arm
10 7090369 4 SCREW, 5/16-18x1 H.W.H.S.T.
11 7023171 1 LIFT-ROD
12 7015020 1 RING, Retaining EXT 7/8"
13 7014354 2 WASHER, Lift Lever .905 x 1.25 x .091
14 7023197 2 BEARING, Lift Lever
15 7015464 1 STUD
16 7047933 1 PIVOT ASSM'Y., Lift Lever
17 7090390 1 WASHER, 3/8 Int. Tooth Lock
18 7091630 1 NUT, 3/8-24 Hex Was 90155
19 7029841 1 PIN, Clevis, 5/16x1-11/16" Was 12407
20 7033046 1 QUADRANT, Lift Lever
21 7091000 3 SCREW, 5/16-18x7/8 Self-Tapping Was 91001
22 7014432 1 SPRING, Lift Lever
23 7015019 1 PLUG, Lift Lever Nylon
24 7090881 1 PIN, 3/16 x 2" Groove
25 7017445 1 DECAL, Cut Height
26 7033176 1 INDICATOR, Cut Height
27 7090803 2 BOLT, 1/4-20x5/8 Flt. Hd. Carr.
28 7091584 2 NUT, 1/4-20 Hex Flg. Lock Was 90583

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

33

TP 400-5217-2-TC-N

Blade Engagement

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

34

SERIES 1

Blade Engagement

p

y

Part No Descri

1 7016356 1 KNOB, Handle 7/16"

2 7040674 1 HANDLE, Blade Engagement

3 7013321 4 BUSHING

4 1 BRACKET, Handle (No longer available) Was 36271

5 7090122 3 WASHER, 3/8 SAE YZ

6 7091597 4 COTTER-PIN, 3/32 x 3/4" Was 90037

7 7090803 4 BOLT, 1/4-20 x 5/8" Flat Head Carriage

8 7091584 4 LOCKNUT, 1/4-20 Hex Flange Was 90583

9 7023206 1 SPACER .625 OD x .380 ID x .560 L
10 7040570 1 PIVOT ARM ASSEMBLY
11 7012431 1 PIN, Hair
12 7032712 1 LINK
13 7023165 1 SPRING, Return
14 7033277 1 BRACKET, Idler Support
15 7017748 1 PULLEY, Idler 2.75" OD
16 7091580 1 BOLT, 3/8-16 x 1-3/4" Hex Flange Lock Was 90701
17 7091619 1 NUT, 3/8-16 Hex Lock Was 90613
18 7090731 2 BOLT, 5/16-18 x 1/2" Short Neck Carriage
19 7091601 2 NUT, 5/16-18 Hex Lock Flanged Was 90585

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

35

TP 400-5217-2-TC-N

33" Cutting Deck, Belts, Brakes

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

36

SERIES 1

33" Cutting Deck, Belts, Brakes

p

y

Part No Descri

1 7023710 1 BELT, 33" Drive Kevlar (A-59 61" OD)

2 7018581 1 PULLEY, 8" O.D.

3 7074467 1 NUT, 3/4-16 Hex Jam Was 10027

4 7052886 1 BAND, Brake Assembly Was 57307

5 7032169 1 DRUM, Brake

6 7010740 2 RING, 2” External Retaining

7 7047961 1 ARM, Idler

8 7014304 1 PIN, 1/4x1-1/4 Clevis

9 7014302 1 BOLT, 1/4-20 Eye
10 7014303 1 NUT, 1/4-20 Tee
11 7091576 1 NUT, 1/4-20 Hex GR 5 YZ Was 90063
12 7091575 1 SCREW, 3/8-24x1-1/2" Hex Head Cap Was 90184
13 7090122 3 WASHER, 3/8 SAE
14 7018574 1 PULLEY, Idler, 4.12 O.D.
15 7032368 1 GUIDE, Belt
16 7023180 1 CABLE, Front Lift 6.12"
17 7091601 10 LOCKNUT, 5/16-18 Hex Flange Was 90585
18 7047959 1 LIFT, Front Arm
19 7012067 1 RING, Red (Right Side)
20 7023791 1 RING, Black (Left Side)(5/8" ID x .44" Wide) Was 10996
21 7090289 7 LOCKNUT, 3/8-24 Hex
22 7038043 1 BRACKET, Front Lift Hanger
23 7090388 1 T-NUT, 5/16-18
24 7091503 1 PIN, Hair 3/32" x 1.5"
25 7032323 1 PIN, Hinge Was 31914
26 7039586 1 HINGE, Deflector
27 7091588 14 BOLT, 3/8-16x3/4 Hex Flange Lock Was 90612
28 7091619 14 LOCKNUT, 3/8-18 Hex Flange Was 90613
29 7052555 1 ASSEMBLY, Deflector Was 51978 (Includes item 30)
30 7013010 1 DECAL, Danger (Cut Finger)
31 7091537 1 WING-NUT, 5/16-18 Was 90492
32 7061956 1 DECK, Cutting, 33" Was 51917 or 60978 (Now

33 7014416 1 DECAL Caution (Deflector-Adapter)
34 7038455 1 ANCHOR, Brake
35 7032803 2 BRACKET, Cross-Shaft
36 7011016 2 BEARING, Cross-Shaft Bracket
37 7090741 10 BOLT, 5/16-18x1/2" Hex Flange Lock Was 90723

tionItem Qt

Note

61956 + 52555)

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

37

TP 400-5217-2-TC-N

33" Cutting Deck, Belts, Brakes

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

38

SERIES 1

33" Cutting Deck, Belts, Brakes

p

y

Part No Descri

38 7038453 2 RAIL, Side
39 7091304 1 SCREW, 3/6-16x1" Hex Head Cap Was 90563
40 7015012 1 ECCENTRIC, Leveling
41 7091302 2 NUT, 3/8-18 Hex Was 90130
42 7090118 2 LOCKWASHER, 3/8 Split
43 7032432 1 LINK, Adjustment
44 7091547 1 BOLT, 3/8-16x3/4" Carriage Was 90850
45 7059784 1 ASSEMBLY, Spindle (Includes items 46 thru 55)
46 7052294 1 HOUSING, Spindle 5.575" Tall (Includes item 47)
47 7010817 1 FITTING, Lube (Press into .187" hole, no ball)
48 7027711 1 SPINDLE, 33" Mower Deck 8.26" Long
49 7012491 2 RING, Retaining EXT 1.75"
50 7013313 2 BEARING, Spindle
51 7014407 1 WASHER, Spindle
52 7090559 4 NUT, 1/2-20 Hex Jam (2 in assembly)
53 7090392 4 SCREW, 1/2-20 Hex Head Cap (2 in assembly)
54 7037751 1 HOLDER, Blade
55 7090356 1 NUT, 5/8-18 Hex Lock
56 7090509 2 WASHER, 1/2 Internal Tooth Lock
58 7019523 1 BLADE, 33" Mower Deck
59 7037723 2 AIR-LIFT
60 7090228 6 SCREW, 5/16-24x11/18 Machine
61 7090391 8 WASHER, 5/16-24 Internal Tooth Lock
62 7091297 8 NUT, 5/18-24 Hex Was 90223
63 7033115 2 BRACKET, Rear Lift
64 7016844 2 CABLE, Support (4.25", 8 Spacers)
65 7014343 1 RING, Tolerance 2.0" Was 12070
66 7047960 1 CROSS-SHAFT
67 7028652 1 SPRING Was 16153
68 7015753 2 BALLPOINT
69 7023687 1 LINK, Ball Joint
70 7090053 2 WASHER, 1/4 Internal Tooth Lock
71 7090095 2 NUT, 1/4-28 Hex
72 7038018 1 BRACE, Spindle
73 7091508 1 BOLT, 5/16-18x3/4 Short Neck Carriage Was 90001
74 7091294 1 WASHER .28 x .63 x .065 YZ Was 90055
75 7091597 1 COTTER-PIN, 3/32x3/4" Was 90037

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

39

TP 400-5217-2-TC-N

33" Cutting Deck, Belts, Brakes

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

40

SERIES 1

33" Cutting Deck, Belts, Brakes

p

y

Part No Descri

76 7033570 1 BRACKET, Gage Wheel (Front) Was 38451
77 7033571 2 BRACKET, Gage Wheel (Rear) Was 38450
78 7090731 6 BOLT, 5/16-18x1/2" Short Neck Carriage Was 90004
79 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 90585
80 7015272 3 SPACER .625 OD x .423 ID x 3" L
81 7091532 3 SCREW, 3/8-24x3-3/4 H.H.C. Was 90859
82 7090289 3 LOCKNUT, 3/8-24 Hex
83 7019190 3 WHEEL Gage
84 7023874 1 GUIDE, Belt
85 7090188 2 WASHER, 5/16 Flat
86 7020908 2 SPACER

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

41

TP 400-5217-2-TC-N

41" Cutting Deck

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

42

SERIES 1

41" Cutting Deck

p

y

Part No Descri

1 7051916 1 DECK, Mower 41" (Includes Items 50 & 51)

2 7051914 2 ASSEMBLY, Spindle (Includes Items 3 thru 9)

3 7027668 2 SPINDLE

4 7051918 2 HOUSING, Spindle (Includes item 9)

5 7013313 4 BEARING, Spindle

6 7012491 4 RING, Retaining

7 7014407 2 WASHER, Spindle

8 7032294 2 HOLDER, Blade

9 7010817 2 FITTING, Lube
10 7019795 2 BLADE, 21" Cutter
11 7052487 2 ASSEMBLY, Rear Support Was 51769
12 7042469 1 ASSEMBLY, Front Hanger Was 49762
13 7034409 2 GUARD, Pulley Was 38389
14 7051747 2 ASSEMBLY, Spindle Lock
15 7033083 1 ASSEMBLY, Chain Support
16 7032297 1 BRACKET, Front Left Hanger
17 7016844 2 CABLE, Support (4.25", 8 Spacers)
18 7033086 1 ASSEMBLY, Rear Support
19 7051748 1 BRACKET, Idler Mount
20 7032368 1 GUIDE, Belt
21 7018574 2 PULLEY, Idler
22 7015724 2 PULLEY, Spindle
23 7023180 1 CABLE, Front Lift 6.125"
24 7034043 1 BRACKET, Front Lift Arm Hanger
25 7038382 1 BRACKET, Front Right
26 7032432 1 LINK, Adjustment
27 7015012 1 RING, Adjustment
28 7091304 1 SCREW, 3/8-16x1" Hex Head Cap Was 90563
29 7091302 2 NUT, 3/8-16 Hex Was 90130
30 7090118 2 WASHER, 3/8" Split Lock
31 7090122 1 WASHER, 3/8" Flat
32 7091619 22 NUT, 3/8-16 Hex Flange Lock Was 90613
33 7091601 9 NUT, 5/16-18 Hex Flange Lock Was 90585
34 7090388 1 T-NUT, 5/16-18
35 7012951 1 PIN, 1/2x1-3/8" Clevis
36 7091596 1 HAIRPIN, Cotter Was 13844
37 7091497 1 SCREW, 3/8-16x1-1/2" Hex Cap Was 90655

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

43

TP 400-5217-2-TC-N

41" Cutting Deck

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

44

SERIES 1

41" Cutting Deck

p

y

Part No Descri

38 7074467 2 NUT, 3/4-16 Hex Jam Was 10027
39 7027198 2 BOLT, 3/8-16x1" Hex Flange Lock Was 90582
40 7023606 2 CAP, Vinyl
41 7090517 1 WASHER, 7/16 Flat Was 90600
42 7091547 9 BOLT, 3/8-16x3/4" Carriage Was 90850
43 7091508 2 BOLT, 5/16-18x3/4 Carriage Was 90788
44 7012063 4 WASHER, 13/32x1-13/32" Dia. Cone
45 7090824 2 SCREW, 3/8-24x1-1/4" Hex Cap
46 7090595 2 BOLT, 5/16-18x3/4" Hex Flange Lock
47 7051401 1 DEFLECTOR, Side Chute (Includes item 49)
48 7013010 1 DECAL, Danger
49 7014852 1 DECAL, Caution (Deflector in Place)
50 7014853 1 DECAL, Caution (Rotating Blades)
51 7019190 4 WHEEL, Gage
52 7090289 4 LOCKNUT, 3/8-24 Hex
53 7015272 4 SPACER
54 7091532 4 SCREW, 3/8-24x3-3/4" Hex Hd. Cap Was 90859
55 7091547 1 BOLT, 3/8-16x3/4" Short Neck Carriage Was 90850
56 7091303 2 BOLT, 5/16-18x1" Short Neck Carriage Was 90383
57 7091588 12 BOLT, 3/8-16x3/4" Hex Flange Lock Was 90612
58 7090375 2 WING-NUT, 5/16-18
59 7090187 2 WASHER, 5/16 Split Lock
60 7011791 2 RETAINER, 5/16 Bolt
61 7090799 2 BOLT, 5/16-18x5/8" Carriage

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

45

TP 400-5217-2-TC-N

Belt, Blade Brake, 41" Deck

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

46

SERIES 1

Belt, Blade Brake, 41" Deck

p

y

Part No Descri

1 7015724 1 PULLEY, Drive

2 7014799 1 BELT, Drive

3 7052886 1 BAND, Brake Assembly Was 57307

4 7032169 1 DRUM, Brake

5 7047912 1 ASSEMBLY, Brake Arm

6 7018574 1 PULLEY, Idler

7 7032587 1 ANCHOR, Brake

8 7014303 1 NUT, 1/4-20 Tec.

9 7014302 1 BOLT, 1/4-20 Eye
10 7011021 1 PIN, Clevis, 1/4x1-1/4"
11 7029788 1 SPRING, Blade Brake Was 23172
12 7035434 1 CABLE, Blade 28.5" Long Was 19040
13 7074467 1 NUT, 3/4-16 Hex Jam Was 10027
14 7091576 1 NUT, 1/4-20 Hex Was 90063
15 7090167 1 SCREW, 3/8-24x2" Hex Head Cap (Gr. 5)
16 7010740 2 RING, 2” External Retaining
17 7090289 2 NUT, 3/8-24 Hex Lock

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

47

TP 400-5217-2-TC-N

Fuel Tank, Battery

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

48

SERIES 1

Fuel Tank, Battery

p

y

Part No Descri

16 7014475 1 CABLE, Negative Terminal 15" 8 AWG Black
17 7091568 3 WING-NUT, 1/4-20 Was 90311
18 7091294 1 WASHER, 1/4 SAE Was 90055
19 7091530 2 BOLT, 1/4-20x3/4" Short Neck Carr. Was 90074
20 7012444 1 COVER, Positive Terminal
21 7014434 1 CLAMP, Battery
22 7014476 1 CABLE, Positive Terminal 11" 8 AWG Red
23 7060618 1 KIT, Battery, 12 Volt
24 7023194 1 HOLD-DOWN, Battery
25 7012515 1 CAP, Fuel Tank Was 14363
26 7052258 1 TANK, Fuel w/cap (Includes item 25)
27 7029900 2 CLAMP, Fuel Line Was 12222
28 1 LINE, Fuel (3" Long)(No longer available) Was 32542
29 7023195 1 CABLE-TIE, Fuel Tank Hold-Down
32 1 HEAT SHIELD, Fuel Tank 3" x 5.5" (No longer available) Was 17788

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

49

TP 400-5217-2-TC-N

Electrical System

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

50

SERIES 1

Electrical System

p

y

Part No Descri

1 7022699 1 HARNESS, Wiring (KOHLER)

2 7019043 1 HARNESS, Interlock

3 7023355 2 SWITCH, Clutch & PTO

4 7023354 1 SWITCH, Seat NC Was 17590

5 7075622 1 SOLENOID Was 18604

6 7023187 1 SWITCH, Light

7 7014562 1 SWITCH, Key (Includes 2 Item 9)

8 7073406 2 KEY, Switch (With Cover) Was 23504

9 7012685 1 NUT, 5/8-32 Hex Was 23505
10 7012444 1 COVER, Positive Terminal
11 7014475 1 CABLE, Negative 15" 8 AWG Black
12 7091530 2 BOLT, 1/4-20x3/4 Carriage Was 90074
13 7091568 2 WING NUT, 1/4-20 Was 90311
14 7060618 1 KIT, Battery
15 7091122 2 SCREW, 1/4-20x1/2" Self-Tapping Was 90539
16 7014451 2 TIE, Wire
17 7090913 4 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307
18 7012691 2 CLIP
19 7012080 2 TIE, Cable 7"
20 7014476 1 CABLE, Positive 11" 8 AWG Red
21 7023506 1 BEZEL
22 7023653 1 FUSE, 20 Amp

1 RETAINER, 1/2 (Not shown on back of light switch)(No longer

available)

tionItem Qt

Note

Was 16245

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

51

TP 400-5217-2-TC-N

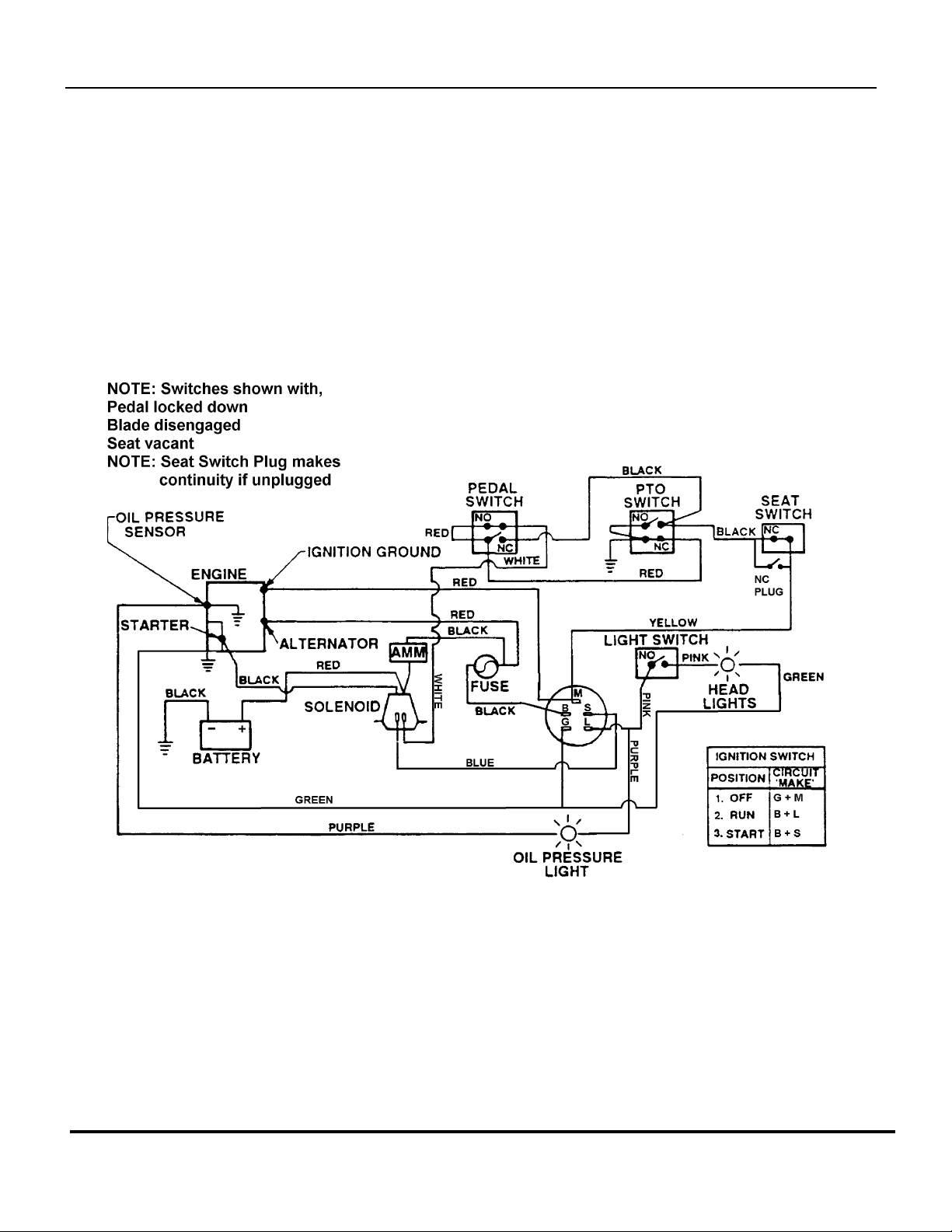

Schematic Electrical System (Kohler Engines Only)

Manual No. 7006425 LAWN TRACTOR MANUAL CLUTCH
TP 400-5217-2-TC-N

52

SERIES 1

Schematic Electrical System (Kohler Engines Only)

p

y

Part No Descri

Wiring schematic includes harness #'s 7022699 & 7024126

tionItem Qt

Note

Footnotes:

Manual No. 7006425LAWN TRACTOR MANUAL CLUTCH

SERIES 1

53

TP 400-5217-2-TC-N

Parts Manual fo

r

)

LAWN TRACTOR MANUAL CLUTCH

HYDRO DRIVE (1991

SERIES 1

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

COPYRIGHT ©2006

SNAPPER PRODUCTS, INC.

ALL RIGHTS RESERVED.

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

McDonough, GA, 30253 U.S.A.

Manual No. 7006425

Revision 2,

7/14/2006

TP 400-5217-2-TC-N
