Snapper GT1848H User Manual
Specifications and Main Features
- Model - GT1I848H
- Engine - Two Cylinder Vertical Engine Kohler Command with 18HP
- Transmission - Hydro-static Gear
- Fuel Capacity - Gasoline, 87 minimum octane, capacity of five (5) gallons.
- Oil - 10W30, 2 quarts.
- Hydraulic System - VG46 or 20W
- Speed of Operation:
- Forward: Low 0 to 4.5 mph, High 0 to 8.9 mph
- Reverse: Maximum 4.3 mph
- Turning Radius: Wheel base and weight of the vehicle overrides it.
- Weight: 500 lbs approximately (attachment variations apply).
- Size: Different attachments have different designs.
- Basic Equipment: Front hitch_Deblocks, hydraulic system for Tuchel 100 interface, u.
- Optional Equipment: Rear PTO unit for power take off attachments.
- End user products: Provision for electric clutch and safety interlock systems.
- Park brake: Disk brake on the transaxle.
- Battery: System 12V maintenance and charging system.

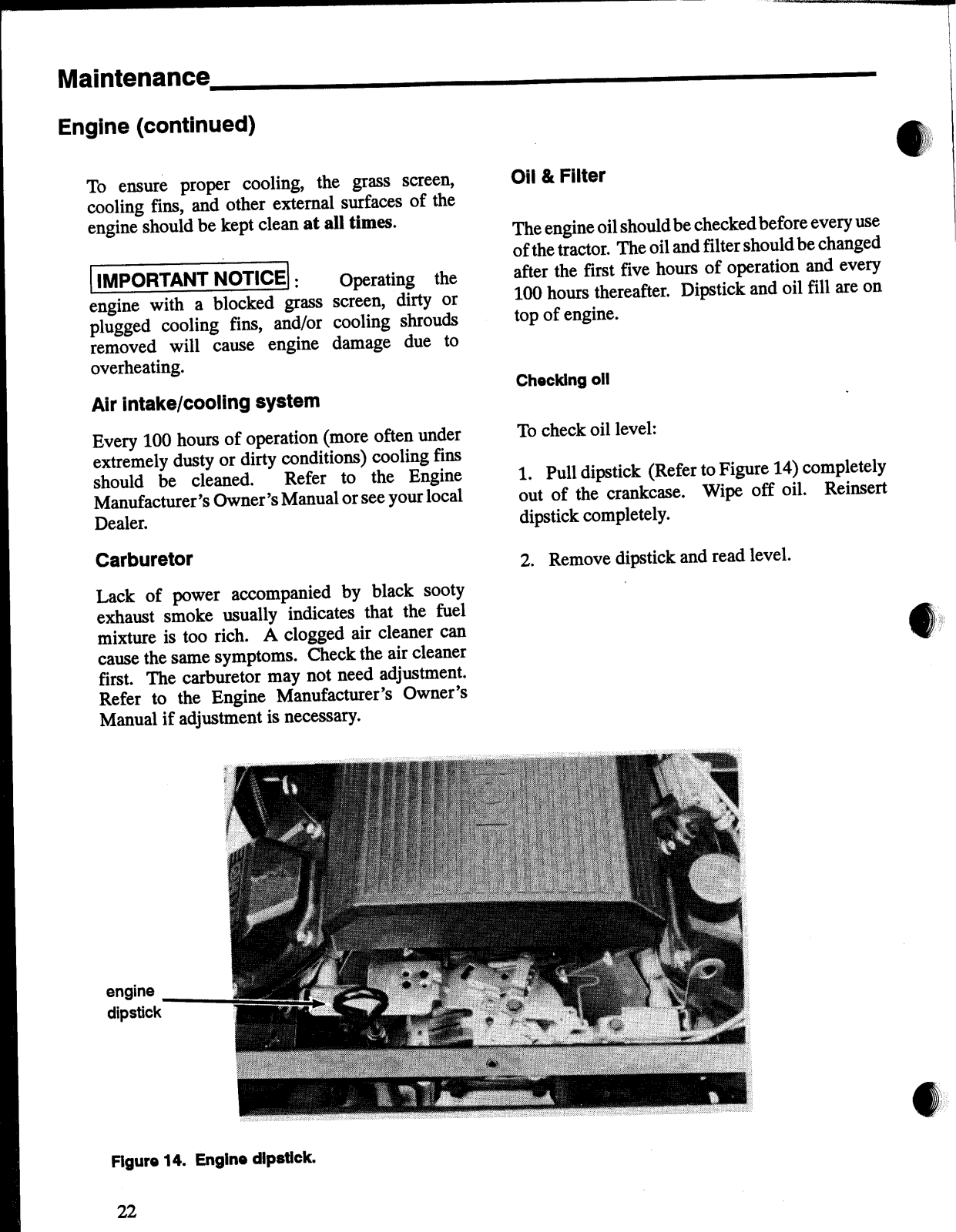

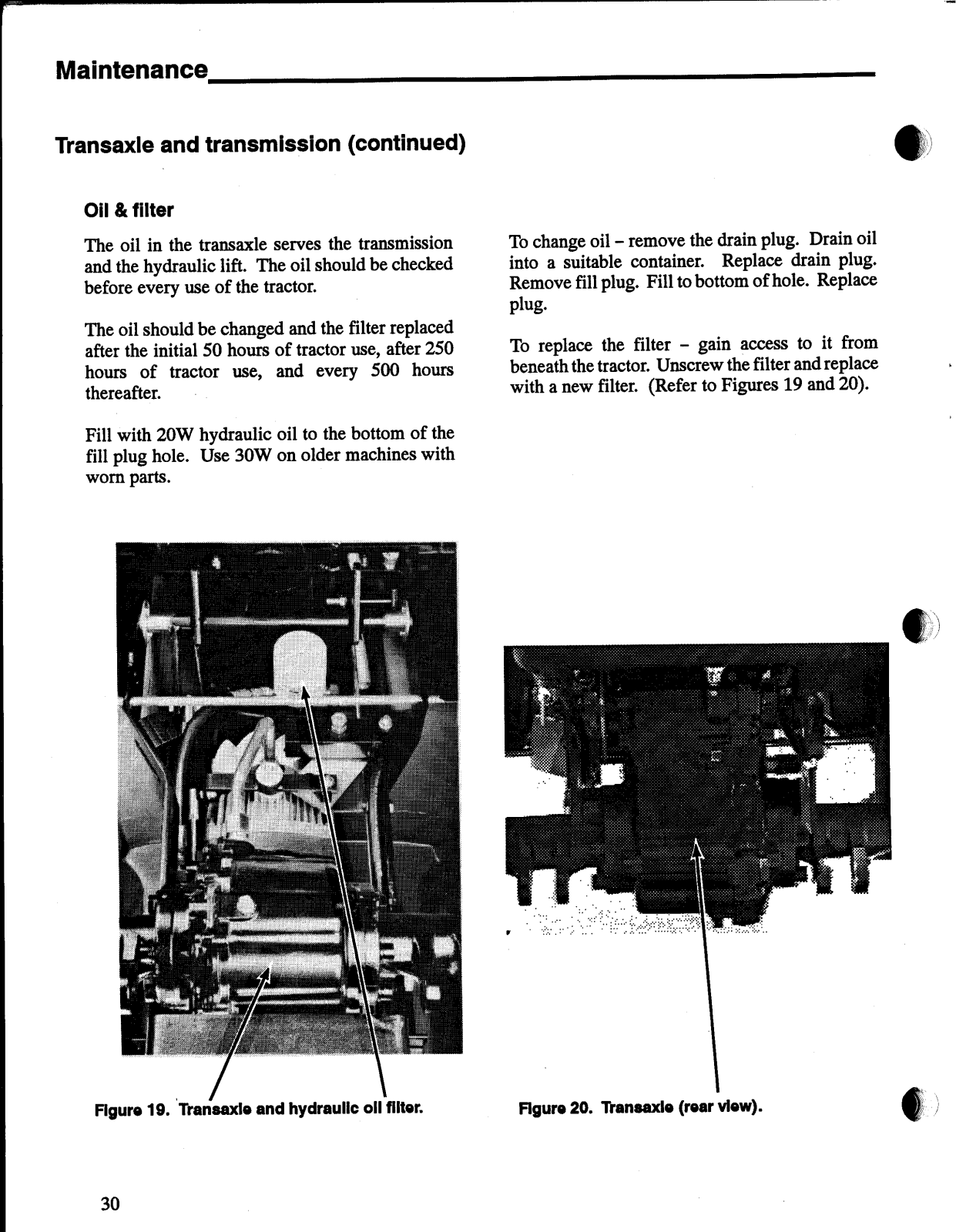

- Maintenance: Change the engine oil after five hours of work for the first time, and every 100 hours of operation thereafter; change the hydraulic oil every 250-500 hours; replace the air filter every 100 hours, etc.
Frequently Asked Questions
Q: What type of fuel is best suited with GT1I848H garden tractor?
A: Use unleaded gasoline with a minimum octane rating of 87.
Q: Can you provide me with some tips on how to start the engine during winter?
A: Ensure that the oil used is lighter, the battery is fully charged, and make sure to allow the engine a longer warm up period before pushing the choke in.
Q: So the engine starts but only for a couple of seconds, what am I supposed to do with that?
A: Investigate the possibility of an empty fuel tank, a cross-closed fuel shutoff valve, or spark plugs that are not functioning properly.
Q: Do the tractor need to have its oil level checked And how often should this be done?
A: Yes, the level of engine oil in the tractor should be checked before its use.
Q: So what is the optimal slope that should be utilized during operation?
A: It is not recommended to use the tractor on slopes more than 15 degrees (27% grade). Take care when using the tractor on areas with a slope of more than 10 degrees (18% grade).
