Specifications and Main Features
- Model: GT180H Series 4&5
- Class: Hydro-Drive Lawn Tractor
- Motor: 18 HP Kohler Twin Cylinder Engine
- Automatic Transmission: Hydrostatic

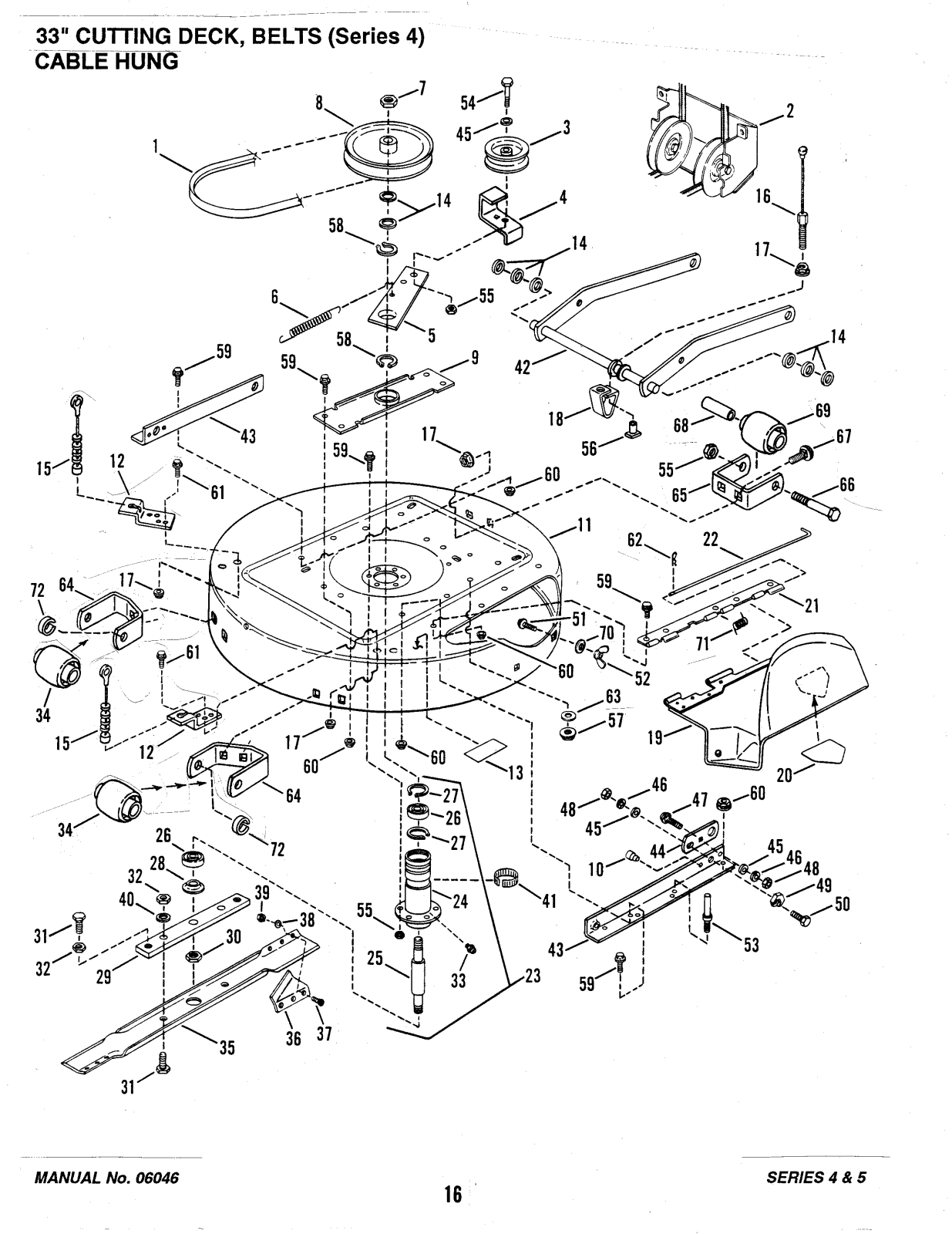

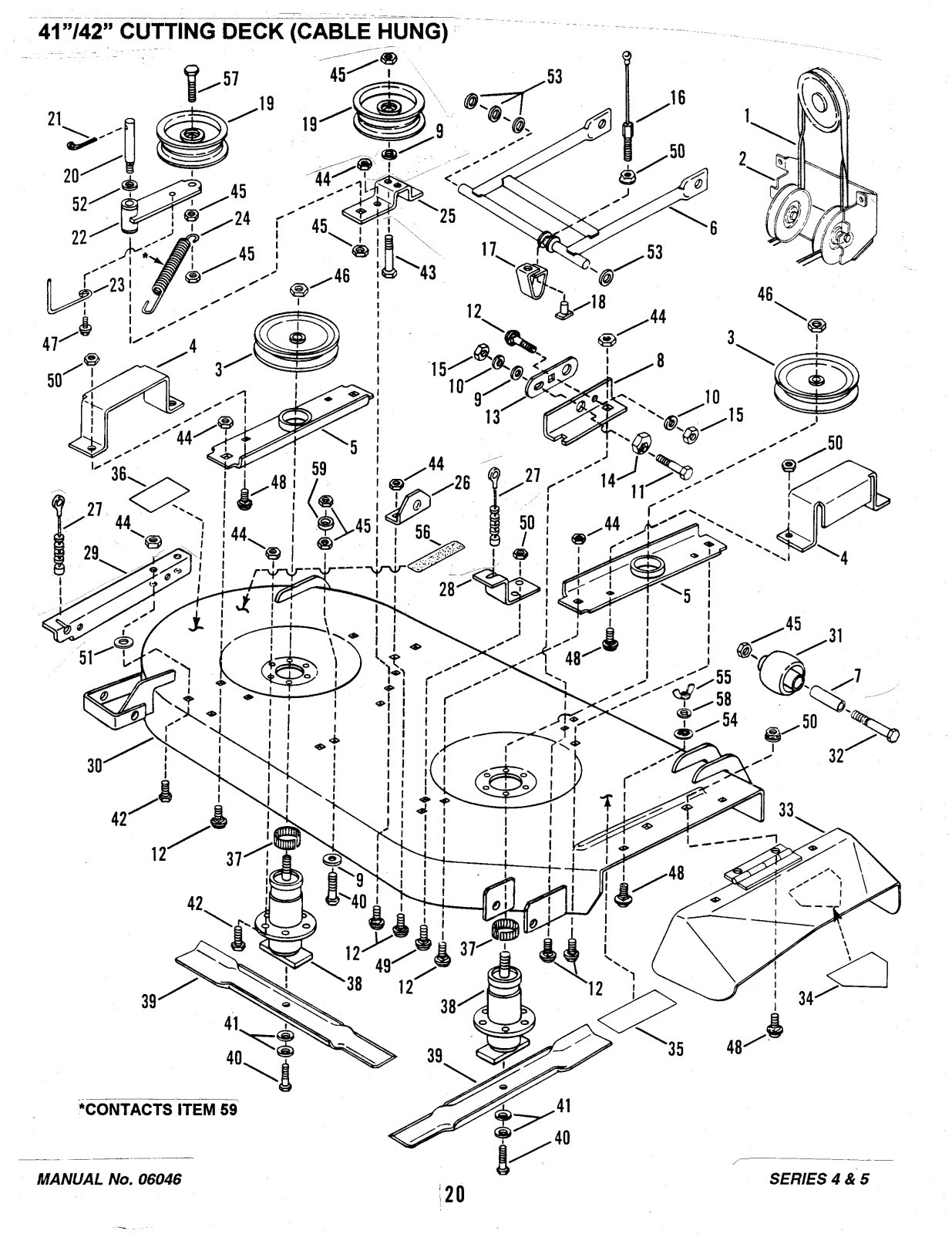

- Cutting Deck Options: 33", 41"/42", 48"
- Voltage: 12 Volt, with a 20 Amp Hour battery power supply.
- Drive System: Hydrostatic
- Wheel Sizes:
Front 15 x 6.00 x 6
Rear (33” Deck) 21 x 7.00 x 10
Rear (42” & 48” Decks) 23 x 10.50 x 12
- Mowers attachments are available
- It contains User friendly design which include no neutral engagement brake controls.
Frequently Asked Questions
- What kind of fuel does the GT180H engine use?
GT180H is powered with an 18 HP Kohler Twin engine.
- Are the attachments on the mower adjustable to specific widths?
The attachments are however adjustable to various widths of 33,41 or 42 inches as well or 48 inch.
- For a comfortable shift,, is there the addition of any transmission component?
Yes, it has a hydro static trans axel which enables ease in driving the vehicle and navigating around.
- Can the GT180H be used for Garden farming?
Yes, it is multifunctional with mower attachments for garden farming or household chores.
- How many amps does the battery generate in normal conditions?
The battery operates at 12 Volt and has a capacity of 20 Amps.
- What are the specifications of the wheels?
The front wheels are set at 6 inches of width 15 inches in diameter by 15 inches in length while the dimension for the rear wheels will depend on the cutting deck size.
