Snapper DP21357B, 21407T, DP21407T, 21407T-2, DP21407T-2 Parts Manual

Parts Manual fo

r

T

2

E

T

2

T

T

21" STEEL DECK WALK BEHIND MOWER

SERIES 7

PUSH MODELS PROPELLED

MODELS

21357B DP21357B
21407T DP21407

21407T-2 DP21407T-

21507B DP21507B

21507T DP21507BE
G23157B GP21507B
M21357B GP21507B
R21357B MP21357B

R21407

R21507B OP21407T-2

R21507TV OP21507B

MP21507BE

P21357B

P21407R-

P21407

P21407T-2

P21507B
P21507BE
P21507TV

PD21357B
RP21357B
RP21407

RP21507B
RP21507BE
RP21507TV

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision 3,

McDonough, GA, 30253 U.S.A.

8/10/2007

Manual No. 7006051A

TP 400-5143-3-WB-N

s

PAGE GROUP

4

8
10
12
14
16
18
22
24
26
28
30
32
34
36
38
40
42

Handles & Controls
Cutting Deck, Blade, Interlock
Front Wheel Bracket, Latches
Rear Wheels, Brackets, Latches
Front Wheels
Rear Wheels
Drive System - Self Propelled
Transmission (Differential)
Throttle Controls - Series 7

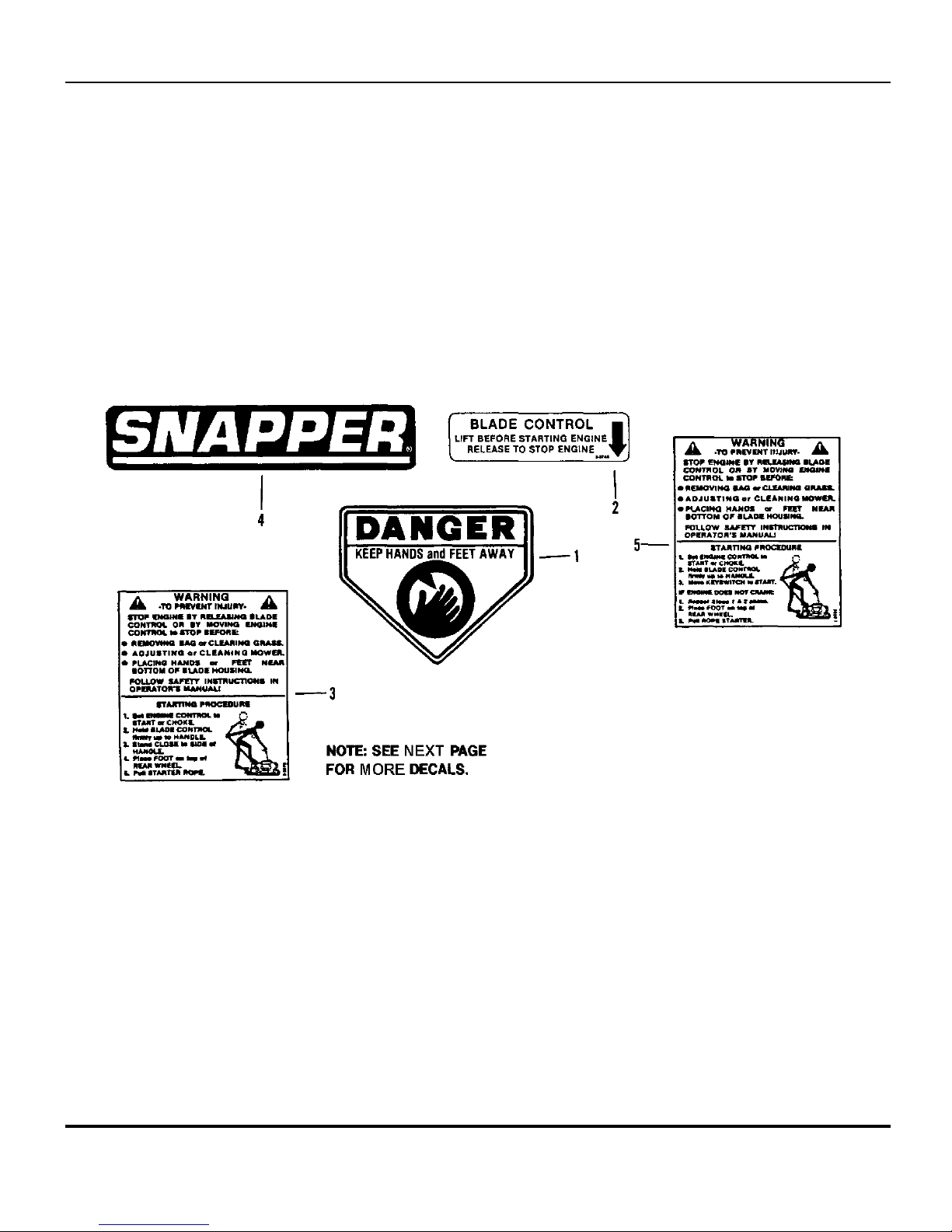

Decals (Part 1)
Decals (Part 2)

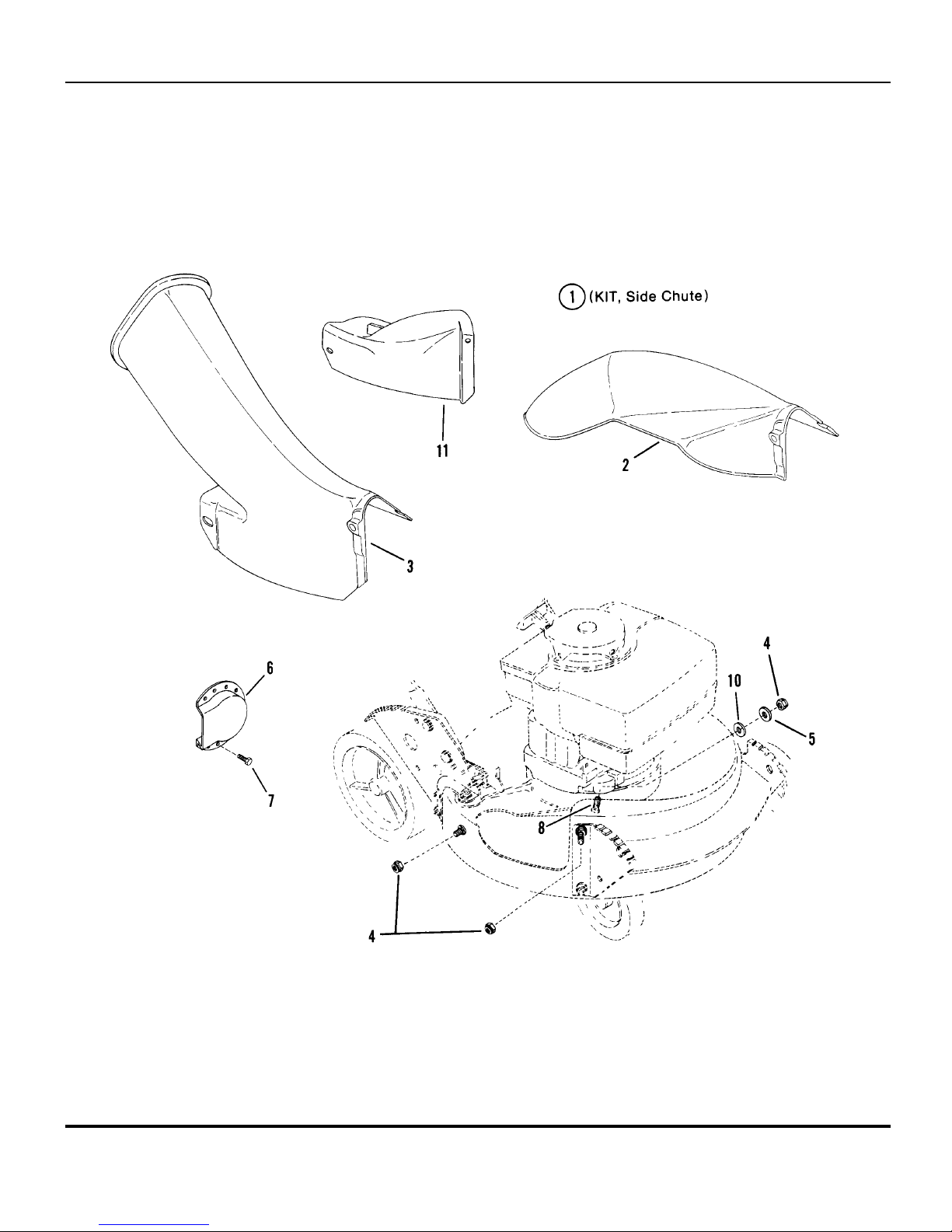

Side Chute, Adapter
Grass Bag
Accessories - Recycling Kits
21" Hi-Vac Mulcherizer Kits
Accessory - Snapperizer
Accessory - Thatcherizer
Electric Start Group

Table Of Content

SERIES 7

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

3

TP 400-5143-3-WB-N

Handles & Controls

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

4

SERIES 7

Handles & Controls

p

y

Part No Descri

1 7036354 1 HANDLE, Upper Used on Push
1 7036357 1 HANDLE, Upper Used on Self-Propelled
2 7036350 1 HANDLE, Middle Used on All
3 7046502 1 HANDLE, Lower Left Hand Was 38467, Used on All
4 7035342 1 HANDLE, Lower Right Hand Was 38466, Used on All
5 7017072 1 CONTROL, Blade Used on All
6 7033904 1 CLIP, Blade Control Used on All (Same either side)
7 7023820 1 CABLE, Blade Control, 47.94" Overall length B&S 3.5 H.P. Engine 1990 Model
7 7023835 1 CABLE, Blade Control, 63.87" Overall length TEC 2-cycle Engine 1990 Model
7 7023765 1 CABLE, Blade Control, 52.65" Overall length B&S 5.0 H.P. Engine 1990 Model
7 7016566 1 CABLE, Blade Control, 46.3" Overall lenght Used on Briggs (All Engines)

7 7016708 1 CABLE, Blade Control, 56.93" Overall length Used on Tecumseh (Side Valve

7 7016709 1 CABLE, Blade Control, 63.42" Overall length TEC 2 Cycle Engine 1991 &

7 7016425 1 CABLE, Blade Control, 57.0" Overall length Used on Tecumseh OHV Engine
7 7017276 1 CABLE, Blade Control, 47.95" Overall length Used on Robin
8 7032826 1 HANDLE, Wheel Drive Used on Self-propelled

9 7014307 1 GRIP, Wheel Drive Handle Used on Self-propelled
10 7023134 1 CABLE, Clutch Pull (Z-BEND) Used on Self-propelled
11 7012121 1 COVER, Vinyl (Part of item 10)
12 7012122 1 SPRING, Clutch Used on Self-propelled
13 7038478 1 SECTOR, Speed Used on Self-propelled
14 7023795 1 LEVER, Speed Control Used on Self-propelled
15 7012093 1 SPRING, Speed Control Used on Self-propelled
16 7090188 1 WASHER, 3/8" Flat Used on All-different locations
17 7023801 1 GRIP, Speed Control Handle Used on Self-propelled
18 7032830 1 ANCHOR, Speed Control Used on Self-propelled
19 7032408 1 GUIDE, Lower V-Belt Used on Self-propelled
20 7023790 1 ROD, Transfer Used on Self-propelled
21 7010937 1 CLIP, Transfer Rod Used on Self-propelled
22 7090895 1 TEE-NUT, 5/16-18 Used on Self-propelled
23 7012114 1 BUSHING, Differential Used on Self-propelled
24 7090595 1 BOLT, 5/16-18 x 3/4 Flange Lock Used on Self-propelled
25 7090238 1 CAPSCREW, 5/16-24 x 1 Used on Self-propelled
26 7090799 2 BOLT, 5/16-18 x 5/8 Carriage Was 91026 (Used on All

27 7091601 4 NUT,5/16-18 Hex Flange Lock Was 90585 (Used on All

28 7090222 1 NUT, 5/16-24 Center Lock Used on Self-propelled
29 7023813 1 CLIP Cable/Wiring Used on All

tionItem Qt

Note

("91 Models & Later)

Engines) ("91 Models & Later

Later

(different locations)

(different locations))

Footnotes:

SERIES 7

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

5

TP 400-5143-3-WB-N

Handles & Controls

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

6

SERIES 7

Handles & Controls

p

y

Part No Descri

30 7091013 4 SCREW, 1/4-20 x 1-7/8 Curved Head Used on All
31 7023735 4 KNOB, 5/16-18 Used on All
32 7091025 2 CAPSCREW, 1/4-28 x 1-3/8 Used on Self-propelled
33 7090053 5 LOCKWASHER, 1/4 Internal Tooth Was 91023 (Used on All

34 7090095 3 NUT, 1/4-20 Hex Was 91024 (Used on All

35 7091022 1 CAPSCREW, 1/4-28 x 1-3/4 Used on All (throttle control)
36 7014343 4 BUSHING Used on All
37 7023792 1 PIN, Clutch Handle Used on Self-propelled
38 7091020 1 PUSH-NUT (for handle pin) Used on Self-propelled
39 7023745 1 DECAL, Blade Control Used on All
40 7023901 1 GRIP, Foam 18" Used on Push
40 7022460 1 GRIP, Foam 13.5" Was 23841, Used on Self-

41 7091077 1 BOLT, 5/16-18 x 5/8" Carriage Used on Self-Propelled

tionItem Qt

Note

(different locations))

(different locations)

Propelled

Footnotes:

SERIES 7

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

7

TP 400-5143-3-WB-N

Cutting Deck, Blade, Interlock

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

8

SERIES 7

Cutting Deck, Blade, Interlock

p

y

Part No Descri

1 7057663 1 DECK, Mower (Includes painted deck with

2 7091601 12 NUT, 5/16-18 Hex Flange Lock Was 90585

3 7090731 9 BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr.)

4 7091303 4 BOLT, 5/16-18 x 1" Short Neck Carriage Was 90383

5 7090324 2 SCREW, 3/8-16 x 1" Self-tapping (Engine Mounting)

6 7032417 1 SPRING, Wheel Bracket Type Interlock

7 7032416 1 BRACKET, Wheel Bracket Type Interlock

8 7012048 1 INSULATOR, Interlock

9 7091122 2 SCREW, 1/4-20 x 1/2" Self-tapping Was 90539
10 7090385 1 WASHER, #8 Tab Internal Tooth Lock
11 7090379 1 SCREW, #8-18 x 3/4" Hex Head Machine
12 7090167 1 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
13 7012063 1 WASHER, Cone
14 7019795 1 BLADE, Cutter
14 7017168 1 BLADE, Cutter (For Recycling Models)
15 7012927 1 HUB, Blade Drive (7/8" Dia. I.D.) (For '90 Models &. Earlier)
15 7015626 1 HUB, Blade Drive (25mm Dia. I.D.) (For '91 Models & Later)
16 7010783 2 KEY, Hi-Pro (For '90 Models & Earlier)
16 7015894 2 KEY, Woodruff (Briggs)(Tecumseh 2 Cycle) (For '91 Models & Later)
16 7016755 1 KEY, Square (Robin & Tecumseh) (For '91 Models & Later)
17 7090201 1 SCREW, 5/16-18 x 5/16" Hex Socket Set
18 7021707 1 PULLEY, Engine (Briggs 3.5 H.P.) (7/8" I.D. x 1-7/8" O.D.) (For '90 Models & Earlier)
18 7015780 1 PULLEY, Engine (Briggs) (Tecumseh 2 Cycle) (25mm I.D. x 2-

1/8" O.D.)
18 7022106 1 PULLEY, Engine (Tec. & Robin) (25mm I.D.x 2-1/8" O.D.) (For '91 Models & Later)
19 7031968 1 SHIELD, Belt Opening Cover (For Push Models Only)
20 7012135 1 BUSHING, Interlock Wire
21 7060785 1 KIT, Air Lift (Includes items 22 thru 25); For

22 7032558 2 LIFT, Air
23 7090391 4 WASHER, 5/16 Internal Tooth Lock
24 7091297 4 NUT, 5/16-24 Hex Was 90223
25 7090228 4 SCREW, 5/16-24 x 11/16" Machine
26 7011791 2 RETAINER, 5/16 Bolt
27 7090799 2 BOLT, 5/16-18 x 5/8" Carriage

tionItem Qt

Note

decals)

(For '91 Models & Later)

use with P/N 1-9795 Blade

Footnotes:

SERIES 7

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

9

TP 400-5143-3-WB-N

Front Wheel Bracket, Latches

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

10

SERIES 7

Front Wheel Bracket, Latches

p

y

Part No Descri

1 7051885 1 ARM ASSEMBLY, Left Wheel (Not shown) (Consists of items 2, 3, 4, 5A,6)
1 7051886 1 ARM ASSEMBLY, Right Wheel (Consists of items 2, 3, 4, 5B, 6)
2 7015761 2 BOLT, 5/16-18 Shoulder
3 7012325 2 LATCH, Height
4 7027702 2 GRIP, Latch
5 7031016 1 ARM, Left Wheel (Not shown)
5 7031017 1 ARM, Right Wheel
6 7011791 2 RETAINER, 5/16 Bolt
7 7090391 2 WASHER, 5/16 Internal Tooth Lock
8 7091511 2 NUT, 5/16-18 Hex Was 90196
9 7047971 1 BRACKET, Front Wheel

10 7021119 1 AXLE

tionItem Qt

Note

Footnotes:

SERIES 7

11

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Rear Wheels, Brackets, Latches

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

12

SERIES 7

Rear Wheels, Brackets, Latches

p

y

Part No Descri

1 7046983 2 BEARING Was 18767
2 7091012 6 SCREW, #10-32 x 3/8" Self-Tapping
3 7035717 2 LATCH, Height Adjusting Was 19218 (Self-Propelled

4 7090731 6 BOLT, 5/16-18 x 1/2" Short Neck Carriage
5 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585
6 7052909 1 ASSEMBLY, Wheel Arm (Square Hole, Front Left & Rear Right) Was 51954 (Includes items

7 7052908 1 ASSEMBLY, Wheel Arm (Round Hole, Front Right & Rear Left) Was 51955 (Includes Items

8 7054246 1 WHEEL ARM ASSEMBLY (Rear Right "P" Models) Was 51814 Includes items

9 7054247 1 WHEEL ARM ASSEMBLY (Rear Left "P" Models) Was 51815 Includes items

10 7031016 1 ARM (Square Axle End)
11 7031017 1 ARM (Round Axle End)
12 7032722 1 ARM, Wheel Rear Right "P" Models
13 7032723 1 ARM, Wheel Rear Left "P" Models
14 7015761 2 BOLT, 5/16-18 x 1 Shoulder
15 7011791 2 RETAINER, 5/16 Bolt
16 7012325 2 LATCH, Height Adjusting (For Push Models)
17 7027702 2 GRIP, Latch
18 7036050 1 BRACKET, Right Rear Wheel (For Push Models)
19 7036049 1 BRACKET, Left Rear Wheel (For Push Models)
20 7036048 1 BRACKET, Right Rear Wheel (For Self-prop. "P" Models)
21 7036242 1 BRACKET, Left Rear Wheel (For Self-prop. "P" Models)
22 7021119 1 AXLE (For Rear on Push Models also

23 7011780 2 RING (For Push Models)
24 7026166 1 GUARD, Rear Foot Was 37765 (Push Models)
25 7091809 2 PIN, 1/8 x 1-1/2" Cotter Was 90297
26 7019522 1 GUARD, Rear Foot (For Self-prop. "P" Models)
27 7012616 1 SUPPORT, Foot Guard
28 7091604 1 BOLT, 1/4-20 x 1/2 Short Neck Carriage Gr.5 Was 90005
29 7090053 1 WASHER, 1/4 Int. Tooth Lock Was 91023
30 7091576 1 NUT, 1/4-20 Hex Was 90063
31 7023791 1 RING
32 7090391 2 WASHER, 5/16 Int. Tooth Lock
33 7091511 2 NUT, 5/16-18 Hex Was 90196

tionItem Qt

Note

Models)

10,14,15,16,17)

11,14,15,16,17)

(1,2,3,12,14,15,16,17,25)

(1,2,3,13,14,15,16,17,25)

front on all)

Footnotes:

SERIES 7

13

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Front Wheels

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

14

SERIES 7

Front Wheels

p

y

Part No Descri

1 7019195 2 WHEEL, 7 x 1.75 Plastic Rim Was 19333 on "90 Models &

2 7019381 2 COVER, Wheel
3 7090377 2 NUT, 7/16-20 Hex Center Lock
4 7031960 2 CAP, Deep-Dish Hub
5 7031961 4 WASHER, 7/16 Flat
6 7012309 2 BUSHING, Axle

tionItem Qt

Note

Earlier

Footnotes:

SERIES 7

15

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Rear Wheels

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

16

SERIES 7

Rear Wheels

p

y

Part No Descri

1 7019420 2 WHEEL, 9 x 2.00 Plastic Rim Was 19196 or 19334 (For Push

2 7022801 2 WHEEL, 9 x 2.00 Plastic Rim Was 19335 (For 3.5 H.P. Self-

2 7019421 2 WHEEL, 9 x 2.00 Plastic Rim Was 19197 (For 3.5 H.P. 1990

3 7022801 2 WHEEL, 9 x 2.00 Steel Rim Was 19336 (Self-Propelled)("91

3 7019201 2 WHEEL, 9 x 2.00 Steel Rim Was 19198 (Self-Propelled,

4 7019385 2 COVER, Wheel (For Push & w.5 H.P. Self-

5 7019349 2 COVER, Wheel (For Self-Propelled)
6 7090377 2 NUT, 5/16-18 Hex Center Lock
7 7031960 4 CAP, Deep-Dish Hub
8 7031961 4 WASHER, 7/16 Flat
9 7012309 2 BUSHING, Axle (Push)

tionItem Qt

Note

Models)

Propelled) ('91 Models & Later)

Self-Propelled Models & Earlier)

Models & Later)

1990 Models & Earlier)

Propelled)

Footnotes:

SERIES 7

17

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Drive System - Self Propelled

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

18

SERIES 7

Drive System - Self Propelled

p

y

Part No Descri

1 7012354 1 BELT, Poly-Vee
2 7034179 1 LINK, Differential Was 31880

-- 7051921 1 ASSEMBLY, Clutch Idler (Includes items 3 thru 7)
3 7032832 1 ARM, Clutch Idler
4 7012124 2 PULLEY, Idler
5 7090552 1 CAPSCREW, 1/4-28 x 1-3/8" Hex Head
6 7090303 1 NUT, 1/4-28 Hex Lock
7 7012117 2 BUSHING, 3/8 I.D. Nylon
8 7072284 1 HEX-SHAFT Was 23744

9 7019383 1 PULLEY
10 7012316 1 WASHER
11 7012126 1 SPRING, Torsion
12 7012111 1 STUD
13 7031873 1 HOLDER, Bearing (Inner Half)
14 7028014 1 BEARING, Ball Was 12304
15 7011025 1 O-RING
16 7090289 1 NUT, 3/8 Hex Center Lock
17 7031809 1 HOLDER, Bearing (Outer Half)
18 7010937 1 CLIP, 1/4 Right Arc (Transfer Rod)
19 7023790 1 ROD, Transfer
20 7012353 1 BELT, Engine Drive

-- 7053225 1 ASSEMBLY, Driven Disc Was 57444 (Includes 21 thru 28)
21 7038486 1 PLATE, Thrust
22 7010746 1 RING, Retaining
23 7026693 1 BEARING, Ball Was 15474
24 7090981 4 SCREW, #10-32 x 1/4" Self-Tapping Machine
25 7061276 1 ASSEMBLY, Hub Was 51616 (Includes 11108

26 7023364 1 DRIVEN-RING
27 7031013 1 PLATE, Ring Retaining
28 7090913 5 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
29 7012125 1 GUIDE, Thrust Plate
30 7090390 2 WASHER, 3/8 Internal Tooth Lock
31 7090122 3 WASHER, 3/8" Flat
32 7091630 3 NUT, 3/8-24 Hex Was 90155
33 7091511 1 NUT, 5/16-18 Hex Was 90196
34 7090187 1 WASHER, 5/16 Split Lock
35 7090316 1 BOLT, 5/16-18 x 3/4 Carriage

tionItem Qt

Note

Bushing & 90913 Screws)

Footnotes:

SERIES 7

19

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Drive System - Self Propelled

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

20

SERIES 7

Drive System - Self Propelled

p

y

Part No Descri

36 7032831 1 CONNECTOR, Transfer Rod
37 7061275 1 ASSEMBLY, Drive-Disc (Includes item 38)(Was 60710)
38 7013893 1 BUSHING
39 7029025 2 SPRING (Wheel Drive & Idler) Was 17326
40 7032116 1 ARM, Idler
41 7013847 1 RETAINER, 3/8 Bolt
42 7090078 1 BOLT, 1/4-20 x 1-1/4" Carriage
43 7090372 1 NUT, 1/4-20 Hex Center Lock

-- 7050751 1 ASSEMBLY, Deck Bracket (Includes items 44 thru 46)
44 7033774 1 BRACKET, Deck Was 31919 (Now 17696 +

45 7012306 2 BUSHING, Flange
46 7021758 1 SPACER
47 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap
48 7090391 1 WASHER, 5/16 Internal Tooth Lock
49 7011079 1 WASHER, Spring
50 7091597 1 COTTER-PIN, 3/32 x 1/2" Was 90555
51 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
52 7090731 2 BOLT, 5/16-18 x 5/8" Short Neck Carriage
53 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585
54 7012122 1 SPRING, Clutch
55 7015752 1 LINK, Transfer Used on Electric Start models

56 7015753 1 JOINT, Ball Used on Electric Start models

57 7090095 2 NUT, 1/4-28 Hex Used on Electric Start models

58 7091294 1 WASHER, 1/4 Flat Was 90055 (Used on Electric

59 7090053 1 WASHER, 1/4 Internal Tooth Lock Used on Electric Start models

tionItem Qt

Note

33774)

only.

only.

only.

Start models only.)

only.

Footnotes:

SERIES 7

21

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Transmission (Differential)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

22

SERIES 7

Transmission (Differential)

p

y

Part No Descri

-- 7059070 1 ASSEMBLY, Transmission Was 57525 (Includes 1 thru 29)

1 7092062 3 NUT, 5/16-24 Hex Lock, GR C Was 11201
2 7011132 1 WASHER, Spring
3 7019213 1 PULLEY, Poly-Vee Belt
4 7011724 1 WASHER, Spring
5 7053942 1 HOUSING ASSEMBLY, Right Was 59794 (Includes 6 thru 10)
6 7051908 1 HOUSING, Right Side Was 17080
7 7014155 3 SCREW, 5/16-24 x 1-1/8" Rib Neck
8 7012314 2 SEAL, 5/8" ID

9 7012507 2 BEARING, Differential
10 7073963 2 BEARING, Ball Was 11767
11 7016544 1 PLUG, Housing Was 11133
12 7050767 1 GEAR, Input Includes one of #10)
13 7050830 1 AXLE, Short
14 7012495 1 GEAR, Differential, 46 Tooth
15 7031970 2 PLATE
16 7031965 2 WASHER, Thrust
17 7090557 4 SCREW, Cap, 10-32 x 1-1/2"
18 7011774 1 GASKET, Housing
19 7090189 3 WASHER, 5/16" Internal External Tooth Lock
20 7051903 1 BRACKET, Differential
21 7090911 4 SCREW, 1/4-20 x 1-1/4 Self-Tapping
22 7012543 1 SPACER, Axle Gear
23 7050831 1 AXLE, Long
24 7021115 4 GEAR, Pinion, 12 Tooth
25 7012500 4 SPACER, Pinion Gear
26 7011110 4 SHAFT, Pinion
27 7090376 4 LOCKNUT, 10-32
28 7053939 1 HOUSING ASSEMBLY, Left Was 57523 (Includes 8, 9 & 29)
29 7057634 1 HOUSING, Left Side Was 17015

tionItem Qt

Note

Footnotes:

SERIES 7

23

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Throttle Controls - Series 7

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

24

SERIES 7

Throttle Controls - Series 7

p

y

Part No Descri

-- 7019254 1 Conduit Length, 45.0" - Briggs 4 Cycle For '90 Models & Earlier

-- 7023829 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '90 Models & Earlier

-- 7016565 1 Conduit Length, 58.0" - Briggs 4 Cycle For '91 Models & Earlier

-- 7016705 1 Conduit Length, 44.25" - Tecumseh 4 Cycle For '91 Models & Earlier

-- 7016706 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '91 Models & Earlier

-- 7016798 1 Conduit Length, 44.0" - Robin 2 Cycle For '91 Models & Earlier

tionItem Qt

Note

Footnotes:

SERIES 7

25

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Decals (Part 1)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

26

SERIES 7

Decals (Part 1)

p

y

Part No Descri

1 7013010 1 DECAL, Danger

2 7023745 1 DECAL, Blade Control

3 7023870 1 DECAL, Warning

4 7044640 1 DECAL, SNAPPER Was 19279

5 7016191 1 DECAL, Warning & Starting

tionItem Qt

Note

Footnotes:

SERIES 7

27

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Decals (Part 2)

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

28

SERIES 7

Decals (Part 2)

p

y

Part No Descri

1 7017300 1 NLA - DECAL, Housing

2 7017303 1 NLA - DECAL, Housing

3 7017298 1 NLA - DECAL, Housing

4 7017297 1 NLA - DECAL, Housing

5 7017305 1 NLA - DECAL, Housing

6 7017295 1 NLA - DECAL, Housing

7 7017302 1 NLA - DECAL, Housing

8 7017306 1 NLA - DECAL, Housing

9 7017301 1 NLA - DECAL, Recoil (3.85 O.D.)
10 7017304 1 NLA - DECAL, Recoil (3.35 O.D.)
11 7017294 1 NLA - DECAL, Recoil (2.575 O.D.)

tionItem Qt

Note

Footnotes:

SERIES 7

29

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Side Chute, Adapter

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

30

SERIES 7

Side Chute, Adapter

p

y

Part No Descri

1 7060955 NLA - KIT, Side Chute (Included 10 per box of item 2)

2 7042965 1 CHUTE, Side Was 16090

3 7016050 1 ADAPTER, Grass Bag Deck

4 7090951 3 NUT, 5/16-18 Hex Flange Lock

5 7090188 1 WASHER, 5/16 Flat

6 7023152 1 DEFLECTOR, Muffler

7 7023023 3 SCREW, #8-18 x 3/8" Hex Head Cap

8 7090316 2 BOLT, 5/16-18 x 3/4" Carriage Was 91097

9 7011791 2 RETAINER, 5/16 Bolt
10 7090122 1 WASHER, 5/16 Flat
11 7029149 1 COVER, Deck Was 16111 (For Recycling

tionItem Qt

Note

Models)

Footnotes:

SERIES 7

31

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Grass Bag

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

32

SERIES 7

Grass Bag

p

y

Part No Descri

-- 7060935 1 KIT, Grass Bag Catcher (Incl. items 1 thru 4)

1 7059322 1 ASSEMBLY, Grass Bag Was 51899 (Incl. items 2 and 3)

2 7017069 1 BAG, Door Type (Charocoal)

3 7051906 1 ASSEMBLY, Bag Wire

4 7042489 1 CONNECTOR, Grass Bag Was 47969

5 7016050 1 ADAPTER, Bag

tionItem Qt

Note

Footnotes:

SERIES 7

33

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Accessories - Recycling Kits

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

34

SERIES 7

Accessories - Recycling Kits

p

y

Part No Descri

-- 7061200 1 KIT, Recycling Cover Was 61030 (Includes items

-- 7061201 1 KIT, Recycling Plug Was 61032 (Includes items

1 7029149 1 COVER, 21" Deck Was 16111

2 7016814 1 PLUG, Chute Adapter

3 7017168 1 BLADE, 21"

tionItem Qt

Note

below)

below)

Footnotes:

SERIES 7

35

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

21" Hi-Vac Mulcherizer Kits

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

36

SERIES 7

21" Hi-Vac Mulcherizer Kits

p

y

Part No Descri

-- 7060842 * NLA - KIT, Mulcherizer (For 7/8" Crankshaft) (Includes 1 thru 8)

-- 7060420 * NLA - KIT, Mulcherizer (For 25mm Crankshaft) (Includes 1 thru 8)

1 7019814 3 LINER

2 7013870 1 HUB, 7/8" I.D.

2 7015936 1 HUB (25mm I.D.)

3 7019521 1 BLADE, Mulcherizer

4 7090483 1 SCREW, 3/8-24 x 1 3/4" Hex Head Cap (Gr.5)

5 7012063 2 WASHER, Cone

6 7090100 3 SCREW, 1/4-28 x 5/8" Hex Head Cap (Gr.5)

7 7091294 6 WASHER, 1/4 Flat Was 90055

8 7090303 3 NUT, 1/4-28 Hex Lock

tionItem Qt

Note

Footnotes:

NOTE:* Use either 7016814 Chute Plug or 7061200 Cover

SERIES 7

37

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Accessory - Snapperizer

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

38

SERIES 7

Accessory - Snapperizer

p

y

Part No Descri

-- 7060440 1 KIT, Snapperizer (Includes items 1 thru 5)

1 7051243 1 SCREEN, Fastener Assembly

2 7039759 1 RING, Bottom

3 7091297 3 NUT, 5/16-24 Hex Was 90223

4 7090187 3 WASHER, 5/16 Split Lock

5 7012587 4 SPRING

tionItem Qt

Note

Footnotes:

SERIES 7

39

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Accessory - Thatcherizer

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

40

SERIES 7

Accessory - Thatcherizer

p

y

Part No Descri

-- 7061256 KIT, Thatcherizer (Includes items listed below) Recommended for propelled

1 7032891 2 ** LATCH, Frame Attachment
2A 7026572 1 BAR, Mount (Right Hand)
2B 7026573 1 BAR, Mount (Left Hand)

3 7018499 2 ROD, Tine

4 7018700 1 SUPPORT, Wheel

5 7019948 1 TRAY, Tine

6 7018496 6 KIT, Tine Thatching Spring Was 60574

7 7014100 1 ** BUSHING, Wheel Adjuster

8 7018493 1 ** AXLE, Wheel

9 7018189 1 WHEEL, 7.00 x 1.50 Gage
10 7091705 10 * NUT, 1/4-20 Hex Top Lock Was 90761, only 9 shown
11 7091294 4 * WASHER, 1/4” Flat Was 90055
12 7022425 2 ** SPRING, Compression
13 7090825 2 * BOLT, 1/4-20 x 1-1/4” Hex, GR 5
14 7091576 2 * NUT, 1/4-20 Hex, GR 5 Was 90063
15 7022424 2 ** CAP, Vinyl
16 7090015 2 * BOLT, 1/4-20 x 2-1/2” Square Neck Carriage only 1 shown
17 7091303 6 * BOLT, 5/16-18 x 1” Square Neck Carriage, GR 5 Was 90383, only 1 shown
18 7091530 2 * BOLT, 1/4-20 x 3/4” Square Neck Carriage, GR 5 Was 90074
19 7014098 6 * WASHER, Reinforcing (.343 I.D.) only 1 shown
20 7090187 6 * WASHER, 5/16” Split Lock only 1 shown
21 7091511 6 * NUT, 5/16-18 Hex, GR 5 Was 90196, only 1 shown
22 7014101 2 ** NUT, 1/2” Push
23 7014342 4 ** BEARING, Nyliner
24 7014103 1 ** SET SCREW, 5/16-18 x 1/4” slotted headless cup point
25 7090250 2 WASHER, 1/2” Flat
26 7014115 1 DECAL, Adjustment
27 7014062 1 DECAL, Thatcherizer

-- 7060554 1 NLA - HARDWARE BAG, Thatcherizer 21” (Std.) Not shown

-- 7060555 1 NLA - HARDWARE BAG, Thatcherizer 21” (Special) Not shown

-- 7026700 1 MANUAL, Operator's (61256) Not shown

tionItem Qt

Note

models only.

Footnotes:

* Included in Hardware Bag # 60554
** Included in Hardware Bag # 60555

SERIES 7

41

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Electric Start Group

Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
TP 400-5143-3-WB-N

42

SERIES 7

Electric Start Group

p

y

Part No Descri

1 7067012 1 KIT, Battery, 12 Volt, 35 CCA (Includes 1, 2, 3, & 4) Was 19763

2 7015488 1 HARNESS, Battery

3 7043977 2 SCREW, #10-24 x 1/2 Hex Head Cap

4 7090932 2 NUT, #10-24 Square

5 7011167 2 KEY, (Set of 2)

6 7015207 1 ASSEMBLY, Seal & Face Nut

7 7038485 1 BRACKET, Ignition Switch

8 7023894 1 COVER, Switch

9 7015206 1 NUT, 3/4-20 Lock
10 7011139 1 SWITCH, Ignition Was 15205
11 7090552 2 SCREW, 1/4-28 x 1 3/8" Hex Head Cap
12 7090053 2 WASHER, 1/4 Internal Tooth Lock
13 7090095 2 NUT, 1/4-28 Hex
14 7019298 1 HARNESS, Wiring 60" Was 17213, 46" on "90 Models

15 7032906 1 BRACKET, Battery (For Self-Propelled Models)
16 7036132 1 COVER, Battery (For Self-Propelled Models)
17 7090731 3 BOLT, 5/16-18 x 1/2" Carriage
18 7091601 3 NUT, 5/16-18 Hex Flange Lock Was 90585
19 7012652 2 CLIP, Wiring
20 7061188 1 CHARGER, Battery (60 Hertz) Was 18834
21 7090779 1 BOLT, 5/16-18 x 5/8" Short Neck. Carriage, Gr. 5
22 7011791 1 RETAINER, 5/16" Bolt

tionItem Qt

Note

& Earlier)

Footnotes:

SERIES 7

43

Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER

TP 400-5143-3-WB-N

Parts Manual fo

r

21" STEEL DECK WALK BEHIND MOWER
SERIES 7

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision 3,

McDonough, GA, 30253 U.S.A.

8/10/2007

Manual No. 7006051A

TP 400-5143-3-WB-N
