Snapper ESS5220E, SS5220E User Manual

Parts Manual fo

r

R

5HP 22" SINGLE STAGE SNOW THROWE

(2009)

MODEL

ESS5220E (1695511)

SS5220E (1695470)

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

Revision IR,

Manual No. 7006480

TP 400-5420-IR-SX-N11/25/2008

s

PAGE GROUP

4
6

8
10
14
16
18
20
22

Handle Assembly Group
Body Covering Group
Auger and Housing Group
Chute System Group
Frame and Fuel Tank Group
Engine Drive System Group
Electric Starter Group
Wheel Assembly Group
Decals Group

Table Of Content

5HP 22" SINGLE STAGE SNOW THROWER
(2009)

Manual No. 7006480

3

TP 400-5420-IR-SX-N

Handle Assembly Group

Manual No. 7006480
TP 400-5420-IR-SX-N

5HP 22" SINGLE STAGE SNOW THROWER

4

(2009)

Handle Assembly Group

p

y

Part No Descri

1 722348 1 HANDLE & GRIP ASSEMBLY
2 1742021H 1 CONTROL, Bail
3 723154 1 BOOT, Clutch Spring
4 722366 1 CABLE, Upper Control
5 723259 1 BRACKET, Control Adjust
6 723261 1 CABLE, Lower Control
7 723263 1 SPRING
8 722326 2 Bolt, "U"

9 723239 2 WASHER
10 1740436 2 KNOB, "T"
11 1741982H 1 HANDLE, Lower
12 725429 20 NUT
13 725330 18 WASHER
14 723280 6 SCREW, 1/4 - 20 x 1-1/4
15 1733377A 1 BRACKET & CUP ASMY-CHUTE -BLACK
16 1740344 1 BOLT, Hex-Head, 1/4-20 X 1.50
17 1740345 1 NUT, Hex-Head, Nylock, 1/ 4-20

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

5

TP 400-5420-IR-SX-N

Body Covering Group

Manual No. 7006480
TP 400-5420-IR-SX-N

5HP 22" SINGLE STAGE SNOW THROWER

6

(2009)

Body Covering Group

p

y

Part No Descri

1 1740006 1 PANEL, Control

2 723280 4 SCREW, 1/4 - 20 x 1-1/4

3 725330 4 WASHER

4 72239 8 1 NUT, 1/4 - 20

6 72290 6 1 NUT, 5/8 - 32

7 691959 1 KEYS & RING, Starter

8 394281S 1 BULB, Fuel Primer

9 72232 7 1 CO VER, Access
10 727479 1 NUT, Keps 1/4 - 20
11 723672 1 HOSE, Primer, 9.5"
12 724504 1 SWITCH, Ignition
13 1741982H 1 HANDLE, Lower
14 1740053 4 SCREW, 1/4 - 14 x 3/4
15 724571 14 NUT, 1/4 - 10
16 1740004 1 COVER, Bottom
17 1740005 1 COVER, Belt
18 1740051 4 SCREW, 10 - 24 x 1/2
19 1740052 4 NUT, Hex Center Lock, 10 - 24
20 1740056 2 LOCKNUT, Hex 1/4 - 20
21 1740425 2 SCREW, 1/4 - 20 x 9/10
22 1740351 1 COVER, Top
23 1740007 1 COVER, Auger Top
24 727970 1 WASHER
25 1740385 1 COVER, Oil Access
26 722347 1 Gasket, Chute Ring
27 720384 6 NUT, Push Pal
28 729475 1 CLIP, Cable
29 1740426 2 SCREW, 10-24 x .72
30 1740427 2 SCREW, 10-24 x .95
31 1740071 1 COVER, R.H. Auger Housing
32 1740407 4 J-NUT, 1/4-10
33 729580 1 GROMMET, Rope
34 729667 1 WASHER, Rope Grommet
35 721923 4 SCREW, 10-24 X 1/2"
36 723243 4 NUT, Hex, Ce nt er-lock, 10-24

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

7

TP 400-5420-IR-SX-N

Auger and Housing Group

Manual No. 7006480
TP 400-5420-IR-SX-N

5HP 22" SINGLE STAGE SNOW THROWER

8

(2009)

Auger and Housing Group

p

y

Part No Descri

1 725304 2 SC REW, 1/4 - 20 x 1

2 72542 9 2 NUT, Hex, 1/4 - 20

3 723010 2 SC REW, 1/4 - 20 x 3/4

4 725330 4 WASHER, Flat

5 1736375 1 HOUSING ASSEMBL Y, Auger

6 728095 2 SC REW, 1/4 - 20 x 5/8

8 724638 1 BEAR ING, Retainer

9 727286 1 Bearing
10 724570 1 SLEEVE, Spacer
11 723659 1 PLATE, Bearing Retainer
12 723622 1 PULLEY, Auger Drive V6
13 724547 1 BEARING, Flange
14 1735771 1 AUGER HOUSING Incl. Ref. Nos. 15, 16, 17, 18,

15 1735606 1 BLADE, Auger, Black
16 1735609 1 BRACKET, Auger, Center
17 1920397 12 NUT, Nylock
18 1919438 1 NUT, Hex-Lock, ESNA Light, 5/16-18, NC 3B, Black
19 1735610 1 SHAFT, Sub
20 5025299X8 4 BOLT, 1/4-20 X 1"
21 1921221 1 CAPSCREW, Hex-Head, 5/16-18 x 1-1/2, G5 Black

tionItem Qt

Note

19, 20, & 21

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

9

TP 400-5420-IR-SX-N

Chute System Group

Manual No. 7006480
TP 400-5420-IR-SX-N

10

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Chute System Group

p

y

Part No Descri

1 723283 2 SCREW, 1/4 - 14

2 727525 1 RETAINER, Chute Ring

3 727528 1 RING, Chute

4 1740430 3 BOLT, Carriage, 5/16 - 18 x 3/4

6 1736069 1 NECK, Chute

7 722334 1 CHUTE, 22" Upper

8 722136 1 KNOB, Wing

9 725331 5 WASHER
10 1742155 1 LOCKWASHER, Shakeproof
11 725408 6 LOCKNUT, Hex, 5/16 - 18
12 1742154 1 BOLT, Carriage, 5/16 - 18
13 1742157 1 BOLT, Upper Chute
14 1740431 5 WASHER, Flat, 11/16
15 1740432 4 NUT, Nylock, 5/16-18
16 1736382 1 CHUTE, Lower
18 722073 1 GEAR, 9-Tooth
19 723283 8 SCREW, 1/4 - 14 x 3/4
20 7091135 1 NUT, Push
21 1714084 1 KNOB, Sleeve
23 1733369 1 CRANK, Chute Rotation
24 1720576 1 HANDLE, Chute Rotator, Lower
25 722139 2 PIN, Hair
26 1741997 1 YOKE ASSEMBLY, Adapter
27 724605 1 PIN, Cotter, .5
28 724564 1 PIN, Universal Joint
29 724579 1 PIN, Clevis
30 724565 1 HOUSING, Universal
31 722322 1 ROD, Lower Crank
32 723010 9 SCREW, 1/4 - 20 x 3/4
33 722315 1 BLADE, Scraper
34 722398 3 LOCKNUT, Hex, 1/4 - 20
35 1734321 1 PLATE, Reinforcement
36 1740346 1 CLIP, Hairpin, 3/32 x 1-5/8"
37 1741504 4 SCREW, 10-32 x 3/4
38 1740398 1 SKID SHOE, RH
39 1740397 1 SKID SHOE, LH

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

11

TP 400-5420-IR-SX-N

Chute System Group

Manual No. 7006480
TP 400-5420-IR-SX-N

12

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Chute System Group

p

y

Part No Descri

40 1740382 4 NUT, Nylock, 10-32
41 1740347 1 PIN, Spring, 5/32 x 1"
42 1720577 1 SPLICE, Chute Handle

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

13

TP 400-5420-IR-SX-N

Frame and Fuel Tank Group

Manual No. 7006480
TP 400-5420-IR-SX-N

14

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Frame and Fuel Tank Group

p

y

Part No Descri

1 723010 9 SC REW, 1/4 - 20 x 3/4

2 725330 18 WASHER

3 1741771H 1 BRACKET, Fuel Tank

4 1715917 1 CAP, Fuel Tank

5 1716634 1 TANK, Fuel

6 725429 20 NUT, Hex 1/4 - 20

7 725408 6 NUT, Hex 5/16 - 18

8 7200111 1 HOSE, Fuel Line, Low Perm, 9" (Cut to length)

9 723462 1 CLAMP, Fuel Line
10 7014359 1 * FILTER, Fuel Line (B&S #298090S) or 722264
12 1741989H 1 CRADLE ASSEMBLY, Engine
13 722321 1 FRAME, L.H.
14 727291 1 SCREW, 5/16-18 x 5/8
15 727940 5 SCREW, 1/4 - 20 x 2
16 727517 1 PLATE, Mounting Support
17 722305 1 SUPPORT, Frame
18 1741988A 1 FRAME, R.H.
19 722633 2 SCREW, 5/16-18 x 3/4
20 1740032 1 RING, Foam
21 724068 1 CLAMP, Fuel Line
22 723210 2 SCREW, 1/4 - 20 x 5/8

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts and service.

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

15

TP 400-5420-IR-SX-N

Engine Drive System Group

Manual No. 7006480
TP 400-5420-IR-SX-N

16

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Engine Drive System Group

p

y

Part No Descri

1 ----- 1 * ENGINE, 5.25GT 4CY B&S Electric Start Mod. 09A413-0202-E1(Domestic Only)

1 ----- 1 * ENGINE, 5.25GT 4CY B&S Electric Start Mod. 09A413-0203-E1(CE/Export Only)

2 1741989H 1 CRADLE ASSEMBLY, Engine

3 722321 1 FRAME, L.H.

4 722360 1 ANTI-VIBRAT IO N MOUNT, Engine

5 727947 1 BOLT, Hex, 5/16 - 18

6 725244 1 BOLT, Hex, 5/16 - 24

7 725331 3 WASHER, Flat

8 725408 6 NUT, Hex Center Lock, 5/16 - 18

9 723651 1 G UIDE, Belt
10 723625 2 BOLT
11 723648 1 PAD, Brake
12 728095 3 SCREW, 1/4 - 20 x 5/8
13 727078 1 IDLER, Arm Pivot
14 723264 1 SPRING
15 725429 20 NUT, Hex 1/4 - 20
16 723625 2 BOLT
17 722046 1 WIRE, Brake
18 723263 1 SPRING
19 727500 1 PIN, Cotter
20 1741727 1 ARM, Idler
21 723256 1 ROD, Clutch Linkage
22 724085 1 PULLEY, Idler
23 1741500 1 SCREW, 3/8 - 16 x 1-5/8
24 722331 1 PULLEY, Engine
25 722330 1 BOLT, Engine Pulley
26 725330 18 WASHER, Flat
27 727940 5 SCREW, 1/4 - 20 x 2
28 729335 1 PINCH ROLLER
29 1741499 1 SPACER, Idler
30 724840 1 NUT, Hex
31 723627 1 BELT, Drive
32 720025 1 BOLT, Hex, 5/16 - 18
33 724071 3 SCREW, 3/8 - 16 x 1
34 723979 3 WASHER, Flat
35 725326 3 LOCKWASHER, Split
36 725320 6 NUT, 5/16 - 18

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts and service.

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

17

TP 400-5420-IR-SX-N

Electric Starter Group

Manual No. 7006480
TP 400-5420-IR-SX-N

18

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Electric Starter Group

p

y

Part No Descri

1 723237 2 SC REW, # 8 - 32 x 3

2 723979 2 WASHER

3 72289 2 2 NUT, Keps

4 791534 1 * LEVER, Choke

5-1 699565 1 * Muffler
5-2 691880 1 * GASKET, Muffler
5-3 699554 1 * SCREW, Torx, Socket-Head, Muffler
5-4 725326 1 WASHER, Split Lock
5-5 725320 1 NUT, Hex, 5/16 - 18
5-6 720025 1 BOLT, Hex, 5/16 - 18

6 724865 1 CORD, Extension (Domestic Only)

6 728168 1 CORD, Extension (CE/Export Only)

7 69933 4 1 * GRIP, Mitten

tionItem Qt

Note

Footnotes:

Note* See your local Briggs & Stratton distributor for parts and service.

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

19

TP 400-5420-IR-SX-N

Wheel Assembly Group

Manual No. 7006480
TP 400-5420-IR-SX-N

20

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

Wheel Assembly Group

p

y

Part No Descri

1 72455 9 2 RE TAINER, E-Ring

3 725603 2 WHEEL & TIRE, 7" x 1-1/2"

5 722328 1 ROD, Axle

6 724750 6 WASHER

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

21

TP 400-5420-IR-SX-N

Decals Group

Manual No. 7006480
TP 400-5420-IR-SX-N

22

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

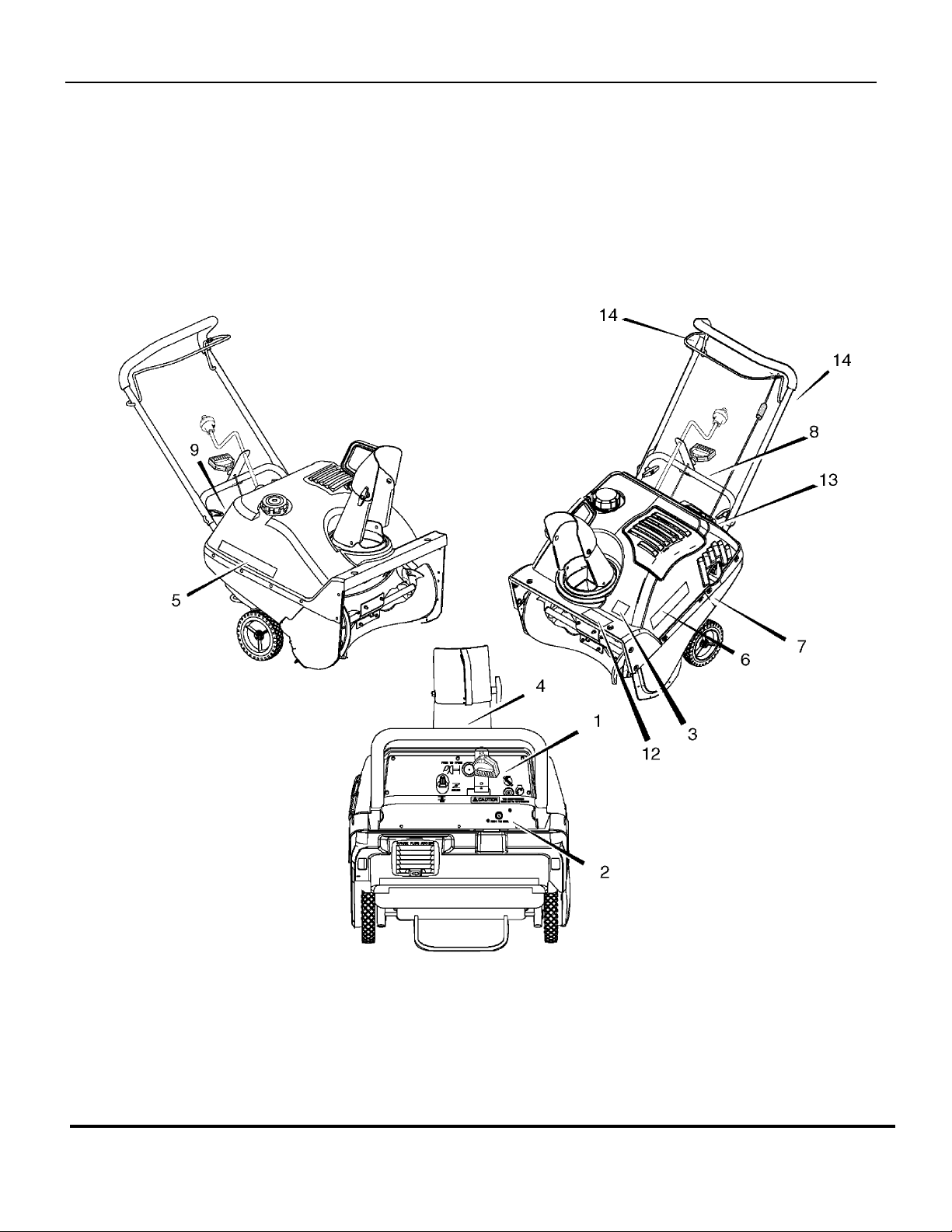

Decals Group

p

y

Part No Descri

1 1740428 1 DECAL, Control Panel Electric Start (Domestic Only)

1 1740400 1 DECAL, Control Panel Electric Start (CE/Export Only)

2 72969 3 1 DECA L , Electric Start

3 725257 1 DECAL, Danger Auger

4 72426 7 1 DE CA L , Danger Chute

5 17403 67 1 DECA L , 522 Snapper R.H .

6 17403 68 1 DECA L , 522 Snapper L.H .

7 72524 1 1 DECA L , Ho t M uffler

8 72737 8 1 DEC A L , A ug er Control

9 17404 22 1 DECA L , Choke
12 1740365 1 DECAL, 522E
13 1742320 1 DECAL, Warning, Access Cover
14 1741994 2 DECAL, Handle protector
15 1742179 1 MANUAL, Operator's

tionItem Qt

Note

Footnotes:

Manual No. 70064805HP 22" SINGLE STAGE SNOW THROWER

(2009)

23

TP 400-5420-IR-SX-N

Parts Manual fo

r

5HP 22" SINGLE STAGE SNOW THROWER

(2009)

IT IS THE POLICY OF BRIGGS & STRATTON CORP. TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION

TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

www.snapper.com

Copyright © 2008
Milwaukee, WI USA. All Rights Reserved

Briggs & Stratton Corporation

Manual No. 7006480

Revision IR,

TP 400-5420-IR-SX-N

11/25/200
