Parts Manual fo
r
21" VARIABLE SPEED
REAR DISCHARGE EUROPEAN MOWERS
MODEL
ESPV21675 (7800253)
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Manual No. 7006158
Revision IR, TP 400-5403-IR-WB-N7/1/2008
s
PAGE GROUP
4
6
8
12
14
16
Handles and Controls
Front and Rear Wheels
Deck Assembly
Engine and Blade Assembly
Transmission
Decals
Table Of Content
21" VARIABLE SPEED
Manual No. 7006158
3
TP 400-5403-IR-WB-N
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
4
Handles and Controls
p
y
Part No Descri
1 7100225 4 SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
2 7300670A 1 PLATE, Control Panel - Plastic Handle
3 2860694 2 NUT, 1/4-20, Hex Flange Nyloc
4 7101410 1 ROPE GUIDE (1/4-20 thread)
5 7101312 1 HANDLE, Plastic Upper, WBM
6 7101321BH 1 BAIL, Plastic Handle, WBM
7 7101416 1 ASSY, Control Head, 21” WBM, RD, Snapper (includes cable &
lever)
8 7090015 1 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2
9 7024649 3 WIRE TIE, 11 Inch Standard Black Nylon
10 7091508 6 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR5 YZ
11 7300567BH 1 BRACKET, Lower Handle, LH 21” WBM
12 7300566BH 1 BRACKET, Lower Handle RH 21” WBM
13 7090951 2 NUT, 5/16-18 Large Head Center Lock, Black
14 7300649BH 2 HANDLE, Connecting 21”/22” WBM
15 7101399 1 CABLE, Bail, 21” WBM, RD, Snapper 44.20” length
16 7300639BH 1 HANDLE, Lower, 21” WBM, RD
17 7101198 2 PIN, Handle Adjust
18 7101200 2 SPRING, Compression
19 7101199 2 BUSHING, Handle Pin
20 7101202 2 KNOB, Quick Release
21 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2
22 7090391 2 WASHER, 5/16” Internal Tooth Lock
23 7035744 2 KNOB, 5/16-18 Wing (Black)
24 7091601 4 NUT, 5/16-18 Flange Lock, YZ
tionItem Qt
Note
Footnotes:
Manual No. 700615821" VARIABLE SPEED
5
TP 400-5403-IR-WB-N
Front and Rear Wheels
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
6
Front and Rear Wheels
p
y
Part No Descri
1 7100861 2 PIN, Axle
2 727782 1 SHIELD, Axle
3 7400275 1 WELDMENT, Rear Crossbar 21” WBM, RD also shown on Deck Assembly
4 7101367 2 DUST SHIELD, 21” WBM, RD
5 7100820 2 GEAR, Pinion
6 7014341 2 RETAINING RING Waldes #5133-50 or equiv.
7 7500540 2 ASSY, Wheel, 8 x 2 Idle, Snapper Tread, Charcoal Gray
8 7500647 1 ASSY, Wheel, 9” Snapper Tread w/Bearing Charcoal Gray incl 2 ball bearings, p/n 7101380
9 7100914 1 GEAR, External Wheel
10 7091196 6 SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap
11 722604 4 WASHER, 1” OD x .387 ID, FLAT
12 7091585 4 NUT, 3/8-16 Hex Center Lock, YZ
13 7101350 4 HUBCAP, 8” & 9” Wheel Spoked- Snapper Cool Gray
14 7400276 1 WELDMENT, Front Crossbar, 21” WBM, RD also shown on Deck Assembly
tionItem Qt
Note
page
page
Footnotes:
Manual No. 700615821" VARIABLE SPEED
7
TP 400-5403-IR-WB-N
Deck Assembly
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
8
Deck Assembly
p
y
Part No Descri
1 7101490 1 CHUTE, 21” Side Discharge
2 7091020 4 PUSHNUT, 1/4”
3 7101471 1 ROD, Pivot, Mulch Cover
4 722507 1 SPRING, Torsion, Chute
5 722848 17 SCREW, 1/4-20 x 11/16” Pan Head Torx, Self-Tap
6 7101437 1 COVER, 21” Mulching
7 7300590D 1 BRACKET, Chute Deflector
8 7091286 5 SCREW, #10-24 x 1/2” Hex Washer Self-Tap, SEMS
9 722503 1 SPRING, Torsion
10 720735 1 SPACER, Rear Door, 21”
11 7101314 1 ROD, Pivot, Rear Door, 21” RD
12 727785 1 DOOR, 21” Black
13 7400275 1 WELDMENT, Rear Crossbar 21” WBM, RD
14 7101774 2 BOLT, Shoulder (#10-24 thread)
15 7101430 1 ROD, Lifter Link
16 7101241 4 BUSHING, Front, 21”
17 7091892 2 PUSHNUT, 1/4 Black
18 7400276 1 WELDMENT, Front Crossbar 21” WBM, RD
19 7101304 1 GRASSBAG, 21” Rear Discharge
20 7101303A 1 BAG FRAME, 21” RD WBM
21 7026421 1 GRIP, Rectangular (Black)
22 7300723D 1 TRANSMISSION COVER, Rear 21”
23 7101434 1 SPRING, Extension, Height-of-Cut Assist
24 7101553 1 DEFLECTOR, Rear, 21” WBM, RD
25 720723 1 PLUG, Mulching
26 7101418 1 BEARING HOLDER, 21” WBM,RD
27 7078243 1 BALL BEARING, Axle
28 7091318 4 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 YZ
29 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
30 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ
31 7300587D 1 INDEX PLATE, Height-of-Cut, 21” WBM, RD
32 7300591D 1 BAFFLE, Right Rear, 21” WBM, RD
33 7300584D 1 DECK, 21” Rear Discharge
34 7091290 5 NUT, #10-24 Hex Nyloc
35 7300589D 1 BAFFLE, Left Rear, 21” RD, WBM
36 7091711 3 BOLT, #10-24 x 5/8” Flat Head Square Neck, YZ
37 7101502 1 BAFFLE, Extension, 21” RD WBM
tionItem Qt
Note
Footnotes:
Manual No. 700615821" VARIABLE SPEED
9
TP 400-5403-IR-WB-N
Deck Assembly
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
10
Deck Assembly
p
y
Part No Descri
38 7300585D 1 BAFFLE, Front 21” WBM, RD
39 724970 1 LEVER, Spring Height-of-Cut
40 724887 1 GRIP, Height-of-Cut
tionItem Qt
Note
Footnotes:
Manual No. 700615821" VARIABLE SPEED
11
TP 400-5403-IR-WB-N
Engine and Blade Assembly
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
12
Engine and Blade Assembly
p
y
Part No Descri
1 -- 1 * ENGINE, B&S, 675 Series Euro Mod. 126T02-0180-B1
2 7090324 3 SCREW, 3/8-16 x 1” Hex Washer Self-Tap
3 7300725D 1 BELT GUARD
4 7300724D 1 COVER, Belt
5 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap, Torx
6 7100437 1 PULLEY, Engine
7 7092086 1 SET SCREW, 5/16-18 x 1/2” Hex Recess
8 7091214 1 KEY, #HP-506 Hi-Pro
9 7100883 1 BELT, 3L, Traction Drive, 21” Pivot Handle 3L Sect., 32.86” Effective Length
10 7101313 2 BELT GUIDE, Engine, 21” RD (1/4-20 thread)
11 7300596D 1 COVER, Belt Guard
12 722864 6 SCREW, #10 x 1/2”, AB, w/Washer
13 7091584 2 NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
14 7101414 1 HUB, Blade, 21” WBM, RD, 2 Position
15 7100242 1 BLADE, Wave, 21” Steel Deck
16 7012063 1 WASHER, Cone
17 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
18 7101271 1 COVER, Front, 21” WBM, RD
tionItem Qt
Note
Footnotes:
NOTE: * Purchase engine parts from engine manufacturer dealer.
Manual No. 700615821" VARIABLE SPEED
13
TP 400-5403-IR-WB-N
Transmission
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
14
Transmission
p
y
Part No Descri
1 -- 1 ASSY, TRANSMISSION, 21 (not sold as an assembly)
2 7091195 2 SCREW, #10-16 x 3/4” Pan Head Self-Tap, Combo
3 7100863 1 BELT GUIDE, Transmission
4 7100883 1 BELT, Traction Drive, 21” Pivot Handle Section 3L, 32.86 effective length
5 1960251 1 NUT, 3/8-16 Hex Center Lock Jam, Black
6 7100240 1 PULLEY, Trans Var Speed, LC WBM
7 7101245 1 TRANSMISSION, 21” WBM, RD, Snapper
8 7900032 8 SCREW, 7mm x 1 x .550 AB Point
tionItem Qt
Note
Footnotes:
Manual No. 700615821" VARIABLE SPEED
15
TP 400-5403-IR-WB-N

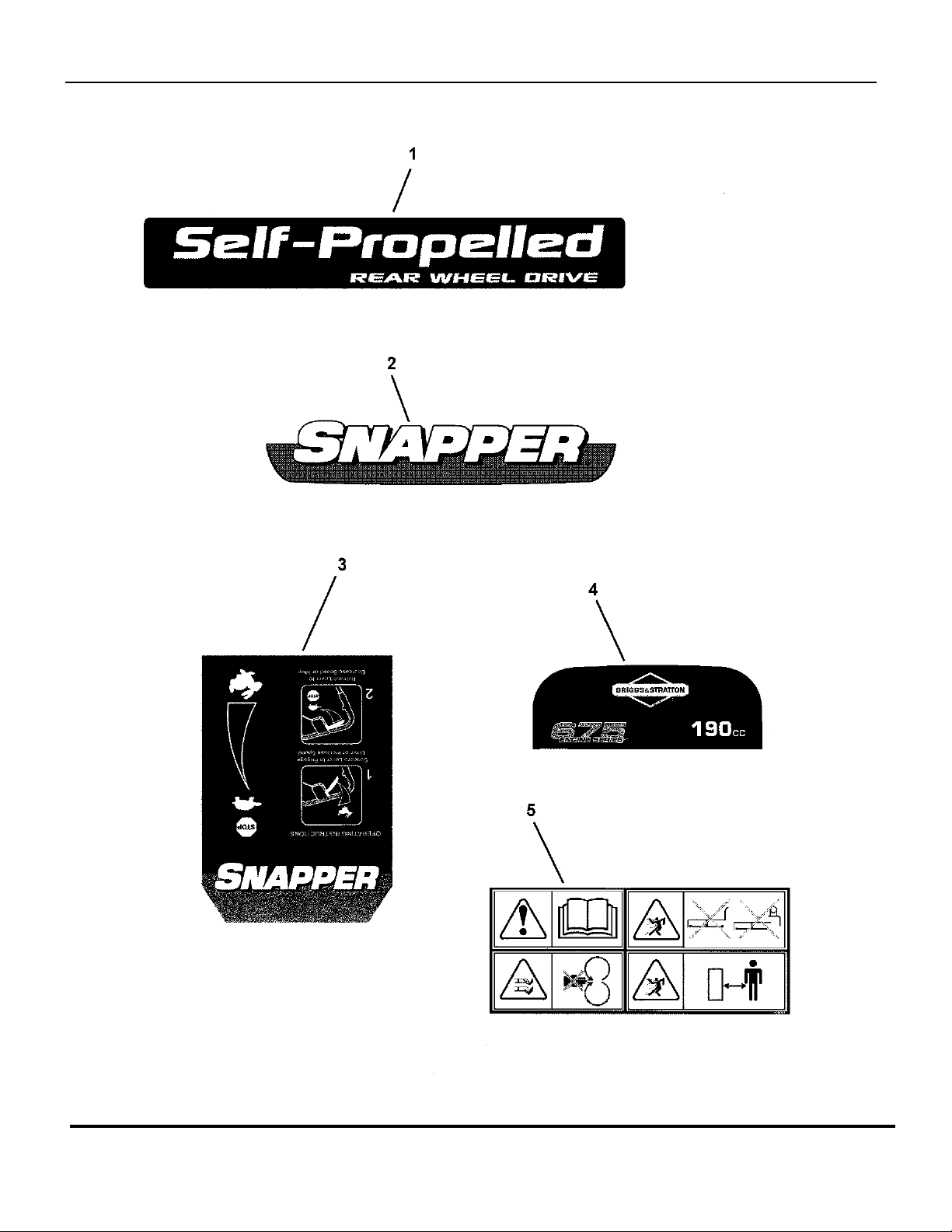

Decals
Manual No. 7006158 21" VARIABLE SPEED
TP 400-5403-IR-WB-N
16
Decals
p
y
Part No Descri
1 7101540 1 DECAL, Front Cover, 21” RD, Snapper
2 7102153 1 DECAL, Briggs Engine, Snapper
3 7101536 1 DECAL, Control Head, VS, Snapper
4 7102381 1 DECAL, Engine, TP, 675 Snapper euro
5 7101084 1 DECAL, Warning, Euro, Multi-Panel
tionItem Qt
Note
Footnotes:
Manual No. 700615821" VARIABLE SPEED
17
TP 400-5403-IR-WB-N
Parts Manual fo
r
21" VARIABLE SPEED
REAR DISCHARGE EUROPEAN MOWER
IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS
PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.
WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
www.snapper.com
Copyright © 2008
Milwaukee, WI USA. All Rights Reserved
Briggs & Stratton Corporation
Manual No. 7006158
Revision IR,
TP 400-5403-IR-WB-N
7/1/2008
